2018--Farkas-D-Caro-A--Fe-Ni-Cr-Co-Cu

Citation: D. Farkas, and A. Caro (2018), "Model interatomic potentials and lattice strain in a high-entropy alloy", Journal of Materials Research, 33(19), 3218-3225. DOI: 10.1557/jmr.2018.245.

Abstract: A set of embedded atom method model interatomic potentials is presented to represent a high-entropy alloy with five components. The set is developed to resemble but not model precisely face-centered cubic (fcc) near-equiatomic mixtures of Fe–Ni–Cr–Co–Cu. The individual components have atomic sizes deviating up to 3%. With the heats of mixing of all binary equiatomic random fcc mixtures being less than 0.7 kJ/mol and the corresponding value for the quinary being −0.0002 kJ/mol, the potentials predict the random equiatomic fcc quinary mixture to be stable with respect to phase separation or ordering and with respect to bcc and hcp random mixtures. The details of lattice distortion, strain, and stress states in this phase are reported. The standard deviation in the individual nearest neighbor bond lengths was found to be in the range of 2%. Most importantly, individual atoms in the alloy were found to be under atomic strains up to 0.5%, corresponding to individual atomic stresses up to several GPa.

LAMMPS pair_style eam/alloy (2018--Farkas-D--Fe-Ni-Cr-Co-Cu--LAMMPS--ipr1)

See Computed Properties
Notes: This file was provided by Diana Farkas (Virginia Tech) on 19 March 2019 and posted with her permission. Update 2019-05-20: Superseded by new version.
File(s): superseded

LAMMPS pair_style eam/alloy (2018--Farkas-D--Fe-Ni-Cr-Co-Cu--LAMMPS--ipr2)

See Computed Properties
Notes: This file was provided by Diana Farkas (Virginia Tech) on 20 May 2019. Professor Farkas notes "The update is to make the potentials go to zero smoothly for distances of 5.8 Å. The original version went up to 6 Å and the last 0.2 Å were not smooth. This does not affect any of the common calculations but may make a difference in some cases like Peierls stresses of dislocations."
File(s):

FeNiCrCoCu-heafixed.setfl

Implementation Information

This page displays computed properties for the 2018--Farkas-D--Fe-Ni-Cr-Co-Cu--LAMMPS--ipr2 implementation of the 2018--Farkas-D-Caro-A--Fe-Ni-Cr-Co-Cu potential. Computed values for other implementations can be seen by clicking on the links below:

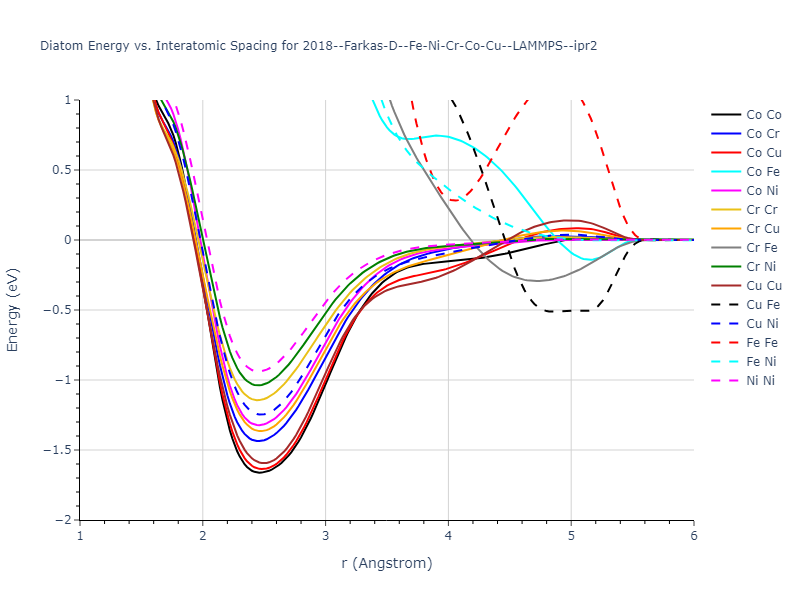

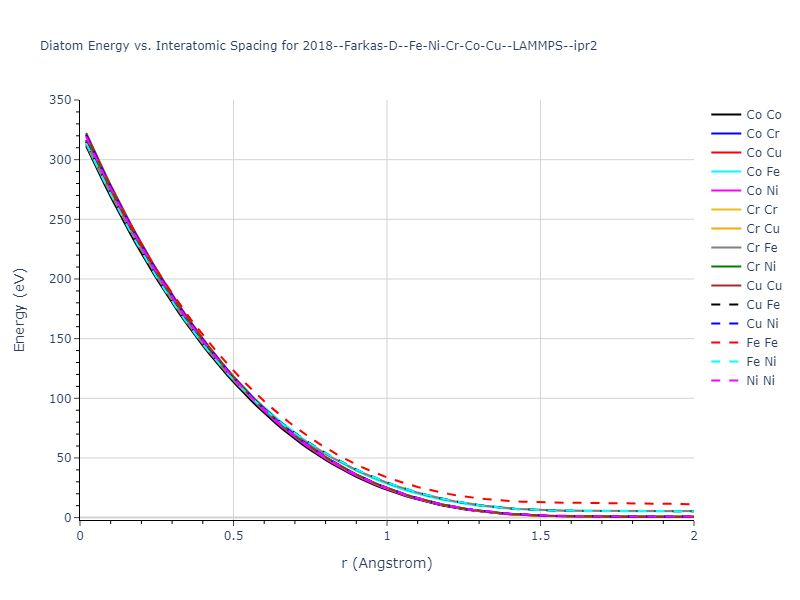

Diatom Energy vs. Interatomic Spacing

Plots of the potential energy vs interatomic spacing, r, are shown below for all diatom sets associated with the interatomic potential. This calculation provides insights into the functional form of the potential's two-body interactions. A system consisting of only two atoms is created, and the potential energy is evaluated for the atoms separated by 0.02 Å <= r <= 6.0> Å in intervals of 0.02 Å. Two plots are shown: one for the "standard" interaction distance range, and one for small values of r. The small r plot is useful for determining whether the potential is suitable for radiation studies.

The calculation method used is available as the iprPy diatom_scan calculation method.

Clicking on the image of a plot will open an interactive version of it in a new tab. The underlying data for the plots can be downloaded by clicking on the links above each plot.

Notes and Disclaimers:

These values are meant to be guidelines for comparing potentials, not the absolute values for any potential's properties. Values listed here may change if the calculation methods are updated due to improvements/corrections. Variations in the values may occur for variations in calculation methods, simulation software and implementations of the interatomic potentials.
As this calculation only involves two atoms, it neglects any multi-body interactions that may be important in molecules, liquids and crystals.
NIST disclaimer

Version Information:

2019-11-14. Maximum value range on the shortrange plots are now limited to "expected" levels as details are otherwise lost.
2019-08-07. Plots added.

Download data

Click on plot to load interactive version

2018--Farkas-D--Fe-Ni-Cr-Co-Cu--LAMMPS--ipr2/diatom

Click on plot to load interactive version

2018--Farkas-D--Fe-Ni-Cr-Co-Cu--LAMMPS--ipr2/diatom_short

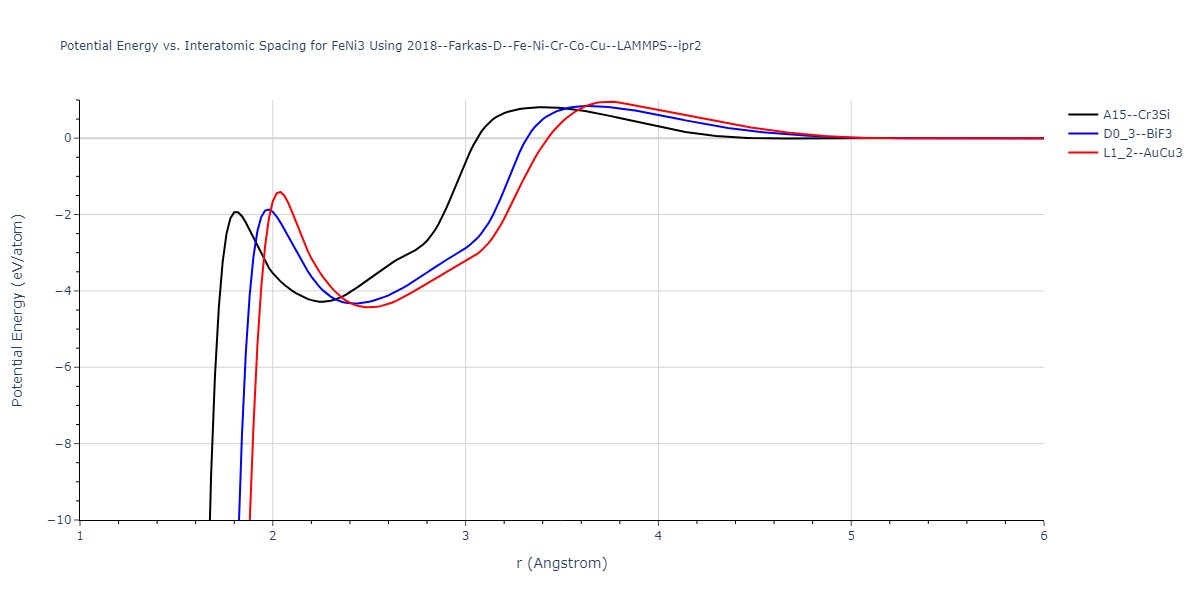

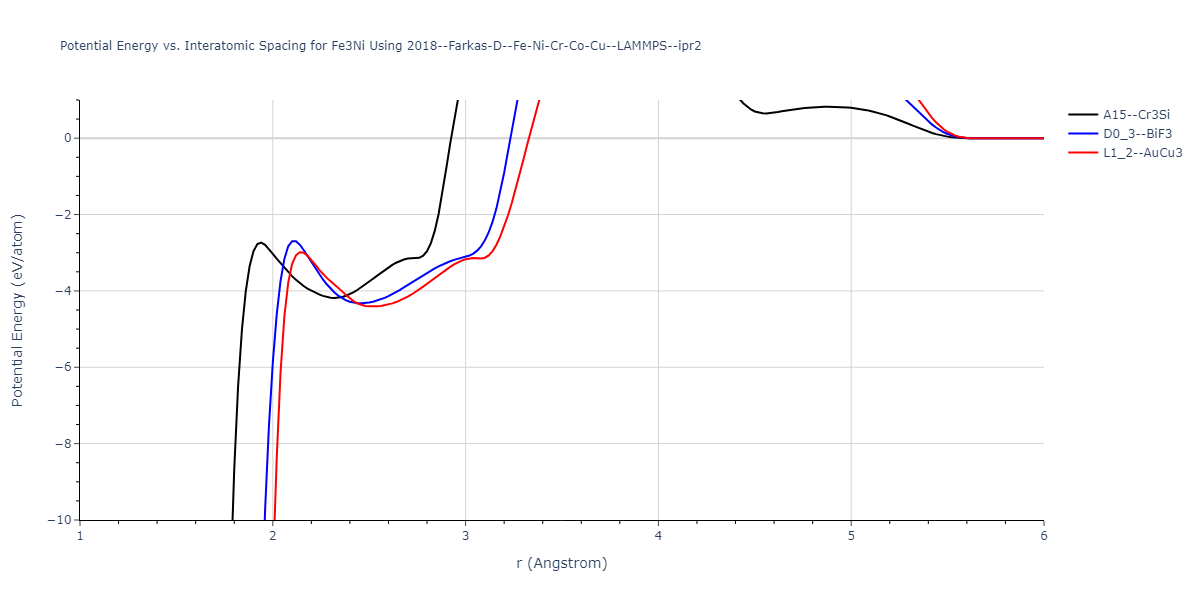

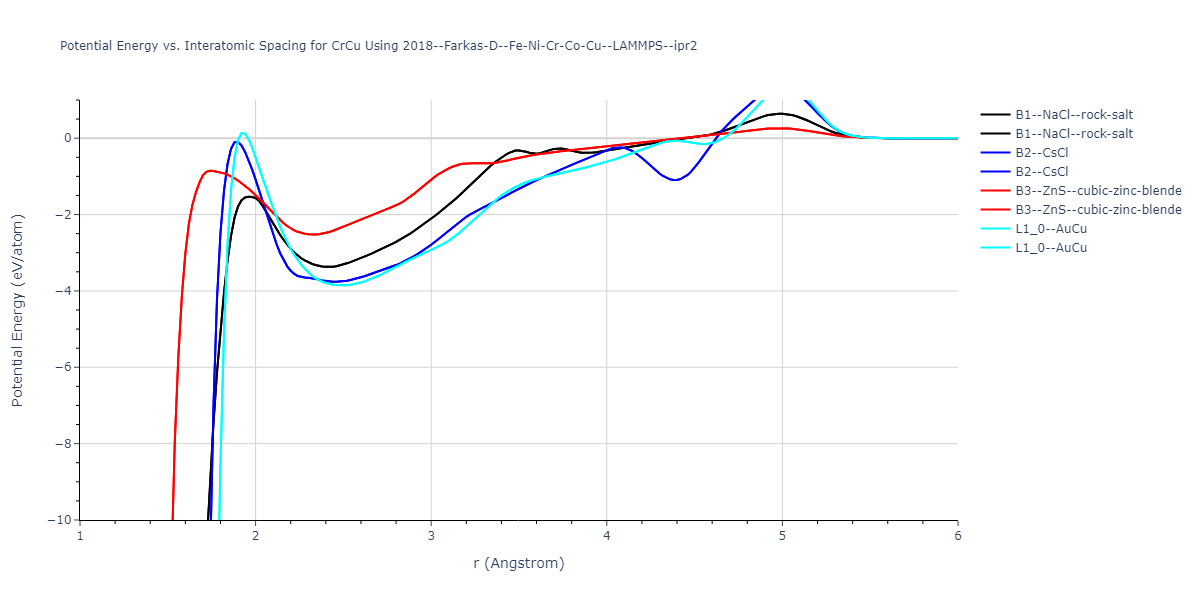

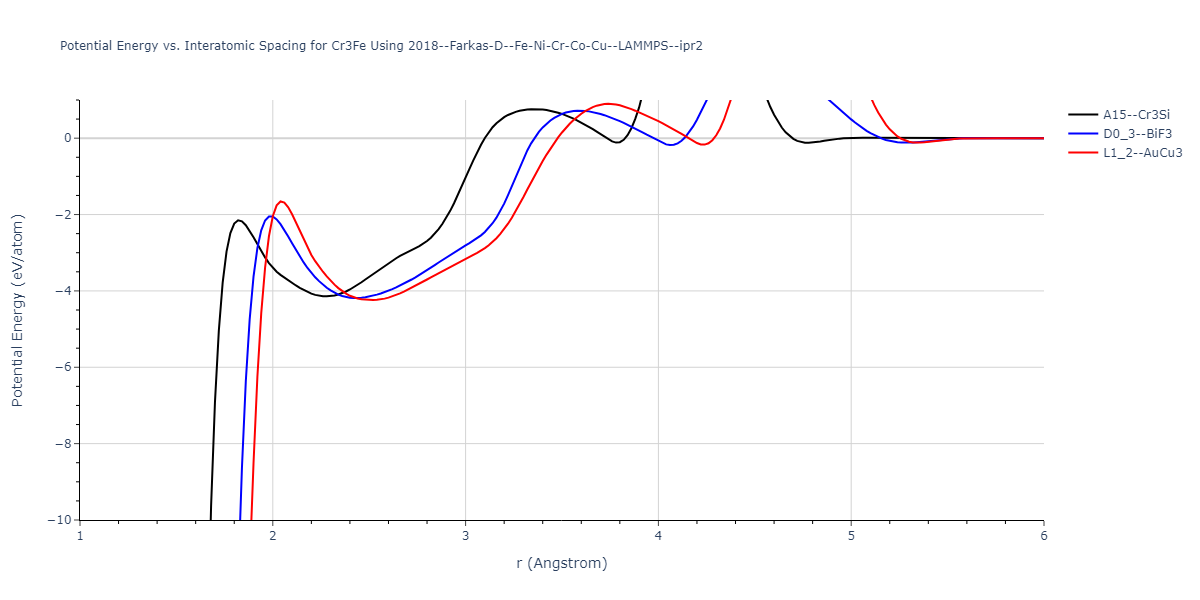

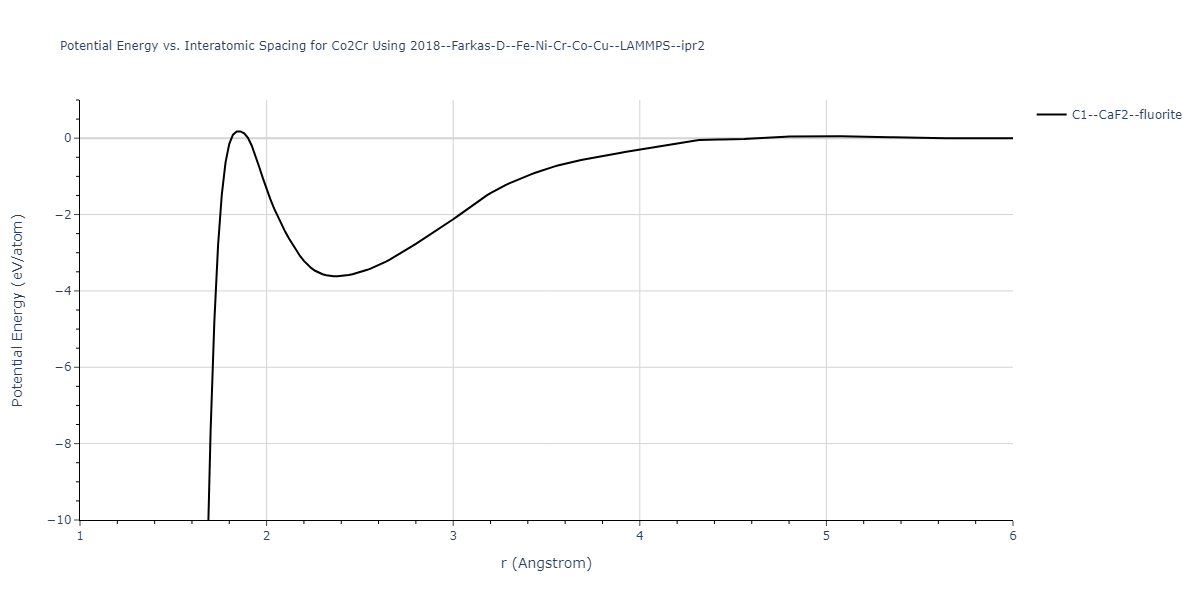

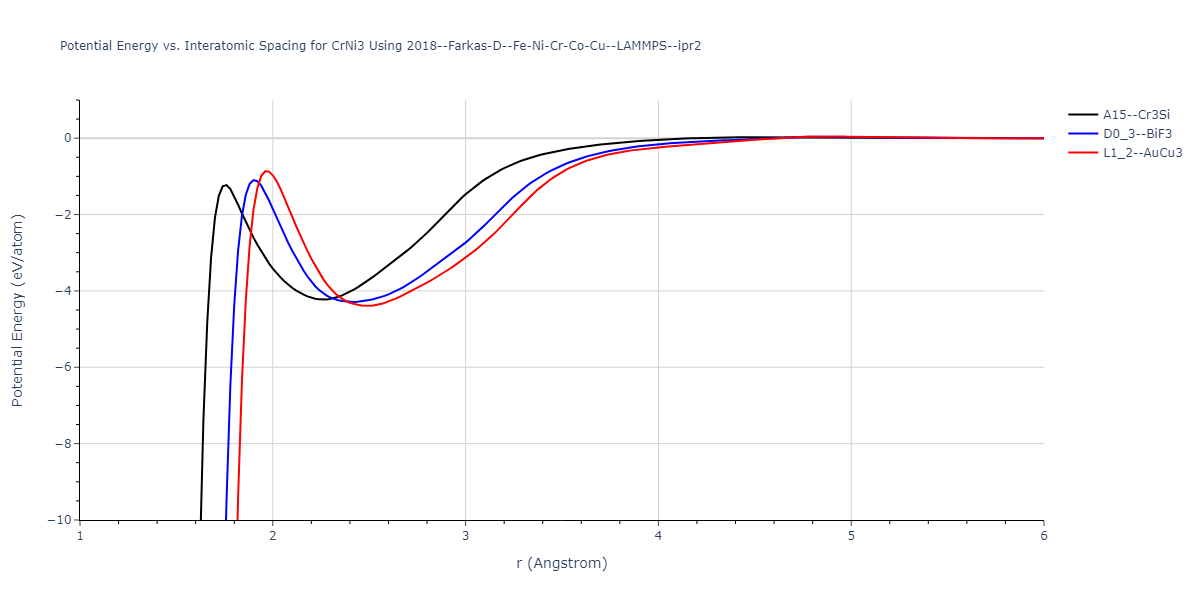

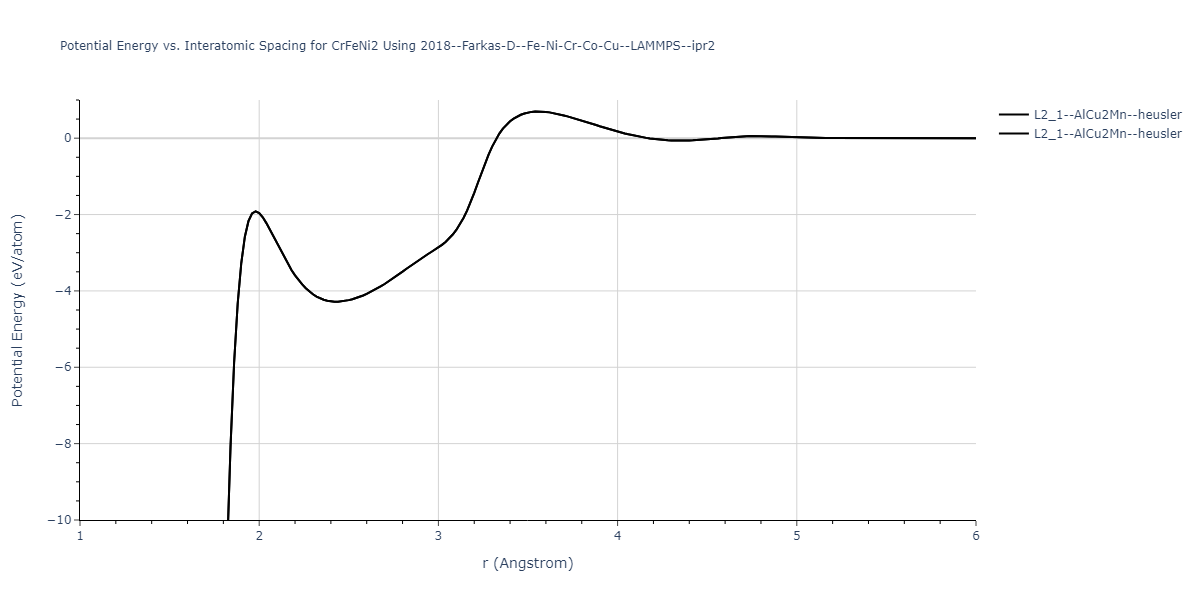

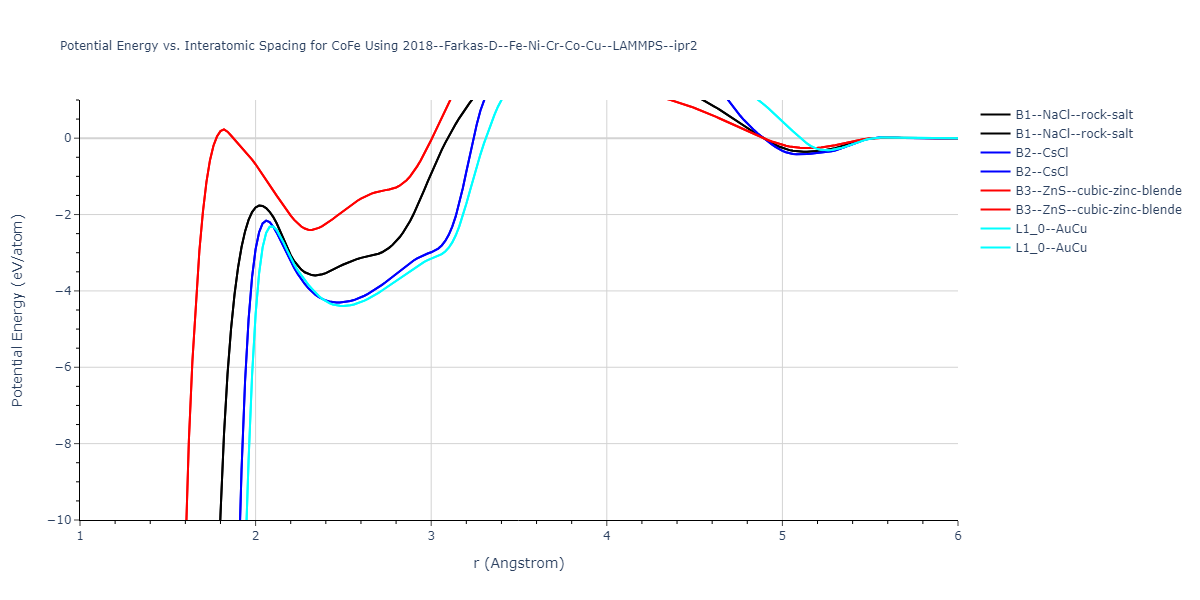

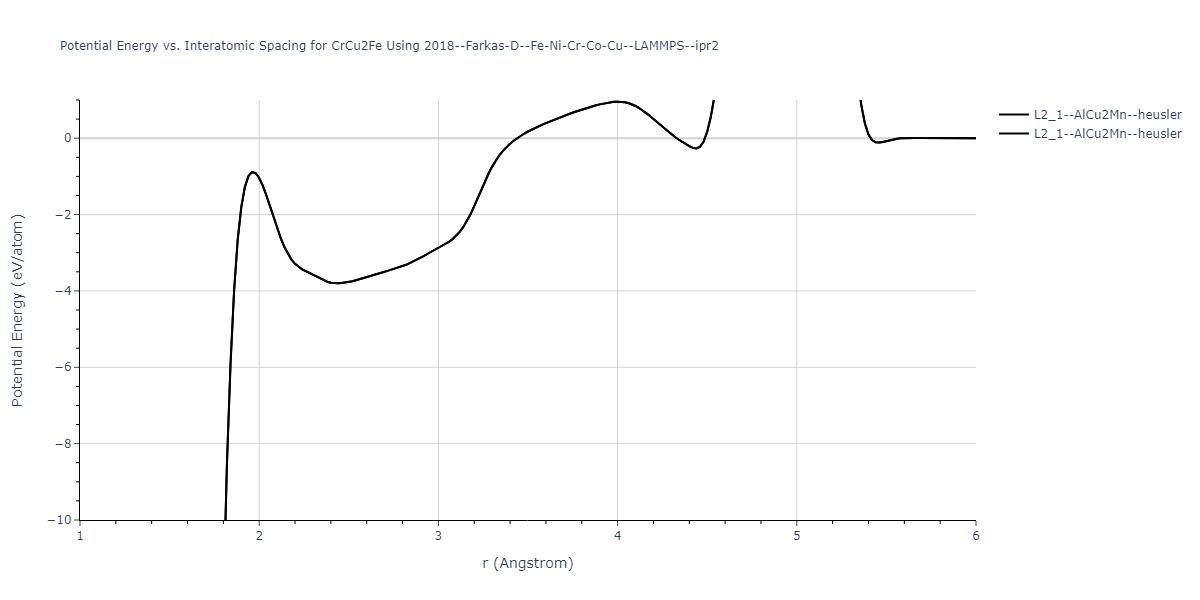

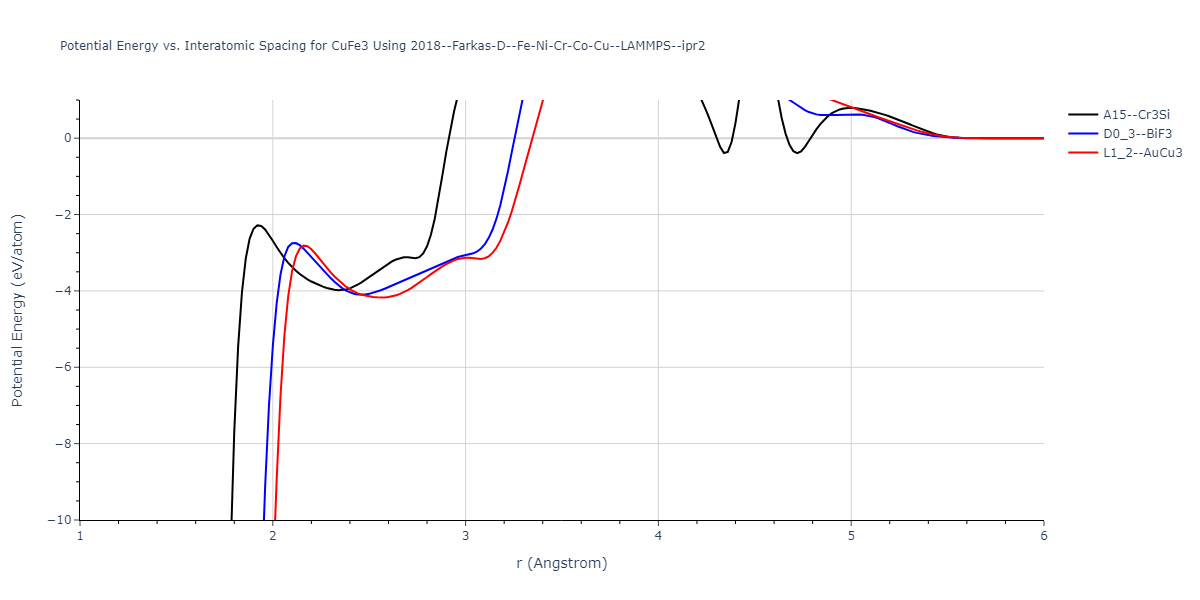

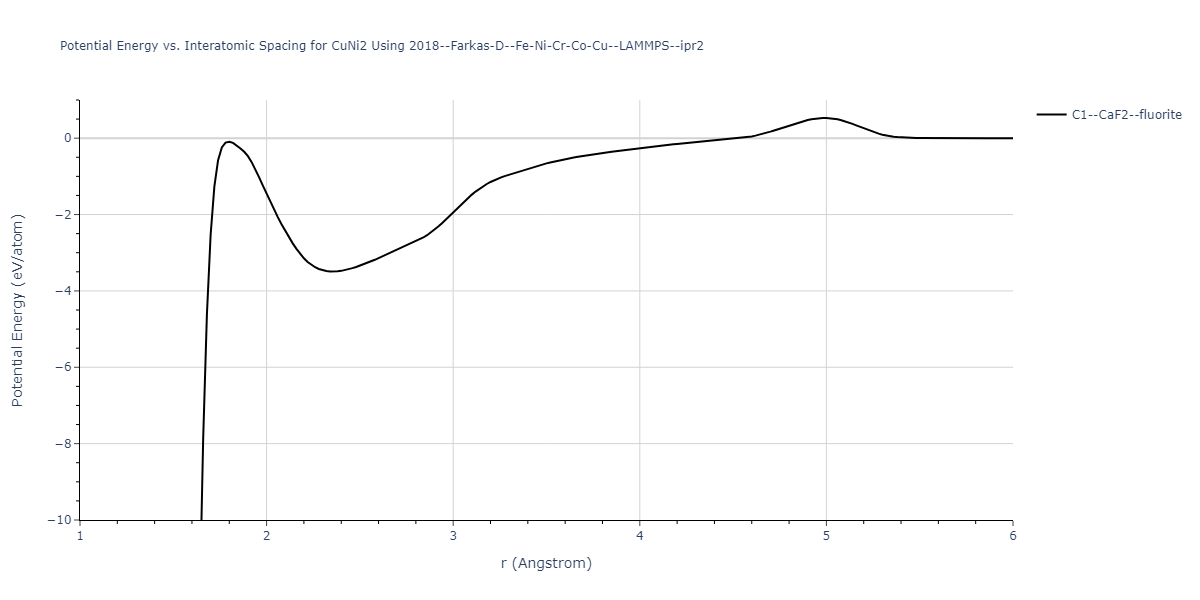

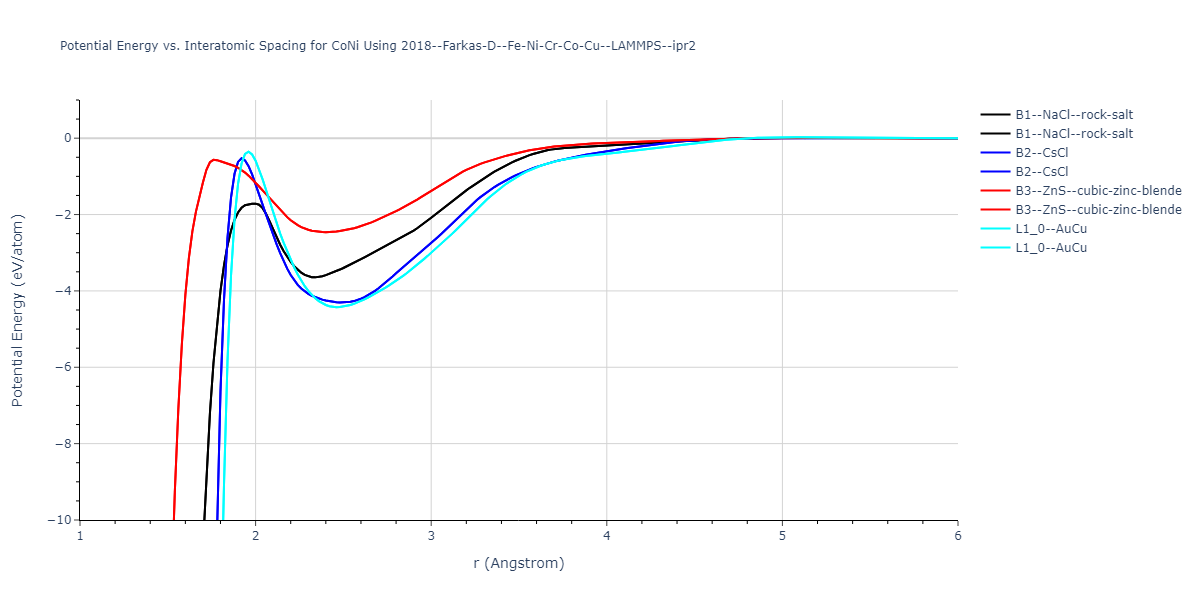

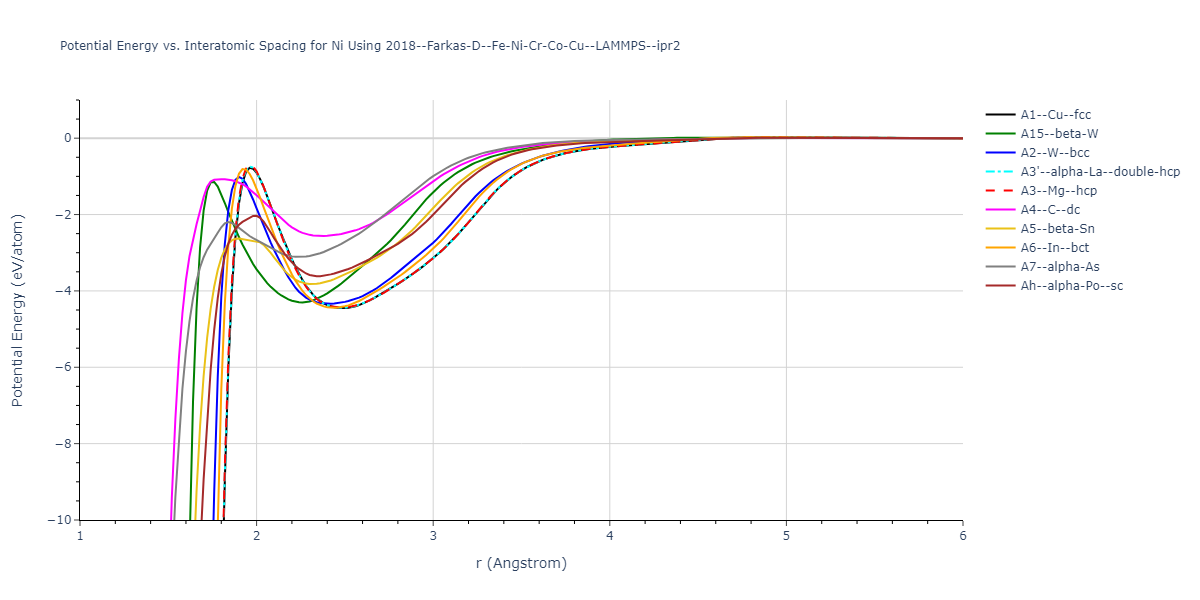

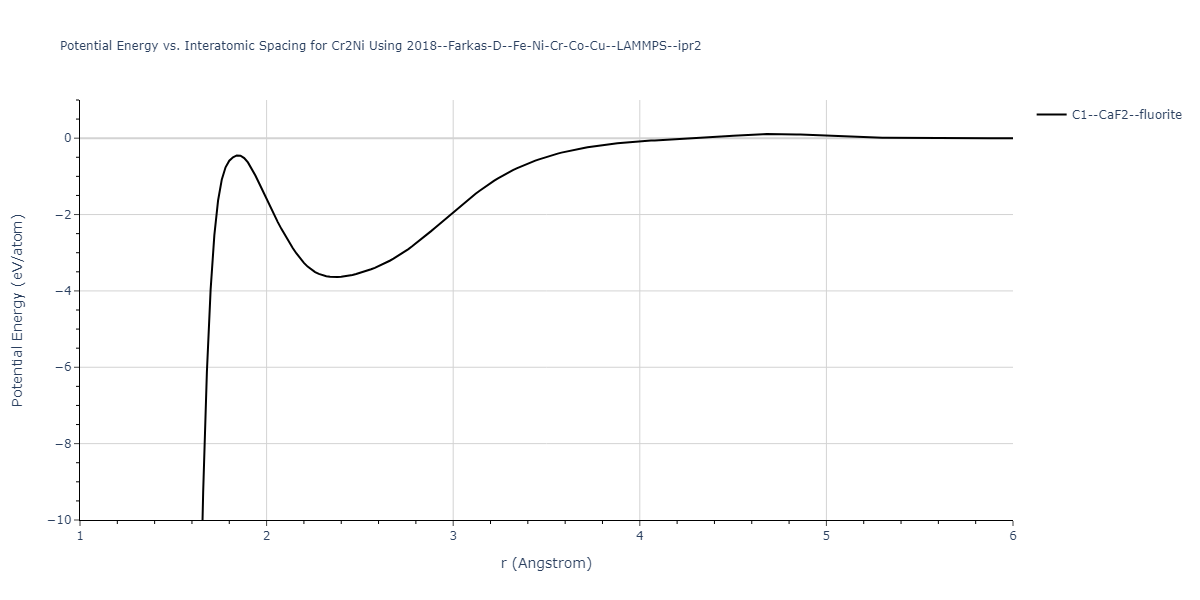

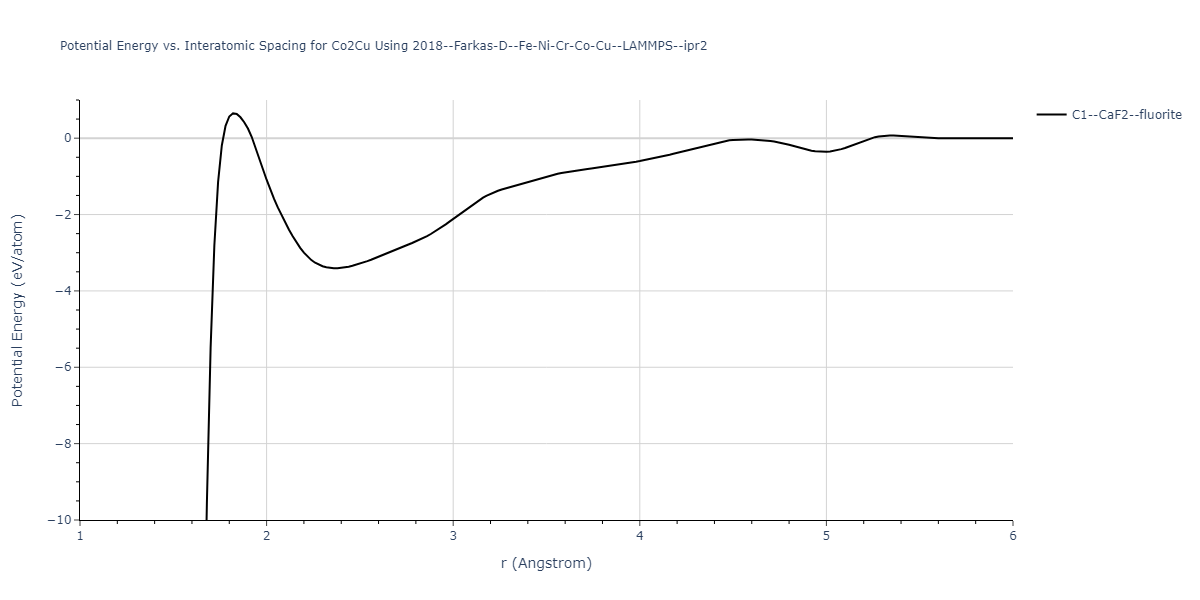

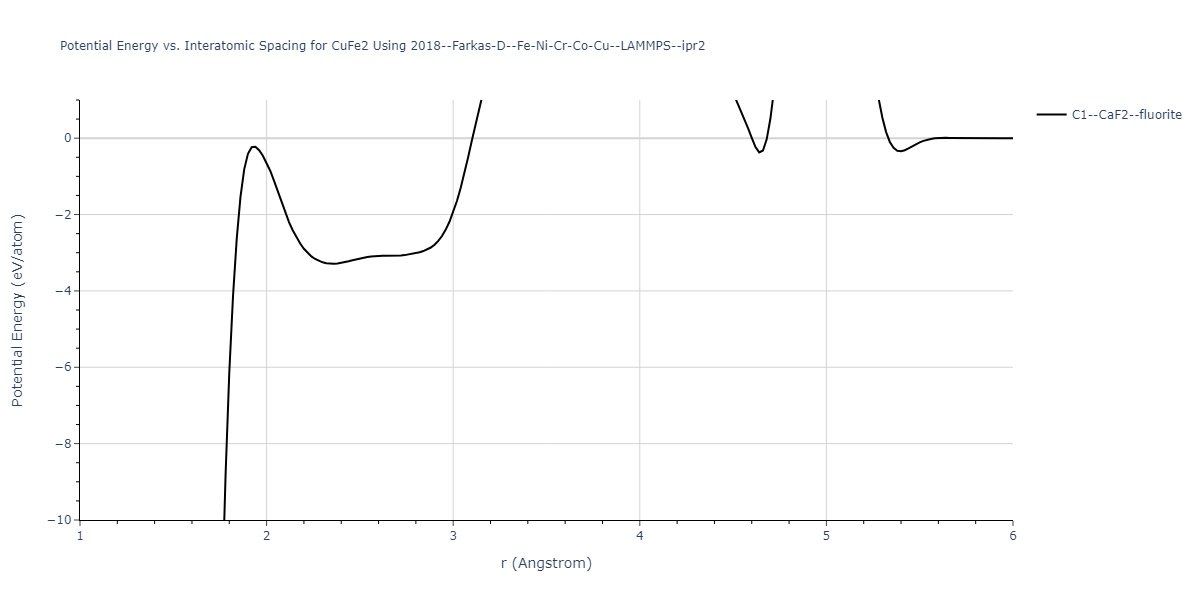

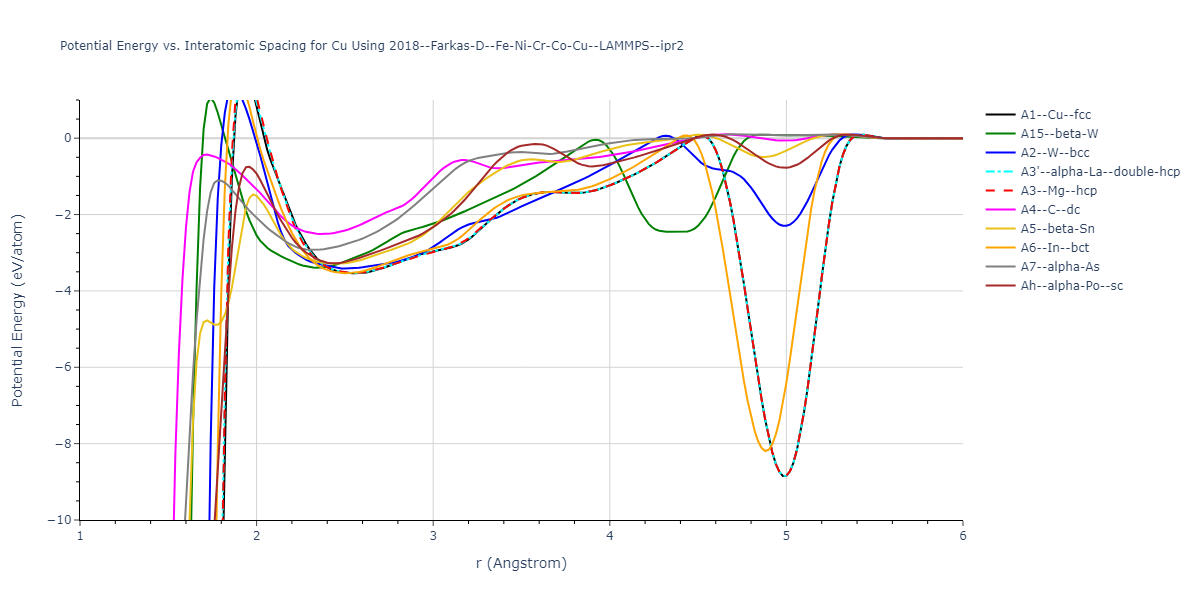

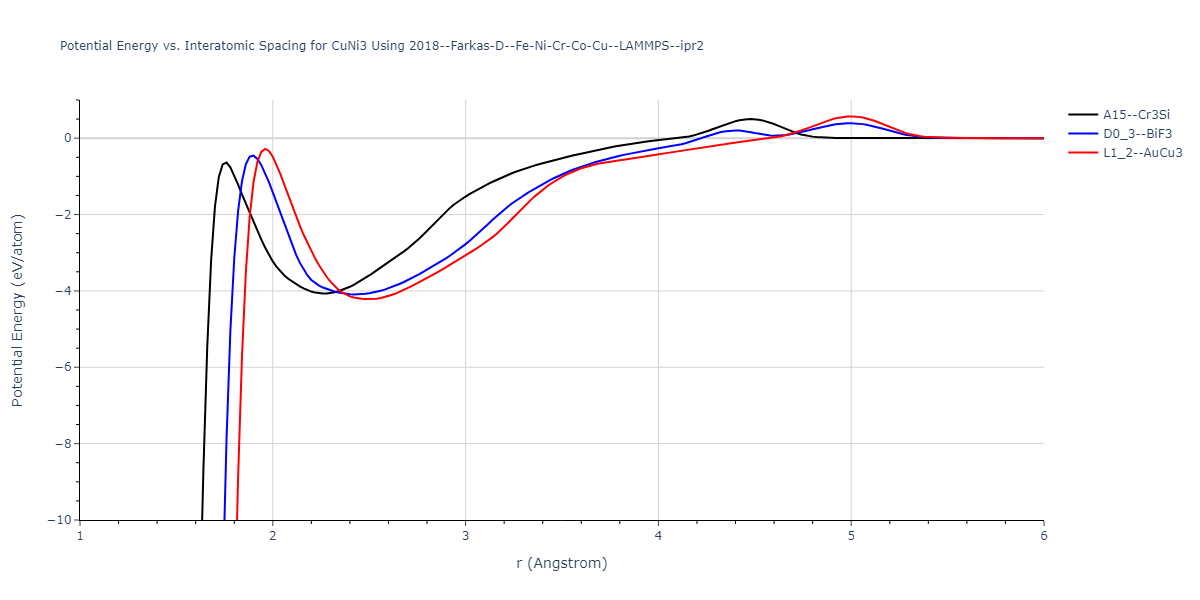

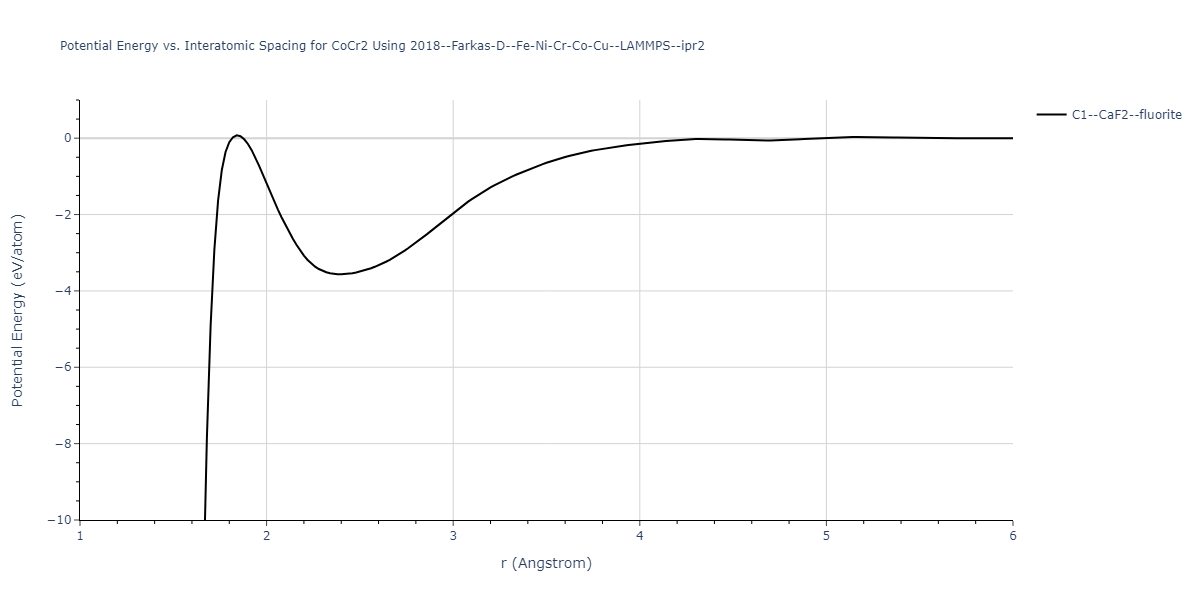

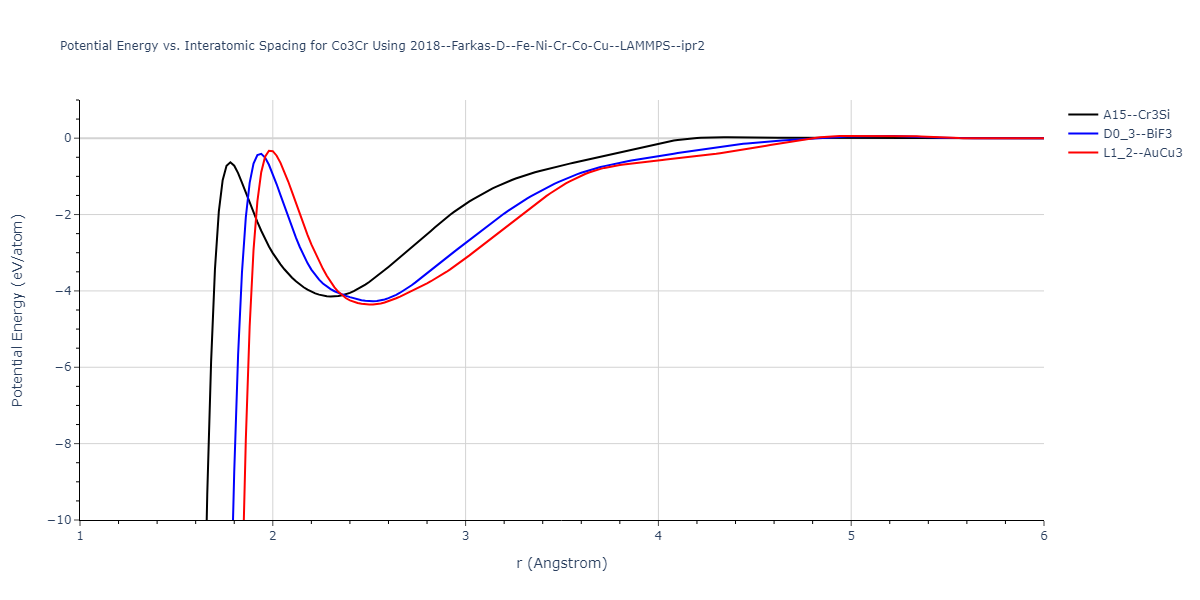

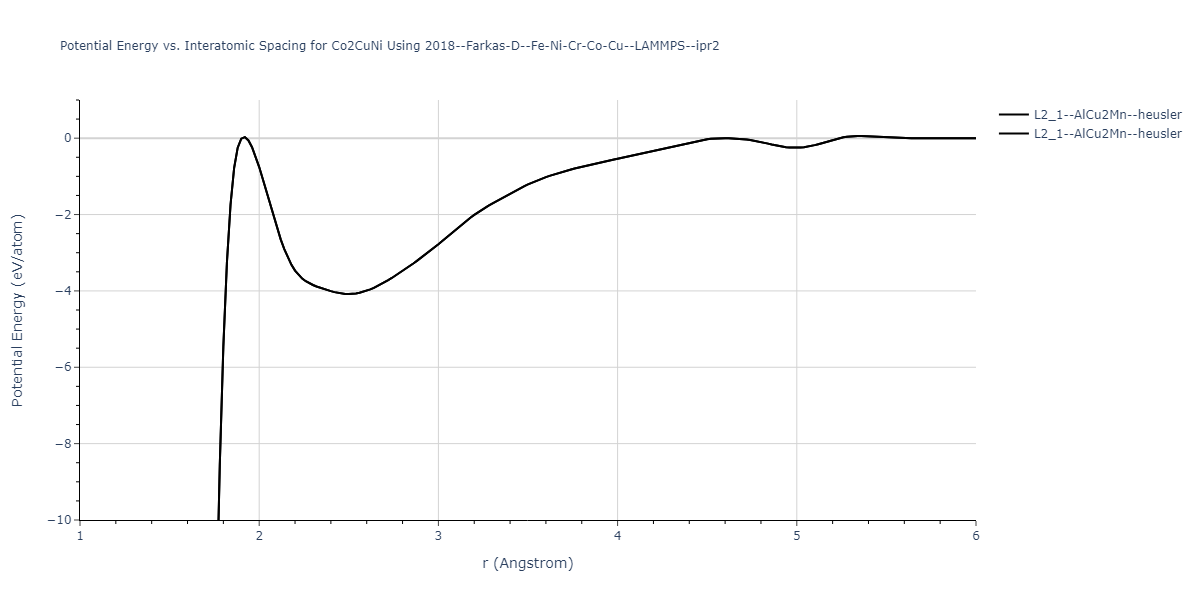

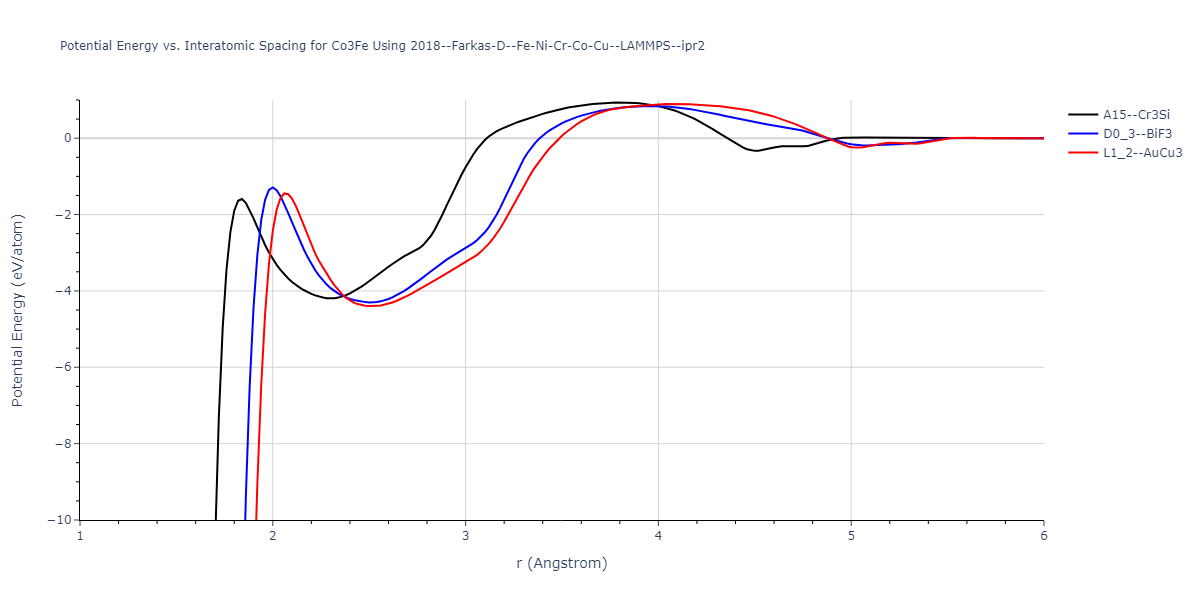

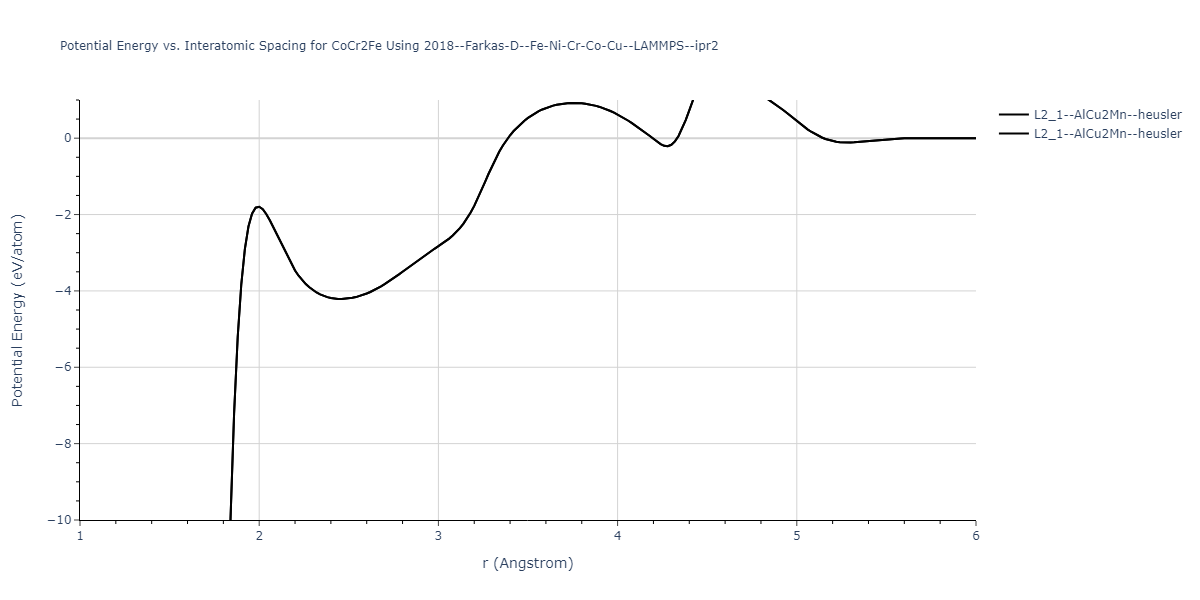

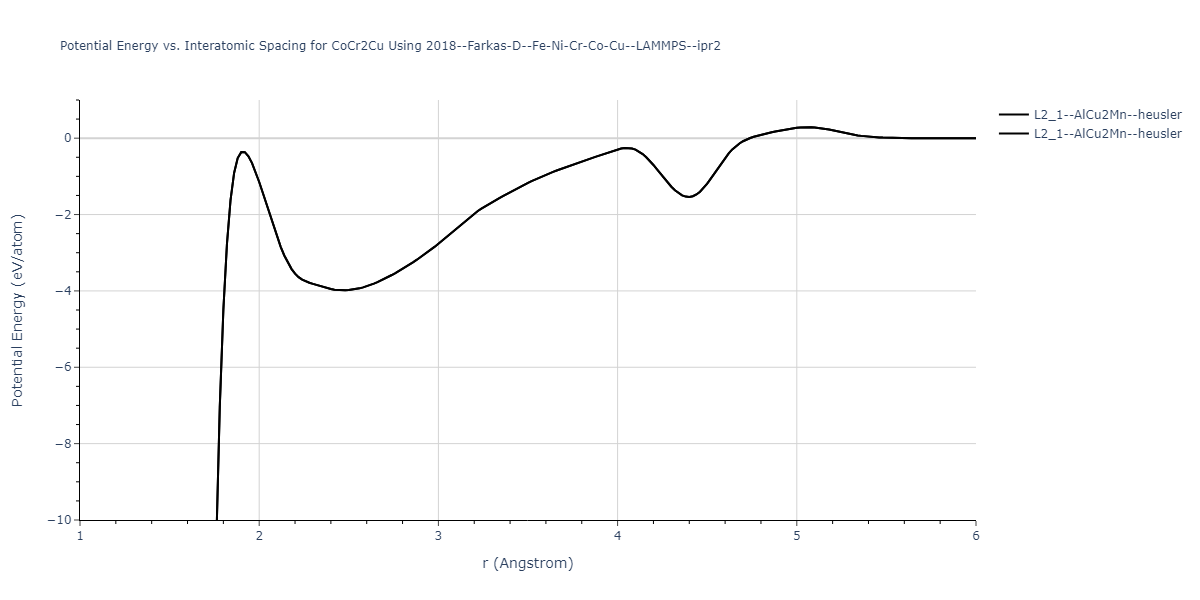

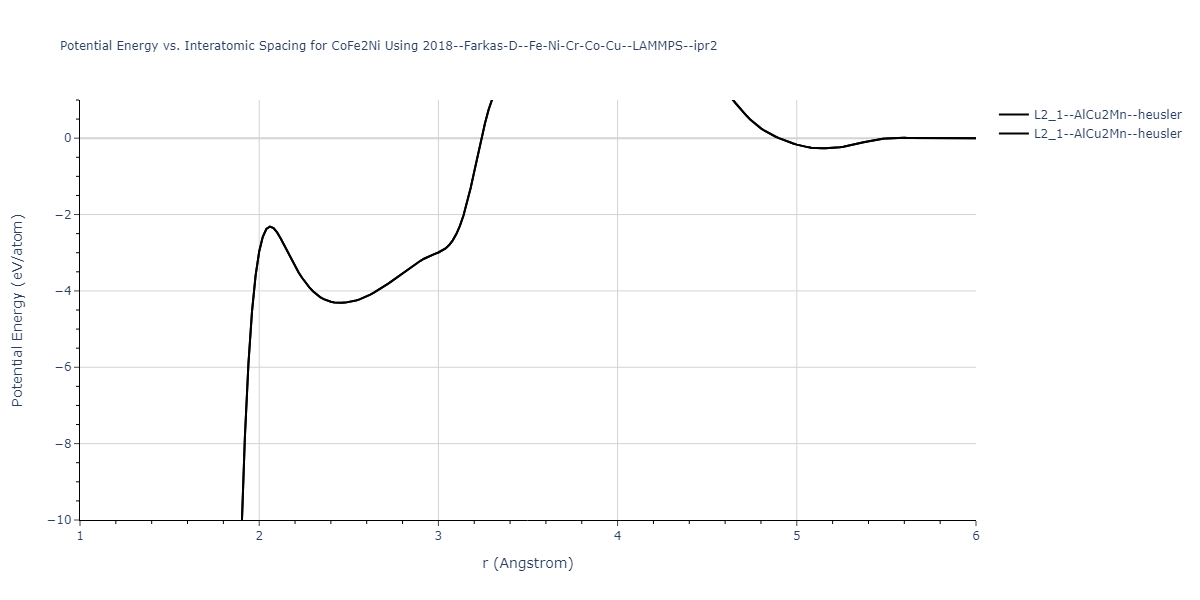

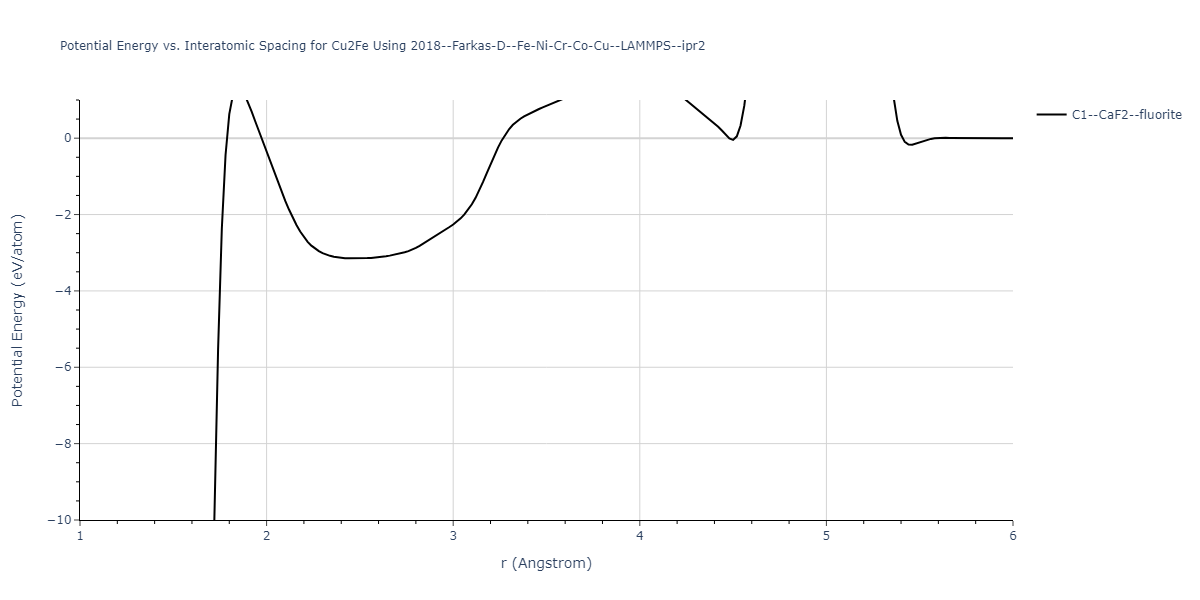

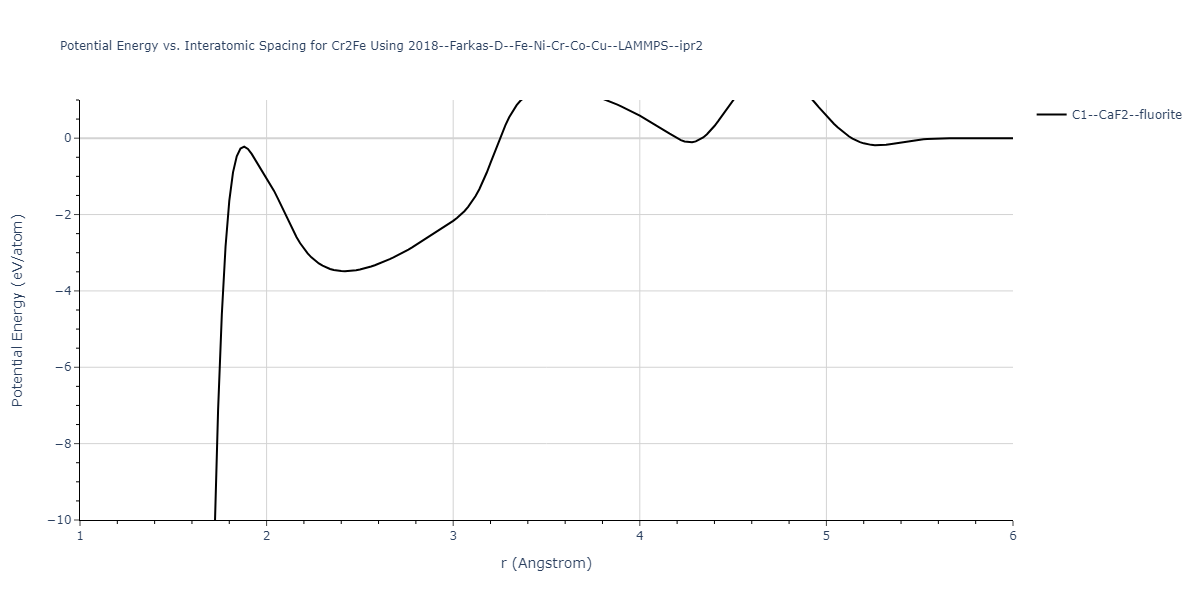

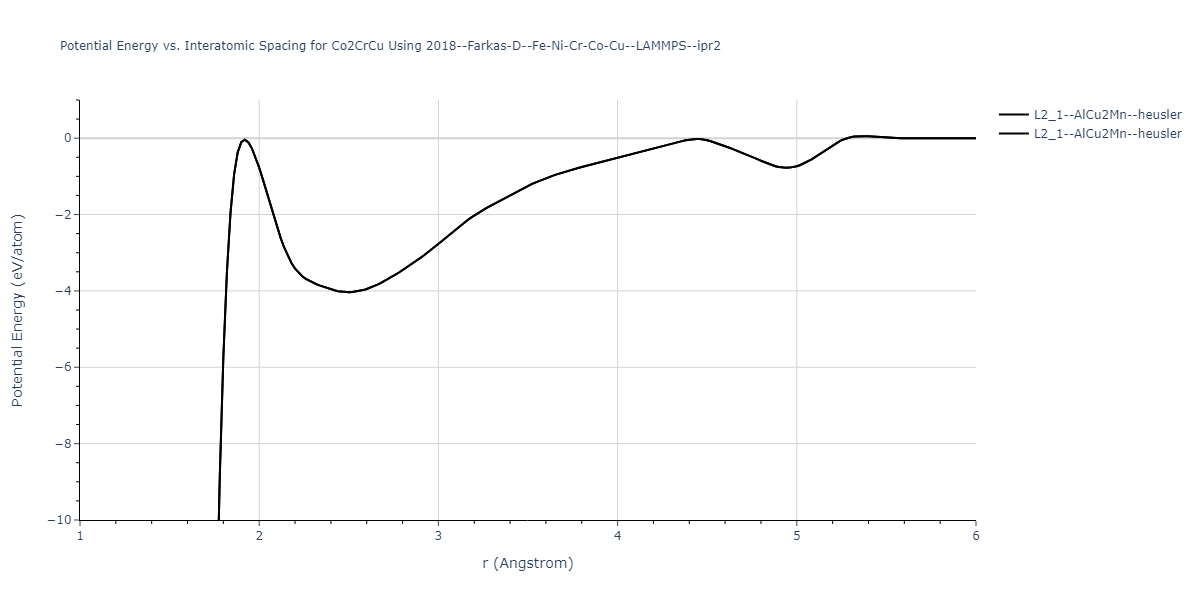

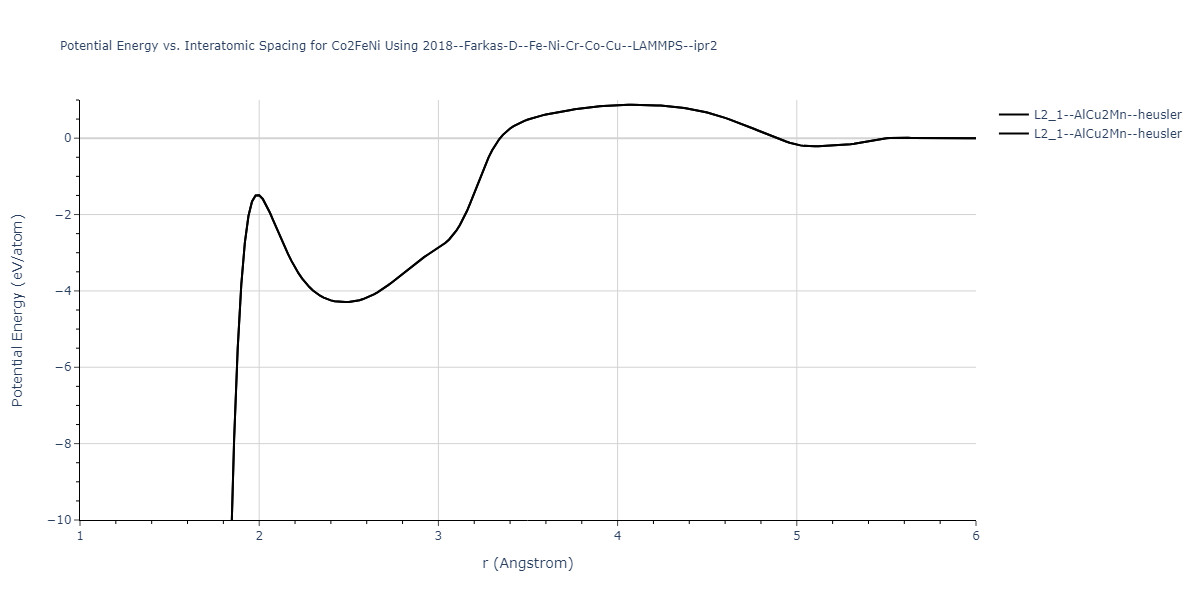

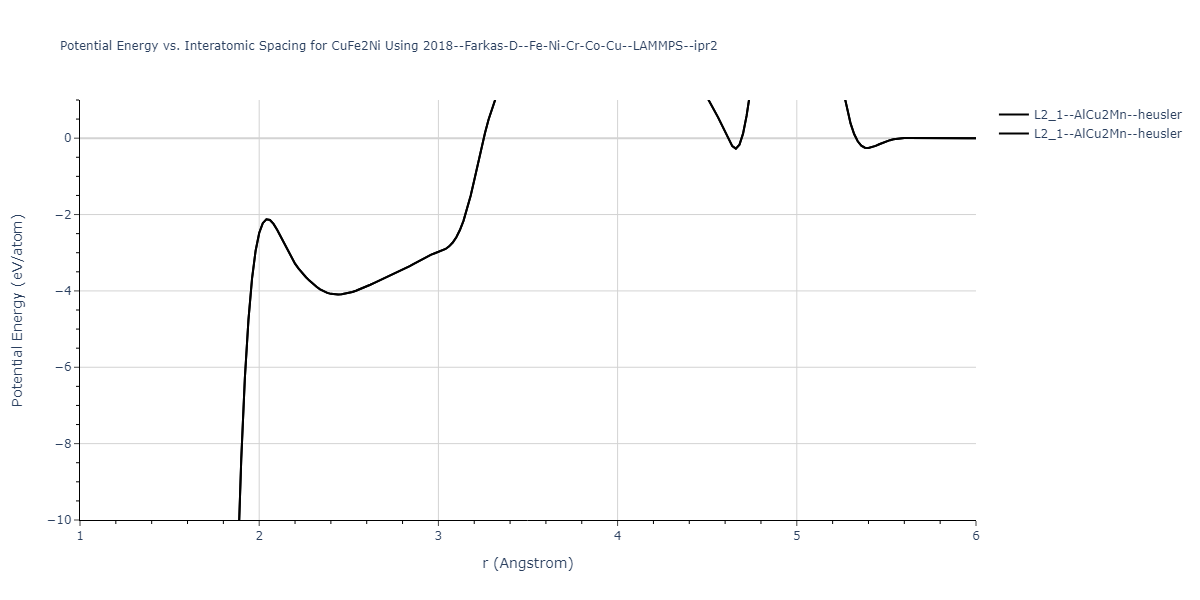

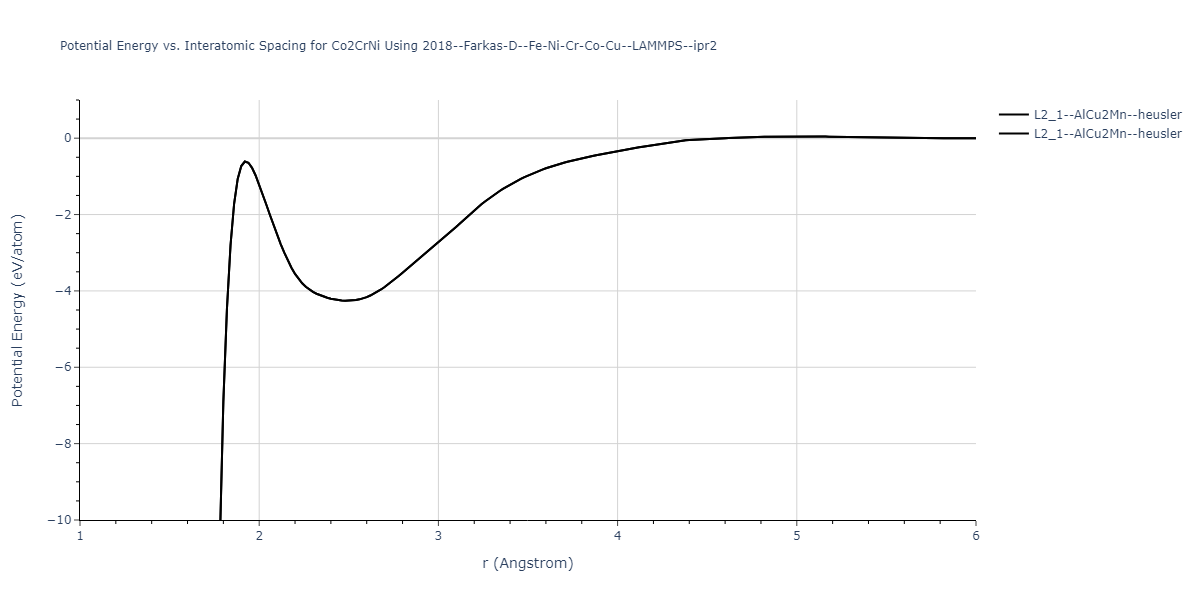

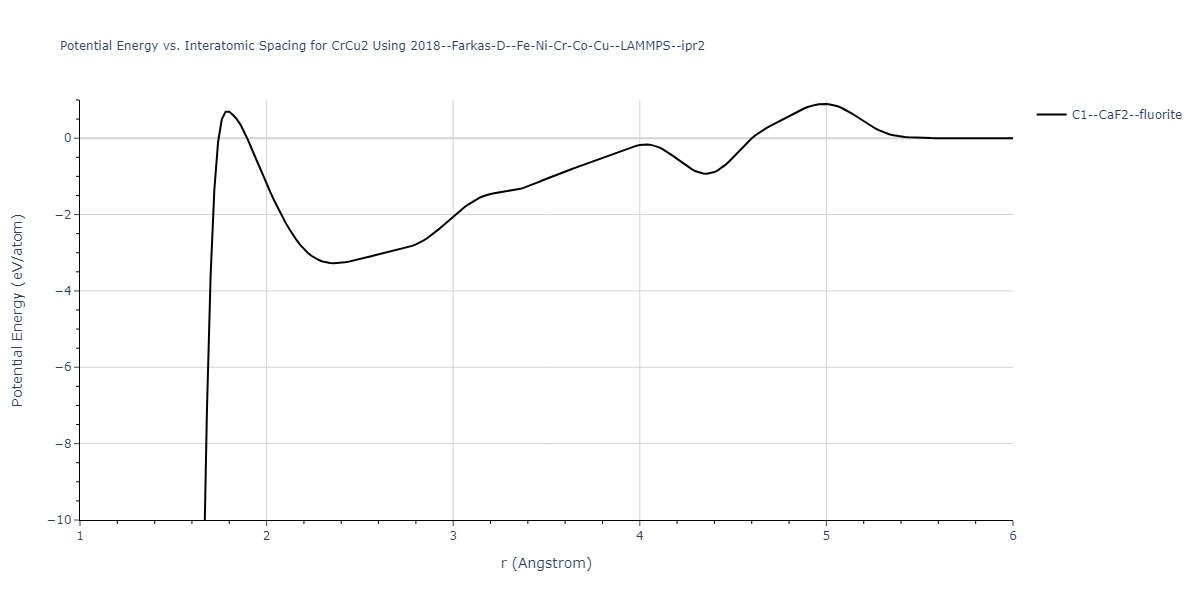

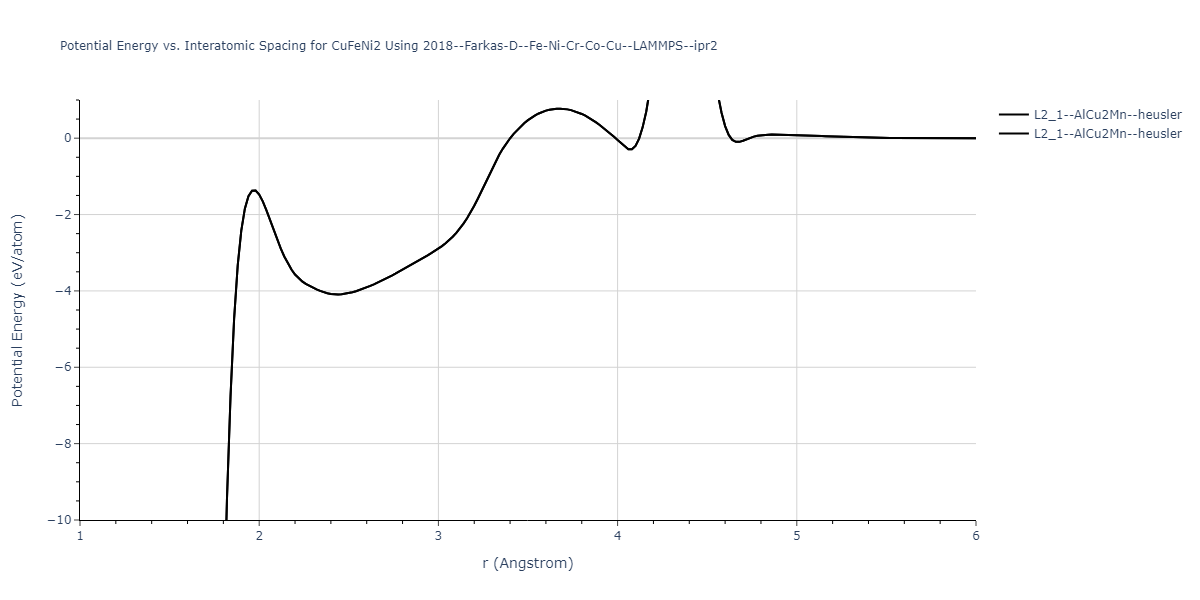

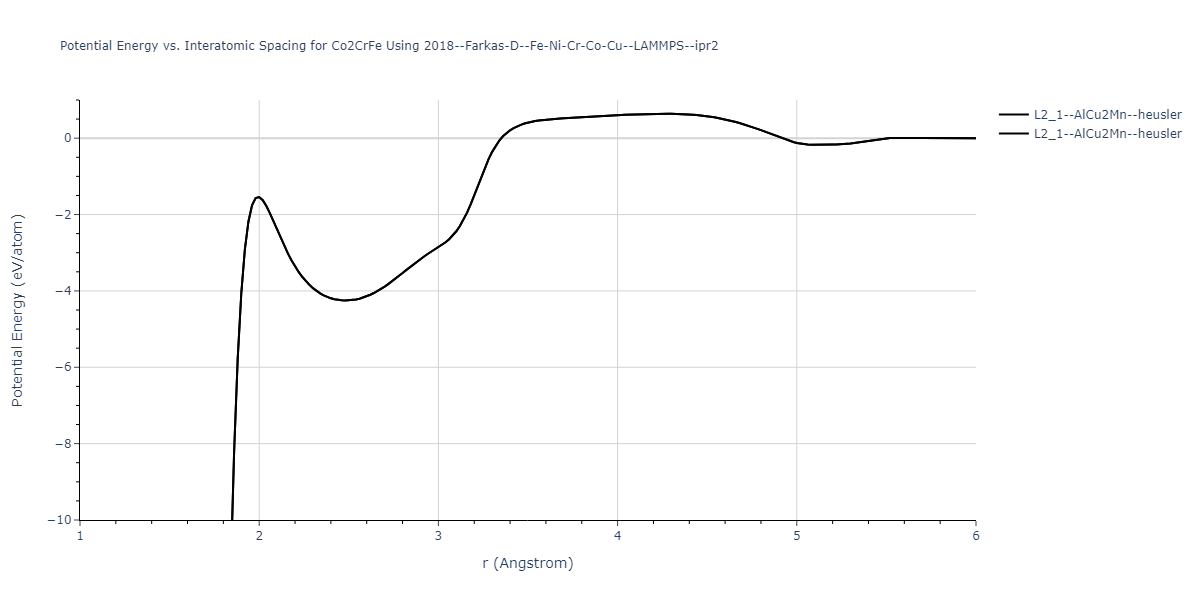

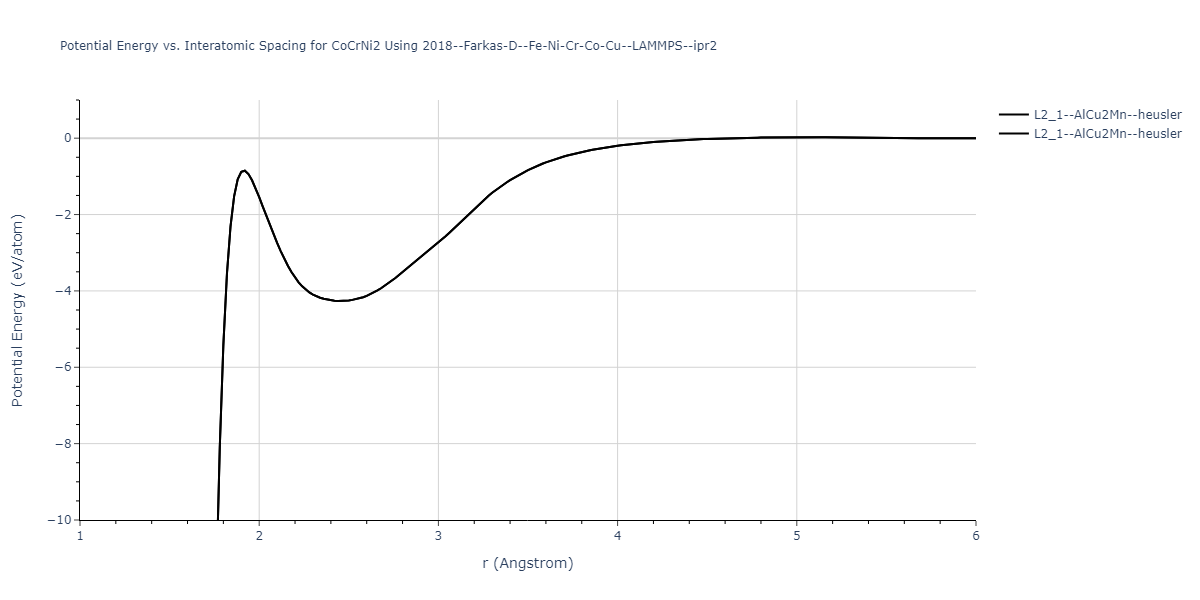

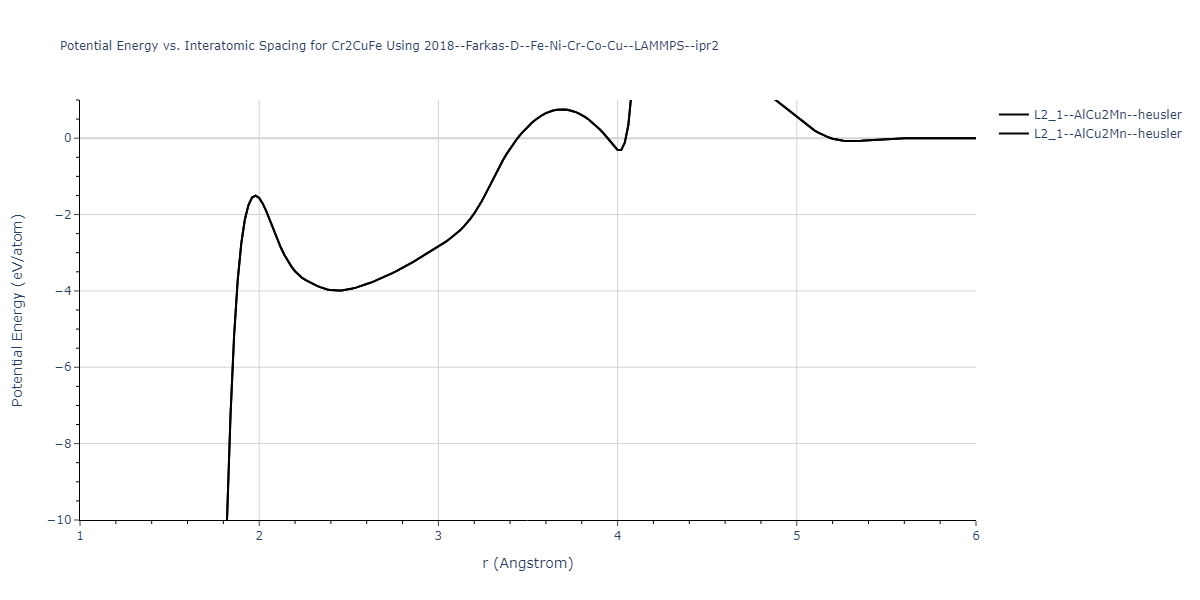

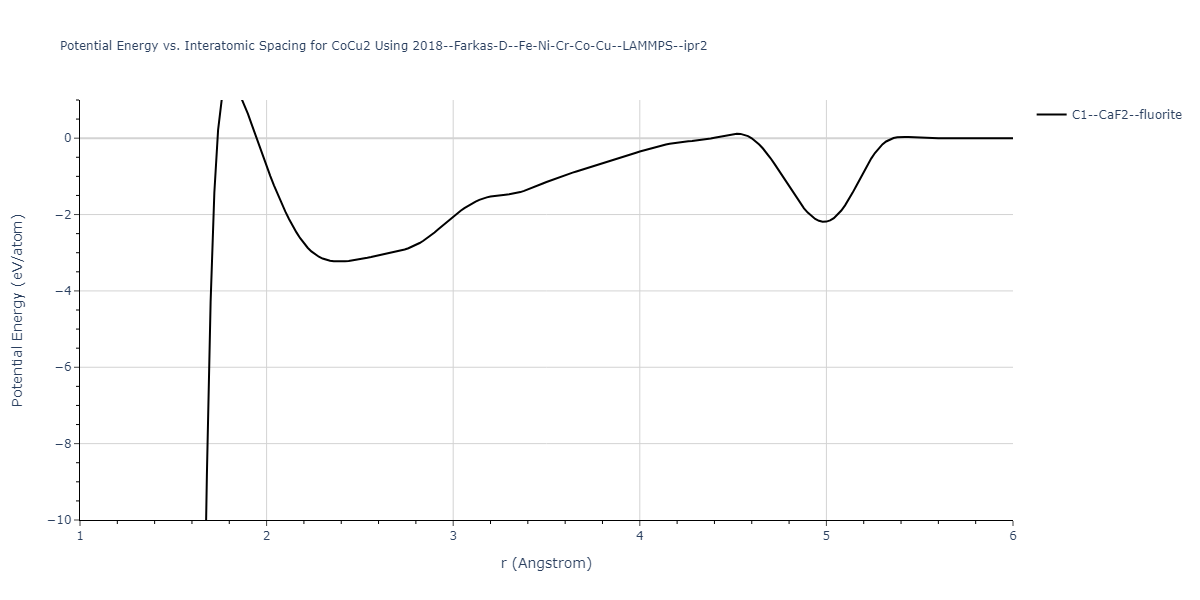

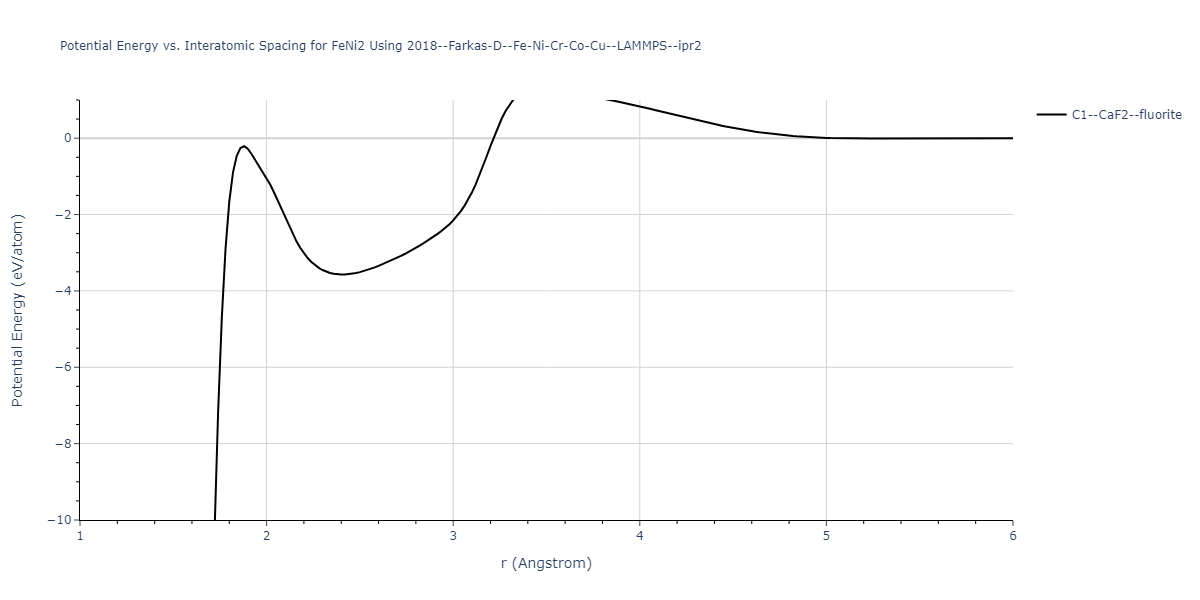

Cohesive Energy vs. Interatomic Spacing

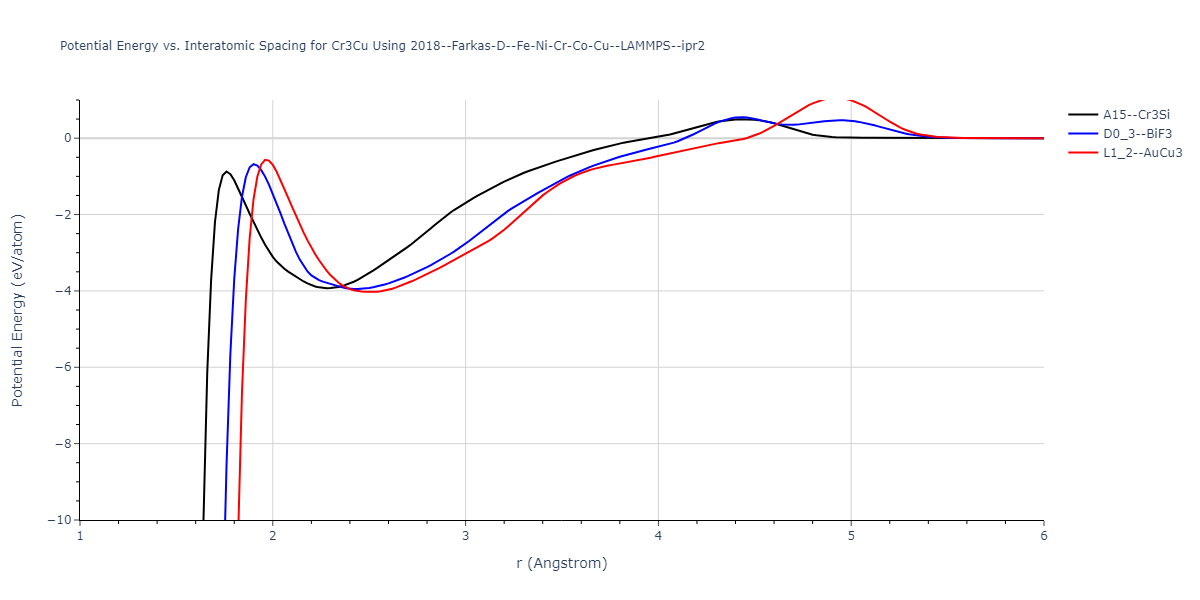

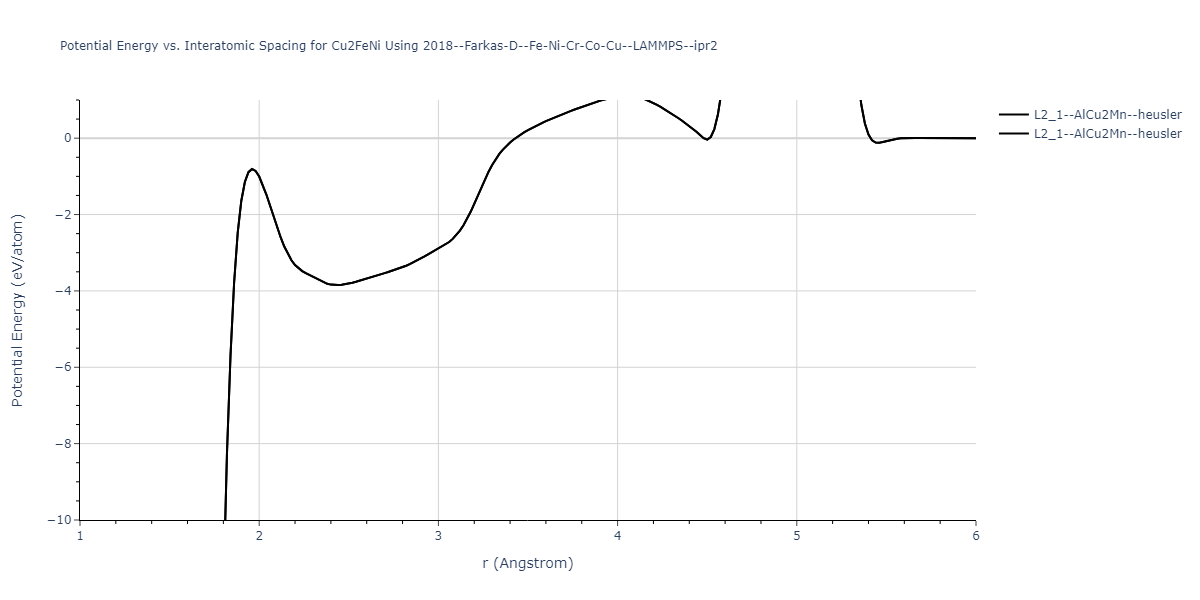

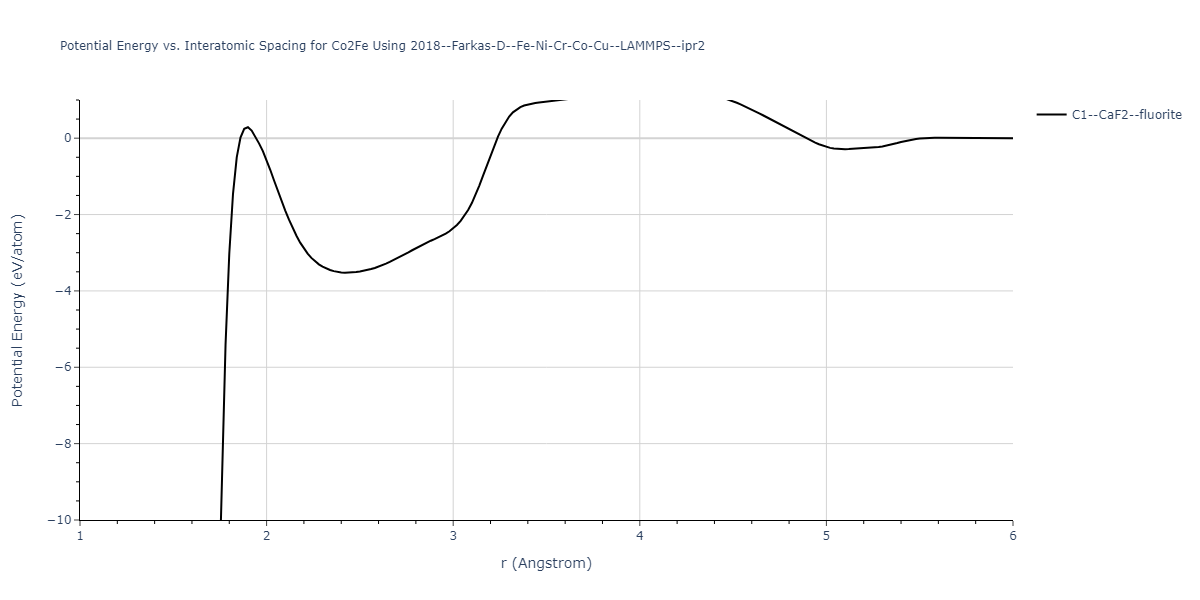

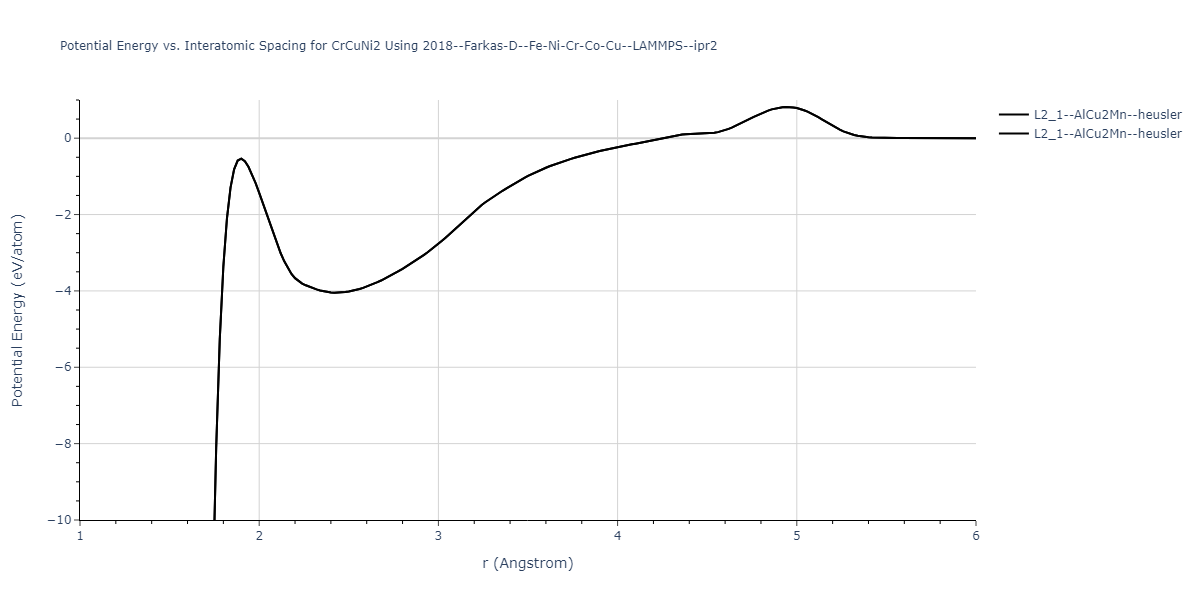

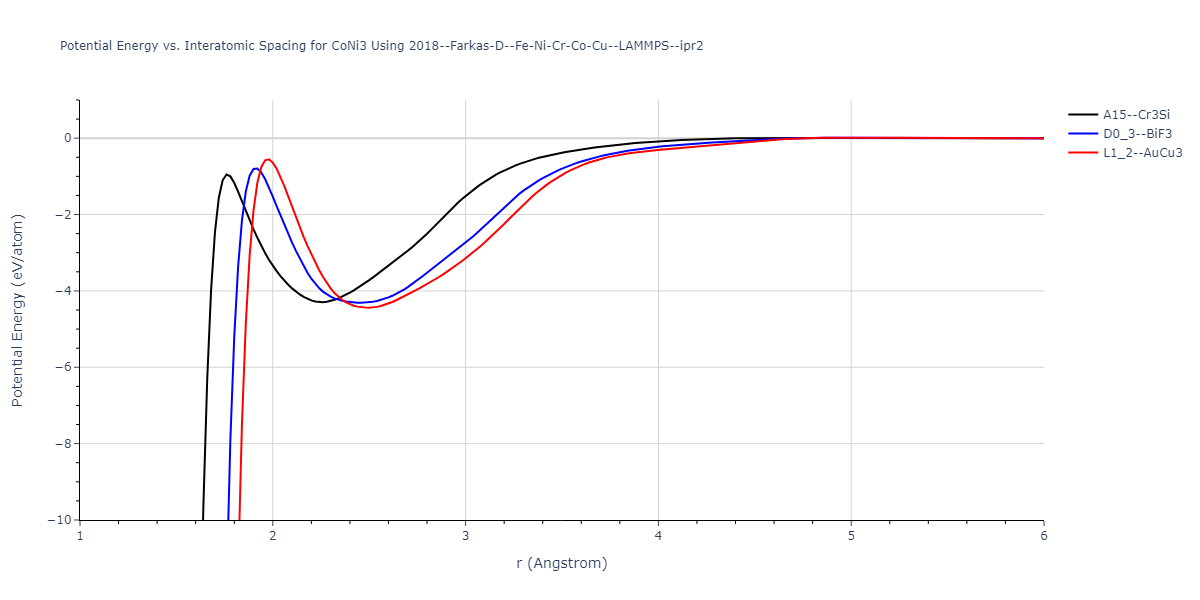

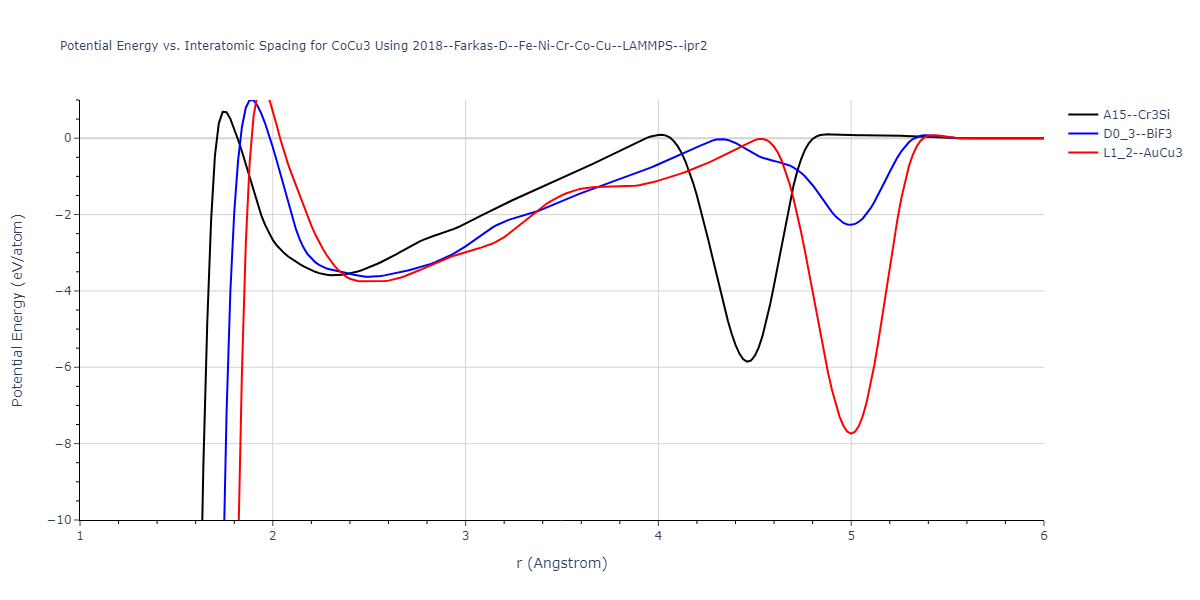

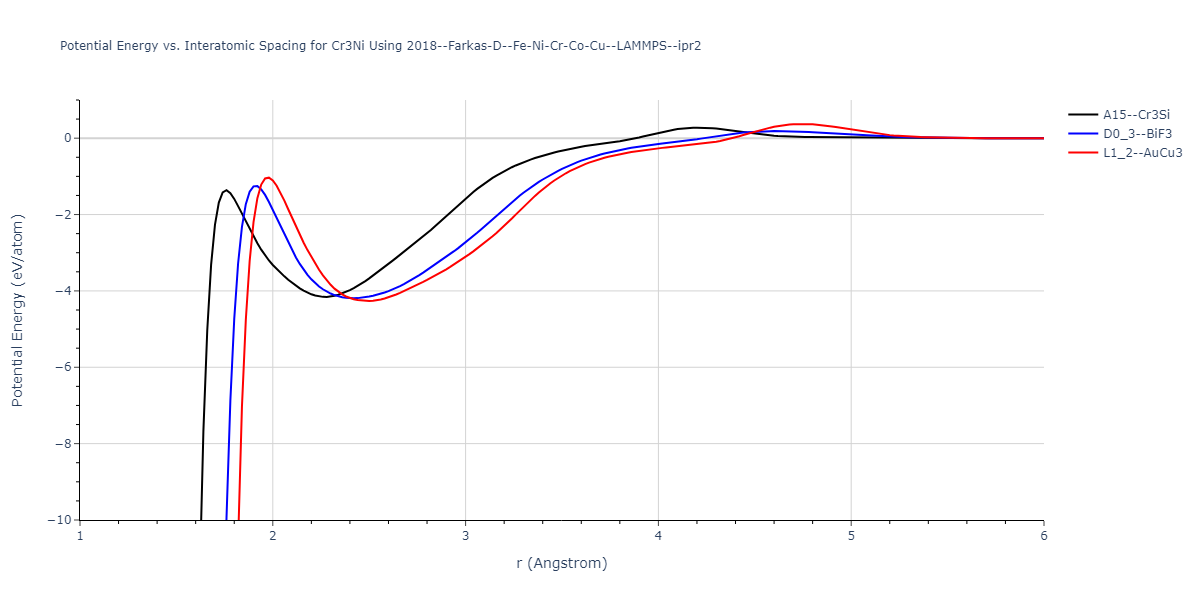

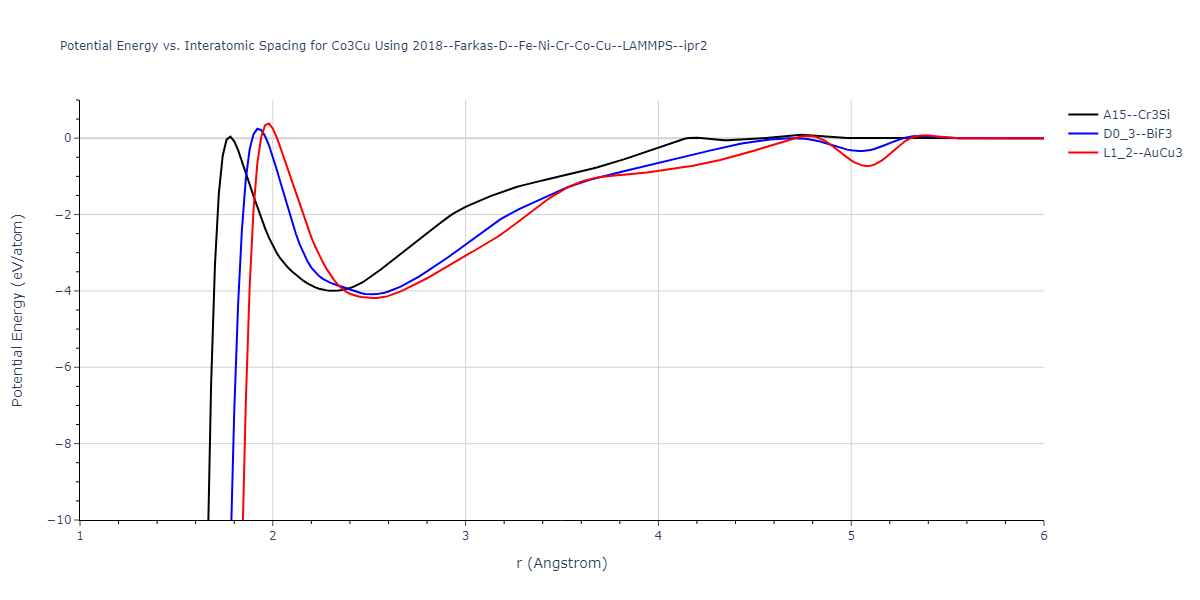

Plots of potential energy vs interatomic spacing, r, are shown below for a number of crystal structures. The structures are generated based on the ideal atomic positions and b/a and c/a lattice parameter ratios for a given crystal prototype. The size of the system is then uniformly scaled, and the energy calculated without relaxing the system. To obtain these plots, values of r are evaluated every 0.02 Å up to 6 Å.

The calculation method used is available as the iprPy E_vs_r_scan calculation method.

Clicking on the image of a plot will open an interactive version of it in a new tab. The underlying data for the plots can be downloaded by clicking on the links above each plot.

Notes and Disclaimers:

These values are meant to be guidelines for comparing potentials, not the absolute values for any potential's properties. Values listed here may change if the calculation methods are updated due to improvements/corrections. Variations in the values may occur for variations in calculation methods, simulation software and implementations of the interatomic potentials.
The minima identified by this calculation do not guarantee that the associated crystal structures will be stable since no relaxation is performed.
NIST disclaimer

Version Information:

2020-12-18. Descriptions, tables and plots updated to reflect that the energy values are the measuredper atom potential energy rather than cohesive energy as some potentials have non-zero isolated atom energies.
2019-02-04. Values regenerated with even r spacings of 0.02 Å, and now include values less than 2 Å when possible. Updated calculation method and parameters enhance compatibility with more potential styles.
2019-04-26. Results for hcp, double hcp, α-As and L1₀ prototypes regenerated from different unit cell representations. Only α-As results show noticable (>1e-5 eV) difference due to using a different coordinate for Wykoff site c position.
2018-06-13. Values for MEAM potentials corrected. Dynamic versions of the plots moved to separate pages to improve page loading. Cosmetic changes to how data is shown and updates to the documentation.
2017-01-11. Replaced png pictures with interactive Bokeh plots. Data regenerated with 200 values of r instead of 300.
2016-09-28. Plots for binary structures added. Data and plots for elemental structures regenerated. Data values match the values of the previous version. Data table formatting slightly changed to increase precision and ensure spaces between large values. Composition added to plot title and structure names made longer.
2016-04-07. Plots for elemental structures added.

Select a composition:

Download data

Click on plot to load interactive version

2018--Farkas-D--Fe-Ni-Cr-Co-Cu--LAMMPS--ipr2/EvsR.Co

Crystal Structure Predictions

Computed lattice constants and cohesive/potential energies are displayed for a variety of crystal structures. The values displayed here are obtained using the following process.

Initial crystal structure guesses are taken from:
1. The iprPy E_vs_r_scan calculation results (shown above) by identifying all energy minima along the measured curves for a given crystal prototype + composition.
2. Structures in the Materials Project and OQMD DFT databases.
All initial guesses are relaxed using three independent methods using a 10x10x10 supercell:
1. "box": The system's lattice constants are adjusted to zero pressure without internal relaxations using the iprPy relax_box calculation with a strainrange of 1e-6.
2. "static": The system's lattice and atomic positions are statically relaxed using the iprPy relax_static calculation with a minimization force tolerance of 1e-10 eV/Angstrom.
3. "dynamic": The system's lattice and atomic positions are dynamically relaxed for 10000 timesteps of 0.01 ps using the iprPy relax_dynamic calculation with an nph integration plus Langevin thermostat. The final configuration is then used as input in running an iprPy relax_static calculation with a minimization force tolerance of 1e-10 eV/Angstrom.
The relaxed structures obtained from #2 are then evaluated using the spglib package to identify an ideal crystal unit cell based on the results.
The space group information of the ideal unit cells is compared to the space group information of the corresponding reference structures to identify which structures transformed upon relaxation. The structures that did not transform to a different structure are listed in the table(s) below. The "method" field indicates the most rigorous relaxation method where the structure did not transform. The space group information is also used to match the DFT reference structures to the used prototype, where possible.
The cohesive energy, E_coh, is calculated from the measured potential energy per atom, E_pot$, by subtracting the isolated energy averaged across all atoms in the unit cell. The isolated atom energies of each species model is obtained either by evaluating a single atom atomic configuration, or by identifying the first energy plateau from the diatom scan calculations for r > 2 Å.

The calculation methods used are implemented into iprPy as the following calculation styles

Notes and Disclaimers:

These values are meant to be guidelines for comparing potentials, not the absolute values for any potential's properties. Values listed here may change if the calculation methods are updated due to improvements/corrections. Variations in the values may occur for variations in calculation methods, simulation software and implementations of the interatomic potentials.
The presence of any structures in this list does not guarantee that those structures are stable. Also, the lowest energy structure may not be included in this list.
Multiple values for the same crystal structure but different lattice constants are possible. This is because multiple energy minima are possible for a given structure and interatomic potential. Having multiple energy minima for a structure does not necessarily make the potential "bad" as unwanted configurations may be unstable or correspond to conditions that may not be relevant to the problem of interest (eg. very high strains).
NIST disclaimer

Version Information:

2022-05-27. The "box" method results have all been redone with an updated methodology more suited for non-orthogonal systems.
2020-12-18. Cohesive energies have been corrected by making them relative to the energies of the isolated atoms. The previous cohesive energy values are now listed as the potential energies.
2019-06-07. Structures with positive or near zero cohesive energies removed from the display tables. All values still present in the raw data files.
2019-04-26. Calculations now computed for each implementation. Results for hcp, double hcp, α-As and L1₀ prototypes regenerated from different unit cell representations.
2018-06-14. Methodology completely changed affecting how the information is displayed. Calculations involving MEAM potentials corrected.
2016-09-28. Values for simple compounds added. All identified energy minima for each structure are listed. The existing elemental data was regenerated. Most values are consistent with before, but some differences have been noted. Specifically, variations are seen with some values for potentials where the elastic constants don't vary smoothly near the equilibrium state. Additionally, the inclusion of some high-energy structures has changed based on new criteria for identifying when structures have relaxed to another structure.
2016-04-07. Values for elemental crystal structures added. Only values for the global energy minimum of each unique structure given.

Select a composition:

Download raw data (including filtered results)

Reference structure matches:
A1--Cu--fcc = mp-102, oqmd-592136, oqmd-594128, oqmd-1214517
A15--beta-W = oqmd-1214962, oqmd-1280314
A2--W--bcc = oqmd-1215140, oqmd-1215853
A3'--alpha-La--double-hcp = mp-1183710, oqmd-1215408
A3--Mg--hcp = mp-54, oqmd-592630, oqmd-637416, oqmd-1215318
A4--C--dc = oqmd-1215497
A5--beta-Sn = oqmd-1215586
A6--In--bct = oqmd-1215675

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
A1--Cu--fcc	dynamic	-4.41	-4.41	3.55	3.55	3.55	90.0	90.0	90.0
A6--In--bct	box	-4.4091	-4.4091	2.5358	2.5358	3.4567	90.0	90.0	90.0
A3--Mg--hcp	dynamic	-4.4086	-4.4086	2.5015	2.5015	4.1901	90.0	90.0	120.0
oqmd-1215229	box	-4.4085	-4.4085	2.4962	4.3413	4.1905	90.0	90.0	90.0
A3'--alpha-La--double-hcp	box	-4.4078	-4.4078	2.5058	2.5058	8.2859	90.0	90.0	120.0
mp-1271679	box	-4.3943	-4.3943	2.502	2.502	4.205	90.0	90.0	120.0
A2--W--bcc	box	-4.3305	-4.3305	2.9149	2.9149	2.9149	90.0	90.0	90.0
oqmd-1214873	box	-4.3064	-4.3064	6.2131	6.2131	6.2131	90.0	90.0	90.0
mp-669382	box	-4.2824	-4.2824	8.0825	8.0825	9.6855	90.0	90.0	120.0
oqmd-594127	box	-4.2815	-4.2815	8.0927	8.0927	9.6564	90.0	90.0	120.0
oqmd-1214784	box	-4.2658	-4.2658	8.8606	8.8606	8.8606	90.0	90.0	90.0
A15--beta-W	static	-4.2103	-4.2103	4.5758	4.5758	4.5758	90.0	90.0	90.0
oqmd-631034	box	-4.1795	-4.1795	8.6234	8.6234	4.63	90.0	90.0	90.0
mp-1193227	box	-4.178	-4.178	8.6282	8.6282	4.6296	90.0	90.0	90.0
oqmd-1214695	box	-4.0872	-4.0872	2.3819	2.3819	8.4006	90.0	90.0	90.0
mp-1072089	box	-4.0793	-4.0793	6.7548	6.7548	6.7548	90.0	90.0	90.0
oqmd-1215051	box	-4.0622	-4.0622	3.3337	8.6177	3.3475	90.0	90.0	90.0
A5--beta-Sn	box	-3.9555	-3.9555	4.4892	4.4892	2.3861	90.0	90.0	90.0
Ah--alpha-Po--sc	box	-3.6458	-3.6458	2.3299	2.3299	2.3299	90.0	90.0	90.0
A7--alpha-As	box	-2.932	-2.932	3.2947	3.2947	9.7731	90.0	90.0	120.0
A4--C--dc	box	-2.3701	-2.3701	5.6627	5.6627	5.6627	90.0	90.0	90.0
oqmd-1215942	box	-0.949	-0.949	3.095	3.095	4.3103	90.0	90.0	120.0
Ah--alpha-Po--sc	box	-0.433	-0.433	3.8688	3.8688	3.8688	90.0	90.0	90.0
A3--Mg--hcp	box	-0.0028	-0.0028	5.595	5.595	9.1366	90.0	90.0	120.0
A3'--alpha-La--double-hcp	box	-0.0028	-0.0028	5.595	5.595	18.2732	90.0	90.0	120.0
A1--Cu--fcc	box	-0.0028	-0.0028	7.9125	7.9125	7.9125	90.0	90.0	90.0
A15--beta-W	box	-0.0022	-0.0022	9.8016	9.8016	9.8016	90.0	90.0	90.0
A2--W--bcc	box	-0.0019	-0.0019	6.4605	6.4605	6.4605	90.0	90.0	90.0
A4--C--dc	box	-0.0009	-0.0009	12.9211	12.9211	12.9211	90.0	90.0	90.0
A3'--alpha-La--double-hcp	box	0.0591	0.0591	5.1674	5.1674	16.8767	90.0	90.0	120.0
A3--Mg--hcp	box	0.0591	0.0591	5.1674	5.1674	8.4383	90.0	90.0	120.0
A1--Cu--fcc	box	0.0591	0.0591	7.3078	7.3078	7.3078	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
C1--CaF2--fluorite	box	-3.6155	-3.6155	5.4809	5.4809	5.4809	90.0	90.0	90.0
C1--CaF2--fluorite	box	-0.034	-0.034	10.3048	10.3048	10.3048	90.0	90.0	90.0
C1--CaF2--fluorite	box	-0.0	-0.0	13.3953	13.3953	13.3953	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-1226444	box	-4.1896	-4.1896	12.3584	12.4597	4.5758	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-4.0332	-4.0332	5.7687	5.7687	5.7687	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.7751	-0.7751	11.411	11.411	11.411	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.0008	-0.0008	13.035	13.035	13.035	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-4.2499	-4.2499	5.7303	5.7303	5.7303	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-4.258	-4.258	5.7499	5.7499	5.7499	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
C1--CaF2--fluorite	box	-3.4062	-3.4062	5.4707	5.4707	5.4707	90.0	90.0	90.0
C1--CaF2--fluorite	box	-0.3585	-0.3585	11.509	11.509	11.509	90.0	90.0	90.0
C1--CaF2--fluorite	box	-0.0019	-0.0019	12.9848	12.9848	12.9848	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-4.0667	-4.0667	5.7522	5.7522	5.7522	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.227	-0.227	10.0742	10.0742	10.0742	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-4.0822	-4.0822	5.7696	5.7696	5.7696	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.2508	-0.2508	11.5261	11.5261	11.5261	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
C1--CaF2--fluorite	box	-3.523	-3.523	5.6156	5.6156	5.6156	90.0	90.0	90.0
C1--CaF2--fluorite	box	-0.289	-0.289	11.7624	11.7624	11.7624	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-4.2923	-4.2923	5.7168	5.7168	5.7168	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.2131	-0.2131	11.7559	11.7559	11.7559	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
C1--CaF2--fluorite	box	-3.6535	-3.6535	5.5005	5.5005	5.5005	90.0	90.0	90.0
oqmd-1232456	box	-2.9513	-2.9513	4.9525	4.9525	3.9794	90.0	90.0	90.0
C1--CaF2--fluorite	box	-0.0084	-0.0084	10.8484	10.8484	10.8484	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
oqmd-426534	box	-3.7635	-3.7635	6.103	6.103	12.045	90.0	90.0	120.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L1_2--AuCu3	box	-4.3572	-4.3572	3.5463	3.5463	3.5463	90.0	90.0	90.0
mp-1087479	box	-4.3522	-4.3522	4.9983	4.9983	4.1663	90.0	90.0	120.0
mp-1226209	box	-4.3465	-4.3465	2.4958	2.4958	8.3331	90.0	90.0	120.0
D0_3--BiF3	box	-4.2686	-4.2686	5.8045	5.8045	5.8045	90.0	90.0	90.0
A15--Cr3Si	box	-4.1482	-4.1482	4.6138	4.6138	4.6138	90.0	90.0	90.0
L1_2--AuCu3	box	-0.0003	-0.0003	7.9967	7.9967	7.9967	90.0	90.0	90.0
A15--Cr3Si	box	0.0022	0.0022	9.736	9.736	9.736	90.0	90.0	90.0
A15--Cr3Si	box	0.0082	0.0082	9.0292	9.0292	9.0292	90.0	90.0	90.0
L1_2--AuCu3	box	0.0535	0.0535	7.2175	7.2175	7.2175	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-1183752	box	-4.1874	-4.1874	3.5738	3.5738	7.1127	90.0	90.0	90.0
L1_2--AuCu3	box	-4.1857	-4.1857	3.5718	3.5718	3.5718	90.0	90.0	90.0
D0_3--BiF3	box	-4.0912	-4.0912	5.805	5.805	5.805	90.0	90.0	90.0
A15--Cr3Si	box	-3.9966	-3.9966	4.627	4.627	4.627	90.0	90.0	90.0
L1_2--AuCu3	box	-0.729	-0.729	7.1863	7.1863	7.1863	90.0	90.0	90.0
A15--Cr3Si	box	-0.0545	-0.0545	8.6902	8.6902	8.6902	90.0	90.0	90.0
L1_2--AuCu3	box	-0.0034	-0.0034	7.9412	7.9412	7.9412	90.0	90.0	90.0
D0_3--BiF3	box	-0.0023	-0.0023	12.968	12.968	12.968	90.0	90.0	90.0
A15--Cr3Si	box	0.0027	0.0027	9.9617	9.9617	9.9617	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-1225083	box	-4.4027	-4.4027	2.522	2.522	7.0606	90.0	90.0	90.0
L1_2--AuCu3	box	-4.3977	-4.3977	3.5553	3.5553	3.5553	90.0	90.0	90.0
D0_3--BiF3	box	-4.3013	-4.3013	5.7954	5.7954	5.7954	90.0	90.0	90.0
A15--Cr3Si	box	-4.1967	-4.1967	4.6026	4.6026	4.6026	90.0	90.0	90.0
A15--Cr3Si	box	-0.333	-0.333	9.0121	9.0121	9.0121	90.0	90.0	90.0
L1_2--AuCu3	box	-0.2485	-0.2485	7.1134	7.1134	7.1134	90.0	90.0	90.0
A15--Cr3Si	box	-0.2252	-0.2252	9.4518	9.4518	9.4518	90.0	90.0	90.0
L1_2--AuCu3	box	-0.1583	-0.1583	7.502	7.502	7.502	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-641526	box	-4.3039	-4.3039	5.7256	5.7256	5.7552	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-1084832	box	-4.302	-4.302	5.7236	5.7236	5.7236	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L1_2--AuCu3	box	-4.4193	-4.4193	3.5418	3.5418	3.5418	90.0	90.0	90.0
oqmd-297717	box	-4.4178	-4.4178	3.5435	3.5435	7.0822	90.0	90.0	90.0
mp-1183837	box	-4.411	-4.411	4.9929	4.9929	4.1703	90.0	90.0	120.0
oqmd-320326	box	-4.4109	-4.4109	4.9934	4.9934	4.1703	90.0	90.0	120.0
mp-1226559	box	-4.41	-4.41	2.4947	2.4947	8.3357	90.0	90.0	120.0
D0_3--BiF3	box	-4.3152	-4.3152	5.8014	5.8014	5.8014	90.0	90.0	90.0
A15--Cr3Si	box	-4.2196	-4.2196	4.5922	4.5922	4.5922	90.0	90.0	90.0
A15--Cr3Si	box	-0.0642	-0.0642	8.9154	8.9154	8.9154	90.0	90.0	90.0
L1_2--AuCu3	box	-0.0002	-0.0002	8.0038	8.0038	8.0038	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-1181589	box	-4.3941	-4.3941	5.0738	5.0738	7.0526	90.0	90.0	90.0
mp-601848	box	-4.3049	-4.3049	5.7288	5.7288	5.7282	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-1227307	box	-4.2003	-4.2003	8.7554	8.7554	4.5919	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-601842	box	-4.3048	-4.3048	5.7118	5.7118	5.7118	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-1096987	box	-3.5951	-3.5951	5.2785	5.2785	4.8254	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L1_0--AuCu	box	-4.3035	-4.3035	2.5522	2.5522	3.3699	90.0	90.0	90.0
B2--CsCl	box	-4.2118	-4.2118	2.875	2.875	2.875	90.0	90.0	90.0
B1--NaCl--rock-salt	box	-3.5908	-3.5908	4.6725	4.6725	4.6725	90.0	90.0	90.0
B3--ZnS--cubic-zinc-blende	box	-2.4158	-2.4158	5.5086	5.5086	5.5086	90.0	90.0	90.0
B2--CsCl	box	-0.2001	-0.2001	5.245	5.245	5.245	90.0	90.0	90.0
B2--CsCl	box	-0.0	-0.0	6.6977	6.6977	6.6977	90.0	90.0	90.0
L1_0--AuCu	box	-0.0	-0.0	6.0187	6.0187	7.882	90.0	90.0	90.0
B3--ZnS--cubic-zinc-blende	box	-0.0	-0.0	13.3953	13.3953	13.3953	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-1077706	box	-4.0348	-4.0348	6.6644	6.6644	6.6644	90.0	90.0	90.0
C1--CaF2--fluorite	box	-3.5658	-3.5658	5.5336	5.5336	5.5336	90.0	90.0	90.0
C1--CaF2--fluorite	box	-0.0613	-0.0613	10.7525	10.7525	10.7525	90.0	90.0	90.0
C1--CaF2--fluorite	box	-0.0	-0.0	13.3953	13.3953	13.3953	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-3.984	-3.984	5.6975	5.6975	5.6975	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-1.5386	-1.5386	10.1517	10.1517	10.1517	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.0	-0.0	13.179	13.179	13.179	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-4.2116	-4.2116	5.6709	5.6709	5.6709	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.2113	-0.2113	9.8717	9.8717	9.8717	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.0	-0.0	13.3952	13.3952	13.3952	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-4.2173	-4.2173	5.6622	5.6622	5.6622	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	0.0409	0.0409	10.971	10.971	10.971	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L1_2--AuCu3	box	-4.2521	-4.2521	3.5367	3.5367	3.5367	90.0	90.0	90.0
mp-1025503	box	-4.2423	-4.2423	4.9926	4.9926	4.0484	90.0	90.0	120.0
D0_3--BiF3	box	-4.1687	-4.1687	5.6635	5.6635	5.6635	90.0	90.0	90.0
A15--Cr3Si	box	-4.1446	-4.1446	4.536	4.536	4.536	90.0	90.0	90.0
A15--Cr3Si	box	-0.2256	-0.2256	8.37	8.37	8.37	90.0	90.0	90.0
L1_2--AuCu3	box	-0.1967	-0.1967	6.5239	6.5239	6.5239	90.0	90.0	90.0
D0_3--BiF3	box	-0.0976	-0.0976	9.9841	9.9841	9.9841	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-3.8028	-3.8028	5.7328	5.7328	5.7328	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.9719	-0.9719	11.5213	11.5213	11.5213	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.0016	-0.0016	13.0057	13.0057	13.0057	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-4.2661	-4.2661	5.6592	5.6592	5.6592	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.3741	-0.3741	11.2054	11.2054	11.2054	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-1096923	box	-4.3564	-4.3564	10.0024	10.0066	10.0078	120.0	90.0	120.0
mp-1012640	box	-4.348	-4.348	4.3251	4.0957	5.0007	90.0	90.1	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-4.2632	-4.2632	5.6554	5.6554	5.6554	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L1_0--AuCu	box	-3.9806	-3.9806	5.1588	5.1588	6.8235	90.0	90.0	90.0
L1_0--AuCu	box	-3.9661	-3.9661	2.5373	2.5373	3.5683	90.0	90.0	90.0
B2--CsCl	box	-3.8555	-3.8555	2.8896	2.8896	2.8896	90.0	90.0	90.0
B1--NaCl--rock-salt	box	-3.4649	-3.4649	4.8076	4.8076	4.8076	90.0	90.0	90.0
B2--CsCl	box	-3.2843	-3.2843	5.7601	5.7601	5.7601	90.0	90.0	90.0
B3--ZnS--cubic-zinc-blende	box	-2.4227	-2.4227	5.4965	5.4965	5.4965	90.0	90.0	90.0
B1--NaCl--rock-salt	box	-0.7135	-0.7135	7.099	7.099	7.099	90.0	90.0	90.0
B1--NaCl--rock-salt	dynamic	-0.597	-0.597	7.7992	7.7992	7.7992	90.0	90.0	90.0
B3--ZnS--cubic-zinc-blende	box	-0.2691	-0.2691	11.5047	11.5047	11.5047	90.0	90.0	90.0
L1_0--AuCu	box	-0.0028	-0.0028	5.8347	5.8347	7.6398	90.0	90.0	90.0
B2--CsCl	box	-0.0028	-0.0028	6.4924	6.4924	6.4924	90.0	90.0	90.0
B3--ZnS--cubic-zinc-blende	box	-0.0014	-0.0014	12.9848	12.9848	12.9848	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
C1--CaF2--fluorite	box	-3.2326	-3.2326	5.5187	5.5187	5.5187	90.0	90.0	90.0
C1--CaF2--fluorite	box	-2.1901	-2.1901	11.5185	11.5185	11.5185	90.0	90.0	90.0
C1--CaF2--fluorite	box	-0.0019	-0.0019	12.9848	12.9848	12.9848	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-3.8301	-3.8301	5.6839	5.6839	5.6839	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.1106	-0.1106	12.5951	12.5951	12.5951	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.0981	-0.0981	10.3218	10.3218	10.3218	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-3.8489	-3.8489	5.7263	5.7263	5.7263	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.2416	-0.2416	11.4971	11.4971	11.4971	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.0014	-0.0014	12.9995	12.9995	12.9995	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L1_2--AuCu3	box	-7.739	-7.739	7.0715	7.0715	7.0715	90.0	90.0	90.0
A15--Cr3Si	box	-5.854	-5.854	8.9275	8.9275	8.9275	90.0	90.0	90.0
L1_2--AuCu3	box	-3.7518	-3.7518	3.5851	3.5851	3.5851	90.0	90.0	90.0
L1_2--AuCu3	box	-3.751	-3.751	3.5013	3.5013	3.5013	90.0	90.0	90.0
D0_3--BiF3	box	-3.6315	-3.6315	5.7738	5.7738	5.7738	90.0	90.0	90.0
A15--Cr3Si	box	-3.5904	-3.5904	4.6317	4.6317	4.6317	90.0	90.0	90.0
D0_3--BiF3	box	-2.2697	-2.2697	11.5366	11.5366	11.5366	90.0	90.0	90.0
L1_2--AuCu3	box	-1.2769	-1.2769	5.3616	5.3616	5.3616	90.0	90.0	90.0
L1_2--AuCu3	box	-0.0051	-0.0051	7.951	7.951	7.951	90.0	90.0	90.0
D0_3--BiF3	box	-0.0034	-0.0034	12.984	12.984	12.984	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-4.0747	-4.0747	5.6563	5.6563	5.6563	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.3519	-0.3519	10.8742	10.8742	10.8742	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.2777	-0.2777	12.4849	12.4849	12.4849	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-4.0775	-4.0775	5.6922	5.6922	5.6922	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.3007	-0.3007	10.0277	10.0277	10.0277	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L1_0--AuCu	box	-4.3957	-4.3957	2.56	2.56	3.4623	90.0	90.0	90.0
mp-1225016	box	-4.3109	-4.3109	2.9106	4.116	4.0675	90.0	90.0	90.0
B2--CsCl	box	-4.3014	-4.3014	2.85	2.85	2.85	90.0	90.0	90.0
B1--NaCl--rock-salt	box	-3.5936	-3.5936	4.6804	4.6804	4.6804	90.0	90.0	90.0
B3--ZnS--cubic-zinc-blende	box	-2.4035	-2.4035	5.3456	5.3456	5.3456	90.0	90.0	90.0
L1_0--AuCu	box	-0.4241	-0.4241	5.6295	5.6295	6.3599	90.0	90.0	90.0
B2--CsCl	box	-0.4231	-0.4231	5.884	5.884	5.884	90.0	90.0	90.0
B3--ZnS--cubic-zinc-blende	box	-0.2614	-0.2614	11.887	11.887	11.887	90.0	90.0	90.0
B3--ZnS--cubic-zinc-blende	box	1.2159	1.2159	8.3966	8.3966	8.3966	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-18695	box	-4.3022	-4.3022	5.7273	5.7273	5.7273	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
C1--CaF2--fluorite	box	-3.4956	-3.4956	5.5085	5.5085	5.5085	90.0	90.0	90.0
C1--CaF2--fluorite	box	-0.3429	-0.3429	11.8933	11.8933	11.8933	90.0	90.0	90.0
C1--CaF2--fluorite	box	2.0488	2.0488	8.2167	8.2167	8.2167	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-4.3132	-4.3132	5.6633	5.6633	5.6633	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.2671	-0.2671	11.8921	11.8921	11.8921	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L1_2--AuCu3	box	-4.3939	-4.3939	3.568	3.568	3.568	90.0	90.0	90.0
D0_3--BiF3	box	-4.3189	-4.3189	5.712	5.712	5.712	90.0	90.0	90.0
mp-601820	box	-4.3023	-4.3023	4.0508	4.0508	2.8751	90.0	90.0	90.0
A15--Cr3Si	box	-4.17	-4.17	4.6239	4.6239	4.6239	90.0	90.0	90.0
L1_2--AuCu3	box	-3.1742	-3.1742	4.3416	4.3416	4.3416	90.0	90.0	90.0
A15--Cr3Si	box	-3.1647	-3.1647	5.4888	5.4888	5.4888	90.0	90.0	90.0
L1_2--AuCu3	box	-0.0012	-0.0012	8.0448	8.0448	8.0448	90.0	90.0	90.0
A15--Cr3Si	box	0.2937	0.2937	9.159	9.159	9.159	90.0	90.0	90.0
L1_2--AuCu3	box	2.4842	2.4842	5.7844	5.7844	5.7844	90.0	90.0	90.0
A15--Cr3Si	box	3.4813	3.4813	6.8131	6.8131	6.8131	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-1080603	box	-4.3013	-4.3013	5.7358	5.7358	5.7358	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-4.3082	-4.3082	5.6653	5.6653	5.6653	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.04	-0.04	10.4505	10.4505	10.4505	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.0025	-0.0025	11.9843	11.9843	11.9843	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
oqmd-325658	box	-4.4291	-4.4291	2.4993	2.4993	12.2417	90.0	90.0	120.0
L1_0--AuCu	box	-4.429	-4.429	2.4996	2.4996	3.5324	90.0	90.0	90.0
oqmd-1219805	box	-4.4144	-4.4144	4.1417	2.4856	4.324	90.0	90.0	90.0
oqmd-1228970	box	-4.4141	-4.4141	2.4905	2.4905	4.134	90.0	90.0	120.0
mp-1226063	box	-4.3053	-4.3053	2.8645	4.0562	4.0463	90.0	90.0	90.0
B2--CsCl	box	-4.3044	-4.3044	2.8751	2.8751	2.8751	90.0	90.0	90.0
B1--NaCl--rock-salt	box	-3.6457	-3.6457	4.6726	4.6726	4.6726	90.0	90.0	90.0
oqmd-1225484	box	-3.0069	-3.0069	4.1195	4.1195	4.709	90.0	90.0	120.0
B3--ZnS--cubic-zinc-blende	box	-2.4605	-2.4605	5.5428	5.5428	5.5428	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
C1--CaF2--fluorite	box	-3.6638	-3.6638	5.5083	5.5083	5.5083	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L1_2--AuCu3	box	-4.4393	-4.4393	3.5268	3.5268	3.5268	90.0	90.0	90.0
oqmd-299242	box	-4.4379	-4.4379	3.5287	3.5287	7.0547	90.0	90.0	90.0
oqmd-318790	box	-4.4202	-4.4202	4.9742	4.9742	4.095	90.0	90.0	120.0
mp-1183785	box	-4.4202	-4.4202	4.9733	4.9733	4.0947	90.0	90.0	120.0
D0_3--BiF3	box	-4.3116	-4.3116	5.6562	5.6562	5.6562	90.0	90.0	90.0
A15--Cr3Si	box	-4.2945	-4.2945	4.5081	4.5081	4.5081	90.0	90.0	90.0
L1_2--AuCu3	box	0.0101	0.0101	7.3422	7.3422	7.3422	90.0	90.0	90.0

Elastic Constants Predictions

Static elastic constants are displayed for the unique structures identified in Crystal Structure Predictions above. The values displayed here are obtained by measuring the change in virial stresses due to applying small strains to the relaxed crystals. The initial structure and the strained states are all relaxed using force minimization.

The calculation method used is available as the iprPy elastic_constants_static calculation method.

Notes and Disclaimers:

These values are meant to be guidelines for comparing potentials, not the absolute values for any potential's properties. Values listed here may change if the calculation methods are updated due to improvements/corrections. Variations in the values may occur for variations in calculation methods, simulation software and implementations of the interatomic potentials.
The presence of any structures in this list does not guarantee that those structures are stable.
The elastic constants have been computed for a variety of strains, and in some cases for slightly different lattice constant values. The static nature of this calculation can give poor predictions if the evaluated states straddle a functional discontinuity in the potential's third derivative. Be sure to compare the elastic constants for the different strains (positive and negative).
NIST disclaimer

Version Information:

2019-08-07. Data added.

Composition:

Prototype:

a₀:

strain:

Download raw data

Cij in GPa:

264.632	191.697	191.697	-0.0	0.0	0.0
191.697	264.632	191.697	-0.0	-0.0	-0.0
191.697	191.697	264.632	-0.0	-0.0	0.0
-0.0	-0.0	-0.0	142.07	-0.0	0.0
-0.0	-0.0	-0.0	-0.0	142.07	0.0
-0.0	-0.0	-0.0	-0.0	0.0	142.07

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
A1--Cu--fcc	dynamic	-4.2	-4.2	3.53	3.53	3.53	90.0	90.0	90.0
A3--Mg--hcp	dynamic	-4.1976	-4.1976	2.4959	2.4959	3.972	90.0	90.0	120.0
A3--Mg--hcp	box	-4.1976	-4.1976	2.496	2.496	3.972	90.0	90.0	120.0
A3'--alpha-La--double-hcp	box	-4.1973	-4.1973	2.494	2.494	8.0724	90.0	90.0	120.0
oqmd-1216032	box	-4.1963	-4.1963	2.4937	2.4937	18.1015	90.0	90.0	120.0
mp-1059289	box	-4.1695	-4.1695	2.4198	4.4297	4.0967	90.0	90.0	90.0
A2--W--bcc	static	-4.1445	-4.1445	2.7948	2.7948	2.7948	90.0	90.0	90.0
oqmd-691775	box	-4.1108	-4.1108	2.4959	2.4959	6.2439	90.0	90.0	120.0
oqmd-1214874	box	-4.1097	-4.1097	6.1472	6.1472	6.1472	90.0	90.0	90.0
A15--beta-W	dynamic	-4.0863	-4.0863	4.5564	4.5564	4.5564	90.0	90.0	90.0
oqmd-1214785	box	-4.0815	-4.0815	8.7769	8.7769	8.7769	90.0	90.0	90.0
mp-1192789	box	-4.0258	-4.0258	8.5989	8.5989	4.6026	90.0	90.0	90.0
oqmd-631035	box	-4.0101	-4.0101	8.5877	8.5877	4.6102	90.0	90.0	90.0
A5--beta-Sn	box	-3.6955	-3.6955	4.4659	4.4659	2.342	90.0	90.0	90.0
Ah--alpha-Po--sc	box	-3.4947	-3.4947	2.3439	2.3439	2.3439	90.0	90.0	90.0
A7--alpha-As	box	-3.0227	-3.0227	3.2889	3.2889	9.7936	90.0	90.0	120.0
A4--C--dc	box	-2.4786	-2.4786	5.4005	5.4005	5.4005	90.0	90.0	90.0
oqmd-1215943	box	-1.834	-1.834	3.0824	3.0824	4.3135	90.0	90.0	120.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
C1--CaF2--fluorite	box	-3.3981	-3.3981	5.4635	5.4635	5.4635	90.0	90.0	90.0
C1--CaF2--fluorite	box	-0.0003	-0.0003	13.0562	13.0562	13.0562	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-3.9926	-3.9926	5.6281	5.6281	5.6281	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.3289	-0.3289	9.2632	9.2632	9.2632	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-3.9996	-3.9996	5.6166	5.6166	5.6166	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	0.2415	0.2415	11.0207	11.0207	11.0207	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-1077708	box	-4.0815	-4.0815	6.6543	6.6543	6.6543	90.0	90.0	90.0
C1--CaF2--fluorite	box	-3.4845	-3.4845	5.5856	5.5856	5.5856	90.0	90.0	90.0
oqmd-1240427	static	-1.7574	-1.7574	10.9908	10.9908	10.9908	90.0	90.0	90.0
C1--CaF2--fluorite	box	-0.1847	-0.1847	12.1811	12.1811	12.1811	90.0	90.0	90.0
C1--CaF2--fluorite	box	-0.1078	-0.1078	9.861	9.861	9.861	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-4.2327	-4.2327	5.5979	5.5979	5.5979	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.1395	-0.1395	9.8749	9.8749	9.8749	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	dynamic	-0.1286	-0.1286	12.1915	12.1915	12.1915	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-1077252	box	-4.0606	-4.0606	6.5876	6.5876	6.5876	90.0	90.0	90.0
C1--CaF2--fluorite	box	-3.6371	-3.6371	5.4727	5.4727	5.4727	90.0	90.0	90.0
oqmd-1232523	box	-2.9365	-2.9365	5.2226	5.2226	3.6917	90.0	90.0	90.0
oqmd-1238640	static	-1.6464	-1.6464	11.0636	11.0636	11.0636	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L1_2--AuCu3	box	-4.029	-4.029	3.5467	3.5467	3.5467	90.0	90.0	90.0
D0_3--BiF3	box	-3.9511	-3.9511	5.6147	5.6147	5.6147	90.0	90.0	90.0
A15--Cr3Si	box	-3.9283	-3.9283	4.5679	4.5679	4.5679	90.0	90.0	90.0
D0_3--BiF3	box	0.3466	0.3466	10.8061	10.8061	10.8061	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-1017511	box	-4.2441	-4.2441	3.5603	3.5603	7.0236	90.0	90.0	90.0
oqmd-318728	box	-4.2414	-4.2414	5.0165	5.0165	4.0464	90.0	90.0	120.0
L1_2--AuCu3	box	-4.239	-4.239	3.5503	3.5503	3.5503	90.0	90.0	90.0
D0_3--BiF3	box	-4.1861	-4.1861	5.6104	5.6104	5.6104	90.0	90.0	90.0
A15--Cr3Si	box	-4.1432	-4.1432	4.5497	4.5497	4.5497	90.0	90.0	90.0
D0_3--BiF3	box	-0.1809	-0.1809	9.3859	9.3859	9.3859	90.0	90.0	90.0
L1_2--AuCu3	box	-0.1704	-0.1704	5.9862	5.9862	5.9862	90.0	90.0	90.0
A15--Cr3Si	box	-0.1227	-0.1227	9.5522	9.5522	9.5522	90.0	90.0	90.0
L1_2--AuCu3	box	-0.1178	-0.1178	7.5602	7.5602	7.5602	90.0	90.0	90.0
A15--Cr3Si	box	-0.117	-0.117	7.5718	7.5718	7.5718	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L1_2--AuCu3	box	-4.2622	-4.2622	3.5268	3.5268	3.5268	90.0	90.0	90.0
mp-1008284	box	-4.2621	-4.2621	3.5261	3.5261	7.0506	90.0	90.0	90.0
oqmd-320374	box	-4.2338	-4.2338	5.0122	5.0122	3.9905	90.0	90.0	120.0
D0_3--BiF3	box	-4.1927	-4.1927	5.5857	5.5857	5.5857	90.0	90.0	90.0
A15--Cr3Si	dynamic	-4.1577	-4.1577	4.5419	4.5419	4.5419	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L1_0--AuCu	box	-3.8647	-3.8647	2.4841	2.4841	3.5641	90.0	90.0	90.0
B2--CsCl	box	-3.7609	-3.7609	2.8266	2.8266	2.8266	90.0	90.0	90.0
B1--NaCl--rock-salt	box	-3.372	-3.372	4.8282	4.8282	4.8282	90.0	90.0	90.0
B3--ZnS--cubic-zinc-blende	box	-2.5229	-2.5229	5.3731	5.3731	5.3731	90.0	90.0	90.0
B2--CsCl	box	-1.0971	-1.0971	5.0667	5.0667	5.0667	90.0	90.0	90.0
B3--ZnS--cubic-zinc-blende	box	-0.6649	-0.6649	7.6358	7.6358	7.6358	90.0	90.0	90.0
B1--NaCl--rock-salt	box	-0.4048	-0.4048	7.1953	7.1953	7.1953	90.0	90.0	90.0
B1--NaCl--rock-salt	box	-0.3838	-0.3838	7.7764	7.7764	7.7764	90.0	90.0	90.0
B2--CsCl	box	-0.0005	-0.0005	6.5281	6.5281	6.5281	90.0	90.0	90.0
L1_0--AuCu	box	-0.0005	-0.0005	5.8651	5.8651	7.6844	90.0	90.0	90.0
B3--ZnS--cubic-zinc-blende	box	-0.0002	-0.0002	13.0563	13.0563	13.0563	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
C1--CaF2--fluorite	box	-3.2744	-3.2744	5.4626	5.4626	5.4626	90.0	90.0	90.0
C1--CaF2--fluorite	box	-0.9309	-0.9309	10.0588	10.0588	10.0588	90.0	90.0	90.0
C1--CaF2--fluorite	box	-0.0003	-0.0003	13.0563	13.0563	13.0563	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-3.8	-3.8	5.6226	5.6226	5.6226	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.2714	-0.2714	10.2465	10.2465	10.2465	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.1159	-0.1159	12.5947	12.5947	12.5947	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-3.8081	-3.8081	5.6465	5.6465	5.6465	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.4926	-0.4926	10.0834	10.0834	10.0834	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.0003	-0.0003	13.0634	13.0634	13.0634	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L1_2--AuCu3	box	-3.7018	-3.7018	3.5614	3.5614	3.5614	90.0	90.0	90.0
D0_3--BiF3	box	-3.5802	-3.5802	5.7156	5.7156	5.7156	90.0	90.0	90.0
A15--Cr3Si	box	-3.5482	-3.5482	4.6762	4.6762	4.6762	90.0	90.0	90.0
A15--Cr3Si	box	-1.0153	-1.0153	8.185	8.185	8.185	90.0	90.0	90.0
L1_2--AuCu3	box	-0.8435	-0.8435	6.9582	6.9582	6.9582	90.0	90.0	90.0
D0_3--BiF3	box	-0.3143	-0.3143	10.2353	10.2353	10.2353	90.0	90.0	90.0
D0_3--BiF3	box	-0.1465	-0.1465	11.4368	11.4368	11.4368	90.0	90.0	90.0
L1_2--AuCu3	box	-0.0032	-0.0032	7.9608	7.9608	7.9608	90.0	90.0	90.0
D0_3--BiF3	box	-0.0022	-0.0022	13.0	13.0	13.0	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-4.0459	-4.0459	5.6241	5.6241	5.6241	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.2611	-0.2611	12.5019	12.5019	12.5019	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.2523	-0.2523	10.5876	10.5876	10.5876	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L1_0--AuCu	box	-4.2895	-4.2895	2.5448	2.5448	3.5037	90.0	90.0	90.0
oqmd-327004	box	-4.2894	-4.2894	2.5233	2.5233	12.2865	90.0	90.0	120.0
oqmd-1219850	box	-4.2759	-4.2759	4.0861	2.5744	4.2889	90.0	90.0	90.0
oqmd-1229015	box	-4.2743	-4.2743	2.5292	2.5292	4.0721	90.0	90.0	120.0
B2--CsCl	box	-4.2347	-4.2347	2.8094	2.8094	2.8094	90.0	90.0	90.0
mp-1226211	box	-4.2195	-4.2195	2.8874	3.9966	3.9727	90.0	90.0	90.0
B1--NaCl--rock-salt	box	-3.489	-3.489	4.7227	4.7227	4.7227	90.0	90.0	90.0
B3--ZnS--cubic-zinc-blende	static	-2.4615	-2.4615	5.2685	5.2685	5.2685	90.0	90.0	90.0
B2--CsCl	box	-0.278	-0.278	6.0901	6.0901	6.0901	90.0	90.0	90.0
B3--ZnS--cubic-zinc-blende	box	-0.2731	-0.2731	11.7616	11.7616	11.7616	90.0	90.0	90.0
B2--CsCl	box	-0.2664	-0.2664	5.2974	5.2974	5.2974	90.0	90.0	90.0
B3--ZnS--cubic-zinc-blende	box	-0.2427	-0.2427	10.1258	10.1258	10.1258	90.0	90.0	90.0
L1_0--AuCu	box	-0.0653	-0.0653	4.8825	4.8825	6.4353	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
C1--CaF2--fluorite	box	-3.5055	-3.5055	5.4682	5.4682	5.4682	90.0	90.0	90.0
oqmd-1240426	static	-0.5677	-0.5677	8.5861	8.5861	8.5861	90.0	90.0	90.0
C1--CaF2--fluorite	box	-0.366	-0.366	11.7598	11.7598	11.7598	90.0	90.0	90.0
C1--CaF2--fluorite	box	-0.3642	-0.3642	10.8731	10.8731	10.8731	90.0	90.0	90.0
C1--CaF2--fluorite	box	2.1016	2.1016	8.7494	8.7494	8.7494	90.0	90.0	90.0
oqmd-1240426	box	2.9326	2.9326	14.3272	14.3272	14.3272	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-4.284	-4.284	5.6186	5.6186	5.6186	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.2797	-0.2797	10.9391	10.9391	10.9391	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.0	-0.0	13.3952	13.3952	13.3952	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
oqmd-297657	box	-4.3459	-4.3459	3.5783	3.5783	7.0647	90.0	90.0	90.0
L1_2--AuCu3	box	-4.3435	-4.3435	3.5697	3.5697	3.5697	90.0	90.0	90.0
oqmd-321526	box	-4.3412	-4.3412	5.0679	5.0679	4.0927	90.0	90.0	120.0
D0_3--BiF3	box	-4.2748	-4.2748	5.6791	5.6791	5.6791	90.0	90.0	90.0
A15--Cr3Si	box	-4.122	-4.122	4.6607	4.6607	4.6607	90.0	90.0	90.0
L1_2--AuCu3	box	-3.113	-3.113	4.3627	4.3627	4.3627	90.0	90.0	90.0
L1_2--AuCu3	box	-0.0098	-0.0098	7.9729	7.9729	7.9729	90.0	90.0	90.0
A15--Cr3Si	box	0.0319	0.0319	9.0241	9.0241	9.0241	90.0	90.0	90.0
L1_2--AuCu3	box	0.9941	0.9941	5.9423	5.9423	5.9423	90.0	90.0	90.0
D0_3--BiF3	box	1.3963	1.3963	11.0575	11.0575	11.0575	90.0	90.0	90.0
D0_3--BiF3	box	1.5752	1.5752	9.6245	9.6245	9.6245	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
oqmd-959986	box	-3.5905	-3.5905	5.4666	5.4666	5.4666	90.0	90.0	90.0
oqmd-958168	box	-3.5278	-3.5278	5.5702	5.5702	5.5702	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-4.2832	-4.2832	5.609	5.609	5.609	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.0636	-0.0636	10.0556	10.0556	10.0556	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	0.0037	0.0037	12.1489	12.1489	12.1489	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L1_0--AuCu	box	-4.3246	-4.3246	2.4925	2.4925	3.5233	90.0	90.0	90.0
mp-1226232	box	-4.3242	-4.3242	2.4916	2.4916	12.2072	90.0	90.0	120.0
oqmd-1229037	box	-4.3126	-4.3126	2.4863	2.4863	3.9919	90.0	90.0	120.0
oqmd-1219872	box	-4.3119	-4.3119	4.0027	2.4733	4.3356	90.0	90.0	90.0
B2--CsCl	box	-4.2412	-4.2412	2.791	2.791	2.791	90.0	90.0	90.0
B1--NaCl--rock-salt	box	-3.5562	-3.5562	4.6923	4.6923	4.6923	90.0	90.0	90.0
oqmd-1225551	box	-3.0171	-3.0171	4.0665	4.0665	4.6796	90.0	90.0	120.0
B3--ZnS--cubic-zinc-blende	box	-2.5185	-2.5185	5.4379	5.4379	5.4379	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-784631	box	-4.3658	-4.3658	2.4919	3.5193	7.4752	90.0	90.0	90.0
mp-1077077	box	-4.1174	-4.1174	6.6113	6.6113	6.6113	90.0	90.0	90.0
C1--CaF2--fluorite	box	-3.7037	-3.7037	5.4309	5.4309	5.4309	90.0	90.0	90.0
oqmd-1238639	static	-1.6091	-1.6091	11.1203	11.1203	11.1203	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L1_2--AuCu3	box	-4.3872	-4.3872	3.5223	3.5223	3.5223	90.0	90.0	90.0
mp-1007923	box	-4.3869	-4.3869	3.5222	3.5222	7.042	90.0	90.0	90.0
mp-1226338	box	-4.3856	-4.3856	2.4903	2.4903	24.39	90.0	90.0	120.0
oqmd-323628	box	-4.371	-4.371	4.9726	4.9726	4.009	90.0	90.0	120.0
D0_3--BiF3	box	-4.2896	-4.2896	5.577	5.577	5.577	90.0	90.0	90.0
A15--Cr3Si	box	-4.2279	-4.2279	4.5229	4.5229	4.5229	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
A1--Cu--fcc	box	-8.8573	-8.8573	7.0562	7.0562	7.0562	90.0	90.0	90.0
A3'--alpha-La--double-hcp	box	-8.8573	-8.8573	4.9895	4.9895	16.2956	90.0	90.0	120.0
A3--Mg--hcp	box	-8.8573	-8.8573	4.9895	4.9895	8.1478	90.0	90.0	120.0
A1--Cu--fcc	dynamic	-3.54	-3.54	3.62	3.62	3.62	90.0	90.0	90.0
A3'--alpha-La--double-hcp	box	-3.5356	-3.5356	2.5541	2.5541	8.3575	90.0	90.0	120.0
A3--Mg--hcp	box	-3.5314	-3.5314	2.5486	2.5486	4.1779	90.0	90.0	120.0
oqmd-1215232	box	-3.5309	-3.5309	2.5398	4.4287	4.179	90.0	90.0	90.0
mp-1059259	box	-3.4781	-3.4781	8.0821	2.4389	2.4945	90.0	90.1	90.0
oqmd-1214787	box	-3.4306	-3.4306	8.9938	8.9938	8.9938	90.0	90.0	90.0
oqmd-1214876	box	-3.4289	-3.4289	6.2855	6.2855	6.2855	90.0	90.0	90.0
oqmd-1215054	box	-3.4234	-3.4234	4.3093	9.0678	2.5321	90.0	90.0	90.0
A2--W--bcc	box	-3.4143	-3.4143	2.8928	2.8928	2.8928	90.0	90.0	90.0
oqmd-1214698	box	-3.3971	-3.3971	3.4789	8.5309	3.4789	90.0	90.0	90.0
A15--beta-W	box	-3.3944	-3.3944	4.6943	4.6943	4.6943	90.0	90.0	90.0
mp-1120774	box	-3.3935	-3.3935	2.5587	2.5587	24.7655	90.0	90.0	120.0
A5--beta-Sn	box	-3.2921	-3.2921	4.7235	4.7235	2.4559	90.0	90.0	90.0
Ah--alpha-Po--sc	box	-3.2817	-3.2817	2.4376	2.4376	2.4376	90.0	90.0	90.0
oqmd-1277912	box	-3.2743	-3.2743	11.5501	11.5501	11.5501	90.0	90.0	90.0
A7--alpha-As	box	-2.8791	-2.8791	3.3639	3.3639	11.2456	90.0	90.0	120.0
A4--C--dc	box	-2.5107	-2.5107	5.4715	5.4715	5.4715	90.0	90.0	90.0
A5--beta-Sn	box	-2.5091	-2.5091	3.9409	3.9409	5.2471	90.0	90.0	90.0
A15--beta-W	box	-2.4566	-2.4566	8.8006	8.8006	8.8006	90.0	90.0	90.0
A2--W--bcc	box	-2.2989	-2.2989	5.7625	5.7625	5.7625	90.0	90.0	90.0
A1--Cu--fcc	box	-1.4345	-1.4345	5.3834	5.3834	5.3834	90.0	90.0	90.0
A3--Mg--hcp	box	-1.4345	-1.4345	3.8066	3.8066	6.2162	90.0	90.0	120.0
A3'--alpha-La--double-hcp	box	-1.4345	-1.4345	3.8066	3.8066	12.4323	90.0	90.0	120.0
oqmd-1215945	box	-1.0257	-1.0257	2.9137	2.9137	4.5347	90.0	90.0	120.0
A4--C--dc	box	-0.7902	-0.7902	7.7745	7.7745	7.7745	90.0	90.0	90.0
Ah--alpha-Po--sc	box	-0.7386	-0.7386	3.9022	3.9022	3.9022	90.0	90.0	90.0
A4--C--dc	box	-0.0638	-0.0638	11.524	11.524	11.524	90.0	90.0	90.0
A3'--alpha-La--double-hcp	box	-0.006	-0.006	5.622	5.622	18.3612	90.0	90.0	120.0
A3--Mg--hcp	box	-0.006	-0.006	5.622	5.622	9.1806	90.0	90.0	120.0
A1--Cu--fcc	box	-0.006	-0.006	7.9506	7.9506	7.9506	90.0	90.0	90.0
A2--W--bcc	box	-0.004	-0.004	6.4917	6.4917	6.4917	90.0	90.0	90.0
A4--C--dc	box	-0.002	-0.002	12.9833	12.9833	12.9833	90.0	90.0	90.0
A6--In--bct	box	-0.002	-0.002	5.622	5.622	8.4536	90.0	90.0	90.0
A15--beta-W	box	0.0766	0.0766	10.0562	10.0562	10.0562	90.0	90.0	90.0
A5--beta-Sn	box	0.1005	0.1005	8.7939	8.7939	6.0542	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
C1--CaF2--fluorite	box	-3.1486	-3.1486	5.7099	5.7099	5.7099	90.0	90.0	90.0
C1--CaF2--fluorite	box	-0.1737	-0.1737	12.5881	12.5881	12.5881	90.0	90.0	90.0
C1--CaF2--fluorite	box	-0.0468	-0.0468	10.3859	10.3859	10.3859	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L2_1--AlCu2Mn--heusler	box	-3.8459	-3.8459	5.6107	5.6107	5.6107	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.1214	-0.1214	12.5934	12.5934	12.5934	90.0	90.0	90.0
L2_1--AlCu2Mn--heusler	box	-0.0354	-0.0354	10.3887	10.3887	10.3887	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
C1--CaF2--fluorite	box	-3.3044	-3.3044	5.4774	5.4774	5.4774	90.0	90.0	90.0
oqmd-1232654	box	-2.9484	-2.9484	5.2006	5.2006	3.9944	90.0	90.0	90.0
C1--CaF2--fluorite	box	-0.3292	-0.3292	10.0018	10.0018	10.0018	90.0	90.0	90.0
C1--CaF2--fluorite	box	-0.0001	-0.0001	13.0792	13.0792	13.0792	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
L1_2--AuCu3	box	-3.7527	-3.7527	3.4869	3.4869	3.4869	90.0	90.0	90.0
oqmd-304072	box	-3.7513	-3.7513	3.6727	3.6727	7.0395	90.0	90.0	90.0
mp-1184444	box	-3.7463	-3.7463	5.1105	5.1105	4.1424	90.0	90.0	120.0
L1_2--AuCu3	box	-3.7403	-3.7403	3.6563	3.6563	3.6563	90.0	90.0	90.0
mp-1224953	box	-3.6319	-3.6319	2.8324	4.0479	8.0862	90.0	90.0	90.0
A15--Cr3Si	box	-3.6052	-3.6052	4.6678	4.6678	4.6678	90.0	90.0	90.0
D0_3--BiF3	box	-3.6045	-3.6045	5.647	5.647	5.647	90.0	90.0	90.0
D0_3--BiF3	box	-0.1931	-0.1931	9.8667	9.8667	9.8667	90.0	90.0	90.0
L1_2--AuCu3	box	-0.1514	-0.1514	6.3426	6.3426	6.3426	90.0	90.0	90.0
L1_2--AuCu3	box	-0.1024	-0.1024	7.7516	7.7516	7.7516	90.0	90.0	90.0
A15--Cr3Si	box	-0.0443	-0.0443	9.7969	9.7969	9.7969	90.0	90.0	90.0
A15--Cr3Si	box	-0.0344	-0.0344	8.0277	8.0277	8.0277	90.0	90.0	90.0
