1996--Farkas-D-Jones-C--Nb-Ti-Al
Citation: D. Farkas, and C. Jones (1996), "Interatomic potentials for ternary Nb - Ti - Al alloys", Modelling and Simulation in Materials Science and Engineering, 4(1), 23-32. DOI: 10.1088/0965-0393/4/1/004.
Abstract: Interatomic potentials of the embedded-atom type were developed for the Nb - Al system via an empirical fitting to the properties of A15 Nb3Al. The cohesive energy and lattice parameters are fitted by the potentials, which also give good agreement with experimental values for the same properties in the D022 NbAl3 phase. A second interatomic potential was developed for the Nb - Ti system via a fitting to the lattice parameters and thermodynamic properties of the disordered BCC phase. The Al and Ti potentials used here are the same as those used in our previous work to derive Ti - Al potentials based on TiAl. This allows the use of the present potentials in conjunction with those previously derived interactions to study ternary Nb - Ti - Al alloys. The potentials were used to calculate the heats of solution of Al and Ti in Nb, and to simulate the Ti2NbAl orthorhombic phase.
LAMMPS pair_style eam/alloy
(1996--Farkas-D--Nb-Ti-Al--LAMMPS--ipr1)
See Computed Properties
Notes: This file was generated and tested by Ganga Purja Pun and Yuri Mishin (George Mason Univ.) using the files below that were supplied by Diana Farkas (Virginia Tech.). Testing information is in Test_report_AlTiNb.pdf. These files were approved by Dr. Purja Pun and Profs. Farkas and Mishin and posted on 1 Jul 2014.
File(s):
Notes: This file was generated and tested by Ganga Purja Pun and Yuri Mishin (George Mason Univ.) using the files below that were supplied by Diana Farkas (Virginia Tech.). Testing information is in Test_report_AlTiNb.pdf. These files were approved by Dr. Purja Pun and Profs. Farkas and Mishin and posted on 1 Jul 2014.
File(s):
EAM tabulated functions (1996--Farkas-D--Nb-Ti-Al--table--ipr1)
Notes: These files were provided by Diana Farkas and approved by her on 1 Jul 2014.
File(s):
File(s):
Nb F(ρ): frnb_Nb_Farkas96.dat
Ti F(ρ): frti_Ti_Farkas96.dat
Al F(ρ): fral_Al_Farkas96.dat
Nb ρ(r): fnb_Nb_Farkas96.dat
Ti ρ(r): fti_Ti_Farkas96.dat
Al ρ(r): for021_Al_Farkas96.dat
Nb φ(r): pnb_Nb_Farkas96.dat
Ti φ(r): pti_Ti_Farkas96.dat
Al φ(r): pal_Al_Farkas96.dat
Al-Nb φ(r): palnb_Al-Nb_Farkas96.dat
Al-Ti φ(r): palti_Al-Ti_Farkas96.dat
Ti-Nb φ(r): ptinb_Ti-Nb_Farkas96.dat
Ti F(ρ): frti_Ti_Farkas96.dat
Al F(ρ): fral_Al_Farkas96.dat
Nb ρ(r): fnb_Nb_Farkas96.dat
Ti ρ(r): fti_Ti_Farkas96.dat
Al ρ(r): for021_Al_Farkas96.dat
Nb φ(r): pnb_Nb_Farkas96.dat
Ti φ(r): pti_Ti_Farkas96.dat
Al φ(r): pal_Al_Farkas96.dat
Al-Nb φ(r): palnb_Al-Nb_Farkas96.dat
Al-Ti φ(r): palti_Al-Ti_Farkas96.dat
Ti-Nb φ(r): ptinb_Ti-Nb_Farkas96.dat
OpenKIM
(MO_042691367780)
See Computed Properties
Notes: Listing found at https://openkim.org. This KIM potential is based on the files from 1996--Farkas-D--Nb-Ti-Al--LAMMPS--ipr1.
Link(s):
Notes: Listing found at https://openkim.org. This KIM potential is based on the files from 1996--Farkas-D--Nb-Ti-Al--LAMMPS--ipr1.
Link(s):
Implementation Information
This page displays computed properties for the 1996--Farkas-D--Nb-Ti-Al--LAMMPS--ipr1 implementation of the 1996--Farkas-D-Jones-C--Nb-Ti-Al potential. Computed values for other implementations can be seen by clicking on the links below:

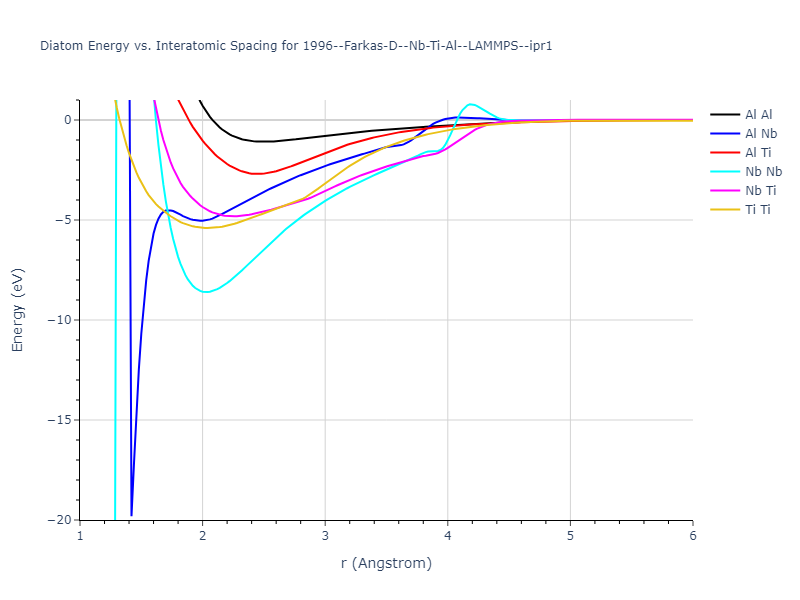

Diatom Energy vs. Interatomic Spacing
Plots of the potential energy vs interatomic spacing, r, are shown below for all diatom sets associated with the interatomic potential. This calculation provides insights into the functional form of the potential's two-body interactions. A system consisting of only two atoms is created, and the potential energy is evaluated for the atoms separated by 0.02 Å <= r <= 6.0> Å in intervals of 0.02 Å. Two plots are shown: one for the "standard" interaction distance range, and one for small values of r. The small r plot is useful for determining whether the potential is suitable for radiation studies.
The calculation method used is available as the iprPy diatom_scan calculation method.
Clicking on the image of a plot will open an interactive version of it in a new tab. The underlying data for the plots can be downloaded by clicking on the links above each plot.
Notes and Disclaimers:
- These values are meant to be guidelines for comparing potentials, not the absolute values for any potential's properties. Values listed here may change if the calculation methods are updated due to improvements/corrections. Variations in the values may occur for variations in calculation methods, simulation software and implementations of the interatomic potentials.
- As this calculation only involves two atoms, it neglects any multi-body interactions that may be important in molecules, liquids and crystals.
- NIST disclaimer
Version Information:
- 2019-11-14. Maximum value range on the shortrange plots are now limited to "expected" levels as details are otherwise lost.
- 2019-08-07. Plots added.
Click on plot to load interactive version
Click on plot to load interactive version

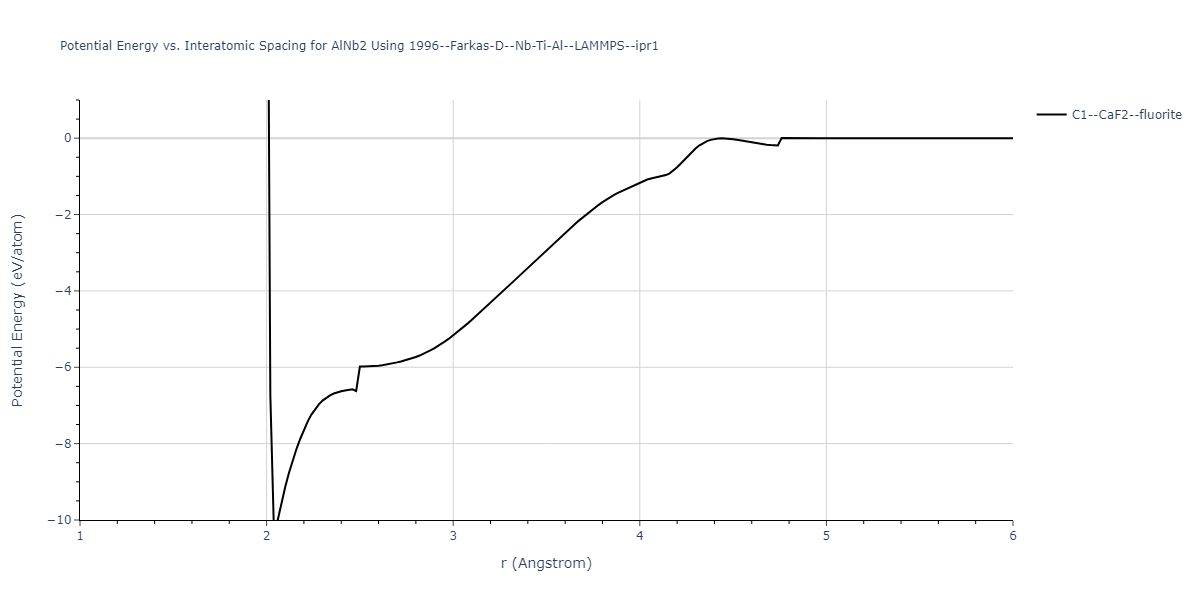

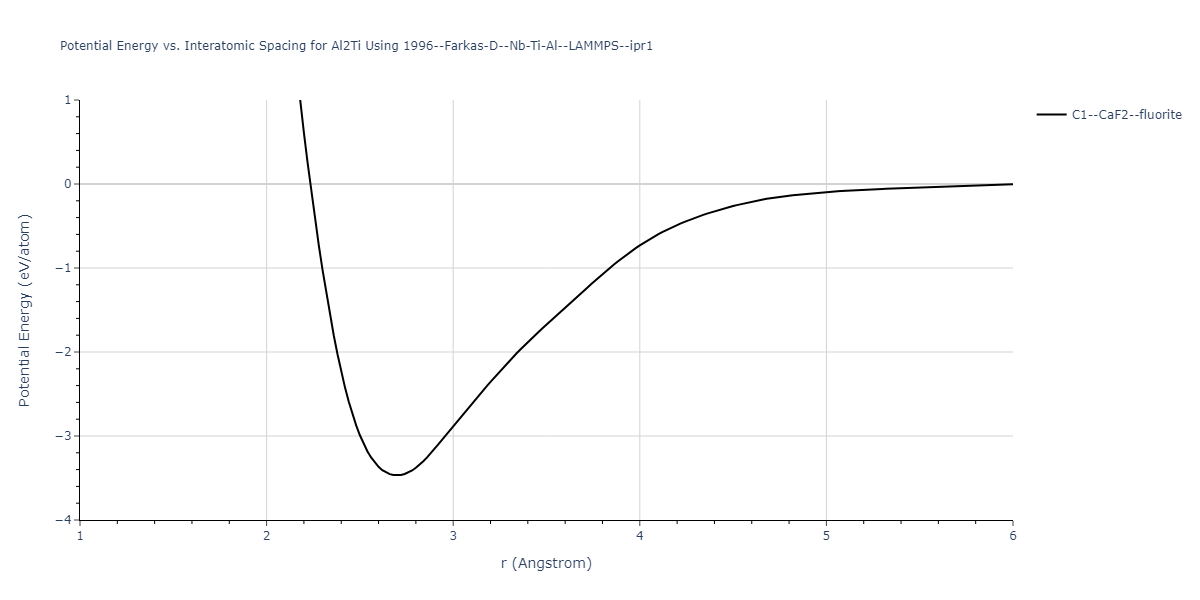

Cohesive Energy vs. Interatomic Spacing
Plots of potential energy vs interatomic spacing, r, are shown below for a number of crystal structures. The structures are generated based on the ideal atomic positions and b/a and c/a lattice parameter ratios for a given crystal prototype. The size of the system is then uniformly scaled, and the energy calculated without relaxing the system. To obtain these plots, values of r are evaluated every 0.02 Å up to 6 Å.
The calculation method used is available as the iprPy E_vs_r_scan calculation method.
Clicking on the image of a plot will open an interactive version of it in a new tab. The underlying data for the plots can be downloaded by clicking on the links above each plot.
Notes and Disclaimers:
- These values are meant to be guidelines for comparing potentials, not the absolute values for any potential's properties. Values listed here may change if the calculation methods are updated due to improvements/corrections. Variations in the values may occur for variations in calculation methods, simulation software and implementations of the interatomic potentials.
- The minima identified by this calculation do not guarantee that the associated crystal structures will be stable since no relaxation is performed.
- NIST disclaimer
Version Information:
- 2020-12-18. Descriptions, tables and plots updated to reflect that the energy values are the measuredper atom potential energy rather than cohesive energy as some potentials have non-zero isolated atom energies.
- 2019-02-04. Values regenerated with even r spacings of 0.02 Å, and now include values less than 2 Å when possible. Updated calculation method and parameters enhance compatibility with more potential styles.
- 2019-04-26. Results for hcp, double hcp, α-As and L10 prototypes regenerated from different unit cell representations. Only α-As results show noticable (>1e-5 eV) difference due to using a different coordinate for Wykoff site c position.
- 2018-06-13. Values for MEAM potentials corrected. Dynamic versions of the plots moved to separate pages to improve page loading. Cosmetic changes to how data is shown and updates to the documentation.
- 2017-01-11. Replaced png pictures with interactive Bokeh plots. Data regenerated with 200 values of r instead of 300.
- 2016-09-28. Plots for binary structures added. Data and plots for elemental structures regenerated. Data values match the values of the previous version. Data table formatting slightly changed to increase precision and ensure spaces between large values. Composition added to plot title and structure names made longer.
- 2016-04-07. Plots for elemental structures added.
Select a composition:
Crystal Structure Predictions
Computed lattice constants and cohesive/potential energies are displayed for a variety of crystal structures. The values displayed here are obtained using the following process.
- Initial crystal structure guesses are taken from:
- The iprPy E_vs_r_scan calculation results (shown above) by identifying all energy minima along the measured curves for a given crystal prototype + composition.
- Structures in the Materials Project and OQMD DFT databases.
- All initial guesses are relaxed using three independent methods using a 10x10x10 supercell:
- "box": The system's lattice constants are adjusted to zero pressure without internal relaxations using the iprPy relax_box calculation with a strainrange of 1e-6.
- "static": The system's lattice and atomic positions are statically relaxed using the iprPy relax_static calculation with a minimization force tolerance of 1e-10 eV/Angstrom.
- "dynamic": The system's lattice and atomic positions are dynamically relaxed for 10000 timesteps of 0.01 ps using the iprPy relax_dynamic calculation with an nph integration plus Langevin thermostat. The final configuration is then used as input in running an iprPy relax_static calculation with a minimization force tolerance of 1e-10 eV/Angstrom.
- The relaxed structures obtained from #2 are then evaluated using the spglib package to identify an ideal crystal unit cell based on the results.
- The space group information of the ideal unit cells is compared to the space group information of the corresponding reference structures to identify which structures transformed upon relaxation. The structures that did not transform to a different structure are listed in the table(s) below. The "method" field indicates the most rigorous relaxation method where the structure did not transform. The space group information is also used to match the DFT reference structures to the used prototype, where possible.
- The cohesive energy, Ecoh, is calculated from the measured potential energy per atom, Epot$, by subtracting the isolated energy averaged across all atoms in the unit cell. The isolated atom energies of each species model is obtained either by evaluating a single atom atomic configuration, or by identifying the first energy plateau from the diatom scan calculations for r > 2 Å.
The calculation methods used are implemented into iprPy as the following calculation styles
Notes and Disclaimers:
- These values are meant to be guidelines for comparing potentials, not the absolute values for any potential's properties. Values listed here may change if the calculation methods are updated due to improvements/corrections. Variations in the values may occur for variations in calculation methods, simulation software and implementations of the interatomic potentials.
- The presence of any structures in this list does not guarantee that those structures are stable. Also, the lowest energy structure may not be included in this list.
- Multiple values for the same crystal structure but different lattice constants are possible. This is because multiple energy minima are possible for a given structure and interatomic potential. Having multiple energy minima for a structure does not necessarily make the potential "bad" as unwanted configurations may be unstable or correspond to conditions that may not be relevant to the problem of interest (eg. very high strains).
- NIST disclaimer
Version Information:
- 2022-05-27. The "box" method results have all been redone with an updated methodology more suited for non-orthogonal systems.
- 2020-12-18. Cohesive energies have been corrected by making them relative to the energies of the isolated atoms. The previous cohesive energy values are now listed as the potential energies.
- 2019-06-07. Structures with positive or near zero cohesive energies removed from the display tables. All values still present in the raw data files.
- 2019-04-26. Calculations now computed for each implementation. Results for hcp, double hcp, α-As and L10 prototypes regenerated from different unit cell representations.
- 2018-06-14. Methodology completely changed affecting how the information is displayed. Calculations involving MEAM potentials corrected.
- 2016-09-28. Values for simple compounds added. All identified energy minima for each structure are listed. The existing elemental data was regenerated. Most values are consistent with before, but some differences have been noted. Specifically, variations are seen with some values for potentials where the elastic constants don't vary smoothly near the equilibrium state. Additionally, the inclusion of some high-energy structures has changed based on new criteria for identifying when structures have relaxed to another structure.
- 2016-04-07. Values for elemental crystal structures added. Only values for the global energy minimum of each unique structure given.
Select a composition:
Download raw data (including filtered results)
Reference structure matches:
A1--Cu--fcc = mp-134, oqmd-8100, oqmd-1214503
A15--beta-W = oqmd-1214948, oqmd-1280406
A2--W--bcc = mp-998860, oqmd-1215126
A3'--alpha-La--double-hcp = mp-1183144, oqmd-1215394
A3--Mg--hcp = oqmd-1215215, oqmd-1215304
A4--C--dc = oqmd-1215483
A5--beta-Sn = oqmd-1215572
A6--In--bct = oqmd-1215661
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| A1--Cu--fcc | dynamic | -3.2063 | -3.2063 | 3.8693 | 3.8693 | 3.8693 | 90.0 | 90.0 | 90.0 |
| A3'--alpha-La--double-hcp | dynamic | -3.2022 | -3.2022 | 2.739 | 2.739 | 8.8787 | 90.0 | 90.0 | 120.0 |
| oqmd-1216017 | static | -3.2008 | -3.2008 | 2.7399 | 2.7399 | 19.9392 | 90.0 | 90.0 | 120.0 |
| A3--Mg--hcp | dynamic | -3.1985 | -3.1985 | 2.7417 | 2.7417 | 4.414 | 90.0 | 90.0 | 120.0 |
| A2--W--bcc | static | -3.1334 | -3.1334 | 3.0646 | 3.0646 | 3.0646 | 90.0 | 90.0 | 90.0 |
| mp-1244953 | dynamic | -3.1259 | -3.1259 | 11.2106 | 11.5382 | 11.7209 | 79.7 | 83.9 | 86.7 |
| oqmd-1214859 | dynamic | -3.1243 | -3.1243 | 6.6689 | 6.6689 | 6.6689 | 90.0 | 90.0 | 90.0 |
| oqmd-1214859 | static | -3.1243 | -3.1243 | 6.6688 | 6.6688 | 6.6688 | 90.0 | 90.0 | 90.0 |
| oqmd-1214859 | box | -3.1239 | -3.1239 | 6.6588 | 6.6588 | 6.6588 | 90.0 | 90.0 | 90.0 |
| mp-1245067 | dynamic | -3.12 | -3.12 | 11.2015 | 11.3068 | 11.9507 | 90.2 | 98.6 | 96.8 |
| oqmd-1214770 | dynamic | -3.1198 | -3.1198 | 9.5218 | 9.5218 | 9.5218 | 90.0 | 90.0 | 90.0 |
| oqmd-1214770 | box | -3.1187 | -3.1187 | 9.5215 | 9.5215 | 9.5215 | 90.0 | 90.0 | 90.0 |
| mp-1245129 | dynamic | -3.1086 | -3.1086 | 11.2833 | 11.5225 | 11.6047 | 84.5 | 89.5 | 84.4 |
| mp-1245152 | dynamic | -3.1058 | -3.1058 | 11.2521 | 11.5076 | 11.7145 | 88.9 | 80.6 | 88.5 |
| A15--beta-W | static | -3.0888 | -3.0888 | 4.936 | 4.936 | 4.936 | 90.0 | 90.0 | 90.0 |
| mp-1245129 | box | -3.0706 | -3.0706 | 11.1828 | 11.5537 | 11.8763 | 94.0 | 92.4 | 96.3 |
| mp-1244953 | box | -3.0632 | -3.0632 | 11.4854 | 11.5299 | 11.7124 | 86.1 | 80.4 | 87.1 |
| mp-1245152 | box | -3.0612 | -3.0612 | 11.374 | 11.5343 | 11.7034 | 92.0 | 91.8 | 95.9 |
| mp-1245307 | box | -3.0495 | -3.0495 | 11.4435 | 11.5977 | 11.6049 | 90.7 | 92.4 | 94.0 |
| oqmd-1215037 | box | -3.0459 | -3.0459 | 2.7128 | 4.585 | 9.8636 | 90.0 | 90.0 | 90.0 |
| mp-1245067 | box | -3.0375 | -3.0375 | 11.4323 | 11.6999 | 11.7128 | 92.6 | 97.7 | 93.9 |
| A5--beta-Sn | static | -2.8852 | -2.8852 | 5.0268 | 5.0268 | 2.5806 | 90.0 | 90.0 | 90.0 |
| Ah--alpha-Po--sc | box | -2.8038 | -2.8038 | 2.5721 | 2.5721 | 2.5721 | 90.0 | 90.0 | 90.0 |
| oqmd-1214681 | box | -2.7881 | -2.7881 | 4.1526 | 7.9825 | 4.1901 | 90.0 | 90.0 | 90.0 |
| mp-1239196 | static | -2.4853 | -2.4853 | 3.5784 | 3.5784 | 12.799 | 90.0 | 90.0 | 90.0 |
| mp-1239196 | box | -2.4718 | -2.4718 | 3.6168 | 3.6168 | 12.7489 | 90.0 | 90.0 | 90.0 |
| A7--alpha-As | box | -2.3873 | -2.3873 | 3.3841 | 3.3841 | 11.7222 | 90.0 | 90.0 | 120.0 |
| oqmd-1215928 | box | -2.384 | -2.384 | 4.3061 | 4.3061 | 4.8512 | 90.0 | 90.0 | 120.0 |
| A4--C--dc | static | -2.0992 | -2.0992 | 5.698 | 5.698 | 5.698 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| mp-1217111 | dynamic | -4.0271 | -4.0271 | 3.9434 | 3.9434 | 16.1177 | 90.0 | 90.0 | 90.0 |
| mp-1217111 | box | -4.0072 | -4.0072 | 3.9441 | 3.9441 | 16.2132 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| C1--CaF2--fluorite | static | -13.6754 | -13.6754 | 4.3409 | 4.3409 | 4.3409 | 90.0 | 90.0 | 90.0 |
| C1--CaF2--fluorite | static | -5.2921 | -5.2921 | 5.7274 | 5.7274 | 5.7274 | 90.0 | 90.0 | 90.0 |
| C1--CaF2--fluorite | static | -4.6853 | -4.6853 | 5.9084 | 5.9084 | 5.9084 | 90.0 | 90.0 | 90.0 |
| C1--CaF2--fluorite | box | -0.0001 | -0.0001 | 11.0563 | 11.0563 | 11.0563 | 90.0 | 90.0 | 90.0 |
| C1--CaF2--fluorite | box | 0.0 | 0.0 | 11.111 | 11.111 | 11.111 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| L2_1--AlCu2Mn--heusler | dynamic | -5.598 | -5.598 | 6.5654 | 6.5654 | 6.5654 | 90.0 | 90.0 | 90.0 |
| L2_1--AlCu2Mn--heusler | static | -5.0536 | -5.0536 | 5.7274 | 5.7274 | 5.7274 | 90.0 | 90.0 | 90.0 |
| L2_1--AlCu2Mn--heusler | static | -4.9404 | -4.9404 | 4.6893 | 4.6893 | 4.6893 | 90.0 | 90.0 | 90.0 |
| L2_1--AlCu2Mn--heusler | box | -3.6914 | -3.6914 | 5.1136 | 5.1136 | 5.1136 | 90.0 | 90.0 | 90.0 |
| L2_1--AlCu2Mn--heusler | box | -0.0462 | -0.0462 | 11.9811 | 11.9811 | 11.9811 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| mp-1208228 | box | -5.1577 | -5.1577 | 4.6094 | 4.6094 | 5.5771 | 90.0 | 90.0 | 120.0 |
Download raw data (including filtered results)
Reference structure matches:
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| mp-11809 | dynamic | -4.0767 | -4.0767 | 3.945 | 11.8523 | 4.0227 | 90.0 | 90.0 | 90.0 |
| mp-567705 | dynamic | -4.0758 | -4.0758 | 3.9825 | 3.9825 | 23.7253 | 90.0 | 90.0 | 90.0 |
| oqmd-18195 | box | -4.045 | -4.045 | 3.9618 | 12.1145 | 3.9901 | 90.0 | 90.0 | 90.0 |
| oqmd-18487 | box | -4.0418 | -4.0418 | 3.9748 | 3.9748 | 24.28 | 90.0 | 90.0 | 90.0 |
| mp-11809 | box | -4.0414 | -4.0414 | 3.9656 | 12.1297 | 3.9857 | 90.0 | 90.0 | 90.0 |
| mp-567705 | box | -4.0389 | -4.0389 | 3.9745 | 3.9745 | 24.3046 | 90.0 | 90.0 | 90.0 |
| C1--CaF2--fluorite | static | -3.4675 | -3.4675 | 6.2283 | 6.2283 | 6.2283 | 90.0 | 90.0 | 90.0 |
| oqmd-1231523 | box | -3.0384 | -3.0384 | 5.4805 | 5.4805 | 4.7209 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| oqmd-425601 | box | -4.1344 | -4.1344 | 4.8102 | 4.8102 | 28.1995 | 90.0 | 90.0 | 120.0 |
Download raw data (including filtered results)
Reference structure matches:
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| A15--Cr3Si | static | -7.1275 | -7.1275 | 3.494 | 3.494 | 3.494 | 90.0 | 90.0 | 90.0 |
| L1_2--AuCu3 | static | -6.8685 | -6.8685 | 2.7644 | 2.7644 | 2.7644 | 90.0 | 90.0 | 90.0 |
| D0_3--BiF3 | static | -6.1809 | -6.1809 | 4.4652 | 4.4652 | 4.4652 | 90.0 | 90.0 | 90.0 |
| L1_2--AuCu3 | static | -5.3257 | -5.3257 | 3.8758 | 3.8758 | 3.8758 | 90.0 | 90.0 | 90.0 |
| D0_3--BiF3 | static | -5.1125 | -5.1125 | 5.7274 | 5.7274 | 5.7274 | 90.0 | 90.0 | 90.0 |
| A15--Cr3Si | static | -4.9979 | -4.9979 | 4.9413 | 4.9413 | 4.9413 | 90.0 | 90.0 | 90.0 |
| D0_3--BiF3 | static | -4.9812 | -4.9812 | 6.203 | 6.203 | 6.203 | 90.0 | 90.0 | 90.0 |
| L1_2--AuCu3 | dynamic | -4.8928 | -4.8928 | 3.9256 | 3.9256 | 3.9256 | 90.0 | 90.0 | 90.0 |
| D0_3--BiF3 | static | -4.7952 | -4.7952 | 5.4814 | 5.4814 | 5.4814 | 90.0 | 90.0 | 90.0 |
| A15--Cr3Si | static | -4.0951 | -4.0951 | 4.1434 | 4.1434 | 4.1434 | 90.0 | 90.0 | 90.0 |
| D0_3--BiF3 | box | -4.0335 | -4.0335 | 4.9745 | 4.9745 | 4.9745 | 90.0 | 90.0 | 90.0 |
| A15--Cr3Si | box | -3.741 | -3.741 | 3.9147 | 3.9147 | 3.9147 | 90.0 | 90.0 | 90.0 |
| A15--Cr3Si | static | -0.362 | -0.362 | 8.4564 | 8.4564 | 8.4564 | 90.0 | 90.0 | 90.0 |
| L1_2--AuCu3 | static | -0.3137 | -0.3137 | 6.6593 | 6.6593 | 6.6593 | 90.0 | 90.0 | 90.0 |
| D0_3--BiF3 | static | -0.2111 | -0.2111 | 10.8332 | 10.8332 | 10.8332 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
D0_3--BiF3 = oqmd-312158
L1_2--AuCu3 = mp-998981, oqmd-21316
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| L1_2--AuCu3 | dynamic | -3.9156 | -3.9156 | 3.9602 | 3.9602 | 3.9602 | 90.0 | 90.0 | 90.0 |
| oqmd-323620 | dynamic | -3.8938 | -3.8938 | 5.5943 | 5.5943 | 4.5869 | 90.0 | 90.0 | 120.0 |
| oqmd-323620 | box | -3.8936 | -3.8936 | 5.5949 | 5.5949 | 4.5815 | 90.0 | 90.0 | 120.0 |
| mp-542915 | dynamic | -3.8772 | -3.8772 | 3.9387 | 3.9387 | 8.0549 | 90.0 | 90.0 | 90.0 |
| mp-1217027 | dynamic | -3.8306 | -3.8306 | 2.7583 | 4.6034 | 4.8957 | 90.0 | 90.0 | 90.0 |
| mp-1217027 | box | -3.8301 | -3.8301 | 2.767 | 4.6064 | 4.8839 | 90.0 | 90.0 | 90.0 |
| A15--Cr3Si | static | -3.7739 | -3.7739 | 5.048 | 5.048 | 5.048 | 90.0 | 90.0 | 90.0 |
| D0_3--BiF3 | static | -3.7368 | -3.7368 | 6.3302 | 6.3302 | 6.3302 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| mp-1208324 | box | 2.168 | 2.168 | 6.8165 | 6.8165 | 9.7817 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| oqmd-753883 | dynamic | -4.4317 | -4.4317 | 7.518 | 7.518 | 4.6474 | 90.0 | 90.0 | 120.0 |
| oqmd-753883 | box | -4.3968 | -4.3968 | 7.6532 | 7.6532 | 4.5895 | 90.0 | 90.0 | 120.0 |
| oqmd-753871 | dynamic | -4.3859 | -4.3859 | 7.5156 | 7.5156 | 4.6883 | 90.0 | 90.0 | 120.0 |
| oqmd-753871 | box | -4.3756 | -4.3756 | 7.5232 | 7.5232 | 4.686 | 90.0 | 90.0 | 120.0 |
Download raw data (including filtered results)
Reference structure matches:
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|

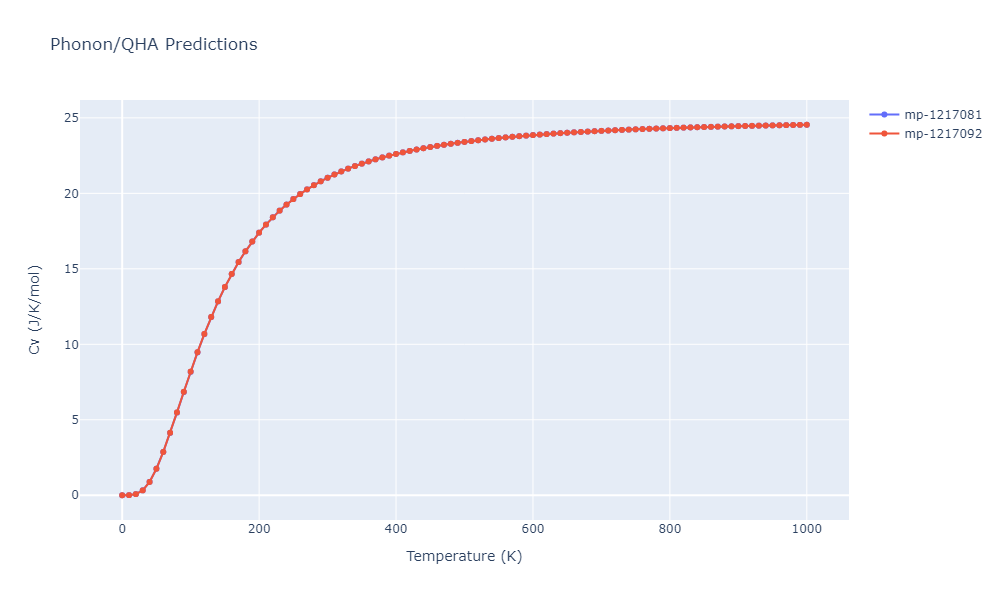

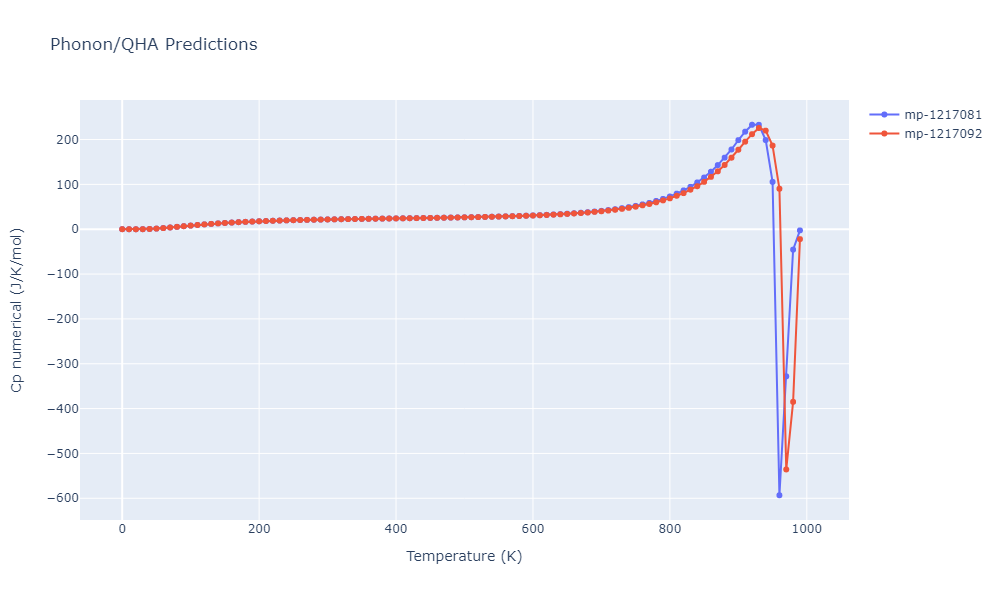

| mp-1217081 | dynamic | -4.1566 | -4.1566 | 3.9368 | 3.9368 | 8.1256 | 90.0 | 90.0 | 90.0 |
| mp-1217092 | dynamic | -4.1564 | -4.1564 | 3.9388 | 4.0547 | 7.8808 | 90.0 | 90.0 | 90.0 |
| mp-1217081 | box | -4.1556 | -4.1556 | 3.9359 | 3.9359 | 8.1436 | 90.0 | 90.0 | 90.0 |
| mp-1217092 | box | -4.1284 | -4.1284 | 3.9425 | 4.0478 | 7.9921 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| mp-1208235 | static | -5.1045 | -5.1045 | 6.3631 | 6.3631 | 7.0599 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| B1--NaCl--rock-salt | static | -13.772 | -13.772 | 3.939 | 3.939 | 3.939 | 90.0 | 90.0 | 90.0 |
| B3--ZnS--cubic-zinc-blende | static | -13.7646 | -13.7646 | 4.2309 | 4.2309 | 4.2309 | 90.0 | 90.0 | 90.0 |
| B2--CsCl | static | -12.5256 | -12.5256 | 2.3951 | 2.3951 | 2.3951 | 90.0 | 90.0 | 90.0 |
| B2--CsCl | static | -6.896 | -6.896 | 2.8637 | 2.8637 | 2.8637 | 90.0 | 90.0 | 90.0 |
| L1_0--AuCu | box | -6.7304 | -6.7304 | 2.7183 | 2.7183 | 4.0397 | 90.0 | 90.0 | 90.0 |
| L1_0--AuCu | box | -6.5287 | -6.5287 | 2.717 | 2.717 | 3.0615 | 90.0 | 90.0 | 90.0 |
| B2--CsCl | dynamic | -6.2125 | -6.2125 | 3.1888 | 3.1888 | 3.1888 | 90.0 | 90.0 | 90.0 |
| L1_0--AuCu | static | -0.0829 | -0.0829 | 4.4905 | 4.4905 | 7.172 | 90.0 | 90.0 | 90.0 |
| B2--CsCl | static | -0.0001 | -0.0001 | 5.5291 | 5.5291 | 5.5291 | 90.0 | 90.0 | 90.0 |
| B3--ZnS--cubic-zinc-blende | box | -0.0 | -0.0 | 11.0614 | 11.0614 | 11.0614 | 90.0 | 90.0 | 90.0 |
| B1--NaCl--rock-salt | dynamic | 0.0 | 0.0 | 10.0846 | 10.0846 | 10.0846 | 90.0 | 90.0 | 90.0 |
| B2--CsCl | dynamic | 0.0 | 0.0 | 7.3835 | 7.3835 | 7.3835 | 90.0 | 90.0 | 90.0 |
| B2--CsCl | box | 0.0 | 0.0 | 5.5555 | 5.5555 | 5.5555 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| C1--CaF2--fluorite | static | -10.4086 | -10.4086 | 4.7141 | 4.7141 | 4.7141 | 90.0 | 90.0 | 90.0 |
| mp-18427 | box | -7.0567 | -7.0567 | 10.0022 | 10.0022 | 4.9632 | 90.0 | 90.0 | 90.0 |
| C1--CaF2--fluorite | static | -6.6211 | -6.6211 | 5.7274 | 5.7274 | 5.7274 | 90.0 | 90.0 | 90.0 |
| C1--CaF2--fluorite | box | -0.0 | -0.0 | 11.0614 | 11.0614 | 11.0614 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| L2_1--AlCu2Mn--heusler | static | -6.0791 | -6.0791 | 5.7274 | 5.7274 | 5.7274 | 90.0 | 90.0 | 90.0 |
| L2_1--AlCu2Mn--heusler | static | -6.0671 | -6.0671 | 6.3878 | 6.3878 | 6.3878 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
A15--Cr3Si = mp-796
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| A15--Cr3Si | dynamic | -7.3023 | -7.3023 | 5.1261 | 5.1261 | 5.1261 | 90.0 | 90.0 | 90.0 |
| L1_2--AuCu3 | static | -7.2178 | -7.2178 | 3.8758 | 3.8758 | 3.8758 | 90.0 | 90.0 | 90.0 |
| D0_3--BiF3 | dynamic | -7.1261 | -7.1261 | 6.4528 | 6.4528 | 6.4528 | 90.0 | 90.0 | 90.0 |
| L1_2--AuCu3 | static | -6.9002 | -6.9002 | 4.0543 | 4.0543 | 4.0543 | 90.0 | 90.0 | 90.0 |
| D0_3--BiF3 | static | -6.7763 | -6.7763 | 5.7274 | 5.7274 | 5.7274 | 90.0 | 90.0 | 90.0 |
| D0_3--BiF3 | static | -6.2867 | -6.2867 | 5.4836 | 5.4836 | 5.4836 | 90.0 | 90.0 | 90.0 |
| A15--Cr3Si | static | -5.3433 | -5.3433 | 4.1435 | 4.1435 | 4.1435 | 90.0 | 90.0 | 90.0 |
| L1_2--AuCu3 | box | -0.0 | -0.0 | 6.7737 | 6.7737 | 6.7737 | 90.0 | 90.0 | 90.0 |
| D0_3--BiF3 | box | -0.0 | -0.0 | 11.0614 | 11.0614 | 11.0614 | 90.0 | 90.0 | 90.0 |
| L1_2--AuCu3 | dynamic | 0.0 | 0.0 | 7.3125 | 7.3125 | 7.3125 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| mp-1220481 | box | -7.0704 | -7.0704 | 3.3089 | 4.6536 | 22.1699 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| mp-1217093 | box | -5.4823 | -5.4823 | 6.5189 | 9.197 | 4.453 | 90.0 | 90.0 | 90.0 |
| L2_1--AlCu2Mn--heusler | static | -5.3262 | -5.3262 | 6.4537 | 6.4537 | 6.4537 | 90.0 | 90.0 | 90.0 |
| L2_1--AlCu2Mn--heusler | static | -5.0426 | -5.0426 | 7.0593 | 7.0593 | 7.0593 | 90.0 | 90.0 | 90.0 |
| mp-1097622 | dynamic | -2.3327 | -2.3327 | 10.3788 | 11.2503 | 15.4142 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
B1--NaCl--rock-salt = oqmd-1105682
B2--CsCl = oqmd-306497
B3--ZnS--cubic-zinc-blende = oqmd-1218357
L1_0--AuCu = mp-1953, mp-1061123, oqmd-18721
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| L1_0--AuCu | dynamic | -4.3993 | -4.3993 | 2.7623 | 2.7623 | 4.1521 | 90.0 | 90.0 | 90.0 |
| oqmd-1217571 | dynamic | -4.3819 | -4.3819 | 4.6271 | 2.7698 | 4.9718 | 90.0 | 90.0 | 90.0 |
| oqmd-1217571 | box | -4.3809 | -4.3809 | 4.6389 | 2.7774 | 4.9585 | 90.0 | 90.0 | 90.0 |
| oqmd-753881 | dynamic | -4.3203 | -4.3203 | 4.9863 | 4.652 | 5.6298 | 90.0 | 90.0 | 90.0 |
| oqmd-753881 | box | -4.3027 | -4.3027 | 5.0945 | 4.649 | 5.5881 | 90.0 | 90.0 | 90.0 |
| oqmd-753875 | dynamic | -4.295 | -4.295 | 4.6616 | 14.1202 | 4.9236 | 90.0 | 90.0 | 90.0 |
| oqmd-753878 | dynamic | -4.2944 | -4.2944 | 4.6549 | 14.1013 | 4.9124 | 90.0 | 90.0 | 90.0 |
| oqmd-753888 | dynamic | -4.2878 | -4.2878 | 5.7159 | 4.845 | 4.691 | 90.0 | 90.0 | 90.0 |

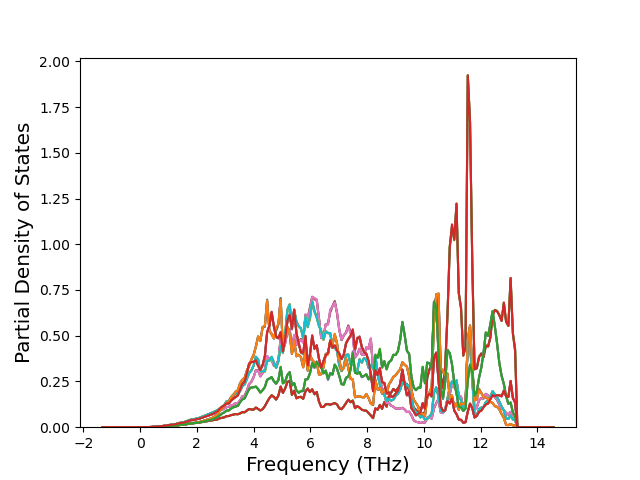

| oqmd-753868 | dynamic | -4.2874 | -4.2874 | 5.6713 | 14.5497 | 4.6495 | 90.0 | 90.0 | 90.0 |
| oqmd-753889 | dynamic | -4.2866 | -4.2866 | 4.6457 | 11.3206 | 4.9246 | 90.0 | 90.0 | 90.0 |
| oqmd-753874 | dynamic | -4.2859 | -4.2859 | 4.6549 | 11.3743 | 4.8955 | 90.0 | 90.0 | 90.0 |
| oqmd-753872 | dynamic | -4.284 | -4.284 | 4.6535 | 8.5263 | 4.9079 | 90.0 | 90.0 | 90.0 |
| oqmd-753874 | box | -4.2827 | -4.2827 | 4.6495 | 11.3937 | 4.8873 | 90.0 | 90.0 | 90.0 |
| oqmd-753894 | dynamic | -4.2818 | -4.2818 | 4.6523 | 8.5378 | 4.8992 | 90.0 | 90.0 | 90.0 |
| oqmd-753878 | box | -4.2797 | -4.2797 | 4.6685 | 14.0936 | 4.8914 | 90.0 | 90.0 | 90.0 |
| oqmd-753888 | box | -4.2796 | -4.2796 | 5.7448 | 4.8186 | 4.6879 | 90.0 | 90.0 | 90.0 |
| oqmd-753875 | box | -4.2783 | -4.2783 | 4.6472 | 14.1402 | 4.9738 | 90.0 | 90.0 | 90.0 |
| oqmd-753873 | dynamic | -4.2782 | -4.2782 | 4.6563 | 5.6289 | 9.8483 | 90.0 | 90.0 | 90.0 |
| oqmd-753897 | dynamic | -4.273 | -4.273 | 5.644 | 4.6635 | 7.4587 | 90.0 | 100.8 | 90.0 |
| B2--CsCl | static | -4.2718 | -4.2718 | 3.2398 | 3.2398 | 3.2398 | 90.0 | 90.0 | 90.0 |
| oqmd-753876 | dynamic | -4.2704 | -4.2704 | 5.6442 | 4.6627 | 7.4726 | 90.0 | 100.7 | 90.0 |
| oqmd-753876 | box | -4.2669 | -4.2669 | 5.6303 | 4.6597 | 7.4783 | 90.0 | 100.2 | 90.0 |
| mp-1217008 | dynamic | -4.2628 | -4.2628 | 2.8388 | 2.8388 | 4.6471 | 90.0 | 90.0 | 120.0 |
| oqmd-753872 | box | -4.2626 | -4.2626 | 4.6226 | 8.5277 | 5.0092 | 90.0 | 90.0 | 90.0 |
| oqmd-753889 | box | -4.26 | -4.26 | 4.5273 | 11.1366 | 5.2071 | 90.0 | 90.0 | 90.0 |
| oqmd-327581 | box | -4.2599 | -4.2599 | 2.8317 | 2.8317 | 13.9889 | 90.0 | 90.0 | 120.0 |

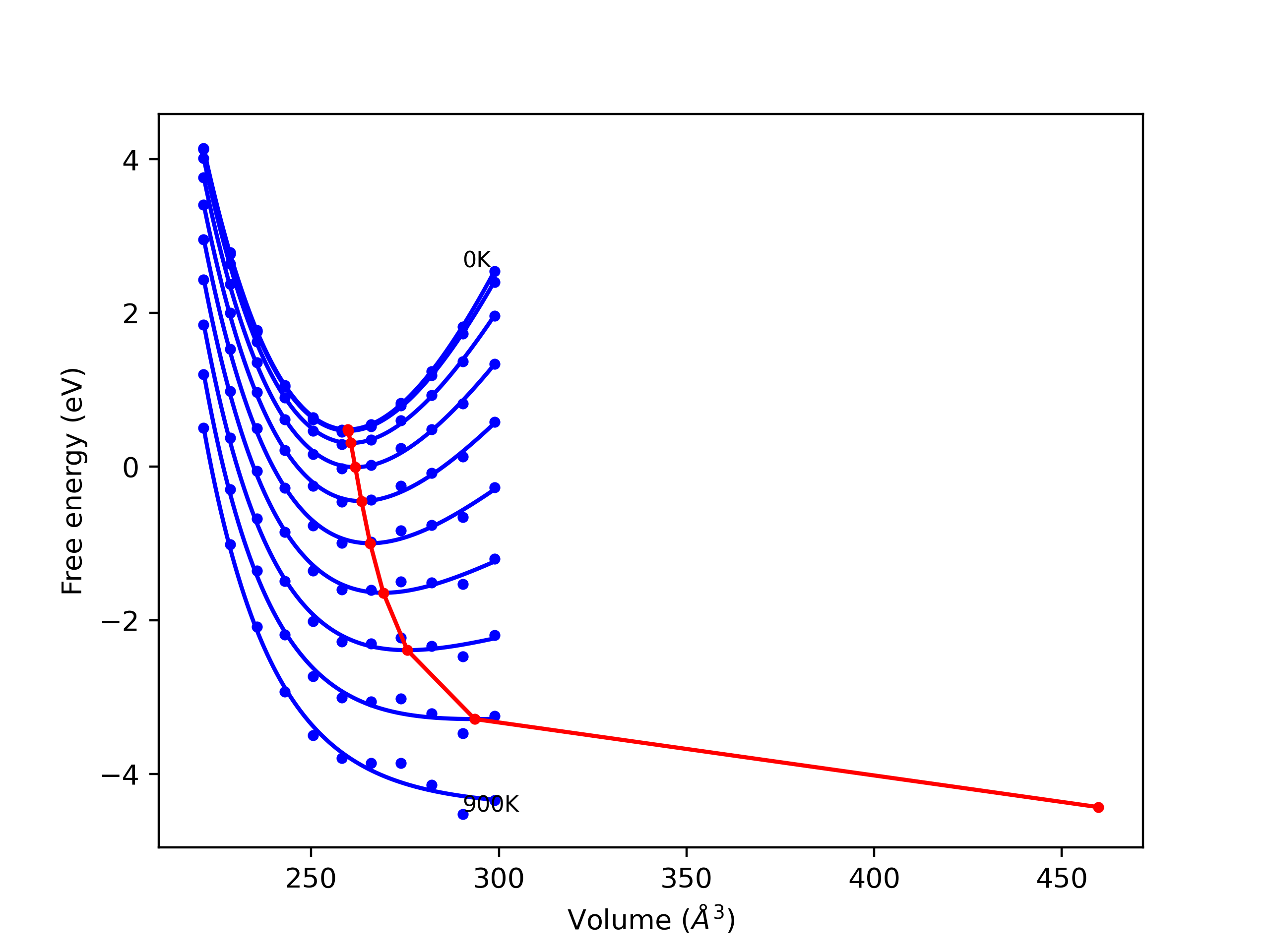

| oqmd-753873 | box | -4.2573 | -4.2573 | 4.6727 | 5.58 | 9.9782 | 90.0 | 90.0 | 90.0 |
| oqmd-753870 | dynamic | -4.2552 | -4.2552 | 5.7212 | 4.6725 | 7.4485 | 90.0 | 101.1 | 90.0 |
| oqmd-753897 | box | -4.2538 | -4.2538 | 5.577 | 4.6951 | 7.5205 | 90.0 | 100.6 | 90.0 |

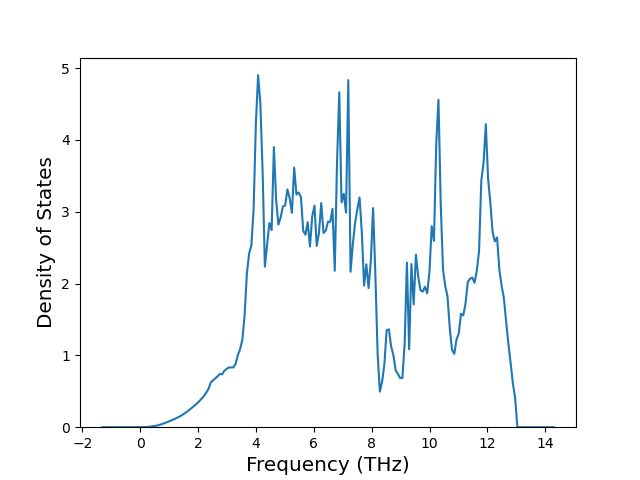

| oqmd-753880 | dynamic | -4.2516 | -4.2516 | 5.6836 | 5.6836 | 4.6642 | 90.0 | 90.0 | 120.0 |
| oqmd-753880 | box | -4.2513 | -4.2513 | 5.6853 | 5.6853 | 4.6644 | 90.0 | 90.0 | 120.0 |
| oqmd-753870 | box | -4.2434 | -4.2434 | 5.8122 | 4.6865 | 7.3731 | 90.0 | 101.3 | 90.0 |
| oqmd-753898 | box | -4.2401 | -4.2401 | 4.6545 | 6.244 | 4.6551 | 90.0 | 90.0 | 90.0 |
| oqmd-753868 | box | -4.2397 | -4.2397 | 5.7943 | 14.4023 | 4.7424 | 90.0 | 90.0 | 90.0 |
| oqmd-753882 | dynamic | -4.2385 | -4.2385 | 2.8103 | 4.6534 | 9.7342 | 90.0 | 90.0 | 90.0 |
| oqmd-753882 | box | -4.2321 | -4.2321 | 2.7786 | 4.6399 | 9.8243 | 90.0 | 90.0 | 90.0 |
| oqmd-753894 | box | -4.2262 | -4.2262 | 4.6496 | 8.5643 | 4.9828 | 90.0 | 90.0 | 90.0 |
| B1--NaCl--rock-salt | static | -3.9386 | -3.9386 | 5.4306 | 5.4306 | 5.4306 | 90.0 | 90.0 | 90.0 |
| oqmd-1224551 | box | -3.3591 | -3.3591 | 4.6482 | 4.6482 | 5.4112 | 90.0 | 90.0 | 120.0 |
| B3--ZnS--cubic-zinc-blende | static | -2.9867 | -2.9867 | 5.9982 | 5.9982 | 5.9982 | 90.0 | 90.0 | 90.0 |
| B3--ZnS--cubic-zinc-blende | static | 3.6098 | 3.6098 | 3.8196 | 3.8196 | 3.8196 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| oqmd-753885 | box | -4.5401 | -4.5401 | 2.7944 | 4.6478 | 14.9703 | 90.0 | 90.0 | 90.0 |
| oqmd-753879 | dynamic | -4.5317 | -4.5317 | 8.7776 | 4.8867 | 4.6781 | 90.0 | 90.0 | 90.0 |
| oqmd-753879 | box | -4.5248 | -4.5248 | 8.9642 | 4.8168 | 4.6835 | 90.0 | 90.0 | 90.0 |
| oqmd-753892 | dynamic | -4.5135 | -4.5135 | 4.9791 | 4.9791 | 4.6569 | 90.0 | 90.0 | 120.0 |
| oqmd-753869 | dynamic | -4.512 | -4.512 | 4.671 | 8.6157 | 4.9659 | 90.0 | 90.0 | 90.0 |

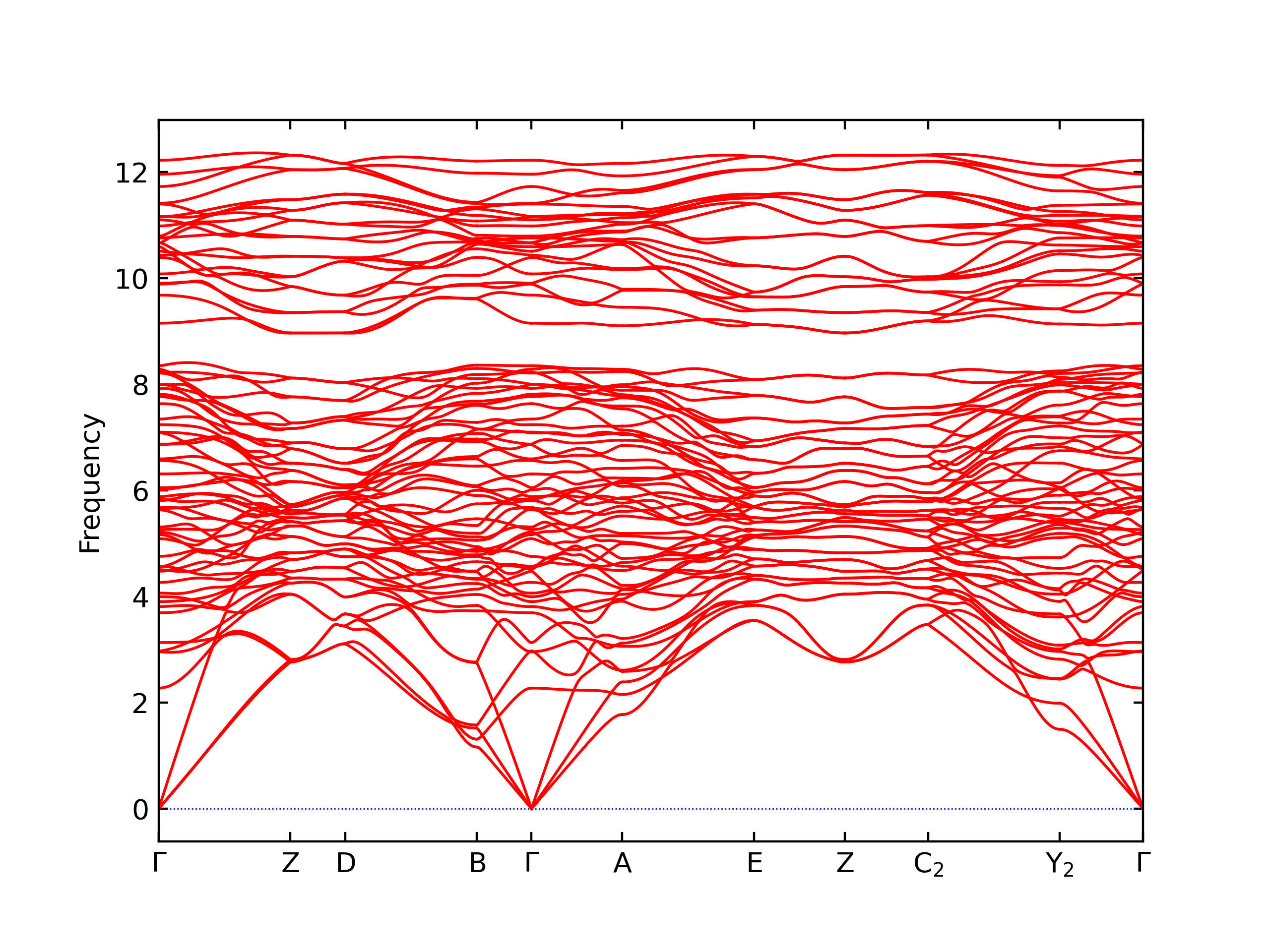

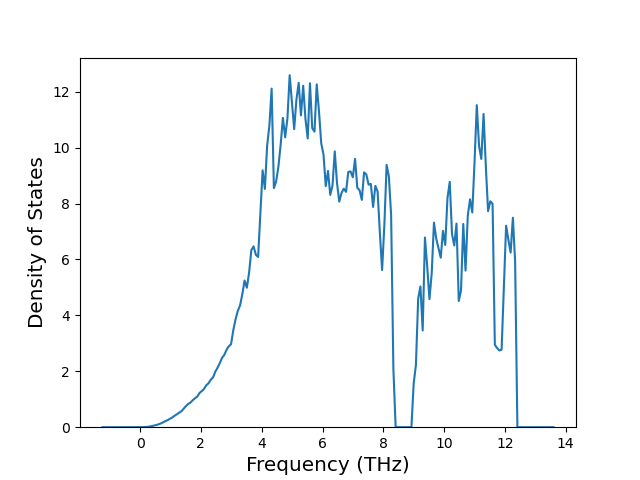

| oqmd-753893 | dynamic | -4.4985 | -4.4985 | 7.5473 | 4.6951 | 11.4841 | 90.0 | 100.8 | 90.0 |
| oqmd-753893 | box | -4.4949 | -4.4949 | 7.5016 | 4.6819 | 11.5276 | 90.0 | 100.8 | 90.0 |
| oqmd-753869 | box | -4.4832 | -4.4832 | 4.5879 | 8.7644 | 5.0591 | 90.0 | 90.0 | 90.0 |
| oqmd-753892 | box | -4.4489 | -4.4489 | 5.0573 | 5.0573 | 4.678 | 90.0 | 90.0 | 120.0 |
| C1--CaF2--fluorite | static | -3.9722 | -3.9722 | 6.2588 | 6.2588 | 6.2588 | 90.0 | 90.0 | 90.0 |
| mp-1008753 | static | -3.9573 | -3.9573 | 6.2323 | 6.2323 | 6.2323 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
D0_3--BiF3 = mp-999027, oqmd-313078
L1_2--AuCu3 = oqmd-347186
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| oqmd-10598 | dynamic | -4.6759 | -4.6759 | 5.7297 | 5.7297 | 4.6621 | 90.0 | 90.0 | 120.0 |
| L1_2--AuCu3 | dynamic | -4.6712 | -4.6712 | 4.0451 | 4.0451 | 4.0451 | 90.0 | 90.0 | 90.0 |
| oqmd-10598 | box | -4.6634 | -4.6634 | 5.7242 | 5.7242 | 4.6826 | 90.0 | 90.0 | 120.0 |
| oqmd-753887 | box | -4.6634 | -4.6634 | 5.7242 | 5.7242 | 4.6827 | 90.0 | 90.0 | 120.0 |
| mp-1823 | box | -4.6624 | -4.6624 | 5.7241 | 5.7241 | 4.6835 | 90.0 | 90.0 | 120.0 |
| oqmd-753899 | dynamic | -4.6518 | -4.6518 | 4.6694 | 5.6852 | 5.0457 | 90.0 | 90.0 | 90.0 |
| oqmd-753899 | box | -4.6474 | -4.6474 | 4.6797 | 5.6754 | 5.0536 | 90.0 | 90.0 | 90.0 |
| oqmd-302536 | dynamic | -4.6436 | -4.6436 | 4.0065 | 4.0065 | 8.3354 | 90.0 | 90.0 | 90.0 |
| D0_3--BiF3 | static | -4.5815 | -4.5815 | 6.4961 | 6.4961 | 6.4961 | 90.0 | 90.0 | 90.0 |
| mp-1217072 | dynamic | -4.5686 | -4.5686 | 2.9095 | 2.9095 | 9.2634 | 90.0 | 90.0 | 120.0 |
| mp-1217072 | box | -4.5679 | -4.5679 | 2.91 | 2.91 | 9.2432 | 90.0 | 90.0 | 120.0 |
| A15--Cr3Si | static | -4.5428 | -4.5428 | 5.1397 | 5.1397 | 5.1397 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| oqmd-753884 | dynamic | -4.7045 | -4.7045 | 5.0325 | 5.0325 | 4.6751 | 90.0 | 90.0 | 120.0 |
| oqmd-753884 | box | -4.6993 | -4.6993 | 5.0314 | 5.0314 | 4.688 | 90.0 | 90.0 | 120.0 |
Download raw data (including filtered results)
Reference structure matches:

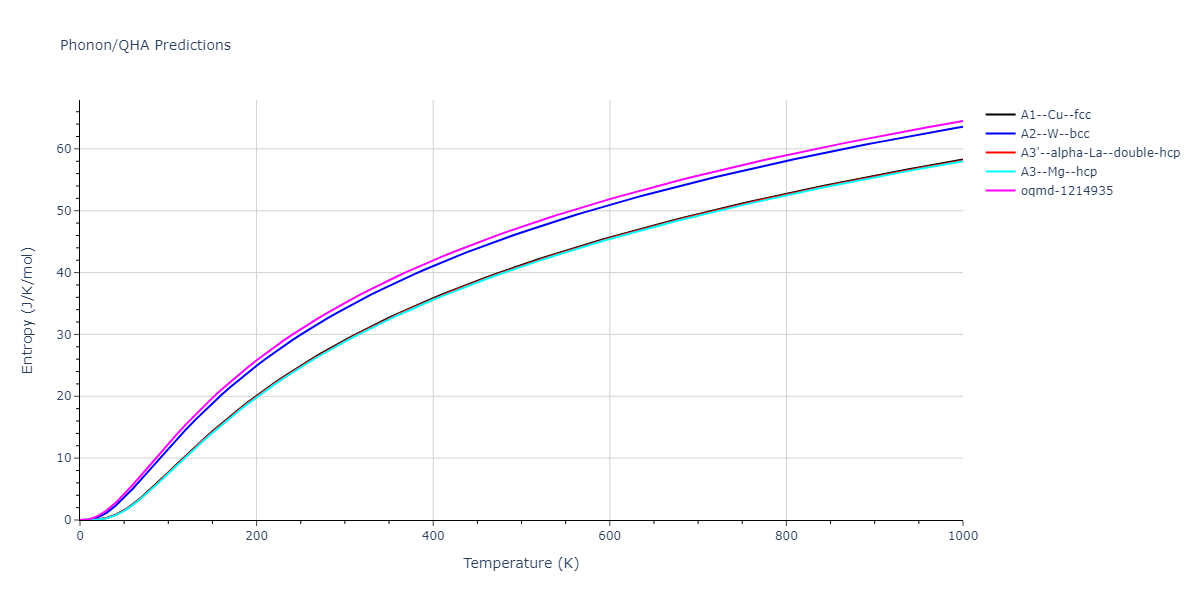

A1--Cu--fcc = mp-8636, oqmd-676151, oqmd-1214547
A15--beta-W = oqmd-1214992, oqmd-1280310
A2--W--bcc = mp-75, oqmd-677905, oqmd-685533, oqmd-1215170
A3'--alpha-La--double-hcp = oqmd-1215438
A3--Mg--hcp = oqmd-1215348
A4--C--dc = oqmd-1215527
A5--beta-Sn = oqmd-1215616
A6--In--bct = oqmd-1215705
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| A2--W--bcc | dynamic | -7.4654 | -7.4654 | 3.3001 | 3.3001 | 3.3001 | 90.0 | 90.0 | 90.0 |
| mp-1104341 | box | -7.4644 | -7.4644 | 2.8579 | 4.6667 | 9.7615 | 103.8 | 95.6 | 90.0 |
| A15--beta-W | dynamic | -7.4059 | -7.4059 | 5.2728 | 5.2728 | 5.2728 | 90.0 | 90.0 | 90.0 |
| A6--In--bct | box | -7.3935 | -7.3935 | 2.5869 | 2.5869 | 5.18 | 90.0 | 90.0 | 90.0 |
| oqmd-1214814 | box | -7.34 | -7.34 | 10.1977 | 10.1977 | 10.1977 | 90.0 | 90.0 | 90.0 |
| oqmd-1215259 | box | -7.3341 | -7.3341 | 2.6521 | 5.6397 | 4.7235 | 90.0 | 90.0 | 90.0 |
| mp-1094120 | box | -7.316 | -7.316 | 5.3965 | 6.5568 | 7.3359 | 108.0 | 109.7 | 101.6 |
| oqmd-1214903 | box | -7.259 | -7.259 | 7.1711 | 7.1711 | 7.1711 | 90.0 | 90.0 | 90.0 |
| A3'--alpha-La--double-hcp | static | -7.2582 | -7.2582 | 2.9343 | 2.9343 | 9.5833 | 90.0 | 90.0 | 120.0 |
| A1--Cu--fcc | static | -7.2582 | -7.2582 | 4.1497 | 4.1497 | 4.1497 | 90.0 | 90.0 | 90.0 |
| A3--Mg--hcp | box | -7.2582 | -7.2582 | 2.9343 | 2.9343 | 4.7916 | 90.0 | 90.0 | 120.0 |
| oqmd-1216064 | box | -7.2581 | -7.2581 | 2.9343 | 2.9343 | 21.5629 | 90.0 | 90.0 | 120.0 |
| A5--beta-Sn | static | -7.164 | -7.164 | 4.7356 | 4.7356 | 3.002 | 90.0 | 90.0 | 90.0 |
| oqmd-1215081 | box | -7.1222 | -7.1222 | 3.1434 | 4.7731 | 9.4127 | 90.0 | 90.0 | 90.0 |
| oqmd-1214725 | box | -7.0843 | -7.0843 | 3.1534 | 4.8028 | 9.4169 | 90.0 | 90.0 | 90.0 |
| Ah--alpha-Po--sc | dynamic | -6.954 | -6.954 | 2.5223 | 2.5223 | 2.5223 | 90.0 | 90.0 | 90.0 |
| A7--alpha-As | box | -6.6918 | -6.6918 | 3.5478 | 3.5478 | 9.7872 | 90.0 | 90.0 | 120.0 |
| oqmd-1215972 | box | -6.6777 | -6.6777 | 4.3052 | 4.3052 | 4.7548 | 90.0 | 90.0 | 120.0 |
| A4--C--dc | static | -5.6613 | -5.6613 | 5.538 | 5.538 | 5.538 | 90.0 | 90.0 | 90.0 |
| A4--C--dc | box | -0.7766 | -0.7766 | 9.7405 | 9.7405 | 9.7405 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| C1--CaF2--fluorite | static | -5.6637 | -5.6637 | 6.0383 | 6.0383 | 6.0383 | 90.0 | 90.0 | 90.0 |
| C1--CaF2--fluorite | static | -5.1464 | -5.1464 | 7.0594 | 7.0594 | 7.0594 | 90.0 | 90.0 | 90.0 |
| C1--CaF2--fluorite | box | 0.0709 | 0.0709 | 12.9476 | 12.9476 | 12.9476 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| A15--Cr3Si | static | -7.4306 | -7.4306 | 5.3976 | 5.3976 | 5.3976 | 90.0 | 90.0 | 90.0 |
| L1_2--AuCu3 | static | -7.3085 | -7.3085 | 4.1217 | 4.1217 | 4.1217 | 90.0 | 90.0 | 90.0 |
| D0_3--BiF3 | dynamic | -7.1389 | -7.1389 | 7.1152 | 7.1152 | 7.1152 | 90.0 | 90.0 | 90.0 |
| D0_3--BiF3 | static | -7.1205 | -7.1205 | 6.8982 | 6.8982 | 6.8982 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| mp-1216634 | dynamic | -9.5775 | -9.5775 | 2.5526 | 4.2984 | 5.74 | 90.0 | 90.0 | 90.0 |
| L1_0--AuCu | static | -9.3571 | -9.3571 | 2.398 | 2.398 | 5.7911 | 90.0 | 90.0 | 90.0 |
| B2--CsCl | static | -6.0352 | -6.0352 | 3.7397 | 3.7397 | 3.7397 | 90.0 | 90.0 | 90.0 |
| B2--CsCl | static | -5.8265 | -5.8265 | 3.3135 | 3.3135 | 3.3135 | 90.0 | 90.0 | 90.0 |
| B1--NaCl--rock-salt | static | -5.5376 | -5.5376 | 5.3723 | 5.3723 | 5.3723 | 90.0 | 90.0 | 90.0 |
| B1--NaCl--rock-salt | static | -5.4978 | -5.4978 | 5.0737 | 5.0737 | 5.0737 | 90.0 | 90.0 | 90.0 |
| B3--ZnS--cubic-zinc-blende | static | -4.7888 | -4.7888 | 5.4411 | 5.4411 | 5.4411 | 90.0 | 90.0 | 90.0 |
| B3--ZnS--cubic-zinc-blende | static | -3.5452 | -3.5452 | 7.1923 | 7.1923 | 7.1923 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| C1--CaF2--fluorite | static | -4.863 | -4.863 | 5.9856 | 5.9856 | 5.9856 | 90.0 | 90.0 | 90.0 |
| C1--CaF2--fluorite | static | -4.5701 | -4.5701 | 7.3609 | 7.3609 | 7.3609 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
L1_2--AuCu3 = mp-980945
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| mp-1217091 | box | -7.0553 | -7.0553 | 9.5661 | 2.6917 | 4.8013 | 90.0 | 90.0 | 90.0 |
| mp-981232 | static | -6.1678 | -6.1678 | 3.913 | 3.913 | 10.0346 | 90.0 | 90.0 | 90.0 |
| L1_2--AuCu3 | static | -6.0936 | -6.0936 | 4.1157 | 4.1157 | 4.1157 | 90.0 | 90.0 | 90.0 |
| A15--Cr3Si | static | -6.0529 | -6.0529 | 5.5745 | 5.5745 | 5.5745 | 90.0 | 90.0 | 90.0 |
| D0_3--BiF3 | static | -5.9582 | -5.9582 | 7.3185 | 7.3185 | 7.3185 | 90.0 | 90.0 | 90.0 |
| mp-1187514 | box | -5.9374 | -5.9374 | 5.7283 | 5.7283 | 4.9035 | 90.0 | 90.0 | 120.0 |
| L1_2--AuCu3 | static | -5.5311 | -5.5311 | 4.7791 | 4.7791 | 4.7791 | 90.0 | 90.0 | 90.0 |
| A15--Cr3Si | dynamic | -0.013 | -0.013 | 10.9465 | 10.9465 | 10.9465 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
A1--Cu--fcc = mp-6985, oqmd-676147
A15--beta-W = oqmd-1215024
A2--W--bcc = mp-73, oqmd-8390
A3'--alpha-La--double-hcp = oqmd-1215470
A3--Mg--hcp = mp-46, oqmd-8079, oqmd-755820, oqmd-755821, oqmd-755822, oqmd-755823, oqmd-755827, oqmd-755834, oqmd-755836, oqmd-755845
A4--C--dc = oqmd-1215559
A5--beta-Sn = oqmd-1215648
A6--In--bct = oqmd-1215737
| prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
|---|---|---|---|---|---|---|---|---|---|
| A3--Mg--hcp | dynamic | -4.85 | -4.85 | 2.951 | 2.951 | 4.6862 | 90.0 | 90.0 | 120.0 |
| A3--Mg--hcp | box | -4.85 | -4.85 | 2.9508 | 2.9508 | 4.6862 | 90.0 | 90.0 | 120.0 |
| A3--Mg--hcp | box | -4.85 | -4.85 | 2.9509 | 2.9509 | 4.6862 | 90.0 | 90.0 | 120.0 |
| oqmd-1215291 | box | -4.8492 | -4.8492 | 2.9359 | 5.1373 | 4.686 | 90.0 | 90.0 | 90.0 |
| A2--W--bcc | dynamic | -4.8399 | -4.8399 | 3.2841 | 3.2841 | 3.2841 | 90.0 | 90.0 | 90.0 |
| A3'--alpha-La--double-hcp | dynamic | -4.8376 | -4.8376 | 2.9409 | 2.9409 | 9.4811 | 90.0 | 90.0 | 120.0 |
| A1--Cu--fcc | dynamic | -4.8274 | -4.8274 | 4.1475 | 4.1475 | 4.1475 | 90.0 | 90.0 | 90.0 |
| oqmd-1215915 | box | -4.8274 | -4.8274 | 2.9327 | 2.9327 | 7.1837 | 90.0 | 90.0 | 120.0 |
| mp-1245164 | dynamic | -4.8126 | -4.8126 | 11.8223 | 12.3763 | 12.6513 | 82.1 | 76.5 | 83.7 |
| mp-72 | static | -4.8082 | -4.8082 | 4.6287 | 4.6287 | 2.8665 | 90.0 | 90.0 | 120.0 |
| oqmd-9315 | box | -4.8082 | -4.8082 | 4.6286 | 4.6286 | 2.8665 | 90.0 | 90.0 | 120.0 |
| oqmd-1215113 | static | -4.7844 | -4.7844 | 2.9164 | 4.8334 | 10.1622 | 90.0 | 90.0 | 90.0 |
| oqmd-1215113 | box | -4.7691 | -4.7691 | 2.9376 | 4.8191 | 10.1663 | 90.0 | 90.0 | 90.0 |
| oqmd-1214935 | dynamic | -4.7447 | -4.7447 | 7.0572 | 7.0572 | 7.0572 | 90.0 | 90.0 | 90.0 |
| A5--beta-Sn | static | -4.7407 | -4.7407 | 5.1065 | 5.1065 | 2.7645 | 90.0 | 90.0 | 90.0 |
| mp-1245006 | box | -4.7115 | -4.7115 | 11.8571 | 12.3071 | 12.5498 | 93.1 | 91.7 | 91.7 |
| mp-1245164 | box | -4.7085 | -4.7085 | 12.1655 | 12.3081 | 12.5145 | 81.0 | 83.5 | 82.5 |
| oqmd-1214935 | box | -4.6996 | -4.6996 | 7.1272 | 7.1272 | 7.1272 | 90.0 | 90.0 | 90.0 |
| mp-1245320 | box | -4.6991 | -4.6991 | 11.9936 | 12.1809 | 12.5845 | 90.2 | 90.1 | 90.9 |
| mp-1245170 | box | -4.6846 | -4.6846 | 12.0318 | 12.0533 | 12.6698 | 93.7 | 90.9 | 90.5 |
| mp-1244924 | box | -4.6766 | -4.6766 | 11.7896 | 12.3744 | 12.6499 | 92.4 | 92.1 | 93.2 |
| A15--beta-W | static | -4.6753 | -4.6753 | 5.2236 | 5.2236 | 5.2236 | 90.0 | 90.0 | 90.0 |
| oqmd-1214757 | box | -4.6561 | -4.6561 | 3.1206 | 4.6964 | 10.1641 | 90.0 | 90.0 | 90.0 |
| Ah--alpha-Po--sc | static | -4.5461 | -4.5461 | 2.6194 | 2.6194 | 2.6194 | 90.0 | 90.0 | 90.0 |
| oqmd-1216004 | box | -4.1238 | -4.1238 | 4.4909 | 4.4909 | 4.9916 | 90.0 | 90.0 | 120.0 |
| A4--C--dc | static | -3.6024 | -3.6024 | 5.5416 | 5.5416 | 5.5416 | 90.0 | 90.0 | 90.0 |
Elastic Constants Predictions
Static elastic constants are displayed for the unique structures identified in Crystal Structure Predictions above. The values displayed here are obtained by measuring the change in virial stresses due to applying small strains to the relaxed crystals. The initial structure and the strained states are all relaxed using force minimization.
The calculation method used is available as the iprPy elastic_constants_static calculation method.
Notes and Disclaimers:
- These values are meant to be guidelines for comparing potentials, not the absolute values for any potential's properties. Values listed here may change if the calculation methods are updated due to improvements/corrections. Variations in the values may occur for variations in calculation methods, simulation software and implementations of the interatomic potentials.
- The presence of any structures in this list does not guarantee that those structures are stable.
- The elastic constants have been computed for a variety of strains, and in some cases for slightly different lattice constant values. The static nature of this calculation can give poor predictions if the evaluated states straddle a functional discontinuity in the potential's third derivative. Be sure to compare the elastic constants for the different strains (positive and negative).
- NIST disclaimer
Version Information:
- 2019-08-07. Data added.
Composition:
Prototype:
a0:
strain:
Cij in GPa:
| 180.955 | 123.553 | 123.553 | -0.0 | 0.0 | -0.0 |
| 123.553 | 180.955 | 123.553 | 0.0 | -0.0 | -0.0 |
| 123.553 | 123.553 | 180.955 | -0.0 | -0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 50.79 | 0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | 50.79 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 50.79 |
Cij in GPa:
| 180.955 | 123.553 | 123.553 | -0.0 | -0.0 | -0.0 |
| 123.553 | 180.955 | 123.553 | -0.0 | -0.0 | -0.0 |
| 123.553 | 123.553 | 180.955 | -0.0 | 0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | 50.79 | 0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | 50.79 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 50.79 |
Cij in GPa:
| 180.955 | 123.553 | 123.553 | 0.0 | 0.0 | -0.0 |
| 123.553 | 180.955 | 123.553 | 0.0 | 0.0 | 0.0 |
| 123.553 | 123.553 | 180.955 | 0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 50.79 | 0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 50.79 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 50.79 |
Cij in GPa:
| 180.955 | 123.553 | 123.553 | -0.0 | 0.0 | -0.0 |
| 123.553 | 180.955 | 123.553 | -0.0 | 0.0 | -0.0 |
| 123.553 | 123.553 | 180.955 | -0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 50.79 | -0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 50.79 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 50.79 |
Cij in GPa:
| 180.956 | 123.554 | 123.554 | 0.0 | -0.0 | 0.0 |
| 123.554 | 180.956 | 123.554 | 0.0 | 0.0 | 0.0 |
| 123.554 | 123.554 | 180.956 | -0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 50.79 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 50.79 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 50.79 |
Cij in GPa:
| 180.954 | 123.552 | 123.552 | -0.0 | -0.0 | -0.0 |
| 123.552 | 180.954 | 123.552 | -0.0 | 0.0 | -0.0 |
| 123.552 | 123.552 | 180.954 | 0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 50.79 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 50.79 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 50.79 |
a0:
strain:
Cij in GPa:
| 268.82 | 96.558 | 96.558 | 0.0 | 0.0 | 0.0 |
| 96.558 | 268.82 | 96.558 | 0.0 | -0.0 | 0.0 |
| 96.558 | 96.558 | 268.82 | 0.0 | -0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | -24.225 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -24.225 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -24.225 |
Cij in GPa:
| 267.601 | 97.168 | 97.168 | -0.0 | -0.0 | -0.0 |
| 97.168 | 267.601 | 97.168 | -0.0 | -0.0 | -0.0 |
| 97.168 | 97.168 | 267.601 | -0.0 | 0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -24.225 | 0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | -24.225 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | -24.225 |
Cij in GPa:
| 268.82 | 96.558 | 96.558 | -0.0 | -0.0 | -0.0 |
| 96.558 | 268.82 | 96.558 | -0.0 | 0.0 | -0.0 |
| 96.558 | 96.558 | 268.82 | 0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -24.225 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -24.225 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -0.0 | -24.225 |
Cij in GPa:
| 268.819 | 96.558 | 96.558 | -0.0 | -0.0 | 0.0 |
| 96.558 | 268.819 | 96.558 | -0.0 | -0.0 | -0.0 |
| 96.558 | 96.558 | 268.819 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -24.225 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -24.225 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -24.225 |
Cij in GPa:
| 267.602 | 97.168 | 97.168 | 0.0 | -0.0 | 0.0 |
| 97.168 | 267.602 | 97.168 | 0.0 | 0.0 | -0.0 |
| 97.168 | 97.168 | 267.602 | -0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 14.586 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 14.586 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 14.586 |
Cij in GPa:
| 267.599 | 97.167 | 97.167 | -0.0 | -0.0 | -0.0 |
| 97.167 | 267.599 | 97.167 | -0.0 | 0.0 | -0.0 |
| 97.167 | 97.167 | 267.599 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 14.586 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 14.586 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 14.586 |
a0:
strain:
Cij in GPa:
| 146.054 | 164.171 | 164.171 | -0.0 | -0.0 | -0.0 |
| 164.171 | 146.054 | 164.171 | 0.0 | -0.0 | -0.0 |
| 164.171 | 164.171 | 146.054 | 0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 90.397 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 90.397 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 90.397 |
Cij in GPa:
| 146.054 | 164.171 | 164.171 | 0.0 | 0.0 | 0.0 |
| 164.171 | 146.054 | 164.171 | 0.0 | 0.0 | 0.0 |
| 164.171 | 164.171 | 146.054 | 0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 90.397 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 90.397 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 90.397 |
Cij in GPa:
| 146.054 | 164.171 | 164.171 | 0.0 | -0.0 | -0.0 |
| 164.171 | 146.054 | 164.171 | 0.0 | -0.0 | -0.0 |
| 164.171 | 164.171 | 146.054 | 0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 90.397 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 90.397 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 90.397 |
Cij in GPa:
| 146.054 | 164.171 | 164.171 | 0.0 | 0.0 | 0.0 |
| 164.171 | 146.054 | 164.171 | -0.0 | -0.0 | 0.0 |
| 164.171 | 164.171 | 146.054 | -0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 90.397 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 90.397 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 90.397 |
Cij in GPa:
| 146.055 | 164.171 | 164.171 | 0.0 | -0.0 | -0.0 |
| 164.171 | 146.055 | 164.171 | -0.0 | 0.0 | -0.0 |
| 164.171 | 164.171 | 146.055 | -0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 90.397 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 90.397 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 90.397 |
Cij in GPa:
| 146.053 | 164.17 | 164.17 | -0.0 | 0.0 | 0.0 |
| 164.17 | 146.053 | 164.17 | -0.0 | 0.0 | 0.0 |
| 164.17 | 164.17 | 146.053 | 0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 90.397 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 90.397 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 90.397 |
a0:
strain:
Cij in GPa:
| 197.596 | 120.21 | 114.26 | -0.0 | -0.0 | -0.0 |
| 115.291 | 202.515 | 114.26 | -0.0 | -0.0 | -0.0 |
| 114.26 | 114.26 | 231.15 | -0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | 41.647 | 0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | 41.647 | -0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 38.693 |
Cij in GPa:
| 197.596 | 120.21 | 114.26 | 0.0 | -0.0 | 0.0 |
| 115.291 | 202.515 | 114.26 | 0.0 | 0.0 | 0.0 |
| 114.26 | 114.26 | 231.15 | 0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | 41.647 | -0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | 41.647 | 0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 38.693 |
Cij in GPa:
| 197.597 | 120.21 | 114.26 | -0.0 | 0.0 | -0.0 |
| 115.291 | 202.515 | 114.26 | -0.0 | 0.0 | -0.0 |
| 114.26 | 114.26 | 231.15 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 41.647 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 41.647 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 43.612 |
Cij in GPa:
| 197.596 | 120.21 | 114.26 | 0.0 | -0.0 | 0.0 |
| 120.21 | 197.596 | 114.26 | 0.0 | 0.0 | 0.0 |
| 114.26 | 114.26 | 231.15 | 0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 41.647 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 41.647 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 43.612 |
Cij in GPa:
| 197.598 | 120.21 | 114.26 | -0.0 | -0.0 | -0.0 |
| 120.211 | 197.598 | 114.26 | -0.0 | 0.0 | -0.0 |
| 114.26 | 114.26 | 231.152 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 41.647 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 41.647 | -0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 38.693 |
Cij in GPa:
| 202.513 | 115.291 | 114.259 | 0.0 | 0.0 | 0.0 |
| 115.291 | 202.513 | 114.259 | 0.0 | 0.0 | 0.0 |
| 114.259 | 114.259 | 231.149 | 0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 41.647 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 41.647 | 0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 38.693 |
a0:
strain:
Cij in GPa:
| 195.21 | 121.494 | 118.776 | 0.0 | 0.0 | 0.0 |
| 121.494 | 195.21 | 118.776 | 0.0 | 0.0 | 0.0 |
| 118.776 | 118.776 | 248.47 | 0.0 | -0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | 46.622 | 0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 46.622 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 36.858 |
Cij in GPa:
| 195.21 | 121.494 | 118.776 | -0.0 | 0.0 | -0.0 |
| 121.494 | 195.21 | 118.776 | -0.0 | 0.0 | -0.0 |
| 118.776 | 118.776 | 248.47 | -0.0 | -0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | 46.622 | -0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 46.622 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 36.858 |
Cij in GPa:
| 195.211 | 121.494 | 118.776 | 0.0 | 0.0 | -0.0 |
| 121.494 | 195.211 | 118.776 | 0.0 | -0.0 | 0.0 |
| 118.776 | 118.776 | 248.47 | 0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 46.622 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 46.622 | 0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 36.858 |
Cij in GPa:
| 195.21 | 121.494 | 118.776 | -0.0 | -0.0 | -0.0 |
| 121.494 | 195.21 | 118.776 | -0.0 | 0.0 | -0.0 |
| 118.776 | 118.776 | 248.47 | -0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 46.622 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 46.622 | -0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 36.858 |
Cij in GPa:
| 202.207 | 114.5 | 118.776 | 0.0 | 0.0 | 0.0 |
| 114.5 | 202.207 | 118.776 | 0.0 | 0.0 | 0.0 |
| 118.776 | 118.776 | 248.471 | 0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 46.622 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 46.622 | -0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 36.858 |
Cij in GPa:
| 195.209 | 121.493 | 118.775 | -0.0 | -0.0 | 0.0 |
| 121.493 | 195.209 | 118.775 | -0.0 | 0.0 | -0.0 |
| 118.775 | 118.775 | 248.468 | -0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 46.622 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 46.622 | -0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 36.858 |
a0:
strain:
Cij in GPa:
| 54.042 | 77.203 | 77.203 | -0.0 | -0.0 | -0.0 |
| 77.203 | 54.042 | 77.203 | -0.0 | -0.0 | -0.0 |
| 77.203 | 77.203 | 54.042 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | -31.8 | 0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -31.8 | -0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | 0.0 | -31.8 |
Cij in GPa:
| 54.042 | 77.203 | 77.203 | 0.0 | 0.0 | 0.0 |
| 77.203 | 54.042 | 77.203 | 0.0 | -0.0 | 0.0 |
| 77.203 | 77.203 | 54.042 | 0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | -31.8 | -0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | -31.8 | 0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | -0.0 | -31.8 |
Cij in GPa:
| 54.042 | 77.203 | 77.203 | -0.0 | 0.0 | -0.0 |
| 77.203 | 54.042 | 77.203 | -0.0 | 0.0 | -0.0 |
| 77.203 | 77.203 | 54.042 | -0.0 | -0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | -31.8 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -31.8 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -31.8 |
Cij in GPa:
| 54.042 | 77.203 | 77.203 | 0.0 | 0.0 | 0.0 |
| 77.203 | 54.042 | 77.203 | 0.0 | 0.0 | 0.0 |
| 77.203 | 77.203 | 54.042 | 0.0 | 0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | -31.8 | -0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | -31.8 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -31.8 |
Cij in GPa:
| 54.042 | 77.203 | 77.203 | -0.0 | -0.0 | -0.0 |
| 77.203 | 54.042 | 77.203 | -0.0 | 0.0 | -0.0 |
| 77.203 | 77.203 | 54.042 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -31.8 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -31.8 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | -31.8 |
Cij in GPa:
| 54.041 | 77.202 | 77.202 | 0.0 | 0.0 | 0.0 |
| 77.202 | 54.041 | 77.202 | 0.0 | 0.0 | 0.0 |
| 77.202 | 77.202 | 54.041 | 0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -31.8 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -31.8 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -0.0 | -31.8 |
a0:
strain:
Cij in GPa:
| 317.353 | 85.153 | 94.106 | 0.0 | -0.0 | -0.0 |
| 85.153 | 317.353 | 94.106 | -0.0 | 0.0 | -0.0 |
| 94.106 | 94.106 | 330.131 | 0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | -21.514 | -0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | -21.514 | -0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | -0.0 | -7.03 |
Cij in GPa:
| 317.353 | 85.153 | 94.106 | 0.0 | -0.0 | 0.0 |
| 85.153 | 317.353 | 94.106 | -0.0 | -0.0 | 0.0 |
| 94.106 | 94.106 | 330.131 | -0.0 | -0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | -21.514 | -0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | -21.514 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -0.0 | -7.03 |
Cij in GPa:
| 317.353 | 85.153 | 94.106 | 0.0 | 0.0 | -0.0 |
| 85.153 | 317.353 | 94.106 | 0.0 | 0.0 | -0.0 |
| 94.106 | 94.106 | 330.132 | 0.0 | -0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | -21.514 | 0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | 0.0 | -21.514 | -0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | 0.0 | -7.03 |
Cij in GPa:
| 317.353 | 85.153 | 94.106 | -0.0 | -0.0 | 0.0 |
| 85.153 | 317.353 | 94.106 | -0.0 | -0.0 | 0.0 |
| 94.106 | 94.106 | 330.131 | -0.0 | -0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | -21.514 | -0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | -21.514 | 0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -7.03 |
Cij in GPa:
| -977.619 | 1380.123 | 94.114 | -0.0 | -0.0 | -0.0 |
| 1380.123 | -977.619 | 94.114 | -0.0 | -0.0 | -0.0 |
| 94.106 | 94.106 | 330.134 | 0.0 | 0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | -21.514 | 0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | 0.0 | -21.514 | -0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | -0.0 | -7.03 |
Cij in GPa:
| -977.608 | 1380.116 | 94.099 | 0.0 | 0.0 | 0.0 |
| 1380.116 | -977.608 | 94.099 | 0.0 | 0.0 | 0.0 |
| 94.106 | 94.106 | 330.129 | -0.0 | 0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | -21.514 | -0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | -21.514 | 0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | -0.0 | -7.03 |
a0:
strain:
Cij in GPa:
| -43.889 | -14.282 | 15.834 | -2.38 | -0.0 | 0.0 |
| -14.282 | -43.889 | 15.834 | 2.38 | -0.0 | 0.0 |
| 15.129 | 15.129 | 53.105 | 0.0 | 0.0 | 0.0 |
| -2.38 | 2.38 | 0.0 | 11.767 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 11.767 | -2.38 |
| 0.0 | 0.0 | 0.0 | -0.0 | -2.38 | -14.803 |
Cij in GPa:
| -43.889 | -14.282 | 15.834 | -2.38 | 0.0 | -0.0 |
| -14.282 | -43.889 | 15.834 | 2.38 | 0.0 | -0.0 |
| 15.129 | 15.129 | 53.106 | 0.0 | 0.0 | -0.0 |
| -2.38 | 2.38 | -0.0 | 11.767 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 11.767 | -2.38 |
| -0.0 | -0.0 | -0.0 | 0.0 | -2.38 | -14.804 |
Cij in GPa:
| -43.889 | -14.282 | 15.834 | -2.38 | -0.0 | 0.0 |
| -14.282 | -43.889 | 15.834 | 2.38 | -0.0 | 0.0 |
| 15.129 | 15.129 | 53.106 | -0.0 | 0.0 | 0.0 |
| -2.38 | 2.38 | 0.0 | 11.767 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 11.767 | -2.38 |
| 0.0 | 0.0 | 0.0 | -0.0 | -2.38 | -14.804 |
Cij in GPa:
| -43.889 | -14.282 | 15.834 | -2.38 | 0.0 | -0.0 |
| -14.282 | -43.889 | 15.834 | 2.38 | 0.0 | -0.0 |
| 15.129 | 15.129 | 53.105 | 0.0 | 0.0 | -0.0 |
| -2.38 | 2.38 | -0.0 | 11.767 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 11.767 | -2.38 |
| -0.0 | -0.0 | -0.0 | 0.0 | -2.38 | -14.804 |
Cij in GPa:
| -43.888 | -14.282 | 15.834 | -2.38 | -0.0 | 0.0 |
| -14.282 | -43.888 | 15.834 | 2.38 | -0.0 | 0.0 |
| 15.13 | 15.13 | 53.106 | 0.0 | -0.0 | 0.0 |
| -2.38 | 2.38 | 0.0 | 11.768 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 11.767 | -2.38 |
| 0.0 | 0.0 | 0.0 | -0.0 | -2.38 | -14.804 |
Cij in GPa:
| -43.89 | -14.282 | 15.834 | -2.38 | 0.0 | -0.0 |
| -14.282 | -43.89 | 15.834 | 2.38 | 0.0 | -0.0 |
| 15.129 | 15.129 | 53.105 | 0.0 | 0.0 | -0.0 |
| -2.38 | 2.38 | -0.0 | 11.767 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 11.767 | -2.38 |
| -0.0 | -0.0 | -0.0 | 0.0 | -2.38 | -14.804 |
a0:
strain:
Cij in GPa:
| 369.677 | 98.279 | 98.279 | -0.0 | -0.0 | 0.0 |
| 98.279 | 369.677 | 98.279 | -0.0 | -0.0 | 0.0 |
| 98.279 | 98.279 | 369.677 | 0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -9.348 | -0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | -0.0 | -9.348 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -9.348 |
Cij in GPa:
| 369.677 | 98.279 | 98.279 | 0.0 | 0.0 | -0.0 |
| 98.279 | 369.677 | 98.279 | 0.0 | 0.0 | -0.0 |
| 98.279 | 98.279 | 369.677 | 0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -9.348 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -9.348 | -0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -9.348 |
Cij in GPa:
| 369.677 | 98.279 | 98.279 | -0.0 | -0.0 | 0.0 |
| 98.279 | 369.677 | 98.279 | -0.0 | -0.0 | 0.0 |
| 98.279 | 98.279 | 369.677 | 0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | -9.348 | -0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -9.348 | 0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | -0.0 | -9.348 |
Cij in GPa:
| 369.676 | 98.279 | 98.279 | 0.0 | 0.0 | -0.0 |
| 98.279 | 369.676 | 98.279 | 0.0 | 0.0 | -0.0 |
| 98.279 | 98.279 | 369.676 | 0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | -9.348 | 0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | -9.348 | -0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -9.348 |
Cij in GPa:
| 369.678 | 98.278 | 98.278 | -0.0 | -0.0 | -0.0 |
| 98.278 | 369.678 | 98.278 | -0.0 | -0.0 | 0.0 |
| 98.278 | 98.278 | 369.678 | -0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | -9.348 | -0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -9.348 | 0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | -0.0 | -9.348 |
Cij in GPa:
| 369.675 | 98.279 | 98.279 | -0.0 | -0.0 | 0.0 |
| 98.279 | 369.675 | 98.279 | -0.0 | 0.0 | -0.0 |
| 98.279 | 98.279 | 369.675 | 0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | -9.348 | 0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | -9.348 | -0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -9.348 |
a0:
strain:
Cij in GPa:
| 128.487 | 109.869 | 68.549 | 0.0 | 0.0 | 0.0 |
| 109.869 | 128.487 | 68.549 | 0.0 | -0.0 | 0.0 |
| 68.549 | 68.549 | 187.095 | 0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | 35.918 | -0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 35.918 | -0.0 |
| -0.001 | -0.001 | 0.0 | 0.0 | -0.0 | 65.871 |
Cij in GPa:
| 99.074 | 99.692 | 69.944 | -0.0 | 0.0 | -0.0 |
| 99.692 | 99.074 | 69.944 | -0.0 | 0.0 | 0.0 |
| 69.576 | 69.576 | 187.023 | -0.0 | 0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | 35.918 | 0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 35.918 | -0.0 |
| 0.001 | 0.001 | -0.0 | -0.0 | 0.0 | 65.871 |
Cij in GPa:
| 128.487 | 109.869 | 68.549 | 0.0 | -0.0 | -0.0 |
| 109.869 | 128.487 | 68.549 | 0.0 | -0.0 | 0.0 |
| 68.549 | 68.549 | 187.096 | 0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | 21.696 | -0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | 21.696 | 0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 65.871 |
Cij in GPa:
| 128.487 | 109.869 | 68.549 | -0.0 | 0.0 | -0.0 |
| 109.869 | 128.487 | 68.549 | -0.0 | 0.0 | -0.0 |
| 69.575 | 69.575 | 187.023 | -0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | 21.696 | 0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | 21.696 | -0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 65.871 |
Cij in GPa:
| 77.011 | 132.22 | 69.575 | 0.0 | 0.0 | 0.0 |
| 132.22 | 77.011 | 69.575 | 0.0 | -0.0 | 0.0 |
| 68.549 | 68.549 | 187.096 | 0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | 21.696 | 0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | 21.696 | 0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 65.871 |
Cij in GPa:
| 77.01 | 132.218 | 69.575 | -0.0 | -0.0 | -0.0 |
| 132.218 | 77.01 | 69.575 | -0.0 | -0.0 | -0.0 |
| 68.548 | 68.548 | 187.094 | -0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | 21.696 | -0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | 21.696 | -0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 65.871 |
strain:
Cij in GPa:
| 120.434 | 98.156 | 67.007 | -0.0 | -0.0 | 0.0 |
| 98.156 | 120.434 | 67.007 | -0.0 | -0.0 | 0.0 |
| 65.906 | 65.906 | 177.022 | -0.0 | -0.0 | 0.0 |
| -0.001 | -0.001 | 0.0 | 20.205 | -0.0 | 0.0 |
| -0.001 | -0.001 | 0.0 | 0.0 | 20.205 | 0.0 |
| -0.001 | -0.001 | 0.0 | -0.0 | -0.0 | 56.353 |
Cij in GPa:
| 72.133 | 115.256 | 67.286 | -0.0 | 0.0 | -0.0 |
| 115.256 | 72.133 | 67.286 | 0.0 | -0.0 | -0.0 |
| 65.906 | 65.906 | 177.022 | -0.0 | -0.0 | -0.0 |
| 0.001 | 0.001 | -0.0 | 20.205 | 0.0 | -0.0 |
| 0.001 | 0.001 | -0.0 | 0.0 | 20.205 | -0.0 |
| 0.001 | 0.001 | -0.0 | -0.0 | 0.0 | 56.353 |
Cij in GPa:
| 72.133 | 115.256 | 67.286 | -0.0 | -0.0 | 0.0 |
| 115.256 | 72.133 | 67.286 | -0.0 | 0.0 | 0.0 |
| 65.906 | 65.906 | 177.022 | -0.0 | -0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 35.423 | -0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | 35.423 | 0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 56.353 |
Cij in GPa:
| 72.133 | 115.256 | 67.286 | 0.0 | 0.0 | -0.0 |
| 115.256 | 72.133 | 67.286 | -0.0 | 0.0 | -0.0 |
| 66.185 | 66.185 | 177.017 | -0.0 | 0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | 35.423 | 0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | 35.423 | -0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 56.353 |
Cij in GPa:
| 72.133 | 115.256 | 67.286 | -0.0 | 0.0 | 0.0 |
| 115.256 | 72.133 | 67.286 | 0.0 | 0.0 | 0.0 |
| 65.906 | 65.906 | 177.023 | 0.0 | -0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | -19.05 | -0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | -19.05 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 56.353 |
Cij in GPa:
| 90.011 | 87.117 | 67.377 | -0.0 | 0.0 | -0.0 |
| 87.117 | 90.011 | 67.377 | 0.0 | 0.0 | -0.0 |
| 65.905 | 65.905 | 177.021 | -0.0 | 0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | -19.05 | 0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | -19.05 | -0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 56.353 |
a0:
strain:
Cij in GPa:
| 198.703 | 130.603 | 101.035 | 10.687 | 7.448 | -39.394 |
| 125.863 | 201.37 | 99.078 | 7.258 | -10.22 | -23.572 |
| 104.49 | 102.093 | 173.296 | 3.833 | 8.139 | 1.681 |
| 11.328 | 9.724 | 3.833 | 32.591 | 5.912 | -12.76 |
| 11.446 | -11.148 | 8.139 | 5.912 | 35.916 | 11.477 |
| -13.491 | -25.672 | -9.891 | -22.559 | 27.414 | 67.032 |
Cij in GPa:
| 182.774 | 133.151 | 115.76 | 21.863 | -10.703 | -53.362 |
| 111.606 | 202.051 | 113.62 | 18.006 | -28.434 | -37.561 |
| 89.978 | 104.196 | 186.731 | 14.553 | -10.265 | -12.538 |
| 11.328 | 9.724 | 3.833 | 32.591 | 5.912 | -12.76 |
| -3.16 | -8.929 | 22.575 | 16.525 | 17.11 | -2.834 |
| -28.234 | -23.671 | 4.78 | -11.832 | 9.275 | 53.638 |
Cij in GPa:
| 198.703 | 130.603 | 101.035 | 10.687 | 7.448 | -39.394 |
| 127.624 | 199.615 | 97.5 | 6.256 | -8.401 | -21.935 |
| 105.997 | 101.753 | 170.597 | 2.805 | 9.764 | 3.088 |
| 14.952 | 12.687 | -4.193 | 27.718 | 7.477 | -10.917 |
| 11.446 | -11.148 | 8.139 | 5.912 | 35.916 | 11.477 |
| -28.234 | -23.671 | 4.78 | -11.832 | 9.275 | 53.638 |
Cij in GPa:
| 193.921 | 130.204 | 107.577 | 14.094 | 5.527 | -40.85 |
| 125.862 | 201.37 | 99.078 | 7.258 | -10.22 | -23.572 |
| 103.082 | 102.2 | 173.554 | 4.941 | 6.125 | 0.246 |
| 11.328 | 9.724 | 3.833 | 32.591 | 5.912 | -12.76 |
| 11.446 | -11.148 | 8.139 | 5.912 | 35.916 | 11.477 |
| -28.234 | -23.671 | 4.78 | -11.832 | 9.275 | 53.638 |
Cij in GPa:
| 196.57 | 131.179 | 100.712 | 11.179 | 7.668 | -38.719 |
| 125.863 | 201.372 | 99.079 | 7.258 | -10.22 | -23.572 |
| 104.694 | 101.939 | 171.772 | 3.769 | 8.105 | 1.809 |
| 11.328 | 9.725 | 3.833 | 32.591 | 5.912 | -12.76 |
| 11.487 | -11.085 | 7.218 | 5.68 | 34.791 | 11.562 |
| -27.538 | -22.898 | 4.435 | -12.407 | 9.434 | 51.735 |
Cij in GPa:
| 198.702 | 130.602 | 101.034 | 10.687 | 7.448 | -39.394 |
| 125.862 | 201.368 | 99.078 | 7.258 | -10.22 | -23.572 |
| 104.383 | 102.004 | 172.273 | 3.985 | 7.758 | 1.516 |
| 11.668 | 9.761 | 4.031 | 31.897 | 5.664 | -12.952 |
| 11.252 | -11.126 | 8.073 | 5.955 | 35.135 | 11.225 |
| -28.234 | -23.671 | 4.78 | -11.832 | 9.275 | 53.638 |
a0:
strain:
Cij in GPa:
| 132.047 | 198.179 | 117.451 | -66.226 | -30.024 | -44.399 |
| 226.004 | 194.004 | 24.842 | -12.045 | -66.09 | -83.781 |
| 106.843 | 112.501 | 181.785 | -4.901 | -2.097 | 5.895 |
| -3.438 | 3.072 | -4.901 | 38.943 | 5.218 | -2.583 |
| 2.182 | -3.103 | -2.097 | 5.218 | 35.253 | -2.912 |
| -28.626 | 80.225 | 13.389 | -65.287 | -36.864 | -12.76 |
Cij in GPa:
| 53.508 | 114.402 | 202.993 | 13.166 | 67.295 | 93.473 |
| 21.783 | 172.755 | 207.654 | 20.523 | 57.488 | 91.156 |
| 140.963 | 37.972 | 167.189 | 58.124 | 34.21 | 56.107 |
| -3.438 | 3.072 | -4.901 | 38.943 | 5.218 | -2.583 |
| 2.182 | -3.103 | -2.097 | 5.218 | 35.253 | -2.912 |
| -355.63 | 127.933 | 205.276 | -77.858 | 39.096 | 251.166 |
Cij in GPa:
| 182.058 | 117.03 | 92.87 | 4.833 | 1.326 | -15.458 |
| 341.588 | -20.672 | 109.309 | 106.479 | 17.744 | -101.22 |
| 106.843 | 112.501 | 181.785 | -4.901 | -2.097 | 5.895 |
| -3.438 | 3.072 | -4.901 | 38.943 | 5.218 | -2.583 |
| 152.537 | -125.466 | -14.239 | 89.72 | 13.773 | -72.555 |
| -0.026 | 11.029 | 5.975 | -8.661 | -4.768 | 32.658 |
Cij in GPa:
| 171.14 | 117.945 | 106.789 | -3.284 | 6.172 | 6.359 |
| 123.116 | 184.066 | 112.15 | 10.555 | -0.173 | 8.433 |
| 29.962 | 206.979 | 148.426 | -43.519 | 13.969 | 38.854 |
| -13.724 | 2.274 | 4.401 | 31.268 | 12.277 | 6.513 |
| -32.929 | 7.281 | 20.345 | -1.321 | 24.431 | 19.985 |
| 6.336 | -4.364 | 4.326 | 3.935 | 2.372 | 42.771 |
Cij in GPa:
| 163.191 | 122.268 | 109.399 | -3.999 | 5.227 | 5.51 |
| 126.064 | 181.16 | 116.177 | 4.102 | -5.081 | 2.882 |
| 109.167 | 116.037 | 174.618 | -5.469 | -1.754 | 5.041 |
| 0.065 | 2.372 | -6.633 | 27.337 | 5.846 | -4.356 |
| 1.997 | -2.891 | -1.315 | 4.978 | 29.602 | -3.403 |
| 13.923 | -2.531 | 0.099 | 0.866 | -2.617 | 14.1 |
Cij in GPa:
| 162.947 | 121.009 | 109.53 | -2.619 | 5.942 | 6.584 |
| 116.53 | 198.554 | 110.641 | 4.479 | -3.185 | 2.844 |
| 110.492 | 118.699 | 168.271 | -4.757 | -0.124 | 5.722 |
| -3.238 | 2.298 | -4.848 | 34.568 | 6.046 | -1.722 |
| 2.664 | -4.505 | -1.494 | 6.3 | 30.388 | -2.341 |
| 3.504 | 2.538 | 5.046 | -1.66 | -0.83 | 37.856 |
a0:
strain:
Cij in GPa:
| 18.872 | 311.961 | 197.937 | 168.695 | -72.37 | -277.968 |
| 125.309 | 211.357 | 116.338 | 2.724 | 5.742 | -2.379 |
| 122.083 | 117.309 | 191.251 | 4.499 | 9.575 | 1.88 |
| -164.827 | 174.285 | 72.04 | 194.327 | -74.352 | -273.046 |
| 1.713 | 4.607 | 9.575 | 2.325 | 46.601 | 0.644 |
| -140.12 | 249.723 | -46.775 | 123.437 | 24.825 | -267.181 |
Cij in GPa:
| 205.02 | 125.3 | 121.633 | 2.199 | 6.014 | -2.064 |
| 264.456 | -51.248 | 169.658 | -117.56 | -15.541 | 305.413 |
| 122.083 | 117.309 | 191.251 | 4.499 | 9.575 | 1.88 |
| 135.13 | -253.76 | 53.539 | -84.704 | -18.508 | 310.78 |
| 136.576 | -246.885 | 59.042 | -116.096 | 17.464 | 307.906 |
| 128.504 | -253.893 | 52.043 | -114.979 | -18.328 | 348.18 |
Cij in GPa:
| 168.555 | 152.519 | 136.252 | 19.0 | -1.928 | -29.964 |
| 125.309 | 211.357 | 116.338 | 2.724 | 5.742 | -2.379 |
| 122.083 | 117.309 | 191.251 | 4.499 | 9.575 | 1.88 |
| -12.62 | 23.243 | -0.814 | 46.427 | 5.228 | -27.691 |
| 1.713 | 4.607 | 9.575 | 2.325 | 46.601 | 0.644 |
| -19.25 | 23.11 | -2.309 | 16.159 | 5.411 | 9.746 |
Cij in GPa:
| 207.302 | 105.066 | 131.205 | -10.053 | 4.044 | 28.533 |
| 151.504 | 173.237 | 116.829 | -16.45 | 15.069 | 24.74 |
| 122.083 | 117.309 | 191.251 | 4.499 | 9.575 | 1.88 |
| 14.258 | -27.148 | 9.073 | 22.572 | 0.91 | 33.882 |
| 1.713 | 4.607 | 9.575 | 2.325 | 46.601 | 0.644 |
| 11.292 | -20.326 | -3.569 | -12.855 | 10.531 | 61.34 |
Cij in GPa:
| 154.85 | 156.306 | 133.515 | 9.886 | -0.479 | -10.079 |
| 129.392 | 201.725 | 120.277 | 2.776 | 6.309 | -5.564 |
| 125.431 | 123.882 | 180.149 | 5.333 | 9.87 | -1.589 |
| -0.616 | 0.673 | 3.588 | 35.355 | 3.338 | -0.174 |
| 0.912 | 7.566 | 9.124 | 4.413 | 38.665 | -3.011 |
| -6.584 | -2.294 | 2.951 | 4.61 | 4.137 | 48.344 |
Cij in GPa:
| 194.466 | 127.954 | 127.126 | 0.585 | 5.987 | 0.999 |
| 136.802 | 188.775 | 123.049 | -1.591 | 8.166 | -0.107 |
| 128.647 | 118.899 | 180.325 | 2.788 | 9.422 | 4.871 |
| 3.145 | -4.654 | 2.715 | 25.646 | 4.851 | 5.214 |
| 3.68 | 2.286 | 10.151 | 1.871 | 38.721 | 3.444 |
| -3.588 | -4.402 | 2.598 | 2.031 | 3.479 | 35.702 |
strain:
Cij in GPa:
| 223.501 | 123.595 | 124.064 | 1.002 | 0.14 | -2.774 |
| 248.449 | 70.852 | 97.76 | 72.683 | -113.054 | -3.828 |
| 522.04 | -110.756 | 62.339 | 131.444 | -54.363 | 116.142 |
| 120.929 | -146.268 | -27.794 | 115.223 | -115.274 | -3.543 |
| 0.254 | 0.119 | 1.316 | -3.241 | 46.27 | 1.039 |
| 121.674 | -145.071 | -33.71 | 77.895 | -114.046 | 33.156 |
Cij in GPa:
| -188.228 | 377.052 | 268.411 | -128.491 | 58.677 | -121.391 |
| 7.491 | 362.049 | 158.091 | -81.34 | 110.486 | 4.396 |
| -700.823 | 384.999 | 653.077 | -246.651 | 137.427 | -178.944 |
| -120.03 | 144.93 | 32.537 | -38.8 | 108.266 | 4.681 |
| -118.925 | 144.022 | 31.757 | -80.537 | 148.671 | 5.348 |
| -383.102 | 243.987 | 126.201 | -127.188 | 55.195 | -92.193 |
Cij in GPa:
| 233.29 | 109.314 | 126.249 | 13.204 | -2.577 | 9.448 |
| 123.538 | 226.512 | 123.883 | -5.313 | 0.426 | 0.397 |
| 141.891 | 113.568 | 204.424 | 10.092 | -9.618 | -3.817 |
| 12.501 | -15.233 | -0.645 | 45.91 | -14.685 | 0.158 |
| 88.492 | -28.3 | -46.267 | 22.042 | 7.158 | 19.832 |
| 1.76 | 0.384 | -3.388 | 0.3 | -3.4 | 46.036 |
Cij in GPa:
| 46.495 | 181.092 | 219.873 | -23.382 | 38.684 | -55.788 |
| 123.538 | 226.511 | 123.883 | -5.313 | 0.426 | 0.397 |
| 117.763 | 142.692 | 210.497 | -5.322 | 12.748 | -2.994 |
| -11.603 | 13.897 | 5.389 | 30.507 | 7.677 | 0.981 |
| 0.254 | 0.119 | 1.316 | -3.241 | 46.27 | 1.039 |
| 1.76 | 0.384 | -3.388 | 0.3 | -3.4 | 46.036 |
Cij in GPa:
| 198.688 | 132.905 | 138.055 | 5.674 | 1.308 | 0.112 |
| 129.367 | 214.611 | 127.744 | -3.496 | -2.501 | 0.237 |
| 131.459 | 126.859 | 206.407 | 3.245 | 0.412 | -3.457 |
| 0.998 | -0.862 | 1.492 | 46.454 | -3.241 | -0.008 |
| 6.799 | -5.419 | 0.107 | -2.202 | 25.706 | 3.123 |
| 2.432 | -0.97 | -3.856 | 1.68 | -3.42 | 37.173 |
Cij in GPa:
| 191.108 | 136.006 | 140.561 | -0.851 | 3.538 | -3.543 |
| 126.93 | 217.477 | 128.435 | -5.083 | -0.202 | 0.321 |
| 128.773 | 129.805 | 207.356 | 1.606 | 2.749 | -3.367 |
| 0.998 | -0.862 | 1.492 | 46.454 | -3.241 | -0.008 |
| -0.572 | -0.692 | 2.554 | -4.64 | 27.301 | 0.841 |
| -3.801 | 2.977 | -1.646 | 0.39 | 0.047 | 25.793 |
a0:
strain:
Cij in GPa:
| 542.683 | -592.032 | 342.905 | 111.296 | -463.151 | -96.827 |
| 1134.547 | -1548.328 | -246.154 | -376.325 | -2171.507 | 272.654 |
| 118.168 | 114.501 | 183.128 | -4.527 | -4.574 | 0.97 |
| 919.395 | -1627.955 | -264.0 | -123.099 | -1814.35 | 68.098 |
| -1.253 | -0.142 | -4.574 | 0.806 | 43.235 | -0.841 |
| 352.655 | -722.515 | 216.869 | 114.717 | -457.457 | -74.781 |
Cij in GPa:
| 141.106 | 501.354 | -125.846 | -68.202 | -12.197 | 288.335 |
| 52.918 | 574.787 | -129.153 | -69.853 | -11.277 | 290.169 |
| -77.655 | 679.655 | -149.682 | -158.988 | 105.164 | 377.576 |
| -71.679 | 374.694 | -249.63 | -31.014 | -10.3 | 286.488 |
| -1.253 | -0.142 | -4.574 | 0.806 | 43.235 | -0.841 |
| -1.871 | 3.807 | 0.674 | 0.057 | 0.79 | 42.299 |
Cij in GPa:
| 221.088 | 71.401 | 154.468 | 12.117 | -13.021 | -36.78 |
| 118.675 | 203.588 | 113.234 | -4.169 | -0.424 | 3.825 |
| 128.28 | 79.314 | 199.557 | 2.118 | -3.291 | -27.424 |
| 17.625 | -60.581 | 26.765 | 42.694 | -10.065 | -37.794 |
| 5.169 | -37.976 | 20.185 | 7.298 | 38.995 | -29.219 |
| 4.805 | -34.122 | 25.47 | 6.332 | 2.025 | 7.672 |
Cij in GPa:
| 180.487 | 183.21 | 91.633 | -18.753 | 8.89 | 38.454 |
| 115.451 | 233.494 | 91.492 | -10.978 | -1.344 | 32.44 |
| 118.168 | 114.501 | 183.128 | -4.527 | -4.574 | 0.97 |
| -9.15 | 33.402 | -28.983 | 27.855 | -0.366 | 28.753 |
| -8.729 | 37.896 | -28.868 | -5.791 | 36.811 | 28.077 |
| -1.871 | 3.807 | 0.674 | 0.057 | 0.79 | 42.299 |
Cij in GPa:
| 211.085 | 118.267 | 121.998 | -2.114 | -1.066 | -1.078 |
| 118.675 | 203.589 | 113.234 | -4.169 | -0.424 | 3.825 |
| 122.263 | 113.439 | 177.091 | -3.731 | -4.267 | -1.77 |
| -1.618 | -4.545 | -4.527 | 40.703 | 0.806 | 0.338 |
| -1.092 | -3.954 | -1.794 | 1.427 | 37.714 | -3.516 |
| -0.106 | -2.458 | 3.824 | 1.244 | -2.482 | 21.825 |
Cij in GPa:
| 209.386 | 126.336 | 116.963 | -3.505 | -1.319 | 4.896 |
| 125.672 | 190.551 | 116.622 | -6.27 | 1.025 | 7.737 |
| 122.827 | 126.208 | 161.933 | -6.226 | -3.258 | 5.134 |
| -4.649 | 0.873 | -7.778 | 26.124 | 1.998 | 3.576 |
| -2.506 | 3.888 | -6.878 | 0.075 | 37.722 | 2.398 |
| -1.871 | 3.806 | 0.674 | 0.057 | 0.79 | 42.299 |
a0:
strain:
Cij in GPa:
| 275.844 | 103.22 | 61.356 | -60.779 | -62.977 | -6.402 |
| 109.135 | 174.944 | 99.935 | 6.144 | -0.499 | 1.211 |
| 108.738 | 98.649 | 195.588 | 5.482 | 4.54 | -8.382 |
| 60.056 | -1.224 | -57.205 | -71.712 | -88.884 | -28.936 |
| 71.689 | -4.468 | -58.878 | -108.176 | -45.3 | -28.046 |
| 65.995 | -3.204 | -70.433 | -101.884 | -82.329 | 11.842 |
Cij in GPa:
| 207.352 | 107.312 | 107.647 | -1.423 | 12.511 | 6.277 |
| 45.898 | 173.266 | 163.298 | 104.012 | 79.48 | 24.746 |
| 37.804 | 103.736 | 238.817 | 63.829 | 78.908 | 3.785 |
| -2.276 | 2.955 | 5.482 | 31.415 | -8.486 | -3.38 |
| 8.521 | -1.682 | 4.54 | -8.486 | 38.584 | -3.7 |
| -61.196 | 3.713 | 53.743 | 95.391 | 76.314 | 60.917 |
Cij in GPa:
| 207.352 | 107.312 | 107.647 | -1.423 | 12.511 | 6.277 |
| 115.853 | 169.47 | 94.997 | -4.492 | -7.776 | -2.244 |
| 108.738 | 98.649 | 195.589 | 5.482 | 4.54 | -8.382 |
| 2.823 | 1.89 | -1.325 | 17.066 | -17.494 | -6.851 |
| 8.521 | -1.682 | 4.54 | -8.486 | 38.584 | -3.7 |
| 3.153 | 1.237 | -8.593 | -2.197 | -3.116 | 40.321 |
Cij in GPa:
| 207.352 | 107.312 | 107.647 | -1.423 | 12.511 | 6.277 |
| 109.135 | 174.944 | 99.935 | 6.144 | -0.499 | 1.211 |
| 102.151 | 99.892 | 196.689 | 11.191 | 11.221 | -7.132 |
| -2.276 | 2.955 | 5.482 | 31.415 | -8.486 | -3.38 |
| 1.214 | -0.787 | 8.387 | -3.195 | 43.425 | -2.508 |
| -4.377 | 1.081 | -3.89 | 2.977 | 4.338 | 39.239 |
Cij in GPa:
| 201.039 | 107.793 | 108.036 | -4.738 | 10.764 | 4.2 |
| 110.072 | 171.575 | 100.291 | 4.955 | -0.803 | 0.466 |
| 108.739 | 98.649 | 195.59 | 5.482 | 4.54 | -8.382 |
| -2.339 | 2.375 | 4.851 | 27.625 | -9.852 | -4.191 |
| 8.521 | -1.682 | 4.54 | -8.486 | 38.584 | -3.701 |
| 3.153 | 1.237 | -8.593 | -2.197 | -3.116 | 40.321 |
Cij in GPa:
| 207.351 | 107.312 | 107.646 | -1.423 | 12.511 | 6.276 |
| 108.593 | 171.648 | 101.263 | 6.163 | 0.755 | 0.714 |
| 108.738 | 98.648 | 195.587 | 5.482 | 4.54 | -8.382 |
| -2.276 | 2.955 | 5.482 | 31.415 | -8.486 | -3.38 |
| 8.521 | -1.682 | 4.539 | -8.486 | 38.584 | -3.7 |
| 2.02 | 0.679 | -8.086 | -2.288 | -2.407 | 38.079 |
a0:
strain:
Cij in GPa:
| 691.935 | -370.343 | 621.077 | -0.0 | -0.0 | -0.0 |
| 130.104 | 311.792 | 136.671 | -0.0 | -0.0 | 0.0 |
| 582.808 | -358.568 | 693.804 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 57.882 | 0.0 | 0.0 |
| 508.84 | -549.547 | 543.803 | -0.0 | 27.189 | -0.0 |
| 1161.661 | -1289.568 | 1439.115 | -0.0 | -0.0 | -224.296 |
Cij in GPa:
| -326.131 | 729.173 | -466.972 | -0.0 | 0.0 | 0.0 |
| 130.104 | 311.792 | 136.671 | -0.0 | 0.0 | -0.0 |
| -435.013 | 740.682 | -393.971 | -0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 57.882 | -0.0 | -0.0 |
| -508.84 | 549.547 | -543.803 | 0.0 | 27.189 | 0.0 |
| -1161.661 | 1289.569 | -1439.115 | 0.0 | 0.0 | -224.296 |
Cij in GPa:
| 264.98 | 89.914 | 169.615 | -0.0 | -0.0 | -0.0 |
| 327.12 | 93.653 | 377.526 | -0.0 | -0.0 | -0.0 |
| 112.724 | 149.229 | 190.823 | -0.0 | -0.0 | 0.0 |
| 62.439 | -67.434 | 66.729 | 17.164 | -0.0 | -0.0 |
| 51.832 | -55.978 | 55.393 | -0.0 | 27.128 | -0.0 |
| 62.534 | -67.536 | 66.83 | -0.0 | -0.0 | 7.186 |
Cij in GPa:
| 27.152 | 352.922 | -119.333 | 0.0 | 0.0 | 0.0 |
| 130.104 | 311.792 | 136.671 | -0.0 | -0.0 | -0.0 |
| 112.723 | 149.228 | 190.823 | -0.0 | -0.0 | -0.0 |
| -62.439 | 67.434 | -66.729 | 17.164 | 0.0 | 0.0 |
| -51.832 | 55.978 | -55.393 | 0.0 | 27.128 | 0.0 |
| -62.534 | 67.536 | -66.83 | 0.0 | 0.0 | 7.186 |
Cij in GPa:
| 184.583 | 177.626 | 78.714 | -0.0 | -0.0 | -0.0 |
| 219.507 | 213.161 | 243.97 | -0.0 | -0.0 | -0.0 |
| 40.992 | 228.407 | 104.517 | -0.0 | -0.0 | -0.0 |
| 3.945 | -4.339 | 4.657 | -18.213 | -0.0 | -0.0 |
| 11.958 | -13.279 | 14.84 | 0.0 | 25.283 | -0.0 |
| 13.263 | -14.325 | 14.175 | -0.0 | -0.0 | -28.592 |
Cij in GPa:
| 134.765 | 233.416 | 14.223 | 0.0 | 0.0 | 0.0 |
| 195.588 | 239.714 | 214.286 | 0.0 | 0.0 | 0.0 |
| 17.074 | 254.965 | 74.833 | 0.0 | 0.0 | 0.0 |
| -3.945 | 4.339 | -4.657 | -18.213 | 0.0 | 0.0 |
| -11.958 | 13.279 | -14.84 | -0.0 | 25.283 | 0.0 |
| -13.263 | 14.325 | -14.175 | 0.0 | 0.0 | -28.592 |
a0:
strain:
Cij in GPa:
| 291.658 | 204.051 | 204.051 | 0.0 | -0.0 | 0.0 |
| 204.051 | 291.658 | 204.051 | 0.0 | 0.0 | 0.0 |
| 204.051 | 204.051 | 291.658 | 0.0 | -0.0 | 0.0 |
| 80.349 | 80.349 | 80.349 | 18.751 | -0.0 | 0.0 |
| 80.349 | 80.349 | 80.349 | 0.0 | 18.751 | 0.0 |
| 80.349 | 80.349 | 80.349 | 0.0 | 0.0 | 18.751 |
Cij in GPa:
| 230.2 | 114.928 | 114.928 | -0.0 | -0.0 | -0.0 |
| 114.928 | 230.2 | 114.928 | -0.0 | 0.0 | -0.0 |
| 114.928 | 114.928 | 230.2 | -0.0 | -0.0 | -0.0 |
| -80.349 | -80.349 | -80.349 | 18.751 | 0.0 | -0.0 |
| -80.349 | -80.349 | -80.349 | -0.0 | 18.751 | -0.0 |
| -80.349 | -80.349 | -80.349 | -0.0 | 0.0 | 18.751 |
Cij in GPa:
| 219.487 | 131.66 | 131.66 | -0.0 | 0.0 | 0.0 |
| 131.66 | 219.487 | 131.66 | 0.0 | 0.0 | 0.0 |
| 131.66 | 131.66 | 219.487 | 0.0 | -0.0 | 0.0 |
| 8.008 | 8.008 | 8.008 | 18.808 | -0.0 | 0.0 |
| 8.008 | 8.008 | 8.008 | 0.0 | 18.808 | 0.0 |
| 8.008 | 8.008 | 8.008 | 0.0 | -0.0 | 18.808 |
Cij in GPa:
| 203.125 | 115.743 | 115.743 | -0.0 | -0.0 | -0.0 |
| 115.743 | 203.125 | 115.743 | 0.0 | 0.0 | -0.0 |
| 115.743 | 115.743 | 203.125 | -0.0 | -0.0 | -0.0 |
| -8.008 | -8.008 | -8.008 | 18.808 | -0.0 | -0.0 |
| -8.008 | -8.008 | -8.008 | -0.0 | 18.808 | -0.0 |
| -8.008 | -8.008 | -8.008 | 0.0 | -0.0 | 18.808 |
Cij in GPa:
| 213.112 | 124.068 | 124.068 | 0.0 | -0.0 | 0.0 |
| 124.068 | 213.112 | 124.068 | 0.0 | 0.0 | 0.0 |
| 124.068 | 124.068 | 213.112 | -0.0 | -0.0 | 0.0 |
| 0.71 | 0.71 | 0.71 | 20.723 | 0.0 | 0.0 |
| 0.71 | 0.71 | 0.71 | 0.0 | 20.723 | 0.0 |
| 0.71 | 0.71 | 0.71 | -0.0 | -0.0 | 20.723 |
Cij in GPa:
| 205.025 | 122.894 | 122.894 | -0.0 | 0.0 | -0.0 |
| 122.894 | 205.025 | 122.894 | -0.0 | -0.0 | -0.0 |
| 122.894 | 122.894 | 205.025 | -0.0 | -0.0 | -0.0 |
| -0.71 | -0.71 | -0.71 | 20.723 | -0.0 | -0.0 |
| -0.71 | -0.71 | -0.71 | 0.0 | 20.723 | -0.0 |
| -0.71 | -0.71 | -0.71 | -0.0 | -0.0 | 20.723 |
strain:
Cij in GPa:
| 230.083 | 114.897 | 114.897 | -0.0 | -0.0 | 0.0 |
| 114.897 | 230.083 | 114.897 | -0.0 | -0.0 | 0.0 |
| 114.897 | 114.897 | 230.083 | -0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | 35.577 | 0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | 35.577 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 35.577 |
Cij in GPa:
| 429.401 | 338.532 | 338.532 | 0.0 | -0.0 | -0.0 |
| 338.532 | 429.401 | 338.532 | 0.0 | 0.0 | -0.0 |
| 338.532 | 338.532 | 429.401 | -0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 35.577 | 0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | 0.0 | 35.577 | -0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 35.577 |
Cij in GPa:
| 230.083 | 114.897 | 114.897 | -0.0 | -0.0 | 0.0 |
| 114.897 | 230.083 | 114.897 | -0.0 | 0.0 | 0.0 |
| 114.897 | 114.897 | 230.083 | -0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 35.577 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 35.577 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 35.577 |
Cij in GPa:
| 203.829 | 134.939 | 134.939 | 0.0 | -0.0 | 0.0 |
| 134.939 | 203.829 | 134.939 | 0.0 | -0.0 | 0.0 |
| 134.939 | 134.939 | 203.829 | 0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 35.577 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 35.577 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 35.577 |
Cij in GPa:
| 209.9 | 123.884 | 123.884 | -0.0 | -0.0 | -0.0 |
| 123.884 | 209.9 | 123.884 | -0.0 | 0.0 | -0.0 |
| 123.884 | 123.884 | 209.9 | -0.0 | -0.0 | -0.0 |
| -0.275 | -0.275 | -0.275 | 20.845 | 0.0 | 0.0 |
| -0.275 | -0.275 | -0.275 | -0.0 | 20.845 | 0.0 |
| -0.275 | -0.275 | -0.275 | -0.0 | 0.0 | 20.845 |
Cij in GPa:
| 212.157 | 123.756 | 123.756 | 0.0 | 0.0 | 0.0 |
| 123.756 | 212.157 | 123.756 | 0.0 | 0.0 | 0.0 |
| 123.756 | 123.756 | 212.157 | 0.0 | -0.0 | -0.0 |
| 0.275 | 0.275 | 0.275 | 20.845 | 0.0 | 0.0 |
| 0.275 | 0.275 | 0.275 | 0.0 | 20.845 | -0.0 |
| 0.275 | 0.275 | 0.275 | 0.0 | -0.0 | 20.845 |
a0:
strain:
Cij in GPa:
| 113.417 | 108.25 | 108.25 | 0.004 | 0.004 | 0.004 |
| 108.25 | 113.416 | 108.25 | 0.004 | 0.004 | 0.004 |
| 108.249 | 108.25 | 113.415 | 0.004 | 0.004 | 0.004 |
| 0.0 | -0.0 | 0.0 | 44.848 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 44.848 | 0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 44.848 |
Cij in GPa:
| 183.587 | 121.282 | 121.282 | -0.0 | 0.0 | 0.0 |
| 121.282 | 183.587 | 121.282 | -0.0 | -0.0 | -0.0 |
| 121.282 | 121.282 | 183.587 | 0.0 | 0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | 44.848 | -0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | 44.848 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 44.848 |
Cij in GPa:
| 183.587 | 121.282 | 121.282 | 0.0 | -0.0 | -0.0 |
| 121.282 | 183.587 | 121.282 | -0.0 | 0.0 | -0.0 |
| 121.282 | 121.282 | 183.587 | 0.0 | -0.0 | 0.0 |
| -0.8 | -0.8 | -0.8 | 23.106 | 0.0 | 0.0 |
| -0.8 | -0.8 | -0.8 | 0.0 | 23.106 | 0.0 |
| -0.8 | -0.8 | -0.8 | 0.0 | 0.0 | 23.106 |
Cij in GPa:
| 171.342 | 124.951 | 124.951 | -0.0 | -0.0 | -0.0 |
| 124.951 | 171.342 | 124.951 | -0.0 | -0.0 | -0.0 |
| 124.951 | 124.951 | 171.342 | -0.0 | -0.0 | -0.0 |
| 0.8 | 0.8 | 0.8 | 23.106 | -0.0 | -0.0 |
| 0.8 | 0.8 | 0.8 | -0.0 | 23.106 | -0.0 |
| 0.8 | 0.8 | 0.8 | -0.0 | -0.0 | 23.106 |
Cij in GPa:
| 133.165 | 115.412 | 115.412 | 0.0 | 0.0 | 0.0 |
| 115.412 | 133.165 | 115.412 | 0.0 | 0.0 | 0.0 |
| 115.412 | 115.412 | 133.165 | 0.0 | 0.0 | 0.0 |
| -0.22 | -0.22 | -0.22 | 19.43 | 0.0 | 0.0 |
| -0.22 | -0.22 | -0.22 | 0.0 | 19.43 | 0.0 |
| -0.22 | -0.22 | -0.22 | 0.0 | 0.0 | 19.43 |
Cij in GPa:
| 126.418 | 113.314 | 113.314 | -0.0 | -0.0 | -0.0 |
| 113.314 | 126.418 | 113.314 | -0.0 | -0.0 | -0.0 |
| 113.314 | 113.314 | 126.418 | -0.0 | -0.0 | -0.0 |
| 0.22 | 0.22 | 0.22 | 19.43 | -0.0 | -0.0 |
| 0.22 | 0.22 | 0.22 | -0.0 | 19.43 | -0.0 |
| 0.22 | 0.22 | 0.22 | -0.0 | -0.0 | 19.43 |
strain:
Cij in GPa:
| -1230.132 | -1266.485 | -1266.485 | -0.001 | -0.001 | -0.001 |
| -1266.485 | -1230.132 | -1266.485 | -0.001 | -0.001 | -0.001 |
| -1266.485 | -1266.485 | -1230.132 | -0.001 | -0.001 | -0.001 |
| 0.0 | 0.0 | 0.0 | 42.111 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 42.111 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 42.111 |
Cij in GPa:
| 1428.346 | 1458.564 | 1458.564 | -0.0 | -0.0 | -0.0 |
| 1458.564 | 1428.346 | 1458.564 | -0.0 | -0.0 | -0.0 |
| 1458.564 | 1458.564 | 1428.346 | -0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 42.111 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 42.111 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 42.111 |
Cij in GPa:
| 176.703 | 118.026 | 118.026 | 0.0 | -0.0 | -0.0 |
| 118.026 | 176.703 | 118.026 | 0.0 | -0.0 | -0.0 |
| 118.026 | 118.026 | 176.703 | 0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 42.111 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 42.111 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 42.111 |
Cij in GPa:
| 166.403 | 130.05 | 130.05 | -0.0 | -0.0 | -0.0 |
| 130.05 | 166.403 | 130.05 | -0.0 | -0.0 | -0.0 |
| 130.05 | 130.05 | 166.403 | -0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 42.111 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 42.111 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 42.111 |
Cij in GPa:
| 176.712 | 118.028 | 118.028 | 0.0 | 0.0 | -0.0 |
| 118.028 | 176.712 | 118.028 | 0.0 | -0.0 | -0.0 |
| 118.028 | 118.028 | 176.712 | 0.0 | -0.0 | -0.0 |
| -2.264 | -2.261 | -2.261 | 15.545 | -0.0 | -0.0 |
| -2.261 | -2.264 | -2.261 | -0.0 | 15.545 | -0.0 |
| -2.261 | -2.261 | -2.264 | -0.0 | -0.0 | 15.545 |
Cij in GPa:
| 162.601 | 121.303 | 121.303 | -0.0 | -0.0 | -0.0 |
| 121.303 | 162.601 | 121.303 | -0.0 | -0.0 | -0.0 |
| 121.303 | 121.303 | 162.601 | -0.0 | -0.0 | -0.0 |
| 2.264 | 2.261 | 2.261 | 15.545 | 0.0 | 0.0 |
| 2.261 | 2.264 | 2.261 | 0.0 | 15.545 | 0.0 |
| 2.261 | 2.261 | 2.264 | 0.0 | 0.0 | 15.545 |
strain:
Cij in GPa:
| 175.016 | 117.585 | 117.585 | -0.0 | -0.0 | -0.0 |
| 117.585 | 175.016 | 117.585 | -0.0 | 0.0 | -0.0 |
| 117.585 | 117.585 | 175.016 | -0.0 | 0.0 | -0.0 |
| -859.355 | -859.357 | -859.359 | -199.831 | -0.0 | 0.001 |
| -859.355 | -859.357 | -859.359 | -0.002 | -199.83 | 0.001 |
| -859.355 | -859.357 | -859.359 | -0.002 | -0.0 | -199.829 |
Cij in GPa:
| 844.352 | 1008.354 | 1008.355 | 0.002 | 0.0 | -0.001 |
| 1008.352 | 844.354 | 1008.355 | 0.002 | 0.0 | -0.001 |
| 1008.352 | 1008.354 | 844.355 | 0.002 | 0.0 | -0.001 |
| 859.355 | 859.357 | 859.359 | -199.828 | 0.0 | -0.001 |
| 859.355 | 859.357 | 859.359 | 0.002 | -199.829 | -0.001 |
| 859.355 | 859.357 | 859.359 | 0.002 | 0.0 | -199.831 |
Cij in GPa:
| 175.017 | 117.585 | 117.585 | -0.0 | -0.0 | -0.0 |
| -35.516 | -63.019 | -35.516 | -0.0 | -0.0 | 0.0 |
| -35.516 | -35.516 | -63.019 | -0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 41.665 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 41.665 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 41.665 |
Cij in GPa:
| 175.015 | 117.585 | 117.585 | 0.0 | -0.0 | 0.0 |
| 117.585 | 175.015 | 117.585 | -0.0 | 0.0 | 0.0 |
| 117.585 | 117.585 | 175.015 | 0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 41.665 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 41.665 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 41.665 |
Cij in GPa:
| 155.934 | 119.781 | 119.781 | -0.0 | -0.0 | 0.0 |
| 119.781 | 155.934 | 119.781 | -0.0 | -0.0 | 0.0 |
| 119.781 | 119.781 | 155.934 | -0.0 | -0.0 | 0.0 |
| -2.16 | -2.157 | -2.157 | 14.792 | -0.0 | 0.0 |
| -2.157 | -2.16 | -2.157 | -0.0 | 14.792 | 0.0 |
| 0.002 | 0.002 | 0.0 | -0.0 | -0.0 | 41.665 |
Cij in GPa:
| 160.229 | 120.84 | 120.84 | 0.0 | 0.0 | -0.0 |
| 120.84 | 160.229 | 120.84 | 0.0 | 0.0 | -0.0 |
| 120.84 | 120.84 | 160.229 | 0.0 | 0.0 | -0.0 |
| 2.16 | 2.157 | 2.157 | 14.792 | 0.0 | -0.0 |
| -0.002 | -0.0 | -0.002 | 0.0 | 41.665 | 0.0 |
| 2.157 | 2.157 | 2.16 | 0.0 | 0.0 | 14.792 |
a0:
strain:
Cij in GPa:
| -1534.751 | -111.542 | 259.648 | 0.0 | -0.0 | 0.0 |
| -1599.401 | -18.205 | 206.506 | -0.0 | -0.0 | 0.0 |
| 105.209 | 53.002 | 241.961 | -0.0 | -0.0 | 0.0 |
| -1742.459 | -254.576 | 153.347 | -26.928 | -0.0 | 0.0 |
| -1742.458 | -254.576 | 153.347 | 0.0 | -49.231 | 0.0 |
| -1742.458 | -254.576 | 153.347 | -0.0 | -0.0 | 61.691 |
Cij in GPa:
| 1950.166 | 397.61 | -47.046 | -0.0 | 0.0 | -0.0 |
| 1885.516 | 490.946 | -100.187 | 0.0 | 0.0 | -0.0 |
| 1848.788 | 307.741 | 88.516 | -0.0 | -0.0 | -0.0 |
| 1742.459 | 254.576 | -153.347 | -26.928 | 0.0 | -0.0 |
| 1742.458 | 254.576 | -153.347 | 0.0 | -49.231 | -0.0 |
| 1742.458 | 254.576 | -153.347 | 0.0 | 0.0 | 61.691 |
Cij in GPa:
| 33.462 | 117.577 | 121.635 | -0.0 | -0.0 | 0.0 |
| -31.189 | 210.913 | 68.494 | -0.0 | -0.0 | 0.0 |
| -67.917 | 27.708 | 257.198 | -0.0 | -0.0 | 0.0 |
| -174.252 | -25.458 | 15.335 | -27.477 | -0.0 | 0.0 |
| -174.779 | -25.535 | 15.382 | -0.0 | 16.893 | 0.0 |
| -174.246 | -25.458 | 15.335 | -0.0 | -0.0 | 61.691 |
Cij in GPa:
| 381.953 | 168.492 | 90.966 | 0.0 | 0.0 | -0.0 |
| 144.916 | 236.642 | 52.996 | -0.0 | 0.0 | -0.0 |
| 105.209 | 53.002 | 241.961 | -0.0 | 0.0 | -0.0 |
| 174.252 | 25.458 | -15.335 | -27.477 | 0.0 | -0.0 |
| 174.779 | 25.535 | -15.382 | 0.0 | 16.893 | -0.0 |
| 174.246 | 25.458 | -15.335 | 0.0 | 0.0 | 61.691 |
Cij in GPa:
| 190.284 | 140.489 | 107.834 | -0.0 | -0.0 | 0.0 |
| 125.633 | 233.826 | 54.693 | -0.0 | -0.0 | 0.0 |
| 88.905 | 50.619 | 243.398 | -0.0 | -0.0 | 0.0 |
| -17.45 | -2.549 | 1.536 | -26.929 | -0.0 | 0.0 |
| -17.425 | -2.546 | 1.533 | 0.0 | -49.231 | 0.0 |
| 0.0 | 0.001 | 0.0 | 0.0 | -0.0 | 61.691 |
Cij in GPa:
| 225.13 | 145.58 | 104.767 | 0.0 | 0.0 | -0.0 |
| 160.481 | 238.915 | 51.626 | 0.0 | 0.0 | -0.0 |
| 105.209 | 53.002 | 241.959 | 0.0 | 0.0 | -0.0 |
| 17.45 | 2.549 | -1.536 | -26.929 | 0.0 | -0.0 |
| 17.425 | 2.546 | -1.533 | 0.0 | -49.231 | -0.0 |
| -0.0 | -0.001 | -0.0 | 0.0 | 0.0 | 61.691 |
a0:
strain:
Cij in GPa:
| 156.524 | 70.023 | -8.822 | 0.0 | 0.0 | 0.0 |
| 70.023 | 156.524 | -8.822 | -0.0 | 0.0 | -0.0 |
| -8.822 | -8.822 | 168.79 | 0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | -34.636 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -34.636 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | -0.0 | -40.024 |
Cij in GPa:
| 73.249 | 153.297 | -8.822 | 0.0 | -0.0 | -0.0 |
| 153.297 | 73.249 | -8.822 | 0.0 | 0.0 | -0.0 |
| -8.822 | -8.822 | 168.79 | 0.0 | 0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | -34.636 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -34.636 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -40.024 |
Cij in GPa:
| 72.41 | 154.136 | -8.822 | 0.0 | 0.0 | -0.0 |
| 153.298 | 73.249 | -8.822 | -0.0 | 0.0 | 0.0 |
| -8.822 | -8.822 | 168.79 | -0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | -34.636 | 0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | -34.636 | 0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -40.863 |
Cij in GPa:
| 73.252 | 153.294 | -8.822 | 0.0 | 0.0 | -0.0 |
| 153.297 | 73.25 | -8.822 | 0.0 | 0.0 | -0.0 |
| -8.822 | -8.822 | 168.789 | -0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | -34.636 | 0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | -34.636 | -0.0 |
| -0.0 | 0.0 | 0.0 | -0.0 | 0.0 | -40.863 |
Cij in GPa:
| 73.22 | 153.327 | -8.822 | -0.0 | -0.0 | 0.0 |
| 70.023 | 156.525 | -8.822 | -0.0 | -0.0 | 0.0 |
| -8.822 | -8.822 | 168.791 | 0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | -34.636 | 0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | -34.636 | 0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | -0.0 | -40.024 |
Cij in GPa:
| 3864266.498 | 4015644.423 | 4099914.973 | -39871.184 | -15233.262 | -24586.453 |
| 153.292 | 73.253 | -8.822 | 0.0 | 0.0 | 0.0 |
| -8.822 | -8.822 | 168.788 | 0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | -34.636 | 0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | -34.636 | -0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 0.0 | -40.024 |
a0:
strain:
Cij in GPa:
| 197.629 | 119.595 | 115.418 | 4.241 | -0.0 | 0.0 |
| 115.027 | 202.439 | 115.749 | -3.62 | -0.0 | 0.0 |
| 115.683 | 115.683 | 236.777 | 0.0 | -0.0 | 0.0 |
| 3.62 | -3.62 | -0.0 | 43.309 | -0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 43.309 | 3.62 |
| -0.0 | 0.0 | 0.0 | 0.0 | 3.62 | 43.706 |
Cij in GPa:
| 197.236 | 120.178 | 115.678 | 4.306 | 0.0 | -0.0 |
| 115.027 | 202.439 | 115.749 | -3.62 | -0.0 | -0.0 |
| 115.683 | 115.683 | 236.777 | -0.0 | 0.0 | -0.0 |
| 3.62 | -3.62 | -0.0 | 43.309 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | 43.309 | 3.62 |
| 0.0 | -0.0 | -0.0 | -0.0 | 3.62 | 43.706 |
Cij in GPa:
| 202.439 | 115.027 | 115.749 | 3.62 | -0.0 | 0.0 |
| 115.027 | 202.439 | 115.749 | -3.62 | -0.0 | 0.0 |
| 115.754 | 115.754 | 236.972 | 0.0 | -0.0 | 0.0 |
| 4.306 | -4.306 | 0.0 | 43.218 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 43.218 | 4.306 |
| 0.0 | 0.0 | 0.0 | 0.0 | 4.306 | 38.529 |
Cij in GPa:
| 197.63 | 119.594 | 115.418 | 4.241 | 0.0 | -0.0 |
| 119.594 | 197.63 | 115.418 | -4.241 | 0.0 | 0.0 |
| 115.683 | 115.683 | 236.777 | -0.0 | -0.0 | -0.0 |
| 3.62 | -3.62 | -0.0 | 43.309 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 43.218 | 4.306 |
| -0.0 | -0.0 | -0.0 | -0.0 | 4.306 | 38.529 |
Cij in GPa:
| 197.632 | 119.594 | 115.418 | 4.241 | -0.0 | 0.0 |
| 119.594 | 197.631 | 115.418 | -4.241 | 0.0 | 0.0 |
| 115.755 | 115.755 | 236.973 | -0.0 | -0.0 | -0.0 |
| 3.62 | -3.62 | 0.0 | 43.309 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 43.309 | 3.62 |
| 0.0 | 0.0 | -0.0 | 0.0 | 4.306 | 38.529 |
Cij in GPa:
| 197.628 | 119.593 | 115.418 | 4.241 | -0.0 | 0.0 |
| 115.026 | 202.437 | 115.749 | -3.62 | 0.0 | -0.0 |
| 115.683 | 115.683 | 236.775 | -0.0 | 0.0 | -0.0 |
| 4.306 | -4.306 | -0.0 | 43.218 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 43.309 | 3.62 |
| -0.0 | -0.0 | 0.0 | -0.0 | 4.306 | 38.529 |
Prototype:
a0:
strain:
Cij in GPa:
| 278.823 | 166.16 | 173.13 | 0.0 | 0.0 | -0.0 |
| 166.16 | 278.823 | 173.13 | 0.0 | 0.0 | -0.0 |
| -48.534 | -48.534 | -195.0 | 0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 114.293 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 114.293 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 107.016 |
Cij in GPa:
| 465.428 | 356.383 | 589.622 | 0.0 | -0.0 | 0.0 |
| 356.383 | 465.428 | 589.622 | -0.0 | -0.0 | 0.0 |
| 360.04 | 360.04 | 694.354 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 114.293 | -0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 114.293 | 0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 107.016 |
Cij in GPa:
| 256.676 | 147.64 | 128.318 | 0.0 | 0.0 | -0.0 |
| 147.64 | 256.676 | 128.318 | 0.0 | 0.0 | -0.0 |
| 151.294 | 151.294 | 233.052 | 0.0 | 0.0 | -0.0 |
| -26.123 | -26.123 | -56.733 | 103.527 | 0.0 | -0.0 |
| -26.123 | -26.123 | -56.733 | 0.0 | 103.527 | -0.0 |
| -26.171 | -26.171 | -56.834 | 0.0 | 0.0 | 107.016 |
Cij in GPa:
| 294.667 | 185.62 | 212.26 | -0.0 | -0.0 | 0.0 |
| 185.62 | 294.667 | 212.26 | 0.0 | -0.0 | 0.0 |
| 189.298 | 189.298 | 317.036 | 0.0 | -0.0 | 0.0 |
| 26.123 | 26.123 | 56.733 | 103.527 | -0.0 | 0.0 |
| 26.123 | 26.123 | 56.733 | -0.0 | 103.527 | 0.0 |
| 26.171 | 26.171 | 56.834 | -0.0 | -0.0 | 107.016 |
Cij in GPa:
| 278.824 | 166.161 | 173.13 | -0.0 | 0.0 | -0.0 |
| 166.161 | 278.824 | 173.13 | 0.0 | 0.0 | -0.0 |
| 168.08 | 168.08 | 270.155 | 0.0 | 0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 114.293 | -0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 114.293 | -0.0 |
| -1.897 | -1.897 | -4.193 | 0.0 | 0.0 | 107.016 |
Cij in GPa:
| 278.823 | 166.16 | 173.129 | 0.0 | -0.0 | 0.0 |
| 166.16 | 278.823 | 173.129 | -0.0 | -0.0 | 0.0 |
| 170.02 | 170.02 | 274.103 | -0.0 | -0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | 114.293 | 0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | 114.293 | 0.0 |
| 1.897 | 1.897 | 4.193 | -0.0 | -0.0 | 107.016 |
strain:
Cij in GPa:
| 272.452 | 164.71 | 167.543 | 0.0 | -0.0 | -0.0 |
| 164.71 | 272.452 | 167.543 | 0.0 | 0.0 | -0.0 |
| 182.049 | 182.049 | 320.395 | 0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | 110.98 | 0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | 110.98 | -0.0 |
| 33.888 | 33.888 | 87.136 | 0.0 | -0.0 | 106.687 |
Cij in GPa:
| 231.306 | 128.784 | 64.917 | -0.0 | 0.0 | -0.0 |
| 128.784 | 231.306 | 64.917 | -0.0 | 0.0 | 0.0 |
| 125.039 | 125.039 | 170.25 | -0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 110.98 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 110.98 | 0.0 |
| -33.888 | -33.888 | -87.136 | -0.0 | 0.0 | 106.687 |
Cij in GPa:
| 262.267 | 168.427 | 162.206 | 0.0 | -0.0 | 0.0 |
| 168.427 | 262.267 | 162.206 | 0.0 | 0.0 | 0.0 |
| 163.854 | 163.854 | 269.145 | 0.0 | -0.0 | -0.0 |
| 2.593 | 2.593 | 6.774 | 98.372 | 0.0 | -0.0 |
| 2.593 | 2.593 | 6.774 | -0.0 | 98.372 | -0.0 |
| 3.389 | 3.389 | 8.714 | 0.0 | -0.0 | 106.687 |
Cij in GPa:
| 257.486 | 163.612 | 149.663 | -0.0 | 0.0 | 0.0 |
| 163.612 | 257.486 | 149.663 | 0.0 | 0.0 | 0.0 |
| 168.132 | 168.132 | 277.404 | 0.0 | 0.0 | -0.0 |
| -2.593 | -2.593 | -6.774 | 98.372 | -0.0 | -0.0 |
| -2.593 | -2.593 | -6.774 | -0.0 | 98.372 | 0.0 |
| -3.389 | -3.389 | -8.714 | -0.0 | 0.0 | 106.687 |
Cij in GPa:
| 267.18 | 165.372 | 162.848 | 0.0 | -0.0 | -0.0 |
| 165.372 | 267.18 | 162.848 | -0.0 | -0.0 | -0.0 |
| 168.133 | 168.133 | 277.405 | 0.0 | -0.0 | -0.0 |
| 0.174 | 0.174 | 0.455 | 102.508 | 0.0 | 0.0 |
| 0.174 | 0.174 | 0.455 | -0.0 | 102.508 | -0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 106.687 |
Cij in GPa:
| 266.05 | 166.507 | 162.524 | -0.0 | 0.0 | 0.0 |
| 166.507 | 266.05 | 162.524 | -0.0 | 0.0 | 0.0 |
| 168.132 | 168.132 | 277.403 | -0.0 | 0.0 | 0.0 |
| -0.174 | -0.174 | -0.455 | 102.508 | -0.0 | 0.0 |
| -0.174 | -0.174 | -0.455 | 0.0 | 102.508 | 0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 106.687 |
Prototype:
a0:
strain:
Cij in GPa:
| 144115.824 | 142186.247 | 142186.247 | -0.0 | -0.0 | -0.0 |
| 142186.247 | 144115.824 | 142186.247 | -0.0 | -0.0 | -0.0 |
| 142186.247 | 142186.247 | 144115.824 | -0.0 | 0.0 | -0.0 |
| 0.0 | 0.001 | 0.0 | -411.258 | 0.0 | -0.0 |
| 0.0 | 0.001 | 0.0 | -0.0 | -411.258 | -0.0 |
| 0.0 | 0.001 | 0.0 | -0.0 | -0.0 | -411.259 |
Cij in GPa:
| 144115.703 | 142186.121 | 142186.122 | 0.0 | -0.0 | 0.0 |
| 142186.121 | 144115.703 | 142186.121 | 0.0 | -0.0 | 0.0 |
| 142186.121 | 142186.121 | 144115.703 | 0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -411.258 | 0.0 | 0.001 |
| -0.0 | -0.001 | -0.0 | 0.0 | -411.259 | 0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | -0.0 | -411.258 |
Cij in GPa:
| 144116.373 | 142186.817 | 142186.817 | -0.0 | -0.0 | -0.0 |
| 142186.817 | 144116.373 | 142186.817 | -0.0 | 0.0 | -0.0 |
| 142186.817 | 142186.817 | 144116.373 | -0.0 | 0.0 | 0.0 |
| 0.01 | 0.009 | 0.009 | -411.258 | -0.0 | -0.0 |
| 0.009 | 0.01 | 0.009 | -0.0 | -411.258 | -0.0 |
| 0.009 | 0.009 | 0.01 | -0.0 | 0.0 | -411.258 |
Cij in GPa:
| 144115.155 | 142185.551 | 142185.551 | 0.0 | 0.0 | 0.0 |
| 142185.551 | 144115.155 | 142185.551 | 0.0 | 0.0 | 0.0 |
| 142185.551 | 142185.551 | 144115.155 | 0.0 | 0.0 | 0.0 |
| -0.01 | -0.009 | -0.009 | -411.258 | 0.0 | 0.0 |
| -0.009 | -0.01 | -0.009 | 0.0 | -411.258 | 0.0 |
| -0.009 | -0.009 | -0.01 | 0.0 | -0.0 | -411.258 |
Cij in GPa:
| 144121.853 | 142192.516 | 142192.516 | -0.0 | -0.0 | -0.0 |
| 142192.516 | 144121.853 | 142192.516 | -0.0 | 0.0 | -0.0 |
| 142192.516 | 142192.516 | 144121.853 | -0.0 | -0.0 | -0.0 |
| 0.099 | 0.093 | 0.091 | -411.258 | -0.0 | -0.0 |
| 0.093 | 0.099 | 0.091 | -0.0 | -411.258 | -0.0 |
| 0.093 | 0.091 | 0.099 | -0.0 | -0.0 | -411.258 |
Cij in GPa:
| 144109.674 | 142179.853 | 142179.853 | 0.0 | 0.0 | 0.0 |
| 142179.853 | 144109.674 | 142179.853 | 0.0 | -0.0 | 0.0 |
| 142179.853 | 142179.853 | 144109.674 | 0.0 | 0.0 | 0.0 |
| -0.099 | -0.093 | -0.091 | -411.258 | 0.0 | 0.0 |
| -0.093 | -0.099 | -0.091 | 0.0 | -411.258 | 0.0 |
| -0.093 | -0.091 | -0.099 | 0.0 | -0.0 | -411.258 |
strain:
Cij in GPa:
| 22053541.927 | 5048555.671 | 5048555.814 | -0.01 | 0.003 | 0.004 |
| 5048555.671 | 22053541.927 | 5048555.814 | 0.003 | -0.01 | 0.004 |
| 5048555.641 | 5048555.641 | 22053541.987 | -0.01 | -0.01 | 0.002 |
| -36.368 | -63.229 | -63.192 | 3092128.943 | -0.013 | 0.008 |
| -63.229 | -36.368 | -63.192 | -0.013 | 3092128.943 | 0.008 |
| -63.233 | -63.254 | -36.273 | -0.012 | -0.005 | 3092128.948 |
Cij in GPa:
| 22055396.987 | 5048786.561 | 5048786.431 | 0.011 | 0.005 | -0.003 |
| 5048786.561 | 22055396.987 | 5048786.431 | 0.005 | 0.011 | -0.003 |
| 5048786.584 | 5048786.584 | 22055396.912 | 0.011 | 0.011 | -0.006 |
| 36.371 | 63.242 | 63.192 | 3092128.95 | 0.014 | -0.005 |
| 63.242 | 36.371 | 63.192 | 0.014 | 3092128.951 | -0.005 |
| 63.245 | 63.257 | 36.276 | 0.007 | 0.007 | 3092128.946 |
Cij in GPa:
| 22045194.608 | 5047517.169 | 5047517.182 | -0.001 | -0.0 | 0.0 |
| 5047517.169 | 22045194.608 | 5047517.182 | -0.0 | -0.001 | 0.0 |
| 5047517.168 | 5047517.168 | 22045194.617 | -0.001 | -0.001 | 0.0 |
| -362.575 | -631.598 | -631.818 | 3092130.202 | -0.0 | 0.0 |
| -631.598 | -362.575 | -631.818 | -0.0 | 3092130.202 | 0.0 |
| -631.598 | -631.83 | -362.566 | -0.001 | -0.001 | 3092130.202 |
Cij in GPa:
| 22063744.177 | 5049825.027 | 5049825.012 | 0.001 | 0.003 | -0.0 |
| 5049825.027 | 22063744.177 | 5049825.012 | 0.003 | 0.001 | -0.0 |
| 5049825.03 | 5049825.03 | 22063744.171 | 0.001 | 0.001 | -0.0 |
| 362.575 | 631.598 | 631.82 | 3092130.204 | -0.0 | -0.0 |
| 631.598 | 362.575 | 631.82 | -0.0 | 3092130.204 | -0.0 |
| 631.599 | 631.83 | 362.566 | 0.001 | 0.001 | 3092130.202 |
Cij in GPa:
| 21961721.566 | 5037131.821 | 5037131.822 | -0.0 | -0.0 | 0.0 |
| 5037131.821 | 21961721.566 | 5037131.822 | -0.0 | -0.0 | 0.0 |
| 5037131.821 | 5037131.821 | 21961721.568 | -0.0 | -0.0 | 0.0 |
| -3625.713 | -6315.874 | -6318.192 | 3092130.372 | -0.0 | 0.0 |
| -6315.874 | -3625.713 | -6318.192 | -0.0 | 3092130.372 | 0.0 |
| -6315.874 | -6318.193 | -3625.713 | -0.0 | -0.0 | 3092130.372 |
Cij in GPa:
| 22147217.104 | 5060210.323 | 5060210.322 | 0.0 | 0.0 | -0.0 |
| 5060210.323 | 22147217.104 | 5060210.322 | 0.0 | 0.0 | -0.0 |
| 5060210.323 | 5060210.323 | 22147217.103 | 0.0 | 0.0 | -0.0 |
| 3625.713 | 6315.874 | 6318.191 | 3092130.372 | 0.0 | -0.0 |
| 6315.874 | 3625.713 | 6318.191 | 0.0 | 3092130.372 | -0.0 |
| 6315.874 | 6318.192 | 3625.713 | 0.0 | 0.0 | 3092130.372 |
strain:
Cij in GPa:
| 85.525 | 68.406 | 68.406 | -0.0 | -0.0 | 0.0 |
| 68.406 | 85.525 | 68.406 | -0.0 | 0.0 | 0.0 |
| 68.406 | 68.406 | 85.525 | -0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 8.752 | 0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | 8.752 | 0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 8.752 |
Cij in GPa:
| 85.525 | 68.406 | 68.406 | 0.0 | -0.0 | -0.0 |
| 68.406 | 85.525 | 68.406 | 0.0 | 0.0 | 0.0 |
| 68.406 | 68.406 | 85.525 | 0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 8.752 | -0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | 8.752 | -0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 8.752 |
Cij in GPa:
| 85.526 | 68.406 | 68.406 | -0.0 | -0.0 | 0.0 |
| 68.406 | 85.526 | 68.406 | -0.0 | -0.0 | 0.0 |
| 68.406 | 68.406 | 85.526 | 0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 8.752 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 8.752 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 8.752 |
Cij in GPa:
| 85.525 | 68.406 | 68.406 | 0.0 | 0.0 | -0.0 |
| 68.406 | 85.525 | 68.406 | 0.0 | -0.0 | -0.0 |
| 68.406 | 68.406 | 85.525 | 0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 8.752 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 8.752 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 8.752 |
Cij in GPa:
| 85.527 | 68.407 | 68.407 | 0.0 | -0.0 | 0.0 |
| 68.407 | 85.527 | 68.407 | -0.0 | -0.0 | 0.0 |
| 68.407 | 68.407 | 85.527 | -0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 8.752 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 8.752 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 8.752 |
Cij in GPa:
| 85.524 | 68.405 | 68.405 | 0.0 | 0.0 | -0.0 |
| 68.405 | 85.524 | 68.405 | 0.0 | -0.0 | -0.0 |
| 68.405 | 68.405 | 85.524 | 0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 8.752 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 8.752 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 8.752 |
strain:
Cij in GPa:
| 20.194 | 24.621 | 24.621 | -0.0 | -0.0 | 0.0 |
| 24.621 | 20.194 | 24.621 | -0.0 | -0.0 | 0.0 |
| 24.621 | 24.621 | 20.194 | 0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -5.333 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -5.333 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -5.333 |
Cij in GPa:
| 20.194 | 24.621 | 24.621 | 0.0 | -0.0 | -0.0 |
| 24.621 | 20.194 | 24.621 | -0.0 | 0.0 | -0.0 |
| 24.621 | 24.621 | 20.194 | 0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -5.333 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -5.333 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -5.333 |
Cij in GPa:
| 20.193 | 24.621 | 24.621 | -0.0 | 0.0 | 0.0 |
| 24.621 | 20.193 | 24.621 | 0.0 | -0.0 | 0.0 |
| 24.621 | 24.621 | 20.193 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -5.333 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | -5.333 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | -5.333 |
Cij in GPa:
| 20.194 | 24.622 | 24.622 | 0.0 | -0.0 | -0.0 |
| 24.622 | 20.194 | 24.622 | -0.0 | -0.0 | -0.0 |
| 24.622 | 24.622 | 20.194 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -5.333 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -5.333 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -0.0 | -5.333 |
Cij in GPa:
| 20.188 | 24.615 | 24.615 | -0.0 | -0.0 | 0.0 |
| 24.615 | 20.188 | 24.615 | -0.0 | -0.0 | 0.0 |
| 24.615 | 24.615 | 20.188 | 0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -5.333 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -5.333 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -5.333 |
Cij in GPa:
| 20.2 | 24.627 | 24.627 | 0.0 | 0.0 | -0.0 |
| 24.627 | 20.2 | 24.627 | 0.0 | -0.0 | -0.0 |
| 24.627 | 24.627 | 20.2 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -5.333 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -5.333 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -5.333 |
strain:
Cij in GPa:
| -0.684 | -0.0 | -0.0 | 0.0 | -0.0 | -0.0 |
| -0.0 | -0.684 | -0.0 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.684 | 0.0 | 0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
Cij in GPa:
| -0.684 | -0.0 | -0.0 | 0.0 | -0.0 | -0.0 |
| -0.0 | -0.684 | -0.0 | -0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.684 | 0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 0.0 |
Cij in GPa:
| -0.684 | 0.0 | 0.0 | -0.0 | 0.0 | 0.0 |
| 0.0 | -0.684 | 0.0 | 0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | -0.684 | -0.0 | -0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | -0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -0.0 |
Cij in GPa:
| -0.683 | -0.0 | -0.0 | 0.0 | -0.0 | 0.0 |
| -0.0 | -0.683 | -0.0 | 0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.683 | -0.0 | -0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | 0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -0.0 |
Cij in GPa:
| -0.689 | 0.0 | 0.0 | -0.0 | 0.0 | -0.0 |
| 0.0 | -0.689 | 0.0 | 0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | -0.689 | 0.0 | 0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | -0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -0.0 |
Cij in GPa:
| -0.678 | -0.0 | -0.0 | 0.0 | -0.0 | -0.0 |
| -0.0 | -0.678 | -0.0 | 0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.678 | -0.0 | -0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -0.0 |
Prototype:
a0:
strain:
Cij in GPa:
| 69323.353 | 67984.418 | 67984.418 | -0.0 | 0.0 | -0.0 |
| 67984.418 | 69323.353 | 67984.418 | 0.0 | 0.001 | -0.0 |
| 67984.418 | 67984.418 | 69323.353 | -0.0 | 0.001 | -0.0 |
| 0.007 | 0.006 | 0.006 | -3054.266 | 0.0 | -0.0 |
| 0.006 | 0.006 | 0.006 | 0.0 | -3054.266 | -0.0 |
| 0.006 | 0.006 | 0.006 | 0.0 | 0.0 | -3054.266 |
Cij in GPa:
| 69323.273 | 67984.337 | 67984.336 | 0.0 | -0.001 | 0.0 |
| 67984.337 | 69323.273 | 67984.336 | -0.0 | -0.0 | 0.0 |
| 67984.336 | 67984.336 | 69323.272 | -0.0 | -0.001 | 0.0 |
| -0.006 | -0.006 | -0.006 | -3054.266 | -0.0 | 0.0 |
| -0.006 | -0.006 | -0.006 | -0.0 | -3054.267 | 0.0 |
| -0.006 | -0.006 | -0.006 | -0.0 | -0.0 | -3054.266 |
Cij in GPa:
| 69323.727 | 67984.798 | 67984.798 | 0.0 | 0.0 | -0.0 |
| 67984.798 | 69323.727 | 67984.798 | -0.0 | 0.0 | -0.0 |
| 67984.798 | 67984.798 | 69323.727 | -0.0 | 0.0 | -0.0 |
| 0.004 | 0.004 | 0.004 | -501.787 | 0.0 | -0.0 |
| 0.004 | 0.004 | 0.004 | -0.0 | -501.787 | -0.0 |
| 0.004 | 0.004 | 0.004 | -0.0 | 0.0 | -501.787 |
Cij in GPa:
| 69322.898 | 67983.956 | 67983.956 | 0.0 | -0.0 | 0.0 |
| 67983.956 | 69322.898 | 67983.956 | 0.0 | -0.0 | 0.0 |
| 67983.956 | 67983.956 | 69322.897 | 0.0 | -0.0 | 0.0 |
| -0.004 | -0.004 | -0.004 | -501.787 | -0.0 | 0.0 |
| -0.004 | -0.004 | -0.004 | -0.0 | -501.787 | 0.0 |
| -0.004 | -0.004 | -0.004 | 0.0 | -0.0 | -501.787 |
Cij in GPa:
| 69327.461 | 67988.588 | 67988.588 | -0.0 | 0.0 | -0.0 |
| 67988.588 | 69327.461 | 67988.588 | 0.0 | 0.0 | -0.0 |
| 67988.588 | 67988.588 | 69327.461 | 0.0 | 0.0 | -0.0 |
| 0.628 | 0.581 | 0.575 | -3054.457 | 0.0 | -0.0 |
| 0.581 | 0.628 | 0.575 | 0.0 | -3054.457 | -0.0 |
| 0.582 | 0.575 | 0.628 | -0.0 | 0.0 | -3054.457 |
Cij in GPa:
| 69319.163 | 67980.165 | 67980.165 | -0.0 | -0.0 | 0.0 |
| 67980.165 | 69319.163 | 67980.165 | 0.0 | -0.0 | 0.0 |
| 67980.165 | 67980.165 | 69319.163 | -0.0 | -0.0 | 0.0 |
| -0.628 | -0.581 | -0.575 | -3054.457 | -0.0 | 0.0 |
| -0.582 | -0.628 | -0.575 | -0.0 | -3054.457 | 0.0 |
| -0.581 | -0.575 | -0.628 | -0.0 | -0.0 | -3054.457 |
strain:
Cij in GPa:
| -242.827 | -569.837 | -569.837 | 0.0 | 0.0 | 0.0 |
| -569.837 | -242.827 | -569.837 | 0.0 | 0.0 | 0.0 |
| -569.837 | -569.837 | -242.827 | 0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -1241.98 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | -1241.98 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -1241.98 |
Cij in GPa:
| -242.832 | -569.842 | -569.842 | -0.0 | -0.0 | 0.0 |
| -569.842 | -242.832 | -569.842 | 0.0 | -0.0 | 0.0 |
| -569.842 | -569.842 | -242.832 | 0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -1241.98 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -1241.981 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -1241.98 |
Cij in GPa:
| -242.804 | -569.815 | -569.815 | 0.0 | -0.0 | 0.0 |
| -569.815 | -242.804 | -569.815 | -0.0 | -0.0 | -0.0 |
| -569.815 | -569.815 | -242.804 | 0.0 | -0.0 | 0.0 |
| -0.004 | -0.005 | -0.005 | -1241.98 | 0.0 | -0.0 |
| -0.005 | -0.004 | -0.005 | 0.0 | -1241.98 | 0.0 |
| -0.005 | -0.005 | -0.004 | 0.0 | 0.0 | -1241.981 |
Cij in GPa:
| -242.855 | -569.864 | -569.864 | -0.0 | -0.0 | -0.0 |
| -569.864 | -242.855 | -569.864 | -0.0 | -0.0 | 0.0 |
| -569.864 | -569.864 | -242.855 | 0.0 | -0.0 | 0.0 |
| 0.004 | 0.005 | 0.005 | -1241.981 | -0.0 | -0.0 |
| 0.005 | 0.004 | 0.005 | -0.0 | -1241.981 | -0.0 |
| 0.005 | 0.005 | 0.004 | -0.0 | -0.0 | -1241.981 |
strain:
Cij in GPa:
| 22464880.721 | 5142686.539 | 5142686.495 | 0.017 | 0.019 | 0.002 |
| 5142686.539 | 22464880.721 | 5142686.495 | 0.019 | 0.017 | 0.002 |
| 5142686.537 | 5142686.537 | 22464880.733 | 0.019 | 0.019 | 0.001 |
| -36.194 | -63.032 | -62.989 | 3149640.919 | 0.028 | 0.008 |
| -63.032 | -36.194 | -62.988 | 0.028 | 3149640.919 | 0.008 |
| -63.03 | -63.034 | -36.118 | 0.032 | 0.024 | 3149640.907 |
Cij in GPa:
| 22466735.493 | 5142917.159 | 5142917.168 | -0.018 | -0.02 | -0.001 |
| 5142917.159 | 22466735.493 | 5142917.168 | -0.02 | -0.018 | -0.001 |
| 5142917.164 | 5142917.164 | 22466735.539 | -0.019 | -0.019 | -0.002 |
| 36.183 | 63.014 | 62.98 | 3149640.854 | -0.029 | 0.004 |
| 63.014 | 36.183 | 62.98 | -0.03 | 3149640.854 | 0.004 |
| 63.015 | 63.028 | 36.11 | -0.035 | -0.034 | 3149640.899 |
Cij in GPa:
| 22456533.378 | 5141647.942 | 5141647.939 | 0.001 | 0.001 | 0.0 |
| 5141647.942 | 22456533.378 | 5141647.939 | 0.001 | 0.001 | 0.0 |
| 5141647.944 | 5141647.944 | 22456533.385 | 0.001 | 0.001 | 0.001 |
| -361.372 | -632.19 | -632.422 | 3153026.966 | 0.002 | -0.0 |
| -632.19 | -361.372 | -632.422 | 0.002 | 3153026.967 | -0.0 |
| -632.19 | -632.423 | -361.369 | 0.003 | 0.002 | 3153026.954 |
Cij in GPa:
| 22475082.812 | 5143955.743 | 5143955.744 | -0.002 | -0.001 | -0.0 |
| 5143955.743 | 22475082.812 | 5143955.744 | -0.001 | -0.002 | -0.0 |
| 5143955.741 | 5143955.741 | 22475082.806 | -0.002 | -0.002 | -0.0 |
| 361.373 | 632.191 | 632.422 | 3153026.981 | -0.002 | -0.001 |
| 632.191 | 361.373 | 632.422 | -0.002 | 3153026.981 | -0.001 |
| 632.19 | 632.423 | 361.368 | -0.003 | -0.002 | 3153026.985 |
Cij in GPa:
| 22373060.797 | 5131262.757 | 5131262.756 | 0.0 | 0.0 | 0.0 |
| 5131262.757 | 22373060.797 | 5131262.756 | 0.0 | 0.0 | 0.0 |
| 5131262.757 | 5131262.757 | 22373060.798 | 0.0 | 0.0 | 0.0 |
| -3624.871 | -6316.407 | -6318.768 | 3149973.197 | 0.0 | 0.0 |
| -6316.407 | -3624.871 | -6318.768 | 0.0 | 3149973.197 | 0.0 |
| -6316.407 | -6318.769 | -3624.87 | 0.0 | 0.0 | 3149973.196 |
Cij in GPa:
| 22558555.261 | 5154340.878 | 5154340.878 | -0.0 | -0.0 | -0.0 |
| 5154340.878 | 22558555.261 | 5154340.878 | -0.0 | -0.0 | -0.0 |
| 5154340.879 | 5154340.879 | 22558555.261 | -0.0 | -0.0 | -0.0 |
| 3624.87 | 6316.407 | 6318.768 | 3149973.199 | -0.0 | 0.0 |
| 6316.407 | 3624.87 | 6318.768 | -0.0 | 3149973.199 | 0.0 |
| 6316.407 | 6318.769 | 3624.87 | -0.0 | -0.0 | 3149973.2 |
strain:
Cij in GPa:
| 175.557 | 102.272 | 102.272 | 0.0 | 0.0 | -0.0 |
| 102.272 | 175.557 | 102.272 | 0.0 | -0.0 | -0.0 |
| 102.272 | 102.272 | 175.557 | 0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 10.138 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 10.138 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 10.138 |
Cij in GPa:
| 175.557 | 102.272 | 102.272 | 0.0 | -0.0 | 0.0 |
| 102.272 | 175.557 | 102.272 | -0.0 | 0.0 | 0.0 |
| 102.272 | 102.272 | 175.557 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 10.138 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 10.138 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 10.138 |
Cij in GPa:
| 175.557 | 102.272 | 102.272 | 0.0 | 0.0 | -0.0 |
| 102.272 | 175.557 | 102.272 | 0.0 | 0.0 | -0.0 |
| 102.272 | 102.272 | 175.557 | 0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 10.138 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 10.138 | -0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 10.138 |
Cij in GPa:
| 175.557 | 102.272 | 102.272 | -0.0 | 0.0 | 0.0 |
| 102.272 | 175.557 | 102.272 | -0.0 | -0.0 | 0.0 |
| 102.272 | 102.272 | 175.557 | -0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 10.138 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 10.138 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 10.138 |
Cij in GPa:
| 175.557 | 102.272 | 102.272 | -0.0 | -0.0 | -0.0 |
| 102.272 | 175.557 | 102.272 | -0.0 | -0.0 | -0.0 |
| 102.272 | 102.272 | 175.557 | 0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 10.138 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 10.138 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 10.138 |
Cij in GPa:
| 175.556 | 102.272 | 102.272 | 0.0 | 0.0 | 0.0 |
| 102.272 | 175.556 | 102.272 | 0.0 | 0.0 | 0.0 |
| 102.272 | 102.272 | 175.556 | -0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 10.138 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 10.138 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 10.138 |
Prototype:
a0:
strain:
Cij in GPa:
| -199.473 | -216.034 | -1051.298 | -26.805 | 0.0 | -0.0 |
| -143.129 | -100.16 | -1074.067 | 16.77 | 0.0 | -0.0 |
| -210.903 | -210.903 | -689.538 | 0.0 | 0.0 | 0.0 |
| -209.867 | -176.328 | -1134.503 | 4.147 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 6.863 | -14.302 |
| -0.0 | -0.0 | 0.0 | -0.0 | -14.302 | 24.623 |
Cij in GPa:
| 99.359 | 50.112 | 62.04 | -14.302 | -0.0 | 0.0 |
| 293.985 | 313.93 | 1184.661 | 25.519 | -0.0 | -0.0 |
| 47.83 | 47.83 | 441.459 | 0.0 | -0.0 | 0.0 |
| 176.328 | 209.867 | 1134.503 | 4.147 | 0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | 6.863 | -14.302 |
| 0.0 | 0.0 | -0.0 | -0.0 | -14.302 | 24.623 |
Cij in GPa:
| 99.359 | 50.112 | 62.04 | -14.302 | 0.0 | 0.0 |
| 50.112 | 99.359 | 62.04 | 14.302 | 0.0 | 0.0 |
| 25.765 | 25.765 | 315.014 | 0.0 | -0.0 | -0.0 |
| -14.302 | 14.302 | -0.0 | 6.863 | 0.0 | 0.0 |
| -19.341 | -19.341 | -113.635 | -0.0 | 4.143 | -16.774 |
| 0.0 | -0.0 | -0.0 | -0.0 | -14.302 | 24.623 |
Cij in GPa:
| 99.359 | 50.112 | 62.04 | -14.302 | -0.0 | -0.0 |
| 50.112 | 99.359 | 62.04 | 14.302 | -0.0 | -0.0 |
| 47.83 | 47.83 | 441.459 | 0.0 | -0.0 | -0.0 |
| 6.831 | 44.583 | 111.783 | -1.88 | 0.0 | 0.0 |
| 19.341 | 19.341 | 113.635 | 0.0 | 4.143 | -16.774 |
| 0.0 | 0.0 | 0.0 | 0.0 | -14.302 | 24.623 |
Cij in GPa:
| 64.991 | 29.162 | 55.104 | -18.817 | 0.0 | -0.0 |
| 47.506 | 88.727 | 45.758 | 17.458 | -0.0 | -0.0 |
| 47.83 | 47.83 | 441.461 | -0.0 | -0.0 | 0.0 |
| -14.302 | 14.302 | -0.0 | 6.863 | 0.0 | 0.0 |
| -2.142 | -2.142 | -11.064 | -0.0 | -0.68 | -20.507 |
| -2.213 | -2.213 | -13.002 | -0.0 | -17.13 | 21.027 |
Cij in GPa:
| 75.91 | 47.804 | 73.842 | -22.408 | -0.0 | 0.0 |
| 34.424 | 70.254 | 77.428 | 18.817 | -0.0 | -0.0 |
| 54.691 | 54.691 | 437.791 | -0.0 | -0.0 | 0.0 |
| -18.365 | 22.65 | 11.065 | -0.68 | 0.0 | -0.0 |
| 2.142 | 2.142 | 11.064 | 0.0 | -0.68 | -20.507 |
| 2.213 | 2.213 | 13.002 | 0.0 | -17.13 | 21.027 |
Prototype:
a0:
strain:
Cij in GPa:
| 75.709 | 136.436 | 136.436 | -0.0 | 0.0 | 0.0 |
| 136.436 | 75.709 | 136.436 | -0.0 | 0.0 | 0.0 |
| 136.436 | 136.436 | 75.709 | -0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -79.157 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -79.157 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 0.0 | -79.157 |
Cij in GPa:
| 75.709 | 136.436 | 136.436 | 0.0 | -0.0 | 0.0 |
| 136.436 | 75.709 | 136.436 | 0.0 | -0.0 | -0.0 |
| 136.436 | 136.436 | 75.709 | 0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -79.157 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -79.157 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | -0.0 | -79.157 |
Cij in GPa:
| 75.709 | 136.436 | 136.436 | -0.0 | -0.0 | 0.0 |
| 136.436 | 75.709 | 136.436 | -0.0 | -0.0 | 0.0 |
| 136.436 | 136.436 | 75.709 | 0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -79.157 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -79.157 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 0.0 | -79.157 |
Cij in GPa:
| 75.708 | 136.435 | 136.435 | 0.0 | -0.0 | -0.0 |
| 136.435 | 75.708 | 136.435 | -0.0 | 0.0 | -0.0 |
| 136.435 | 136.435 | 75.708 | 0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -79.157 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | -79.157 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | -0.0 | -79.157 |
Cij in GPa:
| 75.716 | 136.437 | 136.437 | -0.0 | -0.0 | 0.0 |
| 136.437 | 75.716 | 136.437 | 0.0 | 0.0 | 0.0 |
| 136.437 | 136.437 | 75.716 | -0.0 | 0.0 | 0.0 |
| 0.001 | 0.001 | 0.001 | 68.701 | 0.0 | -0.0 |
| 0.001 | 0.001 | 0.001 | 0.0 | 68.701 | 0.0 |
| 0.001 | 0.001 | 0.001 | -0.0 | 0.0 | 68.701 |
Cij in GPa:
| 75.702 | 136.434 | 136.434 | -0.0 | -0.0 | -0.0 |
| 136.434 | 75.702 | 136.434 | 0.0 | 0.0 | -0.0 |
| 136.434 | 136.434 | 75.702 | -0.0 | -0.0 | -0.0 |
| -0.001 | -0.001 | -0.001 | 68.701 | -0.0 | -0.0 |
| -0.001 | -0.001 | -0.001 | -0.0 | 68.701 | -0.0 |
| -0.001 | -0.001 | -0.001 | 0.0 | -0.0 | 68.701 |
a0:
strain:
Cij in GPa:
| 263.713 | 137.618 | 179.68 | -0.0 | 0.0 | -0.0 |
| 139.278 | 247.227 | 164.397 | -0.0 | 0.0 | -0.0 |
| 178.625 | 161.683 | 276.966 | -0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 105.66 | 0.0 | -0.0 |
| 1.499 | 4.015 | 2.722 | -0.0 | 121.936 | -0.0 |
| 0.589 | 1.577 | 1.069 | -0.0 | 0.0 | 79.4 |
Cij in GPa:
| 256.605 | 126.178 | 175.055 | 0.0 | -0.0 | 0.0 |
| 139.278 | 247.227 | 164.397 | 0.0 | -0.0 | 0.0 |
| 178.625 | 161.683 | 276.966 | 0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 105.66 | -0.0 | 0.0 |
| -1.499 | -4.015 | -2.722 | 0.0 | 121.936 | 0.0 |
| -0.589 | -1.577 | -1.069 | 0.0 | -0.0 | 79.4 |
Cij in GPa:
| 263.713 | 137.618 | 179.68 | -0.0 | 0.0 | -0.0 |
| 124.925 | 210.796 | 140.536 | -0.0 | 0.0 | -0.0 |
| 173.298 | 141.368 | 260.709 | -0.0 | 0.0 | -0.0 |
| 0.065 | 0.174 | 0.118 | 99.113 | 0.0 | -0.0 |
| 0.15 | 0.402 | 0.272 | -0.0 | 121.936 | -0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 84.171 |
Cij in GPa:
| 257.947 | 129.025 | 176.677 | 0.0 | -0.0 | 0.0 |
| 139.278 | 247.227 | 164.396 | 0.0 | -0.0 | 0.0 |
| 178.625 | 161.683 | 276.965 | 0.0 | -0.0 | 0.0 |
| -0.065 | -0.174 | -0.118 | 99.113 | -0.0 | 0.0 |
| -0.15 | -0.402 | -0.272 | 0.0 | 121.936 | 0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 84.171 |
Cij in GPa:
| 258.101 | 129.346 | 176.858 | -0.0 | 0.0 | -0.0 |
| 139.278 | 247.227 | 164.397 | -0.0 | 0.0 | -0.0 |
| 173.159 | 140.976 | 260.436 | -0.0 | 0.0 | -0.0 |
| 0.006 | 0.018 | 0.012 | 99.114 | 0.0 | -0.0 |
| 0.015 | 0.04 | 0.028 | -0.0 | 121.936 | -0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 84.171 |
Cij in GPa:
| 258.072 | 129.288 | 176.824 | 0.0 | -0.0 | 0.0 |
| 124.766 | 210.356 | 140.232 | 0.0 | -0.0 | 0.0 |
| 178.625 | 161.682 | 276.965 | -0.0 | -0.0 | 0.0 |
| -0.006 | -0.018 | -0.012 | 99.114 | -0.0 | 0.0 |
| -0.015 | -0.04 | -0.028 | 0.0 | 121.936 | 0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 84.171 |
a0:
strain:
Cij in GPa:
| 241.877 | 158.374 | 123.505 | 0.0 | -0.0 | 0.0 |
| 158.374 | 241.877 | 123.505 | -0.0 | -0.0 | 0.0 |
| 119.325 | 119.325 | 206.588 | -0.0 | -0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | 95.315 | 0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | 95.315 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 122.371 |
Cij in GPa:
| 274.241 | 190.543 | 144.263 | 0.0 | -0.0 | -0.0 |
| 190.543 | 274.241 | 144.263 | 0.0 | 0.0 | -0.0 |
| 150.647 | 150.647 | 245.654 | 0.0 | 0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | 95.315 | -0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 95.315 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 122.371 |
Cij in GPa:
| 255.981 | 172.755 | 132.122 | -0.0 | -0.0 | 0.0 |
| 172.755 | 255.981 | 132.122 | -0.0 | 0.0 | 0.0 |
| 130.155 | 130.155 | 208.674 | -0.0 | 0.0 | 0.0 |
| -1.226 | -1.226 | -0.778 | 88.005 | -0.0 | 0.0 |
| -1.226 | -1.226 | -0.778 | 0.0 | 88.005 | 0.0 |
| -2.724 | -2.724 | -3.155 | -0.0 | -0.0 | 122.371 |
Cij in GPa:
| 260.116 | 174.734 | 133.662 | 0.0 | 0.0 | -0.0 |
| 174.734 | 260.116 | 133.662 | 0.0 | 0.0 | -0.0 |
| 150.647 | 150.647 | 245.654 | 0.0 | 0.0 | -0.0 |
| 1.226 | 1.226 | 0.778 | 88.005 | 0.0 | -0.0 |
| 1.226 | 1.226 | 0.778 | -0.0 | 88.005 | -0.0 |
| 2.724 | 2.724 | 3.155 | 0.0 | 0.0 | 122.371 |
Cij in GPa:
| 258.472 | 174.68 | 134.375 | -0.0 | -0.0 | 0.0 |
| 174.68 | 258.472 | 134.375 | -0.0 | -0.0 | 0.0 |
| 130.689 | 130.689 | 207.425 | 0.0 | -0.0 | 0.0 |
| -0.093 | -0.093 | -0.059 | 89.772 | -0.0 | 0.0 |
| -0.093 | -0.093 | -0.059 | -0.0 | 89.772 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 122.371 |
Cij in GPa:
| 259.173 | 175.144 | 135.1 | 0.0 | 0.0 | -0.0 |
| 175.144 | 259.173 | 135.1 | 0.0 | 0.0 | -0.0 |
| 150.646 | 150.646 | 245.653 | 0.0 | 0.0 | -0.0 |
| 0.093 | 0.093 | 0.059 | 89.772 | 0.0 | -0.0 |
| 0.093 | 0.093 | 0.059 | 0.0 | 89.772 | -0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 122.371 |
strain:
Cij in GPa:
| 285.138 | 180.553 | 169.246 | 0.0 | 0.0 | -0.0 |
| 180.553 | 285.138 | 169.246 | -0.0 | 0.0 | -0.0 |
| 200.478 | 200.478 | 416.22 | 0.0 | 0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | 108.163 | 0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | 108.163 | -0.0 |
| 43.949 | 43.949 | 165.692 | -0.0 | 0.0 | 120.799 |
Cij in GPa:
| 229.936 | 132.89 | -9.216 | 0.0 | -0.0 | 0.0 |
| 132.89 | 229.936 | -9.216 | -0.0 | -0.0 | 0.0 |
| 112.549 | 112.549 | 84.74 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | 108.163 | -0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | -0.0 | 108.163 | 0.0 |
| -43.949 | -43.949 | -165.692 | 0.0 | -0.0 | 120.799 |
Cij in GPa:
| 285.138 | 180.553 | 169.246 | 0.0 | 0.0 | -0.0 |
| 180.553 | 285.138 | 169.246 | 0.0 | 0.0 | -0.0 |
| 169.246 | 169.246 | 272.729 | 0.0 | 0.0 | -0.0 |
| 4.252 | 4.252 | 16.029 | 97.623 | 0.0 | -0.0 |
| 4.252 | 4.252 | 16.029 | 0.0 | 97.623 | -0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 120.799 |
Cij in GPa:
| 285.138 | 180.553 | 169.246 | -0.0 | -0.0 | 0.0 |
| 180.553 | 285.138 | 169.246 | 0.0 | -0.0 | 0.0 |
| 169.246 | 169.246 | 272.729 | 0.0 | -0.0 | 0.0 |
| -4.252 | -4.252 | -16.029 | 97.623 | -0.0 | 0.0 |
| -4.252 | -4.252 | -16.029 | -0.0 | 97.623 | 0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 120.799 |
Cij in GPa:
| 275.052 | 177.509 | 158.92 | 0.0 | 0.0 | -0.0 |
| 177.509 | 275.052 | 158.92 | 0.0 | 0.0 | -0.0 |
| 169.246 | 169.246 | 272.73 | 0.0 | 0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 108.163 | 0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 108.163 | -0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 120.799 |
Cij in GPa:
| 285.138 | 180.552 | 169.245 | -0.0 | -0.0 | 0.0 |
| 180.552 | 285.138 | 169.245 | -0.0 | -0.0 | 0.0 |
| 153.914 | 153.914 | 244.952 | -0.0 | -0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | 108.163 | -0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 108.163 | 0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 120.799 |
a0:
strain:
Cij in GPa:
| 27.634 | 82.351 | 49.38 | 0.0 | -0.0 | -0.0 |
| 82.351 | 27.634 | 49.38 | 0.0 | -0.0 | -0.0 |
| 50.625 | 50.625 | 214.237 | 0.0 | -0.0 | -0.0 |
| -0.007 | -0.007 | 0.05 | -24.898 | -0.0 | -0.0 |
| -0.007 | -0.007 | 0.05 | 0.0 | -24.898 | -0.0 |
| -0.003 | -0.003 | 0.019 | 0.0 | -0.0 | 61.665 |
Cij in GPa:
| 26.641 | 81.621 | 55.108 | -0.0 | 0.0 | 0.0 |
| 81.621 | 26.641 | 55.108 | -0.0 | 0.0 | 0.0 |
| 55.539 | 55.539 | 181.555 | -0.0 | 0.0 | 0.0 |
| 0.007 | 0.007 | -0.05 | -24.898 | 0.0 | 0.0 |
| 0.007 | 0.007 | -0.05 | -0.0 | -24.898 | 0.0 |
| 0.003 | 0.003 | -0.019 | -0.0 | 0.0 | 61.665 |
Cij in GPa:
| 23.738 | 84.003 | 56.844 | 0.0 | 0.0 | -0.0 |
| 84.003 | 23.738 | 56.844 | 0.0 | 0.0 | -0.0 |
| 55.536 | 55.536 | 181.577 | 0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 13.49 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 13.49 | -0.0 |
| -0.0 | -0.0 | 0.002 | 0.0 | -0.0 | 61.665 |
Cij in GPa:
| 26.638 | 81.619 | 55.122 | -0.0 | 0.0 | 0.0 |
| 81.619 | 26.638 | 55.122 | -0.0 | 0.0 | 0.0 |
| 55.536 | 55.536 | 181.572 | -0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 13.49 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 13.49 | 0.0 |
| 0.0 | 0.0 | -0.002 | -0.0 | 0.0 | 61.665 |
Cij in GPa:
| 26.643 | 81.624 | 55.128 | 0.0 | -0.0 | -0.0 |
| 81.624 | 26.643 | 55.128 | 0.0 | -0.0 | -0.0 |
| 55.541 | 55.541 | 181.587 | 0.0 | -0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | -24.898 | -0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | -24.898 | -0.0 |
| 0.002 | 0.002 | 0.002 | 0.0 | -0.0 | 61.665 |
Cij in GPa:
| 2910107.591 | 3270433.394 | 2680761.262 | 16525.325 | -17397.92 | -53155.348 |
| 3261333.993 | 2928639.985 | 2629940.749 | 30838.678 | -30332.353 | 60215.4 |
| 55.53 | 55.53 | 181.567 | -0.0 | 0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | -24.898 | 0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | -24.898 | 0.0 |
| -0.002 | -0.002 | -0.002 | -0.0 | 0.0 | 61.665 |
a0:
strain:
Cij in GPa:
| 264.605 | 139.108 | 179.81 | -0.0 | 0.0 | 0.0 |
| 126.234 | 217.077 | 146.384 | -0.0 | -0.0 | -0.0 |
| 174.386 | 143.993 | 263.031 | -0.0 | -0.0 | 0.0 |
| 0.551 | 1.456 | 0.987 | 98.563 | 0.0 | 0.0 |
| 0.699 | 1.74 | 1.134 | -0.0 | 122.1 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 85.285 |
Cij in GPa:
| 256.715 | 122.948 | 170.847 | 0.0 | -0.0 | 0.0 |
| 125.679 | 210.51 | 139.764 | 0.0 | 0.0 | -0.0 |
| 172.892 | 139.991 | 260.295 | 0.0 | -0.0 | -0.0 |
| -0.551 | -1.456 | -0.987 | 98.563 | -0.0 | -0.0 |
| -0.699 | -1.74 | -1.134 | 0.0 | 122.1 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 85.285 |
Cij in GPa:
| 257.436 | 124.867 | 172.154 | -0.0 | -0.0 | 0.0 |
| 125.574 | 215.467 | 145.349 | -0.0 | -0.0 | 0.0 |
| 171.207 | 138.591 | 260.643 | -0.0 | -0.0 | 0.0 |
| 0.055 | 0.145 | 0.098 | 98.575 | 0.0 | 0.0 |
| 0.07 | 0.174 | 0.113 | -0.0 | 122.1 | 0.0 |
| 0.028 | 0.069 | 0.045 | -0.0 | -0.0 | 80.527 |
Cij in GPa:
| 257.304 | 124.518 | 171.916 | 0.0 | -0.0 | -0.0 |
| 140.749 | 248.475 | 164.715 | 0.0 | -0.0 | -0.0 |
| 178.917 | 162.18 | 278.004 | 0.0 | -0.0 | -0.0 |
| -0.055 | -0.145 | -0.098 | 98.575 | -0.0 | -0.0 |
| -0.07 | -0.174 | -0.113 | 0.0 | 122.1 | -0.0 |
| -0.028 | -0.069 | -0.045 | 0.0 | 0.0 | 80.527 |
Cij in GPa:
| 264.606 | 139.108 | 179.811 | -0.0 | 0.0 | 0.0 |
| 126.341 | 212.273 | 140.965 | -0.0 | -0.0 | 0.0 |
| 171.148 | 138.435 | 260.537 | -0.0 | -0.0 | 0.0 |
| 0.003 | 0.008 | 0.006 | 99.417 | -0.0 | 0.0 |
| 0.007 | 0.017 | 0.012 | -0.0 | 122.1 | -0.0 |
| 0.008 | 0.022 | 0.015 | -0.0 | 0.0 | 77.728 |
Cij in GPa:
| 264.604 | 139.107 | 179.81 | 0.0 | -0.0 | -0.0 |
| 125.493 | 215.269 | 145.221 | 0.0 | 0.0 | -0.0 |
| 173.635 | 141.968 | 261.641 | 0.0 | 0.0 | 0.0 |
| -0.003 | -0.008 | -0.006 | 99.417 | 0.0 | -0.0 |
| -0.007 | -0.017 | -0.012 | 0.0 | 122.1 | -0.0 |
| -0.008 | -0.022 | -0.015 | 0.0 | 0.0 | 77.728 |
a0:
strain:
Cij in GPa:
| 269.451 | 179.035 | 149.004 | 0.0 | -0.0 | 0.0 |
| 179.035 | 269.451 | 149.004 | 0.0 | 0.0 | 0.0 |
| 154.996 | 154.996 | 148.436 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 95.769 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 95.769 | 0.0 |
| -61.791 | -61.791 | -249.066 | -0.0 | 0.0 | 122.345 |
Cij in GPa:
| 269.451 | 179.035 | 149.004 | 0.0 | -0.0 | -0.0 |
| 179.035 | 269.451 | 149.004 | -0.0 | 0.0 | -0.0 |
| 151.267 | 151.267 | 246.651 | -0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 95.769 | 0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | 95.769 | -0.0 |
| 61.791 | 61.791 | 249.066 | -0.0 | -0.0 | 122.345 |
Cij in GPa:
| 269.451 | 179.035 | 149.004 | -0.0 | 0.0 | 0.0 |
| 179.035 | 269.451 | 149.004 | 0.0 | 0.0 | 0.0 |
| 151.267 | 151.267 | 246.651 | -0.0 | 0.0 | 0.0 |
| 1.541 | 1.541 | -7.455 | 87.845 | 0.0 | 0.0 |
| 1.541 | 1.541 | -7.455 | -0.0 | 87.845 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 122.345 |
Cij in GPa:
| 269.451 | 179.035 | 149.004 | -0.0 | -0.0 | -0.0 |
| 179.035 | 269.451 | 149.004 | 0.0 | -0.0 | -0.0 |
| 151.267 | 151.267 | 246.651 | 0.0 | 0.0 | -0.0 |
| -1.541 | -1.541 | 7.455 | 87.845 | -0.0 | -0.0 |
| -1.541 | -1.541 | 7.455 | 0.0 | 87.845 | -0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 122.345 |
Cij in GPa:
| 269.452 | 179.035 | 149.005 | -0.0 | 0.0 | -0.0 |
| 179.035 | 269.452 | 149.005 | -0.0 | 0.0 | -0.0 |
| 131.06 | 131.06 | 206.676 | 0.0 | -0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 95.769 | -0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | 95.769 | 0.0 |
| 0.155 | 0.155 | -0.75 | -0.0 | 0.0 | 122.345 |
Cij in GPa:
| 260.709 | 175.412 | 138.262 | 0.0 | -0.0 | -0.0 |
| 175.412 | 260.709 | 138.262 | 0.0 | -0.0 | -0.0 |
| 151.266 | 151.266 | 246.65 | 0.0 | 0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | 95.769 | 0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 95.769 | -0.0 |
| -0.155 | -0.155 | 0.75 | 0.0 | -0.0 | 122.345 |
Prototype:
a0:
strain:
Cij in GPa:
| -945.013 | -974.812 | -3377.443 | -1.878 | 0.0 | 0.0 |
| -1690.78 | -1644.352 | -6167.03 | 1.079 | 0.0 | -0.0 |
| -1682.734 | -1682.734 | -5994.988 | -0.0 | 0.0 | 0.0 |
| -1775.262 | -1773.104 | -6259.185 | 44.348 | 0.0 | -0.0 |
| -1776.26 | -1776.26 | -6266.513 | -0.0 | 44.343 | -1.081 |
| -0.0 | -0.0 | 0.0 | -0.0 | 0.757 | 28.253 |
Cij in GPa:
| 1906.085 | 1859.669 | 6358.665 | -1.081 | -0.0 | -0.0 |
| 78.852 | 135.357 | 93.978 | -0.757 | -0.0 | 0.0 |
| 94.71 | 94.71 | 276.1 | 0.0 | -0.0 | -0.0 |
| 0.757 | -0.757 | 0.0 | 48.191 | -0.0 | -0.0 |
| 1776.26 | 1776.26 | 6266.513 | 0.0 | 44.343 | -1.081 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.757 | 28.253 |
Cij in GPa:
| 14.49 | -15.303 | -256.243 | -1.878 | 0.0 | 0.0 |
| 78.852 | 135.356 | 93.978 | -0.757 | 0.0 | 0.0 |
| -15.394 | -15.394 | -84.046 | -0.0 | -0.0 | 0.0 |
| -178.71 | -176.549 | -626.663 | 44.343 | 0.0 | 0.0 |
| -177.629 | -177.629 | -626.663 | 0.0 | 44.343 | -1.081 |
| -177.631 | -177.63 | -626.666 | -0.0 | -1.081 | 23.208 |
Cij in GPa:
| 227.682 | 197.885 | 437.212 | -1.878 | 0.0 | 0.0 |
| 261.042 | 307.455 | 718.819 | 1.082 | -0.0 | -0.0 |
| 270.545 | 270.545 | 896.034 | 0.0 | 0.0 | -0.0 |
| 104.725 | 108.481 | 346.767 | 37.577 | -0.0 | -0.0 |
| 177.629 | 177.629 | 626.663 | -0.0 | 44.343 | -1.081 |
| 177.631 | 177.63 | 626.666 | 0.0 | -1.081 | 23.208 |
Cij in GPa:
| 135.343 | 78.847 | 93.978 | 0.757 | 0.0 | -0.0 |
| 81.003 | 110.36 | 56.463 | 1.897 | 0.0 | 0.0 |
| 75.122 | 75.122 | 206.603 | -0.0 | 0.0 | -0.0 |
| 0.757 | -0.757 | -0.0 | 48.191 | -0.0 | 0.0 |
| -10.595 | -10.595 | -34.421 | 0.0 | 37.519 | -1.884 |
| -0.005 | -0.002 | -0.0 | -0.0 | 0.757 | 28.253 |
Cij in GPa:
| 131.45 | 101.966 | 124.559 | -1.894 | -0.0 | 0.0 |
| 101.228 | 147.6 | 154.902 | 1.093 | -0.0 | -0.0 |
| 110.707 | 110.707 | 332.13 | 0.0 | -0.0 | -0.0 |
| 8.71 | 12.48 | 34.421 | 37.519 | -0.0 | -0.0 |
| 10.595 | 10.595 | 34.421 | -0.0 | 37.519 | -1.884 |
| 0.005 | 0.002 | 0.0 | 0.0 | 0.757 | 28.253 |
Prototype:
a0:
strain:
Cij in GPa:
| 135605.775 | 131874.759 | 131874.759 | 0.0 | 0.0 | -0.0 |
| 131874.759 | 135605.776 | 131874.759 | 0.0 | 0.0 | -0.0 |
| 131874.759 | 131874.759 | 135605.776 | 0.0 | 0.0 | 0.0 |
| -0.002 | -0.001 | -0.001 | 85.806 | 0.0 | -0.0 |
| -0.001 | -0.001 | -0.001 | 0.0 | 85.806 | -0.0 |
| -0.001 | -0.001 | -0.001 | 0.0 | 0.0 | 85.806 |
Cij in GPa:
| 136247.922 | 131553.453 | 131553.452 | -0.0 | -0.0 | 0.0 |
| 131553.453 | 136247.922 | 131553.453 | -0.0 | -0.0 | 0.0 |
| 131553.452 | 131553.452 | 136247.921 | -0.0 | -0.0 | -0.0 |
| 0.001 | 0.001 | 0.001 | 85.806 | -0.0 | 0.0 |
| 0.001 | 0.001 | 0.001 | -0.0 | 85.806 | 0.0 |
| 0.001 | 0.001 | 0.001 | 0.0 | -0.0 | 85.806 |
Cij in GPa:
| 135606.551 | 131875.468 | 131875.468 | 0.0 | 0.0 | -0.0 |
| 131875.467 | 135606.551 | 131875.467 | 0.0 | 0.0 | -0.0 |
| 131875.467 | 131875.467 | 135606.551 | 0.0 | 0.0 | 0.0 |
| 4427436519.523 | 4547809610.513 | 4558414096.885 | -332554256.001 | -3931074.052 | 9999210.016 |
| 5007687529.713 | 4753748804.604 | 4972558416.831 | -4785583.7 | -359994360.43 | -13790806.816 |
| 4582550299.815 | 4574912317.488 | 4503155662.983 | 7723077.561 | -1766154.957 | -344783578.043 |
Cij in GPa:
| 136247.153 | 131552.749 | 131552.749 | -0.0 | -0.0 | 0.0 |
| 131552.749 | 136247.153 | 131552.749 | 0.0 | -0.0 | 0.0 |
| 131552.749 | 131552.749 | 136247.153 | -0.0 | -0.0 | -0.0 |
| -3841167273.962 | -3656756193.983 | -3628045496.204 | -488658467.316 | -999516.283 | -4202790.411 |
| -4353335188.157 | -4414243727.969 | -4364107391.995 | -1624978.727 | -341667359.452 | -6131359.837 |
| -3846009303.144 | -3853567566.02 | -4036382300.461 | 6779382.85 | 70937.736 | -486923948.988 |
Cij in GPa:
| 135614.264 | 131882.509 | 131882.509 | 0.0 | 0.0 | -0.0 |
| 131882.509 | 135614.264 | 131882.509 | 0.0 | 0.0 | -0.0 |
| 131882.509 | 131882.509 | 135614.264 | 0.0 | 0.0 | 0.0 |
| 601829485.932 | 622368085.588 | 622918200.387 | -20849799.772 | -446295.599 | 490686.688 |
| 675947715.632 | 653278428.84 | 672142704.751 | 475094.265 | -7365484.375 | 537609.349 |
| 642091780.951 | 644437948.79 | 620095176.24 | 867874.568 | 253243.629 | -19373348.862 |
Cij in GPa:
| 135596.9 | 131866.974 | 131866.974 | -0.0 | -0.0 | 0.0 |
| 131866.974 | 135596.9 | 131866.974 | -0.0 | -0.0 | 0.0 |
| 131866.974 | 131866.974 | 135596.9 | -0.0 | -0.0 | -0.0 |
| -521352294.62 | -539726919.225 | -539683251.974 | -36635904.963 | -51474.992 | 826358.063 |
| -557098418.827 | -535489168.285 | -553881310.071 | -272235.448 | -38015909.62 | -229780.114 |
| -628731032.354 | -631601549.738 | -602426170.396 | 1697114.658 | 2478618.101 | -20428711.466 |
strain:
Cij in GPa:
| -485.784 | -1011.5 | -1011.5 | 0.0 | -0.0 | -0.0 |
| -1011.5 | -485.784 | -1011.5 | 0.0 | -0.0 | -0.0 |
| -1011.5 | -1011.5 | -485.784 | 0.0 | 0.0 | -0.0 |
| 17177979827.546 | 16442119837.196 | 16187470593.352 | -2028327758.965 | 69224205.523 | 48888321.349 |
| 15832161811.035 | 16076926771.39 | 15687632931.759 | 219109603.786 | -1638329750.73 | -41193824.553 |
| 15453400846.768 | 14468389512.049 | 15988351966.507 | 279573025.489 | 333314038.449 | -1669226411.641 |
Cij in GPa:
| -485.784 | -1011.502 | -1011.502 | -0.0 | -0.0 | 0.0 |
| -1011.502 | -485.785 | -1011.502 | -0.0 | -0.0 | 0.0 |
| -1011.502 | -1011.502 | -485.785 | -0.0 | -0.0 | 0.0 |
| -15981217179.689 | -15856943311.7 | -16152581727.55 | -2041306808.517 | 117682190.137 | 493628197.44 |
| -15379811906.705 | -15048054873.742 | -15274901759.884 | 124885429.69 | -2419732864.523 | 226505283.668 |
| -13487121368.743 | -13674252896.193 | -12979958568.162 | -87142311.286 | 98341354.457 | -2005516364.513 |
Cij in GPa:
| -436.745 | -1036.011 | -1036.011 | 0.0 | 0.0 | -0.0 |
| -1036.011 | -436.745 | -1036.011 | -0.0 | 0.0 | 0.0 |
| -1036.011 | -1036.011 | -436.745 | -0.0 | 0.0 | 0.0 |
| 1722536723.485 | 1753315096.572 | 1690204154.656 | -240001991.058 | -17477604.198 | 6665701.964 |
| 1293164857.916 | 1377254738.147 | 1267907744.432 | -25956114.408 | -168083052.028 | 7037139.823 |
| 1393789151.744 | 1421753844.679 | 1390530312.292 | -19059115.499 | -6364286.047 | -215227059.352 |
Cij in GPa:
| -485.788 | -1011.509 | -1011.509 | -0.0 | -0.0 | -0.0 |
| -1011.509 | -485.788 | -1011.509 | 0.0 | -0.0 | -0.0 |
| -1011.509 | -1011.509 | -485.788 | 0.0 | -0.0 | -0.0 |
| -1193470602.426 | -1257279425.147 | -1208485654.864 | -210175776.677 | -8609735.321 | -39799613.893 |
| -1493122415.78 | -1564033074.951 | -1544462904.04 | -17909854.909 | -219830427.585 | -13156712.139 |
| -1618034836.271 | -1611753862.61 | -1642704741.309 | -10816742.664 | 39130760.413 | -218358119.971 |
Cij in GPa:
| -485.746 | -1011.425 | -1011.425 | 0.0 | 0.0 | 0.0 |
| -1011.425 | -485.746 | -1011.425 | 0.0 | 0.0 | -0.0 |
| -1011.425 | -1011.425 | -485.746 | -0.0 | 0.0 | -0.0 |
| 147793595.249 | 152093381.632 | 151994274.844 | -21234604.579 | -1204715.488 | -920922.733 |
| 130221772.41 | 113325378.144 | 124349708.267 | 1685883.558 | -20417418.708 | -1504791.279 |
| 144665967.719 | 149724780.395 | 141036176.799 | 15575.391 | -2338576.573 | -17664139.712 |
Cij in GPa:
| -436.791 | -1036.094 | -1036.094 | -0.0 | -0.0 | -0.0 |
| -1036.094 | -436.791 | -1036.094 | 0.0 | 0.0 | 0.0 |
| -1036.094 | -1036.094 | -436.791 | -0.0 | -0.0 | -0.0 |
| -137853636.649 | -139000543.764 | -132172660.714 | -20145578.879 | 1458113.714 | 2317277.293 |
| -163619791.161 | -165061268.899 | -163986217.369 | 884757.256 | -20753424.554 | -1282469.511 |
| -168208832.277 | -167720151.069 | -169282797.93 | 35310.833 | 723755.493 | -20813589.315 |
strain:
Cij in GPa:
| 2666032.893 | 1528334.487 | 1528334.485 | -0.004 | 0.001 | 0.001 |
| 1528334.481 | 2666032.898 | 1528334.484 | 0.006 | 0.003 | -0.0 |
| 1528334.486 | 1528334.486 | 2666032.9 | -0.003 | 0.003 | 0.0 |
| 9.33 | 27.662 | 27.673 | 996603.807 | 0.0 | -0.0 |
| 27.668 | 9.336 | 27.674 | -0.001 | 996603.81 | -0.0 |
| 27.663 | 27.676 | 9.33 | -0.001 | 0.0 | 996603.81 |
Cij in GPa:
| 2662520.092 | 1529921.397 | 1529921.399 | 0.003 | 0.001 | -0.0 |
| 1529921.403 | 2662520.09 | 1529921.4 | -0.01 | -0.003 | -0.0 |
| 1529921.399 | 1529921.401 | 2662520.09 | 0.003 | -0.004 | -0.0 |
| -9.334 | -27.664 | -27.677 | 996603.805 | -0.001 | 0.0 |
| -27.661 | -9.341 | -27.667 | 0.0 | 996603.8 | 0.0 |
| -27.662 | -27.674 | -9.332 | 0.002 | -0.0 | 996603.773 |
Cij in GPa:
| 2668540.433 | 1527843.53 | 1527843.53 | -0.0 | 0.0 | -0.0 |
| 1527843.529 | 2668540.433 | 1527843.53 | 0.001 | 0.0 | 0.0 |
| 1527843.53 | 1527843.53 | 2668540.433 | -0.0 | 0.0 | 0.0 |
| 1010695346.676 | 267034846.199 | 267034820.692 | -125631391.115 | 0.003 | -0.01 |
| 267034845.991 | 1010695347.988 | 267034820.744 | 0.002 | -125631391.442 | -0.002 |
| 267034845.89 | 267034820.908 | 1010695347.532 | 0.0 | -0.001 | -125631391.325 |
Cij in GPa:
| 2661808.312 | 1529514.666 | 1529514.666 | -0.002 | 0.003 | -0.0 |
| 1529514.666 | 2661808.312 | 1529514.666 | 0.011 | 0.003 | 0.0 |
| 1529514.666 | 1529514.666 | 2661808.312 | -0.002 | 0.003 | 0.0 |
| -1010695347.38 | -267034845.994 | -267034820.746 | -125631391.309 | -0.006 | 0.007 |
| -267034846.322 | -1010695345.774 | -267034821.506 | -0.004 | -125631390.654 | -0.001 |
| -267034846.352 | -267034821.057 | -1010695345.842 | -0.006 | -0.009 | -125631390.788 |
Cij in GPa:
| 2670654.49 | 1534412.373 | 1534412.373 | 0.0 | -0.0 | -0.0 |
| 1534412.373 | 2670654.49 | 1534412.373 | -0.0 | -0.0 | 0.0 |
| 1534412.373 | 1534412.373 | 2670654.49 | 0.0 | -0.0 | -0.0 |
| 101034342.067 | 26710157.457 | 26710133.838 | -11805513.6 | 0.001 | -0.001 |
| 26710157.521 | 101034342.383 | 26710133.827 | 0.0 | -11805513.653 | -0.0 |
| 26710157.581 | 26710133.904 | 101034341.956 | 0.0 | -0.0 | -11805513.522 |
Cij in GPa:
| 2654755.901 | 1525414.424 | 1525414.424 | 0.0 | 0.0 | -0.0 |
| 1525414.424 | 2654755.901 | 1525414.424 | 0.0 | -0.0 | -0.0 |
| 1525414.424 | 1525414.424 | 2654755.901 | 0.0 | -0.0 | -0.0 |
| -101034342.221 | -26710157.507 | -26710133.814 | -11805513.626 | -0.001 | -0.001 |
| -26710157.526 | -101034342.053 | -26710133.847 | -0.0 | -11805513.575 | -0.0 |
| -26710157.475 | -26710133.788 | -101034342.258 | 0.0 | -0.0 | -11805513.65 |
strain:
Cij in GPa:
| 188.029 | 52.966 | 52.966 | 0.0 | 0.0 | -0.0 |
| 52.966 | 188.029 | 52.966 | 0.0 | -0.0 | -0.0 |
| 52.966 | 52.966 | 188.029 | -0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -32.359 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -32.359 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -32.359 |
Cij in GPa:
| 188.438 | 52.762 | 52.762 | 0.0 | 0.0 | 0.0 |
| 52.762 | 188.438 | 52.762 | -0.0 | -0.0 | 0.0 |
| 52.762 | 52.762 | 188.438 | 0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -32.359 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | -32.359 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -32.359 |
Cij in GPa:
| 188.029 | 52.966 | 52.966 | 0.0 | 0.0 | -0.0 |
| 52.966 | 188.029 | 52.966 | 0.0 | 0.0 | 0.0 |
| 52.966 | 52.966 | 188.029 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -32.359 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -32.359 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -32.359 |
Cij in GPa:
| 188.438 | 52.762 | 52.762 | 0.0 | -0.0 | -0.0 |
| 52.762 | 188.438 | 52.762 | 0.0 | 0.0 | 0.0 |
| 52.762 | 52.762 | 188.438 | -0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -32.359 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | -32.359 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -32.359 |
Cij in GPa:
| 188.031 | 52.967 | 52.967 | 0.0 | 0.0 | -0.0 |
| 52.967 | 188.031 | 52.967 | 0.0 | 0.0 | 0.0 |
| 52.967 | 52.967 | 188.031 | -0.0 | 0.0 | 0.0 |
| 0.0 | 0.001 | 0.0 | -17.997 | -0.0 | 0.0 |
| 0.001 | 0.0 | 0.0 | -0.0 | -17.997 | 0.0 |
| 0.001 | 0.0 | 0.0 | -0.0 | -0.0 | -17.997 |
Cij in GPa:
| 188.436 | 52.761 | 52.761 | -0.0 | 0.0 | -0.0 |
| 52.761 | 188.436 | 52.761 | 0.0 | 0.0 | 0.0 |
| 52.761 | 52.761 | 188.436 | 0.0 | -0.0 | -0.0 |
| -0.0 | -0.001 | -0.0 | -17.997 | 0.0 | 0.0 |
| -0.001 | -0.0 | -0.0 | 0.0 | -17.997 | -0.0 |
| -0.001 | -0.0 | -0.0 | 0.0 | 0.0 | -17.997 |
strain:
Cij in GPa:
| 24.187 | 39.918 | 39.918 | 0.0 | -0.0 | -0.0 |
| 39.918 | 24.187 | 39.918 | -0.0 | -0.0 | 0.0 |
| 39.918 | 39.918 | 24.187 | -0.0 | -0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | -3.245 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | -3.245 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | -0.0 | -3.245 |
Cij in GPa:
| -42.473 | 73.248 | 73.248 | -0.0 | -0.0 | 0.0 |
| 73.248 | -42.473 | 73.248 | -0.0 | -0.0 | -0.0 |
| 73.248 | 73.248 | -42.473 | -0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -3.245 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -3.245 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -3.245 |
Cij in GPa:
| -3273538.113 | 1901377.252 | 1889679.67 | -0.475 | -2458.615 | -2016.156 |
| 1841518.94 | -3214762.778 | 1837856.221 | -870.799 | -3.306 | 4997.043 |
| 1890448.762 | 1889632.875 | -3517373.184 | -789.741 | -650.612 | 1.186 |
| -0.0 | 0.0 | -0.0 | -3.245 | -0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | 0.0 | -3.245 | 0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | 0.0 | -3.245 |
Cij in GPa:
| -3243506.001 | 1370982.93 | 1391617.367 | 5047.275 | -1.9 | -0.922 |
| 1622209.446 | -3266386.493 | 1609530.752 | 0.031 | 700.9 | -7.58 |
| 1600229.406 | 1590751.798 | -3302571.954 | 10.074 | 9.883 | 3742.765 |
| 0.0 | -0.0 | 0.0 | -3.245 | 0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | -0.0 | -3.245 | -0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | -0.0 | -3.245 |
Cij in GPa:
| -364469.914 | 193323.425 | 193541.398 | 0.031 | 28.048 | 0.182 |
| 184504.139 | -304821.224 | 185362.025 | -146.373 | -1.178 | -249.851 |
| 182291.813 | 182433.687 | -305794.304 | -442.702 | -360.311 | -0.709 |
| -0.0 | 0.0 | -0.0 | -3.245 | 0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -3.245 | 0.0 |
| 0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -3.245 |
Cij in GPa:
| -317569.005 | 135249.793 | 138038.547 | -18.433 | 0.004 | 0.135 |
| 143914.597 | -329224.355 | 142888.226 | -0.007 | -81.856 | 0.007 |
| 131477.955 | 132167.92 | -317111.213 | 0.024 | 0.149 | 228.017 |
| 0.0 | -0.0 | 0.0 | -3.245 | -0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | -3.245 | -0.0 |
| -0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -3.245 |
a0:
strain:
Cij in GPa:
| 92934.024 | 92936.346 | 92936.346 | 0.0 | 0.0 | 0.0 |
| 92936.346 | 92934.024 | 92936.346 | 0.0 | 0.0 | 0.0 |
| 92936.346 | 92936.346 | 92934.025 | 0.0 | 0.0 | 0.0 |
| 0.002 | 0.002 | 0.002 | -3022.353 | 0.0 | 0.0 |
| 0.002 | 0.002 | 0.002 | 0.0 | -3022.353 | 0.0 |
| 0.002 | 0.002 | 0.003 | 0.0 | 0.0 | -3022.353 |
Cij in GPa:
| 92933.919 | 92936.239 | 92936.239 | -0.0 | -0.0 | -0.0 |
| 92936.239 | 92933.919 | 92936.239 | -0.0 | -0.0 | -0.0 |
| 92936.239 | 92936.239 | 92933.919 | -0.0 | -0.0 | -0.0 |
| -0.002 | -0.002 | -0.002 | -3022.353 | -0.0 | -0.0 |
| -0.002 | -0.002 | -0.002 | -0.0 | -3022.353 | -0.0 |
| -0.002 | -0.002 | -0.003 | -0.0 | -0.0 | -3022.353 |
Cij in GPa:
| 92934.497 | 92936.83 | 92936.83 | 0.0 | 0.0 | 0.0 |
| 92936.83 | 92934.497 | 92936.83 | 0.0 | 0.0 | 0.0 |
| 92936.83 | 92936.83 | 92934.497 | 0.0 | 0.0 | 0.0 |
| 0.003 | 0.003 | 0.003 | 494.765 | 0.0 | 0.0 |
| 0.003 | 0.003 | 0.003 | -0.0 | 494.765 | 0.0 |
| 0.003 | 0.003 | 0.003 | -0.0 | 0.0 | 494.765 |
Cij in GPa:
| 92933.448 | 92935.756 | 92935.756 | 0.0 | 0.0 | -0.0 |
| 92935.756 | 92933.448 | 92935.756 | 0.0 | 0.0 | -0.0 |
| 92935.756 | 92935.756 | 92933.448 | 0.0 | 0.0 | -0.0 |
| -0.003 | -0.003 | -0.003 | 494.765 | -0.0 | -0.0 |
| -0.003 | -0.003 | -0.003 | 0.0 | 494.765 | -0.0 |
| -0.003 | -0.003 | -0.003 | 0.0 | -0.0 | 494.765 |
Cij in GPa:
| 92939.22 | 92941.663 | 92941.663 | 0.0 | 0.0 | 0.0 |
| 92941.663 | 92939.22 | 92941.663 | 0.0 | 0.0 | 0.0 |
| 92941.663 | 92941.663 | 92939.22 | 0.0 | 0.0 | 0.0 |
| 0.275 | 0.267 | 0.261 | -3022.378 | 0.0 | 0.0 |
| 0.267 | 0.275 | 0.261 | 0.0 | -3022.378 | 0.0 |
| 0.267 | 0.261 | 0.275 | 0.0 | 0.0 | -3022.378 |
Cij in GPa:
| 92928.725 | 92930.923 | 92930.923 | -0.0 | -0.0 | -0.0 |
| 92930.923 | 92928.725 | 92930.923 | -0.0 | -0.0 | -0.0 |
| 92930.923 | 92930.923 | 92928.725 | 0.0 | -0.0 | -0.0 |
| -0.275 | -0.267 | -0.261 | -3022.378 | -0.0 | -0.0 |
| -0.267 | -0.275 | -0.261 | -0.0 | -3022.378 | -0.0 |
| -0.267 | -0.261 | -0.275 | -0.0 | -0.0 | -3022.378 |
strain:
Cij in GPa:
| -514.517 | -707.046 | -707.046 | 0.0 | -0.0 | 0.0 |
| -707.046 | -514.517 | -707.046 | 0.0 | -0.0 | 0.0 |
| -707.046 | -707.046 | -514.517 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 314.649 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 314.649 | 0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 314.649 |
Cij in GPa:
| -514.52 | -707.048 | -707.048 | -0.0 | 0.0 | -0.0 |
| -707.048 | -514.52 | -707.048 | -0.0 | -0.0 | -0.0 |
| -707.048 | -707.048 | -514.52 | -0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 314.649 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 314.649 | -0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 314.649 |
Cij in GPa:
| -514.504 | -707.037 | -707.037 | 0.0 | 0.0 | 0.0 |
| -707.037 | -514.504 | -707.037 | 0.0 | -0.0 | -0.0 |
| -707.037 | -707.037 | -514.504 | 0.0 | -0.0 | 0.0 |
| -0.002 | -0.002 | -0.003 | -820.205 | 0.0 | 0.0 |
| -0.002 | -0.002 | -0.003 | 0.0 | -820.205 | 0.0 |
| -0.002 | -0.003 | -0.002 | 0.0 | -0.0 | -820.205 |
Cij in GPa:
| -514.533 | -707.058 | -707.058 | 0.0 | 0.0 | -0.0 |
| -707.058 | -514.533 | -707.058 | -0.0 | -0.0 | -0.0 |
| -707.058 | -707.058 | -514.533 | -0.0 | -0.0 | -0.0 |
| 0.002 | 0.002 | 0.003 | -820.205 | -0.0 | -0.0 |
| 0.002 | 0.002 | 0.003 | -0.0 | -820.205 | -0.0 |
| 0.002 | 0.003 | 0.002 | -0.0 | 0.0 | -820.205 |
Cij in GPa:
| -514.371 | -706.942 | -706.942 | 0.0 | -0.0 | 0.0 |
| -706.942 | -514.371 | -706.942 | 0.0 | -0.0 | 0.0 |
| -706.942 | -706.942 | -514.371 | 0.0 | 0.0 | 0.0 |
| -0.022 | -0.024 | -0.026 | -820.205 | -0.0 | 0.0 |
| -0.024 | -0.022 | -0.026 | -0.0 | -820.205 | 0.0 |
| -0.024 | -0.026 | -0.022 | 0.0 | -0.0 | -820.205 |
Cij in GPa:
| -514.665 | -707.153 | -707.153 | 0.0 | -0.0 | -0.0 |
| -707.153 | -514.665 | -707.153 | -0.0 | -0.0 | -0.0 |
| -707.153 | -707.153 | -514.665 | 0.0 | 0.0 | 0.0 |
| 0.022 | 0.024 | 0.026 | -820.205 | 0.0 | -0.0 |
| 0.024 | 0.022 | 0.026 | 0.0 | -820.205 | -0.0 |
| 0.024 | 0.026 | 0.022 | -0.0 | 0.0 | -820.205 |
strain:
Cij in GPa:
| 349846.915 | 349793.575 | 349793.575 | 0.001 | 0.001 | 0.0 |
| 349793.575 | 349846.915 | 349793.575 | 0.001 | 0.001 | 0.0 |
| 349793.575 | 349793.575 | 349846.915 | 0.0 | 0.0 | 0.0 |
| 11.889 | 11.882 | 11.889 | 349803.572 | 0.001 | 0.0 |
| 11.882 | 11.889 | 11.889 | 0.001 | 349803.572 | 0.0 |
| 11.882 | 11.889 | 11.889 | 0.001 | 0.001 | 349803.571 |
Cij in GPa:
| 349823.143 | 349769.789 | 349769.789 | -0.001 | -0.0 | -0.0 |
| 349769.789 | 349823.143 | 349769.789 | -0.0 | -0.001 | -0.0 |
| 349769.791 | 349769.791 | 349823.145 | -0.0 | -0.0 | -0.0 |
| -11.889 | -11.882 | -11.889 | 349803.485 | -0.001 | -0.0 |
| -11.882 | -11.889 | -11.889 | -0.001 | 349803.485 | -0.0 |
| -11.882 | -11.889 | -11.889 | -0.001 | -0.001 | 349803.485 |
Cij in GPa:
| 349953.857 | 349900.579 | 349900.579 | 0.0 | 0.0 | 0.0 |
| 349900.579 | 349953.857 | 349900.579 | 0.0 | 0.0 | 0.0 |
| 349900.579 | 349900.579 | 349953.857 | 0.0 | 0.0 | 0.0 |
| 118.862 | 118.792 | 118.862 | 349803.479 | 0.0 | 0.0 |
| 118.792 | 118.862 | 118.861 | 0.0 | 349803.479 | 0.0 |
| 118.792 | 118.862 | 118.862 | 0.0 | 0.0 | 349803.479 |
Cij in GPa:
| 349716.204 | 349662.787 | 349662.787 | -0.0 | -0.0 | -0.0 |
| 349662.787 | 349716.204 | 349662.787 | -0.0 | -0.0 | -0.0 |
| 349662.788 | 349662.788 | 349716.205 | -0.0 | -0.0 | -0.0 |
| -118.862 | -118.792 | -118.861 | 349803.479 | -0.0 | -0.0 |
| -118.792 | -118.862 | -118.861 | -0.0 | 349803.479 | -0.0 |
| -118.792 | -118.862 | -118.862 | -0.0 | -0.0 | 349803.479 |
Cij in GPa:
| 351023.288 | 350970.642 | 350970.642 | 0.0 | 0.0 | 0.0 |
| 350970.642 | 351023.288 | 350970.642 | 0.0 | 0.0 | 0.0 |
| 350970.642 | 350970.642 | 351023.288 | 0.0 | 0.0 | 0.0 |
| 1188.613 | 1187.912 | 1188.612 | 349803.477 | 0.0 | 0.0 |
| 1187.912 | 1188.613 | 1188.612 | 0.0 | 349803.477 | -0.0 |
| 1187.912 | 1188.612 | 1188.613 | 0.0 | 0.0 | 349803.477 |
Cij in GPa:
| 348646.771 | 348592.727 | 348592.727 | -0.0 | -0.0 | -0.0 |
| 348592.727 | 348646.771 | 348592.727 | -0.0 | -0.0 | -0.0 |
| 348592.727 | 348592.727 | 348646.771 | -0.0 | -0.0 | -0.0 |
| -1188.613 | -1187.912 | -1188.612 | 349803.477 | -0.0 | -0.0 |
| -1187.912 | -1188.613 | -1188.612 | -0.0 | 349803.477 | -0.0 |
| -1187.912 | -1188.612 | -1188.613 | -0.0 | -0.0 | 349803.477 |
strain:
Cij in GPa:
| 22291966.82 | 5103171.999 | 5103171.967 | 0.008 | -0.014 | 0.001 |
| 5103171.999 | 22291966.82 | 5103171.967 | -0.014 | 0.008 | 0.001 |
| 5103171.995 | 5103171.995 | 22291966.761 | 0.008 | 0.008 | 0.0 |
| -36.321 | -63.218 | -63.3 | 3125521.983 | 0.004 | -0.001 |
| -63.218 | -36.321 | -63.3 | 0.004 | 3125521.983 | -0.001 |
| -63.213 | -63.227 | -36.314 | -0.01 | 0.003 | 3125521.973 |
Cij in GPa:
| 22293821.878 | 5103402.856 | 5103402.891 | 0.001 | -0.005 | 0.001 |
| 5103402.856 | 22293821.878 | 5103402.891 | -0.005 | 0.001 | 0.001 |
| 5103402.858 | 5103402.858 | 22293821.952 | 0.003 | 0.003 | -0.001 |
| 36.342 | 63.248 | 63.317 | 3125521.995 | -0.006 | -0.001 |
| 63.248 | 36.342 | 63.316 | -0.006 | 3125521.994 | -0.0 |
| 63.234 | 63.233 | 36.328 | 0.005 | 0.017 | 3125521.981 |
Cij in GPa:
| 22283619.563 | 5102133.486 | 5102133.482 | 0.001 | 0.001 | 0.0 |
| 5102133.486 | 22283619.563 | 5102133.482 | 0.001 | 0.001 | 0.0 |
| 5102133.487 | 5102133.487 | 22283619.557 | 0.001 | 0.001 | -0.0 |
| -362.596 | -631.594 | -631.833 | 3125523.365 | 0.001 | -0.0 |
| -631.594 | -362.596 | -631.833 | 0.001 | 3125523.365 | -0.0 |
| -631.593 | -631.825 | -362.598 | -0.0 | -0.0 | 3125523.364 |
Cij in GPa:
| 22302169.068 | 5104441.316 | 5104441.318 | -0.001 | 0.001 | 0.0 |
| 5104441.316 | 22302169.068 | 5104441.318 | 0.001 | -0.001 | 0.0 |
| 5104441.317 | 5104441.317 | 22302169.079 | -0.001 | -0.001 | -0.0 |
| 362.595 | 631.595 | 631.833 | 3125523.364 | -0.001 | 0.0 |
| 631.595 | 362.595 | 631.833 | -0.001 | 3125523.364 | 0.0 |
| 631.593 | 631.826 | 362.598 | 0.0 | -0.0 | 3125523.364 |
Cij in GPa:
| 22200146.779 | 5091748.228 | 5091748.228 | -0.0 | -0.0 | -0.0 |
| 5091748.228 | 22200146.779 | 5091748.228 | -0.0 | -0.0 | -0.0 |
| 5091748.228 | 5091748.228 | 22200146.779 | -0.0 | -0.0 | 0.0 |
| -3625.892 | -6315.85 | -6318.195 | 3125523.529 | 0.0 | -0.0 |
| -6315.85 | -3625.892 | -6318.195 | 0.0 | 3125523.529 | -0.0 |
| -6315.85 | -6318.194 | -3625.892 | -0.0 | -0.0 | 3125523.529 |
Cij in GPa:
| 22385641.693 | 5114826.508 | 5114826.509 | 0.0 | -0.0 | -0.0 |
| 5114826.508 | 22385641.693 | 5114826.509 | -0.0 | 0.0 | -0.0 |
| 5114826.508 | 5114826.508 | 22385641.694 | 0.0 | 0.0 | -0.0 |
| 3625.892 | 6315.85 | 6318.195 | 3125523.529 | -0.0 | -0.0 |
| 6315.85 | 3625.892 | 6318.195 | -0.0 | 3125523.529 | -0.0 |
| 6315.85 | 6318.194 | 3625.892 | 0.0 | 0.0 | 3125523.529 |
strain:
Cij in GPa:
| 115.435 | 108.932 | 108.932 | 0.0 | 0.0 | 0.0 |
| 108.932 | 115.435 | 108.932 | 0.0 | -0.0 | -0.0 |
| 108.932 | 108.932 | 115.435 | -0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 42.922 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 42.922 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 42.922 |
Cij in GPa:
| 115.435 | 108.932 | 108.932 | -0.0 | -0.0 | -0.0 |
| 108.932 | 115.435 | 108.932 | -0.0 | -0.0 | -0.0 |
| 108.932 | 108.932 | 115.435 | -0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 42.922 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 42.922 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 42.922 |
Cij in GPa:
| 115.435 | 108.932 | 108.932 | 0.0 | -0.0 | 0.0 |
| 108.932 | 115.435 | 108.932 | 0.0 | -0.0 | 0.0 |
| 108.932 | 108.932 | 115.435 | 0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 42.922 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 42.922 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 42.922 |
Cij in GPa:
| 115.435 | 108.932 | 108.932 | -0.0 | -0.0 | -0.0 |
| 108.932 | 115.435 | 108.932 | -0.0 | -0.0 | -0.0 |
| 108.932 | 108.932 | 115.435 | -0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 42.922 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 42.922 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 42.922 |
Cij in GPa:
| 115.435 | 108.932 | 108.932 | 0.0 | 0.0 | 0.0 |
| 108.932 | 115.435 | 108.932 | 0.0 | 0.0 | 0.0 |
| 108.932 | 108.932 | 115.435 | -0.0 | 0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | 28.62 | 0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 28.62 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 28.62 |
Cij in GPa:
| 115.435 | 108.932 | 108.932 | -0.0 | -0.0 | -0.0 |
| 108.932 | 115.435 | 108.932 | -0.0 | -0.0 | -0.0 |
| 108.932 | 108.932 | 115.435 | -0.0 | -0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | 28.62 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | 28.62 | 0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 28.62 |
strain:
Cij in GPa:
| 6.338 | 9.905 | 9.905 | -0.0 | 0.0 | -0.0 |
| 9.905 | 6.338 | 9.905 | -0.0 | -0.0 | 0.0 |
| 9.905 | 9.905 | 6.338 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | -114.707 | 0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | -114.707 | -0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | -0.0 | -114.707 |
Cij in GPa:
| 6.338 | 9.905 | 9.905 | 0.0 | -0.0 | -0.0 |
| 9.905 | 6.338 | 9.905 | -0.0 | 0.0 | 0.0 |
| 9.905 | 9.905 | 6.338 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | -114.707 | 0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | -114.707 | 0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 0.0 | -114.707 |
Cij in GPa:
| 6.338 | 9.905 | 9.905 | -0.0 | -0.0 | 0.0 |
| 9.905 | 6.338 | 9.905 | 0.0 | 0.0 | 0.0 |
| 9.905 | 9.905 | 6.338 | -0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | -92.081 | -0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -92.081 | 0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | -0.0 | -92.081 |
Cij in GPa:
| 6.338 | 9.905 | 9.905 | 0.0 | 0.0 | 0.0 |
| 9.905 | 6.338 | 9.905 | 0.0 | 0.0 | 0.0 |
| 9.905 | 9.905 | 6.338 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | -92.081 | 0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | -92.081 | 0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -92.081 |
Cij in GPa:
| 6.338 | 9.905 | 9.905 | -0.0 | -0.0 | 0.0 |
| 9.905 | 6.338 | 9.905 | -0.0 | -0.0 | -0.0 |
| 9.905 | 9.905 | 6.338 | -0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | -114.707 | -0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | -114.707 | -0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | -0.0 | -114.707 |
Cij in GPa:
| 6.338 | 9.905 | 9.905 | 0.0 | 0.0 | -0.0 |
| 9.905 | 6.338 | 9.905 | 0.0 | -0.0 | 0.0 |
| 9.905 | 9.905 | 6.338 | -0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | -114.707 | -0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | -114.707 | -0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 0.0 | -114.707 |
a0:
strain:
Cij in GPa:
| 151773.589 | 119526.346 | 119526.346 | -0.0 | -0.0 | 0.0 |
| 119526.347 | 151773.589 | 119526.347 | -0.0 | -0.0 | 0.0 |
| 119526.347 | 119526.347 | 151773.589 | -0.0 | -0.0 | 0.0 |
| -0.002 | -0.002 | -0.002 | 427.243 | -0.0 | 0.0 |
| -0.001 | -0.003 | -0.002 | -0.0 | 427.243 | 0.0 |
| -0.001 | -0.001 | -0.002 | -0.0 | -0.0 | 427.243 |
Cij in GPa:
| 151773.371 | 119526.192 | 119526.192 | 0.0 | 0.0 | -0.0 |
| 119526.192 | 151773.371 | 119526.193 | 0.0 | 0.0 | -0.0 |
| 119526.192 | 119526.192 | 151773.371 | 0.0 | 0.0 | 0.0 |
| 0.001 | 0.001 | 0.001 | 427.243 | 0.0 | -0.0 |
| 0.001 | 0.002 | 0.001 | 0.0 | 427.243 | -0.0 |
| 0.001 | 0.001 | 0.002 | 0.0 | 0.0 | 427.243 |
Cij in GPa:
| 151774.592 | 119527.064 | 119527.064 | -0.0 | 0.0 | 0.0 |
| 119527.064 | 151774.592 | 119527.064 | -0.0 | -0.0 | 0.0 |
| 119527.064 | 119527.064 | 151774.592 | -0.0 | -0.0 | 0.0 |
| -0.0 | 0.008 | 0.007 | 427.243 | -0.0 | 0.0 |
| 0.008 | -0.0 | 0.007 | -0.0 | 427.243 | 0.0 |
| 0.008 | 0.007 | -0.0 | -0.0 | -0.0 | 427.243 |
Cij in GPa:
| 151772.366 | 119525.473 | 119525.473 | 0.0 | 0.0 | -0.0 |
| 119525.473 | 151772.366 | 119525.473 | 0.0 | 0.0 | 0.0 |
| 119525.473 | 119525.473 | 151772.366 | 0.0 | 0.0 | 0.0 |
| 0.0 | -0.008 | -0.007 | 427.243 | 0.0 | 0.0 |
| -0.008 | 0.0 | -0.007 | 0.0 | 427.243 | 0.0 |
| -0.008 | -0.007 | 0.0 | 0.0 | 0.0 | 427.243 |
Cij in GPa:
| 151784.612 | 119534.225 | 119534.225 | -0.0 | -0.0 | 0.0 |
| 119534.225 | 151784.612 | 119534.225 | -0.0 | -0.0 | -0.0 |
| 119534.225 | 119534.225 | 151784.612 | -0.0 | -0.0 | -0.0 |
| -0.002 | 0.083 | 0.068 | 427.243 | -0.0 | 0.0 |
| 0.083 | -0.002 | 0.068 | -0.0 | 427.243 | 0.0 |
| 0.084 | 0.068 | -0.002 | -0.0 | -0.0 | 427.243 |
Cij in GPa:
| 151762.347 | 119518.313 | 119518.313 | 0.0 | 0.0 | -0.0 |
| 119518.313 | 151762.347 | 119518.313 | 0.0 | 0.0 | -0.0 |
| 119518.313 | 119518.313 | 151762.347 | 0.0 | 0.0 | 0.0 |
| 0.002 | -0.084 | -0.068 | 427.243 | 0.0 | 0.0 |
| -0.084 | 0.002 | -0.068 | 0.0 | 427.243 | -0.0 |
| -0.084 | -0.068 | 0.002 | 0.0 | 0.0 | 427.243 |
strain:
Cij in GPa:
| 1967821.765 | 983940.133 | 983940.135 | 0.0 | 0.0 | 0.0 |
| 983940.133 | 1967821.765 | 983940.135 | 0.0 | 0.0 | 0.0 |
| 983940.132 | 983940.132 | 1967821.762 | 0.001 | 0.001 | 0.0 |
| 12.608 | 22.05 | 22.063 | 983857.591 | 0.0 | 0.0 |
| 22.05 | 12.608 | 22.063 | 0.0 | 983857.591 | 0.0 |
| 22.05 | 22.064 | 12.61 | 0.001 | 0.0 | 983857.591 |
Cij in GPa:
| 1967683.075 | 983895.974 | 983895.972 | -0.0 | -0.004 | -0.0 |
| 983895.974 | 1967683.075 | 983895.972 | -0.004 | -0.0 | -0.0 |
| 983895.973 | 983895.973 | 1967683.074 | -0.0 | -0.0 | -0.001 |
| -12.605 | -22.047 | -22.059 | 983857.591 | -0.001 | -0.0 |
| -22.047 | -12.605 | -22.059 | -0.001 | 983857.591 | -0.0 |
| -22.049 | -22.062 | -12.608 | 0.0 | 0.0 | 983857.59 |
Cij in GPa:
| 1968445.796 | 984138.813 | 984138.813 | 0.0 | 0.0 | 0.0 |
| 984138.813 | 1968445.796 | 984138.813 | 0.0 | 0.0 | 0.0 |
| 984138.813 | 984138.813 | 1968445.796 | 0.0 | 0.0 | -0.0 |
| 126.074 | 220.469 | 220.617 | 983857.591 | 0.0 | 0.0 |
| 220.469 | 126.074 | 220.617 | 0.0 | 983857.591 | 0.0 |
| 220.47 | 220.617 | 126.074 | -0.0 | 0.0 | 983857.591 |
Cij in GPa:
| 1967059.03 | 983697.283 | 983697.283 | -0.0 | 0.0 | 0.0 |
| 983697.283 | 1967059.03 | 983697.283 | 0.0 | -0.0 | 0.0 |
| 983697.284 | 983697.284 | 1967059.03 | -0.0 | -0.0 | -0.0 |
| -126.074 | -220.47 | -220.617 | 983857.591 | -0.0 | -0.0 |
| -220.47 | -126.074 | -220.617 | -0.0 | 983857.591 | -0.0 |
| -220.47 | -220.617 | -126.074 | -0.0 | 0.0 | 983857.591 |
Cij in GPa:
| 987686.919 | 739375.376 | 739375.377 | 0.0 | -0.0 | -0.0 |
| 739375.376 | 987686.919 | 739375.377 | -0.0 | 0.0 | -0.0 |
| 739375.376 | 739375.376 | 987686.919 | -0.0 | -0.0 | 0.0 |
| -25601.511 | -64950.948 | -64949.333 | 930133.154 | 0.0 | -0.0 |
| -64950.948 | -25601.511 | -64949.333 | 0.0 | 930133.154 | -0.0 |
| -64950.948 | -64949.333 | -25601.511 | -0.0 | -0.0 | 930133.154 |
Cij in GPa:
| 1960818.721 | 981710.405 | 981710.405 | -0.0 | -0.0 | -0.0 |
| 981710.405 | 1960818.721 | 981710.405 | -0.0 | -0.0 | -0.0 |
| 981710.405 | 981710.405 | 1960818.721 | -0.0 | -0.0 | 0.0 |
| 25601.511 | 64950.948 | 64949.333 | 930133.154 | 0.0 | -0.0 |
| 64950.948 | 25601.511 | 64949.333 | 0.0 | 930133.154 | -0.0 |
| 64950.948 | 64949.333 | 25601.511 | 0.0 | 0.0 | 930133.154 |
strain:
Cij in GPa:
| 109.905 | 100.354 | 100.354 | -0.0 | -0.0 | -0.0 |
| 100.354 | 109.905 | 100.354 | -0.0 | -0.0 | -0.0 |
| 100.354 | 100.354 | 109.905 | -0.0 | -0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 34.222 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 34.222 | -0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 34.222 |
Cij in GPa:
| 109.905 | 100.354 | 100.354 | 0.0 | 0.0 | 0.0 |
| 100.354 | 109.905 | 100.354 | -0.0 | 0.0 | 0.0 |
| 100.354 | 100.354 | 109.905 | 0.0 | 0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | 34.222 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 34.222 | 0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 34.222 |
Cij in GPa:
| 109.905 | 100.354 | 100.354 | -0.0 | -0.0 | -0.0 |
| 100.354 | 109.905 | 100.354 | -0.0 | -0.0 | -0.0 |
| 100.354 | 100.354 | 109.905 | -0.0 | -0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 34.222 | -0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | 34.222 | -0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 34.222 |
Cij in GPa:
| 109.904 | 100.354 | 100.354 | 0.0 | 0.0 | 0.0 |
| 100.354 | 109.904 | 100.354 | 0.0 | 0.0 | 0.0 |
| 100.354 | 100.354 | 109.904 | 0.0 | 0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | 34.222 | 0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | 34.222 | 0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 34.222 |
Cij in GPa:
| 109.909 | 100.356 | 100.356 | -0.0 | -0.0 | -0.0 |
| 100.356 | 109.909 | 100.356 | 0.0 | -0.0 | -0.0 |
| 100.356 | 100.356 | 109.909 | -0.0 | -0.0 | -0.0 |
| -0.0 | 0.002 | 0.002 | 34.222 | -0.0 | -0.0 |
| 0.002 | -0.0 | 0.002 | -0.0 | 34.222 | -0.0 |
| 0.002 | 0.002 | -0.0 | -0.0 | -0.0 | 34.222 |
Cij in GPa:
| 109.9 | 100.352 | 100.352 | 0.0 | 0.0 | 0.0 |
| 100.352 | 109.9 | 100.352 | 0.0 | 0.0 | 0.0 |
| 100.352 | 100.352 | 109.9 | 0.0 | 0.0 | 0.0 |
| 0.0 | -0.002 | -0.002 | 34.222 | 0.0 | 0.0 |
| -0.002 | 0.0 | -0.002 | 0.0 | 34.222 | 0.0 |
| -0.002 | -0.002 | 0.0 | 0.0 | 0.0 | 34.222 |
strain:
Cij in GPa:
| 23.594 | 12.458 | 12.458 | -0.0 | -0.0 | -0.0 |
| 12.458 | 23.594 | 12.458 | -0.0 | -0.0 | -0.0 |
| 12.458 | 12.458 | 23.594 | -0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | 11.317 | -0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 11.317 | -0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 11.317 |
Cij in GPa:
| 23.594 | 12.458 | 12.458 | 0.0 | 0.0 | -0.0 |
| 12.458 | 23.594 | 12.458 | 0.0 | 0.0 | -0.0 |
| 12.458 | 12.458 | 23.594 | -0.0 | 0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 11.317 | 0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 11.317 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 11.317 |
Cij in GPa:
| 23.594 | 12.458 | 12.458 | -0.0 | -0.0 | -0.0 |
| 12.458 | 23.594 | 12.458 | -0.0 | -0.0 | -0.0 |
| 12.458 | 12.458 | 23.594 | 0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | 11.317 | -0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 11.317 | -0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 11.317 |
Cij in GPa:
| 23.594 | 12.458 | 12.458 | 0.0 | 0.0 | -0.0 |
| 12.458 | 23.594 | 12.458 | 0.0 | 0.0 | 0.0 |
| 12.458 | 12.458 | 23.594 | 0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 11.317 | 0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 11.317 | 0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 11.317 |
Cij in GPa:
| 23.594 | 12.457 | 12.457 | -0.0 | -0.0 | 0.0 |
| 12.457 | 23.594 | 12.457 | -0.0 | -0.0 | 0.0 |
| 12.457 | 12.457 | 23.594 | 0.0 | -0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | 11.317 | -0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 11.317 | 0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 11.317 |
Cij in GPa:
| 23.594 | 12.458 | 12.458 | 0.0 | 0.0 | 0.0 |
| 12.458 | 23.594 | 12.458 | -0.0 | 0.0 | -0.0 |
| 12.458 | 12.458 | 23.594 | 0.0 | 0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 11.317 | 0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 11.317 | 0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 11.317 |
Prototype:
a0:
strain:
Cij in GPa:
| 373.492 | 114.271 | 114.271 | -0.0 | -0.0 | 0.0 |
| 114.271 | 373.492 | 114.271 | 0.0 | 0.0 | 0.0 |
| 114.271 | 114.271 | 373.492 | -0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | 0.642 | 0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 0.642 | 0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 0.642 |
Cij in GPa:
| 365.06 | 118.487 | 118.487 | 0.0 | 0.0 | -0.0 |
| 118.487 | 365.06 | 118.487 | 0.0 | 0.0 | -0.0 |
| 118.487 | 118.487 | 365.06 | 0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | 0.642 | 0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 0.642 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.642 |
Cij in GPa:
| 365.06 | 118.487 | 118.487 | -0.0 | -0.0 | 0.0 |
| 118.487 | 365.06 | 118.487 | -0.0 | -0.0 | 0.0 |
| 118.487 | 118.487 | 365.06 | -0.0 | -0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | 46.458 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 46.458 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 46.458 |
Cij in GPa:
| 373.492 | 114.271 | 114.271 | 0.0 | 0.0 | 0.0 |
| 114.271 | 373.492 | 114.271 | -0.0 | -0.0 | -0.0 |
| 114.271 | 114.271 | 373.492 | 0.0 | 0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 46.458 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 46.458 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 46.458 |
Cij in GPa:
| 365.061 | 118.487 | 118.487 | -0.0 | -0.0 | 0.0 |
| 118.487 | 365.061 | 118.487 | -0.0 | -0.0 | 0.0 |
| 118.487 | 118.487 | 365.061 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.642 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.642 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 0.642 |
Cij in GPa:
| 373.491 | 114.271 | 114.271 | 0.0 | -0.0 | -0.0 |
| 114.271 | 373.491 | 114.271 | -0.0 | 0.0 | -0.0 |
| 114.271 | 114.271 | 373.491 | -0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.642 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.642 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.642 |
a0:
strain:
Cij in GPa:
| 44.871 | 149.147 | 149.147 | -0.0 | 0.0 | -0.0 |
| 149.147 | 44.871 | 149.147 | -0.0 | -0.0 | 0.0 |
| 149.147 | 149.147 | 44.871 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 81.726 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 81.726 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 81.726 |
Cij in GPa:
| 44.871 | 149.147 | 149.147 | 0.0 | 0.0 | -0.0 |
| 149.147 | 44.871 | 149.147 | 0.0 | 0.0 | -0.0 |
| 149.147 | 149.147 | 44.871 | 0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 81.726 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 81.726 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 81.726 |
Cij in GPa:
| 44.871 | 149.147 | 149.147 | -0.0 | -0.0 | 0.0 |
| 149.147 | 44.871 | 149.147 | -0.0 | -0.0 | -0.0 |
| 149.147 | 149.147 | 44.871 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 39.246 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 39.246 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 39.246 |
Cij in GPa:
| 44.871 | 149.147 | 149.147 | 0.0 | 0.0 | -0.0 |
| 149.147 | 44.871 | 149.147 | 0.0 | 0.0 | -0.0 |
| 149.147 | 149.147 | 44.871 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 39.246 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 39.246 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 39.246 |
Cij in GPa:
| 44.873 | 149.148 | 149.148 | -0.0 | -0.0 | 0.0 |
| 149.148 | 44.873 | 149.148 | -0.0 | -0.0 | -0.0 |
| 149.148 | 149.148 | 44.873 | 0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.001 | 81.726 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.001 | -0.0 | 81.726 | 0.0 |
| 0.0 | 0.001 | 0.0 | -0.0 | -0.0 | 81.726 |
Cij in GPa:
| 44.869 | 149.147 | 149.147 | 0.0 | 0.0 | 0.0 |
| 149.147 | 44.869 | 149.147 | 0.0 | -0.0 | -0.0 |
| 149.147 | 149.147 | 44.869 | 0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.001 | 81.726 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.001 | -0.0 | 81.726 | -0.0 |
| -0.0 | -0.001 | -0.0 | 0.0 | 0.0 | 81.726 |
a0:
strain:
Cij in GPa:
| 290.439 | 175.3 | 175.3 | 0.0 | 0.0 | -0.0 |
| 175.3 | 290.439 | 175.3 | 0.0 | 0.0 | -0.0 |
| 175.3 | 175.3 | 290.439 | 0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 113.625 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 113.625 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 113.625 |
Cij in GPa:
| 290.439 | 175.3 | 175.3 | -0.0 | -0.0 | 0.0 |
| 175.3 | 290.439 | 175.3 | -0.0 | -0.0 | 0.0 |
| 175.3 | 175.3 | 290.439 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 113.625 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 113.625 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 113.625 |
Cij in GPa:
| 290.44 | 175.3 | 175.3 | 0.0 | 0.0 | -0.0 |
| 175.3 | 290.44 | 175.3 | 0.0 | 0.0 | -0.0 |
| 175.3 | 175.3 | 290.44 | 0.0 | 0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 113.625 | 0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 113.625 | -0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 113.625 |
Cij in GPa:
| 290.439 | 175.299 | 175.299 | -0.0 | -0.0 | 0.0 |
| 175.299 | 290.439 | 175.299 | -0.0 | -0.0 | 0.0 |
| 175.299 | 175.299 | 290.439 | -0.0 | -0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | 113.625 | -0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 113.625 | 0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 113.625 |
Cij in GPa:
| 290.44 | 175.3 | 175.3 | 0.0 | 0.0 | -0.0 |
| 175.3 | 290.44 | 175.3 | 0.0 | 0.0 | -0.0 |
| 175.3 | 175.3 | 290.44 | 0.0 | -0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 113.625 | 0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 113.625 | -0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 113.625 |
Cij in GPa:
| 290.439 | 175.299 | 175.299 | -0.0 | -0.0 | 0.0 |
| 175.299 | 290.439 | 175.299 | -0.0 | -0.0 | 0.0 |
| 175.299 | 175.299 | 290.439 | -0.0 | -0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | 113.625 | 0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 113.625 | 0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 113.625 |
a0:
strain:
Cij in GPa:
| 207.751 | 110.673 | 157.324 | -0.0 | -0.0 | 0.0 |
| 114.799 | 275.92 | 114.005 | 0.0 | -0.0 | -0.0 |
| 156.766 | 111.181 | 303.864 | -0.0 | -0.0 | 0.0 |
| 0.32 | 0.031 | -0.38 | 37.964 | -0.0 | -0.0 |
| 0.385 | 0.038 | -0.457 | 0.0 | 76.955 | 0.0 |
| 0.114 | 0.011 | -0.135 | 0.0 | -0.0 | 54.62 |
Cij in GPa:
| 207.157 | 110.443 | 157.833 | 0.0 | 0.0 | -0.0 |
| 114.152 | 275.609 | 114.596 | -0.0 | 0.0 | 0.0 |
| 154.472 | 115.667 | 308.849 | -0.0 | 0.0 | 0.0 |
| -0.32 | -0.031 | 0.38 | 37.964 | 0.0 | -0.0 |
| -0.385 | -0.038 | 0.457 | -0.0 | 76.955 | -0.0 |
| -0.114 | -0.011 | 0.135 | -0.0 | 0.0 | 54.62 |
Cij in GPa:
| 206.922 | 113.663 | 160.191 | -0.0 | -0.0 | 0.0 |
| 114.187 | 275.668 | 114.588 | -0.0 | -0.0 | 0.0 |
| 156.516 | 111.202 | 304.159 | -0.0 | -0.0 | -0.0 |
| 0.031 | 0.005 | -0.031 | 34.26 | -0.0 | 0.0 |
| 0.039 | 0.004 | -0.046 | 0.0 | 76.867 | 0.0 |
| 0.011 | 0.001 | -0.014 | 0.0 | -0.0 | 54.62 |
Cij in GPa:
| 207.423 | 110.545 | 157.604 | 0.0 | 0.0 | -0.0 |
| 114.14 | 275.655 | 114.634 | 0.0 | 0.0 | -0.0 |
| 160.19 | 115.099 | 302.959 | 0.0 | 0.0 | 0.0 |
| -0.031 | -0.005 | 0.031 | 34.26 | 0.0 | -0.0 |
| -0.039 | -0.004 | 0.046 | -0.0 | 76.867 | -0.0 |
| -0.011 | -0.001 | 0.014 | -0.0 | -0.0 | 54.62 |
Cij in GPa:
| 206.897 | 113.657 | 160.216 | -0.0 | -0.0 | 0.0 |
| 114.166 | 275.664 | 114.609 | -0.0 | -0.0 | -0.0 |
| 154.53 | 116.138 | 309.074 | 0.0 | -0.0 | -0.0 |
| 0.003 | 0.001 | -0.003 | 34.26 | -0.0 | 0.0 |
| 0.003 | 0.0 | -0.003 | 0.0 | 71.207 | -0.0 |
| 0.001 | 0.0 | -0.001 | 0.0 | -0.0 | 54.62 |
Cij in GPa:
| 206.888 | 113.656 | 160.221 | 0.0 | 0.0 | -0.0 |
| 113.653 | 275.635 | 115.107 | 0.0 | 0.0 | -0.0 |
| 160.215 | 115.104 | 302.933 | 0.0 | 0.0 | 0.0 |
| -0.003 | -0.001 | 0.003 | 34.26 | 0.0 | -0.0 |
| -0.003 | -0.0 | 0.003 | -0.0 | 71.207 | 0.0 |
| -0.001 | -0.0 | 0.001 | -0.0 | 0.0 | 54.62 |
strain:
Cij in GPa:
| 99.28 | 46.085 | 219.667 | -0.0 | 0.0 | -0.0 |
| 13.244 | 206.571 | 172.455 | -0.0 | 0.0 | -0.0 |
| 60.981 | 46.61 | 360.656 | -0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 57.394 | 0.0 | -0.0 |
| -100.206 | -67.223 | 58.49 | 0.0 | 75.848 | -0.0 |
| -99.95 | -67.172 | 58.262 | 0.0 | 0.0 | 54.459 |
Cij in GPa:
| 288.166 | 202.624 | 129.531 | 0.0 | 0.0 | -0.0 |
| 213.143 | 340.914 | 55.93 | 0.0 | -0.0 | -0.0 |
| 260.881 | 180.953 | 244.131 | 0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 57.394 | -0.0 | -0.0 |
| 100.206 | 67.223 | -58.49 | 0.0 | 75.848 | 0.0 |
| 99.95 | 67.172 | -58.262 | 0.0 | -0.0 | 54.459 |
Cij in GPa:
| 197.538 | 106.42 | 159.218 | -0.0 | -0.0 | -0.0 |
| 106.624 | 265.997 | 115.715 | 0.0 | 0.0 | -0.0 |
| 151.397 | 123.346 | 318.757 | 0.0 | 0.0 | -0.0 |
| -9.664 | -6.417 | 5.685 | 32.833 | 0.0 | -0.0 |
| -10.089 | -5.282 | 6.879 | -0.0 | 72.564 | -0.0 |
| -6.737 | -7.238 | 2.368 | -0.0 | -0.0 | 54.459 |
Cij in GPa:
| 212.377 | 119.342 | 151.871 | 0.0 | 0.0 | -0.0 |
| 123.188 | 280.46 | 108.366 | -0.0 | -0.0 | 0.0 |
| 160.802 | 119.561 | 305.764 | 0.0 | -0.0 | 0.0 |
| 9.664 | 6.417 | -5.685 | 32.833 | -0.0 | -0.0 |
| 10.089 | 5.282 | -6.879 | -0.0 | 72.564 | 0.0 |
| 6.737 | 7.238 | -2.368 | 0.0 | 0.0 | 54.459 |
Cij in GPa:
| 212.379 | 119.343 | 151.871 | 0.0 | 0.0 | -0.0 |
| 112.194 | 273.072 | 114.776 | 0.0 | 0.0 | -0.0 |
| 159.932 | 113.11 | 302.977 | 0.0 | 0.0 | -0.0 |
| -0.95 | -0.64 | 0.553 | 33.082 | 0.0 | -0.0 |
| -1.023 | -0.678 | 0.603 | 0.0 | 72.489 | -0.0 |
| -0.674 | -0.724 | 0.237 | -0.0 | 0.0 | 54.459 |
Cij in GPa:
| 200.228 | 113.928 | 160.822 | 0.0 | -0.0 | -0.0 |
| 114.536 | 274.532 | 113.265 | 0.0 | -0.0 | 0.0 |
| 161.93 | 114.453 | 301.81 | -0.0 | -0.0 | 0.0 |
| 0.95 | 0.64 | -0.553 | 33.082 | -0.0 | 0.0 |
| 1.023 | 0.678 | -0.603 | -0.0 | 72.489 | 0.0 |
| 0.674 | 0.724 | -0.237 | 0.0 | 0.0 | 54.459 |
a0:
strain:
Cij in GPa:
| 266.147 | 195.998 | 157.063 | 0.0 | -0.0 | 0.0 |
| 195.998 | 266.147 | 157.063 | 0.0 | 0.0 | 0.0 |
| 157.063 | 157.063 | 232.436 | 0.0 | 0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | 81.593 | 0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 81.593 | 0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 118.524 |
Cij in GPa:
| 279.742 | 182.403 | 157.063 | -0.0 | -0.0 | -0.0 |
| 182.403 | 279.742 | 157.063 | -0.0 | 0.0 | -0.0 |
| 157.063 | 157.063 | 232.436 | -0.0 | 0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | 81.593 | -0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 81.593 | -0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 118.524 |
Cij in GPa:
| 266.147 | 195.998 | 157.063 | 0.0 | 0.0 | 0.0 |
| 195.998 | 266.147 | 157.063 | 0.0 | -0.0 | 0.0 |
| 157.063 | 157.063 | 232.436 | -0.0 | -0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 81.593 | 0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 81.593 | 0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 118.524 |
Cij in GPa:
| 279.742 | 182.403 | 157.063 | -0.0 | 0.0 | -0.0 |
| 182.403 | 279.742 | 157.063 | -0.0 | 0.0 | -0.0 |
| 157.063 | 157.063 | 232.436 | -0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | 81.593 | -0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | 81.593 | -0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 118.524 |
Cij in GPa:
| 266.148 | 195.998 | 157.063 | 0.0 | -0.0 | 0.0 |
| 195.998 | 266.148 | 157.063 | 0.0 | -0.0 | 0.0 |
| 157.063 | 157.063 | 232.436 | -0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 81.593 | 0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 81.593 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 118.524 |
Cij in GPa:
| 279.742 | 182.402 | 157.063 | -0.0 | -0.0 | -0.0 |
| 182.402 | 279.742 | 157.063 | 0.0 | 0.0 | -0.0 |
| 157.063 | 157.063 | 232.436 | -0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | 81.593 | -0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | 81.593 | -0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 118.524 |
a0:
strain:
Cij in GPa:
| 346.704 | 157.001 | 127.535 | -0.0 | 0.0 | 0.0 |
| 157.001 | 346.704 | 127.535 | -0.0 | -0.0 | 0.0 |
| 118.987 | 118.987 | 278.651 | 0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.001 | 41.003 | -0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | 63.695 | 0.0 |
| 0.0 | 0.0 | 0.001 | 0.0 | 0.0 | 89.841 |
Cij in GPa:
| 346.704 | 157.001 | 127.535 | 0.0 | 0.0 | -0.0 |
| 157.001 | 346.704 | 127.535 | 0.0 | 0.0 | -0.0 |
| 127.535 | 127.535 | 305.41 | -0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.001 | 41.003 | -0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | 63.695 | 0.0 |
| -0.0 | -0.0 | -0.001 | -0.0 | 0.0 | 89.841 |
Cij in GPa:
| 346.704 | 157.001 | 127.535 | -0.0 | -0.0 | 0.0 |
| 157.001 | 346.704 | 127.535 | -0.0 | 0.0 | 0.0 |
| 127.535 | 127.535 | 305.41 | -0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 63.695 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 41.003 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 94.851 |
Cij in GPa:
| 346.704 | 157.001 | 127.535 | 0.0 | -0.0 | -0.0 |
| 157.001 | 346.704 | 127.535 | 0.0 | 0.0 | -0.0 |
| 127.535 | 127.535 | 305.41 | 0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 63.695 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 41.003 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 94.851 |
Cij in GPa:
| 338.975 | 159.025 | 118.6 | 0.0 | -0.0 | 0.0 |
| 160.065 | 335.87 | 115.368 | 0.0 | -0.0 | -0.0 |
| 127.535 | 127.535 | 305.412 | -0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 63.695 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 41.003 | -0.0 |
| 0.0 | 0.001 | 0.0 | 0.0 | 0.0 | 89.841 |
Cij in GPa:
| 346.702 | 157.001 | 127.535 | 0.0 | 0.0 | -0.0 |
| 159.024 | 338.972 | 118.6 | -0.0 | 0.0 | 0.0 |
| 127.534 | 127.534 | 305.409 | -0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 63.695 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 41.003 | -0.0 |
| -0.0 | -0.001 | -0.0 | -0.0 | -0.0 | 89.841 |
strain:
Cij in GPa:
| 346.565 | 156.771 | 128.424 | 0.0 | 0.0 | -0.0 |
| 156.771 | 346.565 | 128.424 | 0.0 | 0.0 | -0.0 |
| 128.207 | 128.207 | 308.047 | 0.0 | 0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 64.394 | 0.0 | -0.0 |
| 0.003 | 0.003 | 0.01 | 0.0 | 41.754 | -0.0 |
| 0.002 | 0.002 | 0.006 | 0.0 | 0.0 | 89.742 |
Cij in GPa:
| 335.594 | 160.168 | 116.336 | -0.0 | -0.0 | 0.0 |
| 160.168 | 335.594 | 116.336 | -0.0 | 0.0 | 0.0 |
| 119.776 | 119.776 | 281.137 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 64.394 | -0.0 | 0.0 |
| -0.003 | -0.003 | -0.01 | -0.0 | 41.754 | -0.0 |
| -0.002 | -0.002 | -0.006 | -0.0 | -0.0 | 89.742 |
Cij in GPa:
| 338.78 | 159.011 | 119.574 | 0.0 | 0.0 | -0.0 |
| 159.011 | 338.78 | 119.574 | -0.0 | 0.0 | -0.0 |
| 119.778 | 119.778 | 281.143 | 0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 64.394 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.001 | 0.0 | 41.754 | -0.0 |
| 0.0 | 0.0 | 0.001 | 0.0 | 0.0 | 89.742 |
Cij in GPa:
| 346.565 | 156.771 | 128.424 | -0.0 | -0.0 | 0.0 |
| 159.01 | 338.78 | 119.573 | -0.0 | -0.0 | 0.0 |
| 128.207 | 128.207 | 308.047 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 64.394 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.001 | -0.0 | 41.754 | -0.0 |
| -0.0 | -0.0 | -0.001 | -0.0 | -0.0 | 89.742 |
Cij in GPa:
| 346.568 | 156.772 | 128.425 | 0.0 | 0.0 | -0.0 |
| 156.772 | 346.568 | 128.425 | 0.0 | 0.0 | -0.0 |
| 119.778 | 119.778 | 281.144 | 0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 64.394 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 64.394 | -0.0 |
| 0.0 | 0.001 | 0.0 | 0.0 | 0.0 | 89.742 |
Cij in GPa:
| 346.563 | 156.771 | 128.424 | -0.0 | -0.0 | 0.0 |
| 156.771 | 346.563 | 128.424 | 0.0 | -0.0 | 0.0 |
| 128.206 | 128.206 | 308.045 | 0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 64.394 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 64.394 | 0.0 |
| -0.0 | -0.001 | -0.0 | 0.0 | -0.0 | 89.742 |
Prototype:
a0:
strain:
Cij in GPa:
| -45236548.063 | -52549405.742 | -204973212.266 | 527406.276 | 7317542.532 | -2026165.736 |
| -43956944.765 | -49828476.229 | -198109231.795 | 41321.296 | 7672202.781 | -4456263.611 |
| -44869388.027 | -50494944.322 | -200526209.393 | -3296.616 | 7412264.572 | -4088211.568 |
| -42625988.916 | -53651148.563 | -207324962.842 | -46450.411 | 7684154.198 | -4018034.317 |
| -44327582.861 | -50715511.807 | -197016129.746 | 403843.582 | 7454579.566 | -4793773.816 |
| -43104078.883 | -48447366.486 | -190584135.828 | 208437.81 | 8672991.359 | -3336585.852 |
Cij in GPa:
| 44269514.83 | 50178723.342 | 200999399.221 | 272081.337 | -7687146.761 | 3995148.185 |
| 44265586.632 | 49312539.888 | 198413824.916 | 164720.78 | -7893261.343 | 4307402.79 |
| 43931902.323 | 49292698.983 | 200977190.507 | -200228.131 | -8846063.236 | 2668834.589 |
| 44076573.494 | 49256503.841 | 198437791.125 | 140097.502 | -8126303.826 | 4277081.987 |
| 44125663.768 | 50096444.611 | 199081838.903 | -5922.062 | -7181763.688 | 4283832.281 |
| 47374851.684 | 57254225.793 | 206675116.198 | 2452618.3 | -6695696.074 | -3522089.077 |
Cij in GPa:
| -4499731.556 | -5115206.076 | -19918438.513 | 32877.79 | 738518.389 | -389710.487 |
| -4316310.623 | -5108313.223 | -19931347.826 | 104854.014 | 790264.254 | -405246.601 |
| -4425701.326 | -5023033.502 | -19972444.797 | -7394.409 | 730383.325 | -425106.26 |
| -4467711.777 | -5243022.677 | -20373535.173 | 43357.958 | 768383.784 | -323896.104 |
| -4464938.781 | -5119561.474 | -20218584.062 | 17670.974 | 744461.605 | -336110.949 |
| -4452614.808 | -5042121.768 | -19844945.732 | 19559.632 | 759699.399 | -446146.74 |
Cij in GPa:
| 4435913.118 | 5092258.936 | 20345100.54 | -14546.0 | -755995.176 | 361978.881 |
| 4715098.523 | 5029559.439 | 20045383.425 | 83968.135 | -906777.242 | 321649.785 |
| 4500898.161 | 5125636.334 | 20074923.454 | -43659.892 | -755079.463 | 352539.058 |
| 4376311.977 | 5020732.562 | 20174872.417 | 38802.949 | -821756.83 | 433041.417 |
| 4466759.826 | 4974859.666 | 20284891.977 | 14789.978 | -954525.067 | 337120.194 |
| 4346782.127 | 4771023.22 | 18526761.333 | -59943.474 | -891210.443 | 212452.471 |
Cij in GPa:
| -440737.966 | -497632.626 | -1996506.12 | 1154.145 | 74428.832 | -35885.005 |
| -445677.776 | -503565.736 | -2025487.187 | 1376.392 | 82304.536 | -27811.706 |
| -439669.116 | -500334.088 | -1995141.663 | -1168.597 | 78396.057 | -44770.429 |
| -447392.962 | -499275.6 | -1998369.245 | -42.452 | 76987.259 | -41999.895 |
| -526327.645 | -571273.032 | -2210323.797 | -5556.069 | 22756.916 | 13815.777 |
| -445844.608 | -506936.674 | -1974949.882 | 6401.675 | 78984.007 | -42536.942 |
Cij in GPa:
| 454545.776 | 506448.737 | 2016638.959 | -189.115 | -82114.717 | 44334.602 |
| 443843.046 | 498931.154 | 2008964.27 | -142.77 | -81691.47 | 40094.486 |
| 434626.85 | 495026.97 | 1976741.022 | -3895.522 | -71493.467 | 41868.127 |
| 438638.636 | 496512.234 | 1990410.948 | 2593.943 | -76245.86 | 41755.938 |
| 442348.74 | 502208.609 | 1989558.223 | 2351.324 | -72671.489 | 45130.78 |
| 436242.863 | 485667.198 | 1962294.474 | 557.19 | -83925.471 | 41545.099 |
Prototype:
a0:
strain:
Cij in GPa:
| 3634.704 | 3509.324 | 2751.099 | -0.0 | 0.0 | 0.0 |
| 3787.815 | 3912.989 | 2966.705 | -0.0 | -0.0 | -0.0 |
| 84.051 | 84.051 | 233.436 | -0.0 | 0.0 | 0.0 |
| 3410.178 | 3410.178 | 2698.067 | 29.319 | -0.0 | 0.0 |
| 3410.178 | 3410.178 | 2698.067 | 0.0 | 29.319 | 0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 75.802 |
Cij in GPa:
| -3185.569 | -3310.948 | -2644.97 | 0.0 | -0.0 | -0.0 |
| 122.458 | 274.062 | 84.35 | 0.0 | 0.0 | -0.0 |
| 84.051 | 84.051 | 233.436 | 0.0 | -0.0 | -0.0 |
| -3410.178 | -3410.178 | -2698.067 | 29.319 | -0.0 | -0.0 |
| -3410.178 | -3410.178 | -2698.067 | 0.0 | 29.319 | -0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 75.802 |
Cij in GPa:
| 274.062 | 122.458 | 84.35 | 0.0 | -0.0 | -0.0 |
| 122.458 | 274.062 | 84.35 | -0.0 | -0.0 | -0.0 |
| 394.036 | 394.036 | 475.966 | 0.0 | -0.0 | 0.0 |
| 341.053 | 341.053 | 269.834 | 29.318 | -0.0 | 0.0 |
| 341.053 | 341.053 | 269.834 | 0.0 | 29.318 | 0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 75.802 |
Cij in GPa:
| 274.062 | 122.458 | 84.35 | -0.0 | 0.0 | 0.0 |
| 122.458 | 274.062 | 84.35 | 0.0 | 0.0 | 0.0 |
| -288.505 | -288.505 | -64.047 | -0.0 | 0.0 | -0.0 |
| -341.053 | -341.053 | -269.834 | 29.318 | -0.0 | -0.0 |
| -341.053 | -341.053 | -269.834 | 0.0 | 29.318 | -0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 75.802 |
Cij in GPa:
| 251.17 | 129.374 | 73.921 | -0.0 | 0.0 | -0.0 |
| 134.531 | 257.089 | 79.642 | 0.0 | -0.0 | -0.0 |
| 84.051 | 84.051 | 233.437 | 0.0 | 0.0 | 0.0 |
| 34.388 | 34.388 | 27.207 | 29.224 | -0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | 40.667 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 75.802 |
Cij in GPa:
| 188.94 | 64.062 | 25.028 | 0.0 | -0.0 | 0.0 |
| 122.458 | 274.061 | 84.35 | 0.0 | -0.0 | 0.0 |
| 16.839 | 16.839 | 177.459 | 0.0 | 0.0 | -0.0 |
| -34.388 | -34.388 | -27.207 | 29.224 | -0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | 40.667 | -0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 75.802 |
a0:
strain:
Cij in GPa:
| 306.478 | 170.863 | 204.453 | -0.0 | 0.0 | -0.0 |
| 190.558 | 322.921 | 203.573 | -0.0 | -0.0 | -0.0 |
| 102.157 | 102.157 | 298.299 | 0.0 | 0.0 | -0.0 |
| 59.764 | 59.764 | 109.002 | 54.806 | 0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 60.256 | -0.0 |
| 84.296 | 84.296 | 102.671 | 0.0 | 0.0 | 65.904 |
Cij in GPa:
| 185.532 | 50.787 | -13.985 | -0.0 | 0.0 | 0.0 |
| 50.787 | 185.532 | -13.985 | -0.0 | 0.0 | 0.0 |
| 102.157 | 102.157 | 298.299 | -0.0 | -0.0 | 0.0 |
| -59.764 | -59.764 | -109.002 | 54.806 | 0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 60.256 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 79.378 |
Cij in GPa:
| 245.787 | 117.534 | 111.188 | 0.0 | 0.0 | 0.0 |
| 122.983 | 281.739 | 102.153 | -0.0 | 0.0 | 0.0 |
| 102.157 | 102.157 | 298.299 | 0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | 60.256 | -0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | 60.256 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 79.378 |
Cij in GPa:
| 281.739 | 122.983 | 102.153 | -0.0 | 0.0 | -0.0 |
| 122.983 | 281.739 | 102.153 | 0.0 | -0.0 | -0.0 |
| 91.805 | 91.805 | 274.685 | -0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | 60.256 | 0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | 60.256 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 79.378 |
Cij in GPa:
| 245.083 | 111.722 | 98.047 | 0.0 | 0.0 | 0.0 |
| 108.903 | 236.152 | 100.06 | 0.0 | -0.0 | 0.0 |
| 97.576 | 97.576 | 286.051 | 0.0 | 0.0 | -0.0 |
| 0.529 | 0.529 | 0.965 | 55.431 | 0.0 | 0.0 |
| 0.529 | 0.529 | 0.965 | 0.0 | 55.431 | -0.0 |
| 1.069 | 1.069 | 1.487 | 0.0 | 0.0 | 61.154 |
Cij in GPa:
| 281.738 | 122.983 | 102.152 | 0.0 | 0.0 | -0.0 |
| 122.983 | 281.738 | 102.152 | 0.0 | -0.0 | -0.0 |
| 102.157 | 102.157 | 298.298 | -0.0 | -0.0 | 0.0 |
| -0.529 | -0.529 | -0.965 | 55.431 | -0.0 | -0.0 |
| -0.529 | -0.529 | -0.965 | 0.0 | 55.431 | 0.0 |
| -1.069 | -1.069 | -1.487 | -0.0 | -0.0 | 61.155 |
strain:
Cij in GPa:
| 236.454 | 104.628 | 110.235 | 0.0 | -0.0 | 0.0 |
| 109.209 | 214.115 | 104.3 | 0.0 | -0.0 | 0.0 |
| 130.541 | 130.541 | 273.537 | 0.0 | -0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | 63.338 | -0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 63.338 | 0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 65.913 |
Cij in GPa:
| 168.699 | 80.004 | 105.538 | -0.0 | 0.0 | 0.0 |
| 104.628 | 236.454 | 110.235 | -0.0 | -0.0 | -0.0 |
| 106.095 | 106.095 | 291.553 | -0.0 | 0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | 63.338 | 0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 63.338 | -0.0 |
| -0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 65.913 |
Cij in GPa:
| 236.454 | 104.628 | 110.235 | 0.0 | -0.0 | -0.0 |
| 99.235 | 198.035 | 104.612 | 0.0 | -0.0 | -0.0 |
| 106.095 | 106.095 | 291.553 | 0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 63.338 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 63.338 | 0.0 |
| 1.148 | 1.148 | -0.173 | 0.0 | -0.0 | 50.421 |
Cij in GPa:
| 192.649 | 96.223 | 104.603 | -0.0 | 0.0 | 0.0 |
| 89.233 | 179.683 | 109.269 | -0.0 | 0.0 | 0.0 |
| 100.495 | 100.495 | 278.363 | -0.0 | 0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | 63.338 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 63.338 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 65.913 |
Cij in GPa:
| 195.66 | 97.924 | 104.602 | 0.0 | -0.0 | -0.0 |
| 97.924 | 195.66 | 104.602 | 0.0 | -0.0 | -0.0 |
| 106.096 | 106.096 | 291.554 | 0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 63.338 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 63.338 | -0.0 |
| 0.115 | 0.115 | -0.017 | 0.0 | -0.0 | 50.473 |
Cij in GPa:
| 236.453 | 104.627 | 110.235 | -0.0 | 0.0 | 0.0 |
| 104.627 | 236.452 | 110.235 | -0.0 | 0.0 | 0.0 |
| 106.095 | 106.095 | 291.552 | -0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 63.338 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 63.338 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 65.913 |
Prototype:
a0:
strain:
Cij in GPa:
| 264.274 | 151.677 | 169.166 | -0.0 | 0.0 | 0.0 |
| 151.677 | 264.274 | 169.166 | 0.0 | 0.0 | 0.0 |
| 177.103 | 177.103 | 294.202 | -0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | 122.257 | 0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 122.257 | 0.0 |
| -0.414 | -0.414 | -0.856 | -0.0 | 0.0 | 97.95 |
Cij in GPa:
| 270.374 | 153.01 | 176.842 | 0.0 | -0.0 | -0.0 |
| 153.01 | 270.374 | 176.842 | 0.0 | -0.0 | -0.0 |
| 170.891 | 170.891 | 281.37 | 0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 122.257 | -0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | -0.0 | 122.257 | -0.0 |
| 0.414 | 0.414 | 0.856 | 0.0 | -0.0 | 97.95 |
Cij in GPa:
| 270.374 | 153.01 | 176.842 | -0.0 | 0.0 | 0.0 |
| 153.01 | 270.374 | 176.842 | -0.0 | 0.0 | 0.0 |
| 170.435 | 170.435 | 280.429 | -0.0 | 0.0 | 0.0 |
| -0.035 | -0.035 | -0.072 | 111.711 | 0.0 | 0.0 |
| -0.035 | -0.035 | -0.072 | -0.0 | 111.711 | 0.0 |
| -0.041 | -0.041 | -0.086 | -0.0 | 0.0 | 97.95 |
Cij in GPa:
| 264.716 | 152.141 | 170.101 | 0.0 | 0.0 | -0.0 |
| 152.141 | 264.716 | 170.101 | -0.0 | -0.0 | -0.0 |
| 177.103 | 177.103 | 294.202 | 0.0 | -0.0 | -0.0 |
| 0.035 | 0.035 | 0.072 | 111.711 | -0.0 | -0.0 |
| 0.035 | 0.035 | 0.072 | 0.0 | 111.711 | -0.0 |
| 0.041 | 0.041 | 0.086 | 0.0 | -0.0 | 97.95 |
Cij in GPa:
| 264.665 | 152.295 | 170.207 | 0.0 | 0.0 | 0.0 |
| 152.295 | 264.665 | 170.207 | 0.0 | 0.0 | 0.0 |
| 170.473 | 170.473 | 280.506 | -0.0 | 0.0 | 0.0 |
| -0.008 | -0.007 | -0.015 | 112.908 | 0.0 | 0.0 |
| -0.007 | -0.008 | -0.015 | -0.0 | 112.908 | 0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 97.95 |
Cij in GPa:
| 264.672 | 152.302 | 170.223 | -0.0 | -0.0 | -0.0 |
| 152.302 | 264.672 | 170.223 | 0.0 | -0.0 | -0.0 |
| 170.481 | 170.481 | 280.523 | -0.0 | -0.0 | -0.0 |
| 0.008 | 0.007 | 0.015 | 112.908 | -0.0 | -0.0 |
| 0.007 | 0.008 | 0.015 | 0.0 | 112.908 | -0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 97.95 |
strain:
Cij in GPa:
| 756.864 | 642.413 | 1184.119 | -0.0 | -0.0 | 0.0 |
| 642.413 | 756.864 | 1184.119 | -0.0 | -0.0 | 0.0 |
| 662.437 | 662.437 | 1293.614 | -0.0 | -0.0 | 0.0 |
| 490.136 | 490.136 | 1011.826 | 112.684 | -0.0 | -0.0 |
| 490.136 | 490.136 | 1011.826 | 0.0 | 112.684 | -0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 97.62 |
Cij in GPa:
| 272.227 | 153.016 | 178.733 | 0.0 | 0.0 | 0.0 |
| 153.016 | 272.227 | 178.733 | 0.0 | 0.0 | -0.0 |
| -317.848 | -317.848 | -730.062 | -0.0 | -0.0 | -0.0 |
| -490.136 | -490.136 | -1011.826 | 112.684 | 0.0 | -0.0 |
| -490.136 | -490.136 | -1011.826 | -0.0 | 112.684 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 97.62 |
Cij in GPa:
| 272.227 | 153.016 | 178.733 | -0.0 | -0.0 | 0.0 |
| 153.016 | 272.227 | 178.733 | -0.0 | -0.0 | -0.0 |
| 221.304 | 221.304 | 382.95 | -0.0 | -0.0 | 0.0 |
| 49.159 | 49.159 | 101.483 | 118.11 | -0.0 | 0.0 |
| 49.159 | 49.159 | 101.483 | -0.0 | 118.11 | -0.0 |
| 49.014 | 49.014 | 101.183 | -0.0 | -0.0 | 97.62 |
Cij in GPa:
| 217.535 | 103.438 | 71.107 | -0.0 | 0.0 | -0.0 |
| 103.438 | 217.535 | 71.107 | -0.0 | 0.0 | 0.0 |
| 123.276 | 123.276 | 180.583 | 0.0 | 0.0 | -0.0 |
| -49.159 | -49.159 | -101.483 | 118.11 | 0.0 | 0.0 |
| -49.159 | -49.159 | -101.483 | 0.0 | 118.11 | 0.0 |
| -49.014 | -49.014 | -101.183 | 0.0 | 0.0 | 97.62 |
Cij in GPa:
| 272.228 | 153.017 | 178.734 | -0.0 | 0.0 | 0.0 |
| 153.017 | 272.228 | 178.734 | -0.0 | -0.0 | -0.0 |
| 177.191 | 177.191 | 291.884 | -0.0 | -0.0 | 0.0 |
| 5.967 | 5.967 | 12.318 | 117.004 | -0.0 | -0.0 |
| 5.967 | 5.967 | 12.318 | 0.0 | 117.004 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 97.62 |
Cij in GPa:
| 261.748 | 147.331 | 162.05 | -0.0 | 0.0 | -0.0 |
| 147.331 | 261.748 | 162.05 | -0.0 | 0.0 | -0.0 |
| 167.387 | 167.387 | 271.647 | -0.0 | 0.0 | -0.0 |
| -5.967 | -5.967 | -12.318 | 117.004 | 0.0 | -0.0 |
| -5.967 | -5.967 | -12.318 | -0.0 | 117.004 | -0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 97.62 |
a0:
strain:
Cij in GPa:
| 270.03 | 181.194 | 147.697 | -0.0 | 0.0 | -0.0 |
| 180.508 | 290.721 | 170.93 | -0.0 | -0.0 | -0.0 |
| 145.811 | 173.304 | 255.77 | -0.0 | -0.0 | -0.0 |
| 0.33 | 0.157 | 0.423 | 118.518 | -0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 94.635 | -0.0 |
| 0.348 | 0.165 | 0.445 | -0.0 | -0.0 | 125.827 |
Cij in GPa:
| 269.347 | 180.874 | 146.827 | 0.0 | 0.0 | 0.0 |
| 182.437 | 301.106 | 181.21 | 0.0 | 0.0 | -0.0 |
| 146.232 | 170.239 | 253.615 | 0.0 | 0.0 | 0.0 |
| -0.33 | -0.157 | -0.423 | 118.518 | 0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 94.635 | 0.0 |
| -0.348 | -0.165 | -0.445 | 0.0 | 0.0 | 125.827 |
Cij in GPa:
| 269.723 | 181.051 | 147.306 | -0.0 | 0.0 | -0.0 |
| 182.437 | 301.106 | 181.21 | 0.0 | 0.0 | 0.0 |
| 153.113 | 181.21 | 268.767 | -0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | 123.737 | 0.0 | -0.0 |
| 0.034 | 0.016 | 0.044 | -0.0 | 89.7 | -0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 125.827 |
Cij in GPa:
| 269.655 | 181.018 | 147.219 | 0.0 | -0.0 | 0.0 |
| 180.23 | 290.437 | 170.449 | 0.0 | 0.0 | 0.0 |
| 145.435 | 173.185 | 255.339 | 0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | 123.737 | -0.0 | 0.0 |
| -0.034 | -0.016 | -0.044 | 0.0 | 89.7 | 0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 125.827 |
Cij in GPa:
| 269.693 | 181.036 | 147.268 | -0.0 | -0.0 | -0.0 |
| 179.929 | 290.489 | 170.226 | -0.0 | -0.0 | -0.0 |
| 145.473 | 173.198 | 255.383 | -0.0 | -0.0 | -0.0 |
| 0.005 | 0.003 | 0.007 | 115.957 | 0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | 94.635 | -0.0 |
| 0.003 | 0.002 | 0.004 | -0.0 | -0.0 | 125.827 |
Cij in GPa:
| 269.627 | 180.262 | 146.571 | 0.0 | -0.0 | -0.0 |
| 180.261 | 290.461 | 170.496 | 0.0 | 0.0 | -0.0 |
| 146.572 | 170.499 | 254.13 | 0.0 | 0.0 | 0.0 |
| -0.005 | -0.003 | -0.007 | 115.957 | -0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | 94.635 | 0.0 |
| -0.003 | -0.002 | -0.004 | 0.0 | 0.0 | 125.827 |
strain:
Cij in GPa:
| 259.139 | 178.675 | 135.043 | 0.0 | 0.0 | 0.0 |
| 177.505 | 278.323 | 155.685 | -0.0 | 0.0 | -0.0 |
| 134.508 | 160.145 | 237.947 | -0.0 | 0.0 | -0.0 |
| 0.054 | 0.048 | 0.092 | 107.285 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 87.203 | 0.0 |
| 0.037 | 0.024 | 0.055 | -0.0 | 0.0 | 125.706 |
Cij in GPa:
| 263.71 | 180.181 | 140.592 | 0.0 | -0.0 | -0.0 |
| 180.243 | 289.126 | 167.551 | 0.0 | -0.0 | 0.0 |
| 141.966 | 168.864 | 252.404 | 0.0 | -0.0 | -0.0 |
| -0.054 | -0.048 | -0.092 | 107.285 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 87.203 | 0.0 |
| -0.037 | -0.024 | -0.055 | -0.0 | -0.0 | 125.706 |
Cij in GPa:
| 263.71 | 180.181 | 140.592 | 0.0 | 0.0 | -0.0 |
| 180.243 | 289.126 | 167.552 | -0.0 | 0.0 | 0.0 |
| 135.56 | 157.263 | 236.439 | 0.0 | 0.0 | -0.0 |
| 0.003 | 0.002 | 0.005 | 109.946 | 0.0 | -0.0 |
| 0.003 | 0.002 | 0.005 | 0.0 | 83.275 | 0.0 |
| 0.004 | 0.002 | 0.006 | 0.0 | 0.0 | 125.706 |
Cij in GPa:
| 259.028 | 177.789 | 134.176 | -0.0 | -0.0 | -0.0 |
| 177.851 | 278.247 | 155.94 | -0.0 | -0.0 | -0.0 |
| 141.966 | 168.864 | 252.404 | -0.0 | -0.0 | 0.0 |
| -0.003 | -0.002 | -0.005 | 109.946 | -0.0 | -0.0 |
| -0.003 | -0.002 | -0.005 | -0.0 | 83.275 | -0.0 |
| -0.004 | -0.002 | -0.006 | -0.0 | -0.0 | 125.706 |
Cij in GPa:
| 259.034 | 177.794 | 134.184 | 0.0 | 0.0 | 0.0 |
| 177.855 | 278.251 | 155.948 | -0.0 | 0.0 | 0.0 |
| 135.558 | 157.26 | 236.434 | -0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.001 | 107.284 | 0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | 87.203 | -0.0 |
| 0.001 | 0.001 | 0.001 | 0.0 | 0.0 | 125.706 |
Cij in GPa:
| 259.102 | 178.651 | 134.989 | 0.0 | -0.0 | -0.0 |
| 180.242 | 289.126 | 167.551 | 0.0 | -0.0 | -0.0 |
| 134.47 | 160.125 | 237.895 | -0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.001 | 107.284 | -0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | 87.203 | 0.0 |
| -0.001 | -0.001 | -0.001 | -0.0 | -0.0 | 125.706 |
Prototype:
a0:
strain:
Cij in GPa:
| 86347245.676 | 91657409.309 | 237915149.266 | -7409567.934 | 1715968.406 | 36479592.279 |
| 48851496.726 | 55628136.7 | 204254487.764 | -3566313.549 | 8442357.899 | 43933696.825 |
| 39352895.058 | 47420558.931 | 184320628.895 | -3070592.425 | 9983241.57 | 38756780.213 |
| 79899042.509 | 84180088.475 | 244475616.685 | -3522849.106 | 5709606.326 | 42812223.272 |
| 72565210.888 | 78052580.603 | 237140364.774 | -1239753.386 | 8860936.647 | 44158199.123 |
| 49619896.457 | 60603490.447 | 209863334.368 | -1609939.034 | 10390233.822 | 48535658.874 |
Cij in GPa:
| -75452706.113 | -87514378.151 | -243930355.122 | -849532.861 | -6642167.678 | -46334945.843 |
| -9420116.532 | 4844862.872 | -156687237.545 | -23514692.351 | -238204.94 | -56088409.321 |
| -80897074.399 | -83632720.401 | -250988326.918 | -653168.078 | -6324431.024 | -45997326.628 |
| -68474829.346 | -66555431.876 | -228615547.944 | 1648982.524 | -8393832.624 | -37848644.671 |
| -69701799.045 | -75138926.01 | -227870942.446 | -2091251.037 | -6899322.415 | -43069007.665 |
| -34523614.744 | -49921456.594 | -196143828.745 | 5204628.002 | -21092426.221 | -42441734.768 |
Cij in GPa:
| 5249490.258 | 5682775.446 | 21102280.803 | -85914.31 | 719659.84 | 4247870.31 |
| 4197295.456 | 3942227.056 | 20696399.598 | 275085.864 | 376745.97 | 3885083.026 |
| 4579461.207 | 4752786.771 | 19624380.51 | -113120.573 | 812783.962 | 3704055.372 |
| 307838.841 | -1965801.463 | 15422569.63 | 2180445.713 | 1568862.039 | 4664411.43 |
| 3772531.443 | 4041714.005 | 18342468.902 | -173167.869 | 1050961.623 | 3443183.602 |
| 5481781.002 | 5916722.298 | 21800112.38 | 14601.473 | 781156.403 | 4383387.998 |
Cij in GPa:
| -8853575.213 | -8968784.009 | -25107512.846 | -150679.091 | -649979.208 | -4488297.739 |
| -4094253.408 | -4672078.909 | -19768350.818 | 43831.678 | -727904.489 | -4019536.846 |
| -5300977.016 | -5673980.846 | -20942253.569 | 195983.779 | -847114.994 | -4231949.432 |
| -7498345.025 | -8292754.316 | -23885889.837 | 477134.52 | -658665.933 | -4170128.893 |
| -3145765.436 | -2846873.709 | -18209409.036 | -465405.935 | -1013523.543 | -3840519.818 |
| -8322690.747 | -8293504.658 | -21812100.795 | 740575.565 | -1074275.712 | -4583565.838 |
Cij in GPa:
| 554418.75 | 592730.903 | 2101307.142 | -14448.684 | 71084.915 | 392841.672 |
| 524153.419 | 559406.731 | 2001460.694 | 17268.37 | 92897.724 | 388968.409 |
| 660225.726 | 691801.615 | 2254231.659 | 4030.996 | 89868.125 | 473116.52 |
| 534810.745 | 558839.386 | 2055630.828 | -4970.798 | 85415.527 | 390942.918 |
| 554105.993 | 625879.876 | 2142457.501 | -9980.583 | 84706.3 | 414755.933 |
| 644386.919 | 681255.228 | 2217995.847 | 8297.259 | 64372.501 | 422146.84 |
Cij in GPa:
| -724798.199 | -771717.362 | -2329948.203 | 15598.897 | -68341.258 | -391553.477 |
| -602790.773 | -645696.394 | -2244540.949 | 41912.345 | -107203.305 | -702713.858 |
| -567351.767 | -595819.61 | -2126830.631 | 25026.347 | -79535.038 | -354699.155 |
| -437644.509 | -464004.733 | -2045929.098 | -306.402 | -58559.832 | -405275.137 |
| -482087.541 | -459163.701 | -2178040.948 | 18752.822 | -169429.993 | -219701.634 |
| -372264.859 | -444579.924 | -1841107.806 | 17644.441 | -112123.76 | -362589.309 |
Prototype:
a0:
strain:
Cij in GPa:
| 113150.189 | 113511.776 | 113511.776 | 0.0 | -0.0 | 0.0 |
| 113511.776 | 113150.19 | 113511.776 | 0.0 | 0.0 | -0.0 |
| 113511.776 | 113511.776 | 113150.189 | 0.0 | -0.0 | 0.0 |
| -0.001 | -0.001 | -0.001 | 174.433 | -0.0 | -0.0 |
| -0.001 | -0.001 | -0.001 | 0.0 | 174.433 | 0.0 |
| -0.001 | -0.001 | -0.001 | 0.0 | -0.0 | 174.433 |
Cij in GPa:
| 113150.075 | 113511.674 | 113511.674 | 0.0 | -0.0 | 0.0 |
| 113511.674 | 113150.075 | 113511.674 | 0.0 | 0.0 | 0.0 |
| 113511.673 | 113511.673 | 113150.074 | -0.0 | -0.0 | 0.0 |
| 0.001 | 0.001 | 0.001 | 174.433 | 0.0 | -0.0 |
| 0.001 | 0.001 | 0.001 | -0.0 | 174.433 | 0.0 |
| 0.001 | 0.001 | 0.001 | -0.0 | 0.0 | 174.433 |
Cij in GPa:
| 113150.706 | 113512.236 | 113512.236 | 0.0 | -0.0 | -0.0 |
| 113512.236 | 113150.706 | 113512.236 | 0.0 | -0.0 | 0.0 |
| 113512.236 | 113512.236 | 113150.706 | -0.0 | -0.0 | -0.0 |
| -0.003 | -0.002 | -0.002 | 174.433 | -0.0 | -0.0 |
| -0.002 | -0.003 | -0.002 | 0.0 | 174.433 | -0.0 |
| -0.002 | -0.002 | -0.003 | 0.0 | -0.0 | 174.433 |
Cij in GPa:
| 113149.558 | 113511.214 | 113511.214 | -0.0 | -0.0 | 0.0 |
| 113511.214 | 113149.558 | 113511.214 | -0.0 | -0.0 | -0.0 |
| 113511.214 | 113511.214 | 113149.558 | -0.0 | 0.0 | 0.0 |
| 0.003 | 0.002 | 0.002 | 174.433 | 0.0 | -0.0 |
| 0.002 | 0.003 | 0.002 | -0.0 | 174.433 | -0.0 |
| 0.002 | 0.002 | 0.003 | -0.0 | -0.0 | 174.433 |
Cij in GPa:
| 113155.872 | 113516.838 | 113516.838 | 0.0 | 0.0 | -0.0 |
| 113516.838 | 113155.872 | 113516.838 | 0.0 | -0.0 | -0.0 |
| 113516.838 | 113516.838 | 113155.872 | 0.0 | 0.0 | 0.0 |
| -0.036 | -0.021 | -0.021 | 174.433 | -0.0 | -0.0 |
| -0.021 | -0.036 | -0.021 | -0.0 | 174.433 | -0.0 |
| -0.021 | -0.021 | -0.036 | 0.0 | -0.0 | 174.433 |
Cij in GPa:
| 113144.393 | 113506.613 | 113506.613 | -0.0 | 0.0 | -0.0 |
| 113506.613 | 113144.393 | 113506.613 | 0.0 | 0.0 | 0.0 |
| 113506.613 | 113506.613 | 113144.393 | -0.0 | -0.0 | -0.0 |
| 0.036 | 0.021 | 0.021 | 174.433 | -0.0 | 0.0 |
| 0.021 | 0.036 | 0.021 | -0.0 | 174.433 | 0.0 |
| 0.021 | 0.021 | 0.036 | -0.0 | 0.0 | 174.433 |
a0:
strain:
Cij in GPa:
| 122564.77 | 120924.975 | 120924.975 | -0.0 | 0.0 | 0.0 |
| 120924.975 | 122564.77 | 120924.975 | -0.0 | 0.0 | 0.0 |
| 120924.976 | 120924.976 | 122564.771 | 0.0 | 0.0 | 0.0 |
| 0.002 | 0.002 | 0.002 | -282.407 | 0.0 | 0.0 |
| 0.002 | 0.002 | 0.002 | -0.0 | -282.407 | 0.0 |
| 0.001 | 0.001 | 0.001 | 0.0 | 0.0 | -282.407 |
Cij in GPa:
| 122564.655 | 120924.857 | 120924.857 | 0.0 | 0.0 | 0.0 |
| 120924.857 | 122564.655 | 120924.857 | -0.0 | 0.0 | 0.0 |
| 120924.857 | 120924.857 | 122564.654 | -0.0 | -0.0 | -0.0 |
| -0.003 | -0.003 | -0.003 | -282.407 | 0.0 | -0.0 |
| -0.002 | -0.002 | -0.002 | -0.0 | -282.407 | -0.0 |
| -0.001 | -0.001 | -0.001 | -0.0 | -0.0 | -282.407 |
Cij in GPa:
| 122565.284 | 120925.504 | 120925.504 | 0.0 | 0.0 | 0.0 |
| 120925.504 | 122565.284 | 120925.504 | 0.0 | 0.0 | 0.0 |
| 120925.504 | 120925.504 | 122565.284 | -0.0 | -0.0 | -0.0 |
| 0.008 | 0.008 | 0.008 | -282.407 | -0.0 | 0.0 |
| 0.008 | 0.008 | 0.008 | 0.0 | -282.407 | 0.0 |
| 0.008 | 0.008 | 0.008 | 0.0 | 0.0 | -282.407 |
Cij in GPa:
| 122564.144 | 120924.333 | 120924.333 | -0.0 | -0.0 | -0.0 |
| 120924.333 | 122564.144 | 120924.333 | -0.0 | -0.0 | -0.0 |
| 120924.333 | 120924.333 | 122564.144 | -0.0 | -0.0 | -0.0 |
| -0.008 | -0.008 | -0.008 | -282.407 | -0.0 | 0.0 |
| -0.008 | -0.008 | -0.008 | -0.0 | -282.407 | -0.0 |
| -0.008 | -0.008 | -0.008 | -0.0 | -0.0 | -282.407 |
Cij in GPa:
| 122570.412 | 120930.772 | 120930.772 | 0.0 | 0.0 | 0.0 |
| 120930.772 | 122570.412 | 120930.772 | 0.0 | 0.0 | 0.0 |
| 120930.772 | 120930.772 | 122570.412 | 0.0 | 0.0 | -0.0 |
| 0.081 | 0.081 | 0.08 | -282.407 | -0.0 | 0.0 |
| 0.081 | 0.081 | 0.08 | 0.0 | -282.407 | 0.0 |
| 0.081 | 0.08 | 0.081 | 0.0 | 0.0 | -282.407 |
Cij in GPa:
| 122559.017 | 120919.065 | 120919.065 | -0.0 | -0.0 | -0.0 |
| 120919.065 | 122559.017 | 120919.065 | -0.0 | 0.0 | 0.0 |
| 120919.065 | 120919.065 | 122559.017 | 0.0 | -0.0 | -0.0 |
| -0.081 | -0.081 | -0.08 | -282.407 | -0.0 | -0.0 |
| -0.081 | -0.081 | -0.08 | -0.0 | -282.407 | -0.0 |
| -0.081 | -0.08 | -0.081 | -0.0 | -0.0 | -282.407 |
strain:
Cij in GPa:
| 44087402.976 | 10092378.654 | 10092378.698 | 0.005 | -0.004 | 0.004 |
| 10092378.654 | 44087402.976 | 10092378.698 | -0.004 | 0.005 | 0.004 |
| 10092378.655 | 10092378.655 | 44087402.887 | 0.003 | 0.003 | 0.008 |
| -68.582 | -231.092 | -231.079 | 10092737.47 | -0.005 | -0.002 |
| -231.092 | -68.582 | -231.079 | -0.005 | 10092737.47 | -0.002 |
| -231.056 | -231.104 | -68.543 | -0.006 | -0.004 | 10092737.487 |
Cij in GPa:
| 44091112.736 | 10092840.235 | 10092840.229 | 0.003 | -0.008 | -0.002 |
| 10092840.235 | 44091112.736 | 10092840.229 | -0.008 | 0.003 | -0.002 |
| 10092840.227 | 10092840.227 | 44091112.719 | 0.007 | 0.007 | -0.003 |
| 68.566 | 231.041 | 231.051 | 10092737.479 | 0.007 | -0.004 |
| 231.041 | 68.566 | 231.051 | 0.007 | 10092737.479 | -0.004 |
| 231.06 | 231.096 | 68.544 | -0.003 | 0.004 | 10092737.47 |
Cij in GPa:
| 44070708.604 | 10090301.655 | 10090301.658 | -0.001 | -0.002 | 0.001 |
| 10090301.655 | 44070708.604 | 10090301.658 | -0.002 | -0.001 | 0.001 |
| 10090301.657 | 10090301.657 | 44070708.602 | -0.0 | -0.0 | 0.0 |
| -685.404 | -2310.878 | -2310.564 | 10092737.486 | -0.001 | 0.001 |
| -2310.878 | -685.404 | -2310.564 | -0.001 | 10092737.486 | 0.001 |
| -2310.879 | -2310.564 | -685.405 | 0.0 | -0.001 | 10092737.487 |
Cij in GPa:
| 44107807.708 | 10094917.363 | 10094917.362 | 0.0 | -0.001 | -0.0 |
| 10094917.363 | 44107807.708 | 10094917.362 | -0.001 | 0.0 | -0.0 |
| 10094917.361 | 10094917.361 | 44107807.717 | 0.0 | 0.0 | -0.001 |
| 685.405 | 2310.88 | 2310.565 | 10092737.488 | 0.0 | -0.001 |
| 2310.88 | 685.405 | 2310.565 | 0.0 | 10092737.488 | -0.001 |
| 2310.879 | 2310.565 | 685.404 | 0.001 | 0.001 | 10092737.486 |
Cij in GPa:
| 43903762.446 | 10069530.942 | 10069530.942 | -0.0 | 0.0 | 0.0 |
| 10069530.942 | 43903762.446 | 10069530.942 | 0.0 | -0.0 | 0.0 |
| 10069530.942 | 10069530.942 | 43903762.445 | 0.0 | 0.0 | 0.0 |
| -6854.013 | -23108.787 | -23105.601 | 10092737.517 | -0.0 | 0.0 |
| -23108.787 | -6854.013 | -23105.601 | -0.0 | 10092737.517 | 0.0 |
| -23108.787 | -23105.601 | -6854.013 | -0.0 | -0.0 | 10092737.517 |
Cij in GPa:
| 44274753.555 | 10115687.959 | 10115687.959 | 0.0 | 0.0 | -0.0 |
| 10115687.959 | 44274753.555 | 10115687.959 | 0.0 | 0.0 | -0.0 |
| 10115687.959 | 10115687.959 | 44274753.555 | 0.0 | 0.0 | -0.0 |
| 6854.013 | 23108.787 | 23105.601 | 10092737.517 | 0.0 | -0.0 |
| 23108.787 | 6854.013 | 23105.601 | 0.0 | 10092737.517 | -0.0 |
| 23108.787 | 23105.601 | 6854.013 | -0.0 | 0.0 | 10092737.517 |
strain:
Cij in GPa:
| 134.635 | 87.501 | 87.501 | 0.0 | 0.0 | -0.0 |
| 87.501 | 134.635 | 87.501 | 0.0 | 0.0 | -0.0 |
| 87.501 | 87.501 | 134.635 | 0.0 | 0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | 32.72 | 0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | 32.72 | -0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 32.72 |
Cij in GPa:
| 134.635 | 87.501 | 87.501 | -0.0 | 0.0 | 0.0 |
| 87.501 | 134.635 | 87.501 | -0.0 | -0.0 | 0.0 |
| 87.501 | 87.501 | 134.635 | -0.0 | -0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 32.72 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 32.72 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 32.72 |
Cij in GPa:
| 134.635 | 87.501 | 87.501 | 0.0 | -0.0 | -0.0 |
| 87.501 | 134.635 | 87.501 | -0.0 | 0.0 | -0.0 |
| 87.501 | 87.501 | 134.635 | 0.0 | 0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 32.72 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 32.72 | -0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 32.72 |
Cij in GPa:
| 134.635 | 87.501 | 87.501 | -0.0 | 0.0 | 0.0 |
| 87.501 | 134.635 | 87.501 | 0.0 | 0.0 | 0.0 |
| 87.501 | 87.501 | 134.635 | -0.0 | -0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | 32.72 | -0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | 32.72 | 0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 32.72 |
Cij in GPa:
| 134.633 | 87.502 | 87.502 | 0.0 | -0.0 | 0.0 |
| 87.502 | 134.633 | 87.502 | -0.0 | -0.0 | -0.0 |
| 87.502 | 87.502 | 134.633 | 0.0 | 0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 32.72 | -0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 32.72 | -0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 32.72 |
Cij in GPa:
| 134.637 | 87.501 | 87.501 | -0.0 | -0.0 | 0.0 |
| 87.501 | 134.637 | 87.501 | -0.0 | 0.0 | 0.0 |
| 87.501 | 87.501 | 134.637 | -0.0 | -0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | 32.72 | -0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | 32.72 | 0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 32.72 |
strain:
Cij in GPa:
| 33.256 | 37.692 | 37.692 | 0.0 | -0.0 | -0.0 |
| 37.692 | 33.256 | 37.692 | -0.0 | 0.0 | -0.0 |
| 37.692 | 37.692 | 33.256 | 0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 37.691 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 37.691 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 37.691 |
Cij in GPa:
| 33.256 | 37.692 | 37.692 | 0.0 | -0.0 | 0.0 |
| 37.692 | 33.256 | 37.692 | 0.0 | -0.0 | -0.0 |
| 37.692 | 37.692 | 33.256 | 0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 37.691 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 37.691 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 37.691 |
Cij in GPa:
| 33.258 | 37.694 | 37.694 | -0.0 | -0.0 | -0.0 |
| 37.694 | 33.258 | 37.694 | -0.0 | 0.0 | -0.0 |
| 37.694 | 37.694 | 33.258 | -0.0 | -0.0 | -0.0 |
| 0.002 | 0.002 | 0.002 | 37.691 | -0.0 | -0.0 |
| 0.002 | 0.002 | 0.002 | -0.0 | 37.691 | -0.0 |
| 0.002 | 0.002 | 0.002 | 0.0 | 0.0 | 37.691 |
Cij in GPa:
| 33.254 | 37.69 | 37.69 | 0.0 | -0.0 | 0.0 |
| 37.69 | 33.254 | 37.69 | -0.0 | -0.0 | 0.0 |
| 37.69 | 37.69 | 33.254 | 0.0 | 0.0 | 0.0 |
| -0.002 | -0.002 | -0.002 | 37.691 | 0.0 | 0.0 |
| -0.002 | -0.002 | -0.002 | 0.0 | 37.691 | 0.0 |
| -0.002 | -0.002 | -0.002 | 0.0 | -0.0 | 37.691 |
Cij in GPa:
| 33.275 | 37.711 | 37.711 | -0.0 | 0.0 | 0.0 |
| 37.711 | 33.275 | 37.711 | 0.0 | 0.0 | 0.0 |
| 37.711 | 37.711 | 33.275 | -0.0 | 0.0 | -0.0 |
| 0.019 | 0.019 | 0.019 | 37.691 | -0.0 | -0.0 |
| 0.019 | 0.019 | 0.019 | -0.0 | 37.691 | -0.0 |
| 0.019 | 0.019 | 0.019 | 0.0 | -0.0 | 37.691 |
Cij in GPa:
| 33.237 | 37.673 | 37.673 | 0.0 | 0.0 | 0.0 |
| 37.673 | 33.237 | 37.673 | 0.0 | -0.0 | 0.0 |
| 37.673 | 37.673 | 33.237 | 0.0 | 0.0 | 0.0 |
| -0.019 | -0.019 | -0.019 | 37.691 | 0.0 | 0.0 |
| -0.019 | -0.019 | -0.019 | 0.0 | 37.691 | 0.0 |
| -0.019 | -0.019 | -0.019 | -0.0 | -0.0 | 37.691 |
strain:
Cij in GPa:
| -0.684 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| -0.0 | -0.684 | -0.0 | 0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.684 | 0.0 | 0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 0.0 |
Cij in GPa:
| -0.684 | -0.0 | -0.0 | -0.0 | 0.0 | -0.0 |
| -0.0 | -0.684 | -0.0 | -0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.684 | 0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 0.0 |
Cij in GPa:
| -0.684 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 0.0 | -0.684 | 0.0 | 0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | -0.684 | 0.0 | 0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | 0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -0.0 |
Cij in GPa:
| -0.683 | -0.0 | -0.0 | -0.0 | 0.0 | -0.0 |
| -0.0 | -0.683 | -0.0 | -0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.683 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | -0.0 |
Cij in GPa:
| -0.689 | -0.0 | -0.0 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.689 | -0.0 | 0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | -0.689 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -0.0 | -0.0 |
Cij in GPa:
| -0.678 | -0.0 | -0.0 | -0.0 | -0.0 | -0.0 |
| -0.0 | -0.678 | -0.0 | -0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.678 | 0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | -0.0 |
a0:
strain:
Cij in GPa:
| 94984.231 | 95093.004 | 95093.004 | -0.0 | -0.0 | -0.0 |
| 95093.004 | 94984.231 | 95093.004 | -0.0 | -0.0 | -0.0 |
| 95093.004 | 95093.004 | 94984.231 | -0.0 | -0.0 | -0.0 |
| 0.001 | 0.001 | 0.001 | 35.901 | -0.0 | -0.0 |
| 0.001 | 0.001 | 0.001 | -0.0 | 35.901 | -0.0 |
| 0.001 | 0.001 | 0.001 | -0.0 | -0.0 | 35.901 |
Cij in GPa:
| 94984.154 | 95092.923 | 95092.923 | 0.0 | 0.0 | 0.0 |
| 95092.923 | 94984.154 | 95092.923 | 0.0 | 0.0 | 0.0 |
| 95092.922 | 95092.923 | 94984.154 | 0.0 | 0.0 | -0.0 |
| -0.001 | -0.001 | -0.001 | 35.902 | 0.0 | 0.0 |
| -0.001 | -0.001 | -0.001 | 0.0 | 35.901 | 0.0 |
| -0.001 | -0.001 | -0.001 | 0.0 | 0.0 | 35.901 |
Cij in GPa:
| 94984.584 | 95093.371 | 95093.371 | -0.0 | -0.0 | 0.0 |
| 95093.371 | 94984.584 | 95093.371 | -0.0 | -0.0 | -0.0 |
| 95093.371 | 95093.371 | 94984.584 | -0.0 | -0.0 | -0.0 |
| 105354094.986 | 93360866.195 | 93141054.191 | -8657778.715 | -443109.634 | -2641260.662 |
| 90138669.933 | 103901141.952 | 90277745.99 | -2355866.288 | -7844372.329 | -1994908.731 |
| 113808166.952 | 115078096.093 | 121885361.484 | 400834.467 | 755475.993 | -6129696.586 |
Cij in GPa:
| 94983.802 | 95092.556 | 95092.556 | 0.0 | 0.0 | 0.0 |
| 95092.556 | 94983.802 | 95092.556 | 0.0 | 0.0 | 0.0 |
| 95092.556 | 95092.556 | 94983.802 | 0.0 | 0.0 | 0.0 |
| -115270508.214 | -95612783.951 | -96724059.383 | -8075763.235 | 251993.506 | 160183.664 |
| -99186868.002 | -118400769.858 | -99402014.393 | 776590.959 | -4358072.3 | -279020.528 |
| -90036819.164 | -90416943.441 | -109224454.018 | -660856.58 | -508211.279 | -4552786.824 |
Cij in GPa:
| 94988.101 | 95097.041 | 95097.041 | -0.0 | -0.0 | -0.0 |
| 95097.041 | 94988.101 | 95097.041 | -0.0 | -0.0 | -0.0 |
| 95097.041 | 95097.041 | 94988.101 | -0.0 | -0.0 | -0.0 |
| 10378724.019 | 9060328.255 | 9149330.518 | -29519.555 | 130578.105 | 307251.823 |
| 9417390.287 | 10238358.681 | 9308443.452 | 42580.378 | -790530.16 | -4035.552 |
| 8860134.313 | 8829082.417 | 9493060.608 | 43853.24 | -71134.68 | -452949.076 |
Cij in GPa:
| 94980.284 | 95088.886 | 95088.886 | 0.0 | 0.0 | 0.0 |
| 95088.886 | 94980.284 | 95088.886 | 0.0 | 0.0 | 0.0 |
| 95088.886 | 95088.886 | 94980.284 | 0.0 | 0.0 | 0.0 |
| -10185439.046 | -8018408.058 | -8032211.401 | -1006890.393 | -24180.165 | 216325.36 |
| -7978447.495 | -10126421.973 | -7993333.2 | 72196.286 | -1017044.081 | 167707.551 |
| -7608812.128 | -7615207.564 | -9312909.129 | 113050.591 | 207970.158 | -1091635.107 |
strain:
Cij in GPa:
| 2.183 | 2.183 | 2.183 | 0.0 | 0.0 | -0.0 |
| 2.183 | 2.183 | 2.183 | 0.0 | 0.0 | -0.0 |
| 2.183 | 2.183 | 2.183 | 0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 0.0 |
Cij in GPa:
| 2.183 | 2.183 | 2.183 | -0.0 | -0.0 | 0.0 |
| 2.183 | 2.183 | 2.183 | -0.0 | -0.0 | 0.0 |
| 2.183 | 2.183 | 2.183 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 0.0 |
Cij in GPa:
| 2.184 | 2.184 | 2.184 | 0.0 | 0.0 | -0.0 |
| 2.184 | 2.184 | 2.184 | 0.0 | 0.0 | -0.0 |
| 2.184 | 2.184 | 2.184 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 0.0 |
Cij in GPa:
| 2.183 | 2.183 | 2.183 | -0.0 | -0.0 | 0.0 |
| 2.183 | 2.183 | 2.183 | -0.0 | -0.0 | 0.0 |
| 2.183 | 2.183 | 2.183 | 0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -0.0 | -0.0 |
Cij in GPa:
| 2.188 | 2.188 | 2.188 | 0.0 | 0.0 | -0.0 |
| 2.188 | 2.188 | 2.188 | 0.0 | 0.0 | -0.0 |
| 2.188 | 2.188 | 2.188 | 0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -0.0 |
Cij in GPa:
| 2.178 | 2.178 | 2.178 | -0.0 | -0.0 | 0.0 |
| 2.178 | 2.178 | 2.178 | -0.0 | -0.0 | 0.0 |
| 2.178 | 2.178 | 2.178 | 0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -0.0 |
a0:
strain:
Cij in GPa:
| -134.389 | -186.701 | -223.446 | -0.0 | -0.0 | 0.0 |
| -186.701 | -134.389 | -223.446 | -0.0 | -0.0 | -0.0 |
| -223.446 | -223.446 | -188.006 | -0.0 | -0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | -19.628 | -0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | -19.628 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -0.0 | -49.765 |
Cij in GPa:
| -134.389 | -186.701 | -223.446 | 0.0 | 0.0 | -0.0 |
| -186.701 | -134.389 | -223.446 | 0.0 | 0.0 | -0.0 |
| -223.446 | -223.446 | -188.006 | 0.0 | 0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -19.628 | 0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | -19.628 | -0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | 0.0 | -49.765 |
Cij in GPa:
| -134.39 | -186.702 | -223.447 | -0.0 | -0.0 | 0.0 |
| -186.702 | -134.39 | -223.447 | -0.0 | 0.0 | 0.0 |
| -223.447 | -223.447 | -188.008 | -0.0 | -0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | -19.628 | -0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | -19.628 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -0.0 | -49.765 |
Cij in GPa:
| -134.388 | -186.7 | -223.445 | 0.0 | 0.0 | 0.0 |
| -186.7 | -134.388 | -223.445 | 0.0 | 0.0 | -0.0 |
| -223.445 | -223.445 | -188.004 | 0.0 | 0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -19.628 | 0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | -19.628 | -0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | 0.0 | -49.765 |
Cij in GPa:
| -134.397 | -186.707 | -223.455 | -0.0 | -0.0 | 0.0 |
| -186.707 | -134.397 | -223.455 | -0.0 | -0.0 | 0.0 |
| -223.456 | -223.456 | -188.026 | -0.0 | -0.0 | 0.0 |
| -0.001 | 0.001 | 0.001 | -19.628 | -0.0 | -0.0 |
| 0.001 | -0.001 | 0.001 | -0.0 | -19.628 | 0.0 |
| 0.001 | 0.001 | -0.001 | -0.0 | -0.0 | -49.765 |
Cij in GPa:
| -134.381 | -186.694 | -223.438 | 0.0 | -0.0 | -0.0 |
| -186.694 | -134.381 | -223.438 | 0.0 | 0.0 | -0.0 |
| -223.436 | -223.436 | -187.986 | 0.0 | 0.0 | -0.0 |
| 0.001 | -0.001 | -0.001 | -19.628 | 0.0 | -0.0 |
| -0.001 | 0.001 | -0.001 | 0.0 | -19.628 | -0.0 |
| -0.001 | -0.001 | 0.001 | 0.0 | -0.0 | -49.765 |
strain:
Cij in GPa:
| 27817726.29 | 6106479.313 | 7492453.947 | -0.011 | 0.004 | 0.006 |
| 6106479.313 | 27817726.29 | 7492453.947 | 0.004 | -0.011 | 0.006 |
| 7492647.192 | 7492647.192 | 3309668.842 | -0.012 | -0.012 | -0.003 |
| -58.06 | -264.535 | -71.214 | 7492649.707 | -0.014 | -0.004 |
| -264.535 | -58.06 | -71.214 | -0.014 | 7492649.707 | -0.004 |
| -131.533 | -131.538 | -58.074 | -0.001 | -0.002 | 6106511.846 |
Cij in GPa:
| 27819858.455 | 6106741.975 | 7492982.616 | 0.013 | -0.004 | 0.003 |
| 6106741.975 | 27819858.455 | 7492982.616 | -0.004 | 0.013 | 0.003 |
| 7492789.425 | 7492789.425 | 3309731.8 | 0.012 | 0.012 | 0.0 |
| 58.076 | 264.563 | 71.224 | 7492649.707 | 0.013 | 0.003 |
| 264.563 | 58.076 | 71.224 | 0.013 | 7492649.707 | 0.003 |
| 131.526 | 131.518 | 58.068 | -0.003 | -0.004 | 6106511.855 |
Cij in GPa:
| 27808131.682 | 6105297.153 | 7490074.929 | -0.001 | -0.002 | 0.001 |
| 6105297.153 | 27808131.682 | 7490074.929 | -0.002 | -0.001 | 0.001 |
| 7492006.626 | 7492006.626 | 3309385.302 | -0.001 | -0.001 | 0.0 |
| -580.713 | -2645.636 | -712.231 | 7492649.713 | -0.001 | -0.0 |
| -2645.636 | -580.713 | -712.231 | -0.001 | 7492649.713 | -0.0 |
| -1315.358 | -1315.228 | -580.713 | -0.0 | 0.001 | 6106511.872 |
Cij in GPa:
| 27829453.319 | 6107924.205 | 7495361.705 | 0.002 | -0.0 | 0.001 |
| 6107924.205 | 27829453.319 | 7495361.705 | -0.0 | 0.002 | 0.001 |
| 7493430.0 | 7493430.0 | 3310015.343 | 0.001 | 0.001 | 0.0 |
| 580.712 | 2645.634 | 712.23 | 7492649.712 | 0.001 | 0.0 |
| 2645.634 | 580.712 | 712.23 | 0.001 | 7492649.712 | 0.0 |
| 1315.361 | 1315.226 | 580.714 | 0.0 | 0.0 | 6106511.873 |
Cij in GPa:
| 27712184.289 | 6093475.378 | 7466284.375 | -0.0 | 0.0 | -0.0 |
| 6093475.378 | 27712184.289 | 7466284.375 | 0.0 | -0.0 | -0.0 |
| 7485601.419 | 7485601.419 | 3306550.112 | -0.0 | -0.0 | -0.0 |
| -5807.129 | -26456.363 | -7122.307 | 7492649.713 | -0.0 | 0.0 |
| -26456.363 | -5807.129 | -7122.307 | -0.0 | 7492649.713 | 0.0 |
| -13153.597 | -13152.24 | -5807.129 | -0.0 | 0.0 | 6106511.891 |
Cij in GPa:
| 27925400.605 | 6119745.921 | 7519152.129 | 0.0 | -0.0 | -0.0 |
| 6119745.921 | 27925400.605 | 7519152.129 | -0.0 | 0.0 | -0.0 |
| 7499835.205 | 7499835.205 | 3312850.545 | 0.0 | 0.0 | 0.0 |
| 5807.129 | 26456.363 | 7122.307 | 7492649.712 | 0.0 | -0.0 |
| 26456.363 | 5807.129 | 7122.307 | 0.0 | 7492649.712 | -0.0 |
| 13153.597 | 13152.24 | 5807.129 | 0.0 | -0.0 | 6106511.891 |
strain:
Cij in GPa:
| 562.518 | 16.44 | 11.379 | 0.0 | 0.0 | 0.0 |
| 16.44 | 562.518 | 11.379 | 0.0 | 0.0 | -0.0 |
| 11.379 | 11.379 | 29.027 | 0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 11.379 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 11.379 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 4.461 |
Cij in GPa:
| 562.518 | 16.44 | 11.379 | -0.0 | -0.0 | -0.0 |
| 16.44 | 562.518 | 11.379 | -0.0 | -0.0 | -0.0 |
| 11.378 | 11.378 | 29.025 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 11.379 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 11.379 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 4.461 |
Cij in GPa:
| 562.518 | 16.44 | 11.381 | 0.0 | 0.0 | 0.0 |
| 16.44 | 562.518 | 11.381 | 0.0 | 0.0 | 0.0 |
| 11.383 | 11.383 | 29.038 | 0.0 | 0.0 | 0.0 |
| 0.002 | 0.002 | 0.005 | 11.379 | 0.0 | 0.0 |
| 0.002 | 0.002 | 0.005 | 0.0 | 11.379 | 0.0 |
| 0.001 | 0.001 | 0.002 | 0.0 | 0.0 | 4.461 |
Cij in GPa:
| 562.517 | 16.439 | 11.377 | -0.0 | -0.0 | -0.0 |
| 16.439 | 562.517 | 11.377 | -0.0 | -0.0 | -0.0 |
| 11.374 | 11.374 | 29.014 | -0.0 | -0.0 | -0.0 |
| -0.002 | -0.002 | -0.005 | 11.379 | -0.0 | 0.0 |
| -0.002 | -0.002 | -0.005 | -0.0 | 11.379 | -0.0 |
| -0.001 | -0.001 | -0.002 | -0.0 | -0.0 | 4.461 |
Cij in GPa:
| 562.519 | 16.448 | 11.397 | 0.0 | 0.0 | 0.0 |
| 16.448 | 562.519 | 11.397 | 0.0 | 0.0 | 0.0 |
| 11.426 | 11.426 | 29.145 | 0.0 | 0.0 | 0.0 |
| 0.018 | 0.018 | 0.047 | 11.379 | 0.0 | -0.0 |
| 0.018 | 0.018 | 0.047 | 0.0 | 11.379 | 0.0 |
| 0.007 | 0.007 | 0.018 | 0.0 | 0.0 | 4.461 |
Cij in GPa:
| 562.516 | 16.432 | 11.36 | -0.0 | -0.0 | -0.0 |
| 16.432 | 562.516 | 11.36 | -0.0 | -0.0 | 0.0 |
| 11.332 | 11.332 | 28.906 | -0.0 | -0.0 | -0.0 |
| -0.018 | -0.018 | -0.047 | 11.379 | -0.0 | 0.0 |
| -0.018 | -0.018 | -0.047 | -0.0 | 11.379 | -0.0 |
| -0.007 | -0.007 | -0.018 | -0.0 | -0.0 | 4.461 |
Prototype:
a0:
strain:
Cij in GPa:
| 64277.246 | 63017.536 | 63017.536 | -0.0 | -0.0 | 0.0 |
| 63017.536 | 64277.246 | 63017.536 | -0.0 | -0.0 | 0.0 |
| 63017.536 | 63017.536 | 64277.246 | -0.0 | 0.0 | 0.0 |
| 0.001 | 0.001 | 0.001 | -288.736 | -0.0 | 0.0 |
| 0.001 | 0.001 | 0.001 | -0.0 | -288.736 | 0.0 |
| 0.001 | 0.001 | 0.001 | -0.0 | -0.0 | -288.735 |
Cij in GPa:
| 64277.177 | 63017.468 | 63017.468 | 0.0 | -0.0 | -0.0 |
| 63017.468 | 64277.177 | 63017.468 | 0.0 | 0.0 | -0.0 |
| 63017.468 | 63017.468 | 64277.177 | 0.0 | 0.0 | 0.0 |
| -0.001 | -0.001 | -0.001 | -288.736 | 0.0 | -0.0 |
| -0.001 | -0.001 | -0.001 | 0.0 | -288.735 | -0.0 |
| -0.001 | -0.001 | -0.001 | 0.0 | 0.0 | -288.736 |
Cij in GPa:
| 64277.551 | 63017.837 | 63017.837 | -0.0 | 0.0 | 0.0 |
| 63017.837 | 64277.551 | 63017.837 | -0.0 | 0.0 | 0.0 |
| 63017.837 | 63017.837 | 64277.551 | -0.0 | -0.0 | -0.0 |
| 0.005 | 0.006 | 0.005 | -213.259 | 0.0 | -0.0 |
| 0.006 | 0.005 | 0.005 | -0.0 | -213.259 | 0.0 |
| 0.006 | 0.005 | 0.005 | -0.0 | -0.0 | -213.259 |
Cij in GPa:
| 64276.871 | 63017.167 | 63017.167 | 0.0 | -0.0 | -0.0 |
| 63017.167 | 64276.871 | 63017.167 | 0.0 | -0.0 | -0.0 |
| 63017.167 | 63017.167 | 64276.871 | 0.0 | 0.0 | 0.0 |
| -0.005 | -0.006 | -0.005 | -213.259 | -0.0 | 0.0 |
| -0.006 | -0.005 | -0.005 | 0.0 | -213.259 | -0.0 |
| -0.006 | -0.005 | -0.005 | 0.0 | 0.0 | -213.259 |
Cij in GPa:
| 64280.608 | 63020.851 | 63020.851 | -0.0 | -0.0 | -0.0 |
| 63020.851 | 64280.608 | 63020.851 | -0.0 | -0.0 | 0.0 |
| 63020.851 | 63020.851 | 64280.608 | -0.0 | -0.0 | 0.0 |
| 0.119 | 0.109 | 0.108 | -288.736 | -0.0 | 0.0 |
| 0.109 | 0.119 | 0.108 | -0.0 | -288.736 | 0.0 |
| 0.109 | 0.108 | 0.119 | -0.0 | -0.0 | -288.736 |
Cij in GPa:
| 64273.814 | 63014.152 | 63014.152 | -0.0 | 0.0 | -0.0 |
| 63014.152 | 64273.814 | 63014.152 | -0.0 | -0.0 | -0.0 |
| 63014.152 | 63014.152 | 64273.814 | 0.0 | 0.0 | -0.0 |
| -0.119 | -0.109 | -0.108 | -288.736 | 0.0 | -0.0 |
| -0.109 | -0.119 | -0.108 | 0.0 | -288.736 | -0.0 |
| -0.109 | -0.108 | -0.119 | 0.0 | 0.0 | -288.736 |
strain:
Cij in GPa:
| 21993605.515 | 5034767.426 | 5034767.411 | -0.006 | -0.011 | 0.003 |
| 5034767.426 | 21993605.515 | 5034767.411 | -0.011 | -0.006 | 0.003 |
| 5034767.424 | 5034767.424 | 21993605.509 | -0.007 | -0.007 | -0.002 |
| -28.589 | -67.853 | -67.85 | 3320024.727 | -0.019 | 0.001 |
| -67.853 | -28.588 | -67.849 | -0.019 | 3320024.726 | 0.001 |
| -67.835 | -67.85 | -28.568 | -0.016 | -0.008 | 3320024.694 |
Cij in GPa:
| 21995460.587 | 5034998.288 | 5034998.278 | 0.01 | -0.002 | -0.003 |
| 5034998.288 | 21995460.587 | 5034998.278 | -0.002 | 0.01 | -0.003 |
| 5034998.297 | 5034998.297 | 21995460.589 | 0.011 | 0.011 | 0.001 |
| 28.601 | 67.842 | 67.849 | 3320024.975 | 0.019 | -0.001 |
| 67.842 | 28.601 | 67.849 | 0.019 | 3320024.968 | -0.001 |
| 67.83 | 67.857 | 28.576 | 0.004 | 0.01 | 3320025.084 |
Cij in GPa:
| 21985258.263 | 5033728.92 | 5033728.918 | -0.001 | -0.001 | 0.0 |
| 5033728.92 | 21985258.263 | 5033728.918 | -0.001 | -0.001 | 0.0 |
| 5033728.917 | 5033728.917 | 21985258.252 | -0.001 | -0.001 | 0.0 |
| -353.075 | -636.434 | -636.658 | 3109612.932 | -0.001 | 0.0 |
| -636.434 | -353.075 | -636.658 | -0.001 | 3109612.932 | 0.0 |
| -636.435 | -636.661 | -353.076 | -0.001 | -0.001 | 3109612.933 |
Cij in GPa:
| 22003807.839 | 5036036.78 | 5036036.781 | 0.001 | 0.001 | 0.0 |
| 5036036.78 | 22003807.839 | 5036036.781 | 0.001 | 0.001 | 0.0 |
| 5036036.781 | 5036036.781 | 22003807.841 | 0.001 | 0.001 | -0.0 |
| 353.074 | 636.434 | 636.655 | 3109612.934 | 0.001 | -0.001 |
| 636.434 | 353.074 | 636.655 | 0.001 | 3109612.934 | -0.001 |
| 636.435 | 636.662 | 353.077 | 0.0 | 0.001 | 3109612.934 |
Cij in GPa:
| 21901785.143 | 5023343.541 | 5023343.541 | -0.0 | -0.0 | 0.0 |
| 5023343.541 | 21901785.143 | 5023343.541 | -0.0 | -0.0 | 0.0 |
| 5023343.541 | 5023343.541 | 21901785.143 | -0.0 | -0.0 | -0.0 |
| -3625.808 | -6315.81 | -6318.123 | 3083677.292 | -0.0 | 0.0 |
| -6315.81 | -3625.808 | -6318.123 | -0.0 | 3083677.292 | 0.0 |
| -6315.81 | -6318.123 | -3625.808 | -0.0 | -0.0 | 3083677.292 |
Cij in GPa:
| 22087280.831 | 5046422.104 | 5046422.103 | 0.0 | 0.0 | 0.0 |
| 5046422.104 | 22087280.831 | 5046422.103 | 0.0 | 0.0 | 0.0 |
| 5046422.104 | 5046422.104 | 22087280.831 | 0.0 | 0.0 | 0.0 |
| 3625.808 | 6315.81 | 6318.123 | 3083677.292 | 0.0 | 0.0 |
| 6315.81 | 3625.808 | 6318.123 | 0.0 | 3083677.292 | 0.0 |
| 6315.81 | 6318.123 | 3625.808 | 0.0 | 0.0 | 3083677.292 |
strain:
Cij in GPa:
| 4.366 | 4.366 | 4.366 | -0.0 | 0.0 | -0.0 |
| 4.366 | 4.366 | 4.366 | 0.0 | -0.0 | -0.0 |
| 4.366 | 4.366 | 4.366 | -0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 1.734 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 1.734 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 1.734 |
Cij in GPa:
| 4.366 | 4.366 | 4.366 | 0.0 | -0.0 | 0.0 |
| 4.366 | 4.366 | 4.366 | -0.0 | 0.0 | 0.0 |
| 4.366 | 4.366 | 4.366 | 0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 1.734 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 1.734 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 1.734 |
Cij in GPa:
| 4.367 | 4.367 | 4.367 | -0.0 | 0.0 | -0.0 |
| 4.367 | 4.367 | 4.367 | 0.0 | -0.0 | -0.0 |
| 4.367 | 4.367 | 4.367 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.273 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 0.273 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 0.273 |
Cij in GPa:
| 4.365 | 4.365 | 4.365 | 0.0 | -0.0 | 0.0 |
| 4.365 | 4.365 | 4.365 | -0.0 | 0.0 | 0.0 |
| 4.365 | 4.365 | 4.365 | 0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.273 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.273 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 0.273 |
Cij in GPa:
| 4.377 | 4.377 | 4.377 | -0.0 | 0.0 | -0.0 |
| 4.377 | 4.377 | 4.377 | 0.0 | -0.0 | -0.0 |
| 4.377 | 4.377 | 4.377 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.017 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.017 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 0.017 |
Cij in GPa:
| 4.356 | 4.355 | 4.355 | 0.0 | -0.0 | -0.0 |
| 4.355 | 4.356 | 4.355 | -0.0 | 0.0 | -0.0 |
| 4.355 | 4.355 | 4.356 | 0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.017 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 0.017 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 0.017 |
a0:
strain:
Cij in GPa:
| -480545.911 | -502798.056 | -285578.245 | -142098.013 | 88843.421 | -888770.56 |
| 1074537.64 | 1342929.761 | 660765.109 | 26498.523 | 79088.468 | -1135006.709 |
| 3224375.069 | 3224237.585 | 3251939.22 | 10133.594 | 231551.175 | 250680.388 |
| -1104763.224 | -751257.162 | -407671.719 | -91550.169 | -14198.707 | -1051953.437 |
| 824497.719 | 1127033.2 | 515409.219 | 42221.787 | -95933.683 | -855275.172 |
| 27800.494 | 114055.033 | 61045.934 | -186216.673 | 31359.187 | -1117587.477 |
Cij in GPa:
| -1909100.794 | -2303485.679 | -1097479.173 | 120156.086 | -17656.943 | 1091199.601 |
| 502239.924 | 198783.853 | 143848.504 | 93608.22 | 14886.922 | 1039866.953 |
| -621611.123 | -975257.304 | -402815.364 | 712645.473 | -455076.803 | 838246.754 |
| -1102450.63 | -1408784.386 | -280193.184 | 68448.283 | 48408.526 | -46039.643 |
| 769053.433 | 482649.5 | 287319.245 | 86950.247 | 6683.204 | 1079659.361 |
| -19944.557 | -20121.052 | -5074.952 | -92.381 | -57.533 | 762209.341 |
Cij in GPa:
| -287754.57 | -349212.453 | -153026.864 | -19257.529 | -7942.574 | -66647.945 |
| 667087.068 | 2962832.51 | 687833.337 | -1047.894 | -567.741 | -29934.22 |
| -128637.688 | -94316.424 | -61537.425 | -8970.272 | -1194.472 | -105017.537 |
| 93385.517 | 123920.954 | 59471.201 | -10223.405 | 172.661 | -74706.097 |
| -144732.295 | -112019.707 | -64506.703 | -8652.746 | -1485.407 | -104706.444 |
| 89107.323 | 125369.757 | 53233.781 | -8992.217 | -318.069 | -108797.055 |
Cij in GPa:
| 131896.808 | 96381.798 | 56984.204 | 9271.106 | 1057.433 | 106178.738 |
| 7696.553 | -16652.633 | -58804.965 | 39917.493 | 71.812 | 176551.866 |
| -487805.835 | -512653.379 | 456274.54 | 8377.354 | -2276.742 | 181651.345 |
| -304357.603 | -340192.741 | -156208.786 | 7702.001 | 483.285 | 107416.191 |
| 167413.426 | 134768.407 | 73698.362 | 8951.207 | 1359.636 | 101926.226 |
| -203244.377 | -235860.095 | -108013.671 | 5493.262 | 2870.706 | 101869.447 |
Cij in GPa:
| -324446.624 | -328124.156 | -147281.225 | -1112.046 | -308.45 | -22441.146 |
| -485292.107 | -615739.552 | -234588.737 | -3849.231 | -802.518 | -36744.343 |
| 45255.4 | 42716.311 | 19877.832 | 188.739 | 664.846 | -7503.347 |
| -28436.871 | -25017.587 | -13211.694 | -509.937 | -1274.521 | -9983.519 |
| 62916.444 | 72292.765 | 31628.692 | -4480.171 | -132724.193 | -10131.181 |
| 72498.662 | 77443.824 | 17727.916 | 995.742 | -3041.437 | -113169.881 |
Cij in GPa:
| 256361.508 | -262242.732 | -12902.341 | 1938.528 | 1078.633 | 9762.436 |
| 6577.984 | 2975.946 | 2521.11 | 2536.751 | -500.888 | 5837.363 |
| -13796.634 | -17436.207 | -7954.31 | 977.707 | 174.583 | 9434.444 |
| -25972.657 | -29509.206 | -13144.543 | 4531.909 | 2886.391 | 10551.204 |
| -51861.051 | -49628.611 | -23319.185 | 2295.032 | -18552.071 | 5076.055 |
| 416.297 | -3002.23 | -1299.166 | 661.842 | -237.406 | 8972.345 |
Prototype:
a0:
strain:
Cij in GPa:
| 22288049.926 | 5102222.438 | 5102222.477 | 0.011 | 0.012 | -0.002 |
| 5102222.438 | 22288049.926 | 5102222.477 | 0.012 | 0.011 | -0.002 |
| 5102222.447 | 5102222.447 | 22288049.906 | 0.008 | 0.008 | -0.0 |
| -35.127 | -63.765 | -63.75 | 3156840.854 | -0.003 | -0.003 |
| -63.765 | -35.126 | -63.75 | -0.003 | 3156840.852 | -0.004 |
| -63.765 | -63.811 | -35.08 | -0.002 | 0.007 | 3156840.874 |
Cij in GPa:
| 22289904.785 | 5102453.234 | 5102453.211 | -0.016 | -0.015 | 0.003 |
| 5102453.234 | 22289904.785 | 5102453.211 | -0.015 | -0.016 | 0.003 |
| 5102453.211 | 5102453.211 | 22289904.741 | -0.016 | -0.016 | 0.002 |
| 35.112 | 63.756 | 63.739 | 3156841.159 | -0.001 | 0.003 |
| 63.756 | 35.113 | 63.739 | -0.001 | 3156841.159 | 0.003 |
| 63.769 | 63.816 | 35.088 | -0.001 | -0.006 | 3156841.178 |
Cij in GPa:
| 22279702.727 | 5101183.968 | 5101183.973 | 0.0 | 0.0 | -0.0 |
| 5101183.968 | 22279702.727 | 5101183.973 | 0.0 | 0.0 | -0.0 |
| 5101183.971 | 5101183.971 | 22279702.735 | 0.0 | 0.0 | -0.0 |
| -353.243 | -636.343 | -636.566 | 3150652.209 | 0.001 | -0.001 |
| -636.343 | -353.243 | -636.566 | 0.001 | 3150652.209 | -0.001 |
| -636.342 | -636.572 | -353.236 | 0.001 | 0.0 | 3150652.208 |
Cij in GPa:
| 22298252.217 | 5103491.803 | 5103491.8 | -0.001 | 0.0 | 0.0 |
| 5103491.803 | 22298252.217 | 5103491.8 | 0.0 | -0.001 | 0.0 |
| 5103491.802 | 5103491.802 | 22298252.216 | -0.001 | -0.001 | 0.0 |
| 353.244 | 636.344 | 636.566 | 3150652.209 | -0.001 | 0.0 |
| 636.344 | 353.244 | 636.566 | -0.001 | 3150652.209 | 0.0 |
| 636.342 | 636.572 | 353.236 | -0.001 | -0.001 | 3150652.209 |
Cij in GPa:
| 22196229.946 | 5090798.717 | 5090798.717 | 0.0 | 0.0 | -0.0 |
| 5090798.717 | 22196229.946 | 5090798.717 | 0.0 | 0.0 | -0.0 |
| 5090798.717 | 5090798.717 | 22196229.947 | 0.0 | 0.0 | -0.0 |
| -3624.96 | -6316.317 | -6318.66 | 3125092.506 | -0.0 | -0.0 |
| -6316.317 | -3624.96 | -6318.66 | -0.0 | 3125092.506 | -0.0 |
| -6316.317 | -6318.66 | -3624.959 | -0.0 | 0.0 | 3125092.507 |
Cij in GPa:
| 22381724.87 | 5113877.004 | 5113877.004 | -0.0 | -0.0 | 0.0 |
| 5113877.004 | 22381724.87 | 5113877.004 | -0.0 | -0.0 | 0.0 |
| 5113877.004 | 5113877.004 | 22381724.871 | 0.0 | 0.0 | 0.0 |
| 3624.96 | 6316.317 | 6318.66 | 3125092.511 | 0.0 | 0.0 |
| 6316.317 | 3624.96 | 6318.66 | 0.0 | 3125092.511 | 0.0 |
| 6316.317 | 6318.66 | 3624.959 | 0.0 | -0.0 | 3125092.511 |
strain:
Cij in GPa:
| 49.593 | 126.152 | 126.152 | -0.0 | -0.0 | 0.0 |
| 126.152 | 49.593 | 126.152 | -0.0 | -0.0 | 0.0 |
| 126.152 | 126.152 | 49.592 | -0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | 9.781 | 0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | 9.782 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 9.782 |
Cij in GPa:
| 49.593 | 126.152 | 126.152 | 0.0 | 0.0 | -0.0 |
| 126.152 | 49.593 | 126.152 | 0.0 | 0.0 | -0.0 |
| 126.152 | 126.152 | 49.593 | 0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | 9.782 | -0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | 9.781 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 9.782 |
Cij in GPa:
| 49.593 | 126.152 | 126.152 | -0.0 | -0.0 | -0.0 |
| 126.152 | 49.593 | 126.152 | 0.0 | -0.0 | -0.0 |
| 126.152 | 126.152 | 49.593 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 52.848 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 52.848 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 52.848 |
Cij in GPa:
| 49.592 | 126.152 | 126.152 | 0.0 | -0.0 | -0.0 |
| 126.152 | 49.592 | 126.152 | -0.0 | 0.0 | 0.0 |
| 126.152 | 126.152 | 49.592 | -0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 52.848 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 52.848 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 52.848 |
Cij in GPa:
| 49.596 | 126.153 | 126.153 | -0.0 | 0.0 | 0.0 |
| 126.153 | 49.596 | 126.153 | -0.0 | -0.0 | -0.0 |
| 126.153 | 126.153 | 49.596 | -0.0 | -0.0 | 0.0 |
| 0.001 | 0.0 | 0.0 | 9.782 | 0.0 | -0.0 |
| 0.0 | 0.001 | 0.0 | 0.0 | 9.782 | 0.0 |
| 0.0 | 0.0 | 0.001 | -0.0 | -0.0 | 9.782 |
Cij in GPa:
| 49.59 | 126.152 | 126.152 | 0.0 | 0.0 | -0.0 |
| 126.152 | 49.59 | 126.152 | 0.0 | -0.0 | -0.0 |
| 126.152 | 126.152 | 49.59 | 0.0 | -0.0 | -0.0 |
| -0.001 | -0.0 | -0.0 | 9.782 | -0.0 | -0.0 |
| -0.0 | -0.001 | -0.0 | 0.0 | 9.782 | -0.0 |
| -0.0 | -0.0 | -0.001 | 0.0 | 0.0 | 9.782 |
Prototype:
a0:
strain:
Cij in GPa:
| 2445633.204 | 1394563.677 | 1394563.671 | -0.005 | -0.015 | -0.0 |
| 1394563.676 | 2445633.205 | 1394563.673 | -0.001 | -0.009 | 0.001 |
| 1394563.68 | 1394563.676 | 2445633.189 | -0.005 | -0.009 | 0.001 |
| 9.841 | 27.395 | 27.396 | 910954.678 | -0.007 | 0.0 |
| 27.395 | 9.843 | 27.393 | -0.008 | 910954.662 | 0.001 |
| 27.394 | 27.401 | 9.831 | -0.005 | -0.003 | 910954.533 |
Cij in GPa:
| 2445473.106 | 1394474.178 | 1394474.195 | 0.005 | 0.012 | -0.001 |
| 1394474.184 | 2445473.104 | 1394474.192 | 0.008 | 0.01 | -0.001 |
| 1394474.183 | 1394474.186 | 2445473.112 | 0.005 | 0.009 | -0.0 |
| -9.844 | -27.395 | -27.394 | 910954.68 | 0.007 | -0.001 |
| -27.39 | -9.844 | -27.389 | 0.007 | 910954.656 | -0.001 |
| -27.391 | -27.397 | -9.832 | 0.005 | 0.003 | 910954.497 |
Cij in GPa:
| 2446213.363 | 1395036.599 | 1395036.599 | -0.012 | -0.011 | -0.0 |
| 1395036.604 | 2446213.354 | 1395036.604 | 0.004 | -0.028 | 0.004 |
| 1395036.602 | 1395036.602 | 2446213.358 | -0.01 | -0.027 | 0.0 |
| 1410697323.183 | 443067670.184 | 443067638.852 | -155441582.004 | -0.0 | 0.001 |
| 443067669.834 | 1410697325.236 | 443067638.916 | -0.033 | -155441582.526 | 0.037 |
| 443067669.303 | 443067638.562 | 1410697327.368 | 0.003 | 0.001 | -155441583.236 |
Cij in GPa:
| 2444598.133 | 1394148.685 | 1394148.685 | -0.002 | -0.008 | 0.0 |
| 1394148.685 | 2444598.134 | 1394148.686 | -0.008 | -0.004 | -0.001 |
| 1394148.685 | 1394148.685 | 2444598.134 | -0.003 | -0.004 | 0.001 |
| -1410697323.792 | -443067669.843 | -443067638.541 | -155441582.32 | 0.003 | 0.005 |
| -443067669.71 | -1410697328.306 | -443067638.214 | -0.006 | -155441583.42 | -0.005 |
| -443067670.553 | -443067639.283 | -1410697329.187 | -0.002 | 0.0 | -155441583.065 |
Cij in GPa:
| 348661377.234 | 93101701.405 | 93101701.405 | -0.0 | 0.0 | 0.0 |
| 93101701.376 | 348661377.053 | 93101701.377 | 0.0 | -0.0 | 0.0 |
| 93101701.486 | 93101701.487 | 348661377.755 | 0.0 | -0.0 | 0.0 |
| 141027609.027 | 44313546.909 | 44313517.202 | -14848720.396 | -0.001 | 0.001 |
| 44313546.95 | 141027609.075 | 44313517.272 | 0.0 | -14848720.375 | -0.0 |
| 44313546.966 | 44313517.268 | 141027609.219 | 0.001 | -0.001 | -14848720.402 |
Cij in GPa:
| -159921639.449 | -187410949.505 | -187410949.503 | -0.0 | 0.0 | -0.0 |
| -187410949.361 | -159921639.382 | -187410949.361 | 0.0 | 0.001 | 0.0 |
| -187410949.469 | -187410949.467 | -159921639.432 | -0.0 | 0.0 | -0.0 |
| -141027609.301 | -44313546.932 | -44313517.191 | -14848720.451 | 0.0 | -0.0 |
| -44313546.86 | -141027609.216 | -44313517.148 | -0.0 | -14848720.466 | -0.0 |
| -44313546.994 | -44313517.211 | -141027608.834 | -0.0 | -0.0 | -14848720.328 |
strain:
Cij in GPa:
| 186.376 | 107.455 | 107.455 | 0.0 | -0.0 | 0.0 |
| 107.455 | 186.376 | 107.455 | 0.0 | 0.0 | -0.0 |
| 107.455 | 107.455 | 186.376 | 0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 28.483 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 28.483 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 28.483 |
Cij in GPa:
| 186.376 | 107.455 | 107.455 | -0.0 | 0.0 | -0.0 |
| 107.455 | 186.376 | 107.455 | -0.0 | 0.0 | 0.0 |
| 107.455 | 107.455 | 186.376 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 28.483 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 28.483 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 28.483 |
Cij in GPa:
| 186.376 | 107.455 | 107.455 | 0.0 | 0.0 | -0.0 |
| 107.455 | 186.376 | 107.455 | 0.0 | 0.0 | 0.0 |
| 107.455 | 107.455 | 186.376 | -0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 28.417 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 28.417 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 28.417 |
Cij in GPa:
| 186.377 | 107.455 | 107.455 | -0.0 | 0.0 | -0.0 |
| 107.455 | 186.377 | 107.455 | -0.0 | -0.0 | 0.0 |
| 107.455 | 107.455 | 186.377 | -0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 28.417 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 28.417 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 28.417 |
Cij in GPa:
| 186.372 | 107.451 | 107.451 | 0.0 | 0.0 | 0.0 |
| 107.451 | 186.372 | 107.451 | 0.0 | 0.0 | 0.0 |
| 107.451 | 107.451 | 186.372 | 0.0 | 0.0 | 0.0 |
| -0.0 | -0.001 | -0.001 | 28.483 | 0.0 | 0.0 |
| -0.001 | -0.0 | -0.001 | 0.0 | 28.483 | 0.0 |
| -0.001 | -0.001 | -0.0 | 0.0 | -0.0 | 28.483 |
Cij in GPa:
| 185.699 | 107.8 | 107.8 | -0.0 | 0.0 | 0.0 |
| 107.8 | 185.699 | 107.8 | -0.0 | -0.0 | -0.0 |
| 107.8 | 107.8 | 185.699 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.001 | 0.001 | 28.483 | -0.0 | -0.0 |
| 0.001 | 0.0 | 0.001 | -0.0 | 28.483 | 0.0 |
| 0.001 | 0.001 | 0.0 | -0.0 | -0.0 | 28.483 |
a0:
strain:
Cij in GPa:
| 4326343.753 | 4326288.119 | 4326288.119 | -0.005 | -0.004 | 0.0 |
| 4326288.119 | 4326343.753 | 4326288.119 | -0.004 | -0.005 | 0.0 |
| 4326288.139 | 4326288.139 | 4326343.773 | -0.003 | -0.003 | -0.001 |
| -71.269 | -71.355 | -71.269 | 4326437.156 | -0.004 | -0.0 |
| -71.355 | -71.269 | -71.269 | -0.004 | 4326437.156 | -0.0 |
| -71.354 | -71.268 | -71.268 | -0.005 | -0.001 | 4326437.157 |
Cij in GPa:
| 4326486.331 | 4326430.524 | 4326430.524 | 0.004 | -0.002 | -0.0 |
| 4326430.524 | 4326486.331 | 4326430.524 | -0.002 | 0.004 | -0.0 |
| 4326430.523 | 4326430.523 | 4326486.329 | 0.003 | 0.003 | 0.001 |
| 71.268 | 71.355 | 71.268 | 4326437.161 | 0.004 | -0.0 |
| 71.355 | 71.268 | 71.268 | 0.004 | 4326437.161 | -0.0 |
| 71.355 | 71.269 | 71.269 | 0.003 | 0.004 | 4326437.157 |
Cij in GPa:
| 4325702.049 | 4325647.191 | 4325647.191 | -0.0 | -0.0 | -0.0 |
| 4325647.191 | 4325702.049 | 4325647.191 | -0.0 | -0.0 | -0.0 |
| 4325647.192 | 4325647.192 | 4325702.05 | -0.0 | -0.0 | 0.0 |
| -712.595 | -713.46 | -712.594 | 4326437.17 | -0.0 | 0.0 |
| -713.46 | -712.595 | -712.594 | -0.0 | 4326437.17 | 0.0 |
| -713.46 | -712.594 | -712.595 | -0.0 | -0.0 | 4326437.17 |
Cij in GPa:
| 4327128.1 | 4327071.517 | 4327071.517 | 0.0 | 0.001 | -0.0 |
| 4327071.517 | 4327128.1 | 4327071.517 | 0.001 | 0.0 | -0.0 |
| 4327071.518 | 4327071.518 | 4327128.101 | 0.0 | 0.0 | -0.0 |
| 712.595 | 713.459 | 712.594 | 4326437.171 | 0.0 | -0.0 |
| 713.459 | 712.595 | 712.594 | 0.0 | 4326437.171 | 0.0 |
| 713.459 | 712.594 | 712.595 | 0.0 | 0.0 | 4326437.17 |
Cij in GPa:
| 4319284.821 | 4319237.717 | 4319237.717 | -0.0 | 0.0 | 0.0 |
| 4319237.717 | 4319284.821 | 4319237.717 | 0.0 | -0.0 | 0.0 |
| 4319237.717 | 4319237.717 | 4319284.821 | -0.0 | -0.0 | -0.0 |
| -7125.892 | -7134.594 | -7125.942 | 4326005.328 | -0.0 | -0.0 |
| -7134.594 | -7125.892 | -7125.942 | -0.0 | 4326005.328 | 0.0 |
| -7134.594 | -7125.942 | -7125.892 | -0.0 | -0.0 | 4326005.328 |
Cij in GPa:
| 4333545.341 | 4333480.976 | 4333480.976 | 0.0 | -0.0 | -0.0 |
| 4333480.976 | 4333545.341 | 4333480.976 | -0.0 | 0.0 | -0.0 |
| 4333480.976 | 4333480.976 | 4333545.341 | 0.0 | 0.0 | -0.0 |
| 7125.892 | 7134.594 | 7125.942 | 4326005.331 | 0.0 | 0.0 |
| 7134.594 | 7125.892 | 7125.942 | 0.0 | 4326005.33 | -0.0 |
| 7134.594 | 7125.942 | 7125.892 | 0.0 | 0.0 | 4326005.331 |
strain:
Cij in GPa:
| 22435350.953 | 5135961.714 | 5135961.749 | 0.0 | 0.009 | -0.002 |
| 5135961.714 | 22435350.953 | 5135961.749 | 0.009 | 0.0 | -0.002 |
| 5135961.699 | 5135961.699 | 22435350.899 | 0.002 | 0.002 | -0.004 |
| -35.129 | -63.734 | -63.794 | 3176522.793 | -0.0 | -0.005 |
| -63.734 | -35.129 | -63.794 | -0.0 | 3176522.793 | -0.005 |
| -63.721 | -63.741 | -35.142 | -0.008 | -0.01 | 3176522.795 |
Cij in GPa:
| 22437205.866 | 5136192.437 | 5136192.47 | -0.003 | 0.008 | 0.002 |
| 5136192.437 | 22437205.866 | 5136192.47 | 0.008 | -0.003 | 0.002 |
| 5136192.422 | 5136192.422 | 22437205.836 | -0.001 | -0.001 | -0.001 |
| 35.117 | 63.716 | 63.786 | 3176522.793 | 0.003 | 0.003 |
| 63.716 | 35.117 | 63.786 | 0.003 | 3176522.791 | 0.003 |
| 63.71 | 63.74 | 35.141 | 0.012 | 0.002 | 3176522.799 |
Cij in GPa:
| 22427003.582 | 5134923.144 | 5134923.149 | -0.001 | -0.0 | -0.0 |
| 5134923.144 | 22427003.582 | 5134923.149 | -0.0 | -0.001 | -0.0 |
| 5134923.143 | 5134923.143 | 22427003.577 | -0.0 | -0.0 | -0.001 |
| -362.596 | -631.579 | -631.822 | 3145511.937 | -0.001 | -0.0 |
| -631.579 | -362.596 | -631.822 | -0.001 | 3145511.937 | -0.0 |
| -631.579 | -631.818 | -362.605 | -0.0 | 0.001 | 3145511.938 |
Cij in GPa:
| 22445553.029 | 5137230.949 | 5137230.945 | -0.0 | 0.001 | 0.0 |
| 5137230.949 | 22445553.029 | 5137230.945 | 0.001 | -0.0 | 0.0 |
| 5137230.952 | 5137230.952 | 22445553.036 | 0.0 | 0.0 | 0.0 |
| 362.596 | 631.578 | 631.823 | 3145511.935 | 0.001 | 0.0 |
| 631.578 | 362.596 | 631.823 | 0.001 | 3145511.935 | 0.0 |
| 631.579 | 631.817 | 362.605 | 0.0 | -0.001 | 3145511.938 |
Cij in GPa:
| 22343530.976 | 5124537.959 | 5124537.959 | -0.0 | 0.0 | -0.0 |
| 5124537.959 | 22343530.976 | 5124537.959 | 0.0 | -0.0 | -0.0 |
| 5124537.959 | 5124537.959 | 22343530.975 | -0.0 | -0.0 | -0.0 |
| -3625.823 | -6315.926 | -6318.286 | 3145555.932 | 0.0 | -0.0 |
| -6315.926 | -3625.823 | -6318.286 | 0.0 | 3145555.932 | -0.0 |
| -6315.927 | -6318.286 | -3625.823 | 0.0 | 0.0 | 3145555.932 |
Cij in GPa:
| 22529025.481 | 5147616.073 | 5147616.073 | 0.0 | -0.0 | 0.0 |
| 5147616.073 | 22529025.481 | 5147616.073 | -0.0 | 0.0 | 0.0 |
| 5147616.073 | 5147616.073 | 22529025.481 | 0.0 | 0.0 | 0.0 |
| 3625.823 | 6315.926 | 6318.286 | 3145555.94 | -0.0 | 0.0 |
| 6315.926 | 3625.823 | 6318.286 | -0.0 | 3145555.94 | 0.0 |
| 6315.927 | 6318.286 | 3625.823 | -0.0 | -0.0 | 3145555.939 |
strain:
Cij in GPa:
| 204.032 | 116.574 | 116.574 | -0.0 | -0.0 | 0.0 |
| 116.574 | 204.032 | 116.574 | -0.0 | -0.0 | 0.0 |
| 116.574 | 116.574 | 204.032 | -0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | 32.622 | -0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 32.622 | -0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 32.622 |
Cij in GPa:
| 204.032 | 116.574 | 116.574 | 0.0 | 0.0 | -0.0 |
| 116.574 | 204.032 | 116.574 | 0.0 | 0.0 | -0.0 |
| 116.574 | 116.574 | 204.032 | 0.0 | 0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 32.622 | 0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 32.622 | -0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 32.622 |
Cij in GPa:
| 204.033 | 116.574 | 116.574 | -0.0 | -0.0 | 0.0 |
| 116.574 | 204.033 | 116.574 | -0.0 | -0.0 | 0.0 |
| 116.574 | 116.574 | 204.033 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 32.622 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 32.622 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 32.622 |
Cij in GPa:
| 204.032 | 116.574 | 116.574 | 0.0 | 0.0 | -0.0 |
| 116.574 | 204.032 | 116.574 | 0.0 | 0.0 | -0.0 |
| 116.574 | 116.574 | 204.032 | 0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 32.622 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 32.622 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 32.622 |
Cij in GPa:
| 204.038 | 116.574 | 116.574 | -0.0 | -0.0 | 0.0 |
| 116.574 | 204.038 | 116.574 | -0.0 | -0.0 | 0.0 |
| 116.574 | 116.574 | 204.038 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 32.622 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 32.622 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 32.622 |
Cij in GPa:
| 204.026 | 116.574 | 116.574 | 0.0 | 0.0 | -0.0 |
| 116.574 | 204.026 | 116.574 | 0.0 | 0.0 | -0.0 |
| 116.574 | 116.574 | 204.026 | 0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 32.622 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 32.622 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 32.622 |
strain:
Cij in GPa:
| 4.366 | 4.366 | 4.366 | -0.0 | 0.0 | -0.0 |
| 4.366 | 4.366 | 4.366 | 0.0 | -0.0 | -0.0 |
| 4.366 | 4.366 | 4.366 | -0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 1.734 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 1.734 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 1.734 |
Cij in GPa:
| 4.366 | 4.366 | 4.366 | 0.0 | -0.0 | 0.0 |
| 4.366 | 4.366 | 4.366 | -0.0 | 0.0 | 0.0 |
| 4.366 | 4.366 | 4.366 | 0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 1.734 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 1.734 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 1.734 |
Cij in GPa:
| 4.367 | 4.367 | 4.367 | -0.0 | 0.0 | -0.0 |
| 4.367 | 4.367 | 4.367 | 0.0 | -0.0 | -0.0 |
| 4.367 | 4.367 | 4.367 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.273 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 0.273 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 0.273 |
Cij in GPa:
| 4.365 | 4.365 | 4.365 | 0.0 | -0.0 | 0.0 |
| 4.365 | 4.365 | 4.365 | -0.0 | 0.0 | 0.0 |
| 4.365 | 4.365 | 4.365 | 0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.273 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.273 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 0.273 |
Cij in GPa:
| 4.377 | 4.377 | 4.377 | -0.0 | 0.0 | -0.0 |
| 4.377 | 4.377 | 4.377 | 0.0 | -0.0 | -0.0 |
| 4.377 | 4.377 | 4.377 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.017 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.017 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 0.017 |
Cij in GPa:
| 4.356 | 4.355 | 4.355 | 0.0 | -0.0 | -0.0 |
| 4.355 | 4.356 | 4.355 | -0.0 | 0.0 | -0.0 |
| 4.355 | 4.355 | 4.356 | 0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.017 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 0.017 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 0.017 |
a0:
strain:
Cij in GPa:
| 1877708.492 | 938932.953 | 938932.949 | -0.001 | -0.005 | 0.0 |
| 938932.953 | 1877708.492 | 938932.949 | -0.005 | -0.001 | 0.0 |
| 938932.952 | 938932.952 | 1877708.486 | -0.001 | -0.001 | 0.0 |
| 12.602 | 22.043 | 22.053 | 938819.877 | -0.001 | -0.0 |
| 22.043 | 12.602 | 22.053 | -0.001 | 938819.877 | -0.0 |
| 22.045 | 22.057 | 12.6 | -0.002 | -0.003 | 938819.88 |
Cij in GPa:
| 1877569.838 | 938888.82 | 938888.824 | 0.001 | 0.005 | -0.0 |
| 938888.82 | 1877569.838 | 938888.824 | 0.005 | 0.001 | -0.0 |
| 938888.819 | 938888.819 | 1877569.84 | 0.001 | 0.001 | 0.0 |
| -12.604 | -22.047 | -22.055 | 938819.882 | 0.001 | 0.0 |
| -22.047 | -12.604 | -22.055 | 0.001 | 938819.882 | 0.0 |
| -22.045 | -22.057 | -12.599 | 0.001 | 0.002 | 938819.88 |
Cij in GPa:
| 1878332.553 | 939131.648 | 939131.647 | -0.0 | -0.0 | -0.0 |
| 939131.648 | 1878332.553 | 939131.647 | -0.0 | -0.0 | -0.0 |
| 939131.647 | 939131.647 | 1878332.552 | -0.0 | -0.0 | 0.0 |
| 126.072 | 220.474 | 220.615 | 938819.879 | -0.0 | 0.0 |
| 220.474 | 126.072 | 220.615 | -0.0 | 938819.879 | 0.0 |
| 220.474 | 220.615 | 126.072 | -0.0 | -0.0 | 938819.879 |
Cij in GPa:
| 1876945.802 | 938690.136 | 938690.137 | 0.0 | 0.001 | 0.0 |
| 938690.136 | 1876945.802 | 938690.137 | 0.001 | 0.0 | 0.0 |
| 938690.137 | 938690.137 | 1876945.803 | 0.0 | 0.0 | 0.0 |
| -126.072 | -220.474 | -220.615 | 938819.879 | 0.0 | 0.0 |
| -220.474 | -126.072 | -220.615 | 0.0 | 938819.879 | 0.0 |
| -220.474 | -220.615 | -126.072 | 0.0 | 0.0 | 938819.879 |
Cij in GPa:
| 1884572.939 | 941118.457 | 941118.457 | -0.0 | -0.0 | -0.0 |
| 941118.457 | 1884572.939 | 941118.457 | -0.0 | -0.0 | -0.0 |
| 941118.457 | 941118.457 | 1884572.939 | -0.0 | -0.0 | -0.0 |
| 1260.727 | 2204.747 | 2206.155 | 938819.876 | -0.0 | -0.0 |
| 2204.747 | 1260.727 | 2206.155 | -0.0 | 938819.876 | -0.0 |
| 2204.747 | 2206.155 | 1260.727 | -0.0 | -0.0 | 938819.876 |
Cij in GPa:
| 1870705.414 | 936703.332 | 936703.332 | 0.0 | 0.0 | 0.0 |
| 936703.332 | 1870705.414 | 936703.332 | 0.0 | 0.0 | 0.0 |
| 936703.332 | 936703.332 | 1870705.414 | 0.0 | 0.0 | 0.0 |
| -1260.727 | -2204.747 | -2206.155 | 938819.876 | 0.0 | 0.0 |
| -2204.747 | -1260.727 | -2206.155 | 0.0 | 938819.876 | 0.0 |
| -2204.747 | -2206.155 | -1260.727 | 0.0 | 0.0 | 938819.876 |
strain:
Cij in GPa:
| 88.451 | 131.271 | 131.271 | -0.0 | 0.0 | 0.0 |
| 131.271 | 88.451 | 131.271 | -0.0 | -0.0 | -0.0 |
| 131.271 | 131.271 | 88.451 | -0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 39.093 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 39.093 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 39.093 |
Cij in GPa:
| 88.451 | 131.271 | 131.271 | 0.0 | 0.0 | -0.0 |
| 131.271 | 88.451 | 131.271 | 0.0 | -0.0 | -0.0 |
| 131.271 | 131.271 | 88.451 | 0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 39.093 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 39.093 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 39.093 |
Cij in GPa:
| 88.451 | 131.271 | 131.271 | -0.0 | -0.0 | -0.0 |
| 131.271 | 88.451 | 131.271 | -0.0 | -0.0 | -0.0 |
| 131.271 | 131.271 | 88.451 | -0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 39.093 | -0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 39.093 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 39.093 |
Cij in GPa:
| 88.451 | 131.271 | 131.271 | 0.0 | -0.0 | -0.0 |
| 131.271 | 88.451 | 131.271 | -0.0 | -0.0 | -0.0 |
| 131.271 | 131.271 | 88.451 | 0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 39.093 | 0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 39.093 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 39.093 |
Cij in GPa:
| 88.449 | 131.271 | 131.271 | -0.0 | 0.0 | 0.0 |
| 131.271 | 88.449 | 131.271 | -0.0 | -0.0 | 0.0 |
| 131.271 | 131.271 | 88.449 | -0.0 | -0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | 39.093 | -0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 39.093 | 0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 39.093 |
Cij in GPa:
| 88.453 | 131.271 | 131.271 | 0.0 | -0.0 | -0.0 |
| 131.271 | 88.453 | 131.271 | 0.0 | -0.0 | -0.0 |
| 131.271 | 131.271 | 88.453 | 0.0 | 0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 39.093 | -0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 39.093 | -0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 39.093 |
strain:
Cij in GPa:
| 10.695 | 5.348 | 5.348 | -0.0 | -0.0 | -0.0 |
| 5.348 | 10.695 | 5.348 | -0.0 | -0.0 | -0.0 |
| 5.348 | 5.348 | 10.695 | -0.0 | -0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 5.347 | -0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | 5.347 | -0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 5.347 |
Cij in GPa:
| 10.695 | 5.347 | 5.347 | 0.0 | -0.0 | 0.0 |
| 5.347 | 10.695 | 5.347 | -0.0 | 0.0 | 0.0 |
| 5.347 | 5.347 | 10.695 | 0.0 | 0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | 5.347 | 0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | 5.347 | 0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 5.347 |
Cij in GPa:
| 10.699 | 5.349 | 5.349 | -0.0 | -0.0 | -0.0 |
| 5.349 | 10.699 | 5.349 | -0.0 | -0.0 | -0.0 |
| 5.349 | 5.349 | 10.699 | -0.0 | -0.0 | -0.0 |
| -0.0 | 0.002 | 0.002 | 5.347 | -0.0 | -0.0 |
| 0.002 | -0.0 | 0.002 | -0.0 | 5.347 | -0.0 |
| 0.002 | 0.002 | -0.0 | -0.0 | -0.0 | 5.347 |
Cij in GPa:
| 10.691 | 5.346 | 5.346 | 0.0 | 0.0 | 0.0 |
| 5.346 | 10.691 | 5.346 | 0.0 | 0.0 | 0.0 |
| 5.346 | 5.346 | 10.691 | 0.0 | 0.0 | 0.0 |
| 0.0 | -0.002 | -0.002 | 5.347 | 0.0 | 0.0 |
| -0.002 | 0.0 | -0.002 | 0.0 | 5.347 | 0.0 |
| -0.002 | -0.002 | 0.0 | 0.0 | 0.0 | 5.347 |
Cij in GPa:
| 10.734 | 5.367 | 5.367 | -0.0 | 0.0 | -0.0 |
| 5.367 | 10.734 | 5.367 | 0.0 | -0.0 | -0.0 |
| 5.367 | 5.367 | 10.734 | -0.0 | -0.0 | -0.0 |
| -0.0 | 0.02 | 0.02 | 5.347 | -0.0 | -0.0 |
| 0.02 | -0.0 | 0.02 | -0.0 | 5.347 | -0.0 |
| 0.02 | 0.02 | -0.0 | -0.0 | -0.0 | 5.347 |
Cij in GPa:
| 10.656 | 5.328 | 5.328 | 0.0 | -0.0 | 0.0 |
| 5.328 | 10.656 | 5.328 | -0.0 | 0.0 | 0.0 |
| 5.328 | 5.328 | 10.656 | 0.0 | 0.0 | 0.0 |
| 0.0 | -0.02 | -0.02 | 5.347 | 0.0 | 0.0 |
| -0.02 | 0.0 | -0.02 | 0.0 | 5.347 | 0.0 |
| -0.02 | -0.02 | 0.0 | 0.0 | 0.0 | 5.347 |
Prototype:
a0:
strain:
Cij in GPa:
| 198.95 | 114.947 | 127.786 | 0.0 | -0.0 | -0.0 |
| 115.234 | 204.936 | 136.308 | 0.0 | -0.0 | -0.0 |
| 260.815 | 389.609 | 500.737 | 0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 43.303 | 0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 32.694 | -0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 18.571 |
Cij in GPa:
| 198.95 | 114.947 | 127.786 | -0.0 | -0.0 | 0.0 |
| -33.25 | -77.193 | -231.562 | 0.0 | 0.0 | 0.0 |
| -19.568 | -146.181 | -208.066 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 43.303 | -0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 32.694 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 18.571 |
Cij in GPa:
| 198.949 | 114.947 | 127.786 | -0.0 | 0.0 | -0.0 |
| 119.703 | 214.902 | 154.239 | -0.0 | 0.0 | -0.0 |
| 128.533 | 136.768 | 166.046 | 0.0 | -0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 43.303 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 32.694 | -0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 18.571 |
Cij in GPa:
| 198.951 | 114.947 | 127.786 | 0.0 | 0.0 | 0.0 |
| 115.234 | 204.936 | 136.307 | -0.0 | -0.0 | 0.0 |
| 128.533 | 136.767 | 166.045 | 0.0 | -0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | 43.303 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 32.694 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 18.571 |
Cij in GPa:
| 198.94 | 114.947 | 127.787 | -0.0 | -0.0 | -0.0 |
| 110.286 | 196.543 | 128.737 | -0.0 | 0.0 | -0.0 |
| 122.03 | 124.401 | 149.895 | -0.0 | -0.0 | -0.0 |
| 2.638 | 5.043 | 6.673 | 40.982 | -0.0 | -0.0 |
| 0.001 | 0.0 | 0.001 | 0.0 | 32.694 | -0.0 |
| -0.0 | -0.001 | 0.0 | 0.0 | 0.0 | 18.571 |
Cij in GPa:
| 198.961 | 114.947 | 127.785 | 0.0 | 0.0 | 0.0 |
| 107.186 | 190.816 | 121.814 | 0.0 | -0.0 | 0.0 |
| 128.532 | 136.766 | 166.04 | -0.0 | -0.0 | 0.0 |
| -2.638 | -5.043 | -6.673 | 40.982 | 0.0 | 0.0 |
| -0.001 | -0.0 | -0.001 | -0.0 | 32.694 | 0.0 |
| 0.0 | 0.001 | -0.0 | -0.0 | -0.0 | 18.571 |
Prototype:
a0:
strain:
Cij in GPa:
| 49.174 | 147.84 | 147.84 | 0.0 | 0.0 | -0.0 |
| 147.84 | 49.174 | 147.84 | 0.0 | 0.0 | -0.0 |
| 147.84 | 147.84 | 49.174 | 0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | 98.377 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 98.377 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 98.377 |
Cij in GPa:
| 49.174 | 147.84 | 147.84 | -0.0 | -0.0 | 0.0 |
| 147.84 | 49.174 | 147.84 | -0.0 | -0.0 | -0.0 |
| 147.84 | 147.84 | 49.174 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | 98.377 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 98.377 | 0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 98.377 |
Cij in GPa:
| 49.174 | 147.84 | 147.84 | 0.0 | 0.0 | -0.0 |
| 147.84 | 49.174 | 147.84 | 0.0 | 0.0 | -0.0 |
| 147.84 | 147.84 | 49.174 | 0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 98.785 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 98.785 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 98.785 |
Cij in GPa:
| 49.174 | 147.84 | 147.84 | -0.0 | -0.0 | -0.0 |
| 147.84 | 49.174 | 147.84 | -0.0 | -0.0 | 0.0 |
| 147.84 | 147.84 | 49.174 | -0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 98.785 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 98.785 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 98.785 |
Cij in GPa:
| 49.174 | 147.84 | 147.84 | 0.0 | 0.0 | -0.0 |
| 147.84 | 49.174 | 147.84 | 0.0 | 0.0 | -0.0 |
| 147.84 | 147.84 | 49.174 | 0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 98.377 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 98.377 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 98.377 |
Cij in GPa:
| 49.175 | 147.839 | 147.839 | -0.0 | -0.0 | -0.0 |
| 147.839 | 49.175 | 147.839 | -0.0 | -0.0 | 0.0 |
| 147.839 | 147.839 | 49.175 | -0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 98.377 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 98.377 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 98.377 |
strain:
Cij in GPa:
| 147979.143 | 33947.165 | 33947.165 | -0.0 | -0.0 | -0.0 |
| 33947.165 | 147979.143 | 33947.165 | -0.0 | -0.0 | -0.0 |
| 33947.165 | 33947.165 | 147979.143 | -0.0 | -0.0 | -0.0 |
| -0.434 | -1.463 | -1.463 | 33884.017 | -0.0 | -0.0 |
| -1.463 | -0.434 | -1.463 | 0.0 | 33884.017 | -0.0 |
| -1.463 | -1.463 | -0.434 | 0.0 | -0.0 | 33884.018 |
Cij in GPa:
| 148002.637 | 33950.089 | 33950.088 | 0.0 | 0.0 | 0.0 |
| 33950.089 | 148002.637 | 33950.088 | 0.0 | 0.0 | 0.0 |
| 33950.089 | 33950.089 | 148002.636 | 0.0 | 0.0 | -0.0 |
| 0.434 | 1.463 | 1.463 | 33884.018 | 0.0 | 0.0 |
| 1.463 | 0.434 | 1.463 | 0.0 | 33884.018 | 0.0 |
| 1.463 | 1.463 | 0.434 | -0.0 | 0.0 | 33884.018 |
Cij in GPa:
| 147873.421 | 33934.008 | 33934.008 | -0.0 | 0.0 | -0.0 |
| 33934.008 | 147873.421 | 33934.008 | 0.0 | -0.0 | 0.0 |
| 33934.008 | 33934.008 | 147873.422 | -0.0 | -0.0 | -0.0 |
| -4.56 | -8.01 | -8.012 | 20820.028 | -0.0 | -0.0 |
| -8.01 | -4.56 | -8.012 | -0.0 | 20820.028 | -0.0 |
| -8.01 | -8.012 | -4.56 | -0.0 | -0.0 | 20820.028 |
Cij in GPa:
| 148108.36 | 33963.246 | 33963.246 | 0.0 | 0.0 | -0.0 |
| 33963.246 | 148108.36 | 33963.246 | 0.0 | 0.0 | -0.0 |
| 33963.246 | 33963.246 | 148108.36 | 0.0 | 0.0 | 0.0 |
| 4.56 | 8.01 | 8.012 | 20820.028 | 0.0 | -0.0 |
| 8.01 | 4.56 | 8.012 | 0.0 | 20820.028 | -0.0 |
| 8.01 | 8.012 | 4.56 | 0.0 | 0.0 | 20820.028 |
Cij in GPa:
| 146816.196 | 33802.438 | 33802.438 | -0.0 | -0.0 | -0.0 |
| 33802.438 | 146816.196 | 33802.438 | -0.0 | -0.0 | -0.0 |
| 33802.438 | 33802.438 | 146816.196 | -0.0 | -0.0 | -0.0 |
| -45.718 | -80.043 | -80.058 | 20803.155 | -0.0 | 0.0 |
| -80.043 | -45.718 | -80.058 | -0.0 | 20803.155 | 0.0 |
| -80.043 | -80.058 | -45.718 | -0.0 | -0.0 | 20803.155 |
Cij in GPa:
| 149165.583 | 34094.816 | 34094.816 | 0.0 | 0.0 | 0.0 |
| 34094.816 | 149165.583 | 34094.816 | 0.0 | 0.0 | 0.0 |
| 34094.816 | 34094.816 | 149165.583 | 0.0 | 0.0 | -0.0 |
| 45.718 | 80.043 | 80.058 | 20803.155 | 0.0 | 0.0 |
| 80.043 | 45.718 | 80.058 | 0.0 | 20803.155 | 0.0 |
| 80.043 | 80.058 | 45.718 | 0.0 | 0.0 | 20803.155 |
a0:
strain:
Cij in GPa:
| 26.1 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
Cij in GPa:
| 26.1 | -0.0 | -0.0 | -0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -0.0 |
Cij in GPa:
| 26.1 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
Cij in GPa:
| 26.1 | -0.0 | -0.0 | -0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -0.0 |
Cij in GPa:
| 26.101 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
Cij in GPa:
| 26.099 | -0.0 | -0.0 | -0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -0.0 |
a0:
strain:
Cij in GPa:
| 2801.45 | -6257.55 | -1486.917 | -0.0 | 0.0 | -0.0 |
| 153.344 | 322.11 | 109.318 | 0.0 | 0.0 | 0.0 |
| 3240.041 | -5890.107 | -1399.645 | 0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 42.963 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 10.917 | 0.0 |
| 3140.263 | -5988.051 | -1476.851 | -0.0 | 0.0 | 26.272 |
Cij in GPa:
| -2690.422 | 6457.732 | 1591.491 | 0.0 | -0.0 | 0.0 |
| -2682.71 | 6392.17 | 1580.265 | -0.0 | -0.0 | 0.0 |
| 97.926 | 114.451 | 127.831 | -0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | 42.963 | -0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | 10.917 | -0.0 |
| -3140.263 | 5988.051 | 1476.851 | 0.0 | -0.0 | 26.272 |
Cij in GPa:
| 431.175 | -435.322 | -70.751 | -0.0 | 0.0 | -0.0 |
| 473.387 | -454.641 | -64.18 | -0.0 | 0.0 | -0.0 |
| 97.925 | 114.451 | 127.831 | 0.0 | 0.0 | 0.0 |
| 271.614 | -628.988 | -152.29 | 9.366 | 0.0 | -0.0 |
| 275.212 | -637.321 | -154.307 | 0.0 | 5.827 | -0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 76.295 |
Cij in GPa:
| -179.178 | 787.596 | 228.503 | 0.0 | -0.0 | 0.0 |
| -163.14 | 606.753 | 179.384 | 0.0 | -0.0 | -0.0 |
| -220.505 | 673.473 | 215.171 | 0.0 | -0.0 | 0.0 |
| -271.614 | 628.988 | 152.29 | 9.366 | -0.0 | 0.0 |
| -275.212 | 637.321 | 154.307 | -0.0 | 5.827 | 0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 76.295 |
Cij in GPa:
| 177.432 | 151.049 | 90.496 | -0.0 | 0.0 | 0.0 |
| 199.389 | 87.311 | 69.97 | -0.0 | 0.0 | -0.0 |
| 122.389 | 21.033 | 49.842 | 0.0 | 0.0 | -0.0 |
| 17.375 | -40.241 | -9.743 | 21.471 | 0.0 | 0.0 |
| -0.001 | -0.001 | -0.001 | 0.0 | 10.918 | 0.0 |
| -3367464.934 | 2684269.529 | -6960670.845 | 80.872 | 1174.005 | -9248118.32 |
Cij in GPa:
| 89.768 | 223.138 | 89.885 | -0.0 | -0.0 | 0.0 |
| 119.287 | 236.125 | 88.923 | -0.0 | -0.0 | -0.0 |
| 50.886 | 155.878 | 85.448 | -0.0 | -0.0 | 0.0 |
| -17.375 | 40.241 | 9.743 | 21.471 | -0.0 | -0.0 |
| 0.001 | 0.001 | 0.001 | -0.0 | 10.918 | -0.0 |
| 3717113.234 | -2498872.703 | 6932131.628 | -363.234 | 3185.509 | -9316963.004 |
Prototype:
a0:
strain:
Cij in GPa:
| 385.97 | 49.547 | 49.547 | 0.0 | 0.0 | -0.0 |
| 49.547 | 385.97 | 49.547 | 0.0 | 0.0 | -0.0 |
| 49.547 | 49.547 | 385.97 | 0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | -5.404 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -5.404 | -0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -5.404 |
Cij in GPa:
| 385.97 | 49.547 | 49.547 | -0.0 | -0.0 | -0.0 |
| 49.547 | 385.97 | 49.547 | -0.0 | -0.0 | 0.0 |
| 49.547 | 49.547 | 385.97 | -0.0 | -0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | -5.404 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -5.404 | 0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | -0.0 | -5.404 |
Cij in GPa:
| 385.97 | 49.547 | 49.547 | 0.0 | 0.0 | 0.0 |
| 49.547 | 385.97 | 49.547 | 0.0 | 0.0 | -0.0 |
| 49.547 | 49.547 | 385.97 | 0.0 | 0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | -5.404 | 0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | -5.404 | -0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | 0.0 | -5.404 |
Cij in GPa:
| 385.969 | 49.547 | 49.547 | -0.0 | -0.0 | -0.0 |
| 49.547 | 385.969 | 49.547 | -0.0 | -0.0 | 0.0 |
| 49.547 | 49.547 | 385.969 | -0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | -5.404 | -0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | -5.404 | 0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | -0.0 | -5.404 |
Cij in GPa:
| 385.972 | 49.547 | 49.547 | -0.0 | 0.0 | -0.0 |
| 49.547 | 385.972 | 49.547 | 0.0 | 0.0 | 0.0 |
| 49.547 | 49.547 | 385.972 | 0.0 | 0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -5.404 | 0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | -5.404 | -0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | 0.0 | -5.404 |
Cij in GPa:
| 385.967 | 49.548 | 49.548 | -0.0 | -0.0 | 0.0 |
| 49.548 | 385.967 | 49.548 | -0.0 | -0.0 | 0.0 |
| 49.548 | 49.548 | 385.967 | -0.0 | -0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | -5.404 | -0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | -5.404 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -0.0 | -5.404 |
a0:
strain:
Cij in GPa:
| 175.131 | 188.283 | 188.283 | 0.0 | -0.0 | 0.0 |
| 188.283 | 175.131 | 188.283 | 0.0 | -0.0 | -0.0 |
| 188.283 | 188.283 | 175.131 | 0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 132.655 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 132.655 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 132.655 |
Cij in GPa:
| 175.131 | 188.283 | 188.283 | 0.0 | 0.0 | 0.0 |
| 188.283 | 175.131 | 188.283 | -0.0 | 0.0 | 0.0 |
| 188.283 | 188.283 | 175.131 | -0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 132.655 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 132.655 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 132.655 |
Cij in GPa:
| 175.131 | 188.283 | 188.283 | 0.0 | -0.0 | -0.0 |
| 188.283 | 175.131 | 188.283 | 0.0 | -0.0 | 0.0 |
| 188.283 | 188.283 | 175.131 | 0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 132.655 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 132.655 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 132.655 |
Cij in GPa:
| 175.131 | 188.283 | 188.283 | -0.0 | 0.0 | 0.0 |
| 188.283 | 175.131 | 188.283 | -0.0 | 0.0 | 0.0 |
| 188.283 | 188.283 | 175.131 | -0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 132.655 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 132.655 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 132.655 |
Cij in GPa:
| 175.132 | 188.284 | 188.284 | 0.0 | -0.0 | -0.0 |
| 188.284 | 175.132 | 188.284 | 0.0 | -0.0 | -0.0 |
| 188.284 | 188.284 | 175.132 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.001 | 132.655 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.001 | 0.0 | 132.655 | 0.0 |
| 0.0 | 0.001 | 0.0 | 0.0 | -0.0 | 132.655 |
Cij in GPa:
| 175.131 | 188.282 | 188.282 | -0.0 | -0.0 | 0.0 |
| 188.282 | 175.131 | 188.282 | 0.0 | 0.0 | 0.0 |
| 188.282 | 188.282 | 175.131 | -0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.001 | 132.655 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.001 | 0.0 | 132.655 | -0.0 |
| -0.0 | -0.001 | -0.0 | -0.0 | -0.0 | 132.655 |
a0:
strain:
Cij in GPa:
| 42438.248 | 42563.659 | 42563.659 | 0.0 | 0.0 | 0.0 |
| 42563.659 | 42438.248 | 42563.659 | 0.0 | 0.0 | 0.0 |
| 42563.658 | 42563.658 | 42438.247 | 0.0 | 0.0 | 0.0 |
| 30434203927.044 | 27882437273.535 | 27995356057.394 | 541373610.817 | 103313575.728 | -156403145.931 |
| 28154742364.603 | 30340801525.428 | 28117443042.616 | -61077230.233 | 486367627.745 | -51340884.168 |
| 27897686392.683 | 27843049684.081 | 30001538556.43 | -9754394.351 | -25819736.703 | 348152489.756 |
Cij in GPa:
| 42438.212 | 42563.621 | 42563.621 | -0.0 | -0.0 | -0.0 |
| 42563.621 | 42438.212 | 42563.621 | -0.0 | 0.0 | 0.0 |
| 42563.621 | 42563.621 | 42438.212 | -0.0 | -0.0 | -0.0 |
| -30039868267.422 | -28019742716.435 | -28066465385.758 | 406573147.762 | 45842721.522 | -44996239.811 |
| -27740388988.874 | -30371130567.879 | -27807448333.067 | -27065037.642 | 375332812.423 | -186052551.093 |
| -27840100159.031 | -27824608420.356 | -30385677518.97 | -135489068.579 | -133456349.225 | 441969427.691 |
Cij in GPa:
| 42438.415 | 42563.829 | 42563.829 | -0.0 | 0.0 | -0.0 |
| 42563.829 | 42438.415 | 42563.829 | 0.0 | -0.0 | -0.0 |
| 42563.829 | 42563.829 | 42438.415 | 0.0 | 0.0 | -0.0 |
| 3011887429.708 | 2832670361.941 | 2807883697.191 | 36449053.555 | -7093807.214 | 5442848.121 |
| 2843207328.598 | 3012597245.574 | 2838319486.848 | -2492301.195 | 52774752.288 | 2122020.878 |
| 2815354267.986 | 2825888588.668 | 3039352943.628 | -9632591.981 | 7532941.141 | 47559510.647 |
Cij in GPa:
| 42438.044 | 42563.45 | 42563.45 | 0.0 | -0.0 | -0.0 |
| 42563.45 | 42438.044 | 42563.45 | -0.0 | 0.0 | 0.0 |
| 42563.45 | 42563.45 | 42438.044 | -0.0 | -0.0 | 0.0 |
| -3069176000.824 | -2789609235.299 | -2826937059.051 | 59666039.099 | 8014011.666 | -4738467.856 |
| -2779698897.461 | -3054697834.498 | -2789955724.531 | 1965398.574 | 46240461.359 | 6204812.388 |
| -2804320000.666 | -2795217677.178 | -3028761147.03 | -7144591.146 | -17183521.468 | 35057621.48 |
Cij in GPa:
| 42440.084 | 42565.536 | 42565.536 | 0.0 | 0.0 | 0.0 |
| 42565.536 | 42440.084 | 42565.536 | 0.0 | -0.0 | 0.0 |
| 42565.536 | 42565.536 | 42440.084 | 0.0 | 0.0 | 0.0 |
| 307164890.278 | 276161555.806 | 277311946.416 | 4382636.333 | -421264.956 | 378370.864 |
| 278151448.562 | 308130450.704 | 277541939.374 | 947163.536 | 5113164.817 | -1249304.487 |
| 283493926.426 | 282991623.508 | 305350045.656 | -727278.203 | 1684800.074 | 4855639.098 |
Cij in GPa:
| 42436.376 | 42561.743 | 42561.743 | 0.0 | -0.0 | -0.0 |
| 42561.743 | 42436.376 | 42561.743 | -0.0 | 0.0 | -0.0 |
| 42561.743 | 42561.743 | 42436.376 | -0.0 | 0.0 | 0.0 |
| -302840837.667 | -280418311.658 | -281532737.01 | 3920846.145 | 1530611.572 | 2391919.167 |
| -279216171.133 | -310123427.122 | -277644619.588 | 667387.192 | 5567229.125 | -775093.642 |
| -280976483.116 | -280834027.816 | -305360154.153 | 1020115.236 | 689900.287 | 5785492.922 |
strain:
Cij in GPa:
| 80.006 | 103.136 | 103.136 | -0.0 | -0.0 | -0.0 |
| 103.136 | 80.006 | 103.136 | -0.0 | -0.0 | -0.0 |
| 103.136 | 103.136 | 80.006 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | -33.38 | -0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -33.38 | -0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -0.0 | -33.38 |
Cij in GPa:
| 80.006 | 103.136 | 103.136 | 0.0 | 0.0 | 0.0 |
| 103.136 | 80.006 | 103.136 | 0.0 | 0.0 | 0.0 |
| 103.136 | 103.136 | 80.006 | 0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | -33.38 | 0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | -33.38 | 0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | 0.0 | -33.38 |
Cij in GPa:
| 80.006 | 103.136 | 103.136 | -0.0 | -0.0 | -0.0 |
| 103.136 | 80.006 | 103.136 | -0.0 | -0.0 | -0.0 |
| 103.136 | 103.136 | 80.006 | -0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 56.055 | 0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 56.055 | -0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 56.055 |
Cij in GPa:
| 80.006 | 103.136 | 103.136 | 0.0 | 0.0 | 0.0 |
| 103.136 | 80.006 | 103.136 | 0.0 | 0.0 | 0.0 |
| 103.136 | 103.136 | 80.006 | 0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | 56.055 | -0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | 56.055 | 0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 56.055 |
Cij in GPa:
| 80.007 | 103.137 | 103.137 | -0.0 | -0.0 | -0.0 |
| 103.137 | 80.007 | 103.137 | -0.0 | -0.0 | -0.0 |
| 103.137 | 103.137 | 80.007 | -0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -33.38 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -33.38 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -33.38 |
Cij in GPa:
| 80.006 | 103.136 | 103.136 | 0.0 | 0.0 | 0.0 |
| 103.136 | 80.006 | 103.136 | 0.0 | 0.0 | 0.0 |
| 103.136 | 103.136 | 80.006 | 0.0 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -33.38 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -33.38 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -33.38 |
a0:
strain:
Cij in GPa:
| 252.452 | 109.292 | 190.849 | -0.0 | 0.0 | -0.0 |
| 109.292 | 252.452 | 190.849 | 0.0 | 0.0 | -0.0 |
| 190.849 | 190.849 | 352.025 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 146.025 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 146.025 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 64.628 |
Cij in GPa:
| 252.452 | 109.292 | 190.849 | 0.0 | -0.0 | 0.0 |
| 109.292 | 252.452 | 190.849 | -0.0 | 0.0 | 0.0 |
| 190.849 | 190.849 | 352.025 | 0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 146.025 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 146.025 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 64.628 |
Cij in GPa:
| 252.452 | 109.292 | 190.849 | -0.0 | -0.0 | -0.0 |
| 109.292 | 252.452 | 190.849 | 0.0 | -0.0 | -0.0 |
| 190.849 | 190.849 | 352.025 | -0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 146.025 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 146.025 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 64.628 |
Cij in GPa:
| 252.451 | 109.292 | 190.849 | 0.0 | -0.0 | 0.0 |
| 109.292 | 252.451 | 190.849 | 0.0 | 0.0 | 0.0 |
| 190.849 | 190.849 | 352.025 | -0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 146.025 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 146.025 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 64.628 |
Cij in GPa:
| 252.452 | 109.292 | 190.848 | -0.0 | -0.0 | 0.0 |
| 109.292 | 252.452 | 190.848 | -0.0 | 0.0 | 0.0 |
| 190.848 | 190.848 | 352.023 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.001 | 146.025 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.001 | -0.0 | 146.025 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 64.628 |
Cij in GPa:
| 252.451 | 109.293 | 190.849 | 0.0 | -0.0 | 0.0 |
| 109.293 | 252.451 | 190.849 | -0.0 | -0.0 | 0.0 |
| 190.85 | 190.85 | 352.028 | 0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.001 | 146.025 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.001 | 0.0 | 146.025 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 64.628 |
a0:
strain:
Cij in GPa:
| 148.478 | 106.332 | 129.868 | -0.0 | 0.0 | 0.0 |
| 106.332 | 148.478 | 129.868 | 0.0 | 0.0 | -0.0 |
| 129.868 | 129.868 | 400.053 | -0.0 | 0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 78.931 | 0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | -0.0 | 78.931 | -0.0 |
| -0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 40.056 |
Cij in GPa:
| 148.478 | 106.332 | 129.868 | -0.0 | 0.0 | 0.0 |
| 87.349 | 167.46 | 129.868 | 0.0 | 0.0 | -0.0 |
| 129.868 | 129.868 | 400.053 | 0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 78.931 | -0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | 78.931 | 0.0 |
| 0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 40.056 |
Cij in GPa:
| 148.478 | 106.332 | 129.868 | 0.0 | 0.0 | -0.0 |
| 106.332 | 148.478 | 129.868 | 0.0 | 0.0 | 0.0 |
| 129.868 | 129.868 | 400.053 | 0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 78.931 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 78.931 | -0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 21.073 |
Cij in GPa:
| 148.478 | 106.332 | 129.868 | -0.0 | -0.0 | 0.0 |
| 106.332 | 148.478 | 129.868 | -0.0 | 0.0 | 0.0 |
| 129.868 | 129.868 | 400.053 | -0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 78.931 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 78.931 | 0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 21.073 |
Cij in GPa:
| 148.478 | 106.331 | 129.868 | 0.0 | 0.0 | -0.0 |
| 106.332 | 148.478 | 129.868 | -0.0 | 0.0 | -0.0 |
| 129.869 | 129.869 | 400.055 | -0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 78.931 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 78.931 | -0.0 |
| -0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 40.056 |
Cij in GPa:
| 148.478 | 106.332 | 129.868 | -0.0 | -0.0 | 0.0 |
| 87.349 | 167.46 | 129.868 | 0.0 | 0.0 | 0.0 |
| 129.868 | 129.868 | 400.051 | 0.0 | -0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | 78.931 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 78.931 | 0.0 |
| 0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 40.056 |
a0:
strain:
Cij in GPa:
| 288.812 | 102.108 | 119.69 | 0.0 | 0.0 | 0.0 |
| 102.108 | 225.835 | 171.183 | 0.0 | 0.0 | -0.0 |
| 113.116 | 167.013 | 391.226 | 0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | 105.684 | 0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 54.968 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 85.585 |
Cij in GPa:
| 288.812 | 102.108 | 119.69 | -0.0 | -0.0 | 0.0 |
| 107.941 | 229.41 | 167.129 | 0.0 | -0.0 | -0.0 |
| 113.116 | 167.013 | 391.226 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | 105.684 | -0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 54.968 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 85.585 |
Cij in GPa:
| 288.812 | 102.108 | 119.69 | 0.0 | 0.0 | -0.0 |
| 102.108 | 225.835 | 171.183 | 0.0 | 0.0 | -0.0 |
| 112.83 | 166.972 | 394.929 | 0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 105.644 | -0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | 53.782 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 85.585 |
Cij in GPa:
| 288.812 | 102.108 | 119.69 | -0.0 | 0.0 | 0.0 |
| 107.941 | 229.41 | 167.129 | -0.0 | -0.0 | 0.0 |
| 119.69 | 171.183 | 390.332 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 105.644 | 0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | 53.782 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 85.585 |
Cij in GPa:
| 288.813 | 102.109 | 119.69 | 0.0 | 0.0 | -0.0 |
| 102.108 | 225.836 | 171.183 | 0.0 | 0.0 | 0.0 |
| 113.117 | 167.014 | 391.227 | -0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.001 | 105.644 | -0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | 53.782 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 85.585 |
Cij in GPa:
| 288.811 | 102.108 | 119.689 | -0.0 | 0.0 | 0.0 |
| 102.108 | 225.834 | 171.182 | -0.0 | -0.0 | 0.0 |
| 119.689 | 171.182 | 390.331 | -0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.001 | 105.644 | 0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | 53.782 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 85.585 |
strain:
Cij in GPa:
| 285.078 | 101.373 | 118.092 | -0.0 | 0.0 | 0.0 |
| 101.059 | 234.982 | 172.775 | -0.0 | -0.0 | 0.0 |
| 110.06 | 167.674 | 388.56 | -0.0 | 0.0 | 0.0 |
| -0.153 | -0.106 | -0.222 | 106.701 | -0.0 | 0.0 |
| -0.042 | -0.029 | -0.06 | -0.0 | 52.105 | 0.0 |
| -0.039 | -0.027 | -0.057 | 0.0 | -0.0 | 84.301 |
Cij in GPa:
| 285.29 | 101.511 | 118.179 | -0.0 | -0.0 | -0.0 |
| 107.356 | 238.801 | 168.599 | 0.0 | 0.0 | -0.0 |
| 109.868 | 167.707 | 392.442 | -0.0 | 0.0 | -0.0 |
| 0.153 | 0.106 | 0.222 | 106.701 | 0.0 | -0.0 |
| 0.042 | 0.029 | 0.06 | 0.0 | 52.105 | -0.0 |
| 0.039 | 0.027 | 0.057 | -0.0 | 0.0 | 84.301 |
Cij in GPa:
| 285.174 | 101.435 | 118.131 | -0.0 | 0.0 | 0.0 |
| 101.155 | 235.041 | 172.814 | -0.0 | -0.0 | 0.0 |
| 110.098 | 167.699 | 388.602 | -0.0 | -0.0 | 0.0 |
| 0.01 | 0.008 | 0.046 | 106.642 | 0.0 | 0.0 |
| -0.01 | -0.007 | -0.003 | 0.0 | 50.701 | 0.0 |
| -0.004 | -0.003 | -0.006 | -0.0 | -0.0 | 84.301 |
Cij in GPa:
| 285.195 | 101.449 | 118.14 | 0.0 | -0.0 | -0.0 |
| 131.026 | 253.775 | 168.386 | 0.0 | 0.0 | -0.0 |
| 110.106 | 167.705 | 388.611 | 0.0 | 0.0 | -0.0 |
| -0.01 | -0.008 | -0.046 | 106.642 | -0.0 | -0.0 |
| 0.01 | 0.007 | 0.003 | 0.0 | 50.701 | -0.0 |
| 0.004 | 0.003 | 0.006 | 0.0 | 0.0 | 84.301 |
Cij in GPa:
| 285.184 | 101.442 | 118.135 | -0.0 | 0.0 | 0.0 |
| 101.164 | 235.021 | 172.818 | -0.0 | -0.0 | 0.0 |
| 117.179 | 172.139 | 387.555 | -0.0 | 0.0 | 0.0 |
| 0.001 | 0.001 | 0.005 | 106.642 | 0.0 | 0.0 |
| -0.001 | -0.001 | -0.0 | 0.0 | 50.701 | 0.0 |
| -0.0 | -0.0 | -0.001 | -0.0 | -0.0 | 84.301 |
Cij in GPa:
| 285.185 | 101.443 | 118.136 | 0.0 | 0.0 | -0.0 |
| 101.166 | 235.081 | 172.818 | -0.0 | -0.0 | -0.0 |
| 109.868 | 167.707 | 392.441 | 0.0 | 0.0 | -0.0 |
| -0.001 | -0.001 | -0.005 | 106.642 | -0.0 | -0.0 |
| 0.001 | 0.001 | 0.0 | 0.0 | 50.701 | -0.0 |
| 0.0 | 0.0 | 0.001 | 0.0 | 0.0 | 84.301 |
a0:
strain:
Cij in GPa:
| 160.567 | 80.67 | 47.817 | -0.0 | 0.0 | 0.0 |
| 80.67 | 160.567 | 47.817 | -0.0 | -0.0 | 0.0 |
| 47.817 | 47.817 | 312.971 | -0.0 | 0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | -5.321 | -0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -5.321 | 0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 39.948 |
Cij in GPa:
| 160.567 | 80.67 | 47.817 | -0.0 | 0.0 | -0.0 |
| 132.805 | 108.431 | 47.817 | 0.0 | -0.0 | -0.0 |
| 47.817 | 47.817 | 312.971 | 0.0 | 0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | -5.321 | 0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | -5.321 | -0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 39.948 |
Cij in GPa:
| 160.567 | 80.67 | 47.817 | -0.0 | 0.0 | 0.0 |
| 80.67 | 160.567 | 47.817 | -0.0 | -0.0 | 0.0 |
| 47.817 | 47.817 | 312.971 | 0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | -5.321 | -0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -5.321 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | -12.187 |
Cij in GPa:
| 108.431 | 132.805 | 47.817 | 0.0 | -0.0 | -0.0 |
| 133.905 | 107.331 | 47.817 | 0.0 | 0.0 | 0.0 |
| 47.817 | 47.817 | 312.971 | 0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | -5.321 | 0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | -5.321 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -12.187 |
Cij in GPa:
| 108.431 | 132.805 | 47.817 | 0.0 | 0.0 | 0.0 |
| 132.802 | 108.434 | 47.817 | 0.0 | 0.0 | 0.0 |
| 47.817 | 47.817 | 312.972 | -0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | -5.321 | -0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -5.321 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | -12.187 |
Cij in GPa:
| 108.431 | 132.805 | 47.817 | 0.0 | -0.0 | 0.0 |
| 132.808 | 108.428 | 47.817 | 0.0 | -0.0 | -0.0 |
| 47.817 | 47.817 | 312.971 | 0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | -5.321 | 0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | -5.321 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -12.187 |
a0:
strain:
Cij in GPa:
| 168.354 | 87.223 | 129.673 | -40.417 | 0.0 | 0.0 |
| 87.223 | 168.354 | 129.673 | 40.417 | -0.0 | 0.0 |
| 129.673 | 129.673 | 393.262 | 0.0 | 0.0 | 0.0 |
| -40.417 | 40.417 | -0.0 | 79.571 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 79.571 | -40.417 |
| 0.0 | -0.0 | 0.0 | 0.0 | -40.417 | 40.565 |
Cij in GPa:
| 168.354 | 87.223 | 129.673 | -40.417 | 0.0 | -0.0 |
| 87.223 | 168.354 | 129.673 | 40.417 | -0.0 | -0.0 |
| 129.673 | 129.673 | 393.262 | 0.0 | 0.0 | -0.0 |
| -40.417 | 40.417 | -0.0 | 79.571 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 79.571 | -40.417 |
| -0.0 | 0.0 | -0.0 | 0.0 | -40.417 | 40.565 |
Cij in GPa:
| 168.354 | 87.223 | 129.673 | -40.417 | -0.0 | -0.0 |
| 87.223 | 168.354 | 129.673 | 40.417 | -0.0 | 0.0 |
| 129.673 | 129.673 | 393.262 | 0.0 | -0.0 | 0.0 |
| -40.417 | 40.417 | -0.0 | 79.571 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 79.571 | -40.417 |
| -0.0 | 0.0 | 0.0 | -0.0 | -40.417 | 40.565 |
Cij in GPa:
| 168.354 | 87.223 | 129.673 | -40.417 | 0.0 | -0.0 |
| 87.223 | 168.354 | 129.673 | 40.417 | 0.0 | -0.0 |
| 129.673 | 129.673 | 393.263 | 0.0 | -0.0 | -0.0 |
| -40.417 | 40.417 | 0.0 | 79.571 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 79.571 | -40.417 |
| 0.0 | -0.0 | 0.0 | 0.0 | -40.417 | 40.565 |
Cij in GPa:
| 168.354 | 87.223 | 129.673 | -40.417 | -0.0 | -0.0 |
| 87.223 | 168.354 | 129.673 | 40.417 | -0.0 | 0.0 |
| 129.673 | 129.673 | 393.26 | 0.0 | 0.0 | 0.0 |
| -40.417 | 40.417 | -0.0 | 79.571 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 79.571 | -40.417 |
| -0.0 | 0.0 | -0.0 | -0.0 | -40.417 | 40.565 |
Cij in GPa:
| 168.354 | 87.223 | 129.673 | -40.417 | 0.0 | -0.0 |
| 87.223 | 168.354 | 129.673 | 40.417 | 0.0 | -0.0 |
| 129.673 | 129.673 | 393.265 | 0.0 | -0.0 | 0.0 |
| -40.417 | 40.417 | 0.0 | 79.571 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 79.571 | -40.417 |
| 0.0 | -0.0 | 0.0 | 0.0 | -40.417 | 40.565 |
a0:
strain:
Cij in GPa:
| 394.377 | 170.745 | -97.07 | -0.0 | -0.0 | -0.0 |
| 141.479 | 335.118 | 94.488 | -0.0 | -0.0 | 0.0 |
| 84.994 | 94.489 | 239.742 | -0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 48.723 | 0.0 | 0.0 |
| 167.062 | 47.523 | -171.613 | -0.0 | 42.943 | 0.0 |
| 180.123 | -119.991 | -349.909 | -0.0 | -0.0 | 82.718 |
Cij in GPa:
| 60.252 | 75.706 | 246.171 | 0.0 | -0.0 | -0.0 |
| -43.245 | 236.312 | 239.342 | 0.0 | 0.0 | 0.0 |
| -91.962 | 20.888 | 395.226 | 0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 48.723 | -0.0 | -0.0 |
| -167.062 | -47.523 | 171.613 | 0.0 | 42.943 | -0.0 |
| -180.123 | 119.991 | 349.909 | 0.0 | 0.0 | 82.718 |
Cij in GPa:
| 243.994 | 127.889 | 57.28 | -0.0 | -0.0 | -0.0 |
| 141.479 | 335.118 | 94.489 | -0.0 | -0.0 | 0.0 |
| 84.994 | 94.489 | 239.742 | 0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 48.723 | -0.0 | 0.0 |
| 16.719 | 4.756 | -17.175 | -0.0 | 42.942 | 0.0 |
| 16.66 | 4.739 | -17.114 | -0.0 | -0.0 | 81.852 |
Cij in GPa:
| 195.09 | 122.337 | 100.815 | 0.0 | -0.0 | -0.0 |
| 107.525 | 280.401 | 85.629 | -0.0 | 0.0 | -0.0 |
| 84.994 | 94.489 | 239.742 | 0.0 | -0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 48.723 | 0.0 | 0.0 |
| -16.719 | -4.756 | 17.175 | 0.0 | 42.942 | -0.0 |
| -16.66 | -4.739 | 17.114 | 0.0 | 0.0 | 81.852 |
Cij in GPa:
| 221.724 | 121.227 | 70.229 | -0.0 | -0.0 | 0.0 |
| 129.0 | 264.766 | 65.132 | -0.0 | -0.0 | 0.0 |
| 76.162 | 68.363 | 222.127 | -0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 48.723 | 0.0 | -0.0 |
| 1.79 | 0.509 | -1.839 | 0.0 | 42.839 | -0.0 |
| -0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 94.541 |
Cij in GPa:
| 216.581 | 123.087 | 77.804 | 0.0 | -0.0 | -0.0 |
| 122.249 | 284.885 | 70.79 | 0.0 | 0.0 | 0.0 |
| 84.994 | 94.488 | 239.741 | -0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 48.723 | 0.0 | -0.0 |
| -1.79 | -0.509 | 1.839 | 0.0 | 42.839 | -0.0 |
| 0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 94.541 |
strain:
Cij in GPa:
| 562.339 | 1213.305 | 452.29 | -0.0 | -0.0 | 0.0 |
| 493.974 | 1366.921 | 443.708 | -0.0 | 0.0 | 0.0 |
| 436.835 | 1147.063 | 571.127 | -0.0 | 0.0 | 0.0 |
| 171.744 | 1957.184 | 634.626 | 24.227 | 0.0 | 0.0 |
| 361.742 | 1076.998 | 377.342 | -0.0 | 40.813 | 0.0 |
| 361.743 | 1077.003 | 377.344 | -0.0 | 0.0 | 87.643 |
Cij in GPa:
| -161.14 | -940.69 | -302.394 | 0.0 | -0.0 | -0.0 |
| -47.733 | -1702.509 | -581.808 | 0.0 | -0.0 | -0.0 |
| -286.654 | -1006.948 | -183.565 | 0.0 | -0.0 | -0.0 |
| -171.744 | -1957.184 | -634.626 | 24.227 | -0.0 | -0.0 |
| -361.742 | -1076.998 | -377.342 | 0.0 | 40.813 | -0.0 |
| -361.744 | -1077.003 | -377.344 | -0.0 | -0.0 | 87.643 |
Cij in GPa:
| 236.751 | 244.006 | 112.676 | 0.0 | -0.0 | 0.0 |
| 168.572 | 398.09 | 104.281 | -0.0 | -0.0 | 0.0 |
| 35.767 | 317.048 | 269.809 | 0.0 | 0.0 | 0.0 |
| 17.159 | 195.785 | 63.482 | 24.221 | 0.0 | 0.0 |
| 36.176 | 107.705 | 37.736 | 0.0 | 40.813 | 0.0 |
| -32.931 | 242.338 | 78.399 | 0.0 | 0.0 | 77.022 |
Cij in GPa:
| 174.957 | -65.258 | 8.772 | -0.0 | -0.0 | -0.0 |
| 106.7 | 59.007 | -10.662 | 0.0 | -0.0 | -0.0 |
| 80.661 | 84.771 | 201.049 | -0.0 | 0.0 | -0.0 |
| -17.159 | -195.785 | -63.482 | 24.221 | 0.0 | -0.0 |
| -36.176 | -107.705 | -37.736 | -0.0 | 40.813 | -0.0 |
| 32.931 | -242.338 | -78.399 | -0.0 | -0.0 | 77.022 |
Cij in GPa:
| 188.47 | 161.744 | 84.036 | -0.0 | 0.0 | 0.0 |
| 128.543 | 283.671 | 62.949 | -0.0 | 0.0 | 0.0 |
| 80.662 | 84.772 | 201.053 | 0.0 | 0.0 | 0.0 |
| 1.579 | 20.05 | 6.483 | 23.782 | 0.0 | 0.0 |
| 3.635 | 10.823 | 3.793 | 0.0 | 40.812 | 0.0 |
| 3.798 | 11.308 | 3.962 | -0.0 | 0.0 | 87.264 |
Cij in GPa:
| 196.756 | 124.924 | 70.955 | -0.0 | 0.0 | -0.0 |
| 125.881 | 271.616 | 59.52 | 0.0 | -0.0 | -0.0 |
| 71.039 | 58.108 | 189.466 | 0.0 | 0.0 | -0.0 |
| -1.579 | -20.05 | -6.483 | 23.782 | -0.0 | -0.0 |
| -3.635 | -10.823 | -3.793 | 0.0 | 40.812 | -0.0 |
| -3.798 | -11.308 | -3.962 | -0.0 | -0.0 | 87.264 |
a0:
strain:
Cij in GPa:
| 185.838 | -3.825 | 6.728 | -0.0 | 152.848 | 0.0 |
| 84.667 | 254.011 | 98.836 | 0.0 | -0.355 | -0.0 |
| 131.797 | 98.835 | 306.262 | 0.0 | -1.449 | 0.0 |
| -19.235 | -84.993 | -114.534 | 37.498 | 141.433 | -0.124 |
| -0.119 | -0.355 | -1.449 | 0.0 | 79.058 | 0.0 |
| 212.87 | -59.909 | -23.065 | -1.079 | 52.113 | 20.404 |
Cij in GPa:
| 224.031 | 166.136 | 235.592 | 0.0 | -130.269 | -0.0 |
| 84.667 | 254.011 | 98.836 | -0.0 | -0.355 | -0.0 |
| 131.797 | 98.835 | 306.262 | -0.0 | -1.449 | 0.0 |
| 19.235 | 84.993 | 114.534 | 37.498 | -141.433 | -0.124 |
| -0.119 | -0.355 | -1.449 | -0.0 | 79.058 | -0.0 |
| -212.87 | 59.909 | 23.065 | -1.079 | -52.113 | 20.404 |
Cij in GPa:
| 204.903 | 70.331 | 106.304 | -0.0 | 17.938 | 0.0 |
| 84.667 | 254.011 | 98.836 | -0.0 | -0.355 | -0.0 |
| 131.797 | 98.835 | 306.262 | 0.0 | -1.449 | 0.0 |
| 11.003 | -7.886 | -6.808 | 33.563 | 6.427 | -0.624 |
| 11.182 | -10.188 | -9.989 | -0.0 | 65.755 | -0.0 |
| 10.673 | -7.919 | -6.949 | -0.611 | 6.652 | 20.549 |
Cij in GPa:
| 179.346 | 84.345 | 115.597 | 0.0 | 2.65 | -0.0 |
| 84.667 | 254.011 | 98.836 | -0.0 | -0.355 | -0.0 |
| 119.026 | 93.946 | 263.173 | 0.0 | -17.891 | -0.0 |
| -11.003 | 7.886 | 6.808 | 33.563 | -6.427 | -0.624 |
| -0.119 | -0.355 | -1.449 | -0.0 | 79.058 | -0.0 |
| -10.673 | 7.919 | 6.949 | -0.611 | -6.652 | 20.549 |
Cij in GPa:
| 201.551 | 77.485 | 114.613 | -0.0 | 14.644 | 0.0 |
| 79.244 | 224.736 | 78.245 | -0.0 | -1.66 | -0.0 |
| 131.798 | 98.835 | 306.262 | 0.0 | -1.449 | 0.0 |
| -0.0 | 0.0 | -0.0 | 46.148 | 0.0 | -0.416 |
| -0.119 | -0.355 | -1.448 | 0.0 | 79.058 | 0.0 |
| 1.358 | -0.511 | -0.249 | -0.792 | 0.079 | 21.74 |
Cij in GPa:
| 192.268 | 78.187 | 113.355 | -0.0 | 10.644 | 0.0 |
| 78.229 | 224.768 | 78.51 | 0.0 | -1.68 | -0.0 |
| 131.797 | 98.835 | 306.261 | -0.0 | -1.449 | -0.0 |
| 0.0 | -0.0 | 0.0 | 46.148 | -0.0 | -0.416 |
| -3.141 | -0.125 | -0.628 | 0.0 | 55.218 | -0.0 |
| -1.358 | 0.511 | 0.249 | -0.792 | -0.079 | 21.74 |
strain:
Cij in GPa:
| 177.95 | 86.894 | 138.247 | 0.0 | 16.547 | -0.0 |
| 86.287 | 244.973 | 96.857 | 0.0 | -0.09 | -0.0 |
| -1957.888 | -3419.111 | -2991.661 | -0.0 | 112.902 | -0.0 |
| -3256.909 | -5069.189 | -5290.361 | 30.475 | 628.042 | -0.742 |
| -3014.577 | -5073.132 | -4718.696 | -0.0 | 882.396 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.065 | 0.0 | 38.968 |
Cij in GPa:
| 177.95 | 86.894 | 138.247 | -0.0 | 16.547 | 0.0 |
| 2155.798 | 3718.348 | 3328.473 | 0.0 | -113.208 | 0.0 |
| 3445.995 | 4763.071 | 5691.231 | 0.0 | 137.532 | 0.0 |
| 3256.909 | 5069.189 | 5290.361 | 30.475 | -628.042 | -0.742 |
| 2074.36 | 3493.673 | 3243.841 | 0.0 | -42.994 | 0.0 |
| -0.0 | -0.0 | 0.0 | -0.065 | 0.0 | 38.968 |
Cij in GPa:
| -169.956 | -425.262 | -403.258 | -0.0 | 72.096 | -0.0 |
| -127.821 | -125.883 | -242.182 | -0.0 | 11.692 | -0.0 |
| -89.63 | -273.95 | -70.808 | -0.0 | 10.722 | -0.0 |
| -325.753 | -507.003 | -529.139 | 30.474 | 62.807 | -0.742 |
| -209.207 | -350.462 | -326.722 | -0.0 | 81.85 | -0.0 |
| -207.639 | -349.538 | -324.663 | 0.219 | 11.357 | 29.52 |
Cij in GPa:
| 490.993 | 550.838 | 668.796 | 0.0 | 24.04 | 0.0 |
| 410.068 | 682.2 | 619.6 | 0.0 | 11.666 | 0.0 |
| 455.283 | 548.782 | 790.754 | 0.0 | 9.5 | 0.0 |
| 325.753 | 507.003 | 529.139 | 30.474 | -62.807 | -0.742 |
| 0.213 | -0.007 | -1.854 | -0.0 | 82.542 | 0.0 |
| 207.639 | 349.538 | 324.663 | 0.219 | -11.357 | 29.52 |
Cij in GPa:
| 140.595 | 42.19 | 86.977 | -0.0 | 14.116 | -0.0 |
| 58.742 | 188.069 | 49.482 | -0.0 | 1.489 | -0.0 |
| 91.34 | 23.215 | 193.74 | -0.0 | 3.383 | -0.0 |
| -33.168 | -51.501 | -53.903 | 30.327 | 6.309 | -0.761 |
| -22.252 | -35.683 | -34.326 | -0.0 | 71.268 | -0.0 |
| -29.744 | -50.212 | -46.51 | -0.64 | 8.111 | 21.897 |
Cij in GPa:
| 177.947 | 86.894 | 138.247 | -0.0 | 16.547 | 0.0 |
| 101.241 | 259.206 | 115.768 | 0.0 | -0.832 | 0.0 |
| 152.402 | 122.003 | 288.666 | -0.0 | -4.27 | 0.0 |
| 33.168 | 51.501 | 53.903 | 30.327 | -6.309 | -0.761 |
| 19.233 | 34.004 | 30.355 | 0.0 | 69.871 | 0.0 |
| 29.744 | 50.212 | 46.51 | -0.64 | -8.111 | 21.897 |
a0:
strain:
Cij in GPa:
| 295.752 | 113.272 | 102.301 | -0.0 | 0.0 | -0.0 |
| 86.355 | 213.878 | 107.524 | 0.0 | 0.008 | -0.0 |
| 87.807 | 91.191 | 199.471 | 0.0 | 0.004 | -0.0 |
| -9.13 | -15.336 | 4.735 | 34.526 | -0.003 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 56.36 | 0.0 |
| -8.767 | -14.655 | 4.37 | -0.0 | -0.003 | 51.59 |
Cij in GPa:
| 295.752 | 113.272 | 102.301 | 0.0 | -0.0 | 0.0 |
| 114.796 | 276.54 | 102.926 | -0.0 | -0.0 | -0.0 |
| 96.034 | 105.137 | 194.764 | -0.0 | -0.004 | 0.0 |
| 9.13 | 15.336 | -4.735 | 34.526 | 0.003 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 56.36 | 0.0 |
| 8.767 | 14.655 | -4.37 | -0.0 | 0.003 | 51.59 |
Cij in GPa:
| 261.661 | 101.04 | 87.782 | 0.0 | 0.0 | -0.0 |
| 104.193 | 240.492 | 97.2 | 0.0 | 0.0 | -0.0 |
| 98.335 | 107.02 | 180.974 | 0.0 | 0.001 | -0.0 |
| 0.0 | -0.0 | 0.0 | 56.218 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 56.36 | 0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 61.581 |
Cij in GPa:
| 263.827 | 102.968 | 87.527 | -0.0 | -0.0 | 0.0 |
| 100.35 | 235.833 | 102.775 | 0.0 | 0.001 | -0.0 |
| 95.145 | 103.185 | 186.318 | 0.0 | 0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | 56.218 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 56.36 | -0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 61.581 |
Cij in GPa:
| 262.657 | 101.927 | 87.663 | 0.0 | 0.0 | -0.0 |
| 114.796 | 276.541 | 102.926 | -0.0 | 0.0 | -0.0 |
| 105.613 | 104.714 | 229.758 | 0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 56.218 | -0.0 | -0.0 |
| -0.119 | -0.197 | 0.034 | 0.0 | 45.507 | -0.0 |
| -0.085 | -0.138 | 0.034 | 0.0 | 0.0 | 52.397 |
Cij in GPa:
| 295.751 | 113.272 | 102.301 | -0.0 | -0.0 | 0.0 |
| 104.839 | 242.169 | 96.92 | -0.0 | -0.0 | 0.0 |
| 94.25 | 101.798 | 186.544 | 0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | 56.218 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 56.36 | 0.0 |
| 0.085 | 0.138 | -0.034 | -0.0 | -0.0 | 52.397 |
strain:
Cij in GPa:
| 298.699 | 113.161 | 99.969 | 0.0 | -0.0 | 0.0 |
| 113.161 | 281.956 | 123.53 | 0.0 | -0.0 | 0.0 |
| 99.969 | 123.53 | 253.017 | 0.0 | -0.0 | 0.0 |
| 22.684 | -17.606 | -73.679 | 50.746 | -0.0 | 0.0 |
| -8.161 | -35.343 | -54.607 | 0.0 | 39.622 | 0.0 |
| -8.173 | -35.395 | -54.687 | 0.0 | -0.0 | 51.017 |
Cij in GPa:
| 228.746 | 114.405 | 167.068 | -0.0 | 0.0 | -0.0 |
| 51.676 | 225.042 | 202.569 | -0.0 | 0.0 | -0.0 |
| 99.969 | 123.53 | 253.017 | -0.0 | 0.0 | -0.0 |
| -22.684 | 17.606 | 73.679 | 50.746 | 0.0 | -0.0 |
| 8.161 | 35.343 | 54.607 | -0.0 | 39.622 | -0.0 |
| 8.173 | 35.395 | 54.687 | -0.0 | 0.0 | 51.017 |
Cij in GPa:
| 268.524 | 100.918 | 83.088 | 0.0 | -0.0 | 0.0 |
| 113.161 | 281.956 | 123.53 | 0.0 | -0.0 | 0.0 |
| 99.969 | 123.53 | 253.017 | 0.0 | -0.0 | 0.0 |
| 3.522 | 0.216 | -6.977 | 46.768 | -0.0 | 0.0 |
| 4.352 | 1.27 | -6.584 | 0.0 | 38.909 | 0.0 |
| 1.487 | -2.035 | -6.543 | 0.0 | -0.0 | 51.594 |
Cij in GPa:
| 298.699 | 113.161 | 99.969 | -0.0 | 0.0 | -0.0 |
| 113.161 | 281.956 | 123.53 | -0.0 | 0.0 | -0.0 |
| 85.055 | 126.648 | 230.214 | -0.0 | 0.0 | -0.0 |
| -3.522 | -0.216 | 6.977 | 46.768 | 0.0 | -0.0 |
| -4.352 | -1.27 | 6.584 | -0.0 | 38.909 | -0.0 |
| -1.487 | 2.035 | 6.543 | -0.0 | 0.0 | 51.594 |
Cij in GPa:
| 271.077 | 104.755 | 85.155 | 0.0 | 0.0 | 0.0 |
| 105.19 | 250.79 | 119.792 | 0.0 | -0.0 | 0.0 |
| 91.026 | 128.794 | 221.788 | 0.0 | -0.0 | 0.0 |
| 0.499 | 0.156 | -0.694 | 47.022 | -0.0 | 0.0 |
| -0.065 | -0.284 | -0.439 | 0.0 | 41.677 | 0.0 |
| 0.271 | -0.045 | -0.655 | 0.0 | -0.0 | 51.872 |
Cij in GPa:
| 298.698 | 113.161 | 99.969 | -0.0 | -0.0 | -0.0 |
| 97.529 | 240.64 | 129.658 | -0.0 | -0.0 | -0.0 |
| 89.282 | 121.464 | 232.44 | -0.0 | 0.0 | -0.0 |
| -0.499 | -0.156 | 0.694 | 47.022 | 0.0 | -0.0 |
| 0.065 | 0.284 | 0.439 | -0.0 | 41.677 | -0.0 |
| -0.271 | 0.045 | 0.655 | -0.0 | 0.0 | 51.872 |
a0:
strain:
Cij in GPa:
| 284.867 | 96.896 | 104.448 | -0.0 | -0.0 | -0.0 |
| 90.507 | 266.154 | 113.659 | -0.0 | -0.0 | -0.0 |
| 98.846 | 111.321 | 230.259 | -0.0 | -0.0 | -0.0 |
| 8.618 | -0.789 | 14.401 | 57.383 | 0.0 | -0.0 |
| 6.449 | -3.896 | 12.861 | -0.0 | 38.729 | -0.0 |
| 8.655 | -1.588 | 14.693 | 0.0 | 0.0 | 42.941 |
Cij in GPa:
| 284.867 | 96.896 | 104.448 | 0.0 | -0.0 | 0.0 |
| 96.896 | 285.567 | 122.345 | 0.0 | -0.0 | 0.0 |
| 82.442 | 114.3 | 204.179 | 0.0 | 0.0 | 0.0 |
| -8.618 | 0.789 | -14.401 | 57.383 | -0.0 | 0.0 |
| -6.449 | 3.896 | -12.861 | 0.0 | 38.729 | 0.0 |
| -8.655 | 1.588 | -14.693 | 0.0 | 0.0 | 42.941 |
Cij in GPa:
| 284.867 | 96.896 | 104.448 | -0.0 | -0.0 | -0.0 |
| 85.824 | 265.073 | 117.491 | -0.0 | 0.0 | -0.0 |
| 93.758 | 111.292 | 223.156 | -0.0 | -0.0 | -0.0 |
| 0.751 | -0.418 | 1.426 | 51.708 | -0.0 | -0.0 |
| 0.518 | 0.029 | 0.844 | -0.0 | 43.404 | -0.0 |
| 0.809 | -0.129 | 1.368 | -0.0 | 0.0 | 43.204 |
Cij in GPa:
| 284.867 | 96.896 | 104.448 | 0.0 | 0.0 | 0.0 |
| 96.896 | 285.567 | 122.345 | 0.0 | -0.0 | 0.0 |
| 104.448 | 122.344 | 263.177 | 0.0 | -0.0 | 0.0 |
| -0.751 | 0.418 | -1.426 | 51.708 | 0.0 | 0.0 |
| -0.518 | -0.029 | -0.844 | 0.0 | 43.404 | 0.0 |
| -0.809 | 0.129 | -1.368 | 0.0 | -0.0 | 43.204 |
Cij in GPa:
| 264.795 | 88.017 | 91.172 | -0.0 | -0.0 | -0.0 |
| 84.153 | 265.907 | 113.992 | 0.0 | 0.0 | -0.0 |
| 93.257 | 111.123 | 222.036 | -0.0 | -0.0 | -0.0 |
| 0.079 | -0.046 | 0.153 | 51.741 | -0.0 | -0.0 |
| 0.023 | -0.086 | 0.076 | -0.0 | 33.498 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 51.239 |
Cij in GPa:
| 284.866 | 96.896 | 104.448 | 0.0 | -0.0 | 0.0 |
| 84.019 | 266.0 | 113.726 | 0.0 | -0.0 | 0.0 |
| 93.138 | 111.078 | 221.758 | 0.0 | -0.0 | 0.0 |
| -0.079 | 0.046 | -0.153 | 51.741 | 0.0 | 0.0 |
| -0.023 | 0.086 | -0.076 | 0.0 | 33.498 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 51.239 |
strain:
Cij in GPa:
| 271.51 | 71.709 | 108.934 | -0.0 | 0.0 | -0.0 |
| 92.734 | 297.784 | 114.231 | -0.0 | 0.0 | -0.0 |
| 108.676 | 95.459 | 213.935 | -0.0 | 0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 68.116 | 0.0 | -0.0 |
| 25.431 | -4.81 | 24.836 | -0.0 | 40.438 | -0.0 |
| 26.263 | -4.967 | 25.648 | -0.0 | 0.0 | 37.888 |
Cij in GPa:
| 274.978 | 94.628 | 103.448 | -0.0 | -0.0 | 0.0 |
| 92.734 | 297.784 | 114.231 | -0.0 | -0.0 | 0.0 |
| 65.986 | 114.177 | 173.113 | -0.0 | -0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | 68.116 | -0.0 | 0.0 |
| -25.431 | 4.81 | -24.836 | 0.0 | 40.438 | 0.0 |
| -26.263 | 4.967 | -25.648 | 0.0 | -0.0 | 37.888 |
Cij in GPa:
| 255.301 | 84.58 | 89.414 | -0.0 | 0.0 | -0.0 |
| 83.574 | 281.924 | 100.025 | -0.0 | 0.0 | -0.0 |
| 104.214 | 116.89 | 254.399 | 0.0 | 0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 68.116 | 0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | 57.279 | -0.0 |
| 0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 45.679 |
Cij in GPa:
| 274.978 | 94.627 | 103.448 | 0.0 | -0.0 | 0.0 |
| 78.872 | 281.268 | 102.889 | 0.0 | -0.0 | 0.0 |
| 89.65 | 105.904 | 210.259 | 0.0 | -0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | 68.116 | -0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | 57.279 | 0.0 |
| -0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 45.679 |
Cij in GPa:
| 274.98 | 94.628 | 103.449 | -0.0 | 0.0 | -0.0 |
| 82.046 | 283.1 | 98.797 | -0.0 | 0.0 | -0.0 |
| 91.59 | 105.736 | 212.589 | -0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | 68.116 | 0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | 57.279 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 45.679 |
Cij in GPa:
| 274.977 | 94.627 | 103.448 | 0.0 | -0.0 | 0.0 |
| 92.734 | 297.782 | 114.231 | 0.0 | -0.0 | 0.0 |
| 91.26 | 105.782 | 212.232 | 0.0 | -0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | 68.116 | -0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | 57.279 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 45.679 |
a0:
strain:
Cij in GPa:
| -2117.073 | -2537.165 | -1276.529 | 0.0 | 0.0 | 0.0 |
| -2574.593 | -1772.529 | -1725.429 | -0.0 | 0.0 | 0.0 |
| -2563.923 | -1895.214 | -1622.17 | -0.0 | 0.0 | 0.0 |
| -1858.498 | -2582.847 | -764.334 | 50.747 | 0.0 | 0.0 |
| -1705.059 | -2388.261 | -568.354 | 0.0 | 25.764 | 0.0 |
| -2635.934 | -2000.576 | -1820.138 | -0.0 | 0.0 | 24.723 |
Cij in GPa:
| 281.956 | 106.921 | 96.194 | 0.0 | -0.0 | -0.0 |
| 107.356 | 319.367 | 125.019 | 0.0 | 0.0 | -0.0 |
| 96.242 | 124.632 | 237.127 | -0.0 | -0.0 | -0.0 |
| 1858.498 | 2582.847 | 764.334 | 50.747 | 0.0 | -0.0 |
| 1705.059 | 2388.261 | 568.354 | 0.0 | 25.764 | -0.0 |
| 2635.934 | 2000.576 | 1820.138 | 0.0 | 0.0 | 24.723 |
Cij in GPa:
| -22.56 | -125.898 | -112.633 | -0.0 | 0.0 | 0.0 |
| -97.203 | 16.036 | 60.727 | 0.0 | 0.0 | 0.0 |
| -168.96 | -144.228 | 58.299 | 0.0 | 0.0 | 0.0 |
| -261.274 | -198.297 | -180.412 | 35.409 | -0.0 | 0.0 |
| -263.744 | -200.172 | -182.118 | 0.0 | 33.162 | 0.0 |
| -260.62 | -197.801 | -179.961 | 0.0 | 0.0 | 25.075 |
Cij in GPa:
| 281.956 | 106.921 | 96.194 | -0.0 | -0.0 | -0.0 |
| 321.999 | 428.231 | 274.635 | 0.0 | -0.0 | -0.0 |
| 96.242 | 124.632 | 237.127 | 0.0 | 0.0 | -0.0 |
| 261.274 | 198.297 | 180.412 | 35.409 | -0.0 | -0.0 |
| 263.744 | 200.172 | 182.118 | -0.0 | 33.162 | -0.0 |
| 260.62 | 197.801 | 179.961 | 0.0 | 0.0 | 25.075 |
Cij in GPa:
| 223.027 | 60.849 | 56.645 | 0.0 | 0.0 | 0.0 |
| 52.019 | 241.436 | 90.236 | -0.0 | -0.0 | 0.0 |
| 49.277 | 88.294 | 187.007 | -0.0 | 0.0 | 0.0 |
| -17.345 | -13.164 | -11.977 | 48.03 | -0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | 46.687 | 0.0 |
| -15.33 | -11.635 | -10.586 | -0.0 | 0.0 | 37.774 |
Cij in GPa:
| 265.407 | 98.35 | 81.35 | 0.0 | -0.0 | -0.0 |
| 98.936 | 287.291 | 123.364 | -0.0 | -0.0 | -0.0 |
| 89.216 | 118.417 | 209.778 | -0.0 | -0.0 | -0.0 |
| 17.345 | 13.164 | 11.977 | 48.03 | -0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | -0.0 | 46.687 | -0.0 |
| 15.33 | 11.635 | 10.586 | -0.0 | -0.0 | 37.774 |
strain:
Cij in GPa:
| -2292.112 | 875.25 | -1933.206 | 0.0 | -0.0 | 0.0 |
| -2466.746 | 1064.17 | -1906.402 | -0.0 | -0.0 | 0.0 |
| -3519.587 | -470.17 | -2792.465 | -0.0 | -0.0 | 0.0 |
| -2540.603 | 790.865 | -2007.981 | 50.689 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 46.658 | 0.0 |
| -3589.611 | -577.616 | -2993.703 | -0.0 | -0.0 | 48.196 |
Cij in GPa:
| 2789.182 | -706.429 | 2082.816 | -0.0 | 0.0 | -0.0 |
| 3679.933 | 799.505 | 3434.219 | -0.0 | 0.0 | -0.0 |
| 2614.496 | -680.646 | 2218.097 | -0.0 | 0.0 | -0.0 |
| 2540.603 | -790.865 | 2007.981 | 50.689 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 46.658 | -0.0 |
| 3589.611 | 577.616 | 2993.703 | 0.0 | 0.0 | 48.196 |
Cij in GPa:
| -110.083 | 24.652 | -224.703 | -0.0 | -0.0 | 0.0 |
| -281.151 | 211.904 | -220.72 | -0.0 | -0.0 | -0.0 |
| -240.997 | 123.619 | -128.507 | 0.0 | -0.0 | 0.0 |
| -253.835 | 79.016 | -200.62 | 50.708 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 46.658 | -0.0 |
| -253.604 | 78.944 | -200.438 | 0.0 | -0.0 | 36.953 |
Cij in GPa:
| 280.234 | 106.25 | 96.16 | -0.0 | 0.0 | -0.0 |
| 329.234 | 196.085 | 303.294 | -0.0 | 0.0 | -0.0 |
| 429.083 | 165.386 | 500.657 | 0.0 | 0.0 | -0.0 |
| 253.835 | -79.016 | 200.62 | 50.708 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 46.658 | -0.0 |
| 253.604 | -78.944 | 200.438 | -0.0 | 0.0 | 36.953 |
Cij in GPa:
| 209.543 | 72.314 | 38.793 | -0.0 | -0.0 | 0.0 |
| 43.37 | 265.506 | 77.529 | 0.0 | -0.0 | 0.0 |
| 31.784 | 100.525 | 165.116 | -0.0 | -0.0 | 0.0 |
| -23.808 | 7.411 | -18.817 | 52.025 | -0.0 | -0.0 |
| -26.949 | 8.389 | -21.299 | 0.0 | 38.542 | 0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 54.453 |
Cij in GPa:
| 280.232 | 106.25 | 96.159 | -0.0 | 0.0 | -0.0 |
| 106.251 | 321.123 | 124.02 | 0.0 | 0.0 | -0.0 |
| 105.899 | 112.971 | 230.299 | -0.0 | 0.0 | -0.0 |
| 23.808 | -7.411 | 18.817 | 52.025 | 0.0 | -0.0 |
| 26.949 | -8.389 | 21.299 | -0.0 | 38.542 | 0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 54.453 |
a0:
strain:
Cij in GPa:
| 278.699 | 115.851 | 192.656 | 0.0 | -0.0 | -0.0 |
| 112.355 | 295.483 | 121.01 | -0.0 | -0.0 | -0.0 |
| 96.77 | 122.149 | 270.269 | 0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 72.795 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 48.306 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 60.15 |
Cij in GPa:
| 242.87 | 76.036 | -23.213 | 0.0 | 0.0 | 0.0 |
| 112.355 | 295.483 | 121.01 | 0.0 | 0.0 | -0.0 |
| 96.77 | 122.149 | 270.269 | -0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 72.795 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 48.306 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 60.15 |
Cij in GPa:
| 279.083 | 111.296 | 94.573 | 0.0 | -0.0 | -0.0 |
| 95.719 | 266.619 | 121.049 | 0.0 | -0.0 | -0.0 |
| 85.354 | 111.821 | 261.647 | -0.0 | -0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | 72.795 | -0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | 48.306 | 0.0 |
| -7.636 | -0.098 | 9.137 | 0.0 | -0.0 | 47.06 |
Cij in GPa:
| 258.514 | 93.472 | 72.067 | 0.0 | 0.0 | 0.0 |
| 112.355 | 295.483 | 121.01 | -0.0 | 0.0 | 0.0 |
| 100.64 | 116.48 | 231.629 | -0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | 72.795 | 0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | 48.306 | 0.0 |
| 7.636 | 0.098 | -9.137 | 0.0 | 0.0 | 47.06 |
Cij in GPa:
| 246.769 | 84.139 | 76.259 | 0.0 | -0.0 | -0.0 |
| 87.897 | 254.673 | 105.688 | -0.0 | -0.0 | -0.0 |
| 82.071 | 108.42 | 248.144 | -0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 72.795 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | 0.0 | 48.306 | -0.0 |
| 0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 60.15 |
Cij in GPa:
| 279.082 | 111.296 | 94.573 | 0.0 | 0.0 | 0.0 |
| 112.354 | 295.481 | 121.01 | 0.0 | 0.0 | 0.0 |
| 82.926 | 109.143 | 247.518 | 0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | 72.795 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 48.306 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 60.15 |
strain:
Cij in GPa:
| 280.072 | 110.493 | 93.074 | -0.0 | 0.0 | 0.0 |
| 49.564 | 223.079 | 112.052 | 0.0 | 0.0 | -0.0 |
| 93.075 | 130.759 | 279.193 | 0.0 | 0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | 79.848 | 0.0 | -0.0 |
| -19.764 | -6.621 | 9.669 | 0.0 | 18.288 | -0.0 |
| -19.865 | -6.655 | 9.718 | 0.0 | 0.0 | 40.044 |
Cij in GPa:
| 250.424 | 77.04 | 56.555 | -0.0 | -0.0 | -0.0 |
| 133.035 | 265.122 | 143.84 | 0.0 | -0.0 | -0.0 |
| 93.075 | 130.759 | 279.193 | 0.0 | -0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 79.848 | -0.0 | 0.0 |
| 19.764 | 6.621 | -9.669 | -0.0 | 18.288 | -0.0 |
| 19.865 | 6.655 | -9.718 | 0.0 | -0.0 | 40.044 |
Cij in GPa:
| 280.072 | 110.494 | 93.074 | 0.0 | 0.0 | 0.0 |
| 110.493 | 300.162 | 130.758 | -0.0 | 0.0 | -0.0 |
| 76.417 | 115.723 | 255.361 | 0.0 | 0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | 79.848 | 0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | 44.738 | 0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 59.481 |
Cij in GPa:
| 280.072 | 110.493 | 93.074 | -0.0 | -0.0 | -0.0 |
| 90.23 | 257.896 | 123.642 | 0.0 | 0.0 | 0.0 |
| 80.572 | 118.512 | 258.055 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | 79.848 | -0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 44.738 | -0.0 |
| -0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 59.481 |
Cij in GPa:
| 280.073 | 110.494 | 93.074 | 0.0 | 0.0 | -0.0 |
| 110.493 | 300.163 | 130.758 | -0.0 | 0.0 | -0.0 |
| 79.83 | 118.378 | 258.803 | -0.0 | 0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | 79.848 | 0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | 44.738 | 0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 59.481 |
Cij in GPa:
| 280.071 | 110.493 | 93.073 | -0.0 | -0.0 | -0.0 |
| 86.417 | 258.103 | 121.033 | -0.0 | 0.0 | -0.0 |
| 93.075 | 130.759 | 279.192 | -0.0 | 0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | 79.848 | -0.0 | 0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | 44.738 | -0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 59.481 |
a0:
strain:
Cij in GPa:
| 195.814 | -97.699 | 88.553 | -0.0 | 130.138 | -0.0 |
| 80.252 | 238.479 | 96.412 | -0.0 | -0.785 | -0.0 |
| 87.866 | -44.766 | 205.042 | 0.0 | 122.605 | -0.0 |
| 0.0 | 0.0 | 0.0 | 48.254 | 0.0 | 0.402 |
| -32.233 | -165.852 | -32.544 | 0.0 | 193.133 | -0.0 |
| -0.0 | 0.0 | -0.0 | -0.157 | 0.0 | 36.729 |
Cij in GPa:
| 255.489 | 177.544 | 158.083 | -0.0 | -119.956 | 0.0 |
| 92.469 | 324.486 | 111.098 | -0.0 | -128.667 | 0.0 |
| 135.277 | 96.706 | 319.132 | -0.0 | -10.458 | 0.0 |
| -0.0 | -0.0 | -0.0 | 48.254 | -0.0 | 0.402 |
| 24.725 | 111.712 | 38.862 | 0.0 | -58.747 | 0.0 |
| 0.0 | -0.0 | 0.0 | -0.157 | -0.0 | 36.729 |
Cij in GPa:
| 222.063 | 54.971 | 118.104 | 0.0 | 26.093 | -0.0 |
| 80.252 | 238.479 | 96.413 | -0.0 | -0.785 | -0.0 |
| 135.277 | 96.706 | 319.132 | -0.0 | -10.458 | -0.0 |
| -0.0 | 0.0 | -0.0 | 48.254 | 0.0 | 0.402 |
| -1.169 | -0.226 | -10.458 | -0.0 | 86.268 | -0.0 |
| -2.477 | -10.904 | -4.74 | -0.287 | 13.122 | 34.317 |
Cij in GPa:
| 245.101 | 80.039 | 132.934 | 0.0 | 13.19 | 0.0 |
| 70.039 | 226.972 | 57.634 | 0.0 | -11.027 | 0.0 |
| 135.277 | 96.706 | 319.132 | 0.0 | -10.458 | 0.0 |
| 0.0 | -0.0 | 0.0 | 48.254 | -0.0 | 0.402 |
| 2.199 | 12.723 | -4.222 | 0.0 | 61.255 | 0.0 |
| 2.477 | 10.904 | 4.74 | -0.287 | -13.122 | 34.317 |
Cij in GPa:
| 225.119 | 69.115 | 115.93 | 0.0 | 11.466 | -0.0 |
| 80.253 | 238.481 | 96.413 | 0.0 | -0.785 | -0.0 |
| 113.191 | 59.771 | 242.714 | -0.0 | -11.146 | -0.0 |
| -0.0 | 0.0 | -0.0 | 48.254 | -0.0 | 0.402 |
| -1.169 | -0.226 | -10.457 | -0.0 | 86.268 | -0.0 |
| -0.187 | -1.55 | 0.368 | -0.413 | 1.664 | 34.646 |
Cij in GPa:
| 226.237 | 71.67 | 114.823 | -0.0 | 8.584 | 0.0 |
| 80.252 | 238.478 | 96.412 | 0.0 | -0.785 | 0.0 |
| 117.506 | 61.723 | 236.555 | 0.0 | -13.684 | 0.0 |
| 0.0 | -0.0 | 0.0 | 48.254 | 0.0 | 0.402 |
| -0.071 | 3.067 | -8.528 | 0.0 | 74.555 | 0.0 |
| 0.187 | 1.55 | -0.368 | -0.413 | -1.664 | 34.646 |
strain:
Cij in GPa:
| 572.429 | 1433.734 | 253.521 | -0.0 | -2066.605 | -0.0 |
| 575.639 | 1379.749 | 606.601 | -0.0 | -893.342 | 0.0 |
| 461.045 | 1421.533 | 369.978 | -0.0 | -2089.448 | -0.0 |
| 383.154 | 1117.42 | -445.331 | 27.046 | -2048.054 | -0.458 |
| 349.277 | 1369.87 | 138.233 | -0.0 | -2005.648 | -0.0 |
| 351.979 | 1368.096 | 146.234 | -0.39 | -2077.771 | 34.17 |
Cij in GPa:
| -131.525 | -1302.435 | -38.95 | 0.0 | 2088.885 | 0.0 |
| -438.633 | -947.0 | -478.638 | 0.0 | 895.617 | -0.0 |
| -222.045 | -1043.397 | 737.827 | 0.0 | 2125.121 | 0.0 |
| -383.154 | -1117.42 | 445.331 | 27.046 | 2048.054 | -0.458 |
| -354.686 | -1366.334 | -154.239 | 0.0 | 2149.885 | 0.0 |
| -351.979 | -1368.096 | -146.234 | -0.39 | 2077.771 | 34.17 |
Cij in GPa:
| 279.199 | 187.533 | 167.956 | -0.0 | -79.453 | -0.0 |
| 119.038 | 332.408 | 117.729 | -0.0 | -88.328 | -0.0 |
| 143.769 | 189.082 | 237.107 | -0.0 | -218.632 | -0.0 |
| 24.709 | 113.992 | -43.089 | 35.822 | -204.571 | -0.522 |
| 22.686 | 115.165 | -53.772 | -0.0 | -134.321 | -0.0 |
| 35.184 | 136.771 | 14.611 | -0.39 | -207.735 | 34.171 |
Cij in GPa:
| 188.785 | -38.618 | 172.344 | 0.0 | 225.749 | 0.0 |
| 30.254 | 70.851 | 36.961 | 0.0 | 207.655 | 0.0 |
| 74.687 | -81.694 | 211.535 | 0.0 | 195.32 | 0.0 |
| -24.709 | -113.992 | 43.089 | 35.822 | 204.571 | -0.522 |
| -49.607 | -108.887 | -55.933 | 0.0 | 158.751 | 0.0 |
| -35.184 | -136.771 | -14.611 | -0.39 | 207.735 | 34.171 |
Cij in GPa:
| 242.284 | 80.46 | 135.551 | -0.0 | 14.547 | -0.0 |
| 69.51 | 220.943 | 56.041 | -0.0 | -17.203 | -0.0 |
| 114.981 | 67.954 | 234.379 | -0.0 | -27.949 | -0.0 |
| 2.91 | 12.51 | 0.716 | 28.184 | -20.294 | -0.399 |
| 1.906 | 12.984 | -13.826 | -0.0 | 50.025 | 0.0 |
| 4.999 | 11.467 | 5.349 | -0.448 | -8.817 | 34.726 |
Cij in GPa:
| 242.283 | 80.46 | 135.551 | 0.0 | 14.547 | 0.0 |
| 63.646 | 197.795 | 55.241 | 0.0 | 20.056 | 0.0 |
| 111.561 | 56.392 | 254.46 | 0.0 | 3.879 | 0.0 |
| -2.91 | -12.51 | -0.716 | 28.184 | 20.294 | -0.399 |
| -4.704 | -9.91 | -4.698 | 0.0 | 91.654 | 0.0 |
| -4.999 | -11.467 | -5.349 | -0.448 | 8.817 | 34.726 |
a0:
strain:
Cij in GPa:
| 274.536 | 109.724 | 88.444 | -0.0 | -0.0 | 0.0 |
| 298.813 | 333.215 | 383.969 | 0.0 | -0.0 | -0.0 |
| 88.444 | 130.25 | 269.658 | -0.0 | 0.0 | -0.0 |
| 0.0 | -0.0 | 0.0 | 79.913 | -0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | 42.009 | -0.0 |
| 199.708 | -44.908 | 277.551 | -0.0 | -0.0 | 44.462 |
Cij in GPa:
| 274.536 | 109.724 | 88.444 | -0.0 | -0.0 | 0.0 |
| -100.543 | 320.007 | -146.996 | 0.0 | -0.0 | 0.0 |
| 88.444 | 130.25 | 269.658 | -0.0 | 0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | 79.913 | -0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | 0.0 | 42.009 | -0.0 |
| -199.708 | 44.908 | -277.551 | 0.0 | -0.0 | 44.462 |
Cij in GPa:
| 274.536 | 109.724 | 88.444 | 0.0 | -0.0 | 0.0 |
| 120.193 | 281.643 | 155.513 | -0.0 | -0.0 | -0.0 |
| 88.444 | 130.25 | 269.658 | 0.0 | -0.0 | 0.0 |
| 19.66 | 5.113 | 25.422 | 59.389 | -0.0 | 0.0 |
| 20.124 | -2.453 | 27.555 | -0.0 | 36.679 | -0.0 |
| 20.158 | 5.243 | 26.067 | -0.0 | -0.0 | 47.854 |
Cij in GPa:
| 274.536 | 109.724 | 88.444 | 0.0 | 0.0 | -0.0 |
| 109.724 | 302.749 | 130.25 | -0.0 | -0.0 | -0.0 |
| 88.444 | 130.25 | 269.658 | -0.0 | -0.0 | 0.0 |
| -19.66 | -5.113 | -25.422 | 59.389 | 0.0 | 0.0 |
| -20.124 | 2.453 | -27.555 | 0.0 | 36.679 | -0.0 |
| -20.158 | -5.243 | -26.067 | 0.0 | 0.0 | 47.854 |
Cij in GPa:
| 255.286 | 98.202 | 79.644 | 0.0 | -0.0 | 0.0 |
| 98.734 | 279.045 | 126.298 | -0.0 | -0.0 | 0.0 |
| 88.444 | 130.251 | 269.659 | 0.0 | 0.0 | 0.0 |
| 2.0 | 0.52 | 2.587 | 59.032 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | 42.009 | 0.0 |
| 0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 59.796 |
Cij in GPa:
| 252.039 | 97.59 | 74.871 | -0.0 | -0.0 | 0.0 |
| 91.319 | 271.723 | 131.144 | -0.0 | 0.0 | -0.0 |
| 88.445 | 130.25 | 269.658 | -0.0 | -0.0 | -0.0 |
| -2.0 | -0.52 | -2.587 | 59.032 | 0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | -0.0 | 42.009 | 0.0 |
| -0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 59.796 |
strain:
Cij in GPa:
| 272.926 | 109.24 | 87.308 | -0.0 | 0.0 | 0.0 |
| -1189.787 | -977.857 | -1129.478 | -0.0 | -0.0 | 0.0 |
| -1382.913 | -1067.897 | -934.66 | -0.0 | -0.0 | 0.0 |
| -1055.918 | -1176.951 | -1191.909 | 65.775 | -0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | 39.882 | 0.0 |
| -1055.919 | -1176.952 | -1191.911 | -0.0 | -0.0 | 50.037 |
Cij in GPa:
| 272.926 | 109.24 | 87.308 | 0.0 | 0.0 | -0.0 |
| 1556.096 | 1480.3 | 1315.902 | 0.0 | 0.0 | -0.0 |
| 1366.027 | 1392.775 | 1510.922 | 0.0 | 0.0 | -0.0 |
| 1055.918 | 1176.951 | 1191.909 | 65.775 | 0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 39.882 | -0.0 |
| 1055.919 | 1176.952 | 1191.911 | 0.0 | 0.0 | 50.037 |
Cij in GPa:
| 272.926 | 109.24 | 87.308 | -0.0 | -0.0 | 0.0 |
| 108.467 | 304.949 | 133.99 | -0.0 | -0.0 | 0.0 |
| 86.134 | 133.589 | 270.981 | -0.0 | -0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | 82.404 | -0.0 | 0.0 |
| -105.562 | -117.662 | -119.157 | -0.0 | 34.292 | 0.0 |
| -105.765 | -117.888 | -119.386 | -0.0 | -0.0 | 50.022 |
Cij in GPa:
| 361.262 | 216.341 | 196.081 | 0.0 | 0.0 | -0.0 |
| 205.469 | 406.158 | 248.653 | 0.0 | 0.0 | -0.0 |
| 86.134 | 133.589 | 270.981 | 0.0 | 0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | 82.404 | 0.0 | -0.0 |
| 105.562 | 117.662 | 119.157 | 0.0 | 34.292 | -0.0 |
| 105.765 | 117.888 | 119.386 | 0.0 | 0.0 | 50.022 |
Cij in GPa:
| 243.015 | 85.809 | 63.935 | -0.0 | -0.0 | 0.0 |
| 87.793 | 274.617 | 116.103 | -0.0 | -0.0 | 0.0 |
| 66.138 | 116.263 | 240.589 | -0.0 | -0.0 | 0.0 |
| -14.995 | -13.708 | -13.578 | 57.794 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 39.882 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 59.124 |
Cij in GPa:
| 272.924 | 109.24 | 87.307 | 0.0 | -0.0 | -0.0 |
| 110.691 | 297.798 | 143.7 | 0.0 | 0.0 | -0.0 |
| 86.134 | 133.589 | 270.981 | 0.0 | 0.0 | -0.0 |
| 14.995 | 13.708 | 13.578 | 57.794 | 0.0 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 39.882 | -0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 59.124 |
a0:
strain:
Cij in GPa:
| 246.15 | 125.492 | 88.578 | -0.0 | -0.0 | 0.0 |
| 127.731 | 241.482 | 86.349 | -0.0 | -0.0 | 0.0 |
| 91.158 | 91.158 | 251.731 | -0.0 | -0.0 | 0.0 |
| 0.106 | 0.106 | 0.195 | 30.715 | -0.0 | 0.0 |
| 0.123 | 0.123 | 0.22 | -0.0 | 30.866 | 0.0 |
| 0.1 | 0.1 | 0.179 | -0.0 | -0.0 | 59.84 |
Cij in GPa:
| 246.0 | 125.287 | 88.264 | 0.0 | 0.0 | -0.0 |
| 120.613 | 259.178 | 96.674 | -0.0 | 0.0 | -0.0 |
| 96.674 | 96.674 | 268.045 | -0.0 | 0.0 | -0.0 |
| -0.106 | -0.106 | -0.195 | 30.715 | 0.0 | -0.0 |
| -0.123 | -0.123 | -0.22 | 0.0 | 30.866 | -0.0 |
| -0.1 | -0.1 | -0.179 | 0.0 | 0.0 | 59.84 |
Cij in GPa:
| 246.083 | 125.399 | 88.436 | -0.0 | -0.0 | 0.0 |
| 132.705 | 239.709 | 89.698 | -0.0 | -0.0 | 0.0 |
| 89.416 | 89.416 | 250.06 | -0.0 | -0.0 | 0.0 |
| 0.011 | 0.011 | 0.02 | 30.714 | -0.0 | 0.0 |
| 0.011 | 0.011 | 0.02 | -0.0 | 30.714 | 0.0 |
| 0.015 | 0.015 | 0.028 | -0.0 | -0.0 | 54.033 |
Cij in GPa:
| 239.691 | 132.688 | 89.666 | 0.0 | -0.0 | -0.0 |
| 120.613 | 259.178 | 96.674 | -0.0 | 0.0 | -0.0 |
| 89.399 | 89.399 | 250.028 | 0.0 | 0.0 | -0.0 |
| -0.011 | -0.011 | -0.02 | 30.714 | 0.0 | -0.0 |
| -0.011 | -0.011 | -0.02 | -0.0 | 30.714 | -0.0 |
| -0.015 | -0.015 | -0.028 | 0.0 | 0.0 | 54.033 |
Cij in GPa:
| 246.077 | 125.39 | 88.422 | 0.0 | -0.0 | 0.0 |
| 125.39 | 246.077 | 88.422 | -0.0 | -0.0 | 0.0 |
| 91.072 | 91.072 | 251.553 | -0.0 | -0.0 | 0.0 |
| 0.001 | 0.001 | 0.002 | 30.865 | -0.0 | 0.0 |
| 0.001 | 0.001 | 0.002 | -0.0 | 30.865 | 0.0 |
| 0.001 | 0.001 | 0.001 | -0.0 | -0.0 | 53.53 |
Cij in GPa:
| 259.177 | 120.613 | 96.674 | -0.0 | 0.0 | -0.0 |
| 120.613 | 259.177 | 96.674 | -0.0 | 0.0 | -0.0 |
| 96.674 | 96.674 | 268.043 | 0.0 | 0.0 | -0.0 |
| -0.001 | -0.001 | -0.002 | 30.865 | 0.0 | -0.0 |
| -0.001 | -0.001 | -0.002 | 0.0 | 30.865 | -0.0 |
| -0.001 | -0.001 | -0.001 | 0.0 | 0.0 | 53.53 |
strain:
Cij in GPa:
| 258.744 | 120.535 | 96.784 | -0.0 | -0.0 | -0.0 |
| 120.535 | 258.744 | 96.784 | 0.0 | -0.0 | -0.0 |
| 96.734 | 96.734 | 267.541 | 0.0 | 0.0 | -0.0 |
| 0.825 | 0.825 | 1.599 | 30.872 | 0.0 | -0.0 |
| 0.825 | 0.825 | 1.599 | -0.0 | 30.872 | -0.0 |
| -0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 69.104 |
Cij in GPa:
| 245.071 | 124.601 | 87.32 | 0.0 | -0.0 | 0.0 |
| 124.601 | 245.071 | 87.32 | 0.0 | -0.0 | 0.0 |
| 90.508 | 90.508 | 249.835 | 0.0 | 0.0 | 0.0 |
| -0.825 | -0.825 | -1.599 | 30.872 | -0.0 | 0.0 |
| -0.825 | -0.825 | -1.599 | -0.0 | 30.872 | 0.0 |
| 0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 69.104 |
Cij in GPa:
| 240.999 | 127.539 | 86.355 | -0.0 | 0.0 | -0.0 |
| 120.535 | 258.744 | 96.784 | 0.0 | -0.0 | -0.0 |
| 91.134 | 91.134 | 251.184 | -0.0 | 0.0 | -0.0 |
| 0.071 | 0.071 | 0.136 | 30.669 | 0.0 | -0.0 |
| 0.083 | 0.083 | 0.161 | 0.0 | 30.818 | -0.0 |
| 0.067 | 0.067 | 0.131 | 0.0 | -0.0 | 59.633 |
Cij in GPa:
| 245.515 | 125.213 | 88.342 | 0.0 | 0.0 | 0.0 |
| 120.535 | 258.744 | 96.784 | 0.0 | 0.0 | 0.0 |
| 91.021 | 91.021 | 250.94 | 0.0 | -0.0 | 0.0 |
| -0.071 | -0.071 | -0.136 | 30.669 | -0.0 | 0.0 |
| -0.083 | -0.083 | -0.161 | -0.0 | 30.818 | 0.0 |
| -0.067 | -0.067 | -0.131 | 0.0 | -0.0 | 59.633 |
Cij in GPa:
| 258.745 | 120.535 | 96.784 | -0.0 | -0.0 | -0.0 |
| 125.289 | 245.57 | 88.468 | 0.0 | 0.0 | -0.0 |
| 96.735 | 96.735 | 267.543 | -0.0 | -0.0 | -0.0 |
| 0.008 | 0.008 | 0.016 | 30.818 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 44.668 | -0.0 |
| 0.005 | 0.005 | 0.01 | 0.0 | 0.0 | 53.337 |
Cij in GPa:
| 245.558 | 125.275 | 88.445 | 0.0 | -0.0 | 0.0 |
| 125.275 | 245.558 | 88.445 | -0.0 | -0.0 | 0.0 |
| 96.734 | 96.734 | 267.539 | -0.0 | -0.0 | 0.0 |
| -0.008 | -0.008 | -0.016 | 30.818 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 44.668 | 0.0 |
| -0.005 | -0.005 | -0.01 | -0.0 | -0.0 | 53.337 |
a0:
strain:
Cij in GPa:
| 246.81 | 132.59 | 116.873 | -0.0 | 0.0 | -0.0 |
| 397.1 | 184.102 | 2.659 | -0.0 | -0.0 | -0.0 |
| 350.137 | -28.048 | 286.165 | -0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | 48.558 | 0.0 | 0.0 |
| 289.737 | -53.955 | -133.738 | 0.0 | 42.623 | -0.0 |
| 267.728 | -112.964 | -110.376 | -0.0 | -0.0 | 75.143 |
Cij in GPa:
| -0.956 | 271.814 | 216.039 | 0.0 | 0.0 | 0.0 |
| 132.59 | 328.794 | 103.786 | -0.0 | 0.0 | 0.0 |
| -101.227 | 246.824 | 469.434 | 0.0 | -0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 48.558 | -0.0 | -0.0 |
| -289.737 | 53.955 | 133.738 | 0.0 | 42.623 | 0.0 |
| -267.728 | 112.964 | 110.376 | -0.0 | 0.0 | 75.143 |
Cij in GPa:
| 251.3 | 120.263 | 114.054 | 0.0 | 0.0 | -0.0 |
| 132.59 | 328.794 | 103.786 | -0.0 | -0.0 | -0.0 |
| 116.873 | 103.786 | 382.179 | -0.0 | -0.0 | -0.0 |
| 22.155 | -13.495 | -8.995 | 36.155 | 0.0 | -0.0 |
| 22.556 | -13.739 | -9.158 | 0.0 | 47.558 | -0.0 |
| 20.614 | -12.556 | -8.37 | 0.0 | 0.0 | 66.041 |
Cij in GPa:
| 193.417 | 134.173 | 139.937 | -0.0 | 0.0 | 0.0 |
| 99.492 | 292.26 | 129.35 | -0.0 | 0.0 | 0.0 |
| 116.873 | 103.786 | 382.179 | 0.0 | -0.0 | 0.0 |
| -22.155 | 13.495 | 8.995 | 36.155 | 0.0 | 0.0 |
| -22.556 | 13.739 | 9.158 | 0.0 | 47.558 | 0.0 |
| -20.614 | 12.556 | 8.37 | 0.0 | -0.0 | 66.041 |
Cij in GPa:
| 246.811 | 132.59 | 116.874 | 0.0 | -0.0 | -0.0 |
| 131.527 | 286.519 | 114.517 | -0.0 | -0.0 | 0.0 |
| 129.889 | 115.14 | 374.047 | 0.0 | -0.0 | 0.0 |
| 2.54 | -1.072 | -1.047 | 38.251 | 0.0 | 0.0 |
| 2.948 | -0.198 | -1.461 | -0.0 | 39.007 | -0.0 |
| 3.368 | -0.143 | -1.585 | -0.0 | -0.0 | 69.449 |
Cij in GPa:
| 246.809 | 132.591 | 116.873 | -0.0 | 0.0 | -0.0 |
| 126.857 | 287.334 | 116.767 | 0.0 | 0.0 | -0.0 |
| 123.551 | 115.854 | 377.015 | -0.0 | 0.0 | -0.0 |
| -2.54 | 1.072 | 1.047 | 38.251 | -0.0 | 0.0 |
| -2.948 | 0.198 | 1.461 | -0.0 | 39.007 | 0.0 |
| -3.368 | 0.143 | 1.585 | -0.0 | 0.0 | 69.449 |
strain:
Cij in GPa:
| 175.931 | 136.692 | 101.945 | 0.0 | -0.0 | -0.0 |
| 133.266 | 317.038 | 104.495 | 0.0 | -0.0 | 0.0 |
| 100.279 | 116.424 | 386.071 | 0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 43.897 | -0.0 | 0.0 |
| -2.825 | 4.542 | -1.129 | 0.0 | 31.898 | -0.0 |
| -1.175 | 1.89 | -0.47 | 0.0 | -0.0 | 74.2 |
Cij in GPa:
| 201.912 | 134.892 | 99.129 | -0.0 | 0.0 | -0.0 |
| 133.266 | 317.038 | 104.495 | -0.0 | 0.0 | -0.0 |
| 101.898 | 104.477 | 389.593 | -0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 43.897 | 0.0 | -0.0 |
| 2.825 | -4.542 | 1.129 | -0.0 | 31.898 | 0.0 |
| 1.175 | -1.89 | 0.47 | -0.0 | 0.0 | 74.2 |
Cij in GPa:
| 171.826 | 133.078 | 103.677 | 0.0 | -0.0 | -0.0 |
| 133.267 | 317.039 | 104.495 | 0.0 | -0.0 | -0.0 |
| 101.198 | 110.528 | 387.762 | 0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | 43.897 | -0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | 0.0 | 39.799 | 0.0 |
| -0.186 | 1.031 | -0.28 | 0.0 | -0.0 | 72.148 |
Cij in GPa:
| 165.495 | 127.624 | 105.101 | -0.0 | 0.0 | -0.0 |
| 133.266 | 317.038 | 104.495 | -0.0 | 0.0 | -0.0 |
| 101.863 | 109.243 | 388.146 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | 43.897 | 0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | -0.0 | 39.799 | -0.0 |
| 0.186 | -1.031 | 0.28 | -0.0 | 0.0 | 72.148 |
Cij in GPa:
| 201.913 | 134.892 | 99.13 | 0.0 | -0.0 | 0.0 |
| 129.939 | 282.093 | 112.73 | 0.0 | 0.0 | -0.0 |
| 101.549 | 110.007 | 387.881 | 0.0 | 0.0 | -0.0 |
| -0.02 | 0.033 | -0.008 | 35.679 | -0.0 | -0.0 |
| -0.042 | 0.067 | -0.017 | 0.0 | 28.132 | -0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 79.375 |
Cij in GPa:
| 171.19 | 132.506 | 103.948 | -0.0 | 0.0 | 0.0 |
| 120.732 | 279.555 | 112.823 | -0.0 | 0.0 | -0.0 |
| 95.397 | 102.389 | 395.056 | -0.0 | 0.0 | -0.0 |
| 0.02 | -0.033 | 0.008 | 35.679 | 0.0 | 0.0 |
| 0.042 | -0.067 | 0.017 | -0.0 | 28.132 | 0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 79.375 |
a0:
strain:
Cij in GPa:
| 181.739 | 90.274 | 104.34 | -0.0 | 0.0 | -0.0 |
| 90.348 | 248.67 | 68.251 | -0.0 | -0.0 | 0.0 |
| 111.346 | 88.674 | 230.778 | -0.0 | -0.0 | 0.0 |
| 3.908 | 10.118 | -6.933 | 26.1 | -0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 80.884 | 0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 56.287 |
Cij in GPa:
| 182.935 | 85.441 | 95.027 | 0.0 | 0.0 | -0.0 |
| 80.824 | 237.053 | 59.392 | 0.0 | 0.0 | -0.0 |
| 101.791 | 70.819 | 237.794 | 0.0 | -0.0 | -0.0 |
| -3.908 | -10.118 | 6.933 | 26.1 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 80.884 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 56.287 |
Cij in GPa:
| 175.861 | 79.122 | 109.414 | -0.0 | -0.0 | 0.0 |
| 80.591 | 232.789 | 79.57 | 0.0 | -0.0 | -0.0 |
| 131.62 | 91.744 | 297.475 | 0.0 | -0.0 | 0.0 |
| 0.674 | 1.281 | -0.259 | 23.436 | -0.0 | 0.0 |
| 0.8 | 1.662 | 0.394 | 0.0 | 51.702 | -0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 56.287 |
Cij in GPa:
| 206.084 | 103.792 | 129.862 | -0.0 | 0.0 | 0.0 |
| 80.635 | 231.836 | 79.95 | -0.0 | 0.0 | -0.0 |
| 131.62 | 91.744 | 297.475 | -0.0 | 0.0 | -0.0 |
| -0.674 | -1.281 | 0.259 | 23.436 | 0.0 | -0.0 |
| -0.8 | -1.662 | -0.394 | -0.0 | 51.702 | -0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 56.287 |
Cij in GPa:
| 175.465 | 78.13 | 109.782 | -0.0 | -0.0 | 0.0 |
| 80.613 | 232.358 | 79.724 | 0.0 | 0.0 | -0.0 |
| 107.439 | 78.897 | 234.317 | -0.0 | 0.0 | -0.0 |
| 0.04 | 0.103 | -0.022 | 29.576 | 0.0 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 80.884 | 0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 56.287 |
Cij in GPa:
| 186.173 | 89.45 | 97.925 | 0.0 | -0.0 | 0.0 |
| 80.616 | 232.26 | 79.762 | -0.0 | -0.0 | -0.0 |
| 102.895 | 72.943 | 237.93 | 0.0 | 0.0 | 0.0 |
| -0.04 | -0.103 | 0.022 | 29.576 | -0.0 | -0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | 80.884 | -0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 56.287 |
strain:
Cij in GPa:
| 2042.862 | 1433.385 | 1085.677 | -0.0 | 0.0 | -0.0 |
| 102.921 | 251.367 | 86.973 | -0.0 | 0.0 | -0.0 |
| 1997.75 | 1438.119 | 1207.491 | -0.0 | -0.0 | -0.0 |
| 1185.182 | 809.454 | 1807.431 | 28.051 | -0.0 | -0.0 |
| 1185.317 | 809.546 | 1807.637 | 0.0 | 69.107 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 57.312 |
Cij in GPa:
| -1006.883 | -719.547 | -1701.471 | -0.0 | 0.0 | 0.0 |
| -1095.965 | -569.447 | -1740.538 | -0.0 | -0.0 | 0.0 |
| 135.935 | 86.973 | 304.767 | 0.0 | -0.0 | 0.0 |
| -1185.182 | -809.454 | -1807.431 | 28.051 | 0.0 | 0.0 |
| -1185.317 | -809.546 | -1807.637 | -0.0 | 69.107 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 57.312 |
Cij in GPa:
| 297.047 | 170.991 | 286.98 | 0.0 | -0.0 | -0.0 |
| 267.596 | 369.845 | 165.878 | 0.0 | -0.0 | -0.0 |
| 316.243 | 238.66 | 322.438 | -0.0 | -0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | 36.919 | 0.0 | -0.0 |
| 198.692 | 156.872 | 82.675 | -0.0 | 64.36 | -0.0 |
| 118.523 | 80.948 | 180.75 | 0.0 | -0.0 | 57.312 |
Cij in GPa:
| 196.622 | 102.921 | 135.935 | -0.0 | 0.0 | 0.0 |
| -114.216 | 85.267 | -16.048 | -0.0 | 0.0 | 0.0 |
| -74.213 | -65.245 | 154.565 | -0.0 | 0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | 36.919 | -0.0 | 0.0 |
| -198.692 | -156.872 | -82.675 | 0.0 | 64.36 | 0.0 |
| -118.523 | -80.948 | -180.75 | -0.0 | 0.0 | 57.312 |
Cij in GPa:
| 196.622 | 102.921 | 135.935 | -0.0 | 0.0 | -0.0 |
| 102.921 | 251.368 | 86.974 | -0.0 | 0.0 | -0.0 |
| 134.606 | 93.226 | 249.791 | -0.0 | -0.0 | -0.0 |
| 10.2 | 6.967 | 15.555 | 29.287 | -0.0 | -0.0 |
| 20.365 | 15.971 | 8.239 | -0.0 | 59.749 | -0.0 |
| 19.883 | 15.899 | 8.09 | -0.0 | -0.0 | 57.312 |
Cij in GPa:
| 145.623 | 61.013 | 109.325 | 0.0 | 0.0 | 0.0 |
| 76.037 | 231.009 | 46.791 | -0.0 | 0.0 | -0.0 |
| 98.127 | 64.434 | 233.053 | -0.0 | 0.0 | 0.0 |
| -10.2 | -6.967 | -15.555 | 29.287 | 0.0 | 0.0 |
| -20.365 | -15.971 | -8.239 | 0.0 | 59.749 | 0.0 |
| -19.883 | -15.899 | -8.09 | 0.0 | 0.0 | 57.312 |
a0:
strain:
Cij in GPa:
| 338.285 | 111.431 | 88.07 | -0.0 | -0.0 | -0.0 |
| 111.762 | 217.769 | 48.179 | -0.0 | -0.0 | -0.0 |
| 57.546 | 55.003 | 167.396 | -0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 23.43 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 64.332 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 79.952 |
Cij in GPa:
| 365.452 | 132.45 | 116.082 | -0.0 | -0.0 | 0.0 |
| 111.201 | 216.594 | 47.483 | 0.0 | -0.0 | 0.0 |
| 82.58 | 42.405 | 202.106 | 0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 23.43 | 0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 64.332 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 79.952 |
Cij in GPa:
| 338.292 | 111.119 | 88.027 | -0.0 | -0.0 | -0.0 |
| 111.512 | 217.243 | 47.868 | -0.0 | 0.0 | -0.0 |
| 82.287 | 42.596 | 201.808 | -0.0 | -0.0 | 0.0 |
| 0.017 | 0.066 | 0.02 | 15.774 | 0.0 | -0.0 |
| 0.018 | 0.043 | 0.023 | -0.0 | 49.557 | -0.0 |
| 0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 79.952 |
Cij in GPa:
| 338.291 | 111.049 | 88.016 | 0.0 | -0.0 | 0.0 |
| 111.456 | 217.126 | 47.798 | 0.0 | -0.0 | 0.0 |
| 116.082 | 71.052 | 240.61 | -0.0 | 0.0 | 0.0 |
| -0.017 | -0.066 | -0.02 | 15.774 | 0.0 | 0.0 |
| -0.018 | -0.043 | -0.023 | 0.0 | 49.557 | 0.0 |
| -0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 79.952 |
Cij in GPa:
| 338.294 | 111.088 | 88.022 | -0.0 | 0.0 | -0.0 |
| 116.638 | 216.274 | 54.004 | -0.0 | 0.0 | 0.0 |
| 58.158 | 54.315 | 168.23 | -0.0 | 0.0 | -0.0 |
| 0.001 | 0.004 | 0.002 | 16.746 | 0.0 | -0.0 |
| 0.001 | 0.009 | 0.001 | 0.0 | 44.222 | -0.0 |
| 0.0 | 0.001 | 0.0 | 0.0 | -0.0 | 79.952 |
Cij in GPa:
| 317.178 | 116.671 | 58.086 | 0.0 | -0.0 | 0.0 |
| 112.905 | 216.869 | 48.826 | -0.0 | -0.0 | 0.0 |
| 58.135 | 54.285 | 168.234 | 0.0 | -0.0 | 0.0 |
| -0.001 | -0.004 | -0.002 | 16.746 | 0.0 | 0.0 |
| -0.001 | -0.009 | -0.001 | -0.0 | 44.222 | 0.0 |
| -0.0 | -0.001 | -0.0 | -0.0 | 0.0 | 79.952 |
strain:
Cij in GPa:
| 296.013 | 135.799 | 71.87 | -0.0 | -0.0 | -0.0 |
| 135.187 | 246.647 | 70.51 | 0.0 | 0.0 | -0.0 |
| 116.915 | 71.036 | 240.903 | -0.0 | -0.0 | -0.0 |
| 15.151 | 18.712 | 18.288 | 16.53 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 66.345 | 0.0 |
| 11.407 | 14.771 | 14.816 | -0.0 | -0.0 | 60.825 |
Cij in GPa:
| 339.987 | 136.681 | 117.883 | -0.0 | 0.0 | 0.0 |
| 135.187 | 246.647 | 70.51 | -0.0 | -0.0 | 0.0 |
| 116.915 | 71.036 | 240.903 | -0.0 | -0.0 | 0.0 |
| -15.151 | -18.712 | -18.288 | 16.53 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 66.345 | 0.0 |
| -11.407 | -14.771 | -14.816 | 0.0 | 0.0 | 60.825 |
Cij in GPa:
| 339.988 | 136.681 | 117.883 | 0.0 | -0.0 | -0.0 |
| 112.687 | 223.294 | 49.134 | -0.0 | 0.0 | -0.0 |
| 80.693 | 43.743 | 204.363 | -0.0 | 0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 23.002 | 0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | -0.0 | 66.345 | 0.0 |
| 1.017 | 1.317 | 1.321 | -0.0 | -0.0 | 63.245 |
Cij in GPa:
| 303.279 | 110.661 | 85.901 | 0.0 | -0.0 | 0.0 |
| 114.392 | 218.607 | 51.48 | 0.0 | 0.0 | 0.0 |
| 79.183 | 40.792 | 201.868 | 0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 23.002 | -0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | 66.345 | 0.0 |
| -1.017 | -1.317 | -1.321 | 0.0 | -0.0 | 63.245 |
Cij in GPa:
| 305.161 | 112.884 | 88.188 | -0.0 | 0.0 | -0.0 |
| 113.128 | 221.132 | 49.014 | 0.0 | 0.0 | -0.0 |
| 56.458 | 53.798 | 169.674 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | 0.0 | 23.002 | 0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 66.345 | 0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 83.196 |
Cij in GPa:
| 339.981 | 136.681 | 117.883 | -0.0 | -0.0 | 0.0 |
| 110.926 | 221.071 | 46.926 | 0.0 | -0.0 | 0.0 |
| 116.915 | 71.035 | 240.901 | 0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | -0.0 | 23.002 | -0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | 66.345 | 0.0 |
| 0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 83.196 |
a0:
strain:
Cij in GPa:
| 759.612 | -225.964 | 65.975 | -0.0 | -0.01 | -0.0 |
| 107.06 | 326.787 | 89.836 | -0.0 | -0.0 | -0.0 |
| 125.29 | 93.844 | 197.772 | -0.0 | -0.0 | -0.0 |
| 485.124 | -330.809 | -49.342 | 27.586 | -0.01 | -0.0 |
| 586.948 | -2.645 | -529.293 | -0.0 | 61.181 | -0.0 |
| 567.833 | 148.488 | -598.453 | -0.0 | -0.005 | 45.028 |
Cij in GPa:
| -317.188 | 105.766 | 655.404 | 0.0 | -0.001 | 0.0 |
| -484.909 | 304.224 | 626.928 | 0.0 | -0.001 | 0.0 |
| -454.678 | 102.864 | 640.8 | 0.0 | -0.001 | 0.0 |
| -566.982 | -143.73 | 618.402 | 22.808 | -0.0 | -0.0 |
| -586.948 | 2.645 | 529.294 | 0.0 | 61.18 | 0.0 |
| -567.833 | -148.488 | 598.453 | 0.0 | 0.005 | 45.028 |
Cij in GPa:
| 284.675 | 106.187 | 120.409 | 0.0 | -0.0 | -0.0 |
| 160.661 | 302.177 | 44.746 | -0.0 | 0.0 | -0.0 |
| 172.861 | 58.509 | 120.931 | -0.0 | -0.001 | -0.0 |
| 56.853 | 14.171 | -61.495 | 22.887 | -0.0 | -0.0 |
| 56.727 | 14.677 | -61.743 | -0.0 | 62.314 | -0.0 |
| 58.689 | -0.36 | -52.811 | -0.0 | 0.0 | 44.807 |
Cij in GPa:
| 211.278 | 103.294 | 179.019 | 0.0 | -0.0 | 0.0 |
| 107.06 | 326.786 | 89.836 | -0.0 | 0.0 | 0.0 |
| 77.761 | 123.889 | 143.798 | 0.0 | 0.001 | 0.0 |
| -56.853 | -14.171 | 61.495 | 22.887 | 0.0 | 0.0 |
| -56.726 | -14.678 | 61.75 | 0.0 | 62.314 | 0.0 |
| -58.689 | 0.36 | 52.811 | 0.0 | -0.0 | 44.807 |
Cij in GPa:
| 284.676 | 106.187 | 120.41 | -0.0 | -0.0 | -0.0 |
| 107.06 | 326.789 | 89.837 | -0.0 | -0.0 | 0.0 |
| 168.862 | 115.672 | 28.835 | -0.0 | -0.001 | -0.0 |
| 5.897 | 1.2 | -6.206 | 21.898 | -0.0 | -0.0 |
| 5.743 | 1.378 | -6.08 | -0.0 | 61.844 | -0.0 |
| 5.721 | -0.477 | -4.626 | -0.0 | -0.0 | 44.826 |
Cij in GPa:
| 264.502 | 101.884 | 142.261 | 0.0 | 0.0 | -0.0 |
| 97.544 | 305.089 | 106.089 | -0.0 | -0.0 | 0.0 |
| 159.013 | 111.206 | 36.322 | 0.0 | 0.0 | 0.0 |
| -5.897 | -1.2 | 6.206 | 21.898 | 0.0 | 0.0 |
| -5.743 | -1.378 | 6.08 | 0.0 | 61.844 | -0.0 |
| -5.721 | 0.477 | 4.626 | 0.0 | 0.0 | 44.826 |
strain:
Cij in GPa:
| 269.233 | 109.959 | 95.772 | -0.0 | 0.0 | 0.0 |
| 104.5 | 315.569 | 125.046 | 0.0 | 0.0 | 0.0 |
| 103.528 | 125.045 | 259.061 | -0.0 | 0.0 | 0.0 |
| -0.603 | 6.16 | -2.885 | 54.721 | 0.0 | 0.0 |
| 4.218 | 9.869 | 2.127 | 0.0 | 44.097 | 0.0 |
| -0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 52.885 |
Cij in GPa:
| 261.686 | 94.666 | 95.927 | 0.0 | -0.0 | -0.0 |
| 104.5 | 315.569 | 125.046 | -0.0 | -0.0 | -0.0 |
| 103.528 | 125.045 | 259.061 | 0.0 | -0.0 | -0.0 |
| 0.603 | -6.16 | 2.885 | 54.721 | -0.0 | -0.0 |
| -4.218 | -9.869 | -2.127 | -0.0 | 44.097 | -0.0 |
| 0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 52.885 |
Cij in GPa:
| 265.71 | 104.709 | 98.166 | -0.0 | 0.0 | 0.0 |
| 104.5 | 315.57 | 125.046 | 0.0 | 0.0 | 0.0 |
| 103.528 | 125.045 | 259.061 | -0.0 | -0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | 73.102 | 0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | 0.0 | 53.719 | 0.0 |
| -0.05 | 0.515 | -0.241 | 0.0 | 0.0 | 47.038 |
Cij in GPa:
| 280.712 | 104.5 | 103.529 | -0.0 | -0.0 | -0.0 |
| 105.087 | 300.541 | 132.203 | -0.0 | -0.0 | -0.0 |
| 97.056 | 135.082 | 226.339 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | 73.102 | 0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 53.719 | -0.0 |
| 0.05 | -0.515 | 0.241 | -0.0 | -0.0 | 47.038 |
Cij in GPa:
| 265.495 | 103.848 | 98.089 | 0.0 | 0.0 | 0.0 |
| 103.22 | 292.451 | 142.723 | 0.0 | 0.0 | 0.0 |
| 96.436 | 131.322 | 234.895 | 0.0 | 0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | 73.102 | 0.0 | 0.0 |
| 0.0 | -0.0 | -0.0 | 0.0 | 53.719 | 0.0 |
| 0.004 | 0.119 | -0.052 | 0.0 | 0.0 | 45.053 |
Cij in GPa:
| 265.447 | 103.655 | 98.072 | -0.0 | -0.0 | -0.0 |
| 102.027 | 293.227 | 139.751 | -0.0 | -0.0 | -0.0 |
| 103.528 | 125.044 | 259.061 | 0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | 73.102 | -0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 53.719 | -0.0 |
| -0.004 | -0.119 | 0.052 | -0.0 | -0.0 | 45.053 |
a0:
strain:
Cij in GPa:
| 286.082 | 111.399 | 97.663 | -0.0 | -0.0 | 0.0 |
| 99.244 | 243.207 | 119.416 | -0.0 | -0.0 | -0.0 |
| 82.932 | 123.156 | 209.479 | 0.0 | -0.0 | -0.0 |
| -0.877 | 2.368 | -1.902 | 33.105 | -0.0 | 0.0 |
| -0.195 | 1.206 | -0.401 | -0.0 | 44.171 | 0.0 |
| -0.278 | 1.724 | -0.574 | -0.0 | -0.0 | 45.156 |
Cij in GPa:
| 260.924 | 101.961 | 82.534 | -0.0 | 0.0 | -0.0 |
| 112.588 | 273.09 | 112.638 | 0.0 | 0.0 | -0.0 |
| 86.224 | 111.79 | 221.527 | -0.0 | 0.0 | -0.0 |
| 0.877 | -2.368 | 1.902 | 33.105 | 0.0 | -0.0 |
| 0.195 | -1.206 | 0.401 | 0.0 | 44.171 | -0.0 |
| 0.278 | -1.724 | 0.574 | 0.0 | 0.0 | 45.156 |
Cij in GPa:
| 259.353 | 103.706 | 81.07 | 0.0 | -0.0 | 0.0 |
| 112.588 | 273.09 | 112.638 | -0.0 | -0.0 | 0.0 |
| 83.779 | 120.842 | 211.377 | 0.0 | -0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | 63.692 | -0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | 49.136 | -0.0 |
| -0.028 | 0.172 | -0.057 | 0.0 | -0.0 | 45.182 |
Cij in GPa:
| 259.637 | 103.372 | 81.339 | 0.0 | 0.0 | -0.0 |
| 105.129 | 249.086 | 112.477 | 0.0 | 0.0 | -0.0 |
| 84.934 | 113.281 | 219.174 | 0.0 | 0.0 | -0.0 |
| -0.0 | 0.0 | -0.0 | 63.692 | 0.0 | 0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | 49.136 | -0.0 |
| 0.028 | -0.172 | 0.057 | -0.0 | 0.0 | 45.182 |
Cij in GPa:
| 259.481 | 103.556 | 81.192 | -0.0 | -0.0 | -0.0 |
| 105.101 | 249.315 | 112.408 | 0.0 | -0.0 | 0.0 |
| 86.149 | 122.388 | 209.155 | -0.0 | -0.0 | 0.0 |
| -0.003 | 0.018 | -0.006 | 38.369 | -0.0 | 0.0 |
| 0.0 | 0.0 | -0.0 | -0.0 | 49.136 | -0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 59.35 |
Cij in GPa:
| 286.08 | 111.399 | 97.663 | 0.0 | 0.0 | -0.0 |
| 112.588 | 273.089 | 112.638 | 0.0 | 0.0 | -0.0 |
| 99.892 | 113.677 | 245.63 | -0.0 | 0.0 | -0.0 |
| 0.003 | -0.018 | 0.006 | 38.369 | 0.0 | -0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | 49.136 | 0.0 |
| -0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 59.35 |
strain:
Cij in GPa:
| 227.869 | 89.621 | -7.988 | -0.0 | -0.0 | -0.0 |
| 112.51 | 279.619 | 122.833 | -0.0 | 0.0 | 0.0 |
| 98.025 | 122.833 | 246.901 | -0.0 | 0.0 | 0.0 |
| 0.0 | -0.0 | 0.0 | 71.275 | 0.0 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 47.548 | 0.0 |
| 0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 60.567 |
Cij in GPa:
| 297.239 | 112.51 | 98.025 | 0.0 | -0.0 | 0.0 |
| 157.793 | 275.165 | 216.087 | 0.0 | 0.0 | 0.0 |
| 98.025 | 122.833 | 246.901 | -0.0 | -0.0 | -0.0 |
| 0.0 | 0.0 | -0.0 | 71.275 | -0.0 | -0.0 |
| -0.0 | 0.0 | 0.0 | 0.0 | 47.548 | 0.0 |
| -0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 60.567 |
Cij in GPa:
| 297.239 | 112 |
