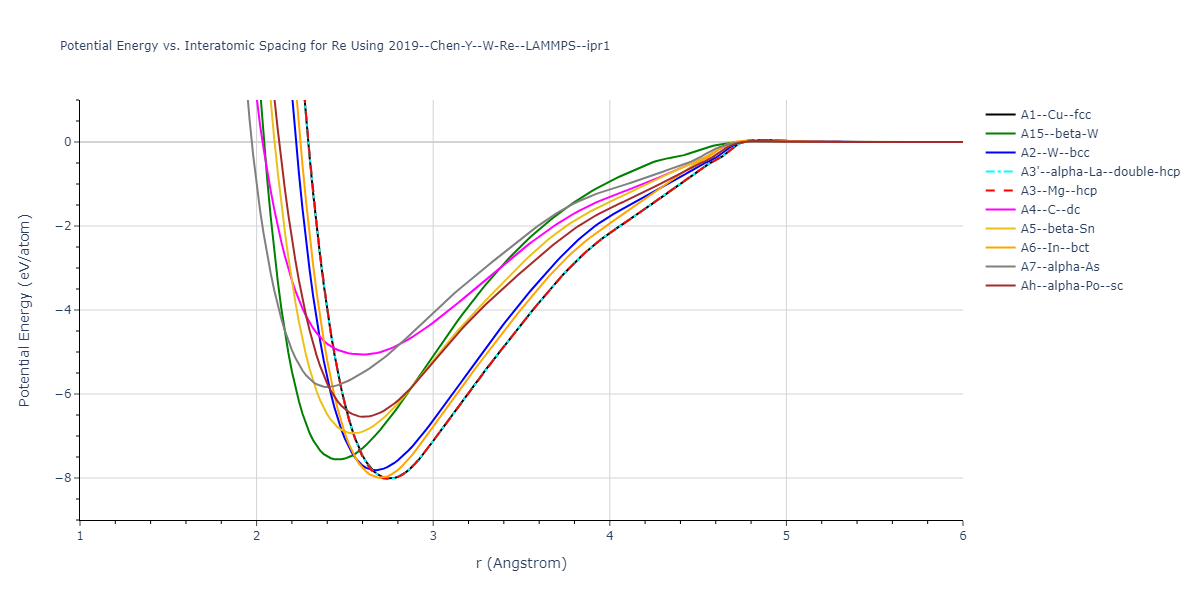

Plots of the potential energy vs interatomic spacing, r, are shown below for all diatom sets associated with the interatomic potential. This calculation provides insights into the functional form of the potential's two-body interactions. A system consisting of only two atoms is created, and the potential energy is evaluated for the atoms separated by 0.02 Å <= r <= 6.0> Å in intervals of 0.02 Å. Two plots are shown: one for the "standard" interaction distance range, and one for small values of r. The small r plot is useful for determining whether the potential is suitable for radiation studies.
The calculation method used is available as the iprPy diatom_scan calculation method.
Clicking on the image of a plot will open an interactive version of it in a new tab. The underlying data for the plots can be downloaded by clicking on the links above each plot.
Notes and Disclaimers:
Version Information:

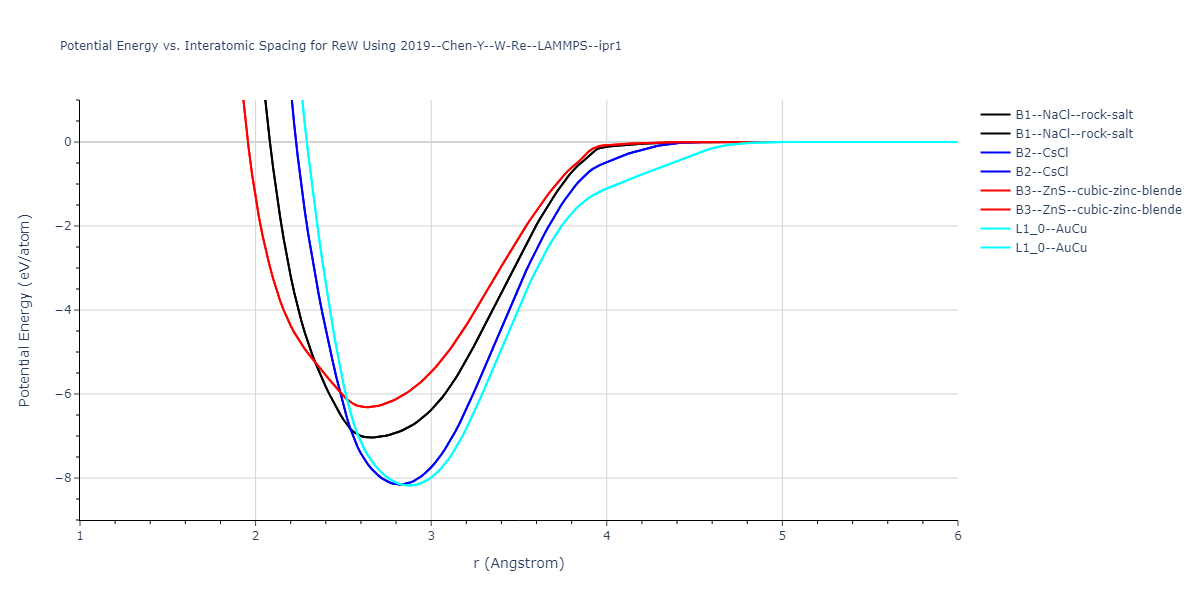

Plots of potential energy vs interatomic spacing, r, are shown below for a number of crystal structures. The structures are generated based on the ideal atomic positions and b/a and c/a lattice parameter ratios for a given crystal prototype. The size of the system is then uniformly scaled, and the energy calculated without relaxing the system. To obtain these plots, values of r are evaluated every 0.02 Å up to 6 Å.
The calculation method used is available as the iprPy E_vs_r_scan calculation method.
Clicking on the image of a plot will open an interactive version of it in a new tab. The underlying data for the plots can be downloaded by clicking on the links above each plot.
Notes and Disclaimers:
Version Information:
Computed lattice constants and cohesive/potential energies are displayed for a variety of crystal structures. The values displayed here are obtained using the following process.
The calculation methods used are implemented into iprPy as the following calculation styles
Notes and Disclaimers:
Version Information:
Download raw data (including filtered results)
Reference structure matches:
A1--Cu--fcc = mp-8642, oqmd-7519, oqmd-1214563, oqmd-1215721
A15--beta-W = oqmd-1215008
A2--W--bcc = oqmd-1215186, oqmd-1215899
A3'--alpha-La--double-hcp = mp-1186901, oqmd-1215454
A3--Mg--hcp = mp-8, oqmd-7248, oqmd-111079, oqmd-116150, oqmd-1215364
A4--C--dc = oqmd-1215543
A5--beta-Sn = oqmd-1215632
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
A3--Mg--hcp | dynamic | -8.0295 | -8.0295 | 2.76 | 2.76 | 4.458 | 90.0 | 90.0 | 120.0 |
oqmd-1215275 | box | -8.0287 | -8.0287 | 2.7535 | 4.7914 | 4.4582 | 90.0 | 90.0 | 90.0 |
oqmd-1216080 | dynamic | -8.0237 | -8.0237 | 2.7582 | 2.7582 | 20.1238 | 90.0 | 90.0 | 120.0 |
oqmd-1216080 | static | -8.0235 | -8.0235 | 2.7583 | 2.7583 | 20.1231 | 90.0 | 90.0 | 120.0 |
mp-975065 | box | -8.0233 | -8.0233 | 2.7582 | 2.7582 | 20.1242 | 90.0 | 90.0 | 120.0 |
A3'--alpha-La--double-hcp | dynamic | -8.0207 | -8.0207 | 2.7574 | 2.7574 | 8.9578 | 90.0 | 90.0 | 120.0 |
A1--Cu--fcc | dynamic | -8.013 | -8.013 | 3.8963 | 3.8963 | 3.8963 | 90.0 | 90.0 | 90.0 |
A2--W--bcc | static | -7.8149 | -7.8149 | 3.0852 | 3.0852 | 3.0852 | 90.0 | 90.0 | 90.0 |
oqmd-1214919 | dynamic | -7.7853 | -7.7853 | 6.6877 | 6.6877 | 6.6877 | 90.0 | 90.0 | 90.0 |
oqmd-1214919 | box | -7.7347 | -7.7347 | 6.7056 | 6.7056 | 6.7056 | 90.0 | 90.0 | 90.0 |
oqmd-1214830 | dynamic | -7.6961 | -7.6961 | 9.5345 | 9.5345 | 9.5345 | 90.0 | 90.0 | 90.0 |
oqmd-1214830 | box | -7.6719 | -7.6719 | 9.5136 | 9.5136 | 9.5136 | 90.0 | 90.0 | 90.0 |
A15--beta-W | static | -7.5604 | -7.5604 | 4.9246 | 4.9246 | 4.9246 | 90.0 | 90.0 | 90.0 |
oqmd-1215097 | box | -7.3186 | -7.3186 | 4.7099 | 9.8577 | 2.7513 | 90.0 | 90.0 | 90.0 |
oqmd-1214741 | box | -7.2116 | -7.2116 | 4.6508 | 9.9932 | 2.807 | 90.0 | 90.0 | 90.0 |
A5--beta-Sn | static | -6.9728 | -6.9728 | 4.9938 | 4.9938 | 2.6245 | 90.0 | 90.0 | 90.0 |
Ah--alpha-Po--sc | static | -6.5447 | -6.5447 | 2.6081 | 2.6081 | 2.6081 | 90.0 | 90.0 | 90.0 |
oqmd-1215988 | box | -5.7782 | -5.7782 | 4.4652 | 4.4652 | 4.7835 | 90.0 | 90.0 | 120.0 |
A7--alpha-As | box | -5.7564 | -5.7564 | 3.4472 | 3.4472 | 11.0255 | 90.0 | 90.0 | 120.0 |
A4--C--dc | static | -5.0624 | -5.0624 | 6.0038 | 6.0038 | 6.0038 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
mp-1102921 | dynamic | -8.0864 | -8.0864 | 5.2295 | 5.2295 | 8.4777 | 90.0 | 90.0 | 120.0 |
mp-1102921 | box | -8.0718 | -8.0718 | 5.24 | 5.24 | 8.4351 | 90.0 | 90.0 | 120.0 |
C1--CaF2--fluorite | static | -7.1032 | -7.1032 | 6.2187 | 6.2187 | 6.2187 | 90.0 | 90.0 | 90.0 |
oqmd-1234468 | box | -6.4044 | -6.4044 | 7.277 | 7.277 | 3.0833 | 90.0 | 90.0 | 90.0 |
oqmd-1239948 | static | -5.6378 | -5.6378 | 11.8057 | 11.8057 | 11.8057 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
D0_3--BiF3 = oqmd-310002
L1_2--AuCu3 = oqmd-347599
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
mp-974408 | dynamic | -8.0447 | -8.0447 | 5.6775 | 5.6775 | 4.6245 | 90.0 | 90.0 | 120.0 |
L1_2--AuCu3 | dynamic | -8.0402 | -8.0402 | 4.0106 | 4.0106 | 4.0106 | 90.0 | 90.0 | 90.0 |
oqmd-323113 | box | -8.0373 | -8.0373 | 5.6733 | 5.6733 | 4.6227 | 90.0 | 90.0 | 120.0 |
mp-974408 | box | -8.0364 | -8.0364 | 5.6734 | 5.6734 | 4.6224 | 90.0 | 90.0 | 120.0 |
oqmd-299460 | dynamic | -8.0343 | -8.0343 | 3.9744 | 3.9744 | 8.1919 | 90.0 | 90.0 | 90.0 |
D0_3--BiF3 | dynamic | -7.9755 | -7.9755 | 6.3235 | 6.3235 | 6.3235 | 90.0 | 90.0 | 90.0 |
oqmd-299460 | box | -7.96 | -7.96 | 4.3032 | 4.3032 | 6.9138 | 90.0 | 90.0 | 90.0 |
A15--Cr3Si | static | -7.7369 | -7.7369 | 5.1608 | 5.1608 | 5.1608 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
B1--NaCl--rock-salt = oqmd-1104611
B2--CsCl = oqmd-305426
B3--ZnS--cubic-zinc-blende = oqmd-1224010
L1_0--AuCu = oqmd-336968
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
L1_0--AuCu | static | -8.2601 | -8.2601 | 2.7751 | 2.7751 | 4.361 | 90.0 | 90.0 | 90.0 |
oqmd-1230982 | dynamic | -8.26 | -8.26 | 2.8419 | 2.8419 | 4.775 | 90.0 | 90.0 | 120.0 |
B2--CsCl | dynamic | -8.1548 | -8.1548 | 3.2587 | 3.2587 | 3.2587 | 90.0 | 90.0 | 90.0 |
L1_0--AuCu | box | -8.1407 | -8.1407 | 3.1217 | 3.1217 | 3.5823 | 90.0 | 90.0 | 90.0 |
B1--NaCl--rock-salt | static | -7.0352 | -7.0352 | 5.3187 | 5.3187 | 5.3187 | 90.0 | 90.0 | 90.0 |
B3--ZnS--cubic-zinc-blende | static | -6.3133 | -6.3133 | 6.0794 | 6.0794 | 6.0794 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
mp-1219490 | dynamic | -8.5922 | -8.5922 | 3.1886 | 4.4783 | 13.3152 | 90.0 | 90.0 | 90.0 |
mp-1219490 | box | -8.5908 | -8.5908 | 3.1887 | 4.4757 | 13.3127 | 90.0 | 90.0 | 90.0 |
C1--CaF2--fluorite | dynamic | -7.6784 | -7.6784 | 6.3003 | 6.3003 | 6.3003 | 90.0 | 90.0 | 90.0 |
oqmd-1239947 | dynamic | -5.7724 | -5.7724 | 11.8691 | 11.8691 | 11.8691 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
A15--Cr3Si = mp-1206445
D0_3--BiF3 = oqmd-312571
L1_2--AuCu3 = oqmd-345030
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
mp-1219491 | dynamic | -8.668 | -8.668 | 3.1806 | 4.4785 | 8.8984 | 90.0 | 90.0 | 90.0 |
mp-1219491 | box | -8.6665 | -8.6665 | 3.1811 | 4.4754 | 8.8974 | 90.0 | 90.0 | 90.0 |
A15--Cr3Si | dynamic | -8.5416 | -8.5416 | 5.1892 | 5.1892 | 5.1892 | 90.0 | 90.0 | 90.0 |
D0_3--BiF3 | dynamic | -8.5374 | -8.5374 | 6.382 | 6.382 | 6.382 | 90.0 | 90.0 | 90.0 |
oqmd-302029 | static | -8.44 | -8.44 | 4.0846 | 4.0846 | 8.4257 | 90.0 | 90.0 | 90.0 |
L1_2--AuCu3 | dynamic | -8.4395 | -8.4395 | 4.1256 | 4.1256 | 4.1256 | 90.0 | 90.0 | 90.0 |
oqmd-320544 | dynamic | -8.4353 | -8.4353 | 5.8275 | 5.8275 | 4.7857 | 90.0 | 90.0 | 120.0 |
oqmd-320544 | box | -8.4353 | -8.4353 | 5.8284 | 5.8284 | 4.7858 | 90.0 | 90.0 | 120.0 |
Download raw data (including filtered results)
Reference structure matches:
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
mp-1219494 | dynamic | -8.7143 | -8.7143 | 3.1769 | 4.4785 | 22.2742 | 90.0 | 90.0 | 90.0 |
mp-1219494 | box | -8.7132 | -8.7132 | 3.1771 | 4.4762 | 22.2722 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
A1--Cu--fcc = mp-8641, oqmd-676155, oqmd-1214584
A15--beta-W = mp-11334, oqmd-9254, oqmd-1215029
A2--W--bcc = mp-91, oqmd-676232, oqmd-1215207
A3'--alpha-La--double-hcp = oqmd-1215475
A3--Mg--hcp = oqmd-1215385
A4--C--dc = oqmd-1215564
A5--beta-Sn = oqmd-1215653
A6--In--bct = oqmd-1215742
A7--alpha-As = oqmd-1215831
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
A2--W--bcc | dynamic | -8.9 | -8.9 | 3.1652 | 3.1652 | 3.1652 | 90.0 | 90.0 | 90.0 |
A15--beta-W | dynamic | -8.7356 | -8.7356 | 5.1561 | 5.1561 | 5.1561 | 90.0 | 90.0 | 90.0 |
oqmd-1214851 | dynamic | -8.6987 | -8.6987 | 9.9433 | 9.9433 | 9.9433 | 90.0 | 90.0 | 90.0 |
oqmd-1214851 | box | -8.6763 | -8.6763 | 9.8959 | 9.8959 | 9.8959 | 90.0 | 90.0 | 90.0 |
oqmd-1214940 | box | -8.6012 | -8.6012 | 6.9842 | 6.9842 | 6.9842 | 90.0 | 90.0 | 90.0 |
A6--In--bct | static | -8.5938 | -8.5938 | 2.8832 | 2.8832 | 4.1273 | 90.0 | 90.0 | 90.0 |
A1--Cu--fcc | static | -8.5938 | -8.5938 | 4.0948 | 4.0948 | 4.0948 | 90.0 | 90.0 | 90.0 |
A3'--alpha-La--double-hcp | dynamic | -8.5931 | -8.5931 | 2.895 | 2.895 | 9.4635 | 90.0 | 90.0 | 120.0 |
A3'--alpha-La--double-hcp | dynamic | -8.5931 | -8.5931 | 2.895 | 2.895 | 9.4635 | 90.0 | 90.0 | 120.0 |
oqmd-1216101 | static | -8.5927 | -8.5927 | 2.8948 | 2.8948 | 21.297 | 90.0 | 90.0 | 120.0 |
A3--Mg--hcp | static | -8.5923 | -8.5923 | 2.8945 | 2.8945 | 4.7352 | 90.0 | 90.0 | 120.0 |
mp-1065340 | box | -8.5372 | -8.5372 | 2.9607 | 4.859 | 4.7231 | 90.0 | 90.0 | 90.0 |
oqmd-1215118 | box | -8.1122 | -8.1122 | 4.4687 | 9.8333 | 3.0309 | 90.0 | 90.0 | 90.0 |
mp-1216274 | box | -7.9877 | -7.9877 | 2.6796 | 2.6796 | 18.3353 | 90.0 | 90.0 | 90.0 |
A5--beta-Sn | static | -7.5482 | -7.5482 | 5.068 | 5.068 | 2.6763 | 90.0 | 90.0 | 90.0 |
mp-1191581 | box | -7.2895 | -7.2895 | 9.6129 | 2.6071 | 16.9429 | 90.0 | 91.8 | 90.0 |
mp-1178801 | box | -7.2652 | -7.2652 | 9.5267 | 2.613 | 14.4863 | 90.0 | 104.0 | 90.0 |
Ah--alpha-Po--sc | static | -6.8653 | -6.8653 | 2.6085 | 2.6085 | 2.6085 | 90.0 | 90.0 | 90.0 |
oqmd-1216009 | static | -6.7618 | -6.7618 | 4.4869 | 4.4869 | 4.2578 | 90.0 | 90.0 | 120.0 |
A7--alpha-As | box | -6.2029 | -6.2029 | 3.8742 | 3.8742 | 10.4831 | 90.0 | 90.0 | 120.0 |
A4--C--dc | static | -5.5518 | -5.5518 | 6.1952 | 6.1952 | 6.1952 | 90.0 | 90.0 | 90.0 |

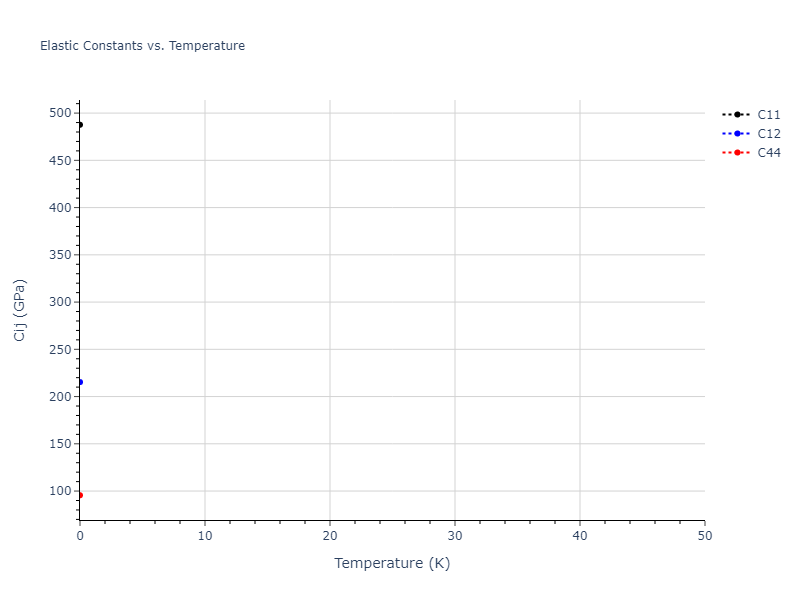

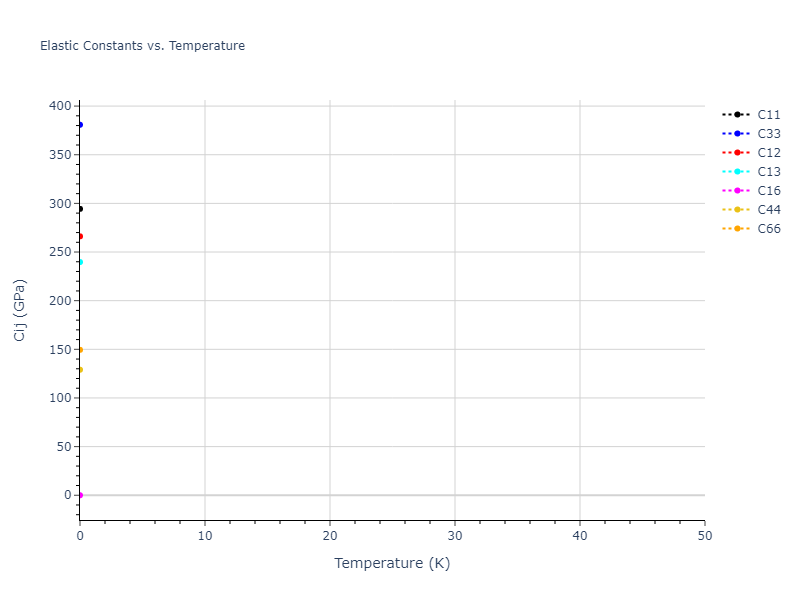

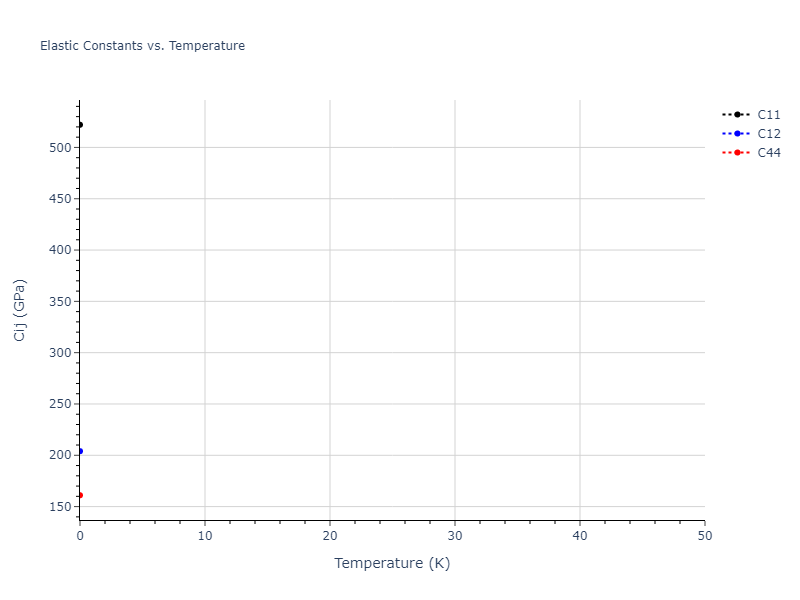

Static elastic constants are displayed for the unique structures identified in Crystal Structure Predictions above. The values displayed here are obtained by measuring the change in virial stresses due to applying small strains to the relaxed crystals. The initial structure and the strained states are all relaxed using force minimization.
The calculation method used is available as the iprPy elastic_constants_static calculation method.
Notes and Disclaimers:
Version Information:
478.216 | 296.023 | 296.023 | 0.0 | 0.0 | -0.0 |
296.023 | 478.216 | 296.023 | -0.0 | 0.0 | -0.0 |
296.023 | 296.023 | 478.216 | -0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 253.226 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 253.226 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 253.226 |
478.216 | 296.023 | 296.023 | -0.0 | -0.0 | 0.0 |
296.023 | 478.216 | 296.023 | 0.0 | -0.0 | 0.0 |
296.023 | 296.023 | 478.216 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 253.226 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 253.226 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 253.226 |
478.216 | 296.023 | 296.023 | 0.0 | 0.0 | -0.0 |
296.023 | 478.216 | 296.023 | -0.0 | 0.0 | -0.0 |
296.023 | 296.023 | 478.216 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 253.226 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 253.226 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 253.226 |
478.216 | 296.023 | 296.023 | 0.0 | 0.0 | 0.0 |
296.023 | 478.216 | 296.023 | 0.0 | 0.0 | 0.0 |
296.023 | 296.023 | 478.216 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 253.226 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 253.226 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 253.226 |
478.216 | 296.024 | 296.024 | -0.0 | 0.0 | 0.0 |
296.024 | 478.216 | 296.024 | 0.0 | 0.0 | -0.0 |
296.024 | 296.024 | 478.216 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 253.226 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 253.226 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 253.226 |
478.216 | 296.022 | 296.022 | -0.0 | 0.0 | 0.0 |
296.022 | 478.216 | 296.022 | 0.0 | -0.0 | 0.0 |
296.022 | 296.022 | 478.216 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 253.226 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 253.226 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 253.226 |
524.342 | 94.764 | 94.764 | 0.0 | 0.0 | 0.0 |
94.764 | 524.342 | 94.764 | 0.0 | 0.0 | 0.0 |
94.764 | 94.764 | 524.342 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -343.207 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -343.207 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -343.207 |
524.342 | 94.764 | 94.764 | -0.0 | -0.0 | -0.0 |
94.764 | 524.342 | 94.764 | -0.0 | -0.0 | 0.0 |
94.764 | 94.764 | 524.342 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -343.207 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -343.207 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -343.207 |
501.514 | 106.178 | 106.178 | 0.0 | 0.0 | 0.0 |
106.178 | 501.514 | 106.178 | 0.0 | 0.0 | 0.0 |
106.178 | 106.178 | 501.514 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -343.207 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -343.207 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -343.207 |
501.513 | 106.178 | 106.178 | -0.0 | -0.0 | -0.0 |
106.178 | 501.513 | 106.178 | -0.0 | -0.0 | -0.0 |
106.178 | 106.178 | 501.513 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -343.207 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -343.207 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -343.207 |
501.516 | 106.178 | 106.178 | 0.0 | 0.0 | 0.0 |
106.178 | 501.516 | 106.178 | 0.0 | 0.0 | 0.0 |
106.178 | 106.178 | 501.516 | 0.0 | 0.0 | 0.0 |
-0.001 | 0.0 | -0.0 | -343.207 | 0.0 | -0.0 |
0.0 | -0.001 | -0.0 | 0.0 | -343.207 | 0.0 |
0.0 | -0.0 | -0.001 | 0.0 | 0.0 | -343.207 |
501.512 | 106.177 | 106.177 | -0.0 | -0.0 | -0.0 |
106.177 | 501.512 | 106.177 | -0.0 | -0.0 | -0.0 |
106.177 | 106.177 | 501.512 | -0.0 | -0.0 | -0.0 |
0.001 | -0.0 | 0.0 | -343.207 | -0.0 | -0.0 |
-0.0 | 0.001 | 0.0 | -0.0 | -343.207 | -0.0 |
-0.0 | 0.0 | 0.001 | -0.0 | -0.0 | -343.207 |
267.822 | 337.502 | 337.502 | 0.0 | 0.0 | -0.0 |
337.502 | 267.822 | 337.502 | 0.0 | 0.0 | -0.0 |
337.502 | 337.502 | 267.822 | -0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 281.842 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 281.842 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 281.842 |
267.822 | 337.502 | 337.502 | 0.0 | -0.0 | 0.0 |
337.502 | 267.822 | 337.502 | 0.0 | 0.0 | -0.0 |
337.502 | 337.502 | 267.822 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 281.842 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 281.842 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 281.842 |
267.822 | 337.502 | 337.502 | -0.0 | 0.0 | -0.0 |
337.502 | 267.822 | 337.502 | -0.0 | 0.0 | 0.0 |
337.502 | 337.502 | 267.822 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 281.842 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 281.842 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 281.842 |
267.822 | 337.502 | 337.502 | -0.0 | -0.0 | 0.0 |
337.502 | 267.822 | 337.502 | 0.0 | -0.0 | 0.0 |
337.502 | 337.502 | 267.822 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 281.842 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 281.842 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 281.842 |
267.823 | 337.503 | 337.503 | -0.0 | 0.0 | -0.0 |
337.503 | 267.823 | 337.503 | 0.0 | 0.0 | -0.0 |
337.503 | 337.503 | 267.823 | -0.0 | 0.0 | -0.0 |
0.001 | 0.0 | 0.001 | 281.842 | 0.0 | 0.0 |
0.0 | 0.001 | 0.001 | 0.0 | 281.842 | -0.0 |
0.0 | 0.001 | 0.001 | -0.0 | 0.0 | 281.842 |
267.821 | 337.501 | 337.501 | -0.0 | -0.0 | -0.0 |
337.501 | 267.821 | 337.501 | 0.0 | -0.0 | -0.0 |
337.501 | 337.501 | 267.821 | -0.0 | -0.0 | 0.0 |
-0.001 | -0.0 | -0.001 | 281.842 | -0.0 | 0.0 |
-0.0 | -0.001 | -0.001 | -0.0 | 281.842 | 0.0 |
-0.0 | -0.001 | -0.001 | 0.0 | -0.0 | 281.842 |
601.702 | 284.077 | 196.179 | 0.0 | -0.0 | -0.0 |
242.88 | 642.899 | 196.179 | 0.0 | -0.0 | -0.0 |
196.179 | 196.179 | 679.399 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 152.926 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 152.926 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 200.009 |
642.899 | 242.88 | 196.179 | -0.0 | 0.0 | 0.0 |
242.88 | 642.899 | 196.179 | -0.0 | 0.0 | 0.0 |
196.179 | 196.179 | 679.399 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 152.926 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 152.926 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 200.009 |
601.702 | 284.077 | 196.179 | 0.0 | 0.0 | -0.0 |
284.078 | 601.702 | 196.179 | 0.0 | -0.0 | -0.0 |
196.179 | 196.179 | 679.399 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 152.926 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 152.926 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 158.812 |
601.701 | 284.077 | 196.179 | -0.0 | 0.0 | 0.0 |
242.88 | 642.899 | 196.179 | -0.0 | 0.0 | 0.0 |
196.179 | 196.179 | 679.399 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 152.926 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 152.926 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 158.812 |
642.9 | 242.88 | 196.179 | 0.0 | 0.0 | -0.0 |
242.881 | 642.899 | 196.179 | 0.0 | 0.0 | -0.0 |
196.18 | 196.18 | 679.4 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 152.926 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 152.926 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 158.812 |
601.7 | 284.077 | 196.179 | -0.0 | 0.0 | 0.0 |
284.077 | 601.701 | 196.179 | -0.0 | -0.0 | 0.0 |
196.178 | 196.178 | 679.398 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 152.926 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 152.926 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 158.812 |
645.756 | 243.868 | 206.47 | -0.0 | -0.0 | 0.0 |
285.735 | 603.889 | 206.47 | 0.0 | 0.0 | 0.0 |
206.47 | 206.47 | 682.504 | 0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 162.787 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 162.787 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 159.077 |
603.889 | 285.735 | 206.47 | -0.0 | 0.0 | -0.0 |
243.868 | 645.756 | 206.47 | 0.0 | 0.0 | -0.0 |
206.47 | 206.47 | 682.504 | -0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 162.787 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 162.787 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 159.077 |
603.889 | 285.735 | 206.47 | 0.0 | 0.0 | 0.0 |
285.735 | 603.889 | 206.47 | -0.0 | -0.0 | 0.0 |
206.47 | 206.47 | 682.504 | 0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 162.787 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 162.787 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 159.077 |
645.755 | 243.868 | 206.47 | -0.0 | 0.0 | -0.0 |
285.735 | 603.889 | 206.47 | -0.0 | 0.0 | -0.0 |
206.47 | 206.47 | 682.504 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 162.787 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 162.787 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 159.077 |
603.89 | 285.735 | 206.47 | 0.0 | 0.0 | 0.0 |
285.736 | 603.889 | 206.47 | 0.0 | 0.0 | 0.0 |
206.471 | 206.471 | 682.506 | 0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 162.787 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 162.787 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 159.077 |
603.887 | 285.735 | 206.47 | -0.0 | 0.0 | -0.0 |
243.867 | 645.755 | 206.47 | 0.0 | 0.0 | -0.0 |
206.469 | 206.469 | 682.502 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 162.787 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 162.787 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 159.077 |
50.011 | 57.526 | 57.526 | -0.0 | -0.0 | -0.0 |
57.526 | 50.012 | 57.526 | -0.0 | -0.0 | -0.0 |
57.526 | 57.526 | 50.011 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -16.929 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -16.929 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | -16.929 |
50.011 | 57.526 | 57.526 | 0.0 | 0.0 | 0.0 |
57.526 | 50.011 | 57.526 | 0.0 | 0.0 | 0.0 |
57.526 | 57.526 | 50.012 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -16.929 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | -16.929 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.0 | -16.929 |
50.011 | 57.526 | 57.526 | -0.0 | -0.0 | -0.0 |
57.526 | 50.011 | 57.526 | -0.0 | -0.0 | -0.0 |
57.526 | 57.526 | 50.011 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -16.929 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -16.929 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -16.929 |
50.012 | 57.526 | 57.526 | 0.0 | 0.0 | 0.0 |
57.526 | 50.012 | 57.526 | 0.0 | 0.0 | 0.0 |
57.526 | 57.526 | 50.012 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -16.929 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -16.929 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -16.929 |
50.011 | 57.526 | 57.526 | -0.0 | -0.0 | -0.0 |
57.526 | 50.011 | 57.526 | -0.0 | -0.0 | -0.0 |
57.526 | 57.526 | 50.011 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 30.416 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 30.416 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 30.416 |
50.012 | 57.526 | 57.526 | 0.0 | 0.0 | 0.0 |
57.526 | 50.012 | 57.526 | 0.0 | 0.0 | 0.0 |
57.526 | 57.526 | 50.012 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 30.416 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 30.416 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 30.416 |
602.04 | 28.579 | 63.537 | -0.0 | 0.0 | -0.0 |
28.579 | 602.04 | 63.537 | -0.0 | -0.0 | -0.0 |
63.537 | 63.537 | 709.891 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -69.742 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -69.742 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.0 | -47.307 |
602.04 | 28.579 | 63.537 | 0.0 | 0.0 | 0.0 |
28.579 | 602.04 | 63.537 | 0.0 | 0.0 | -0.0 |
63.537 | 63.537 | 709.891 | 0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -69.742 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -69.742 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -0.0 | -47.307 |
-130272781.501 | -200687907.828 | -115020455.13 | -1552679.748 | -22029427.8 | 479544.013 |
227693142.257 | -345731268.072 | 34724121.206 | -0.0 | 0.0 | 0.0 |
63.537 | 63.537 | 709.892 | -0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -69.742 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -69.742 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 0.0 | -47.307 |
602.04 | 28.579 | 63.537 | 0.0 | -0.0 | 0.0 |
28.579 | 602.04 | 63.537 | 0.0 | 0.0 | 0.0 |
63.537 | 63.537 | 709.891 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -69.742 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -69.742 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -0.0 | -47.307 |
-34572703.13 | 22769368.895 | 3472547.877 | 0.0 | 0.0 | 0.0 |
22769368.895 | -34572703.13 | 3472547.877 | -0.0 | 0.0 | 0.0 |
63.537 | 63.537 | 709.896 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -69.742 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -69.742 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | -47.307 |
-22768730.599 | 34573177.282 | -3472337.186 | 0.0 | -0.0 | 0.0 |
34573177.282 | -22768730.599 | -3472337.186 | 0.0 | 0.0 | 0.0 |
63.536 | 63.536 | 709.886 | 0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -69.742 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -69.742 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -47.307 |
48.426 | 16.895 | 160.202 | -103.228 | 0.0 | 0.0 |
16.895 | 48.425 | 160.202 | 103.228 | 0.0 | 0.0 |
145.23 | 145.23 | 186.198 | 0.0 | 0.0 | 0.0 |
-103.227 | 103.227 | -0.0 | 135.555 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 135.555 | -103.227 |
0.0 | 0.0 | 0.0 | 0.0 | -103.228 | 15.765 |
48.425 | 16.895 | 160.202 | -103.228 | -0.0 | -0.0 |
16.895 | 48.426 | 160.202 | 103.228 | -0.0 | -0.0 |
145.23 | 145.23 | 186.198 | 0.0 | -0.0 | -0.0 |
-103.228 | 103.228 | -0.0 | 135.555 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 135.555 | -103.228 |
-0.0 | -0.0 | 0.0 | -0.0 | -103.228 | 15.765 |
48.425 | 16.895 | 160.202 | -103.228 | 0.0 | 0.0 |
16.895 | 48.425 | 160.202 | 103.228 | 0.0 | 0.0 |
145.23 | 145.23 | 186.198 | 0.0 | 0.0 | 0.0 |
-103.228 | 103.228 | 0.0 | 135.555 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 135.555 | -103.228 |
0.0 | 0.0 | 0.0 | -0.0 | -103.228 | 15.765 |
48.425 | 16.895 | 160.202 | -103.228 | -0.0 | -0.0 |
16.895 | 48.425 | 160.202 | 103.228 | -0.0 | -0.0 |
145.23 | 145.23 | 186.197 | -0.0 | -0.0 | -0.0 |
-103.228 | 103.228 | -0.0 | 135.555 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 135.555 | -103.228 |
-0.0 | -0.0 | -0.0 | 0.0 | -103.228 | 15.765 |
48.426 | 16.895 | 160.202 | -103.228 | 0.0 | 0.0 |
16.895 | 48.426 | 160.202 | 103.228 | 0.0 | 0.0 |
145.231 | 145.231 | 186.199 | 0.0 | 0.0 | 0.0 |
-103.228 | 103.228 | 0.0 | 135.555 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 135.555 | -103.228 |
0.0 | -0.0 | 0.0 | -0.0 | -103.228 | 15.765 |
48.425 | 16.895 | 160.202 | -103.227 | -0.0 | -0.0 |
16.895 | 48.425 | 160.202 | 103.227 | -0.0 | -0.0 |
145.23 | 145.23 | 186.197 | -0.0 | -0.0 | -0.0 |
-103.228 | 103.228 | -0.0 | 135.555 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 135.555 | -103.228 |
-0.0 | 0.0 | -0.0 | 0.0 | -103.228 | 15.765 |
583.788 | 2.017 | 2.017 | 0.0 | -0.0 | 0.0 |
2.017 | 583.788 | 2.017 | 0.0 | -0.0 | 0.0 |
2.017 | 2.017 | 583.788 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -59.601 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -59.601 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -59.601 |
583.788 | 2.017 | 2.017 | 0.0 | -0.0 | -0.0 |
2.017 | 583.788 | 2.017 | -0.0 | -0.0 | -0.0 |
2.017 | 2.017 | 583.788 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -59.601 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -59.601 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -59.601 |
583.788 | 2.017 | 2.017 | 0.0 | 0.0 | 0.0 |
2.017 | 583.788 | 2.017 | 0.0 | 0.0 | 0.0 |
2.017 | 2.017 | 583.788 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -59.601 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -59.601 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -0.0 | -59.601 |
583.788 | 2.017 | 2.017 | -0.0 | -0.0 | -0.0 |
2.017 | 583.788 | 2.017 | -0.0 | -0.0 | -0.0 |
2.017 | 2.017 | 583.788 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -59.601 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -59.601 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -59.601 |
583.791 | 2.018 | 2.018 | 0.0 | -0.0 | 0.0 |
2.018 | 583.791 | 2.018 | 0.0 | 0.0 | 0.0 |
2.018 | 2.018 | 583.791 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -59.601 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -59.601 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -0.0 | -59.601 |
583.784 | 2.017 | 2.017 | -0.0 | -0.0 | -0.0 |
2.017 | 583.784 | 2.017 | -0.0 | -0.0 | -0.0 |
2.017 | 2.017 | 583.784 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -59.601 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -59.601 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 0.0 | -59.601 |
643.862 | 243.225 | 199.575 | 25.752 | 0.0 | 0.0 |
262.206 | 645.851 | 200.339 | -26.22 | -0.0 | -0.0 |
199.591 | 199.591 | 680.389 | -0.0 | -0.0 | -0.0 |
36.715 | -15.723 | 0.765 | 156.165 | -0.0 | -0.0 |
10.496 | 10.496 | 0.765 | -0.0 | 156.165 | 26.219 |
10.496 | 10.496 | 0.765 | -0.0 | 27.759 | 163.842 |
643.862 | 243.225 | 199.575 | 25.752 | 0.0 | 0.0 |
243.225 | 643.862 | 199.575 | -25.752 | 0.0 | 0.0 |
189.093 | 189.093 | 679.623 | 0.0 | 0.0 | -0.0 |
25.752 | -25.752 | 0.0 | 156.19 | 0.0 | 0.0 |
-10.496 | -10.496 | -0.765 | 0.0 | 156.165 | 26.219 |
-10.496 | -10.496 | -0.765 | 0.0 | 27.759 | 163.842 |
643.862 | 243.225 | 199.575 | 25.752 | -0.0 | 0.0 |
243.225 | 643.862 | 199.575 | -25.752 | -0.0 | -0.0 |
200.639 | 200.639 | 680.466 | -0.0 | -0.0 | -0.0 |
27.269 | -25.169 | 0.077 | 156.165 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 156.19 | 25.752 |
-0.0 | 0.0 | -0.0 | 0.0 | 25.752 | 200.318 |
632.804 | 251.787 | 199.484 | 26.292 | 0.0 | 0.0 |
243.225 | 643.862 | 199.575 | -25.752 | 0.0 | -0.0 |
199.591 | 199.591 | 680.389 | 0.0 | 0.0 | -0.0 |
25.752 | -25.752 | -0.0 | 156.19 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 156.19 | 25.752 |
0.0 | -0.0 | 0.0 | -0.0 | 25.752 | 200.318 |
607.463 | 279.777 | 199.58 | 27.759 | -0.0 | 0.0 |
243.226 | 643.863 | 199.575 | -25.752 | -0.0 | 0.0 |
199.695 | 199.695 | 680.398 | -0.0 | -0.0 | -0.0 |
27.864 | -27.654 | 0.008 | 156.08 | -0.0 | -0.0 |
0.11 | 0.11 | 0.008 | 0.0 | 156.163 | 26.243 |
-0.0 | 0.0 | -0.0 | 0.0 | 25.752 | 200.318 |
613.556 | 272.585 | 199.54 | 27.393 | 0.0 | 0.0 |
272.584 | 613.556 | 199.54 | -27.393 | 0.0 | 0.0 |
199.483 | 199.483 | 680.38 | 0.0 | 0.0 | 0.0 |
26.133 | -26.353 | -0.008 | 156.164 | 0.0 | -0.0 |
-0.11 | -0.11 | -0.008 | -0.0 | 156.163 | 26.243 |
0.0 | -0.0 | 0.0 | -0.0 | 25.752 | 200.318 |
498.287 | -30.542 | 209.215 | -0.0 | -0.0 | -0.0 |
-26.454 | 552.037 | 90.203 | -0.0 | -0.0 | 0.0 |
211.334 | 81.64 | 477.378 | -0.0 | -0.0 | -0.0 |
-0.048 | 0.115 | 0.551 | -75.85 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 183.612 | 0.0 |
990404610.243 | -1711422859.723 | -497781274.901 | -0.0 | -0.0 | 415457914.966 |
498.303 | -30.578 | 209.04 | 0.0 | 0.0 | 0.0 |
-25.871 | 550.648 | 83.531 | 0.0 | -0.0 | 0.0 |
208.651 | 88.038 | 508.108 | 0.0 | -0.0 | 0.0 |
0.048 | -0.115 | -0.551 | -75.85 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 183.612 | 0.0 |
-1702980012.172 | -1333217835.74 | -788202211.031 | 359.529 | 117.421 | -1606.325 |
498.326 | -30.633 | 208.777 | -0.0 | -0.0 | -0.0 |
-25.895 | 550.705 | 83.801 | -0.0 | -0.0 | 0.0 |
211.339 | 81.629 | 477.324 | -0.0 | -0.0 | 0.0 |
-0.005 | 0.011 | 0.055 | -76.27 | -0.0 | 0.0 |
-0.002 | 0.005 | 0.024 | -0.0 | 183.612 | -0.0 |
99040462.151 | -171142143.959 | -49778110.467 | -0.0 | -0.0 | 41545775.021 |
498.327 | -30.637 | 208.757 | 0.0 | 0.0 | 0.0 |
-25.893 | 550.7 | 83.781 | 0.0 | -0.0 | 0.0 |
208.651 | 88.038 | 508.108 | 0.0 | 0.0 | 0.0 |
0.005 | -0.011 | -0.055 | -76.27 | 0.0 | -0.0 |
0.002 | -0.005 | -0.024 | 0.0 | 183.612 | 0.0 |
-99040462.152 | 171142143.958 | 49778110.466 | 0.0 | 0.0 | 41545775.021 |
498.328 | -30.636 | 208.765 | -0.0 | -0.0 | -0.0 |
-25.894 | 550.706 | 83.794 | -0.0 | -0.0 | -0.0 |
211.34 | 81.628 | 477.318 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.001 | 0.005 | -76.274 | -0.0 | -0.0 |
0.0 | 0.0 | 0.002 | -0.0 | 183.612 | 0.0 |
9904046.895 | -17114072.203 | -4977793.845 | -0.0 | -0.0 | 4154560.386 |
498.326 | -30.636 | 208.761 | 0.0 | 0.0 | 0.0 |
-25.894 | 550.699 | 83.791 | 0.0 | 0.0 | -0.0 |
211.34 | 81.627 | 477.31 | 0.0 | 0.0 | -0.0 |
0.0 | -0.001 | -0.005 | -76.274 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.002 | 0.0 | 183.612 | 0.0 |
-9904046.896 | 17114072.205 | 4977793.846 | 0.0 | 0.0 | 4154560.388 |
19438.509 | 19078.856 | 19078.856 | 0.0 | 0.0 | -0.0 |
19078.856 | 19438.509 | 19078.856 | 0.0 | -0.0 | -0.0 |
19078.856 | 19078.856 | 19438.509 | -0.0 | 0.0 | -0.0 |
15951.084 | 15951.084 | 15951.084 | 51.566 | 0.0 | -0.0 |
15951.084 | 15951.084 | 15951.084 | -0.0 | 51.566 | -0.0 |
15951.084 | 15951.084 | 15951.084 | 0.0 | -0.0 | 51.566 |
-15403.232 | -15781.19 | -15781.19 | 0.0 | 0.0 | 0.0 |
-15781.19 | -15403.232 | -15781.19 | 0.0 | 0.0 | 0.0 |
-15781.19 | -15781.19 | -15403.232 | 0.0 | -0.0 | 0.0 |
-15951.084 | -15951.084 | -15951.084 | 51.566 | -0.0 | 0.0 |
-15951.084 | -15951.084 | -15951.084 | 0.0 | 51.566 | 0.0 |
-15951.084 | -15951.084 | -15951.084 | -0.0 | -0.0 | 51.566 |
2423.041 | 2063.436 | 2063.436 | 0.0 | -0.0 | -0.0 |
2063.436 | 2423.041 | 2063.436 | 0.0 | 0.0 | -0.0 |
2063.436 | 2063.436 | 2423.041 | 0.0 | 0.0 | -0.0 |
1890.622 | 1890.622 | 1890.622 | 33.41 | 0.0 | -0.0 |
1890.622 | 1890.622 | 1890.622 | -0.0 | 33.41 | -0.0 |
1890.622 | 1890.622 | 1890.622 | 0.0 | 0.0 | 33.41 |
-1387.549 | -1759.765 | -1759.765 | 0.0 | 0.0 | 0.0 |
-1759.765 | -1387.549 | -1759.765 | -0.0 | -0.0 | 0.0 |
-1759.765 | -1759.765 | -1387.549 | -0.0 | -0.0 | 0.0 |
-1890.622 | -1890.622 | -1890.622 | 33.41 | 0.0 | 0.0 |
-1890.622 | -1890.622 | -1890.622 | -0.0 | 33.41 | 0.0 |
-1890.622 | -1890.622 | -1890.622 | -0.0 | -0.0 | 33.41 |
728.95 | 364.475 | 364.475 | -0.0 | -0.0 | -0.0 |
364.475 | 728.95 | 364.475 | -0.0 | -0.0 | -0.0 |
364.475 | 364.475 | 728.95 | 0.0 | -0.0 | -0.0 |
188.845 | 188.845 | 188.845 | 33.246 | 0.0 | -0.0 |
188.845 | 188.845 | 188.845 | 0.0 | 33.246 | -0.0 |
188.845 | 188.845 | 188.845 | 0.0 | 0.0 | 33.246 |
343.019 | -15.914 | -15.914 | -0.0 | -0.0 | 0.0 |
-15.914 | 343.019 | -15.914 | -0.0 | 0.0 | 0.0 |
-15.914 | -15.914 | 343.019 | -0.0 | -0.0 | 0.0 |
-188.845 | -188.845 | -188.845 | 33.246 | -0.0 | 0.0 |
-188.845 | -188.845 | -188.845 | -0.0 | 33.246 | 0.0 |
-188.845 | -188.845 | -188.845 | -0.0 | -0.0 | 33.246 |
538.825 | 168.975 | 168.975 | -0.0 | 0.0 | 0.0 |
168.975 | 538.825 | 168.975 | 0.0 | -0.0 | 0.0 |
168.975 | 168.975 | 538.825 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 97.06 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 97.06 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 97.06 |
540.838 | 173.527 | 173.527 | 0.0 | 0.0 | -0.0 |
173.527 | 540.838 | 173.527 | -0.0 | 0.0 | -0.0 |
173.527 | 173.527 | 540.838 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 97.06 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 97.06 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 97.06 |
578.451 | 159.128 | 159.128 | -0.0 | -0.0 | 0.0 |
159.128 | 578.451 | 159.128 | -0.0 | -0.0 | 0.0 |
159.128 | 159.128 | 578.451 | -0.0 | -0.0 | 0.0 |
-0.223 | -0.223 | -0.223 | 56.575 | -0.0 | 0.0 |
-0.223 | -0.223 | -0.223 | -0.0 | 56.575 | 0.0 |
-0.223 | -0.223 | -0.223 | 0.0 | -0.0 | 56.575 |
534.336 | 173.199 | 173.199 | 0.0 | 0.0 | -0.0 |
173.199 | 534.336 | 173.199 | 0.0 | 0.0 | -0.0 |
173.199 | 173.199 | 534.336 | 0.0 | -0.0 | -0.0 |
0.223 | 0.223 | 0.223 | 56.575 | 0.0 | -0.0 |
0.223 | 0.223 | 0.223 | 0.0 | 56.575 | -0.0 |
0.223 | 0.223 | 0.223 | 0.0 | 0.0 | 56.575 |
578.454 | 159.129 | 159.129 | 0.0 | -0.0 | 0.0 |
159.129 | 578.454 | 159.129 | -0.0 | -0.0 | 0.0 |
159.129 | 159.129 | 578.454 | 0.0 | -0.0 | -0.0 |
-0.022 | -0.022 | -0.022 | 56.469 | -0.0 | 0.0 |
-0.022 | -0.022 | -0.022 | -0.0 | 56.469 | 0.0 |
-0.022 | -0.022 | -0.022 | -0.0 | -0.0 | 56.469 |
521.356 | 170.634 | 170.634 | -0.0 | -0.0 | -0.0 |
170.634 | 521.356 | 170.634 | -0.0 | -0.0 | -0.0 |
170.634 | 170.634 | 521.356 | -0.0 | -0.0 | -0.0 |
0.022 | 0.022 | 0.022 | 56.469 | -0.0 | -0.0 |
0.022 | 0.022 | 0.022 | -0.0 | 56.469 | -0.0 |
0.022 | 0.022 | 0.022 | 0.0 | 0.0 | 56.469 |
464.228 | 239.607 | 239.607 | -0.0 | -0.0 | -0.0 |
239.607 | 464.228 | 239.607 | -0.0 | -0.0 | -0.0 |
239.607 | 239.607 | 464.228 | -0.0 | -0.0 | -0.0 |
-0.196 | -0.196 | -0.196 | 156.456 | -0.0 | -0.0 |
-0.196 | -0.196 | -0.196 | -0.0 | 156.456 | -0.0 |
-0.196 | -0.196 | -0.196 | 0.0 | -0.0 | 156.456 |
490.189 | 239.056 | 239.056 | 0.0 | -0.0 | -0.0 |
239.056 | 490.189 | 239.056 | 0.0 | 0.0 | 0.0 |
239.056 | 239.056 | 490.189 | 0.0 | 0.0 | 0.0 |
0.196 | 0.196 | 0.196 | 156.456 | -0.0 | 0.0 |
0.196 | 0.196 | 0.196 | 0.0 | 156.456 | 0.0 |
0.196 | 0.196 | 0.196 | -0.0 | 0.0 | 156.456 |
490.189 | 239.056 | 239.056 | 0.0 | -0.0 | -0.0 |
239.056 | 490.189 | 239.056 | 0.0 | -0.0 | -0.0 |
239.056 | 239.056 | 490.189 | 0.0 | 0.0 | -0.0 |
-0.019 | -0.019 | -0.019 | 157.259 | -0.0 | -0.0 |
-0.019 | -0.019 | -0.019 | -0.0 | 157.259 | 0.0 |
-0.019 | -0.019 | -0.019 | -0.0 | -0.0 | 157.259 |
490.189 | 239.056 | 239.056 | -0.0 | -0.0 | 0.0 |
239.056 | 490.189 | 239.056 | -0.0 | -0.0 | 0.0 |
239.056 | 239.056 | 490.189 | 0.0 | 0.0 | 0.0 |
0.019 | 0.019 | 0.019 | 157.259 | 0.0 | 0.0 |
0.019 | 0.019 | 0.019 | 0.0 | 157.259 | -0.0 |
0.019 | 0.019 | 0.019 | 0.0 | 0.0 | 157.259 |
475.617 | 238.695 | 238.695 | -0.0 | -0.0 | -0.0 |
238.695 | 475.617 | 238.695 | -0.0 | -0.0 | -0.0 |
238.695 | 238.695 | 475.617 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 179.451 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 179.451 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 179.451 |
490.187 | 239.055 | 239.055 | 0.0 | -0.0 | 0.0 |
239.055 | 490.187 | 239.055 | 0.0 | 0.0 | -0.0 |
239.055 | 239.055 | 490.187 | 0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 179.451 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 179.451 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 179.451 |
-28.205 | -245.444 | -245.444 | 0.0 | 0.0 | -0.0 |
-245.444 | -28.205 | -245.444 | 0.0 | 0.0 | 0.0 |
-245.444 | -245.444 | -28.205 | 0.0 | 0.0 | -0.0 |
-347.828 | -347.828 | -347.828 | 160.872 | 0.0 | -0.0 |
-347.828 | -347.828 | -347.828 | -0.0 | 160.872 | -0.0 |
-347.828 | -347.828 | -347.828 | -0.0 | 0.0 | 160.872 |
476.302 | 230.082 | 230.082 | 0.0 | -0.0 | 0.0 |
230.082 | 476.302 | 230.082 | 0.0 | -0.0 | 0.0 |
230.082 | 230.082 | 476.302 | 0.0 | -0.0 | 0.0 |
347.828 | 347.828 | 347.828 | 160.872 | -0.0 | 0.0 |
347.828 | 347.828 | 347.828 | -0.0 | 160.872 | 0.0 |
347.828 | 347.828 | 347.828 | -0.0 | -0.0 | 160.872 |
476.303 | 230.082 | 230.082 | -0.0 | 0.0 | 0.0 |
230.082 | 476.303 | 230.082 | 0.0 | 0.0 | -0.0 |
230.082 | 230.082 | 476.303 | -0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 176.245 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 176.245 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 176.245 |
476.302 | 230.082 | 230.082 | -0.0 | -0.0 | -0.0 |
230.082 | 476.302 | 230.082 | -0.0 | -0.0 | -0.0 |
230.082 | 230.082 | 476.302 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 176.245 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 176.245 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 176.245 |
458.532 | 225.791 | 225.791 | -0.0 | 0.0 | -0.0 |
225.791 | 458.532 | 225.791 | 0.0 | 0.0 | -0.0 |
225.791 | 225.791 | 458.532 | 0.0 | 0.0 | -0.0 |
-4.428 | -4.428 | -4.428 | 148.574 | 0.0 | 0.0 |
-4.428 | -4.428 | -4.428 | 0.0 | 148.574 | -0.0 |
-4.428 | -4.428 | -4.428 | 0.0 | 0.0 | 148.574 |
476.301 | 230.082 | 230.082 | -0.0 | -0.0 | 0.0 |
230.082 | 476.301 | 230.082 | 0.0 | -0.0 | -0.0 |
230.082 | 230.082 | 476.301 | -0.0 | -0.0 | 0.0 |
4.428 | 4.428 | 4.428 | 148.574 | -0.0 | 0.0 |
4.428 | 4.428 | 4.428 | 0.0 | 148.574 | 0.0 |
4.428 | 4.428 | 4.428 | -0.0 | -0.0 | 148.574 |
524.375 | -18.654 | 205.324 | -0.0 | -0.0 | 0.0 |
-27.104 | 676.19 | 113.454 | -0.0 | -0.0 | -0.0 |
193.014 | 113.023 | 554.4 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 71.863 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 161.129 | 0.0 |
1799328179.041 | 273057555.108 | 557411732.951 | -18.365 | 7.155 | -11.646 |
524.778 | -18.509 | 202.039 | 0.0 | 0.0 | 0.0 |
-27.25 | 676.138 | 114.638 | 0.0 | 0.0 | -0.0 |
193.013 | 113.023 | 554.4 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 71.863 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 161.129 | -0.0 |
-1824030237.644 | -273057557.499 | -583115919.595 | -34.397 | -14.315 | 30.995 |
524.778 | -18.509 | 202.04 | -0.0 | -0.0 | 0.0 |
-27.104 | 676.191 | 113.454 | -0.0 | -0.0 | -0.0 |
193.014 | 113.023 | 554.4 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 71.863 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 161.129 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -61.701 |
524.778 | -18.509 | 202.039 | 0.0 | 0.0 | -0.0 |
-27.25 | 676.137 | 114.638 | 0.0 | 0.0 | -0.0 |
193.014 | 113.023 | 554.399 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 71.863 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 161.129 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -61.701 |
524.375 | -18.654 | 205.324 | -0.0 | -0.0 | 0.0 |
-27.104 | 676.194 | 113.455 | -0.0 | -0.0 | 0.0 |
196.298 | 114.208 | 527.659 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 71.863 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 161.129 | 0.0 |
11666668.759 | -24769463.874 | -6757125.025 | -0.0 | -0.0 | 7010916.304 |
524.374 | -18.654 | 205.323 | 0.0 | 0.0 | -0.0 |
-27.104 | 676.186 | 113.453 | 0.0 | 0.0 | -0.0 |
196.297 | 114.208 | 527.656 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 71.863 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 161.129 | -0.0 |
-11666668.759 | 24769463.874 | 6757125.025 | 0.0 | 0.0 | 7010916.304 |
606.064 | 282.843 | 204.776 | 0.0 | -0.0 | -0.0 |
283.251 | 607.199 | 208.052 | 0.0 | 0.0 | -0.0 |
205.804 | 207.101 | 682.467 | 0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 164.116 | 0.0 | -0.0 |
-0.537 | 0.537 | -0.003 | 0.0 | 161.411 | -0.0 |
-0.548 | 0.548 | -0.003 | 0.0 | 0.0 | 157.126 |
648.061 | 240.855 | 205.027 | 0.0 | -0.0 | 0.0 |
284.327 | 606.124 | 208.059 | -0.0 | -0.0 | -0.0 |
205.804 | 207.101 | 682.466 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 164.116 | -0.0 | 0.0 |
0.537 | -0.537 | 0.003 | -0.0 | 161.411 | -0.0 |
0.548 | -0.548 | 0.003 | -0.0 | -0.0 | 157.126 |
606.548 | 282.359 | 204.779 | 0.0 | 0.0 | 0.0 |
283.735 | 606.715 | 208.055 | 0.0 | 0.0 | 0.0 |
205.804 | 207.101 | 682.467 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 164.116 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 161.411 | -0.0 |
-0.055 | 0.055 | -0.0 | 0.0 | 0.0 | 157.126 |
648.06 | 240.855 | 205.027 | 0.0 | -0.0 | 0.0 |
283.843 | 606.608 | 208.056 | -0.0 | -0.0 | -0.0 |
205.804 | 207.101 | 682.466 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 164.116 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 161.411 | 0.0 |
0.055 | -0.055 | 0.0 | -0.0 | -0.0 | 157.126 |
606.598 | 282.31 | 204.779 | 0.0 | 0.0 | 0.0 |
283.785 | 606.667 | 208.056 | 0.0 | 0.0 | 0.0 |
205.805 | 207.102 | 682.469 | 0.0 | -0.0 | -0.0 |
-0.001 | 0.001 | 0.0 | 164.116 | 0.0 | -0.0 |
-0.006 | 0.005 | 0.0 | 0.0 | 161.411 | 0.0 |
-0.006 | 0.006 | -0.0 | 0.0 | 0.0 | 157.126 |
606.606 | 282.3 | 204.779 | -0.0 | -0.0 | -0.0 |
283.793 | 606.656 | 208.055 | -0.0 | -0.0 | -0.0 |
205.803 | 207.1 | 682.464 | 0.0 | -0.0 | 0.0 |
0.001 | -0.001 | -0.0 | 164.116 | -0.0 | 0.0 |
0.006 | -0.005 | -0.0 | -0.0 | 161.411 | -0.0 |
0.006 | -0.006 | 0.0 | -0.0 | -0.0 | 157.126 |
-942506140.138 | -923827425.485 | -888344297.432 | -3835270.57 | 5677922.622 | 20024754.902 |
110.8 | 205.375 | 31.81 | -0.0 | 0.0 | 0.0 |
31.81 | 31.81 | 335.539 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | -49.053 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -49.053 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 0.0 | -59.25 |
205.375 | 110.8 | 31.81 | -0.0 | -0.0 | -0.0 |
110.8 | 205.375 | 31.81 | -0.0 | -0.0 | -0.0 |
31.81 | 31.81 | 335.539 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -49.053 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -49.053 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -0.0 | -59.25 |
205.375 | 110.8 | 31.81 | 0.0 | 0.0 | 0.0 |
217.343 | 98.833 | 31.81 | 0.0 | 0.0 | -0.0 |
31.81 | 31.81 | 335.539 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -49.053 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -49.053 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 47.287 |
205.375 | 110.8 | 31.81 | -0.0 | 0.0 | -0.0 |
217.338 | 98.837 | 31.81 | -0.0 | -0.0 | -0.0 |
31.81 | 31.81 | 335.539 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -49.053 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -49.053 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 47.287 |
-9381606.766 | -8990168.411 | -8967959.151 | -140881.816 | -56689.303 | -193632.232 |
110.801 | 205.374 | 31.81 | -0.0 | 0.0 | 0.0 |
31.81 | 31.81 | 335.539 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -49.053 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -49.053 | -0.0 |
-0.001 | -0.0 | 0.0 | 0.0 | 0.0 | 47.287 |
205.376 | 110.8 | 31.809 | -0.0 | -0.0 | -0.0 |
9154368.551 | 8581490.533 | 8463315.024 | 107418.671 | 87928.614 | 110990.294 |
31.81 | 31.81 | 335.538 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -49.053 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | -49.053 | -0.0 |
0.001 | 0.0 | -0.0 | -0.0 | -0.0 | 47.287 |
607.335 | 279.662 | 199.596 | 27.763 | 0.0 | -0.0 |
279.662 | 607.335 | 199.596 | -27.763 | 0.0 | -0.0 |
199.596 | 199.596 | 680.378 | 0.0 | 0.0 | -0.0 |
25.756 | -25.756 | 0.0 | 156.201 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 156.091 | 27.763 |
-0.0 | 0.0 | 0.0 | 0.0 | 25.756 | 200.32 |
607.652 | 279.154 | 199.589 | 27.74 | -0.0 | 0.0 |
279.154 | 607.652 | 199.589 | -27.74 | -0.0 | 0.0 |
199.596 | 199.596 | 680.378 | 0.0 | -0.0 | 0.0 |
25.756 | -25.756 | -0.0 | 156.201 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 156.091 | 27.763 |
0.0 | -0.0 | -0.0 | -0.0 | 25.756 | 200.32 |
643.848 | 243.208 | 199.599 | 25.756 | 0.0 | -0.0 |
279.154 | 607.652 | 199.589 | -27.74 | 0.0 | -0.0 |
199.597 | 199.597 | 680.378 | -0.0 | 0.0 | -0.0 |
25.756 | -25.756 | 0.0 | 156.201 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 156.201 | 25.756 |
-0.0 | 0.0 | -0.0 | 0.0 | 25.756 | 200.32 |
643.848 | 243.208 | 199.599 | 25.756 | -0.0 | 0.0 |
243.208 | 643.848 | 199.599 | -25.756 | -0.0 | 0.0 |
199.599 | 199.599 | 680.378 | 0.0 | -0.0 | 0.0 |
27.763 | -27.763 | -0.0 | 156.091 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 156.201 | 25.756 |
0.0 | -0.0 | 0.0 | -0.0 | 25.756 | 200.32 |
643.849 | 243.209 | 199.599 | 25.756 | -0.0 | -0.0 |
243.209 | 643.848 | 199.599 | -25.756 | 0.0 | 0.0 |
199.597 | 199.597 | 680.38 | 0.0 | 0.0 | -0.0 |
25.756 | -25.756 | 0.0 | 156.201 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 156.201 | 25.756 |
-0.0 | 0.0 | -0.0 | 0.0 | 25.756 | 200.32 |
643.847 | 243.208 | 199.598 | 25.756 | -0.0 | 0.0 |
243.208 | 643.847 | 199.598 | -25.756 | -0.0 | 0.0 |
199.596 | 199.596 | 680.377 | -0.0 | -0.0 | 0.0 |
27.763 | -27.762 | -0.0 | 156.091 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 156.201 | 25.756 |
0.0 | -0.0 | 0.0 | -0.0 | 25.756 | 200.32 |
607.659 | 279.175 | 199.651 | 27.747 | 0.0 | 0.0 |
279.175 | 607.659 | 199.651 | -27.747 | -0.0 | 0.0 |
199.64 | 199.64 | 680.446 | 0.0 | 0.0 | 0.0 |
25.76 | -25.76 | 0.0 | 156.218 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 156.107 | 27.77 |
0.0 | 0.0 | 0.0 | 0.0 | 27.77 | 163.83 |
607.66 | 279.174 | 199.651 | 27.747 | -0.0 | -0.0 |
243.22 | 643.865 | 199.661 | -25.76 | -0.0 | 0.0 |
199.64 | 199.64 | 680.445 | -0.0 | -0.0 | 0.0 |
25.76 | -25.76 | -0.0 | 156.218 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 156.107 | 27.77 |
-0.0 | -0.0 | -0.0 | -0.0 | 27.77 | 163.83 |
607.66 | 279.174 | 199.651 | 27.747 | 0.0 | 0.0 |
279.174 | 607.66 | 199.651 | -27.747 | 0.0 | -0.0 |
199.642 | 199.642 | 680.446 | 0.0 | 0.0 | -0.0 |
25.76 | -25.76 | 0.0 | 156.218 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 156.107 | 27.77 |
-0.0 | 0.0 | -0.0 | 0.0 | 27.77 | 163.83 |
607.343 | 279.683 | 199.659 | 27.77 | -0.0 | -0.0 |
279.174 | 607.66 | 199.651 | -27.747 | -0.0 | -0.0 |
199.642 | 199.642 | 680.446 | -0.0 | -0.0 | 0.0 |
27.77 | -27.77 | -0.0 | 156.107 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 156.107 | 27.77 |
0.0 | -0.0 | 0.0 | 0.0 | 27.77 | 163.83 |
607.344 | 279.683 | 199.659 | 27.77 | 0.0 | -0.0 |
279.684 | 607.343 | 199.659 | -27.77 | 0.0 | 0.0 |
199.64 | 199.64 | 680.447 | -0.0 | 0.0 | -0.0 |
25.76 | -25.761 | 0.0 | 156.218 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 156.107 | 27.77 |
-0.0 | 0.0 | -0.0 | -0.0 | 27.77 | 163.83 |
607.342 | 279.683 | 199.659 | 27.77 | 0.0 | 0.0 |
243.219 | 643.865 | 199.661 | -25.76 | -0.0 | -0.0 |
199.641 | 199.641 | 680.444 | -0.0 | -0.0 | 0.0 |
25.76 | -25.76 | -0.0 | 156.218 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 156.107 | 27.77 |
0.0 | -0.0 | 0.0 | 0.0 | 27.77 | 163.83 |
67.449 | 125.152 | 125.152 | -0.0 | 0.0 | -0.0 |
125.152 | 67.449 | 125.152 | -0.0 | 0.0 | -0.0 |
125.152 | 125.152 | 67.449 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 45.103 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 45.103 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 45.103 |
67.449 | 125.152 | 125.152 | 0.0 | -0.0 | 0.0 |
125.152 | 67.449 | 125.152 | 0.0 | -0.0 | 0.0 |
125.152 | 125.152 | 67.449 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 45.103 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 45.103 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 45.103 |
67.449 | 125.152 | 125.152 | -0.0 | -0.0 | -0.0 |
125.152 | 67.449 | 125.152 | -0.0 | 0.0 | 0.0 |
125.152 | 125.152 | 67.449 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 45.103 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 45.103 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 45.103 |
67.449 | 125.152 | 125.152 | 0.0 | -0.0 | 0.0 |
125.152 | 67.449 | 125.152 | 0.0 | 0.0 | 0.0 |
125.152 | 125.152 | 67.449 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 45.103 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 45.103 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 45.103 |
67.449 | 125.152 | 125.152 | -0.0 | 0.0 | -0.0 |
125.152 | 67.449 | 125.152 | -0.0 | 0.0 | -0.0 |
125.152 | 125.152 | 67.449 | 0.0 | 0.0 | -0.0 |
0.001 | 0.0 | 0.0 | -62.716 | 0.0 | -0.0 |
0.0 | 0.001 | 0.0 | -0.0 | -62.716 | -0.0 |
0.0 | 0.0 | 0.001 | -0.0 | 0.0 | -62.716 |
67.449 | 125.152 | 125.152 | 0.0 | 0.0 | 0.0 |
125.152 | 67.449 | 125.152 | 0.0 | 0.0 | 0.0 |
125.152 | 125.152 | 67.449 | 0.0 | 0.0 | 0.0 |
-0.001 | -0.0 | -0.0 | -62.716 | -0.0 | 0.0 |
-0.0 | -0.001 | -0.0 | 0.0 | -62.716 | 0.0 |
-0.0 | -0.0 | -0.001 | 0.0 | -0.0 | -62.716 |
640.026 | 324.835 | 306.627 | -0.0 | -0.0 | -0.0 |
325.712 | 644.463 | 313.043 | -0.0 | -0.0 | 0.0 |
313.043 | 313.043 | 641.848 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 145.766 | -0.0 | -0.0 |
-3.477 | -3.477 | -0.121 | -0.0 | 97.324 | 0.0 |
-1.621 | -1.621 | -11.206 | -0.0 | -0.0 | 157.785 |
643.839 | 327.831 | 327.426 | 0.0 | 0.0 | 0.0 |
325.712 | 644.463 | 313.043 | 0.0 | 0.0 | -0.0 |
313.043 | 313.043 | 641.848 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 145.766 | 0.0 | -0.0 |
3.477 | 3.477 | 0.121 | 0.0 | 97.324 | -0.0 |
1.621 | 1.621 | 11.206 | 0.0 | 0.0 | 157.785 |
640.413 | 327.916 | 314.34 | -0.0 | -0.0 | 0.0 |
325.712 | 644.463 | 313.043 | -0.0 | -0.0 | -0.0 |
313.044 | 313.044 | 641.848 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 145.766 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 145.766 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 159.376 |
644.463 | 325.712 | 313.043 | 0.0 | 0.0 | -0.0 |
326.43 | 642.895 | 317.781 | 0.0 | 0.0 | -0.0 |
313.043 | 313.043 | 641.848 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 145.766 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 145.766 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 159.376 |
642.272 | 326.474 | 318.019 | -0.0 | -0.0 | 0.0 |
325.713 | 644.464 | 313.044 | -0.0 | -0.0 | -0.0 |
314.865 | 314.865 | 625.044 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 145.766 | -0.0 | 0.0 |
-0.071 | -0.071 | 0.347 | -0.0 | 94.639 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 159.376 |
644.462 | 325.711 | 313.043 | 0.0 | 0.0 | 0.0 |
325.711 | 644.463 | 313.043 | 0.0 | 0.0 | -0.0 |
314.88 | 314.88 | 625.07 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 145.766 | 0.0 | 0.0 |
0.071 | 0.071 | -0.347 | 0.0 | 94.639 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 159.376 |
644.999 | 324.972 | 317.793 | 0.0 | 0.0 | 0.0 |
324.972 | 644.999 | 317.793 | 0.0 | 0.0 | -0.0 |
315.587 | 315.587 | 638.37 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 146.136 | -0.0 | -0.0 |
0.408 | 0.408 | -2.515 | 0.0 | 92.333 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 160.013 |
643.084 | 324.903 | 323.832 | -0.0 | 0.0 | 0.0 |
324.972 | 644.999 | 317.793 | -0.0 | 0.0 | -0.0 |
315.587 | 315.587 | 638.37 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 146.136 | 0.0 | 0.0 |
-0.408 | -0.408 | 2.515 | -0.0 | 92.333 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 160.013 |
644.999 | 324.972 | 317.793 | -0.0 | -0.0 | -0.0 |
328.847 | 639.493 | 320.654 | 0.0 | -0.0 | 0.0 |
318.569 | 318.569 | 619.438 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 146.136 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 146.136 | -0.0 |
0.043 | 0.043 | -0.255 | 0.0 | -0.0 | 154.418 |
644.999 | 324.972 | 317.793 | 0.0 | 0.0 | 0.0 |
328.774 | 639.495 | 320.807 | -0.0 | 0.0 | 0.0 |
318.542 | 318.542 | 619.574 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 146.136 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 146.136 | 0.0 |
-0.043 | -0.043 | 0.255 | -0.0 | 0.0 | 154.418 |
642.973 | 325.108 | 323.53 | 0.0 | -0.0 | 0.0 |
324.973 | 645.0 | 317.793 | -0.0 | -0.0 | -0.0 |
318.558 | 318.558 | 619.499 | 0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 146.136 | -0.0 | -0.0 |
0.004 | 0.004 | -0.026 | -0.0 | 92.089 | -0.0 |
0.008 | 0.009 | -0.054 | -0.0 | -0.0 | 155.664 |
644.998 | 324.972 | 317.792 | 0.0 | 0.0 | 0.0 |
325.102 | 642.975 | 323.533 | 0.0 | 0.0 | 0.0 |
318.553 | 318.553 | 619.513 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 146.136 | 0.0 | 0.0 |
-0.004 | -0.004 | 0.026 | 0.0 | 92.089 | 0.0 |
-0.008 | -0.009 | 0.054 | -0.0 | 0.0 | 155.664 |
2005.245 | 2027.379 | 2114.606 | -0.0 | -0.0 | -0.0 |
2027.379 | 2005.245 | 2114.606 | -0.0 | -0.0 | -0.0 |
44.707 | 44.707 | 74.178 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 21.674 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 21.674 | -0.0 |
1996.856 | 1996.856 | 2105.962 | -0.0 | 0.0 | 23.924 |
39.114 | 60.289 | 40.542 | 0.0 | -0.0 | 0.0 |
60.289 | 39.114 | 40.542 | -0.0 | 0.0 | 0.0 |
44.707 | 44.707 | 74.178 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 21.674 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 21.674 | 0.0 |
-1996.856 | -1996.856 | -2105.962 | 0.0 | 0.0 | 23.924 |
39.114 | 60.289 | 40.542 | 0.0 | -0.0 | -0.0 |
60.289 | 39.114 | 40.542 | -0.0 | 0.0 | -0.0 |
212.472 | 212.472 | 251.11 | -0.0 | -0.0 | -0.0 |
199.687 | 199.687 | 210.598 | 12.384 | -0.0 | -0.0 |
199.687 | 199.687 | 210.598 | -0.0 | 12.384 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 53.601 |
-192.675 | -167.832 | -201.978 | -0.0 | 0.0 | 0.0 |
-167.832 | -192.675 | -201.978 | 0.0 | 0.0 | 0.0 |
-186.906 | -186.906 | -170.09 | 0.0 | 0.0 | 0.0 |
-199.687 | -199.687 | -210.598 | 12.384 | 0.0 | 0.0 |
-199.687 | -199.687 | -210.598 | 0.0 | 12.384 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 53.601 |
27.284 | 49.511 | 28.62 | -0.0 | -0.0 | -0.0 |
49.511 | 27.284 | 28.62 | -0.0 | -0.0 | -0.0 |
32.753 | 32.753 | 61.571 | -0.0 | -0.0 | -0.0 |
19.969 | 19.969 | 21.06 | 12.385 | -0.0 | -0.0 |
19.969 | 19.969 | 21.06 | -0.0 | 12.385 | -0.0 |
19.452 | 19.452 | 20.515 | -0.0 | -0.0 | 24.692 |
-12.958 | 11.885 | -12.441 | -0.0 | 0.0 | 0.0 |
11.885 | -12.958 | -12.441 | 0.0 | 0.0 | 0.0 |
-7.183 | -7.183 | 19.453 | 0.0 | 0.0 | 0.0 |
-19.969 | -19.969 | -21.06 | 12.385 | 0.0 | 0.0 |
-19.969 | -19.969 | -21.06 | 0.0 | 12.385 | 0.0 |
-19.452 | -19.452 | -20.515 | 0.0 | 0.0 | 24.692 |
44.713 | 47.839 | 47.839 | 0.0 | 0.0 | 0.0 |
47.839 | 44.713 | 47.839 | 0.0 | 0.0 | 0.0 |
47.839 | 47.839 | 44.713 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -4.008 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -4.008 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -4.008 |
44.713 | 47.839 | 47.839 | -0.0 | -0.0 | -0.0 |
47.839 | 44.713 | 47.839 | -0.0 | -0.0 | -0.0 |
47.839 | 47.839 | 44.713 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -4.008 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -4.008 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -4.008 |
44.713 | 47.839 | 47.839 | 0.0 | 0.0 | 0.0 |
47.839 | 44.713 | 47.839 | 0.0 | 0.0 | 0.0 |
47.839 | 47.839 | 44.713 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -4.008 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -4.008 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -4.008 |
44.713 | 47.839 | 47.839 | -0.0 | -0.0 | -0.0 |
47.839 | 44.713 | 47.839 | -0.0 | -0.0 | -0.0 |
47.839 | 47.839 | 44.713 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -4.008 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -4.008 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -4.008 |
44.713 | 47.84 | 47.84 | 0.0 | 0.0 | 0.0 |
47.84 | 44.713 | 47.84 | 0.0 | 0.0 | 0.0 |
47.84 | 47.84 | 44.713 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -4.008 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -4.008 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -4.008 |
44.713 | 47.839 | 47.839 | -0.0 | -0.0 | -0.0 |
47.839 | 44.713 | 47.839 | -0.0 | -0.0 | -0.0 |
47.839 | 47.839 | 44.713 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -4.008 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -4.008 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -4.008 |
408.807 | 144.732 | 144.732 | -0.0 | -0.0 | -0.0 |
144.732 | 408.807 | 144.732 | -0.0 | -0.0 | -0.0 |
144.732 | 144.732 | 408.807 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 12.037 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 12.037 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 12.037 |
408.807 | 144.732 | 144.732 | 0.0 | 0.0 | 0.0 |
144.732 | 408.807 | 144.732 | 0.0 | -0.0 | 0.0 |
144.732 | 144.732 | 408.807 | 0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 12.037 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 12.037 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 12.037 |
408.807 | 144.732 | 144.732 | -0.0 | -0.0 | -0.0 |
144.732 | 408.807 | 144.732 | -0.0 | -0.0 | -0.0 |
144.732 | 144.732 | 408.807 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 12.037 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 12.037 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 12.037 |
404.996 | 146.637 | 146.637 | 0.0 | -0.0 | 0.0 |
146.637 | 404.996 | 146.637 | 0.0 | 0.0 | -0.0 |
146.637 | 146.637 | 404.996 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 12.037 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 12.037 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 12.037 |
408.807 | 144.732 | 144.732 | -0.0 | -0.0 | -0.0 |
144.732 | 408.807 | 144.732 | -0.0 | -0.0 | -0.0 |
144.732 | 144.732 | 408.807 | -0.0 | 0.0 | 0.0 |
243350.979 | -2864277.705 | -2864294.482 | -8222670.212 | -0.0 | -0.0 |
-2864277.63 | 243350.994 | -2864294.562 | -0.0 | -8222670.422 | -0.0 |
-2864277.705 | -2864294.482 | 243350.979 | -0.0 | -0.0 | -8222670.21 |
408.807 | 144.732 | 144.732 | 0.0 | 0.0 | 0.0 |
144.732 | 408.807 | 144.732 | 0.0 | 0.0 | 0.0 |
144.732 | 144.732 | 408.807 | 0.0 | 0.0 | 0.0 |
-243350.98 | 2864277.706 | 2864294.481 | -8222670.215 | 0.0 | -0.0 |
2864277.627 | -243350.995 | 2864294.566 | 0.0 | -8222670.427 | -0.0 |
2864277.706 | 2864294.481 | -243350.98 | 0.0 | -0.0 | -8222670.215 |
350.246 | 254.156 | 254.156 | 0.0 | -0.0 | -0.0 |
254.156 | 350.246 | 254.156 | -0.0 | -0.0 | 0.0 |
254.156 | 254.156 | 350.246 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 82.062 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 82.062 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 82.062 |
350.246 | 254.156 | 254.156 | -0.0 | -0.0 | 0.0 |
254.156 | 350.246 | 254.156 | -0.0 | 0.0 | 0.0 |
254.156 | 254.156 | 350.246 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 82.062 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 82.062 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 82.062 |
350.246 | 254.156 | 254.156 | 0.0 | -0.0 | 0.0 |
254.156 | 350.246 | 254.156 | -0.0 | 0.0 | 0.0 |
254.156 | 254.156 | 350.246 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 129.009 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 129.009 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 129.009 |
350.246 | 254.156 | 254.156 | -0.0 | 0.0 | 0.0 |
254.156 | 350.246 | 254.156 | -0.0 | -0.0 | 0.0 |
254.156 | 254.156 | 350.246 | -0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 129.009 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 129.009 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 129.009 |
350.248 | 254.157 | 254.157 | 0.0 | -0.0 | 0.0 |
254.157 | 350.248 | 254.157 | 0.0 | -0.0 | 0.0 |
254.157 | 254.157 | 350.248 | -0.0 | 0.0 | -0.0 |
0.001 | 0.001 | 0.001 | 82.062 | -0.0 | -0.0 |
0.001 | 0.001 | 0.001 | -0.0 | 82.062 | 0.0 |
0.001 | 0.001 | 0.001 | -0.0 | 0.0 | 82.062 |
350.244 | 254.155 | 254.155 | -0.0 | -0.0 | 0.0 |
254.155 | 350.244 | 254.155 | -0.0 | -0.0 | -0.0 |
254.155 | 254.155 | 350.244 | -0.0 | -0.0 | 0.0 |
-0.001 | -0.001 | -0.001 | 82.062 | 0.0 | -0.0 |
-0.001 | -0.001 | -0.001 | 0.0 | 82.062 | 0.0 |
-0.001 | -0.001 | -0.001 | 0.0 | 0.0 | 82.062 |
310.912 | 247.453 | 247.453 | -0.0 | 0.0 | 0.0 |
247.453 | 310.912 | 247.453 | 0.0 | -0.0 | 0.0 |
247.453 | 247.453 | 310.912 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 136.417 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 136.417 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 136.417 |
310.912 | 247.453 | 247.453 | -0.0 | -0.0 | -0.0 |
247.453 | 310.912 | 247.453 | 0.0 | 0.0 | 0.0 |
247.453 | 247.453 | 310.912 | 0.0 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 136.417 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 136.417 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 136.417 |
310.912 | 247.453 | 247.453 | 0.0 | 0.0 | -0.0 |
247.453 | 310.912 | 247.453 | 0.0 | 0.0 | 0.0 |
247.453 | 247.453 | 310.912 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 136.417 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 136.417 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 136.417 |
310.912 | 247.453 | 247.453 | 0.0 | 0.0 | 0.0 |
247.453 | 310.912 | 247.453 | -0.0 | -0.0 | -0.0 |
247.453 | 247.453 | 310.912 | 0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 136.417 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 136.417 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 136.417 |
310.912 | 247.454 | 247.454 | 0.0 | -0.0 | 0.0 |
247.454 | 310.912 | 247.454 | 0.0 | -0.0 | 0.0 |
247.454 | 247.454 | 310.912 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 136.417 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 136.417 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 136.417 |
310.912 | 247.452 | 247.452 | -0.0 | -0.0 | -0.0 |
247.452 | 310.912 | 247.452 | -0.0 | -0.0 | 0.0 |
247.452 | 247.452 | 310.912 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 136.417 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 136.417 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 136.417 |
413.632 | 214.126 | 184.446 | -0.0 | -0.0 | 0.0 |
256.449 | 348.415 | 178.361 | -0.0 | 0.0 | 0.0 |
184.51 | 184.51 | 428.224 | -0.0 | -0.0 | 0.0 |
-6.174 | -6.174 | -3.282 | 54.579 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 68.18 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 99.753 |
413.632 | 214.126 | 184.446 | -0.0 | 0.0 | -0.0 |
214.126 | 413.632 | 184.446 | -0.0 | 0.0 | 0.0 |
186.851 | 186.851 | 429.469 | 0.0 | 0.0 | 0.0 |
6.174 | 6.174 | 3.282 | 54.579 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 68.18 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 99.753 |
413.632 | 214.126 | 184.446 | -0.0 | -0.0 | -0.0 |
214.126 | 413.632 | 184.446 | -0.0 | 0.0 | 0.0 |
184.51 | 184.51 | 428.224 | 0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 68.18 | -0.0 | 0.0 |
-2.066 | -2.066 | -1.098 | -0.0 | 55.008 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 99.753 |
383.064 | 222.972 | 178.672 | 0.0 | 0.0 | -0.0 |
214.126 | 413.632 | 184.446 | 0.0 | 0.0 | -0.0 |
184.51 | 184.51 | 428.224 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 68.18 | -0.0 | -0.0 |
2.066 | 2.066 | 1.098 | -0.0 | 55.008 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 99.753 |
413.634 | 214.126 | 184.446 | 0.0 | -0.0 | 0.0 |
214.127 | 413.633 | 184.446 | -0.0 | -0.0 | -0.0 |
180.616 | 180.616 | 426.155 | 0.0 | 0.0 | 0.0 |
-0.213 | -0.214 | -0.113 | 54.584 | -0.0 | 0.0 |
-0.214 | -0.213 | -0.113 | -0.0 | 54.584 | 0.0 |
-0.063 | -0.061 | -0.033 | 0.0 | -0.0 | 28.849 |
413.631 | 214.126 | 184.445 | 0.0 | 0.0 | -0.0 |
221.78 | 383.242 | 178.403 | -0.0 | 0.0 | -0.0 |
180.739 | 180.739 | 426.219 | -0.0 | -0.0 | 0.0 |
0.213 | 0.214 | 0.113 | 54.584 | -0.0 | -0.0 |
0.214 | 0.213 | 0.113 | 0.0 | 54.584 | -0.0 |
0.063 | 0.061 | 0.033 | -0.0 | 0.0 | 28.849 |
411.091 | 212.736 | 183.563 | -0.0 | -0.0 | 0.0 |
246.341 | 416.517 | 193.447 | -0.0 | 0.0 | 0.0 |
203.99 | 203.99 | 436.308 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 68.036 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 68.036 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 99.178 |
327.232 | 234.889 | 167.938 | 0.0 | 0.0 | -0.0 |
245.206 | 314.993 | 167.451 | 0.0 | 0.0 | 0.0 |
183.563 | 183.563 | 425.963 | -0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 68.036 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 68.036 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 99.178 |
411.091 | 212.736 | 183.563 | -0.0 | -0.0 | 0.0 |
212.736 | 411.091 | 183.563 | -0.0 | 0.0 | 0.0 |
182.184 | 182.184 | 425.264 | -0.0 | 0.0 | -0.0 |
5.895 | 5.895 | 2.985 | 58.655 | -0.0 | 0.0 |
5.895 | 5.895 | 2.985 | -0.0 | 58.655 | 0.0 |
5.376 | 5.376 | 2.722 | -0.0 | -0.0 | 72.393 |
350.152 | 259.07 | 179.865 | 0.0 | -0.0 | -0.0 |
212.736 | 411.091 | 183.563 | 0.0 | 0.0 | -0.0 |
177.338 | 177.338 | 422.81 | -0.0 | 0.0 | -0.0 |
-5.895 | -5.895 | -2.985 | 58.655 | 0.0 | -0.0 |
-5.895 | -5.895 | -2.985 | 0.0 | 58.655 | -0.0 |
-5.376 | -5.376 | -2.722 | 0.0 | -0.0 | 72.393 |
353.026 | 263.002 | 181.588 | -0.0 | -0.0 | 0.0 |
212.736 | 411.092 | 183.563 | -0.0 | 0.0 | 0.0 |
180.004 | 180.004 | 424.161 | -0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 68.036 | -0.0 | -0.0 |
0.826 | 0.827 | 0.419 | 0.0 | 54.877 | 0.0 |
-0.578 | -0.577 | -0.293 | -0.0 | -0.0 | 37.237 |
411.089 | 212.735 | 183.563 | -0.0 | 0.0 | -0.0 |
212.735 | 411.09 | 183.563 | 0.0 | 0.0 | 0.0 |
179.518 | 179.518 | 423.913 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 68.036 | 0.0 | -0.0 |
-0.826 | -0.827 | -0.419 | 0.0 | 54.877 | -0.0 |
0.578 | 0.577 | 0.293 | 0.0 | 0.0 | 37.237 |
295.892 | 264.558 | 239.706 | 0.0 | -0.0 | 0.0 |
264.558 | 295.892 | 239.706 | 0.0 | -0.0 | 0.0 |
239.706 | 239.706 | 380.823 | 0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 127.708 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 127.708 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 149.466 |
295.892 | 264.558 | 239.706 | -0.0 | 0.0 | -0.0 |
264.558 | 295.892 | 239.706 | -0.0 | -0.0 | -0.0 |
239.706 | 239.706 | 380.823 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 127.708 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 127.708 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 149.466 |
295.892 | 264.559 | 239.706 | 0.0 | 0.0 | 0.0 |
264.559 | 295.892 | 239.706 | 0.0 | -0.0 | 0.0 |
239.706 | 239.706 | 380.823 | 0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 129.03 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 129.03 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 149.466 |
292.789 | 267.661 | 239.706 | -0.0 | -0.0 | -0.0 |
267.661 | 292.789 | 239.706 | -0.0 | 0.0 | -0.0 |
239.706 | 239.706 | 380.823 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 129.03 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 129.03 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 149.466 |
292.79 | 267.662 | 239.706 | 0.0 | 0.0 | 0.0 |
267.662 | 292.79 | 239.706 | 0.0 | 0.0 | 0.0 |
239.706 | 239.706 | 380.823 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 129.03 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 129.03 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 149.466 |
295.892 | 264.558 | 239.705 | -0.0 | 0.0 | -0.0 |
264.558 | 295.892 | 239.705 | -0.0 | 0.0 | -0.0 |
239.705 | 239.705 | 380.823 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 129.03 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 129.03 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 149.466 |
345.942 | 207.666 | 257.572 | -0.0 | -0.0 | 0.0 |
207.666 | 345.942 | 257.572 | -0.0 | 0.0 | 0.0 |
257.572 | 257.572 | 147.923 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 100.762 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 100.762 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 50.769 |
345.942 | 207.666 | 257.572 | 0.0 | -0.0 | -0.0 |
207.666 | 345.942 | 257.572 | 0.0 | -0.0 | -0.0 |
257.572 | 257.572 | 147.923 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 100.762 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 100.762 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 50.769 |
345.942 | 207.666 | 257.572 | -0.0 | -0.0 | 0.0 |
207.666 | 345.942 | 257.572 | -0.0 | 0.0 | 0.0 |
257.572 | 257.572 | 147.923 | -0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 100.762 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 100.762 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 50.769 |
373.205 | 180.403 | 257.572 | 0.0 | 0.0 | -0.0 |
180.403 | 373.205 | 257.572 | 0.0 | 0.0 | -0.0 |
257.572 | 257.572 | 147.923 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 100.762 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 100.762 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 50.769 |
345.942 | 207.666 | 257.573 | -0.0 | 0.0 | 0.0 |
207.666 | 345.942 | 257.573 | -0.0 | 0.0 | 0.0 |
257.573 | 257.573 | 147.924 | -0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 100.762 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 100.762 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 50.769 |
373.205 | 180.403 | 257.572 | 0.0 | -0.0 | -0.0 |
180.403 | 373.205 | 257.572 | -0.0 | -0.0 | -0.0 |
257.572 | 257.572 | 147.923 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 100.762 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 100.762 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 50.769 |
383.338 | 221.669 | 178.323 | -0.0 | -0.0 | 0.0 |
264.754 | 355.192 | 182.286 | -0.0 | -0.0 | 0.0 |
180.644 | 180.644 | 426.122 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 54.579 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 68.152 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 70.537 |
383.338 | 221.669 | 178.323 | 0.0 | 0.0 | -0.0 |
271.822 | 340.938 | 180.38 | 0.0 | 0.0 | -0.0 |
180.644 | 180.644 | 426.122 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 54.579 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 68.152 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 70.537 |
383.338 | 221.669 | 178.323 | -0.0 | -0.0 | 0.0 |
264.754 | 355.192 | 182.286 | -0.0 | -0.0 | 0.0 |
180.644 | 180.644 | 426.122 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 68.152 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 68.152 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 37.004 |
355.192 | 264.754 | 182.286 | 0.0 | 0.0 | -0.0 |
221.669 | 383.338 | 178.323 | 0.0 | 0.0 | -0.0 |
180.644 | 180.644 | 426.122 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 68.152 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 68.152 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 37.004 |
383.34 | 221.669 | 178.323 | -0.0 | -0.0 | 0.0 |
214.142 | 413.677 | 184.375 | -0.0 | -0.0 | 0.0 |
180.645 | 180.645 | 426.123 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 54.579 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 54.579 | 0.0 |
-0.0 | 0.001 | -0.0 | -0.0 | -0.0 | 70.537 |
413.674 | 214.141 | 184.374 | 0.0 | 0.0 | -0.0 |
221.668 | 383.337 | 178.323 | 0.0 | 0.0 | -0.0 |
184.462 | 184.462 | 428.147 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 54.579 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 54.579 | -0.0 |
0.0 | -0.001 | 0.0 | 0.0 | 0.0 | 70.537 |
241.896 | 30.512 | 30.512 | -0.0 | 0.0 | -0.0 |
30.512 | 241.896 | 30.512 | -0.0 | 0.0 | -0.0 |
30.512 | 30.512 | 241.896 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -59.009 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -59.009 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | -59.009 |
241.896 | 30.512 | 30.512 | 0.0 | -0.0 | 0.0 |
30.512 | 241.896 | 30.512 | 0.0 | 0.0 | 0.0 |
30.512 | 30.512 | 241.896 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -59.009 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -59.009 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -0.0 | -59.009 |
241.897 | 30.512 | 30.512 | 0.0 | 0.0 | -0.0 |
30.512 | 241.897 | 30.512 | 0.0 | 0.0 | -0.0 |
30.512 | 30.512 | 241.897 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -59.009 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -59.009 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 0.0 | -59.009 |
241.896 | 30.512 | 30.512 | -0.0 | -0.0 | 0.0 |
30.512 | 241.896 | 30.512 | -0.0 | -0.0 | 0.0 |
30.512 | 30.512 | 241.896 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -59.009 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -59.009 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -59.009 |
241.899 | 30.512 | 30.512 | 0.0 | 0.0 | -0.0 |
30.512 | 241.899 | 30.512 | 0.0 | 0.0 | -0.0 |
30.512 | 30.512 | 241.899 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -59.009 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -59.009 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.0 | -59.009 |
241.893 | 30.512 | 30.512 | -0.0 | -0.0 | 0.0 |
30.512 | 241.893 | 30.512 | -0.0 | -0.0 | 0.0 |
30.512 | 30.512 | 241.893 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -59.009 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -59.009 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | -59.009 |
272.583 | 204.586 | 204.586 | 0.0 | -0.0 | 0.0 |
204.586 | 272.583 | 204.586 | -0.0 | 0.0 | 0.0 |
204.586 | 204.586 | 272.583 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 65.092 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 65.092 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 65.092 |
272.583 | 204.586 | 204.586 | 0.0 | 0.0 | -0.0 |
204.586 | 272.583 | 204.586 | -0.0 | 0.0 | -0.0 |
204.586 | 204.586 | 272.583 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 65.092 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 65.092 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 65.092 |
272.583 | 204.586 | 204.586 | 0.0 | 0.0 | 0.0 |
204.586 | 272.583 | 204.586 | 0.0 | 0.0 | 0.0 |
204.586 | 204.586 | 272.583 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 65.092 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 65.092 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 65.092 |
272.583 | 204.586 | 204.586 | 0.0 | 0.0 | -0.0 |
204.586 | 272.583 | 204.586 | -0.0 | 0.0 | -0.0 |
204.586 | 204.586 | 272.583 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 65.092 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 65.092 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 65.092 |
272.584 | 204.586 | 204.586 | 0.0 | 0.0 | 0.0 |
204.586 | 272.584 | 204.586 | 0.0 | -0.0 | 0.0 |
204.586 | 204.586 | 272.584 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 65.092 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 65.092 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 65.092 |
272.582 | 204.586 | 204.586 | -0.0 | 0.0 | -0.0 |
204.586 | 272.582 | 204.586 | -0.0 | 0.0 | -0.0 |
204.586 | 204.586 | 272.582 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 65.092 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 65.092 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 65.092 |
80.646 | 87.09 | 87.09 | -0.0 | -0.0 | -0.0 |
87.09 | 80.646 | 87.09 | -0.0 | -0.0 | -0.0 |
87.09 | 87.09 | 80.646 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -6.759 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -6.759 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -6.759 |
80.646 | 87.09 | 87.09 | 0.0 | 0.0 | 0.0 |
87.09 | 80.646 | 87.09 | 0.0 | 0.0 | 0.0 |
87.09 | 87.09 | 80.646 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -6.759 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -6.759 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -6.759 |
80.646 | 87.09 | 87.09 | 0.0 | -0.0 | -0.0 |
87.09 | 80.646 | 87.09 | -0.0 | 0.0 | -0.0 |
87.09 | 87.09 | 80.646 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -6.759 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -6.759 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -6.759 |
80.646 | 87.089 | 87.089 | 0.0 | 0.0 | 0.0 |
87.089 | 80.646 | 87.089 | 0.0 | 0.0 | 0.0 |
87.089 | 87.089 | 80.646 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -6.759 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -6.759 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -6.759 |
80.647 | 87.09 | 87.09 | -0.0 | -0.0 | -0.0 |
87.09 | 80.647 | 87.09 | -0.0 | -0.0 | -0.0 |
87.09 | 87.09 | 80.647 | -0.0 | -0.0 | -0.0 |
0.001 | 0.0 | 0.001 | 45.468 | 0.0 | 0.0 |
0.0 | 0.001 | 0.001 | 0.0 | 45.468 | 0.0 |
0.0 | 0.001 | 0.001 | 0.0 | 0.0 | 45.468 |
80.646 | 87.089 | 87.089 | -0.0 | 0.0 | 0.0 |
87.089 | 80.646 | 87.089 | 0.0 | -0.0 | 0.0 |
87.089 | 87.089 | 80.646 | 0.0 | 0.0 | -0.0 |
-0.001 | -0.0 | -0.001 | 45.468 | -0.0 | -0.0 |
-0.0 | -0.001 | -0.001 | -0.0 | 45.468 | -0.0 |
-0.0 | -0.001 | -0.001 | -0.0 | -0.0 | 45.468 |
393.164 | 59.864 | 235.266 | -0.0 | -0.0 | 0.0 |
59.864 | 393.164 | 235.266 | -0.0 | -0.0 | -0.0 |
235.266 | 235.266 | 458.398 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 68.977 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 68.977 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -33.485 |
393.164 | 59.864 | 235.266 | 0.0 | 0.0 | -0.0 |
59.864 | 393.164 | 235.266 | 0.0 | 0.0 | -0.0 |
235.266 | 235.266 | 458.398 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 68.977 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 68.977 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -33.485 |
393.164 | 59.864 | 235.266 | -0.0 | -0.0 | 0.0 |
59.864 | 393.164 | 235.266 | -0.0 | -0.0 | -0.0 |
235.266 | 235.266 | 458.398 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 68.977 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 68.977 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | -33.485 |
393.164 | 59.864 | 235.266 | 0.0 | 0.0 | 0.0 |
59.864 | 393.164 | 235.266 | 0.0 | 0.0 | -0.0 |
235.266 | 235.266 | 458.398 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 68.977 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 68.977 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -33.485 |
393.167 | 59.864 | 235.266 | -0.0 | -0.0 | -0.0 |
59.864 | 393.167 | 235.266 | -0.0 | -0.0 | 0.0 |
235.266 | 235.266 | 458.398 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 68.977 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 68.977 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | -33.485 |
393.161 | 59.865 | 235.266 | -0.0 | 0.0 | -0.0 |
59.865 | 393.161 | 235.266 | 0.0 | 0.0 | -0.0 |
235.265 | 235.265 | 458.398 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 68.977 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 68.977 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -33.485 |
256.545 | 170.706 | 220.92 | -0.0 | 0.0 | 0.0 |
170.706 | 256.545 | 220.92 | -0.0 | 0.0 | 0.0 |
220.92 | 220.92 | 154.588 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 72.663 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 72.663 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 46.668 |
256.545 | 170.706 | 220.92 | -0.0 | 0.0 | -0.0 |
170.706 | 256.545 | 220.92 | 0.0 | -0.0 | 0.0 |
220.92 | 220.92 | 154.588 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 72.663 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 72.663 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 46.668 |
256.545 | 170.706 | 220.92 | -0.0 | 0.0 | 0.0 |
170.706 | 256.545 | 220.92 | 0.0 | 0.0 | 0.0 |
220.92 | 220.92 | 154.588 | -0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 72.663 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 72.663 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 46.668 |
256.545 | 170.706 | 220.92 | 0.0 | -0.0 | -0.0 |
170.706 | 256.545 | 220.92 | 0.0 | 0.0 | -0.0 |
220.92 | 220.92 | 154.588 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 72.663 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 72.663 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 46.668 |
256.544 | 170.706 | 220.92 | 0.0 | 0.0 | -0.0 |
170.706 | 256.544 | 220.92 | 0.0 | 0.0 | -0.0 |
220.92 | 220.92 | 154.588 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 72.663 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 72.663 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 46.668 |
256.546 | 170.706 | 220.92 | 0.0 | -0.0 | -0.0 |
170.706 | 256.546 | 220.92 | 0.0 | 0.0 | 0.0 |
220.92 | 220.92 | 154.588 | 0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 72.663 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 72.663 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 46.668 |
342.035 | 149.943 | 159.203 | -0.0 | 0.0 | -0.0 |
158.396 | 333.582 | 159.203 | 0.0 | 0.0 | -0.0 |
159.203 | 159.203 | 456.625 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 34.368 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 34.368 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 96.046 |
333.582 | 158.396 | 159.203 | 0.0 | -0.0 | 0.0 |
149.943 | 342.035 | 159.203 | 0.0 | -0.0 | 0.0 |
159.203 | 159.203 | 456.625 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 34.368 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 34.368 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 96.046 |
333.582 | 158.396 | 159.203 | 0.0 | 0.0 | -0.0 |
149.943 | 342.035 | 159.203 | -0.0 | 0.0 | -0.0 |
159.203 | 159.203 | 456.625 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 34.368 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 34.368 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 96.046 |
342.034 | 149.943 | 159.203 | 0.0 | -0.0 | 0.0 |
149.943 | 342.034 | 159.203 | 0.0 | -0.0 | 0.0 |
159.203 | 159.203 | 456.625 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 34.368 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 34.368 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 96.046 |
342.036 | 149.943 | 159.203 | 0.0 | 0.0 | -0.0 |
158.397 | 333.582 | 159.203 | 0.0 | 0.0 | -0.0 |
159.203 | 159.203 | 456.624 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 34.368 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 34.368 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 96.046 |
333.581 | 158.395 | 159.203 | -0.0 | -0.0 | 0.0 |
149.942 | 342.034 | 159.203 | 0.0 | -0.0 | 0.0 |
159.203 | 159.203 | 456.625 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 34.368 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 34.368 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 96.046 |
256.43 | 109.296 | 109.296 | 0.0 | 0.0 | 0.0 |
109.296 | 256.43 | 109.296 | 0.0 | 0.0 | 0.0 |
109.296 | 109.296 | 256.43 | -0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 27.647 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 27.647 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 27.647 |
256.43 | 109.296 | 109.296 | 0.0 | 0.0 | -0.0 |
109.296 | 256.43 | 109.296 | 0.0 | 0.0 | -0.0 |
109.296 | 109.296 | 256.43 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 27.647 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 27.647 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 27.647 |
256.43 | 109.296 | 109.296 | 0.0 | 0.0 | 0.0 |
109.296 | 256.43 | 109.296 | -0.0 | -0.0 | 0.0 |
109.296 | 109.296 | 256.43 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 27.647 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 27.647 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 27.647 |
256.43 | 109.296 | 109.296 | 0.0 | -0.0 | -0.0 |
109.296 | 256.43 | 109.296 | -0.0 | -0.0 | -0.0 |
109.296 | 109.296 | 256.43 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 27.647 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 27.647 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 27.647 |
256.429 | 109.297 | 109.297 | 0.0 | -0.0 | 0.0 |
109.297 | 256.429 | 109.297 | -0.0 | -0.0 | 0.0 |
109.297 | 109.297 | 256.429 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 27.647 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 27.647 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 27.647 |
256.431 | 109.296 | 109.296 | 0.0 | 0.0 | -0.0 |
109.296 | 256.431 | 109.296 | 0.0 | 0.0 | -0.0 |
109.296 | 109.296 | 256.431 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 27.647 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 27.647 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 27.647 |
416.999 | 240.585 | 212.59 | -0.0 | 0.0 | -0.0 |
240.753 | 556.356 | 265.677 | 0.0 | 0.0 | -0.0 |
216.326 | 270.824 | 550.336 | -0.0 | 0.0 | -0.0 |
-0.423 | -0.609 | -0.588 | 164.978 | 0.0 | -0.0 |
-1.18 | -1.7 | -1.64 | -0.0 | 101.527 | -0.0 |
-0.381 | -0.549 | -0.529 | -0.0 | 0.0 | 179.446 |
419.687 | 244.458 | 216.326 | -0.0 | 0.0 | 0.0 |
241.514 | 557.453 | 266.735 | 0.0 | -0.0 | 0.0 |
213.501 | 266.755 | 546.41 | -0.0 | 0.0 | 0.0 |
0.423 | 0.609 | 0.588 | 164.978 | -0.0 | 0.0 |
1.18 | 1.7 | 1.64 | 0.0 | 101.527 | 0.0 |
0.381 | 0.549 | 0.529 | 0.0 | -0.0 | 179.446 |
419.687 | 244.458 | 216.326 | -0.0 | 0.0 | -0.0 |
244.458 | 561.693 | 270.824 | 0.0 | 0.0 | 0.0 |
213.082 | 266.151 | 545.828 | -0.0 | 0.0 | -0.0 |
-0.091 | -0.131 | -0.127 | 164.962 | 0.0 | -0.0 |
-0.139 | -0.2 | -0.193 | 0.0 | 101.051 | -0.0 |
-0.038 | -0.055 | -0.053 | -0.0 | -0.0 | 179.446 |
417.418 | 241.188 | 213.173 | 0.0 | 0.0 | 0.0 |
244.457 | 561.692 | 270.824 | -0.0 | -0.0 | -0.0 |
216.326 | 270.824 | 550.335 | 0.0 | 0.0 | -0.0 |
0.091 | 0.131 | 0.127 | 164.962 | -0.0 | 0.0 |
0.139 | 0.2 | 0.193 | -0.0 | 101.051 | 0.0 |
0.038 | 0.055 | 0.053 | -0.0 | -0.0 | 179.446 |
419.687 | 244.458 | 216.327 | -0.0 | -0.0 | 0.0 |
241.131 | 556.9 | 266.201 | -0.0 | -0.0 | 0.0 |
213.117 | 266.201 | 545.878 | 0.0 | 0.0 | -0.0 |
-0.01 | -0.014 | -0.013 | 164.96 | 0.0 | -0.0 |
0.0 | -0.0 | 0.001 | -0.0 | 104.234 | -0.0 |
-0.004 | -0.005 | -0.005 | -0.0 | -0.0 | 179.446 |
419.688 | 244.457 | 216.325 | 0.0 | -0.0 | 0.0 |
241.136 | 556.908 | 266.21 | 0.0 | 0.0 | 0.0 |
216.325 | 270.824 | 550.333 | -0.0 | -0.0 | 0.0 |
0.01 | 0.014 | 0.013 | 164.96 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.001 | 0.0 | 104.234 | 0.0 |
0.004 | 0.005 | 0.005 | 0.0 | 0.0 | 179.446 |
420.945 | 246.242 | 217.198 | -0.0 | -0.0 | -0.0 |
246.046 | 564.063 | 271.751 | 0.0 | 0.0 | 0.0 |
116.233 | 122.728 | 409.31 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 165.296 | 0.0 | 0.0 |
-97.68 | -144.401 | -138.036 | 0.0 | 101.304 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 180.44 |
420.945 | 246.242 | 217.198 | -0.0 | 0.0 | 0.0 |
340.374 | 703.509 | 405.05 | 0.0 | -0.0 | -0.0 |
217.117 | 271.865 | 551.873 | 0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 165.296 | -0.0 | 0.0 |
97.68 | 144.401 | 138.036 | -0.0 | 101.304 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 180.44 |
420.945 | 246.242 | 217.198 | -0.0 | 0.0 | -0.0 |
232.927 | 544.668 | 253.211 | 0.0 | -0.0 | 0.0 |
204.145 | 252.689 | 533.543 | -0.0 | 0.0 | -0.0 |
-9.769 | -14.441 | -13.805 | 165.29 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 104.562 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 180.44 |
420.945 | 246.242 | 217.198 | -0.0 | -0.0 | 0.0 |
252.462 | 573.548 | 280.818 | -0.0 | 0.0 | 0.0 |
217.117 | 271.865 | 551.873 | -0.0 | -0.0 | -0.0 |
9.769 | 14.441 | 13.805 | 165.29 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 104.562 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 180.44 |
420.944 | 246.243 | 217.199 | -0.0 | -0.0 | 0.0 |
241.719 | 557.666 | 265.635 | 0.0 | 0.0 | -0.0 |
212.938 | 265.686 | 545.968 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 165.296 | 0.0 | -0.0 |
0.0 | -0.0 | 0.001 | 0.0 | 104.562 | -0.0 |
-0.977 | -1.443 | -1.38 | 0.0 | 0.0 | 180.44 |
420.945 | 246.241 | 217.198 | 0.0 | -0.0 | -0.0 |
246.044 | 564.06 | 271.75 | 0.0 | -0.0 | 0.0 |
217.116 | 271.865 | 551.871 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 165.296 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.001 | -0.0 | 104.562 | -0.0 |
0.977 | 1.443 | 1.38 | -0.0 | -0.0 | 180.44 |
45.131 | 45.922 | 45.922 | 0.0 | 0.0 | 0.0 |
45.922 | 45.131 | 45.922 | 0.0 | 0.0 | 0.0 |
45.922 | 45.922 | 45.131 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 41.078 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 41.078 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 41.078 |
45.131 | 45.922 | 45.922 | -0.0 | -0.0 | -0.0 |
45.922 | 45.131 | 45.922 | -0.0 | -0.0 | -0.0 |
45.922 | 45.922 | 45.131 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 41.078 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 41.078 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 41.078 |
45.131 | 45.922 | 45.922 | 0.0 | 0.0 | 0.0 |
45.922 | 45.131 | 45.922 | 0.0 | 0.0 | 0.0 |
45.922 | 45.922 | 45.131 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.694 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.694 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -0.694 |
45.131 | 45.922 | 45.922 | -0.0 | -0.0 | -0.0 |
45.922 | 45.131 | 45.922 | -0.0 | 0.0 | -0.0 |
45.922 | 45.922 | 45.131 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.694 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.694 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -0.694 |
45.131 | 45.922 | 45.922 | 0.0 | 0.0 | 0.0 |
45.922 | 45.131 | 45.922 | 0.0 | 0.0 | 0.0 |
45.922 | 45.922 | 45.131 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.694 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.694 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -0.694 |
45.131 | 45.922 | 45.922 | -0.0 | -0.0 | -0.0 |
45.922 | 45.131 | 45.922 | -0.0 | -0.0 | -0.0 |
45.922 | 45.922 | 45.131 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.694 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.694 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -0.694 |
717.885 | 215.405 | 215.405 | 0.0 | -0.0 | 0.0 |
215.405 | 717.885 | 215.405 | 0.0 | 0.0 | 0.0 |
215.405 | 215.405 | 717.885 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 86.226 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 86.226 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 86.226 |
717.885 | 215.405 | 215.405 | -0.0 | -0.0 | -0.0 |
215.405 | 717.885 | 215.405 | -0.0 | -0.0 | -0.0 |
215.405 | 215.405 | 717.885 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 86.226 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 86.226 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 86.226 |
717.885 | 215.405 | 215.405 | 0.0 | 0.0 | 0.0 |
215.405 | 717.885 | 215.405 | 0.0 | 0.0 | -0.0 |
215.405 | 215.405 | 717.885 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 86.226 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 86.226 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 86.226 |
717.886 | 215.405 | 215.405 | -0.0 | -0.0 | -0.0 |
215.405 | 717.886 | 215.405 | -0.0 | -0.0 | 0.0 |
215.405 | 215.405 | 717.886 | -0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 86.226 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 86.226 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 86.226 |
717.881 | 215.405 | 215.405 | 0.0 | 0.0 | 0.0 |
215.405 | 717.881 | 215.405 | -0.0 | 0.0 | 0.0 |
215.405 | 215.405 | 717.881 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 86.226 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 86.226 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 86.226 |
716.79 | 215.954 | 215.954 | -0.0 | -0.0 | -0.0 |
215.954 | 716.79 | 215.954 | -0.0 | -0.0 | -0.0 |
215.954 | 215.954 | 716.79 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 86.226 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 86.226 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 86.226 |
487.669 | 215.326 | 215.326 | -0.0 | -0.0 | 0.0 |
215.326 | 487.669 | 215.326 | -0.0 | -0.0 | 0.0 |
215.326 | 215.326 | 487.669 | 0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 98.438 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 98.438 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 98.438 |
487.669 | 215.326 | 215.326 | 0.0 | 0.0 | -0.0 |
215.326 | 487.669 | 215.326 | 0.0 | 0.0 | -0.0 |
215.326 | 215.326 | 487.669 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 98.438 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 98.438 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 98.438 |
487.669 | 215.326 | 215.326 | -0.0 | -0.0 | 0.0 |
215.326 | 487.669 | 215.326 | -0.0 | -0.0 | 0.0 |
215.326 | 215.326 | 487.669 | 0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 95.564 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 95.564 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 95.564 |
487.668 | 215.326 | 215.326 | 0.0 | 0.0 | -0.0 |
215.326 | 487.668 | 215.326 | 0.0 | 0.0 | -0.0 |
215.326 | 215.326 | 487.668 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 95.564 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 95.564 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 95.564 |
487.67 | 215.327 | 215.327 | -0.0 | -0.0 | 0.0 |
215.327 | 487.67 | 215.327 | -0.0 | -0.0 | 0.0 |
215.327 | 215.327 | 487.67 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 98.438 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 98.438 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 98.438 |
487.667 | 215.326 | 215.326 | 0.0 | 0.0 | -0.0 |
215.326 | 487.667 | 215.326 | 0.0 | 0.0 | -0.0 |
215.326 | 215.326 | 487.667 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 98.438 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 98.438 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 98.438 |
204.509 | 173.81 | 173.81 | -0.0 | -0.0 | -0.0 |
173.81 | 204.509 | 173.81 | -0.0 | -0.0 | -0.0 |
173.81 | 173.81 | 204.509 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 65.727 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 65.727 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 65.727 |
204.509 | 173.81 | 173.81 | 0.0 | 0.0 | 0.0 |
173.81 | 204.509 | 173.81 | 0.0 | 0.0 | 0.0 |
173.81 | 173.81 | 204.509 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 65.727 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 65.727 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 65.727 |
204.508 | 173.81 | 173.81 | -0.0 | -0.0 | -0.0 |
173.81 | 204.508 | 173.81 | -0.0 | -0.0 | -0.0 |
173.81 | 173.81 | 204.508 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 65.727 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 65.727 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 65.727 |
204.509 | 173.81 | 173.81 | 0.0 | 0.0 | 0.0 |
173.81 | 204.509 | 173.81 | 0.0 | 0.0 | 0.0 |
173.81 | 173.81 | 204.509 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 65.727 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 65.727 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 65.727 |
204.508 | 173.81 | 173.81 | -0.0 | -0.0 | -0.0 |
173.81 | 204.508 | 173.81 | -0.0 | -0.0 | -0.0 |
173.81 | 173.81 | 204.508 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 65.727 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 65.727 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 65.727 |
204.509 | 173.81 | 173.81 | 0.0 | 0.0 | 0.0 |
173.81 | 204.509 | 173.81 | 0.0 | 0.0 | 0.0 |
173.81 | 173.81 | 204.509 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 65.727 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 65.727 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 65.727 |
444.65 | 231.819 | 211.583 | 0.0 | -0.0 | -0.0 |
234.306 | 551.564 | 252.375 | 0.0 | -0.0 | -0.0 |
211.583 | 248.603 | 542.571 | 0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 162.57 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 112.145 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 175.048 |
444.65 | 231.819 | 211.583 | -0.0 | 0.0 | 0.0 |
231.819 | 546.633 | 248.603 | -0.0 | 0.0 | 0.0 |
213.486 | 252.375 | 545.457 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 162.57 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 112.145 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 175.048 |
444.65 | 231.819 | 211.583 | 0.0 | 0.0 | -0.0 |
231.819 | 546.634 | 248.603 | 0.0 | -0.0 | -0.0 |
213.486 | 252.375 | 545.457 | 0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 162.571 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 112.145 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 175.048 |
445.905 | 234.306 | 213.486 | -0.0 | 0.0 | 0.0 |
234.306 | 551.563 | 252.375 | -0.0 | 0.0 | 0.0 |
213.486 | 252.375 | 545.456 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 162.571 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 112.145 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 175.048 |
445.904 | 234.307 | 213.487 | 0.0 | -0.0 | -0.0 |
234.308 | 551.566 | 252.376 | 0.0 | -0.0 | -0.0 |
211.584 | 248.603 | 542.573 | 0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 162.571 | -0.0 | -0.0 |
0.0 | -0.0 | 0.001 | 0.0 | 118.945 | -0.0 |
0.0 | 0.001 | -0.0 | 0.0 | -0.0 | 175.048 |
445.905 | 234.306 | 213.485 | -0.0 | 0.0 | 0.0 |
234.305 | 551.562 | 252.375 | -0.0 | 0.0 | 0.0 |
213.485 | 252.375 | 545.454 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 162.571 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.001 | -0.0 | 118.945 | 0.0 |
-0.0 | -0.001 | 0.0 | -0.0 | 0.0 | 175.048 |
447.442 | 236.261 | 213.995 | -0.0 | -0.0 | -0.0 |
233.636 | 548.931 | 249.256 | -0.0 | 0.0 | -0.0 |
212.141 | 249.505 | 543.417 | -0.0 | 0.0 | -0.0 |
0.152 | 0.309 | 0.236 | 162.617 | -0.0 | -0.0 |
0.591 | 1.2 | 0.917 | 0.0 | 112.327 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 176.182 |
447.442 | 236.261 | 213.995 | 0.0 | -0.0 | 0.0 |
236.003 | 553.738 | 252.93 | 0.0 | 0.0 | 0.0 |
213.915 | 253.108 | 546.17 | 0.0 | 0.0 | 0.0 |
-0.152 | -0.309 | -0.236 | 162.617 | 0.0 | 0.0 |
-0.591 | -1.2 | -0.917 | 0.0 | 112.327 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 176.182 |
447.442 | 236.261 | 213.995 | -0.0 | -0.0 | -0.0 |
236.003 | 553.738 | 252.93 | -0.0 | -0.0 | -0.0 |
212.006 | 249.231 | 543.208 | 0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 162.617 | -0.0 | -0.0 |
0.061 | 0.124 | 0.095 | -0.0 | 112.112 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 176.182 |
447.442 | 236.261 | 213.995 | 0.0 | 0.0 | 0.0 |
233.471 | 548.596 | 249.0 | -0.0 | 0.0 | 0.0 |
211.976 | 249.17 | 543.161 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 162.617 | 0.0 | 0.0 |
-0.061 | -0.124 | -0.095 | 0.0 | 112.112 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 176.182 |
446.204 | 233.748 | 212.074 | -0.0 | -0.0 | -0.0 |
233.489 | 548.631 | 249.026 | 0.0 | -0.0 | -0.0 |
213.916 | 253.108 | 546.172 | -0.0 | -0.0 | -0.0 |
0.004 | 0.009 | 0.007 | 162.616 | -0.0 | -0.0 |
0.006 | 0.012 | 0.01 | -0.0 | 112.11 | -0.0 |
0.0 | 0.001 | -0.0 | -0.0 | -0.0 | 176.182 |
447.443 | 236.26 | 213.994 | -0.0 | 0.0 | 0.0 |
233.483 | 548.622 | 249.021 | 0.0 | -0.0 | 0.0 |
213.914 | 253.107 | 546.168 | 0.0 | 0.0 | 0.0 |
-0.004 | -0.009 | -0.007 | 162.616 | 0.0 | 0.0 |
-0.006 | -0.012 | -0.01 | 0.0 | 112.11 | 0.0 |
-0.0 | -0.001 | 0.0 | 0.0 | 0.0 | 176.182 |
172.501 | 181.545 | 173.704 | 0.0 | -0.0 | 0.0 |
181.545 | 172.501 | 173.704 | 0.0 | 0.0 | 0.0 |
173.704 | 173.704 | 282.039 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 66.801 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 66.801 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 68.092 |
172.501 | 181.545 | 173.704 | 0.0 | 0.0 | -0.0 |
181.545 | 172.501 | 173.704 | -0.0 | 0.0 | -0.0 |
173.704 | 173.704 | 282.039 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 66.801 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 66.801 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 68.092 |
172.501 | 181.545 | 173.704 | 0.0 | -0.0 | 0.0 |
181.545 | 172.501 | 173.704 | 0.0 | -0.0 | 0.0 |
173.704 | 173.704 | 282.039 | -0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 66.801 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 66.801 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 68.092 |
172.501 | 181.545 | 173.704 | -0.0 | 0.0 | -0.0 |
181.545 | 172.501 | 173.704 | -0.0 | 0.0 | -0.0 |
173.704 | 173.704 | 282.039 | -0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 66.801 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 66.801 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 68.092 |
172.231 | 181.814 | 173.705 | 0.0 | -0.0 | 0.0 |
181.814 | 172.231 | 173.705 | -0.0 | -0.0 | 0.0 |
173.705 | 173.705 | 282.039 | 0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 66.801 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 66.801 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 68.092 |
172.502 | 181.544 | 173.704 | -0.0 | 0.0 | -0.0 |
181.544 | 172.502 | 173.704 | -0.0 | 0.0 | -0.0 |
173.704 | 173.704 | 282.039 | -0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 66.801 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 66.801 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 68.092 |
255.033 | 156.683 | 140.001 | -0.0 | 0.0 | -0.0 |
155.601 | 243.253 | 135.023 | -0.0 | 0.0 | 0.0 |
136.795 | 136.795 | 274.345 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 26.751 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 26.751 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 49.175 |
255.033 | 156.683 | 140.001 | 0.0 | -0.0 | 0.0 |
155.601 | 243.253 | 135.023 | 0.0 | -0.0 | -0.0 |
136.795 | 136.795 | 274.345 | 0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 26.751 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 26.751 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 49.175 |
255.033 | 156.683 | 140.001 | -0.0 | 0.0 | 0.0 |
169.383 | 234.049 | 136.795 | -0.0 | 0.0 | 0.0 |
136.795 | 136.795 | 274.345 | -0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 26.751 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 27.505 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 32.333 |
255.033 | 156.683 | 140.001 | 0.0 | 0.0 | -0.0 |
155.601 | 243.253 | 135.023 | 0.0 | -0.0 | -0.0 |
136.795 | 136.795 | 274.345 | -0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 26.751 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 27.505 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 32.333 |
255.033 | 156.683 | 140.001 | 0.0 | 0.0 | -0.0 |
169.423 | 234.064 | 136.816 | -0.0 | 0.0 | 0.0 |
136.796 | 136.796 | 274.345 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 26.751 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 27.505 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 49.175 |
255.033 | 156.683 | 140.001 | 0.0 | 0.0 | 0.0 |
155.601 | 243.253 | 135.023 | 0.0 | -0.0 | -0.0 |
136.795 | 136.795 | 274.345 | 0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 26.751 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 27.505 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 49.175 |
243.273 | 155.47 | 135.036 | -0.0 | 0.0 | -0.0 |
155.47 | 243.273 | 135.036 | -0.0 | 0.0 | 0.0 |
136.778 | 136.778 | 274.283 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 26.83 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 26.83 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 49.204 |
254.988 | 156.581 | 139.994 | -0.0 | -0.0 | -0.0 |
156.581 | 254.988 | 139.994 | -0.0 | -0.0 | 0.0 |
136.778 | 136.778 | 274.283 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 26.83 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 26.83 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 49.204 |
254.988 | 156.581 | 139.994 | -0.0 | 0.0 | 0.0 |
169.168 | 234.177 | 136.815 | -0.0 | 0.0 | 0.0 |
136.778 | 136.778 | 274.283 | -0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 26.83 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 26.83 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 33.399 |
234.162 | 169.129 | 136.794 | 0.0 | -0.0 | -0.0 |
169.129 | 234.162 | 136.794 | 0.0 | 0.0 | -0.0 |
136.778 | 136.778 | 274.283 | 0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 26.83 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 26.83 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 33.399 |
254.988 | 156.581 | 139.994 | 0.0 | 0.0 | -0.0 |
156.581 | 254.988 | 139.994 | 0.0 | 0.0 | 0.0 |
136.778 | 136.778 | 274.283 | -0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 27.591 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 27.591 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 49.204 |
254.988 | 156.58 | 139.994 | -0.0 | -0.0 | 0.0 |
156.58 | 254.988 | 139.994 | -0.0 | -0.0 | 0.0 |
136.778 | 136.778 | 274.283 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 27.591 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 27.591 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 49.204 |
461.453 | 228.118 | 211.686 | 0.0 | 0.0 | -0.0 |
226.142 | 541.782 | 239.018 | -0.0 | -0.0 | -0.0 |
210.324 | 239.47 | 539.119 | 0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 161.684 | -0.0 | -0.0 |
0.727 | 1.113 | 0.988 | -0.0 | 120.948 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 172.209 |
460.473 | 226.418 | 210.283 | 0.0 | 0.0 | 0.0 |
225.909 | 540.989 | 238.545 | 0.0 | -0.0 | 0.0 |
210.161 | 239.259 | 538.911 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 161.684 | -0.0 | 0.0 |
-0.727 | -1.113 | -0.988 | 0.0 | 120.948 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 172.209 |
461.453 | 228.118 | 211.686 | -0.0 | 0.0 | -0.0 |
228.118 | 545.784 | 242.053 | -0.0 | 0.0 | -0.0 |
211.686 | 242.053 | 541.147 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 161.684 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 127.546 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 172.209 |
460.556 | 226.539 | 210.394 | 0.0 | 0.0 | 0.0 |
226.02 | 541.184 | 238.705 | 0.0 | -0.0 | 0.0 |
210.236 | 239.358 | 539.007 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 161.684 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 127.546 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 172.209 |
461.452 | 228.119 | 211.687 | -0.0 | 0.0 | -0.0 |
228.12 | 545.786 | 242.053 | -0.0 | 0.0 | -0.0 |
211.687 | 242.053 | 541.149 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 161.684 | 0.0 | -0.0 |
0.0 | -0.0 | 0.001 | -0.0 | 127.546 | -0.0 |
0.0 | 0.001 | -0.0 | -0.0 | 0.0 | 172.209 |
461.453 | 228.117 | 211.685 | 0.0 | 0.0 | 0.0 |
228.117 | 545.782 | 242.052 | -0.0 | -0.0 | 0.0 |
210.096 | 238.72 | 538.664 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 161.684 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.001 | 0.0 | 127.546 | 0.0 |
-0.0 | -0.001 | 0.0 | 0.0 | -0.0 | 172.209 |
456.64 | 214.879 | 201.956 | -0.0 | -0.0 | 0.0 |
229.363 | 547.309 | 242.326 | -0.0 | -0.0 | -0.0 |
205.453 | 226.377 | 530.418 | -0.0 | 0.0 | 0.0 |
-4.379 | -11.832 | -7.863 | 161.576 | -0.0 | 0.0 |
-5.408 | -13.481 | -9.298 | 0.0 | 124.247 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 173.049 |
462.565 | 229.541 | 212.104 | -0.0 | 0.0 | 0.0 |
230.856 | 552.868 | 245.564 | -0.0 | -0.0 | 0.0 |
215.251 | 251.483 | 547.512 | -0.0 | -0.0 | -0.0 |
4.379 | 11.832 | 7.863 | 161.575 | 0.0 | -0.0 |
5.408 | 13.481 | 9.298 | -0.0 | 124.247 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 173.049 |
462.565 | 229.541 | 212.104 | 0.0 | 0.0 | -0.0 |
226.782 | 541.369 | 238.068 | -0.0 | -0.0 | 0.0 |
209.97 | 237.789 | 538.24 | -0.0 | -0.0 | 0.0 |
-0.498 | -1.276 | -0.869 | 161.571 | -0.0 | 0.0 |
-1.144 | -3.091 | -2.054 | 0.0 | 122.693 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 173.049 |
462.09 | 228.872 | 211.475 | -0.0 | -0.0 | 0.0 |
229.363 | 547.309 | 242.326 | -0.0 | 0.0 | -0.0 |
212.048 | 242.448 | 541.621 | -0.0 | -0.0 | 0.0 |
0.498 | 1.276 | 0.869 | 161.571 | 0.0 | 0.0 |
1.144 | 3.091 | 2.054 | -0.0 | 122.693 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 173.049 |
461.49 | 227.316 | 210.423 | 0.0 | -0.0 | -0.0 |
227.232 | 542.978 | 239.019 | 0.0 | 0.0 | 0.0 |
210.536 | 239.556 | 539.343 | 0.0 | 0.0 | 0.0 |
-0.059 | -0.131 | -0.095 | 161.561 | -0.0 | 0.0 |
0.0 | -0.0 | 0.001 | 0.0 | 127.629 | -0.0 |
-0.044 | -0.117 | -0.079 | 0.0 | -0.0 | 173.049 |
462.566 | 229.54 | 212.103 | -0.0 | 0.0 | -0.0 |
227.351 | 543.268 | 239.224 | -0.0 | 0.0 | 0.0 |
210.652 | 239.827 | 539.534 | -0.0 | 0.0 | -0.0 |
0.059 | 0.131 | 0.095 | 161.561 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.001 | -0.0 | 127.629 | -0.0 |
0.044 | 0.117 | 0.079 | -0.0 | 0.0 | 173.049 |
98.804 | 105.534 | 105.534 | 0.0 | 0.0 | 0.0 |
105.534 | 98.804 | 105.534 | 0.0 | 0.0 | 0.0 |
105.534 | 105.534 | 98.804 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 71.58 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 71.58 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 71.58 |
98.804 | 105.534 | 105.534 | -0.0 | -0.0 | -0.0 |
105.534 | 98.804 | 105.534 | -0.0 | -0.0 | -0.0 |
105.534 | 105.534 | 98.804 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 71.58 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 71.58 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 71.58 |
98.804 | 105.534 | 105.534 | -0.0 | -0.0 | 0.0 |
105.534 | 98.804 | 105.534 | 0.0 | -0.0 | 0.0 |
105.534 | 105.534 | 98.804 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 71.58 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 71.58 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 71.58 |
98.804 | 105.534 | 105.534 | -0.0 | -0.0 | -0.0 |
105.534 | 98.804 | 105.534 | -0.0 | -0.0 | -0.0 |
105.534 | 105.534 | 98.804 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 71.58 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 71.58 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 71.58 |
98.802 | 105.534 | 105.534 | 0.0 | 0.0 | 0.0 |
105.534 | 98.802 | 105.534 | 0.0 | 0.0 | 0.0 |
105.534 | 105.534 | 98.802 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 71.58 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 71.58 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 71.58 |
98.806 | 105.534 | 105.534 | 0.0 | 0.0 | -0.0 |
105.534 | 98.806 | 105.534 | -0.0 | -0.0 | -0.0 |
105.534 | 105.534 | 98.806 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 71.58 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 71.58 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 71.58 |
577.102 | 143.172 | 143.172 | -0.0 | -0.0 | -0.0 |
143.172 | 577.102 | 143.172 | -0.0 | 0.0 | 0.0 |
143.172 | 143.172 | 577.102 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 99.558 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 99.558 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 99.558 |
577.922 | 142.762 | 142.762 | 0.0 | 0.0 | 0.0 |
142.762 | 577.922 | 142.762 | 0.0 | 0.0 | 0.0 |
142.762 | 142.762 | 577.922 | 0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 99.558 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 99.558 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 99.558 |
577.922 | 142.762 | 142.762 | -0.0 | 0.0 | 0.0 |
142.762 | 577.922 | 142.762 | -0.0 | -0.0 | 0.0 |
142.762 | 142.762 | 577.922 | -0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 94.014 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 94.014 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 94.014 |
577.923 | 142.762 | 142.762 | 0.0 | -0.0 | 0.0 |
142.762 | 577.923 | 142.762 | 0.0 | 0.0 | -0.0 |
142.762 | 142.762 | 577.923 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 94.014 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 94.014 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 94.014 |
577.098 | 143.172 | 143.172 | -0.0 | 0.0 | -0.0 |
143.172 | 577.098 | 143.172 | -0.0 | -0.0 | 0.0 |
143.172 | 143.172 | 577.098 | -0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 94.014 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 94.014 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 94.014 |
577.926 | 142.762 | 142.762 | 0.0 | 0.0 | 0.0 |
142.762 | 577.926 | 142.762 | 0.0 | -0.0 | 0.0 |
142.762 | 142.762 | 577.926 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 94.014 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 94.014 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 94.014 |
522.096 | 203.995 | 203.995 | 0.0 | 0.0 | -0.0 |
203.995 | 522.096 | 203.995 | 0.0 | 0.0 | -0.0 |
203.995 | 203.995 | 522.096 | 0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 161.063 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 161.063 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 161.063 |
522.096 | 203.995 | 203.995 | -0.0 | -0.0 | 0.0 |
203.995 | 522.096 | 203.995 | -0.0 | -0.0 | 0.0 |
203.995 | 203.995 | 522.096 | -0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 161.063 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 161.063 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 161.063 |
522.096 | 203.995 | 203.995 | 0.0 | 0.0 | 0.0 |
203.995 | 522.096 | 203.995 | 0.0 | 0.0 | 0.0 |
203.995 | 203.995 | 522.096 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 161.063 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 161.063 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 161.063 |
522.097 | 203.995 | 203.995 | -0.0 | -0.0 | 0.0 |
203.995 | 522.097 | 203.995 | -0.0 | -0.0 | 0.0 |
203.995 | 203.995 | 522.097 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 161.063 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 161.063 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 161.063 |
522.095 | 203.996 | 203.996 | 0.0 | 0.0 | 0.0 |
203.996 | 522.095 | 203.996 | 0.0 | -0.0 | -0.0 |
203.996 | 203.996 | 522.095 | 0.0 | 0.0 | -0.0 |
0.001 | 0.0 | 0.0 | 161.063 | 0.0 | -0.0 |
0.0 | 0.001 | 0.0 | 0.0 | 161.063 | -0.0 |
0.0 | 0.0 | 0.001 | 0.0 | 0.0 | 161.063 |
522.097 | 203.994 | 203.994 | -0.0 | 0.0 | -0.0 |
203.994 | 522.097 | 203.994 | -0.0 | -0.0 | -0.0 |
203.994 | 203.994 | 522.097 | -0.0 | 0.0 | 0.0 |
-0.001 | -0.0 | -0.0 | 161.063 | -0.0 | 0.0 |
-0.0 | -0.001 | -0.0 | -0.0 | 161.063 | 0.0 |
-0.0 | -0.0 | -0.001 | -0.0 | -0.0 | 161.063 |
173.855 | 80.545 | 55.384 | 0.0 | -0.0 | 0.0 |
128.059 | 126.341 | 55.384 | -0.0 | -0.0 | 0.0 |
55.384 | 55.384 | 199.375 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 21.359 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 21.359 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 46.655 |
173.855 | 80.545 | 55.384 | 0.0 | -0.0 | -0.0 |
80.545 | 173.855 | 55.384 | -0.0 | 0.0 | -0.0 |
55.384 | 55.384 | 199.375 | -0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 21.359 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 21.359 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 46.655 |
173.855 | 80.545 | 55.384 | 0.0 | 0.0 | 0.0 |
136.202 | 118.198 | 55.384 | 0.0 | 0.0 | 0.0 |
55.384 | 55.384 | 199.375 | 0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 21.359 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 21.359 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -0.859 |
173.855 | 80.545 | 55.384 | -0.0 | -0.0 | -0.0 |
136.202 | 118.199 | 55.384 | -0.0 | -0.0 | -0.0 |
55.384 | 55.384 | 199.375 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 21.359 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 21.359 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -0.859 |
173.855 | 80.545 | 55.384 | 0.0 | 0.0 | 0.0 |
128.06 | 126.339 | 55.383 | 0.0 | 0.0 | -0.0 |
55.384 | 55.384 | 199.375 | 0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 21.359 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 21.359 | 0.0 |
-0.001 | -0.0 | -0.0 | 0.0 | 0.0 | 22.898 |
173.855 | 80.545 | 55.384 | -0.0 | -0.0 | -0.0 |
128.059 | 126.343 | 55.385 | -0.0 | 0.0 | -0.0 |
55.384 | 55.384 | 199.375 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 21.359 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 21.359 | -0.0 |
0.001 | 0.0 | 0.0 | 0.0 | 0.0 | 22.898 |
126.373 | 128.031 | 55.391 | 0.0 | 0.0 | -0.0 |
128.031 | 126.373 | 55.391 | 0.0 | 0.0 | -0.0 |
55.389 | 55.389 | 199.375 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 21.371 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 21.371 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 46.66 |
173.862 | 80.542 | 55.391 | -0.0 | -0.0 | 0.0 |
80.542 | 173.862 | 55.391 | 0.0 | -0.0 | 0.0 |
55.389 | 55.389 | 199.375 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 21.371 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 21.371 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 46.66 |
173.862 | 80.542 | 55.391 | 0.0 | 0.0 | -0.0 |
128.031 | 126.372 | 55.391 | 0.0 | 0.0 | -0.0 |
55.389 | 55.389 | 199.375 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 21.371 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 21.371 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 46.66 |
118.257 | 136.147 | 55.391 | 0.0 | -0.0 | 0.0 |
128.031 | 126.373 | 55.391 | -0.0 | -0.0 | 0.0 |
55.389 | 55.389 | 199.375 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 21.371 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 21.371 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 46.66 |
173.862 | 80.542 | 55.391 | -0.0 | 0.0 | -0.0 |
80.542 | 173.862 | 55.391 | 0.0 | 0.0 | -0.0 |
55.389 | 55.389 | 199.375 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 21.371 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 21.371 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 46.66 |
150.118 | 104.287 | 55.391 | -0.0 | -0.0 | 0.0 |
104.286 | 150.119 | 55.391 | -0.0 | -0.0 | 0.0 |
55.389 | 55.389 | 199.375 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 21.371 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 21.371 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 46.66 |
117.026 | 137.476 | 55.207 | -0.0 | -0.0 | -0.0 |
137.476 | 117.026 | 55.207 | -0.0 | 0.0 | -0.0 |
55.207 | 55.207 | 200.025 | -0.0 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 21.11 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 21.11 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 46.711 |
173.962 | 80.54 | 55.207 | 0.0 | 0.0 | -0.0 |
137.476 | 117.026 | 55.207 | -0.0 | -0.0 | 0.0 |
55.207 | 55.207 | 200.025 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 21.11 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 21.11 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 46.711 |
173.962 | 80.54 | 55.207 | -0.0 | -0.0 | 0.0 |
137.477 | 117.025 | 55.207 | -0.0 | 0.0 | -0.0 |
55.207 | 55.207 | 200.025 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 21.11 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 21.11 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | -10.225 |
173.962 | 80.54 | 55.207 | 0.0 | 0.0 | 0.0 |
80.54 | 173.962 | 55.207 | 0.0 | 0.0 | -0.0 |
55.207 | 55.207 | 200.025 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 21.11 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 21.11 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -10.225 |
117.025 | 137.475 | 55.206 | -0.0 | -0.0 | -0.0 |
137.479 | 117.021 | 55.206 | -0.0 | -0.0 | -0.0 |
55.207 | 55.207 | 200.025 | -0.0 | -0.0 | -0.0 |
0.0 | -0.001 | -0.0 | 21.11 | 0.0 | -0.0 |
-0.001 | 0.0 | -0.0 | 0.0 | 21.11 | -0.0 |
-0.002 | -0.0 | -0.001 | 0.0 | 0.0 | -10.225 |
173.962 | 80.54 | 55.208 | 0.0 | 0.0 | -0.0 |
137.473 | 117.032 | 55.209 | -0.0 | 0.0 | 0.0 |
55.207 | 55.207 | 200.025 | -0.0 | 0.0 | 0.0 |
-0.0 | 0.001 | 0.0 | 21.11 | -0.0 | 0.0 |
0.001 | -0.0 | 0.0 | 0.0 | 21.11 | 0.0 |
0.002 | 0.0 | 0.001 | 0.0 | 0.0 | -10.225 |
66.563 | 69.777 | 69.777 | -0.0 | -0.0 | -0.0 |
69.777 | 66.563 | 69.777 | -0.0 | -0.0 | -0.0 |
69.777 | 69.777 | 66.563 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 53.837 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 53.837 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 53.837 |
66.563 | 69.777 | 69.777 | 0.0 | 0.0 | 0.0 |
69.777 | 66.563 | 69.777 | 0.0 | 0.0 | 0.0 |
69.777 | 69.777 | 66.563 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 53.837 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 53.837 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 53.837 |
66.563 | 69.777 | 69.777 | -0.0 | -0.0 | -0.0 |
69.777 | 66.563 | 69.777 | -0.0 | -0.0 | -0.0 |
69.777 | 69.777 | 66.563 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -3.171 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -3.171 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -3.171 |
66.563 | 69.777 | 69.777 | -0.0 | 0.0 | 0.0 |
69.777 | 66.563 | 69.777 | 0.0 | -0.0 | 0.0 |
69.777 | 69.777 | 66.563 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -3.171 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -3.171 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -3.171 |
66.564 | 69.777 | 69.777 | 0.0 | -0.0 | -0.0 |
69.777 | 66.564 | 69.777 | -0.0 | 0.0 | -0.0 |
69.777 | 69.777 | 66.564 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -3.171 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -3.171 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -3.171 |
66.563 | 69.776 | 69.776 | 0.0 | 0.0 | 0.0 |
69.776 | 66.563 | 69.776 | 0.0 | 0.0 | 0.0 |
69.776 | 69.776 | 66.563 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -3.171 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -3.171 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -3.171 |
844.147 | 44.505 | 138.622 | -0.0 | -0.0 | -0.0 |
44.505 | 844.147 | 138.622 | -0.0 | -0.0 | -0.0 |
138.622 | 138.622 | 774.203 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 78.051 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 78.051 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -202.536 |
844.146 | 44.505 | 138.622 | 0.0 | 0.0 | 0.0 |
44.505 | 844.146 | 138.622 | 0.0 | 0.0 | 0.0 |
138.622 | 138.622 | 774.203 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 78.051 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 78.051 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | -202.536 |
844.147 | 44.505 | 138.623 | -0.0 | -0.0 | -0.0 |
44.505 | 844.147 | 138.623 | -0.0 | -0.0 | -0.0 |
138.622 | 138.622 | 774.204 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 41.076 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 41.076 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -202.536 |
844.146 | 44.504 | 138.622 | 0.0 | 0.0 | 0.0 |
44.504 | 844.146 | 138.622 | -0.0 | 0.0 | 0.0 |
138.622 | 138.622 | 774.201 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 41.076 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 41.076 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -202.536 |
844.153 | 44.506 | 138.624 | -0.0 | 0.0 | -0.0 |
44.506 | 844.153 | 138.624 | -0.0 | 0.0 | -0.0 |
138.623 | 138.623 | 774.217 | 0.0 | -0.0 | -0.0 |
-0.0 | 0.001 | -0.0 | 41.076 | 0.0 | -0.0 |
0.001 | -0.0 | -0.0 | -0.0 | 41.076 | -0.0 |
-0.0 | -0.001 | -0.0 | 0.0 | -0.0 | -202.536 |
844.14 | 44.503 | 138.62 | 0.0 | -0.0 | 0.0 |
44.503 | 844.14 | 138.62 | 0.0 | 0.0 | 0.0 |
138.622 | 138.622 | 774.189 | -0.0 | -0.0 | 0.0 |
0.0 | -0.001 | 0.0 | 41.076 | 0.0 | -0.0 |
-0.001 | 0.0 | 0.0 | -0.0 | 41.076 | 0.0 |
0.0 | 0.001 | 0.0 | -0.0 | -0.0 | -202.536 |
166.759 | 22.557 | 105.363 | -0.0 | -0.0 | 0.0 |
22.557 | 166.759 | 105.363 | -0.0 | -0.0 | 0.0 |
105.363 | 105.363 | 127.009 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 71.436 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 71.436 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | -11.602 |
166.759 | 22.557 | 105.363 | 0.0 | 0.0 | -0.0 |
22.557 | 166.759 | 105.363 | 0.0 | 0.0 | -0.0 |
105.363 | 105.363 | 127.009 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 71.436 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 71.436 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -11.602 |
166.759 | 22.557 | 105.363 | -0.0 | -0.0 | 0.0 |
22.557 | 166.759 | 105.363 | -0.0 | -0.0 | -0.0 |
105.363 | 105.363 | 127.009 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 71.436 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 71.436 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | -11.602 |
166.759 | 22.557 | 105.363 | 0.0 | 0.0 | -0.0 |
22.557 | 166.759 | 105.363 | 0.0 | 0.0 | 0.0 |
105.363 | 105.363 | 127.009 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 71.436 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 71.436 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -11.602 |
166.758 | 22.557 | 105.364 | -0.0 | -0.0 | 0.0 |
22.557 | 166.758 | 105.364 | -0.0 | -0.0 | 0.0 |
105.364 | 105.364 | 127.007 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 71.436 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 71.436 | 0.0 |
-0.0 | -0.001 | 0.0 | -0.0 | -0.0 | -11.602 |
166.759 | 22.557 | 105.363 | 0.0 | 0.0 | -0.0 |
22.557 | 166.759 | 105.363 | -0.0 | 0.0 | -0.0 |
105.363 | 105.363 | 127.01 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 71.436 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 71.436 | -0.0 |
0.0 | 0.001 | -0.0 | 0.0 | 0.0 | -11.602 |
-146.029 | -46.214 | 43.912 | -21.982 | 0.0 | -0.0 |
-46.214 | -146.029 | 43.912 | 21.982 | -0.0 | 0.0 |
32.022 | 32.022 | 2.114 | 0.0 | -0.0 | 0.0 |
-21.982 | 21.982 | -0.0 | 19.381 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 19.381 | -21.982 |
0.0 | -0.0 | 0.0 | -0.0 | -21.982 | -49.908 |
-146.029 | -46.214 | 43.912 | -21.982 | -0.0 | -0.0 |
-46.214 | -146.029 | 43.912 | 21.982 | 0.0 | -0.0 |
32.022 | 32.022 | 2.114 | 0.0 | -0.0 | 0.0 |
-21.982 | 21.982 | -0.0 | 19.381 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 19.381 | -21.982 |
-0.0 | 0.0 | -0.0 | 0.0 | -21.982 | -49.908 |
-146.029 | -46.214 | 43.912 | -21.982 | -0.0 | 0.0 |
-46.214 | -146.029 | 43.912 | 21.982 | 0.0 | 0.0 |
32.022 | 32.022 | 2.114 | -0.0 | -0.0 | -0.0 |
-21.982 | 21.982 | -0.0 | 19.381 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 19.381 | -21.982 |
0.0 | -0.0 | -0.0 | -0.0 | -21.982 | -49.908 |
-146.029 | -46.214 | 43.912 | -21.982 | -0.0 | -0.0 |
-46.214 | -146.029 | 43.912 | 21.982 | -0.0 | 0.0 |
32.022 | 32.022 | 2.114 | 0.0 | -0.0 | 0.0 |
-21.982 | 21.982 | 0.0 | 19.381 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 19.381 | -21.982 |
-0.0 | 0.0 | 0.0 | 0.0 | -21.982 | -49.908 |
-146.03 | -46.214 | 43.912 | -21.982 | -0.0 | -0.0 |
-46.214 | -146.03 | 43.912 | 21.982 | -0.0 | -0.0 |
32.021 | 32.021 | 2.113 | -0.0 | 0.0 | -0.0 |
-21.982 | 21.981 | -0.0 | 19.382 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 19.381 | -21.982 |
0.0 | -0.0 | -0.0 | -0.0 | -21.982 | -49.908 |
-146.028 | -46.214 | 43.912 | -21.982 | -0.0 | -0.0 |
-46.214 | -146.029 | 43.912 | 21.982 | 0.0 | 0.0 |
32.022 | 32.022 | 2.115 | 0.0 | 0.0 | 0.0 |
-21.982 | 21.982 | 0.0 | 19.381 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 19.381 | -21.982 |
-0.0 | 0.0 | 0.0 | 0.0 | -21.982 | -49.908 |
1059.42 | -59.659 | -59.659 | 0.0 | 0.0 | -0.0 |
-59.659 | 1059.42 | -59.659 | 0.0 | 0.0 | -0.0 |
-59.659 | -59.659 | 1059.42 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -138.659 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -138.659 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -138.659 |
1059.419 | -59.659 | -59.659 | -0.0 | 0.0 | -0.0 |
-59.659 | 1059.419 | -59.659 | 0.0 | -0.0 | -0.0 |
-59.659 | -59.659 | 1059.419 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -138.659 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -138.659 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 0.0 | -138.659 |
1059.421 | -59.659 | -59.659 | -0.0 | 0.0 | -0.0 |
-59.659 | 1059.421 | -59.659 | -0.0 | 0.0 | -0.0 |
-59.659 | -59.659 | 1059.421 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -138.659 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -138.659 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.0 | -138.659 |
1059.418 | -59.659 | -59.659 | -0.0 | -0.0 | -0.0 |
-59.659 | 1059.418 | -59.659 | 0.0 | -0.0 | -0.0 |
-59.659 | -59.659 | 1059.418 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | -138.659 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -138.659 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | -138.659 |
1059.434 | -59.659 | -59.659 | 0.0 | 0.0 | -0.0 |
-59.659 | 1059.434 | -59.659 | 0.0 | 0.0 | -0.0 |
-59.659 | -59.659 | 1059.434 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | -138.659 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -138.659 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 0.0 | -138.659 |
1059.406 | -59.659 | -59.659 | -0.0 | -0.0 | -0.0 |
-59.659 | 1059.406 | -59.659 | 0.0 | -0.0 | -0.0 |
-59.659 | -59.659 | 1059.406 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | -138.659 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -138.659 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | -138.659 |
238.78 | 78.238 | 101.044 | 0.0 | -0.0 | -0.0 |
109.589 | 210.255 | 2.059 | -0.0 | -0.0 | -0.0 |
126.308 | -4.028 | 244.874 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 2.968 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 107.753 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 97.428 |
238.78 | 78.238 | 101.044 | 0.0 | 0.0 | 0.0 |
109.589 | 210.255 | 2.059 | 0.0 | -0.0 | 0.0 |
126.308 | -4.028 | 244.874 | 0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 2.968 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 107.753 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 97.428 |
238.78 | 78.238 | 101.044 | -0.0 | -0.0 | -0.0 |
109.589 | 210.255 | 2.059 | -0.0 | -0.0 | -0.0 |
126.309 | -4.028 | 244.874 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 2.968 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 107.753 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 97.428 |
238.78 | 78.238 | 101.044 | 0.0 | 0.0 | 0.0 |
109.589 | 210.255 | 2.059 | 0.0 | 0.0 | 0.0 |
126.308 | -4.028 | 244.873 | -0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 2.968 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 107.753 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 97.428 |
238.781 | 78.238 | 101.045 | -0.0 | 0.0 | -0.0 |
109.589 | 210.256 | 2.06 | -0.0 | -0.0 | -0.0 |
126.31 | -4.027 | 244.877 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.001 | 0.001 | 2.968 | -0.0 | -0.0 |
0.0 | -0.0 | 0.001 | 0.0 | 107.753 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 97.428 |
238.78 | 78.238 | 101.044 | -0.0 | 0.0 | 0.0 |
109.589 | 210.254 | 2.058 | 0.0 | 0.0 | 0.0 |
126.307 | -4.029 | 244.87 | -0.0 | 0.0 | 0.0 |
0.0 | -0.001 | -0.001 | 2.968 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.001 | -0.0 | 107.753 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 97.428 |
376.291 | 161.584 | 100.568 | 1.733 | 46.363 | 2.238 |
129.634 | 1381.23 | 104.934 | 0.503 | 2.733 | 1.179 |
110.844 | 147.297 | 310.376 | -0.46 | -9.225 | -0.598 |
-1.023 | 0.155 | -1.893 | 101.619 | -3.567 | 0.417 |
14.188 | -0.059 | -7.971 | -0.881 | 109.563 | 3.016 |
-1.592 | 0.509 | -2.334 | 1.729 | -0.202 | 71.065 |
381.156 | 162.952 | 101.556 | -0.145 | 49.857 | -0.705 |
129.634 | 1381.23 | 104.934 | 0.503 | 2.733 | 1.18 |
115.708 | 148.665 | 311.364 | -2.339 | -5.731 | -3.541 |
3.84 | 1.522 | -0.906 | 99.74 | -0.073 | -2.525 |
19.052 | 1.308 | -6.984 | -2.76 | 113.057 | 0.074 |
3.272 | 1.876 | -1.346 | -0.149 | 3.292 | 68.122 |
378.256 | 162.132 | 100.935 | 0.89 | 47.895 | 0.915 |
129.634 | 1381.232 | 104.934 | 0.503 | 2.733 | 1.179 |
112.992 | 147.879 | 310.766 | -1.304 | -7.66 | -1.92 |
1.164 | 0.77 | -1.449 | 100.768 | -1.995 | -0.907 |
16.371 | 0.555 | -7.529 | -1.726 | 111.129 | 1.692 |
0.596 | 1.124 | -1.889 | 0.884 | 1.37 | 69.737 |
378.765 | 162.275 | 101.04 | 0.698 | 48.254 | 0.615 |
129.634 | 1381.229 | 104.934 | 0.503 | 2.733 | 1.18 |
113.484 | 148.018 | 310.867 | -1.494 | -7.307 | -2.218 |
1.652 | 0.907 | -1.35 | 100.578 | -1.645 | -1.202 |
16.86 | 0.692 | -7.429 | -1.914 | 111.481 | 1.397 |
1.084 | 1.261 | -1.79 | 0.696 | 1.72 | 69.441 |
347.312 | 151.914 | 89.802 | 0.818 | 43.015 | 0.735 |
106.577 | 1350.799 | 67.49 | -31.842 | -9.815 | -2.284 |
95.725 | 123.033 | 266.225 | 0.024 | -9.467 | -0.94 |
1.365 | 0.835 | -1.381 | 100.076 | -1.818 | -1.078 |
16.172 | 0.54 | -7.65 | -1.787 | 110.852 | 1.553 |
0.795 | 1.187 | -1.825 | 0.766 | 1.511 | 69.158 |
347.253 | 151.899 | 89.769 | 0.721 | 43.126 | 0.64 |
129.633 | 1381.216 | 104.934 | 0.503 | 2.733 | 1.18 |
95.949 | 123.413 | 266.845 | -0.415 | -9.038 | -0.873 |
1.431 | 0.854 | -1.367 | 100.032 | -1.769 | -1.119 |
16.251 | 0.56 | -7.631 | -1.812 | 110.914 | 1.516 |
0.858 | 1.206 | -1.812 | 0.741 | 1.556 | 69.114 |
402.979 | 211.119 | 197.332 | 29.183 | 39.757 | 145.518 |
140.15 | 1494.602 | 127.626 | -0.236 | 8.808 | 1.9 |
239.184 | 300.073 | 561.938 | -142.955 | -73.044 | 390.536 |
23.398 | 7.154 | 9.364 | 94.786 | 8.904 | 17.123 |
58.774 | 55.975 | 98.118 | 28.221 | 112.76 | 144.766 |
0.651 | 0.731 | -1.808 | 2.723 | 1.239 | 70.341 |
241.821 | 68.715 | -45.58 | -26.504 | 3.221 | -247.59 |
136.595 | 1498.947 | 131.376 | -0.097 | 5.692 | 0.731 |
73.86 | 136.996 | 285.954 | -4.498 | -9.206 | -31.398 |
-15.579 | -8.235 | -15.748 | 81.572 | -14.785 | -27.916 |
-18.081 | -3.955 | -6.904 | -2.741 | 88.009 | -14.793 |
0.651 | 0.731 | -1.808 | 2.723 | 1.239 | 70.341 |
383.199 | 176.11 | 117.776 | 1.29 | 17.901 | 0.183 |
136.595 | 1498.949 | 131.375 | -0.098 | 5.692 | 0.731 |
121.649 | 174.78 | 357.105 | -1.576 | 4.107 | -2.067 |
15.47 | 14.213 | 22.01 | 59.633 | -9.042 | 39.408 |
16.971 | 11.215 | 16.677 | 2.957 | 94.839 | 22.767 |
3.153 | 1.457 | -0.9 | 3.397 | 1.855 | 60.024 |
323.711 | 141.782 | 77.988 | 9.263 | 21.225 | -35.52 |
127.827 | 1491.879 | 124.354 | -0.084 | 5.551 | 0.723 |
91.869 | 140.861 | 291.977 | 2.815 | 9.723 | -35.275 |
0.376 | -1.546 | -4.324 | 69.31 | -2.758 | -3.89 |
3.457 | 1.475 | -0.897 | -2.36 | 87.093 | -10.943 |
0.009 | 0.569 | -2.559 | 4.793 | -0.262 | 38.001 |
346.834 | 160.144 | 107.278 | 1.781 | 16.084 | 2.749 |
125.662 | 1489.093 | 121.639 | -0.1 | 5.972 | 0.897 |
107.952 | 158.522 | 325.364 | -1.689 | 4.285 | 0.157 |
2.022 | -0.109 | -1.077 | 75.808 | -0.992 | 3.933 |
7.423 | 3.904 | 4.855 | -0.69 | 96.848 | 1.621 |
1.696 | 1.591 | -0.8 | 4.926 | 1.006 | 43.034 |
348.165 | 159.58 | 102.765 | 1.071 | 15.738 | 0.23 |
122.387 | 1486.45 | 118.785 | -0.104 | 5.989 | 0.882 |
107.464 | 156.927 | 321.362 | -0.665 | 5.063 | -4.64 |
1.236 | -0.221 | -1.577 | 112.044 | -1.794 | -0.28 |
6.176 | 3.005 | 3.336 | -1.11 | 96.392 | -0.862 |
-0.354 | -0.011 | -2.674 | 5.063 | 0.853 | 25.719 |
465.564 | -95.644 | 57.166 | -0.0 | -0.0 | -0.0 |
-95.644 | 465.564 | 57.166 | 0.0 | -0.0 | 0.0 |
53.485 | 53.485 | 267.628 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 6.943 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 6.943 | -0.0 |
-1.566 | -1.566 | 0.261 | -0.0 | -0.0 | -161.163 |
472.401 | -108.189 | 57.643 | 0.0 | -0.0 | 0.0 |
-108.189 | 472.401 | 57.643 | -0.0 | -0.0 | 0.0 |
53.485 | 53.485 | 267.627 | -0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 6.943 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 6.943 | 0.0 |
1.566 | 1.566 | -0.262 | -0.0 | 0.0 | -161.163 |
471.379 | -110.36 | 57.91 | -0.0 | -0.0 | -0.0 |
-110.36 | 471.379 | 57.91 | -0.0 | -0.0 | -0.0 |
53.485 | 53.485 | 267.628 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 6.943 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 6.943 | -0.0 |
-0.157 | -0.157 | 0.026 | 0.0 | -0.0 | -161.163 |
471.565 | -109.972 | 57.861 | -0.0 | -0.0 | 0.0 |
-109.972 | 471.565 | 57.861 | 0.0 | 0.0 | 0.0 |
57.422 | 57.422 | 266.97 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 6.943 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 6.943 | 0.0 |
0.157 | 0.157 | -0.026 | -0.0 | -0.0 | -161.163 |
467.134 | -94.094 | 56.908 | 0.0 | 0.0 | -0.0 |
-94.094 | 467.134 | 56.908 | 0.0 | 0.0 | -0.0 |
53.485 | 53.485 | 267.629 | -0.0 | 0.0 | 0.0 |
6213924.762 | -13647967.752 | -2294102.741 | -13060899.964 | -312202.563 | -84496.081 |
-14830507.573 | 4922572.412 | -4668981.008 | -450041.081 | -12673424.815 | 837881.102 |
-0.016 | -0.016 | 0.003 | -0.0 | -0.0 | -161.163 |
471.462 | -110.147 | 57.883 | -0.0 | -0.0 | 0.0 |
-110.147 | 471.462 | 57.883 | -0.0 | 0.0 | 0.0 |
53.485 | 53.485 | 267.626 | 0.0 | 0.0 | 0.0 |
-5293444.85 | 14224881.129 | 4282703.068 | -11935797.587 | 394375.962 | 1044632.023 |
13842835.22 | -5424830.327 | 3721506.865 | 349253.827 | -12211220.197 | 257193.594 |
0.016 | 0.016 | -0.003 | 0.0 | 0.0 | -161.163 |
509.967 | 181.455 | 181.455 | 0.0 | 0.0 | -0.0 |
181.455 | 509.967 | 181.455 | 0.0 | 0.0 | -0.0 |
181.455 | 181.455 | 509.967 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 133.73 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 133.73 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 133.73 |
2612.142 | 2465.368 | 2465.368 | -0.0 | 0.0 | 0.0 |
2465.368 | 2612.142 | 2465.368 | -0.0 | 0.0 | -0.0 |
2465.368 | 2465.368 | 2612.142 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 133.73 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 133.73 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 133.73 |
125.065 | -73.823 | -73.823 | 0.0 | -0.0 | -0.0 |
-73.823 | 125.065 | -73.823 | -0.0 | 0.0 | -0.0 |
-73.823 | -73.823 | 125.065 | 0.0 | 0.0 | -0.0 |
-265.645 | -265.645 | -265.645 | 82.617 | -0.0 | -0.0 |
-265.645 | -265.645 | -265.645 | -0.0 | 82.617 | -0.0 |
-265.645 | -265.645 | -265.645 | -0.0 | -0.0 | 82.617 |
586.899 | 433.32 | 433.32 | -0.0 | -0.0 | 0.0 |
433.32 | 586.899 | 433.32 | -0.0 | -0.0 | 0.0 |
433.32 | 433.32 | 586.899 | -0.0 | 0.0 | 0.0 |
265.645 | 265.645 | 265.645 | 82.617 | -0.0 | 0.0 |
265.645 | 265.645 | 265.645 | -0.0 | 82.617 | 0.0 |
265.645 | 265.645 | 265.645 | -0.0 | 0.0 | 82.617 |
377.346 | 160.676 | 160.676 | 0.0 | 0.0 | -0.0 |
160.676 | 377.346 | 160.676 | 0.0 | 0.0 | -0.0 |
160.676 | 160.676 | 377.346 | 0.0 | -0.0 | -0.0 |
-31.698 | -31.698 | -31.698 | 89.028 | 0.0 | -0.0 |
-31.698 | -31.698 | -31.698 | -0.0 | 89.028 | -0.0 |
-31.698 | -31.698 | -31.698 | 0.0 | 0.0 | 89.028 |
509.964 | 181.454 | 181.454 | 0.0 | -0.0 | 0.0 |
181.454 | 509.964 | 181.454 | -0.0 | -0.0 | 0.0 |
181.454 | 181.454 | 509.964 | -0.0 | 0.0 | 0.0 |
31.698 | 31.698 | 31.698 | 89.028 | 0.0 | 0.0 |
31.698 | 31.698 | 31.698 | -0.0 | 89.028 | 0.0 |
31.698 | 31.698 | 31.698 | -0.0 | -0.0 | 89.028 |
379.622 | 161.325 | 161.325 | 0.0 | 0.0 | 0.0 |
161.325 | 379.622 | 161.325 | -0.0 | 0.0 | 0.0 |
161.325 | 161.325 | 379.622 | 0.0 | -0.0 | 0.0 |
0.863 | 0.863 | 0.863 | 99.407 | -0.0 | 0.0 |
0.863 | 0.863 | 0.863 | 0.0 | 99.407 | 0.0 |
0.863 | 0.863 | 0.863 | 0.0 | -0.0 | 99.407 |
406.221 | 184.787 | 184.787 | -0.0 | 0.0 | -0.0 |
184.787 | 406.221 | 184.787 | -0.0 | 0.0 | -0.0 |
184.787 | 184.787 | 406.221 | -0.0 | -0.0 | -0.0 |
-0.863 | -0.863 | -0.863 | 99.407 | 0.0 | -0.0 |
-0.863 | -0.863 | -0.863 | -0.0 | 99.407 | -0.0 |
-0.863 | -0.863 | -0.863 | -0.0 | 0.0 | 99.407 |
407.561 | 186.015 | 186.015 | 0.0 | 0.0 | 0.0 |
186.015 | 407.561 | 186.015 | 0.0 | -0.0 | 0.0 |
186.015 | 186.015 | 407.561 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 130.126 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 130.126 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 130.126 |
382.738 | 170.58 | 170.58 | -0.0 | 0.0 | -0.0 |
170.58 | 382.738 | 170.58 | 0.0 | 0.0 | -0.0 |
170.58 | 170.58 | 382.738 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 130.126 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 130.126 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 130.126 |
473.191 | 170.315 | 170.315 | -0.0 | -0.0 | -0.0 |
170.315 | 473.191 | 170.315 | -0.0 | -0.0 | 0.0 |
170.315 | 170.315 | 473.191 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 130.126 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 130.126 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 130.126 |
378.414 | 161.069 | 161.069 | 0.0 | -0.0 | -0.0 |
161.069 | 378.414 | 161.069 | 0.0 | 0.0 | -0.0 |
161.069 | 161.069 | 378.414 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 130.126 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 130.126 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 130.126 |
237.934 | 154.161 | 154.161 | 0.0 | -0.0 | 0.0 |
154.161 | 237.934 | 154.161 | 0.0 | 0.0 | 0.0 |
154.161 | 154.161 | 237.934 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 116.189 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 116.189 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 116.189 |
237.934 | 154.161 | 154.161 | -0.0 | 0.0 | -0.0 |
154.161 | 237.934 | 154.161 | 0.0 | -0.0 | -0.0 |
154.161 | 154.161 | 237.934 | -0.0 | -0.0 | -0.0 |
100.677 | 100.676 | 100.677 | -148.146 | -0.007 | -0.008 |
100.674 | 100.674 | 100.675 | -0.006 | -148.142 | -0.008 |
100.673 | 100.672 | 100.673 | -0.006 | -0.007 | -148.139 |
237.934 | 154.161 | 154.161 | -0.0 | -0.0 | 0.0 |
154.161 | 237.934 | 154.161 | 0.0 | 0.0 | 0.0 |
154.161 | 154.161 | 237.934 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 116.189 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 116.189 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 116.189 |
203.536 | 141.205 | 141.205 | -0.0 | -0.0 | -0.001 |
141.205 | 203.536 | 141.205 | -0.0 | -0.0 | -0.001 |
141.205 | 141.205 | 203.536 | -0.0 | -0.0 | -0.001 |
-0.0 | -0.0 | -0.0 | 116.189 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 116.189 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 116.189 |
237.935 | 154.162 | 154.162 | 0.0 | 0.0 | 0.0 |
154.162 | 237.935 | 154.162 | 0.0 | -0.0 | 0.0 |
154.162 | 154.162 | 237.935 | -0.0 | 0.0 | 0.0 |
-0.026 | -0.027 | -0.026 | 67.313 | 0.0 | 0.0 |
-0.027 | -0.026 | -0.026 | 0.0 | 67.313 | 0.0 |
-0.027 | -0.026 | -0.026 | 0.0 | 0.0 | 67.313 |
203.204 | 140.755 | 140.755 | -0.0 | -0.0 | -0.0 |
140.755 | 203.204 | 140.755 | -0.0 | -0.0 | -0.0 |
140.755 | 140.755 | 203.204 | -0.0 | -0.0 | -0.0 |
0.026 | 0.027 | 0.026 | 67.313 | -0.0 | -0.0 |
0.027 | 0.026 | 0.026 | -0.0 | 67.313 | -0.0 |
0.027 | 0.026 | 0.026 | -0.0 | -0.0 | 67.313 |
412.336 | 24.562 | 150.333 | 0.0 | -0.0 | 0.0 |
30.075 | 594.549 | 51.901 | 0.0 | 0.0 | 0.0 |
203.797 | 50.216 | 275.815 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 2.268 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 152.216 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | -17.146 |
410.868 | 24.469 | 148.972 | -0.0 | -0.0 | -0.0 |
33.312 | 594.754 | 54.902 | -0.0 | -0.0 | -0.0 |
203.797 | 50.216 | 275.815 | 0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 2.268 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 152.216 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | -17.146 |
469.515 | 28.187 | 203.359 | 0.0 | 0.0 | 0.0 |
29.712 | 594.527 | 51.563 | 0.0 | 0.0 | 0.0 |
203.797 | 50.216 | 275.815 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 2.268 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 152.216 | 0.0 |
2.746 | 0.166 | 2.549 | 0.0 | 0.0 | -2121.373 |
411.543 | 24.511 | 149.598 | -0.0 | -0.0 | -0.0 |
33.312 | 594.754 | 54.902 | 0.0 | -0.0 | -0.0 |
150.032 | 46.807 | 225.955 | 0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 2.268 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 152.216 | 0.0 |
-2.746 | -0.166 | -2.549 | -0.0 | -0.0 | -2121.373 |
411.642 | 24.518 | 149.685 | 0.0 | 0.0 | 0.0 |
29.65 | 594.531 | 51.507 | 0.0 | 0.0 | 0.0 |
150.121 | 46.813 | 226.034 | -0.0 | 0.0 | 0.0 |
-0.015 | -0.003 | -0.016 | -797.281 | 0.0 | 0.0 |
0.005 | -0.0 | 0.002 | 0.0 | 152.216 | -0.0 |
0.246 | -0.067 | 0.245 | -0.0 | -0.0 | -2121.373 |
411.595 | 24.515 | 149.65 | -0.0 | -0.0 | -0.0 |
33.312 | 594.746 | 54.902 | -0.0 | -0.0 | -0.0 |
203.795 | 50.216 | 275.815 | 0.0 | -0.0 | -0.0 |
0.015 | 0.003 | 0.016 | -797.281 | -0.0 | 0.0 |
-0.005 | 0.0 | -0.002 | 0.0 | 152.216 | 0.0 |
-0.246 | 0.067 | -0.245 | 0.0 | -0.0 | -2121.373 |
318.884 | 766.687 | 108.555 | 0.0 | 0.0 | -0.0 |
297.238 | 788.332 | 108.555 | -0.0 | 0.0 | -0.0 |
108.556 | 108.556 | 670.756 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 14.48 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 14.48 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | -0.0 | -14.074 |
528.712 | 556.859 | 108.555 | 0.0 | -0.0 | 0.0 |
556.86 | 528.711 | 108.555 | 0.0 | -0.0 | 0.0 |
108.556 | 108.556 | 670.756 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 14.48 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 14.48 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 0.0 | -14.074 |
319.234 | 766.339 | 108.556 | 0.0 | 0.0 | 0.0 |
297.239 | 788.331 | 108.555 | 0.0 | 0.0 | -0.0 |
108.556 | 108.556 | 670.756 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 14.48 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 14.48 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | -0.0 | -14.074 |
788.332 | 297.239 | 108.555 | -0.0 | -0.0 | 0.0 |
766.699 | 318.87 | 108.555 | -0.0 | -0.0 | 0.0 |
108.556 | 108.556 | 670.755 | 0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 14.48 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 14.48 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 0.0 | -14.074 |
788.326 | 297.237 | 108.557 | 0.0 | 0.0 | -0.0 |
886.954 | 198.653 | 108.57 | 0.0 | 0.0 | -0.0 |
108.557 | 108.557 | 670.76 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.001 | 0.0 | 14.48 | 0.0 | -0.0 |
0.001 | 0.0 | 0.0 | 0.0 | 14.48 | -0.0 |
0.001 | -0.001 | 0.0 | 0.0 | 0.0 | -14.074 |
198.537 | 886.997 | 108.54 | -0.0 | -0.0 | 0.0 |
297.239 | 788.338 | 108.554 | -0.0 | -0.0 | 0.0 |
108.555 | 108.555 | 670.751 | -0.0 | 0.0 | 0.0 |
0.0 | -0.001 | -0.0 | 14.48 | -0.0 | 0.0 |
-0.001 | -0.0 | -0.0 | -0.0 | 14.48 | 0.0 |
-0.001 | 0.001 | -0.0 | -0.0 | -0.0 | -14.074 |
132.032 | 139.887 | -48.688 | 11.712 | 0.0 | -0.0 |
139.887 | 132.032 | -48.688 | -11.712 | 0.0 | -0.0 |
64.066 | 64.066 | 95.585 | 0.0 | -0.0 | -0.0 |
20.549 | -3.049 | -103.999 | 21.25 | 0.0 | -0.0 |
8.75 | 8.75 | -103.999 | 0.0 | 21.25 | 11.799 |
8.75 | 8.75 | -103.999 | 0.0 | 11.8 | 40.025 |
114.531 | 122.386 | 159.333 | 11.712 | -0.0 | 0.0 |
122.386 | 114.531 | 159.333 | -11.712 | -0.0 | 0.0 |
46.567 | 46.567 | 303.583 | 0.0 | -0.0 | 0.0 |
3.049 | -20.549 | 103.999 | 21.25 | -0.0 | 0.0 |
-8.75 | -8.75 | 103.999 | -0.0 | 21.25 | 11.799 |
-8.75 | -8.75 | 103.999 | -0.0 | 11.8 | 40.025 |
168.109 | 88.059 | 44.922 | 11.8 | 0.0 | -0.0 |
132.312 | 123.856 | 44.923 | -11.711 | 0.0 | -0.0 |
56.191 | 56.191 | 189.184 | -0.0 | 0.0 | -0.0 |
11.812 | -11.812 | -0.0 | 21.25 | 0.0 | -0.0 |
0.875 | 0.875 | -10.4 | 0.0 | 21.25 | 11.799 |
0.875 | 0.875 | -10.4 | -0.0 | 11.711 | -4.228 |
122.106 | 130.561 | 65.723 | 11.711 | -0.0 | 0.0 |
130.561 | 122.107 | 65.723 | -11.711 | -0.0 | 0.0 |
54.441 | 54.441 | 209.984 | 0.0 | -0.0 | 0.0 |
11.812 | -11.812 | 0.0 | 21.25 | -0.0 | 0.0 |
-0.875 | -0.875 | 10.4 | -0.0 | 21.25 | 11.799 |
-0.875 | -0.875 | 10.4 | 0.0 | 11.711 | -4.228 |
167.306 | 87.287 | 54.28 | 11.8 | 0.0 | -0.0 |
87.287 | 167.306 | 54.28 | -11.8 | 0.0 | -0.0 |
55.404 | 55.404 | 198.544 | -0.0 | 0.0 | -0.0 |
11.812 | -11.637 | -1.04 | 21.25 | 0.0 | -0.0 |
0.087 | 0.088 | -1.04 | 0.0 | 21.25 | 11.724 |
0.087 | 0.088 | -1.043 | 0.0 | 11.799 | 40.01 |
122.895 | 131.35 | 56.364 | 11.711 | -0.0 | 0.0 |
131.346 | 122.899 | 56.364 | -11.711 | -0.0 | 0.0 |
55.229 | 55.229 | 200.624 | -0.0 | -0.0 | 0.0 |
11.712 | -11.886 | 1.04 | 21.25 | -0.0 | 0.0 |
-0.087 | -0.088 | 1.04 | -0.0 | 21.25 | 11.724 |
-0.087 | -0.088 | 1.043 | -0.0 | 11.799 | 40.01 |
Phonon band structures and crystal properties estimated from quasi-harmonic approximation (QHA) calculations are displayed for select crystals. The calculations were performed using phonopy and LAMMPS. For the phonon calculations, 3x3 supercells of the potential-specific relaxed crystals were used. The QHA calculations were based on 11 strain states ranging from -0.05 to 0.05.
The calculation method used is available as the iprPy phonon calculation method.
Notes and Disclaimers:
Version Information:
Static free surface formation energies are displayed for select crystals. The values displayed here are obtained by taking a perfect periodic bulk crystal, slicing along a crystallographic plane, and using force minimization to statically relax the surfaces. The free surface formation energy is computed by comparing the energy of the defect system to the bulk system and dividing by the total surface area created by the cut.
The calculation method used is available as the iprPy surface_energy_static calculation method.
Notes and Disclaimers:
Version Information:
Surface | γfs (mJ/m2) |
---|---|
(111) | 2079.41 |
(332) | 2339.8 |
(322) | 2368.24 |
(100) | 2408.99 |
(221) | 2457.79 |
(211) | 2516.66 |
(331) | 2557.2 |
(311) | 2635.32 |
(110) | 2663.32 |
(321) | 2680.43 |
(310) | 2764.02 |
(320) | 2802.06 |
(210) | 2837.09 |
Surface | γfs (mJ/m2) |
---|---|
(0001) | 2092.03 |
(1012) 2 | 2284.42 |
(2021) 1 | 2318.88 |
(1011) 1 | 2357.35 |
(2021) 2 | 2546.23 |
(2131) 1 | 2674.52 |
(1120) | 2674.75 |
(1010) | 2699.11 |
(1012) 1 | 2710.17 |
(2132) 1 | 2712.69 |
(2132) 2 | 2713.49 |
(2241) | 2727.32 |
(1011) 2 | 2746.24 |
(1121) | 2763.59 |
(2112) | 2789.87 |
(2130) | 2792.43 |
(2131) 2 | 2856.9 |
Surface | γfs (mJ/m2) |
---|---|
(0001) | 2108.63 |
(1010) 1 | 2278.94 |
(1011) 2 | 2295.91 |
(2021) 1 | 2356.75 |
(1012) 1 | 2613.24 |
(1012) 2 | 2620.64 |
(2130) 1 | 2621.33 |
(2112) | 2652.85 |
(1120) | 2686.99 |
(2132) 2 | 2687.1 |
(2132) 1 | 2705.13 |
(2131) 2 | 2723.97 |
(2131) 1 | 2725.2 |
(2241) | 2774.82 |
(2021) 2 | 2786.2 |
(1121) | 2797.88 |
(2130) 2 | 2998.39 |
(1010) 2 | 3166.65 |
(1011) 1 | 3173.82 |
Surface | γfs (mJ/m2) |
---|---|
(211) 2 | 2344.51 |
(210) | 2382.65 |
(332) 2 | 2441.26 |
(311) | 2467.2 |
(321) 2 | 2471.62 |
(100) | 2487.26 |
(111) | 2493.2 |
(221) | 2497.85 |
(321) 1 | 2507.03 |
(322) | 2526.09 |
(331) | 2558.68 |
(320) | 2567.95 |
(310) | 2598.15 |
(332) 1 | 2602.44 |
(211) 1 | 2625.11 |
(110) | 2713.92 |
Surface | γfs (mJ/m2) |
---|---|
(110) | 2464.79 |
(320) | 2710.86 |
(100) | 2797.34 |
(210) | 2814.78 |
(321) | 2831.68 |
(331) | 2854.34 |
(310) | 2887.77 |
(211) | 2914.65 |
(221) | 2990.59 |
(311) | 3001.87 |
(322) | 3067.02 |
(332) | 3089.81 |
(111) | 3171.58 |
Surface | γfs (mJ/m2) |
---|---|
(2021) 1 | -611.44 |
(2021) 2 | -222.25 |
(1012) 2 | 145.27 |
(1012) 1 | 170.37 |
(2131) 1 | 339.02 |
(2130) | 340.83 |
(2131) 2 | 382.13 |
(2132) 2 | 433.37 |
(2241) | 534.44 |
(1121) | 561.3 |
(2132) 1 | 910.71 |
(1011) 1 | 1078.93 |
(1010) | 1494.33 |
(2112) | 1791.33 |
(1011) 2 | 1814.59 |
(0001) | 2067.94 |
(1120) | 2275.17 |
Static point defect formation energies, Ef, and elastic dipole tensors, pij, are displayed for select crystals. Relaxed defect configurations are obtained by taking a 12x12x12 supercell of a perfect periodic bulk crystal, inserting the point defect, and using force minimization to statically relax the atomic positions while keeping the system dimensions constant. Ef is computed by comparing the energy of the defect system to the same number of atoms in a perfect bulk crystal. pij is estimated as the difference in the system's global pressure with and without the defect multiplied by the system's volume.
Simple structural comparisons of the unrelaxed and relaxed defect configurations are used to help determine if the defect structure has relaxed to a different configuration. Relaxed structures that are identified as no longer consistent with the ideal defect definition are excluded from the table below. The only exception to this is if the lowest energy interstitial configuration does not coincide with a known ideal defect, its energies and pressure tensor are included under the listing "relaxed interstitial". The full list of calculation results including the transformed structures and the structural comparison values is included in the csv file available from the "Download raw data" link.
The calculation method used is available as the iprPy point_defect_static calculation method.
Notes and Disclaimers:
Point Defect | Ef (eV) | p11 (eV) | p22 (eV) | p33 (eV) | p12 (eV) | p13 (eV) | p23 (eV) |
---|---|---|---|---|---|---|---|
vacancy | 3.203 | -3.327 | -3.327 | -3.327 | 0.0 | 0.0 | -0.0 |
1nn divacancy | 5.934 | -6.324 | -6.051 | -6.051 | 0.0 | 0.0 | -0.353 |
2nn divacancy | 6.442 | -6.985 | -6.985 | -7.243 | 0.0 | 0.0 | 0.0 |
100 dumbbell | 10.223 | 47.124 | 47.124 | 43.569 | 0.0 | 0.0 | -0.0 |
110 dumbbell | 10.915 | 59.349 | 45.143 | 45.143 | 0.0 | 0.0 | 27.86 |
crowdion interstitial | 10.926 | 44.853 | 44.853 | 59.58 | 27.809 | -0.0 | -0.0 |
octahedral interstitial | 11.163 | 54.183 | 54.183 | 54.183 | 0.0 | 0.0 | 0.0 |
111 dumbbell | 11.697 | 46.976 | 46.976 | 46.976 | 8.413 | 8.413 | 8.413 |
tetrahedral interstitial | 12.063 | 47.199 | 47.199 | 47.199 | -0.0 | -0.0 | -0.0 |
Point Defect | Ef (eV) | p11 (eV) | p22 (eV) | p33 (eV) | p12 (eV) | p13 (eV) | p23 (eV) |
---|---|---|---|---|---|---|---|
vacancy | 3.197 | -3.309 | -3.309 | -3.743 | -0.0 | 0.0 | -0.0 |
relaxed interstitial | 10.811 | 62.701 | 57.232 | 32.5 | -0.0 | 0.0 | -0.0 |
0001 dumbbell | 12.171 | 44.806 | 44.806 | 64.624 | -0.0 | -0.0 | 0.0 |
Point Defect | Ef (eV) | p11 (eV) | p22 (eV) | p33 (eV) | p12 (eV) | p13 (eV) | p23 (eV) |
---|---|---|---|---|---|---|---|
vacancy | 3.427 | -3.693 | -3.693 | -3.693 | 0.0 | 0.0 | 0.0 |
1nn divacancy | 6.462 | -6.012 | -6.012 | -6.012 | 0.387 | 0.387 | 0.387 |
2nn divacancy | 6.482 | -7.851 | -7.851 | -9.982 | -0.0 | 0.0 | 0.0 |
111 dumbbell | 9.578 | 37.543 | 37.543 | 37.543 | 10.846 | 10.846 | 10.846 |
crowdion interstitial | 9.602 | 35.989 | 35.989 | 35.989 | 8.939 | 8.939 | 8.939 |
110 dumbbell | 9.847 | 42.403 | 41.38 | 41.38 | 0.0 | -0.0 | 7.635 |
tetrahedral interstitial | 10.462 | 40.104 | 35.86 | 40.104 | 0.0 | -0.0 | 0.0 |
100 dumbbell | 11.208 | 41.119 | 41.119 | 53.065 | -0.0 | -0.0 | -0.0 |
