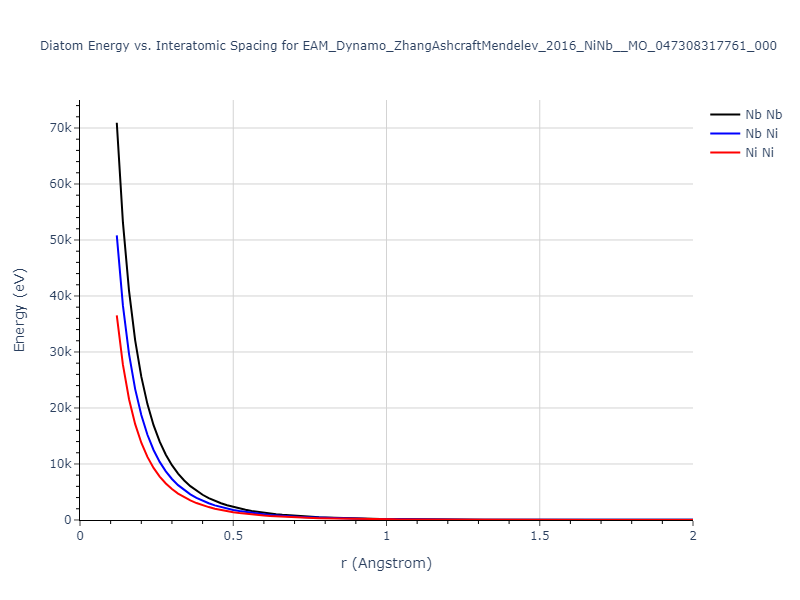

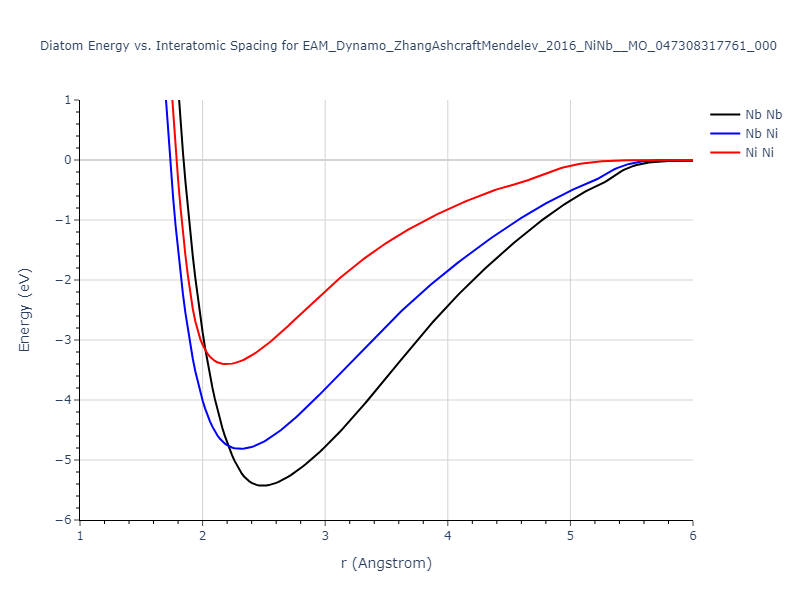

Plots of the potential energy vs interatomic spacing, r, are shown below for all diatom sets associated with the interatomic potential. This calculation provides insights into the functional form of the potential's two-body interactions. A system consisting of only two atoms is created, and the potential energy is evaluated for the atoms separated by 0.02 Å <= r <= 6.0> Å in intervals of 0.02 Å. Two plots are shown: one for the "standard" interaction distance range, and one for small values of r. The small r plot is useful for determining whether the potential is suitable for radiation studies.
The calculation method used is available as the iprPy diatom_scan calculation method.
Clicking on the image of a plot will open an interactive version of it in a new tab. The underlying data for the plots can be downloaded by clicking on the links above each plot.
Notes and Disclaimers:
Version Information:

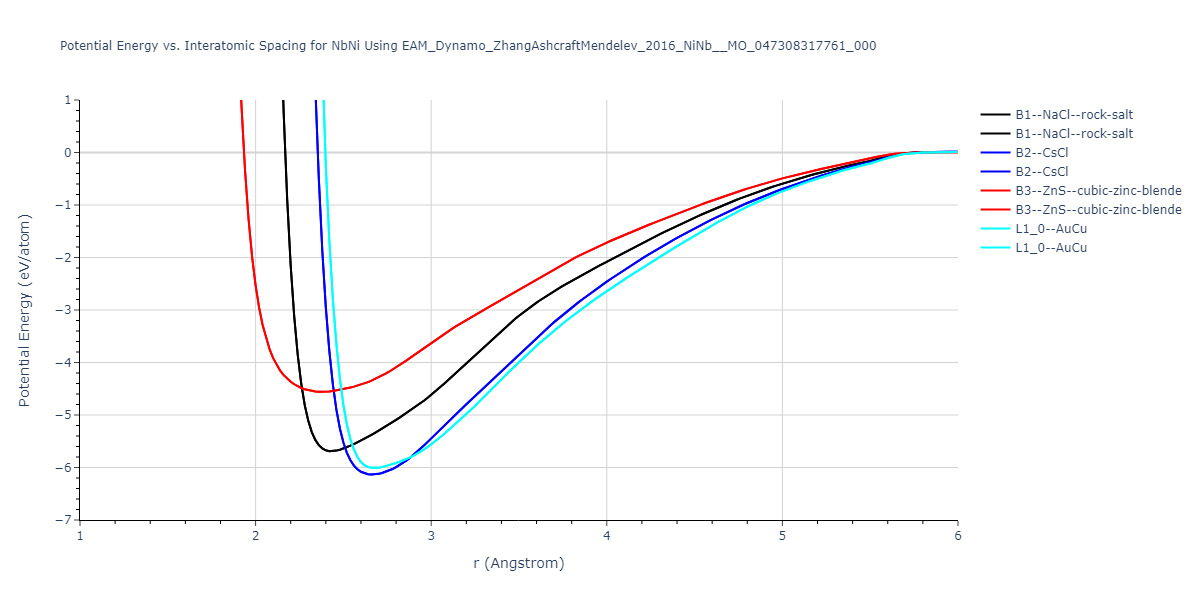

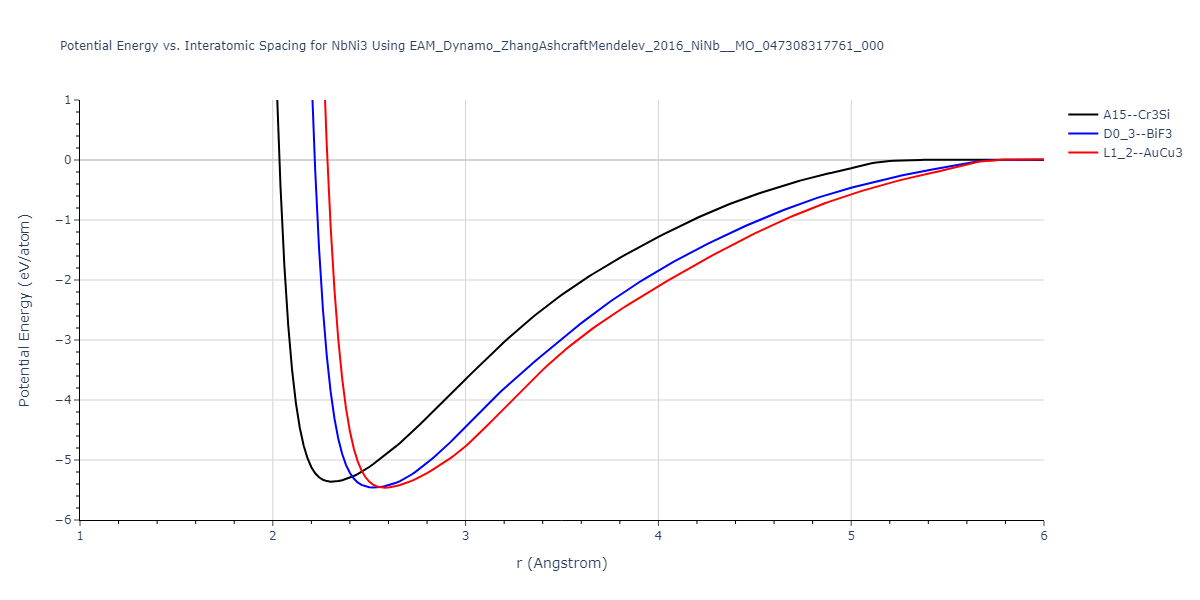

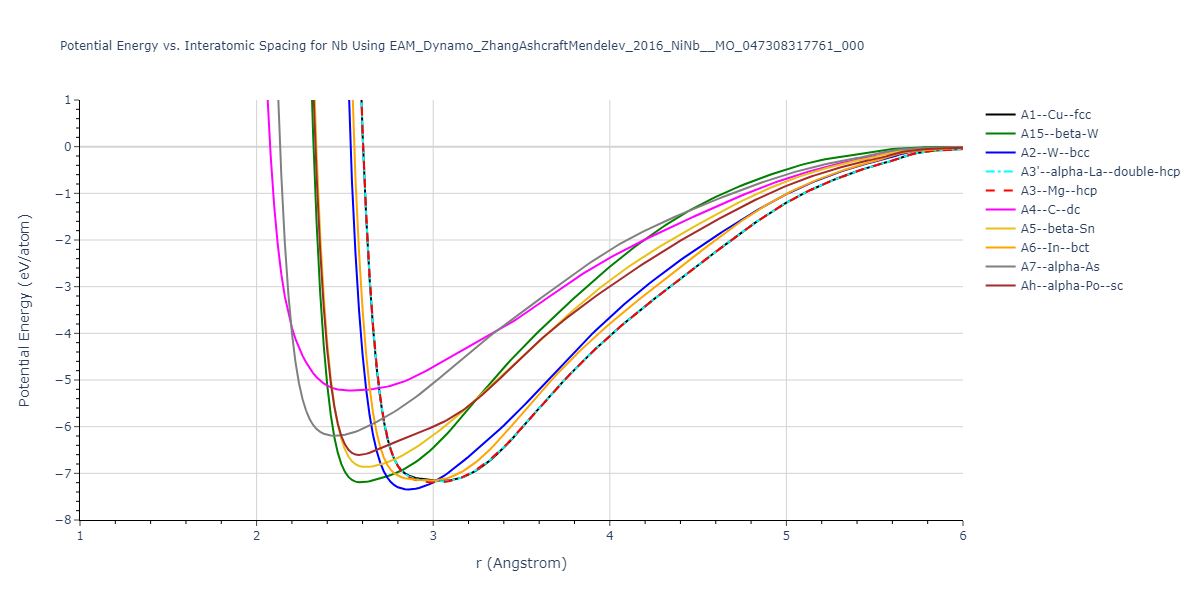

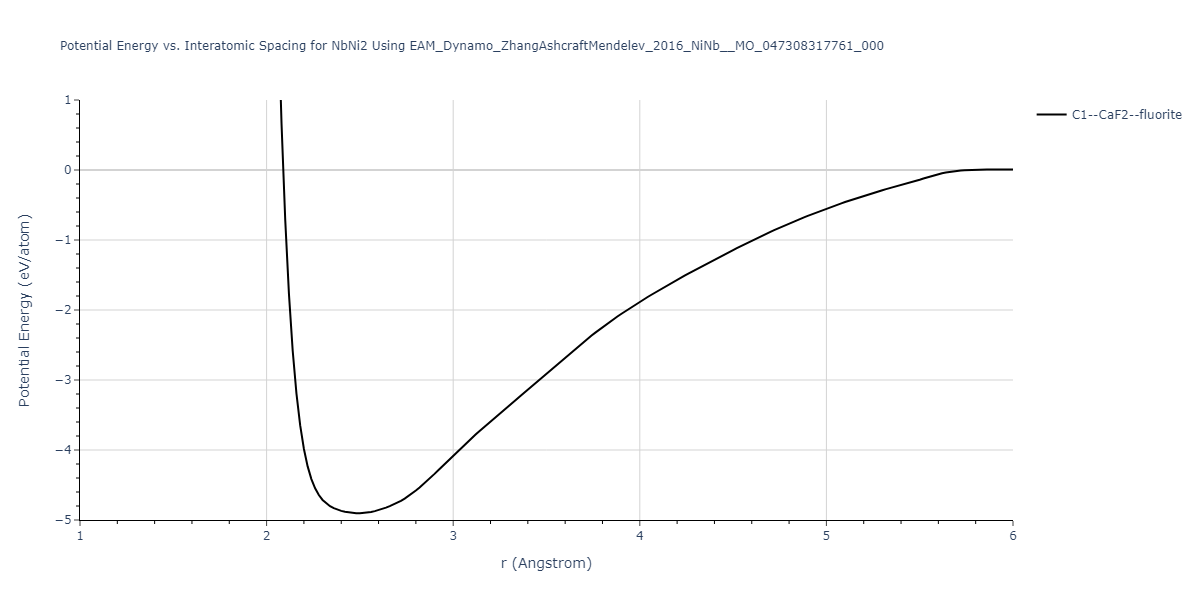

Plots of potential energy vs interatomic spacing, r, are shown below for a number of crystal structures. The structures are generated based on the ideal atomic positions and b/a and c/a lattice parameter ratios for a given crystal prototype. The size of the system is then uniformly scaled, and the energy calculated without relaxing the system. To obtain these plots, values of r are evaluated every 0.02 Å up to 6 Å.
The calculation method used is available as the iprPy E_vs_r_scan calculation method.
Clicking on the image of a plot will open an interactive version of it in a new tab. The underlying data for the plots can be downloaded by clicking on the links above each plot.
Notes and Disclaimers:
Version Information:
Computed lattice constants and cohesive/potential energies are displayed for a variety of crystal structures. The values displayed here are obtained using the following process.
The calculation methods used are implemented into iprPy as the following calculation styles
Notes and Disclaimers:
Version Information:
Download raw data (including filtered results)
Reference structure matches:
A1--Cu--fcc = mp-8636, oqmd-676151, oqmd-1214547
A15--beta-W = oqmd-1214992, oqmd-1280310
A2--W--bcc = mp-75, oqmd-677905, oqmd-685533, oqmd-1215170
A3'--alpha-La--double-hcp = oqmd-1215438
A3--Mg--hcp = oqmd-1215348
A4--C--dc = oqmd-1215527
A5--beta-Sn = oqmd-1215616
A6--In--bct = oqmd-1215705
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
A2--W--bcc | dynamic | -7.3469 | -7.3469 | 3.3024 | 3.3024 | 3.3024 | 90.0 | 90.0 | 90.0 |
mp-1104341 | box | -7.3451 | -7.3451 | 2.8597 | 4.6697 | 9.7684 | 76.2 | 84.4 | 90.0 |
oqmd-1214814 | dynamic | -7.2103 | -7.2103 | 10.0928 | 10.0928 | 10.0928 | 90.0 | 90.0 | 90.0 |
A3--Mg--hcp | dynamic | -7.2039 | -7.2039 | 3.0761 | 3.0761 | 4.7914 | 90.0 | 90.0 | 120.0 |
oqmd-1214814 | box | -7.2022 | -7.2022 | 10.0949 | 10.0949 | 10.0949 | 90.0 | 90.0 | 90.0 |
A15--beta-W | dynamic | -7.1938 | -7.1938 | 5.179 | 5.179 | 5.179 | 90.0 | 90.0 | 90.0 |
oqmd-1216064 | dynamic | -7.1871 | -7.1871 | 3.0684 | 3.0684 | 21.7738 | 90.0 | 90.0 | 120.0 |
oqmd-1216064 | static | -7.1869 | -7.1869 | 3.0687 | 3.0687 | 21.7575 | 90.0 | 90.0 | 120.0 |
oqmd-1215259 | box | -7.1823 | -7.1823 | 2.8563 | 5.3005 | 4.7872 | 90.0 | 90.0 | 90.0 |
A3'--alpha-La--double-hcp | dynamic | -7.1787 | -7.1787 | 3.0645 | 3.0645 | 9.7261 | 90.0 | 90.0 | 120.0 |
oqmd-1214903 | dynamic | -7.1741 | -7.1741 | 7.1553 | 7.1553 | 7.1553 | 90.0 | 90.0 | 90.0 |
oqmd-1214903 | box | -7.1726 | -7.1726 | 7.1605 | 7.1605 | 7.1605 | 90.0 | 90.0 | 90.0 |
A1--Cu--fcc | dynamic | -7.1594 | -7.1594 | 4.315 | 4.315 | 4.315 | 90.0 | 90.0 | 90.0 |
A6--In--bct | static | -7.141 | -7.141 | 2.7559 | 2.7559 | 4.6118 | 90.0 | 90.0 | 90.0 |
mp-1094120 | box | -7.1294 | -7.1294 | 5.2541 | 6.9889 | 7.07 | 108.0 | 109.4 | 103.4 |
oqmd-1215081 | box | -6.974 | -6.974 | 3.0961 | 4.724 | 10.2158 | 90.0 | 90.0 | 90.0 |
oqmd-1214725 | box | -6.954 | -6.954 | 3.1339 | 4.7358 | 10.3073 | 90.0 | 90.0 | 90.0 |
A5--beta-Sn | static | -6.876 | -6.876 | 4.9747 | 4.9747 | 2.8438 | 90.0 | 90.0 | 90.0 |
Ah--alpha-Po--sc | static | -6.6074 | -6.6074 | 2.5807 | 2.5807 | 2.5807 | 90.0 | 90.0 | 90.0 |
A7--alpha-As | box | -6.1928 | -6.1928 | 3.6628 | 3.6628 | 10.054 | 90.0 | 90.0 | 120.0 |
oqmd-1215972 | box | -6.1397 | -6.1397 | 4.4744 | 4.4744 | 4.835 | 90.0 | 90.0 | 120.0 |
A4--C--dc | static | -5.2268 | -5.2268 | 5.8488 | 5.8488 | 5.8488 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
C1--CaF2--fluorite | dynamic | -5.9827 | -5.9827 | 6.1091 | 6.1091 | 6.1091 | 90.0 | 90.0 | 90.0 |
oqmd-1233954 | box | -5.8105 | -5.8105 | 5.7949 | 5.7949 | 3.3215 | 90.0 | 90.0 | 90.0 |
oqmd-1240921 | static | -4.1168 | -4.1168 | 10.5201 | 10.5201 | 10.5201 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
oqmd-428032 | box | -5.2265 | -5.2265 | 6.0882 | 6.0882 | 13.1936 | 90.0 | 90.0 | 120.0 |
Download raw data (including filtered results)
Reference structure matches:
A15--Cr3Si = oqmd-1280346
D0_3--BiF3 = mp-999396, oqmd-314870
L1_2--AuCu3 = mp-999437, oqmd-347558
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
D0_3--BiF3 | dynamic | -6.5859 | -6.5859 | 6.4087 | 6.4087 | 6.4087 | 90.0 | 90.0 | 90.0 |
A15--Cr3Si | dynamic | -6.528 | -6.528 | 5.0481 | 5.0481 | 5.0481 | 90.0 | 90.0 | 90.0 |
oqmd-323072 | static | -6.5239 | -6.5239 | 5.7232 | 5.7232 | 4.6237 | 90.0 | 90.0 | 120.0 |
oqmd-323072 | box | -6.5167 | -6.5167 | 5.7051 | 5.7051 | 4.642 | 90.0 | 90.0 | 120.0 |
L1_2--AuCu3 | static | -6.4695 | -6.4695 | 4.0217 | 4.0217 | 4.0217 | 90.0 | 90.0 | 90.0 |
oqmd-304328 | static | -6.4646 | -6.4646 | 3.8056 | 3.8056 | 8.8818 | 90.0 | 90.0 | 90.0 |
mp-999394 | box | -6.4516 | -6.4516 | 3.9958 | 3.9958 | 8.1218 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
mp-669699 | dynamic | -6.7183 | -6.7183 | 11.9058 | 11.9058 | 11.9058 | 90.0 | 90.0 | 90.0 |
mp-669699 | box | -6.6945 | -6.6945 | 11.822 | 11.822 | 11.822 | 90.0 | 90.0 | 90.0 |
oqmd-17737 | box | -6.6909 | -6.6909 | 11.818 | 11.818 | 11.818 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
mp-1105044 | dynamic | -5.9675 | -5.9675 | 4.8664 | 4.8664 | 26.5235 | 90.0 | 90.0 | 120.0 |
mp-1105044 | box | -5.9592 | -5.9592 | 4.8698 | 4.8698 | 26.5344 | 90.0 | 90.0 | 120.0 |
Download raw data (including filtered results)
Reference structure matches:
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
oqmd-30782 | dynamic | -6.128 | -6.128 | 4.9669 | 4.9669 | 26.5645 | 90.0 | 90.0 | 120.0 |
oqmd-30782 | box | -6.1219 | -6.1219 | 4.9693 | 4.9693 | 26.5468 | 90.0 | 90.0 | 120.0 |
mp-1104237 | box | -6.1211 | -6.1211 | 4.9707 | 4.9707 | 26.5408 | 90.0 | 90.0 | 120.0 |
Download raw data (including filtered results)
Reference structure matches:
B1--NaCl--rock-salt = oqmd-1107039
B2--CsCl = oqmd-307854
B3--ZnS--cubic-zinc-blende = oqmd-1223497
L1_0--AuCu = oqmd-339396
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
B2--CsCl | dynamic | -6.1333 | -6.1333 | 3.0753 | 3.0753 | 3.0753 | 90.0 | 90.0 | 90.0 |
oqmd-1221303 | box | -6.0654 | -6.0654 | 4.3821 | 3.0056 | 4.3746 | 90.0 | 90.0 | 90.0 |
mp-1220799 | dynamic | -6.0448 | -6.0448 | 4.9163 | 4.9163 | 53.136 | 90.0 | 90.0 | 120.0 |
mp-1220799 | box | -6.0397 | -6.0397 | 4.9182 | 4.9182 | 53.1113 | 90.0 | 90.0 | 120.0 |
oqmd-328938 | box | -5.7997 | -5.7997 | 2.8575 | 2.8575 | 12.2172 | 90.0 | 90.0 | 120.0 |
oqmd-1230468 | box | -5.7501 | -5.7501 | 2.8618 | 2.8618 | 4.0718 | 90.0 | 90.0 | 120.0 |
B1--NaCl--rock-salt | static | -5.69 | -5.69 | 4.8603 | 4.8603 | 4.8603 | 90.0 | 90.0 | 90.0 |
oqmd-1226982 | box | -5.0544 | -5.0544 | 4.354 | 4.354 | 4.9394 | 90.0 | 90.0 | 120.0 |
B3--ZnS--cubic-zinc-blende | static | -4.559 | -4.559 | 5.4837 | 5.4837 | 5.4837 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
mp-1103618 | dynamic | -5.6926 | -5.6926 | 4.8087 | 4.8087 | 7.8022 | 90.0 | 90.0 | 120.0 |
mp-1191285 | dynamic | -5.6884 | -5.6884 | 4.8053 | 4.8053 | 15.643 | 90.0 | 90.0 | 120.0 |
mp-1103618 | box | -5.6859 | -5.6859 | 4.8121 | 4.8121 | 7.7918 | 90.0 | 90.0 | 120.0 |
mp-1077429 | dynamic | -5.6839 | -5.6839 | 6.7907 | 6.7907 | 6.7907 | 90.0 | 90.0 | 90.0 |
mp-1191285 | box | -5.6829 | -5.6829 | 4.8081 | 4.8081 | 15.627 | 90.0 | 90.0 | 120.0 |
C1--CaF2--fluorite | box | -4.9033 | -4.9033 | 5.7587 | 5.7587 | 5.7587 | 90.0 | 90.0 | 90.0 |
oqmd-1240920 | box | -3.4798 | -3.4798 | 7.917 | 7.917 | 19.4308 | 90.0 | 90.0 | 120.0 |
Download raw data (including filtered results)
Reference structure matches:
D0_3--BiF3 = mp-999378, oqmd-312530
L1_2--AuCu3 = mp-999188, oqmd-349898
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
oqmd-17735 | dynamic | -5.4793 | -5.4793 | 3.6961 | 3.6961 | 7.1144 | 90.0 | 90.0 | 90.0 |
oqmd-30781 | dynamic | -5.475 | -5.475 | 4.267 | 5.2105 | 4.4167 | 90.0 | 90.0 | 90.0 |
oqmd-17736 | box | -5.472 | -5.472 | 4.2702 | 5.149 | 4.4719 | 90.0 | 90.0 | 90.0 |
oqmd-30781 | box | -5.471 | -5.471 | 4.2698 | 5.1431 | 4.4789 | 90.0 | 90.0 | 90.0 |
mp-1451 | box | -5.4709 | -5.4709 | 4.2695 | 5.1422 | 4.4802 | 90.0 | 90.0 | 90.0 |
L1_2--AuCu3 | dynamic | -5.4616 | -5.4616 | 3.65 | 3.65 | 3.65 | 90.0 | 90.0 | 90.0 |
oqmd-325412 | dynamic | -5.4598 | -5.4598 | 5.1582 | 5.1582 | 4.2865 | 90.0 | 90.0 | 120.0 |
D0_3--BiF3 | dynamic | -5.4598 | -5.4598 | 5.8271 | 5.8271 | 5.8271 | 90.0 | 90.0 | 90.0 |
oqmd-325412 | box | -5.4597 | -5.4597 | 5.1596 | 5.1596 | 4.2846 | 90.0 | 90.0 | 120.0 |
A15--Cr3Si | static | -5.3613 | -5.3613 | 4.6152 | 4.6152 | 4.6152 | 90.0 | 90.0 | 90.0 |
mp-1220420 | dynamic | -5.1672 | -5.1672 | 2.6818 | 2.6818 | 8.5723 | 90.0 | 90.0 | 120.0 |
mp-1220420 | box | -5.1672 | -5.1672 | 2.6814 | 2.6814 | 8.5731 | 90.0 | 90.0 | 120.0 |
Download raw data (including filtered results)
Reference structure matches:
A1--Cu--fcc = mp-23, oqmd-676148, oqmd-1214550
A15--beta-W = oqmd-1214995, oqmd-1280360
A2--W--bcc = mp-1008728, oqmd-22516, oqmd-1215173
A3'--alpha-La--double-hcp = oqmd-1215441
A3--Mg--hcp = mp-10257, oqmd-677944, oqmd-1215351
A4--C--dc = oqmd-1215530
A5--beta-Sn = oqmd-1215619
A6--In--bct = oqmd-1215708
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
A1--Cu--fcc | dynamic | -4.8763 | -4.8763 | 3.5162 | 3.5162 | 3.5162 | 90.0 | 90.0 | 90.0 |
A3'--alpha-La--double-hcp | dynamic | -4.8695 | -4.8695 | 2.4826 | 2.4826 | 8.1355 | 90.0 | 90.0 | 120.0 |
oqmd-1216067 | dynamic | -4.8673 | -4.8673 | 2.4813 | 2.4813 | 18.3162 | 90.0 | 90.0 | 120.0 |
oqmd-1216067 | static | -4.8672 | -4.8672 | 2.4814 | 2.4814 | 18.3163 | 90.0 | 90.0 | 120.0 |
A3--Mg--hcp | dynamic | -4.8628 | -4.8628 | 2.4789 | 2.4789 | 4.0751 | 90.0 | 90.0 | 120.0 |
oqmd-1215262 | box | -4.8624 | -4.8624 | 2.4697 | 4.3093 | 4.0753 | 90.0 | 90.0 | 90.0 |
A2--W--bcc | static | -4.8333 | -4.8333 | 2.7814 | 2.7814 | 2.7814 | 90.0 | 90.0 | 90.0 |
A15--beta-W | dynamic | -4.8041 | -4.8041 | 4.4298 | 4.4298 | 4.4298 | 90.0 | 90.0 | 90.0 |
oqmd-1214906 | dynamic | -4.8032 | -4.8032 | 6.0578 | 6.0578 | 6.0578 | 90.0 | 90.0 | 90.0 |
oqmd-1214906 | box | -4.803 | -4.803 | 6.0568 | 6.0568 | 6.0568 | 90.0 | 90.0 | 90.0 |
oqmd-1214817 | dynamic | -4.7999 | -4.7999 | 8.6141 | 8.6141 | 8.6141 | 90.0 | 90.0 | 90.0 |
oqmd-1214817 | box | -4.7992 | -4.7992 | 8.6158 | 8.6158 | 8.6158 | 90.0 | 90.0 | 90.0 |
oqmd-1215084 | box | -4.5972 | -4.5972 | 2.5186 | 4.1675 | 8.8618 | 90.0 | 90.0 | 90.0 |
oqmd-1214728 | box | -4.4872 | -4.4872 | 2.4258 | 2.4258 | 8.4354 | 90.0 | 90.0 | 90.0 |
mp-1014111 | static | -4.4419 | -4.4419 | 2.4638 | 2.4638 | 13.2881 | 89.1 | 88.9 | 60.0 |
mp-1014111 | box | -4.4419 | -4.4419 | 2.4638 | 2.4638 | 13.288 | 89.1 | 88.8 | 60.0 |
A5--beta-Sn | static | -4.3275 | -4.3275 | 4.5481 | 4.5481 | 2.412 | 90.0 | 90.0 | 90.0 |
mp-1094136 | box | -4.1405 | -4.1405 | 2.4246 | 4.1993 | 14.7409 | 90.0 | 90.0 | 90.0 |
Ah--alpha-Po--sc | static | -4.1382 | -4.1382 | 2.3493 | 2.3493 | 2.3493 | 90.0 | 90.0 | 90.0 |
A7--alpha-As | box | -3.7747 | -3.7747 | 3.1907 | 3.1907 | 9.4633 | 90.0 | 90.0 | 120.0 |
oqmd-1215975 | box | -3.7011 | -3.7011 | 3.9123 | 3.9123 | 4.2395 | 90.0 | 90.0 | 120.0 |
A4--C--dc | static | -3.1791 | -3.1791 | 5.2895 | 5.2895 | 5.2895 | 90.0 | 90.0 | 90.0 |
Static elastic constants are displayed for the unique structures identified in Crystal Structure Predictions above. The values displayed here are obtained by measuring the change in virial stresses due to applying small strains to the relaxed crystals. The initial structure and the strained states are all relaxed using force minimization.
The calculation method used is available as the iprPy elastic_constants_static calculation method.
Notes and Disclaimers:
Version Information:
93.813 | 59.916 | 59.916 | -0.0 | -0.0 | -0.0 |
59.916 | 93.813 | 59.916 | 0.0 | -0.0 | -0.0 |
59.916 | 59.916 | 93.813 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 50.225 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 50.225 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 50.225 |
93.813 | 59.916 | 59.916 | 0.0 | -0.0 | -0.0 |
59.916 | 93.813 | 59.916 | -0.0 | 0.0 | 0.0 |
59.916 | 59.916 | 93.813 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 50.225 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 50.225 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 50.225 |
93.813 | 59.916 | 59.916 | -0.0 | -0.0 | -0.0 |
59.916 | 93.813 | 59.916 | 0.0 | -0.0 | -0.0 |
59.916 | 59.916 | 93.813 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 50.225 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 50.225 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 50.225 |
93.813 | 59.916 | 59.916 | -0.0 | -0.0 | 0.0 |
59.916 | 93.813 | 59.916 | -0.0 | -0.0 | 0.0 |
59.916 | 59.916 | 93.813 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 50.225 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 50.225 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 50.225 |
93.812 | 59.915 | 59.915 | 0.0 | 0.0 | -0.0 |
59.915 | 93.812 | 59.915 | 0.0 | 0.0 | -0.0 |
59.915 | 59.915 | 93.812 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 50.225 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 50.225 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 50.225 |
93.814 | 59.916 | 59.916 | 0.0 | 0.0 | 0.0 |
59.916 | 93.814 | 59.916 | -0.0 | 0.0 | -0.0 |
59.916 | 59.916 | 93.814 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 50.225 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 50.225 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 50.225 |
308.368 | 148.391 | 148.391 | -0.0 | -0.0 | 0.0 |
148.391 | 308.368 | 148.391 | 0.0 | -0.0 | 0.0 |
148.391 | 148.391 | 308.368 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 30.027 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 30.027 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 30.027 |
308.391 | 148.379 | 148.379 | -0.0 | 0.0 | -0.0 |
148.379 | 308.391 | 148.379 | -0.0 | -0.0 | -0.0 |
148.379 | 148.379 | 308.391 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 30.027 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 30.027 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 30.027 |
308.392 | 148.38 | 148.38 | -0.0 | -0.0 | 0.0 |
148.38 | 308.392 | 148.38 | 0.0 | 0.0 | 0.0 |
148.38 | 148.38 | 308.392 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 30.027 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 30.027 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 30.027 |
308.391 | 148.379 | 148.379 | 0.0 | 0.0 | -0.0 |
148.379 | 308.391 | 148.379 | -0.0 | -0.0 | -0.0 |
148.379 | 148.379 | 308.391 | 0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 30.027 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 30.027 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 30.027 |
308.394 | 148.381 | 148.381 | 0.0 | 0.0 | 0.0 |
148.381 | 308.394 | 148.381 | 0.0 | 0.0 | 0.0 |
148.381 | 148.381 | 308.394 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 30.027 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 30.027 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 30.027 |
308.389 | 148.377 | 148.377 | -0.0 | -0.0 | -0.0 |
148.377 | 308.389 | 148.377 | 0.0 | 0.0 | -0.0 |
148.377 | 148.377 | 308.389 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 30.027 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 30.027 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 30.027 |
242.839 | 132.678 | 132.678 | 0.0 | -0.0 | 0.0 |
132.678 | 242.839 | 132.678 | -0.0 | 0.0 | 0.0 |
132.678 | 132.678 | 242.839 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 92.379 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 92.379 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 92.379 |
242.839 | 132.678 | 132.678 | 0.0 | 0.0 | 0.0 |
132.678 | 242.839 | 132.678 | 0.0 | 0.0 | 0.0 |
132.678 | 132.678 | 242.839 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 92.379 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 92.379 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 92.379 |
242.839 | 132.678 | 132.678 | 0.0 | 0.0 | 0.0 |
132.678 | 242.839 | 132.678 | 0.0 | -0.0 | 0.0 |
132.678 | 132.678 | 242.839 | -0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 92.379 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 92.379 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 92.379 |
242.839 | 132.678 | 132.678 | -0.0 | -0.0 | -0.0 |
132.678 | 242.839 | 132.678 | -0.0 | -0.0 | 0.0 |
132.678 | 132.678 | 242.839 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 92.379 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 92.379 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 92.379 |
242.839 | 132.679 | 132.679 | -0.0 | -0.0 | -0.0 |
132.679 | 242.839 | 132.679 | -0.0 | 0.0 | -0.0 |
132.679 | 132.679 | 242.839 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 92.379 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 92.379 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 92.379 |
242.84 | 132.677 | 132.677 | 0.0 | 0.0 | 0.0 |
132.677 | 242.84 | 132.677 | 0.0 | 0.0 | 0.0 |
132.677 | 132.677 | 242.84 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 92.379 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 92.379 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 92.379 |
122.344 | 42.851 | 38.395 | -0.0 | 0.0 | -0.0 |
42.851 | 122.344 | 38.395 | -0.0 | 0.0 | 0.0 |
38.395 | 38.395 | 126.523 | 0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 35.283 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 35.283 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 39.747 |
122.344 | 42.851 | 38.395 | 0.0 | -0.0 | 0.0 |
57.106 | 108.09 | 38.395 | 0.0 | 0.0 | 0.0 |
38.395 | 38.395 | 126.523 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 35.283 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 35.283 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 39.747 |
108.09 | 57.105 | 38.394 | -0.0 | 0.0 | -0.0 |
57.106 | 108.09 | 38.394 | 0.0 | 0.0 | -0.0 |
38.394 | 38.394 | 126.523 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 35.283 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 35.283 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 39.747 |
108.09 | 57.106 | 38.395 | -0.0 | -0.0 | 0.0 |
42.851 | 122.344 | 38.395 | 0.0 | 0.0 | 0.0 |
38.395 | 38.395 | 126.523 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 35.283 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 35.283 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 39.747 |
108.089 | 57.105 | 38.394 | -0.0 | -0.0 | -0.0 |
57.106 | 108.088 | 38.394 | 0.0 | 0.0 | -0.0 |
38.394 | 38.394 | 126.523 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 35.283 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 35.283 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 25.492 |
122.345 | 42.851 | 38.395 | 0.0 | -0.0 | -0.0 |
57.105 | 108.091 | 38.395 | 0.0 | -0.0 | 0.0 |
38.395 | 38.395 | 126.523 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 35.283 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 35.283 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 25.492 |
124.439 | 42.045 | 48.491 | -0.0 | -0.0 | -0.0 |
57.473 | 109.011 | 48.491 | 0.0 | 0.0 | 0.0 |
48.491 | 48.491 | 192.014 | 0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 47.64 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 47.64 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 25.769 |
109.011 | 57.473 | 48.491 | -0.0 | 0.0 | -0.0 |
57.473 | 109.011 | 48.491 | -0.0 | 0.0 | -0.0 |
48.491 | 48.491 | 192.014 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 47.64 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 47.64 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 25.769 |
109.011 | 57.473 | 48.491 | 0.0 | -0.0 | 0.0 |
57.473 | 109.011 | 48.491 | 0.0 | -0.0 | 0.0 |
48.491 | 48.491 | 192.015 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 47.64 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 47.64 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 25.769 |
124.439 | 42.045 | 48.491 | -0.0 | -0.0 | 0.0 |
42.045 | 124.439 | 48.491 | -0.0 | 0.0 | 0.0 |
48.491 | 48.491 | 192.014 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 47.64 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 47.64 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 25.769 |
124.438 | 42.045 | 48.491 | 0.0 | 0.0 | -0.0 |
42.045 | 124.438 | 48.491 | 0.0 | -0.0 | -0.0 |
48.491 | 48.491 | 192.015 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 47.64 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 47.64 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 25.769 |
124.439 | 42.046 | 48.491 | 0.0 | 0.0 | 0.0 |
42.045 | 124.44 | 48.491 | -0.0 | 0.0 | 0.0 |
48.491 | 48.491 | 192.014 | -0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 47.64 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 47.64 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 25.769 |
-15.399 | 51.989 | 51.989 | -0.0 | -0.0 | -0.0 |
51.989 | -15.399 | 51.989 | -0.0 | -0.0 | -0.0 |
51.989 | 51.989 | -15.399 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 25.337 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 25.337 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 25.337 |
-15.399 | 51.989 | 51.989 | 0.0 | 0.0 | 0.0 |
51.989 | -15.399 | 51.989 | 0.0 | 0.0 | 0.0 |
51.989 | 51.989 | -15.399 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 25.337 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 25.337 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 25.337 |
-15.399 | 51.989 | 51.989 | -0.0 | -0.0 | -0.0 |
51.989 | -15.399 | 51.989 | -0.0 | -0.0 | -0.0 |
51.989 | 51.989 | -15.399 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -93.553 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -93.553 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | -93.553 |
-15.399 | 51.989 | 51.989 | 0.0 | 0.0 | 0.0 |
51.989 | -15.399 | 51.989 | 0.0 | 0.0 | 0.0 |
51.989 | 51.989 | -15.399 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -93.553 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -93.553 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -93.553 |
-15.398 | 51.989 | 51.989 | -0.0 | -0.0 | -0.0 |
51.989 | -15.398 | 51.989 | -0.0 | -0.0 | -0.0 |
51.989 | 51.989 | -15.398 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -93.553 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -93.553 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | -93.553 |
-15.399 | 51.989 | 51.989 | 0.0 | 0.0 | 0.0 |
51.989 | -15.399 | 51.989 | 0.0 | 0.0 | 0.0 |
51.989 | 51.989 | -15.399 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -93.553 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -93.553 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -93.553 |
373.438 | 52.919 | 139.961 | -0.0 | -0.0 | -0.0 |
52.919 | 373.438 | 139.961 | -0.0 | -0.0 | -0.0 |
139.961 | 139.961 | 381.093 | -0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 28.828 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 28.828 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -44.591 |
259.592 | 166.764 | 139.961 | -0.0 | 0.0 | -0.0 |
166.764 | 259.592 | 139.961 | 0.0 | -0.0 | 0.0 |
139.961 | 139.961 | 381.093 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 28.828 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 28.828 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -44.591 |
373.438 | 52.919 | 139.961 | -0.0 | 0.0 | -0.0 |
52.919 | 373.438 | 139.961 | -0.0 | -0.0 | -0.0 |
139.961 | 139.961 | 381.093 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 28.828 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 28.828 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -44.591 |
373.437 | 52.919 | 139.961 | -0.0 | 0.0 | 0.0 |
52.919 | 373.437 | 139.961 | 0.0 | 0.0 | 0.0 |
139.961 | 139.961 | 381.092 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 28.828 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 28.828 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | -44.591 |
259.593 | 166.767 | 139.962 | -0.0 | 0.0 | 0.0 |
166.767 | 259.593 | 139.962 | -0.0 | 0.0 | -0.0 |
139.962 | 139.962 | 381.094 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 28.828 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 28.828 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -44.591 |
259.591 | 166.762 | 139.96 | 0.0 | 0.0 | 0.0 |
166.762 | 259.591 | 139.96 | 0.0 | 0.0 | -0.0 |
139.959 | 139.959 | 381.091 | 0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 28.828 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 28.828 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | -44.591 |
142.345 | 14.789 | 120.367 | -0.0 | 0.0 | 0.0 |
14.789 | 142.345 | 120.367 | 0.0 | 0.0 | 0.0 |
120.367 | 120.367 | 288.305 | -0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 25.115 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 25.115 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | -81.974 |
142.345 | 14.789 | 120.367 | -0.0 | -0.0 | 0.0 |
14.789 | 142.345 | 120.367 | -0.0 | -0.0 | -0.0 |
120.367 | 120.367 | 288.305 | -0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 25.115 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 25.115 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | -81.974 |
142.345 | 14.789 | 120.367 | 0.0 | -0.0 | 0.0 |
14.789 | 142.345 | 120.367 | 0.0 | -0.0 | 0.0 |
120.367 | 120.367 | 288.305 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 25.115 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 25.115 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | -81.974 |
142.345 | 14.789 | 120.367 | -0.0 | -0.0 | 0.0 |
14.789 | 142.345 | 120.367 | -0.0 | 0.0 | 0.0 |
120.367 | 120.367 | 288.305 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 25.115 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 25.115 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | -81.974 |
142.348 | 14.791 | 120.368 | 0.0 | -0.0 | 0.0 |
14.791 | 142.348 | 120.368 | -0.0 | 0.0 | -0.0 |
120.368 | 120.368 | 288.307 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 25.115 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 25.115 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -81.974 |
142.342 | 14.788 | 120.365 | -0.0 | -0.0 | -0.0 |
14.788 | 142.342 | 120.365 | -0.0 | 0.0 | 0.0 |
120.365 | 120.365 | 288.304 | 0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 25.115 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 25.115 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | -81.974 |
527.849 | 159.357 | 159.357 | -0.0 | -0.0 | -0.0 |
159.357 | 527.849 | 159.357 | -0.0 | -0.0 | 0.0 |
159.357 | 159.357 | 527.849 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -17.519 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -17.519 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | -17.519 |
527.848 | 159.357 | 159.357 | 0.0 | -0.0 | 0.0 |
159.357 | 527.848 | 159.357 | -0.0 | -0.0 | 0.0 |
159.357 | 159.357 | 527.848 | 0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -17.519 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -17.519 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | -17.519 |
527.849 | 159.357 | 159.357 | -0.0 | 0.0 | -0.0 |
159.357 | 527.849 | 159.357 | 0.0 | -0.0 | -0.0 |
159.357 | 159.357 | 527.849 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -17.519 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | -17.519 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -17.519 |
527.848 | 159.357 | 159.357 | -0.0 | -0.0 | 0.0 |
159.357 | 527.848 | 159.357 | -0.0 | 0.0 | -0.0 |
159.357 | 159.357 | 527.848 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -17.519 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -17.519 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | -17.519 |
527.853 | 159.359 | 159.359 | 0.0 | -0.0 | 0.0 |
159.359 | 527.853 | 159.359 | 0.0 | 0.0 | -0.0 |
159.359 | 159.359 | 527.853 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -17.519 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -17.519 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -17.519 |
527.844 | 159.355 | 159.355 | -0.0 | 0.0 | 0.0 |
159.355 | 527.844 | 159.355 | 0.0 | 0.0 | 0.0 |
159.355 | 159.355 | 527.844 | -0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -17.519 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -17.519 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.0 | -17.519 |
-994.82 | 678.201 | 1538.975 | 836.374 | -462.366 | -1146.335 |
78.105 | 154.624 | 93.735 | 16.573 | 6.568 | 11.209 |
-87.14 | 118.535 | 175.233 | 57.884 | -16.728 | -119.452 |
-3.191 | -4.139 | -0.09 | 42.705 | 4.874 | 5.397 |
-14.122 | 4.79 | 0.634 | 4.874 | 39.024 | -3.514 |
-22.278 | 10.928 | 5.085 | 7.174 | 14.552 | 27.202 |
1260.512 | -483.307 | -1252.951 | -758.473 | 442.626 | 1053.556 |
444.294 | 75.296 | -40.375 | -135.369 | 107.062 | 322.255 |
88.915 | 92.398 | 217.033 | -0.09 | 0.634 | 4.275 |
-3.191 | -4.139 | -0.09 | 42.705 | 4.874 | 5.397 |
166.611 | -22.283 | 31.266 | -59.486 | 54.729 | 124.111 |
336.567 | -58.197 | -111.95 | -137.419 | 109.682 | 324.808 |
175.458 | 84.457 | 92.164 | 0.88 | 3.506 | -11.642 |
61.978 | 150.966 | 88.326 | 20.074 | 3.515 | -1.878 |
72.999 | 94.405 | 200.668 | 1.531 | 1.57 | -3.41 |
-3.191 | -4.139 | -0.09 | 42.705 | 4.874 | 5.397 |
-14.122 | 4.79 | 0.634 | 4.874 | 39.024 | -3.514 |
-22.278 | 10.928 | 5.085 | 7.174 | 14.552 | 27.202 |
248.125 | 39.244 | 0.591 | -43.545 | 36.076 | 65.486 |
78.105 | 154.624 | 93.734 | 16.573 | 6.568 | 11.209 |
129.953 | 84.014 | 180.231 | -23.172 | 17.511 | 47.079 |
19.543 | -6.111 | -1.943 | 28.686 | 5.271 | 19.649 |
6.318 | 1.882 | 6.312 | -2.91 | 36.393 | 7.866 |
-5.055 | 7.401 | 13.788 | 1.467 | 13.153 | 34.358 |
162.874 | 83.361 | 97.542 | 7.853 | 3.759 | -18.241 |
79.536 | 143.288 | 91.84 | 14.883 | 3.318 | 9.43 |
88.388 | 92.116 | 204.143 | -3.588 | 3.123 | 7.454 |
-3.191 | -4.139 | -0.09 | 42.705 | 4.874 | 5.397 |
-14.122 | 4.79 | 0.634 | 4.874 | 39.024 | -3.514 |
-24.819 | 9.827 | 14.306 | 8.662 | 8.87 | 16.837 |
175.457 | 84.456 | 92.163 | 0.88 | 3.506 | -11.641 |
78.104 | 154.623 | 93.733 | 16.573 | 6.568 | 11.209 |
88.914 | 92.397 | 217.032 | -0.09 | 0.634 | 4.275 |
11.583 | -3.143 | -11.416 | 26.408 | 6.242 | 14.486 |
-14.122 | 4.79 | 0.634 | 4.874 | 39.024 | -3.514 |
-19.655 | 9.002 | 14.171 | 8.027 | 10.416 | 20.601 |
292.784 | 106.109 | 109.795 | -0.182 | -6.722 | 0.282 |
107.945 | 280.245 | 120.387 | -20.032 | 17.615 | -3.895 |
108.054 | 120.384 | 280.541 | -0.11 | -17.417 | 0.144 |
-0.189 | -0.384 | -0.11 | 79.91 | 0.178 | 17.69 |
0.153 | 17.675 | -17.417 | 0.178 | 67.581 | -0.225 |
0.332 | -3.892 | 4.476 | 17.631 | -16.903 | 67.456 |
292.784 | 106.109 | 109.795 | -0.182 | -6.722 | 0.282 |
107.945 | 280.245 | 120.387 | -20.032 | 17.615 | -3.895 |
108.054 | 120.384 | 280.541 | -0.11 | -17.417 | 0.144 |
-0.189 | -0.384 | -0.11 | 79.91 | 0.178 | 17.69 |
0.153 | 17.675 | -17.417 | 0.178 | 67.581 | -0.225 |
0.332 | -3.892 | 4.476 | 17.631 | -16.903 | 67.456 |
292.784 | 106.109 | 109.795 | -0.182 | -6.722 | 0.282 |
107.945 | 280.245 | 120.387 | -20.032 | 17.615 | -3.895 |
108.054 | 120.385 | 280.541 | -0.11 | -17.417 | 0.144 |
-0.189 | -0.384 | -0.11 | 79.91 | 0.178 | 17.69 |
0.153 | 17.675 | -17.417 | 0.178 | 67.581 | -0.225 |
0.332 | -3.892 | 4.476 | 17.631 | -16.903 | 67.456 |
292.784 | 106.109 | 109.795 | -0.182 | -6.722 | 0.282 |
107.945 | 280.245 | 120.387 | -20.032 | 17.615 | -3.895 |
108.054 | 120.384 | 280.541 | -0.11 | -17.417 | 0.144 |
-0.189 | -0.384 | -0.11 | 79.91 | 0.178 | 17.69 |
0.153 | 17.675 | -17.417 | 0.178 | 67.581 | -0.225 |
0.332 | -3.892 | 4.476 | 17.631 | -16.903 | 67.456 |
292.785 | 106.11 | 109.796 | -0.182 | -6.722 | 0.282 |
107.946 | 280.246 | 120.388 | -20.032 | 17.616 | -3.895 |
108.055 | 120.385 | 280.542 | -0.11 | -17.417 | 0.144 |
-0.189 | -0.384 | -0.11 | 79.91 | 0.178 | 17.69 |
0.153 | 17.675 | -17.417 | 0.178 | 67.581 | -0.225 |
0.332 | -3.892 | 4.476 | 17.631 | -16.903 | 67.456 |
292.782 | 106.108 | 109.794 | -0.182 | -6.722 | 0.282 |
107.944 | 280.244 | 120.386 | -20.032 | 17.615 | -3.895 |
108.053 | 120.384 | 280.54 | -0.11 | -17.417 | 0.144 |
-0.189 | -0.383 | -0.11 | 79.91 | 0.178 | 17.69 |
0.153 | 17.675 | -17.417 | 0.178 | 67.581 | -0.225 |
0.332 | -3.891 | 4.476 | 17.631 | -16.903 | 67.456 |
-129.326 | -161.158 | -158.105 | 0.0 | 0.0 | 0.0 |
52.551 | 170.173 | -11.629 | -0.0 | -0.0 | -0.0 |
-12.46 | -11.58 | 185.58 | 0.0 | -0.0 | 0.0 |
-205.795 | -194.541 | -132.616 | -24.431 | -0.0 | -0.0 |
-205.947 | -194.685 | -132.715 | -0.0 | -27.521 | -0.0 |
-203.466 | -192.34 | -131.115 | 0.0 | -0.0 | 60.67 |
277.605 | 223.521 | 104.126 | -0.0 | 0.0 | 0.0 |
52.551 | 170.173 | -11.629 | 0.0 | 0.0 | 0.0 |
-12.46 | -11.58 | 185.58 | 0.0 | 0.0 | 0.0 |
205.795 | 194.541 | 132.616 | -24.431 | 0.0 | 0.0 |
205.947 | 194.685 | 132.715 | -0.0 | -27.521 | 0.0 |
203.466 | 192.34 | 131.115 | -0.0 | -0.0 | 60.67 |
97.036 | 52.825 | -12.235 | -0.0 | 0.0 | -0.0 |
52.551 | 170.173 | -11.629 | 0.0 | 0.0 | 0.0 |
-12.46 | -11.58 | 185.58 | -0.0 | -0.0 | -0.0 |
19.597 | 18.526 | 12.628 | -670.105 | -0.0 | -0.0 |
-19.923 | -18.833 | -12.839 | -0.0 | -589.27 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 60.67 |
94.486 | 50.415 | -13.878 | -0.0 | 0.0 | 0.0 |
52.551 | 170.173 | -11.629 | 0.0 | 0.0 | 0.0 |
-12.46 | -11.58 | 185.58 | 0.0 | -0.0 | 0.0 |
-19.597 | -18.526 | -12.628 | -670.105 | 0.0 | -0.0 |
19.923 | 18.833 | 12.839 | 0.0 | -589.27 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 60.67 |
72.105 | 29.258 | -28.301 | 0.0 | -0.0 | -0.0 |
28.873 | 147.79 | -26.887 | -0.0 | -0.0 | -0.0 |
-12.46 | -11.58 | 185.58 | -0.0 | 0.0 | -0.0 |
1364413.158 | 7381918.678 | -184372.16 | -3489839.344 | -0.0 | -0.0 |
13.234 | 12.512 | 8.525 | 0.0 | -327.694 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 60.67 |
97.036 | 52.825 | -12.235 | -0.0 | -0.0 | 0.0 |
52.551 | 170.172 | -11.629 | 0.0 | -0.0 | 0.0 |
-25.18 | -23.604 | 177.382 | -0.0 | 0.0 | 0.0 |
-1364413.158 | -7381918.678 | 184372.16 | -3489839.344 | 0.0 | 0.0 |
-13.234 | -12.512 | -8.525 | 0.0 | -327.694 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 60.67 |
260.67 | 120.826 | 120.826 | 0.0 | -0.0 | -0.0 |
120.826 | 260.67 | 120.826 | -0.0 | 0.0 | -0.0 |
120.826 | 120.826 | 260.67 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 49.979 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 49.979 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 49.979 |
260.67 | 120.826 | 120.826 | -0.0 | -0.0 | -0.0 |
120.826 | 260.67 | 120.826 | 0.0 | -0.0 | 0.0 |
120.826 | 120.826 | 260.67 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 49.979 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 49.979 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 49.979 |
260.67 | 120.826 | 120.826 | 0.0 | -0.0 | -0.0 |
120.826 | 260.67 | 120.826 | 0.0 | 0.0 | 0.0 |
120.826 | 120.826 | 260.67 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 49.979 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 49.979 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 49.979 |
260.67 | 120.826 | 120.826 | -0.0 | 0.0 | -0.0 |
120.826 | 260.67 | 120.826 | -0.0 | -0.0 | 0.0 |
120.826 | 120.826 | 260.67 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 49.979 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 49.979 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 49.979 |
253.016 | 123.984 | 123.984 | 0.0 | -0.0 | 0.0 |
123.984 | 253.016 | 123.984 | 0.0 | 0.0 | -0.0 |
123.984 | 123.984 | 253.016 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 49.979 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 49.979 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 49.979 |
252.885 | 123.119 | 123.119 | 0.0 | 0.0 | 0.0 |
123.119 | 252.885 | 123.119 | 0.0 | 0.0 | 0.0 |
123.119 | 123.119 | 252.885 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 49.979 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 49.979 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 49.979 |
302.473 | 183.909 | 183.909 | -0.0 | 0.0 | 0.0 |
183.909 | 302.473 | 183.909 | 0.0 | -0.0 | -0.0 |
119.254 | 119.254 | 258.811 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 49.884 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 49.884 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 49.884 |
185.288 | 66.677 | 66.677 | -0.0 | -0.0 | -0.0 |
66.677 | 185.288 | 66.677 | -0.0 | -0.0 | 0.0 |
66.677 | 66.677 | 185.288 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 49.884 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 49.884 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 49.884 |
258.812 | 119.254 | 119.254 | -0.0 | 0.0 | -0.0 |
119.254 | 258.812 | 119.254 | 0.0 | 0.0 | -0.0 |
119.254 | 119.254 | 258.812 | -0.0 | -0.0 | -0.0 |
6.013 | 6.013 | 6.013 | 40.8 | 0.0 | -0.0 |
6.013 | 6.013 | 6.013 | 0.0 | 40.8 | -0.0 |
6.013 | 6.013 | 6.013 | -0.0 | 0.0 | 40.8 |
258.811 | 119.254 | 119.254 | 0.0 | 0.0 | 0.0 |
119.254 | 258.811 | 119.254 | 0.0 | 0.0 | 0.0 |
119.254 | 119.254 | 258.811 | 0.0 | 0.0 | 0.0 |
-6.013 | -6.013 | -6.013 | 40.8 | -0.0 | -0.0 |
-6.013 | -6.013 | -6.013 | -0.0 | 40.8 | -0.0 |
-6.013 | -6.013 | -6.013 | 0.0 | -0.0 | 40.8 |
252.401 | 122.174 | 122.174 | -0.0 | -0.0 | -0.0 |
122.174 | 252.401 | 122.174 | 0.0 | 0.0 | 0.0 |
122.174 | 122.174 | 252.401 | 0.0 | 0.0 | -0.0 |
0.651 | 0.651 | 0.651 | 40.657 | 0.0 | 0.0 |
0.651 | 0.651 | 0.651 | 0.0 | 40.657 | 0.0 |
0.651 | 0.651 | 0.651 | -0.0 | 0.0 | 40.657 |
258.809 | 119.252 | 119.252 | -0.0 | 0.0 | 0.0 |
119.252 | 258.809 | 119.252 | 0.0 | 0.0 | 0.0 |
119.252 | 119.252 | 258.809 | -0.0 | -0.0 | 0.0 |
-0.651 | -0.651 | -0.651 | 40.657 | -0.0 | 0.0 |
-0.651 | -0.651 | -0.651 | -0.0 | 40.657 | 0.0 |
-0.651 | -0.651 | -0.651 | -0.0 | 0.0 | 40.657 |
1895.786 | 1834.437 | 1834.437 | 0.0 | 0.0 | -0.0 |
1834.437 | 1895.786 | 1834.437 | 0.0 | 0.0 | -0.0 |
1834.437 | 1834.437 | 1895.786 | 0.0 | 0.0 | -0.0 |
591.935 | 591.935 | 591.935 | 42.775 | 0.0 | -0.0 |
1753.359 | 1753.359 | 1753.359 | 0.0 | 43.485 | -0.0 |
591.939 | 591.939 | 591.939 | 0.0 | 0.0 | 42.775 |
-451.719 | -511.767 | -511.767 | -0.0 | -0.0 | 0.0 |
-1672.284 | -1610.981 | -1672.284 | -0.0 | -0.0 | 0.0 |
-1672.284 | -1672.284 | -1610.981 | -0.0 | -0.0 | 0.0 |
-1753.382 | -1753.382 | -1753.382 | 43.485 | -0.0 | 0.0 |
-1753.359 | -1753.359 | -1753.359 | -0.0 | 43.485 | 0.0 |
-1753.359 | -1753.359 | -1753.359 | -0.0 | -0.0 | 43.485 |
317.711 | 256.409 | 256.409 | 0.0 | 0.0 | -0.0 |
256.409 | 317.711 | 256.409 | 0.0 | 0.0 | -0.0 |
256.409 | 256.409 | 317.711 | 0.0 | 0.0 | -0.0 |
175.348 | 175.348 | 175.348 | 43.486 | 0.0 | -0.0 |
175.348 | 175.348 | 175.348 | 0.0 | 43.486 | -0.0 |
175.348 | 175.348 | 175.348 | 0.0 | 0.0 | 43.486 |
-32.924 | -94.227 | -94.227 | -0.0 | -0.0 | 0.0 |
-94.227 | -32.924 | -94.227 | -0.0 | -0.0 | 0.0 |
21.006 | 21.006 | 80.867 | -0.0 | -0.0 | 0.0 |
-175.346 | -175.346 | -175.346 | 43.487 | -0.0 | 0.0 |
-175.348 | -175.348 | -175.348 | -0.0 | 43.486 | 0.0 |
-175.346 | -175.346 | -175.346 | -0.0 | -0.0 | 43.487 |
159.76 | 98.442 | 98.442 | 0.0 | 0.0 | -0.0 |
98.442 | 159.76 | 98.442 | 0.0 | 0.0 | -0.0 |
98.442 | 98.442 | 159.76 | 0.0 | 0.0 | -0.0 |
5.684 | 5.684 | 5.684 | 43.188 | 0.0 | -0.0 |
5.684 | 5.684 | 5.684 | 0.0 | 43.188 | -0.0 |
5.684 | 5.684 | 5.684 | 0.0 | 0.0 | 43.188 |
125.002 | 63.744 | 63.744 | -0.0 | -0.0 | 0.0 |
63.744 | 125.002 | 63.744 | -0.0 | -0.0 | 0.0 |
63.744 | 63.744 | 125.002 | -0.0 | -0.0 | 0.0 |
-5.684 | -5.684 | -5.684 | 43.188 | -0.0 | 0.0 |
-5.684 | -5.684 | -5.684 | -0.0 | 43.188 | 0.0 |
-5.684 | -5.684 | -5.684 | -0.0 | -0.0 | 43.188 |
148.704 | 77.689 | 77.689 | 0.0 | 0.0 | 0.0 |
77.689 | 148.704 | 77.689 | 0.0 | -0.0 | -0.0 |
77.689 | 77.689 | 148.704 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 53.063 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 53.063 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 53.063 |
141.315 | 79.375 | 79.375 | -0.0 | 0.0 | 0.0 |
79.375 | 141.315 | 79.375 | -0.0 | 0.0 | 0.0 |
79.375 | 79.375 | 141.315 | -0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 53.063 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 53.063 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 53.063 |
142.968 | 78.094 | 78.094 | 0.0 | -0.0 | -0.0 |
78.094 | 142.968 | 78.094 | 0.0 | -0.0 | -0.0 |
78.094 | 78.094 | 142.968 | 0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 53.063 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 53.063 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 53.063 |
148.704 | 77.689 | 77.689 | -0.0 | -0.0 | -0.0 |
77.689 | 148.704 | 77.689 | -0.0 | -0.0 | 0.0 |
77.689 | 77.689 | 148.704 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 53.063 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 53.063 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 53.063 |
148.705 | 77.689 | 77.689 | -0.0 | 0.0 | 0.0 |
77.689 | 148.705 | 77.689 | -0.0 | 0.0 | 0.0 |
77.689 | 77.689 | 148.705 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 53.063 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 53.063 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 53.063 |
140.078 | 78.164 | 78.164 | -0.0 | 0.0 | 0.0 |
78.164 | 140.078 | 78.164 | -0.0 | 0.0 | 0.0 |
78.164 | 78.164 | 140.078 | -0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 53.063 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 53.063 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 53.063 |
98.352 | 63.3 | -7.255 | 0.0 | -0.0 | -0.0 |
63.156 | 190.292 | -1.113 | -0.0 | -0.0 | -0.0 |
-8.036 | -1.75 | 202.01 | 0.0 | 0.0 | 0.0 |
-458.747 | -437.479 | -176.788 | -283.603 | 0.0 | -0.0 |
-458.662 | -437.399 | -176.755 | -0.0 | -31.93 | -0.0 |
-457.671 | -436.453 | -176.373 | -0.0 | -0.0 | 61.262 |
98.352 | 63.3 | -7.255 | 0.0 | 0.0 | 0.0 |
500.27 | 607.141 | 167.338 | 0.0 | 0.0 | 0.0 |
441.328 | 426.781 | 375.182 | 0.0 | 0.0 | 0.0 |
458.747 | 437.479 | 176.788 | -283.603 | -0.0 | 0.0 |
458.662 | 437.399 | 176.755 | 0.0 | -31.93 | 0.0 |
457.671 | 436.453 | 176.373 | 0.0 | 0.0 | 61.262 |
31.028 | -0.902 | -33.199 | -0.0 | 0.0 | 0.0 |
63.156 | 190.292 | -1.113 | -0.0 | -0.0 | 0.0 |
-8.036 | -1.75 | 202.01 | -0.0 | 0.0 | -0.0 |
20568013.389 | 83211911.313 | 2001174.924 | -33017807.305 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -10.558 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 61.262 |
98.352 | 63.3 | -7.255 | -0.0 | -0.0 | 0.0 |
88.366 | 214.333 | 8.602 | 0.0 | 0.0 | 0.0 |
-8.036 | -1.75 | 202.01 | -0.0 | -0.0 | 0.0 |
-20568013.389 | -83211911.313 | -2001174.924 | -33017807.305 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | -10.558 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 61.262 |
98.352 | 63.301 | -7.255 | -0.0 | 0.0 | -0.0 |
38.023 | 166.324 | -10.799 | -0.0 | 0.0 | -0.0 |
-20.919 | -14.036 | 197.045 | -0.0 | 0.0 | -0.0 |
2056827.72 | 8321198.214 | 200105.721 | -3301750.217 | 0.0 | -0.0 |
-5.9 | -5.563 | -2.308 | 0.0 | -1682.153 | 0.0 |
-4.577 | -4.364 | -1.764 | -0.0 | 0.0 | 61.262 |
98.352 | 63.3 | -7.255 | 0.0 | -0.0 | 0.0 |
47.175 | 175.051 | -7.272 | 0.0 | 0.0 | -0.0 |
-8.036 | -1.75 | 202.009 | -0.0 | -0.0 | 0.0 |
-2056827.72 | -8321198.214 | -200105.721 | -3301750.217 | -0.0 | -0.0 |
5.9 | 5.563 | 2.308 | -0.0 | -1682.153 | 0.0 |
4.577 | 4.364 | 1.764 | 0.0 | 0.0 | 61.262 |
-50.132 | -43.158 | -28.936 | -0.004 | 0.0 | 0.0 |
32.903 | 135.0 | 76.018 | 0.0 | 0.0 | 0.0 |
-30.644 | 24.105 | 202.461 | -0.004 | 0.0 | 0.0 |
-0.946 | -0.844 | -0.627 | 37.52 | 0.0 | 0.0 |
-7.332 | -6.542 | -4.863 | -0.004 | -6.643 | -0.0 |
-11.743 | -10.477 | -7.789 | -0.006 | 0.0 | -128.273 |
35.046 | 32.844 | 27.562 | 0.0 | -0.0 | -0.0 |
-29.223 | 79.566 | 34.81 | 0.004 | -0.0 | -0.0 |
28.322 | 76.719 | 241.572 | 0.0 | -0.0 | 0.0 |
0.946 | 0.844 | 0.627 | 37.52 | -0.0 | -0.0 |
7.332 | 6.542 | 4.863 | 0.004 | -6.643 | -0.0 |
11.743 | 10.477 | 7.789 | 0.006 | -0.0 | -128.273 |
35.046 | 32.844 | 27.562 | 0.0 | 0.0 | 0.0 |
32.903 | 135.0 | 76.018 | -0.0 | 0.0 | 0.0 |
28.322 | 76.719 | 241.573 | -0.0 | 0.0 | 0.0 |
-0.093 | -0.083 | -0.062 | 37.596 | 0.0 | 0.0 |
-0.733 | -0.654 | -0.486 | -0.0 | -6.643 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -2.767 |
35.046 | 32.844 | 27.562 | -0.0 | -0.0 | -0.0 |
32.903 | 135.0 | 76.018 | 0.0 | -0.0 | -0.0 |
-22.579 | 31.302 | 207.81 | 0.0 | -0.0 | -0.0 |
0.093 | 0.083 | 0.062 | 37.596 | -0.0 | -0.0 |
0.733 | 0.654 | 0.486 | 0.0 | -6.643 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -2.767 |
35.047 | 32.844 | 27.562 | -0.0 | 0.0 | 0.0 |
-36.629 | 72.959 | 29.899 | -0.0 | 0.0 | 0.0 |
-23.384 | 30.583 | 207.278 | -0.0 | 0.0 | 0.0 |
-0.009 | -0.008 | -0.006 | 37.596 | -0.0 | 0.0 |
-0.074 | -0.066 | -0.049 | -0.0 | -6.643 | 0.0 |
-6272926.907 | -4284603.823 | -4407058.276 | -0.0 | 0.0 | -8648088.124 |
35.046 | 32.843 | 27.561 | -0.0 | -0.0 | -0.0 |
-36.483 | 73.09 | 29.994 | 0.0 | -0.0 | -0.0 |
-23.239 | 30.712 | 207.371 | 0.0 | -0.0 | -0.0 |
0.009 | 0.008 | 0.006 | 37.596 | -0.0 | -0.0 |
0.074 | 0.066 | 0.049 | 0.0 | -6.643 | -0.0 |
6272926.907 | 4284603.823 | 4407058.276 | 0.0 | -0.0 | -8648088.124 |
184.984 | 75.386 | 24.258 | -0.0 | -0.0 | -0.0 |
172.758 | 87.612 | 24.258 | 0.0 | 0.0 | -0.0 |
24.258 | 24.258 | 364.339 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 5.02 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 5.02 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 54.799 |
87.612 | 172.758 | 24.258 | 0.0 | 0.0 | 0.0 |
75.386 | 184.984 | 24.258 | 0.0 | 0.0 | -0.0 |
24.258 | 24.258 | 364.339 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 5.02 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 5.02 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 54.799 |
87.612 | 172.757 | 24.258 | -0.0 | 0.0 | -0.0 |
172.758 | 87.611 | 24.258 | -0.0 | -0.0 | -0.0 |
24.258 | 24.258 | 364.339 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 5.02 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 5.02 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 54.799 |
87.611 | 172.758 | 24.258 | -0.0 | 0.0 | 0.0 |
75.386 | 184.984 | 24.258 | -0.0 | -0.0 | -0.0 |
24.258 | 24.258 | 364.339 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 5.02 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 5.02 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 54.799 |
-11275315.183 | -11961485.415 | -12465452.154 | 44692.632 | 21748.809 | 233047.64 |
172.763 | 87.606 | 24.258 | 0.0 | -0.0 | -0.0 |
24.258 | 24.258 | 364.341 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 5.02 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 5.02 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 54.799 |
184.983 | 75.385 | 24.258 | 0.0 | -0.0 | -0.0 |
10606970.437 | 12159412.372 | 12186490.479 | -195419.746 | 2714.336 | -165191.642 |
24.258 | 24.258 | 364.336 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 5.02 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 5.02 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 54.799 |
122.923 | 42.505 | 41.73 | 6.224 | -0.0 | 0.0 |
42.505 | 122.923 | 41.73 | -6.224 | 0.0 | -0.0 |
41.731 | 41.731 | 148.528 | 0.0 | -0.0 | 0.0 |
6.224 | -6.224 | -0.0 | 39.427 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 38.883 | 8.849 |
-0.0 | -0.0 | -0.0 | 0.0 | 6.224 | 40.209 |
122.923 | 42.505 | 41.73 | 6.224 | 0.0 | -0.0 |
42.505 | 122.923 | 41.73 | -6.224 | 0.0 | -0.0 |
41.731 | 41.731 | 148.528 | -0.0 | -0.0 | -0.0 |
6.224 | -6.224 | 0.0 | 39.427 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 38.883 | 8.849 |
0.0 | 0.0 | 0.0 | 0.0 | 6.224 | 40.209 |
111.392 | 53.282 | 39.217 | 8.533 | 0.0 | 0.0 |
55.106 | 110.157 | 41.179 | -8.849 | 0.0 | 0.0 |
41.18 | 41.18 | 144.863 | -0.0 | -0.0 | -0.0 |
8.849 | -8.849 | -0.0 | 38.883 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 39.427 | 6.224 |
-0.0 | -0.0 | -0.0 | -0.0 | 8.849 | 27.526 |
111.392 | 53.282 | 39.217 | 8.533 | -0.0 | -0.0 |
53.282 | 111.392 | 39.217 | -8.533 | 0.0 | 0.0 |
41.731 | 41.731 | 148.528 | 0.0 | -0.0 | -0.0 |
6.224 | -6.224 | 0.0 | 39.427 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 39.427 | 6.224 |
0.0 | 0.0 | 0.0 | 0.0 | 8.849 | 27.526 |
110.156 | 55.105 | 41.179 | 8.849 | 0.0 | 0.0 |
42.505 | 122.922 | 41.729 | -6.224 | -0.0 | 0.0 |
41.18 | 41.18 | 144.863 | 0.0 | 0.0 | -0.0 |
8.849 | -8.85 | -0.0 | 38.883 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 38.883 | 8.849 |
-0.0 | -0.0 | -0.0 | -0.0 | 8.849 | 27.526 |
122.924 | 42.505 | 41.73 | 6.224 | -0.0 | -0.0 |
42.505 | 122.924 | 41.73 | -6.224 | -0.0 | -0.0 |
41.731 | 41.731 | 148.528 | -0.0 | -0.0 | -0.0 |
6.224 | -6.223 | 0.0 | 39.427 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 38.883 | 8.849 |
0.0 | 0.0 | 0.0 | 0.0 | 8.849 | 27.526 |
109.954 | 55.238 | 42.181 | 8.962 | -0.0 | 0.0 |
42.342 | 122.71 | 41.707 | -6.275 | -0.0 | 0.0 |
41.196 | 41.196 | 145.553 | -0.0 | 0.0 | 0.0 |
7.142 | -6.738 | 1.358 | 39.23 | -0.0 | 0.0 |
0.202 | 0.202 | 1.358 | -0.0 | 39.23 | 6.94 |
0.569 | 0.569 | 3.824 | -0.0 | 8.148 | 31.241 |
115.34 | 48.388 | 37.258 | 7.68 | -0.0 | -0.0 |
48.388 | 115.34 | 37.258 | -7.68 | 0.0 | 0.0 |
40.882 | 40.882 | 143.442 | 0.0 | -0.0 | -0.0 |
6.275 | -6.275 | -0.0 | 39.369 | 0.0 | -0.0 |
-0.202 | -0.202 | -1.358 | 0.0 | 39.23 | 6.94 |
-0.569 | -0.569 | -3.824 | 0.0 | 8.148 | 31.241 |
109.813 | 55.097 | 41.231 | 8.962 | -0.0 | 0.0 |
42.342 | 122.71 | 41.707 | -6.275 | -0.0 | 0.0 |
41.621 | 41.621 | 148.408 | -0.0 | -0.0 | 0.0 |
8.774 | -8.627 | 0.495 | 38.861 | -0.0 | 0.0 |
0.074 | 0.074 | 0.495 | 0.0 | 38.861 | 8.701 |
-0.0 | -0.0 | -0.0 | 0.0 | 6.275 | 40.184 |
122.71 | 42.342 | 41.707 | 6.275 | -0.0 | -0.0 |
55.065 | 109.782 | 41.02 | -8.962 | -0.0 | -0.0 |
41.621 | 41.621 | 148.408 | 0.0 | 0.0 | -0.0 |
6.275 | -6.275 | 0.0 | 39.369 | 0.0 | -0.0 |
-0.074 | -0.074 | -0.495 | -0.0 | 38.861 | 8.701 |
0.0 | 0.0 | 0.0 | -0.0 | 6.275 | 40.184 |
122.709 | 42.341 | 41.707 | 6.275 | 0.0 | 0.0 |
55.083 | 109.798 | 41.136 | -8.962 | -0.0 | 0.0 |
41.041 | 41.041 | 144.508 | -0.0 | -0.0 | 0.0 |
6.275 | -6.275 | -0.0 | 39.369 | -0.0 | 0.0 |
0.008 | 0.008 | 0.055 | 0.0 | 38.807 | 8.959 |
0.001 | 0.001 | 0.01 | 0.0 | 8.962 | 27.358 |
111.131 | 53.124 | 39.025 | 8.617 | 0.0 | 0.0 |
53.124 | 111.131 | 39.025 | -8.617 | 0.0 | 0.0 |
41.621 | 41.621 | 148.408 | 0.0 | 0.0 | -0.0 |
6.275 | -6.274 | 0.0 | 39.369 | -0.0 | -0.0 |
-0.008 | -0.008 | -0.055 | -0.0 | 38.807 | 8.959 |
-0.001 | -0.001 | -0.01 | -0.0 | 8.962 | 27.358 |
144.517 | 62.008 | 62.008 | 0.0 | 0.0 | 0.0 |
62.008 | 144.517 | 62.008 | 0.0 | 0.0 | 0.0 |
62.008 | 62.008 | 144.517 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 36.688 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 36.688 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 36.688 |
144.517 | 62.008 | 62.008 | -0.0 | -0.0 | -0.0 |
62.008 | 144.517 | 62.008 | -0.0 | -0.0 | -0.0 |
62.008 | 62.008 | 144.517 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 36.688 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 36.688 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 36.688 |
144.517 | 62.008 | 62.008 | 0.0 | 0.0 | 0.0 |
62.008 | 144.517 | 62.008 | 0.0 | 0.0 | -0.0 |
62.008 | 62.008 | 144.517 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 23.795 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 23.795 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 23.795 |
144.517 | 62.008 | 62.008 | -0.0 | -0.0 | -0.0 |
62.008 | 144.517 | 62.008 | -0.0 | -0.0 | -0.0 |
62.008 | 62.008 | 144.517 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 23.795 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 23.795 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 23.795 |
144.516 | 62.008 | 62.008 | 0.0 | 0.0 | 0.0 |
62.008 | 144.516 | 62.008 | 0.0 | 0.0 | -0.0 |
62.008 | 62.008 | 144.516 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 36.688 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 36.688 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 36.688 |
144.517 | 62.008 | 62.008 | -0.0 | -0.0 | -0.0 |
62.008 | 144.517 | 62.008 | -0.0 | -0.0 | 0.0 |
62.008 | 62.008 | 144.517 | 0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 36.688 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 36.688 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 36.688 |
140.939 | 88.995 | 105.437 | 0.0 | -0.0 | -0.0 |
88.995 | 140.939 | 105.437 | -0.0 | -0.0 | -0.0 |
94.507 | 94.507 | 182.567 | -0.0 | -0.0 | 0.0 |
0.04 | 0.04 | -0.111 | 30.584 | -0.0 | -0.0 |
0.04 | 0.04 | -0.111 | -0.0 | 30.584 | -0.0 |
0.015 | 0.015 | -0.04 | 0.0 | -0.0 | 58.791 |
140.901 | 88.957 | 105.543 | -0.0 | 0.0 | -0.0 |
88.957 | 140.901 | 105.543 | -0.0 | 0.0 | 0.0 |
94.507 | 94.507 | 182.567 | -0.0 | -0.0 | -0.0 |
-0.04 | -0.04 | 0.111 | 30.584 | 0.0 | 0.0 |
-0.04 | -0.04 | 0.111 | 0.0 | 30.584 | 0.0 |
-0.015 | -0.015 | 0.04 | 0.0 | 0.0 | 58.791 |
140.922 | 88.978 | 105.485 | 0.0 | -0.0 | -0.0 |
88.978 | 140.922 | 105.485 | -0.0 | -0.0 | -0.0 |
94.507 | 94.507 | 182.567 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 68.093 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 68.093 | 0.0 |
0.001 | 0.001 | -0.004 | 0.0 | -0.0 | 58.791 |
140.918 | 88.974 | 105.496 | 0.0 | -0.0 | 0.0 |
88.974 | 140.918 | 105.496 | 0.0 | 0.0 | 0.0 |
94.507 | 94.507 | 182.567 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 68.093 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 68.093 | -0.0 |
-0.001 | -0.001 | 0.004 | -0.0 | 0.0 | 58.791 |
140.92 | 88.976 | 105.49 | -0.0 | -0.0 | -0.0 |
88.976 | 140.92 | 105.49 | 0.0 | -0.0 | -0.0 |
109.031 | 109.031 | 142.495 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 68.093 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 68.093 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 64.828 |
146.949 | 94.274 | 89.865 | -0.0 | 0.0 | -0.0 |
94.274 | 146.949 | 89.865 | 0.0 | 0.0 | -0.0 |
94.506 | 94.506 | 182.567 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 68.093 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 68.093 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 64.828 |
13.438 | 22.16 | 22.16 | 0.0 | -0.0 | -0.0 |
22.16 | 13.438 | 22.16 | -0.0 | 0.0 | -0.0 |
22.16 | 22.16 | 13.438 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 18.818 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 18.818 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 18.818 |
13.438 | 22.16 | 22.16 | -0.0 | 0.0 | 0.0 |
22.16 | 13.438 | 22.16 | 0.0 | -0.0 | 0.0 |
22.16 | 22.16 | 13.438 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 18.818 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 18.818 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 18.818 |
13.438 | 22.16 | 22.16 | -0.0 | -0.0 | -0.0 |
22.16 | 13.438 | 22.16 | -0.0 | -0.0 | -0.0 |
22.16 | 22.16 | 13.438 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -15.088 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -15.088 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -15.088 |
13.438 | 22.16 | 22.16 | 0.0 | 0.0 | 0.0 |
22.16 | 13.438 | 22.16 | 0.0 | 0.0 | 0.0 |
22.16 | 22.16 | 13.438 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -15.088 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -15.088 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -15.088 |
13.438 | 22.16 | 22.16 | -0.0 | -0.0 | -0.0 |
22.16 | 13.438 | 22.16 | -0.0 | -0.0 | -0.0 |
22.16 | 22.16 | 13.438 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 18.818 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 18.818 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 18.818 |
13.438 | 22.16 | 22.16 | -0.0 | 0.0 | 0.0 |
22.16 | 13.438 | 22.16 | 0.0 | -0.0 | 0.0 |
22.16 | 22.16 | 13.438 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 18.818 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 18.818 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 18.818 |
162.065 | 69.828 | 36.292 | 4.75 | -0.0 | 0.0 |
107.875 | 96.058 | 131.082 | -1.874 | -0.0 | 0.0 |
32.782 | 32.782 | 228.362 | -0.0 | -0.0 | 0.0 |
4.75 | -4.75 | -0.0 | 10.16 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 10.16 | 4.75 |
0.0 | -0.0 | 0.0 | -0.0 | 4.75 | 46.119 |
122.701 | 128.199 | -36.263 | 2.049 | 0.0 | -0.0 |
128.199 | 122.701 | -36.263 | -2.049 | 0.0 | 0.0 |
56.083 | 56.083 | 66.203 | 0.0 | 0.0 | 0.0 |
4.75 | -4.75 | -0.0 | 10.16 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 10.16 | 4.75 |
-0.0 | 0.0 | -0.0 | 0.0 | 4.75 | 46.119 |
56.379 | 164.996 | 60.23 | 9.24 | -0.0 | 0.0 |
69.828 | 162.066 | 36.292 | -4.75 | -0.0 | -0.0 |
45.684 | 45.684 | 146.906 | -0.0 | -0.0 | 0.0 |
-5.319 | -0.626 | 21.224 | -41.127 | -0.0 | 0.0 |
-2.973 | -2.973 | 21.224 | 0.0 | -41.127 | -2.346 |
0.0 | 0.0 | -0.0 | 0.0 | 4.75 | 46.119 |
77.932 | 151.644 | 36.564 | 0.163 | 0.0 | -0.0 |
170.137 | 60.026 | 40.665 | -8.23 | 0.0 | -0.0 |
35.258 | 35.258 | 197.744 | 0.0 | 0.0 | -0.0 |
13.859 | -6.892 | -15.833 | -75.908 | 0.0 | -0.0 |
2.973 | 2.973 | -21.224 | -0.0 | -41.127 | -2.346 |
-0.0 | -0.0 | 0.0 | -0.0 | 4.75 | 46.119 |
72.614 | 152.494 | 52.225 | -0.007 | -0.0 | 0.0 |
69.829 | 162.067 | 36.292 | -4.75 | -0.0 | 0.0 |
35.259 | 35.259 | 197.746 | -0.0 | -0.0 | 0.0 |
23.349 | -23.8 | 0.777 | -86.44 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 10.16 | 4.75 |
-0.201 | -0.201 | 1.434 | 0.0 | -0.044 | -40.6 |
162.064 | 69.827 | 36.291 | 4.75 | 0.0 | -0.0 |
152.917 | 72.982 | 49.383 | 0.009 | 0.0 | 0.0 |
47.78 | 47.78 | 135.524 | 0.0 | 0.0 | -0.0 |
4.75 | -4.75 | -0.0 | 10.16 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 10.16 | 4.75 |
0.201 | 0.201 | -1.434 | -0.0 | -0.044 | -40.6 |
377.403 | 197.685 | 197.685 | 0.0 | 0.0 | 0.0 |
197.685 | 377.403 | 197.685 | 0.0 | 0.0 | 0.0 |
197.685 | 197.685 | 377.403 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 48.852 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 48.852 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 48.852 |
377.791 | 197.491 | 197.491 | 0.0 | 0.0 | -0.0 |
197.491 | 377.791 | 197.491 | 0.0 | -0.0 | -0.0 |
197.491 | 197.491 | 377.791 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 48.852 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 48.852 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 48.852 |
377.791 | 197.491 | 197.491 | 0.0 | 0.0 | 0.0 |
197.491 | 377.791 | 197.491 | -0.0 | -0.0 | 0.0 |
197.491 | 197.491 | 377.791 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 46.551 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 46.551 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 46.551 |
377.79 | 197.491 | 197.491 | 0.0 | 0.0 | -0.0 |
197.491 | 377.79 | 197.491 | 0.0 | -0.0 | -0.0 |
197.491 | 197.491 | 377.79 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 46.551 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 46.551 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 46.551 |
377.406 | 197.687 | 197.687 | 0.0 | 0.0 | 0.0 |
197.687 | 377.406 | 197.687 | 0.0 | 0.0 | 0.0 |
197.687 | 197.687 | 377.406 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 46.551 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 46.551 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 46.551 |
377.787 | 197.489 | 197.489 | -0.0 | -0.0 | -0.0 |
197.489 | 377.787 | 197.489 | 0.0 | -0.0 | -0.0 |
197.489 | 197.489 | 377.787 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 46.551 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 46.551 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 46.551 |
239.79 | 180.108 | 180.108 | 0.0 | -0.0 | -0.0 |
180.108 | 239.79 | 180.108 | 0.0 | 0.0 | 0.0 |
180.108 | 180.108 | 239.79 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 84.721 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 84.721 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 84.721 |
239.79 | 180.108 | 180.108 | -0.0 | -0.0 | -0.0 |
180.108 | 239.79 | 180.108 | -0.0 | -0.0 | -0.0 |
180.108 | 180.108 | 239.79 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 84.721 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 84.721 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 84.721 |
239.79 | 180.108 | 180.108 | 0.0 | 0.0 | 0.0 |
180.108 | 239.79 | 180.108 | 0.0 | -0.0 | 0.0 |
180.108 | 180.108 | 239.79 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 84.721 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 84.721 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 84.721 |
239.79 | 180.108 | 180.108 | -0.0 | -0.0 | -0.0 |
180.108 | 239.79 | 180.108 | -0.0 | -0.0 | -0.0 |
180.108 | 180.108 | 239.79 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 84.721 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 84.721 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 84.721 |
239.791 | 180.11 | 180.11 | 0.0 | 0.0 | 0.0 |
180.11 | 239.791 | 180.11 | 0.0 | 0.0 | 0.0 |
180.11 | 180.11 | 239.791 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 90.177 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 90.177 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 90.177 |
239.789 | 180.107 | 180.107 | -0.0 | -0.0 | -0.0 |
180.107 | 239.789 | 180.107 | -0.0 | -0.0 | -0.0 |
180.107 | 180.107 | 239.789 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 90.177 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 90.177 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 90.177 |
83.028 | 145.988 | 145.988 | -0.0 | -0.0 | -0.0 |
145.988 | 83.028 | 145.988 | -0.0 | -0.0 | -0.0 |
145.988 | 145.988 | 83.028 | -0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 35.771 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 35.771 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 35.771 |
83.028 | 145.988 | 145.988 | 0.0 | 0.0 | 0.0 |
145.988 | 83.028 | 145.988 | 0.0 | -0.0 | -0.0 |
145.988 | 145.988 | 83.028 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 35.771 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 35.771 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 35.771 |
83.028 | 145.989 | 145.989 | -0.0 | -0.0 | -0.0 |
145.989 | 83.028 | 145.989 | -0.0 | -0.0 | -0.0 |
145.989 | 145.989 | 83.028 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 35.771 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 35.771 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 35.771 |
83.028 | 145.988 | 145.988 | -0.0 | -0.0 | 0.0 |
145.988 | 83.028 | 145.988 | -0.0 | -0.0 | 0.0 |
145.988 | 145.988 | 83.028 | -0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 35.771 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 35.771 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 35.771 |
83.029 | 145.99 | 145.99 | 0.0 | 0.0 | 0.0 |
145.99 | 83.029 | 145.99 | 0.0 | -0.0 | -0.0 |
145.99 | 145.99 | 83.029 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 35.771 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 35.771 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 35.771 |
83.027 | 145.987 | 145.987 | -0.0 | 0.0 | 0.0 |
145.987 | 83.027 | 145.987 | 0.0 | -0.0 | 0.0 |
145.987 | 145.987 | 83.027 | -0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 35.771 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 35.771 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 35.771 |
84.885 | 160.626 | 151.089 | -0.0 | -0.0 | -0.0 |
160.626 | 84.885 | 151.089 | -0.0 | -0.0 | 0.0 |
151.089 | 151.089 | 96.34 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 22.663 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 22.663 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 40.098 |
72.316 | 173.195 | 151.089 | -0.0 | -0.0 | 0.0 |
173.195 | 72.316 | 151.089 | -0.0 | -0.0 | -0.0 |
151.089 | 151.089 | 96.34 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 22.663 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 22.663 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 40.098 |
84.885 | 160.626 | 151.09 | -0.0 | -0.0 | 0.0 |
160.626 | 84.885 | 151.09 | 0.0 | 0.0 | 0.0 |
151.09 | 151.09 | 96.34 | -0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 26.565 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 26.565 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 40.098 |
84.885 | 160.626 | 151.089 | 0.0 | -0.0 | 0.0 |
160.626 | 84.885 | 151.089 | 0.0 | -0.0 | -0.0 |
151.089 | 151.089 | 96.34 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 26.565 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 26.565 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 40.098 |
84.886 | 160.628 | 151.091 | -0.0 | 0.0 | 0.0 |
160.628 | 84.886 | 151.091 | -0.0 | 0.0 | -0.0 |
151.091 | 151.091 | 96.341 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 26.565 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 26.565 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 40.098 |
84.884 | 160.625 | 151.088 | -0.0 | -0.0 | -0.0 |
160.625 | 84.884 | 151.088 | 0.0 | -0.0 | 0.0 |
151.088 | 151.088 | 96.339 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 26.565 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 26.565 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 40.098 |
139.651 | 225.293 | 173.681 | 0.0 | 0.0 | 0.0 |
225.293 | 139.651 | 173.681 | 0.0 | 0.0 | -0.0 |
173.681 | 173.681 | 262.824 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 28.319 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 28.319 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 85.825 |
133.299 | 231.645 | 173.681 | 0.0 | 0.0 | 0.0 |
231.645 | 133.299 | 173.681 | -0.0 | -0.0 | 0.0 |
173.681 | 173.681 | 262.824 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 28.319 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 28.319 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 85.825 |
139.652 | 225.293 | 173.681 | 0.0 | -0.0 | 0.0 |
225.293 | 139.652 | 173.681 | -0.0 | -0.0 | 0.0 |
173.681 | 173.681 | 262.824 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 28.319 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 28.319 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 85.825 |
139.651 | 225.293 | 173.68 | -0.0 | -0.0 | 0.0 |
225.293 | 139.651 | 173.68 | -0.0 | -0.0 | 0.0 |
173.68 | 173.68 | 262.824 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 28.319 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 28.319 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 85.825 |
139.654 | 225.295 | 173.682 | 0.0 | 0.0 | 0.0 |
225.295 | 139.654 | 173.682 | 0.0 | 0.0 | -0.0 |
173.682 | 173.682 | 262.825 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 28.319 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 28.319 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 85.825 |
139.649 | 225.291 | 173.679 | -0.0 | -0.0 | 0.0 |
225.291 | 139.649 | 173.679 | -0.0 | -0.0 | 0.0 |
173.679 | 173.679 | 262.823 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 28.319 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 28.319 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 85.825 |
302.556 | 263.454 | 2.812 | -0.0 | 0.0 | -0.0 |
121.058 | 168.452 | 108.479 | -0.0 | -0.0 | -0.0 |
109.397 | 109.397 | 296.12 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 14.792 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 14.792 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 23.697 |
168.452 | 121.058 | 108.479 | 0.0 | -0.0 | 0.0 |
-17.76 | 21.343 | 217.75 | 0.0 | 0.0 | 0.0 |
109.397 | 109.397 | 296.12 | 0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 14.792 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 14.792 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 23.697 |
168.453 | 121.058 | 108.479 | -0.0 | 0.0 | -0.0 |
121.058 | 168.453 | 108.479 | -0.0 | 0.0 | -0.0 |
109.397 | 109.397 | 296.12 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 14.792 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 14.792 | -0.0 |
14.773 | 14.773 | -11.291 | -0.0 | 0.0 | 19.342 |
168.452 | 121.058 | 108.479 | 0.0 | -0.0 | 0.0 |
121.058 | 168.452 | 108.479 | -0.0 | -0.0 | 0.0 |
109.396 | 109.396 | 296.12 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 14.792 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 14.792 | -0.0 |
-14.773 | -14.773 | 11.291 | 0.0 | -0.0 | 19.342 |
158.464 | 127.313 | 109.908 | -0.0 | 0.0 | -0.0 |
121.06 | 168.454 | 108.48 | -0.0 | 0.0 | -0.0 |
109.398 | 109.398 | 296.122 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 14.792 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 14.792 | -0.0 |
-4817682.68 | 1763312.827 | -763.881 | -0.0 | -0.0 | -5699888.325 |
168.451 | 121.057 | 108.478 | -0.0 | -0.0 | 0.0 |
179.9 | 93.918 | 114.475 | 0.0 | -0.0 | 0.0 |
109.395 | 109.395 | 296.119 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 14.792 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 14.792 | -0.0 |
4817682.812 | -1763312.945 | 763.887 | 0.0 | -0.001 | -5699888.312 |
140.636 | 123.188 | 111.282 | 0.0 | -0.0 | -0.0 |
114.894 | 161.566 | 105.456 | 0.0 | -0.0 | -0.0 |
105.457 | 105.457 | 291.513 | 0.0 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -3.212 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -3.212 | 0.0 |
0.001 | 0.001 | -0.0 | -0.0 | -0.0 | -40.853 |
161.565 | 114.894 | 105.456 | -0.0 | -0.0 | 0.0 |
114.894 | 161.565 | 105.456 | -0.0 | -0.0 | 0.0 |
105.457 | 105.457 | 291.513 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -3.212 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -3.212 | 0.0 |
-0.001 | -0.001 | 0.0 | -0.0 | 0.0 | -40.853 |
161.566 | 114.894 | 105.457 | 0.0 | -0.0 | -0.0 |
114.894 | 161.566 | 105.457 | -0.0 | -0.0 | -0.0 |
105.457 | 105.457 | 291.513 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -3.212 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -3.212 | 0.0 |
-0.002 | -0.001 | -0.0 | -0.0 | -0.0 | -367.933 |
140.636 | 123.188 | 111.282 | 0.0 | 0.0 | 0.0 |
114.894 | 161.565 | 105.456 | 0.0 | 0.0 | 0.0 |
105.457 | 105.457 | 291.513 | -0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -3.212 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -3.212 | 0.0 |
0.002 | 0.001 | 0.0 | 0.0 | 0.0 | -367.933 |
76.392 | 183.695 | 113.006 | 0.0 | -0.0 | -0.0 |
126.971 | 136.622 | 111.391 | 0.0 | 0.0 | -0.0 |
105.458 | 105.458 | 291.515 | 0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -3.212 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 15.521 | 0.0 |
2609812.022 | 2609729.683 | -2189737.987 | -0.0 | -0.0 | -4.228 |
-4892379.989 | 8443236.983 | 131998.806 | 0.0 | 0.0 | -0.201 |
114.892 | 161.564 | 105.455 | -0.0 | 0.0 | -0.0 |
107.108 | 107.108 | 289.988 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 15.521 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 15.521 | 0.0 |
-2609812.028 | -2609729.678 | 2189737.986 | -0.0 | -0.0 | -4.232 |
210.345 | 134.119 | 134.119 | 0.0 | 0.0 | 0.0 |
134.119 | 210.345 | 134.119 | 0.0 | 0.0 | 0.0 |
134.119 | 134.119 | 210.345 | 0.0 | 0.0 | 0.0 |
-23.736 | -23.736 | -23.736 | 29.386 | -0.0 | 0.0 |
-23.736 | -23.736 | -23.736 | 0.0 | 29.386 | 0.0 |
-23.736 | -23.736 | -23.736 | -0.0 | 0.0 | 29.386 |
197.487 | 124.771 | 124.771 | -0.0 | -0.0 | -0.0 |
124.771 | 197.487 | 124.771 | -0.0 | -0.0 | 0.0 |
124.771 | 124.771 | 197.487 | -0.0 | -0.0 | -0.0 |
23.736 | 23.736 | 23.736 | 29.386 | -0.0 | -0.0 |
23.736 | 23.736 | 23.736 | -0.0 | 29.386 | -0.0 |
23.736 | 23.736 | 23.736 | -0.0 | 0.0 | 29.386 |
177.23 | 104.502 | 104.502 | -0.0 | 0.0 | -0.0 |
104.502 | 177.23 | 104.502 | -0.0 | 0.0 | 0.0 |
104.502 | 104.502 | 177.23 | -0.0 | 0.0 | 0.0 |
-3.048 | -3.048 | -3.048 | 28.461 | -0.0 | 0.0 |
-3.048 | -3.048 | -3.048 | 0.0 | 28.461 | -0.0 |
-3.048 | -3.048 | -3.048 | 0.0 | 0.0 | 28.461 |
177.32 | 109.129 | 109.129 | -0.0 | -0.0 | -0.0 |
109.129 | 177.32 | 109.129 | -0.0 | -0.0 | -0.0 |
109.129 | 109.129 | 177.32 | 0.0 | -0.0 | 0.0 |
3.048 | 3.048 | 3.048 | 28.461 | -0.0 | 0.0 |
3.048 | 3.048 | 3.048 | -0.0 | 28.461 | -0.0 |
3.048 | 3.048 | 3.048 | -0.0 | -0.0 | 28.461 |
175.478 | 106.826 | 106.826 | 0.0 | 0.0 | 0.0 |
106.826 | 175.478 | 106.826 | 0.0 | 0.0 | 0.0 |
106.826 | 106.826 | 175.478 | -0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 32.644 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 32.644 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 32.644 |
179.675 | 106.899 | 106.899 | -0.0 | -0.0 | 0.0 |
106.899 | 179.675 | 106.899 | -0.0 | -0.0 | -0.0 |
106.899 | 106.899 | 179.675 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 32.644 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 32.644 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 32.644 |
175.72 | 103.236 | 103.236 | 0.0 | -0.0 | -0.0 |
103.236 | 175.72 | 103.236 | 0.0 | -0.0 | 0.0 |
103.236 | 103.236 | 175.72 | -0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 30.084 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 30.084 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 30.084 |
175.72 | 103.236 | 103.236 | -0.0 | -0.0 | 0.0 |
103.236 | 175.72 | 103.236 | -0.0 | -0.0 | -0.0 |
103.236 | 103.236 | 175.72 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 30.084 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 30.084 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 30.084 |
137.356 | 69.065 | 69.065 | 0.0 | -0.0 | 0.0 |
69.065 | 137.356 | 69.065 | 0.0 | 0.0 | 0.0 |
69.065 | 69.065 | 137.356 | 0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 30.084 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 30.084 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 30.084 |
175.72 | 103.236 | 103.236 | -0.0 | -0.0 | 0.0 |
103.236 | 175.72 | 103.236 | -0.0 | 0.0 | 0.0 |
103.236 | 103.236 | 175.72 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 30.084 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 30.084 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 30.084 |
175.721 | 103.237 | 103.237 | 0.0 | 0.0 | -0.0 |
103.237 | 175.721 | 103.237 | 0.0 | 0.0 | -0.0 |
103.237 | 103.237 | 175.721 | 0.0 | 0.0 | 0.0 |
-0.626 | -0.626 | -0.626 | 25.504 | 0.0 | 0.0 |
-0.626 | -0.626 | -0.626 | 0.0 | 25.504 | 0.0 |
-0.626 | -0.626 | -0.626 | -0.0 | 0.0 | 25.504 |
175.719 | 103.235 | 103.235 | -0.0 | -0.0 | 0.0 |
103.235 | 175.719 | 103.235 | -0.0 | -0.0 | -0.0 |
103.235 | 103.235 | 175.719 | -0.0 | -0.0 | 0.0 |
0.626 | 0.626 | 0.626 | 25.504 | 0.0 | -0.0 |
0.626 | 0.626 | 0.626 | -0.0 | 25.504 | -0.0 |
0.626 | 0.626 | 0.626 | -0.0 | 0.0 | 25.504 |
-23625.2 | -23697.97 | -23697.97 | -0.0 | 0.0 | -0.0 |
-23697.97 | -23625.2 | -23697.97 | -0.0 | 0.0 | 0.0 |
-23697.97 | -23697.97 | -23625.2 | 0.0 | 0.0 | 0.0 |
-23689.765 | -23689.765 | -23689.765 | 26.332 | 0.0 | 0.0 |
-23689.765 | -23689.765 | -23689.765 | -0.0 | 26.332 | 0.0 |
-23689.765 | -23689.765 | -23689.765 | -0.0 | -0.0 | 26.332 |
23870.02 | 23799.508 | 23799.508 | -0.0 | -0.0 | -0.0 |
23799.508 | 23870.02 | 23799.508 | -0.0 | -0.0 | 0.0 |
23799.508 | 23799.508 | 23870.02 | 0.0 | -0.0 | 0.0 |
23689.765 | 23689.765 | 23689.765 | 26.332 | -0.0 | -0.0 |
23689.765 | 23689.766 | 23689.765 | 0.0 | 26.332 | -0.0 |
23689.765 | 23689.765 | 23689.765 | 0.0 | -0.0 | 26.332 |
-2198.278 | -2271.052 | -2271.052 | -0.0 | 0.0 | 0.0 |
-2271.052 | -2198.278 | -2271.052 | -0.0 | 0.0 | -0.0 |
-2271.052 | -2271.052 | -2198.278 | -0.0 | 0.0 | 0.0 |
-2368.945 | -2368.945 | -2368.945 | 28.978 | 0.0 | 0.0 |
-2368.945 | -2368.945 | -2368.945 | -0.0 | 28.978 | -0.0 |
-2368.945 | -2368.945 | -2368.945 | -0.0 | 0.0 | 28.978 |
212.322 | 135.909 | 135.909 | 0.0 | -0.0 | 0.0 |
135.909 | 212.322 | 135.909 | 0.0 | -0.0 | 0.0 |
135.909 | 135.909 | 212.322 | 0.0 | -0.0 | -0.0 |
2368.945 | 2368.945 | 2368.945 | 28.978 | 0.0 | 0.0 |
2368.945 | 2368.945 | 2368.945 | -0.0 | 28.978 | 0.0 |
2368.945 | 2368.945 | 2368.945 | -0.0 | -0.0 | 28.978 |
212.323 | 135.911 | 135.911 | 0.0 | 0.0 | -0.0 |
135.911 | 212.323 | 135.911 | -0.0 | 0.0 | -0.0 |
135.911 | 135.911 | 212.323 | -0.0 | 0.0 | -0.0 |
-236.988 | -236.988 | -236.988 | 28.97 | 0.0 | 0.0 |
-236.988 | -236.988 | -236.988 | 0.0 | 28.97 | 0.0 |
-236.988 | -236.988 | -236.988 | -0.0 | 0.0 | 28.97 |
420.743 | 348.027 | 348.027 | 0.0 | -0.0 | -0.0 |
348.027 | 420.743 | 348.027 | 0.0 | -0.0 | -0.0 |
348.027 | 348.027 | 420.743 | 0.0 | 0.0 | 0.0 |
236.988 | 236.988 | 236.988 | 28.97 | -0.0 | 0.0 |
236.988 | 236.988 | 236.988 | -0.0 | 28.97 | -0.0 |
236.988 | 236.988 | 236.988 | -0.0 | -0.0 | 28.97 |
-559.561 | -720.197 | 798.243 | 2.922 | 0.0 | -0.0 |
-720.212 | -559.577 | 798.263 | -2.922 | 0.0 | -0.0 |
167.935 | 167.935 | 342.012 | -0.0 | 0.0 | -0.0 |
4.231 | -4.231 | 0.0 | 63.964 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 63.964 | 4.231 |
0.0 | 0.0 | 0.0 | 0.0 | 4.231 | 82.032 |
758.758 | 596.536 | 182.243 | 3.503 | -0.0 | 0.0 |
183.753 | 347.818 | 167.935 | -4.231 | 0.0 | 0.0 |
167.934 | 167.934 | 342.012 | -0.0 | -0.0 | 0.0 |
4.231 | -4.231 | -0.0 | 63.964 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 63.964 | 4.231 |
-0.0 | 0.0 | -0.0 | -0.0 | 4.231 | 82.032 |
347.818 | 183.754 | 167.935 | 4.231 | 0.0 | -0.0 |
142.422 | 304.639 | 167.589 | -3.501 | -0.0 | -0.0 |
127.788 | 127.788 | 338.391 | 0.0 | 0.0 | -0.0 |
-112.727 | -117.564 | 73.473 | 60.686 | 0.0 | -0.0 |
-90.382 | -90.382 | 62.84 | 0.0 | 61.017 | 2.922 |
-41.284 | -41.284 | -1.333 | -0.0 | 3.503 | 81.111 |
387.219 | 224.993 | 170.248 | 3.505 | 0.0 | 0.0 |
224.993 | 387.219 | 170.248 | -3.505 | -0.0 | 0.0 |
210.362 | 210.362 | 341.038 | -0.0 | 0.0 | 0.0 |
4.231 | -4.231 | -0.0 | 63.964 | 0.0 | 0.0 |
90.382 | 90.382 | -62.84 | -0.0 | 61.017 | 2.922 |
41.284 | 41.284 | 1.333 | 0.0 | 3.503 | 81.111 |
331.962 | 172.729 | 177.173 | 2.42 | 0.0 | -0.0 |
179.571 | 341.74 | 168.815 | -3.482 | -0.0 | -0.0 |
164.904 | 164.904 | 339.663 | 0.0 | -0.0 | -0.0 |
4.231 | -4.231 | 0.0 | 63.964 | 0.0 | -0.0 |
-4.134 | -4.134 | -0.133 | 0.0 | 61.718 | 3.502 |
0.0 | 0.0 | 0.0 | 0.0 | 4.231 | 82.032 |
350.11 | 187.848 | 169.028 | 3.52 | -0.0 | 0.0 |
183.752 | 347.815 | 167.933 | -4.231 | -0.0 | 0.0 |
173.249 | 173.249 | 339.756 | -0.0 | 0.0 | 0.0 |
7.636 | 0.632 | 0.133 | 61.718 | 0.0 | 0.0 |
4.134 | 4.134 | 0.133 | -0.0 | 61.718 | 3.502 |
-0.0 | -0.0 | -0.0 | -0.0 | 4.231 | 82.032 |
794.564 | 635.476 | -2707.273 | 2.688 | 0.0 | 0.0 |
178.039 | 340.857 | 162.552 | -4.171 | 0.0 | 0.0 |
621.913 | 621.913 | -2541.727 | 0.0 | 0.0 | 0.0 |
4.171 | -4.171 | -0.0 | 63.637 | 0.0 | 0.0 |
457.365 | 457.365 | -2872.112 | 0.0 | 59.074 | 2.688 |
457.365 | 457.365 | -2872.115 | 0.0 | 2.688 | 79.544 |
-120.168 | -279.254 | 3036.956 | 2.688 | -0.0 | -0.0 |
178.039 | 340.857 | 162.552 | -4.171 | -0.0 | -0.0 |
-292.818 | -292.818 | 3202.498 | 0.0 | 0.0 | -0.0 |
-454.655 | -460.031 | 2871.973 | 59.075 | -0.0 | -0.0 |
-457.365 | -457.365 | 2872.112 | -0.0 | 59.074 | 2.688 |
-457.365 | -457.365 | 2872.115 | -0.0 | 2.688 | 79.544 |
340.858 | 178.039 | 162.552 | 4.171 | 0.0 | 0.0 |
233.77 | 392.501 | -145.686 | -2.601 | 0.0 | 0.0 |
162.492 | 162.492 | 335.87 | -0.0 | -0.0 | 0.0 |
4.171 | -4.171 | 0.0 | 63.637 | 0.0 | 0.0 |
45.731 | 45.731 | -287.177 | 0.0 | 59.075 | 2.688 |
0.0 | 0.0 | 0.0 | 0.0 | 4.171 | 81.409 |
291.457 | 132.374 | 452.057 | 2.686 | 0.0 | -0.0 |
178.038 | 340.857 | 162.552 | -4.171 | -0.0 | -0.0 |
118.811 | 118.811 | 617.576 | -0.0 | -0.0 | -0.0 |
4.171 | -4.171 | -0.0 | 63.637 | -0.0 | -0.0 |
-45.731 | -45.731 | 287.177 | -0.0 | 59.075 | 2.688 |
-0.0 | -0.0 | -0.0 | -0.0 | 4.171 | 81.409 |
341.819 | 182.688 | 136.08 | 2.705 | -0.0 | 0.0 |
182.688 | 341.819 | 136.08 | -2.705 | 0.0 | 0.0 |
169.104 | 169.104 | 301.902 | 0.0 | -0.0 | 0.0 |
4.171 | -4.171 | 0.0 | 63.637 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 63.637 | 4.171 |
0.0 | 0.0 | 0.0 | 0.0 | 4.171 | 81.409 |
340.855 | 178.037 | 162.55 | 4.171 | 0.0 | -0.0 |
178.037 | 340.855 | 162.55 | -4.171 | 0.0 | -0.0 |
162.49 | 162.49 | 335.867 | -0.0 | -0.0 | -0.0 |
4.171 | -4.171 | -0.0 | 63.637 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 63.637 | 4.171 |
-0.0 | -0.0 | -0.0 | -0.0 | 4.171 | 81.409 |
317.203 | 187.246 | 174.986 | 3.301 | 0.0 | 0.0 |
-9.558 | 116.038 | 790.382 | -2.736 | 0.0 | 0.0 |
174.749 | 174.749 | 330.424 | -0.0 | 0.0 | 0.0 |
3.301 | -3.301 | 0.0 | 48.899 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 48.899 | 3.301 |
-0.0 | 0.0 | -0.0 | 0.0 | 3.301 | 64.978 |
317.203 | 187.246 | 174.986 | 3.301 | -0.0 | 0.0 |
187.246 | 317.203 | 174.986 | -3.301 | -0.0 | -0.0 |
174.749 | 174.749 | 330.424 | 0.0 | -0.0 | -0.0 |
3.301 | -3.301 | 0.0 | 48.899 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 48.899 | 3.301 |
-0.0 | 0.0 | 0.0 | -0.0 | 3.301 | 64.978 |
287.612 | 162.11 | 235.268 | 2.71 | -0.0 | 0.0 |
187.246 | 317.203 | 174.987 | -3.301 | -0.0 | -0.0 |
174.916 | 174.916 | 351.962 | -0.0 | 0.0 | -0.0 |
3.301 | -3.301 | 0.0 | 48.899 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 48.899 | 3.301 |
0.0 | 0.0 | 0.0 | 0.0 | 3.301 | 64.978 |
311.444 | 183.548 | 143.811 | 3.367 | -0.0 | 0.0 |
183.548 | 311.444 | 143.811 | -3.367 | -0.0 | -0.0 |
196.939 | 196.939 | 261.275 | 0.0 | -0.0 | 0.0 |
3.301 | -3.301 | -0.0 | 48.899 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 48.899 | 3.301 |
-0.0 | -0.0 | -0.0 | -0.0 | 3.301 | 64.978 |
317.206 | 187.248 | 174.988 | 3.301 | 0.0 | -0.0 |
187.248 | 317.206 | 174.988 | -3.301 | 0.0 | -0.0 |
174.751 | 174.751 | 330.426 | -0.0 | 0.0 | 0.0 |
3.489 | -3.258 | 3.328 | 44.602 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 48.899 | 3.301 |
0.116 | 0.116 | 3.332 | -0.0 | 3.373 | 63.845 |
317.2 | 187.244 | 174.985 | 3.301 | -0.0 | 0.0 |
184.227 | 310.404 | 167.329 | -2.897 | -0.0 | -0.0 |
174.747 | 174.747 | 330.421 | 0.0 | -0.0 | -0.0 |
3.301 | -3.301 | -0.0 | 48.899 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 48.899 | 3.301 |
-0.116 | -0.116 | -3.332 | 0.0 | 3.373 | 63.845 |
449.371 | 321.361 | 27.219 | 3.365 | 0.0 | -0.0 |
321.361 | 449.371 | 27.219 | -3.365 | 0.0 | -0.0 |
309.339 | 309.339 | 173.083 | 0.0 | 0.0 | -0.0 |
3.27 | -3.27 | 0.0 | 49.297 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 49.297 | 3.27 |
-0.0 | -0.0 | 0.0 | 0.0 | 3.27 | 65.524 |
320.971 | 189.922 | 177.072 | 3.27 | -0.0 | 0.0 |
189.922 | 320.971 | 177.072 | -3.27 | 0.0 | 0.0 |
35.807 | 35.807 | 472.554 | -0.0 | -0.0 | 0.0 |
3.27 | -3.27 | -0.0 | 49.297 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 49.297 | 3.27 |
0.0 | -0.0 | -0.0 | -0.0 | 3.27 | 65.524 |
331.669 | 205.036 | 163.451 | 2.73 | 0.0 | 0.0 |
198.702 | 326.975 | 162.296 | -3.357 | -0.0 | -0.0 |
177.075 | 177.075 | 332.214 | 0.0 | 0.0 | -0.0 |
16.863 | 10.133 | -14.811 | 43.545 | -0.0 | -0.0 |
13.498 | 13.498 | -14.811 | 0.0 | 43.545 | 3.365 |
0.0 | 0.0 | 0.0 | 0.0 | 3.27 | 65.524 |
320.97 | 189.922 | 177.072 | 3.27 | 0.0 | 0.0 |
170.854 | 298.584 | 191.845 | -3.374 | 0.0 | 0.0 |
177.075 | 177.075 | 332.213 | -0.0 | -0.0 | 0.0 |
-10.133 | -16.863 | 14.811 | 43.545 | 0.0 | 0.0 |
-13.498 | -13.498 | 14.811 | -0.0 | 43.545 | 3.365 |
-0.0 | -0.0 | -0.0 | -0.0 | 3.27 | 65.524 |
320.974 | 189.924 | 177.074 | 3.27 | 0.0 | -0.0 |
189.924 | 320.974 | 177.074 | -3.27 | -0.0 | -0.0 |
177.096 | 177.096 | 322.452 | 0.0 | 0.0 | -0.0 |
3.27 | -3.27 | 0.0 | 49.297 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 49.297 | 3.27 |
1.623 | 1.624 | -1.781 | -0.0 | 3.384 | 63.702 |
320.968 | 189.921 | 177.07 | 3.27 | -0.0 | 0.0 |
183.463 | 310.791 | 177.266 | -3.386 | 0.0 | 0.0 |
177.073 | 177.073 | 332.211 | -0.0 | -0.0 | 0.0 |
3.27 | -3.27 | -0.0 | 49.297 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 49.297 | 3.27 |
-1.623 | -1.624 | 1.781 | 0.0 | 3.384 | 63.702 |
-6713.931 | -6839.466 | 19038.437 | 3.445 | -0.0 | -0.0 |
-7218.132 | -7092.516 | 19704.506 | -2.565 | -0.0 | -0.0 |
-6848.116 | -6848.116 | 19176.218 | 0.0 | -0.0 | -0.0 |
-7398.392 | -7403.521 | 19530.639 | 42.59 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 49.046 | 3.291 |
0.0 | 0.0 | -0.0 | 0.0 | 3.291 | 65.194 |
318.927 | 188.539 | 176.083 | 3.291 | 0.0 | -0.0 |
188.539 | 318.927 | 176.083 | -3.291 | 0.0 | -0.0 |
175.919 | 175.919 | 331.479 | -0.0 | 0.0 | 0.0 |
7025.199 | 7018.309 | -18864.431 | 39.834 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 49.046 | 3.291 |
-0.0 | -0.0 | 0.0 | -0.0 | 3.291 | 65.194 |
-394.348 | -519.883 | 2060.437 | 3.445 | -0.0 | -0.0 |
-519.883 | -394.348 | 2060.437 | -3.445 | 0.0 | 0.0 |
-528.511 | -528.511 | 2198.154 | 0.0 | -0.0 | -0.0 |
-698.721 | -705.611 | 1886.418 | 39.834 | -0.0 | -0.0 |
-702.166 | -702.166 | 1886.418 | 0.0 | 39.834 | 3.445 |
-702.175 | -702.175 | 1886.442 | -0.0 | 3.445 | 62.768 |
1009.994 | 884.459 | -1712.426 | 3.445 | 0.0 | 0.0 |
922.926 | 1048.545 | -1779.195 | -2.562 | -0.0 | 0.0 |
875.783 | 875.783 | -1574.568 | -0.0 | 0.0 | 0.0 |
705.611 | 698.721 | -1886.418 | 39.834 | 0.0 | 0.0 |
702.166 | 702.166 | -1886.418 | -0.0 | 39.834 | 3.445 |
702.175 | 702.175 | -1886.442 | 0.0 | 3.445 | 62.768 |
237.658 | 112.119 | 362.536 | 3.445 | 0.0 | -0.0 |
112.119 | 237.658 | 362.536 | -3.445 | -0.0 | -0.0 |
98.383 | 98.383 | 516.889 | 0.0 | -0.0 | -0.0 |
-66.678 | -73.567 | 188.39 | 39.846 | -0.0 | -0.0 |
-83.351 | -83.351 | 196.399 | 0.0 | 43.593 | 2.214 |
-70.212 | -70.212 | 188.631 | -0.0 | 3.445 | 62.768 |
378.0 | 252.462 | -14.517 | 3.445 | 0.0 | 0.0 |
188.537 | 318.924 | 176.081 | -3.291 | 0.0 | 0.0 |
175.917 | 175.917 | 331.476 | 0.0 | 0.0 | 0.0 |
76.563 | 71.437 | -195.274 | 42.597 | 0.0 | 0.0 |
83.351 | 83.351 | -196.399 | -0.0 | 43.593 | 2.214 |
70.212 | 70.212 | -188.631 | 0.0 | 3.445 | 62.768 |
470.916 | 101.994 | 101.994 | 0.0 | -0.0 | -0.0 |
101.994 | 470.916 | 101.994 | 0.0 | 0.0 | 0.0 |
101.994 | 101.994 | 470.916 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 5.752 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 5.752 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 5.752 |
470.915 | 101.994 | 101.994 | -0.0 | -0.0 | -0.0 |
101.994 | 470.915 | 101.994 | 0.0 | -0.0 | -0.0 |
101.994 | 101.994 | 470.915 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 5.752 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 5.752 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 5.752 |
470.916 | 101.994 | 101.994 | 0.0 | -0.0 | -0.0 |
101.994 | 470.916 | 101.994 | -0.0 | -0.0 | -0.0 |
101.994 | 101.994 | 470.916 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 5.752 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 5.752 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 5.752 |
470.915 | 101.994 | 101.994 | -0.0 | 0.0 | 0.0 |
101.994 | 470.915 | 101.994 | -0.0 | 0.0 | -0.0 |
101.994 | 101.994 | 470.915 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 5.752 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 5.752 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 5.752 |
470.919 | 101.995 | 101.995 | 0.0 | 0.0 | 0.0 |
101.995 | 470.919 | 101.995 | -0.0 | -0.0 | 0.0 |
101.995 | 101.995 | 470.919 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 5.752 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 5.752 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 5.752 |
470.912 | 101.992 | 101.992 | -0.0 | -0.0 | -0.0 |
101.992 | 470.912 | 101.992 | -0.0 | -0.0 | -0.0 |
101.992 | 101.992 | 470.912 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 5.752 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 5.752 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 5.752 |
232.098 | 149.65 | 149.65 | 0.0 | 0.0 | 0.0 |
149.65 | 232.098 | 149.65 | 0.0 | 0.0 | 0.0 |
149.65 | 149.65 | 232.098 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 87.226 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 87.226 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 87.226 |
232.098 | 149.65 | 149.65 | 0.0 | 0.0 | -0.0 |
149.65 | 232.098 | 149.65 | 0.0 | 0.0 | -0.0 |
149.65 | 149.65 | 232.098 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 87.226 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 87.226 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 87.226 |
232.098 | 149.65 | 149.65 | -0.0 | -0.0 | 0.0 |
149.65 | 232.098 | 149.65 | -0.0 | -0.0 | 0.0 |
149.65 | 149.65 | 232.098 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 87.226 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 87.226 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 87.226 |
232.098 | 149.65 | 149.65 | -0.0 | 0.0 | -0.0 |
149.65 | 232.098 | 149.65 | -0.0 | -0.0 | -0.0 |
149.65 | 149.65 | 232.098 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 87.226 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 87.226 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 87.226 |
232.098 | 149.651 | 149.651 | 0.0 | 0.0 | 0.0 |
149.651 | 232.098 | 149.651 | 0.0 | 0.0 | 0.0 |
149.651 | 149.651 | 232.098 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 87.226 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 87.226 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 87.226 |
232.098 | 149.649 | 149.649 | -0.0 | 0.0 | -0.0 |
149.649 | 232.098 | 149.649 | 0.0 | -0.0 | -0.0 |
149.649 | 149.649 | 232.098 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 87.226 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 87.226 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 87.226 |
26.894 | 56.416 | 56.416 | -0.0 | -0.0 | -0.0 |
56.416 | 26.894 | 56.416 | -0.0 | -0.0 | -0.0 |
56.416 | 56.416 | 26.894 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 28.714 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 28.714 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 28.714 |
26.894 | 56.416 | 56.416 | 0.0 | 0.0 | 0.0 |
56.416 | 26.894 | 56.416 | 0.0 | 0.0 | 0.0 |
56.416 | 56.416 | 26.894 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 28.714 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 28.714 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 28.714 |
26.894 | 56.416 | 56.416 | -0.0 | -0.0 | -0.0 |
56.416 | 26.894 | 56.416 | -0.0 | -0.0 | -0.0 |
56.416 | 56.416 | 26.894 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 28.714 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 28.714 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 28.714 |
26.894 | 56.416 | 56.416 | 0.0 | 0.0 | 0.0 |
56.416 | 26.894 | 56.416 | 0.0 | 0.0 | 0.0 |
56.416 | 56.416 | 26.894 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 28.714 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 28.714 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 28.714 |
26.895 | 56.416 | 56.416 | -0.0 | -0.0 | -0.0 |
56.416 | 26.895 | 56.416 | -0.0 | -0.0 | -0.0 |
56.416 | 56.416 | 26.895 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -58.274 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -58.274 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -58.274 |
26.894 | 56.416 | 56.416 | 0.0 | 0.0 | 0.0 |
56.416 | 26.894 | 56.416 | 0.0 | 0.0 | 0.0 |
56.416 | 56.416 | 26.894 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -58.274 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -58.274 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -58.274 |
336.529 | 188.454 | 174.329 | -3.444 | -0.0 | -0.0 |
188.454 | 336.529 | 174.329 | 3.444 | 0.0 | -0.0 |
174.329 | 174.329 | 338.637 | -0.0 | 0.0 | -0.0 |
-3.444 | 3.444 | 0.0 | 57.02 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 57.02 | -3.444 |
0.0 | 0.0 | -0.0 | -0.0 | -3.444 | 74.038 |
336.529 | 188.454 | 174.329 | -3.444 | -0.0 | 0.0 |
-2599.612 | -2453.18 | 3903.307 | 3.119 | 0.0 | 0.0 |
174.329 | 174.329 | 338.637 | -0.0 | -0.0 | 0.0 |
-3.444 | 3.444 | 0.0 | 57.02 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 57.02 | -3.444 |
-0.0 | -0.0 | 0.0 | 0.0 | -3.444 | 74.038 |
970.795 | 827.25 | 209.522 | -2.232 | 0.0 | -0.0 |
188.454 | 336.53 | 174.33 | 3.444 | 0.0 | -0.0 |
174.329 | 174.329 | 338.637 | 0.0 | 0.0 | -0.0 |
-3.444 | 3.444 | 0.0 | 57.02 | 0.0 | -0.0 |
960.563 | 960.563 | 209.321 | -0.0 | 51.871 | -1.609 |
0.0 | 0.0 | 0.0 | -0.0 | -3.444 | 74.038 |
54.425 | -92.006 | 547.489 | -3.118 | -0.0 | 0.0 |
188.454 | 336.529 | 174.329 | 3.444 | -0.0 | 0.0 |
-472.214 | -472.214 | 291.524 | -0.0 | -0.0 | 0.0 |
-281.736 | -275.498 | 372.86 | 54.411 | -0.0 | 0.0 |
-960.563 | -960.563 | -209.321 | 0.0 | 51.871 | -1.609 |
-0.0 | -0.0 | -0.0 | 0.0 | -3.444 | 74.038 |
421.265 | 278.803 | 193.783 | -1.612 | 0.0 | -0.0 |
188.456 | 336.532 | 174.331 | 3.444 | -0.0 | -0.0 |
201.398 | 201.398 | 297.694 | 0.0 | 0.0 | -0.0 |
24.753 | 30.991 | -37.3 | 54.41 | 0.0 | -0.0 |
96.033 | 96.033 | 20.916 | -0.0 | 51.872 | -1.61 |
27.869 | 27.869 | -37.295 | -0.0 | -3.119 | 73.216 |
305.136 | 158.724 | 211.922 | -3.115 | -0.0 | 0.0 |
118.422 | 261.854 | 168.515 | 2.199 | -0.0 | 0.0 |
107.719 | 107.719 | 325.012 | -0.0 | 0.0 | 0.0 |
-3.444 | 3.444 | -0.0 | 57.02 | -0.0 | 0.0 |
-96.033 | -96.033 | -20.916 | 0.0 | 51.872 | -1.61 |
-27.869 | -27.869 | 37.295 | 0.0 | -3.119 | 73.216 |
334.772 | 187.23 | 173.451 | -3.45 | 0.0 | 0.0 |
187.23 | 334.772 | 173.451 | 3.45 | 0.0 | -0.0 |
173.315 | 173.315 | 337.956 | -0.0 | 0.0 | 0.0 |
-3.45 | 3.45 | 0.0 | 56.843 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 56.843 | -3.45 |
0.0 | 0.0 | 0.0 | 0.0 | -3.45 | 73.771 |
-860.837 | -1006.198 | -157.114 | -3.018 | -0.0 | 0.0 |
187.23 | 334.772 | 173.451 | 3.45 | -0.0 | -0.0 |
173.315 | 173.315 | 337.956 | 0.0 | -0.0 | 0.0 |
-3.45 | 3.45 | -0.0 | 56.843 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 56.843 | -3.45 |
-0.0 | -0.0 | -0.0 | 0.0 | -3.45 | 73.771 |
679.357 | 536.821 | 360.805 | -1.853 | 0.0 | -0.0 |
303.64 | 449.014 | 206.117 | 3.02 | 0.0 | -0.0 |
173.315 | 173.315 | 337.956 | 0.0 | 0.0 | -0.0 |
-3.45 | 3.45 | 0.0 | 56.843 | 0.0 | -0.0 |
119.075 | 119.075 | 33.021 | -0.0 | 53.375 | -3.018 |
119.076 | 119.076 | 33.021 | -0.0 | -3.018 | 72.681 |
210.806 | 65.456 | 140.07 | -3.016 | -0.0 | 0.0 |
65.467 | 210.817 | 140.073 | 3.016 | -0.0 | -0.0 |
173.315 | 173.315 | 337.955 | 0.0 | -0.0 | 0.0 |
-297.732 | -293.357 | -156.907 | 51.977 | -0.0 | -0.0 |
-119.075 | -119.075 | -33.021 | 0.0 | 53.375 | -3.018 |
-119.076 | -119.076 | -33.021 | 0.0 | -3.018 | 72.681 |
342.097 | 196.624 | 176.424 | -3.04 | 0.0 | -0.0 |
211.715 | 354.98 | 187.037 | 2.24 | 0.0 | 0.0 |
173.316 | 173.316 | 337.958 | -0.0 | 0.0 | -0.0 |
8.898 | 14.933 | 3.304 | 53.373 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 56.843 | -3.45 |
29.569 | 29.569 | 15.7 | -0.0 | -2.187 | 71.553 |
317.691 | 172.461 | 169.763 | -2.992 | -0.0 | -0.0 |
152.53 | 295.505 | 155.642 | 2.143 | -0.0 | 0.0 |
173.313 | 173.313 | 337.953 | 0.0 | -0.0 | 0.0 |
-3.45 | 3.45 | -0.0 | 56.843 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 56.843 | -3.45 |
-29.569 | -29.569 | -15.7 | 0.0 | -2.187 | 71.553 |
311.868 | 164.486 | 122.781 | -0.0 | -0.0 | 0.0 |
162.192 | 206.91 | 162.883 | 0.0 | 0.0 | -0.0 |
122.456 | 164.852 | 310.512 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 80.882 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 41.262 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 78.572 |
311.868 | 164.486 | 122.781 | -0.0 | -0.0 | 0.0 |
162.192 | 206.91 | 162.883 | -0.0 | -0.0 | 0.0 |
122.456 | 164.852 | 310.512 | 0.0 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 80.882 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 41.262 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 78.572 |
311.868 | 164.486 | 122.781 | -0.0 | 0.0 | 0.0 |
162.192 | 206.91 | 162.883 | 0.0 | -0.0 | 0.0 |
122.456 | 164.853 | 310.512 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 80.882 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 41.262 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 78.572 |
311.868 | 164.486 | 122.781 | -0.0 | -0.0 | 0.0 |
162.191 | 206.91 | 162.883 | -0.0 | -0.0 | -0.0 |
122.456 | 164.852 | 310.512 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 80.882 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 41.262 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 78.572 |
311.869 | 164.487 | 122.782 | 0.0 | 0.0 | -0.0 |
162.193 | 206.909 | 162.884 | 0.0 | 0.0 | 0.0 |
122.457 | 164.854 | 310.513 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 80.882 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 41.262 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 78.572 |
311.867 | 164.485 | 122.78 | -0.0 | -0.0 | -0.0 |
162.191 | 206.91 | 162.882 | 0.0 | 0.0 | 0.0 |
122.455 | 164.851 | 310.511 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 80.882 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 41.262 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 78.572 |
86.469 | 83.328 | 18.762 | 0.0 | 0.0 | 0.0 |
83.328 | 86.469 | 18.762 | -0.0 | -0.0 | 0.0 |
18.762 | 18.762 | 213.109 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -5.58 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -5.58 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 32.001 |
116.9 | 52.897 | 18.762 | -0.0 | -0.0 | -0.0 |
83.328 | 86.469 | 18.762 | 0.0 | 0.0 | -0.0 |
18.762 | 18.762 | 213.109 | -0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -5.58 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -5.58 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 32.001 |
86.469 | 83.328 | 18.762 | -0.0 | -0.0 | 0.0 |
52.897 | 116.9 | 18.762 | 0.0 | 0.0 | 0.0 |
18.762 | 18.762 | 213.109 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -5.58 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -5.58 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 1.57 |
86.469 | 83.329 | 18.762 | 0.0 | 0.0 | -0.0 |
52.897 | 116.9 | 18.762 | -0.0 | -0.0 | -0.0 |
18.762 | 18.762 | 213.109 | 0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -5.58 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -5.58 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 1.57 |
86.468 | 83.328 | 18.762 | -0.0 | -0.0 | -0.0 |
52.897 | 116.899 | 18.762 | 0.0 | 0.0 | 0.0 |
18.762 | 18.762 | 213.11 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -5.58 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -5.58 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 32.001 |
85.282 | 84.516 | 18.763 | -0.0 | -0.0 | -0.0 |
84.518 | 85.28 | 18.763 | -0.0 | -0.0 | -0.0 |
18.762 | 18.762 | 213.108 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -5.58 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -5.58 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 32.001 |
116.482 | 99.324 | 89.51 | 0.0 | 0.0 | -0.0 |
99.324 | 116.482 | 89.51 | 0.0 | 0.0 | 0.0 |
89.511 | 89.511 | 117.293 | 0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 1.083 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 1.083 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -41.671 |
116.482 | 99.324 | 89.51 | -0.0 | -0.0 | -0.0 |
99.324 | 116.482 | 89.51 | -0.0 | -0.0 | -0.0 |
89.511 | 89.511 | 117.293 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 1.083 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 1.083 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -41.671 |
116.482 | 99.324 | 89.511 | 0.0 | 0.0 | 0.0 |
99.324 | 116.482 | 89.511 | -0.0 | 0.0 | -0.0 |
89.511 | 89.511 | 117.293 | 0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 1.083 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 1.083 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | -41.671 |
66.231 | 149.574 | 89.51 | -0.0 | -0.0 | 0.0 |
99.324 | 116.482 | 89.51 | -0.0 | -0.0 | 0.0 |
89.51 | 89.51 | 117.293 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 1.083 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 1.083 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.0 | -41.671 |
66.234 | 149.575 | 89.512 | 0.0 | -0.0 | -0.0 |
149.577 | 66.232 | 89.512 | -0.0 | -0.0 | -0.0 |
89.512 | 89.512 | 117.294 | 0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 1.083 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 1.083 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 8.579 |
66.23 | 149.573 | 89.509 | -0.0 | 0.0 | 0.0 |
99.323 | 116.48 | 89.509 | -0.0 | 0.0 | -0.0 |
89.509 | 89.509 | 117.292 | -0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 1.083 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 1.083 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 8.579 |
143.331 | 113.575 | 127.452 | -38.71 | -0.0 | -0.0 |
113.575 | 143.331 | 127.452 | 38.71 | -0.0 | -0.0 |
127.452 | 127.452 | 265.936 | -0.0 | -0.0 | -0.0 |
-38.71 | 38.71 | 0.0 | 31.232 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 31.232 | -38.71 |
0.0 | 0.0 | -0.0 | -0.0 | -38.71 | 14.878 |
143.331 | 113.575 | 127.452 | -38.71 | 0.0 | 0.0 |
113.575 | 143.331 | 127.452 | 38.71 | 0.0 | -0.0 |
127.452 | 127.452 | 265.936 | 0.0 | 0.0 | 0.0 |
-38.71 | 38.71 | 0.0 | 31.232 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 31.232 | -38.71 |
-0.0 | -0.0 | 0.0 | 0.0 | -38.71 | 14.878 |
143.331 | 113.575 | 127.452 | -38.71 | -0.0 | -0.0 |
113.575 | 143.331 | 127.452 | 38.71 | 0.0 | -0.0 |
127.452 | 127.452 | 265.936 | -0.0 | 0.0 | -0.0 |
-38.71 | 38.71 | 0.0 | 31.232 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 31.232 | -38.71 |
-0.0 | 0.0 | 0.0 | -0.0 | -38.71 | 14.878 |
143.331 | 113.575 | 127.452 | -38.71 | 0.0 | 0.0 |
113.575 | 143.331 | 127.452 | 38.71 | 0.0 | -0.0 |
127.452 | 127.452 | 265.936 | 0.0 | 0.0 | 0.0 |
-38.71 | 38.71 | -0.0 | 31.232 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 31.232 | -38.71 |
0.0 | -0.0 | -0.0 | 0.0 | -38.71 | 14.878 |
143.333 | 113.576 | 127.454 | -38.71 | -0.0 | 0.0 |
113.576 | 143.333 | 127.454 | 38.71 | -0.0 | -0.0 |
127.454 | 127.454 | 265.938 | -0.0 | -0.0 | -0.0 |
-38.71 | 38.71 | 0.0 | 31.232 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 31.232 | -38.71 |
-0.0 | 0.0 | 0.0 | -0.0 | -38.71 | 14.878 |
143.329 | 113.573 | 127.451 | -38.71 | 0.0 | 0.0 |
113.573 | 143.329 | 127.451 | 38.71 | 0.0 | 0.0 |
127.451 | 127.451 | 265.935 | -0.0 | 0.0 | -0.0 |
-38.71 | 38.71 | -0.0 | 31.232 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 31.232 | -38.71 |
0.0 | -0.0 | -0.0 | 0.0 | -38.71 | 14.878 |
26.626 | 71.982 | 71.982 | 0.0 | 0.0 | 0.0 |
71.982 | 26.626 | 71.982 | 0.0 | 0.0 | 0.0 |
71.982 | 71.982 | 26.626 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 48.943 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 48.943 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 48.943 |
26.626 | 71.982 | 71.982 | -0.0 | -0.0 | 0.0 |
71.982 | 26.626 | 71.982 | -0.0 | -0.0 | -0.0 |
71.982 | 71.982 | 26.626 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 48.943 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 48.943 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 48.943 |
26.627 | 71.982 | 71.982 | 0.0 | 0.0 | -0.0 |
71.982 | 26.627 | 71.982 | 0.0 | 0.0 | 0.0 |
71.982 | 71.982 | 26.627 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -39.853 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -39.853 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | -39.853 |
26.626 | 71.982 | 71.982 | -0.0 | -0.0 | 0.0 |
71.982 | 26.626 | 71.982 | -0.0 | -0.0 | 0.0 |
71.982 | 71.982 | 26.626 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -39.853 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -39.853 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -0.0 | -39.853 |
26.627 | 71.982 | 71.982 | 0.0 | 0.0 | 0.0 |
71.982 | 26.627 | 71.982 | 0.0 | 0.0 | 0.0 |
71.982 | 71.982 | 26.627 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 48.943 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 48.943 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 48.943 |
26.626 | 71.982 | 71.982 | -0.0 | -0.0 | -0.0 |
71.982 | 26.626 | 71.982 | -0.0 | -0.0 | -0.0 |
71.982 | 71.982 | 26.626 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 48.943 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 48.943 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 48.943 |
313.833 | 161.359 | 161.359 | 0.0 | 0.0 | 0.0 |
161.359 | 313.833 | 161.359 | 0.0 | 0.0 | 0.0 |
161.359 | 161.359 | 313.833 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 92.724 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 92.724 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 92.724 |
313.833 | 161.359 | 161.359 | -0.0 | -0.0 | -0.0 |
161.359 | 313.833 | 161.359 | -0.0 | -0.0 | -0.0 |
161.359 | 161.359 | 313.833 | 0.0 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 92.724 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 92.724 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 92.724 |
313.833 | 161.359 | 161.359 | 0.0 | 0.0 | 0.0 |
161.359 | 313.833 | 161.359 | 0.0 | 0.0 | 0.0 |
161.359 | 161.359 | 313.833 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 93.04 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 93.04 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 93.04 |
313.833 | 161.359 | 161.359 | -0.0 | -0.0 | 0.0 |
161.359 | 313.833 | 161.359 | -0.0 | -0.0 | -0.0 |
161.359 | 161.359 | 313.833 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 93.04 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 93.04 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 93.04 |
313.835 | 161.36 | 161.36 | 0.0 | 0.0 | 0.0 |
161.36 | 313.835 | 161.36 | 0.0 | 0.0 | 0.0 |
161.36 | 161.36 | 313.835 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 93.04 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 93.04 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 93.04 |
313.831 | 161.357 | 161.357 | -0.0 | 0.0 | -0.0 |
161.357 | 313.831 | 161.357 | 0.0 | -0.0 | 0.0 |
161.357 | 161.357 | 313.831 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 93.04 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 93.04 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 93.04 |
337.235 | 164.991 | 129.202 | -0.0 | 0.0 | -0.0 |
165.29 | 336.885 | 129.361 | 0.0 | -0.0 | -0.0 |
152.599 | 152.599 | 326.935 | -0.0 | -0.0 | 0.0 |
6.969 | 6.969 | -24.943 | 79.486 | -0.0 | -0.0 |
6.969 | 6.969 | -24.943 | -0.0 | 79.486 | -0.0 |
6.847 | 6.847 | -24.506 | -0.0 | -0.0 | 86.936 |
331.792 | 157.473 | 152.598 | 0.0 | 0.0 | 0.0 |
150.408 | 324.28 | 178.71 | 0.0 | 0.0 | 0.0 |
147.36 | 147.36 | 345.516 | 0.0 | 0.0 | 0.0 |
-6.969 | -6.969 | 24.943 | 79.486 | -0.0 | 0.0 |
-6.969 | -6.969 | 24.943 | 0.0 | 79.486 | 0.0 |
-6.847 | -6.847 | 24.506 | 0.0 | 0.0 | 86.936 |
330.806 | 158.809 | 152.074 | -0.0 | 0.0 | -0.0 |
157.473 | 331.792 | 152.598 | -0.0 | -0.0 | -0.0 |
152.599 | 152.599 | 326.935 | -0.0 | -0.0 | -0.0 |
0.69 | 0.69 | -2.497 | 71.211 | -0.0 | 0.0 |
1.483 | 1.483 | -5.307 | 0.0 | 76.206 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 87.16 |
331.792 | 157.473 | 152.598 | 0.0 | 0.0 | 0.0 |
157.473 | 331.792 | 152.598 | 0.0 | 0.0 | 0.0 |
152.599 | 152.599 | 326.934 | 0.0 | 0.0 | 0.0 |
-0.69 | -0.69 | 2.497 | 71.211 | -0.0 | 0.0 |
-1.483 | -1.483 | 5.307 | -0.0 | 76.206 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 87.16 |
330.905 | 157.253 | 154.625 | -0.0 | -0.0 | -0.0 |
157.474 | 331.794 | 152.599 | -0.0 | -0.0 | -0.0 |
152.601 | 152.601 | 326.937 | -0.0 | -0.0 | -0.0 |
0.264 | 0.264 | -0.944 | 71.379 | 0.0 | -0.0 |
0.069 | 0.069 | -0.249 | -0.0 | 71.188 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 87.16 |
331.79 | 157.471 | 152.597 | 0.0 | 0.0 | -0.0 |
157.471 | 331.79 | 152.597 | 0.0 | 0.0 | 0.0 |
154.268 | 154.268 | 320.431 | -0.0 | -0.0 | 0.0 |
-0.264 | -0.264 | 0.944 | 71.379 | 0.0 | 0.0 |
-0.069 | -0.069 | 0.249 | 0.0 | 71.188 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 87.16 |
330.787 | 156.902 | 152.982 | 0.0 | -0.0 | 0.0 |
-128.93 | 43.527 | 2010.09 | 0.0 | -0.0 | 0.0 |
12.496 | 12.496 | 1649.942 | 0.0 | -0.0 | 0.0 |
-286.078 | -286.078 | 1855.378 | 71.221 | 0.0 | 0.0 |
-144.666 | -144.666 | 1338.462 | -0.0 | 74.534 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 86.943 |
330.787 | 156.902 | 152.982 | 0.0 | 0.0 | -0.0 |
156.902 | 330.787 | 152.982 | -0.0 | 0.0 | 0.0 |
301.834 | 301.834 | -1026.984 | -0.0 | 0.0 | -0.0 |
286.078 | 286.078 | -1855.378 | 71.221 | 0.0 | -0.0 |
144.666 | 144.666 | -1338.462 | 0.0 | 74.534 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 86.943 |
330.787 | 156.902 | 152.982 | -0.0 | -0.0 | 0.0 |
141.805 | 314.44 | 291.53 | 0.0 | 0.0 | 0.0 |
125.779 | 125.779 | 507.474 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 82.422 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 82.422 | 0.0 |
-28.608 | -28.608 | 185.54 | -0.0 | -0.0 | 85.599 |
330.787 | 156.901 | 152.982 | -0.0 | -0.0 | -0.0 |
185.755 | 358.213 | -30.813 | -0.0 | -0.0 | -0.0 |
171.651 | 171.651 | 177.621 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 82.422 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 82.422 | -0.0 |
28.608 | 28.608 | -185.54 | 0.0 | -0.0 | 85.599 |
330.789 | 156.903 | 152.983 | 0.0 | 0.0 | 0.0 |
154.249 | 326.695 | 173.448 | 0.0 | -0.0 | 0.0 |
151.527 | 151.527 | 340.494 | 0.0 | 0.0 | 0.0 |
-2.861 | -2.861 | 18.554 | 71.212 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 82.422 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 86.943 |
330.394 | 157.726 | 144.243 | 0.0 | -0.0 | -0.0 |
157.726 | 330.394 | 144.243 | -0.0 | -0.0 | -0.0 |
152.636 | 152.636 | 328.629 | -0.0 | 0.0 | -0.0 |
2.861 | 2.861 | -18.554 | 71.212 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 82.422 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 86.943 |
961.137 | 787.438 | -866.195 | -0.0 | -0.0 | 0.0 |
937.735 | 1111.653 | -1579.241 | -0.0 | -0.0 | 0.0 |
933.935 | 933.935 | -1407.531 | 0.0 | -0.0 | 0.0 |
630.848 | 630.848 | -1018.841 | 77.744 | -0.0 | 0.0 |
781.284 | 781.284 | -1732.131 | 0.0 | 78.795 | 0.0 |
630.848 | 630.848 | -1018.842 | 0.0 | -0.0 | 86.849 |
-300.559 | -474.257 | 1171.488 | -0.0 | 0.0 | -0.0 |
156.54 | 331.127 | 151.266 | -0.0 | 0.0 | -0.0 |
151.266 | 151.266 | 330.478 | -0.0 | 0.0 | -0.0 |
-630.848 | -630.848 | 1018.841 | 77.744 | 0.0 | -0.0 |
-781.284 | -781.284 | 1732.131 | -0.0 | 78.795 | -0.0 |
-630.848 | -630.848 | 1018.842 | -0.0 | 0.0 | 86.849 |
408.497 | 234.579 | -20.321 | 0.0 | -0.0 | 0.0 |
156.54 | 331.128 | 151.266 | 0.0 | -0.0 | 0.0 |
230.756 | 230.756 | 151.456 | -0.0 | -0.0 | 0.0 |
78.131 | 78.131 | -173.219 | 78.795 | -0.0 | 0.0 |
78.131 | 78.131 | -173.219 | 0.0 | 78.795 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 87.294 |
331.127 | 156.54 | 151.266 | 0.0 | 0.0 | -0.0 |
78.323 | 252.242 | 326.099 | -0.0 | 0.0 | -0.0 |
74.543 | 74.543 | 497.748 | 0.0 | 0.0 | -0.0 |
-78.131 | -78.131 | 173.219 | 78.795 | 0.0 | -0.0 |
-78.131 | -78.131 | 173.219 | -0.0 | 78.795 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 87.294 |
338.171 | 164.261 | 135.598 | -0.0 | -0.0 | 0.0 |
164.261 | 338.171 | 135.598 | 0.0 | -0.0 | 0.0 |
160.303 | 160.303 | 307.829 | 0.0 | -0.0 | 0.0 |
6.291 | 6.291 | -10.061 | 77.712 | -0.0 | 0.0 |
7.84 | 7.84 | -17.382 | -0.0 | 78.784 | 0.0 |
7.816 | 7.816 | -17.328 | 0.0 | -0.0 | 86.959 |
331.125 | 156.539 | 151.265 | -0.0 | 0.0 | -0.0 |
150.285 | 323.995 | 162.782 | 0.0 | 0.0 | -0.0 |
151.264 | 151.264 | 330.476 | -0.0 | 0.0 | -0.0 |
-6.291 | -6.291 | 10.061 | 77.712 | 0.0 | -0.0 |
-7.84 | -7.84 | 17.382 | 0.0 | 78.784 | -0.0 |
-7.816 | -7.816 | 17.328 | -0.0 | 0.0 | 86.959 |
330.049 | 155.849 | 151.342 | -0.0 | 0.0 | 0.0 |
155.849 | 330.049 | 151.342 | -0.0 | 0.0 | -0.0 |
151.06 | 151.06 | 331.271 | -0.0 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 82.088 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 82.088 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 87.1 |
329.371 | 155.661 | 152.769 | 0.0 | -0.0 | -0.0 |
155.661 | 329.371 | 152.769 | 0.0 | -0.0 | 0.0 |
152.014 | 152.014 | 327.701 | 0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 82.088 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 82.088 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 87.1 |
330.049 | 155.849 | 151.342 | -0.0 | 0.0 | -0.0 |
155.849 | 330.049 | 151.342 | -0.0 | 0.0 | -0.0 |
152.022 | 152.022 | 327.736 | -0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 82.088 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 82.088 | 0.0 |
-0.014 | -0.014 | 0.065 | -0.0 | 0.0 | 86.287 |
330.048 | 155.848 | 151.342 | 0.0 | -0.0 | 0.0 |
155.848 | 330.048 | 151.342 | 0.0 | -0.0 | 0.0 |
151.06 | 151.06 | 331.271 | 0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 82.088 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 82.088 | -0.0 |
0.014 | 0.014 | -0.065 | 0.0 | -0.0 | 86.287 |
330.051 | 155.85 | 151.343 | -0.0 | 0.0 | 0.0 |
155.85 | 330.051 | 151.343 | -0.0 | 0.0 | -0.0 |
151.061 | 151.061 | 331.273 | -0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 82.088 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 82.088 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 87.1 |
329.4 | 155.695 | 152.725 | 0.0 | -0.0 | 0.0 |
155.847 | 330.047 | 151.341 | 0.0 | -0.0 | 0.0 |
152.019 | 152.019 | 327.733 | 0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 82.088 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 82.088 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 87.1 |
19.666 | 7.438 | 4.088 | 4.88 | 0.0 | -0.0 |
7.438 | 19.666 | 4.088 | -4.88 | 0.0 | -0.0 |
4.08 | 4.08 | 23.271 | -0.0 | 0.0 | -0.0 |
-0.641 | 0.538 | 0.102 | -1.145 | 0.0 | -0.0 |
-0.051 | -0.051 | 0.102 | -0.0 | -1.145 | -0.59 |
-0.051 | -0.051 | 0.102 | -0.0 | -0.59 | -1.574 |
19.666 | 7.438 | 4.088 | 4.88 | -0.0 | 0.0 |
11.274 | 8.155 | 11.723 | 0.58 | 0.0 | 0.0 |
11.839 | 11.839 | 7.834 | 0.0 | -0.0 | 0.0 |
-0.538 | 0.641 | -0.102 | -1.145 | 0.0 | 0.0 |
0.051 | 0.051 | -0.102 | 0.0 | -1.145 | -0.59 |
0.051 | 0.051 | -0.102 | 0.0 | -0.59 | -1.574 |
19.666 | 7.438 | 4.088 | 4.88 | 0.0 | -0.0 |
11.217 | 8.099 | 11.835 | 0.579 | -0.0 | -0.0 |
11.783 | 11.783 | 7.946 | 0.0 | -0.0 | -0.0 |
4.88 | -4.88 | -0.0 | 2.746 | 0.0 | -0.0 |
-0.005 | -0.005 | 0.01 | -0.0 | -1.145 | -0.59 |
-0.005 | -0.005 | 0.01 | -0.0 | -0.59 | -1.574 |
8.109 | 11.227 | 11.814 | -0.579 | -0.0 | 0.0 |
11.227 | 8.109 | 11.814 | 0.579 | 0.0 | 0.0 |
4.08 | 4.08 | 23.271 | 0.0 | 0.0 | 0.0 |
-0.585 | 0.595 | -0.01 | -1.145 | -0.0 | 0.0 |
0.005 | 0.005 | -0.01 | 0.0 | -1.145 | -0.59 |
0.005 | 0.005 | -0.01 | 0.0 | -0.59 | -1.574 |
8.103 | 11.251 | 11.797 | -0.59 | 0.0 | -0.0 |
7.438 | 19.666 | 4.088 | -4.88 | 0.0 | -0.0 |
11.788 | 11.788 | 7.936 | -0.0 | 0.0 | -0.0 |
-0.59 | 0.589 | 0.001 | -1.145 | 0.0 | -0.0 |
-0.001 | -0.001 | 0.001 | -0.0 | -1.145 | -0.59 |
-0.001 | -0.001 | 0.001 | -0.0 | -0.59 | -1.574 |
19.666 | 7.438 | 4.088 | 4.88 | -0.0 | 0.0 |
7.438 | 19.666 | 4.088 | -4.88 | 0.0 | 0.0 |
4.08 | 4.08 | 23.271 | 0.0 | 0.0 | 0.0 |
4.88 | -4.88 | 0.0 | 2.746 | 0.0 | 0.0 |
0.001 | 0.001 | -0.001 | 0.0 | -1.145 | -0.59 |
0.001 | 0.001 | -0.001 | 0.0 | -0.59 | -1.574 |
332.013 | 89.623 | 89.623 | 0.0 | 0.0 | -0.0 |
89.623 | 332.013 | 89.623 | -0.0 | 0.0 | -0.0 |
89.623 | 89.623 | 332.013 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -5.172 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -5.172 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -5.172 |
326.197 | 92.531 | 92.531 | -0.0 | -0.0 | 0.0 |
92.531 | 326.197 | 92.531 | -0.0 | -0.0 | 0.0 |
92.531 | 92.531 | 326.197 | 0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -5.172 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -5.172 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -5.172 |
332.013 | 89.623 | 89.623 | 0.0 | 0.0 | -0.0 |
89.623 | 332.013 | 89.623 | 0.0 | 0.0 | -0.0 |
89.623 | 89.623 | 332.013 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 28.086 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 28.086 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 28.086 |
332.013 | 89.623 | 89.623 | 0.0 | -0.0 | 0.0 |
89.623 | 332.013 | 89.623 | -0.0 | -0.0 | 0.0 |
89.623 | 89.623 | 332.013 | 0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 28.086 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 28.086 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 28.086 |
332.015 | 89.624 | 89.624 | 0.0 | 0.0 | -0.0 |
89.624 | 332.015 | 89.624 | 0.0 | 0.0 | -0.0 |
89.624 | 89.624 | 332.015 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -5.172 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -5.172 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.0 | -5.172 |
332.011 | 89.622 | 89.622 | 0.0 | -0.0 | 0.0 |
89.622 | 332.011 | 89.622 | -0.0 | -0.0 | 0.0 |
89.622 | 89.622 | 332.011 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -5.172 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -5.172 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | -5.172 |
150.515 | 149.611 | 149.611 | 0.0 | -0.0 | -0.0 |
149.611 | 150.515 | 149.611 | 0.0 | 0.0 | 0.0 |
149.611 | 149.611 | 150.515 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 93.855 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 93.855 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 93.855 |
150.515 | 149.611 | 149.611 | -0.0 | -0.0 | -0.0 |
149.611 | 150.515 | 149.611 | -0.0 | 0.0 | -0.0 |
149.611 | 149.611 | 150.515 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 93.855 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 93.855 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 93.855 |
150.515 | 149.611 | 149.611 | 0.0 | 0.0 | 0.0 |
149.611 | 150.515 | 149.611 | 0.0 | -0.0 | -0.0 |
149.611 | 149.611 | 150.515 | 0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 99.125 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 99.125 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 99.125 |
150.515 | 149.611 | 149.611 | -0.0 | -0.0 | -0.0 |
149.611 | 150.515 | 149.611 | -0.0 | -0.0 | 0.0 |
149.611 | 149.611 | 150.515 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 99.125 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 99.125 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 99.125 |
150.517 | 149.612 | 149.612 | 0.0 | -0.0 | -0.0 |
149.612 | 150.517 | 149.612 | 0.0 | 0.0 | 0.0 |
149.612 | 149.612 | 150.517 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 93.855 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 93.855 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 93.855 |
150.514 | 149.61 | 149.61 | -0.0 | -0.0 | -0.0 |
149.61 | 150.514 | 149.61 | -0.0 | -0.0 | -0.0 |
149.61 | 149.61 | 150.514 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 93.855 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 93.855 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 93.855 |
232.314 | 174.942 | 174.942 | 0.0 | 0.0 | 0.0 |
174.942 | 232.314 | 174.942 | 0.0 | 0.0 | -0.0 |
174.942 | 174.942 | 232.314 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 92.58 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 92.58 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 92.58 |
232.314 | 174.942 | 174.942 | -0.0 | -0.0 | 0.0 |
174.942 | 232.314 | 174.942 | -0.0 | -0.0 | 0.0 |
174.942 | 174.942 | 232.314 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 92.58 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 92.58 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 92.58 |
232.314 | 174.942 | 174.942 | 0.0 | 0.0 | 0.0 |
174.942 | 232.314 | 174.942 | 0.0 | 0.0 | 0.0 |
174.942 | 174.942 | 232.314 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 92.58 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 92.58 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 92.58 |
232.313 | 174.942 | 174.942 | -0.0 | -0.0 | -0.0 |
174.942 | 232.313 | 174.942 | -0.0 | -0.0 | 0.0 |
174.942 | 174.942 | 232.313 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 92.58 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 92.58 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 92.58 |
232.316 | 174.943 | 174.943 | 0.0 | 0.0 | 0.0 |
174.943 | 232.316 | 174.943 | 0.0 | 0.0 | 0.0 |
174.943 | 174.943 | 232.316 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 92.58 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 92.58 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 92.58 |
232.312 | 174.94 | 174.94 | -0.0 | -0.0 | -0.0 |
174.94 | 232.312 | 174.94 | -0.0 | -0.0 | -0.0 |
174.94 | 174.94 | 232.312 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 92.58 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 92.58 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 92.58 |
226.56 | 164.078 | 112.232 | 0.0 | 0.0 | 0.0 |
153.527 | 254.88 | 114.178 | -0.0 | -0.0 | -0.0 |
114.218 | 114.218 | 278.126 | -0.0 | 0.0 | -0.0 |
4.201 | 4.201 | 0.92 | 23.624 | 0.0 | -0.0 |
1.182 | 1.182 | 0.259 | -0.0 | 18.496 | -0.0 |
3.974 | 3.974 | 0.87 | 0.0 | 0.0 | 20.168 |
229.535 | 157.693 | 111.859 | 0.0 | -0.0 | -0.0 |
185.162 | 211.362 | 112.877 | 0.0 | -0.0 | 0.0 |
114.218 | 114.218 | 278.126 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 28.065 | 0.0 | 0.0 |
-1.182 | -1.182 | -0.259 | -0.0 | 18.496 | 0.0 |
-3.974 | -3.974 | -0.87 | 0.0 | -0.0 | 20.168 |
228.287 | 160.716 | 112.053 | -0.0 | 0.0 | -0.0 |
160.716 | 228.287 | 112.053 | -0.0 | 0.0 | -0.0 |
114.218 | 114.218 | 278.126 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 28.065 | 0.0 | 0.0 |
0.893 | 0.893 | 0.195 | -0.0 | 18.627 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 50.677 |
254.88 | 153.526 | 114.178 | 0.0 | -0.0 | 0.0 |
186.36 | 212.511 | 113.134 | 0.0 | -0.0 | -0.0 |
112.934 | 112.934 | 277.845 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 28.065 | -0.0 | -0.0 |
-0.893 | -0.893 | -0.195 | 0.0 | 18.627 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 50.677 |
254.882 | 153.527 | 114.178 | 0.0 | 0.0 | -0.0 |
186.512 | 212.654 | 113.166 | -0.0 | 0.0 | -0.0 |
113.064 | 113.064 | 277.873 | -0.0 | 0.0 | -0.0 |
0.091 | 0.09 | 0.02 | 18.497 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 28.065 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 50.677 |
254.879 | 153.526 | 114.177 | -0.0 | -0.0 | -0.0 |
153.525 | 254.879 | 114.177 | 0.0 | -0.0 | 0.0 |
114.218 | 114.218 | 278.126 | 0.0 | -0.0 | 0.0 |
-0.091 | -0.09 | -0.02 | 18.497 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 28.065 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 50.677 |
254.218 | 153.069 | 114.02 | -0.0 | -0.0 | -0.0 |
153.069 | 254.218 | 114.02 | -0.0 | 0.0 | -0.0 |
113.854 | 113.854 | 277.86 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 28.062 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 28.062 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 50.574 |
228.769 | 157.839 | 111.799 | -0.0 | -0.0 | -0.0 |
153.069 | 254.218 | 114.02 | 0.0 | -0.0 | 0.0 |
114.02 | 114.02 | 277.896 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 28.062 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 28.062 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 50.574 |
254.218 | 153.069 | 114.02 | -0.0 | -0.0 | 0.0 |
153.07 | 254.218 | 114.02 | -0.0 | -0.0 | -0.0 |
114.02 | 114.02 | 277.896 | -0.0 | -0.0 | 0.0 |
0.729 | 0.729 | 0.157 | 18.579 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 28.062 | -0.0 |
0.347 | 0.347 | 0.074 | -0.0 | 0.0 | 17.865 |
227.915 | 159.873 | 111.926 | 0.0 | -0.0 | 0.0 |
153.069 | 254.218 | 114.02 | 0.0 | -0.0 | 0.0 |
114.02 | 114.02 | 277.896 | 0.0 | 0.0 | -0.0 |
-0.729 | -0.729 | -0.157 | 18.58 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 28.062 | 0.0 |
-0.347 | -0.347 | -0.074 | 0.0 | -0.0 | 17.865 |
254.22 | 153.07 | 114.02 | -0.0 | 0.0 | 0.0 |
153.071 | 254.219 | 114.02 | -0.0 | 0.0 | -0.0 |
112.902 | 112.902 | 277.655 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 28.062 | 0.0 | 0.0 |
0.073 | 0.074 | 0.016 | 0.0 | 18.492 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 50.574 |
254.216 | 153.069 | 114.019 | 0.0 | -0.0 | 0.0 |
153.068 | 254.216 | 114.019 | 0.0 | -0.0 | 0.0 |
114.02 | 114.02 | 277.896 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 28.062 | 0.0 | -0.0 |
-0.073 | -0.074 | -0.016 | 0.0 | 18.492 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 50.574 |
367.707 | 130.685 | -96.974 | 0.0 | -0.0 | 0.0 |
105.638 | 281.332 | 139.6 | 0.0 | -0.0 | 0.0 |
176.399 | 175.562 | 80.077 | 0.0 | -0.0 | -0.0 |
80.734 | 23.621 | -191.538 | 71.651 | -0.0 | 0.0 |
80.695 | 23.61 | -191.445 | 0.0 | 32.599 | 0.0 |
79.966 | 18.294 | -183.829 | 0.0 | -0.0 | 42.394 |
208.87 | 88.84 | 276.958 | -0.0 | 0.0 | -0.0 |
105.638 | 281.332 | 139.6 | -0.0 | 0.0 | -0.0 |
93.24 | 141.837 | 289.126 | -0.0 | 0.0 | -0.0 |
-80.734 | -23.621 | 191.538 | 71.651 | 0.0 | -0.0 |
-80.695 | -23.61 | 191.445 | -0.0 | 32.599 | -0.0 |
-79.966 | -18.294 | 183.829 | -0.0 | 0.0 | 42.394 |
290.575 | 106.451 | 91.817 | 0.0 | -0.0 | 0.0 |
114.944 | 275.704 | 130.015 | 0.0 | -0.0 | 0.0 |
104.264 | 154.749 | 250.85 | 0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 81.718 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 33.958 | 0.0 |
8.034 | 2.351 | -19.061 | 0.0 | -0.0 | 42.166 |
290.575 | 106.451 | 91.817 | -0.0 | 0.0 | -0.0 |
97.658 | 268.057 | 174.006 | -0.0 | 0.0 | -0.0 |
86.916 | 150.964 | 290.391 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 81.718 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 33.958 | -0.0 |
-8.034 | -2.351 | 19.061 | -0.0 | 0.0 | 42.166 |
290.575 | 106.452 | 91.818 | 0.0 | -0.0 | 0.0 |
108.583 | 266.154 | 156.613 | 0.0 | -0.0 | 0.0 |
93.241 | 141.839 | 289.128 | 0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 81.718 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 33.958 | 0.0 |
0.797 | 0.144 | -1.786 | 0.0 | -0.0 | 42.404 |
287.519 | 106.674 | 95.659 | -0.0 | 0.0 | -0.0 |
105.322 | 267.74 | 160.537 | -0.0 | 0.0 | -0.0 |
96.51 | 159.546 | 260.394 | -0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 81.718 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 33.958 | -0.0 |
-0.797 | -0.144 | 1.786 | -0.0 | 0.0 | 42.404 |
236.608 | 167.153 | 195.473 | 0.0 | 0.0 | -0.0 |
167.153 | 236.608 | 195.473 | 0.0 | 0.0 | -0.0 |
195.473 | 195.473 | 238.065 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 116.723 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 116.723 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 85.237 |
237.901 | 165.86 | 195.473 | -0.0 | 0.0 | -0.0 |
165.86 | 237.901 | 195.473 | 0.0 | -0.0 | -0.0 |
195.473 | 195.473 | 238.065 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 116.723 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 116.723 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 85.237 |
236.608 | 167.153 | 195.473 | -0.0 | 0.0 | 0.0 |
167.153 | 236.608 | 195.473 | 0.0 | -0.0 | 0.0 |
195.473 | 195.473 | 238.065 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 116.723 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 116.723 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 85.237 |
236.608 | 167.153 | 195.473 | -0.0 | -0.0 | -0.0 |
167.153 | 236.608 | 195.473 | -0.0 | -0.0 | -0.0 |
195.473 | 195.473 | 238.065 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 116.723 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 116.723 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 85.237 |
237.903 | 165.861 | 195.475 | 0.0 | 0.0 | 0.0 |
165.861 | 237.903 | 195.475 | 0.0 | -0.0 | 0.0 |
195.475 | 195.475 | 238.067 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 116.723 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 116.723 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 85.237 |
236.606 | 167.152 | 195.472 | -0.0 | -0.0 | -0.0 |
167.152 | 236.606 | 195.472 | -0.0 | -0.0 | -0.0 |
195.472 | 195.472 | 238.064 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 116.723 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 116.723 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 85.237 |
-362.17 | -999.955 | 2682.579 | 0.0 | 0.0 | -0.0 |
-702.547 | -404.413 | 2193.931 | 0.0 | 0.0 | -0.0 |
-556.492 | -946.514 | 2851.232 | 0.0 | 0.0 | 0.0 |
-613.423 | -1717.562 | 3315.728 | 60.314 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 33.115 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 43.48 |
940.013 | 1218.381 | -2498.068 | -0.0 | -0.0 | 0.0 |
913.782 | 947.313 | -1884.345 | -0.0 | -0.0 | -0.0 |
93.139 | 143.199 | 291.524 | -0.0 | -0.0 | -0.0 |
808.169 | 675.851 | -2039.128 | 72.89 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 33.115 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 43.48 |
291.503 | 107.435 | 91.965 | 0.0 | 0.0 | -0.0 |
106.656 | 279.974 | 141.246 | 0.0 | 0.0 | 0.0 |
93.139 | 143.199 | 291.524 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 82.368 | 0.0 | 0.0 |
-80.826 | -67.593 | 203.937 | 0.0 | 31.867 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 43.48 |
370.152 | 176.569 | -112.327 | -0.0 | -0.0 | 0.0 |
172.673 | 375.797 | -96.81 | -0.0 | -0.0 | 0.0 |
93.139 | 143.199 | 291.524 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 82.368 | -0.0 | 0.0 |
80.826 | 67.593 | -203.937 | -0.0 | 31.867 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 43.48 |
291.504 | 107.436 | 91.966 | 0.0 | 0.0 | -0.0 |
106.657 | 279.976 | 141.247 | 0.0 | 0.0 | 0.0 |
93.14 | 143.2 | 291.526 | 0.0 | 0.0 | 0.0 |
-8.907 | -7.449 | 22.474 | 71.922 | 0.0 | -0.0 |
-8.184 | -6.844 | 20.65 | 0.0 | 31.851 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 43.48 |
291.503 | 107.434 | 91.964 | -0.0 | -0.0 | 0.0 |
106.655 | 279.972 | 141.245 | -0.0 | -0.0 | 0.0 |
93.138 | 143.198 | 291.523 | -0.0 | -0.0 | 0.0 |
8.907 | 7.449 | -22.474 | 71.922 | -0.0 | 0.0 |
8.184 | 6.844 | -20.65 | -0.0 | 31.851 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 43.48 |
292.812 | 112.222 | 90.075 | -0.0 | 0.0 | -0.0 |
255.818 | 348.291 | -169.917 | -0.0 | 0.0 | 0.0 |
199.977 | 996.659 | -951.371 | -0.0 | 0.0 | 0.0 |
144.938 | 90.074 | -328.389 | 79.567 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 27.172 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 48.366 |
100.992 | -489.747 | 1116.999 | 0.0 | -0.0 | 0.0 |
112.222 | 264.188 | 149.057 | 0.0 | -0.0 | 0.0 |
-51.369 | 65.87 | 617.888 | 0.0 | -0.0 | 0.0 |
-144.938 | -90.074 | 328.389 | 79.567 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 27.172 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 48.366 |
302.276 | 196.661 | -32.575 | -0.0 | 0.0 | -0.0 |
112.222 | 264.188 | 149.057 | -0.0 | 0.0 | -0.0 |
108.393 | 165.826 | 255.167 | -0.0 | 0.0 | -0.0 |
14.693 | 9.132 | -33.291 | 79.477 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 27.172 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 48.366 |
276.534 | 103.547 | 124.368 | 0.0 | -0.0 | 0.0 |
112.222 | 264.188 | 149.057 | 0.0 | -0.0 | 0.0 |
74.633 | 113.373 | 370.123 | 0.0 | -0.0 | 0.0 |
-14.693 | -9.132 | 33.291 | 79.477 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 27.172 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 48.366 |
291.715 | 121.62 | 78.821 | -0.0 | 0.0 | -0.0 |
113.947 | 260.017 | 151.659 | -0.0 | 0.0 | -0.0 |
90.076 | 149.058 | 302.679 | -0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 86.127 | 0.0 | 0.0 |
1.797 | 5.451 | -9.403 | -0.0 | 25.025 | -0.0 |
1.49 | 0.926 | -3.376 | -0.0 | 0.0 | 47.724 |
292.811 | 112.221 | 90.075 | 0.0 | -0.0 | 0.0 |
108.277 | 244.532 | 179.339 | 0.0 | -0.0 | -0.0 |
90.022 | 170.113 | 276.307 | 0.0 | -0.0 | 0.0 |
-2.641 | -1.641 | 5.984 | 74.173 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 27.172 | 0.0 |
-1.49 | -0.926 | 3.376 | 0.0 | -0.0 | 47.724 |
473.925 | 114.569 | -214.559 | 0.0 | -0.0 | 0.0 |
291.86 | 279.362 | -156.414 | 0.0 | -0.0 | 0.0 |
286.947 | 140.413 | 20.288 | 0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 81.819 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 33.831 | 0.0 |
185.506 | 7.575 | -308.418 | 0.0 | -0.0 | 42.404 |
97.585 | 116.776 | 346.96 | -0.0 | 0.0 | -0.0 |
-85.17 | 284.792 | 402.462 | -0.0 | 0.0 | -0.0 |
-95.069 | 159.842 | 528.223 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 81.819 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 33.831 | -0.0 |
-185.506 | -7.575 | 308.418 | -0.0 | 0.0 | 42.404 |
306.955 | 107.754 | 63.03 | 0.0 | -0.0 | 0.0 |
125.226 | 274.114 | 122.683 | 0.0 | -0.0 | 0.0 |
115.505 | 149.556 | 247.647 | 0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 81.819 | -0.0 | 0.0 |
19.14 | -0.976 | -25.445 | 0.0 | 32.745 | 0.0 |
19.086 | -0.973 | -25.373 | 0.0 | -0.0 | 42.389 |
269.88 | 106.236 | 124.688 | -0.0 | 0.0 | -0.0 |
105.752 | 281.136 | 139.83 | -0.0 | 0.0 | -0.0 |
93.192 | 142.025 | 289.48 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 81.819 | 0.0 | 0.0 |
-19.14 | 0.976 | 25.445 | -0.0 | 32.745 | -0.0 |
-19.086 | 0.973 | 25.373 | -0.0 | 0.0 | 42.389 |
290.747 | 106.573 | 91.818 | 0.0 | -0.0 | 0.0 |
109.603 | 271.242 | 148.775 | 0.0 | -0.0 | 0.0 |
93.193 | 142.027 | 289.482 | 0.0 | -0.0 | 0.0 |
3.371 | -0.172 | -4.481 | 67.616 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 33.831 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 42.972 |
286.804 | 107.066 | 95.682 | -0.0 | 0.0 | -0.0 |
105.752 | 281.134 | 139.829 | -0.0 | 0.0 | -0.0 |
93.582 | 167.33 | 253.949 | -0.0 | 0.0 | 0.0 |
-3.371 | 0.172 | 4.481 | 67.616 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 33.831 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 42.972 |
121.791 | -3.786 | 303.209 | -0.0 | -0.0 | -0.0 |
-3.786 | 121.791 | 303.209 | 0.0 | -0.0 | -0.0 |
-33.465 | -33.465 | 497.882 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 37.812 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 37.812 | -0.0 |
-132.515 | -132.515 | 204.129 | 0.0 | -0.0 | 46.825 |
259.328 | 125.375 | 97.795 | 0.0 | 0.0 | 0.0 |
125.375 | 259.328 | 97.795 | 0.0 | -0.0 | 0.0 |
231.564 | 231.564 | 89.625 | -0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 37.812 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 37.812 | -0.0 |
132.515 | 132.515 | -204.129 | -0.0 | 0.0 | 46.825 |
259.328 | 125.375 | 97.795 | -0.0 | -0.0 | 0.0 |
115.363 | 240.829 | 119.755 | 0.0 | 0.0 | -0.0 |
97.795 | 97.795 | 295.686 | 0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 37.812 | -0.0 | -0.0 |
-13.263 | -13.263 | 20.431 | 0.0 | 37.522 | 0.0 |
-13.453 | -13.453 | 20.723 | 0.0 | 0.0 | 62.726 |
267.72 | 142.286 | 78.306 | -0.0 | 0.0 | 0.0 |
125.374 | 259.328 | 97.795 | -0.0 | 0.0 | 0.0 |
112.301 | 112.301 | 273.341 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 37.812 | 0.0 | 0.0 |
13.263 | 13.263 | -20.431 | -0.0 | 37.522 | 0.0 |
13.453 | 13.453 | -20.723 | 0.0 | 0.0 | 62.726 |
236.955 | 143.473 | 101.09 | 0.0 | 0.0 | -0.0 |
128.459 | 249.803 | 102.759 | 0.0 | -0.0 | -0.0 |
97.725 | 97.725 | 295.795 | 0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 37.812 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 37.812 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 66.977 |
239.733 | 146.109 | 96.914 | -0.0 | 0.0 | 0.0 |
146.109 | 239.733 | 96.914 | -0.0 | 0.0 | 0.0 |
97.794 | 97.794 | 295.685 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 37.812 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 37.812 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 66.977 |
243.623 | 135.259 | 101.373 | 0.0 | -0.0 | -0.0 |
135.259 | 243.623 | 101.373 | 0.0 | -0.0 | -0.0 |
97.594 | 97.594 | 294.829 | -0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 37.704 | -0.0 | -0.0 |
0.084 | 0.084 | -0.13 | 0.0 | 36.837 | -0.0 |
0.132 | 0.132 | -0.203 | 0.0 | 0.0 | 47.061 |
258.634 | 124.989 | 97.728 | 0.0 | -0.0 | -0.0 |
124.989 | 258.634 | 97.728 | 0.0 | -0.0 | 0.0 |
98.827 | 98.827 | 292.934 | -0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 37.704 | 0.0 | 0.0 |
-0.084 | -0.084 | 0.13 | -0.0 | 36.837 | -0.0 |
-0.132 | -0.132 | 0.203 | -0.0 | 0.0 | 47.061 |
237.497 | 144.409 | 99.049 | 0.0 | -0.0 | -0.0 |
124.989 | 258.634 | 97.728 | 0.0 | 0.0 | 0.0 |
98.858 | 98.858 | 292.886 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 37.704 | 0.0 | -0.0 |
0.008 | 0.008 | -0.013 | 0.0 | 36.831 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 66.823 |
243.886 | 134.925 | 101.426 | 0.0 | 0.0 | 0.0 |
134.925 | 243.886 | 101.426 | -0.0 | 0.0 | 0.0 |
98.852 | 98.852 | 292.895 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 37.704 | 0.0 | 0.0 |
-0.008 | -0.008 | 0.013 | -0.0 | 36.831 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 66.823 |
243.862 | 134.959 | 101.422 | 0.0 | 0.0 | -0.0 |
124.99 | 258.636 | 97.729 | -0.0 | 0.0 | -0.0 |
97.595 | 97.595 | 294.829 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 37.704 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 37.704 | 0.0 |
0.001 | 0.002 | -0.002 | -0.0 | 0.0 | 47.045 |
243.863 | 134.951 | 101.421 | 0.0 | 0.0 | 0.0 |
124.988 | 258.632 | 97.727 | 0.0 | -0.0 | 0.0 |
98.854 | 98.854 | 292.891 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 37.704 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 37.704 | 0.0 |
-0.001 | -0.002 | 0.002 | -0.0 | -0.0 | 47.045 |
240.148 | 157.128 | 157.128 | -0.0 | -0.0 | -0.0 |
157.128 | 240.148 | 157.128 | -0.0 | -0.0 | -0.0 |
157.128 | 157.128 | 240.148 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 123.478 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 123.478 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 123.478 |
240.148 | 157.128 | 157.128 | 0.0 | 0.0 | 0.0 |
157.128 | 240.148 | 157.128 | 0.0 | 0.0 | -0.0 |
157.128 | 157.128 | 240.148 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 123.478 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 123.478 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 123.478 |
240.148 | 157.128 | 157.128 | -0.0 | -0.0 | 0.0 |
157.128 | 240.148 | 157.128 | -0.0 | -0.0 | -0.0 |
157.128 | 157.128 | 240.148 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 123.478 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 123.478 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 123.478 |
240.148 | 157.128 | 157.128 | 0.0 | 0.0 | 0.0 |
157.128 | 240.148 | 157.128 | 0.0 | 0.0 | 0.0 |
157.128 | 157.128 | 240.148 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 123.478 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 123.478 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 123.478 |
240.149 | 157.129 | 157.129 | -0.0 | 0.0 | -0.0 |
157.129 | 240.149 | 157.129 | -0.0 | -0.0 | -0.0 |
157.129 | 157.129 | 240.149 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 123.478 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 123.478 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 123.478 |
240.148 | 157.127 | 157.127 | 0.0 | 0.0 | -0.0 |
157.127 | 240.148 | 157.127 | 0.0 | 0.0 | 0.0 |
157.127 | 157.127 | 240.148 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 123.478 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 123.478 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 123.478 |
396.865 | 95.568 | 95.568 | -0.0 | -0.0 | -0.0 |
95.568 | 396.865 | 95.568 | 0.0 | 0.0 | -0.0 |
95.568 | 95.568 | 396.865 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 60.734 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 60.734 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 60.734 |
396.865 | 95.568 | 95.568 | 0.0 | 0.0 | -0.0 |
95.568 | 396.865 | 95.568 | 0.0 | -0.0 | -0.0 |
95.568 | 95.568 | 396.865 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 60.734 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 60.734 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 60.734 |
396.865 | 95.568 | 95.568 | -0.0 | 0.0 | 0.0 |
95.568 | 396.865 | 95.568 | 0.0 | 0.0 | 0.0 |
95.568 | 95.568 | 396.865 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 47.914 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 47.914 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 47.914 |
396.865 | 95.568 | 95.568 | 0.0 | -0.0 | 0.0 |
95.568 | 396.865 | 95.568 | 0.0 | -0.0 | 0.0 |
95.568 | 95.568 | 396.865 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 47.914 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 47.914 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 47.914 |
396.867 | 95.569 | 95.569 | -0.0 | -0.0 | -0.0 |
95.569 | 396.867 | 95.569 | -0.0 | -0.0 | 0.0 |
95.569 | 95.569 | 396.867 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 60.734 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 60.734 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 60.734 |
396.862 | 95.568 | 95.568 | 0.0 | -0.0 | -0.0 |
95.568 | 396.862 | 95.568 | -0.0 | -0.0 | 0.0 |
95.568 | 95.568 | 396.862 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 60.734 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 60.734 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 60.734 |
151.227 | 173.083 | 173.083 | 0.0 | 0.0 | -0.0 |
173.083 | 151.227 | 173.083 | 0.0 | -0.0 | 0.0 |
173.083 | 173.083 | 151.227 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 131.863 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 131.863 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 131.863 |
151.227 | 173.083 | 173.083 | 0.0 | 0.0 | -0.0 |
173.083 | 151.227 | 173.083 | 0.0 | -0.0 | 0.0 |
173.083 | 173.083 | 151.227 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 131.863 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 131.863 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 131.863 |
151.227 | 173.083 | 173.083 | -0.0 | -0.0 | -0.0 |
173.083 | 151.227 | 173.083 | 0.0 | -0.0 | 0.0 |
173.083 | 173.083 | 151.227 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 131.863 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 131.863 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 131.863 |
151.227 | 173.083 | 173.083 | -0.0 | 0.0 | -0.0 |
173.083 | 151.227 | 173.083 | 0.0 | 0.0 | 0.0 |
173.083 | 173.083 | 151.227 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 131.863 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 131.863 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 131.863 |
151.228 | 173.084 | 173.084 | -0.0 | -0.0 | 0.0 |
173.084 | 151.228 | 173.084 | -0.0 | -0.0 | 0.0 |
173.084 | 173.084 | 151.228 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 131.863 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 131.863 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 131.863 |
151.226 | 173.083 | 173.083 | 0.0 | 0.0 | -0.0 |
173.083 | 151.226 | 173.083 | 0.0 | 0.0 | 0.0 |
173.083 | 173.083 | 151.226 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 131.863 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 131.863 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 131.863 |
322.737 | 130.683 | 94.482 | 0.0 | 0.0 | -0.0 |
130.683 | 322.737 | 94.482 | 0.0 | 0.0 | -0.0 |
94.482 | 94.482 | 337.955 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 59.847 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 59.847 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 70.651 |
322.737 | 130.683 | 94.482 | -0.0 | -0.0 | -0.0 |
130.683 | 322.737 | 94.482 | -0.0 | -0.0 | 0.0 |
94.482 | 94.482 | 337.955 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 59.847 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 59.847 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 70.651 |
297.36 | 156.059 | 94.482 | 0.0 | 0.0 | -0.0 |
130.683 | 322.737 | 94.482 | 0.0 | -0.0 | -0.0 |
94.482 | 94.482 | 337.955 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 59.847 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 59.847 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 70.651 |
322.736 | 130.682 | 94.482 | -0.0 | -0.0 | -0.0 |
130.682 | 322.736 | 94.482 | -0.0 | -0.0 | 0.0 |
94.482 | 94.482 | 337.954 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 59.847 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 59.847 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 70.651 |
297.362 | 156.06 | 94.483 | 0.0 | 0.0 | -0.0 |
156.06 | 297.361 | 94.483 | 0.0 | 0.0 | -0.0 |
94.483 | 94.483 | 337.956 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 59.847 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 59.847 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 70.651 |
297.359 | 156.058 | 94.482 | -0.0 | -0.0 | 0.0 |
156.058 | 297.359 | 94.482 | -0.0 | 0.0 | 0.0 |
94.481 | 94.481 | 337.953 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 59.847 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 59.847 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 70.651 |
323.214 | 131.466 | 86.625 | -0.0 | -0.0 | -0.0 |
131.466 | 323.214 | 86.625 | 0.0 | 0.0 | 0.0 |
86.625 | 86.625 | 328.299 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 51.074 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 51.074 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 66.158 |
293.498 | 161.181 | 86.625 | -0.0 | -0.0 | -0.0 |
161.181 | 293.498 | 86.625 | 0.0 | -0.0 | -0.0 |
86.625 | 86.625 | 328.299 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 51.074 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 51.074 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 66.158 |
293.498 | 161.181 | 86.625 | -0.0 | 0.0 | 0.0 |
131.466 | 323.214 | 86.625 | 0.0 | -0.0 | 0.0 |
86.625 | 86.625 | 328.299 | -0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 51.074 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 51.074 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 66.158 |
323.213 | 131.466 | 86.625 | 0.0 | 0.0 | 0.0 |
161.181 | 293.498 | 86.625 | -0.0 | -0.0 | -0.0 |
86.625 | 86.625 | 328.299 | 0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 51.074 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 51.074 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 66.158 |
323.216 | 131.466 | 86.626 | -0.0 | -0.0 | 0.0 |
131.467 | 323.215 | 86.626 | -0.0 | 0.0 | 0.0 |
86.626 | 86.626 | 328.3 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 51.074 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 51.074 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 66.158 |
293.496 | 161.181 | 86.625 | -0.0 | -0.0 | -0.0 |
161.18 | 293.497 | 86.625 | -0.0 | 0.0 | -0.0 |
86.625 | 86.625 | 328.298 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 51.074 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 51.074 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 66.158 |
23.581 | 61.604 | 61.604 | -0.0 | -0.0 | -0.0 |
61.604 | 23.581 | 61.604 | -0.0 | -0.0 | -0.0 |
61.604 | 61.604 | 23.581 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 41.378 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 41.378 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 41.378 |
23.581 | 61.604 | 61.604 | 0.0 | 0.0 | 0.0 |
61.604 | 23.581 | 61.604 | 0.0 | 0.0 | 0.0 |
61.604 | 61.604 | 23.581 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 41.378 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 41.378 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 41.378 |
23.581 | 61.604 | 61.604 | -0.0 | -0.0 | -0.0 |
61.604 | 23.581 | 61.604 | -0.0 | -0.0 | -0.0 |
61.604 | 61.604 | 23.581 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 41.378 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 41.378 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 41.378 |
23.581 | 61.604 | 61.604 | 0.0 | 0.0 | 0.0 |
61.604 | 23.581 | 61.604 | 0.0 | 0.0 | 0.0 |
61.604 | 61.604 | 23.581 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 41.378 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 41.378 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 41.378 |
23.581 | 61.604 | 61.604 | -0.0 | -0.0 | -0.0 |
61.604 | 23.581 | 61.604 | -0.0 | -0.0 | -0.0 |
61.604 | 61.604 | 23.581 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 41.378 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 41.378 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 41.378 |
23.581 | 61.604 | 61.604 | 0.0 | 0.0 | 0.0 |
61.604 | 23.581 | 61.604 | 0.0 | 0.0 | 0.0 |
61.604 | 61.604 | 23.581 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 41.378 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 41.378 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 41.378 |
281.545 | -25.225 | 30.554 | -0.0 | 0.0 | 0.0 |
-25.225 | 281.545 | 30.554 | 0.0 | 0.0 | 0.0 |
30.554 | 30.554 | 304.179 | 0.0 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -8.927 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -8.927 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -64.123 |
-195.8 | 452.12 | 30.554 | -0.0 | -0.0 | 0.0 |
452.12 | -195.8 | 30.554 | -0.0 | -0.0 | 0.0 |
30.554 | 30.554 | 304.179 | -0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -8.927 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -8.927 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | -64.123 |
-526.351 | 782.671 | 30.554 | -0.0 | -0.0 | 0.0 |
-25.225 | 281.545 | 30.554 | -0.0 | 0.0 | -0.0 |
30.554 | 30.554 | 304.18 | 0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -34.306 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -34.306 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | -64.123 |
-195.8 | 452.12 | 30.554 | -0.0 | -0.0 | 0.0 |
452.12 | -195.8 | 30.554 | -0.0 | -0.0 | -0.0 |
30.554 | 30.554 | 304.179 | -0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -34.306 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -34.306 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -64.123 |
-913.767 | 1170.08 | 30.554 | -0.001 | -0.0 | -0.0 |
1279.843 | -1023.53 | 30.553 | 0.01 | 0.0 | -0.0 |
30.553 | 30.553 | 304.18 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -8.927 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -8.927 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -0.0 | -64.123 |
-755.24 | 1011.566 | 30.554 | -0.0 | -0.0 | 0.0 |
1011.566 | -755.24 | 30.554 | -0.0 | -0.0 | 0.0 |
30.555 | 30.555 | 304.179 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -8.927 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -8.927 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 0.0 | -64.123 |
82.216 | 41.415 | 145.179 | -61.135 | -0.0 | -0.0 |
41.414 | 82.215 | 145.179 | 61.135 | -0.0 | -0.0 |
130.705 | 130.705 | 131.549 | 0.0 | -0.0 | -0.0 |
-61.136 | 61.134 | -0.0 | 93.399 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 93.399 | -61.135 |
-0.001 | -0.001 | -0.0 | -0.0 | -61.135 | 20.4 |
82.216 | 41.415 | 145.179 | -61.135 | 0.0 | -0.0 |
41.415 | 82.216 | 145.179 | 61.135 | 0.0 | 0.0 |
130.706 | 130.706 | 131.549 | 0.0 | 0.0 | 0.0 |
-61.134 | 61.136 | 0.0 | 93.399 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 93.399 | -61.135 |
0.001 | 0.001 | 0.0 | 0.0 | -61.135 | 20.4 |
82.216 | 41.415 | 145.179 | -61.135 | -0.0 | -0.0 |
41.415 | 82.216 | 145.179 | 61.135 | 0.0 | -0.0 |
130.706 | 130.706 | 131.549 | -0.0 | -0.0 | -0.0 |
-61.135 | 61.135 | 0.0 | 93.399 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 93.399 | -61.135 |
-0.0 | -0.0 | -0.0 | -0.0 | -61.135 | 20.4 |
82.216 | 41.415 | 145.179 | -61.135 | -0.0 | 0.0 |
41.415 | 82.216 | 145.179 | 61.135 | 0.0 | 0.0 |
130.706 | 130.706 | 131.549 | 0.0 | 0.0 | 0.0 |
-61.135 | 61.135 | -0.0 | 93.399 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 93.399 | -61.135 |
0.0 | 0.0 | 0.0 | 0.0 | -61.135 | 20.4 |
82.216 | 41.415 | 145.18 | -61.135 | 0.0 | -0.0 |
41.415 | 82.216 | 145.18 | 61.135 | -0.0 | -0.0 |
130.706 | 130.706 | 131.549 | 0.0 | 0.0 | -0.0 |
-61.135 | 61.135 | 0.0 | 93.399 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 93.399 | -61.135 |
0.0 | 0.0 | 0.0 | -0.0 | -61.135 | 20.4 |
82.215 | 41.415 | 145.179 | -61.135 | -0.0 | 0.0 |
41.415 | 82.215 | 145.179 | 61.135 | 0.0 | 0.0 |
130.705 | 130.705 | 131.549 | -0.0 | 0.0 | 0.0 |
-61.135 | 61.135 | -0.0 | 93.398 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 93.399 | -61.135 |
-0.0 | -0.0 | -0.0 | 0.0 | -61.135 | 20.4 |
363.419 | 32.956 | 32.956 | 0.0 | 0.0 | -0.0 |
32.956 | 363.419 | 32.956 | -0.0 | 0.0 | 0.0 |
32.956 | 32.956 | 363.419 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -34.843 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -34.843 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 0.0 | -34.843 |
363.419 | 32.956 | 32.956 | 0.0 | -0.0 | 0.0 |
32.956 | 363.419 | 32.956 | -0.0 | 0.0 | -0.0 |
32.956 | 32.956 | 363.419 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -34.843 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -34.843 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -34.843 |
363.419 | 32.955 | 32.955 | -0.0 | 0.0 | -0.0 |
32.955 | 363.419 | 32.955 | 0.0 | -0.0 | -0.0 |
32.955 | 32.955 | 363.419 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | -34.843 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -34.843 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | -34.843 |
363.419 | 32.956 | 32.956 | 0.0 | -0.0 | 0.0 |
32.956 | 363.419 | 32.956 | -0.0 | 0.0 | 0.0 |
32.956 | 32.956 | 363.419 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | -34.843 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -34.843 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -34.843 |
363.42 | 32.955 | 32.955 | 0.0 | 0.0 | -0.0 |
32.955 | 363.42 | 32.955 | 0.0 | 0.0 | -0.0 |
32.955 | 32.955 | 363.42 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | -34.843 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -34.843 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 0.0 | -34.843 |
363.418 | 32.956 | 32.956 | 0.0 | -0.0 | 0.0 |
32.956 | 363.418 | 32.956 | 0.0 | 0.0 | 0.0 |
32.956 | 32.956 | 363.418 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -34.843 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -34.843 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -34.843 |
98.017 | 18.647 | 11.432 | -0.0 | -0.0 | -0.0 |
28.651 | 63.928 | 19.94 | 0.0 | 0.0 | 0.0 |
0.765 | 1.963 | 7.234 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 7.59 | 0.0 | -0.0 |
1.675 | 5.747 | 24.444 | -0.0 | -15.951 | -0.0 |
0.351 | 1.204 | 5.122 | -0.0 | 0.0 | 18.883 |
95.004 | 10.168 | -5.26 | 0.0 | 0.0 | 0.0 |
16.273 | 32.047 | -5.26 | 0.0 | 0.0 | 0.0 |
3.308 | 12.782 | 75.028 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 7.59 | -0.0 | 0.0 |
-1.675 | -5.747 | -24.444 | 0.0 | -15.951 | 0.0 |
-0.351 | -1.204 | -5.122 | 0.0 | 0.0 | 18.883 |
100.474 | 24.269 | 6.084 | 0.0 | 0.0 | -0.0 |
28.651 | 63.928 | 19.94 | 0.0 | 0.0 | -0.0 |
-2.681 | -6.891 | 0.526 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 7.59 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -6.728 | -0.0 |
0.035 | 0.12 | 0.512 | 0.0 | 0.0 | 18.883 |
95.859 | 12.573 | -0.526 | 0.0 | 0.0 | 0.0 |
17.127 | 34.452 | -0.526 | 0.0 | 0.0 | 0.0 |
0.402 | 0.713 | 1.85 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 7.59 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -6.728 | 0.0 |
-0.035 | -0.12 | -0.512 | -0.0 | 0.0 | 18.883 |
100.474 | 24.269 | 6.084 | 0.0 | 0.0 | -0.0 |
17.232 | 34.746 | 0.053 | -0.0 | -0.0 | -0.0 |
-2.767 | -7.132 | 0.049 | -0.0 | -0.0 | -0.0 |
0.002 | 0.08 | 1.108 | 0.995 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -6.728 | 0.0 |
0.003 | 0.012 | 0.051 | -0.0 | 0.0 | 18.883 |
96.317 | 13.432 | -4.32 | 0.0 | 0.0 | 0.0 |
17.213 | 34.692 | -0.052 | 0.0 | 0.0 | 0.0 |
-2.786 | -7.184 | -0.049 | 0.0 | 0.0 | 0.0 |
-0.002 | -0.08 | -1.108 | 0.995 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -6.728 | -0.0 |
-0.003 | -0.012 | -0.051 | 0.0 | -0.0 | 18.883 |
270.653 | -20.914 | 48.584 | -0.0 | -0.0 | 0.0 |
-20.914 | 270.653 | 48.584 | -0.0 | -0.0 | 0.0 |
46.807 | 46.807 | 237.517 | -0.0 | -0.0 | -0.0 |
-6.885 | -6.885 | -2.098 | -89.685 | -0.0 | -0.0 |
-6.885 | -6.885 | -2.098 | -0.0 | -89.685 | -0.0 |
-1.24 | -1.24 | -0.378 | -0.0 | -0.0 | -11.571 |
296.639 | 5.072 | 56.503 | 0.0 | 0.0 | 0.0 |
5.072 | 296.639 | 56.503 | 0.0 | 0.0 | 0.0 |
55.587 | 55.587 | 240.192 | 0.0 | 0.0 | -0.0 |
6.885 | 6.885 | 2.098 | -89.685 | 0.0 | 0.0 |
6.885 | 6.885 | 2.098 | 0.0 | -89.685 | -0.0 |
1.24 | 1.24 | 0.378 | 0.0 | -0.0 | -11.571 |
271.768 | -19.799 | 48.924 | -0.0 | -0.0 | -0.0 |
-19.799 | 271.768 | 48.924 | -0.0 | -0.0 | 0.0 |
55.587 | 55.587 | 240.192 | -0.0 | -0.0 | 0.0 |
-0.697 | -0.697 | -0.212 | -91.259 | -0.0 | -0.0 |
-0.697 | -0.697 | -0.212 | -0.0 | -91.259 | -0.0 |
-0.124 | -0.124 | -0.038 | 0.0 | -0.0 | -11.571 |
272.016 | -19.551 | 49.0 | 0.0 | 0.0 | 0.0 |
-19.551 | 272.016 | 49.0 | 0.0 | 0.0 | -0.0 |
48.171 | 48.171 | 237.932 | 0.0 | 0.0 | -0.0 |
0.697 | 0.697 | 0.212 | -91.259 | 0.0 | 0.0 |
0.697 | 0.697 | 0.212 | 0.0 | -91.259 | 0.0 |
0.124 | 0.124 | 0.038 | 0.0 | 0.0 | -11.571 |
271.881 | -19.688 | 48.958 | -0.0 | -0.0 | 0.0 |
-19.688 | 271.881 | 48.958 | -0.0 | -0.0 | 0.0 |
55.587 | 55.587 | 240.192 | -0.0 | -0.0 | -0.0 |
-0.07 | -0.07 | -0.022 | -91.275 | -0.0 | -0.0 |
-0.07 | -0.07 | -0.022 | -0.0 | -91.275 | 0.0 |
-0.012 | -0.013 | -0.004 | -0.0 | -0.0 | -11.571 |
271.904 | -19.662 | 48.966 | 0.0 | 0.0 | 0.0 |
-19.662 | 271.904 | 48.966 | 0.0 | 0.0 | 0.0 |
55.588 | 55.588 | 240.192 | -0.0 | -0.0 | 0.0 |
0.07 | 0.07 | 0.022 | -91.275 | 0.0 | 0.0 |
0.07 | 0.07 | 0.022 | 0.0 | -91.275 | -0.0 |
0.012 | 0.013 | 0.004 | 0.0 | 0.0 | -11.571 |
328.866 | 94.836 | 94.836 | -0.0 | -0.0 | -0.0 |
94.836 | 328.866 | 94.836 | -0.0 | -0.0 | -0.0 |
94.836 | 94.836 | 328.866 | -0.0 | -0.0 | -0.0 |
39.441 | 39.441 | 39.441 | 46.847 | -0.0 | -0.0 |
39.441 | 39.441 | 39.441 | -0.0 | 46.847 | -0.0 |
39.441 | 39.441 | 39.441 | -0.0 | -0.0 | 46.847 |
328.866 | 94.836 | 94.836 | 0.0 | 0.0 | 0.0 |
94.836 | 328.866 | 94.836 | 0.0 | 0.0 | -0.0 |
94.836 | 94.836 | 328.866 | 0.0 | -0.0 | 0.0 |
-39.441 | -39.441 | -39.441 | 46.847 | 0.0 | 0.0 |
-39.441 | -39.441 | -39.441 | 0.0 | 46.847 | 0.0 |
-39.441 | -39.441 | -39.441 | 0.0 | 0.0 | 46.847 |
328.866 | 94.836 | 94.836 | 0.0 | -0.0 | -0.0 |
94.836 | 328.866 | 94.836 | -0.0 | 0.0 | -0.0 |
94.836 | 94.836 | 328.866 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 72.883 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 72.883 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 72.883 |
303.772 | 98.323 | 98.323 | 0.0 | 0.0 | 0.0 |
98.323 | 303.772 | 98.323 | 0.0 | 0.0 | 0.0 |
98.323 | 98.323 | 303.772 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 72.883 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 72.883 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 72.883 |
328.867 | 94.837 | 94.837 | 0.0 | -0.0 | -0.0 |
94.837 | 328.867 | 94.837 | -0.0 | 0.0 | -0.0 |
94.837 | 94.837 | 328.867 | -0.0 | 0.0 | 0.0 |
0.309 | 0.309 | 0.309 | 52.466 | -0.0 | -0.0 |
0.309 | 0.309 | 0.309 | -0.0 | 52.466 | -0.0 |
0.309 | 0.309 | 0.309 | -0.0 | -0.0 | 52.466 |
306.666 | 104.73 | 104.73 | 0.0 | 0.0 | 0.0 |
104.73 | 306.666 | 104.73 | 0.0 | 0.0 | 0.0 |
104.73 | 104.73 | 306.666 | 0.0 | 0.0 | 0.0 |
-0.309 | -0.309 | -0.309 | 52.466 | 0.0 | 0.0 |
-0.309 | -0.309 | -0.309 | 0.0 | 52.466 | 0.0 |
-0.309 | -0.309 | -0.309 | 0.0 | 0.0 | 52.466 |
327.61 | 93.981 | 93.981 | -0.0 | -0.0 | -0.0 |
93.981 | 327.61 | 93.981 | 0.0 | 0.0 | 0.0 |
93.981 | 93.981 | 327.61 | -0.0 | -0.0 | 0.0 |
-75.468 | -75.468 | -75.468 | 52.154 | 0.0 | 0.0 |
-75.468 | -75.468 | -75.468 | 0.0 | 52.154 | 0.0 |
-75.468 | -75.468 | -75.468 | 0.0 | -0.0 | 52.154 |
331.722 | 126.843 | 126.843 | -0.0 | 0.0 | 0.0 |
126.843 | 331.722 | 126.843 | -0.0 | -0.0 | 0.0 |
126.843 | 126.843 | 331.722 | 0.0 | 0.0 | -0.0 |
75.468 | 75.468 | 75.468 | 52.154 | 0.0 | -0.0 |
75.468 | 75.468 | 75.468 | 0.0 | 52.154 | 0.0 |
75.468 | 75.468 | 75.468 | 0.0 | -0.0 | 52.154 |
327.61 | 93.981 | 93.981 | 0.0 | 0.0 | 0.0 |
93.981 | 327.61 | 93.981 | -0.0 | 0.0 | 0.0 |
93.981 | 93.981 | 327.61 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 72.77 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 72.77 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 72.77 |
305.307 | 112.28 | 112.28 | -0.0 | 0.0 | 0.0 |
112.28 | 305.307 | 112.28 | 0.0 | 0.0 | 0.0 |
112.28 | 112.28 | 305.307 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 72.77 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 72.77 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 72.77 |
327.611 | 93.982 | 93.982 | -0.0 | 0.0 | 0.0 |
93.982 | 327.611 | 93.982 | 0.0 | -0.0 | -0.0 |
93.982 | 93.982 | 327.611 | -0.0 | 0.0 | -0.0 |
-0.233 | -0.233 | -0.233 | 54.268 | 0.0 | -0.0 |
-0.233 | -0.233 | -0.233 | 0.0 | 54.268 | -0.0 |
-0.233 | -0.233 | -0.233 | -0.0 | -0.0 | 54.268 |
308.329 | 103.322 | 103.322 | 0.0 | 0.0 | 0.0 |
103.322 | 308.329 | 103.322 | -0.0 | 0.0 | 0.0 |
103.322 | 103.322 | 308.329 | -0.0 | 0.0 | 0.0 |
0.233 | 0.233 | 0.233 | 54.268 | 0.0 | 0.0 |
0.233 | 0.233 | 0.233 | -0.0 | 54.268 | -0.0 |
0.233 | 0.233 | 0.233 | -0.0 | -0.0 | 54.268 |
228.265 | 109.069 | 109.069 | -0.0 | -0.0 | -0.0 |
114.142 | 246.639 | 114.142 | 0.0 | 0.0 | -0.0 |
114.142 | 114.142 | 246.639 | -0.0 | 0.0 | -0.0 |
-7.437 | -7.437 | -7.437 | 80.192 | -0.0 | -0.0 |
-7.318 | -7.318 | -7.318 | -0.0 | 80.668 | -0.0 |
-7.318 | -7.318 | -7.318 | 0.0 | -0.0 | 80.668 |
247.645 | 122.582 | 122.582 | 0.0 | 0.0 | 0.0 |
122.582 | 247.645 | 122.582 | 0.0 | -0.0 | 0.0 |
122.582 | 122.582 | 247.645 | 0.0 | -0.0 | 0.0 |
7.318 | 7.318 | 7.318 | 80.668 | 0.0 | 0.0 |
7.318 | 7.318 | 7.318 | -0.0 | 80.668 | 0.0 |
7.318 | 7.318 | 7.318 | -0.0 | 0.0 | 80.668 |
238.376 | 114.085 | 114.085 | -0.0 | 0.0 | -0.0 |
114.085 | 238.376 | 114.085 | -0.0 | 0.0 | -0.0 |
114.085 | 114.085 | 238.376 | -0.0 | 0.0 | -0.0 |
-1.012 | -1.012 | -1.012 | 84.43 | 0.0 | -0.0 |
-0.637 | -0.637 | -0.637 | 0.0 | 81.215 | -0.0 |
-0.637 | -0.637 | -0.637 | 0.0 | -0.0 | 81.215 |
246.639 | 114.142 | 114.142 | 0.0 | 0.0 | 0.0 |
114.142 | 246.639 | 114.142 | 0.0 | -0.0 | 0.0 |
114.142 | 114.142 | 246.639 | 0.0 | 0.0 | -0.0 |
0.637 | 0.637 | 0.637 | 81.215 | 0.0 | 0.0 |
0.637 | 0.637 | 0.637 | 0.0 | 81.215 | 0.0 |
0.637 | 0.637 | 0.637 | -0.0 | 0.0 | 81.215 |
238.848 | 114.88 | 114.88 | -0.0 | 0.0 | -0.0 |
114.88 | 238.848 | 114.88 | -0.0 | 0.0 | -0.0 |
114.88 | 114.88 | 238.848 | -0.0 | -0.0 | -0.0 |
-0.102 | -0.102 | -0.102 | 84.264 | 0.0 | -0.0 |
-0.102 | -0.102 | -0.102 | -0.0 | 84.264 | -0.0 |
-0.102 | -0.102 | -0.102 | -0.0 | 0.0 | 84.264 |
234.462 | 117.032 | 117.032 | -0.0 | 0.0 | 0.0 |
117.032 | 234.462 | 117.032 | -0.0 | 0.0 | 0.0 |
117.032 | 117.032 | 234.462 | -0.0 | 0.0 | 0.0 |
0.102 | 0.102 | 0.102 | 84.264 | -0.0 | 0.0 |
0.102 | 0.102 | 0.102 | 0.0 | 84.264 | 0.0 |
0.102 | 0.102 | 0.102 | 0.0 | -0.0 | 84.264 |
245.721 | 113.358 | 113.358 | 0.0 | 0.0 | -0.0 |
113.358 | 245.721 | 113.358 | 0.0 | 0.0 | 0.0 |
113.358 | 113.358 | 245.721 | -0.0 | 0.0 | 0.0 |
-48.982 | -48.982 | -48.982 | 54.642 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 98.926 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 98.926 |
269.553 | 168.681 | 168.681 | 0.0 | 0.0 | -0.0 |
168.681 | 269.553 | 168.681 | 0.0 | 0.0 | -0.0 |
168.681 | 168.681 | 269.553 | 0.0 | 0.0 | -0.0 |
29.51 | 29.51 | 29.51 | 74.135 | 0.0 | -0.0 |
29.51 | 29.51 | 29.51 | 0.0 | 74.135 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 98.926 |
229.799 | 113.366 | 113.366 | -0.0 | -0.0 | 0.0 |
113.366 | 229.799 | 113.366 | -0.0 | -0.0 | -0.0 |
113.366 | 113.366 | 229.799 | -0.0 | -0.0 | -0.0 |
-2.86 | -2.86 | -2.86 | 79.333 | -0.0 | 0.0 |
-2.86 | -2.86 | -2.86 | -0.0 | 79.333 | 0.0 |
-2.86 | -2.86 | -2.86 | -0.0 | -0.0 | 79.333 |
234.435 | 117.371 | 117.371 | 0.0 | 0.0 | 0.0 |
117.371 | 234.435 | 117.371 | 0.0 | 0.0 | -0.0 |
117.371 | 117.371 | 234.435 | 0.0 | 0.0 | 0.0 |
2.86 | 2.86 | 2.86 | 79.333 | 0.0 | -0.0 |
2.86 | 2.86 | 2.86 | 0.0 | 79.333 | -0.0 |
2.86 | 2.86 | 2.86 | 0.0 | 0.0 | 79.333 |
237.741 | 114.05 | 114.05 | -0.0 | -0.0 | 0.0 |
114.05 | 237.741 | 114.05 | -0.0 | -0.0 | 0.0 |
114.05 | 114.05 | 237.741 | -0.0 | -0.0 | 0.0 |
-0.164 | -0.164 | -0.164 | 84.092 | -0.0 | -0.0 |
-0.164 | -0.164 | -0.164 | -0.0 | 84.092 | 0.0 |
-0.164 | -0.164 | -0.164 | -0.0 | -0.0 | 84.092 |
238.119 | 114.324 | 114.324 | 0.0 | 0.0 | -0.0 |
114.324 | 238.119 | 114.324 | 0.0 | 0.0 | -0.0 |
114.324 | 114.324 | 238.119 | 0.0 | 0.0 | 0.0 |
0.164 | 0.164 | 0.164 | 84.092 | 0.0 | -0.0 |
0.164 | 0.164 | 0.164 | 0.0 | 84.092 | -0.0 |
0.164 | 0.164 | 0.164 | 0.0 | 0.0 | 84.092 |
210.206 | 77.676 | 0.009 | 0.0 | 0.0 | -0.0 |
78.84 | 248.429 | -67.114 | 0.0 | 0.0 | -0.0 |
0.784 | -67.502 | 249.307 | 0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -46.701 | 0.0 | 0.0 |
2.784 | 0.547 | 1.561 | 0.0 | -188.304 | -0.0 |
0.358 | 0.07 | 0.201 | -0.0 | -0.0 | 101.588 |
237.157 | 82.967 | 15.122 | 0.0 | 0.0 | -0.0 |
78.123 | 248.288 | -67.516 | -0.0 | -0.0 | 0.0 |
0.067 | -67.643 | 248.905 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -46.701 | 0.0 | 0.0 |
-2.784 | -0.547 | -1.561 | -0.0 | -188.304 | 0.0 |
-0.358 | -0.07 | -0.201 | -0.0 | 0.0 | 101.588 |
209.884 | 77.613 | -0.172 | 0.0 | -0.0 | 0.0 |
78.518 | 248.365 | -67.294 | -0.0 | 0.0 | 0.0 |
15.74 | -64.566 | 257.694 | 0.0 | 0.0 | 0.0 |
-72549578.73 | 62911351.215 | -158640220.809 | -97444900.682 | -0.0 | 0.0 |
0.279 | 0.055 | 0.156 | 0.0 | -188.549 | -0.0 |
0.036 | 0.007 | 0.02 | 0.0 | -0.0 | 101.588 |
209.812 | 77.599 | -0.212 | -0.0 | 0.0 | 0.0 |
78.446 | 248.351 | -67.335 | -0.0 | 0.0 | -0.0 |
15.74 | -64.566 | 257.693 | -0.0 | -0.0 | 0.0 |
72549578.73 | -62911351.215 | 158640220.809 | -97444900.682 | -0.0 | -0.0 |
-0.279 | -0.055 | -0.156 | 0.0 | -188.549 | -0.0 |
-0.036 | -0.007 | -0.02 | -0.0 | -0.0 | 101.588 |
209.853 | 77.607 | -0.19 | 0.0 | 0.0 | -0.0 |
83.844 | 249.412 | -64.308 | -0.0 | -0.0 | 0.0 |
0.43 | -67.572 | 249.109 | 0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -46.701 | 0.0 | 0.0 |
0.027 | 0.005 | 0.014 | 0.0 | -188.551 | -0.0 |
0.004 | 0.001 | 0.002 | 0.0 | 0.0 | 101.588 |
209.843 | 77.605 | -0.194 | -0.0 | -0.0 | -0.0 |
83.843 | 249.41 | -64.308 | -0.0 | -0.0 | 0.0 |
0.422 | -67.573 | 249.103 | -0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -46.701 | 0.0 | 0.0 |
-0.027 | -0.005 | -0.014 | 0.0 | -188.551 | -0.0 |
-0.004 | -0.001 | -0.002 | -0.0 | 0.0 | 101.588 |
300.146 | 156.825 | 84.388 | 0.0 | 0.0 | 0.0 |
157.828 | 294.884 | 88.818 | 0.0 | 0.0 | 0.0 |
84.964 | 88.31 | 328.316 | 0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 52.673 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 49.477 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 62.665 |
300.146 | 156.825 | 84.388 | -0.0 | -0.0 | 0.0 |
157.828 | 294.884 | 88.818 | -0.0 | 0.0 | -0.0 |
85.568 | 87.736 | 328.329 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 52.673 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 49.477 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 62.665 |
300.145 | 156.826 | 84.388 | 0.0 | -0.0 | 0.0 |
157.829 | 294.883 | 88.818 | 0.0 | 0.0 | 0.0 |
85.568 | 87.736 | 328.329 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 52.673 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 49.477 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 62.664 |
300.145 | 156.826 | 84.388 | -0.0 | -0.0 | -0.0 |
157.829 | 294.883 | 88.818 | -0.0 | -0.0 | 0.0 |
84.923 | 88.349 | 328.315 | -0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 52.673 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 49.477 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 62.664 |
300.147 | 156.827 | 84.388 | 0.0 | 0.0 | 0.0 |
157.83 | 294.884 | 88.818 | 0.0 | 0.0 | -0.0 |
85.569 | 87.737 | 328.33 | 0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 52.673 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 49.477 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 62.664 |
300.143 | 156.826 | 84.387 | -0.0 | 0.0 | -0.0 |
157.828 | 294.882 | 88.817 | -0.0 | -0.0 | -0.0 |
85.567 | 87.735 | 328.328 | 0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 52.673 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 49.477 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 62.664 |
201.755 | 100.612 | 10.942 | -0.0 | -0.0 | -0.0 |
100.612 | 201.755 | 10.942 | 0.0 | -0.0 | -0.0 |
10.942 | 10.942 | 417.791 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -41.188 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -41.188 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 50.571 |
201.755 | 100.612 | 10.942 | 0.0 | 0.0 | 0.0 |
712605991.355 | 666710968.486 | 617639263.89 | -2705694.688 | -1264524.413 | 4173223.551 |
10.942 | 10.942 | 417.791 | 0.0 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -41.188 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -41.188 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 50.571 |
-69748975.853 | -65126252.923 | -61097093.57 | -123921.018 | -384683.217 | -127851.912 |
238.252 | 64.116 | 10.942 | -0.0 | 0.0 | -0.0 |
10.942 | 10.942 | 417.791 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -41.188 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -41.188 | 0.0 |
-74814321.096 | -66512942.344 | -109801090.121 | 149602.936 | -121909.446 | 2314015.127 |
45444608.032 | 52415320.609 | 102057827.16 | -332652.542 | -366725.026 | 446494.336 |
68928172.125 | 65836803.888 | 58485177.17 | 12649.379 | 777479.337 | 107832.548 |
10.942 | 10.942 | 417.79 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -41.188 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -41.188 | 0.0 |
75209171.259 | 72078169.945 | 110254022.985 | -356991.224 | 227992.736 | 2104431.774 |
-3286955.396 | 18134989.234 | -16705942.903 | -0.002 | -0.0 | 0.0 |
9621629.143 | 11428696.116 | -6136692.059 | 0.218 | 0.0 | -0.037 |
10.943 | 10.943 | 417.795 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -41.188 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -41.188 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 50.571 |
-9621290.752 | -11428363.648 | 6136794.149 | -0.218 | -0.0 | 0.047 |
238.293 | 64.073 | 10.942 | -0.0 | -0.0 | 0.0 |
10.942 | 10.942 | 417.786 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -41.188 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -41.188 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 50.571 |
307.743 | 147.375 | 92.773 | 11.248 | -0.0 | -0.0 |
130.941 | 322.882 | 91.831 | -12.947 | -0.0 | 0.0 |
91.831 | 91.831 | 334.635 | -0.0 | 0.0 | -0.0 |
12.947 | -12.947 | 0.0 | 56.889 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 56.889 | 12.947 |
-0.0 | 0.0 | 0.0 | 0.0 | 12.947 | 95.97 |
297.63 | 155.626 | 91.419 | 10.26 | 0.0 | -0.0 |
141.405 | 310.963 | 90.773 | -11.743 | -0.0 | -0.0 |
91.524 | 91.524 | 334.188 | -0.0 | -0.0 | 0.0 |
12.947 | -12.947 | -0.0 | 56.889 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 56.889 | 12.947 |
0.0 | -0.0 | -0.0 | -0.0 | 12.947 | 95.97 |
322.882 | 130.941 | 91.831 | 12.947 | -0.0 | -0.0 |
130.941 | 322.882 | 91.831 | -12.947 | -0.0 | -0.0 |
91.779 | 91.779 | 334.558 | 0.0 | 0.0 | -0.0 |
12.947 | -12.947 | 0.0 | 56.889 | -0.0 | 0.0 |
0.074 | 0.074 | 0.107 | 0.0 | 56.728 | 11.45 |
0.023 | 0.023 | 0.034 | 0.0 | 10.26 | 71.002 |
322.882 | 130.941 | 91.831 | 12.947 | -0.0 | 0.0 |
152.949 | 300.1 | 91.268 | -10.537 | -0.0 | -0.0 |
91.831 | 91.831 | 334.634 | 0.0 | 0.0 | -0.0 |
10.237 | -10.283 | -0.034 | 56.599 | 0.0 | 0.0 |
-0.074 | -0.074 | -0.107 | -0.0 | 56.728 | 11.45 |
-0.023 | -0.023 | -0.034 | -0.0 | 10.26 | 71.002 |
298.858 | 154.423 | 91.436 | 10.391 | -0.0 | -0.0 |
155.86 | 297.865 | 91.759 | -10.26 | 0.0 | 0.0 |
91.758 | 91.758 | 334.529 | 0.0 | 0.0 | -0.0 |
10.299 | -10.272 | 0.019 | 56.602 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 56.889 | 12.947 |
0.013 | 0.014 | 0.019 | 0.0 | 10.26 | 71.005 |
322.88 | 130.94 | 91.83 | 12.947 | -0.0 | 0.0 |
154.179 | 299.052 | 91.402 | -10.414 | 0.0 | 0.0 |
91.831 | 91.831 | 334.633 | 0.0 | 0.0 | -0.0 |
12.947 | -12.947 | -0.0 | 56.889 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 56.889 | 12.947 |
-0.013 | -0.014 | -0.019 | -0.0 | 10.26 | 71.005 |
322.759 | 130.856 | 91.767 | 12.944 | -0.0 | 0.0 |
130.856 | 322.759 | 91.767 | -12.944 | 0.0 | -0.0 |
91.763 | 91.763 | 334.536 | 0.0 | 0.0 | 0.0 |
10.256 | -10.256 | -0.0 | 56.592 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 56.592 | 10.256 |
-0.0 | 0.0 | 0.0 | 0.0 | 12.944 | 95.951 |
322.759 | 130.856 | 91.767 | 12.944 | 0.0 | -0.0 |
154.206 | 298.841 | 91.355 | -10.399 | -0.0 | -0.0 |
91.763 | 91.763 | 334.536 | 0.0 | 0.0 | -0.0 |
10.256 | -10.256 | 0.0 | 56.592 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 56.592 | 10.256 |
0.0 | -0.0 | -0.0 | -0.0 | 12.944 | 95.951 |
297.749 | 155.761 | 91.691 | 10.256 | 0.0 | -0.0 |
130.856 | 322.759 | 91.767 | -12.944 | 0.0 | 0.0 |
91.687 | 91.687 | 334.425 | -0.0 | -0.0 | 0.0 |
10.256 | -10.256 | 0.0 | 56.592 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 56.592 | 10.256 |
-0.0 | 0.0 | -0.0 | 0.0 | 10.256 | 70.994 |
322.759 | 130.856 | 91.767 | 12.944 | -0.0 | 0.0 |
130.856 | 322.759 | 91.767 | -12.944 | -0.0 | -0.0 |
91.687 | 91.687 | 334.425 | -0.0 | -0.0 | -0.0 |
10.256 | -10.256 | -0.0 | 56.592 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 56.592 | 10.256 |
0.0 | -0.0 | 0.0 | -0.0 | 10.256 | 70.994 |
322.761 | 130.856 | 91.768 | 12.944 | 0.0 | 0.0 |
130.857 | 322.76 | 91.768 | -12.944 | 0.0 | 0.0 |
91.764 | 91.764 | 334.537 | -0.0 | 0.0 | 0.0 |
10.256 | -10.256 | 0.0 | 56.592 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 56.592 | 10.256 |
-0.0 | 0.0 | 0.0 | 0.0 | 12.944 | 95.951 |
322.757 | 130.855 | 91.767 | 12.944 | 0.0 | -0.0 |
155.76 | 297.748 | 91.691 | -10.256 | -0.0 | -0.0 |
91.686 | 91.686 | 334.424 | 0.0 | -0.0 | -0.0 |
10.256 | -10.256 | -0.0 | 56.592 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 56.592 | 10.256 |
0.0 | -0.0 | -0.0 | -0.0 | 12.944 | 95.951 |
Phonon band structures and crystal properties estimated from quasi-harmonic approximation (QHA) calculations are displayed for select crystals. The calculations were performed using phonopy and LAMMPS. For the phonon calculations, 3x3 supercells of the potential-specific relaxed crystals were used. The QHA calculations were based on 11 strain states ranging from -0.05 to 0.05.
The calculation method used is available as the iprPy phonon calculation method.
Notes and Disclaimers:
Version Information:
Static free surface formation energies are displayed for select crystals. The values displayed here are obtained by taking a perfect periodic bulk crystal, slicing along a crystallographic plane, and using force minimization to statically relax the surfaces. The free surface formation energy is computed by comparing the energy of the defect system to the bulk system and dividing by the total surface area created by the cut.
The calculation method used is available as the iprPy surface_energy_static calculation method.
Notes and Disclaimers:
Version Information:
Surface | γfs (mJ/m2) |
---|---|
(111) | 1743.04 |
(332) | 1910.39 |
(100) | 1910.55 |
(322) | 1925.54 |
(221) | 1980.87 |
(211) | 2010.68 |
(331) | 2034.91 |
(311) | 2064.68 |
(110) | 2068.39 |
(321) | 2097.74 |
(310) | 2125.15 |
(320) | 2148.55 |
(210) | 2160.72 |
Surface | γfs (mJ/m2) |
---|---|
(211) 2 | 1963.87 |
(210) | 2051.33 |
(332) 2 | 2056.66 |
(321) 2 | 2084.15 |
(310) | 2086.87 |
(221) | 2088.78 |
(311) | 2091.04 |
(321) 1 | 2091.37 |
(111) | 2099.63 |
(322) | 2110.24 |
(331) | 2112.42 |
(332) 1 | 2118.76 |
(100) | 2158.11 |
(320) | 2166.95 |
(110) | 2192.18 |
(211) 1 | 2209.47 |
Surface | γfs (mJ/m2) |
---|---|
(110) | 2077.47 |
(320) | 2228.38 |
(100) | 2234.98 |
(210) | 2281.31 |
(310) | 2301.3 |
(321) | 2327.59 |
(331) | 2330.84 |
(211) | 2357.18 |
(311) | 2387.19 |
(221) | 2409.0 |
(322) | 2443.76 |
(332) | 2447.76 |
(111) | 2482.62 |
Surface | γfs (mJ/m2) |
---|---|
(1012) 1 | 496.46 |
(2241) | 949.62 |
(2130) | 959.6 |
(1121) | 965.4 |
(2131) 2 | 969.44 |
(2132) 1 | 1108.8 |
(2021) 2 | 1165.62 |
(2112) | 1712.69 |
(0001) | 1768.48 |
(1012) 2 | 1875.06 |
(2021) 1 | 1929.47 |
(1011) 1 | 1941.97 |
(1120) | 2104.86 |
(2131) 1 | 2125.76 |
(2132) 2 | 2138.74 |
(1010) | 2141.27 |
(1011) 2 | 2180.43 |
Surface | γfs (mJ/m2) |
---|---|
(2132) 2 | -391.45 |
(1011) 1 | 726.4 |
(2130) 2 | 1108.31 |
(2241) | 1130.83 |
(2131) 1 | 1197.26 |
(0001) | 1813.13 |
(1011) 2 | 1908.31 |
(1010) 1 | 1917.37 |
(2021) 1 | 1974.34 |
(1012) 1 | 2091.63 |
(2130) 1 | 2120.68 |
(2112) | 2124.66 |
(1120) | 2133.01 |
(1012) 2 | 2145.85 |
(2132) 1 | 2161.13 |
(2131) 2 | 2170.09 |
(1121) | 2208.45 |
(2021) 2 | 2221.21 |
(1010) 2 | 2431.95 |
Surface | γfs (mJ/m2) |
---|---|
(111) | 1304.57 |
(332) | 1493.33 |
(100) | 1496.43 |
(322) | 1513.2 |
(221) | 1582.62 |
(211) | 1625.15 |
(331) | 1662.08 |
(311) | 1716.26 |
(110) | 1744.1 |
(321) | 1750.48 |
(310) | 1787.49 |
(320) | 1833.54 |
(210) | 1853.61 |
Surface | γfs (mJ/m2) |
---|---|
(211) 2 | 1300.5 |
(210) | 1382.07 |
(332) 2 | 1387.98 |
(321) 2 | 1423.38 |
(311) | 1424.03 |
(321) 1 | 1431.94 |
(221) | 1441.79 |
(111) | 1445.78 |
(322) | 1462.84 |
(310) | 1479.15 |
(100) | 1479.89 |
(331) | 1488.2 |
(332) 1 | 1490.34 |
(320) | 1517.59 |
(211) 1 | 1577.74 |
(110) | 1599.86 |
Surface | γfs (mJ/m2) |
---|---|
(0001) | 1286.25 |
(1012) 2 | 1414.2 |
(2021) 1 | 1459.1 |
(1011) 1 | 1485.33 |
(2021) 2 | 1626.49 |
(1120) | 1724.83 |
(2131) 1 | 1725.95 |
(1010) | 1743.35 |
(1011) 2 | 1745.81 |
(1012) 1 | 1751.09 |
(2132) 2 | 1753.07 |
(2132) 1 | 1757.2 |
(2241) | 1764.38 |
(1121) | 1793.68 |
(2130) | 1809.26 |
(2112) | 1822.12 |
(2131) 2 | 1852.59 |
Surface | γfs (mJ/m2) |
---|---|
(0001) | 1268.62 |
(1010) 1 | 1429.21 |
(2021) 1 | 1459.98 |
(1012) 1 | 1635.6 |
(2130) 1 | 1662.45 |
(1012) 2 | 1665.59 |
(2112) | 1701.47 |
(1120) | 1707.24 |
(2132) 2 | 1718.87 |
(2132) 1 | 1734.97 |
(2131) 2 | 1743.51 |
(2131) 1 | 1756.79 |
(2021) 2 | 1764.81 |
(2241) | 1781.19 |
(1121) | 1815.53 |
(2130) 2 | 1930.25 |
(1010) 2 | 2056.72 |
(1011) 1 | 2098.94 |
Static point defect formation energies, Ef, and elastic dipole tensors, pij, are displayed for select crystals. Relaxed defect configurations are obtained by taking a 12x12x12 supercell of a perfect periodic bulk crystal, inserting the point defect, and using force minimization to statically relax the atomic positions while keeping the system dimensions constant. Ef is computed by comparing the energy of the defect system to the same number of atoms in a perfect bulk crystal. pij is estimated as the difference in the system's global pressure with and without the defect multiplied by the system's volume.
Simple structural comparisons of the unrelaxed and relaxed defect configurations are used to help determine if the defect structure has relaxed to a different configuration. Relaxed structures that are identified as no longer consistent with the ideal defect definition are excluded from the table below. The only exception to this is if the lowest energy interstitial configuration does not coincide with a known ideal defect, its energies and pressure tensor are included under the listing "relaxed interstitial". The full list of calculation results including the transformed structures and the structural comparison values is included in the csv file available from the "Download raw data" link.
The calculation method used is available as the iprPy point_defect_static calculation method.
Notes and Disclaimers:
Point Defect | Ef (eV) | p11 (eV) | p22 (eV) | p33 (eV) | p12 (eV) | p13 (eV) | p23 (eV) |
---|---|---|---|---|---|---|---|
100 dumbbell | 2.019 | -0.825 | -0.825 | 1.706 | -0.0 | 0.0 | 0.0 |
111 dumbbell | 2.05 | -7.732 | -7.732 | -7.732 | 4.403 | 4.403 | 4.403 |
tetrahedral interstitial | 2.073 | -8.521 | -8.521 | -8.521 | 0.0 | 0.0 | 0.0 |
110 dumbbell | 2.185 | 2.129 | -5.742 | -5.742 | -0.0 | -0.0 | 6.391 |
octahedral interstitial | 2.62 | -2.497 | -2.497 | -2.497 | -0.0 | -0.0 | -0.0 |
vacancy | 2.755 | -2.463 | -2.463 | -2.463 | 0.0 | -0.0 | -0.0 |
1nn divacancy | 5.169 | -8.069 | -5.426 | -5.426 | -0.0 | -0.0 | -0.03 |
2nn divacancy | 5.463 | -5.894 | -5.894 | -5.431 | -0.0 | -0.0 | -0.0 |
Point Defect | Ef (eV) | p11 (eV) | p22 (eV) | p33 (eV) | p12 (eV) | p13 (eV) | p23 (eV) |
---|---|---|---|---|---|---|---|
vacancy | 2.67 | -2.879 | -2.879 | -2.879 | 0.0 | 0.0 | 0.0 |
110 dumbbell | 3.926 | 18.341 | 15.77 | 15.77 | -0.0 | -0.0 | 5.891 |
111 dumbbell | 4.219 | 14.126 | 14.126 | 14.126 | 6.23 | 6.23 | 6.23 |
octahedral interstitial | 4.606 | 18.545 | 13.341 | 13.341 | 0.0 | 0.0 | 0.0 |
2nn divacancy | 4.95 | -5.508 | -5.508 | -7.317 | 0.0 | 0.0 | 0.0 |
1nn divacancy | 5.201 | -3.977 | -3.977 | -3.977 | 0.825 | 0.825 | 0.825 |
Point Defect | Ef (eV) | p11 (eV) | p22 (eV) | p33 (eV) | p12 (eV) | p13 (eV) | p23 (eV) |
---|---|---|---|---|---|---|---|
relaxed interstitial | 2.057 | 0.936 | 0.936 | -1.232 | -0.0 | 0.0 | 0.0 |
0001 dumbbell | 2.596 | -10.976 | -10.976 | 1.498 | 0.0 | -0.0 | 0.0 |
vacancy | 2.751 | -1.478 | -1.478 | -1.9 | 0.0 | 0.0 | 0.0 |
Point Defect | Ef (eV) | p11 (eV) | p22 (eV) | p33 (eV) | p12 (eV) | p13 (eV) | p23 (eV) |
---|---|---|---|---|---|---|---|
vacancy | 1.919 | -1.058 | -1.058 | -1.058 | 0.0 | 0.0 | 0.0 |
1nn divacancy | 3.468 | -2.25 | -1.282 | -1.282 | 0.0 | -0.0 | -0.194 |
2nn divacancy | 3.803 | -1.577 | -1.577 | -2.155 | 0.0 | -0.0 | -0.0 |
100 dumbbell | 4.198 | 20.122 | 20.122 | 20.705 | -0.0 | -0.0 | -0.0 |
octahedral interstitial | 4.553 | 20.328 | 20.328 | 20.328 | -0.0 | -0.0 | -0.0 |
111 dumbbell | 4.602 | 19.715 | 19.715 | 19.715 | 5.496 | 5.496 | 5.496 |
110 dumbbell | 4.612 | 24.109 | 18.619 | 18.619 | 0.0 | 0.0 | 14.477 |
tetrahedral interstitial | 4.644 | 19.441 | 19.441 | 19.441 | -0.0 | -0.0 | -0.0 |
Point Defect | Ef (eV) | p11 (eV) | p22 (eV) | p33 (eV) | p12 (eV) | p13 (eV) | p23 (eV) |
---|---|---|---|---|---|---|---|
vacancy | 1.901 | -1.272 | -1.272 | -1.163 | 0.0 | -0.0 | 0.0 |
0001 dumbbell | 4.241 | 18.035 | 18.035 | 23.315 | 0.0 | 0.0 | 0.0 |
