Plots of the potential energy vs interatomic spacing, r, are shown below for all diatom sets associated with the interatomic potential. This calculation provides insights into the functional form of the potential's two-body interactions. A system consisting of only two atoms is created, and the potential energy is evaluated for the atoms separated by 0.02 Å <= r <= 6.0> Å in intervals of 0.02 Å. Two plots are shown: one for the "standard" interaction distance range, and one for small values of r. The small r plot is useful for determining whether the potential is suitable for radiation studies.
The calculation method used is available as the iprPy diatom_scan calculation method.
Clicking on the image of a plot will open an interactive version of it in a new tab. The underlying data for the plots can be downloaded by clicking on the links above each plot.
Notes and Disclaimers:
Version Information:

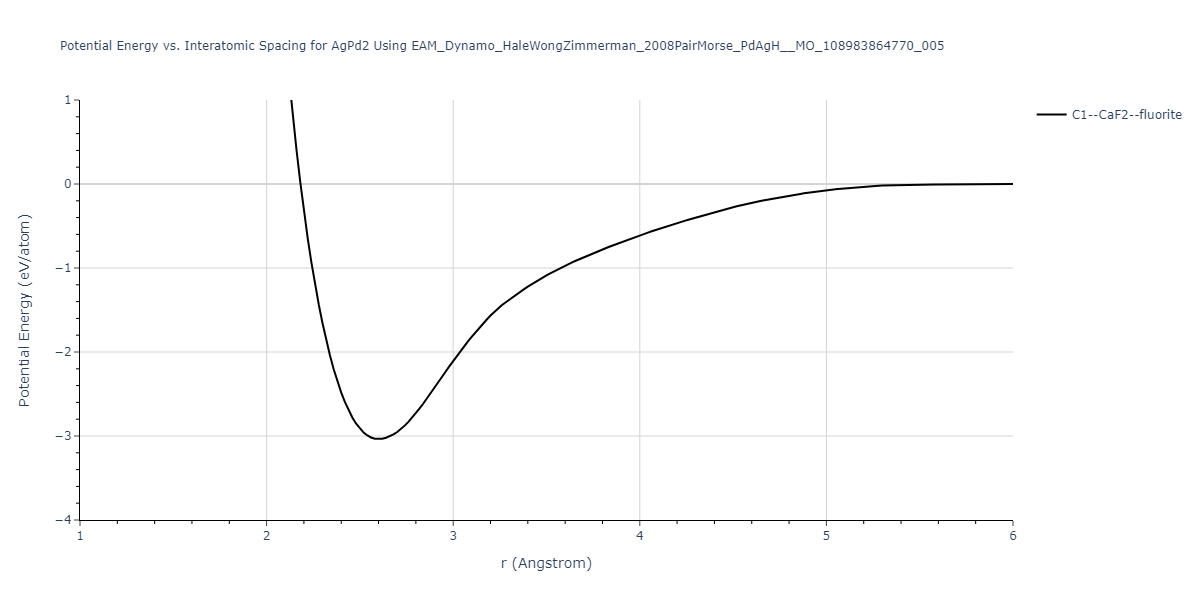

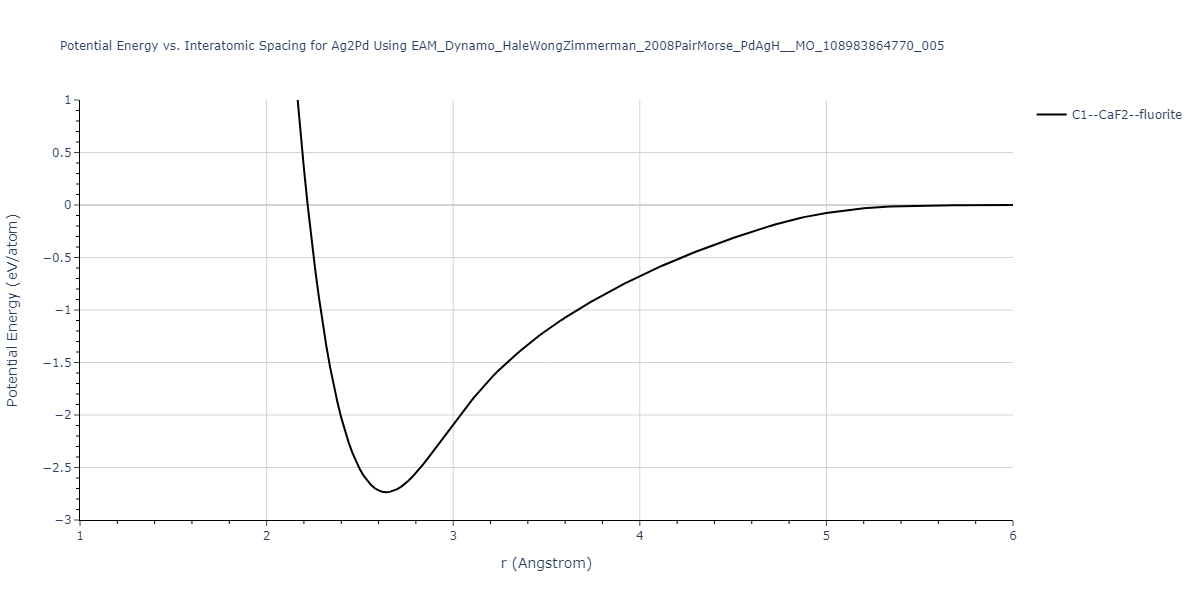

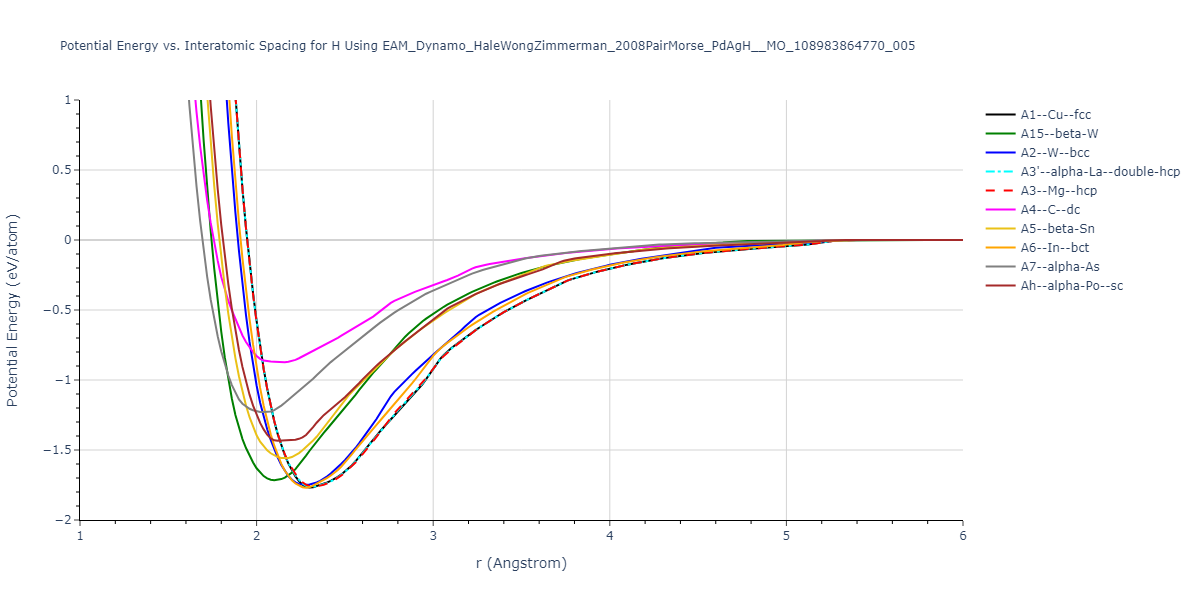

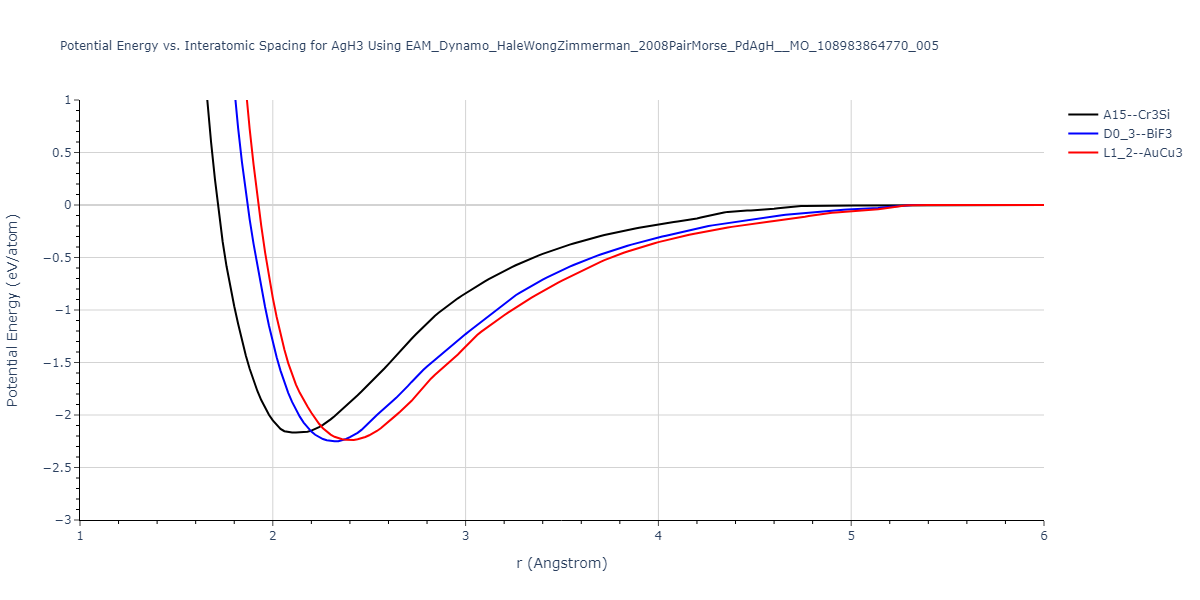

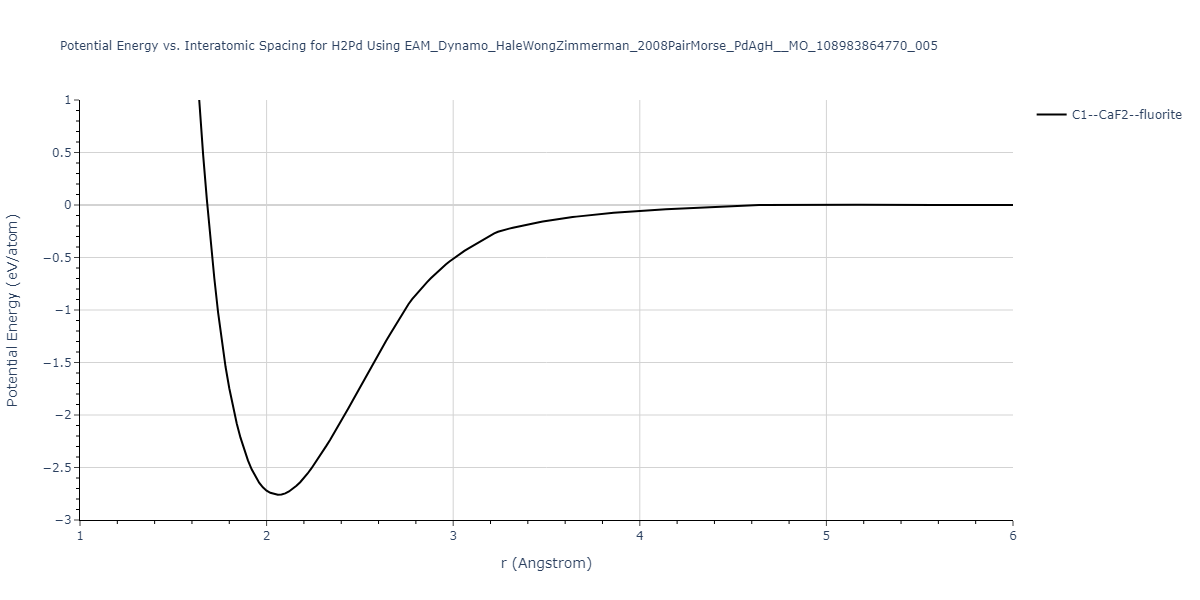

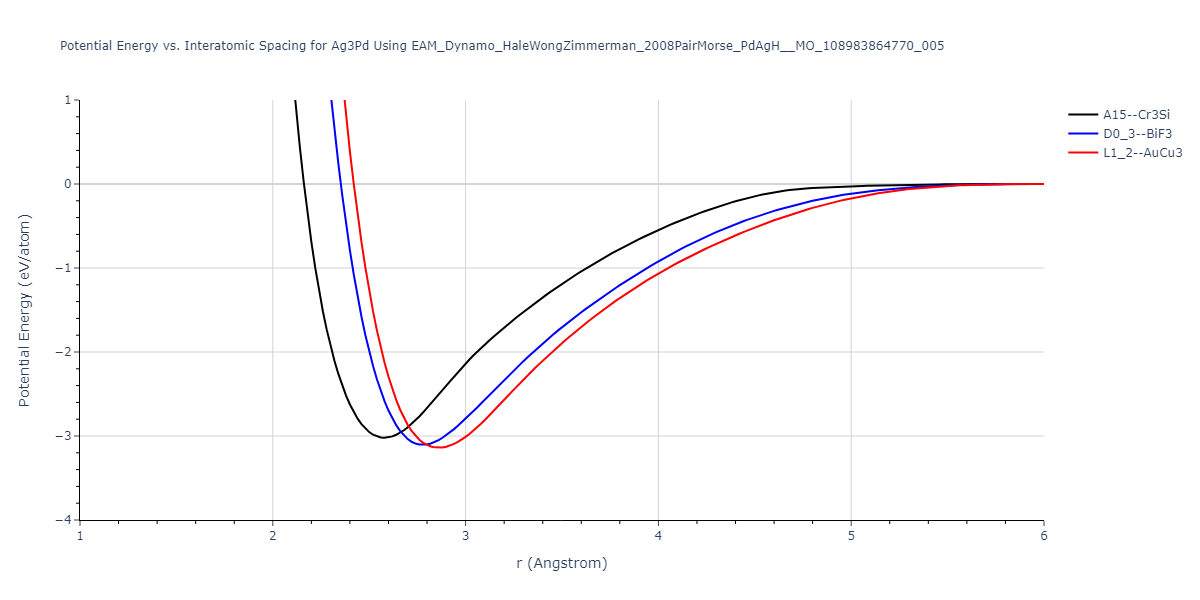

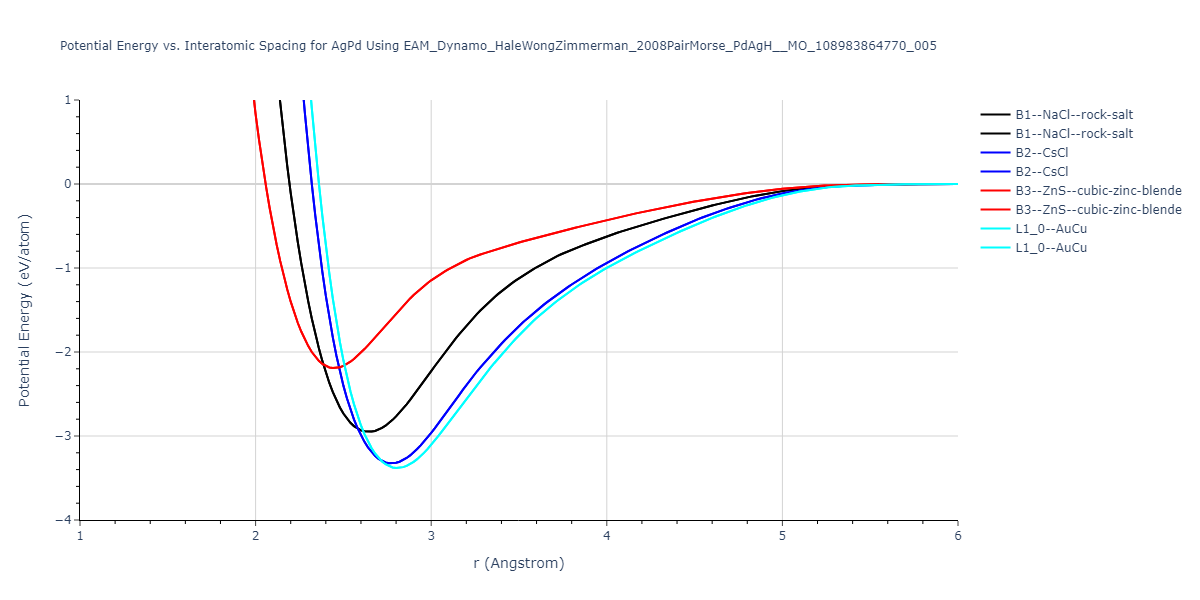

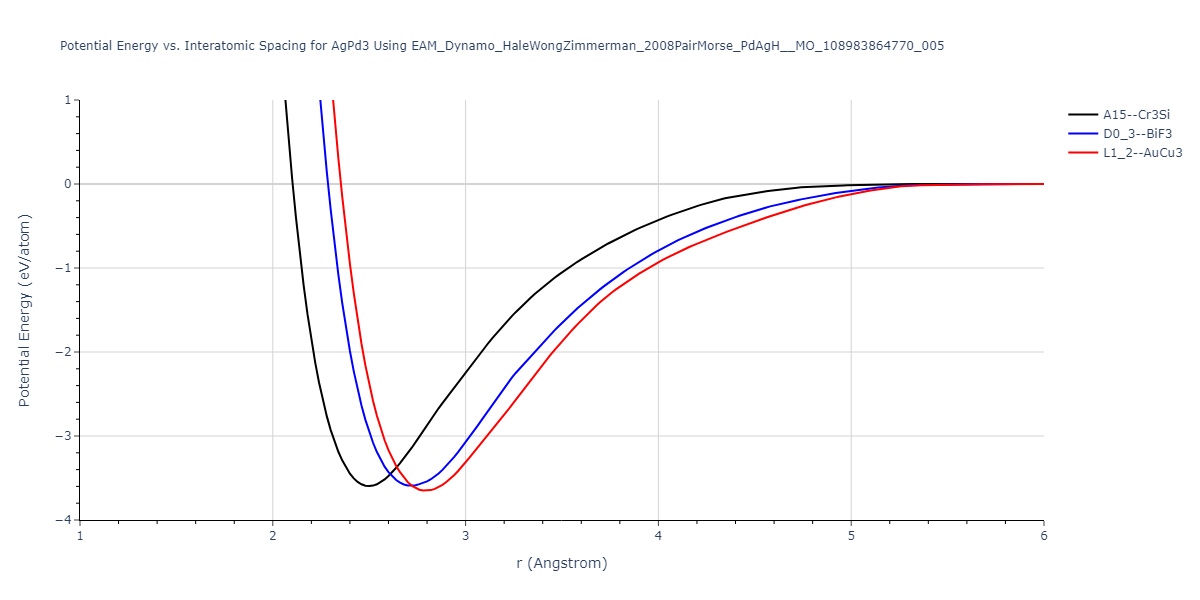

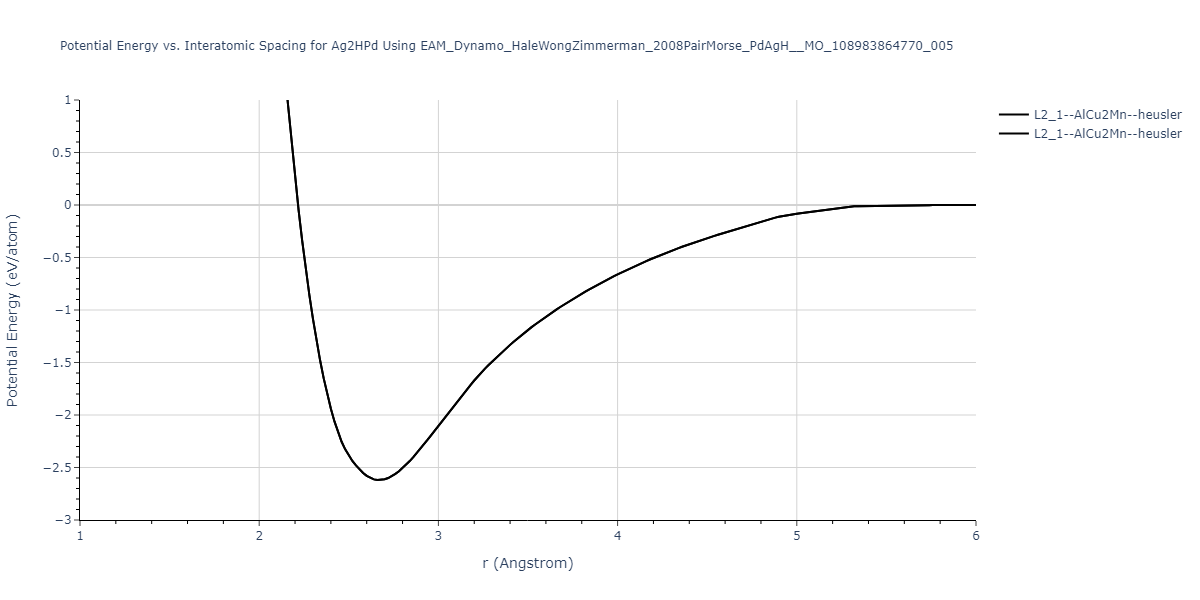

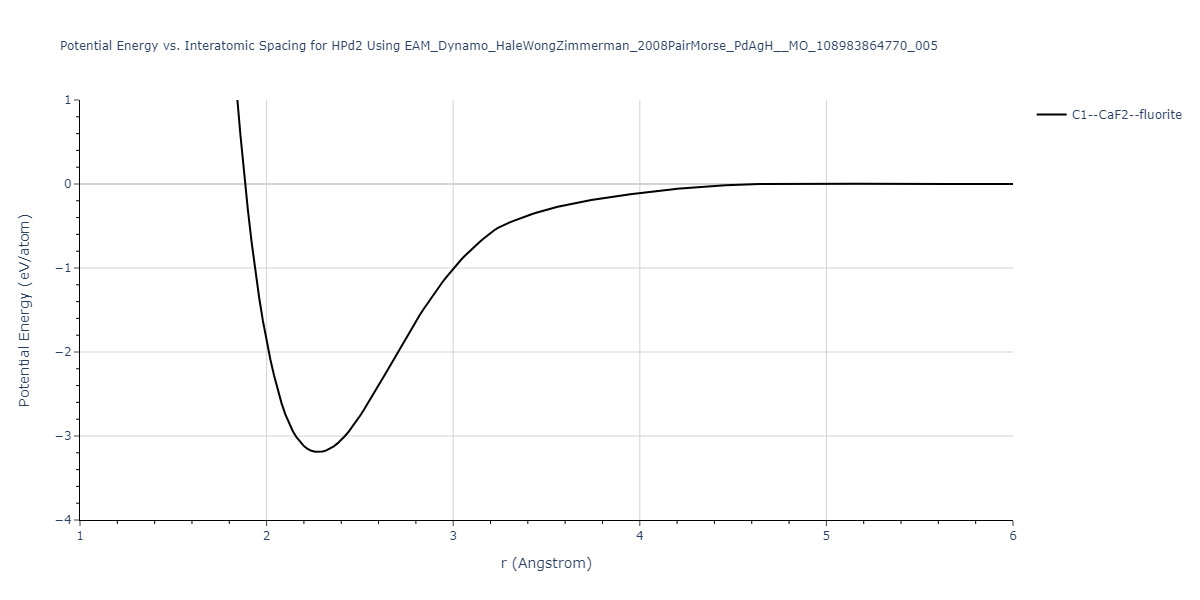

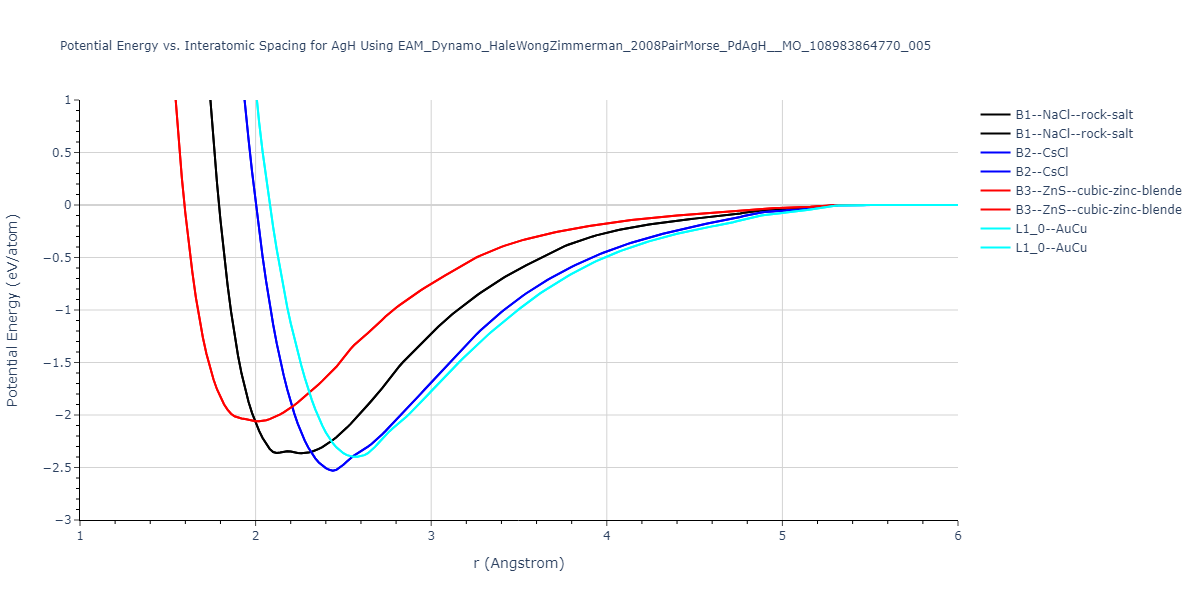

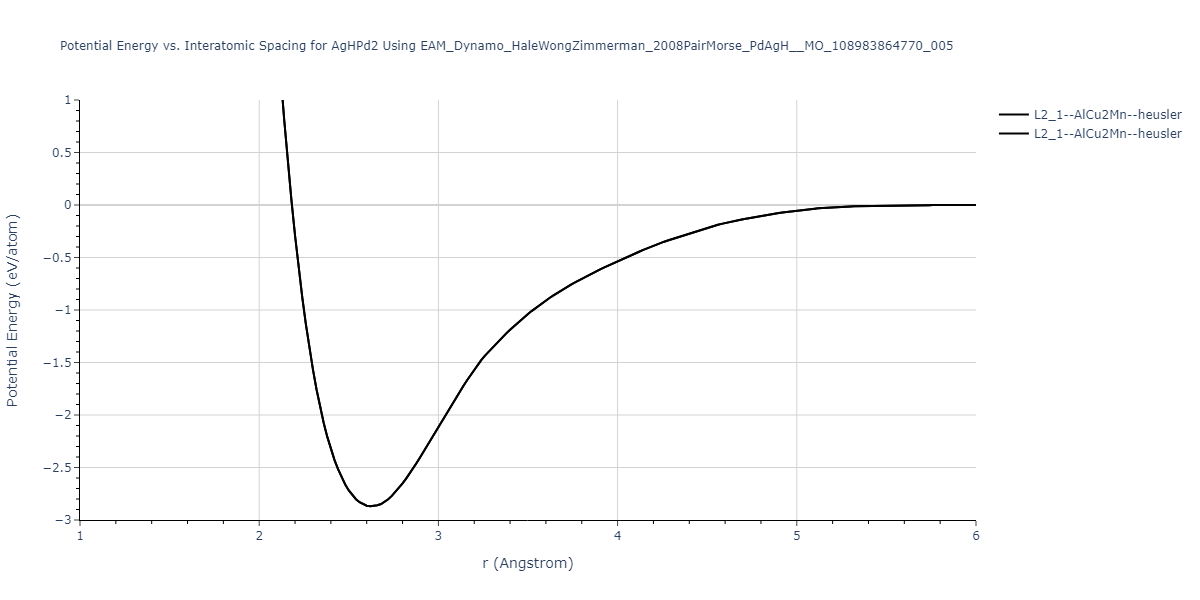

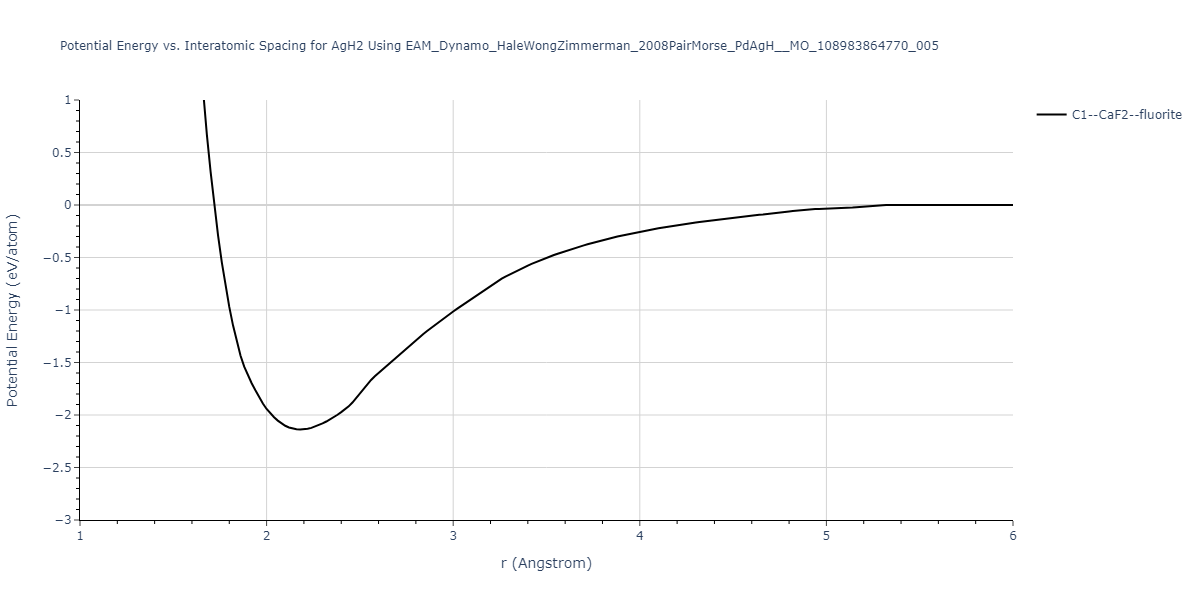

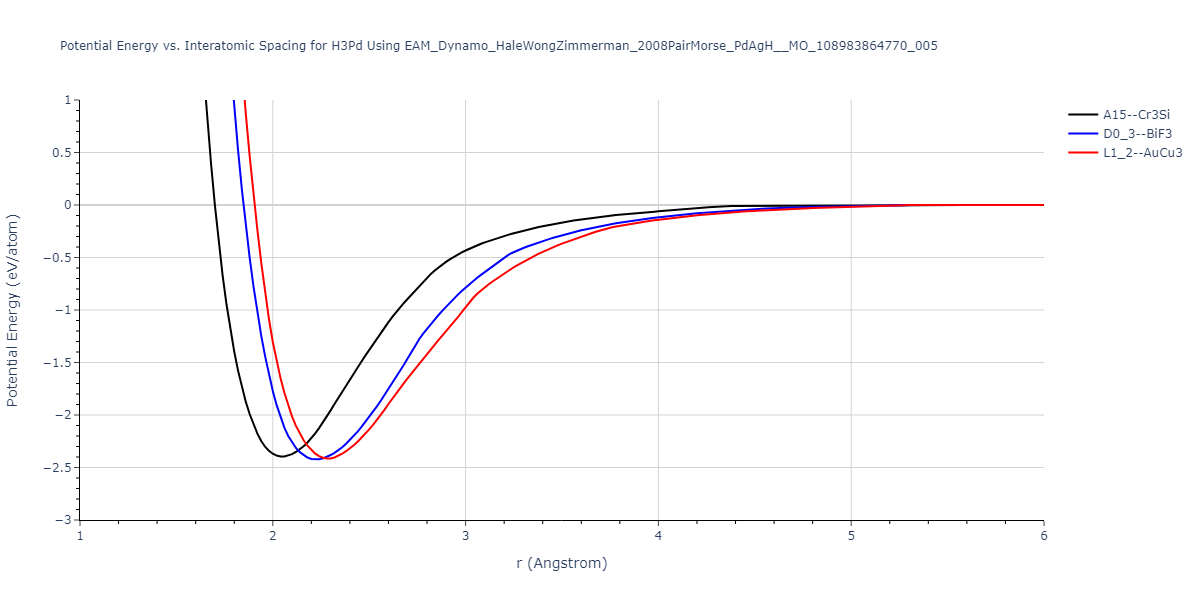

Plots of potential energy vs interatomic spacing, r, are shown below for a number of crystal structures. The structures are generated based on the ideal atomic positions and b/a and c/a lattice parameter ratios for a given crystal prototype. The size of the system is then uniformly scaled, and the energy calculated without relaxing the system. To obtain these plots, values of r are evaluated every 0.02 Å up to 6 Å.
The calculation method used is available as the iprPy E_vs_r_scan calculation method.
Clicking on the image of a plot will open an interactive version of it in a new tab. The underlying data for the plots can be downloaded by clicking on the links above each plot.
Notes and Disclaimers:
Version Information:
Computed lattice constants and cohesive/potential energies are displayed for a variety of crystal structures. The values displayed here are obtained using the following process.
The calculation methods used are implemented into iprPy as the following calculation styles
Notes and Disclaimers:
Version Information:
Download raw data (including filtered results)
Reference structure matches:
A1--Cu--fcc = mp-124, oqmd-676271, oqmd-1214502
A15--beta-W = oqmd-1214947
A2--W--bcc = oqmd-1215125
A3'--alpha-La--double-hcp = mp-8566, oqmd-11876, oqmd-1215393
A3--Mg--hcp = mp-10597, oqmd-10125, oqmd-1215303
A4--C--dc = oqmd-1215482
A5--beta-Sn = oqmd-1215571
A6--In--bct = oqmd-1215660
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
A1--Cu--fcc | dynamic | -2.85 | -2.85 | 4.09 | 4.09 | 4.09 | 90.0 | 90.0 | 90.0 |
A3'--alpha-La--double-hcp | dynamic | -2.8479 | -2.8479 | 2.894 | 2.894 | 9.4041 | 90.0 | 90.0 | 120.0 |
oqmd-1216016 | dynamic | -2.8473 | -2.8474 | 2.8948 | 2.8948 | 21.1248 | 90.0 | 90.0 | 120.0 |
mp-989737 | box | -2.8473 | -2.8473 | 2.8947 | 2.8947 | 21.1264 | 90.0 | 90.0 | 120.0 |
A3--Mg--hcp | dynamic | -2.8462 | -2.8462 | 2.8964 | 2.8964 | 4.6793 | 90.0 | 90.0 | 120.0 |
oqmd-1215214 | box | -2.8453 | -2.8453 | 2.8787 | 5.0462 | 4.6811 | 90.0 | 90.0 | 90.0 |
A2--W--bcc | dynamic | -2.8169 | -2.8169 | 3.2386 | 3.2386 | 3.2386 | 90.0 | 90.0 | 90.0 |
oqmd-1214858 | dynamic | -2.7831 | -2.7831 | 7.0672 | 7.0672 | 7.0672 | 90.0 | 90.0 | 90.0 |
oqmd-1214858 | box | -2.7815 | -2.7815 | 7.069 | 7.069 | 7.069 | 90.0 | 90.0 | 90.0 |
oqmd-1214769 | dynamic | -2.7794 | -2.7794 | 10.0677 | 10.0677 | 10.0677 | 90.0 | 90.0 | 90.0 |
oqmd-1214769 | box | -2.7787 | -2.7787 | 10.0712 | 10.0712 | 10.0712 | 90.0 | 90.0 | 90.0 |
A15--beta-W | static | -2.7451 | -2.7451 | 5.2348 | 5.2348 | 5.2348 | 90.0 | 90.0 | 90.0 |
oqmd-1214680 | box | -2.6316 | -2.6316 | 3.9812 | 9.6345 | 3.9757 | 90.0 | 90.0 | 90.0 |
A5--beta-Sn | static | -2.5587 | -2.5587 | 5.2859 | 5.2859 | 2.7524 | 90.0 | 90.0 | 90.0 |
oqmd-1216016 | box | -2.4652 | -2.4652 | 3.86 | 3.86 | 14.3343 | 90.0 | 90.0 | 120.0 |
Ah--alpha-Po--sc | static | -2.4504 | -2.4504 | 2.7342 | 2.7342 | 2.7342 | 90.0 | 90.0 | 90.0 |
oqmd-1215927 | static | -2.1283 | -2.1283 | 4.6386 | 4.6386 | 5.211 | 90.0 | 90.0 | 120.0 |
A7--alpha-As | box | -2.1235 | -2.1235 | 3.7267 | 3.7267 | 12.0059 | 90.0 | 90.0 | 120.0 |
A4--C--dc | static | -1.8828 | -1.8828 | 6.1713 | 6.1713 | 6.1713 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
C1--CaF2--fluorite | static | -2.4391 | -2.4391 | 5.5876 | 5.5876 | 5.5876 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
L2_1--AlCu2Mn--heusler | static | -2.6198 | -2.6198 | 6.1626 | 6.1626 | 6.1626 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
C1--CaF2--fluorite | static | -2.7352 | -2.7352 | 6.1006 | 6.1006 | 6.1006 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
D0_3--BiF3 = oqmd-310558
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
oqmd-300016 | static | -2.5356 | -2.5356 | 3.8523 | 3.8523 | 7.9836 | 90.0 | 90.0 | 90.0 |
L1_2--AuCu3 | static | -2.528 | -2.528 | 3.8809 | 3.8809 | 3.8809 | 90.0 | 90.0 | 90.0 |
D0_3--BiF3 | static | -2.4935 | -2.4935 | 6.2832 | 6.2832 | 6.2832 | 90.0 | 90.0 | 90.0 |
A15--Cr3Si | static | -2.3938 | -2.3938 | 5.0474 | 5.0474 | 5.0474 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
D0_3--BiF3 = oqmd-310883
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
L1_2--AuCu3 | dynamic | -3.139 | -3.139 | 4.0463 | 4.0463 | 4.0463 | 90.0 | 90.0 | 90.0 |
oqmd-300341 | dynamic | -3.1336 | -3.1336 | 4.0503 | 4.0503 | 8.0441 | 90.0 | 90.0 | 90.0 |
mp-1183206 | dynamic | -3.1334 | -3.1334 | 5.727 | 5.727 | 4.6483 | 90.0 | 90.0 | 120.0 |
mp-1183206 | box | -3.1309 | -3.1309 | 5.7299 | 5.7299 | 4.6509 | 90.0 | 90.0 | 120.0 |
D0_3--BiF3 | dynamic | -3.1053 | -3.1053 | 6.414 | 6.414 | 6.414 | 90.0 | 90.0 | 90.0 |
A15--Cr3Si | static | -3.0215 | -3.0215 | 5.1559 | 5.1559 | 5.1559 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
B2--CsCl = oqmd-305696
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
B2--CsCl | dynamic | -2.5296 | -2.5296 | 2.8174 | 2.8174 | 2.8174 | 90.0 | 90.0 | 90.0 |
B1--NaCl--rock-salt | static | -2.3645 | -2.3645 | 4.524 | 4.524 | 4.524 | 90.0 | 90.0 | 90.0 |
B1--NaCl--rock-salt | dynamic | -2.3609 | -2.3609 | 4.2437 | 4.2437 | 4.2437 | 90.0 | 90.0 | 90.0 |
mp-1096804 | box | -2.0758 | -2.0758 | 3.3167 | 3.3167 | 5.2411 | 90.0 | 90.0 | 120.0 |
B3--ZnS--cubic-zinc-blende | static | -2.0591 | -2.0591 | 4.6481 | 4.6481 | 4.6481 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
C1--CaF2--fluorite | dynamic | -2.1384 | -2.1384 | 5.0429 | 5.0429 | 5.0429 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
L2_1--AlCu2Mn--heusler | static | -2.7438 | -2.7438 | 5.5862 | 5.5862 | 5.5862 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
D0_3--BiF3 = oqmd-312752
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
D0_3--BiF3 | dynamic | -2.251 | -2.251 | 5.3662 | 5.3662 | 5.3662 | 90.0 | 90.0 | 90.0 |
L1_2--AuCu3 | dynamic | -2.2393 | -2.2393 | 3.3968 | 3.3968 | 3.3968 | 90.0 | 90.0 | 90.0 |
oqmd-302210 | dynamic | -2.2389 | -2.2389 | 3.4842 | 3.4842 | 6.3355 | 90.0 | 90.0 | 90.0 |
A15--Cr3Si | static | -2.1664 | -2.1664 | 4.2032 | 4.2032 | 4.2032 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
L2_1--AlCu2Mn--heusler | static | -2.8691 | -2.8691 | 6.0623 | 6.0623 | 6.0623 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
B2--CsCl = oqmd-305875
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
mp-1229012 | dynamic | -3.4312 | -3.4312 | 2.777 | 2.777 | 14.0559 | 90.0 | 90.0 | 120.0 |
mp-1183222 | box | -3.4242 | -3.4242 | 2.7686 | 2.7686 | 4.7382 | 90.0 | 90.0 | 120.0 |
L1_0--AuCu | dynamic | -3.4109 | -3.4109 | 2.7632 | 2.7632 | 4.184 | 90.0 | 90.0 | 90.0 |
B2--CsCl | static | -3.3261 | -3.3261 | 3.2017 | 3.2017 | 3.2017 | 90.0 | 90.0 | 90.0 |
B1--NaCl--rock-salt | static | -2.949 | -2.949 | 5.2866 | 5.2866 | 5.2866 | 90.0 | 90.0 | 90.0 |
B3--ZnS--cubic-zinc-blende | static | -2.1914 | -2.1915 | 5.6496 | 5.6496 | 5.6496 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
C1--CaF2--fluorite | static | -3.0362 | -3.0362 | 6.0038 | 6.0038 | 6.0038 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
D0_3--BiF3 = oqmd-308011
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
L1_2--AuCu3 | dynamic | -3.6512 | -3.6512 | 3.9502 | 3.9502 | 3.9502 | 90.0 | 90.0 | 90.0 |
oqmd-297488 | dynamic | -3.6492 | -3.6492 | 3.9541 | 3.9541 | 7.8663 | 90.0 | 90.0 | 90.0 |
A15--Cr3Si | dynamic | -3.5962 | -3.5962 | 4.9973 | 4.9973 | 4.9973 | 90.0 | 90.0 | 90.0 |
D0_3--BiF3 | static | -3.5913 | -3.5913 | 6.2697 | 6.2697 | 6.2697 | 90.0 | 90.0 | 90.0 |
A15--Cr3Si | static | -0.0 | -0.0 | 10.7064 | 10.7064 | 10.7064 | 90.0 | 90.0 | 90.0 |
A15--Cr3Si | box | -0.0 | -0.0 | 10.7213 | 10.7213 | 10.7213 | 90.0 | 90.0 | 90.0 |
A15--Cr3Si | dynamic | 0.0 | -0.0 | 12.4043 | 12.4043 | 12.4043 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
A1--Cu--fcc = mp-634659, oqmd-5497, oqmd-5499, oqmd-1214529
A15--beta-W = oqmd-1214974
A2--W--bcc = mp-632250, oqmd-5517, oqmd-1215152
A3'--alpha-La--double-hcp = oqmd-1215420
A3--Mg--hcp = mp-23907, mp-570752, oqmd-40867, oqmd-676625, oqmd-1215330
A4--C--dc = oqmd-1215509
A5--beta-Sn = oqmd-1215598
A6--In--bct = oqmd-1215687
A7--alpha-As = oqmd-1215776
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
A6--In--bct | dynamic | -1.7702 | -1.7702 | 2.2676 | 2.2676 | 3.4763 | 90.0 | 90.0 | 90.0 |
A1--Cu--fcc | dynamic | -1.7687 | -1.7687 | 3.2537 | 3.2537 | 3.2537 | 90.0 | 90.0 | 90.0 |
A3'--alpha-La--double-hcp | box | -1.7644 | -1.7644 | 2.3016 | 2.3016 | 7.598 | 90.0 | 90.0 | 120.0 |
A3--Mg--hcp | dynamic | -1.7627 | -1.7627 | 2.3033 | 2.3033 | 3.8519 | 90.0 | 90.0 | 120.0 |
oqmd-57246 | box | -1.7605 | -1.7605 | 3.1686 | 3.3927 | 3.4162 | 90.0 | 90.0 | 90.0 |
A2--W--bcc | static | -1.7489 | -1.7489 | 2.626 | 2.626 | 2.626 | 90.0 | 90.0 | 90.0 |
A15--beta-W | dynamic | -1.7158 | -1.7158 | 4.2071 | 4.2071 | 4.2071 | 90.0 | 90.0 | 90.0 |
oqmd-1215865 | box | -1.6042 | -1.6042 | 2.2776 | 2.2776 | 2.1746 | 90.0 | 90.0 | 120.0 |
oqmd-675624 | box | -1.5739 | -1.5739 | 2.2249 | 2.2249 | 7.6282 | 90.0 | 90.0 | 90.0 |
A5--beta-Sn | box | -1.5628 | -1.5628 | 4.2029 | 4.2029 | 2.2412 | 90.0 | 90.0 | 90.0 |
Ah--alpha-Po--sc | static | -1.4348 | -1.4348 | 2.1239 | 2.1239 | 2.1239 | 90.0 | 90.0 | 90.0 |
A7--alpha-As | box | -1.224 | -1.224 | 2.9672 | 2.9672 | 8.8983 | 90.0 | 90.0 | 120.0 |
oqmd-1215954 | box | -1.1764 | -1.1764 | 3.7075 | 3.7075 | 4.0729 | 90.0 | 90.0 | 120.0 |
A4--C--dc | static | -0.8732 | -0.8732 | 4.9575 | 4.9575 | 4.9575 | 90.0 | 90.0 | 90.0 |
A2--W--bcc | box | 0.0 | 0.0 | 6.182 | 6.182 | 6.182 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
C1--CaF2--fluorite = oqmd-1280983
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
C1--CaF2--fluorite | static | -2.7589 | -2.7589 | 4.7692 | 4.7692 | 4.7692 | 90.0 | 90.0 | 90.0 |
oqmd-1240989 | static | -2.4589 | -2.4589 | 6.9451 | 6.9451 | 6.9451 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
oqmd-427279 | dynamic | -3.2303 | -3.2303 | 5.0059 | 5.0059 | 14.8703 | 90.0 | 90.0 | 120.0 |
Download raw data (including filtered results)
Reference structure matches:
D0_3--BiF3 = oqmd-308093
L1_2--AuCu3 = oqmd-348519
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
oqmd-324033 | box | -2.4607 | -2.4607 | 5.5849 | 5.5849 | 2.715 | 90.0 | 90.0 | 120.0 |
oqmd-297567 | static | -2.4341 | -2.4341 | 3.2594 | 3.2594 | 6.3991 | 90.0 | 90.0 | 90.0 |
D0_3--BiF3 | static | -2.4232 | -2.4232 | 5.1354 | 5.1354 | 5.1354 | 90.0 | 90.0 | 90.0 |
L1_2--AuCu3 | static | -2.4154 | -2.4154 | 3.2346 | 3.2346 | 3.2346 | 90.0 | 90.0 | 90.0 |
A15--Cr3Si | static | -2.3956 | -2.3956 | 4.0996 | 4.0996 | 4.0996 | 90.0 | 90.0 | 90.0 |
A15--Cr3Si | static | -0.0075 | -0.0075 | 9.4955 | 9.4955 | 9.4955 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
mp-1224413 | dynamic | -3.1933 | -3.1933 | 2.946 | 2.946 | 28.9472 | 90.0 | 90.0 | 120.0 |
mp-1224413 | box | -3.1872 | -3.1872 | 2.942 | 2.942 | 28.9874 | 90.0 | 90.0 | 120.0 |
Download raw data (including filtered results)
Reference structure matches:
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
mp-1224352 | box | -2.8493 | -2.8493 | 3.4229 | 3.4229 | 5.9407 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
B1--NaCl--rock-salt = mp-24289, oqmd-30508, oqmd-1103691
B2--CsCl = oqmd-304505, oqmd-336047
B3--ZnS--cubic-zinc-blende = oqmd-1222744
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
mp-1184548 | dynamic | -3.0887 | -3.0887 | 3.2267 | 3.2267 | 4.6264 | 90.0 | 90.0 | 120.0 |
B1--NaCl--rock-salt | dynamic | -3.0811 | -3.0811 | 4.2243 | 4.2243 | 4.2243 | 90.0 | 90.0 | 90.0 |
mp-1184548 | box | -3.0783 | -3.0783 | 3.0232 | 3.0232 | 5.0984 | 90.0 | 90.0 | 120.0 |
B3--ZnS--cubic-zinc-blende | dynamic | -3.0724 | -3.0724 | 4.3706 | 4.3706 | 4.3706 | 90.0 | 90.0 | 90.0 |
oqmd-1229715 | box | -3.0556 | -3.0556 | 2.887 | 2.887 | 2.7712 | 90.0 | 90.0 | 120.0 |
B2--CsCl | box | -2.9867 | -2.9867 | 2.7063 | 2.7063 | 2.7063 | 90.0 | 90.0 | 90.0 |
oqmd-1220550 | box | -2.859 | -2.859 | 2.751 | 2.645 | 6.0138 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
C1--CaF2--fluorite | static | -3.19 | -3.19 | 5.251 | 5.251 | 5.251 | 90.0 | 90.0 | 90.0 |
oqmd-1240988 | static | -2.8056 | -2.8056 | 7.3036 | 7.3036 | 7.3036 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
D0_3--BiF3 = oqmd-313491
L1_2--AuCu3 = oqmd-343121
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
mp-983407 | box | -3.1822 | -3.1822 | 5.4878 | 5.4878 | 3.9067 | 90.0 | 90.0 | 120.0 |
oqmd-318635 | box | -3.169 | -3.169 | 5.43 | 5.43 | 3.9943 | 90.0 | 90.0 | 120.0 |
mp-1184656 | static | -3.1349 | -3.1349 | 3.786 | 3.786 | 7.1218 | 90.0 | 90.0 | 90.0 |
D0_3--BiF3 | static | -3.1129 | -3.1129 | 5.8754 | 5.8754 | 5.8754 | 90.0 | 90.0 | 90.0 |
L1_2--AuCu3 | static | -3.1085 | -3.1085 | 3.7034 | 3.7034 | 3.7034 | 90.0 | 90.0 | 90.0 |
A15--Cr3Si | static | -3.0782 | -3.0782 | 4.6773 | 4.6773 | 4.6773 | 90.0 | 90.0 | 90.0 |
Download raw data (including filtered results)
Reference structure matches:
A1--Cu--fcc = mp-2, oqmd-676153, oqmd-1214557
A15--beta-W = oqmd-1215002, oqmd-1280323
A2--W--bcc = oqmd-690547, oqmd-1215180
A3'--alpha-La--double-hcp = mp-1186427, oqmd-1215448
A3--Mg--hcp = oqmd-1215358
A4--C--dc = oqmd-1215537
A5--beta-Sn = oqmd-1215626
A6--In--bct = oqmd-1215715
prototype | method | Ecoh (eV/atom) | Epot (eV/atom) | a0 (Å) | b0 (Å) | c0 (Å) | α (degrees) | β (degrees) | γ (degrees) |
---|---|---|---|---|---|---|---|---|---|
A1--Cu--fcc | dynamic | -3.9104 | -3.9104 | 3.8849 | 3.8849 | 3.8849 | 90.0 | 90.0 | 90.0 |
A3'--alpha-La--double-hcp | dynamic | -3.8922 | -3.8922 | 2.7461 | 2.7461 | 8.9387 | 90.0 | 90.0 | 120.0 |
A3'--alpha-La--double-hcp | box | -3.8913 | -3.8913 | 2.7295 | 2.7295 | 9.1295 | 90.0 | 90.0 | 120.0 |
oqmd-1216074 | dynamic | -3.8884 | -3.8884 | 2.7213 | 2.7213 | 20.7583 | 90.0 | 90.0 | 120.0 |
A3--Mg--hcp | dynamic | -3.8802 | -3.8802 | 2.7111 | 2.7111 | 4.6703 | 90.0 | 90.0 | 120.0 |
A15--beta-W | dynamic | -3.8755 | -3.8755 | 4.9314 | 4.9314 | 4.9314 | 90.0 | 90.0 | 90.0 |
A3--Mg--hcp | dynamic | -3.8746 | -3.8746 | 2.7488 | 2.7488 | 4.4318 | 90.0 | 90.0 | 120.0 |
oqmd-1214824 | dynamic | -3.8557 | -3.8557 | 9.5586 | 9.5586 | 9.5586 | 90.0 | 90.0 | 90.0 |
oqmd-1214824 | box | -3.8548 | -3.8548 | 9.5568 | 9.5568 | 9.5568 | 90.0 | 90.0 | 90.0 |
oqmd-1214913 | dynamic | -3.8443 | -3.8443 | 6.7036 | 6.7036 | 6.7036 | 90.0 | 90.0 | 90.0 |
oqmd-1214913 | box | -3.84 | -3.84 | 6.7166 | 6.7166 | 6.7166 | 90.0 | 90.0 | 90.0 |
A2--W--bcc | box | -3.8189 | -3.8189 | 3.084 | 3.084 | 3.084 | 90.0 | 90.0 | 90.0 |
oqmd-1214735 | box | -3.7386 | -3.7386 | 3.7828 | 8.7804 | 3.7826 | 90.0 | 90.0 | 90.0 |
A5--beta-Sn | static | -3.6192 | -3.6192 | 4.9287 | 4.9287 | 2.7164 | 90.0 | 90.0 | 90.0 |
A5--beta-Sn | box | -3.6157 | -3.6157 | 4.9473 | 4.9473 | 2.665 | 90.0 | 90.0 | 90.0 |
Ah--alpha-Po--sc | static | -3.6083 | -3.6083 | 2.549 | 2.549 | 2.549 | 90.0 | 90.0 | 90.0 |
A4--C--dc | static | -2.9284 | -2.9284 | 5.3495 | 5.3495 | 5.3495 | 90.0 | 90.0 | 90.0 |
Static elastic constants are displayed for the unique structures identified in Crystal Structure Predictions above. The values displayed here are obtained by measuring the change in virial stresses due to applying small strains to the relaxed crystals. The initial structure and the strained states are all relaxed using force minimization.
The calculation method used is available as the iprPy elastic_constants_static calculation method.
Notes and Disclaimers:
Version Information:
124.244 | 93.876 | 93.876 | -0.0 | -0.0 | -0.0 |
93.876 | 124.244 | 93.876 | -0.0 | 0.0 | -0.0 |
93.876 | 93.876 | 124.244 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 46.422 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 46.422 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 46.422 |
124.244 | 93.876 | 93.876 | 0.0 | 0.0 | 0.0 |
93.876 | 124.244 | 93.876 | 0.0 | -0.0 | 0.0 |
93.876 | 93.876 | 124.244 | 0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 46.422 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 46.422 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 46.422 |
124.244 | 93.876 | 93.876 | -0.0 | 0.0 | -0.0 |
93.876 | 124.244 | 93.876 | -0.0 | 0.0 | -0.0 |
93.876 | 93.876 | 124.244 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 46.422 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 46.422 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 46.422 |
124.244 | 93.875 | 93.875 | 0.0 | -0.0 | 0.0 |
93.875 | 124.244 | 93.875 | 0.0 | 0.0 | 0.0 |
93.875 | 93.875 | 124.244 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 46.422 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 46.422 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 46.422 |
124.244 | 93.876 | 93.876 | -0.0 | -0.0 | -0.0 |
93.876 | 124.244 | 93.876 | -0.0 | 0.0 | -0.0 |
93.876 | 93.876 | 124.244 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 46.422 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 46.422 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 46.422 |
124.243 | 93.875 | 93.875 | 0.0 | -0.0 | 0.0 |
93.875 | 124.243 | 93.875 | 0.0 | -0.0 | 0.0 |
93.875 | 93.875 | 124.243 | 0.0 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 46.422 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 46.422 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 46.422 |
197.68 | 53.281 | 53.281 | 0.0 | -0.0 | 0.0 |
53.281 | 197.68 | 53.281 | -0.0 | 0.0 | -0.0 |
53.281 | 53.281 | 197.68 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 10.531 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 10.531 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 10.531 |
197.064 | 53.59 | 53.59 | -0.0 | 0.0 | -0.0 |
53.59 | 197.064 | 53.589 | -0.0 | 0.0 | 0.0 |
53.59 | 53.59 | 197.064 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 10.531 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 10.531 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 10.531 |
197.68 | 53.281 | 53.281 | -0.0 | -0.0 | 0.0 |
53.281 | 197.68 | 53.281 | -0.0 | -0.0 | 0.0 |
53.281 | 53.281 | 197.68 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -4.902 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -4.902 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | -4.902 |
197.68 | 53.281 | 53.281 | 0.0 | 0.0 | -0.0 |
53.281 | 197.68 | 53.281 | 0.0 | 0.0 | -0.0 |
53.281 | 53.281 | 197.68 | -0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -4.902 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -4.902 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 0.0 | -4.902 |
197.064 | 53.59 | 53.59 | 0.0 | -0.0 | 0.0 |
53.59 | 197.064 | 53.59 | 0.0 | 0.0 | 0.0 |
53.59 | 53.59 | 197.064 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -4.902 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -4.902 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -0.0 | -4.902 |
197.063 | 53.589 | 53.589 | -0.0 | 0.0 | -0.0 |
53.589 | 197.063 | 53.589 | 0.0 | 0.0 | -0.0 |
53.589 | 53.589 | 197.063 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -4.902 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | -4.902 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 0.0 | -4.902 |
123.214 | 120.999 | 120.999 | -0.0 | -0.0 | -0.0 |
120.999 | 123.214 | 120.999 | -0.0 | -0.0 | 0.0 |
120.999 | 120.999 | 123.214 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 70.974 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 70.974 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 70.974 |
123.214 | 120.999 | 120.999 | 0.0 | -0.0 | -0.0 |
120.999 | 123.214 | 120.999 | 0.0 | 0.0 | -0.0 |
120.999 | 120.999 | 123.214 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 70.974 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 70.974 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 70.974 |
123.214 | 120.999 | 120.999 | 0.0 | 0.0 | -0.0 |
120.999 | 123.214 | 120.999 | -0.0 | -0.0 | 0.0 |
120.999 | 120.999 | 123.214 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 70.974 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 70.974 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 70.974 |
123.214 | 120.999 | 120.999 | -0.0 | -0.0 | -0.0 |
120.999 | 123.214 | 120.999 | -0.0 | -0.0 | -0.0 |
120.999 | 120.999 | 123.214 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 70.974 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 70.974 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 70.974 |
123.215 | 121.0 | 121.0 | -0.0 | 0.0 | 0.0 |
121.0 | 123.215 | 121.0 | -0.0 | -0.0 | 0.0 |
121.0 | 121.0 | 123.215 | 0.0 | 0.0 | 0.0 |
0.001 | 0.0 | 0.001 | 70.974 | 0.0 | 0.0 |
0.0 | 0.001 | 0.001 | 0.0 | 70.974 | 0.0 |
0.0 | 0.001 | 0.001 | 0.0 | -0.0 | 70.974 |
123.213 | 120.998 | 120.998 | -0.0 | -0.0 | -0.0 |
120.998 | 123.213 | 120.998 | 0.0 | -0.0 | -0.0 |
120.998 | 120.998 | 123.213 | -0.0 | -0.0 | -0.0 |
-0.001 | -0.0 | -0.001 | 70.974 | 0.0 | -0.0 |
-0.0 | -0.001 | -0.001 | 0.0 | 70.974 | -0.0 |
-0.0 | -0.001 | -0.001 | 0.0 | 0.0 | 70.974 |
155.873 | 83.8 | 73.426 | -0.0 | -0.0 | -0.0 |
92.951 | 146.722 | 73.426 | -0.0 | -0.0 | -0.0 |
73.426 | 73.426 | 159.714 | -0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 25.073 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 25.073 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 36.036 |
146.722 | 92.951 | 73.426 | 0.0 | 0.0 | -0.0 |
83.8 | 155.873 | 73.426 | -0.0 | -0.0 | -0.0 |
73.426 | 73.426 | 159.714 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 25.073 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 25.073 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 36.036 |
155.873 | 83.8 | 73.426 | 0.0 | 0.0 | -0.0 |
92.951 | 146.722 | 73.426 | -0.0 | -0.0 | -0.0 |
73.426 | 73.426 | 159.714 | -0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 25.073 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 25.073 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 36.036 |
146.722 | 92.951 | 73.426 | -0.0 | -0.0 | -0.0 |
92.951 | 146.722 | 73.426 | -0.0 | 0.0 | -0.0 |
73.426 | 73.426 | 159.714 | -0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 25.073 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 25.073 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 36.036 |
155.873 | 83.801 | 73.427 | 0.0 | -0.0 | 0.0 |
92.952 | 146.722 | 73.427 | -0.0 | -0.0 | -0.0 |
73.427 | 73.427 | 159.715 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 25.073 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 25.073 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 36.036 |
146.721 | 92.951 | 73.426 | 0.0 | 0.0 | -0.0 |
92.951 | 146.721 | 73.426 | 0.0 | 0.0 | -0.0 |
73.426 | 73.426 | 159.713 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 25.073 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 25.073 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 36.036 |
156.608 | 84.256 | 75.109 | 0.0 | -0.0 | -0.0 |
84.256 | 156.608 | 75.109 | 0.0 | -0.0 | 0.0 |
75.109 | 75.109 | 159.453 | 0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 25.773 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 25.773 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 26.249 |
146.681 | 94.183 | 75.109 | -0.0 | 0.0 | -0.0 |
94.183 | 146.681 | 75.109 | -0.0 | 0.0 | -0.0 |
75.109 | 75.109 | 159.453 | -0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 25.773 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 25.773 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 26.249 |
146.681 | 94.183 | 75.109 | 0.0 | -0.0 | -0.0 |
94.183 | 146.681 | 75.109 | 0.0 | -0.0 | -0.0 |
75.109 | 75.109 | 159.453 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 25.773 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 25.773 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 26.249 |
156.607 | 84.256 | 75.109 | -0.0 | 0.0 | -0.0 |
84.256 | 156.607 | 75.109 | -0.0 | 0.0 | 0.0 |
75.109 | 75.109 | 159.453 | -0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 25.773 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 25.773 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 26.249 |
156.608 | 84.256 | 75.11 | 0.0 | -0.0 | 0.0 |
94.183 | 146.681 | 75.109 | 0.0 | -0.0 | -0.0 |
75.11 | 75.11 | 159.454 | 0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 25.773 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 25.773 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 26.249 |
146.68 | 94.183 | 75.109 | -0.0 | 0.0 | -0.0 |
94.183 | 146.68 | 75.109 | -0.0 | 0.0 | -0.0 |
75.109 | 75.109 | 159.452 | -0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 25.773 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 25.773 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 26.249 |
47.206 | 56.894 | 56.894 | 0.0 | -0.0 | -0.0 |
56.894 | 47.206 | 56.894 | -0.0 | 0.0 | -0.0 |
56.894 | 56.894 | 47.206 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -13.397 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -13.397 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -13.397 |
47.206 | 56.894 | 56.894 | 0.0 | 0.0 | 0.0 |
56.894 | 47.206 | 56.894 | 0.0 | 0.0 | 0.0 |
56.894 | 56.894 | 47.206 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -13.397 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -13.397 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -13.397 |
47.206 | 56.894 | 56.894 | -0.0 | -0.0 | -0.0 |
56.894 | 47.206 | 56.894 | -0.0 | -0.0 | -0.0 |
56.894 | 56.894 | 47.206 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -13.397 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -13.397 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -13.397 |
47.206 | 56.894 | 56.894 | -0.0 | 0.0 | 0.0 |
56.894 | 47.206 | 56.894 | 0.0 | -0.0 | 0.0 |
56.894 | 56.894 | 47.206 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -13.397 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -13.397 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -13.397 |
47.206 | 56.894 | 56.894 | 0.0 | -0.0 | -0.0 |
56.894 | 47.206 | 56.894 | -0.0 | 0.0 | -0.0 |
56.894 | 56.894 | 47.206 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -13.397 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -13.397 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -13.397 |
47.206 | 56.894 | 56.894 | -0.0 | 0.0 | 0.0 |
56.894 | 47.206 | 56.894 | 0.0 | -0.0 | 0.0 |
56.894 | 56.894 | 47.206 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -13.397 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -13.397 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -13.397 |
-48.898 | 342.359 | 39.715 | 0.0 | -0.0 | -0.0 |
342.359 | -48.898 | 39.715 | 0.0 | -0.0 | 0.0 |
39.715 | 39.715 | 261.302 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -17.34 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -17.34 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -16.386 |
-48.898 | 342.359 | 39.715 | -0.0 | 0.0 | -0.0 |
342.359 | -48.898 | 39.715 | -0.0 | 0.0 | 0.0 |
39.715 | 39.715 | 261.302 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -17.34 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -17.34 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | -16.386 |
274.926 | 18.535 | 39.715 | 0.0 | 0.0 | -0.0 |
18.535 | 274.926 | 39.715 | 0.0 | -0.0 | 0.0 |
39.715 | 39.715 | 261.302 | 0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -17.34 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -17.34 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -16.386 |
-48.898 | 342.358 | 39.715 | -0.0 | 0.0 | 0.0 |
342.358 | -48.898 | 39.715 | -0.0 | 0.0 | 0.0 |
39.715 | 39.715 | 261.302 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -17.34 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -17.34 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -16.386 |
-131.458 | 424.917 | 39.716 | 0.0 | 0.0 | -0.0 |
424.917 | -131.458 | 39.716 | 0.0 | -0.0 | -0.0 |
39.715 | 39.715 | 261.305 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -17.34 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -17.34 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -0.0 | -16.386 |
-48.894 | 342.355 | 39.714 | -0.0 | 0.0 | 0.0 |
342.355 | -48.894 | 39.714 | -0.0 | 0.0 | -0.0 |
39.715 | 39.715 | 261.299 | 0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -17.34 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -17.34 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | -16.386 |
11.105 | 4.378 | 25.197 | -9.819 | -0.0 | 0.0 |
4.378 | 11.105 | 25.197 | 9.819 | -0.0 | -0.0 |
23.461 | 23.461 | 40.24 | -0.0 | -0.0 | 0.0 |
-9.819 | 9.819 | 0.0 | 16.707 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 16.707 | -9.819 |
0.0 | 0.0 | 0.0 | -0.0 | -9.819 | 3.364 |
11.105 | 4.378 | 25.197 | -9.819 | 0.0 | 0.0 |
4.378 | 11.105 | 25.197 | 9.819 | 0.0 | -0.0 |
23.461 | 23.461 | 40.24 | 0.0 | 0.0 | 0.0 |
-9.819 | 9.819 | -0.0 | 16.707 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 16.707 | -9.819 |
-0.0 | -0.0 | -0.0 | 0.0 | -9.819 | 3.364 |
11.105 | 4.378 | 25.197 | -9.819 | -0.0 | 0.0 |
4.378 | 11.105 | 25.197 | 9.819 | -0.0 | -0.0 |
23.461 | 23.461 | 40.24 | -0.0 | -0.0 | -0.0 |
-9.819 | 9.819 | 0.0 | 16.707 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 16.707 | -9.819 |
0.0 | 0.0 | 0.0 | -0.0 | -9.819 | 3.364 |
11.105 | 4.378 | 25.197 | -9.819 | 0.0 | 0.0 |
4.378 | 11.105 | 25.197 | 9.819 | 0.0 | -0.0 |
23.461 | 23.461 | 40.24 | 0.0 | 0.0 | 0.0 |
-9.819 | 9.819 | -0.0 | 16.707 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 16.707 | -9.819 |
-0.0 | -0.0 | -0.0 | 0.0 | -9.819 | 3.364 |
11.105 | 4.378 | 25.197 | -9.819 | -0.0 | 0.0 |
4.378 | 11.105 | 25.197 | 9.819 | -0.0 | 0.0 |
23.461 | 23.461 | 40.24 | -0.0 | -0.0 | -0.0 |
-9.819 | 9.819 | 0.0 | 16.707 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 16.707 | -9.819 |
0.0 | 0.0 | 0.0 | -0.0 | -9.819 | 3.364 |
11.105 | 4.378 | 25.197 | -9.819 | 0.0 | -0.0 |
4.378 | 11.105 | 25.197 | 9.819 | 0.0 | 0.0 |
23.461 | 23.461 | 40.24 | 0.0 | 0.0 | 0.0 |
-9.819 | 9.819 | -0.0 | 16.707 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 16.707 | -9.819 |
-0.0 | -0.0 | -0.0 | 0.0 | -9.819 | 3.364 |
275.38 | 18.686 | 18.686 | -0.0 | 0.0 | 0.0 |
18.686 | 275.38 | 18.686 | -0.0 | 0.0 | -0.0 |
18.686 | 18.686 | 275.38 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -13.103 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -13.103 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | -13.103 |
275.38 | 18.686 | 18.686 | 0.0 | -0.0 | 0.0 |
18.686 | 275.38 | 18.686 | -0.0 | 0.0 | -0.0 |
18.686 | 18.686 | 275.38 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -13.103 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -13.103 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -13.103 |
275.38 | 18.686 | 18.686 | -0.0 | -0.0 | 0.0 |
18.686 | 275.38 | 18.686 | -0.0 | 0.0 | 0.0 |
18.686 | 18.686 | 275.38 | -0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -13.103 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -13.103 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 0.0 | -13.103 |
275.38 | 18.686 | 18.686 | 0.0 | -0.0 | -0.0 |
18.686 | 275.38 | 18.686 | -0.0 | -0.0 | -0.0 |
18.686 | 18.686 | 275.38 | 0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -13.103 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -13.103 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -0.0 | -13.103 |
275.383 | 18.686 | 18.686 | -0.0 | 0.0 | 0.0 |
18.686 | 275.383 | 18.686 | -0.0 | -0.0 | 0.0 |
18.686 | 18.686 | 275.383 | -0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -13.103 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -13.103 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -13.103 |
275.378 | 18.686 | 18.686 | -0.0 | -0.0 | -0.0 |
18.686 | 275.378 | 18.686 | 0.0 | -0.0 | 0.0 |
18.686 | 18.686 | 275.378 | 0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -13.103 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -13.103 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -0.0 | -13.103 |
156.115 | 83.952 | 73.939 | 4.896 | 0.0 | 0.0 |
86.52 | 155.577 | 69.735 | -4.897 | 0.0 | 0.0 |
74.967 | 74.967 | 155.27 | 0.0 | 0.0 | 0.0 |
4.896 | -4.896 | 0.0 | 25.279 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 25.279 | 4.896 |
1.016 | 1.016 | -4.209 | 0.0 | 4.897 | 34.528 |
156.115 | 83.952 | 73.939 | 4.896 | -0.0 | -0.0 |
83.952 | 156.115 | 73.939 | -4.896 | -0.0 | 0.0 |
73.947 | 73.947 | 159.496 | -0.0 | 0.0 | -0.0 |
4.896 | -4.896 | -0.0 | 25.279 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 25.279 | 4.896 |
-1.016 | -1.016 | 4.209 | -0.0 | 4.897 | 34.528 |
154.425 | 85.875 | 73.456 | 4.897 | 0.0 | 0.0 |
85.875 | 154.425 | 73.456 | -4.897 | 0.0 | 0.0 |
73.947 | 73.947 | 159.496 | 0.0 | 0.0 | 0.0 |
4.896 | -4.896 | 0.0 | 25.279 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 25.279 | 4.896 |
-0.0 | 0.0 | 0.0 | 0.0 | 4.896 | 36.082 |
156.115 | 83.951 | 73.939 | 4.896 | -0.0 | -0.0 |
83.951 | 156.115 | 73.939 | -4.896 | -0.0 | -0.0 |
73.851 | 73.851 | 159.893 | -0.0 | -0.0 | -0.0 |
4.896 | -4.896 | -0.0 | 25.279 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 25.279 | 4.896 |
0.0 | -0.0 | -0.0 | -0.0 | 4.896 | 36.082 |
156.116 | 83.952 | 73.939 | 4.896 | 0.0 | 0.0 |
83.952 | 156.116 | 73.939 | -4.896 | 0.0 | 0.0 |
73.948 | 73.948 | 159.497 | 0.0 | 0.0 | 0.0 |
4.896 | -4.896 | 0.0 | 25.279 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 25.279 | 4.896 |
0.046 | 0.046 | -0.19 | 0.0 | 4.9 | 29.083 |
149.375 | 90.592 | 74.144 | 4.9 | 0.0 | -0.0 |
92.392 | 147.651 | 73.986 | -4.901 | -0.0 | -0.0 |
73.942 | 73.942 | 159.514 | -0.0 | -0.0 | 0.0 |
4.896 | -4.896 | -0.0 | 25.279 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 25.279 | 4.896 |
-0.046 | -0.046 | 0.19 | -0.0 | 4.9 | 29.083 |
88.908 | 66.24 | 87.284 | 0.0 | 0.0 | -0.0 |
64.222 | 205.13 | 64.46 | 0.0 | 0.0 | -0.0 |
96.24 | 54.204 | 97.48 | 0.0 | -0.0 | -0.0 |
0.76 | -1.041 | 0.764 | -26.434 | -0.0 | 0.0 |
0.144 | -0.198 | 0.145 | -0.0 | 61.945 | -0.0 |
0.769 | -1.053 | 0.773 | 0.0 | 0.0 | -28.739 |
88.721 | 66.496 | 87.096 | -0.0 | -0.0 | -0.0 |
64.035 | 205.386 | 64.272 | 0.0 | -0.0 | 0.0 |
87.095 | 66.732 | 88.286 | 0.0 | -0.0 | -0.0 |
-0.76 | 1.041 | -0.764 | -26.434 | 0.0 | 0.0 |
-0.144 | 0.198 | -0.145 | -0.0 | 61.945 | 0.0 |
-0.769 | 1.053 | -0.773 | -0.0 | -0.0 | -28.739 |
88.826 | 66.354 | 87.201 | -0.0 | 0.0 | -0.0 |
64.137 | 205.247 | 64.375 | 0.0 | -0.0 | -0.0 |
87.199 | 66.59 | 88.39 | 0.0 | 0.0 | 0.0 |
0.076 | -0.104 | 0.077 | -26.556 | 0.0 | -0.0 |
0.014 | -0.02 | 0.015 | -0.0 | 61.945 | -0.0 |
0.077 | -0.106 | 0.077 | 0.0 | 0.0 | -28.864 |
88.807 | 66.379 | 87.182 | -0.0 | 0.0 | 0.0 |
51.795 | 222.154 | 51.967 | 0.0 | 0.0 | -0.0 |
96.24 | 54.204 | 97.48 | 0.0 | -0.0 | 0.0 |
-0.076 | 0.104 | -0.077 | -26.556 | 0.0 | 0.0 |
-0.014 | 0.02 | -0.015 | -0.0 | 61.945 | 0.0 |
-0.077 | 0.106 | -0.077 | -0.0 | -0.0 | -28.864 |
97.819 | 54.034 | 96.243 | -0.0 | 0.0 | 0.0 |
64.129 | 205.259 | 64.367 | -0.0 | 0.0 | -0.0 |
96.241 | 54.204 | 97.481 | 0.0 | 0.0 | -0.0 |
0.007 | -0.01 | 0.007 | -26.557 | 0.0 | -0.0 |
0.002 | -0.002 | 0.002 | 0.0 | 61.945 | 0.0 |
0.007 | -0.011 | 0.007 | 0.0 | -0.0 | -28.866 |
88.814 | 66.368 | 87.19 | -0.0 | -0.0 | 0.0 |
64.126 | 205.26 | 64.364 | -0.0 | -0.0 | 0.0 |
87.188 | 66.604 | 88.379 | 0.0 | -0.0 | 0.0 |
-0.007 | 0.01 | -0.007 | -26.557 | 0.0 | 0.0 |
-0.002 | 0.002 | -0.002 | -0.0 | 61.945 | 0.0 |
-0.007 | 0.011 | -0.007 | -0.0 | -0.0 | -28.866 |
-282.658 | -268.306 | -268.306 | -0.0 | -0.0 | -0.0 |
-268.306 | -282.658 | -268.306 | -0.0 | -0.0 | -0.0 |
-268.306 | -268.306 | -282.658 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 29.138 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 29.138 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 29.138 |
178.976 | 74.08 | 74.08 | -0.0 | -0.0 | 0.0 |
74.08 | 178.976 | 74.08 | -0.0 | -0.0 | 0.0 |
74.08 | 74.08 | 178.976 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 29.138 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 29.138 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 29.138 |
61.01 | 73.291 | 73.291 | -0.0 | -0.0 | -0.0 |
73.291 | 61.01 | 73.291 | -0.0 | -0.0 | -0.0 |
73.291 | 73.291 | 61.01 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 29.138 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 29.138 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 29.138 |
178.976 | 74.08 | 74.08 | -0.0 | -0.0 | 0.0 |
74.08 | 178.976 | 74.08 | -0.0 | -0.0 | 0.0 |
74.08 | 74.08 | 178.976 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 29.138 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 29.138 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 29.138 |
178.974 | 74.08 | 74.08 | -0.0 | -0.0 | -0.0 |
74.08 | 178.974 | 74.08 | -0.0 | -0.0 | -0.0 |
74.08 | 74.08 | 178.974 | -0.0 | -0.0 | -0.0 |
-5.064 | -5.064 | -5.064 | 6.69 | -0.0 | -0.0 |
-5.064 | -5.064 | -5.064 | -0.0 | 6.69 | -0.0 |
-5.064 | -5.064 | -5.064 | -0.0 | -0.0 | 6.69 |
144.244 | 92.244 | 92.244 | 0.0 | 0.0 | 0.0 |
92.244 | 144.244 | 92.244 | 0.0 | 0.0 | 0.0 |
92.244 | 92.244 | 144.244 | 0.0 | 0.0 | 0.0 |
5.064 | 5.064 | 5.064 | 6.69 | 0.0 | 0.0 |
5.064 | 5.064 | 5.064 | 0.0 | 6.69 | 0.0 |
5.064 | 5.064 | 5.064 | 0.0 | 0.0 | 6.69 |
-1145.074 | -1209.246 | -1209.246 | -0.0 | -0.0 | -0.0 |
-1209.246 | -1145.074 | -1209.246 | -0.0 | -0.0 | 0.0 |
-1209.244 | -1209.244 | -1145.072 | -0.0 | -0.0 | -0.0 |
-1296.302 | -1296.302 | -1296.302 | 11.565 | -0.0 | -0.0 |
-1296.302 | -1296.302 | -1296.302 | -0.0 | 11.565 | -0.0 |
-1296.302 | -1296.302 | -1296.302 | -0.0 | -0.0 | 11.565 |
1447.468 | 1383.304 | 1383.304 | 0.0 | 0.0 | 0.0 |
1383.304 | 1447.468 | 1383.304 | 0.0 | 0.0 | 0.0 |
1383.304 | 1383.304 | 1447.468 | 0.0 | 0.0 | 0.0 |
1296.302 | 1296.302 | 1296.302 | 11.565 | 0.0 | -0.0 |
1296.302 | 1296.302 | 1296.302 | 0.0 | 11.565 | 0.0 |
1296.302 | 1296.302 | 1296.302 | 0.0 | 0.0 | 11.565 |
34.144 | -50.562 | -50.562 | -0.0 | 0.0 | 0.0 |
-50.562 | 34.144 | -50.562 | 0.0 | -0.0 | 0.0 |
-50.562 | -50.562 | 34.144 | 0.0 | 0.0 | -0.0 |
-91.935 | -91.935 | -91.935 | 9.994 | -0.0 | -0.0 |
-91.935 | -91.935 | -91.935 | 0.0 | 9.994 | 0.0 |
-91.935 | -91.935 | -91.935 | -0.0 | -0.0 | 9.994 |
280.759 | 216.618 | 216.618 | 0.0 | 0.0 | 0.0 |
216.618 | 280.759 | 216.618 | 0.0 | 0.0 | 0.0 |
216.618 | 216.618 | 280.759 | 0.0 | 0.0 | 0.0 |
91.935 | 91.935 | 91.935 | 9.994 | 0.0 | 0.0 |
91.935 | 91.935 | 91.935 | 0.0 | 9.994 | 0.0 |
91.935 | 91.935 | 91.935 | 0.0 | 0.0 | 9.994 |
139.065 | 73.931 | 73.931 | -0.0 | -0.0 | -0.0 |
73.931 | 139.065 | 73.931 | -0.0 | -0.0 | -0.0 |
73.931 | 73.931 | 139.065 | -0.0 | -0.0 | 0.0 |
-13.252 | -13.252 | -13.252 | 16.988 | 0.0 | 0.0 |
-13.252 | -13.252 | -13.252 | -0.0 | 16.988 | 0.0 |
-13.252 | -13.252 | -13.252 | 0.0 | 0.0 | 16.988 |
164.202 | 99.592 | 99.592 | -0.0 | 0.0 | 0.0 |
99.592 | 164.202 | 99.592 | 0.0 | -0.0 | 0.0 |
99.592 | 99.592 | 164.202 | 0.0 | 0.0 | -0.0 |
13.252 | 13.252 | 13.252 | 16.988 | -0.0 | -0.0 |
13.252 | 13.252 | 13.252 | -0.0 | 16.988 | -0.0 |
13.252 | 13.252 | 13.252 | -0.0 | -0.0 | 16.988 |
134.564 | 87.14 | 87.14 | 0.0 | 0.0 | 0.0 |
87.14 | 134.564 | 87.14 | -0.0 | 0.0 | 0.0 |
87.14 | 87.14 | 134.564 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 42.642 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 42.642 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 42.642 |
124.735 | 90.887 | 90.886 | -0.0 | -0.0 | -0.0 |
90.886 | 124.735 | 90.886 | -0.0 | -0.0 | -0.0 |
90.886 | 90.887 | 124.735 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 42.642 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 42.642 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 42.642 |
128.393 | 89.804 | 89.804 | 0.0 | 0.0 | 0.0 |
89.804 | 128.393 | 89.804 | 0.0 | 0.0 | 0.0 |
89.804 | 89.804 | 128.393 | 0.0 | 0.0 | 0.0 |
-0.007 | -0.007 | -0.007 | 23.342 | 0.0 | 0.0 |
-0.007 | -0.007 | -0.007 | 0.0 | 23.342 | 0.0 |
-0.007 | -0.007 | -0.007 | 0.0 | 0.0 | 23.342 |
124.827 | 90.708 | 90.708 | -0.0 | -0.0 | -0.0 |
90.708 | 124.827 | 90.708 | -0.0 | -0.0 | -0.0 |
90.708 | 90.708 | 124.827 | -0.0 | -0.0 | -0.0 |
0.007 | 0.007 | 0.007 | 23.342 | -0.0 | -0.0 |
0.007 | 0.007 | 0.007 | -0.0 | 23.342 | -0.0 |
0.007 | 0.007 | 0.007 | -0.0 | -0.0 | 23.342 |
123.686 | 92.103 | 92.103 | 0.0 | 0.0 | -0.0 |
92.103 | 123.686 | 92.103 | 0.0 | 0.0 | -0.0 |
92.103 | 92.103 | 123.686 | 0.0 | 0.0 | -0.0 |
-0.001 | -0.001 | -0.001 | 23.342 | 0.0 | 0.0 |
-0.001 | -0.001 | -0.001 | 0.0 | 23.342 | 0.0 |
-0.001 | -0.001 | -0.001 | 0.0 | 0.0 | 23.342 |
134.563 | 87.14 | 87.14 | 0.0 | -0.0 | -0.0 |
87.14 | 134.563 | 87.14 | 0.0 | -0.0 | 0.0 |
87.14 | 87.14 | 134.563 | 0.0 | -0.0 | -0.0 |
0.001 | 0.001 | 0.001 | 23.342 | -0.0 | -0.0 |
0.001 | 0.001 | 0.001 | -0.0 | 23.342 | -0.0 |
0.001 | 0.001 | 0.001 | -0.0 | -0.0 | 23.342 |
127.782 | 89.428 | 89.353 | -0.029 | 0.078 | -0.008 |
89.343 | 127.846 | 89.368 | -0.029 | 0.079 | -0.008 |
89.331 | 89.432 | 127.798 | -0.029 | 0.079 | -0.008 |
-0.055 | 0.061 | -0.026 | 25.523 | 0.091 | -0.009 |
-0.055 | 0.061 | -0.026 | -0.034 | 25.556 | -0.009 |
-0.055 | 0.061 | -0.026 | -0.034 | 0.091 | 25.531 |
127.856 | 89.331 | 89.407 | 0.029 | -0.079 | 0.008 |
89.416 | 127.791 | 89.391 | 0.029 | -0.078 | 0.008 |
86.764 | 86.764 | 133.928 | 0.0 | -0.0 | 0.0 |
0.055 | -0.061 | 0.026 | 25.542 | -0.091 | 0.009 |
0.055 | -0.061 | 0.026 | 0.034 | 25.508 | 0.009 |
0.055 | -0.061 | 0.026 | 0.034 | -0.091 | 25.535 |
133.928 | 86.765 | 86.765 | 0.0 | 0.0 | -0.0 |
86.765 | 133.928 | 86.765 | -0.0 | -0.0 | 0.0 |
86.765 | 86.765 | 133.928 | -0.0 | 0.0 | -0.0 |
-0.004 | 0.003 | -0.002 | 23.248 | 0.005 | -0.0 |
-0.004 | 0.003 | -0.002 | -0.002 | 23.258 | -0.0 |
-0.004 | 0.003 | -0.002 | -0.002 | 0.005 | 23.25 |
127.802 | 89.383 | 89.391 | 0.003 | -0.008 | 0.001 |
89.392 | 127.796 | 89.389 | 0.003 | -0.008 | 0.001 |
89.393 | 89.383 | 127.801 | 0.003 | -0.008 | 0.001 |
0.004 | -0.003 | 0.002 | 23.253 | -0.005 | 0.0 |
0.004 | -0.003 | 0.002 | 0.002 | 23.243 | 0.0 |
0.004 | -0.003 | 0.002 | 0.002 | -0.005 | 23.251 |
124.292 | 90.194 | 90.193 | -0.0 | 0.001 | -0.0 |
90.193 | 124.293 | 90.193 | -0.0 | 0.001 | -0.0 |
89.388 | 89.389 | 127.799 | -0.0 | 0.001 | -0.0 |
0.0 | 0.0 | 0.0 | 42.487 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 42.487 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 42.487 |
127.798 | 89.387 | 89.388 | 0.0 | -0.001 | 0.0 |
89.388 | 127.798 | 89.388 | 0.0 | -0.001 | 0.0 |
89.388 | 89.387 | 127.798 | 0.0 | -0.001 | 0.0 |
-0.0 | -0.0 | -0.0 | 42.487 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 42.487 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 42.487 |
146.268 | 96.752 | 74.124 | -0.0 | -0.0 | -0.0 |
83.147 | 155.335 | 75.457 | -0.0 | -0.0 | 0.0 |
69.625 | 80.053 | 158.721 | -0.0 | -0.0 | -0.0 |
-4.914 | 4.8 | -0.034 | 26.382 | 0.0 | -0.0 |
-4.915 | 4.801 | -0.034 | -0.0 | 24.876 | -0.0 |
-5.196 | 5.075 | -0.036 | -0.0 | 0.0 | 24.874 |
156.098 | 87.15 | 74.192 | 0.0 | -0.0 | 0.0 |
97.518 | 141.297 | 75.557 | 0.0 | -0.0 | -0.0 |
79.455 | 70.45 | 158.789 | 0.0 | -0.0 | 0.0 |
4.914 | -4.8 | 0.034 | 26.382 | -0.0 | -0.0 |
4.915 | -4.801 | 0.034 | 0.0 | 24.876 | 0.0 |
5.196 | -5.075 | 0.036 | 0.0 | 0.0 | 24.874 |
150.691 | 92.431 | 74.155 | -0.0 | -0.0 | -0.0 |
92.112 | 146.579 | 75.519 | -0.0 | -0.0 | 0.0 |
74.049 | 75.732 | 158.751 | -0.0 | 0.0 | -0.0 |
-0.481 | 0.47 | -0.003 | 26.382 | -0.0 | 0.0 |
-0.492 | 0.48 | -0.003 | -0.0 | 24.876 | 0.0 |
-0.527 | 0.515 | -0.004 | -0.0 | -0.0 | 24.724 |
151.674 | 91.471 | 74.162 | 0.0 | 0.0 | -0.0 |
93.095 | 145.618 | 75.526 | 0.0 | -0.0 | 0.0 |
75.031 | 74.771 | 158.758 | 0.0 | 0.0 | -0.0 |
0.481 | -0.47 | 0.003 | 26.382 | 0.0 | -0.0 |
0.492 | -0.48 | 0.003 | 0.0 | 24.876 | -0.0 |
0.527 | -0.515 | 0.004 | 0.0 | -0.0 | 24.724 |
151.134 | 91.999 | 74.158 | -0.0 | -0.0 | 0.0 |
92.555 | 146.147 | 75.522 | -0.0 | -0.0 | 0.0 |
74.491 | 75.3 | 158.755 | -0.0 | -0.0 | -0.0 |
-0.021 | 0.02 | 0.0 | 26.382 | -0.0 | 0.0 |
-0.049 | 0.048 | -0.0 | -0.0 | 24.876 | -0.0 |
-0.053 | 0.052 | -0.0 | -0.0 | -0.0 | 24.722 |
160.863 | 82.494 | 74.225 | -0.0 | 0.0 | -0.0 |
92.652 | 146.05 | 75.523 | 0.0 | 0.0 | 0.0 |
74.589 | 75.203 | 158.754 | 0.0 | -0.0 | -0.0 |
0.021 | -0.02 | -0.0 | 26.382 | -0.0 | -0.0 |
0.049 | -0.048 | 0.0 | 0.0 | 24.876 | -0.0 |
0.053 | -0.052 | 0.0 | 0.0 | -0.0 | 24.722 |
91.01 | 128.04 | 9.148 | 0.0 | 0.0 | -0.0 |
67.65 | 151.401 | 9.148 | 0.0 | -0.0 | -0.0 |
9.148 | 9.148 | 144.449 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -12.727 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -12.727 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 41.876 |
87.106 | 131.944 | 9.148 | -0.0 | -0.0 | -0.0 |
67.65 | 151.401 | 9.148 | -0.0 | 0.0 | 0.0 |
9.148 | 9.148 | 144.449 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -12.727 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -12.727 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 41.876 |
87.106 | 131.944 | 9.148 | 0.0 | 0.0 | -0.0 |
67.65 | 151.401 | 9.148 | 0.0 | -0.0 | -0.0 |
9.148 | 9.148 | 144.449 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -12.727 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -12.727 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | -22.419 |
87.106 | 131.944 | 9.148 | 0.0 | -0.0 | 0.0 |
131.944 | 87.106 | 9.148 | -0.0 | -0.0 | -0.0 |
9.148 | 9.148 | 144.449 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -12.727 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -12.727 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -22.419 |
91.012 | 128.039 | 9.148 | -0.0 | -0.0 | 0.0 |
67.65 | 151.401 | 9.148 | 0.0 | 0.0 | -0.0 |
9.148 | 9.148 | 144.449 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -12.727 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -12.727 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | -18.515 |
151.4 | 67.649 | 9.148 | 0.0 | -0.0 | 0.0 |
67.649 | 151.4 | 9.148 | -0.0 | -0.0 | 0.0 |
9.148 | 9.148 | 144.449 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -12.727 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -12.727 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -18.515 |
147.665 | 92.392 | 74.001 | 4.906 | 0.0 | -0.0 |
83.952 | 156.114 | 73.982 | -4.899 | 0.0 | -0.0 |
73.988 | 73.988 | 159.566 | 0.0 | -0.0 | 0.0 |
4.899 | -4.899 | 0.0 | 25.299 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 25.299 | 4.899 |
0.003 | 0.003 | -0.011 | 0.0 | 4.906 | 27.628 |
156.114 | 83.952 | 73.982 | 4.899 | -0.0 | 0.0 |
83.952 | 156.114 | 73.982 | -4.899 | 0.0 | -0.0 |
73.982 | 73.982 | 159.591 | 0.0 | -0.0 | 0.0 |
4.899 | -4.899 | -0.0 | 25.299 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 25.299 | 4.899 |
-0.003 | -0.003 | 0.011 | -0.0 | 4.906 | 27.628 |
147.655 | 92.409 | 73.987 | 4.906 | 0.0 | -0.0 |
83.952 | 156.114 | 73.982 | -4.899 | 0.0 | -0.0 |
73.982 | 73.982 | 159.591 | 0.0 | -0.0 | -0.0 |
4.899 | -4.899 | 0.0 | 25.299 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 25.299 | 4.899 |
-0.0 | 0.0 | 0.0 | 0.0 | 4.899 | 36.081 |
147.655 | 92.409 | 73.988 | 4.906 | 0.0 | -0.0 |
92.409 | 147.655 | 73.988 | -4.906 | 0.0 | -0.0 |
73.987 | 73.987 | 159.569 | -0.0 | -0.0 | -0.0 |
4.9 | -4.901 | 0.0 | 25.299 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 25.299 | 4.899 |
0.0 | -0.0 | -0.0 | -0.0 | 4.899 | 36.081 |
147.655 | 92.409 | 73.988 | 4.906 | 0.0 | 0.0 |
83.952 | 156.115 | 73.982 | -4.899 | 0.0 | 0.0 |
73.982 | 73.982 | 159.592 | 0.0 | -0.0 | -0.0 |
4.899 | -4.899 | 0.0 | 25.299 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 25.299 | 4.905 |
-0.0 | 0.0 | -0.0 | -0.0 | 4.906 | 27.623 |
156.114 | 83.952 | 73.982 | 4.899 | 0.0 | -0.0 |
83.951 | 156.114 | 73.982 | -4.899 | 0.0 | -0.0 |
73.987 | 73.987 | 159.568 | -0.0 | 0.0 | -0.0 |
4.899 | -4.899 | -0.0 | 25.299 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 25.299 | 4.905 |
0.0 | -0.0 | 0.0 | 0.0 | 4.906 | 27.623 |
81.416 | 107.9 | 115.211 | 22.1 | -0.0 | -0.0 |
61.984 | 127.361 | 115.313 | -22.161 | 0.0 | -0.0 |
115.323 | 115.323 | 117.678 | 0.0 | 0.0 | 0.0 |
22.1 | -22.1 | 0.0 | 81.925 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 81.925 | 22.1 |
0.0 | -0.0 | 0.0 | 0.0 | 22.161 | 32.688 |
127.361 | 61.984 | 115.313 | 22.161 | 0.0 | 0.0 |
61.984 | 127.361 | 115.313 | -22.161 | 0.0 | -0.0 |
115.225 | 115.225 | 116.976 | 0.0 | -0.0 | 0.0 |
22.1 | -22.1 | -0.0 | 81.925 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 81.925 | 22.1 |
-0.0 | 0.0 | -0.0 | -0.0 | 22.161 | 32.688 |
127.361 | 61.984 | 115.313 | 22.161 | -0.0 | 0.0 |
107.9 | 81.416 | 115.211 | -22.1 | -0.0 | 0.0 |
115.225 | 115.225 | 116.976 | 0.0 | -0.0 | -0.0 |
22.161 | -22.161 | 0.0 | 81.925 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 81.925 | 22.161 |
-0.0 | -0.0 | -0.0 | 0.0 | 22.1 | -13.243 |
127.361 | 61.984 | 115.313 | 22.161 | 0.0 | 0.0 |
107.9 | 81.416 | 115.211 | -22.1 | -0.0 | 0.0 |
115.323 | 115.323 | 117.678 | 0.0 | 0.0 | 0.0 |
22.1 | -22.1 | -0.0 | 81.925 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 81.925 | 22.161 |
0.0 | 0.0 | 0.0 | -0.0 | 22.1 | -13.243 |
81.416 | 107.902 | 115.215 | 22.1 | 0.0 | -0.0 |
61.984 | 127.361 | 115.313 | -22.161 | 0.0 | -0.0 |
115.225 | 115.225 | 116.977 | 0.0 | 0.0 | -0.0 |
22.161 | -22.16 | 0.0 | 81.925 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 81.925 | 22.161 |
0.0 | 0.0 | 0.0 | 0.0 | 22.161 | 32.688 |
81.414 | 107.902 | 115.214 | 22.1 | 0.0 | 0.0 |
107.899 | 81.417 | 115.21 | -22.1 | 0.0 | -0.0 |
115.224 | 115.224 | 116.976 | -0.0 | -0.0 | 0.0 |
22.1 | -22.1 | -0.0 | 81.925 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 81.925 | 22.161 |
-0.0 | -0.0 | -0.0 | -0.0 | 22.161 | 32.688 |
193.512 | 53.251 | 53.251 | 0.0 | 0.0 | -0.0 |
53.251 | 193.512 | 53.251 | 0.0 | 0.0 | -0.0 |
53.251 | 53.251 | 193.512 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 5.171 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 5.171 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 5.171 |
193.512 | 53.251 | 53.251 | -0.0 | -0.0 | 0.0 |
53.251 | 193.512 | 53.251 | -0.0 | 0.0 | 0.0 |
53.251 | 53.251 | 193.512 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 5.171 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 5.171 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 5.171 |
193.512 | 53.251 | 53.251 | 0.0 | -0.0 | -0.0 |
53.251 | 193.512 | 53.251 | 0.0 | 0.0 | 0.0 |
53.251 | 53.251 | 193.512 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 5.171 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 5.171 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 5.171 |
193.511 | 53.251 | 53.251 | -0.0 | -0.0 | 0.0 |
53.251 | 193.511 | 53.251 | -0.0 | -0.0 | 0.0 |
53.251 | 53.251 | 193.511 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 5.171 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 5.171 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 5.171 |
193.515 | 53.251 | 53.251 | 0.0 | -0.0 | -0.0 |
53.251 | 193.515 | 53.251 | 0.0 | 0.0 | 0.0 |
53.251 | 53.251 | 193.515 | 0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 5.171 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 5.171 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 5.171 |
193.508 | 53.251 | 53.251 | -0.0 | -0.0 | 0.0 |
53.251 | 193.508 | 53.251 | -0.0 | -0.0 | 0.0 |
53.251 | 53.251 | 193.508 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 5.171 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 5.171 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 5.171 |
124.02 | 140.153 | 140.153 | -0.0 | 0.0 | 0.0 |
140.153 | 124.02 | 140.153 | 0.0 | -0.0 | 0.0 |
140.153 | 140.153 | 124.02 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 50.637 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 50.637 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 50.637 |
124.02 | 140.153 | 140.153 | 0.0 | 0.0 | 0.0 |
140.153 | 124.02 | 140.153 | 0.0 | 0.0 | -0.0 |
140.153 | 140.153 | 124.02 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 50.637 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 50.637 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 50.637 |
124.02 | 140.153 | 140.153 | 0.0 | 0.0 | 0.0 |
140.153 | 124.02 | 140.153 | -0.0 | 0.0 | 0.0 |
140.153 | 140.153 | 124.02 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 7.957 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 7.957 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 7.957 |
124.02 | 140.153 | 140.153 | -0.0 | -0.0 | 0.0 |
140.153 | 124.02 | 140.153 | 0.0 | -0.0 | -0.0 |
140.153 | 140.153 | 124.02 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 7.957 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 7.957 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 7.957 |
124.02 | 140.153 | 140.153 | -0.0 | 0.0 | -0.0 |
140.153 | 124.02 | 140.153 | 0.0 | -0.0 | 0.0 |
140.153 | 140.153 | 124.02 | -0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 7.957 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 7.957 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 7.957 |
124.019 | 140.152 | 140.152 | 0.0 | 0.0 | 0.0 |
140.152 | 124.019 | 140.152 | 0.0 | -0.0 | 0.0 |
140.152 | 140.152 | 124.019 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 7.957 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 7.957 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 7.957 |
114.023 | 123.869 | 123.869 | 0.0 | 0.0 | 0.0 |
123.869 | 114.023 | 123.869 | 0.0 | 0.0 | -0.0 |
123.869 | 123.869 | 114.023 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 46.016 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 46.016 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 46.016 |
114.023 | 123.869 | 123.869 | -0.0 | -0.0 | -0.0 |
123.869 | 114.023 | 123.869 | -0.0 | -0.0 | -0.0 |
123.869 | 123.869 | 114.023 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 46.016 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 46.016 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 46.016 |
114.024 | 123.869 | 123.869 | 0.0 | 0.0 | 0.0 |
123.869 | 114.024 | 123.869 | 0.0 | 0.0 | 0.0 |
123.869 | 123.869 | 114.024 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -11.629 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -11.629 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | -11.629 |
114.023 | 123.869 | 123.869 | -0.0 | -0.0 | -0.0 |
123.869 | 114.023 | 123.869 | -0.0 | -0.0 | -0.0 |
123.869 | 123.869 | 114.023 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -11.629 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -11.629 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | -11.629 |
114.024 | 123.87 | 123.87 | 0.0 | 0.0 | 0.0 |
123.87 | 114.024 | 123.87 | 0.0 | 0.0 | 0.0 |
123.87 | 123.87 | 114.024 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 46.016 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 46.016 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 46.016 |
114.023 | 123.869 | 123.869 | -0.0 | -0.0 | -0.0 |
123.869 | 114.023 | 123.869 | 0.0 | -0.0 | -0.0 |
123.869 | 123.869 | 114.023 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 46.016 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 46.016 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 46.016 |
170.596 | 40.155 | 40.155 | 0.0 | 0.0 | 0.0 |
40.155 | 170.596 | 40.155 | 0.0 | -0.0 | -0.0 |
40.155 | 40.155 | 170.596 | -0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.565 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.565 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 0.565 |
170.449 | 40.229 | 40.229 | -0.0 | -0.0 | 0.0 |
40.229 | 170.449 | 40.229 | 0.0 | 0.0 | -0.0 |
40.229 | 40.229 | 170.449 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.565 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.565 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 0.565 |
170.448 | 40.229 | 40.229 | 0.0 | 0.0 | 0.0 |
40.229 | 170.448 | 40.229 | 0.0 | -0.0 | 0.0 |
40.229 | 40.229 | 170.448 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 0.565 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.565 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 0.565 |
170.449 | 40.229 | 40.229 | -0.0 | -0.0 | 0.0 |
40.229 | 170.449 | 40.229 | -0.0 | 0.0 | 0.0 |
40.229 | 40.229 | 170.449 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.565 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.565 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 0.565 |
170.588 | 40.155 | 40.155 | 0.0 | -0.0 | 0.0 |
40.155 | 170.588 | 40.155 | 0.0 | -0.0 | 0.0 |
40.155 | 40.155 | 170.588 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 0.565 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.565 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 0.565 |
170.605 | 40.155 | 40.155 | -0.0 | -0.0 | -0.0 |
40.155 | 170.605 | 40.155 | -0.0 | -0.0 | 0.0 |
40.155 | 40.155 | 170.605 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.565 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.565 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 0.565 |
134.743 | 134.131 | 134.131 | -0.0 | -0.0 | -0.0 |
134.131 | 134.743 | 134.131 | -0.0 | -0.0 | 0.0 |
134.131 | 134.131 | 134.743 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 84.256 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 84.256 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 84.256 |
134.743 | 134.131 | 134.131 | 0.0 | 0.0 | -0.0 |
134.131 | 134.743 | 134.131 | 0.0 | 0.0 | -0.0 |
134.131 | 134.131 | 134.743 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 84.256 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 84.256 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 84.256 |
134.743 | 134.131 | 134.131 | 0.0 | 0.0 | 0.0 |
134.131 | 134.743 | 134.131 | 0.0 | 0.0 | 0.0 |
134.131 | 134.131 | 134.743 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 84.256 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 84.256 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 84.256 |
134.743 | 134.131 | 134.131 | 0.0 | 0.0 | -0.0 |
134.131 | 134.743 | 134.131 | 0.0 | 0.0 | -0.0 |
134.131 | 134.131 | 134.743 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 84.256 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 84.256 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 84.256 |
134.743 | 134.131 | 134.131 | -0.0 | 0.0 | -0.0 |
134.131 | 134.743 | 134.131 | 0.0 | -0.0 | 0.0 |
134.131 | 134.131 | 134.743 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 10.275 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 10.275 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 10.275 |
134.742 | 134.13 | 134.13 | 0.0 | 0.0 | 0.0 |
134.13 | 134.742 | 134.13 | 0.0 | 0.0 | 0.0 |
134.13 | 134.13 | 134.742 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 10.275 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 10.275 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 10.275 |
247.667 | 155.718 | 155.718 | -0.0 | 0.0 | 0.0 |
155.718 | 247.667 | 155.718 | -0.0 | -0.0 | 0.0 |
155.718 | 155.718 | 247.667 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 106.54 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 106.54 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 106.54 |
247.667 | 155.718 | 155.718 | -0.0 | -0.0 | -0.0 |
155.718 | 247.667 | 155.718 | -0.0 | -0.0 | -0.0 |
155.718 | 155.718 | 247.667 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 106.54 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 106.54 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 106.54 |
247.667 | 155.718 | 155.718 | -0.0 | 0.0 | 0.0 |
155.718 | 247.667 | 155.718 | 0.0 | 0.0 | -0.0 |
155.718 | 155.718 | 247.667 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 106.54 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 106.54 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 106.54 |
247.666 | 155.718 | 155.718 | -0.0 | -0.0 | -0.0 |
155.718 | 247.666 | 155.718 | -0.0 | -0.0 | -0.0 |
155.718 | 155.718 | 247.666 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 106.54 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 106.54 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 106.54 |
247.67 | 155.72 | 155.72 | 0.0 | -0.0 | 0.0 |
155.72 | 247.67 | 155.72 | 0.0 | -0.0 | 0.0 |
155.72 | 155.72 | 247.67 | 0.0 | -0.0 | 0.0 |
0.0 | 0.001 | 0.001 | 106.54 | 0.0 | 0.0 |
0.001 | 0.0 | 0.001 | 0.0 | 106.54 | 0.0 |
0.001 | 0.001 | 0.0 | 0.0 | -0.0 | 106.54 |
247.663 | 155.717 | 155.717 | -0.0 | -0.0 | 0.0 |
155.717 | 247.663 | 155.717 | 0.0 | 0.0 | -0.0 |
155.717 | 155.717 | 247.663 | -0.0 | 0.0 | 0.0 |
-0.0 | -0.001 | -0.001 | 106.54 | 0.0 | -0.0 |
-0.001 | -0.0 | -0.001 | 0.0 | 106.54 | 0.0 |
-0.001 | -0.001 | -0.0 | -0.0 | -0.0 | 106.54 |
236.295 | 167.366 | 130.593 | -0.0 | -0.0 | 0.0 |
167.366 | 236.295 | 130.593 | 0.0 | 0.0 | 0.0 |
130.593 | 130.593 | 191.664 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 68.731 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 68.731 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 118.266 |
236.295 | 167.366 | 130.593 | -0.0 | -0.0 | -0.0 |
167.366 | 236.295 | 130.593 | -0.0 | -0.0 | -0.0 |
130.593 | 130.593 | 191.664 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 68.731 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 68.731 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 118.266 |
178.653 | 225.008 | 130.593 | -0.0 | 0.0 | 0.0 |
225.008 | 178.653 | 130.593 | 0.0 | -0.0 | 0.0 |
130.593 | 130.593 | 191.664 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 82.514 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 82.514 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 118.266 |
178.653 | 225.008 | 130.593 | 0.0 | -0.0 | -0.0 |
225.008 | 178.653 | 130.593 | -0.0 | 0.0 | -0.0 |
130.593 | 130.593 | 191.664 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 82.514 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 82.514 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 118.266 |
178.655 | 225.01 | 130.594 | -0.0 | -0.0 | 0.0 |
225.01 | 178.655 | 130.594 | -0.0 | -0.0 | 0.0 |
130.594 | 130.594 | 191.665 | -0.0 | -0.0 | 0.0 |
0.0 | 0.001 | 0.001 | 82.514 | 0.0 | 0.0 |
0.001 | 0.0 | 0.001 | -0.0 | 82.514 | 0.0 |
0.001 | 0.001 | 0.0 | -0.0 | 0.0 | 118.266 |
178.652 | 225.006 | 130.592 | 0.0 | -0.0 | -0.0 |
225.006 | 178.652 | 130.592 | -0.0 | 0.0 | -0.0 |
130.592 | 130.592 | 191.663 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.001 | -0.001 | 82.514 | -0.0 | -0.0 |
-0.001 | -0.0 | -0.001 | 0.0 | 82.514 | -0.0 |
-0.001 | -0.001 | -0.0 | -0.0 | -0.0 | 118.266 |
241.031 | 90.727 | 90.727 | -0.0 | 0.0 | -0.0 |
90.727 | 241.031 | 90.727 | -0.0 | 0.0 | -0.0 |
90.727 | 90.727 | 241.031 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -10.02 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -10.02 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 0.0 | -10.02 |
240.217 | 91.134 | 91.134 | 0.0 | 0.0 | 0.0 |
91.134 | 240.217 | 91.134 | 0.0 | -0.0 | -0.0 |
91.134 | 91.134 | 240.217 | 0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -10.02 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -10.02 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -0.0 | -10.02 |
240.218 | 91.134 | 91.134 | 0.0 | 0.0 | -0.0 |
91.134 | 240.218 | 91.134 | 0.0 | 0.0 | 0.0 |
91.134 | 91.134 | 240.218 | -0.0 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -10.02 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -10.02 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | -10.02 |
241.031 | 90.727 | 90.727 | 0.0 | -0.0 | 0.0 |
90.727 | 241.031 | 90.727 | 0.0 | -0.0 | 0.0 |
90.727 | 90.727 | 241.031 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -10.02 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -10.02 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | -10.02 |
240.218 | 91.134 | 91.134 | 0.0 | -0.0 | -0.0 |
91.134 | 240.218 | 91.134 | -0.0 | -0.0 | -0.0 |
91.134 | 91.134 | 240.218 | -0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 11.596 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 11.596 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 11.596 |
240.217 | 91.133 | 91.133 | -0.0 | 0.0 | 0.0 |
91.133 | 240.217 | 91.133 | 0.0 | 0.0 | 0.0 |
91.133 | 91.133 | 240.217 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 11.596 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 11.596 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 11.596 |
166.242 | 166.495 | 166.495 | -0.0 | -0.0 | 0.0 |
166.495 | 166.242 | 166.495 | -0.0 | -0.0 | -0.0 |
166.495 | 166.495 | 166.242 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 79.323 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 79.323 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 79.323 |
166.242 | 166.495 | 166.495 | 0.0 | 0.0 | 0.0 |
166.495 | 166.242 | 166.495 | 0.0 | 0.0 | -0.0 |
166.495 | 166.495 | 166.242 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 79.323 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 79.323 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 79.323 |
166.242 | 166.495 | 166.495 | -0.0 | -0.0 | -0.0 |
166.495 | 166.242 | 166.495 | -0.0 | -0.0 | 0.0 |
166.495 | 166.495 | 166.242 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 79.323 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 79.323 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 79.323 |
166.242 | 166.495 | 166.495 | 0.0 | 0.0 | 0.0 |
166.495 | 166.242 | 166.495 | 0.0 | 0.0 | -0.0 |
166.495 | 166.495 | 166.242 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 79.323 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 79.323 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 79.323 |
166.243 | 166.496 | 166.496 | -0.0 | -0.0 | -0.0 |
166.496 | 166.243 | 166.496 | -0.0 | -0.0 | 0.0 |
166.496 | 166.496 | 166.243 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 79.323 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 79.323 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 79.323 |
166.241 | 166.494 | 166.494 | 0.0 | 0.0 | 0.0 |
166.494 | 166.241 | 166.494 | 0.0 | 0.0 | -0.0 |
166.494 | 166.494 | 166.241 | 0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 79.323 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 79.323 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 79.323 |
159.39 | 128.042 | 128.042 | -0.0 | -0.0 | 0.0 |
128.042 | 159.39 | 128.042 | -0.0 | -0.0 | -0.0 |
128.042 | 128.042 | 159.39 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 46.944 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 46.944 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 46.944 |
159.39 | 128.042 | 128.042 | 0.0 | -0.0 | 0.0 |
128.042 | 159.39 | 128.042 | 0.0 | 0.0 | -0.0 |
128.042 | 128.042 | 159.39 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 46.944 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 46.944 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 46.944 |
159.39 | 128.042 | 128.042 | 0.0 | -0.0 | 0.0 |
128.042 | 159.39 | 128.042 | -0.0 | 0.0 | -0.0 |
128.042 | 128.042 | 159.39 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 46.944 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 46.944 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 46.944 |
159.39 | 128.042 | 128.042 | 0.0 | 0.0 | -0.0 |
128.042 | 159.39 | 128.042 | 0.0 | 0.0 | 0.0 |
128.042 | 128.042 | 159.39 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 46.944 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 46.944 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 46.944 |
159.39 | 128.042 | 128.042 | -0.0 | 0.0 | 0.0 |
128.042 | 159.39 | 128.042 | -0.0 | -0.0 | -0.0 |
128.042 | 128.042 | 159.39 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 46.944 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 46.944 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 46.944 |
159.389 | 128.042 | 128.042 | 0.0 | 0.0 | 0.0 |
128.042 | 159.389 | 128.042 | 0.0 | 0.0 | -0.0 |
128.042 | 128.042 | 159.389 | -0.0 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 46.944 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 46.944 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 46.944 |
200.784 | 144.675 | 222.688 | -0.0 | 0.0 | -0.0 |
136.561 | 208.9 | 222.694 | -0.0 | 0.0 | -0.0 |
109.827 | 109.827 | 207.247 | -0.0 | 0.0 | -0.0 |
15.232 | 15.232 | 112.928 | 25.23 | 0.0 | -0.0 |
15.232 | 15.232 | 112.928 | 0.0 | 25.23 | 0.0 |
15.233 | 15.233 | 112.934 | -0.0 | 0.0 | 36.169 |
195.409 | 119.604 | 109.827 | -0.0 | -0.0 | 0.0 |
106.095 | 178.433 | -3.174 | 0.0 | -0.0 | 0.0 |
109.827 | 109.827 | 207.247 | 0.0 | -0.0 | 0.0 |
-15.232 | -15.232 | -112.928 | 25.23 | -0.0 | 0.0 |
-15.232 | -15.232 | -112.928 | 0.0 | 25.23 | 0.0 |
-15.233 | -15.233 | -112.934 | 0.0 | -0.0 | 36.169 |
195.409 | 119.604 | 109.827 | 0.0 | 0.0 | 0.0 |
122.869 | 195.189 | 121.114 | 0.0 | 0.0 | -0.0 |
111.284 | 111.284 | 218.048 | -0.0 | -0.0 | -0.0 |
1.523 | 1.523 | 11.293 | 25.22 | 0.0 | -0.0 |
1.523 | 1.523 | 11.293 | -0.0 | 25.23 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 37.902 |
192.126 | 119.806 | 98.408 | -0.0 | -0.0 | 0.0 |
119.806 | 192.126 | 98.408 | 0.0 | -0.0 | 0.0 |
109.827 | 109.827 | 207.247 | 0.0 | -0.0 | -0.0 |
-1.523 | -1.523 | -11.293 | 25.22 | -0.0 | 0.0 |
-1.523 | -1.523 | -11.293 | 0.0 | 25.23 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 37.902 |
192.99 | 122.462 | 111.446 | 0.0 | 0.0 | -0.0 |
129.595 | 185.705 | 110.881 | -0.0 | 0.0 | -0.0 |
109.828 | 109.828 | 207.252 | -0.0 | -0.0 | 0.0 |
0.153 | 0.153 | 1.132 | 25.23 | 0.0 | -0.0 |
0.153 | 0.153 | 1.132 | -0.0 | 25.23 | -0.0 |
0.0 | 0.001 | 0.0 | 0.0 | 0.0 | 37.902 |
195.406 | 119.604 | 109.826 | 0.0 | -0.0 | 0.0 |
129.29 | 185.398 | 108.639 | 0.0 | -0.0 | 0.0 |
109.607 | 109.607 | 205.62 | 0.0 | 0.0 | 0.0 |
-0.153 | -0.153 | -1.132 | 25.23 | -0.0 | 0.0 |
-0.153 | -0.153 | -1.132 | -0.0 | 25.23 | -0.0 |
-0.0 | -0.001 | -0.0 | -0.0 | -0.0 | 37.902 |
181.808 | 127.33 | 108.154 | 0.0 | -0.0 | -0.0 |
123.886 | 184.461 | 107.237 | 0.0 | -0.0 | 0.0 |
108.459 | 108.459 | 203.247 | 0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 24.46 | -0.0 | -0.0 |
-0.02 | -0.02 | -0.047 | 0.0 | 24.46 | -0.0 |
-0.104 | -0.104 | -0.242 | 0.0 | -0.0 | 27.922 |
191.492 | 117.907 | 108.455 | -0.0 | 0.0 | -0.0 |
124.952 | 183.59 | 107.463 | -0.0 | 0.0 | -0.0 |
108.459 | 108.459 | 203.247 | -0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 24.46 | 0.0 | 0.0 |
0.02 | 0.02 | 0.047 | -0.0 | 24.46 | -0.0 |
0.104 | 0.104 | 0.242 | -0.0 | 0.0 | 27.922 |
181.827 | 127.348 | 108.196 | 0.0 | -0.0 | 0.0 |
117.907 | 191.492 | 108.455 | 0.0 | -0.0 | 0.0 |
108.459 | 108.459 | 203.247 | 0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 24.46 | -0.0 | 0.0 |
-0.005 | -0.005 | -0.011 | 0.0 | 24.46 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 36.792 |
181.831 | 127.352 | 108.205 | -0.0 | 0.0 | -0.0 |
117.907 | 191.491 | 108.455 | -0.0 | 0.0 | -0.0 |
108.194 | 108.194 | 202.631 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 24.46 | 0.0 | -0.0 |
0.005 | 0.005 | 0.011 | -0.0 | 24.46 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 36.792 |
184.03 | 124.407 | 107.337 | 0.0 | -0.0 | -0.0 |
117.908 | 191.494 | 108.456 | 0.0 | -0.0 | -0.0 |
108.192 | 108.192 | 202.626 | 0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 24.46 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 24.46 | 0.0 |
-0.001 | -0.0 | -0.002 | 0.0 | -0.0 | 27.845 |
184.017 | 124.414 | 107.338 | -0.0 | 0.0 | -0.0 |
124.413 | 184.017 | 107.338 | -0.0 | 0.0 | 0.0 |
108.459 | 108.459 | 203.246 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 24.46 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 24.46 | 0.0 |
0.001 | 0.0 | 0.002 | -0.0 | 0.0 | 27.845 |
162.338 | 131.195 | 131.195 | -0.0 | -0.0 | -0.0 |
131.195 | 162.338 | 131.195 | -0.0 | -0.0 | -0.0 |
131.195 | 131.195 | 159.319 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 46.678 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 46.678 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 46.468 |
162.338 | 131.195 | 131.195 | 0.0 | -0.0 | -0.0 |
131.195 | 162.338 | 131.195 | -0.0 | -0.0 | 0.0 |
131.195 | 131.195 | 159.319 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 46.678 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 46.678 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 46.468 |
162.338 | 131.195 | 131.195 | 0.0 | 0.0 | -0.0 |
131.195 | 162.338 | 131.195 | 0.0 | 0.0 | -0.0 |
131.195 | 131.195 | 159.319 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 46.678 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 46.678 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 46.468 |
162.338 | 131.195 | 131.195 | -0.0 | 0.0 | 0.0 |
131.195 | 162.338 | 131.195 | 0.0 | -0.0 | 0.0 |
131.195 | 131.195 | 159.319 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 46.678 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 46.678 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 46.468 |
162.354 | 131.18 | 131.195 | 0.0 | 0.0 | -0.0 |
131.18 | 162.354 | 131.195 | 0.0 | 0.0 | -0.0 |
131.195 | 131.195 | 159.32 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 46.678 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 46.678 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 46.468 |
162.337 | 131.194 | 131.194 | -0.0 | -0.0 | 0.0 |
131.194 | 162.337 | 131.194 | -0.0 | -0.0 | 0.0 |
131.194 | 131.194 | 159.319 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 46.678 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 46.678 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 46.468 |
459.697 | 130.559 | 130.559 | 0.0 | 0.0 | 0.0 |
130.559 | 459.697 | 130.559 | 0.0 | 0.0 | 0.0 |
130.559 | 130.559 | 459.697 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 67.19 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 67.19 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 67.19 |
459.696 | 130.559 | 130.559 | -0.0 | -0.0 | -0.0 |
130.559 | 459.696 | 130.559 | -0.0 | -0.0 | -0.0 |
130.559 | 130.559 | 459.696 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 67.19 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 67.19 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 67.19 |
459.698 | 130.559 | 130.559 | 0.0 | 0.0 | 0.0 |
130.559 | 459.698 | 130.559 | 0.0 | 0.0 | 0.0 |
130.559 | 130.559 | 459.698 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 67.19 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 67.19 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 67.19 |
459.695 | 130.559 | 130.559 | -0.0 | -0.0 | -0.0 |
130.559 | 459.695 | 130.559 | -0.0 | -0.0 | 0.0 |
130.559 | 130.559 | 459.695 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 67.19 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 67.19 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 67.19 |
459.711 | 130.562 | 130.562 | 0.0 | 0.0 | 0.0 |
130.562 | 459.711 | 130.562 | 0.0 | 0.0 | -0.0 |
130.562 | 130.562 | 459.711 | 0.0 | 0.0 | 0.0 |
0.0 | 0.002 | 0.002 | 67.19 | 0.0 | 0.0 |
0.002 | 0.0 | 0.002 | 0.0 | 67.19 | 0.0 |
0.002 | 0.002 | 0.0 | 0.0 | 0.0 | 67.19 |
459.682 | 130.557 | 130.557 | -0.0 | -0.0 | -0.0 |
130.557 | 459.682 | 130.557 | -0.0 | -0.0 | -0.0 |
130.557 | 130.557 | 459.682 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.002 | -0.002 | 67.19 | -0.0 | -0.0 |
-0.002 | -0.0 | -0.002 | -0.0 | 67.19 | -0.0 |
-0.002 | -0.002 | -0.0 | -0.0 | -0.0 | 67.19 |
115.0 | 41.59 | 41.59 | -0.0 | -0.0 | -0.0 |
41.59 | 115.0 | 41.59 | -0.0 | -0.0 | -0.0 |
41.59 | 41.59 | 115.0 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -10.195 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -10.195 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -10.195 |
115.0 | 41.59 | 41.59 | 0.0 | 0.0 | 0.0 |
41.59 | 115.0 | 41.59 | 0.0 | 0.0 | 0.0 |
41.59 | 41.59 | 115.0 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -10.195 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -10.195 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -10.195 |
115.0 | 41.59 | 41.59 | -0.0 | -0.0 | -0.0 |
41.59 | 115.0 | 41.59 | -0.0 | -0.0 | 0.0 |
41.59 | 41.59 | 115.0 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -10.195 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -10.195 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -10.195 |
115.0 | 41.59 | 41.59 | 0.0 | 0.0 | 0.0 |
41.59 | 115.0 | 41.59 | 0.0 | 0.0 | 0.0 |
41.59 | 41.59 | 115.0 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -10.195 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -10.195 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -10.195 |
114.999 | 41.59 | 41.59 | -0.0 | -0.0 | -0.0 |
41.59 | 114.999 | 41.59 | -0.0 | -0.0 | -0.0 |
41.59 | 41.59 | 114.999 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -10.195 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -10.195 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -10.195 |
115.001 | 41.59 | 41.59 | 0.0 | 0.0 | 0.0 |
41.59 | 115.001 | 41.59 | 0.0 | 0.0 | 0.0 |
41.59 | 41.59 | 115.001 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -10.195 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -10.195 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -10.195 |
755.984 | 221.317 | 221.317 | 0.0 | 0.0 | 0.0 |
221.317 | 755.984 | 221.317 | 0.0 | -0.0 | 0.0 |
221.317 | 221.317 | 755.984 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 152.326 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 152.326 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 152.326 |
755.984 | 221.317 | 221.317 | -0.0 | -0.0 | -0.0 |
221.317 | 755.984 | 221.317 | -0.0 | 0.0 | -0.0 |
221.317 | 221.317 | 755.984 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 152.326 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 152.326 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 152.326 |
755.985 | 221.317 | 221.317 | 0.0 | 0.0 | 0.0 |
221.317 | 755.985 | 221.317 | -0.0 | 0.0 | -0.0 |
221.317 | 221.317 | 755.985 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 152.326 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 152.326 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 152.326 |
755.983 | 221.317 | 221.317 | -0.0 | -0.0 | 0.0 |
221.317 | 755.983 | 221.317 | -0.0 | 0.0 | -0.0 |
221.317 | 221.317 | 755.983 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 152.326 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 152.326 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 152.326 |
755.993 | 221.319 | 221.319 | 0.0 | 0.0 | 0.0 |
221.319 | 755.993 | 221.319 | 0.0 | -0.0 | -0.0 |
221.319 | 221.319 | 755.993 | -0.0 | -0.0 | 0.0 |
0.0 | 0.001 | 0.001 | 152.326 | -0.0 | 0.0 |
0.001 | 0.0 | 0.001 | 0.0 | 152.326 | 0.0 |
0.001 | 0.001 | 0.0 | 0.0 | -0.0 | 152.326 |
755.974 | 221.316 | 221.316 | -0.0 | -0.0 | -0.0 |
221.316 | 755.974 | 221.316 | -0.0 | -0.0 | 0.0 |
221.316 | 221.316 | 755.974 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.001 | -0.001 | 152.326 | -0.0 | -0.0 |
-0.001 | -0.0 | -0.001 | -0.0 | 152.326 | -0.0 |
-0.001 | -0.001 | -0.0 | -0.0 | -0.0 | 152.326 |
29.355 | 62.439 | 62.439 | -0.0 | -0.0 | -0.0 |
62.439 | 29.355 | 62.439 | -0.0 | -0.0 | -0.0 |
62.439 | 62.439 | 29.355 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -44.612 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -44.612 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | -44.612 |
29.355 | 62.439 | 62.439 | 0.0 | 0.0 | 0.0 |
62.439 | 29.355 | 62.439 | 0.0 | 0.0 | 0.0 |
62.439 | 62.439 | 29.355 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -44.612 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -44.612 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -44.612 |
29.355 | 62.439 | 62.439 | -0.0 | -0.0 | -0.0 |
62.439 | 29.355 | 62.439 | -0.0 | -0.0 | -0.0 |
62.439 | 62.439 | 29.355 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -44.612 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -44.612 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -44.612 |
29.355 | 62.439 | 62.439 | 0.0 | 0.0 | 0.0 |
62.439 | 29.355 | 62.439 | 0.0 | 0.0 | 0.0 |
62.439 | 62.439 | 29.355 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -44.612 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -44.612 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -44.612 |
29.355 | 62.439 | 62.439 | -0.0 | -0.0 | -0.0 |
62.439 | 29.355 | 62.439 | -0.0 | -0.0 | -0.0 |
62.439 | 62.439 | 29.355 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -44.612 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -44.612 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -44.612 |
29.355 | 62.439 | 62.439 | 0.0 | 0.0 | 0.0 |
62.439 | 29.355 | 62.439 | 0.0 | 0.0 | 0.0 |
62.439 | 62.439 | 29.355 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -44.612 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -44.612 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -44.612 |
85.522 | 51.413 | 28.332 | -0.0 | 0.0 | 0.0 |
51.413 | 85.522 | 28.332 | -0.0 | 0.0 | 0.0 |
87.492 | 87.492 | -16.495 | -0.0 | 0.0 | 0.0 |
-0.002 | -0.002 | 0.004 | -17.55 | -0.0 | -0.0 |
-0.002 | -0.002 | 0.004 | -0.0 | -17.55 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 17.054 |
9.816 | 71.25 | 83.492 | 0.0 | 0.0 | 0.0 |
51.413 | 85.522 | 28.332 | 0.0 | 0.0 | -0.0 |
32.329 | 32.329 | 92.434 | 0.0 | -0.0 | -0.0 |
0.002 | 0.002 | -0.004 | -17.55 | 0.0 | -0.0 |
0.002 | 0.002 | -0.004 | 0.0 | -17.55 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 17.054 |
85.522 | 51.413 | 28.332 | -0.0 | -0.0 | 0.0 |
51.413 | 85.522 | 28.332 | -0.0 | -0.0 | -0.0 |
87.495 | 87.495 | -16.501 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 1.106 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 1.106 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 17.054 |
9.814 | 71.248 | 83.498 | 0.0 | 0.0 | 0.0 |
86.369 | 13.71 | 64.721 | 0.0 | 0.0 | 0.0 |
32.329 | 32.329 | 92.434 | 0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 1.106 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 1.106 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 17.054 |
13.71 | 86.369 | 64.721 | -0.0 | 0.0 | 0.0 |
71.247 | 9.814 | 83.499 | -0.0 | -0.0 | -0.0 |
87.497 | 87.497 | -16.504 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 1.106 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 1.106 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 17.054 |
13.71 | 86.369 | 64.721 | 0.0 | -0.0 | -0.0 |
86.369 | 13.711 | 64.72 | 0.0 | -0.0 | -0.0 |
87.493 | 87.493 | -16.498 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 1.106 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 1.106 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 17.054 |
83.033 | 63.161 | 63.161 | -0.0 | -0.0 | -0.0 |
63.161 | 83.033 | 63.161 | -0.0 | -0.0 | -0.0 |
63.161 | 63.161 | 83.033 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.77 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.77 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 0.77 |
83.033 | 63.161 | 63.161 | 0.0 | 0.0 | -0.0 |
63.161 | 83.033 | 63.161 | 0.0 | 0.0 | -0.0 |
63.161 | 63.161 | 83.033 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.77 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.77 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 0.77 |
83.034 | 63.161 | 63.161 | -0.0 | -0.0 | -0.0 |
63.161 | 83.034 | 63.161 | -0.0 | 0.0 | -0.0 |
63.161 | 63.161 | 83.034 | -0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 26.143 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 26.143 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 26.143 |
83.033 | 63.161 | 63.161 | -0.0 | 0.0 | 0.0 |
63.161 | 83.033 | 63.161 | 0.0 | 0.0 | -0.0 |
63.161 | 63.161 | 83.033 | 0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 26.143 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 26.143 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 26.143 |
83.041 | 63.161 | 63.161 | -0.0 | 0.0 | 0.0 |
63.161 | 83.041 | 63.161 | -0.0 | 0.0 | -0.0 |
63.161 | 63.161 | 83.041 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.77 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 0.77 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 0.77 |
83.026 | 63.161 | 63.161 | 0.0 | 0.0 | -0.0 |
63.161 | 83.026 | 63.161 | 0.0 | 0.0 | -0.0 |
63.161 | 63.161 | 83.026 | -0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.77 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.77 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 0.77 |
239.174 | 102.001 | 102.001 | 0.0 | 0.0 | 0.0 |
102.001 | 239.174 | 102.001 | 0.0 | 0.0 | 0.0 |
102.001 | 102.001 | 239.174 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -42.285 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -42.285 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -42.285 |
239.174 | 102.001 | 102.001 | -0.0 | -0.0 | -0.0 |
102.001 | 239.174 | 102.001 | -0.0 | -0.0 | -0.0 |
102.001 | 102.001 | 239.174 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -42.285 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -42.285 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 0.0 | -42.285 |
239.174 | 102.001 | 102.001 | 0.0 | 0.0 | 0.0 |
102.001 | 239.174 | 102.001 | 0.0 | 0.0 | 0.0 |
102.001 | 102.001 | 239.174 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | -42.285 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -42.285 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.0 | -42.285 |
239.174 | 102.001 | 102.001 | -0.0 | -0.0 | -0.0 |
102.001 | 239.174 | 102.001 | -0.0 | -0.0 | -0.0 |
102.001 | 102.001 | 239.174 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | -42.285 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -42.285 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | -42.285 |
239.175 | 102.001 | 102.001 | 0.0 | 0.0 | 0.0 |
102.001 | 239.175 | 102.001 | 0.0 | 0.0 | 0.0 |
102.001 | 102.001 | 239.175 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -3.965 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -3.965 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | -3.965 |
239.173 | 102.0 | 102.0 | -0.0 | -0.0 | -0.0 |
102.0 | 239.173 | 102.0 | -0.0 | -0.0 | -0.0 |
102.0 | 102.0 | 239.173 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -3.965 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -3.965 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | -3.965 |
106.749 | 45.16 | 45.16 | -0.0 | -0.0 | 0.0 |
45.16 | 106.749 | 45.16 | -0.0 | 0.0 | -0.0 |
45.16 | 45.16 | 106.749 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -29.15 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -29.15 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -29.15 |
106.749 | 45.16 | 45.16 | 0.0 | -0.0 | 0.0 |
45.16 | 106.749 | 45.16 | 0.0 | -0.0 | 0.0 |
45.16 | 45.16 | 106.749 | 0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -29.15 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -29.15 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -29.15 |
106.749 | 45.16 | 45.16 | -0.0 | 0.0 | -0.0 |
45.16 | 106.749 | 45.16 | -0.0 | -0.0 | 0.0 |
45.16 | 45.16 | 106.749 | -0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -19.494 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -29.15 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -19.494 |
107.162 | 44.953 | 44.953 | -0.0 | -0.0 | 0.0 |
44.953 | 107.162 | 44.953 | -0.0 | -0.0 | 0.0 |
44.953 | 44.953 | 107.162 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -19.494 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -29.15 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -19.494 |
106.754 | 45.161 | 45.161 | -0.0 | 0.0 | -0.0 |
45.161 | 106.754 | 45.161 | -0.0 | 0.0 | -0.0 |
45.161 | 45.161 | 106.754 | -0.0 | 0.0 | 0.0 |
0.0 | 0.001 | 0.001 | -29.15 | 0.0 | -0.0 |
0.001 | 0.0 | 0.001 | -0.0 | -29.15 | -0.0 |
0.001 | 0.001 | 0.0 | -0.0 | -0.0 | -29.15 |
106.743 | 45.159 | 45.159 | 0.0 | 0.0 | 0.0 |
45.159 | 106.743 | 45.159 | 0.0 | -0.0 | 0.0 |
44.952 | 44.952 | 107.157 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.001 | -0.001 | -29.15 | -0.0 | 0.0 |
-0.001 | -0.0 | -0.001 | 0.0 | -29.15 | 0.0 |
-0.001 | -0.001 | -0.0 | 0.0 | 0.0 | -29.15 |
126.03 | 115.386 | 115.386 | 0.0 | 0.0 | -0.0 |
115.386 | 126.03 | 115.386 | 0.0 | 0.0 | 0.0 |
115.386 | 115.386 | 126.03 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 58.301 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 52.341 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 52.341 |
126.03 | 115.386 | 115.386 | -0.0 | -0.0 | 0.0 |
115.386 | 126.03 | 115.386 | -0.0 | -0.0 | -0.0 |
115.386 | 115.386 | 126.03 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 58.301 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 52.341 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 52.341 |
126.03 | 115.386 | 115.386 | 0.0 | 0.0 | 0.0 |
115.386 | 126.03 | 115.386 | 0.0 | 0.0 | 0.0 |
115.386 | 115.386 | 126.03 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 52.341 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 52.341 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 52.341 |
126.03 | 115.386 | 115.386 | -0.0 | -0.0 | -0.0 |
115.386 | 126.03 | 115.386 | -0.0 | -0.0 | -0.0 |
115.386 | 115.386 | 126.03 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 52.341 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 52.341 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 52.341 |
126.028 | 115.384 | 115.384 | 0.0 | 0.0 | -0.0 |
115.384 | 126.028 | 115.384 | 0.0 | 0.0 | 0.0 |
115.384 | 115.384 | 126.028 | 0.0 | 0.0 | 0.0 |
-0.002 | -0.002 | -0.002 | 58.301 | 0.0 | -0.0 |
-0.002 | -0.002 | -0.002 | 0.0 | 58.301 | 0.0 |
-0.002 | -0.002 | -0.002 | 0.0 | 0.0 | 58.301 |
126.031 | 115.388 | 115.388 | -0.0 | -0.0 | -0.0 |
115.388 | 126.031 | 115.388 | -0.0 | -0.0 | -0.0 |
115.388 | 115.388 | 126.031 | -0.0 | -0.0 | -0.0 |
0.002 | 0.002 | 0.002 | 58.301 | -0.0 | 0.0 |
0.002 | 0.002 | 0.002 | -0.0 | 58.301 | -0.0 |
0.002 | 0.002 | 0.002 | -0.0 | -0.0 | 58.301 |
137.509 | 101.335 | 101.335 | 0.0 | -0.0 | 0.0 |
101.335 | 137.509 | 101.335 | -0.0 | 0.0 | 0.0 |
101.335 | 101.335 | 137.509 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 43.586 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 43.586 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 43.586 |
137.509 | 101.335 | 101.335 | -0.0 | -0.0 | -0.0 |
101.335 | 137.509 | 101.335 | -0.0 | -0.0 | -0.0 |
101.335 | 101.335 | 137.509 | 0.0 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 43.586 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 43.586 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 43.586 |
137.509 | 101.335 | 101.335 | 0.0 | 0.0 | 0.0 |
101.335 | 137.509 | 101.335 | 0.0 | 0.0 | 0.0 |
101.335 | 101.335 | 137.509 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 43.586 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 43.586 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 43.586 |
137.509 | 101.335 | 101.335 | -0.0 | -0.0 | -0.0 |
101.335 | 137.509 | 101.335 | -0.0 | -0.0 | -0.0 |
101.335 | 101.335 | 137.509 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 43.586 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 43.586 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 43.586 |
137.509 | 101.335 | 101.335 | 0.0 | 0.0 | 0.0 |
101.335 | 137.509 | 101.335 | 0.0 | 0.0 | 0.0 |
101.335 | 101.335 | 137.509 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 43.586 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 43.586 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 43.586 |
137.509 | 101.334 | 101.334 | -0.0 | -0.0 | -0.0 |
101.334 | 137.509 | 101.334 | 0.0 | -0.0 | -0.0 |
101.334 | 101.334 | 137.509 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 43.586 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 43.586 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 43.586 |
200.439 | 98.68 | 161.473 | 0.0 | 0.0 | -0.0 |
98.68 | 200.439 | 161.473 | 0.0 | 0.0 | -0.0 |
161.473 | 161.473 | 327.261 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 98.206 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 98.206 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 36.567 |
197.901 | 101.218 | 161.473 | -0.0 | -0.0 | 0.0 |
101.218 | 197.901 | 161.473 | -0.0 | -0.0 | 0.0 |
161.473 | 161.473 | 327.261 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 98.206 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 98.206 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 36.567 |
200.439 | 98.68 | 161.473 | 0.0 | 0.0 | -0.0 |
98.68 | 200.439 | 161.473 | 0.0 | 0.0 | -0.0 |
161.473 | 161.473 | 327.262 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 98.206 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 98.206 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 36.567 |
200.439 | 98.68 | 161.473 | -0.0 | -0.0 | 0.0 |
98.68 | 200.439 | 161.473 | -0.0 | -0.0 | 0.0 |
161.473 | 161.473 | 327.26 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 98.206 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 98.206 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 36.567 |
197.902 | 101.218 | 161.474 | 0.0 | 0.0 | -0.0 |
101.218 | 197.902 | 161.474 | 0.0 | 0.0 | -0.0 |
161.474 | 161.474 | 327.272 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.001 | 0.001 | 98.206 | 0.0 | 0.0 |
0.001 | -0.0 | 0.001 | 0.0 | 98.206 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 36.567 |
200.438 | 98.68 | 161.471 | 0.0 | -0.0 | 0.0 |
98.68 | 200.438 | 161.471 | -0.0 | 0.0 | 0.0 |
161.471 | 161.471 | 327.25 | -0.0 | -0.0 | 0.0 |
0.0 | -0.001 | -0.001 | 98.206 | -0.0 | 0.0 |
-0.001 | 0.0 | -0.001 | -0.0 | 98.206 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 36.567 |
141.886 | 143.39 | 143.39 | -0.0 | -0.0 | -0.0 |
143.39 | 141.886 | 143.39 | -0.0 | -0.0 | -0.0 |
143.39 | 143.39 | 141.886 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -96.455 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -96.455 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -96.455 |
141.886 | 143.39 | 143.39 | 0.0 | 0.0 | 0.0 |
143.39 | 141.886 | 143.39 | 0.0 | 0.0 | 0.0 |
143.39 | 143.39 | 141.886 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -96.455 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -96.455 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -96.455 |
141.886 | 143.39 | 143.39 | -0.0 | -0.0 | -0.0 |
143.39 | 141.886 | 143.39 | -0.0 | -0.0 | -0.0 |
143.39 | 143.39 | 141.886 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 35.111 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 35.111 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 35.111 |
141.886 | 143.39 | 143.39 | 0.0 | 0.0 | 0.0 |
143.39 | 141.886 | 143.39 | 0.0 | 0.0 | 0.0 |
143.39 | 143.39 | 141.886 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 35.111 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 35.111 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 35.111 |
141.887 | 143.39 | 143.39 | -0.0 | -0.0 | -0.0 |
143.39 | 141.887 | 143.39 | -0.0 | -0.0 | -0.0 |
143.39 | 143.39 | 141.887 | -0.0 | -0.0 | -0.0 |
0.001 | 0.001 | 0.001 | -96.455 | -0.0 | -0.0 |
0.001 | 0.001 | 0.001 | -0.0 | -96.455 | -0.0 |
0.001 | 0.001 | 0.001 | -0.0 | -0.0 | -96.455 |
141.885 | 143.389 | 143.389 | 0.0 | 0.0 | 0.0 |
143.389 | 141.885 | 143.389 | 0.0 | 0.0 | 0.0 |
143.389 | 143.389 | 141.885 | 0.0 | 0.0 | 0.0 |
-0.001 | -0.001 | -0.001 | -96.455 | 0.0 | 0.0 |
-0.001 | -0.001 | -0.001 | 0.0 | -96.455 | 0.0 |
-0.001 | -0.001 | -0.001 | 0.0 | 0.0 | -96.455 |
186.256 | 66.068 | 66.068 | -0.0 | 0.0 | 0.0 |
66.068 | 186.256 | 66.068 | 0.0 | 0.0 | 0.0 |
66.068 | 66.068 | 186.256 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -18.232 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -18.232 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.0 | -18.232 |
186.256 | 66.068 | 66.068 | -0.0 | -0.0 | -0.0 |
66.068 | 186.256 | 66.068 | -0.0 | -0.0 | -0.0 |
66.068 | 66.068 | 186.256 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -18.232 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -18.232 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -0.0 | -18.232 |
186.257 | 66.068 | 66.068 | -0.0 | 0.0 | -0.0 |
66.068 | 186.257 | 66.068 | 0.0 | 0.0 | -0.0 |
66.068 | 66.068 | 186.257 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -18.232 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -18.232 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -18.232 |
186.256 | 66.068 | 66.068 | 0.0 | -0.0 | -0.0 |
66.068 | 186.256 | 66.068 | -0.0 | -0.0 | 0.0 |
66.068 | 66.068 | 186.256 | -0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -18.232 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -18.232 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -18.232 |
186.26 | 66.068 | 66.068 | 0.0 | 0.0 | 0.0 |
66.068 | 186.26 | 66.068 | 0.0 | 0.0 | 0.0 |
66.068 | 66.068 | 186.26 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -18.232 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -18.232 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -18.232 |
186.252 | 66.068 | 66.068 | 0.0 | -0.0 | 0.0 |
66.068 | 186.252 | 66.068 | 0.0 | -0.0 | -0.0 |
66.068 | 66.068 | 186.252 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -18.232 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -18.232 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -18.232 |
141.758 | 164.198 | 164.198 | -0.0 | -0.0 | -0.0 |
164.198 | 141.758 | 164.198 | -0.0 | -0.0 | -0.0 |
164.198 | 164.198 | 141.758 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 60.302 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 60.302 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 60.302 |
141.758 | 164.198 | 164.198 | 0.0 | 0.0 | -0.0 |
164.198 | 141.758 | 164.198 | 0.0 | 0.0 | 0.0 |
164.198 | 164.198 | 141.758 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 60.302 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 60.302 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 60.302 |
141.758 | 164.198 | 164.198 | -0.0 | -0.0 | -0.0 |
164.198 | 141.758 | 164.198 | -0.0 | -0.0 | 0.0 |
164.198 | 164.198 | 141.758 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 60.302 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 60.302 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 60.302 |
141.758 | 164.198 | 164.198 | 0.0 | -0.0 | -0.0 |
164.198 | 141.758 | 164.198 | -0.0 | 0.0 | -0.0 |
164.198 | 164.198 | 141.758 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 60.302 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 60.302 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 60.302 |
141.758 | 164.199 | 164.199 | -0.0 | -0.0 | -0.0 |
164.199 | 141.758 | 164.199 | -0.0 | -0.0 | 0.0 |
164.199 | 164.199 | 141.758 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 60.302 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 60.302 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 60.302 |
141.757 | 164.198 | 164.198 | 0.0 | 0.0 | 0.0 |
164.198 | 141.757 | 164.198 | 0.0 | 0.0 | -0.0 |
164.198 | 164.198 | 141.757 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 60.302 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 60.302 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 60.302 |
73.219 | 107.982 | 107.982 | -0.0 | -0.0 | -0.0 |
107.982 | 73.219 | 107.982 | -0.0 | -0.0 | -0.0 |
107.982 | 107.982 | 73.219 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 44.296 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 44.296 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 44.296 |
73.219 | 107.982 | 107.982 | 0.0 | 0.0 | 0.0 |
107.982 | 73.219 | 107.982 | 0.0 | 0.0 | 0.0 |
107.982 | 107.982 | 73.219 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 44.296 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 44.296 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 44.296 |
73.219 | 107.982 | 107.982 | 0.0 | -0.0 | -0.0 |
107.982 | 73.219 | 107.982 | -0.0 | 0.0 | -0.0 |
107.982 | 107.982 | 73.219 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -45.28 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -45.28 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -45.28 |
73.219 | 107.982 | 107.982 | 0.0 | 0.0 | 0.0 |
107.982 | 73.219 | 107.982 | 0.0 | 0.0 | 0.0 |
107.982 | 107.982 | 73.219 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -45.28 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -45.28 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -45.28 |
73.219 | 107.982 | 107.982 | -0.0 | -0.0 | -0.0 |
107.982 | 73.219 | 107.982 | -0.0 | -0.0 | -0.0 |
107.982 | 107.982 | 73.219 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -45.28 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -45.28 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -45.28 |
73.219 | 107.981 | 107.981 | 0.0 | 0.0 | 0.0 |
107.981 | 73.219 | 107.981 | 0.0 | 0.0 | 0.0 |
107.981 | 107.981 | 73.219 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -45.28 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -45.28 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -45.28 |
277.511 | 106.291 | 154.5 | -0.0 | -0.0 | -0.0 |
106.291 | 277.511 | 154.5 | -0.0 | -0.0 | 0.0 |
154.5 | 154.5 | 228.192 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 44.836 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 44.836 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 10.748 |
277.511 | 106.291 | 154.5 | 0.0 | 0.0 | -0.0 |
106.291 | 277.511 | 154.5 | 0.0 | 0.0 | -0.0 |
154.5 | 154.5 | 228.192 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 44.836 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 44.836 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 10.748 |
277.511 | 106.291 | 154.5 | -0.0 | -0.0 | 0.0 |
106.291 | 277.511 | 154.5 | -0.0 | -0.0 | 0.0 |
154.5 | 154.5 | 228.192 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 44.836 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 44.836 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 10.748 |
277.51 | 106.291 | 154.5 | 0.0 | 0.0 | 0.0 |
106.291 | 277.51 | 154.5 | 0.0 | 0.0 | -0.0 |
154.5 | 154.5 | 228.192 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 44.836 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 44.836 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 10.748 |
277.513 | 106.291 | 154.501 | -0.0 | -0.0 | 0.0 |
106.291 | 277.513 | 154.501 | -0.0 | -0.0 | 0.0 |
154.501 | 154.501 | 228.192 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 44.836 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 44.836 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 10.748 |
277.508 | 106.29 | 154.5 | 0.0 | 0.0 | -0.0 |
106.29 | 277.508 | 154.5 | 0.0 | 0.0 | -0.0 |
154.5 | 154.5 | 228.191 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 44.836 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 44.836 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 10.748 |
279.049 | 153.934 | 125.762 | -0.0 | -0.0 | 0.0 |
153.934 | 279.049 | 125.762 | -0.0 | -0.0 | 0.0 |
125.762 | 125.762 | 270.563 | 0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 24.325 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 24.325 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 53.972 |
279.049 | 153.934 | 125.762 | 0.0 | 0.0 | 0.0 |
153.934 | 279.049 | 125.762 | 0.0 | -0.0 | -0.0 |
125.762 | 125.762 | 270.563 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 24.325 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 24.325 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 53.972 |
270.463 | 162.519 | 125.762 | -0.0 | -0.0 | -0.0 |
162.519 | 270.463 | 125.762 | 0.0 | -0.0 | 0.0 |
125.762 | 125.762 | 270.563 | 0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 24.325 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 24.325 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 53.972 |
279.048 | 153.934 | 125.762 | 0.0 | -0.0 | -0.0 |
153.934 | 279.048 | 125.762 | 0.0 | 0.0 | -0.0 |
125.762 | 125.762 | 270.563 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 24.325 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 24.325 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 53.972 |
270.466 | 162.52 | 125.762 | -0.0 | -0.0 | 0.0 |
162.52 | 270.465 | 125.762 | -0.0 | -0.0 | 0.0 |
125.763 | 125.763 | 270.565 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 24.325 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 24.325 | 0.0 |
0.0 | 0.001 | 0.0 | -0.0 | 0.0 | 62.558 |
279.046 | 153.933 | 125.762 | 0.0 | 0.0 | -0.0 |
162.518 | 270.461 | 125.762 | 0.0 | 0.0 | -0.0 |
125.762 | 125.762 | 270.562 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 24.325 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 24.325 | -0.0 |
-0.0 | -0.001 | -0.0 | 0.0 | 0.0 | 62.558 |
269.106 | 150.993 | 132.827 | -15.143 | -0.0 | -0.0 |
150.993 | 269.106 | 132.827 | 15.143 | -0.0 | 0.0 |
132.827 | 132.827 | 265.142 | 0.0 | 0.0 | -0.0 |
-15.143 | 15.143 | -0.0 | 26.024 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 26.024 | -15.143 |
0.0 | 0.0 | 0.0 | -0.0 | -15.143 | 59.057 |
269.106 | 150.993 | 132.827 | -15.143 | 0.0 | 0.0 |
150.993 | 269.106 | 132.827 | 15.143 | -0.0 | 0.0 |
132.827 | 132.827 | 265.142 | 0.0 | -0.0 | 0.0 |
-15.143 | 15.143 | 0.0 | 26.024 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 26.024 | -15.143 |
-0.0 | -0.0 | -0.0 | 0.0 | -15.143 | 59.057 |
269.107 | 150.993 | 132.827 | -15.143 | 0.0 | -0.0 |
150.993 | 269.107 | 132.827 | 15.143 | 0.0 | 0.0 |
132.827 | 132.827 | 265.142 | -0.0 | -0.0 | -0.0 |
-15.143 | 15.143 | 0.0 | 26.024 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 26.024 | -15.143 |
0.0 | 0.0 | 0.0 | -0.0 | -15.143 | 59.057 |
269.106 | 150.993 | 132.827 | -15.143 | -0.0 | 0.0 |
150.993 | 269.106 | 132.827 | 15.143 | 0.0 | -0.0 |
132.827 | 132.827 | 265.141 | 0.0 | 0.0 | 0.0 |
-15.143 | 15.143 | -0.0 | 26.024 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 26.024 | -15.143 |
-0.0 | -0.0 | -0.0 | 0.0 | -15.143 | 59.057 |
269.109 | 150.993 | 132.827 | -15.143 | -0.0 | -0.0 |
150.994 | 269.109 | 132.827 | 15.143 | -0.0 | -0.0 |
132.827 | 132.827 | 265.143 | -0.0 | 0.0 | -0.0 |
-15.143 | 15.143 | 0.0 | 26.024 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 26.024 | -15.143 |
0.0 | 0.001 | 0.0 | -0.0 | -15.143 | 59.057 |
269.104 | 150.992 | 132.827 | -15.143 | 0.0 | 0.0 |
150.992 | 269.104 | 132.827 | 15.143 | 0.0 | 0.0 |
132.826 | 132.826 | 265.141 | 0.0 | 0.0 | 0.0 |
-15.143 | 15.143 | -0.0 | 26.024 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 26.024 | -15.143 |
-0.0 | -0.001 | -0.0 | 0.0 | -15.143 | 59.057 |
138.486 | 148.542 | 148.542 | -0.0 | 0.0 | 0.0 |
148.542 | 138.486 | 148.542 | -0.0 | -0.0 | 0.0 |
148.542 | 148.542 | 138.486 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -41.688 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -41.688 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -41.688 |
138.486 | 148.542 | 148.542 | 0.0 | 0.0 | 0.0 |
148.542 | 138.486 | 148.542 | 0.0 | 0.0 | 0.0 |
148.542 | 148.542 | 138.486 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -41.688 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -41.688 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -41.688 |
138.486 | 148.542 | 148.542 | -0.0 | 0.0 | 0.0 |
148.542 | 138.486 | 148.542 | 0.0 | -0.0 | -0.0 |
148.542 | 148.542 | 138.486 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -41.688 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -41.688 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -41.688 |
138.486 | 148.542 | 148.542 | 0.0 | 0.0 | -0.0 |
148.542 | 138.486 | 148.542 | 0.0 | 0.0 | -0.0 |
148.542 | 148.542 | 138.486 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -41.688 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -41.688 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -41.688 |
138.486 | 148.543 | 148.543 | -0.0 | -0.0 | 0.0 |
148.543 | 138.486 | 148.543 | -0.0 | -0.0 | 0.0 |
148.543 | 148.543 | 138.486 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -41.688 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -41.688 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -41.688 |
138.486 | 148.542 | 148.542 | 0.0 | 0.0 | -0.0 |
148.542 | 138.486 | 148.542 | 0.0 | 0.0 | -0.0 |
148.542 | 148.542 | 138.486 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -41.688 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -41.688 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -41.688 |
272.864 | 150.554 | 150.554 | -0.0 | 0.0 | -0.0 |
150.554 | 272.864 | 150.554 | -0.0 | -0.0 | -0.0 |
150.554 | 150.554 | 272.864 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 23.351 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 23.351 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 23.351 |
272.864 | 150.554 | 150.554 | -0.0 | 0.0 | 0.0 |
150.554 | 272.864 | 150.554 | 0.0 | 0.0 | 0.0 |
150.554 | 150.554 | 272.864 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 23.351 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 23.351 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 23.351 |
272.864 | 150.554 | 150.554 | 0.0 | 0.0 | -0.0 |
150.554 | 272.864 | 150.554 | -0.0 | -0.0 | -0.0 |
150.554 | 150.554 | 272.864 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 23.351 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 23.351 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 23.351 |
272.864 | 150.554 | 150.554 | -0.0 | -0.0 | 0.0 |
150.554 | 272.864 | 150.554 | -0.0 | 0.0 | -0.0 |
150.554 | 150.554 | 272.864 | 0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 23.351 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 23.351 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 23.351 |
272.865 | 150.554 | 150.554 | 0.0 | 0.0 | -0.0 |
150.554 | 272.865 | 150.554 | -0.0 | -0.0 | -0.0 |
150.554 | 150.554 | 272.865 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 6.901 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 6.901 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 6.901 |
272.863 | 150.554 | 150.554 | 0.0 | -0.0 | 0.0 |
150.554 | 272.863 | 150.554 | 0.0 | -0.0 | 0.0 |
150.554 | 150.554 | 272.863 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 6.901 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 6.901 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 6.901 |
24.17 | -0.093 | -0.093 | -0.0 | 0.0 | 0.0 |
-0.093 | 24.17 | -0.093 | 0.0 | -0.0 | 0.0 |
-0.093 | -0.093 | 24.17 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.093 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.093 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | -0.093 |
24.17 | -0.093 | -0.093 | -0.0 | 0.0 | -0.0 |
-0.093 | 24.17 | -0.093 | -0.0 | -0.0 | 0.0 |
-0.093 | -0.093 | 24.17 | 0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.093 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.093 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -0.093 |
24.173 | -0.093 | -0.093 | -0.0 | 0.0 | -0.0 |
-0.093 | 24.173 | -0.093 | -0.0 | -0.0 | 0.0 |
-0.093 | -0.093 | 24.173 | 0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.095 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -0.095 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | -0.095 |
24.167 | -0.093 | -0.093 | 0.0 | -0.0 | -0.0 |
-0.093 | 24.167 | -0.093 | -0.0 | 0.0 | -0.0 |
-0.093 | -0.093 | 24.167 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.095 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.095 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | -0.095 |
24.196 | -0.093 | -0.093 | 0.0 | 0.0 | 0.0 |
-0.093 | 24.196 | -0.093 | 0.0 | 0.0 | 0.0 |
-0.093 | -0.093 | 24.196 | -0.0 | 0.0 | 0.0 |
-45181.239 | -14262.799 | -17440.419 | 7793.766 | 806.982 | -395.92 |
-27547.483 | -61434.515 | -22267.634 | -2300.249 | 19274.379 | 1683.243 |
-19304.786 | -20664.585 | -41804.899 | -479.312 | -279.845 | 12159.963 |
24.144 | -0.093 | -0.093 | 0.0 | -0.0 | -0.0 |
-0.093 | 24.144 | -0.093 | -0.0 | 0.0 | -0.0 |
-0.093 | -0.093 | 24.144 | 0.0 | 0.0 | 0.0 |
39613.546 | 15669.556 | 12622.036 | 1644.584 | 707.522 | -353.31 |
18791.18 | 14542.141 | 15375.961 | -820.48 | 5591.414 | -845.276 |
15644.622 | 13736.082 | 33481.311 | 2151.972 | 1233.224 | 1339.764 |
-1.743 | -0.088 | -0.088 | 0.0 | 0.0 | 0.0 |
-0.088 | -1.743 | -0.088 | 0.0 | 0.0 | 0.0 |
-0.088 | -0.088 | -1.743 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.091 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -0.091 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | -0.091 |
-1.743 | -0.088 | -0.088 | -0.0 | -0.0 | 0.0 |
-0.088 | -1.743 | -0.088 | 0.0 | 0.0 | -0.0 |
-0.088 | -0.088 | -1.743 | -0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.091 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.091 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -0.091 |
-1.743 | -0.088 | -0.088 | 0.0 | 0.0 | -0.0 |
-0.088 | -1.743 | -0.088 | -0.0 | 0.0 | -0.0 |
-0.088 | -0.088 | -1.743 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.091 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -0.091 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -0.0 | -0.091 |
-1.742 | -0.088 | -0.088 | -0.0 | -0.0 | 0.0 |
-0.088 | -1.742 | -0.088 | -0.0 | -0.0 | -0.0 |
-0.088 | -0.088 | -1.742 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.091 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.091 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 0.0 | -0.091 |
-120.777 | -483.784 | -483.784 | -0.0 | -0.0 | 0.0 |
-483.784 | -120.777 | -483.784 | 0.0 | -0.0 | -0.0 |
-483.784 | -483.784 | -120.777 | -0.0 | 0.0 | -0.0 |
-33002.959 | -22815.591 | -22613.152 | 10624.762 | 1627.311 | -2449.583 |
-9745.329 | -9273.78 | -7025.19 | 612.066 | -2663.193 | -735.987 |
-8486.103 | -5804.438 | -14279.988 | 822.896 | 1477.292 | -3180.467 |
-176.013 | 630.118 | 630.118 | 0.0 | -0.0 | 0.0 |
630.118 | -176.013 | 630.118 | 0.0 | 0.0 | -0.0 |
630.118 | 630.118 | -176.013 | -0.0 | 0.0 | 0.0 |
6254.244 | 9856.485 | 11692.65 | -4951.626 | 165.704 | 289.586 |
10261.685 | 7349.435 | 5373.215 | 663.057 | -3023.278 | -1707.772 |
9634.735 | 9381.957 | 14932.14 | -57.437 | 447.152 | 493.475 |
166.428 | 189.53 | 189.53 | 0.0 | -0.0 | -0.0 |
189.53 | 166.428 | 189.53 | 0.0 | -0.0 | -0.0 |
189.53 | 189.53 | 166.428 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 60.569 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 60.569 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 60.569 |
166.428 | 189.53 | 189.53 | -0.0 | -0.0 | -0.0 |
189.53 | 166.428 | 189.53 | -0.0 | -0.0 | 0.0 |
189.53 | 189.53 | 166.428 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 60.569 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 60.569 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 60.569 |
166.429 | 189.53 | 189.53 | 0.0 | 0.0 | -0.0 |
189.53 | 166.429 | 189.53 | 0.0 | 0.0 | 0.0 |
189.53 | 189.53 | 166.429 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 60.569 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 60.569 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 60.569 |
166.428 | 189.53 | 189.53 | -0.0 | -0.0 | 0.0 |
189.53 | 166.428 | 189.53 | -0.0 | -0.0 | 0.0 |
189.53 | 189.53 | 166.428 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 60.569 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 60.569 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 60.569 |
166.43 | 189.531 | 189.531 | 0.0 | 0.0 | 0.0 |
189.531 | 166.43 | 189.531 | 0.0 | 0.0 | -0.0 |
189.531 | 189.531 | 166.43 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 60.569 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 60.569 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 60.569 |
166.427 | 189.53 | 189.53 | 0.0 | -0.0 | 0.0 |
189.53 | 166.427 | 189.53 | -0.0 | 0.0 | 0.0 |
189.53 | 189.53 | 166.427 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 60.569 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 60.569 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 60.569 |
212.989 | 175.312 | 175.312 | -0.0 | -0.0 | -0.0 |
175.312 | 212.989 | 175.312 | 0.0 | -0.0 | -0.0 |
175.312 | 175.312 | 212.989 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 48.534 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 48.534 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 48.534 |
212.989 | 175.312 | 175.312 | 0.0 | 0.0 | 0.0 |
175.312 | 212.989 | 175.312 | 0.0 | 0.0 | -0.0 |
175.312 | 175.312 | 212.989 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 48.534 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 48.534 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 48.534 |
212.989 | 175.312 | 175.312 | -0.0 | -0.0 | -0.0 |
175.312 | 212.989 | 175.312 | -0.0 | -0.0 | 0.0 |
175.312 | 175.312 | 212.989 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 48.534 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 48.534 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 48.534 |
212.989 | 175.312 | 175.312 | 0.0 | -0.0 | 0.0 |
175.312 | 212.989 | 175.312 | 0.0 | 0.0 | -0.0 |
175.312 | 175.312 | 212.989 | -0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 48.534 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 48.534 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 48.534 |
212.99 | 175.313 | 175.313 | 0.0 | -0.0 | -0.0 |
175.313 | 212.99 | 175.313 | -0.0 | 0.0 | -0.0 |
175.313 | 175.313 | 212.99 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 48.534 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 48.534 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 48.534 |
212.989 | 175.312 | 175.312 | 0.0 | -0.0 | 0.0 |
175.312 | 212.989 | 175.312 | 0.0 | -0.0 | 0.0 |
175.312 | 175.312 | 212.989 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 48.534 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 48.534 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 48.534 |
214.465 | 180.097 | 179.823 | 0.0 | 0.0 | -0.0 |
180.097 | 214.465 | 179.823 | 0.0 | 0.0 | -0.0 |
179.823 | 179.823 | 217.953 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 46.965 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 46.965 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 48.059 |
214.465 | 180.097 | 179.823 | -0.0 | -0.0 | 0.0 |
180.097 | 214.465 | 179.823 | -0.0 | -0.0 | 0.0 |
179.823 | 179.823 | 217.953 | -0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 46.965 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 46.965 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 48.059 |
214.465 | 180.097 | 179.823 | 0.0 | -0.0 | -0.0 |
180.097 | 214.465 | 179.823 | 0.0 | -0.0 | -0.0 |
179.823 | 179.823 | 217.953 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 46.965 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 46.965 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 48.059 |
214.465 | 180.097 | 179.823 | -0.0 | -0.0 | 0.0 |
180.097 | 214.465 | 179.823 | -0.0 | 0.0 | 0.0 |
179.823 | 179.823 | 217.953 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 46.965 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 46.965 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 48.059 |
212.221 | 182.342 | 179.823 | 0.0 | 0.0 | -0.0 |
182.342 | 212.221 | 179.823 | 0.0 | 0.0 | -0.0 |
179.823 | 179.823 | 217.954 | 0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 46.965 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 46.965 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 48.059 |
212.22 | 182.341 | 179.822 | -0.0 | -0.0 | 0.0 |
182.341 | 212.22 | 179.822 | -0.0 | 0.0 | 0.0 |
179.822 | 179.822 | 217.952 | -0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 46.965 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 46.965 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 48.059 |
324.067 | 160.667 | 160.667 | 0.0 | -0.0 | 0.0 |
160.667 | 324.067 | 160.667 | -0.0 | -0.0 | 0.0 |
160.667 | 160.667 | 324.067 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 106.165 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 106.165 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 106.165 |
324.067 | 160.667 | 160.667 | 0.0 | 0.0 | 0.0 |
160.667 | 324.067 | 160.667 | -0.0 | 0.0 | -0.0 |
160.667 | 160.667 | 324.067 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 106.165 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 106.165 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 106.165 |
324.068 | 160.668 | 160.668 | 0.0 | -0.0 | 0.0 |
160.668 | 324.068 | 160.668 | -0.0 | -0.0 | -0.0 |
160.668 | 160.668 | 324.068 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 106.165 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 106.165 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 106.165 |
324.066 | 160.667 | 160.667 | -0.0 | 0.0 | 0.0 |
160.667 | 324.066 | 160.667 | -0.0 | 0.0 | -0.0 |
160.667 | 160.667 | 324.066 | -0.0 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 106.165 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 106.165 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 106.165 |
324.077 | 160.668 | 160.668 | 0.0 | -0.0 | -0.0 |
160.668 | 324.077 | 160.668 | 0.0 | -0.0 | 0.0 |
160.668 | 160.668 | 324.077 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.001 | 0.001 | 106.165 | -0.0 | -0.0 |
0.001 | -0.0 | 0.001 | -0.0 | 106.165 | 0.0 |
0.001 | 0.001 | -0.0 | -0.0 | -0.0 | 106.165 |
324.057 | 160.666 | 160.666 | 0.0 | 0.0 | 0.0 |
160.666 | 324.057 | 160.666 | -0.0 | 0.0 | 0.0 |
160.666 | 160.666 | 324.057 | -0.0 | 0.0 | 0.0 |
0.0 | -0.001 | -0.001 | 106.165 | 0.0 | -0.0 |
-0.001 | 0.0 | -0.001 | 0.0 | 106.165 | -0.0 |
-0.001 | -0.001 | 0.0 | 0.0 | 0.0 | 106.165 |
222.838 | 52.008 | 52.008 | 0.0 | 0.0 | -0.0 |
52.008 | 222.838 | 52.008 | 0.0 | 0.0 | -0.0 |
52.008 | 52.008 | 222.838 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 22.591 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 11.894 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 11.894 |
224.205 | 51.325 | 51.325 | -0.0 | -0.0 | -0.0 |
52.008 | 222.838 | 52.008 | 0.0 | -0.0 | -0.0 |
51.325 | 51.325 | 224.205 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 11.894 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 11.894 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 11.894 |
222.838 | 52.008 | 52.008 | 0.0 | 0.0 | 0.0 |
52.008 | 222.838 | 52.008 | 0.0 | 0.0 | 0.0 |
52.008 | 52.008 | 222.838 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 11.894 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 11.894 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 11.894 |
222.838 | 52.008 | 52.008 | -0.0 | -0.0 | -0.0 |
52.008 | 222.838 | 52.008 | -0.0 | -0.0 | -0.0 |
52.008 | 52.008 | 222.838 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 11.894 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 11.894 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 11.894 |
224.206 | 51.325 | 51.325 | -0.0 | 0.0 | -0.0 |
51.325 | 224.206 | 51.325 | 0.0 | 0.0 | -0.0 |
51.325 | 51.325 | 224.206 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 11.894 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 11.894 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 11.894 |
224.204 | 51.324 | 51.324 | -0.0 | -0.0 | 0.0 |
51.324 | 224.204 | 51.324 | 0.0 | -0.0 | -0.0 |
51.324 | 51.324 | 224.204 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 11.894 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 11.894 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 11.894 |
47.536 | 119.321 | 119.321 | -0.0 | -0.0 | -0.0 |
119.321 | 47.536 | 119.321 | -0.0 | -0.0 | 0.0 |
119.321 | 119.321 | 47.536 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 85.441 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 85.441 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 85.441 |
47.536 | 119.321 | 119.321 | -0.0 | 0.0 | 0.0 |
119.321 | 47.536 | 119.321 | 0.0 | 0.0 | 0.0 |
119.321 | 119.321 | 47.536 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 85.441 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 85.441 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 85.441 |
47.536 | 119.321 | 119.321 | -0.0 | -0.0 | 0.0 |
119.321 | 47.536 | 119.321 | -0.0 | -0.0 | 0.0 |
119.321 | 119.321 | 47.536 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 85.441 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 85.441 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 85.441 |
47.536 | 119.321 | 119.321 | -0.0 | 0.0 | 0.0 |
119.321 | 47.536 | 119.321 | 0.0 | -0.0 | 0.0 |
119.321 | 119.321 | 47.536 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 85.441 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 85.441 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 85.441 |
47.538 | 119.322 | 119.322 | -0.0 | -0.0 | -0.0 |
119.322 | 47.538 | 119.322 | -0.0 | -0.0 | 0.0 |
119.322 | 119.322 | 47.538 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 85.441 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 85.441 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 85.441 |
47.534 | 119.321 | 119.321 | 0.0 | 0.0 | -0.0 |
119.321 | 47.534 | 119.321 | 0.0 | 0.0 | -0.0 |
119.321 | 119.321 | 47.534 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 85.441 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 85.441 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 85.441 |
-0.484 | -0.484 | -0.484 | 0.0 | 0.0 | -0.0 |
-0.484 | -0.484 | -0.484 | 0.0 | 0.0 | -0.0 |
-0.484 | -0.484 | -0.484 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.484 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.484 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -0.484 |
-0.484 | -0.484 | -0.484 | -0.0 | -0.0 | 0.0 |
-0.484 | -0.484 | -0.484 | -0.0 | -0.0 | 0.0 |
-0.484 | -0.484 | -0.484 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.484 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.484 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -0.484 |
-0.484 | -0.484 | -0.484 | 0.0 | 0.0 | -0.0 |
-0.484 | -0.484 | -0.484 | 0.0 | 0.0 | -0.0 |
-0.484 | -0.484 | -0.484 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.484 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.484 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -0.484 |
-0.484 | -0.484 | -0.484 | -0.0 | -0.0 | 0.0 |
-0.484 | -0.484 | -0.484 | -0.0 | -0.0 | 0.0 |
-0.484 | -0.484 | -0.484 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.484 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.484 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -0.484 |
-0.484 | -0.484 | -0.484 | 0.0 | 0.0 | -0.0 |
-0.484 | -0.484 | -0.484 | 0.0 | 0.0 | -0.0 |
-0.484 | -0.484 | -0.484 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.484 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.484 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -0.484 |
-0.484 | -0.484 | -0.484 | -0.0 | -0.0 | 0.0 |
-0.484 | -0.484 | -0.484 | -0.0 | -0.0 | 0.0 |
-0.484 | -0.484 | -0.484 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.484 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.484 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -0.484 |
289.465 | 140.709 | 99.576 | -0.0 | 0.0 | 0.0 |
132.479 | 297.696 | 99.576 | 0.0 | 0.0 | 0.0 |
99.576 | 99.576 | 264.486 | -0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 51.679 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 51.679 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 82.609 |
289.465 | 140.709 | 99.576 | 0.0 | -0.0 | -0.0 |
140.709 | 289.465 | 99.576 | 0.0 | -0.0 | -0.0 |
99.576 | 99.576 | 264.486 | 0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 51.679 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 51.679 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 82.609 |
289.466 | 140.709 | 99.576 | -0.0 | 0.0 | 0.0 |
140.709 | 289.466 | 99.576 | -0.0 | 0.0 | -0.0 |
99.576 | 99.576 | 264.486 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 51.679 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 51.679 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 82.609 |
297.695 | 132.478 | 99.576 | -0.0 | -0.0 | -0.0 |
140.709 | 289.465 | 99.576 | 0.0 | -0.0 | 0.0 |
99.576 | 99.576 | 264.485 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 51.679 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 51.679 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 82.609 |
289.472 | 140.71 | 99.577 | -0.0 | 0.0 | -0.0 |
140.709 | 289.473 | 99.577 | -0.0 | 0.0 | -0.0 |
99.577 | 99.577 | 264.488 | -0.0 | -0.0 | 0.0 |
0.0 | 0.001 | 0.001 | 51.679 | -0.0 | 0.0 |
0.001 | 0.0 | 0.001 | 0.0 | 51.679 | 0.0 |
0.001 | 0.001 | 0.0 | 0.0 | 0.0 | 82.609 |
289.459 | 140.708 | 99.574 | 0.0 | -0.0 | 0.0 |
132.477 | 297.69 | 99.574 | -0.0 | -0.0 | -0.0 |
99.574 | 99.574 | 264.483 | 0.0 | -0.0 | -0.0 |
-0.0 | -0.001 | -0.001 | 51.679 | -0.0 | 0.0 |
-0.001 | -0.0 | -0.001 | 0.0 | 51.679 | -0.0 |
-0.001 | -0.001 | -0.0 | 0.0 | -0.0 | 82.609 |
243.772 | 128.513 | 81.983 | 0.0 | 0.0 | -0.0 |
128.513 | 243.772 | 81.983 | 0.0 | 0.0 | -0.0 |
81.983 | 81.983 | 237.794 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 41.675 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 41.675 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 57.63 |
243.772 | 128.513 | 81.983 | -0.0 | 0.0 | 0.0 |
128.513 | 243.772 | 81.983 | -0.0 | -0.0 | -0.0 |
81.983 | 81.983 | 237.794 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 41.675 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 41.675 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 57.63 |
256.938 | 115.349 | 81.984 | 0.0 | -0.0 | 0.0 |
115.349 | 256.938 | 81.984 | 0.0 | -0.0 | 0.0 |
81.984 | 81.984 | 237.794 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 41.675 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 41.675 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 57.63 |
243.772 | 128.513 | 81.983 | -0.0 | -0.0 | 0.0 |
115.348 | 256.937 | 81.983 | -0.0 | -0.0 | -0.0 |
81.983 | 81.983 | 237.794 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 41.675 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 41.675 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 57.63 |
243.779 | 128.514 | 81.985 | 0.0 | -0.0 | 0.0 |
128.513 | 243.78 | 81.985 | 0.0 | 0.0 | -0.0 |
81.984 | 81.984 | 237.795 | 0.0 | 0.0 | -0.0 |
0.0 | 0.001 | 0.0 | 41.675 | 0.0 | 0.0 |
0.001 | 0.0 | 0.0 | 0.0 | 41.675 | 0.0 |
0.001 | 0.001 | 0.0 | 0.0 | 0.0 | 70.794 |
243.766 | 128.512 | 81.982 | -0.0 | 0.0 | 0.0 |
128.514 | 243.764 | 81.982 | -0.0 | -0.0 | -0.0 |
81.983 | 81.983 | 237.793 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.001 | -0.0 | 41.675 | -0.0 | 0.0 |
-0.001 | -0.0 | -0.0 | -0.0 | 41.675 | 0.0 |
-0.001 | -0.001 | -0.0 | -0.0 | -0.0 | 70.794 |
14.868 | 40.732 | 40.732 | 0.0 | 0.0 | 0.0 |
40.732 | 14.868 | 40.732 | 0.0 | 0.0 | 0.0 |
40.732 | 40.732 | 14.868 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -32.384 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -32.384 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | -32.384 |
14.868 | 40.732 | 40.732 | 0.0 | -0.0 | -0.0 |
40.732 | 14.868 | 40.732 | -0.0 | 0.0 | -0.0 |
40.732 | 40.732 | 14.868 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -32.384 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -32.384 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -32.384 |
14.868 | 40.732 | 40.732 | 0.0 | -0.0 | -0.0 |
40.732 | 14.868 | 40.732 | -0.0 | 0.0 | 0.0 |
40.732 | 40.732 | 14.868 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -32.384 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -32.384 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -32.384 |
14.868 | 40.732 | 40.732 | -0.0 | -0.0 | -0.0 |
40.732 | 14.868 | 40.732 | -0.0 | -0.0 | -0.0 |
40.732 | 40.732 | 14.868 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -32.384 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -32.384 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -32.384 |
14.868 | 40.732 | 40.732 | 0.0 | 0.0 | 0.0 |
40.732 | 14.868 | 40.732 | 0.0 | 0.0 | 0.0 |
40.732 | 40.732 | 14.868 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -32.384 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -32.384 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -32.384 |
14.868 | 40.732 | 40.732 | -0.0 | -0.0 | -0.0 |
40.732 | 14.868 | 40.732 | -0.0 | -0.0 | -0.0 |
40.732 | 40.732 | 14.868 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -32.384 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -32.384 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -32.384 |
39.366 | 205.777 | 29.442 | -0.0 | -0.0 | -0.0 |
205.777 | 39.366 | 29.442 | -0.0 | 0.0 | -0.0 |
29.442 | 29.442 | 225.526 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -9.576 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -9.576 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -25.213 |
39.366 | 205.777 | 29.442 | 0.0 | -0.0 | 0.0 |
484.947 | -239.803 | 29.442 | 0.0 | -0.0 | 0.0 |
29.442 | 29.442 | 225.526 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -9.576 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -9.576 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -25.213 |
246.536 | -1.392 | 29.442 | 0.0 | 0.0 | 0.0 |
-1.392 | 246.536 | 29.442 | 0.0 | -0.0 | -0.0 |
29.442 | 29.442 | 225.526 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -9.576 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -9.576 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -25.213 |
246.536 | -1.392 | 29.442 | 0.0 | -0.0 | 0.0 |
-1.392 | 246.536 | 29.442 | 0.0 | -0.0 | 0.0 |
29.442 | 29.442 | 225.526 | 0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -9.576 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -9.576 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -25.213 |
-631.081 | 876.222 | 29.442 | -0.0 | 0.0 | 0.0 |
876.222 | -631.081 | 29.442 | -0.0 | 0.0 | -0.0 |
29.442 | 29.442 | 225.527 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -9.576 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -9.576 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -0.0 | -25.213 |
-631.069 | 876.215 | 29.442 | 0.0 | 0.0 | -0.0 |
876.215 | -631.069 | 29.442 | 0.0 | -0.0 | 0.0 |
29.442 | 29.442 | 225.525 | 0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -9.576 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -9.576 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -25.213 |
483.623 | 187.768 | 117.591 | -0.0 | -0.0 | 0.0 |
187.768 | 483.623 | 117.591 | -0.0 | -0.0 | 0.0 |
117.591 | 117.591 | 175.329 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 80.688 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 80.688 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 146.56 |
483.623 | 187.768 | 117.591 | -0.0 | 0.0 | -0.0 |
187.768 | 483.623 | 117.591 | 0.0 | 0.0 | -0.0 |
117.591 | 117.591 | 175.329 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 80.688 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 80.688 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 146.56 |
483.623 | 187.768 | 117.591 | 0.0 | -0.0 | 0.0 |
187.768 | 483.623 | 117.591 | 0.0 | 0.0 | 0.0 |
117.591 | 117.591 | 175.329 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 80.688 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 80.688 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 146.56 |
483.622 | 187.768 | 117.591 | -0.0 | 0.0 | -0.0 |
187.768 | 483.622 | 117.591 | 0.0 | -0.0 | -0.0 |
117.591 | 117.591 | 175.329 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 80.688 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 80.688 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 146.56 |
483.627 | 187.77 | 117.592 | 0.0 | -0.0 | 0.0 |
187.77 | 483.627 | 117.592 | -0.0 | -0.0 | 0.0 |
117.592 | 117.592 | 175.329 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 80.688 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 80.688 | 0.0 |
0.002 | 0.002 | 0.0 | -0.0 | -0.0 | 146.56 |
483.619 | 187.766 | 117.591 | -0.0 | 0.0 | -0.0 |
187.766 | 483.619 | 117.591 | -0.0 | -0.0 | -0.0 |
117.591 | 117.591 | 175.328 | -0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 80.688 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 80.688 | -0.0 |
-0.002 | -0.002 | -0.0 | 0.0 | -0.0 | 146.56 |
80.467 | 23.056 | 26.351 | -43.893 | 0.0 | -0.0 |
23.056 | 80.468 | 26.351 | 43.893 | 0.0 | -0.0 |
15.514 | 15.514 | -134.161 | 0.0 | 0.0 | -0.0 |
-43.893 | 43.893 | -0.0 | 11.861 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 11.861 | -43.893 |
0.0 | 0.0 | -0.0 | -0.0 | -43.893 | 28.706 |
80.467 | 23.056 | 26.351 | -43.893 | -0.0 | 0.0 |
23.056 | 80.467 | 26.351 | 43.893 | -0.0 | 0.0 |
15.514 | 15.514 | -134.159 | 0.0 | -0.0 | 0.0 |
-43.893 | 43.893 | 0.0 | 11.861 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 11.861 | -43.893 |
-0.0 | -0.0 | 0.0 | 0.0 | -43.893 | 28.706 |
80.468 | 23.056 | 26.351 | -43.893 | 0.0 | -0.0 |
23.056 | 80.468 | 26.351 | 43.893 | 0.0 | -0.0 |
15.512 | 15.512 | -134.169 | -0.0 | 0.0 | 0.0 |
-43.893 | 43.892 | -0.002 | 11.861 | 0.0 | -0.0 |
-0.001 | -0.0 | -0.002 | -0.0 | 11.861 | -43.893 |
0.0 | -0.0 | -0.0 | -0.0 | -43.893 | 28.706 |
80.468 | 23.056 | 26.352 | -43.893 | -0.0 | 0.0 |
23.056 | 80.467 | 26.352 | 43.893 | -0.0 | 0.0 |
15.516 | 15.516 | -134.15 | 0.0 | -0.0 | 0.0 |
-43.893 | 43.894 | 0.002 | 11.861 | -0.0 | 0.0 |
0.001 | 0.0 | 0.002 | 0.0 | 11.861 | -43.893 |
-0.0 | 0.0 | 0.0 | 0.0 | -43.893 | 28.706 |
80.467 | 23.056 | 26.344 | -43.893 | 0.0 | -0.0 |
23.055 | 80.469 | 26.344 | 43.893 | 0.0 | -0.0 |
15.492 | 15.492 | -134.257 | -0.0 | 0.0 | -0.0 |
-43.895 | 43.886 | -0.022 | 11.861 | 0.0 | -0.0 |
-0.007 | -0.002 | -0.022 | -0.0 | 11.861 | -43.893 |
0.001 | -0.001 | -0.002 | -0.0 | -43.893 | 28.706 |
80.468 | 23.055 | 26.358 | -43.893 | -0.0 | 0.0 |
23.056 | 80.466 | 26.358 | 43.893 | -0.0 | 0.0 |
15.536 | 15.536 | -134.062 | 0.0 | -0.0 | 0.0 |
-43.891 | 43.9 | 0.022 | 11.861 | -0.0 | 0.0 |
0.007 | 0.002 | 0.022 | 0.0 | 11.861 | -43.893 |
-0.001 | 0.001 | 0.002 | 0.0 | -43.893 | 28.706 |
288.761 | -19.663 | -19.663 | -0.0 | -0.0 | -0.0 |
-19.663 | 288.761 | -19.663 | -0.0 | -0.0 | 0.0 |
-19.663 | -19.663 | 288.761 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -61.358 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -61.358 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -61.358 |
288.76 | -19.663 | -19.663 | 0.0 | 0.0 | -0.0 |
-19.663 | 288.76 | -19.663 | 0.0 | 0.0 | -0.0 |
-19.663 | -19.663 | 288.76 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -61.358 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -61.358 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -61.358 |
288.761 | -19.663 | -19.663 | -0.0 | -0.0 | 0.0 |
-19.663 | 288.761 | -19.663 | -0.0 | -0.0 | 0.0 |
-19.663 | -19.663 | 288.761 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -61.358 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -61.358 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -61.358 |
288.76 | -19.663 | -19.663 | 0.0 | 0.0 | -0.0 |
-19.663 | 288.76 | -19.663 | 0.0 | 0.0 | -0.0 |
-19.663 | -19.663 | 288.76 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -61.358 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -61.358 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -61.358 |
288.766 | -19.661 | -19.661 | -0.0 | -0.0 | 0.0 |
-19.661 | 288.766 | -19.661 | -0.0 | -0.0 | 0.0 |
-19.661 | -19.661 | 288.766 | -0.0 | -0.0 | 0.0 |
0.001 | 0.001 | 0.001 | -61.358 | -0.0 | -0.0 |
0.001 | 0.001 | 0.001 | -0.0 | -61.358 | 0.0 |
0.001 | 0.001 | 0.001 | -0.0 | -0.0 | -61.358 |
288.755 | -19.664 | -19.664 | 0.0 | 0.0 | -0.0 |
-19.664 | 288.755 | -19.664 | 0.0 | 0.0 | -0.0 |
-19.664 | -19.664 | 288.755 | 0.0 | 0.0 | 0.0 |
-0.001 | -0.001 | -0.001 | -61.358 | 0.0 | -0.0 |
-0.001 | -0.001 | -0.001 | 0.0 | -61.358 | -0.0 |
-0.001 | -0.001 | -0.001 | 0.0 | 0.0 | -61.358 |
253.798 | 101.797 | 13.213 | 0.0 | -0.0 | 0.0 |
101.796 | 253.798 | 13.213 | 0.0 | -0.0 | -0.0 |
13.213 | 13.213 | 282.378 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -12.165 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -12.165 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 76.001 |
253.799 | 101.797 | 13.214 | -0.0 | 0.0 | -0.0 |
101.797 | 253.799 | 13.214 | -0.0 | -0.0 | 0.0 |
13.213 | 13.213 | 282.378 | -0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -12.165 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -12.165 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 76.001 |
253.791 | 101.796 | 13.212 | 0.0 | -0.0 | -0.0 |
101.795 | 253.793 | 13.212 | 0.0 | -0.0 | -0.0 |
13.213 | 13.213 | 282.377 | 0.0 | -0.0 | -0.0 |
-0.001 | -0.002 | -0.001 | -12.165 | -0.0 | -0.0 |
-0.002 | -0.001 | -0.001 | 0.0 | -12.165 | -0.0 |
-0.001 | -0.002 | -0.001 | 0.0 | 0.0 | 76.001 |
253.805 | 101.797 | 13.215 | -0.0 | 0.0 | 0.0 |
101.799 | 253.804 | 13.215 | -0.0 | 0.0 | -0.0 |
13.214 | 13.214 | 282.378 | 0.0 | -0.0 | 0.0 |
0.001 | 0.002 | 0.001 | -12.165 | -0.0 | 0.0 |
0.002 | 0.001 | 0.001 | -0.0 | -12.165 | 0.0 |
0.001 | 0.002 | 0.001 | -0.0 | 0.0 | 76.001 |
253.729 | 101.79 | 13.196 | 0.0 | -0.0 | 0.0 |
101.778 | 253.742 | 13.196 | -0.0 | -0.0 | -0.0 |
13.208 | 13.208 | 282.377 | 0.0 | -0.0 | 0.0 |
-0.006 | -0.017 | -0.005 | -12.165 | -0.0 | 0.0 |
-0.017 | -0.006 | -0.005 | 0.0 | -12.165 | -0.0 |
-0.006 | -0.019 | -0.006 | -0.0 | 0.0 | 76.001 |
253.867 | 101.803 | 13.231 | -0.0 | 0.0 | -0.0 |
101.815 | 253.855 | 13.231 | -0.0 | 0.0 | -0.0 |
13.219 | 13.219 | 282.379 | 0.0 | -0.0 | 0.0 |
0.006 | 0.017 | 0.005 | -12.165 | 0.0 | -0.0 |
0.017 | 0.006 | 0.005 | -0.0 | -12.165 | -0.0 |
0.006 | 0.019 | 0.006 | 0.0 | 0.0 | 76.001 |
121.855 | 48.0 | -2.086 | -0.0 | -0.0 | 0.0 |
48.0 | 121.855 | -2.086 | -0.0 | -0.0 | 0.0 |
-2.086 | -2.086 | 168.799 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -13.199 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -13.199 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -37.093 |
121.855 | 48.0 | -2.086 | 0.0 | -0.0 | -0.0 |
122.021 | 47.834 | -2.086 | -0.0 | -0.0 | -0.0 |
-2.086 | -2.086 | 168.799 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -13.199 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -13.199 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | -37.093 |
121.855 | 48.0 | -2.086 | -0.0 | -0.0 | 0.0 |
139.303 | 30.552 | -2.086 | 0.0 | 0.0 | 0.0 |
-2.086 | -2.086 | 168.799 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -13.199 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -13.199 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 36.928 |
30.552 | 139.303 | -2.086 | -0.0 | -0.0 | -0.0 |
122.02 | 47.834 | -2.086 | -0.0 | -0.0 | 0.0 |
-2.086 | -2.086 | 168.799 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -13.199 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -13.199 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 36.928 |
47.836 | 122.019 | -2.086 | 0.0 | 0.0 | 0.0 |
-4738170.737 | -4817471.489 | -9150992.282 | 5576.12 | -3306.931 | 150428.855 |
-2.086 | -2.086 | 168.8 | 0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -13.199 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -13.199 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 36.928 |
47.842 | 122.013 | -2.086 | -0.0 | -0.0 | 0.0 |
4832718.415 | 4803425.119 | 4584344.325 | -43564.571 | -3905.451 | 42729.384 |
-2.086 | -2.086 | 168.798 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -13.199 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -13.199 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 36.928 |
291.49 | 92.779 | 126.089 | 0.0 | -0.0 | 0.0 |
93.236 | -18.562 | 80.364 | 0.0 | 0.0 | 0.0 |
126.36 | 80.178 | 152.785 | 0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 51.942 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 97.036 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 63.521 |
291.494 | 92.779 | 126.089 | -0.0 | 0.0 | 0.0 |
93.236 | -18.562 | 80.364 | -0.0 | -0.0 | 0.0 |
126.36 | 80.178 | 152.785 | -0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 51.942 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 97.036 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 63.521 |
291.474 | 92.778 | 126.088 | 0.0 | 0.0 | -0.0 |
93.236 | -18.562 | 80.364 | -0.0 | -0.0 | -0.0 |
126.36 | 80.178 | 152.785 | 0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 51.942 | -0.0 | -0.0 |
-0.001 | -0.0 | -0.0 | 0.0 | 97.036 | -0.0 |
-0.001 | -0.0 | -0.0 | -0.0 | -0.0 | 63.521 |
291.51 | 92.78 | 126.09 | -0.0 | 0.0 | 0.0 |
93.236 | -18.562 | 80.364 | -0.0 | -0.0 | 0.0 |
126.36 | 80.178 | 152.784 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 51.942 | 0.0 | -0.0 |
0.001 | 0.0 | 0.0 | -0.0 | 97.036 | 0.0 |
0.001 | 0.0 | 0.0 | 0.0 | 0.0 | 63.521 |
291.313 | 92.768 | 126.078 | 0.0 | -0.0 | -0.0 |
93.235 | -18.562 | 80.365 | 0.0 | 0.0 | -0.0 |
126.359 | 80.179 | 152.785 | 0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 51.942 | -0.0 | -0.0 |
-0.012 | -0.0 | -0.001 | 0.0 | 97.036 | -0.0 |
-0.011 | -0.001 | -0.0 | -0.0 | -0.0 | 63.521 |
291.671 | 92.79 | 126.1 | -0.0 | -0.0 | 0.0 |
93.237 | -18.561 | 80.364 | -0.0 | 0.0 | 0.0 |
126.361 | 80.178 | 152.784 | -0.0 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 51.942 | 0.0 | -0.0 |
0.012 | 0.0 | 0.001 | -0.0 | 97.036 | -0.0 |
0.011 | 0.001 | 0.0 | -0.0 | 0.0 | 63.521 |
239.914 | 13.094 | 54.732 | -0.0 | -0.0 | 0.0 |
13.094 | 239.914 | 54.732 | 0.0 | -0.0 | -0.0 |
52.672 | 52.672 | 239.285 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -117.032 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -117.032 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | -0.0 | -7.886 |
239.914 | 13.094 | 54.732 | 0.0 | 0.0 | -0.0 |
13.094 | 239.914 | 54.732 | 0.0 | 0.0 | -0.0 |
52.672 | 52.672 | 239.285 | -0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -117.032 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -117.032 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 0.0 | -7.886 |
239.914 | 13.094 | 54.732 | -0.0 | -0.0 | -0.0 |
13.094 | 239.914 | 54.732 | 0.0 | -0.0 | 0.0 |
52.673 | 52.673 | 239.286 | 0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -117.032 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | -117.032 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | -7.886 |
239.914 | 13.094 | 54.732 | 0.0 | 0.0 | -0.0 |
13.094 | 239.914 | 54.732 | 0.0 | 0.0 | -0.0 |
52.672 | 52.672 | 239.285 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -117.032 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -117.032 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -7.886 |
239.916 | 13.094 | 54.733 | -0.0 | -0.0 | 0.0 |
13.094 | 239.916 | 54.733 | 0.0 | -0.0 | -0.0 |
52.674 | 52.674 | 239.29 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.001 | 0.002 | -117.032 | -0.0 | -0.0 |
0.001 | -0.0 | 0.002 | 0.0 | -117.032 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | -7.886 |
239.912 | 13.094 | 54.73 | 0.0 | 0.0 | -0.0 |
13.094 | 239.912 | 54.73 | 0.0 | 0.0 | 0.0 |
52.67 | 52.67 | 239.281 | -0.0 | 0.0 | -0.0 |
0.0 | -0.001 | -0.002 | -117.032 | 0.0 | 0.0 |
-0.001 | 0.0 | -0.002 | -0.0 | -117.032 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -7.886 |
179.99 | 128.374 | 128.374 | -0.0 | 0.0 | 0.0 |
128.374 | 179.99 | 128.374 | 0.0 | -0.0 | -0.0 |
128.374 | 128.374 | 179.99 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -13.698 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -13.698 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | -13.698 |
179.99 | 128.374 | 128.374 | 0.0 | 0.0 | 0.0 |
128.374 | 179.99 | 128.374 | 0.0 | 0.0 | 0.0 |
128.374 | 128.374 | 179.99 | 0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -13.698 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -13.698 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -13.698 |
179.99 | 128.374 | 128.374 | -0.0 | 0.0 | 0.0 |
128.374 | 179.99 | 128.374 | 0.0 | -0.0 | 0.0 |
128.374 | 128.374 | 179.99 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -13.698 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -13.698 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -13.698 |
179.99 | 128.374 | 128.374 | 0.0 | 0.0 | 0.0 |
128.374 | 179.99 | 128.374 | 0.0 | 0.0 | 0.0 |
128.374 | 128.374 | 179.99 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -13.698 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -13.698 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -13.698 |
179.991 | 128.374 | 128.374 | -0.0 | -0.0 | -0.0 |
128.374 | 179.991 | 128.374 | -0.0 | -0.0 | -0.0 |
128.374 | 128.374 | 179.991 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -13.698 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -13.698 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | -13.698 |
179.99 | 128.373 | 128.373 | 0.0 | 0.0 | -0.0 |
128.373 | 179.99 | 128.373 | 0.0 | 0.0 | 0.0 |
128.373 | 128.373 | 179.99 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -13.698 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -13.698 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -13.698 |
96.717 | 87.344 | 87.344 | -0.0 | -0.0 | -0.0 |
87.344 | 96.717 | 87.344 | -0.0 | -0.0 | -0.0 |
87.344 | 87.344 | 96.717 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 6.642 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 6.642 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 6.642 |
96.717 | 87.344 | 87.344 | 0.0 | 0.0 | 0.0 |
87.344 | 96.717 | 87.344 | 0.0 | 0.0 | 0.0 |
87.344 | 87.344 | 96.717 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 6.642 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 6.642 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 6.642 |
96.717 | 87.344 | 87.344 | -0.0 | -0.0 | -0.0 |
87.344 | 96.717 | 87.344 | -0.0 | -0.0 | -0.0 |
87.344 | 87.344 | 96.717 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 6.642 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 6.642 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 6.642 |
96.717 | 87.344 | 87.344 | 0.0 | 0.0 | 0.0 |
87.344 | 96.717 | 87.344 | 0.0 | 0.0 | 0.0 |
87.344 | 87.344 | 96.717 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 6.642 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 6.642 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 6.642 |
96.717 | 87.345 | 87.345 | -0.0 | -0.0 | -0.0 |
87.345 | 96.717 | 87.345 | -0.0 | -0.0 | -0.0 |
87.345 | 87.345 | 96.717 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 38.391 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 38.391 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 38.391 |
96.717 | 87.344 | 87.344 | 0.0 | 0.0 | 0.0 |
87.344 | 96.717 | 87.344 | 0.0 | 0.0 | 0.0 |
87.344 | 87.344 | 96.717 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 38.391 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 38.391 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 38.391 |
217.96 | 162.706 | 142.431 | 0.567 | -0.0 | 0.0 |
162.706 | 217.96 | 142.431 | -0.567 | 0.0 | -0.0 |
142.431 | 142.431 | 198.842 | -0.0 | -0.0 | 0.0 |
-630.545 | -631.339 | 477.907 | 10.595 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 11.019 | 0.567 |
0.0 | 0.0 | -0.0 | 0.0 | 0.567 | 27.627 |
631.261 | 577.024 | -562.843 | 0.253 | -0.0 | -0.0 |
162.706 | 217.96 | 142.431 | -0.567 | 0.0 | 0.0 |
-93.717 | -93.717 | -1187.377 | -0.0 | 0.0 | 0.0 |
-820.839 | -820.882 | -1769.056 | 9.933 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 11.019 | 0.567 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.567 | 27.627 |
196.825 | 142.998 | 234.991 | 0.113 | 0.0 | -0.0 |
186.276 | 239.265 | 279.991 | 0.173 | 0.0 | -0.0 |
79.52 | 79.52 | 246.487 | -0.0 | 0.0 | -0.0 |
23.43 | 23.786 | 138.579 | 9.103 | 0.0 | -0.0 |
-63.095 | -63.095 | 47.791 | 0.0 | 10.595 | 0.397 |
0.0 | 0.0 | 0.0 | -0.0 | 0.567 | 27.627 |
280.235 | 225.587 | 94.052 | 0.393 | -0.0 | 0.0 |
139.058 | 192.014 | 2.808 | 0.184 | -0.0 | 0.0 |
108.936 | 108.937 | 126.641 | 0.0 | -0.0 | 0.0 |
-23.786 | -23.43 | -138.579 | 9.103 | -0.0 | 0.0 |
63.095 | 63.095 | -47.791 | -0.0 | 10.595 | 0.397 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.567 | 27.627 |
217.963 | 162.707 | 142.432 | 0.567 | 0.0 | 0.0 |
162.706 | 217.963 | 142.432 | -0.567 | -0.0 | 0.0 |
138.403 | 138.403 | 205.674 | 0.0 | -0.0 | -0.0 |
0.567 | -0.567 | 0.0 | 11.019 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 11.019 | 0.567 |
0.001 | 0.0 | 0.0 | 0.0 | 0.567 | 27.627 |
217.958 | 162.705 | 142.431 | 0.567 | -0.0 | 0.0 |
157.607 | 210.883 | 124.958 | 0.029 | 0.0 | 0.0 |
142.431 | 142.431 | 198.842 | -0.0 | 0.0 | 0.0 |
-2.564 | -2.207 | -13.862 | 9.101 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 11.019 | 0.567 |
-0.001 | -0.0 | -0.0 | -0.0 | 0.567 | 27.627 |
272.472 | 132.892 | 132.892 | -0.0 | -0.0 | -0.0 |
132.892 | 272.472 | 132.892 | -0.0 | -0.0 | -0.0 |
132.892 | 132.892 | 272.472 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 22.444 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 22.444 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 22.444 |
275.558 | 131.349 | 131.349 | 0.0 | 0.0 | 0.0 |
131.349 | 275.558 | 131.349 | -0.0 | 0.0 | 0.0 |
131.349 | 131.349 | 275.558 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 22.444 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 22.444 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 22.444 |
275.559 | 131.349 | 131.349 | -0.0 | -0.0 | -0.0 |
131.349 | 275.559 | 131.349 | -0.0 | -0.0 | -0.0 |
131.349 | 131.349 | 275.559 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -61.863 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -61.863 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | -61.863 |
272.472 | 132.892 | 132.892 | 0.0 | 0.0 | 0.0 |
132.892 | 272.472 | 132.892 | 0.0 | 0.0 | 0.0 |
132.892 | 132.892 | 272.472 | -0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -61.863 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | -61.863 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 0.0 | -61.863 |
275.56 | 131.349 | 131.349 | -0.0 | -0.0 | -0.0 |
131.349 | 275.56 | 131.349 | -0.0 | -0.0 | -0.0 |
131.349 | 131.349 | 275.56 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 22.444 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 22.444 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 22.444 |
272.471 | 132.891 | 132.891 | 0.0 | 0.0 | 0.0 |
132.891 | 272.471 | 132.891 | 0.0 | 0.0 | 0.0 |
132.891 | 132.891 | 272.471 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 22.444 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 22.444 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 22.444 |
2.02 | 0.533 | 0.533 | -0.0 | 0.0 | -0.0 |
0.533 | 2.02 | 0.533 | -0.0 | -0.0 | 0.0 |
0.533 | 0.533 | 2.02 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.459 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.459 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 0.459 |
2.02 | 0.533 | 0.533 | 0.0 | 0.0 | -0.0 |
0.533 | 2.02 | 0.533 | 0.0 | 0.0 | 0.0 |
0.533 | 0.533 | 2.02 | 0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.459 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.459 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 0.459 |
1.954 | 0.565 | 0.565 | 0.0 | -0.0 | 0.0 |
-150840.665 | -805391.951 | -160008.43 | -14075.704 | -913.341 | -4553.595 |
-146404.033 | -156036.792 | -813382.23 | -6682.445 | -9293.796 | 156.215 |
-0.0 | -0.0 | -0.0 | 0.275 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.275 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 0.275 |
2.02 | 0.533 | 0.533 | -0.0 | 0.0 | 0.0 |
0.709 | 1.667 | 0.709 | 0.0 | 0.0 | 0.0 |
0.709 | 0.709 | 1.667 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.275 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.275 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.275 |
-100737.948 | -19412.504 | -21852.272 | -669.22 | 508.465 | -219.806 |
-23357.039 | -100644.564 | -20244.768 | -20.537 | -102.539 | -267.851 |
-19356.2 | -23288.976 | -101591.009 | 907.285 | 37.771 | -205.371 |
-0.0 | -0.0 | 0.0 | 0.081 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.081 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 0.081 |
33827.346 | 34060.559 | 19738.623 | 114.271 | -212.278 | -515.048 |
18382.553 | 35465.9 | 34499.694 | 234.837 | 221.179 | 364.238 |
33987.045 | 17194.097 | 34965.36 | 35.736 | -213.277 | 493.628 |
0.0 | 0.0 | -0.0 | 0.081 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.081 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 0.081 |
199.067 | 174.621 | 174.621 | 0.0 | 0.0 | 0.0 |
174.621 | 199.067 | 174.621 | 0.0 | 0.0 | -0.0 |
174.621 | 174.621 | 199.067 | 0.0 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -17.825 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -17.825 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -17.825 |
199.067 | 174.621 | 174.621 | -0.0 | -0.0 | 0.0 |
174.621 | 199.067 | 174.621 | -0.0 | 0.0 | 0.0 |
174.621 | 174.621 | 199.067 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -17.825 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -17.825 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | -17.825 |
199.067 | 174.621 | 174.621 | 0.0 | 0.0 | -0.0 |
174.621 | 199.067 | 174.621 | 0.0 | -0.0 | -0.0 |
174.621 | 174.621 | 199.067 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 58.369 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 58.369 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 58.369 |
199.066 | 174.621 | 174.621 | -0.0 | -0.0 | -0.0 |
174.621 | 199.066 | 174.621 | -0.0 | -0.0 | -0.0 |
174.621 | 174.621 | 199.066 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 58.369 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 58.369 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 58.369 |
199.069 | 174.621 | 174.621 | 0.0 | -0.0 | -0.0 |
174.621 | 199.069 | 174.621 | -0.0 | 0.0 | -0.0 |
174.621 | 174.621 | 199.069 | -0.0 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -17.825 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -17.825 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | -17.825 |
199.064 | 174.62 | 174.62 | -0.0 | -0.0 | -0.0 |
174.62 | 199.064 | 174.62 | -0.0 | -0.0 | -0.0 |
174.62 | 174.62 | 199.064 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -17.825 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -17.825 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 0.0 | -17.825 |
297.906 | 192.454 | 192.454 | 0.0 | 0.0 | 0.0 |
192.454 | 297.906 | 192.454 | 0.0 | 0.0 | 0.0 |
192.454 | 192.454 | 297.906 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 52.585 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 52.585 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 52.585 |
297.906 | 192.454 | 192.454 | -0.0 | -0.0 | -0.0 |
192.454 | 297.906 | 192.454 | -0.0 | -0.0 | -0.0 |
192.454 | 192.454 | 297.906 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 52.585 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 52.585 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 52.585 |
297.906 | 192.454 | 192.454 | 0.0 | 0.0 | 0.0 |
192.454 | 297.906 | 192.454 | 0.0 | 0.0 | 0.0 |
192.454 | 192.454 | 297.906 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 52.585 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 52.585 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 52.585 |
297.906 | 192.454 | 192.454 | -0.0 | -0.0 | -0.0 |
192.454 | 297.906 | 192.454 | -0.0 | -0.0 | -0.0 |
192.454 | 192.454 | 297.906 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 52.585 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 52.585 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 52.585 |
297.908 | 192.454 | 192.454 | 0.0 | 0.0 | 0.0 |
192.454 | 297.908 | 192.454 | 0.0 | 0.0 | 0.0 |
192.454 | 192.454 | 297.908 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 52.585 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 52.585 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 52.585 |
297.904 | 192.454 | 192.454 | -0.0 | -0.0 | -0.0 |
192.454 | 297.904 | 192.454 | -0.0 | -0.0 | -0.0 |
192.454 | 192.454 | 297.904 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 52.585 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 52.585 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 52.585 |
262.559 | 185.394 | 187.689 | 0.0 | -0.0 | -0.0 |
185.394 | 262.559 | 187.689 | 0.0 | 0.0 | -0.0 |
187.689 | 187.689 | 292.813 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 29.23 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 29.23 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 42.26 |
262.559 | 185.394 | 187.689 | -0.0 | 0.0 | 0.0 |
185.394 | 262.559 | 187.689 | -0.0 | 0.0 | 0.0 |
187.689 | 187.689 | 292.813 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 29.23 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 29.23 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 42.26 |
262.559 | 185.394 | 187.689 | -0.0 | -0.0 | -0.0 |
185.394 | 262.559 | 187.689 | -0.0 | -0.0 | -0.0 |
187.689 | 187.689 | 292.813 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 29.23 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 29.23 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 42.26 |
174.31 | 273.643 | 187.689 | 0.0 | -0.0 | 0.0 |
273.643 | 174.31 | 187.689 | -0.0 | 0.0 | 0.0 |
187.689 | 187.689 | 292.812 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 29.23 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 29.23 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 42.26 |
174.311 | 273.644 | 187.69 | -0.0 | -0.0 | -0.0 |
273.644 | 174.311 | 187.69 | -0.0 | -0.0 | -0.0 |
187.689 | 187.689 | 292.814 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 29.23 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 29.23 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 42.26 |
174.309 | 273.642 | 187.688 | -0.0 | 0.0 | 0.0 |
273.642 | 174.309 | 187.688 | -0.0 | 0.0 | 0.0 |
187.689 | 187.689 | 292.812 | -0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 29.23 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 29.23 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 42.26 |
199.249 | 121.863 | 127.022 | 0.0 | 0.0 | 0.0 |
121.863 | 199.249 | 127.022 | -0.0 | -0.0 | -0.0 |
129.375 | 129.375 | 241.3 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 28.449 | 0.0 | 0.0 |
771.383 | 771.383 | 2.605 | -0.0 | 24.273 | 0.0 |
771.181 | 771.181 | 2.604 | -0.0 | -0.0 | -22.107 |
-620.002 | -672.502 | 124.298 | 0.0 | 0.0 | 0.0 |
-623.718 | -667.932 | 124.299 | -0.0 | -0.0 | 0.0 |
129.375 | 129.375 | 241.3 | 0.0 | -0.0 | 0.0 |
-771.396 | -771.396 | -2.605 | 24.273 | 0.0 | 0.0 |
-771.383 | -771.383 | -2.605 | -0.0 | 24.273 | 0.0 |
-771.181 | -771.181 | -2.604 | 0.0 | 0.0 | -22.107 |
199.249 | 121.863 | 127.022 | 0.0 | -0.0 | -0.0 |
186.244 | 234.179 | 127.19 | -0.0 | -0.0 | -0.0 |
129.375 | 129.375 | 241.3 | 0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 28.449 | -0.0 | -0.0 |
78.938 | 78.938 | 0.267 | 0.0 | 24.176 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 38.693 |
26.274 | 70.489 | 126.643 | -0.0 | 0.0 | 0.0 |
121.863 | 199.249 | 127.022 | 0.0 | 0.0 | 0.0 |
129.375 | 129.375 | 241.3 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 28.449 | 0.0 | 0.0 |
-78.938 | -78.938 | -0.267 | -0.0 | 24.176 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 38.693 |
111.512 | 155.741 | 126.932 | 0.0 | -0.0 | -0.0 |
121.863 | 199.249 | 127.023 | -0.0 | -0.0 | -0.0 |
129.375 | 129.375 | 241.301 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 28.449 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 28.449 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 38.693 |
134.159 | 86.032 | 126.851 | 0.0 | 0.0 | 0.0 |
140.118 | 95.9 | 126.878 | 0.0 | 0.0 | 0.0 |
121.543 | 121.543 | 241.273 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 28.449 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 28.449 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 38.693 |
254.526 | 185.203 | 176.411 | 3.141 | -0.0 | 0.0 |
185.203 | 254.526 | 176.411 | -3.141 | -0.0 | 0.0 |
-57.27 | -57.27 | 13.152 | 0.0 | -0.0 | -0.0 |
-226.483 | -232.523 | -226.549 | 27.575 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 28.234 | 3.141 |
-0.0 | -0.0 | -0.0 | 0.0 | 3.141 | 34.662 |
254.526 | 185.203 | 176.411 | 3.141 | 0.0 | 0.0 |
185.203 | 254.526 | 176.411 | -3.141 | 0.0 | 0.0 |
391.414 | 391.414 | 441.628 | 0.0 | 0.0 | -0.0 |
3.141 | -3.141 | -0.0 | 28.234 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 28.234 | 3.141 |
0.0 | 0.0 | -0.0 | -0.0 | 3.141 | 34.662 |
219.426 | 150.617 | 139.475 | 3.036 | -0.0 | -0.0 |
185.203 | 254.526 | 176.411 | -3.141 | -0.0 | -0.0 |
140.966 | 140.966 | 198.913 | 0.0 | 0.0 | -0.0 |
-20.234 | -26.271 | -22.953 | 27.567 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 28.234 | 3.141 |
-0.0 | -0.0 | -0.0 | 0.0 | 3.141 | 34.662 |
254.527 | 185.203 | 176.411 | 3.141 | -0.0 | 0.0 |
190.483 | 259.303 | 178.883 | -3.038 | 0.0 | -0.0 |
176.62 | 176.62 | 235.08 | 0.0 | -0.0 | 0.0 |
26.271 | 20.234 | 22.953 | 27.567 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 28.234 | 3.141 |
0.0 | 0.0 | 0.0 | -0.0 | 3.141 | 34.662 |
254.521 | 185.202 | 176.411 | 3.141 | -0.0 | -0.0 |
169.826 | 238.303 | 160.429 | -2.969 | 0.0 | 0.0 |
160.761 | 160.761 | 217.476 | 0.0 | -0.0 | 0.0 |
3.141 | -3.141 | -0.0 | 28.233 | 0.0 | 0.0 |
-0.001 | -0.0 | -0.0 | 0.0 | 28.234 | 3.141 |
-0.001 | -0.001 | -0.0 | 0.0 | 3.141 | 34.662 |
254.532 | 185.204 | 176.411 | 3.14 | 0.0 | -0.0 |
176.376 | 245.343 | 165.739 | -3.066 | 0.0 | -0.0 |
165.127 | 165.127 | 221.57 | -0.0 | -0.0 | -0.0 |
5.111 | 0.009 | 1.528 | 24.699 | 0.0 | -0.0 |
0.001 | 0.0 | 0.0 | -0.0 | 28.234 | 3.141 |
0.001 | 0.001 | 0.0 | -0.0 | 3.141 | 34.662 |
259.239 | 180.893 | 167.4 | 1.556 | 0.0 | -0.0 |
178.028 | 255.713 | 165.087 | -1.529 | -0.0 | -0.0 |
168.786 | 168.786 | 226.191 | -0.0 | -0.0 | -0.0 |
1.568 | -1.568 | -0.0 | 30.07 | -0.0 | -0.0 |
5.624 | 5.624 | 5.285 | 0.0 | 28.159 | 1.513 |
1.675 | 1.675 | 0.791 | -0.0 | 1.547 | 39.053 |
268.014 | 189.354 | 177.843 | 1.568 | 0.0 | 0.0 |
189.354 | 268.014 | 177.843 | -1.568 | 0.0 | 0.0 |
177.843 | 177.843 | 237.648 | -0.0 | 0.0 | 0.0 |
-0.424 | -3.51 | -0.929 | 29.201 | 0.0 | 0.0 |
-5.624 | -5.624 | -5.285 | 0.0 | 28.159 | 1.513 |
-1.675 | -1.675 | -0.791 | 0.0 | 1.547 | 39.053 |
268.013 | 189.354 | 177.843 | 1.568 | -0.0 | -0.0 |
189.354 | 268.013 | 177.843 | -1.568 | -0.0 | 0.0 |
163.428 | 163.428 | 221.702 | -0.0 | -0.0 | -0.0 |
2.172 | -0.792 | 0.326 | 27.024 | -0.0 | 0.0 |
0.69 | 0.69 | 0.326 | 0.0 | 27.024 | 1.482 |
-0.0 | -0.0 | -0.0 | 0.0 | 1.568 | 39.33 |
268.014 | 189.354 | 177.843 | 1.568 | -0.0 | 0.0 |
177.164 | 255.422 | 163.818 | -1.553 | -0.0 | 0.0 |
177.843 | 177.843 | 237.648 | 0.0 | 0.0 | 0.0 |
1.568 | -1.568 | -0.0 | 30.07 | -0.0 | 0.0 |
-0.69 | -0.69 | -0.326 | -0.0 | 27.024 | 1.482 |
0.0 | 0.0 | 0.0 | -0.0 | 1.568 | 39.33 |
255.899 | 177.632 | 164.269 | 1.553 | 0.0 | -0.0 |
189.353 | 268.011 | 177.843 | -1.568 | 0.0 | -0.0 |
177.843 | 177.843 | 237.649 | 0.0 | -0.0 | -0.0 |
1.703 | -1.176 | 0.476 | 26.095 | 0.0 | -0.0 |
0.068 | 0.068 | 0.032 | 0.0 | 27.024 | 1.482 |
0.066 | 0.067 | 0.032 | 0.0 | 1.484 | 38.215 |
255.819 | 177.549 | 164.189 | 1.553 | -0.0 | 0.0 |
189.354 | 268.016 | 177.843 | -1.567 | -0.0 | 0.0 |
177.843 | 177.843 | 237.648 | -0.0 | -0.0 | 0.0 |
1.413 | -1.55 | -0.032 | 27.024 | -0.0 | -0.0 |
-0.068 | -0.068 | -0.032 | -0.0 | 27.024 | 1.482 |
-0.066 | -0.067 | -0.032 | -0.0 | 1.484 | 38.215 |
-1367461.813 | -5277475.05 | -2346532.749 | 288198.131 | 1335053.372 | -1259277.745 |
-1720747.594 | -6570481.402 | -1883897.201 | -1274158.961 | 1740439.433 | -1046605.652 |
-3110479.262 | -5302174.009 | -3763467.852 | -158747.19 | 782102.327 | -1782746.15 |
-2244664.465 | -6515627.743 | -3953494.129 | 573713.258 | 1334905.31 | -1268810.962 |
-2763400.093 | -4991660.064 | -3847927.691 | 44974.56 | 1026461.707 | -1039401.716 |
-2194194.386 | -4568577.097 | -1536556.348 | 184460.234 | 1075966.989 | -1523242.813 |
1352109.029 | 5783868.623 | 3116328.668 | -271906.975 | -1310552.525 | 1097141.999 |
2761646.771 | 5245597.767 | 2765573.629 | -250110.585 | -432901.11 | 979058.183 |
3052200.856 | 8468224.628 | 2608931.267 | 106058.482 | -1592867.573 | 400551.186 |
311709.455 | 3848510.383 | 1260507.19 | -722087.021 | -1447965.247 | 1296344.335 |
2561498.952 | 6203354.186 | 3946527.604 | -876288.255 | -1661398.392 | 1301082.697 |
1864702.095 | 5862420.411 | 3150745.88 | -318351.787 | -1172708.259 | 1138113.775 |
-94730.637 | -611706.151 | -314544.505 | 15304.039 | 64508.179 | -76166.085 |
-240554.458 | -659063.443 | -284355.874 | -33180.982 | 154849.013 | -96962.376 |
-206457.796 | -619867.205 | -351018.184 | 47698.167 | 78434.471 | -102405.472 |
-204224.327 | -696114.992 | -341041.909 | 28242.641 | 39941.374 | -89080.196 |
-303664.26 | -708140.292 | -399159.498 | -11576.839 | 110566.632 | -125916.247 |
-256840.17 | -679535.078 | -417401.185 | 55323.181 | 98816.085 | -154914.85 |
177346.469 | 586057.536 | 283598.187 | 21547.748 | -240536.406 | 80166.564 |
215355.734 | 456373.941 | 229385.099 | -3377.55 | -124543.902 | 165475.401 |
212786.035 | 414239.978 | 209942.088 | 34620.929 | -64672.099 | 98671.908 |
286302.454 | 461568.275 | 240497.587 | 5909.634 | -66567.552 | 107758.606 |
261510.104 | 424143.56 | 151446.549 | -48773.101 | -128126.686 | 109255.281 |
317168.732 | 496133.367 | 235201.764 | 4703.86 | -88966.788 | 133726.443 |
-28996.57 | -57956.287 | -42419.38 | 2184.393 | 13073.24 | -15538.889 |
-24919.664 | -63019.372 | -34320.978 | 1629.478 | 19474.499 | -12187.218 |
-22945.606 | -64138.735 | -36195.997 | 8382.9 | 9769.749 | -10230.29 |
-23725.634 | -38609.845 | -16888.957 | -893.741 | 3076.638 | -14166.383 |
-14976.755 | -50682.194 | -34191.397 | 6022.835 | 7972.124 | -15421.819 |
-30495.888 | -53877.759 | -23733.52 | 1669.409 | 7897.515 | -10384.071 |
22616.054 | 66073.669 | 32626.671 | -3002.42 | -13185.862 | 12258.461 |
31598.006 | 67231.513 | 36986.008 | -1127.19 | -23036.417 | 6042.156 |
17871.933 | 51678.536 | 24266.415 | -2362.219 | -13101.527 | 11617.764 |
20793.834 | 45241.119 | 19433.773 | -883.048 | -12690.964 | 19008.465 |
24719.212 | 58085.139 | 33125.572 | -3951.893 | -9523.829 | 15647.033 |
33760.347 | 68171.691 | 46408.234 | -2224.611 | -24700.601 | 4502.38 |
245.607 | 191.724 | 191.724 | 0.0 | -0.0 | 0.0 |
191.724 | 245.607 | 191.724 | -0.0 | -0.0 | -0.0 |
191.724 | 191.724 | 245.607 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 25.799 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 25.799 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 25.799 |
245.607 | 191.724 | 191.724 | -0.0 | 0.0 | 0.0 |
191.724 | 245.607 | 191.724 | 0.0 | 0.0 | 0.0 |
191.724 | 191.724 | 245.607 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 25.799 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 25.799 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 25.799 |
245.607 | 191.724 | 191.724 | 0.0 | -0.0 | -0.0 |
191.724 | 245.607 | 191.724 | -0.0 | -0.0 | -0.0 |
191.724 | 191.724 | 245.607 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 25.799 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 25.799 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 25.799 |
245.607 | 191.723 | 191.723 | 0.0 | 0.0 | 0.0 |
191.723 | 245.607 | 191.723 | 0.0 | 0.0 | 0.0 |
191.723 | 191.723 | 245.607 | 0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 25.799 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 25.799 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 25.799 |
245.61 | 191.725 | 191.725 | -0.0 | -0.0 | 0.0 |
191.725 | 245.61 | 191.725 | -0.0 | -0.0 | 0.0 |
191.725 | 191.725 | 245.61 | 0.0 | 0.0 | -0.0 |
0.0 | 0.001 | 0.001 | 25.799 | -0.0 | 0.0 |
0.001 | 0.0 | 0.001 | -0.0 | 25.799 | -0.0 |
0.001 | 0.001 | 0.0 | -0.0 | -0.0 | 25.799 |
245.604 | 191.722 | 191.722 | 0.0 | 0.0 | 0.0 |
191.722 | 245.604 | 191.722 | 0.0 | 0.0 | 0.0 |
191.722 | 191.722 | 245.604 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.001 | -0.001 | 25.799 | 0.0 | 0.0 |
-0.001 | -0.0 | -0.001 | 0.0 | 25.799 | 0.0 |
-0.001 | -0.001 | -0.0 | 0.0 | 0.0 | 25.799 |
301.685 | 120.69 | 120.69 | -0.0 | 0.0 | 0.0 |
120.69 | 301.685 | 120.69 | 0.0 | 0.0 | -0.0 |
120.69 | 120.69 | 301.685 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -17.64 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | -17.64 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.0 | -17.64 |
301.685 | 120.69 | 120.69 | 0.0 | -0.0 | 0.0 |
120.69 | 301.685 | 120.69 | -0.0 | 0.0 | 0.0 |
120.69 | 120.69 | 301.685 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -17.64 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -17.64 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | -17.64 |
301.686 | 120.69 | 120.69 | 0.0 | -0.0 | -0.0 |
120.69 | 301.686 | 120.69 | -0.0 | 0.0 | -0.0 |
120.69 | 120.69 | 301.686 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -17.64 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -17.64 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.0 | -17.64 |
301.685 | 120.69 | 120.69 | -0.0 | -0.0 | 0.0 |
120.69 | 301.685 | 120.69 | -0.0 | -0.0 | 0.0 |
120.69 | 120.69 | 301.685 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -17.64 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -17.64 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | -17.64 |
301.687 | 120.69 | 120.69 | 0.0 | 0.0 | -0.0 |
120.69 | 301.687 | 120.69 | 0.0 | 0.0 | -0.0 |
120.69 | 120.69 | 301.687 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -17.64 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -17.64 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.0 | -17.64 |
301.684 | 120.689 | 120.689 | -0.0 | -0.0 | 0.0 |
120.689 | 301.684 | 120.689 | -0.0 | -0.0 | -0.0 |
120.689 | 120.689 | 301.684 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -17.64 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -17.64 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | -17.64 |
1766.108 | 932.762 | 932.762 | -0.0 | -0.0 | -0.0 |
932.762 | 1766.108 | 932.762 | -0.0 | -0.0 | 0.0 |
932.762 | 932.762 | 1766.108 | 0.0 | 0.0 | -0.0 |
0.002 | 0.003 | 0.003 | 830.295 | 0.0 | 0.0 |
0.003 | 0.002 | 0.003 | 0.0 | 830.295 | -0.0 |
0.003 | 0.003 | 0.002 | -0.0 | -0.0 | 830.295 |
1766.089 | 932.756 | 932.756 | 0.0 | 0.0 | 0.0 |
932.756 | 1766.089 | 932.756 | 0.0 | 0.0 | 0.0 |
932.756 | 932.756 | 1766.089 | 0.0 | -0.0 | 0.0 |
-0.002 | -0.003 | -0.003 | 830.295 | -0.0 | -0.0 |
-0.003 | -0.002 | -0.003 | -0.0 | 830.295 | -0.0 |
-0.003 | -0.003 | -0.002 | -0.0 | -0.0 | 830.295 |
1766.192 | 932.789 | 932.789 | -0.0 | -0.0 | -0.0 |
932.789 | 1766.192 | 932.789 | -0.0 | -0.0 | -0.0 |
932.789 | 932.789 | 1766.192 | -0.0 | -0.0 | -0.0 |
0.017 | 0.03 | 0.03 | 829.199 | -0.0 | -0.0 |
0.03 | 0.017 | 0.03 | 0.0 | 829.199 | 0.0 |
0.03 | 0.03 | 0.017 | 0.0 | 0.0 | 829.199 |
1766.005 | 932.729 | 932.729 | 0.0 | 0.0 | 0.0 |
932.729 | 1766.005 | 932.729 | 0.0 | 0.0 | 0.0 |
932.729 | 932.729 | 1766.005 | 0.0 | 0.0 | 0.0 |
-0.017 | -0.03 | -0.03 | 829.199 | -0.0 | -0.0 |
-0.03 | -0.017 | -0.03 | -0.0 | 829.199 | 0.0 |
-0.03 | -0.03 | -0.017 | 0.0 | 0.0 | 829.199 |
1767.035 | 933.058 | 933.058 | 0.0 | -0.0 | -0.0 |
933.058 | 1767.035 | 933.058 | -0.0 | -0.0 | 0.0 |
933.058 | 933.058 | 1767.035 | -0.0 | -0.0 | -0.0 |
0.17 | 0.297 | 0.298 | 829.199 | 0.0 | 0.0 |
0.297 | 0.17 | 0.298 | -0.0 | 829.199 | 0.0 |
0.297 | 0.298 | 0.17 | -0.0 | 0.0 | 829.199 |
1765.162 | 932.46 | 932.46 | -0.0 | 0.0 | 0.0 |
932.46 | 1765.162 | 932.46 | 0.0 | 0.0 | 0.0 |
932.46 | 932.46 | 1765.162 | 0.0 | 0.0 | 0.0 |
-0.17 | -0.297 | -0.298 | 829.199 | -0.0 | 0.0 |
-0.297 | -0.17 | -0.298 | -0.0 | 829.199 | 0.0 |
-0.297 | -0.298 | -0.17 | -0.0 | -0.0 | 829.199 |
57.002 | 99.555 | 98.037 | 0.0 | -0.0 | -0.0 |
99.555 | 57.002 | 98.037 | 0.0 | -0.0 | 0.0 |
103.12 | 103.12 | 176.502 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -24.802 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -24.802 | 0.0 |
-1.932 | -1.932 | 2.311 | 0.0 | -0.0 | -31.342 |
42.262 | 104.946 | 103.629 | -0.0 | 0.0 | -0.0 |
99.555 | 57.002 | 98.037 | -0.0 | -0.0 | -0.0 |
106.352 | 106.352 | 172.635 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -24.802 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -24.802 | -0.0 |
1.932 | 1.932 | -2.311 | -0.0 | 0.0 | -31.342 |
57.003 | 99.555 | 98.037 | 0.0 | -0.0 | 0.0 |
21444922.06 | 9223441.438 | 8943614.01 | -1510.747 | 9769.997 | 5583.709 |
98.125 | 98.125 | 182.478 | 0.0 | -0.0 | -0.0 |
-0.162 | -0.162 | 0.194 | -27.874 | -0.0 | -0.0 |
-0.162 | -0.162 | 0.194 | 0.0 | -27.874 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | -21.276 |
40.523 | 103.208 | 105.708 | -0.0 | 0.0 | -0.0 |
99.555 | 57.002 | 98.037 | -0.0 | 0.0 | 0.0 |
104.897 | 104.897 | 174.375 | -0.0 | 0.0 | -0.0 |
0.162 | 0.162 | -0.194 | -27.874 | 0.0 | -0.0 |
0.162 | 0.162 | -0.194 | -0.0 | -27.874 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | -21.276 |
48.664 | 101.277 | 102.002 | 0.0 | -0.0 | 0.0 |
2219816.133 | 987963.275 | 916080.636 | -152.796 | -532.239 | -6570.545 |
98.125 | 98.125 | 182.48 | 0.0 | -0.0 | 0.0 |
0.0 | 0.001 | 0.001 | -24.802 | -0.0 | 0.0 |
-0.015 | -0.016 | 0.02 | 0.0 | -27.874 | 0.0 |
152740.249 | 319086.637 | 625952.116 | 0.001 | 0.0 | -385394.418 |
-2246810.404 | -1814772.777 | -583512.768 | -2084.095 | 1219.626 | 294523.772 |
833774.08 | -462387.482 | -285889.952 | 0.001 | 0.0 | -0.001 |
98.124 | 98.124 | 182.476 | -0.0 | 0.0 | -0.0 |
0.016 | 0.015 | -0.02 | -27.874 | 0.0 | -0.0 |
0.015 | 0.016 | -0.02 | -0.0 | -27.874 | -0.0 |
-152739.982 | -319086.711 | -625952.632 | 0.0 | -0.0 | -385394.227 |
147.245 | 122.244 | 141.187 | -0.0 | 0.0 | 0.0 |
139.075 | 156.363 | 174.497 | -0.0 | 0.0 | -0.0 |
141.187 | 141.187 | 235.248 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 32.373 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 32.373 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 12.5 |
128.679 | 111.425 | 103.469 | 0.0 | -0.0 | 0.0 |
111.425 | 128.679 | 103.469 | 0.0 | -0.0 | 0.0 |
141.187 | 141.187 | 235.248 | 0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 32.373 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 32.373 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 12.5 |
145.955 | 124.712 | 142.7 | -0.0 | 0.0 | -0.0 |
122.244 | 147.245 | 141.187 | -0.0 | -0.0 | 0.0 |
141.188 | 141.188 | 235.248 | -0.0 | -0.0 | 0.0 |
1.427 | 1.427 | 3.664 | 32.286 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 32.373 | -0.0 |
0.826 | 0.826 | 2.119 | -0.0 | 0.0 | 10.194 |
143.109 | 121.85 | 135.375 | 0.0 | -0.0 | 0.0 |
121.85 | 143.109 | 135.375 | 0.0 | 0.0 | 0.0 |
141.187 | 141.187 | 235.247 | 0.0 | -0.0 | -0.0 |
-1.427 | -1.427 | -3.664 | 32.286 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 32.373 | -0.0 |
-0.826 | -0.826 | -2.119 | 0.0 | -0.0 | 10.194 |
144.905 | 123.875 | 140.277 | -0.0 | -0.0 | -0.0 |
123.384 | 144.637 | 139.302 | -0.0 | 0.0 | -0.0 |
139.161 | 139.161 | 230.048 | -0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 32.373 | 0.0 | -0.0 |
0.143 | 0.143 | 0.369 | -0.0 | 32.286 | -0.0 |
0.141 | 0.141 | 0.362 | -0.0 | 0.0 | 10.615 |
144.362 | 123.107 | 138.598 | 0.0 | -0.0 | 0.0 |
123.819 | 144.617 | 139.837 | 0.0 | -0.0 | 0.0 |
138.878 | 138.878 | 229.317 | 0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 32.373 | -0.0 | -0.0 |
-0.143 | -0.143 | -0.369 | 0.0 | 32.286 | 0.0 |
-0.141 | -0.141 | -0.362 | 0.0 | -0.0 | 10.615 |
242.373 | 137.334 | 79.845 | 0.0 | 0.0 | 0.0 |
138.044 | 230.203 | 96.0 | 0.0 | 0.0 | 0.0 |
80.088 | 100.329 | 89.752 | 0.0 | -0.0 | 0.0 |
-0.866 | -0.479 | -0.531 | 10.637 | 0.0 | 0.0 |
-0.654 | -0.362 | -0.401 | 0.0 | 7.079 | 0.0 |
-0.446 | -0.246 | -0.273 | 0.0 | 0.0 | -7.404 |
251.755 | 142.656 | 85.484 | -0.0 | -0.0 | -0.0 |
141.464 | 232.295 | 97.934 | -0.0 | -0.0 | 0.0 |
92.673 | 106.645 | 97.971 | -0.0 | 0.0 | -0.0 |
0.866 | 0.479 | 0.531 | 10.637 | 0.0 | -0.0 |
0.654 | 0.362 | 0.401 | -0.0 | 7.079 | 0.0 |
0.446 | 0.246 | 0.273 | -0.0 | -0.0 | -7.404 |
241.532 | 139.862 | 76.947 | 0.0 | 0.0 | 0.0 |
136.585 | 228.865 | 95.529 | 0.0 | -0.0 | -0.0 |
82.145 | 103.995 | 88.997 | 0.0 | -0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 11.273 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 7.313 | 0.0 |
-0.045 | -0.025 | -0.027 | 0.0 | -0.0 | -7.404 |
242.103 | 140.066 | 77.385 | -0.0 | 0.0 | -0.0 |
136.962 | 229.066 | 95.765 | -0.0 | -0.0 | 0.0 |
82.716 | 104.2 | 89.436 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 11.273 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 7.313 | -0.0 |
0.045 | 0.025 | 0.027 | -0.0 | 0.0 | -7.404 |
241.788 | 139.956 | 77.14 | 0.0 | -0.0 | 0.0 |
136.445 | 228.951 | 95.317 | 0.0 | 0.0 | -0.0 |
82.403 | 104.092 | 89.192 | -0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 11.273 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 7.313 | 0.0 |
-0.004 | -0.002 | -0.003 | 0.0 | 0.0 | -7.404 |
241.842 | 139.976 | 77.183 | 0.0 | 0.0 | -0.0 |
136.501 | 228.96 | 95.361 | -0.0 | 0.0 | -0.0 |
82.459 | 104.112 | 89.235 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 11.273 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 7.313 | 0.0 |
0.004 | 0.002 | 0.003 | -0.0 | -0.0 | -7.404 |
202.931 | 153.933 | 135.773 | 0.0 | 0.0 | -0.0 |
151.333 | 205.531 | 135.773 | 0.0 | -0.0 | -0.0 |
135.773 | 135.773 | 316.587 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.51 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.51 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 0.0 | 24.499 |
205.531 | 151.333 | 135.773 | -0.0 | -0.0 | -0.0 |
151.333 | 205.531 | 135.773 | 0.0 | -0.0 | 0.0 |
135.773 | 135.773 | 316.587 | -0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.51 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.51 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -0.0 | 24.499 |
205.531 | 151.333 | 135.773 | 0.0 | 0.0 | -0.0 |
151.333 | 205.531 | 135.773 | 0.0 | -0.0 | -0.0 |
135.773 | 135.773 | 316.588 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.51 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.51 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 24.499 |
205.531 | 151.333 | 135.773 | -0.0 | -0.0 | 0.0 |
151.333 | 205.531 | 135.773 | -0.0 | -0.0 | 0.0 |
135.773 | 135.773 | 316.587 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.51 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.51 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 24.499 |
202.932 | 153.934 | 135.773 | 0.0 | 0.0 | 0.0 |
153.934 | 202.931 | 135.773 | 0.0 | 0.0 | -0.0 |
135.774 | 135.774 | 316.59 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.51 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.51 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 24.499 |
205.53 | 151.333 | 135.773 | -0.0 | 0.0 | 0.0 |
151.333 | 205.53 | 135.773 | -0.0 | 0.0 | -0.0 |
135.772 | 135.772 | 316.585 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.51 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.51 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 24.499 |
246.866 | 122.757 | 122.757 | 0.0 | 0.0 | 0.0 |
122.757 | 246.866 | 122.757 | 0.0 | 0.0 | -0.0 |
122.757 | 122.757 | 246.866 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -6.864 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -6.864 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 0.0 | -6.864 |
246.866 | 122.757 | 122.757 | -0.0 | -0.0 | -0.0 |
122.757 | 246.866 | 122.757 | -0.0 | -0.0 | -0.0 |
122.757 | 122.757 | 246.866 | -0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -6.864 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -6.864 | -0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -6.864 |
246.866 | 122.757 | 122.757 | 0.0 | 0.0 | 0.0 |
122.757 | 246.866 | 122.757 | 0.0 | 0.0 | -0.0 |
122.757 | 122.757 | 246.866 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | -7.502 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -7.502 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 0.0 | -7.502 |
246.865 | 122.757 | 122.757 | -0.0 | -0.0 | -0.0 |
122.757 | 246.865 | 122.757 | -0.0 | -0.0 | 0.0 |
122.757 | 122.757 | 246.865 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | -7.502 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | -7.502 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | -0.0 | -7.502 |
246.87 | 122.758 | 122.758 | 0.0 | 0.0 | 0.0 |
122.758 | 246.87 | 122.758 | 0.0 | 0.0 | -0.0 |
122.758 | 122.758 | 246.87 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | -7.502 | 0.0 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -7.502 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | -7.502 |
246.862 | 122.757 | 122.757 | -0.0 | -0.0 | -0.0 |
122.757 | 246.862 | 122.757 | -0.0 | -0.0 | -0.0 |
122.757 | 122.757 | 246.862 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | -7.502 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -7.502 | -0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -7.502 |
130.017 | 110.698 | 110.698 | -0.0 | -0.0 | -0.0 |
110.698 | 130.017 | 110.698 | -0.0 | -0.0 | -0.0 |
110.698 | 110.698 | 130.017 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 21.856 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 21.856 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 21.856 |
130.017 | 110.698 | 110.698 | 0.0 | 0.0 | -0.0 |
110.698 | 130.017 | 110.698 | 0.0 | 0.0 | 0.0 |
110.698 | 110.698 | 130.017 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 21.856 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 21.856 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 21.856 |
130.017 | 110.698 | 110.698 | -0.0 | -0.0 | -0.0 |
110.698 | 130.017 | 110.698 | -0.0 | -0.0 | -0.0 |
110.698 | 110.698 | 130.017 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 21.856 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 21.856 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 21.856 |
130.016 | 110.698 | 110.698 | 0.0 | 0.0 | -0.0 |
110.698 | 130.016 | 110.698 | 0.0 | 0.0 | 0.0 |
110.698 | 110.698 | 130.016 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 21.856 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 21.856 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 21.856 |
130.017 | 110.699 | 110.699 | -0.0 | -0.0 | -0.0 |
110.699 | 130.017 | 110.699 | -0.0 | -0.0 | -0.0 |
110.699 | 110.699 | 130.017 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 21.856 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 21.856 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 21.856 |
130.016 | 110.698 | 110.698 | 0.0 | 0.0 | 0.0 |
110.698 | 130.016 | 110.698 | 0.0 | 0.0 | 0.0 |
110.698 | 110.698 | 130.016 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 21.856 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | 21.856 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 21.856 |
243.699 | 156.596 | 156.596 | -0.0 | -0.0 | 0.0 |
156.596 | 243.699 | 156.596 | 0.0 | 0.0 | -0.0 |
156.596 | 156.596 | 243.699 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 21.503 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 21.503 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 21.503 |
246.32 | 155.286 | 155.286 | -0.0 | -0.0 | -0.0 |
155.286 | 246.32 | 155.286 | -0.0 | -0.0 | -0.0 |
155.286 | 155.286 | 246.32 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 21.503 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 21.503 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 21.503 |
243.7 | 156.596 | 156.596 | 0.0 | -0.0 | 0.0 |
156.596 | 243.7 | 156.596 | 0.0 | -0.0 | 0.0 |
156.596 | 156.596 | 243.7 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 21.503 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 21.503 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 21.503 |
246.32 | 155.286 | 155.286 | -0.0 | 0.0 | -0.0 |
155.286 | 246.32 | 155.286 | -0.0 | -0.0 | 0.0 |
155.286 | 155.286 | 246.32 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 21.503 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 21.503 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 21.503 |
243.702 | 156.597 | 156.597 | -0.0 | 0.0 | -0.0 |
156.597 | 243.702 | 156.597 | 0.0 | 0.0 | 0.0 |
156.597 | 156.597 | 243.702 | 0.0 | 0.0 | 0.0 |
0.001 | 0.002 | 0.002 | -51.61 | 0.0 | -0.0 |
0.002 | 0.001 | 0.002 | 0.0 | -51.61 | -0.0 |
0.002 | 0.002 | 0.001 | 0.0 | 0.0 | -51.61 |
246.317 | 155.285 | 155.285 | -0.0 | -0.0 | 0.0 |
155.285 | 246.317 | 155.285 | -0.0 | 0.0 | 0.0 |
155.285 | 155.285 | 246.317 | 0.0 | -0.0 | 0.0 |
-0.001 | -0.002 | -0.002 | -51.61 | -0.0 | -0.0 |
-0.002 | -0.001 | -0.002 | -0.0 | -51.61 | -0.0 |
-0.002 | -0.002 | -0.001 | -0.0 | -0.0 | -51.61 |
185.492 | 194.589 | 194.589 | 0.0 | 0.0 | 0.0 |
194.589 | 185.492 | 194.589 | 0.0 | 0.0 | 0.0 |
194.589 | 194.589 | 185.492 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -46.563 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -46.563 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | -46.563 |
185.492 | 194.589 | 194.589 | -0.0 | -0.0 | 0.0 |
194.589 | 185.492 | 194.589 | -0.0 | -0.0 | -0.0 |
194.589 | 194.589 | 185.492 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | -46.563 | -0.0 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -46.563 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | -46.563 |
185.492 | 194.589 | 194.589 | 0.0 | 0.0 | -0.0 |
194.589 | 185.492 | 194.589 | 0.0 | 0.0 | -0.0 |
194.589 | 194.589 | 185.492 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 41.07 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 41.07 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 41.07 |
185.492 | 194.588 | 194.588 | -0.0 | -0.0 | 0.0 |
194.588 | 185.492 | 194.588 | -0.0 | -0.0 | 0.0 |
194.588 | 194.588 | 185.492 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 41.07 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 41.07 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 41.07 |
185.493 | 194.589 | 194.589 | 0.0 | 0.0 | -0.0 |
194.589 | 185.493 | 194.589 | 0.0 | 0.0 | -0.0 |
194.589 | 194.589 | 185.493 | -0.0 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | -46.563 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 0.0 | -46.563 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | -46.563 |
185.492 | 194.588 | 194.588 | -0.0 | -0.0 | 0.0 |
194.588 | 185.492 | 194.588 | -0.0 | -0.0 | -0.0 |
194.588 | 194.588 | 185.492 | -0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -46.563 | -0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -46.563 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | -46.563 |
199.304 | 169.795 | 169.795 | -0.0 | -0.0 | -0.0 |
169.795 | 199.304 | 169.795 | -0.0 | -0.0 | -0.0 |
169.795 | 169.795 | 199.304 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 28.525 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 28.525 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 28.525 |
199.304 | 169.795 | 169.795 | 0.0 | 0.0 | 0.0 |
169.795 | 199.304 | 169.795 | 0.0 | 0.0 | 0.0 |
169.795 | 169.795 | 199.304 | 0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 28.525 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 28.525 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 28.525 |
199.304 | 169.796 | 169.796 | -0.0 | 0.0 | 0.0 |
169.796 | 199.304 | 169.796 | 0.0 | -0.0 | -0.0 |
169.796 | 169.796 | 199.304 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 28.525 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 28.525 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 28.525 |
199.304 | 169.795 | 169.795 | 0.0 | 0.0 | -0.0 |
169.795 | 199.304 | 169.795 | -0.0 | 0.0 | -0.0 |
169.795 | 169.795 | 199.304 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 28.525 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 28.525 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 28.525 |
199.306 | 169.797 | 169.797 | 0.0 | 0.0 | -0.0 |
169.797 | 199.306 | 169.797 | 0.0 | 0.0 | 0.0 |
169.797 | 169.797 | 199.306 | 0.0 | 0.0 | 0.0 |
0.0 | 0.001 | 0.001 | 28.525 | 0.0 | -0.0 |
0.001 | 0.0 | 0.001 | 0.0 | 28.525 | -0.0 |
0.001 | 0.001 | 0.0 | -0.0 | -0.0 | 28.525 |
199.302 | 169.794 | 169.794 | 0.0 | 0.0 | 0.0 |
169.794 | 199.302 | 169.794 | 0.0 | 0.0 | 0.0 |
169.794 | 169.794 | 199.302 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.001 | -0.001 | 28.525 | -0.0 | -0.0 |
-0.001 | -0.0 | -0.001 | -0.0 | 28.525 | -0.0 |
-0.001 | -0.001 | -0.0 | 0.0 | -0.0 | 28.525 |
406.236 | 587.25 | 198.165 | 0.0 | 0.0 | 0.0 |
587.25 | 406.236 | 198.165 | 0.0 | 0.0 | 0.0 |
198.165 | 198.165 | 252.503 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 22.164 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 22.164 | -0.0 |
0.002 | 0.002 | -0.0 | -0.0 | -0.0 | 328.717 |
406.231 | 587.246 | 198.165 | -0.0 | -0.0 | 0.0 |
587.246 | 406.231 | 198.165 | -0.0 | -0.0 | 0.0 |
198.165 | 198.165 | 252.503 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 22.164 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 22.164 | 0.0 |
-0.002 | -0.002 | 0.0 | -0.0 | -0.0 | 328.717 |
406.257 | 587.272 | 198.165 | 0.0 | 0.0 | -0.0 |
587.272 | 406.257 | 198.165 | 0.0 | 0.0 | -0.0 |
198.165 | 198.165 | 252.504 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 22.164 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 22.164 | 0.0 |
0.024 | 0.024 | -0.0 | 0.0 | -0.0 | 328.717 |
406.21 | 587.224 | 198.165 | -0.0 | -0.0 | 0.0 |
587.224 | 406.21 | 198.165 | -0.0 | -0.0 | 0.0 |
198.165 | 198.165 | 252.503 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 22.164 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 22.164 | 0.0 |
-0.024 | -0.024 | 0.0 | -0.0 | 0.0 | 328.717 |
406.472 | 587.486 | 198.166 | 0.0 | 0.0 | 0.0 |
587.486 | 406.472 | 198.166 | 0.0 | 0.0 | -0.0 |
198.166 | 198.166 | 252.504 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 22.164 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 22.164 | -0.0 |
0.237 | 0.237 | -0.0 | 0.0 | 0.0 | 328.717 |
521.532 | 471.474 | 198.164 | 0.0 | 0.0 | 0.0 |
471.474 | 521.532 | 198.164 | 0.0 | 0.0 | -0.0 |
198.164 | 198.164 | 252.503 | 0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 22.164 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 22.164 | 0.0 |
-0.237 | -0.237 | 0.0 | -0.0 | -0.0 | 328.717 |
225.475 | 162.483 | 207.791 | 0.0 | 0.0 | -0.0 |
179.091 | 257.974 | 184.296 | 0.0 | 0.0 | 0.0 |
208.137 | 208.137 | 218.816 | -0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -86.467 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | 45.978 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -0.617 |
257.974 | 179.091 | 184.296 | -0.0 | -0.0 | 0.0 |
203.769 | 194.718 | 202.753 | 0.0 | 0.0 | 0.0 |
208.137 | 208.137 | 218.816 | 0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -86.467 | 0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 45.978 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -0.617 |
225.475 | 162.483 | 207.791 | -0.0 | -0.0 | -0.0 |
179.091 | 257.974 | 184.296 | 0.0 | 0.0 | -0.0 |
189.482 | 189.482 | 236.667 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 45.978 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 45.978 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 39.442 |
257.974 | 179.091 | 184.296 | -0.0 | -0.0 | 0.0 |
179.091 | 257.974 | 184.296 | -0.0 | -0.0 | 0.0 |
189.482 | 189.482 | 236.666 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 45.978 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 45.978 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 39.442 |
257.975 | 179.091 | 184.297 | -0.0 | 0.0 | -0.0 |
203.77 | 194.719 | 202.754 | -0.0 | -0.0 | -0.0 |
208.137 | 208.137 | 218.817 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 45.978 | -0.0 | -0.0 |
0.0 | 0.0 | 0.001 | 0.0 | -86.467 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | -0.617 |
193.742 | 204.332 | 202.95 | 0.0 | -0.0 | 0.0 |
179.09 | 257.973 | 184.296 | -0.0 | -0.0 | 0.0 |
208.136 | 208.136 | 218.815 | 0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 45.978 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.001 | 0.0 | -86.467 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | -0.617 |
266.623 | 181.305 | 178.55 | 0.0 | -0.0 | -0.0 |
181.305 | 266.623 | 178.55 | -0.0 | -0.0 | -0.0 |
241.817 | 241.817 | 158.001 | 0.0 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 41.616 | -0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 41.616 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 42.659 |
266.623 | 181.305 | 178.55 | 0.0 | -0.0 | -0.0 |
181.305 | 266.623 | 178.55 | 0.0 | 0.0 | 0.0 |
159.864 | 159.864 | 246.832 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 41.616 | 0.0 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 41.616 | -0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | 0.0 | 42.659 |
221.577 | 203.961 | 190.685 | -0.0 | -0.0 | 0.0 |
203.961 | 221.577 | 190.685 | 0.0 | -0.0 | 0.0 |
183.95 | 183.95 | 220.725 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 41.616 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 41.616 | -0.0 |
13.07 | 13.07 | -14.167 | -0.0 | -0.0 | 26.541 |
266.623 | 181.305 | 178.55 | 0.0 | 0.0 | -0.0 |
181.305 | 266.623 | 178.55 | 0.0 | 0.0 | 0.0 |
183.95 | 183.95 | 220.725 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 41.616 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 41.616 | -0.0 |
-13.07 | -13.07 | 14.167 | 0.0 | 0.0 | 26.541 |
266.624 | 181.305 | 178.551 | -0.0 | -0.0 | -0.0 |
181.305 | 266.624 | 178.551 | -0.0 | 0.0 | -0.0 |
183.951 | 183.951 | 220.726 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 41.616 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 41.616 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 42.659 |
266.622 | 181.304 | 178.55 | -0.0 | 0.0 | -0.0 |
199.37 | 216.989 | 195.658 | 0.0 | 0.0 | -0.0 |
183.949 | 183.949 | 220.724 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 41.616 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 41.616 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 42.659 |
246.653 | 200.476 | 200.476 | 0.0 | -0.0 | -0.0 |
200.476 | 246.653 | 200.476 | -0.0 | -0.0 | -0.0 |
200.476 | 200.476 | 246.653 | 0.0 | -0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 55.68 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 55.68 | -0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 55.68 |
246.653 | 200.476 | 200.476 | -0.0 | 0.0 | 0.0 |
200.476 | 246.653 | 200.476 | -0.0 | 0.0 | 0.0 |
200.476 | 200.476 | 246.653 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | -0.0 | 55.68 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 55.68 | 0.0 |
-0.0 | -0.0 | 0.0 | 0.0 | 0.0 | 55.68 |
246.654 | 200.476 | 200.476 | -0.0 | -0.0 | -0.0 |
200.476 | 246.654 | 200.476 | -0.0 | -0.0 | 0.0 |
200.476 | 200.476 | 246.654 | 0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 55.68 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 55.68 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 55.68 |
246.653 | 200.476 | 200.476 | -0.0 | 0.0 | 0.0 |
200.476 | 246.653 | 200.476 | 0.0 | 0.0 | 0.0 |
200.476 | 200.476 | 246.653 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 55.68 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 55.68 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 55.68 |
246.654 | 200.477 | 200.477 | 0.0 | -0.0 | -0.0 |
200.477 | 246.654 | 200.477 | 0.0 | -0.0 | -0.0 |
200.477 | 200.477 | 246.654 | 0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 55.68 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 55.68 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 55.68 |
246.653 | 200.476 | 200.476 | -0.0 | 0.0 | 0.0 |
200.476 | 246.653 | 200.476 | -0.0 | 0.0 | -0.0 |
200.476 | 200.476 | 246.653 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 55.68 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 55.68 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 55.68 |
304.074 | 169.914 | 169.914 | 0.0 | -0.0 | 0.0 |
169.914 | 304.074 | 169.914 | 0.0 | -0.0 | 0.0 |
169.914 | 169.914 | 304.074 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 29.965 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 29.965 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 29.965 |
305.145 | 169.379 | 169.379 | -0.0 | -0.0 | -0.0 |
169.379 | 305.145 | 169.379 | -0.0 | -0.0 | -0.0 |
169.379 | 169.379 | 305.145 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 29.965 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 29.965 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 29.965 |
305.145 | 169.379 | 169.379 | 0.0 | 0.0 | 0.0 |
169.379 | 305.145 | 169.379 | 0.0 | 0.0 | 0.0 |
169.379 | 169.379 | 305.145 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 35.737 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 35.737 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 35.737 |
304.074 | 169.914 | 169.914 | -0.0 | 0.0 | 0.0 |
169.914 | 304.074 | 169.914 | 0.0 | -0.0 | -0.0 |
169.914 | 169.914 | 304.074 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 35.737 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 35.737 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 35.737 |
304.076 | 169.915 | 169.915 | 0.0 | -0.0 | -0.0 |
169.915 | 304.076 | 169.915 | -0.0 | -0.0 | 0.0 |
169.915 | 169.915 | 304.076 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 29.965 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 29.965 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 29.965 |
305.144 | 169.378 | 169.378 | -0.0 | -0.0 | -0.0 |
169.378 | 305.144 | 169.378 | -0.0 | -0.0 | -0.0 |
169.378 | 169.378 | 305.144 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 29.965 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 29.965 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 29.965 |
58.188 | 73.125 | 73.125 | -0.0 | 0.0 | 0.0 |
73.125 | 58.188 | 73.125 | 0.0 | -0.0 | 0.0 |
73.125 | 73.125 | 58.188 | -0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -69.306 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -69.306 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -69.306 |
58.188 | 73.125 | 73.125 | 0.0 | -0.0 | -0.0 |
73.125 | 58.188 | 73.125 | -0.0 | -0.0 | -0.0 |
73.125 | 73.125 | 58.188 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -69.306 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -69.306 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | -69.306 |
58.187 | 73.125 | 73.125 | 0.0 | 0.0 | 0.0 |
73.125 | 58.187 | 73.125 | 0.0 | 0.0 | 0.0 |
73.125 | 73.125 | 58.187 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -69.306 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -69.306 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -69.306 |
58.188 | 73.126 | 73.126 | 0.0 | 0.0 | -0.0 |
73.126 | 58.188 | 73.126 | 0.0 | 0.0 | -0.0 |
73.126 | 73.126 | 58.188 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -69.306 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -69.306 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | -69.306 |
58.184 | 73.121 | 73.121 | 0.0 | -0.0 | 0.0 |
73.121 | 58.184 | 73.121 | -0.0 | 0.0 | 0.0 |
73.121 | 73.121 | 58.184 | 0.0 | 0.0 | 0.0 |
-0.005 | -0.005 | -0.005 | -69.306 | -0.0 | 0.0 |
-0.005 | -0.005 | -0.005 | -0.0 | -69.306 | 0.0 |
-0.005 | -0.005 | -0.005 | 0.0 | 0.0 | -69.306 |
58.192 | 73.13 | 73.13 | 0.0 | -0.0 | -0.0 |
73.13 | 58.192 | 73.13 | -0.0 | 0.0 | -0.0 |
73.13 | 73.13 | 58.192 | -0.0 | -0.0 | -0.0 |
0.005 | 0.005 | 0.005 | -69.306 | -0.0 | -0.0 |
0.005 | 0.005 | 0.005 | 0.0 | -69.306 | -0.0 |
0.005 | 0.005 | 0.005 | -0.0 | -0.0 | -69.306 |
262.487 | 192.504 | 93.432 | 0.0 | 0.0 | 0.0 |
186.713 | 268.279 | 93.432 | -0.0 | 0.0 | -0.0 |
93.432 | 93.432 | -127.995 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -43.857 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -43.857 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 40.783 |
262.487 | 192.504 | 93.432 | -0.0 | -0.0 | -0.0 |
192.504 | 262.487 | 93.432 | -0.0 | -0.0 | -0.0 |
93.431 | 93.431 | -127.996 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -43.857 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -43.857 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 40.783 |
262.487 | 192.504 | 93.432 | -0.0 | -0.0 | 0.0 |
192.504 | 262.487 | 93.432 | -0.0 | -0.0 | 0.0 |
93.432 | 93.432 | -127.994 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -43.857 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -43.857 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 34.991 |
262.487 | 192.504 | 93.431 | 0.0 | -0.0 | -0.0 |
186.713 | 268.279 | 93.431 | -0.0 | -0.0 | 0.0 |
93.431 | 93.431 | -127.997 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -43.857 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -43.857 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 34.991 |
268.281 | 186.713 | 93.433 | -0.0 | 0.0 | -0.0 |
192.505 | 262.489 | 93.433 | 0.0 | 0.0 | 0.0 |
93.435 | 93.435 | -127.98 | 0.0 | 0.0 | -0.0 |
0.0 | 0.001 | 0.003 | -43.857 | -0.0 | -0.0 |
0.001 | 0.0 | 0.003 | 0.0 | -43.857 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 40.783 |
268.277 | 186.712 | 93.43 | 0.0 | -0.0 | -0.0 |
192.504 | 262.486 | 93.431 | 0.0 | 0.0 | 0.0 |
93.429 | 93.429 | -128.011 | 0.0 | -0.0 | -0.0 |
-0.0 | -0.001 | -0.003 | -43.857 | 0.0 | -0.0 |
-0.001 | -0.0 | -0.003 | -0.0 | -43.857 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 40.783 |
270.452 | 198.527 | 161.232 | -0.0 | 0.0 | 0.0 |
198.527 | 270.452 | 161.232 | -0.0 | 0.0 | -0.0 |
161.232 | 161.232 | 212.112 | -0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 16.06 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 16.06 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 35.962 |
270.452 | 198.527 | 161.232 | 0.0 | 0.0 | 0.0 |
190.408 | 278.571 | 161.232 | 0.0 | -0.0 | 0.0 |
161.232 | 161.232 | 212.112 | -0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 16.06 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 16.06 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 35.962 |
270.452 | 198.527 | 161.232 | 0.0 | 0.0 | -0.0 |
198.527 | 270.452 | 161.232 | -0.0 | 0.0 | -0.0 |
161.232 | 161.232 | 212.112 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 16.06 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 16.06 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 35.962 |
270.451 | 198.527 | 161.232 | 0.0 | -0.0 | -0.0 |
190.408 | 278.571 | 161.232 | -0.0 | -0.0 | 0.0 |
161.232 | 161.232 | 212.111 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 16.06 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 16.06 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 35.962 |
270.453 | 198.528 | 161.233 | -0.0 | 0.0 | 0.0 |
198.528 | 270.453 | 161.233 | -0.0 | -0.0 | 0.0 |
161.233 | 161.233 | 212.117 | -0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.001 | 16.06 | -0.0 | 0.0 |
0.0 | 0.0 | 0.001 | 0.0 | 16.06 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 35.962 |
278.569 | 190.408 | 161.231 | 0.0 | -0.0 | -0.0 |
190.407 | 278.57 | 161.231 | -0.0 | -0.0 | -0.0 |
161.231 | 161.231 | 212.107 | 0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.001 | 16.06 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.001 | -0.0 | 16.06 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 35.962 |
294.156 | 195.635 | 151.888 | -0.0 | 0.0 | -0.0 |
200.776 | 289.015 | 151.888 | -0.0 | -0.0 | 0.0 |
151.888 | 151.888 | 263.444 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | 0.0 | 22.837 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 22.837 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 49.261 |
289.015 | 200.776 | 151.888 | 0.0 | -0.0 | -0.0 |
200.776 | 289.015 | 151.888 | 0.0 | 0.0 | -0.0 |
151.888 | 151.888 | 263.444 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | -0.0 | 22.837 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 22.837 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 49.261 |
289.015 | 200.776 | 151.888 | -0.0 | -0.0 | 0.0 |
200.776 | 289.015 | 151.888 | -0.0 | 0.0 | 0.0 |
151.888 | 151.888 | 263.444 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 22.837 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 22.837 | 0.0 |
0.0 | 0.0 | -0.0 | -0.0 | -0.0 | 44.119 |
294.156 | 195.635 | 151.888 | 0.0 | -0.0 | -0.0 |
200.776 | 289.015 | 151.888 | 0.0 | -0.0 | -0.0 |
151.888 | 151.888 | 263.444 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 22.837 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 22.837 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 44.119 |
289.017 | 200.777 | 151.889 | -0.0 | -0.0 | 0.0 |
200.777 | 289.017 | 151.889 | -0.0 | 0.0 | 0.0 |
151.889 | 151.889 | 263.445 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 22.837 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 22.837 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 49.261 |
294.155 | 195.635 | 151.888 | 0.0 | 0.0 | -0.0 |
200.776 | 289.014 | 151.888 | -0.0 | 0.0 | -0.0 |
151.888 | 151.888 | 263.443 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 22.837 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 22.837 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 49.261 |
272.022 | 203.482 | 163.908 | -0.0 | -0.0 | 0.0 |
203.482 | 272.022 | 163.908 | 0.0 | -0.0 | 0.0 |
163.908 | 163.908 | 224.307 | -0.0 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 14.643 | -0.0 | -0.0 |
0.0 | -0.0 | 0.0 | -0.0 | 14.643 | 0.0 |
0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 34.27 |
282.301 | 193.204 | 163.908 | 0.0 | 0.0 | 0.0 |
203.482 | 272.022 | 163.908 | 0.0 | 0.0 | -0.0 |
163.908 | 163.908 | 224.307 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 14.643 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 14.643 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 34.27 |
282.301 | 193.204 | 163.908 | 0.0 | -0.0 | 0.0 |
193.204 | 282.301 | 163.908 | -0.0 | -0.0 | 0.0 |
163.908 | 163.908 | 224.307 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 14.643 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 14.643 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 34.27 |
282.3 | 193.204 | 163.908 | -0.0 | 0.0 | -0.0 |
203.482 | 272.022 | 163.908 | 0.0 | 0.0 | -0.0 |
163.907 | 163.907 | 224.307 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 14.643 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 14.643 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 34.27 |
272.024 | 203.483 | 163.908 | 0.0 | -0.0 | 0.0 |
193.204 | 282.302 | 163.908 | -0.0 | -0.0 | 0.0 |
163.909 | 163.909 | 224.312 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.001 | 14.643 | -0.0 | -0.0 |
0.0 | 0.0 | 0.001 | -0.0 | 14.643 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 34.27 |
272.021 | 203.482 | 163.907 | 0.0 | 0.0 | -0.0 |
203.481 | 272.021 | 163.907 | 0.0 | 0.0 | -0.0 |
163.906 | 163.906 | 224.302 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.001 | 14.643 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.001 | 0.0 | 14.643 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 34.27 |
957.397 | 173.027 | 173.027 | -0.0 | -0.0 | -0.0 |
173.027 | 957.397 | 173.027 | -0.0 | -0.0 | -0.0 |
173.027 | 173.027 | 957.397 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -32.382 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -32.382 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -32.382 |
957.414 | 173.027 | 173.027 | 0.0 | 0.0 | 0.0 |
173.027 | 957.414 | 173.027 | 0.0 | 0.0 | 0.0 |
173.027 | 173.027 | 957.414 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | -32.382 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -32.382 | 0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -32.382 |
957.321 | 173.027 | 173.027 | -0.0 | -0.0 | -0.0 |
173.027 | 957.321 | 173.027 | -0.0 | -0.0 | -0.0 |
173.027 | 173.027 | 957.321 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -32.382 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -32.382 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -32.382 |
957.49 | 173.027 | 173.027 | 0.0 | 0.0 | 0.0 |
173.027 | 957.49 | 173.027 | 0.0 | 0.0 | 0.0 |
173.027 | 173.027 | 957.49 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -32.382 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -32.382 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -32.382 |
956.561 | 173.027 | 173.027 | -0.0 | -0.0 | -0.0 |
173.027 | 956.561 | 173.027 | -0.0 | -0.0 | -0.0 |
173.027 | 173.027 | 956.561 | -0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -32.382 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -32.382 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | -32.382 |
958.251 | 173.026 | 173.026 | 0.0 | 0.0 | 0.0 |
173.026 | 958.251 | 173.026 | 0.0 | 0.0 | 0.0 |
173.026 | 173.026 | 958.251 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -32.382 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -32.382 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | -32.382 |
283.91 | 114.979 | 210.115 | 0.0 | 0.0 | -0.0 |
114.979 | 283.91 | 210.115 | 0.0 | 0.0 | 0.0 |
210.116 | 210.116 | 841.819 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.001 | 107.991 | 0.0 | 0.0 |
0.0 | -0.0 | 0.001 | 0.0 | 107.991 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 0.676 |
283.91 | 114.979 | 210.115 | -0.0 | -0.0 | 0.0 |
114.979 | 283.91 | 210.115 | -0.0 | -0.0 | -0.0 |
210.114 | 210.114 | 841.802 | -0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.001 | 107.991 | 0.0 | -0.0 |
-0.0 | 0.0 | -0.001 | -0.0 | 107.991 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 0.676 |
283.911 | 114.978 | 210.116 | 0.0 | -0.0 | 0.0 |
114.978 | 283.911 | 210.116 | 0.0 | 0.0 | 0.0 |
210.122 | 210.122 | 841.893 | 0.0 | -0.0 | 0.0 |
-0.002 | 0.001 | 0.008 | 107.991 | 0.0 | 0.0 |
0.001 | -0.002 | 0.008 | 0.0 | 107.991 | 0.0 |
-0.001 | -0.001 | -0.002 | 0.0 | 0.0 | 0.676 |
283.91 | 114.979 | 210.113 | -0.0 | -0.0 | 0.0 |
114.979 | 283.91 | 210.113 | -0.0 | -0.0 | -0.0 |
210.107 | 210.107 | 841.728 | -0.0 | -0.0 | 0.0 |
0.002 | -0.001 | -0.008 | 107.991 | 0.0 | 0.0 |
-0.001 | 0.002 | -0.008 | -0.0 | 107.991 | -0.0 |
0.001 | 0.001 | 0.002 | -0.0 | -0.0 | 0.676 |
283.914 | 114.971 | 210.13 | 0.0 | -0.0 | 0.0 |
114.971 | 283.914 | 210.13 | 0.0 | 0.0 | 0.0 |
210.191 | 210.191 | 842.633 | 0.0 | 0.0 | -0.0 |
-0.02 | 0.015 | 0.075 | 107.991 | 0.0 | -0.0 |
0.015 | -0.02 | 0.075 | 0.0 | 107.991 | 0.0 |
-0.007 | -0.007 | -0.02 | 0.0 | 0.0 | 0.676 |
283.907 | 114.986 | 210.099 | -0.0 | -0.0 | 0.0 |
114.986 | 283.907 | 210.099 | -0.0 | -0.0 | -0.0 |
210.039 | 210.039 | 840.987 | -0.0 | 0.0 | 0.0 |
0.02 | -0.015 | -0.075 | 107.991 | -0.0 | -0.0 |
-0.015 | 0.02 | -0.075 | -0.0 | 107.991 | 0.0 |
0.007 | 0.007 | 0.02 | -0.0 | -0.0 | 0.676 |
218.045 | 70.565 | -1.885 | 0.0 | 0.0 | -0.0 |
70.565 | 218.045 | -1.885 | 0.0 | -0.0 | -0.0 |
-1.885 | -1.885 | -447.914 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -126.305 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -126.305 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | -44.414 |
48.871 | 239.739 | -1.886 | -0.0 | -0.0 | -0.0 |
239.739 | 48.871 | -1.886 | -0.0 | -0.0 | 0.0 |
-1.885 | -1.885 | -447.915 | 0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -126.305 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -126.305 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | -44.414 |
-115241898.078 | -115241996.78 | -90546761.923 | -18152.945 | 18152.957 | -5407.12 |
-115241996.782 | -115241898.079 | -90546761.901 | 18152.958 | -18152.946 | -5407.119 |
-1.885 | -1.885 | -447.912 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | -126.305 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -126.305 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | -44.414 |
115242293.197 | 115242194.494 | 90547044.351 | -18152.952 | -18152.94 | -5407.124 |
115242194.492 | 115242293.194 | 90547045.052 | 18152.94 | -18152.952 | 5407.124 |
-1.886 | -1.886 | -447.917 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -126.305 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -126.305 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | -44.414 |
-11524012.004 | -11524110.707 | -9054549.038 | -1815.292 | 1815.303 | -540.71 |
-11524110.707 | -11524012.004 | -9054549.036 | -1815.303 | -1815.291 | 540.71 |
-1.882 | -1.882 | -447.889 | 0.0 | 0.0 | -0.0 |
0.001 | 0.002 | 0.004 | -126.305 | -0.0 | -0.0 |
0.002 | 0.001 | 0.004 | -0.0 | -126.305 | -0.0 |
0.0 | 0.0 | 0.001 | -0.0 | -0.0 | -44.414 |
11524407.122 | 11524308.419 | 9054831.692 | -1815.298 | -1815.286 | -540.715 |
11524308.419 | 11524407.121 | 9054831.712 | 1815.286 | -1815.298 | 540.715 |
-1.889 | -1.889 | -447.939 | -0.0 | 0.0 | 0.0 |
-0.001 | -0.002 | -0.004 | -126.305 | 0.0 | 0.0 |
-0.002 | -0.001 | -0.004 | 0.0 | -126.305 | 0.0 |
-0.0 | -0.0 | -0.001 | -0.0 | 0.0 | -44.414 |
310.524 | 125.852 | 125.852 | -0.0 | -0.0 | -0.0 |
125.852 | 310.524 | 125.852 | -0.0 | -0.0 | 0.0 |
125.852 | 125.852 | 310.524 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 3.36 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 3.36 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 3.36 |
310.524 | 125.852 | 125.852 | -0.0 | 0.0 | -0.0 |
125.852 | 310.524 | 125.852 | -0.0 | 0.0 | -0.0 |
125.852 | 125.852 | 310.524 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 3.36 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 3.36 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 3.36 |
310.524 | 125.852 | 125.852 | 0.0 | 0.0 | -0.0 |
125.852 | 310.524 | 125.852 | 0.0 | 0.0 | 0.0 |
125.852 | 125.852 | 310.524 | 0.0 | 0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | 3.36 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | 3.36 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 3.36 |
310.523 | 125.852 | 125.852 | 0.0 | 0.0 | -0.0 |
125.852 | 310.523 | 125.852 | -0.0 | 0.0 | -0.0 |
125.852 | 125.852 | 310.523 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 3.36 | -0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 3.36 | -0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 3.36 |
310.525 | 125.852 | 125.852 | -0.0 | -0.0 | -0.0 |
125.852 | 310.525 | 125.852 | -0.0 | -0.0 | 0.0 |
125.852 | 125.852 | 310.525 | -0.0 | -0.0 | -0.0 |
-0.0 | 0.0 | -0.0 | 3.36 | -0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 0.0 | 3.36 | 0.0 |
0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 3.36 |
310.522 | 125.851 | 125.851 | -0.0 | 0.0 | 0.0 |
125.851 | 310.522 | 125.851 | 0.0 | 0.0 | -0.0 |
125.851 | 125.851 | 310.522 | 0.0 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 3.36 | 0.0 | 0.0 |
-0.0 | 0.0 | 0.0 | -0.0 | 3.36 | -0.0 |
-0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 3.36 |
722.059 | 182.646 | 699.315 | -0.0 | -0.0 | 0.0 |
171.246 | 316.909 | 171.258 | -0.0 | -0.0 | -0.0 |
707.579 | 172.402 | 730.229 | -0.0 | -0.0 | 0.0 |
-8.634 | 10.715 | -8.636 | -6.143 | -0.0 | 0.0 |
-1.545 | 1.914 | -1.546 | -0.0 | 582.654 | 0.0 |
-1.533 | 1.902 | -1.533 | -0.0 | -0.0 | -19.617 |
725.136 | 178.834 | 702.393 | 0.0 | 0.0 | -0.0 |
171.246 | 316.909 | 171.258 | 0.0 | 0.0 | 0.0 |
702.391 | 178.847 | 725.04 | 0.0 | 0.0 | -0.0 |
8.634 | -10.715 | 8.636 | -6.143 | 0.0 | 0.0 |
1.545 | -1.914 | 1.546 | 0.0 | 582.654 | -0.0 |
1.533 | -1.902 | 1.533 | 0.0 | 0.0 | -19.617 |
723.42 | 180.929 | 700.676 | -0.0 | -0.0 | 0.0 |
171.246 | 316.909 | 171.258 | -0.0 | -0.0 | 0.0 |
700.675 | 180.942 | 723.324 | 0.0 | -0.0 | -0.0 |
-0.153 | 0.19 | -0.153 | -18.473 | -0.0 | 0.0 |
-0.18 | 0.191 | -0.18 | -0.0 | 582.654 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 27.82 |
723.778 | 180.548 | 701.034 | 0.0 | 0.0 | -0.0 |
171.246 | 316.909 | 171.258 | 0.0 | 0.0 | -0.0 |
707.607 | 172.402 | 730.257 | 0.0 | 0.0 | -0.0 |
0.153 | -0.19 | 0.153 | -18.473 | 0.0 | -0.0 |
0.18 | -0.191 | 0.18 | 0.0 | 582.654 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 0.0 | 27.82 |
723.33 | 180.758 | 700.587 | -0.0 | 0.0 | 0.0 |
171.246 | 316.911 | 171.258 | -0.0 | -0.0 | -0.0 |
700.586 | 180.771 | 723.233 | -0.0 | -0.0 | 0.0 |
-0.117 | 0.145 | -0.117 | -18.471 | -0.0 | 0.0 |
-0.255 | 0.0 | -0.254 | -0.0 | 582.654 | 0.0 |
-0.117 | 0.145 | -0.117 | -0.0 | 0.0 | -19.63 |
730.579 | 172.391 | 707.836 | 0.0 | 0.0 | -0.0 |
171.245 | 316.908 | 171.257 | 0.0 | 0.0 | 0.0 |
701.123 | 180.732 | 723.772 | 0.0 | 0.0 | 0.0 |
0.117 | -0.145 | 0.117 | -18.471 | 0.0 | 0.0 |
0.255 | -0.0 | 0.254 | 0.0 | 582.654 | 0.0 |
0.117 | -0.145 | 0.117 | 0.0 | 0.0 | -19.63 |
236.989 | 156.802 | 156.802 | 0.0 | 0.0 | 0.0 |
156.802 | 236.989 | 156.802 | -0.0 | 0.0 | 0.0 |
156.802 | 156.802 | 236.989 | 0.0 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 24.688 | 0.0 | 0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 24.688 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 24.688 |
-329.753 | -398.333 | -398.333 | 0.0 | 0.0 | 0.0 |
-398.333 | -329.753 | -398.333 | 0.0 | 0.0 | 0.0 |
-398.333 | -398.333 | -329.753 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 24.688 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 24.688 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 24.688 |
275.894 | 201.027 | 201.027 | -0.0 | 0.0 | 0.0 |
201.027 | 275.894 | 201.027 | 0.0 | -0.0 | 0.0 |
201.027 | 201.027 | 275.894 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 24.688 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 24.688 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 24.688 |
197.917 | 132.031 | 132.031 | 0.0 | 0.0 | -0.0 |
132.031 | 197.917 | 132.031 | 0.0 | 0.0 | 0.0 |
132.031 | 132.031 | 197.917 | 0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 24.688 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 24.688 | -0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | -0.0 | 24.688 |
236.992 | 156.803 | 156.803 | 0.0 | 0.0 | 0.0 |
156.803 | 236.992 | 156.803 | 0.0 | 0.0 | 0.0 |
156.803 | 156.803 | 236.992 | 0.0 | 0.0 | 0.0 |
4.305 | 4.305 | 4.305 | 17.639 | 0.0 | -0.0 |
4.305 | 4.305 | 4.305 | 0.0 | 17.639 | 0.0 |
4.305 | 4.305 | 4.305 | 0.0 | 0.0 | 17.639 |
236.986 | 156.801 | 156.801 | 0.0 | -0.0 | -0.0 |
156.801 | 236.986 | 156.801 | -0.0 | 0.0 | -0.0 |
156.801 | 156.801 | 236.986 | -0.0 | -0.0 | -0.0 |
-4.305 | -4.305 | -4.305 | 17.639 | -0.0 | -0.0 |
-4.305 | -4.305 | -4.305 | 0.0 | 17.639 | -0.0 |
-4.305 | -4.305 | -4.305 | 0.0 | -0.0 | 17.639 |
235.118 | 156.026 | 156.026 | 0.0 | 0.0 | -0.0 |
156.026 | 235.118 | 156.026 | -0.0 | 0.0 | -0.0 |
156.026 | 156.026 | 235.118 | -0.0 | 0.0 | -0.0 |
-0.0 | 0.0 | 0.0 | 24.213 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 24.213 | -0.0 |
0.0 | 0.0 | -0.0 | 0.0 | 0.0 | 24.213 |
228.921 | 183.703 | 183.703 | 0.0 | 0.0 | 0.0 |
183.703 | 228.921 | 183.703 | 0.0 | 0.0 | 0.0 |
183.703 | 183.703 | 228.921 | 0.0 | 0.0 | 0.0 |
0.0 | -0.0 | -0.0 | 24.213 | -0.0 | 0.0 |
-0.0 | 0.0 | -0.0 | -0.0 | 24.213 | 0.0 |
-0.0 | -0.0 | 0.0 | -0.0 | -0.0 | 24.213 |
215.68 | 137.483 | 137.483 | -0.0 | 0.0 | -0.0 |
137.483 | 215.68 | 137.483 | -0.0 | -0.0 | -0.0 |
137.483 | 137.483 | 215.68 | -0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 24.213 | 0.0 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 24.213 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 24.213 |
235.118 | 156.026 | 156.026 | 0.0 | -0.0 | 0.0 |
156.026 | 235.118 | 156.026 | -0.0 | -0.0 | 0.0 |
156.026 | 156.026 | 235.118 | -0.0 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 24.213 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 24.213 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 24.213 |
219.003 | 153.22 | 153.22 | -0.0 | -0.0 | -0.0 |
153.22 | 219.003 | 153.22 | -0.0 | -0.0 | -0.0 |
153.22 | 153.22 | 219.003 | -0.0 | -0.0 | -0.0 |
-0.146 | -0.145 | -0.145 | 15.675 | -0.0 | -0.0 |
-0.145 | -0.146 | -0.145 | -0.0 | 15.675 | -0.0 |
-0.145 | -0.145 | -0.146 | -0.0 | -0.0 | 15.675 |
216.101 | 147.054 | 147.054 | 0.0 | 0.0 | 0.0 |
147.054 | 216.101 | 147.054 | 0.0 | 0.0 | 0.0 |
147.054 | 147.054 | 216.101 | 0.0 | 0.0 | 0.0 |
0.146 | 0.145 | 0.145 | 15.675 | 0.0 | 0.0 |
0.145 | 0.146 | 0.145 | 0.0 | 15.675 | 0.0 |
0.145 | 0.145 | 0.146 | 0.0 | 0.0 | 15.675 |
247.866 | 185.57 | 185.57 | 0.0 | -0.0 | 0.0 |
185.57 | 247.866 | 185.57 | 0.0 | -0.0 | 0.0 |
185.57 | 185.57 | 247.866 | 0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 47.069 | 0.0 | -0.0 |
0.0 | -0.0 | 0.0 | 0.0 | 47.069 | 0.0 |
0.0 | 0.0 | -0.0 | 0.0 | -0.0 | 47.069 |
253.286 | 184.728 | 184.728 | -0.0 | 0.0 | -0.0 |
184.728 | 253.286 | 184.728 | -0.0 | 0.0 | -0.0 |
184.728 | 184.728 | 253.286 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 47.069 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 47.069 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | -0.0 | 47.069 |
259.933 | 183.052 | 183.052 | 0.0 | 0.0 | -0.0 |
183.052 | 259.933 | 183.052 | 0.0 | 0.0 | -0.0 |
183.052 | 183.052 | 259.933 | 0.0 | 0.0 | -0.0 |
-0.01 | -0.01 | -0.01 | 36.104 | -0.0 | 0.0 |
-0.01 | -0.01 | -0.01 | 0.0 | 36.104 | 0.0 |
-0.01 | -0.01 | -0.01 | 0.0 | -0.0 | 36.104 |
247.896 | 185.674 | 185.674 | -0.0 | 0.0 | -0.0 |
185.674 | 247.896 | 185.674 | -0.0 | 0.0 | -0.0 |
185.674 | 185.674 | 247.896 | -0.0 | 0.0 | -0.0 |
0.01 | 0.01 | 0.01 | 36.104 | 0.0 | -0.0 |
0.01 | 0.01 | 0.01 | -0.0 | 36.104 | -0.0 |
0.01 | 0.01 | 0.01 | -0.0 | 0.0 | 36.104 |
259.934 | 183.052 | 183.052 | 0.0 | 0.0 | -0.0 |
183.052 | 259.934 | 183.052 | 0.0 | 0.0 | -0.0 |
183.052 | 183.052 | 259.934 | 0.0 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 31.683 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 31.683 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | -0.0 | 31.683 |
259.931 | 183.051 | 183.051 | -0.0 | 0.0 | 0.0 |
183.051 | 259.931 | 183.051 | -0.0 | -0.0 | -0.0 |
183.051 | 183.051 | 259.931 | -0.0 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 31.683 | 0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 31.683 | -0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 31.683 |
245.404 | 178.918 | 178.918 | -0.0 | -0.0 | 0.0 |
178.918 | 245.404 | 178.918 | -0.0 | -0.0 | 0.0 |
178.918 | 178.918 | 245.404 | -0.0 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 45.04 | -0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 45.04 | -0.0 |
0.0 | 0.0 | 0.0 | -0.0 | 0.0 | 45.04 |
252.227 | 177.861 | 177.861 | -0.0 | -0.0 | 0.0 |
177.861 | 252.227 | 177.861 | 0.0 | 0.0 | 0.0 |
177.861 | 177.861 | 252.227 | 0.0 | -0.0 | -0.0 |
-0.0 | -0.0 | -0.0 | 45.04 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 45.04 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 45.04 |
252.227 | 177.861 | 177.861 | 0.0 | 0.0 | -0.0 |
177.861 | 252.227 | 177.861 | -0.0 | -0.0 | -0.0 |
177.861 | 177.861 | 252.227 | 0.0 | 0.0 | -0.0 |
0.0 | 0.0 | 0.0 | 45.04 | -0.0 | 0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 45.04 | 0.0 |
0.0 | 0.0 | 0.0 | -0.0 | -0.0 | 45.04 |
240.793 | 180.623 | 180.623 | 0.0 | -0.0 | -0.0 |
180.623 | 240.793 | 180.623 | 0.0 | 0.0 | -0.0 |
180.623 | 180.623 | 240.793 | 0.0 | 0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 45.04 | -0.0 | 0.0 |
-0.0 | -0.0 | -0.0 | 0.0 | 45.04 | 0.0 |
-0.0 | -0.0 | -0.0 | -0.0 | 0.0 | 45.04 |
245.615 | 179.375 | 179.375 | -0.0 | -0.0 | 0.0 |
179.375 | 245.615 | 179.375 | -0.0 | -0.0 | 0.0 |
179.375 | 179.375 | 245.615 | -0.0 | -0.0 | 0.0 |
-0.006 | -0.006 | -0.006 | 33.895 | -0.0 | 0.0 |
-0.006 | -0.006 | -0.006 | -0.0 | 33.895 | -0.0 |
-0.006 | -0.006 | -0.006 | -0.0 | -0.0 | 33.895 |
239.821 | 180.321 | 180.321 | 0.0 | 0.0 | -0.0 |
180.321 | 239.821 | 180.321 | 0.0 | 0.0 | -0.0 |
180.321 | 180.321 | 239.821 | 0.0 | 0.0 | -0.0 |
0.006 | 0.006 | 0.006 | 33.895 | 0.0 | 0.0 |
0.006 | 0.006 | 0.006 | 0.0 | 33.895 | -0.0 |
0.006 | 0.006 | 0.006 | 0.0 | 0.0 | 33.895 |
284.622 | 198.812 | 159.644 | 3.652 | 0.0 | 0.0 |
194.278 | 288.458 | 159.629 | -4.855 | -0.0 | 0.0 |
159.496 | 159.496 | 268.538 | 0.0 | 0.0 | 0.0 |
5.144 | -5.144 | -0.0 | 25.917 | 0.0 | 0.0 |
-0.254 | -0.254 | -0.011 | 0.0 | 25.835 | 4.856 |
-0.0 | 0.0 | -0.0 | 0.0 | 5.144 | 48.098 |
290.349 | 194.153 | 159.667 | 5.144 | -0.0 | -0.0 |
194.153 | 290.349 | 159.667 | -5.144 | -0.0 | -0.0 |
159.667 | 159.667 | 268.545 | -0.0 | -0.0 | 0.0 |
5.144 | -5.144 | -0.0 | 25.917 | 0.0 | -0.0 |
0.254 | 0.254 | 0.011 | -0.0 | 25.835 | 4.856 |
0.0 | -0.0 | 0.0 | -0.0 | 5.144 | 48.098 |
290.349 | 194.153 | 159.667 | 5.144 | 0.0 | 0.0 |
198.951 | 284.761 | 159.65 | -3.652 | 0.0 | 0.0 |
159.635 | 159.635 | 268.544 | 0.0 | 0.0 | 0.0 |
5.144 | -5.144 | 0.0 | 25.917 | 0.0 | 0.0 |
-0.121 | -0.121 | -0.005 | -0.0 | 25.525 | 3.779 |
-0.131 | -0.131 | -0.006 | -0.0 | 3.664 | 42.945 |
290.349 | 194.153 | 159.667 | 5.144 | -0.0 | -0.0 |
194.153 | 290.349 | 159.667 | -5.144 | -0.0 | -0.0 |
159.666 | 159.666 | 268.545 | -0.0 | -0.0 | -0.0 |
5.144 | -5.144 | -0.0 | 25.917 | -0.0 | -0.0 |
0.121 | 0.121 | 0.005 | 0.0 | 25.525 | 3.779 |
0.131 | 0.131 | 0.006 | 0.0 | 3.664 | 42.945 |
290.35 | 194.154 | 159.667 | 5.144 | 0.0 | -0.0 |
194.653 | 288.187 | 159.632 | -4.762 | 0.0 | 0.0 |
159.667 | 159.667 | 268.546 | 0.0 | 0.0 | 0.0 |
3.651 | -3.654 | 0.0 | 25.489 | 0.0 | 0.0 |
-0.013 | -0.013 | -0.0 | -0.0 | 25.489 | 3.653 |
0.0 | 0.0 | 0.0 | 0.0 | 5.144 | 48.098 |
290.347 | 194.153 | 159.666 | 5.144 | -0.0 | 0.0 |
198.967 | 284.777 | 159.65 | -3.652 | 0.0 | -0.0 |
159.652 | 159.652 | 268.543 | -0.0 | 0.0 | -0.0 |
3.667 | -3.64 | 0.0 | 25.489 | -0.0 | -0.0 |
0.013 | 0.013 | 0.0 | 0.0 | 25.489 | 3.653 |
-0.0 | -0.0 | -0.0 | -0.0 | 5.144 | 48.098 |
Phonon band structures and crystal properties estimated from quasi-harmonic approximation (QHA) calculations are displayed for select crystals. The calculations were performed using phonopy and LAMMPS. For the phonon calculations, 3x3 supercells of the potential-specific relaxed crystals were used. The QHA calculations were based on 11 strain states ranging from -0.05 to 0.05.
The calculation method used is available as the iprPy phonon calculation method.
Notes and Disclaimers:
Version Information:
Static free surface formation energies are displayed for select crystals. The values displayed here are obtained by taking a perfect periodic bulk crystal, slicing along a crystallographic plane, and using force minimization to statically relax the surfaces. The free surface formation energy is computed by comparing the energy of the defect system to the bulk system and dividing by the total surface area created by the cut.
The calculation method used is available as the iprPy surface_energy_static calculation method.
Notes and Disclaimers:
Version Information:
Surface | γfs (mJ/m2) |
---|---|
(111) | 862.22 |
(100) | 940.43 |
(332) | 942.8 |
(322) | 950.39 |
(221) | 976.63 |
(211) | 990.9 |
(331) | 1002.72 |
(311) | 1015.19 |
(110) | 1016.84 |
(321) | 1033.19 |
(310) | 1046.69 |
(320) | 1056.26 |
(210) | 1061.77 |
Surface | γfs (mJ/m2) |
---|---|
(321) | 309.82 |
(211) | 356.0 |
(332) | 434.65 |
(320) | 849.51 |
(110) | 866.02 |
(310) | 871.56 |
(210) | 925.39 |
(331) | 971.05 |
(100) | 984.64 |
(221) | 1005.64 |
(311) | 1019.06 |
(322) | 1019.27 |
(111) | 1042.92 |
Surface | γfs (mJ/m2) |
---|---|
(0001) | 856.51 |
(1012) 2 | 909.59 |
(2021) 1 | 931.51 |
(1011) 1 | 936.93 |
(2021) 2 | 991.93 |
(1120) | 1013.32 |
(2131) 1 | 1025.29 |
(2241) | 1032.45 |
(1010) | 1032.56 |
(2132) 2 | 1033.09 |
(2132) 1 | 1038.83 |
(1121) | 1045.56 |
(1012) 1 | 1046.71 |
(2130) | 1053.0 |
(1011) 2 | 1053.04 |
(2112) | 1054.86 |
(2131) 2 | 1070.34 |
Surface | γfs (mJ/m2) |
---|---|
(111) | 1826.75 |
(100) | 1830.25 |
(332) | 1914.26 |
(322) | 1933.65 |
(221) | 1945.96 |
(110) | 1956.26 |
(311) | 1959.06 |
(211) | 1966.75 |
(331) | 1967.63 |
(310) | 1980.84 |
(210) | 1988.4 |
(321) | 1994.14 |
(320) | 1999.86 |
Surface | γfs (mJ/m2) |
---|---|
(211) 2 | 1622.35 |
(332) 2 | 1688.79 |
(322) | 1695.27 |
(321) 2 | 1700.88 |
(321) 1 | 1705.61 |
(111) | 1708.95 |
(221) | 1710.17 |
(210) | 1710.21 |
(332) 1 | 1711.73 |
(331) | 1717.61 |
(311) | 1719.97 |
(310) | 1721.08 |
(211) 1 | 1732.01 |
(320) | 1739.6 |
(110) | 1751.4 |
(100) | 1773.81 |
Surface | γfs (mJ/m2) |
---|---|
(1011) 2 | 1800.53 |
(0001) | 1804.14 |
(1010) 1 | 1831.78 |
(2021) 1 | 1869.69 |
(1120) | 1878.89 |
(2130) 1 | 1904.23 |
(1012) 1 | 1908.77 |
(2131) 2 | 1923.27 |
(2241) | 1926.84 |
(2112) | 1933.97 |
(1121) | 1945.91 |
(2132) 2 | 1949.39 |
(2132) 1 | 1949.5 |
(2130) 2 | 1970.07 |
(2021) 2 | 1972.27 |
(2131) 1 | 1986.66 |
(1012) 2 | 1991.59 |
(1010) 2 | 2039.96 |
(1011) 1 | 2178.37 |
Surface | γfs (mJ/m2) |
---|---|
(101) | 1792.58 |
(110) | 1810.13 |
(001) | 1831.95 |
(112) | 1913.37 |
(211) | 1931.39 |
(201) | 1949.61 |
(111) | 1958.2 |
(100) | 1964.73 |
Surface | γfs (mJ/m2) |
---|---|
(111) | 2009.37 |
(100) | 2063.94 |
(332) | 2153.49 |
(322) | 2161.63 |
(221) | 2211.48 |
(211) | 2222.61 |
(311) | 2245.13 |
(110) | 2254.97 |
(331) | 2256.51 |
(310) | 2279.17 |
(321) | 2294.03 |
(210) | 2312.93 |
(320) | 2314.54 |
Surface | γfs (mJ/m2) |
---|---|
(211) 2 | 2121.43 |
(210) | 2140.83 |
(100) | 2189.24 |
(321) 2 | 2194.25 |
(332) 2 | 2198.68 |
(311) | 2207.28 |
(111) | 2212.73 |
(321) 1 | 2217.51 |
(221) | 2222.34 |
(322) | 2228.72 |
(310) | 2238.81 |
(320) | 2242.22 |
(332) 1 | 2245.18 |
(331) | 2245.56 |
(211) 1 | 2290.86 |
(110) | 2291.82 |
Surface | γfs (mJ/m2) |
---|---|
(0001) | 1959.56 |
(1012) 2 | 2033.63 |
(1011) 1 | 2083.51 |
(2021) 1 | 2094.32 |
(2021) 2 | 2189.0 |
(1120) | 2218.14 |
(2241) | 2252.69 |
(2131) 1 | 2254.6 |
(2132) 2 | 2263.25 |
(1010) | 2267.97 |
(1012) 1 | 2277.05 |
(1121) | 2278.96 |
(2132) 1 | 2281.98 |
(1011) 2 | 2287.17 |
(2130) | 2295.22 |
(2112) | 2306.25 |
(2131) 2 | 2313.27 |
Surface | γfs (mJ/m2) |
---|---|
(0001) | 1914.88 |
(1011) 1 | 1947.44 |
(2021) 1 | 1999.03 |
(1011) 2 | 2016.37 |
(1010) 1 | 2037.51 |
(1012) 1 | 2088.16 |
(1120) | 2177.58 |
(2130) 1 | 2189.39 |
(2112) | 2192.67 |
(1012) 2 | 2230.97 |
(2132) 1 | 2231.66 |
(2131) 2 | 2238.93 |
(2132) 2 | 2242.49 |
(2241) | 2251.82 |
(2131) 1 | 2275.6 |
(2021) 2 | 2278.19 |
(1121) | 2288.65 |
(2130) 2 | 2321.67 |
(1010) 2 | 2470.27 |
Static point defect formation energies, Ef, and elastic dipole tensors, pij, are displayed for select crystals. Relaxed defect configurations are obtained by taking a 12x12x12 supercell of a perfect periodic bulk crystal, inserting the point defect, and using force minimization to statically relax the atomic positions while keeping the system dimensions constant. Ef is computed by comparing the energy of the defect system to the same number of atoms in a perfect bulk crystal. pij is estimated as the difference in the system's global pressure with and without the defect multiplied by the system's volume.
Simple structural comparisons of the unrelaxed and relaxed defect configurations are used to help determine if the defect structure has relaxed to a different configuration. Relaxed structures that are identified as no longer consistent with the ideal defect definition are excluded from the table below. The only exception to this is if the lowest energy interstitial configuration does not coincide with a known ideal defect, its energies and pressure tensor are included under the listing "relaxed interstitial". The full list of calculation results including the transformed structures and the structural comparison values is included in the csv file available from the "Download raw data" link.
The calculation method used is available as the iprPy point_defect_static calculation method.
Notes and Disclaimers:
Point Defect | Ef (eV) | p11 (eV) | p22 (eV) | p33 (eV) | p12 (eV) | p13 (eV) | p23 (eV) |
---|---|---|---|---|---|---|---|
vacancy | 1.103 | -3.506 | -3.506 | -3.506 | -0.0 | -0.0 | -0.0 |
1nn divacancy | 2.09 | -7.6 | -6.69 | -6.69 | -0.0 | -0.0 | 0.028 |
2nn divacancy | 2.191 | -7.252 | -7.252 | -7.14 | -0.0 | -0.0 | -0.0 |
100 dumbbell | 3.23 | 25.5 | 25.5 | 24.281 | 0.0 | 0.0 | 0.0 |
octahedral interstitial | 3.35 | 25.656 | 25.656 | 25.656 | -0.0 | -0.0 | -0.0 |
110 dumbbell | 3.444 | 26.735 | 23.923 | 23.923 | -0.0 | 0.0 | 11.922 |
crowdion interstitial | 3.445 | 23.921 | 23.921 | 26.754 | 11.937 | 0.0 | 0.0 |
tetrahedral interstitial | 3.849 | 26.924 | 26.924 | 26.924 | -0.0 | -0.0 | -0.0 |
Point Defect | Ef (eV) | p11 (eV) | p22 (eV) | p33 (eV) | p12 (eV) | p13 (eV) | p23 (eV) |
---|---|---|---|---|---|---|---|
relaxed interstitial | -45.382 | 362.893 | 287.177 | 305.864 | 280.443 | 261.757 | 337.475 |
vacancy | 0.726 | -2.087 | -2.087 | -2.087 | 0.0 | -0.0 | -0.0 |
1nn divacancy | 1.584 | -4.895 | -4.895 | -4.895 | 3.298 | 3.298 | 3.298 |
crowdion interstitial | 2.193 | 44.713 | 44.713 | 44.713 | 14.529 | 14.529 | 14.529 |
111 dumbbell | 2.193 | 44.722 | 44.722 | 44.722 | 14.501 | 14.501 | 14.501 |
Point Defect | Ef (eV) | p11 (eV) | p22 (eV) | p33 (eV) | p12 (eV) | p13 (eV) | p23 (eV) |
---|---|---|---|---|---|---|---|
vacancy | 1.123 | -2.106 | -2.106 | -2.106 | -0.0 | 0.0 | 0.0 |
1nn divacancy | 2.125 | -3.488 | -3.324 | -3.324 | -0.0 | 0.0 | -0.104 |
2nn divacancy | 2.209 | -3.898 | -3.898 | -4.812 | -0.0 | 0.0 | 0.0 |
100 dumbbell | 2.724 | 22.547 | 22.547 | 23.14 | -0.0 | -0.0 | -0.0 |
octahedral interstitial | 2.8 | 21.648 | 21.648 | 21.648 | -0.0 | -0.0 | -0.0 |
crowdion interstitial | 2.841 | 20.381 | 20.381 | 33.958 | 6.827 | -0.0 | -0.0 |
111 dumbbell | 2.987 | 23.982 | 23.982 | 23.982 | 1.671 | 1.671 | 1.671 |
tetrahedral interstitial | 3.013 | 24.235 | 24.235 | 24.235 | -0.0 | -0.0 | -0.0 |
Point Defect | Ef (eV) | p11 (eV) | p22 (eV) | p33 (eV) | p12 (eV) | p13 (eV) | p23 (eV) |
---|---|---|---|---|---|---|---|
vacancy | 1.18 | -2.007 | -2.007 | -1.931 | -0.0 | -0.0 | -0.0 |
relaxed interstitial | 2.209 | 17.236 | 15.694 | 17.921 | -1.336 | 0.644 | -0.372 |
0001 dumbbell | 2.321 | 16.055 | 16.055 | 18.851 | -0.0 | 0.0 | -0.0 |
Point Defect | Ef (eV) | p11 (eV) | p22 (eV) | p33 (eV) | p12 (eV) | p13 (eV) | p23 (eV) |
---|---|---|---|---|---|---|---|
vacancy | 1.247 | -10.879 | -10.879 | -10.879 | 0.0 | 0.0 | 0.0 |
1nn divacancy | 2.378 | -24.272 | -21.112 | -21.112 | -0.0 | 0.0 | -0.6 |
2nn divacancy | 2.47 | -22.156 | -22.156 | -20.873 | 0.0 | -0.0 | -0.0 |
100 dumbbell | 2.738 | 31.8 | 31.8 | 30.137 | -0.0 | 0.0 | 0.0 |
octahedral interstitial | 2.753 | 30.289 | 30.289 | 30.289 | -0.0 | 0.0 | 0.0 |
110 dumbbell | 2.91 | 32.808 | 30.467 | 30.467 | -0.0 | 0.0 | 8.667 |
111 dumbbell | 3.003 | 32.227 | 32.227 | 32.227 | 3.331 | 3.331 | 3.331 |
tetrahedral interstitial | 3.063 | 33.167 | 33.167 | 33.167 | -0.0 | -0.0 | -0.0 |
Point Defect | Ef (eV) | p11 (eV) | p22 (eV) | p33 (eV) | p12 (eV) | p13 (eV) | p23 (eV) |
---|---|---|---|---|---|---|---|
vacancy | 1.082 | -9.205 | -9.205 | -5.46 | 0.0 | -0.0 | 0.0 |
0001 dumbbell | 2.339 | 44.307 | 44.307 | 92.163 | -0.0 | -0.0 | -0.0 |
