Warning! Note that elemental potentials taken from alloy descriptions may not work well for the pure species. This is particularly true if the elements were fit for compounds instead of being optimized separately. As with all interatomic potentials, please check to make sure that the performance is adequate for your problem.

1997--Broughton-J-Q-Meli-C-A-Vashishta-P-Kalia-R-K--Si-O

Citation: J.Q. Broughton, C.A. Meli, P. Vashishta, and R.K. Kalia (1997), "Direct atomistic simulation of quartz crystal oscillators: Bulk properties and nanoscale devices", Physical Review B 56(2), 611-618. DOI: 10.1103/physrevb.56.611.

Abstract: Current experimental research aims to reduce the size of quartz crystal oscillators into the submicrometer range. Devices then comprise multimillion atoms and operating frequencies will be in the gigahertz regime. Such characteristics make direct atomic scale simulation feasible using large scale parallel computing. Here, we describe molecular-dynamics simulations on bulk and nanoscale device systems focusing on elastic constants and flexural frequencies. Here we find (a) in order to achieve elastic constants within 1% of those of the bulk requires approximately one million atoms; precisely the experimental regime of interest; (b) differences from continuum mechanical frequency predictions are observable for 17 nm devices; (c) devices with 1% defects exhibit dramatic anharmonicity. A subsequent paper describes the direct atomistic simulation of operating characteristics of a micrometer scale device. A PAPS cosubmission gives algorithmic details.

Related Models:
LAMMPS pair_style vashishta (1997--Broughton-J-Q--Si-O--LAMMPS--ipr1)

See Computed Properties
Notes: This file was taken from the August 22, 2018 LAMMPS distribution.
File(s):
SiO.1997.vashishta

Implementation Information

This page displays computed properties for the 1997--Broughton-J-Q--Si-O--LAMMPS--ipr1 implementation of the 1997--Broughton-J-Q-Meli-C-A-Vashishta-P-Kalia-R-K--Si-O potential. Computed values for other implementations can be seen by clicking on the links below:

1997--Broughton-J-Q--Si-O--LAMMPS--ipr1

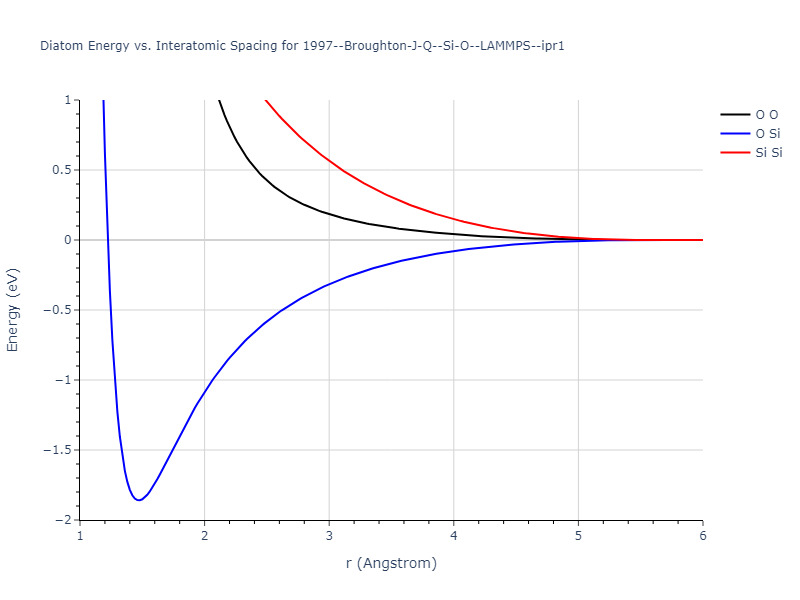

Diatom Energy vs. Interatomic Spacing

Plots of the potential energy vs interatomic spacing, r, are shown below for all diatom sets associated with the interatomic potential. This calculation provides insights into the functional form of the potential's two-body interactions. A system consisting of only two atoms is created, and the potential energy is evaluated for the atoms separated by 0.02 Å <= r <= 6.0> Å in intervals of 0.02 Å. Two plots are shown: one for the "standard" interaction distance range, and one for small values of r. The small r plot is useful for determining whether the potential is suitable for radiation studies.

The calculation method used is available as the iprPy diatom_scan calculation method.

Clicking on the image of a plot will open an interactive version of it in a new tab. The underlying data for the plots can be downloaded by clicking on the links above each plot.

Notes and Disclaimers:

These values are meant to be guidelines for comparing potentials, not the absolute values for any potential's properties. Values listed here may change if the calculation methods are updated due to improvements/corrections. Variations in the values may occur for variations in calculation methods, simulation software and implementations of the interatomic potentials.
As this calculation only involves two atoms, it neglects any multi-body interactions that may be important in molecules, liquids and crystals.
NIST disclaimer

Version Information:

2019-11-14. Maximum value range on the shortrange plots are now limited to "expected" levels as details are otherwise lost.
2019-08-07. Plots added.

Download data

Click on plot to load interactive version

1997--Broughton-J-Q--Si-O--LAMMPS--ipr1/diatom

Click on plot to load interactive version

1997--Broughton-J-Q--Si-O--LAMMPS--ipr1/diatom_short

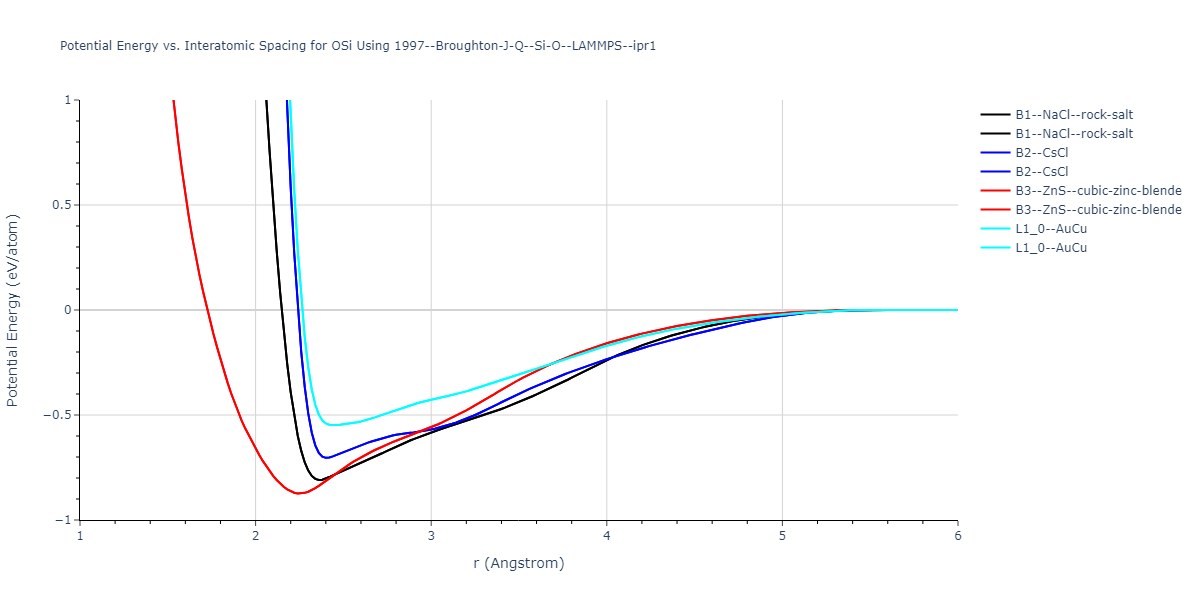

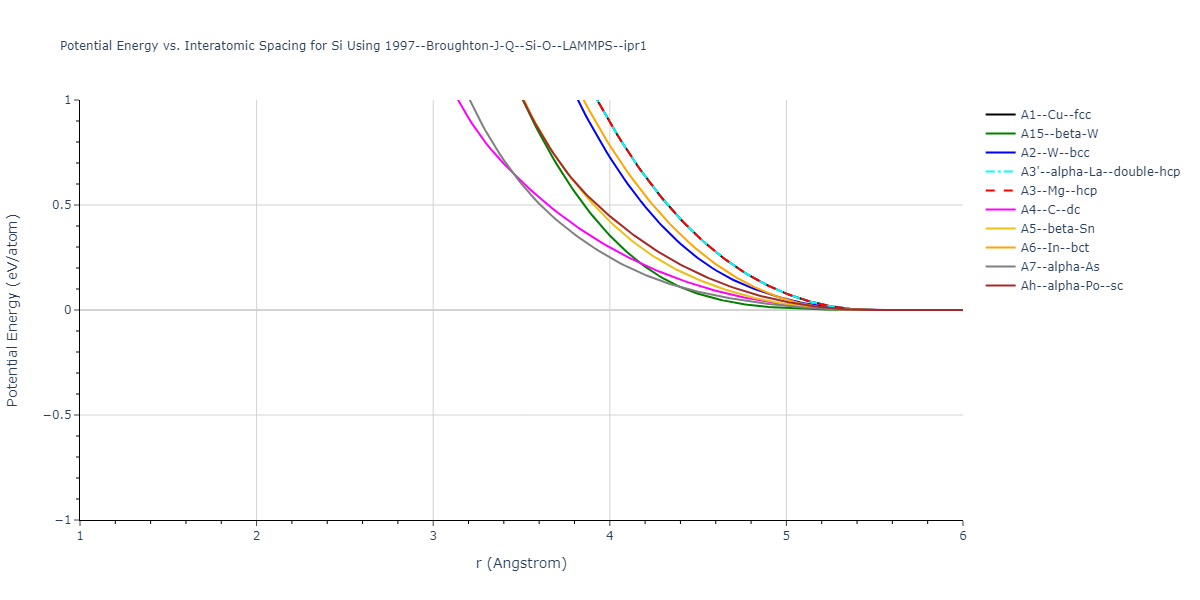

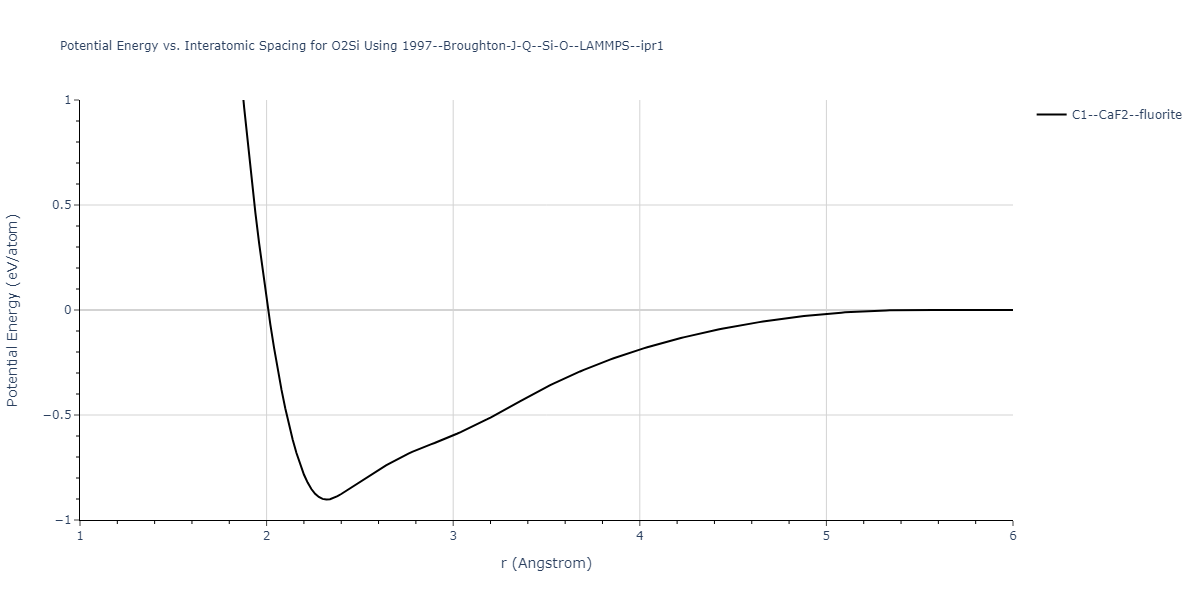

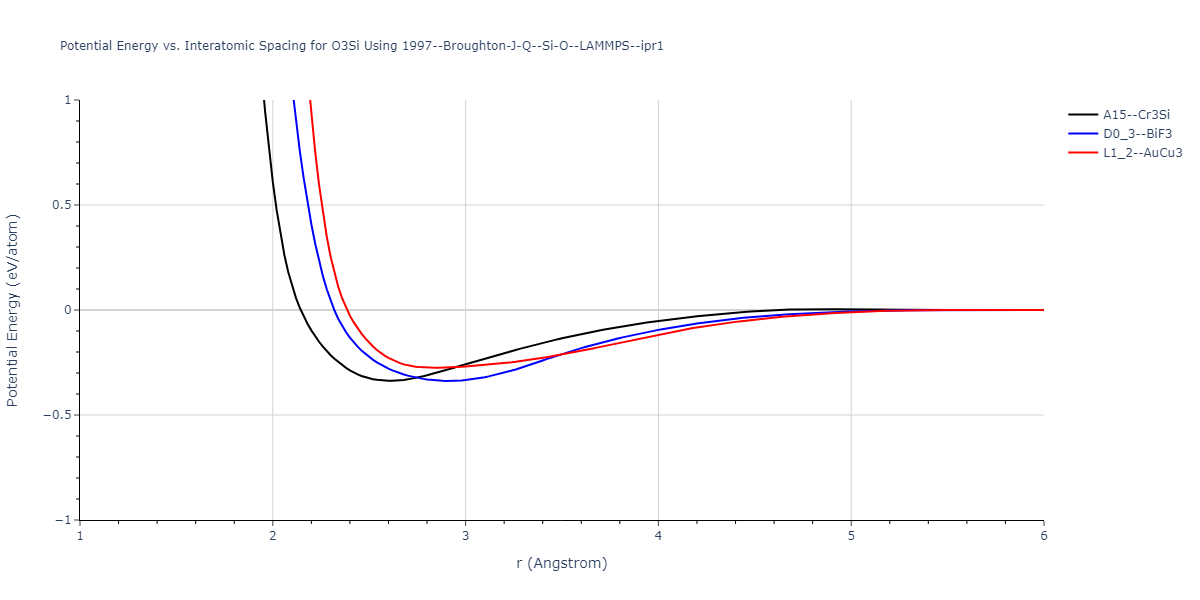

Cohesive Energy vs. Interatomic Spacing

Plots of potential energy vs interatomic spacing, r, are shown below for a number of crystal structures. The structures are generated based on the ideal atomic positions and b/a and c/a lattice parameter ratios for a given crystal prototype. The size of the system is then uniformly scaled, and the energy calculated without relaxing the system. To obtain these plots, values of r are evaluated every 0.02 Å up to 6 Å.

The calculation method used is available as the iprPy E_vs_r_scan calculation method.

Clicking on the image of a plot will open an interactive version of it in a new tab. The underlying data for the plots can be downloaded by clicking on the links above each plot.

Notes and Disclaimers:

These values are meant to be guidelines for comparing potentials, not the absolute values for any potential's properties. Values listed here may change if the calculation methods are updated due to improvements/corrections. Variations in the values may occur for variations in calculation methods, simulation software and implementations of the interatomic potentials.
The minima identified by this calculation do not guarantee that the associated crystal structures will be stable since no relaxation is performed.
NIST disclaimer

Version Information:

2020-12-18. Descriptions, tables and plots updated to reflect that the energy values are the measuredper atom potential energy rather than cohesive energy as some potentials have non-zero isolated atom energies.
2019-02-04. Values regenerated with even r spacings of 0.02 Å, and now include values less than 2 Å when possible. Updated calculation method and parameters enhance compatibility with more potential styles.
2019-04-26. Results for hcp, double hcp, α-As and L1₀ prototypes regenerated from different unit cell representations. Only α-As results show noticable (>1e-5 eV) difference due to using a different coordinate for Wykoff site c position.
2018-06-13. Values for MEAM potentials corrected. Dynamic versions of the plots moved to separate pages to improve page loading. Cosmetic changes to how data is shown and updates to the documentation.
2017-01-11. Replaced png pictures with interactive Bokeh plots. Data regenerated with 200 values of r instead of 300.
2016-09-28. Plots for binary structures added. Data and plots for elemental structures regenerated. Data values match the values of the previous version. Data table formatting slightly changed to increase precision and ensure spaces between large values. Composition added to plot title and structure names made longer.
2016-04-07. Plots for elemental structures added.

Select a composition:

Download data

Click on plot to load interactive version

1997--Broughton-J-Q--Si-O--LAMMPS--ipr1/EvsR.O

Crystal Structure Predictions

Computed lattice constants and cohesive/potential energies are displayed for a variety of crystal structures. The values displayed here are obtained using the following process.

Initial crystal structure guesses are taken from:
1. The iprPy E_vs_r_scan calculation results (shown above) by identifying all energy minima along the measured curves for a given crystal prototype + composition.
2. Structures in the Materials Project and OQMD DFT databases.
All initial guesses are relaxed using three independent methods using a 10x10x10 supercell:
1. "box": The system's lattice constants are adjusted to zero pressure without internal relaxations using the iprPy relax_box calculation with a strainrange of 1e-6.
2. "static": The system's lattice and atomic positions are statically relaxed using the iprPy relax_static calculation with a minimization force tolerance of 1e-10 eV/Angstrom.
3. "dynamic": The system's lattice and atomic positions are dynamically relaxed for 10000 timesteps of 0.01 ps using the iprPy relax_dynamic calculation with an nph integration plus Langevin thermostat. The final configuration is then used as input in running an iprPy relax_static calculation with a minimization force tolerance of 1e-10 eV/Angstrom.
The relaxed structures obtained from #2 are then evaluated using the spglib package to identify an ideal crystal unit cell based on the results.
The space group information of the ideal unit cells is compared to the space group information of the corresponding reference structures to identify which structures transformed upon relaxation. The structures that did not transform to a different structure are listed in the table(s) below. The "method" field indicates the most rigorous relaxation method where the structure did not transform. The space group information is also used to match the DFT reference structures to the used prototype, where possible.
The cohesive energy, E_coh, is calculated from the measured potential energy per atom, E_pot$, by subtracting the isolated energy averaged across all atoms in the unit cell. The isolated atom energies of each species model is obtained either by evaluating a single atom atomic configuration, or by identifying the first energy plateau from the diatom scan calculations for r > 2 Å.

The calculation methods used are implemented into iprPy as the following calculation styles

Notes and Disclaimers:

These values are meant to be guidelines for comparing potentials, not the absolute values for any potential's properties. Values listed here may change if the calculation methods are updated due to improvements/corrections. Variations in the values may occur for variations in calculation methods, simulation software and implementations of the interatomic potentials.
The presence of any structures in this list does not guarantee that those structures are stable. Also, the lowest energy structure may not be included in this list.
Multiple values for the same crystal structure but different lattice constants are possible. This is because multiple energy minima are possible for a given structure and interatomic potential. Having multiple energy minima for a structure does not necessarily make the potential "bad" as unwanted configurations may be unstable or correspond to conditions that may not be relevant to the problem of interest (eg. very high strains).
NIST disclaimer

Version Information:

2025-07-02. All "mp-" reference structure calculations were re-relaxed using the updated Materials Project database rather than the original database structures. Also, a bug was fixed that caused the "static" relaxations to occasionally throw unnecessary errors. This was fixed and all affected calculations were reset and performed again.
2022-05-27. The "box" method results have all been redone with an updated methodology more suited for non-orthogonal systems.
2020-12-18. Cohesive energies have been corrected by making them relative to the energies of the isolated atoms. The previous cohesive energy values are now listed as the potential energies.
2019-06-07. Structures with positive or near zero cohesive energies removed from the display tables. All values still present in the raw data files.
2019-04-26. Calculations now computed for each implementation. Results for hcp, double hcp, α-As and L1₀ prototypes regenerated from different unit cell representations.
2018-06-14. Methodology completely changed affecting how the information is displayed. Calculations involving MEAM potentials corrected.
2016-09-28. Values for simple compounds added. All identified energy minima for each structure are listed. The existing elemental data was regenerated. Most values are consistent with before, but some differences have been noted. Specifically, variations are seen with some values for potentials where the elastic constants don't vary smoothly near the equilibrium state. Additionally, the inclusion of some high-energy structures has changed based on new criteria for identifying when structures have relaxed to another structure.
2016-04-07. Values for elemental crystal structures added. Only values for the global energy minimum of each unique structure given.

Select a composition:

Download raw data (including filtered results)

Reference structure matches:
A1--Cu--fcc = oqmd-1214552
A15--beta-W = oqmd-1214997
A2--W--bcc = oqmd-1215175
A3'--alpha-La--double-hcp = oqmd-1215443
A3--Mg--hcp = oqmd-1215353
A4--C--dc = mp-1057818, oqmd-1215532
A5--beta-Sn = oqmd-1215621
A6--In--bct = oqmd-1215710
A7--alpha-As = mp-610917, oqmd-8088, oqmd-36776, oqmd-114513, oqmd-1215799

prototype	method	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
A4--C--dc	dynamic	12.7017	12.7017	12.7017	90.0	90.0	90.0
oqmd-6836	dynamic	6.448	8.9121	19.9121	90.0	90.0	90.0
A15--beta-W	dynamic	11.0	11.0	11.0	90.0	90.0	90.0
A5--beta-Sn	dynamic	10.6063	10.6063	5.8334	90.0	90.0	90.0
A2--W--bcc	dynamic	6.3509	6.3509	6.3509	90.0	90.0	90.0
A6--In--bct	dynamic	5.5	5.5	8.25	90.0	90.0	90.0
A7--alpha-As	dynamic	5.5014	5.5014	29.9709	90.0	90.0	120.0
A1--Cu--fcc	dynamic	7.7782	7.7782	7.7782	90.0	90.0	90.0
oqmd-1214641	dynamic	7.5374	7.5374	10.0904	90.0	90.0	120.0
mp-1066100	static	5.5	5.5	35.1998	90.0	90.0	120.0
Ah--alpha-Po--sc	dynamic	5.5	5.5	5.5	90.0	90.0	90.0
A6--In--bct	dynamic	5.5	5.5	8.5552	90.0	90.0	90.0
A7--alpha-As	dynamic	5.5011	5.5011	29.9713	90.0	90.0	120.0
mp-611836	dynamic	9.7268	5.5	14.0999	90.0	99.3	90.0
mp-1058623	dynamic	5.5	9.5696	9.1379	90.0	90.0	90.0
mp-1087546	dynamic	13.0253	14.0652	14.2188	90.0	91.4	90.0
mp-560602	dynamic	14.731	19.0331	16.885	90.0	90.0	90.0
mp-1180008	dynamic	13.4425	14.2911	14.3624	90.2	92.1	91.8
mp-607540	dynamic	6.267	9.0402	30.5329	90.0	90.0	90.0
mp-1066100	dynamic	5.5	5.5	32.0867	90.0	90.0	120.0
mp-1009490	dynamic	7.8636	7.6918	14.274	90.0	102.0	90.0
mp-12957	dynamic	18.1376	12.4065	15.8035	90.0	106.4	90.0
mp-1180064	dynamic	8.0015	14.7821	14.8178	88.3	88.9	88.2
mp-1180050	dynamic	19.4357	17.4792	10.9901	90.0	115.4	90.0
A7--alpha-As	dynamic	5.5	5.5	45.4648	90.0	90.0	120.0
mp-1102442	dynamic	16.3267	16.3267	10.5522	90.0	90.0	90.0
mp-1023923	dynamic	13.4152	13.4152	22.9483	90.0	90.0	120.0
oqmd-1215264	dynamic	5.6173	13.5467	7.615	90.0	90.0	90.0
oqmd-6836	static	5.8136	9.3382	31.433	90.0	90.0	90.0
oqmd-20846	static	5.5	5.5	31.2205	90.0	90.0	120.0
mp-1009490	static	7.8839	7.6713	16.0162	90.0	99.0	90.0
mp-611836	static	14.9224	5.5	13.593	90.0	94.8	90.0
oqmd-1215086	dynamic	6.5057	8.8699	19.8699	90.0	90.0	90.0
mp-1058623	static	5.5	9.726	9.3659	90.0	90.0	90.0
oqmd-16142	static	5.5	9.7676	5.7199	90.0	114.2	90.0
oqmd-9092	static	25.0893	35.1843	26.2421	90.0	90.0	90.0
oqmd-114511	static	17.0646	5.5192	11.581	90.0	132.3	90.0
mp-1180064	static	10.1939	22.8604	23.2117	90.3	90.7	90.7
mp-607540	static	6.1706	9.1062	34.8431	90.0	90.0	90.0
oqmd-1214730	static	7.6672	7.8914	29.2686	90.0	90.0	90.0
oqmd-20034	static	21.3217	13.7335	14.0216	90.0	101.5	90.0
mp-560602	static	27.5196	34.855	29.3843	90.0	90.0	90.0
A15--beta-W	static	10.9998	10.9998	10.9998	90.0	90.0	90.0
oqmd-1215888	static	6.4145	6.4145	15.359	90.0	90.0	120.0
mp-12957	static	22.8556	15.7129	18.6418	90.0	109.2	90.0
oqmd-1214641	static	7.6947	7.6947	9.7272	90.0	90.0	120.0
A4--C--dc	static	12.7015	12.7015	12.7015	90.0	90.0	90.0
mp-1180008	static	10.6887	21.1263	21.9582	90.0	88.9	88.3
oqmd-1214908	static	21.1442	21.1442	21.1442	90.0	90.0	90.0
A15--beta-W	dynamic	10.9997	10.9997	10.9997	90.0	90.0	90.0
A1--Cu--fcc	static	7.7781	7.7781	7.7781	90.0	90.0	90.0
mp-1180036	static	13.8996	9.0101	8.5071	90.0	101.5	90.0
mp-1102442	static	20.104	20.104	10.4619	90.0	90.0	90.0
A3'--alpha-La--double-hcp	static	6.669	6.669	15.7092	90.0	90.0	120.0
mp-1087546	static	21.9706	17.9728	11.1851	90.0	118.5	90.0
oqmd-20846	dynamic	5.5021	5.5021	19.979	90.0	90.0	120.0
oqmd-1214730	dynamic	7.7439	7.812	18.812	90.0	90.0	90.0
oqmd-1215264	static	5.5	10.8532	10.516	90.0	90.0	90.0
A4--C--dc	static	12.7012	12.7012	12.7012	90.0	90.0	90.0
A3'--alpha-La--double-hcp	dynamic	6.2829	6.2829	16.5361	90.0	90.0	120.0
mp-1180050	static	22.454	19.9944	10.8269	90.0	95.5	90.0
A6--In--bct	static	5.4998	5.4998	8.8338	90.0	90.0	90.0
oqmd-1214908	dynamic	14.0678	14.0678	14.0678	90.0	90.0	90.0
oqmd-47818	static	9.5377	5.5375	16.5158	90.0	91.8	90.0
A2--W--bcc	static	6.3505	6.3505	6.3505	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-1221354	static	-1.4358	-1.4358	17.1608	17.1739	24.2734	90.0	90.0	90.0
mp-1221354	box	-1.4297	-1.4297	17.031	17.0318	24.1246	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-530027	box	-1.1724	-1.1724	13.3016	13.3016	11.5741	90.0	90.0	120.0
mp-673849	box	-0.6874	-0.6874	12.9636	11.1896	16.7569	90.0	106.8	90.0
mp-1173536	box	-0.6446	-0.6446	13.9592	11.2823	16.9128	90.0	102.2	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-1199711	static	-1.4939	-1.4939	13.6965	14.1838	19.7362	90.0	105.3	90.0
mp-1199711	box	-1.3927	-1.3927	13.9864	13.8941	18.7778	90.0	104.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-7000	dynamic	-1.5686	-1.5686	4.9589	4.9589	5.3172	90.0	90.0	120.0
mp-7029	dynamic	-1.5674	-1.5674	4.9433	4.9433	6.652	90.0	90.0	90.0
mp-7029	box	-1.5665	-1.5665	4.9504	4.9504	6.7325	90.0	90.0	90.0
mp-6945	box	-1.5659	-1.5659	4.9638	4.9638	6.7771	90.0	90.0	90.0
mp-556961	box	-1.5658	-1.5658	6.6995	6.9774	6.9843	90.0	90.0	90.0
mp-6930	box	-1.5656	-1.5656	4.9034	4.9034	5.3166	90.0	90.0	120.0
mp-7000	box	-1.5655	-1.5655	4.9026	4.9026	5.3136	90.0	90.0	120.0
mp-12787	dynamic	-1.5652	-1.5652	13.7086	4.9731	8.7526	90.0	129.5	90.0
mp-12787	static	-1.5651	-1.5651	13.6909	4.9678	8.7565	90.0	129.4	90.0
mp-669426	dynamic	-1.5645	-1.5645	8.3805	4.9549	9.9644	90.0	126.0	90.0
mp-669426	static	-1.5632	-1.5632	8.3768	4.929	9.6429	90.0	124.6	90.0
mp-554089	dynamic	-1.563	-1.563	5.0158	6.8006	4.9599	90.0	90.0	90.0
mp-554573	static	-1.5621	-1.5621	8.1711	8.7856	4.876	90.0	90.0	90.0
mp-554089	box	-1.562	-1.562	5.0098	6.8554	4.9832	90.0	90.0	90.0
mp-554573	box	-1.5616	-1.5616	8.2027	8.7597	4.9106	90.0	90.0	90.0
mp-640556	dynamic	-1.5614	-1.5614	18.306	4.9774	23.3007	90.0	106.4	90.0
mp-640556	static	-1.5613	-1.5613	18.321	4.9772	23.3075	90.0	106.4	90.0
mp-554151	dynamic	-1.5612	-1.5612	8.6623	8.6623	4.8925	90.0	90.0	90.0
mp-985590	dynamic	-1.5607	-1.5607	4.939	8.8513	8.3622	90.0	90.0	90.0
mp-733790	dynamic	-1.5607	-1.5607	8.5169	8.5596	16.2286	91.0	90.0	119.4
mp-546794	dynamic	-1.5605	-1.5605	4.8631	4.8631	7.3627	90.0	90.0	90.0
mp-546794	box	-1.5604	-1.5604	4.8739	4.8739	7.3595	90.0	90.0	90.0
mp-1200292	dynamic	-1.5604	-1.5604	13.2361	19.8811	23.4826	90.0	123.2	90.0
mp-1200292	static	-1.5604	-1.5604	13.2367	19.8815	23.4807	90.0	123.2	90.0
mp-556469	dynamic	-1.5602	-1.5602	4.9879	12.4191	14.8203	102.8	91.0	101.5
mp-555556	box	-1.5602	-1.5602	9.6826	9.7075	8.2692	90.0	90.0	90.0
mp-985570	dynamic	-1.5601	-1.5601	4.9998	8.5276	9.4142	90.0	120.7	90.0
mp-985570	static	-1.5601	-1.5601	5.0028	8.5163	9.4103	90.0	120.8	90.0
mp-733790	static	-1.5599	-1.5599	8.4849	8.5496	16.2892	91.2	90.0	119.7
mp-560708	dynamic	-1.5598	-1.5598	12.1686	8.2858	14.9237	90.0	105.5	90.0
mp-560708	static	-1.5598	-1.5598	12.1705	8.2852	14.9231	90.0	105.5	90.0
mp-17279	dynamic	-1.5597	-1.5597	18.5648	13.4442	7.5959	90.0	101.9	90.0
mp-600014	dynamic	-1.5597	-1.5597	7.4618	12.727	13.5925	90.0	90.0	90.0
mp-556218	static	-1.5596	-1.5596	13.8695	17.0418	4.9872	90.0	90.0	90.0
mp-669426	box	-1.5596	-1.5596	8.3597	4.8892	9.6988	90.0	123.9	90.0
mp-17279	static	-1.5595	-1.5595	18.6246	13.3968	7.6181	90.0	101.9	90.0
mp-1188220	dynamic	-1.5595	-1.5595	8.6329	8.6329	8.6329	90.0	90.0	90.0
mp-554151	box	-1.5594	-1.5594	8.6916	8.6916	4.9423	90.0	90.0	90.0
mp-662706	static	-1.5594	-1.5594	29.9498	8.216	12.3629	90.0	106.9	90.0
mp-667373	dynamic	-1.5592	-1.5592	8.2393	12.467	28.5613	90.0	90.0	90.0
mp-555235	dynamic	-1.5592	-1.5592	4.9918	8.6103	8.0589	90.0	91.6	90.0
mp-667373	static	-1.5591	-1.5591	8.246	12.4343	28.6069	90.0	90.0	90.0
mp-667448	dynamic	-1.5591	-1.5591	19.8658	19.8658	13.2556	90.0	90.0	90.0
mp-600022	dynamic	-1.5591	-1.5591	13.4349	22.1721	6.9143	90.0	90.0	90.0
mp-600022	static	-1.5591	-1.5591	13.4344	22.1727	6.9144	90.0	90.0	90.0
mp-554682	dynamic	-1.559	-1.559	19.9014	19.9014	13.2666	90.0	90.0	90.0
mp-554682	static	-1.559	-1.559	19.9016	19.9016	13.2663	90.0	90.0	90.0
mp-640556	box	-1.5589	-1.5589	18.3995	4.9735	23.5609	90.0	106.2	90.0
mp-558891	dynamic	-1.5588	-1.5588	10.0172	10.0172	10.0172	90.0	90.0	90.0
mp-558891	static	-1.5588	-1.5588	10.0175	10.0175	10.0175	90.0	90.0	90.0
mp-558891	box	-1.5587	-1.5587	10.0285	10.0285	10.0285	90.0	90.0	90.0
mp-600059	dynamic	-1.5587	-1.5587	12.9502	12.9502	4.9573	90.0	90.0	90.0
mp-16964	static	-1.5586	-1.5586	13.776	17.1887	4.9765	90.0	90.0	90.0
mp-646895	dynamic	-1.5583	-1.5583	4.9879	33.7577	21.0235	90.0	90.6	90.0
mp-646895	static	-1.5583	-1.5583	4.988	33.7573	21.0235	90.0	90.6	90.0
mp-554946	dynamic	-1.5583	-1.5583	19.7406	20.0303	13.2904	90.0	90.0	90.0
mp-554946	static	-1.5583	-1.5583	19.7398	20.0309	13.2909	90.0	90.0	90.0
mp-559360	dynamic	-1.5582	-1.5582	7.2167	18.9128	9.7709	90.0	98.9	90.0
mp-559360	static	-1.5582	-1.5582	7.2168	18.9138	9.7707	90.0	98.9	90.0
mp-12787	box	-1.5582	-1.5582	13.5889	4.8546	8.7095	90.0	129.7	90.0
mp-559550	dynamic	-1.5581	-1.5581	12.3899	12.3899	7.0154	90.0	90.0	120.0
mp-559550	static	-1.5581	-1.5581	12.3907	12.3907	7.0169	90.0	90.0	120.0
mp-556262	dynamic	-1.558	-1.558	7.3005	11.1722	11.4106	103.0	94.9	97.0
mp-556262	static	-1.5579	-1.5579	7.3072	11.1987	11.4311	103.4	94.8	96.9
mp-555251	dynamic	-1.5579	-1.5579	9.9479	8.2475	5.0097	90.0	90.0	90.0
mp-651707	box	-1.5579	-1.5579	4.979	12.5265	23.6705	100.7	96.0	101.4
mp-600067	dynamic	-1.5578	-1.5578	13.5574	13.5574	21.5009	90.0	90.0	90.0
mp-1249637	dynamic	-1.5578	-1.5578	22.3596	13.3385	12.314	90.0	109.9	90.0
mp-1249637	static	-1.5578	-1.5578	22.3608	13.3383	12.3142	90.0	109.9	90.0
mp-553945	dynamic	-1.5575	-1.5575	13.7439	4.9877	25.0784	90.0	90.0	90.0
mp-553945	static	-1.5575	-1.5575	13.744	4.9877	25.0781	90.0	90.0	90.0
mp-556654	dynamic	-1.5575	-1.5575	13.6694	4.937	17.1804	90.0	104.5	90.0
mp-556654	static	-1.5575	-1.5575	13.6694	4.937	17.18	90.0	104.5	90.0
mp-733790	box	-1.5574	-1.5574	8.5132	8.5903	16.2914	91.5	90.0	119.7
mp-600014	box	-1.5573	-1.5573	7.4805	12.8562	13.3799	90.0	90.0	90.0
mp-639558	static	-1.5573	-1.5573	13.3131	21.0141	12.5435	90.0	90.0	90.0
mp-556218	box	-1.5572	-1.5572	13.899	17.1695	5.0221	90.0	90.0	90.0
mp-557894	dynamic	-1.5571	-1.5571	7.3094	21.6216	11.4359	90.0	94.8	90.0
mp-559550	box	-1.557	-1.557	12.4164	12.4164	7.0442	90.0	90.0	120.0
mp-1250639	static	-1.557	-1.557	13.7389	13.739	40.5824	90.0	90.0	120.0
mp-1258196	static	-1.557	-1.557	11.0925	13.6434	13.6542	60.0	90.0	90.0
mp-557894	static	-1.5569	-1.5569	7.3176	21.6522	11.4561	90.0	94.7	90.0
mp-1250551	static	-1.5569	-1.5569	13.5739	23.812	18.0274	90.0	90.0	90.0
mp-600024	dynamic	-1.5569	-1.5569	8.4308	14.0669	15.8888	90.0	90.0	90.0
mp-600024	static	-1.5569	-1.5569	8.4308	14.0662	15.8889	90.0	90.0	90.0
mp-556454	dynamic	-1.5568	-1.5568	16.1962	20.0411	5.0032	90.0	90.0	90.0
mp-556454	static	-1.5568	-1.5568	16.197	20.0402	5.0032	90.0	90.0	90.0
mp-32895	dynamic	-1.5568	-1.5568	24.2205	24.2205	24.2205	90.0	90.0	90.0
mp-667371	static	-1.5568	-1.5568	12.0735	28.8286	8.3095	90.0	90.0	90.0
mp-600052	static	-1.5568	-1.5568	9.6842	25.3285	8.2526	90.0	90.0	90.0
mp-667383	static	-1.5568	-1.5568	24.5478	8.374	16.5468	90.0	119.6	90.0
mp-985590	box	-1.5567	-1.5567	4.9291	8.6622	8.6116	90.0	90.0	90.0
mp-556591	dynamic	-1.5567	-1.5567	13.4316	17.6292	17.7381	90.0	90.0	90.0
mp-662706	box	-1.5567	-1.5567	30.0045	8.304	12.3673	90.0	106.4	90.0
mp-667377	static	-1.5567	-1.5567	8.3862	24.2275	28.9425	90.0	90.0	90.0
mp-557881	dynamic	-1.5567	-1.5567	10.1341	14.9638	8.8204	90.0	105.2	90.0
mp-557881	static	-1.5567	-1.5567	10.1343	14.9637	8.8203	90.0	105.2	90.0
mp-600067	static	-1.5567	-1.5567	13.4721	13.4721	21.7245	90.0	90.0	90.0
mp-639511	dynamic	-1.5565	-1.5565	13.9103	13.9103	9.873	90.0	90.0	90.0
mp-639511	static	-1.5565	-1.5565	13.91	13.91	9.8732	90.0	90.0	90.0
mp-667376	static	-1.5565	-1.5565	8.3468	24.4789	28.8143	90.0	90.0	90.0
mp-644923	static	-1.5565	-1.5565	19.9147	19.9147	13.4767	90.0	90.0	90.0
mp-556591	static	-1.5564	-1.5564	13.4634	17.5885	17.8247	90.0	90.0	90.0
mp-16964	box	-1.5564	-1.5564	13.7978	17.2507	5.0073	90.0	90.0	90.0
mp-32895	static	-1.5563	-1.5563	24.2248	24.2248	24.2248	90.0	90.0	90.0
mp-1249090	dynamic	-1.5561	-1.5561	13.0371	13.0371	15.554	90.0	90.0	120.0
mp-600022	box	-1.5561	-1.5561	13.4206	22.0121	6.8953	90.0	90.0	90.0
mp-639724	dynamic	-1.556	-1.556	9.7927	13.9665	13.9107	90.0	90.0	90.0
mp-639724	static	-1.556	-1.556	9.793	13.9663	13.9105	90.0	90.0	90.0
mp-1249090	static	-1.5559	-1.5559	13.0496	13.0496	15.5894	90.0	90.0	120.0
mp-600070	dynamic	-1.5559	-1.5559	6.9213	14.8855	17.2988	90.0	90.0	90.0
mp-600070	static	-1.5559	-1.5559	6.9213	14.8855	17.2984	90.0	90.0	90.0
mp-600015	dynamic	-1.5559	-1.5559	13.479	13.479	7.5805	90.0	90.0	90.0
mp-556469	box	-1.5559	-1.5559	4.9947	12.431	14.765	103.0	91.1	100.6
mp-639511	box	-1.5557	-1.5557	13.8676	13.8676	9.8562	90.0	90.0	90.0
mp-557004	dynamic	-1.5557	-1.5557	8.8183	9.0567	9.059	111.8	98.5	98.5
mp-560064	dynamic	-1.5557	-1.5557	17.5686	17.6187	14.1513	90.0	112.6	90.0
mp-557004	static	-1.5557	-1.5557	8.8099	9.0383	9.0775	111.7	98.2	98.9
mp-639741	dynamic	-1.5556	-1.5556	14.8223	14.8223	14.8223	90.0	90.0	90.0
mp-639741	static	-1.5556	-1.5556	14.8217	14.8217	14.8217	90.0	90.0	90.0
mp-600084	static	-1.5555	-1.5555	14.7062	27.2022	8.2575	90.0	90.0	90.0
mp-600098	dynamic	-1.5555	-1.5555	9.7509	13.9777	27.8976	90.0	90.0	90.0
mp-600098	static	-1.5555	-1.5555	9.7513	13.9779	27.8975	90.0	90.0	90.0
mp-1249969	dynamic	-1.5554	-1.5554	9.2594	11.1442	13.0065	104.5	106.9	92.5
mp-639724	box	-1.5554	-1.5554	9.7592	13.9317	13.9006	90.0	90.0	90.0
mp-1249969	static	-1.5554	-1.5554	9.2663	11.1482	12.9906	104.4	106.7	92.6
mp-600054	dynamic	-1.5554	-1.5554	12.4108	12.4108	26.2972	90.0	90.0	90.0
mp-600054	static	-1.5554	-1.5554	12.4113	12.4113	26.2966	90.0	90.0	90.0
mp-17909	dynamic	-1.5553	-1.5553	13.5548	13.5548	14.6358	90.0	90.0	120.0
mp-600032	dynamic	-1.5553	-1.5553	13.5615	12.5077	18.306	90.0	90.0	90.0
mp-17909	static	-1.5553	-1.5553	13.5374	13.5374	14.6782	90.0	90.0	120.0
mp-560941	dynamic	-1.5553	-1.5553	20.4767	9.6816	19.5557	90.0	90.0	90.0
mp-560941	static	-1.5553	-1.5553	20.4765	9.6819	19.5562	90.0	90.0	90.0
mp-542814	static	-1.5551	-1.5551	4.8749	8.1416	26.1806	90.0	90.0	90.0
mp-600016	dynamic	-1.5551	-1.5551	9.7121	9.7121	10.0644	90.0	90.0	90.0
mp-556454	box	-1.555	-1.555	16.2688	20.0924	5.0268	90.0	90.0	90.0
mp-18280	static	-1.555	-1.555	13.9337	13.5094	7.3689	90.0	102.5	90.0
mp-600016	box	-1.555	-1.555	9.7052	9.7052	10.0527	90.0	90.0	90.0
mp-555165	dynamic	-1.5549	-1.5549	8.8856	8.8856	16.034	90.0	90.0	90.0
mp-555165	static	-1.5549	-1.5549	8.885	8.885	16.034	90.0	90.0	90.0
mp-17279	box	-1.5549	-1.5549	18.4745	13.4231	7.6099	90.0	101.3	90.0
mp-558947	dynamic	-1.5549	-1.5549	19.2026	19.2026	7.3338	90.0	90.0	90.0
mp-558947	static	-1.5549	-1.5549	19.2024	19.2024	7.334	90.0	90.0	90.0
mp-557264	box	-1.5548	-1.5548	8.7566	8.4176	10.2758	90.0	90.0	90.0
mp-600098	box	-1.5548	-1.5548	9.7838	13.9334	27.8684	90.0	90.0	90.0
mp-556591	box	-1.5548	-1.5548	13.4713	17.5171	17.7447	90.0	90.0	90.0
mp-680204	static	-1.5548	-1.5548	7.2754	9.5142	15.8139	106.7	90.0	92.5
mp-1250639	box	-1.5547	-1.5547	13.7705	13.7706	40.6794	90.0	90.0	120.0
mp-600032	box	-1.5547	-1.5547	13.5376	12.4949	18.275	90.0	90.0	90.0
mp-639741	box	-1.5546	-1.5546	14.7746	14.7746	14.7746	90.0	90.0	90.0
mp-600072	dynamic	-1.5546	-1.5546	18.3517	18.3517	9.2367	90.0	90.0	90.0
mp-17909	box	-1.5546	-1.5546	13.489	13.489	14.7114	90.0	90.0	120.0
mp-985570	box	-1.5546	-1.5546	5.086	8.0781	9.3062	90.0	120.0	90.0
mp-600059	box	-1.5546	-1.5546	12.9487	12.9487	4.9611	90.0	90.0	90.0
mp-600015	box	-1.5546	-1.5546	13.5249	13.5249	7.5657	90.0	90.0	90.0
mp-6922	static	-1.5545	-1.5545	5.0478	5.0478	5.4327	90.0	90.0	120.0
mp-6922	box	-1.5545	-1.5545	5.047	5.047	5.433	90.0	90.0	120.0
mp-10851	box	-1.5545	-1.5545	5.0467	5.0467	5.4331	90.0	90.0	120.0
mp-558326	dynamic	-1.5545	-1.5545	14.6786	18.7904	13.9554	90.0	90.0	90.0
mp-560064	static	-1.5545	-1.5545	17.6397	17.7132	14.3438	90.0	114.0	90.0
mp-1250261	dynamic	-1.5545	-1.5545	12.9904	12.9904	7.4603	90.0	90.0	120.0
mp-1250261	static	-1.5545	-1.5545	12.9875	12.9875	7.4667	90.0	90.0	120.0
mp-1249332	dynamic	-1.5544	-1.5544	12.9826	12.9826	14.9442	90.0	90.0	120.0
mp-1249332	static	-1.5544	-1.5544	12.9823	12.9823	14.9446	90.0	90.0	120.0
mp-1256614	dynamic	-1.5544	-1.5544	18.042	18.042	7.5186	90.0	90.0	120.0
mp-1256614	static	-1.5543	-1.5543	18.0456	18.0456	7.5143	90.0	90.0	120.0
mp-600028	dynamic	-1.5543	-1.5543	13.4304	13.4304	13.4304	90.0	90.0	90.0
mp-600052	box	-1.5542	-1.5542	9.6669	25.4658	8.322	90.0	90.0	90.0
mp-1258196	box	-1.5541	-1.5541	11.1652	13.7448	13.7497	120.0	90.0	90.0
mp-555251	box	-1.5541	-1.5541	9.7822	8.4393	5.0681	90.0	90.0	90.0
mp-1195265	box	-1.554	-1.554	13.2958	19.6849	20.0523	90.0	90.0	90.0
mp-555521	static	-1.5539	-1.5539	10.172	10.172	33.971	90.0	90.0	90.0
mp-639478	static	-1.5539	-1.5539	11.8061	11.8061	11.8061	90.0	90.0	90.0
mp-558025	static	-1.5539	-1.5539	7.3655	13.9972	18.4086	90.0	90.0	90.0
mp-600060	static	-1.5539	-1.5539	9.6452	12.1017	22.4401	90.0	90.0	90.0
mp-600083	static	-1.5538	-1.5538	7.4924	17.9974	25.7222	90.0	90.0	90.0
mp-1268079	dynamic	-1.5538	-1.5538	13.0418	21.5788	16.697	90.0	127.0	90.0
mp-600028	box	-1.5538	-1.5538	13.4011	13.4011	13.4011	90.0	90.0	90.0
mp-558115	static	-1.5538	-1.5538	13.6671	13.6671	41.3328	90.0	90.0	120.0
mp-600061	static	-1.5537	-1.5537	19.7149	7.484	9.0606	90.0	90.0	90.0
mp-558326	static	-1.5537	-1.5537	14.7783	18.7005	14.1416	90.0	90.0	90.0
mp-530546	static	-1.5536	-1.5536	16.8007	16.8007	12.6588	90.0	90.0	120.0
mp-555235	box	-1.5536	-1.5536	5.0162	8.5745	8.2664	90.0	92.0	90.0
mp-554755	static	-1.5536	-1.5536	12.5942	12.5942	13.0871	90.0	90.0	90.0
mp-639558	box	-1.5535	-1.5535	13.4131	20.9745	12.4517	90.0	90.0	90.0
mp-558351	static	-1.5535	-1.5535	10.4404	14.8272	8.8505	90.0	105.3	90.0
mp-600057	dynamic	-1.5535	-1.5535	10.186	12.414	21.718	90.0	90.0	90.0
mp-600055	static	-1.5535	-1.5535	12.4704	11.5238	21.7606	90.0	90.0	90.0
mp-600057	static	-1.5535	-1.5535	10.1665	12.4389	21.7102	90.0	90.0	90.0
mp-557933	static	-1.5534	-1.5534	8.2101	14.3883	20.1144	90.0	90.0	90.0
mp-554946	box	-1.5534	-1.5534	19.9448	20.0868	13.3453	90.0	90.0	90.0
mp-600085	static	-1.5533	-1.5533	12.0355	12.0355	28.4185	90.0	90.0	90.0
mp-1268079	static	-1.5532	-1.5532	13.0405	21.5766	16.7674	90.0	126.9	90.0
mp-639695	static	-1.5532	-1.5532	14.2422	7.1082	9.0126	90.0	90.0	90.0
mp-600007	static	-1.5532	-1.5532	9.8742	7.437	9.3437	90.0	90.0	90.0
mp-18280	box	-1.5529	-1.5529	13.9624	13.5463	7.4175	90.0	102.4	90.0
mp-559360	box	-1.5529	-1.5529	7.369	19.394	9.6567	90.0	98.8	90.0
mp-600072	box	-1.5529	-1.5529	18.2585	18.2585	9.2368	90.0	90.0	90.0
mp-7648	static	-1.5526	-1.5526	4.8443	8.7758	8.1042	90.0	90.0	90.0
mp-972808	static	-1.5526	-1.5526	4.8477	8.1132	5.0043	90.0	118.8	90.0
mp-555891	static	-1.5525	-1.5525	4.8496	8.1157	4.9999	90.0	118.7	90.0
mp-639478	box	-1.5525	-1.5525	11.7984	11.7984	11.7984	90.0	90.0	90.0
mp-560708	box	-1.5523	-1.5523	12.3362	8.4324	15.0172	90.0	105.7	90.0
mp-600061	box	-1.5523	-1.5523	19.671	7.5226	9.0078	90.0	90.0	90.0
mp-1200292	box	-1.5523	-1.5523	13.388	20.1565	23.8971	90.0	123.4	90.0
mp-557004	box	-1.5523	-1.5523	8.839	9.0605	9.0983	111.6	98.1	99.0
mp-559872	box	-1.5523	-1.5523	7.4652	7.4652	8.6524	90.0	90.0	90.0
mp-555211	static	-1.5522	-1.5522	14.0235	14.0235	10.2244	90.0	90.0	90.0
mp-560998	static	-1.5522	-1.5522	14.2823	18.7459	7.3912	90.0	90.0	90.0
mp-558947	box	-1.552	-1.552	19.2904	19.2904	7.3781	90.0	90.0	90.0
mp-600080	static	-1.552	-1.552	12.8681	12.8681	25.2883	90.0	90.0	90.0
mp-561181	box	-1.5519	-1.5519	12.4704	20.9867	13.4208	90.0	90.0	90.0
mp-560941	box	-1.5519	-1.5519	20.3968	9.7545	19.6379	90.0	90.0	90.0
mp-600071	dynamic	-1.5519	-1.5519	9.4187	19.0107	14.674	90.0	90.0	90.0
mp-600084	box	-1.5519	-1.5519	14.6299	27.1777	8.2579	90.0	90.0	90.0
mp-600071	static	-1.5519	-1.5519	9.3983	19.0144	14.6995	90.0	90.0	90.0
mp-667368	static	-1.5519	-1.5519	8.4199	18.9128	23.0518	90.0	90.0	90.0
mp-553945	box	-1.5518	-1.5518	13.8194	5.0737	25.3854	90.0	90.0	90.0
mp-556654	box	-1.5518	-1.5518	13.7573	4.9424	17.2104	90.0	106.2	90.0
mp-1250551	box	-1.5518	-1.5518	13.6399	23.8924	18.1122	90.0	90.0	90.0
mp-600007	box	-1.5517	-1.5517	9.6913	7.4656	9.3936	90.0	90.0	90.0
mp-600051	dynamic	-1.5516	-1.5516	9.4104	14.6754	19.0231	90.0	90.0	90.0
mp-600051	static	-1.5516	-1.5516	9.4097	14.6771	19.022	90.0	90.0	90.0
mp-667371	box	-1.5515	-1.5515	12.2831	28.6573	8.2886	90.0	90.0	90.0
mp-560064	box	-1.5515	-1.5515	17.5892	17.6817	14.3508	90.0	114.0	90.0
mp-555211	box	-1.5515	-1.5515	14.0784	14.0784	10.1782	90.0	90.0	90.0
mp-600024	box	-1.5514	-1.5514	8.3687	13.8508	15.7739	90.0	90.0	90.0
mp-600054	box	-1.5513	-1.5513	12.5184	12.5184	26.052	90.0	90.0	90.0
mp-639695	box	-1.5513	-1.5513	14.176	7.0848	8.9961	90.0	90.0	90.0
mp-554682	box	-1.5512	-1.5512	20.0916	20.0916	13.3873	90.0	90.0	90.0
mp-639506	static	-1.5512	-1.5512	8.0309	9.1003	16.9956	90.0	90.0	90.0
mp-667373	box	-1.5512	-1.5512	8.4413	12.3349	28.8965	90.0	90.0	90.0
mp-558326	box	-1.5512	-1.5512	14.8862	18.6015	14.1364	90.0	90.0	90.0
mp-1199998	static	-1.5511	-1.5511	29.067	13.8784	12.4066	90.0	104.8	90.0
mp-556882	static	-1.5511	-1.5511	8.6973	8.138	8.6746	90.0	90.5	90.0
mp-1250261	box	-1.551	-1.551	12.9384	12.9384	7.521	90.0	90.0	120.0
mp-557881	box	-1.551	-1.551	10.3554	14.9963	8.8676	90.0	105.6	90.0
mp-600055	box	-1.551	-1.551	12.4406	11.5515	21.8521	90.0	90.0	90.0
mp-1203655	static	-1.5509	-1.5509	15.3524	15.3524	11.7941	90.0	90.0	90.0
mp-600060	box	-1.5509	-1.5509	9.628	12.1229	22.592	90.0	90.0	90.0
mp-1257168	static	-1.5509	-1.5509	11.9582	11.9582	29.7376	90.0	90.0	120.0
mp-600003	static	-1.5509	-1.5509	12.912	12.912	5.2468	90.0	90.0	90.0
mp-1249332	box	-1.5509	-1.5509	12.9093	12.9093	15.0556	90.0	90.0	120.0
mp-32895	box	-1.5509	-1.5509	24.108	24.108	24.108	90.0	90.0	90.0
mp-1249637	box	-1.5509	-1.5509	22.4205	13.3895	12.3615	90.0	110.8	90.0
mp-600083	box	-1.5509	-1.5509	7.4995	17.9764	25.7094	90.0	90.0	90.0
mp-560336	static	-1.5508	-1.5508	8.3679	18.9556	23.188	90.0	90.0	90.0
mp-600063	static	-1.5507	-1.5507	17.9508	20.3816	7.4792	90.0	90.0	90.0
mp-557211	static	-1.5507	-1.5507	13.5128	13.5128	8.9885	90.0	90.0	120.0
mp-600076	static	-1.5507	-1.5507	8.7274	8.7274	27.648	90.0	90.0	90.0
mp-8059	static	-1.5506	-1.5506	7.0097	7.0097	7.0097	90.0	90.0	90.0
mp-600070	box	-1.5506	-1.5506	6.8718	14.9789	17.058	90.0	90.0	90.0
mp-600003	box	-1.5506	-1.5506	12.9464	12.9464	5.2292	90.0	90.0	90.0
mp-558351	box	-1.5505	-1.5505	10.3604	15.0406	8.8626	90.0	105.6	90.0
mp-600002	static	-1.5502	-1.5502	7.0514	7.0514	8.8924	90.0	90.0	90.0
mp-560998	box	-1.5502	-1.5502	14.2214	18.6947	7.4821	90.0	90.0	90.0
mp-532105	static	-1.5502	-1.5502	17.0221	17.0221	12.6554	90.0	90.0	120.0
mp-1249090	box	-1.5501	-1.5501	12.9737	12.9737	15.5975	90.0	90.0	120.0
mp-600049	static	-1.5501	-1.5501	8.7037	11.6437	17.1543	90.0	90.0	90.0
mp-554755	box	-1.5499	-1.5499	12.5442	12.5442	13.1636	90.0	90.0	90.0
mp-639733	dynamic	-1.5499	-1.5499	8.9633	9.1098	15.9377	90.0	90.0	90.0
mp-639733	static	-1.5499	-1.5499	8.9636	9.1099	15.9379	90.0	90.0	90.0
mp-560920	static	-1.5498	-1.5498	19.0286	22.624	8.3751	90.0	90.0	90.0
mp-558025	box	-1.5498	-1.5498	7.4149	14.0661	18.5356	90.0	90.0	90.0
mp-530546	box	-1.5498	-1.5498	16.9143	16.9143	12.6576	90.0	90.0	120.0
mp-644923	box	-1.5494	-1.5494	20.0232	20.0232	13.4455	90.0	90.0	90.0
mp-8059	box	-1.5494	-1.5494	7.0248	7.0248	7.0248	90.0	90.0	90.0
mp-1249969	box	-1.5494	-1.5494	9.2353	11.0467	12.9077	103.3	107.9	92.2
mp-600091	static	-1.5494	-1.5494	7.4888	14.2077	18.8417	90.0	90.0	90.0
mp-972808	box	-1.5493	-1.5493	4.8814	8.1292	4.9747	90.0	118.3	90.0
mp-600031	static	-1.5492	-1.5492	8.2729	18.6725	13.2592	90.0	90.0	90.0
mp-555165	box	-1.5492	-1.5492	8.8214	8.8214	15.7777	90.0	90.0	90.0
mp-600063	box	-1.5491	-1.5491	17.9619	20.4476	7.4691	90.0	90.0	90.0
mp-556262	box	-1.5491	-1.5491	7.3643	11.2869	11.4638	104.5	94.1	96.1
mp-558115	box	-1.549	-1.549	13.7229	13.7229	41.4586	90.0	90.0	120.0
mp-560155	static	-1.549	-1.549	7.3286	8.8092	17.1687	90.0	114.5	90.0
mp-646895	box	-1.549	-1.549	5.0399	33.8997	21.1318	90.0	90.9	90.0
mp-600027	static	-1.549	-1.549	13.0001	21.4197	5.2383	90.0	90.0	90.0
mp-557211	box	-1.5487	-1.5487	13.5552	13.5552	8.9122	90.0	90.0	120.0
mp-1268079	box	-1.5486	-1.5486	13.0974	21.6205	16.7932	90.0	127.0	90.0
mp-532105	box	-1.5485	-1.5485	17.0276	17.0276	12.6934	90.0	90.0	120.0
mp-667383	box	-1.5485	-1.5485	24.9034	8.5088	16.6644	90.0	120.1	90.0
mp-555521	box	-1.5483	-1.5483	10.2336	10.2336	34.4187	90.0	90.0	90.0
mp-600080	box	-1.5483	-1.5483	12.8443	12.8443	25.272	90.0	90.0	90.0
mp-555740	static	-1.5482	-1.5482	8.5398	8.5398	8.5398	90.0	90.0	90.0
mp-653763	static	-1.5482	-1.5482	13.8089	22.5622	19.8786	90.0	90.0	90.0
mp-557933	box	-1.5481	-1.5481	8.3185	14.4683	20.25	90.0	90.0	90.0
mp-667376	box	-1.5481	-1.5481	8.383	24.6499	28.7098	90.0	90.0	90.0
mp-600002	box	-1.5479	-1.5479	7.0777	7.0777	8.8109	90.0	90.0	90.0
mp-600027	box	-1.5478	-1.5478	13.0146	21.3729	5.2349	90.0	90.0	90.0
mp-555700	static	-1.5475	-1.5475	9.1618	9.1618	20.0977	90.0	90.0	90.0
mp-600085	box	-1.5475	-1.5475	12.0401	12.0401	28.3558	90.0	90.0	90.0
mp-600091	box	-1.5474	-1.5474	7.4747	14.251	18.8284	90.0	90.0	90.0
mp-559347	static	-1.5474	-1.5474	9.0122	9.0122	7.9907	90.0	90.0	90.0
mp-600057	box	-1.5473	-1.5473	10.0673	12.5006	21.6275	90.0	90.0	90.0
mp-1256614	box	-1.5472	-1.5472	17.8694	17.8694	7.4829	90.0	90.0	120.0
mp-600071	box	-1.547	-1.547	9.1899	19.0428	14.8514	90.0	90.0	90.0
mp-1248957	box	-1.547	-1.547	13.9289	18.2942	7.4505	90.0	99.3	90.0
mp-562490	static	-1.5468	-1.5468	10.9927	8.2321	5.0048	90.0	113.5	90.0
mp-600006	static	-1.5467	-1.5467	8.5779	8.5779	13.9337	90.0	90.0	90.0
mp-600109	static	-1.5466	-1.5466	9.9089	9.9089	34.0773	90.0	90.0	90.0
mp-546546	dynamic	-1.5465	-1.5465	7.8596	7.8596	7.8703	90.0	90.0	120.0
mp-557894	box	-1.5465	-1.5465	7.4155	21.955	11.4371	90.0	94.6	90.0
mp-600031	box	-1.5464	-1.5464	8.2985	18.5952	13.3909	90.0	90.0	90.0
mp-557837	static	-1.5464	-1.5464	8.8292	4.8397	8.7316	90.0	113.4	90.0
mp-639480	static	-1.5462	-1.5462	7.1026	7.1026	20.9612	90.0	90.0	90.0
mp-600067	box	-1.5462	-1.5462	13.312	13.312	21.73	90.0	90.0	90.0
mp-559091	static	-1.5461	-1.5461	4.9592	4.9592	8.5343	90.0	90.0	120.0
mp-542814	box	-1.546	-1.546	4.879	8.2097	26.1781	90.0	90.0	90.0
mp-600038	static	-1.5459	-1.5459	13.7768	6.8907	6.3763	90.0	90.0	90.0
mp-639705	static	-1.5459	-1.5459	13.7664	13.7664	6.3878	90.0	90.0	90.0
mp-557118	dynamic	-1.5459	-1.5459	7.682	8.6424	4.7631	90.0	90.0	90.0
mp-1199998	box	-1.5458	-1.5458	28.8823	13.8759	12.3215	90.0	105.0	90.0
mp-554258	static	-1.5458	-1.5458	13.9221	13.9221	8.9544	90.0	90.0	90.0
mp-639506	box	-1.5458	-1.5458	8.0732	9.069	17.2392	90.0	90.0	90.0
mp-1257168	box	-1.5456	-1.5456	11.8845	11.8845	29.4806	90.0	90.0	120.0
mp-15078	box	-1.5456	-1.5456	7.4657	14.1365	18.8948	90.0	90.0	90.0
mp-600001	static	-1.5456	-1.5456	6.8911	6.8911	6.374	90.0	90.0	90.0
mp-680204	box	-1.5456	-1.5456	7.3337	9.5465	15.9984	72.7	89.5	88.4
mp-1203655	box	-1.5455	-1.5455	15.1979	15.1979	11.8177	90.0	90.0	90.0
mp-1179447	static	-1.5451	-1.5451	7.0706	7.0706	17.727	90.0	90.0	90.0
mp-560203	dynamic	-1.5449	-1.5449	8.7144	10.5505	4.9091	90.0	90.0	90.0
mp-557837	box	-1.5449	-1.5449	8.8591	4.8393	8.6688	90.0	113.4	90.0
mp-600051	box	-1.5447	-1.5447	9.1029	14.9277	19.0824	90.0	90.0	90.0
mp-1201887	static	-1.5446	-1.5446	13.7035	13.7035	8.5245	90.0	90.0	120.0
mp-667377	box	-1.5445	-1.5445	8.3371	24.6667	28.8637	90.0	90.0	90.0
mp-600068	dynamic	-1.5445	-1.5445	10.237	11.9917	10.0701	90.0	90.0	90.0
mp-562490	box	-1.5443	-1.5443	10.8441	8.3698	5.0478	90.0	113.8	90.0
mp-1179447	box	-1.5443	-1.5443	7.0545	7.0545	17.8026	90.0	90.0	90.0
mp-554258	box	-1.5442	-1.5442	13.9731	13.9731	8.9425	90.0	90.0	90.0
mp-600065	static	-1.5441	-1.5441	18.0516	13.7235	9.6522	90.0	90.0	90.0
mp-600076	box	-1.5438	-1.5438	8.5271	8.5271	27.6981	90.0	90.0	90.0
mp-560336	box	-1.5437	-1.5437	8.4606	19.0178	23.131	90.0	90.0	90.0
mp-667368	box	-1.5437	-1.5437	8.5397	19.0552	23.0932	90.0	90.0	90.0
mp-600078	static	-1.5436	-1.5436	7.1084	7.1084	41.8978	90.0	90.0	90.0
mp-1201887	box	-1.5435	-1.5435	13.7054	13.7054	8.5461	90.0	90.0	120.0
mp-600045	static	-1.5434	-1.5434	9.2054	19.3313	10.2329	90.0	90.0	90.0
mp-1204057	box	-1.5433	-1.5433	14.2458	14.2458	24.988	90.0	90.0	120.0
mp-639748	dynamic	-1.5433	-1.5433	14.6685	8.6284	19.0513	90.0	90.0	90.0
mp-639748	static	-1.5433	-1.5433	14.6683	8.6284	19.0514	90.0	90.0	90.0
mp-555700	box	-1.5432	-1.5432	9.1161	9.1161	20.4652	90.0	90.0	90.0
mp-558374	dynamic	-1.5432	-1.5432	10.3734	10.3734	10.3734	90.0	90.0	90.0
mp-600005	static	-1.5431	-1.5431	9.8441	9.8441	9.8441	90.0	90.0	90.0
mp-556882	box	-1.5431	-1.5431	8.7828	7.8511	8.7622	90.0	90.1	90.0
mp-558374	static	-1.5431	-1.5431	10.3479	10.3479	10.3479	90.0	90.0	90.0
mp-639682	static	-1.543	-1.543	7.1457	7.1457	12.0785	90.0	90.0	90.0
mp-11684	dynamic	-1.5428	-1.5428	7.2701	12.5247	7.1666	90.0	119.7	90.0
mp-11684	static	-1.5428	-1.5428	7.2694	12.5189	7.1692	90.0	119.8	90.0
mp-639733	box	-1.5427	-1.5427	8.8468	9.1482	15.9606	90.0	90.0	90.0
mp-639705	box	-1.5427	-1.5427	13.6791	13.6791	6.3676	90.0	90.0	90.0
mp-600038	box	-1.5423	-1.5423	13.6819	6.8446	6.356	90.0	90.0	90.0
mp-600005	box	-1.5422	-1.5422	9.8155	9.8155	9.8155	90.0	90.0	90.0
mp-557930	dynamic	-1.5421	-1.5421	9.2787	9.2787	7.8562	90.0	90.0	90.0
mp-600001	box	-1.5421	-1.5421	6.8444	6.8444	6.3555	90.0	90.0	90.0
mp-600049	box	-1.5421	-1.5421	8.6016	11.4205	17.2456	90.0	90.0	90.0
mp-600041	static	-1.542	-1.542	8.6357	19.8127	10.1305	90.0	90.0	90.0
mp-559091	box	-1.5419	-1.5419	5.034	5.034	8.5479	90.0	90.0	120.0
mp-557930	static	-1.5419	-1.5419	9.2662	9.2662	7.9781	90.0	90.0	90.0
mp-600065	box	-1.5417	-1.5417	18.0231	13.7061	9.6582	90.0	90.0	90.0
mp-680222	dynamic	-1.5416	-1.5416	22.4762	22.4762	9.9935	90.0	90.0	120.0
mp-680222	static	-1.5416	-1.5416	22.4754	22.4754	9.9942	90.0	90.0	120.0
mp-1201738	static	-1.5415	-1.5415	7.1676	25.02	7.2353	90.0	119.3	90.0
mp-615993	static	-1.5411	-1.5411	25.3421	5.2525	11.9667	90.0	108.8	90.0
mp-559347	box	-1.5409	-1.5409	8.9285	8.9285	7.9877	90.0	90.0	90.0
mp-639463	static	-1.5408	-1.5408	5.2542	7.3075	8.1293	90.0	90.0	90.0
mp-560920	box	-1.5405	-1.5405	19.0903	23.0961	8.4827	90.0	90.0	90.0
mp-600041	box	-1.5403	-1.5403	8.6606	19.8954	10.0933	90.0	90.0	90.0
mp-1188220	box	-1.5396	-1.5396	8.8846	8.8846	8.8846	90.0	90.0	90.0
mp-639463	box	-1.5394	-1.5394	5.2423	7.3852	8.1158	90.0	90.0	90.0
mp-639480	box	-1.5387	-1.5387	7.1042	7.1042	20.6715	90.0	90.0	90.0
mp-600109	box	-1.5386	-1.5386	9.8975	9.8975	33.909	90.0	90.0	90.0
mp-600006	box	-1.5378	-1.5378	8.3685	8.3685	13.9984	90.0	90.0	90.0
mp-557118	box	-1.5375	-1.5375	7.877	8.5255	4.7592	90.0	90.0	90.0
mp-560973	box	-1.5374	-1.5374	7.4707	18.7852	13.9603	90.0	90.0	90.0
mp-560527	static	-1.5374	-1.5374	9.614	10.2803	8.9806	90.0	90.0	90.0
mp-557465	static	-1.5374	-1.5374	4.7325	7.9724	8.6207	90.0	90.0	90.0
mp-560155	box	-1.5368	-1.5368	7.3968	8.6393	17.2179	90.0	114.0	90.0
mp-600078	box	-1.5363	-1.5363	7.0727	7.0727	41.6681	90.0	90.0	90.0
mp-560527	box	-1.5363	-1.5363	9.512	10.3548	8.9534	90.0	90.0	90.0
mp-600045	box	-1.5363	-1.5363	8.8632	19.2269	10.3636	90.0	90.0	90.0
mp-600000	box	-1.5362	-1.5362	5.2183	9.4935	8.915	90.0	90.0	90.0
mp-615993	box	-1.5361	-1.5361	25.3727	5.243	12.1197	90.0	108.8	90.0
mp-555740	box	-1.5361	-1.5361	8.4105	8.4105	8.4105	90.0	90.0	90.0
mp-639512	static	-1.5359	-1.5359	13.4597	13.4597	13.4597	90.0	90.0	90.0
mp-546546	box	-1.5357	-1.5357	7.8264	7.8264	7.8361	90.0	90.0	120.0
mp-600033	static	-1.5356	-1.5356	8.9032	8.9032	8.9032	90.0	90.0	90.0
mp-653763	box	-1.5355	-1.5355	13.8313	22.5361	20.5715	90.0	90.0	90.0
mp-554267	box	-1.5352	-1.5352	7.7672	7.7672	26.9981	90.0	90.0	90.0
mp-7648	box	-1.5349	-1.5349	4.9698	9.0543	8.1579	90.0	90.0	90.0
mp-559962	static	-1.5349	-1.5349	19.0533	19.0533	19.0533	90.0	90.0	90.0
mp-600068	box	-1.5348	-1.5348	10.1905	11.7628	9.9824	90.0	90.0	90.0
mp-600033	box	-1.5348	-1.5348	8.9209	8.9209	8.9209	90.0	90.0	90.0
mp-639682	box	-1.534	-1.534	7.1203	7.1203	11.9385	90.0	90.0	90.0
mp-600023	static	-1.5338	-1.5338	13.5373	13.5373	13.5373	90.0	90.0	90.0
mp-553993	dynamic	-1.5336	-1.5336	10.1885	10.1885	20.5433	90.0	90.0	90.0
mp-553993	static	-1.5336	-1.5336	10.1855	10.1855	20.5478	90.0	90.0	90.0
mp-555791	dynamic	-1.5333	-1.5333	20.4649	20.4649	20.4649	90.0	90.0	90.0
mp-555791	static	-1.5331	-1.5331	20.4337	20.4337	20.4337	90.0	90.0	90.0
mp-555483	static	-1.533	-1.533	4.7526	9.4082	14.6545	90.0	90.0	90.0
mp-11684	box	-1.533	-1.533	7.1036	12.44	7.0965	90.0	119.3	90.0
mp-600023	box	-1.5329	-1.5329	13.5019	13.5019	13.5019	90.0	90.0	90.0
mp-600111	box	-1.5329	-1.5329	5.2535	34.1258	21.3291	90.0	90.0	90.0

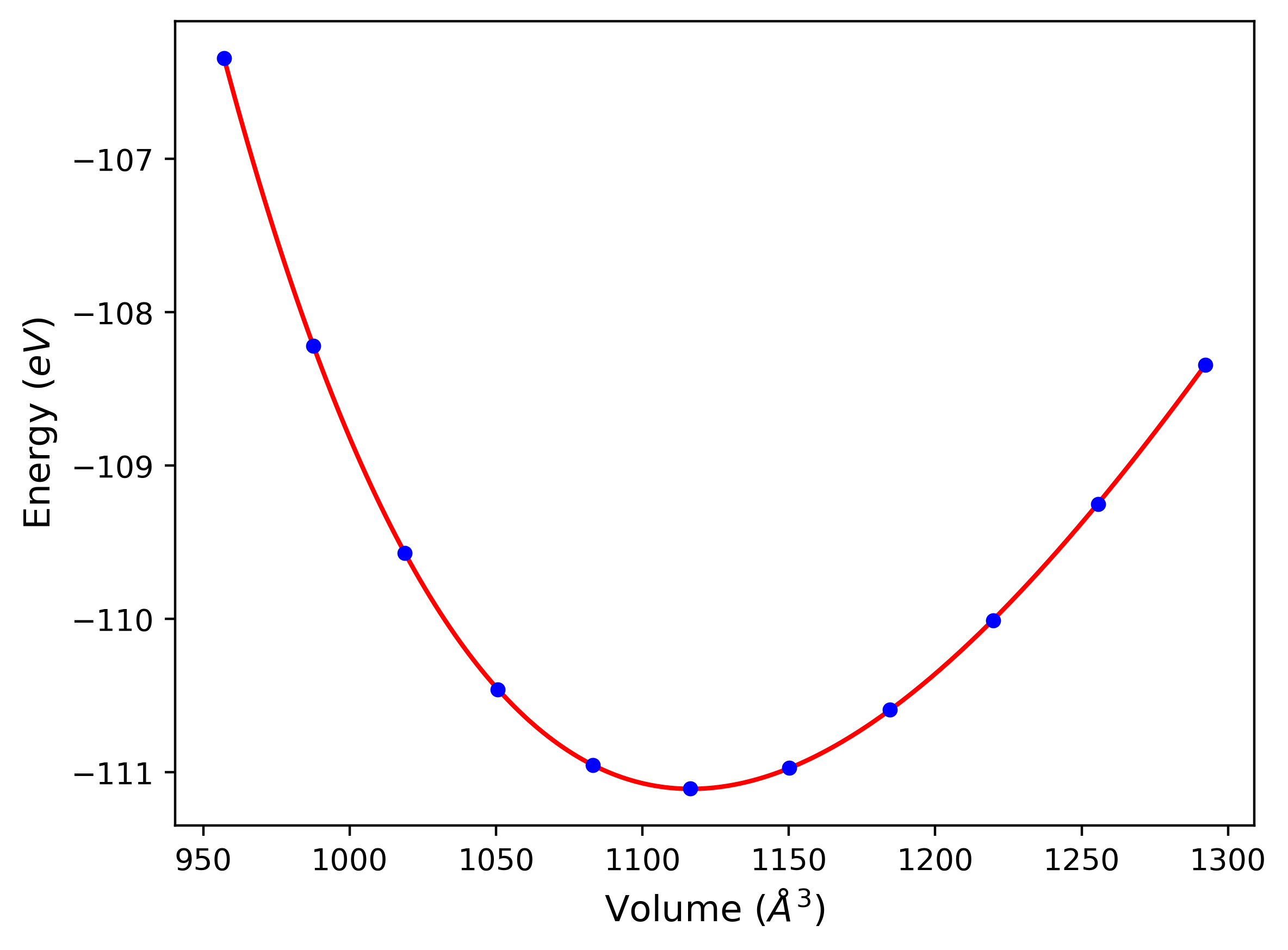

mp-558374	box	-1.5328	-1.5328	10.2947	10.2947	10.2947	90.0	90.0	90.0
mp-557024	dynamic	-1.5322	-1.5322	14.3836	14.3836	14.3836	90.0	90.0	90.0
mp-554543	static	-1.5318	-1.5318	10.0805	10.0805	8.5332	90.0	90.0	90.0
mp-1201738	box	-1.5317	-1.5317	7.1529	24.8615	7.1211	90.0	119.6	90.0
mp-560826	box	-1.5315	-1.5315	13.9382	17.6922	5.2638	90.0	90.0	90.0
mp-558564	static	-1.5314	-1.5314	12.9941	22.6843	4.9635	90.0	104.3	90.0
mp-600037	box	-1.5312	-1.5312	5.2666	13.9097	25.8907	90.0	90.0	90.0
mp-554543	box	-1.5308	-1.5308	10.0662	10.0662	8.5474	90.0	90.0	90.0
mp-561351	box	-1.53	-1.53	5.2617	21.8585	11.2441	90.0	90.0	90.0
mp-639734	box	-1.53	-1.53	18.3661	18.3661	5.2785	90.0	90.0	90.0
mp-557930	box	-1.5295	-1.5295	9.12	9.12	8.125	90.0	90.0	90.0
mp-600018	box	-1.5295	-1.5295	8.5466	15.1535	9.6145	90.0	90.0	90.0
mp-680222	box	-1.5294	-1.5294	22.573	22.573	9.6874	90.0	90.0	120.0
mp-557465	box	-1.5292	-1.5292	4.7366	7.985	8.438	90.0	90.0	90.0
mp-560203	box	-1.5289	-1.5289	8.6704	10.3896	4.7973	90.0	90.0	90.0
mp-639748	box	-1.5286	-1.5286	14.6433	8.5139	18.7347	90.0	90.0	90.0
mp-560809	box	-1.5286	-1.5286	14.5159	20.5745	8.5885	90.0	90.0	90.0
mp-555483	box	-1.5277	-1.5277	4.737	9.2433	14.6842	90.0	90.0	90.0
mp-639512	box	-1.5273	-1.5273	13.6262	13.6262	13.6262	90.0	90.0	90.0
mp-557873	dynamic	-1.5272	-1.5272	4.9023	7.0389	7.0801	114.5	103.3	102.3
mp-557873	static	-1.5272	-1.5272	4.9018	7.0531	7.0855	114.8	103.2	102.2
mp-600053	box	-1.5268	-1.5268	5.2608	22.2247	13.954	90.0	90.0	90.0
mp-600029	static	-1.5268	-1.5268	5.2636	13.9859	17.0421	90.0	90.0	90.0
mp-1256499	dynamic	-1.5264	-1.5264	17.4922	17.4922	17.4922	90.0	90.0	90.0
mp-559962	box	-1.5252	-1.5252	18.9313	18.9313	18.9313	90.0	90.0	90.0
mp-600004	static	-1.525	-1.525	7.4631	16.1133	5.2778	90.0	90.0	90.0
mp-600029	box	-1.5247	-1.5247	5.2661	14.003	17.1146	90.0	90.0	90.0
mp-600004	box	-1.5246	-1.5246	7.4606	16.1319	5.2755	90.0	90.0	90.0
mp-559740	static	-1.5235	-1.5235	9.9934	9.9934	10.2932	90.0	90.0	120.0
mp-554243	static	-1.5234	-1.5234	7.2655	7.2655	7.0094	90.0	90.0	120.0
mp-558200	dynamic	-1.523	-1.523	6.8999	6.8999	7.1132	90.0	90.0	90.0
mp-8602	box	-1.5228	-1.5228	14.1275	14.1275	11.3768	90.0	90.0	120.0
mp-555891	box	-1.5227	-1.5227	5.1214	8.3755	5.1751	90.0	118.8	90.0
mp-554243	box	-1.5224	-1.5224	7.279	7.279	7.0207	90.0	90.0	120.0
mp-559313	box	-1.5212	-1.5212	8.9706	10.2779	9.0173	90.0	90.0	90.0
mp-559928	static	-1.52	-1.52	9.1309	9.1309	5.2743	90.0	90.0	120.0
mp-1179454	static	-1.5196	-1.5196	8.9013	8.9013	5.2797	90.0	90.0	90.0
mp-667448	static	-1.5196	-1.5196	20.0821	20.0821	13.2411	90.0	90.0	90.0
mp-1179454	box	-1.5191	-1.5191	8.9133	8.9133	5.2792	90.0	90.0	90.0
mp-553993	box	-1.5186	-1.5186	9.8021	9.8021	20.9817	90.0	90.0	90.0
mp-555791	box	-1.5179	-1.5179	20.2161	20.2161	20.2161	90.0	90.0	90.0

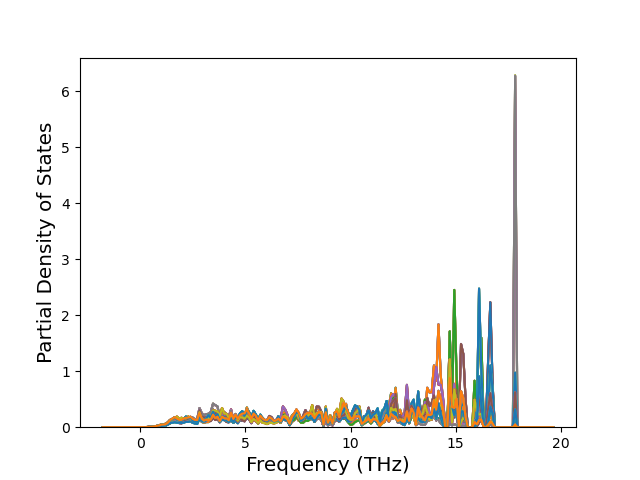

mp-558569	dynamic	-1.5168	-1.5168	13.7953	13.7953	19.8222	90.0	90.0	120.0
mp-558569	static	-1.5165	-1.5165	13.8101	13.8101	19.7406	90.0	90.0	120.0
mp-1244945	dynamic	-1.5163	-1.5163	11.0724	11.2645	11.4205	91.5	92.9	90.8
mp-557591	dynamic	-1.5163	-1.5163	10.8527	10.8527	10.8527	90.0	90.0	90.0
mp-558564	box	-1.514	-1.514	12.7606	22.2818	4.8938	90.0	103.9	90.0
mp-561090	static	-1.5137	-1.5137	19.8292	19.8292	19.8292	90.0	90.0	90.0
mp-561090	box	-1.5131	-1.5131	19.8382	19.8382	19.8382	90.0	90.0	90.0
mp-600026	box	-1.5128	-1.5128	4.9495	8.125	14.1297	90.0	90.0	90.0
mp-1244965	dynamic	-1.5127	-1.5127	10.8225	12.2879	12.3882	91.7	92.8	90.9
mp-1205213	box	-1.5127	-1.5127	14.1562	14.3577	18.9071	90.0	90.0	90.0
mp-556662	dynamic	-1.5116	-1.5116	6.961	7.501	6.7338	90.0	102.4	90.0
mp-559928	box	-1.5116	-1.5116	9.0456	9.0456	5.2736	90.0	90.0	120.0
mp-557024	box	-1.5095	-1.5095	14.1298	14.1298	14.1298	90.0	90.0	90.0
mp-600050	dynamic	-1.5088	-1.5088	20.2567	7.3197	9.8611	90.0	90.0	90.0
mp-600050	static	-1.5088	-1.5088	20.2569	7.3197	9.8608	90.0	90.0	90.0
mp-556553	dynamic	-1.5086	-1.5086	6.9365	8.0517	5.5372	90.0	94.6	90.0
mp-556994	dynamic	-1.5078	-1.5078	5.2066	5.269	6.9981	68.7	74.6	85.3
mp-556994	static	-1.5078	-1.5078	5.2066	5.269	6.9981	68.7	74.6	85.3
mp-1244945	static	-1.5075	-1.5075	11.1361	11.3145	11.4264	88.9	88.4	89.8
mp-1244965	static	-1.5071	-1.5071	10.8436	12.1383	12.6023	91.7	92.5	91.6
mp-1245026	dynamic	-1.506	-1.506	11.6029	11.6475	12.4693	91.0	95.2	92.5
mp-559740	box	-1.5052	-1.5052	9.8644	9.8644	10.2314	90.0	90.0	120.0
mp-1245026	static	-1.5051	-1.5051	11.6365	11.6442	12.4773	91.3	95.4	92.6
mp-557134	dynamic	-1.505	-1.505	6.9445	8.3124	6.8894	90.0	116.7	90.0
mp-555147	dynamic	-1.5047	-1.5047	6.9292	8.1371	5.5083	90.0	96.9	90.0
mp-600039	box	-1.5045	-1.5045	16.0303	9.3811	8.5626	90.0	90.0	90.0
mp-7087	static	-1.5027	-1.5027	5.28	5.28	8.5214	90.0	90.0	120.0
mp-1179488	dynamic	-1.5026	-1.5026	15.5318	9.4509	25.2588	90.0	98.5	90.0
mp-7087	box	-1.5026	-1.5026	5.2747	5.2747	8.54	90.0	90.0	120.0
mp-558200	box	-1.5023	-1.5023	6.8909	6.8909	6.835	90.0	90.0	90.0
mp-556985	box	-1.5017	-1.5017	4.9626	6.9978	7.019	113.1	106.3	102.6
mp-1244968	dynamic	-1.5009	-1.5009	11.4592	12.3662	12.4989	93.3	94.8	90.7
mp-8352	static	-1.5005	-1.5005	7.4531	7.4531	7.4531	90.0	90.0	90.0
mp-556588	dynamic	-1.4983	-1.4983	5.2542	6.893	7.0386	67.4	73.7	79.7
mp-685184	static	-1.4965	-1.4965	5.0565	5.0822	57.9003	90.9	91.0	119.8
mp-556588	static	-1.496	-1.496	5.2469	5.2472	6.7533	81.9	79.8	81.2
mp-1256499	box	-1.4957	-1.4957	17.1052	17.1052	17.1052	90.0	90.0	90.0
mp-34150	static	-1.4948	-1.4948	9.634	21.0477	9.8872	90.0	97.3	90.0
mp-556788	dynamic	-1.4899	-1.4899	5.3759	5.4243	7.1706	108.8	100.8	104.2
mp-556788	static	-1.4897	-1.4897	5.4003	5.4096	7.0988	108.1	100.8	104.7
mp-558569	box	-1.489	-1.489	13.6671	13.6671	19.1698	90.0	90.0	120.0
mp-558203	dynamic	-1.488	-1.488	15.8936	15.8936	9.8246	90.0	90.0	90.0
mp-667448	box	-1.4877	-1.4877	19.7891	19.7891	13.2997	90.0	90.0	90.0
mp-557591	box	-1.4866	-1.4866	10.5764	10.5764	10.5764	90.0	90.0	90.0
mp-557873	box	-1.4815	-1.4815	4.9516	6.6019	6.9051	61.7	71.4	76.7
mp-560131	dynamic	-1.4814	-1.4814	12.8419	12.8419	4.9532	90.0	90.0	90.0
mp-560131	static	-1.4814	-1.4814	12.842	12.842	4.9533	90.0	90.0	90.0
mp-556662	box	-1.4808	-1.4808	6.9381	7.445	6.7533	90.0	103.6	90.0
mp-555147	box	-1.479	-1.479	6.7319	8.1533	5.5315	90.0	100.8	90.0
mp-560152	dynamic	-1.4753	-1.4753	11.48	11.48	5.0522	90.0	90.0	90.0
mp-600050	box	-1.4715	-1.4715	19.8796	7.2941	9.5861	90.0	90.0	90.0
mp-556319	box	-1.4712	-1.4712	5.0472	5.3004	6.2422	90.7	90.2	92.1
mp-1244968	static	-1.4679	-1.4679	11.8945	12.2314	12.2902	86.9	85.6	88.1
mp-556963	dynamic	-1.4677	-1.4677	11.8848	11.8848	4.4786	90.0	90.0	120.0
mp-556132	static	-1.4676	-1.4676	7.7716	4.4259	8.8963	90.0	90.0	90.0
mp-556553	box	-1.4673	-1.4673	6.8644	8.3235	5.5317	90.0	101.7	90.0
mp-554175	static	-1.4665	-1.4665	13.8976	13.8976	10.4672	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-1194828	static	-1.443	-1.443	24.6012	13.833	12.4017	90.0	109.8	90.0
mp-1194828	box	-1.4318	-1.4318	24.3454	13.7992	12.3137	90.0	109.5	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
D0_3--BiF3	static	-0.3378	-0.3378	6.7273	6.7273	6.7273	90.0	90.0	90.0
A15--Cr3Si	static	-0.337	-0.337	5.216	5.216	5.216	90.0	90.0	90.0
L1_2--AuCu3	static	-0.2749	-0.2749	4.0271	4.0271	4.0271	90.0	90.0	90.0
A15--Cr3Si	dynamic	0.0	0.0	11.0	11.0	11.0	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-1179195	dynamic	-1.5985	-1.5985	20.6977	8.9491	14.6208	90.0	134.0	90.0
mp-1179195	static	-1.5949	-1.5949	19.3556	8.7683	14.0658	90.0	131.4	90.0
mp-1179195	box	-1.5454	-1.5454	19.2136	8.6135	13.7107	90.0	130.5	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-685105	dynamic	-0.9717	-0.9717	7.8219	8.4993	21.4158	99.7	91.7	114.7
mp-685105	static	-0.7948	-0.7948	13.0483	13.5211	13.7361	87.7	63.2	78.2
mp-685105	box	-0.1329	-0.1329	7.2596	7.4412	20.2956	93.8	97.1	108.2

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-862998	static	-1.3508	-1.3508	20.2667	7.6152	4.9888	90.0	90.0	90.0
mp-862998	box	-0.9734	-0.9734	18.4133	5.4937	5.1099	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-638900	dynamic	-1.366	-1.366	7.8091	9.5552	11.0397	85.8	75.1	68.0
mp-638900	static	-1.3603	-1.3603	7.267	9.5022	9.6589	93.0	110.4	100.1
mp-638900	box	-1.2768	-1.2768	8.7842	8.8226	8.8943	109.9	99.9	97.5

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-1219421	static	-1.2594	-1.2594	5.0945	10.645	19.5599	90.0	90.0	90.0
mp-1219421	box	-0.8587	-0.8587	5.0488	11.1359	16.289	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-1179651	dynamic	-1.6046	-1.6046	6.9081	7.1442	14.087	91.2	104.0	118.1
mp-1179651	static	-1.5765	-1.5765	6.7509	6.8802	12.7044	79.9	80.6	67.5
mp-1179651	box	-1.2228	-1.2228	6.9032	6.924	12.0954	93.2	104.5	116.8

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-1179275	static	-1.4185	-1.4185	7.6266	7.6266	34.0523	90.0	90.0	90.0
mp-1179275	box	-1.3773	-1.3773	7.5773	7.5773	28.7177	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-32761	static	-1.4479	-1.4479	5.079	5.079	19.1549	90.0	90.0	120.0
mp-32761	box	-1.0626	-1.0626	4.6654	4.6654	8.6203	90.0	90.0	120.0
B3--ZnS--cubic-zinc-blende	static	-0.8738	-0.8738	5.1978	5.1978	5.1978	90.0	90.0	90.0
B1--NaCl--rock-salt	static	-0.8094	-0.8094	4.7299	4.7299	4.7299	90.0	90.0	90.0
B2--CsCl	static	-0.7041	-0.7041	2.7758	2.7758	2.7758	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-1063118	static	-0.762	-0.762	18.4596	4.0916	5.4289	90.0	92.1	90.0
mp-1208867	static	-0.54	-0.54	10.7463	10.7463	10.7463	90.0	90.0	90.0
C1--CaF2--fluorite	static	-0.1758	-0.1758	7.6396	7.6396	7.6396	90.0	90.0	90.0

prototype	method	E_coh (eV/atom)	E_pot (eV/atom)	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-32566	static	-0.5542	-0.5542	20.0115	7.4551	20.2464	90.0	115.2	90.0

prototype	method	a₀ (Å)	b₀ (Å)	c₀ (Å)	α (degrees)	β (degrees)	γ (degrees)
mp-644693	dynamic	9.4572	12.2054	19.9443	106.9	92.9	109.2
oqmd-691764	dynamic	5.5023	5.5023	14.2874	90.0	90.0	120.0
A2--W--bcc	dynamic	6.3509	6.3509	6.3509	90.0	90.0	90.0
mp-999200	dynamic	14.2293	14.2293	10.0072	90.0	90.0	90.0
mp-1001113	dynamic	6.4611	20.3094	8.8385	90.0	90.0	90.0
oqmd-717361	box	17.634	17.634	17.634	90.0	90.0	90.0
A6--In--bct	dynamic	6.6623	6.6623	5.6769	90.0	90.0	90.0
oqmd-717360	box	23.9299	23.9299	23.9299	90.0	90.0	90.0
mp-34	dynamic	5.5	5.5	5.5	90.0	90.0	120.0
mp-971661	dynamic	23.5883	23.5883	23.5883	90.0	90.0	90.0
A3--Mg--hcp	dynamic	5.5	5.5	8.9911	90.0	90.0	120.0
A3--Mg--hcp	box	5.5001	5.5001	8.9817	90.0	90.0	120.0
A6--In--bct	box	6.7361	6.7361	5.5	90.0	90.0	90.0
mp-1200830	dynamic	29.0205	29.0205	29.0205	90.0	90.0	90.0
mp-1001113	box	5.5592	20.7138	9.4526	90.0	90.0	90.0
A5--beta-Sn	dynamic	10.6063	10.6063	5.8334	90.0	90.0	90.0
A1--Cu--fcc	dynamic	8.0092	8.0092	8.0092	90.0	90.0	90.0
A5--beta-Sn	dynamic	10.6502	10.6502	5.5041	90.0	90.0	90.0
oqmd-22408	dynamic	25.8044	7.2697	12.4543	90.0	100.3	90.0
oqmd-10215	box	35.0045	35.0045	35.0045	90.0	90.0	90.0
A15--beta-W	dynamic	11.0011	11.0011	11.0011	90.0	90.0	90.0
oqmd-22507	dynamic	7.8064	13.035	17.526	90.0	90.0	90.0
oqmd-51152	dynamic	5.503	5.503	6.0969	90.0	90.0	120.0
mp-1094057	dynamic	5.5009	5.5009	40.4252	90.0	90.0	120.0
oqmd-7479	box	10.4942	10.7772	5.5	90.0	90.0	90.0
mp-676011	dynamic	11.0628	11.5235	14.4949	72.2	67.8	63.9
mp-1095269	dynamic	8.1661	28.0137	27.5531	90.0	90.0	90.0
oqmd-1214659	dynamic	7.7042	7.7042	9.7057	90.0	90.0	120.0
A1--Cu--fcc	dynamic	7.7782	7.7782	7.7782	90.0	90.0	90.0
A4--C--dc	dynamic	12.7017	12.7017	12.7017	90.0	90.0	90.0
oqmd-5764	dynamic	7.6913	7.6913	17.4898	90.0	90.0	120.0
A3'--alpha-La--double-hcp	dynamic	5.5032	5.5032	17.9577	90.0	90.0	120.0
mp-109	box	10.9455	12.0935	19.9901	90.0	90.0	90.0
A5--beta-Sn	dynamic	11.0397	11.0397	5.5306	90.0	90.0	90.0
A3--Mg--hcp	dynamic	5.7877	5.7877	8.99	90.0	90.0	120.0
mp-168	box	15.6337	15.6337	15.6337	90.0	90.0	90.0
mp-971662	box	23.936	23.936	23.936	90.0	90.0	90.0
mp-1120747	dynamic	11.3275	11.3275	8.8074	90.0	90.0	120.0
mp-1201492	dynamic	40.9899	40.9899	40.9899	90.0	90.0	90.0
mp-1201492	box	41.921	41.921	41.921	90.0	90.0	90.0
mp-165	dynamic	8.8035	8.8035	15.2028	90.0	90.0	120.0
mp-1079649	dynamic	17.5669	10.829	10.829	90.0	90.0	90.0
mp-1120447	dynamic	11.4151	12.3487	16.0495	106.0	109.9	97.1
A6--In--bct	dynamic	5.5	5.5	7.9587	90.0	90.0	90.0
mp-1079297	dynamic	30.86	8.9503	15.7009	90.0	96.0	90.0
mp-16220	dynamic	34.3141	34.3141	34.3141	90.0	90.0	90.0
mp-1268191	dynamic	15.0307	15.0307	5.5	90.0	90.0	120.0
mp-1204627	dynamic	38.6151	30.3358	23.4662	90.0	90.0	90.0
mp-1203790	dynamic	24.1996	24.1996	39.9262	90.0	90.0	120.0
oqmd-1214926	box	14.8108	14.8108	14.8108	90.0	90.0	90.0
mp-971662	dynamic	23.9155	23.9155	23.9155	90.0	90.0	90.0
mp-571520	dynamic	22.1334	22.1334	12.9911	90.0	90.0	120.0
mp-1244990	dynamic	27.6214	27.7289	28.222	101.6	105.1	99.7
mp-1244933	dynamic	27.7334	28.0669	28.4779	73.4	78.8	77.7
mp-1199894	dynamic	59.8463	35.0913	23.2612	90.0	94.8	90.0
mp-1202745	dynamic	23.4022	23.4022	36.3681	90.0	90.0	120.0
mp-109	dynamic	10.9835	11.6874	19.3578	90.0	90.0	90.0
mp-1204046	dynamic	24.2917	24.2917	53.9675	90.0	90.0	90.0
mp-1245242	dynamic	28.3176	28.8612	29.0007	79.7	82.8	81.4
mp-1245041	dynamic	29.012	29.4903	29.4981	72.1	76.5	74.1
A5--beta-Sn	dynamic	10.6502	10.6502	5.5038	90.0	90.0	90.0
mp-1244971	dynamic	27.4516	29.1629	30.2085	97.4	98.2	99.9
mp-1072544	dynamic	15.5563	15.5563	15.5563	90.0	90.0	90.0
mp-168	dynamic	15.535	15.535	15.535	90.0	90.0	90.0
oqmd-22407	box	15.3932	15.3932	9.0775	90.0	90.0	90.0
A6--In--bct	dynamic	6.6716	6.6716	5.6549	90.0	90.0	90.0
A3--Mg--hcp	dynamic	5.5	5.5	8.9864	90.0	90.0	120.0
oqmd-1214837	dynamic	19.8783	19.8783	19.8783	90.0	90.0	90.0
mp-999200	box	15.3802	15.3802	9.09	90.0	90.0	90.0
oqmd-1214926	dynamic	13.9268	13.9268	13.9268	90.0	90.0	90.0
mp-1204046	static	24.0205	24.0205	58.2171	90.0	90.0	90.0
mp-1244971	static	28.2762	30.5333	32.5167	96.0	95.4	96.4
A3--Mg--hcp	static	5.5	5.5	8.9939	90.0	90.0	120.0
A15--beta-W	dynamic	11.0	11.0	11.0	90.0	90.0	90.0
mp-1204627	static	39.6131	30.481	23.6955	90.0	90.0	90.0
mp-1245242	static	29.6018	30.3161	30.4281	82.1	82.8	83.9
mp-1199894	static	59.9459	35.764	23.2728	90.0	95.0	90.0
mp-676011	static	12.0112	13.1461	16.0738	91.1	101.6	108.1
mp-1079649	static	17.9963	11.4382	12.038	90.0	90.0	90.0
mp-1244990	static	29.2641	29.2751	30.4021	101.7	97.9	96.0
mp-1245041	static	31.2637	31.2979	31.6621	79.0	75.1	77.9
mp-109	static	10.9456	12.0935	20.1365	90.0	90.0	90.0
mp-1001113	static	6.6331	20.3041	8.7343	90.0	90.0	90.0
A6--In--bct	static	5.5	5.5	7.9556	90.0	90.0	90.0
mp-1120447	static	12.3087	12.6179	16.0748	79.7	77.3	85.1
mp-1244933	static	30.0816	30.2043	30.5452	78.7	76.7	80.4
A5--beta-Sn	static	10.65	10.65	5.5051	90.0	90.0	90.0
mp-999200	static	15.3804	15.3804	9.0898	90.0	90.0	90.0
oqmd-1214748	static	10.4458	17.0886	8.4646	90.0	90.0	90.0
mp-1201492	static	41.9187	41.9187	41.9187	90.0	90.0	90.0
A5--beta-Sn	static	10.6499	10.6499	5.5052	90.0	90.0	90.0
mp-644693	static	10.0215	12.9713	20.1402	81.9	89.6	77.8
A6--In--bct	static	6.688	6.688	5.6159	90.0	90.0	90.0
mp-1120747	static	11.0226	11.0226	8.9953	90.0	90.0	120.0
oqmd-1214926	static	14.8104	14.8104	14.8104	90.0	90.0	90.0
mp-971662	static	23.9343	23.9343	23.9343	90.0	90.0	90.0
A15--beta-W	static	10.9996	10.9996	10.9996	90.0	90.0	90.0
oqmd-717360	static	23.928	23.928	23.928	90.0	90.0	90.0
oqmd-78174	static	17.9903	11.4899	11.8901	90.0	90.0	90.0
mp-168	static	15.6328	15.6328	15.6328	90.0	90.0	90.0
oqmd-717361	static	17.6326	17.6326	17.6326	90.0	90.0	90.0
oqmd-22507	static	8.9932	15.5074	14.6934	90.0	90.0	90.0
A4--C--dc	static	12.7012	12.7012	12.7012	90.0	90.0	90.0
oqmd-22407	static	15.3932	15.3932	9.0768	90.0	90.0	90.0
oqmd-7479	static	10.4923	10.7764	5.5064	90.0	90.0	90.0
A5--beta-Sn	static	10.6493	10.6493	5.5067	90.0	90.0	90.0
oqmd-10215	static	35.0017	35.0017	35.0017	90.0	90.0	90.0
mp-1072544	static	15.5555	15.5555	15.5555	90.0	90.0	90.0
A1--Cu--fcc	static	7.7778	7.7778	7.7778	90.0	90.0	90.0
A2--W--bcc	static	6.3505	6.3505	6.3505	90.0	90.0	90.0
oqmd-1214659	static	7.7436	7.7436	9.6086	90.0	90.0	120.0
A1--Cu--fcc	static	7.7777	7.7777	7.7777	90.0	90.0	90.0
A2--W--bcc	static	6.3503	6.3503	6.3503	90.0	90.0	90.0

Elastic Constants Predictions

Static elastic constants are displayed for the unique structures identified in Crystal Structure Predictions above. The values displayed here are obtained by measuring the change in virial stresses due to applying small strains to the relaxed crystals. The initial structure and the strained states are all relaxed using force minimization.

The calculation method used is available as the iprPy elastic_constants_static calculation method.

Notes and Disclaimers:

These values are meant to be guidelines for comparing potentials, not the absolute values for any potential's properties. Values listed here may change if the calculation methods are updated due to improvements/corrections. Variations in the values may occur for variations in calculation methods, simulation software and implementations of the interatomic potentials.
The presence of any structures in this list does not guarantee that those structures are stable.
The elastic constants have been computed for a variety of strains, and in some cases for slightly different lattice constant values. The static nature of this calculation can give poor predictions if the evaluated states straddle a functional discontinuity in the potential's third derivative. Be sure to compare the elastic constants for the different strains (positive and negative).
NIST disclaimer

Version Information:

2019-08-07. Data added.

Composition:

Prototype:

a₀:

strain:

Download raw data

Cij in GPa:

0.744	0.372	0.372	0.000	0.000	-0.000
0.372	0.744	0.372	0.000	-0.000	-0.000
0.372	0.372	0.744	0.000	-0.000	0.000
0.000	0.186	0.186	0.186	-0.000	0.000
0.186	0.000	0.186	-0.000	0.186	0.000
0.186	0.186	0.000	0.000	0.000	0.186

-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.186	-0.186	0.186	-0.000	0.000
-0.186	-0.000	-0.186	0.000	0.186	-0.000
-0.186	-0.186	-0.000	-0.000	-0.000	0.186

0.969	0.485	0.485	0.000	0.000	-0.000
0.485	0.969	0.485	-0.000	-0.000	0.000
0.485	0.485	0.969	-0.000	0.000	-0.000
0.000	0.242	0.242	0.242	0.000	-0.000
0.242	0.000	0.242	0.000	0.242	0.000
0.242	0.242	0.000	0.000	0.000	0.242

-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.242	-0.242	0.242	0.000	0.000
-0.242	-0.000	-0.242	0.000	0.242	-0.000
-0.242	-0.242	-0.000	-0.000	-0.000	0.242

0.176	0.000	0.000	0.000	0.000	-0.000
0.000	0.176	0.000	0.000	0.000	-0.000
0.000	0.000	0.176	0.000	0.000	-0.000
0.000	0.000	-0.000	-0.000	0.000	-0.000
0.000	-0.000	-0.000	0.000	-0.000	0.000
0.000	-0.000	0.000	0.000	-0.000	-0.000

0.176	0.000	0.000	0.000	0.000	-0.000
0.000	0.176	0.000	-0.000	0.000	-0.000
0.000	0.000	0.176	0.000	0.000	-0.000
0.000	-0.000	0.000	-0.000	-0.000	-0.000
-0.000	-0.000	0.000	-0.000	-0.000	0.000
-0.000	0.000	0.000	-0.000	0.000	-0.000

0.176	0.000	0.000	0.000	0.000	-0.000
0.000	0.176	0.000	0.000	0.000	-0.000
0.000	0.000	0.176	-0.000	0.000	-0.000
-0.000	0.000	-0.000	-0.000	-0.000	-0.000
0.000	-0.000	-0.000	-0.000	-0.000	-0.000
0.000	-0.000	-0.000	0.000	0.000	-0.000

0.176	0.000	0.000	0.000	0.000	-0.000
0.000	0.176	0.000	0.000	0.000	0.000
0.000	0.000	0.176	0.000	0.000	-0.000
0.000	-0.000	0.000	-0.000	0.000	-0.000
-0.000	0.000	0.000	0.000	-0.000	-0.000
-0.000	0.000	0.000	-0.000	0.000	-0.000

0.176	0.000	0.000	0.000	-0.000	-0.000
0.000	0.176	0.000	-0.000	0.000	-0.000
0.000	0.000	0.176	0.000	-0.000	-0.000
-0.000	0.000	-0.000	-0.000	0.000	0.000
0.000	-0.000	-0.000	0.000	-0.000	-0.000
0.000	-0.000	0.000	0.000	-0.000	-0.000

0.176	0.000	0.000	0.000	0.000	-0.000
0.000	0.176	0.000	-0.000	0.000	-0.000
0.000	0.000	0.176	0.000	-0.000	-0.000
0.000	-0.000	0.000	-0.000	-0.000	0.000
-0.000	0.000	0.000	-0.000	-0.000	-0.000
-0.000	0.000	-0.000	-0.000	-0.000	-0.000

0.166	0.000	0.000	0.000
0.000	0.166	0.000	0.000
0.000	0.000	0.166	-0.000
0.000	0.000	0.000	0.000
0.000	0.000	0.000	0.000
0.000	0.000	0.000	0.000

-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000

0.175	0.000	0.000	0.000
0.000	0.175	0.000	0.000
0.000	0.000	0.175	-0.000
0.000	0.000	0.000	0.000
0.000	0.000	0.000	0.000
0.000	0.000	0.000	0.000

-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000

0.176	0.000	0.000	0.000
0.000	0.176	0.000	0.000
0.000	0.000	0.176	-0.000
0.000	0.000	0.000	0.000
0.000	0.000	0.000	0.000
0.000	0.000	0.000	0.000

-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000

0.184	0.184	0.184	0.000	0.000	0.000
0.184	0.184	0.184	0.000	0.000	0.000
0.184	0.184	0.184	0.000	0.000	0.000
0.092	0.092	0.092	0.092	-0.000	-0.000
0.092	0.092	0.092	-0.000	0.092	-0.000
0.092	0.092	0.092	-0.000	-0.000	0.092

-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.092	-0.092	-0.092	0.092	0.000	-0.000
-0.092	-0.092	-0.092	-0.000	0.092	0.000
-0.092	-0.092	-0.092	0.000	-0.000	0.092

0.384	0.384	0.384	0.000	-0.000	0.000
0.384	0.384	0.384	-0.000	0.000	0.000
0.384	0.384	0.384	-0.000	-0.000	-0.000
0.192	0.192	0.192	0.192	-0.000	-0.000
0.192	0.192	0.192	-0.000	0.192	-0.000
0.192	0.192	0.192	0.000	0.000	0.192

-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.192	-0.192	-0.192	0.192	-0.000	0.000
-0.192	-0.192	-0.192	-0.000	0.192	0.000
-0.192	-0.192	-0.192	0.000	-0.000	0.192

0.174	0.061	0.305	-0.000	0.000	0.000
0.061	0.174	0.305	-0.000	-0.000	0.000
0.305	0.305	0.793	-0.000	-0.000	-0.000
-0.000	0.000	-0.000	0.305	-0.000	0.000
-0.000	-0.000	0.000	-0.000	0.305	-0.000
-0.000	-0.000	-0.000	-0.000	0.000	0.057

0.174	0.061	0.305	0.000	0.000	-0.000
0.061	0.174	0.305	0.000	0.000	0.000
0.305	0.305	0.793	0.000	0.000	0.000
-0.000	0.000	0.000	0.305	0.000	0.000
0.000	0.000	-0.000	0.000	0.305	-0.000
0.000	0.000	0.000	0.000	0.000	0.057

0.174	0.061	0.305	-0.000	-0.000	0.000
0.059	0.176	0.305	-0.000	-0.000	-0.000
0.305	0.305	0.793	-0.000	0.000	-0.000
-0.000	-0.000	0.000	0.305	-0.000	-0.000
-0.000	-0.000	0.000	-0.000	0.305	0.000
-0.000	-0.000	-0.000	-0.000	0.000	0.057

0.176	0.059	0.305	0.000	0.000	0.000
0.061	0.174	0.305	0.000	0.000	0.000
0.305	0.305	0.793	0.000	-0.000	0.000
0.000	0.000	-0.000	0.305	0.000	-0.000
0.000	0.000	-0.000	0.000	0.305	0.000
0.000	0.000	0.000	0.000	0.000	0.057

0.127	0.108	0.305	-0.000	-0.000	-0.000
0.108	0.127	0.305	-0.000	-0.000	0.000
0.305	0.305	0.793	-0.000	-0.000	0.000
-0.000	-0.000	0.000	0.305	-0.000	-0.000
-0.000	-0.000	0.000	0.000	0.305	0.000
-0.000	-0.000	-0.000	-0.000	0.000	0.009

0.127	0.108	0.305	0.000	0.000	-0.000
0.107	0.128	0.305	0.000	0.000	-0.000
0.305	0.305	0.793	0.000	0.000	0.000
0.000	0.000	-0.000	0.305	0.000	-0.000
0.000	0.000	-0.000	-0.000	0.305	0.000
0.000	0.000	0.000	0.000	0.000	0.009

0.026	0.026	0.026	0.000	0.000	0.000
0.026	0.026	0.026	0.000	0.000	0.000
0.026	0.026	0.026	0.000	0.000	0.000
0.013	0.013	0.013	0.013	0.000	0.000
0.013	0.013	0.013	0.000	0.013	0.000
0.013	0.013	0.013	0.000	0.000	0.013

-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.013	-0.013	-0.013	0.013	-0.000	0.000
-0.013	-0.013	-0.013	-0.000	0.013	0.000
-0.013	-0.013	-0.013	-0.000	0.000	0.013

0.094	0.094	0.094	0.000	0.000	0.000
0.094	0.094	0.094	0.000	0.000	0.000
0.094	0.094	0.094	0.000	0.000	0.000
0.011	0.011	0.011	0.011	0.000	0.000
0.011	0.011	0.011	0.000	0.011	0.000
0.011	0.011	0.011	0.000	0.000	0.011

-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.011	-0.011	-0.011	0.011	0.000	-0.000
-0.011	-0.011	-0.011	0.000	0.011	-0.000
-0.011	-0.011	-0.011	0.000	-0.000	0.011

0.478	0.000	0.036	0.000	-0.000	0.000
0.000	0.478	0.036	-0.000	-0.000	-0.000
0.000	0.000	0.000	0.000	0.000	0.000
0.000	0.017	0.001	0.005	0.000	0.000
0.016	0.000	0.001	0.000	0.004	0.000
0.000	0.000	0.000	0.000	0.000	0.000

-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.016	-0.001	0.004	-0.000	0.000
-0.016	-0.000	-0.001	-0.000	0.004	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000

Phonon and Quasi-Harmonic Approximation Predictions

Phonon band structures and crystal properties estimated from quasi-harmonic approximation (QHA) calculations are displayed for select crystals. The calculations were performed using phonopy and LAMMPS. For the phonon calculations, 3x3 supercells of the potential-specific relaxed crystals were used. The QHA calculations were based on 11 strain states ranging from -0.05 to 0.05.

The calculation method used is available as the iprPy phonon calculation method.

Notes and Disclaimers:

The thermodynamic properties estimated from QHA are based on the assumption that only volumetric changes affect the phonon behaviors as the temperature changes. This tends to give good predictions at lower temperatures but ignores anharmonic effects such as phonon coupling and vacancy formation that can be important at higher temperatures.
Note that direct molecular dynamics (MD) simulations using the same potentials will disagree with the thermodynamics properties listed here for the lowest temperatures. The MD results are purely classical in nature and therefore lack a zero-point energy, whereas the phonon calculations inherently provide a zero-point energy.
The structures explored here are taken from the dynamically relaxed structures above. Despite the rigorous relaxation method used, some of these structures prove to be unstable once internal deformations are added. The phonon results may reflect this and give bad band gap predictions for these unstable crystals.
All QHA calculations performed here use the same set of strains which might not be ideal for all crystals. Be sure to check the bulk modulus and Helmholtz vs. volume plots to verify if the QHA strained states are reasonable for each crystal of interest.
QHA results may not be available for all crystal structures that have phonon results. Missing QHA results indicates an issue either with the strained states or with the QHA calculation itself.
NIST disclaimer

Version Information:

2023-03-14. Phonon and QHA plots added

Band Structures, Density of States, and QHA Verification Plots

Composition:

Prototype:

a₀:

plot:

Thermodynamic Predictions

Composition:

Plot:

Download data

Click on plot to load interactive version

1997--Broughton-J-Q--Si-O--LAMMPS--ipr1/phonon.O2Si.G.png

Free Surface Formation Energy Predictions

Static free surface formation energies are displayed for select crystals. The values displayed here are obtained by taking a perfect periodic bulk crystal, slicing along a crystallographic plane, and using force minimization to statically relax the surfaces. The free surface formation energy is computed by comparing the energy of the defect system to the bulk system and dividing by the total surface area created by the cut.

The calculation method used is available as the iprPy surface_energy_static calculation method.

Notes and Disclaimers:

These values are meant to be guidelines for comparing potentials, not the absolute values for any potential's properties. Values listed here may change if the calculation methods are updated due to improvements/corrections. Variations in the values may occur for variations in calculation methods, simulation software and implementations of the interatomic potentials.
The calculation only performs straight cuts along crystallographic planes and static relaxations. Lower energy configurations may exist that require atomic restructuring of the surfaces.
Multiple values may be listed for a given plane followed by a number indicating different unique atomic planar cuts for the same theoretical plane.
NIST disclaimer

Version Information:

2019-11-14. Calculations for the alternate #2 plane slices are now different from the #1 plane slices.
2019-08-07. Data added.

Composition:

Prototype:

a₀:

Download raw data

Surface	γ_fs (mJ/m²)
(321)	0.00
(322)	0.00
(111)	0.00
(221)	0.00
(110)	0.00
(320)	0.00
(100)	0.00
(210)	0.00
(331)	0.00
(332)	0.00
(311)	0.00
(310)	0.00
(211)	0.00

Point Defect Formation Energy Predictions

Static point defect formation energies, E_f, and elastic dipole tensors, p_ij, are displayed for select crystals. Relaxed defect configurations are obtained by taking a 12x12x12 supercell of a perfect periodic bulk crystal, inserting the point defect, and using force minimization to statically relax the atomic positions while keeping the system dimensions constant. E_f is computed by comparing the energy of the defect system to the same number of atoms in a perfect bulk crystal. p_ij is estimated as the difference in the system's global pressure with and without the defect multiplied by the system's volume.

Simple structural comparisons of the unrelaxed and relaxed defect configurations are used to help determine if the defect structure has relaxed to a different configuration. Relaxed structures that are identified as no longer consistent with the ideal defect definition are excluded from the table below. The only exception to this is if the lowest energy interstitial configuration does not coincide with a known ideal defect, its energies and pressure tensor are included under the listing "relaxed interstitial". The full list of calculation results including the transformed structures and the structural comparison values is included in the csv file available from the "Download raw data" link.

The calculation method used is available as the iprPy point_defect_static calculation method.

Notes and Disclaimers:

These values are meant to be guidelines for comparing potentials, not the absolute values for any potential's properties. Values listed here may change if the calculation methods are updated due to improvements/corrections. Variations in the values may occur for changes in calculation methods, simulation software and implementations of the interatomic potentials.
The computed formation energy and elastic dipole tensor values are sensitive to the size of the system used. The 12x12x12 supercell size was selected as it should provide a decent approximation of the true bulk values.
The tests for identifying configuration relaxations are not guaranteed to be comprehensive or suitable for all point defect types. The table only shows the point defects that are consistent with the ideal configurations for that defect type, and the lowest energy interstitial.
The "relaxed interstitial" label indicates that the structure is not consistent with any of the known ideal interstitial configurations. No information is provided as to what that relaxed strucutre is, whether it is an unknown structure, a "near"-ideal defect, or a collapse to amorphous.
NIST disclaimer

Composition:

Prototype:

a₀:

Download raw data

Point Defect	E_f (eV)	p₁₁ (eV)	p₂₂ (eV)	p₃₃ (eV)	p₁₂ (eV)	p₁₃ (eV)	p₂₃ (eV)
2nn divacancy	0.000	-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
1nn divacancy	0.000	-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
vacancy	0.000	-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
octahedral interstitial	0.070	8.488	8.488	8.488	0.000	0.000	0.000
100 dumbbell	0.071	8.322	8.322	8.286	-0.000	-0.000	-0.000
110 dumbbell	0.072	8.608	8.216	8.216	0.000	0.000	-1.055
crowdion interstitial	0.072	8.214	8.214	8.605	-1.055	-0.000	0.000

MD Solid Property Predictions

Plots of lattice and elastic constants are shown as a function of temperature. The 0K points were taken from the Crystal Structure Predictions and the Elastic Constants Predictions sections above for the unique crystal structures relaxed with the "dynamic" method. Starting from the 0 K relaxed crystal unit cells, supercell systems are created by replicating all three dimensions by the same multiplier to achieve at least 4000 atoms. The systems are then relaxed at 50 K and zero pressure using 1 million NPT steps. Lattice constants are estimated by averaging the measured box dimensions. Temperatures are iteratively increased by 50 K, with each subsequent relaxation calculation starting from the final atomic configuration at the previous temperature and relaxing for another 1 million steps.

The elastic constants are calculated using the deformation–fluctuation hybrid method. Starting from the final atomic configurations of the dynamic relaxations, the system is allowed to evolve at constant volume with a Langevin thermostat. The Born matrix is computed during this run by evaluating how the atomic forces would vary due to applied linear strain fields. The elastic constants can then be estimated using the averaged Born matrix values and the averaged stresses on the system.

The calculation methods used are available as the iprPy relax_dynamic and elastic_constants_dynamic calculation methods.

Clicking on the image of a plot will open an interactive version of it in a new tab. The underlying data for the plots can be downloaded by clicking on the links above each plot.

Notes and Disclaimers:

The maximum temperature shown for a crystal either corresponds to the maximum value that has been computed so far, or the maximum value that the structure is believed to have remained untransformed. The unstable/transformation temperature identification is mostly automated and can miss transitions not associated with large discontinuities in property values with changing temperature.
For succinctness, the elastic constants displayed here are averaged according to the 0 K structure's crystal symmetry family. If the structures deviate from the expected symmetry at higher temperatures, the values may not be valid. Raw results are available for verification if requested.
NIST disclaimer

Version Information:

2025-08-07. Plots added.

Composition:

Prototype:

a₀:

Download data

Click on plot to load interactive version

1997--Broughton-J-Q--Si-O--LAMMPS--ipr1/mdsolid.O.A1--Cu--fcc.699a1d2b.a

Click on plot to load interactive version

1997--Broughton-J-Q--Si-O--LAMMPS--ipr1//mdsolid.O.A1--Cu--fcc.699a1d2b.Cij

MD Thermodynamic Predictions

Plots of internal energy, Gibbs free energy, entropy, heat capacity and volume are shown here as a function of temperature for various crystal structures and liquid phases. The included crystal structures correspond to those in the Solid Structures vs. Temperature section, and the liquid phases to those in the Liquid Properties section. Internal energy and volume are taken from the associated structure relaxations mentioned in those previous sections. Constant pressure heat capacity is estimated using 3-point numerical derivatives of enthalpy versus temperature. Note that since all simulations done here are at 0 pressure, internal energy and enthalpy are equivalent.

The Gibbs energies of the phases are estimated using thermodynamic integration between the interatomic potential in question and a simpler model with known Gibbs free energy values. For solids, the reference model is an Einstein solid, while for liquids it is the Uhlenbeck-Ford potential. Besides a short run at the start of the solid calculations to estimate Einstein model spring constants, the two calculations proceed similarly. Starting with the final relaxation configurations, the systems are stabilized for 25,000 steps. Then, over the next 50,000 steps the potential is swapped out for the reference potential. The system is then stabilized for another 25,000 steps with the reference model before a reverse swap of 50,000 steps is performed. The simulation ends with one final 25,000 step stabilization period. From the simulation, the irreversible work of transformation is estimated and used to compute the absolute Gibbs free energy of the target phase and potential relative to the reference potential. Entropy is estimated as the difference in enthalpy and Gibbs free energy and divided by temperature.

The calculation methods used are available as the iprPy relax_dynamic, relax_liquid_redo, free_energy, and free_energy_liquid calculation methods.

Clicking on the image of a plot will open an interactive version of it in a new tab. The underlying data for the plots can be downloaded by clicking on the links above each plot.

Notes and Disclaimers:

Good free energy estimates require that the initial and final phases before and after the thermodynamic integration remain the same. This is not an issue with the liquid calculations as the Uhlenbeck-Ford model always predicts a liquid, but may be an issue for the solid phase estimates. This is likely to be an issue for non-compact phases which the Einstein model is poor at representing.
NIST disclaimer

Version Information:

2025-08-07. Plots added.

Composition:

Property:

Download data

Click on plot to load interactive version

1997--Broughton-J-Q--Si-O--LAMMPS--ipr1/mdthermo.O.U

0.369	0.220	0.045	0.000	0.000	-0.000
0.220	0.369	0.045	0.000	-0.000	0.000
0.033	0.033	0.005	-0.000	-0.000	0.000
0.000	0.039	0.003	0.011	-0.000	-0.000
0.039	0.000	0.003	-0.000	0.011	0.000
0.000	0.000	0.000	0.000	0.000	0.000

0.860	0.000	0.000
0.000	0.860	-0.000
0.000	0.000	0.000
0.000	0.000	0.000
0.000	0.000	0.000
0.000	0.000	0.000

0.930	0.000	0.000
0.000	0.930	-0.000
0.000	0.000	0.000
0.000	0.000	0.000
0.000	0.000	0.000
0.000	0.000	0.000

0.937	0.000	0.000
0.000	0.937	-0.000
0.000	0.000	0.000
0.000	0.000	0.000
0.000	0.000	0.000
0.000	0.000	0.000

0.346	0.000	0.000	0.000	0.000	0.000
0.000	0.346	0.000	0.000	0.000	0.000
0.000	0.000	0.000	0.000	0.000	0.000
0.000	0.000	0.000	0.000	0.000	0.000
0.000	0.000	0.000	0.000	0.000	0.000
0.000	0.000	0.000	0.000	0.000	0.000

0.848	0.000	0.000	0.000	0.000	0.000
0.000	0.848	0.000	0.000	0.000	0.000
0.000	0.000	0.000	0.000	0.000	0.000
0.000	0.000	0.000	0.000	0.000	0.000
0.000	0.000	0.000	0.000	0.000	0.000
0.000	0.000	0.000	0.000	0.000	0.000

0.602	0.000	0.000	0.000	0.000
0.000	0.602	0.000	0.000	0.000
0.000	0.000	0.602	-0.000	-0.000
0.000	0.000	0.000	0.000	0.000
0.000	0.000	0.000	0.000	0.000
0.000	0.000	0.000	0.000	0.000

0.693	0.000	0.000	0.000	0.000	0.000
0.000	0.693	0.000	0.000	0.000	-0.000
0.000	0.000	0.693	-0.000	-0.000	0.000
0.000	0.000	0.000	0.000	0.000	0.000
0.000	0.000	0.000	0.000	0.000	0.000
0.000	0.000	0.000	0.000	0.000	0.000

0.702	0.000	0.000	0.000
0.000	0.702	0.000	0.000
0.000	0.000	0.702	-0.000
0.000	0.000	0.000	0.000
0.000	0.000	0.000	0.000
0.000	0.000	0.000	0.000

0.970	0.000	0.000	0.000	0.000	0.000
0.000	0.000	0.000	0.000	0.000	0.000
0.000	0.000	0.000	0.000	0.000	0.000
0.000	0.000	0.000	0.000	0.000	0.000
-0.000	0.000	0.000	0.000	0.000	0.000
-0.000	0.000	0.000	0.000	0.000	0.000

0.668	-0.000	-0.000	-0.000	-0.000	-0.000
0.000	-0.000	-0.000	-0.000	-0.000	-0.000
0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
0.000	-0.000	-0.000	-0.000	-0.000	-0.000

0.067	-0.000	-0.000	-0.000	-0.000	-0.000
0.000	-0.000	-0.000	-0.000	-0.000	-0.000
0.000	-0.000	-0.000	-0.000	-0.000	-0.000
-0.000	-0.000	-0.000	-0.000	-0.000	-0.000
0.000	-0.000	-0.000	-0.000	-0.000	-0.000
0.000	-0.000	-0.000	-0.000	-0.000	-0.000

0.045	0.015	0.121	0.000	-0.000	-0.000
0.006	0.042	0.097	0.000	-0.000	-0.000
0.133	0.133	0.936	-0.000	-0.000	-0.000
0.020	0.037	0.113	0.061	-0.000	-0.000
0.038	0.013	0.103	0.000	0.063	0.000
0.011	0.004	0.029	0.000	0.000	0.006

0.055	0.018	0.146	0.000	-0.000	-0.000
0.015	0.051	0.134	-0.000	0.000	-0.000
0.138	0.138	1.017	0.000	0.000	-0.000
0.024	0.041	0.133	0.069	-0.000	-0.000
0.043	0.014	0.116	0.000	0.070	0.000
0.015	0.005	0.040	0.000	0.000	0.009

0.030	0.050	-0.056	0.000	0.008	0.000
0.057	0.095	-0.052	0.000	0.013	0.000
-0.041	-0.068	0.056	-0.000	-0.010	-0.000
-0.022	-0.036	-0.055	0.003	-0.002	0.015
-0.013	-0.021	-0.062	-0.000	0.000	-0.000
-0.022	-0.036	-0.055	0.015	-0.002	0.079

0.074	0.123	0.054	-0.000	0.012	-0.000
0.101	0.168	0.059	-0.000	0.017	-0.000
0.024	0.040	0.227	0.000	-0.005	0.000
0.022	0.036	0.055	0.003	0.002	0.015
0.031	0.052	0.048	-0.000	0.004	-0.000
0.022	0.036	0.055	0.015	0.002	0.079

0.049	0.082	0.004	-0.000	0.009	-0.000
0.049	0.082	0.008	-0.000	0.009	-0.000
0.004	0.007	0.119	-0.000	-0.004	-0.000
0.002	0.004	0.006	0.003	0.000	0.015
0.011	0.019	-0.002	0.000	0.002	0.000
0.005	0.008	0.025	0.011	-0.000	0.058

0.003	0.004	-0.009	0.000	0.001	0.000
0.003	0.004	-0.008	0.000	0.001	0.000
-0.003	-0.005	0.002	0.000	-0.001	0.000
-0.000	-0.000	-0.005	0.001	0.000	0.006
0.003	0.005	-0.009	-0.000	0.001	-0.000
0.000	0.001	-0.009	0.001	0.000	0.007

0.035	-0.048	0.004	-0.004	-0.011	0.012
-0.030	-0.041	-0.003	-0.001	0.010	0.003
-0.011	-0.050	-0.001	-0.003	0.004	0.007
-0.018	-0.047	-0.002	-0.002	0.006	0.005
-0.033	-0.051	-0.003	-0.002	0.010	0.004
-0.011	-0.060	-0.001	-0.003	0.003	0.008

0.068	0.053	0.007	0.001	-0.022	-0.001
0.019	0.111	0.002	0.006	-0.006	-0.016
0.022	0.051	0.002	0.002	-0.007	-0.006
0.015	0.054	0.002	0.003	-0.005	-0.007
0.000	0.050	0.000	0.003	-0.000	-0.008
0.022	0.041	0.002	0.002	-0.007	-0.004

0.032	-0.025	0.003	-0.003	-0.010	0.008
-0.011	0.003	-0.001	0.001	0.003	-0.002
0.004	-0.005	0.000	-0.000	-0.001	0.001
-0.003	-0.002	-0.000	0.000	0.001	-0.000
-0.018	-0.006	-0.002	0.000	0.006	-0.001
0.004	-0.015	0.000	-0.001	-0.001	0.003

0.019	-0.020	-0.008	0.014	0.000	-0.007
-0.049	0.011	0.004	-0.009	0.005	0.008
-0.050	-0.008	-0.004	0.004	0.008	0.004
-0.052	-0.046	-0.020	0.028	0.014	-0.005
-0.062	-0.029	-0.013	0.017	0.013	0.000
-0.060	-0.015	-0.007	0.008	0.010	0.003

0.015	-0.014	-0.006	0.009	-0.000	-0.005
-0.021	0.018	0.007	-0.012	0.000	0.007
-0.008	0.009	0.004	-0.006	-0.000	0.003
-0.005	-0.025	-0.011	0.016	0.004	-0.005
-0.015	-0.008	-0.003	0.005	0.003	-0.000
-0.013	0.006	0.002	-0.004	0.001	0.003

0.076	0.005	0.003	-0.002	-0.011	-0.008
0.008	0.037	0.016	-0.024	-0.006	0.008
0.007	0.017	0.007	-0.011	-0.003	0.003
0.015	-0.014	-0.006	0.009	0.000	-0.005
0.001	-0.001	-0.000	0.000	0.000	-0.000
-0.002	0.010	0.004	-0.007	-0.001	0.003

0.075	0.036	0.007	-0.000	-0.000	-0.000
0.052	0.025	0.005	-0.000	-0.000	-0.000
0.033	0.016	0.003	-0.000	-0.000	0.000
0.029	0.014	0.003	0.002	-0.000	-0.000
0.029	0.014	0.003	-0.000	0.004	0.000
0.029	0.014	0.003	-0.000	-0.000	0.022

0.441	0.382	0.188	-0.000	-0.000	-0.000
0.479	0.624	-0.004	-0.000	-0.000	0.000
0.288	0.000	0.713	-0.000	-0.000	0.000
0.097	0.000	-0.004	-0.000	-0.000	0.000
0.097	0.000	-0.004	0.000	0.184	0.000
0.097	0.000	-0.004	-0.000	-0.000	0.382

0.247	0.382	0.195	-0.000	-0.000	-0.000
0.285	0.624	0.004	0.000	0.000	0.000
0.095	0.000	0.721	0.000	-0.000	-0.000
-0.097	-0.000	0.004	-0.000	0.000	-0.000
-0.097	-0.000	0.004	0.000	0.184	-0.000
-0.097	-0.000	0.004	0.000	0.000	0.382

0.354	0.382	0.191	-0.000	0.000	0.000
0.392	0.624	-0.000	-0.000	-0.000	0.000
0.201	0.000	0.717	-0.000	0.000	0.000
0.010	0.000	-0.000	-0.000	-0.000	-0.000
0.026	0.000	-0.001	-0.000	0.171	0.000
0.010	0.000	-0.000	0.000	-0.000	0.382

0.284	0.382	0.194	0.000	0.000	-0.000
0.372	0.624	0.000	0.000	0.000	0.000
0.182	0.000	0.717	0.000	-0.000	-0.000
-0.010	-0.000	0.000	-0.000	0.000	0.000
-0.026	-0.000	0.001	0.000	0.171	-0.000
-0.010	-0.000	0.000	0.000	0.000	0.382

0.304	0.382	0.193	-0.000	-0.000	-0.000
0.383	0.624	0.000	-0.000	-0.000	0.000
0.194	0.000	0.717	-0.000	0.000	0.000
0.001	0.000	-0.000	-0.000	0.000	-0.000
0.009	0.000	-0.000	-0.000	0.026	0.000
0.001	0.000	-0.000	-0.000	-0.000	0.382
