µMAG could not succeed without the contributions
of colleagues working outside NIST. Although we value the
contributions made by these colleagues, NIST does not necessarily
endorse the views expressed or the data presented in the submitted
solutions shown below.
For comparison of results from different laboratories, and even
for comparisons between runs, plots of the My
data highlight differences most effectively.
These plots provide the following interactive controls.
Mouse controls:
Click on legend to toggle individual curves on/off
Click on # to toggle grid on/off
Shift + mouse wheel to zoom in/out
Click + drag to pan zoomed graph
Right click resets graph display
Keyboard controls: (click on plot to enable)
+/- zooms in/out
Shift + arrow keys to pan zoomed graph
c toggles display of mouse coordinates
# toggles grid on/off
Shift + Home resets graph display

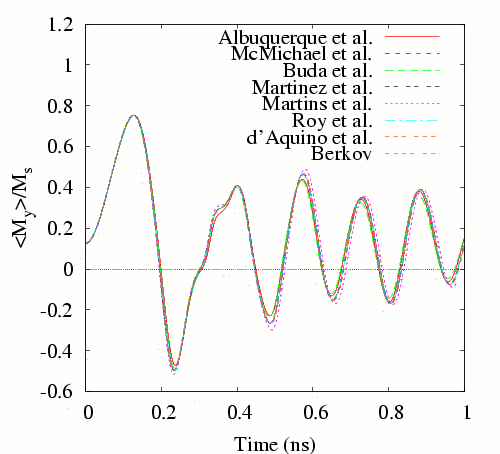

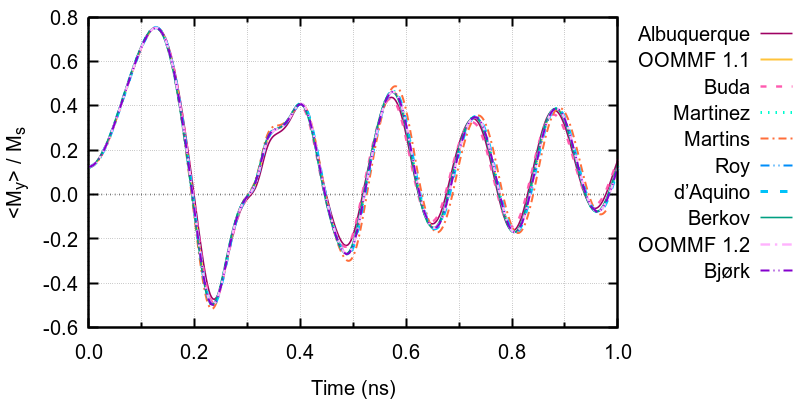

Field 1, 170° from x-axis:

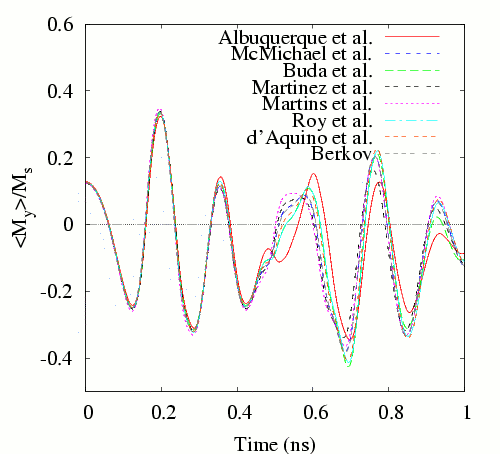

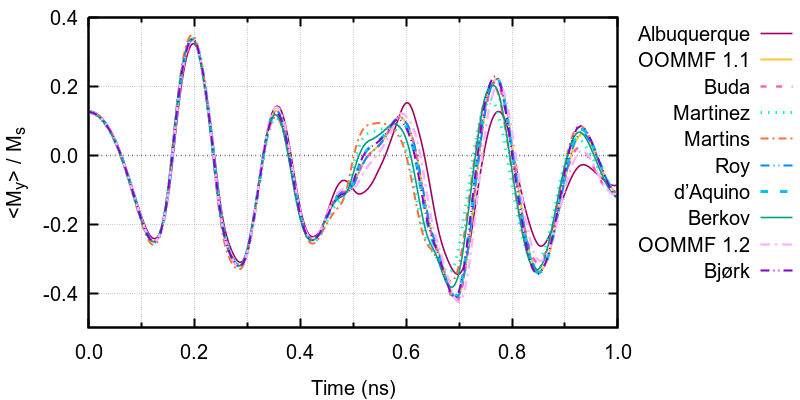

Field 2, 190° from x-axis:

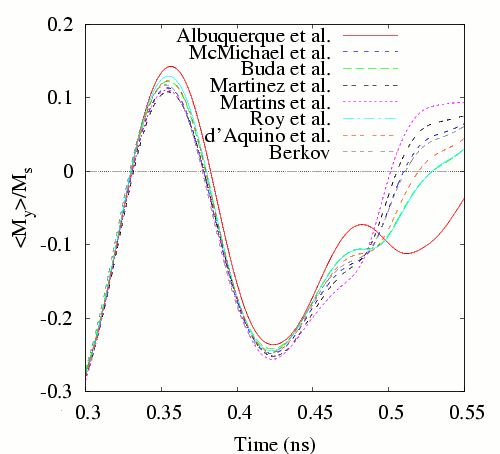

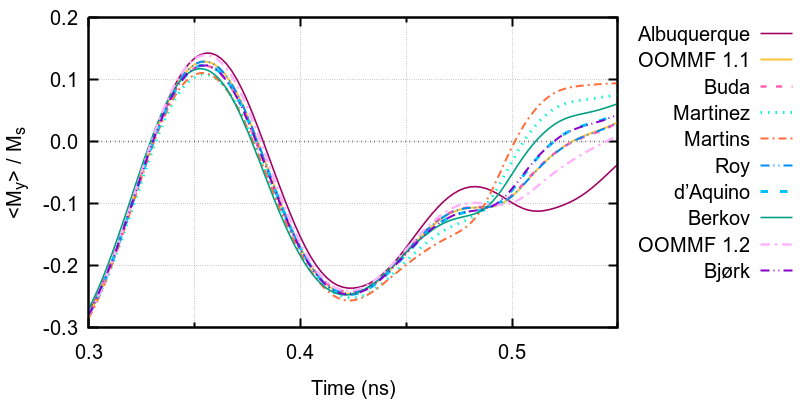

Field 2, 190° from x-axis, showing detail
in the time range where the solutions begin to diverge:
