OOF2: The Manual

Details

Description

RectangleSegmentSelect is a selection method that selects Segments in response to a mouse click in the graphics window when the Skeleton Selection toolbox is active and is set to “Segment” mode. It selects all Segments lying within a rectangle swept out by dragging the mouse, as shown in Figure 6.30. Click the mouse on one corner of the rectangle and drag to the opposite corner. Only Segments that are completly within the rectangle will be selected.

skeleton is the Skeleton from which the Segments are to be selected.

points is a list of Point objects. The first and last points in the list are diagonally opposite corners of the rectangle. Any other points in the list will be ignored.

The shift and ctrl parameters govern how the current selection (i.e, the set of Segments defined by this operation) is merged with the previous selection (the Segments already selected) to form a new selection, as shown in Table 6.1. They indicate whether (True) or not (False) the shift and control keys were depressed during the mouse click that initiated this command.

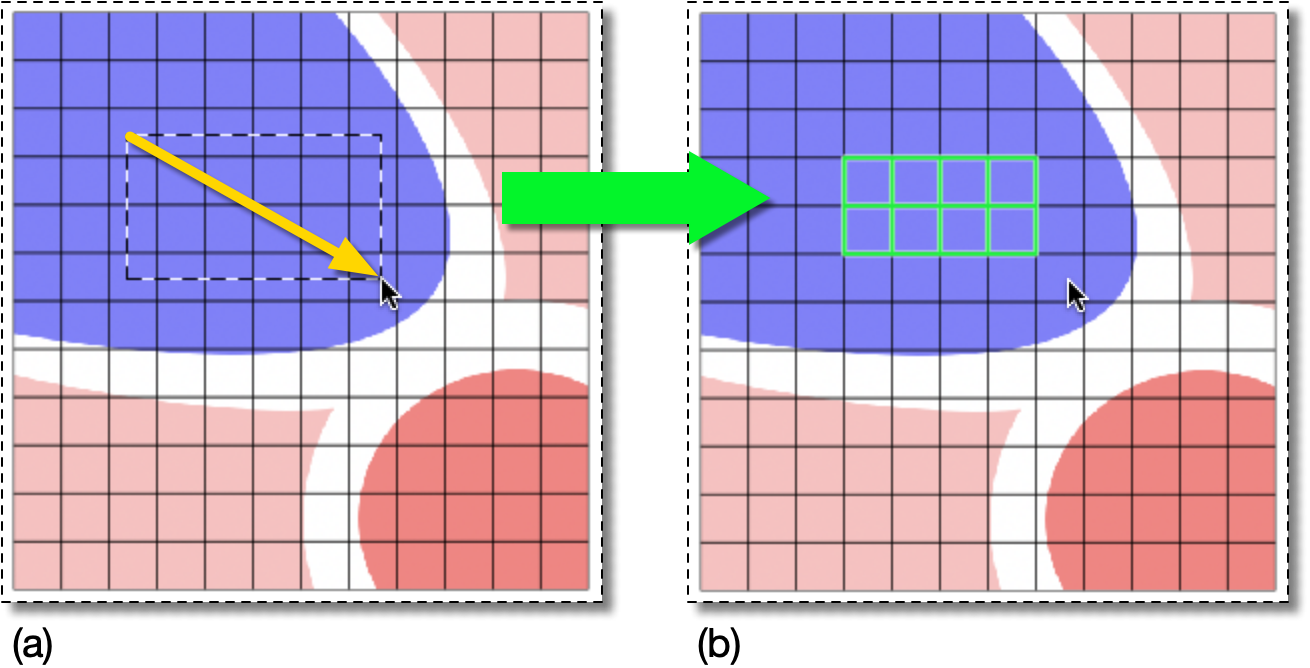

Figure 6.30. Selecting a Rectangular Set of Segments

(a) Click and drag as shown by the yellow arrow to define a rectangle.

(b) The Segments that lie completely within the rectangle are selected.
