OOF.Graphics_n.Toolbox.Select_Node.Rectangle — Drag to select nodes within a rectangle.

Synopsis

OOF.Graphics_n.Toolbox.Select_Node.Rectangle(skeleton, points, shift, ctrl)

Details

  • Parent Menu: OOF.Graphics_n.Toolbox.Select_Node
  • Callback: function SkelSelectToolbox.selectCB in module ooflib.common.IO.genericselecttoolbox

  • Parameters:

    skeleton
    Type: The path to an existing Skeleton object.
    points
    Type: A list of Point objects.
    shift
    True for addition. Type: Boolean: True or False.
    ctrl
    True for toggle. Type: Boolean: True or False.

Description

RectangleNodeSelect is a selection method that selects Nodes in response to a mouse click in the graphics window when the Skeleton Selection toolbox is active and is set to “Node” mode. It selects all Nodes lying within a rectangle swept out by dragging the mouse, as shown in Figure 6.27. Click the mouse on one corner of the rectangle and drag to the opposite corner.

skeleton is the Skeleton from which the Nodes are to be selected.

points is a list of Point objects. The first and last points in the list are diagonally opposite corners of the rectangle. Any other points in the list will be ignored.

The shift and ctrl parameters govern how the current selection (i.e, the set of Nodes defined by this operation) is merged with the previous selection (the Nodes already selected) to form a new selection, as shown in Table 6.1. They indicate whether (True) or not (False) the shift and control keys were depressed during the mouse click that initiated this command.

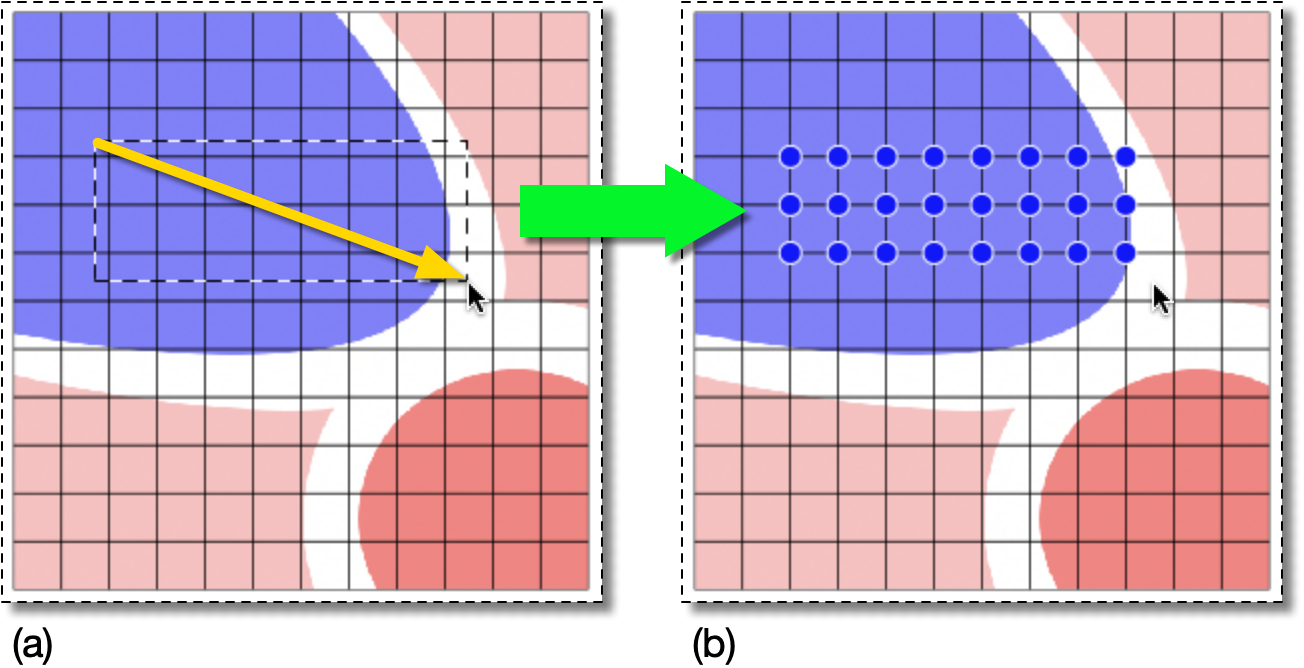

Figure 6.27. Selecting a Rectangular Set of Nodes

Selecting a Rectangular Set of Nodes

(a) Click and drag as shown by the yellow arrow to define a rectangle.

(b) The Nodes within the rectangle are selected.


See Also
