2005--Erhart-P-Albe-K--Si-C-I
  • Citation: P. Erhart, and K. Albe (2005), "Analytical potential for atomistic simulations of silicon, carbon, and silicon carbide", Physical Review B 71(3), 035211. DOI: 10.1103/physrevb.71.035211.
    Abstract: We present an analytical bond-order potential for silicon, carbon, and silicon carbide that has been optimized by a systematic fitting scheme. The functional form is adopted from a preceding work [Phys. Rev. B 65, 195124 (2002)] and is built on three independently fitted potentials for Si-Si, C-C, and Si-C interaction. For elemental silicon and carbon, the potential perfectly reproduces elastic properties and agrees very well with first-principles results for high-pressure phases. The formation enthalpies of point defects are reasonably reproduced. In the case of silicon stuctural features of the melt agree nicely with data taken from literature. For silicon carbide the dimer as well as the solid phases B1, B2, and B3 were considered. Again, elastic properties are very well reproduced including internal relaxations under shear. Comparison with first-principles data on point defect formation enthalpies shows fair agreement. The successful validation of the potentials for configurations ranging from the molecular to the bulk regime indicates the transferability of the potential model and makes it a good choice for atomistic simulations that sample a large configuration space.

    Notes: This entry uses the paper's Si-I interaction, which was recommended for SiC simulations.

    Related Models:
  • LAMMPS pair_style tersoff (2005--Erhart-P--Si-C-I--LAMMPS--ipr1)
    See Computed Properties
    Notes: This file was created and verified by Lucas Hale. The parameter values are comparable to those in the SiC_Erhart-Albe.tersoff file in the August 22, 2018 LAMMPS distribution with this file using higher precision for the derived parameters.
    File(s):
  • OpenKIM (MO_903987585848)
    See Computed Properties
    Notes: Listing found at https://openkim.org. This KIM potential is based on the SiC_Erhart-Albe.tersoff file from the LAMMPS potentials directory.
    Link(s):
Implementation Information
This page displays computed properties for the 2005--Erhart-P--Si-C-I--LAMMPS--ipr1 implementation of the 2005--Erhart-P-Albe-K--Si-C-I potential. Computed values for other implementations can be seen by clicking on the links below:

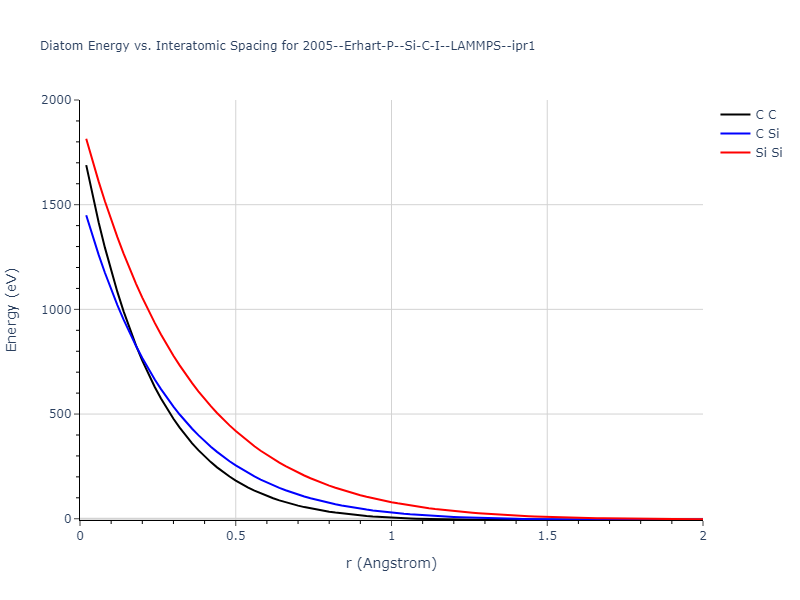

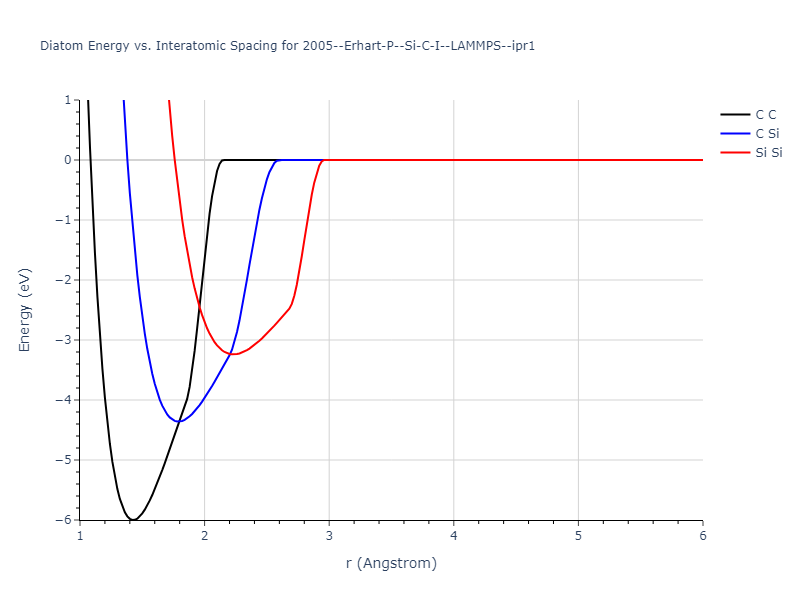

Diatom Energy vs. Interatomic Spacing

Plots of the potential energy vs interatomic spacing, r, are shown below for all diatom sets associated with the interatomic potential. This calculation provides insights into the functional form of the potential's two-body interactions. A system consisting of only two atoms is created, and the potential energy is evaluated for the atoms separated by 0.02 Å <= r <= 6.0> Å in intervals of 0.02 Å. Two plots are shown: one for the "standard" interaction distance range, and one for small values of r. The small r plot is useful for determining whether the potential is suitable for radiation studies.

The calculation method used is available as the iprPy diatom_scan calculation method.

Clicking on the image of a plot will open an interactive version of it in a new tab. The underlying data for the plots can be downloaded by clicking on the links above each plot.

Notes and Disclaimers:

  • These values are meant to be guidelines for comparing potentials, not the absolute values for any potential's properties. Values listed here may change if the calculation methods are updated due to improvements/corrections. Variations in the values may occur for variations in calculation methods, simulation software and implementations of the interatomic potentials.
  • As this calculation only involves two atoms, it neglects any multi-body interactions that may be important in molecules, liquids and crystals.
  • NIST disclaimer

Version Information:

  • 2019-11-14. Maximum value range on the shortrange plots are now limited to "expected" levels as details are otherwise lost.
  • 2019-08-07. Plots added.

Download data

Click on plot to load interactive version

2005--Erhart-P--Si-C-I--LAMMPS--ipr1/diatom

Click on plot to load interactive version

2005--Erhart-P--Si-C-I--LAMMPS--ipr1/diatom_short

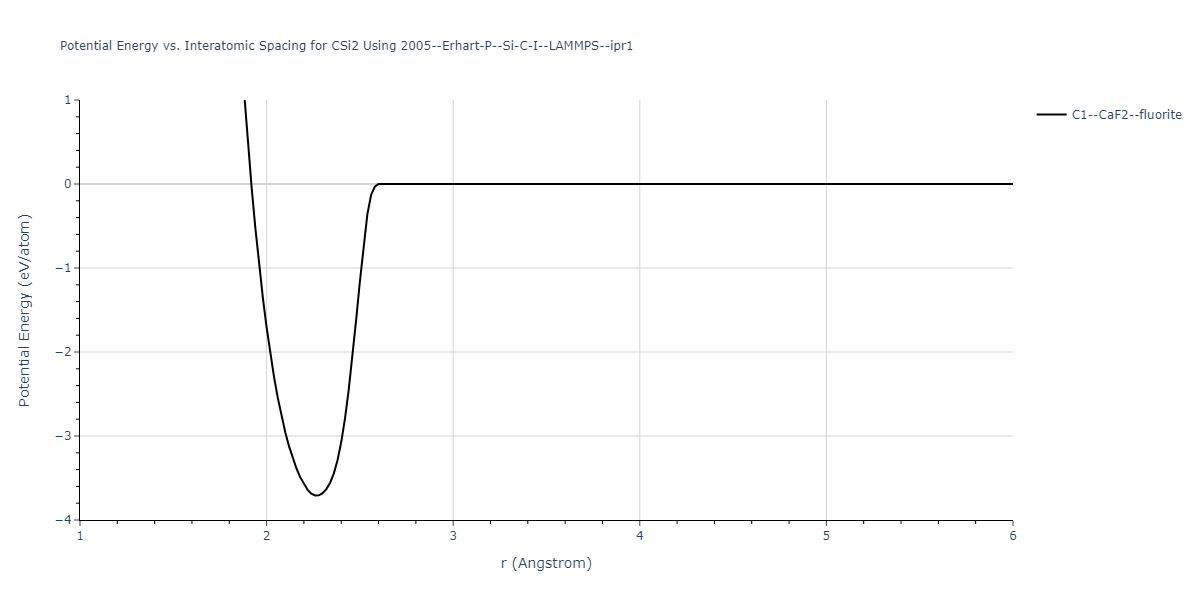

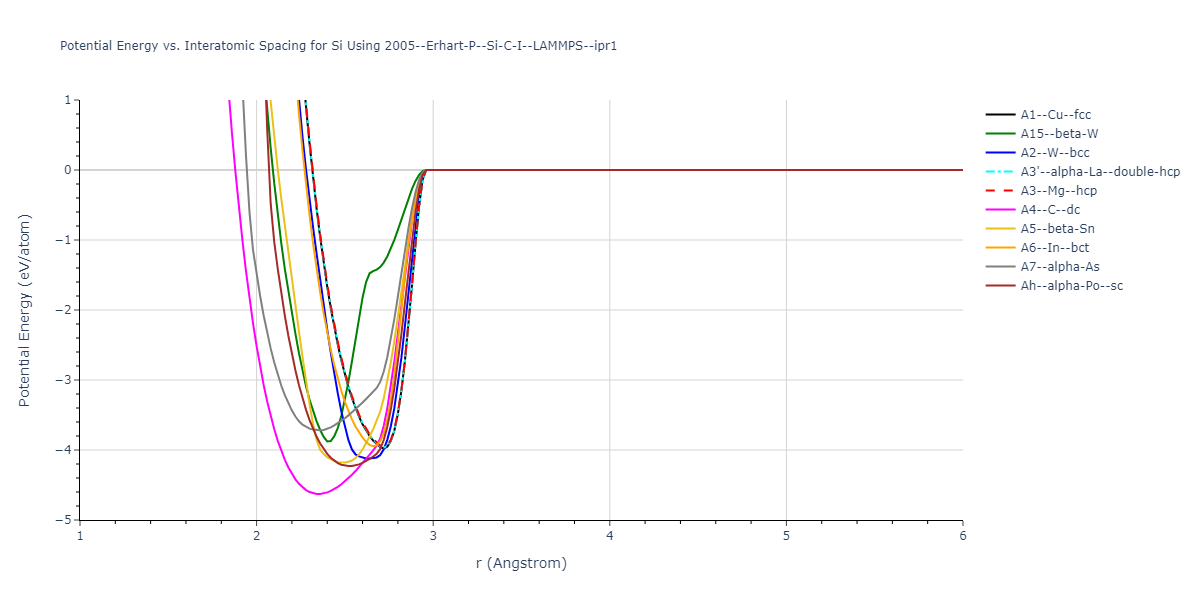

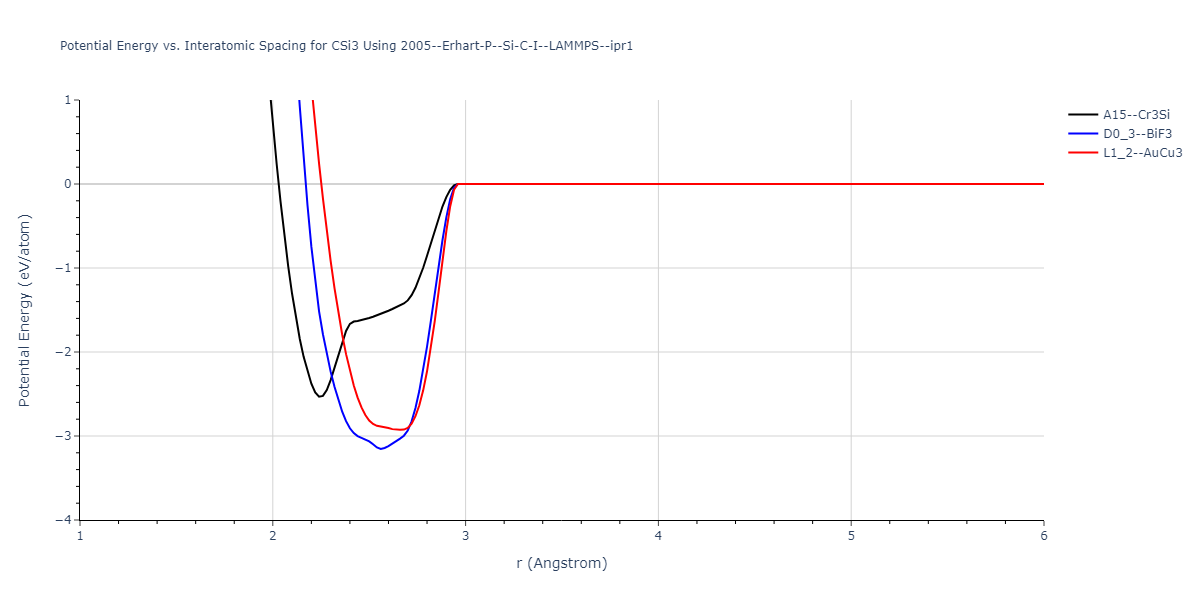

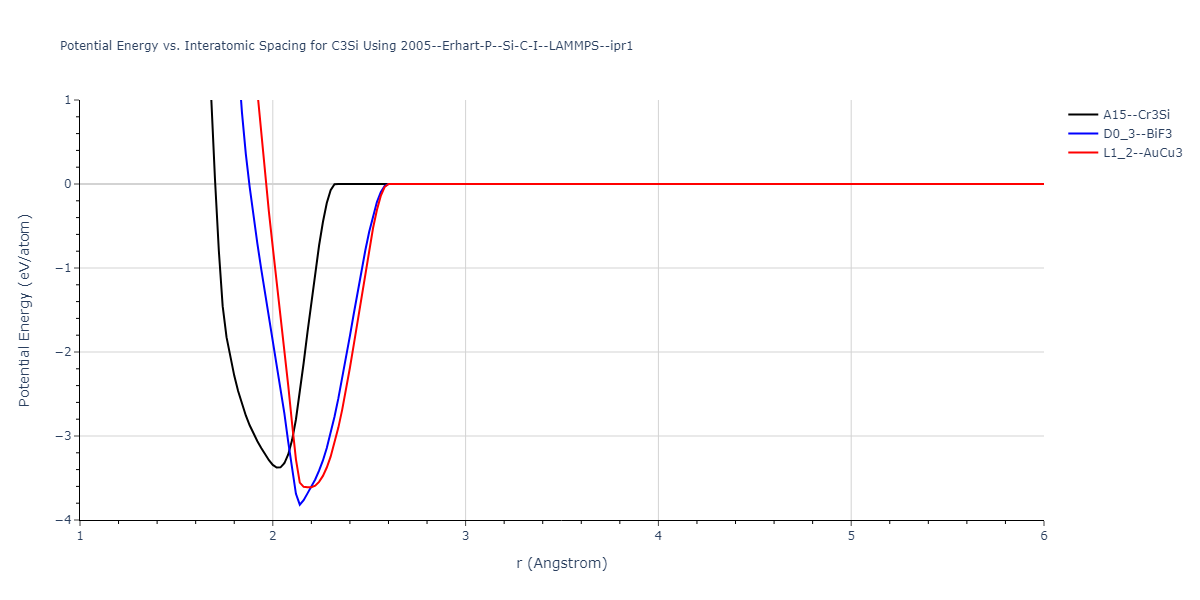

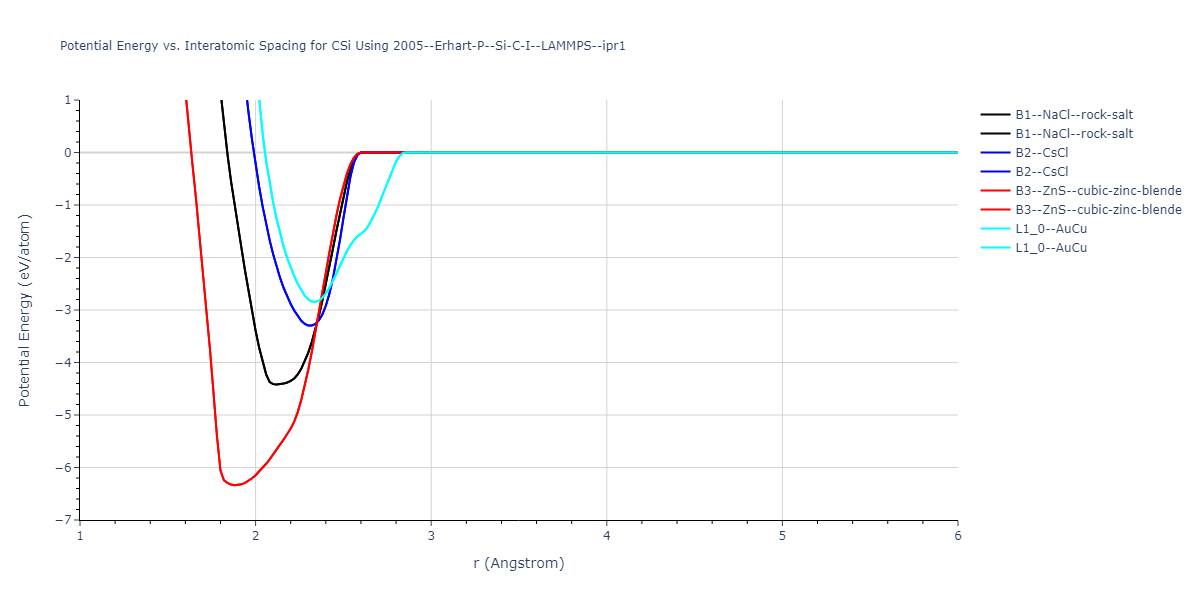

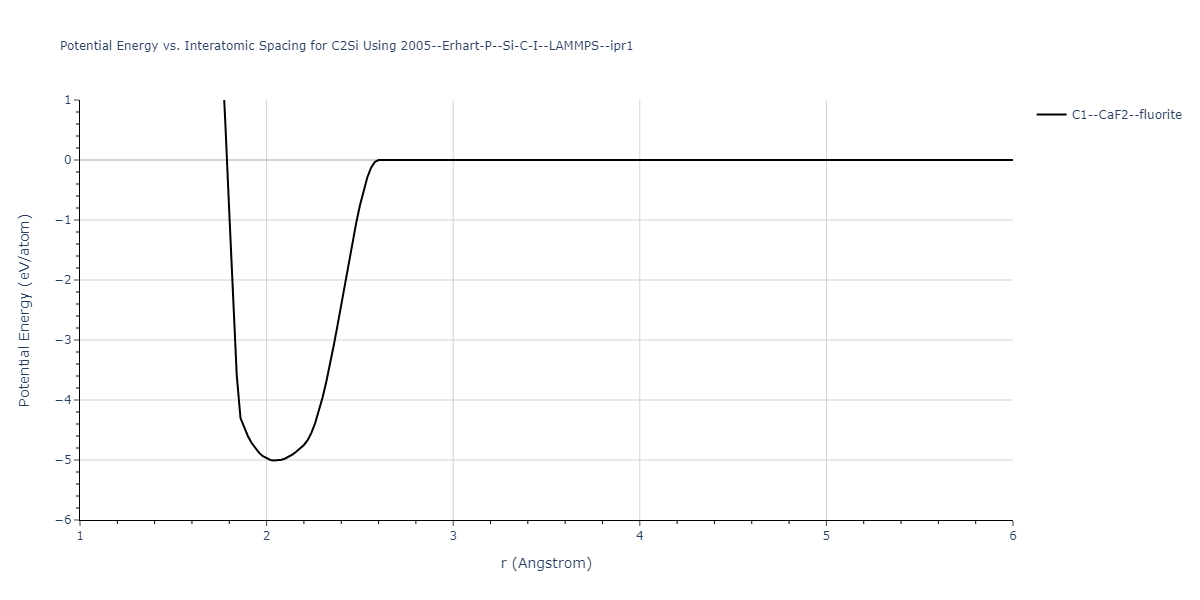

Cohesive Energy vs. Interatomic Spacing

Plots of potential energy vs interatomic spacing, r, are shown below for a number of crystal structures. The structures are generated based on the ideal atomic positions and b/a and c/a lattice parameter ratios for a given crystal prototype. The size of the system is then uniformly scaled, and the energy calculated without relaxing the system. To obtain these plots, values of r are evaluated every 0.02 Å up to 6 Å.

The calculation method used is available as the iprPy E_vs_r_scan calculation method.

Clicking on the image of a plot will open an interactive version of it in a new tab. The underlying data for the plots can be downloaded by clicking on the links above each plot.

Notes and Disclaimers:

  • These values are meant to be guidelines for comparing potentials, not the absolute values for any potential's properties. Values listed here may change if the calculation methods are updated due to improvements/corrections. Variations in the values may occur for variations in calculation methods, simulation software and implementations of the interatomic potentials.
  • The minima identified by this calculation do not guarantee that the associated crystal structures will be stable since no relaxation is performed.
  • NIST disclaimer

Version Information:

  • 2020-12-18. Descriptions, tables and plots updated to reflect that the energy values are the measuredper atom potential energy rather than cohesive energy as some potentials have non-zero isolated atom energies.
  • 2019-02-04. Values regenerated with even r spacings of 0.02 Å, and now include values less than 2 Å when possible. Updated calculation method and parameters enhance compatibility with more potential styles.
  • 2019-04-26. Results for hcp, double hcp, α-As and L10 prototypes regenerated from different unit cell representations. Only α-As results show noticable (>1e-5 eV) difference due to using a different coordinate for Wykoff site c position.
  • 2018-06-13. Values for MEAM potentials corrected. Dynamic versions of the plots moved to separate pages to improve page loading. Cosmetic changes to how data is shown and updates to the documentation.
  • 2017-01-11. Replaced png pictures with interactive Bokeh plots. Data regenerated with 200 values of r instead of 300.
  • 2016-09-28. Plots for binary structures added. Data and plots for elemental structures regenerated. Data values match the values of the previous version. Data table formatting slightly changed to increase precision and ensure spaces between large values. Composition added to plot title and structure names made longer.
  • 2016-04-07. Plots for elemental structures added.

Select a composition:

Download data

Click on plot to load interactive version

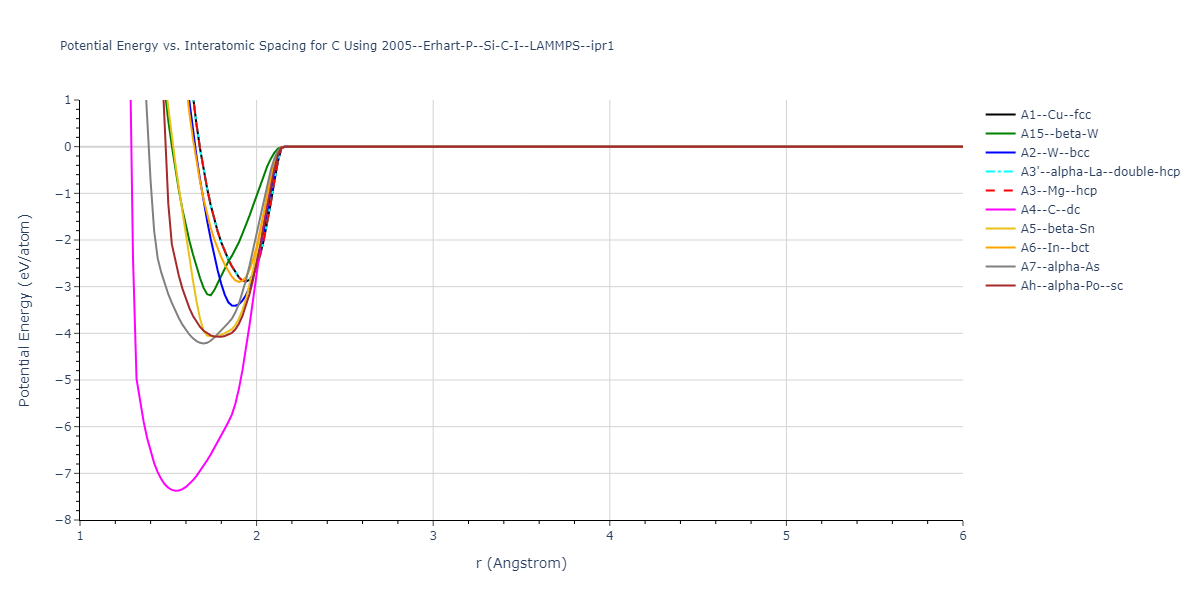

2005--Erhart-P--Si-C-I--LAMMPS--ipr1/EvsR.C
Crystal Structure Predictions

Computed lattice constants and cohesive/potential energies are displayed for a variety of crystal structures. The values displayed here are obtained using the following process.

  1. Initial crystal structure guesses are taken from:
    1. The iprPy E_vs_r_scan calculation results (shown above) by identifying all energy minima along the measured curves for a given crystal prototype + composition.
    2. Structures in the Materials Project and OQMD DFT databases.
  2. All initial guesses are relaxed using three independent methods using a 10x10x10 supercell:
    1. "box": The system's lattice constants are adjusted to zero pressure without internal relaxations using the iprPy relax_box calculation with a strainrange of 1e-6.
    2. "static": The system's lattice and atomic positions are statically relaxed using the iprPy relax_static calculation with a minimization force tolerance of 1e-10 eV/Angstrom.
    3. "dynamic": The system's lattice and atomic positions are dynamically relaxed for 10000 timesteps of 0.01 ps using the iprPy relax_dynamic calculation with an nph integration plus Langevin thermostat. The final configuration is then used as input in running an iprPy relax_static calculation with a minimization force tolerance of 1e-10 eV/Angstrom.
  3. The relaxed structures obtained from #2 are then evaluated using the spglib package to identify an ideal crystal unit cell based on the results.
  4. The space group information of the ideal unit cells is compared to the space group information of the corresponding reference structures to identify which structures transformed upon relaxation. The structures that did not transform to a different structure are listed in the table(s) below. The "method" field indicates the most rigorous relaxation method where the structure did not transform. The space group information is also used to match the DFT reference structures to the used prototype, where possible.
  5. The cohesive energy, Ecoh, is calculated from the measured potential energy per atom, Epot$, by subtracting the isolated energy averaged across all atoms in the unit cell. The isolated atom energies of each species model is obtained either by evaluating a single atom atomic configuration, or by identifying the first energy plateau from the diatom scan calculations for r > 2 Å.

The calculation methods used are implemented into iprPy as the following calculation styles

Notes and Disclaimers:

  • These values are meant to be guidelines for comparing potentials, not the absolute values for any potential's properties. Values listed here may change if the calculation methods are updated due to improvements/corrections. Variations in the values may occur for variations in calculation methods, simulation software and implementations of the interatomic potentials.
  • The presence of any structures in this list does not guarantee that those structures are stable. Also, the lowest energy structure may not be included in this list.
  • Multiple values for the same crystal structure but different lattice constants are possible. This is because multiple energy minima are possible for a given structure and interatomic potential. Having multiple energy minima for a structure does not necessarily make the potential "bad" as unwanted configurations may be unstable or correspond to conditions that may not be relevant to the problem of interest (eg. very high strains).
  • NIST disclaimer

Version Information:

  • 2025-07-02. All "mp-" reference structure calculations were re-relaxed using the updated Materials Project database rather than the original database structures. Also, a bug was fixed that caused the "static" relaxations to occasionally throw unnecessary errors. This was fixed and all affected calculations were reset and performed again.
  • 2022-05-27. The "box" method results have all been redone with an updated methodology more suited for non-orthogonal systems.
  • 2020-12-18. Cohesive energies have been corrected by making them relative to the energies of the isolated atoms. The previous cohesive energy values are now listed as the potential energies.
  • 2019-06-07. Structures with positive or near zero cohesive energies removed from the display tables. All values still present in the raw data files.
  • 2019-04-26. Calculations now computed for each implementation. Results for hcp, double hcp, α-As and L10 prototypes regenerated from different unit cell representations.
  • 2018-06-14. Methodology completely changed affecting how the information is displayed. Calculations involving MEAM potentials corrected.
  • 2016-09-28. Values for simple compounds added. All identified energy minima for each structure are listed. The existing elemental data was regenerated. Most values are consistent with before, but some differences have been noted. Specifically, variations are seen with some values for potentials where the elastic constants don't vary smoothly near the equilibrium state. Additionally, the inclusion of some high-energy structures has changed based on new criteria for identifying when structures have relaxed to another structure.
  • 2016-04-07. Values for elemental crystal structures added. Only values for the global energy minimum of each unique structure given.

Select a composition:

Download raw data (including filtered results)

Reference structure matches:
A1--Cu--fcc = oqmd-1214512
A15--beta-W = oqmd-1214957
A2--W--bcc = oqmd-1215135
A3'--alpha-La--double-hcp = oqmd-1215403
A3--Mg--hcp = oqmd-1215313
A4--C--dc = mp-66, oqmd-675640
A5--beta-Sn = oqmd-1215581
A6--In--bct = mp-1181996, oqmd-1215670
A7--alpha-As = oqmd-594528
Ah--alpha-Po--sc = mp-998866, oqmd-636457, oqmd-1214601

prototypemethodEcoh (eV/atom)Epot (eV/atom)a0 (Å)b0 (Å)c0 (Å)α (degrees)β (degrees)γ (degrees)
mp-568806dynamic-7.374-7.3742.55522.55523.659790.090.0120.0
oqmd-683819dynamic-7.374-7.3742.55524.42576.666190.090.090.0
mp-568286dynamic-7.374-7.3742.55524.42577.036190.090.090.0
oqmd-589492dynamic-7.374-7.3742.55522.555253.49590.090.0120.0
mp-568363dynamic-7.374-7.3742.55524.42578.149990.090.090.0
mp-568806static-7.374-7.3742.55522.55523.653190.090.0120.0
mp-1018088dynamic-7.374-7.3744.17264.17264.172690.090.090.0
oqmd-683820dynamic-7.374-7.3742.55524.42576.816390.090.090.0
mp-569304dynamic-7.374-7.3742.55522.555233.190990.090.0120.0
mp-990424static-7.374-7.3742.55522.555224.13290.090.0120.0
A7--alpha-Asdynamic-7.374-7.3742.55522.55527.28390.090.0120.0
mp-937760dynamic-7.374-7.3742.55524.42577.173390.090.090.0
A7--alpha-Asstatic-7.374-7.3742.55522.55526.450290.090.0120.0
mp-990448static-7.374-7.3742.55522.55528.523890.090.0120.0
mp-990424dynamic-7.374-7.3742.55522.555224.159590.090.0120.0
oqmd-610551static-7.374-7.3742.55522.55523.50190.090.0120.0
oqmd-590101static-7.374-7.3742.55522.55526.79690.090.0120.0
oqmd-683820static-7.374-7.3742.55524.42576.76990.090.090.0
mp-569416static-7.374-7.3742.55522.555254.686990.090.0120.0
mp-1040425dynamic-7.374-7.3742.55522.555219.998890.090.0120.0
mp-1040425static-7.374-7.3742.55522.555219.998390.090.0120.0
oqmd-683819static-7.374-7.3742.55524.42576.650590.090.090.0
A7--alpha-Asdynamic-7.374-7.3742.55522.555210.213190.090.0120.0
oqmd-1214690dynamic-7.374-7.3742.55524.42576.676790.090.090.0
oqmd-590101dynamic-7.374-7.3742.55522.55526.796590.090.0120.0
mp-169static-7.374-7.3744.42572.55523.763490.0111.590.0
oqmd-589491dynamic-7.374-7.3742.55522.555233.358390.090.0120.0
mp-48dynamic-7.374-7.3742.55522.55527.803190.090.0120.0
mp-997182dynamic-7.374-7.3742.55522.555212.045990.090.0120.0
mp-632329static-7.374-7.3744.42572.55523.737690.094.290.0
oqmd-1215937dynamic-7.374-7.3742.55522.55527.372590.090.0120.0
mp-632329dynamic-7.374-7.3744.42572.55523.870390.094.190.0
mp-169dynamic-7.374-7.3744.42572.55523.848290.0111.990.0
oqmd-589493static-7.374-7.3742.55522.555228.953590.090.0120.0
mp-606949dynamic-7.374-7.3742.55522.555229.491990.090.0120.0
oqmd-589493dynamic-7.374-7.3742.55522.555228.95690.090.0120.0
mp-569416dynamic-7.374-7.3742.55522.555254.715290.090.0120.0
mp-568286static-7.374-7.3742.55524.42577.034890.090.090.0
oqmd-599489dynamic-7.3732-7.37322.52132.52134.117390.090.0120.0
A4--C--dcdynamic-7.3732-7.37323.56573.56573.565790.090.090.0
mp-611448dynamic-7.3732-7.37322.52132.521312.35290.090.0120.0
mp-611426dynamic-7.3732-7.37322.52132.52138.234790.090.0120.0
oqmd-599493dynamic-7.3732-7.37322.52132.521330.8890.090.0120.0
oqmd-599492dynamic-7.3732-7.37322.52132.521316.469490.090.0120.0
oqmd-599494dynamic-7.3732-7.37322.52132.521343.23290.090.0120.0
oqmd-599489box-7.3731-7.37312.5212.5214.118690.090.0120.0
mp-47box-7.3731-7.37312.52092.52094.118990.090.0120.0
oqmd-599492box-7.3725-7.37252.52122.521216.47390.090.0120.0
mp-616440box-7.3723-7.37232.52132.521316.472590.090.0120.0
oqmd-599491box-7.3723-7.37232.52122.521212.35590.090.0120.0
mp-569567box-7.3722-7.37222.52132.521343.240390.090.0120.0
mp-611448box-7.3721-7.37212.52132.521312.354890.090.0120.0
oqmd-599493box-7.3721-7.37212.52132.521330.886690.090.0120.0
mp-569517box-7.372-7.3722.52122.521230.888290.090.0120.0
mp-611426box-7.372-7.3722.52122.52128.237590.090.0120.0
oqmd-599490box-7.3718-7.37182.52132.52138.236990.090.0120.0
mp-1008374dynamic-7.2974-7.29742.51667.95912.559590.090.090.0
mp-1096869static-7.2911-7.291126.55315.3352.150190.093.390.0
mp-1008374box-7.2086-7.20862.49578.08382.555190.090.090.0
mp-1078845dynamic-7.1049-7.10494.20718.80672.54190.090.090.0
mp-1078845box-7.0938-7.09384.22478.81292.535190.090.090.0
mp-1188817dynamic-7.0923-7.09235.27035.27035.270390.090.090.0
oqmd-637443box-7.092-7.0925.26975.26975.269790.090.090.0
mp-1188817box-7.0912-7.09125.26885.26885.268890.090.090.0
oqmd-610557static-7.05-7.054.89755.28564.473490.090.090.0
oqmd-610557box-7.0127-7.01274.87695.30684.518190.090.090.0
oqmd-610556box-7.0119-7.01194.87425.31514.518290.090.090.0
mp-568410box-7.0093-7.00934.8725.32054.519790.090.090.0
mp-683919dynamic-6.9743-6.974310.25217.576718.247490.090.090.0
oqmd-689315dynamic-6.9743-6.97439.993517.304318.247490.090.090.0
mp-683919static-6.9743-6.974310.531717.683318.247190.090.090.0
oqmd-689315static-6.9743-6.974310.505717.663618.245190.090.090.0
mp-683919box-6.9554-6.955410.52218.050118.61890.090.090.0
oqmd-689315box-6.9272-6.927210.466618.079218.643390.090.090.0
oqmd-637353dynamic-6.9272-6.92724.38874.38872.542590.090.090.0
oqmd-595714dynamic-6.9212-6.92129.16829.217614.44290.090.090.0
oqmd-595714static-6.9212-6.92129.16829.217615.158290.090.090.0
mp-630227dynamic-6.9212-6.92129.16829.217615.711590.090.090.0
mp-630227static-6.9212-6.92129.16829.217616.241990.090.090.0
oqmd-684627dynamic-6.9211-6.92119.19319.193115.042290.090.090.0
oqmd-684627static-6.9211-6.92119.19319.193115.813790.090.090.0
oqmd-637130dynamic-6.9196-6.91969.09392.55884.170590.090.090.0
mp-680372dynamic-6.9195-6.91959.2239.22325.413790.090.0120.0
oqmd-614417dynamic-6.9195-6.91959.2239.22323.9290.090.0120.0
oqmd-614417static-6.9195-6.91959.2239.22325.305290.090.0120.0
mp-680372static-6.9194-6.91949.22469.224626.533890.090.0120.0
mp-1147718dynamic-6.9188-6.918810.335814.84659.20590.090.090.0
oqmd-684315dynamic-6.9188-6.91889.909714.88279.20590.090.090.0
mp-1147718static-6.9188-6.918810.60315.24689.205190.090.090.0
oqmd-677227dynamic-6.917-6.91714.055214.055214.055290.090.090.0
oqmd-603085static-6.917-6.91714.422314.422314.422390.090.090.0
oqmd-677227static-6.917-6.91714.621714.621714.621790.090.090.0
oqmd-603085dynamic-6.917-6.91713.846313.846313.846390.090.090.0
mp-667273dynamic-6.917-6.91714.483114.483114.483190.090.090.0
mp-1196583dynamic-6.917-6.91714.486814.486814.486890.090.090.0
mp-1196583static-6.917-6.91714.851814.851814.851890.090.090.0
mp-667273static-6.917-6.91714.915514.915514.915590.090.090.0
oqmd-637352dynamic-6.9168-6.91689.19382.55914.170290.097.990.0
mp-1008395box-6.9127-6.91274.39774.39772.53690.090.090.0
mp-1196583box-6.9105-6.910514.854714.854714.854790.090.090.0
oqmd-603085box-6.9105-6.910514.424914.424914.424990.090.090.0
mp-667273box-6.9091-6.909114.919214.919214.919290.090.090.0
mp-1080826box-6.905-6.9059.1962.55284.173790.097.090.0
oqmd-637352box-6.905-6.9059.19562.5534.172990.097.090.0
mp-568028dynamic-6.9035-6.90358.17914.0889.51890.090.090.0
mp-1190171box-6.9035-6.90359.10552.55294.173490.090.090.0
oqmd-637130box-6.9033-6.90339.10472.55314.172890.090.090.0
oqmd-677227box-6.8968-6.896814.634414.634414.634490.090.090.0
mp-1147718box-6.8941-6.894110.589215.21279.510490.090.090.0
oqmd-595714box-6.8901-6.89019.3729.449915.053590.090.090.0
mp-630227box-6.8883-6.88839.36359.438616.164990.090.090.0
mp-624889dynamic-6.8724-6.87244.85735.27965.48690.090.090.0
oqmd-610552static-6.8724-6.87244.85735.27966.668790.090.090.0
mp-579909static-6.8724-6.87244.85735.27967.102690.090.090.0
mp-624889static-6.8724-6.87244.85735.27965.848490.090.090.0
oqmd-614417box-6.8689-6.86899.4549.45425.013790.090.0120.0
mp-680372box-6.8634-6.86349.4679.46726.220390.090.0120.0
mp-624889box-6.8538-6.85384.88435.29635.825690.090.090.0
oqmd-684627box-6.8499-6.84999.42319.423115.791690.090.090.0
mp-1205283static-6.7951-6.795110.634513.23498.940490.090.090.0
mp-1205283dynamic-6.7557-6.75579.839514.27629.715590.090.090.0
oqmd-610552box-6.7468-6.74684.7975.6416.567390.090.090.0
mp-579909box-6.7408-6.74084.78985.65366.998390.090.090.0
mp-568028box-6.7299-6.72998.654414.56749.875690.090.090.0
mp-1245190dynamic-6.6522-6.65229.697810.326610.853890.393.490.9
mp-1244964dynamic-6.606-6.6069.721410.070910.689792.591.291.2
mp-24dynamic-6.6009-6.60094.42854.42854.428590.090.090.0
mp-24box-6.5805-6.58054.45454.45454.454590.090.090.0
mp-1244913dynamic-6.5376-6.53769.491510.065710.781491.995.790.9
mp-1245190static-6.419-6.41910.186410.548910.599390.593.790.4
oqmd-684315static-6.3786-6.378610.435515.99678.973690.090.090.0
mp-1205283box-6.3093-6.309310.39713.62799.417990.090.090.0
mp-1244964static-6.2149-6.214910.199610.236511.168783.189.289.2
mp-1244913static-5.9988-5.998810.456610.639610.851890.293.897.0
mp-1095633dynamic-5.9168-5.91687.56277.56274.990390.090.090.0
mp-1197903dynamic-5.8384-5.83847.70169.369922.6635100.295.3105.5
mp-1196857dynamic-5.8336-5.83369.22718.97685.992790.090.090.0
mp-1182684dynamic-5.7911-5.79119.416311.187714.301990.090.090.0
mp-1182684static-5.7838-5.783812.599312.786718.898690.090.090.0
mp-570002dynamic-5.7478-5.74785.03535.03535.035390.090.090.0
oqmd-585286box-5.735-5.7355.03845.03845.038490.090.090.0
mp-570002box-5.7349-5.73495.03845.03845.038490.090.090.0
mp-1245190box-5.6957-5.695710.781811.270411.37789.390.087.9
oqmd-684315box-5.5849-5.584910.826115.76079.341890.090.090.0
mp-1197903static-5.5297-5.52977.847711.081522.928896.196.1108.1
mp-1244964box-5.4866-5.486610.876511.077211.767690.394.992.8
mp-1244913box-5.1576-5.157611.397811.497711.895390.396.192.5
mp-1182684box-4.8073-4.807312.146613.343815.903790.090.090.0
mp-1095534box-4.7272-4.727210.762910.76292.493790.090.090.0
A7--alpha-Asbox-4.4148-4.41482.86242.86246.272890.090.0120.0
oqmd-1215224static-4.3089-4.30891.69022.92063.189290.0104.090.0
mp-1205417box-4.2021-4.202113.39113.3917.782290.090.090.0
A5--beta-Sndynamic-4.0808-4.08083.42493.42491.806690.090.090.0
Ah--alpha-Po--scdynamic-4.0773-4.07731.78251.78251.782590.090.090.0
A3'--alpha-La--double-hcpdynamic-4.0726-4.07262.48872.48874.289490.090.0120.0
mp-1056957static-3.9997-3.99972.39032.39036.553390.090.090.0
mp-1097832static-3.9997-3.99972.39032.39039.879990.090.090.0
A6--In--bctstatic-3.9997-3.99971.69021.69026.552590.090.090.0
oqmd-1216026static-3.9997-3.99972.39032.39039.165490.093.290.0
A6--In--bctstatic-3.9997-3.99971.69021.69026.380390.090.090.0
A6--In--bctstatic-3.9997-3.99971.69021.69023.574490.090.090.0
mp-1192619box-3.9408-3.940810.156310.156310.156390.090.090.0
oqmd-1214779box-3.9005-3.90059.74049.74049.740490.090.090.0
A2--W--bccdynamic-3.4099-3.40992.162.162.1690.090.090.0
A15--beta-Wdynamic-3.1912-3.19123.46743.46743.467490.090.090.0
A1--Cu--fccbox-2.8904-2.89042.7392.7392.73990.090.090.0
A3'--alpha-La--double-hcpbox-2.8903-2.89031.93671.93676.326190.090.0120.0
A3--Mg--hcpbox-2.8903-2.89031.93661.93663.163390.090.0120.0
A3--Mg--hcpdynamic-2.8738-2.87381.8571.8574.309290.090.0120.0
oqmd-1214868static-2.8021-2.80217.56237.56237.562390.090.090.0
oqmd-1214868dynamic-2.8021-2.80216.79246.79246.792490.090.090.0
A1--Cu--fccdynamic0.00.03.06453.06453.064590.090.090.0
Elastic Constants Predictions

Static elastic constants are displayed for the unique structures identified in Crystal Structure Predictions above. The values displayed here are obtained by measuring the change in virial stresses due to applying small strains to the relaxed crystals. The initial structure and the strained states are all relaxed using force minimization.

The calculation method used is available as the iprPy elastic_constants_static calculation method.

Notes and Disclaimers:

  • These values are meant to be guidelines for comparing potentials, not the absolute values for any potential's properties. Values listed here may change if the calculation methods are updated due to improvements/corrections. Variations in the values may occur for variations in calculation methods, simulation software and implementations of the interatomic potentials.
  • The presence of any structures in this list does not guarantee that those structures are stable.
  • The elastic constants have been computed for a variety of strains, and in some cases for slightly different lattice constant values. The static nature of this calculation can give poor predictions if the evaluated states straddle a functional discontinuity in the potential's third derivative. Be sure to compare the elastic constants for the different strains (positive and negative).
  • NIST disclaimer

Version Information:

  • 2019-08-07. Data added.

Composition:
Prototype:
a0:
strain:

Download raw data

Cij in GPa:
1680.0482020.7162020.716-0.000-0.0000.000
2020.7161680.0482020.716-0.000-0.0000.000
2020.7162020.7161680.048-0.000-0.000-0.000
0.000-0.000-0.000111.867-0.0000.000
0.000-0.000-0.000-0.000111.867-0.000
0.000-0.000-0.000-0.000-0.000111.867
Phonon and Quasi-Harmonic Approximation Predictions

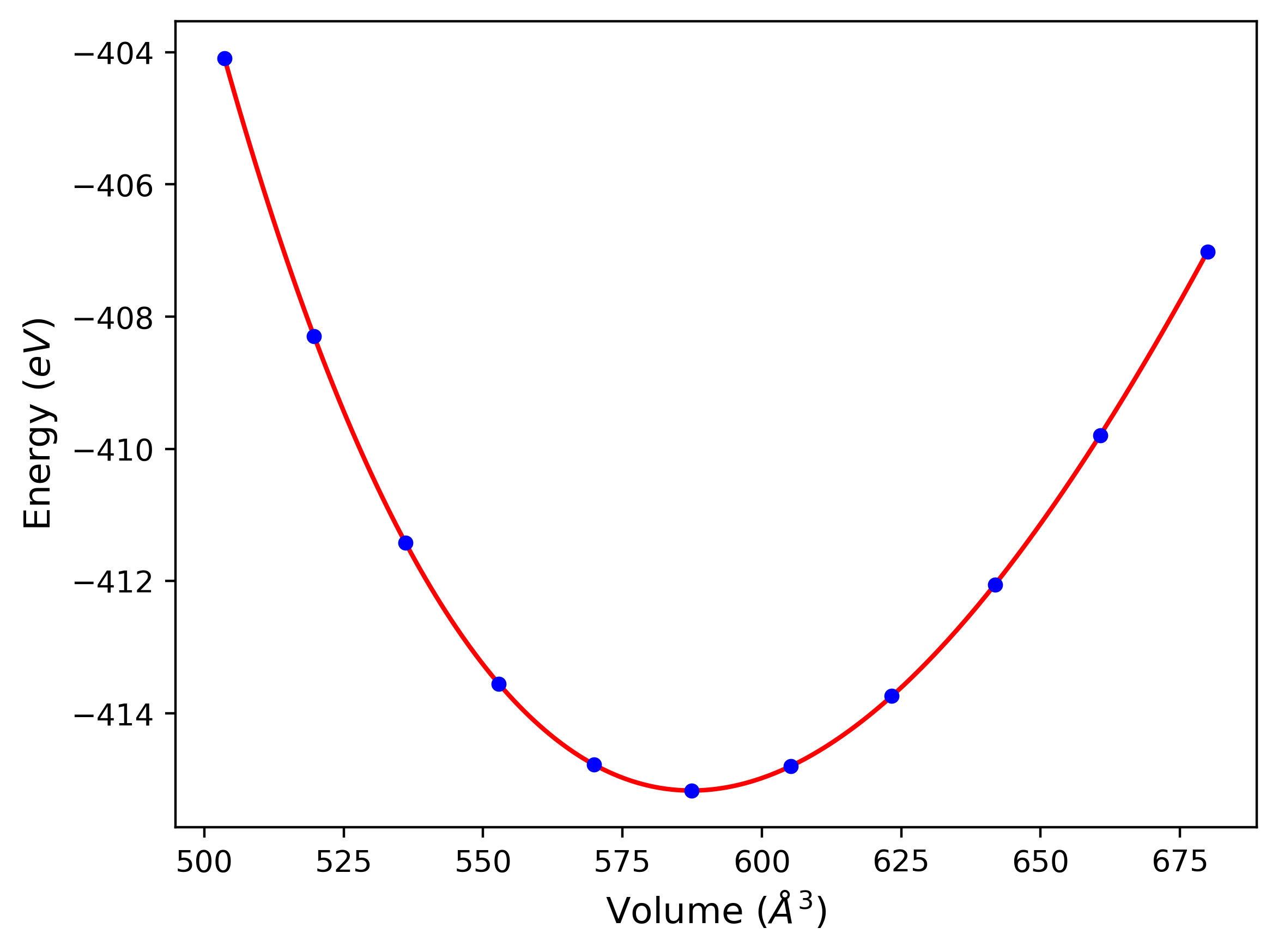

Phonon band structures and crystal properties estimated from quasi-harmonic approximation (QHA) calculations are displayed for select crystals. The calculations were performed using phonopy and LAMMPS. For the phonon calculations, 3x3 supercells of the potential-specific relaxed crystals were used. The QHA calculations were based on 11 strain states ranging from -0.05 to 0.05.

The calculation method used is available as the iprPy phonon calculation method.

Notes and Disclaimers:

  • The thermodynamic properties estimated from QHA are based on the assumption that only volumetric changes affect the phonon behaviors as the temperature changes. This tends to give good predictions at lower temperatures but ignores anharmonic effects such as phonon coupling and vacancy formation that can be important at higher temperatures.
  • Note that direct molecular dynamics (MD) simulations using the same potentials will disagree with the thermodynamics properties listed here for the lowest temperatures. The MD results are purely classical in nature and therefore lack a zero-point energy, whereas the phonon calculations inherently provide a zero-point energy.
  • The structures explored here are taken from the dynamically relaxed structures above. Despite the rigorous relaxation method used, some of these structures prove to be unstable once internal deformations are added. The phonon results may reflect this and give bad band gap predictions for these unstable crystals.
  • All QHA calculations performed here use the same set of strains which might not be ideal for all crystals. Be sure to check the bulk modulus and Helmholtz vs. volume plots to verify if the QHA strained states are reasonable for each crystal of interest.
  • QHA results may not be available for all crystal structures that have phonon results. Missing QHA results indicates an issue either with the strained states or with the QHA calculation itself.
  • NIST disclaimer

Version Information:

  • 2023-03-14. Phonon and QHA plots added

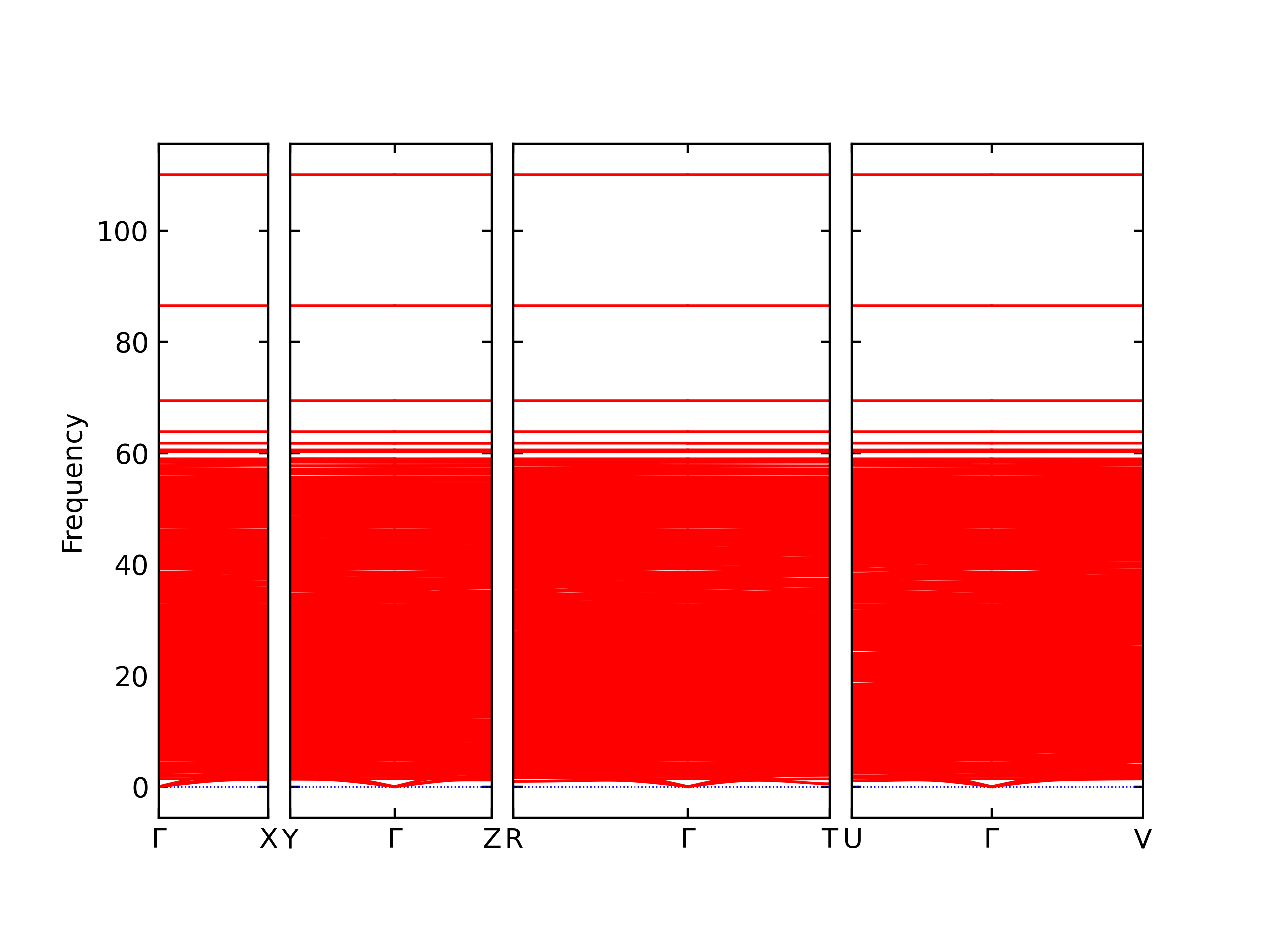

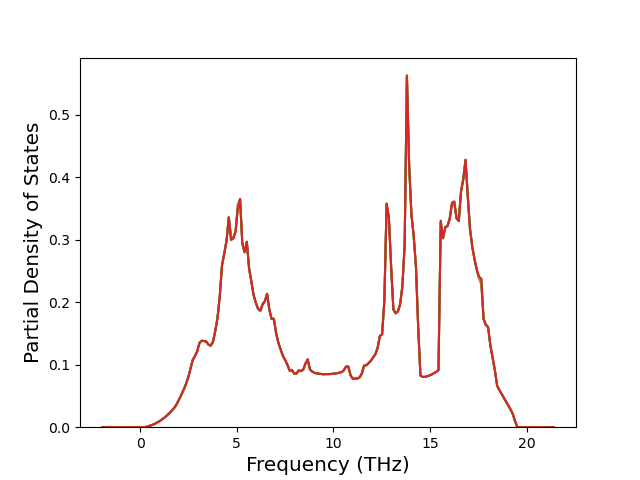

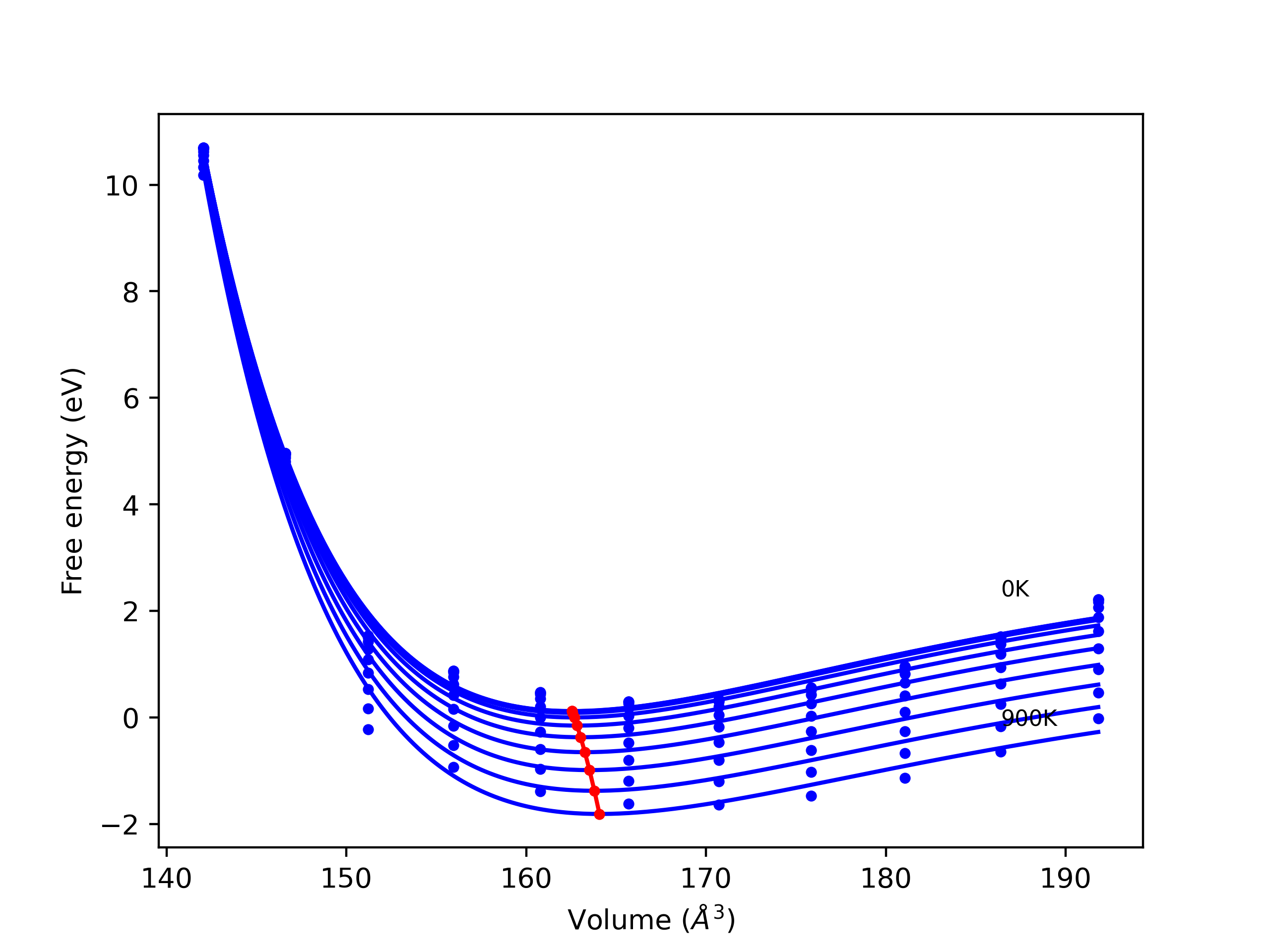

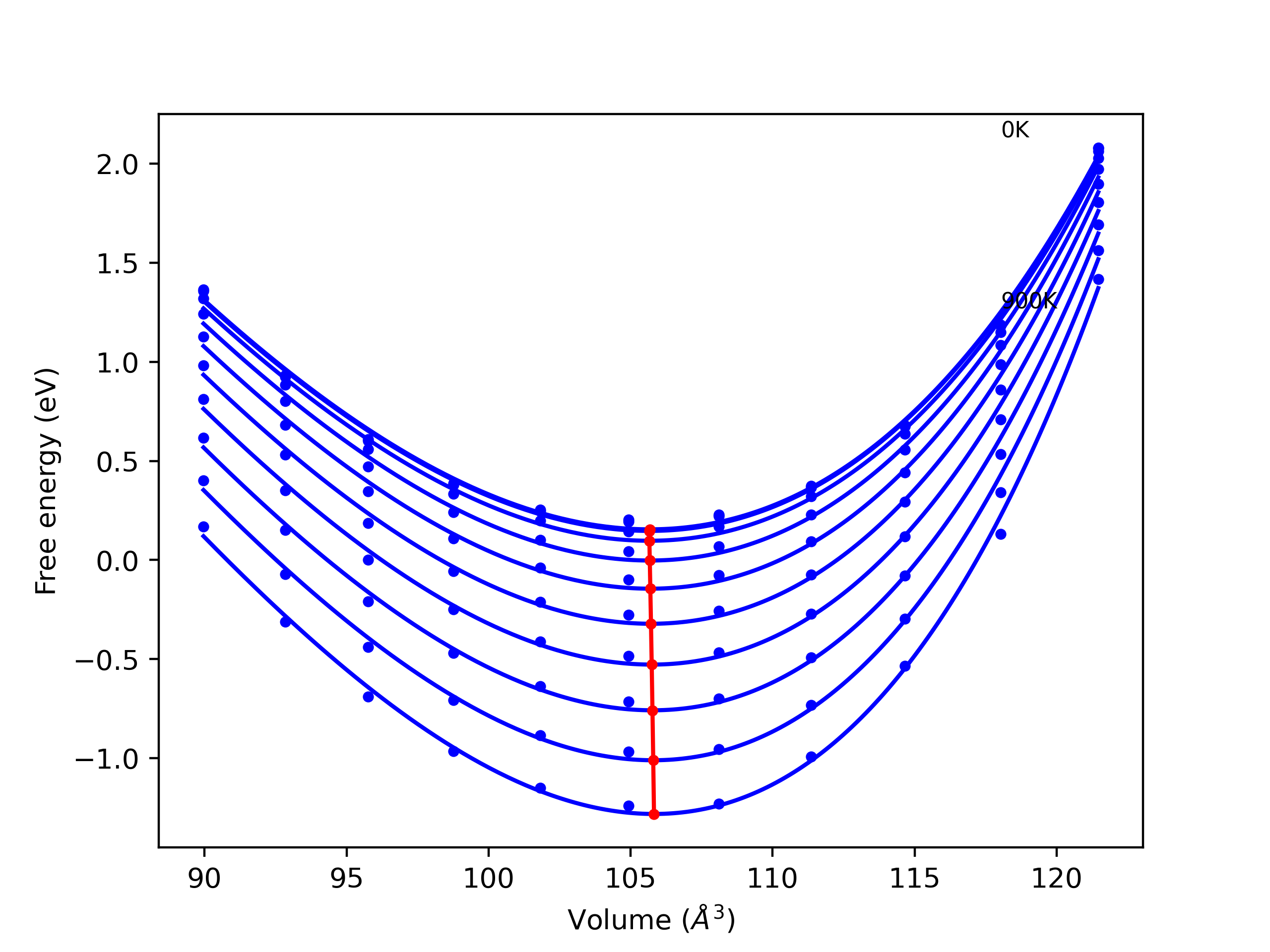

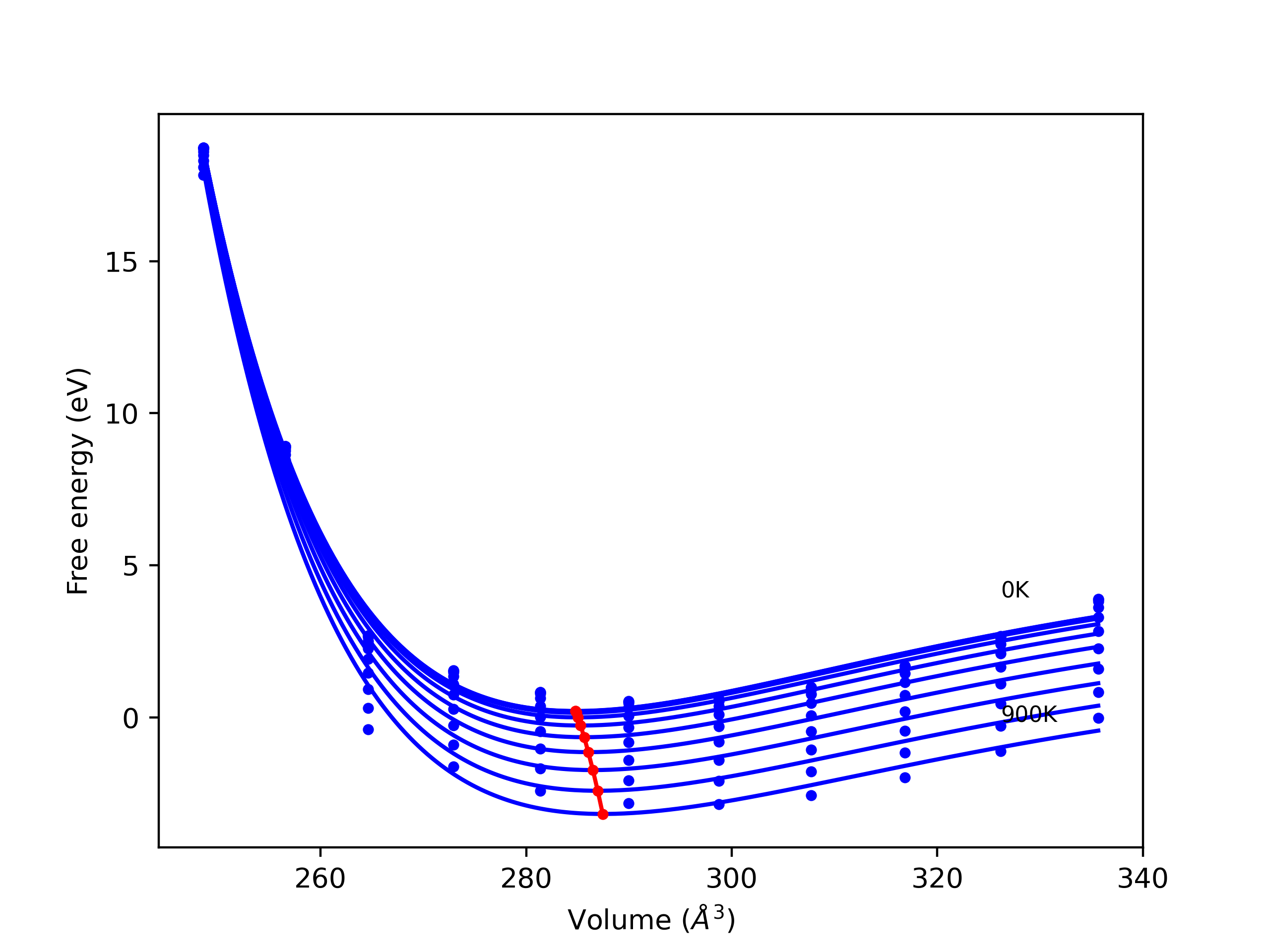

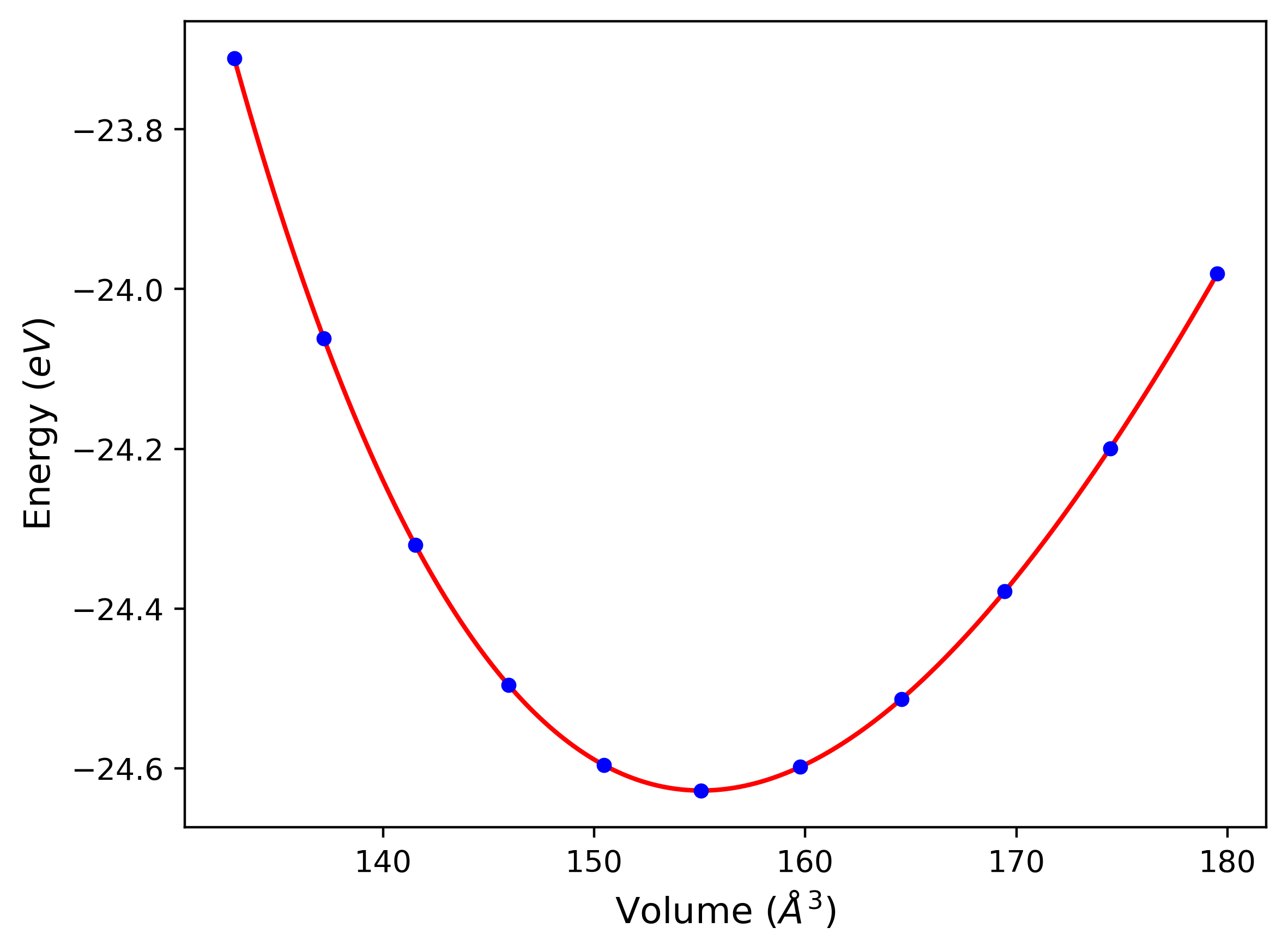

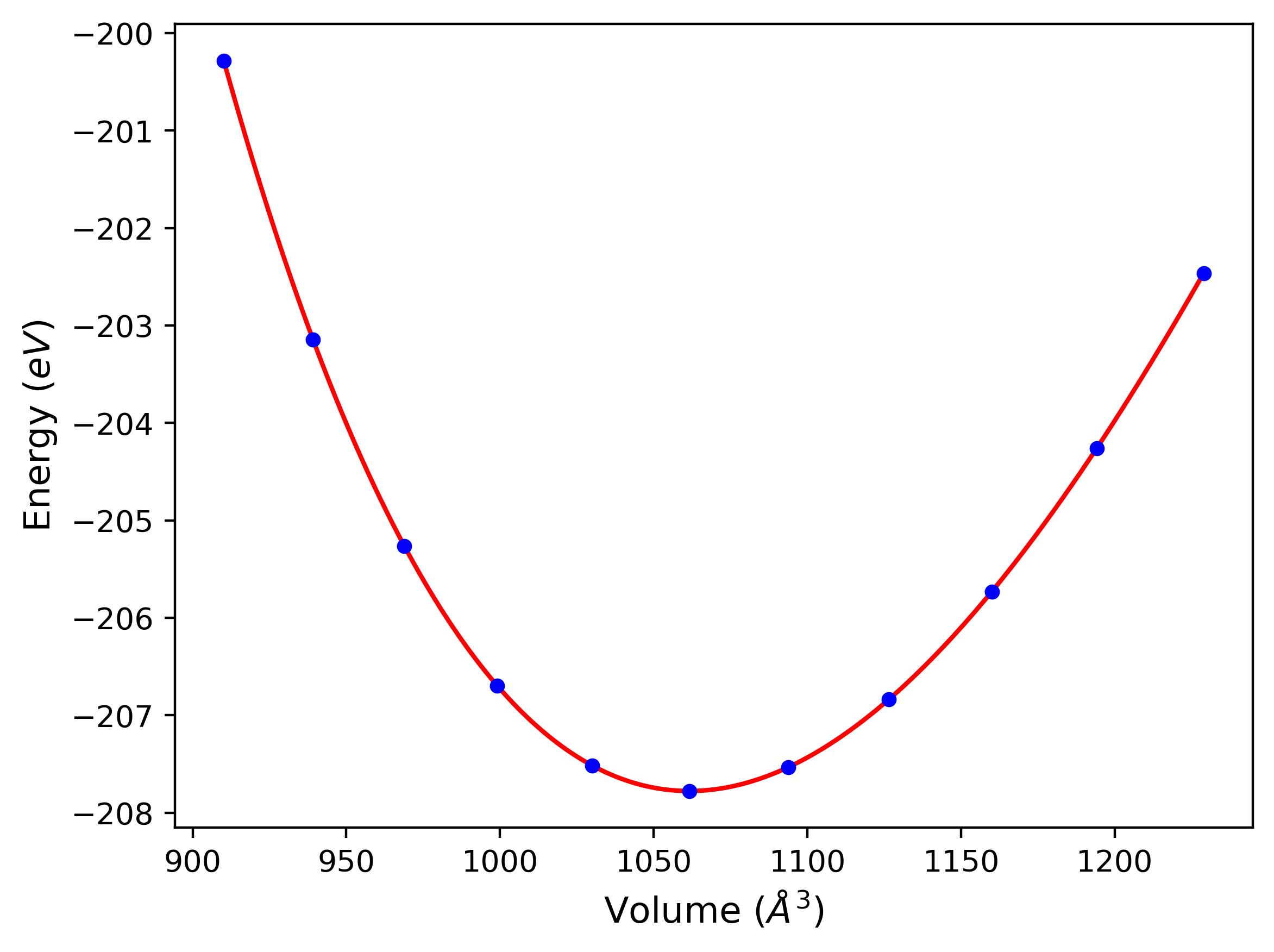

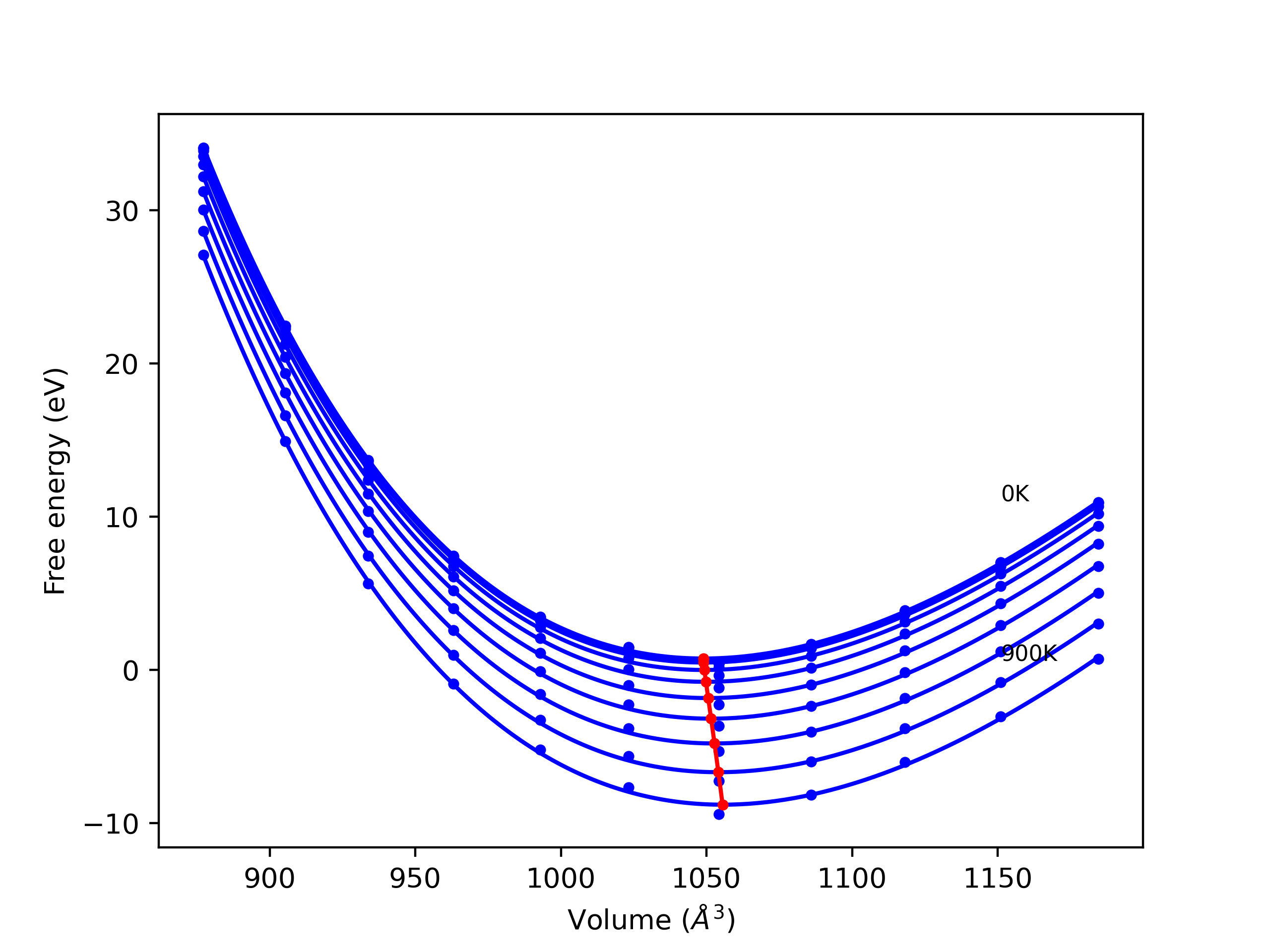

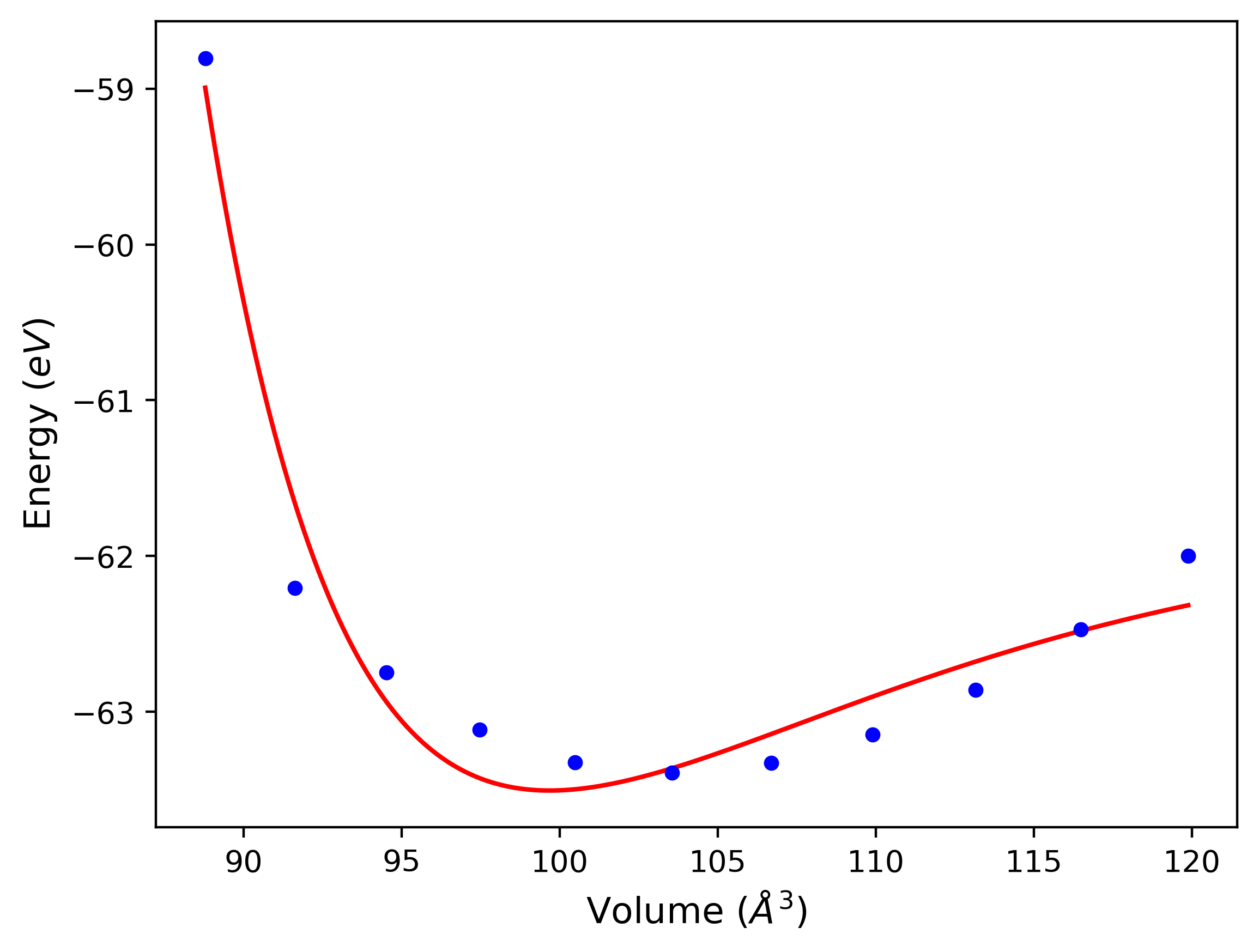

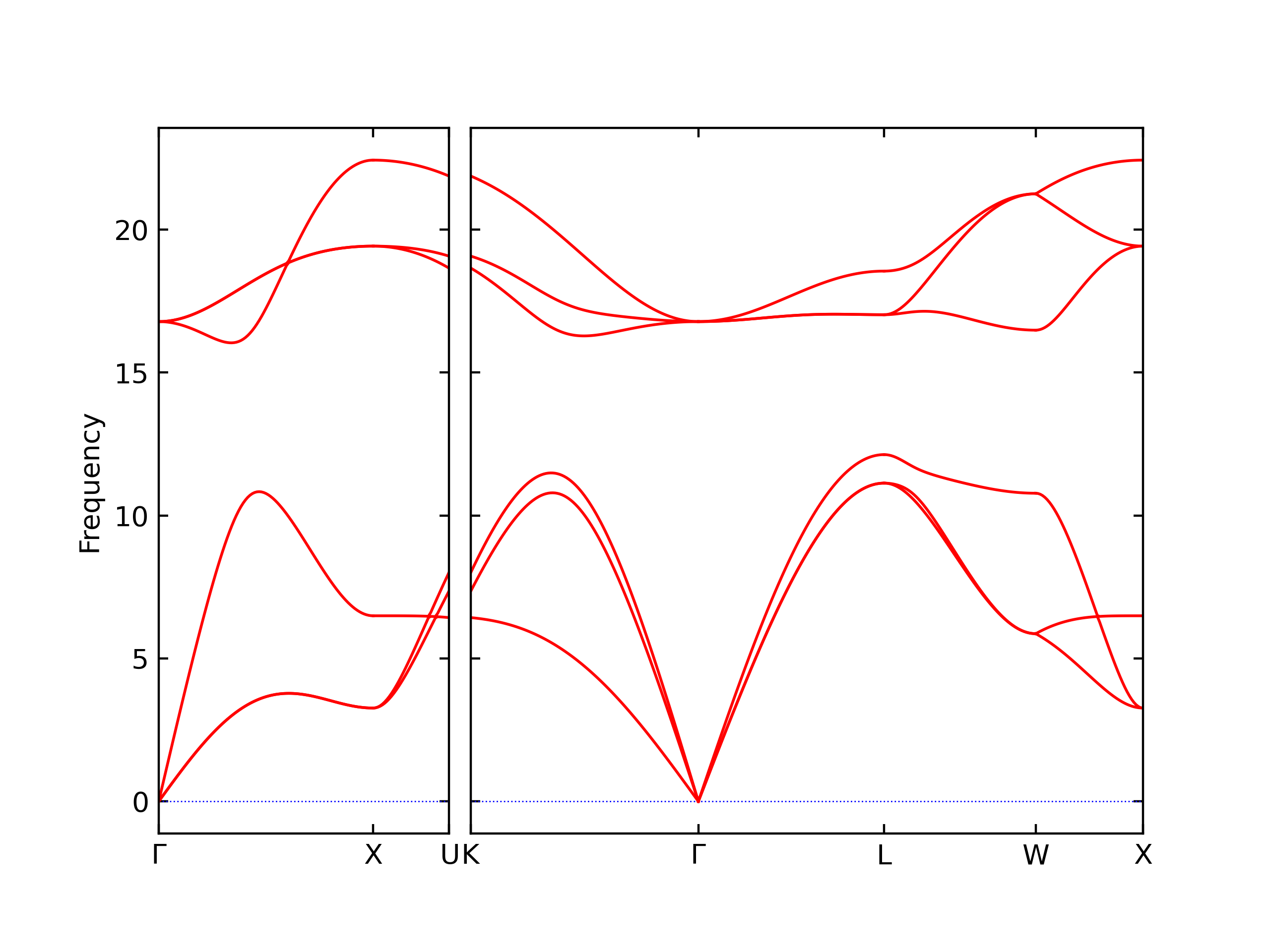

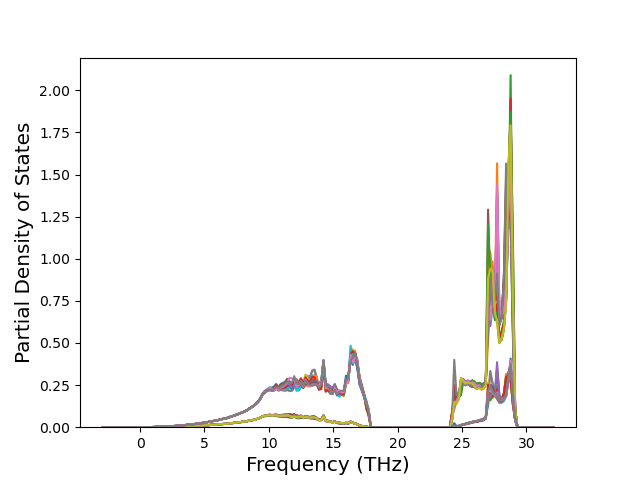

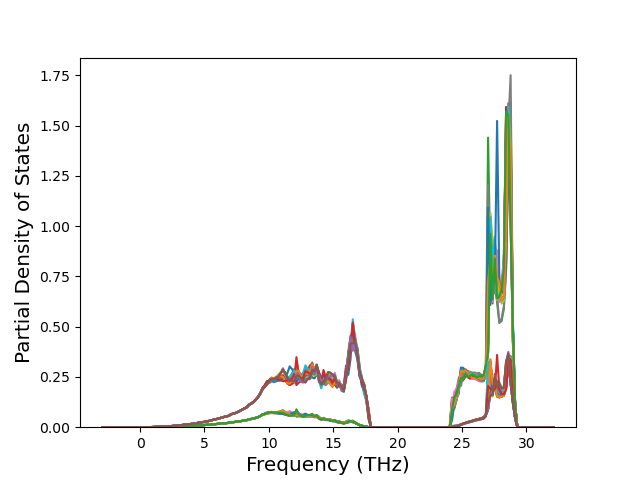

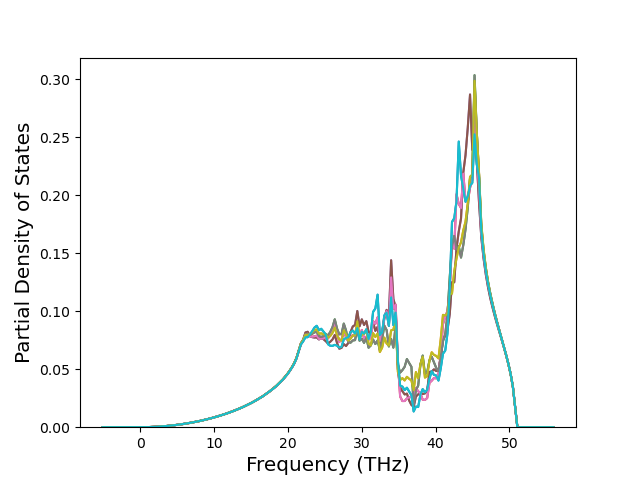

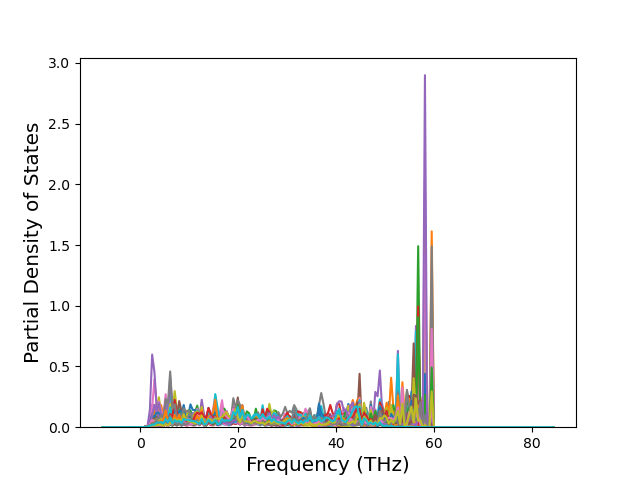

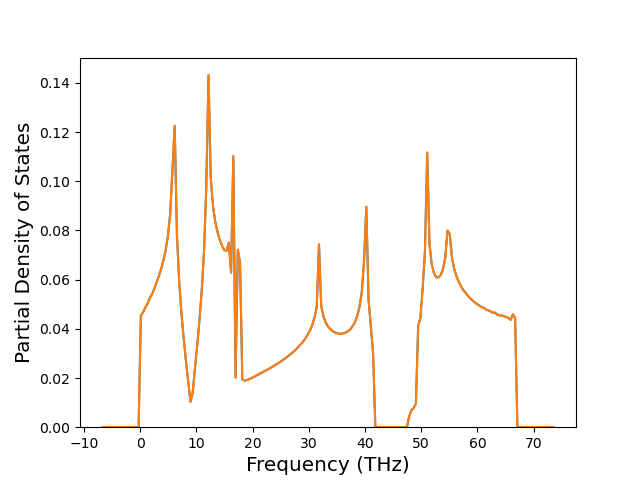

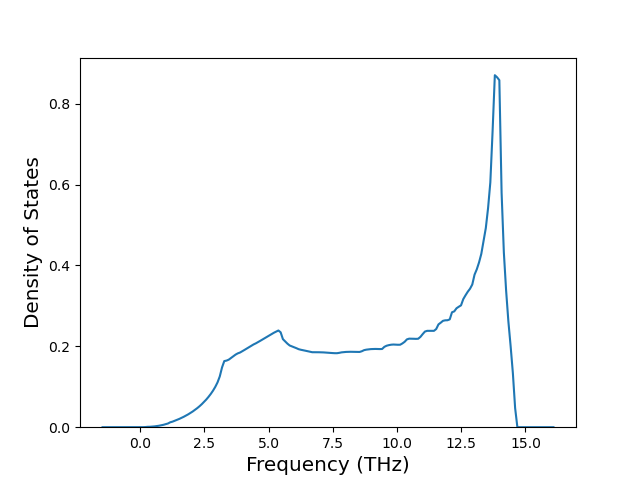

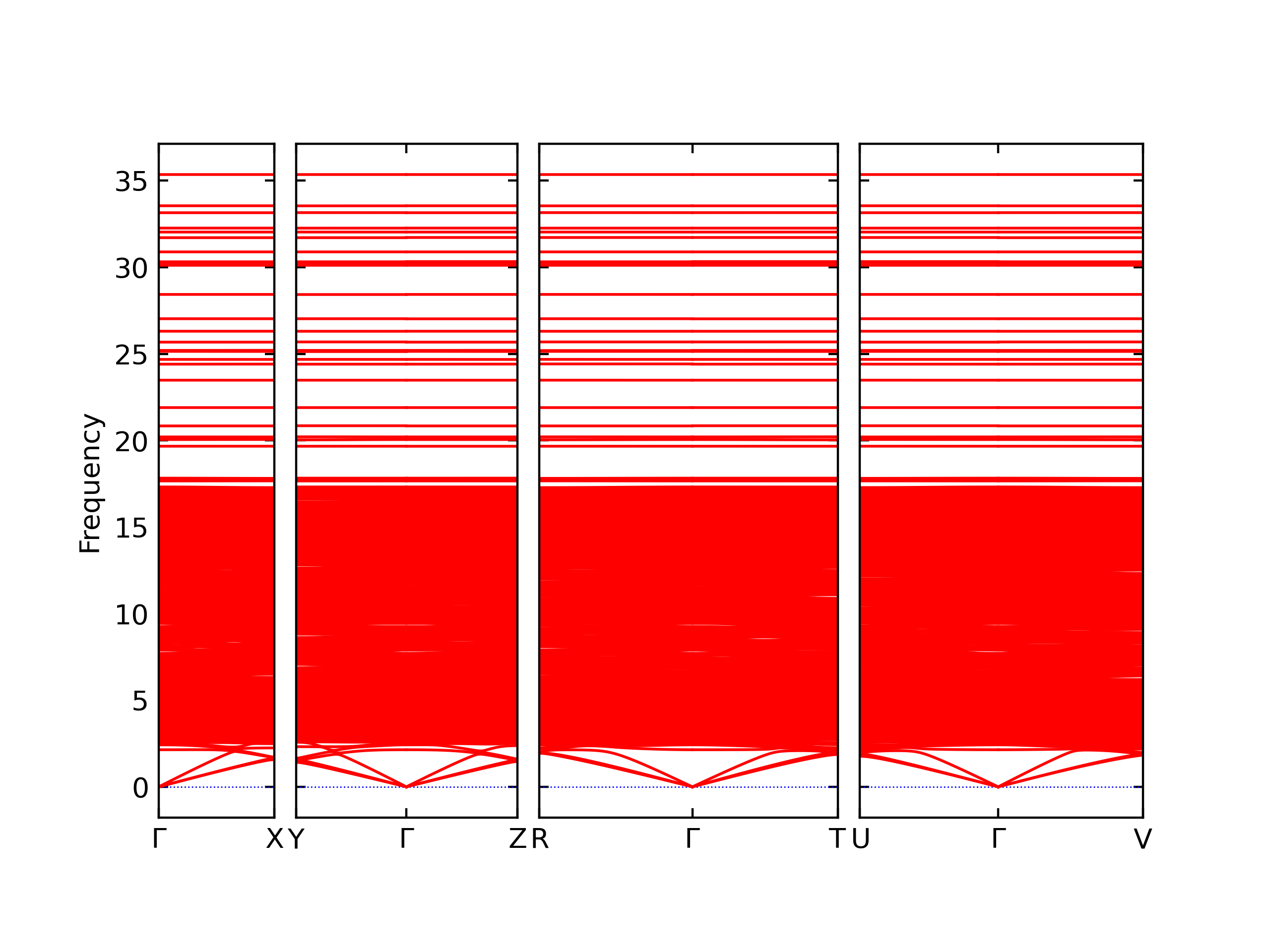

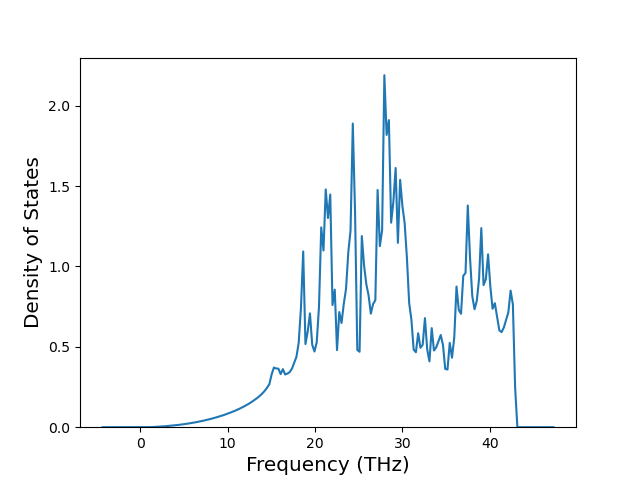

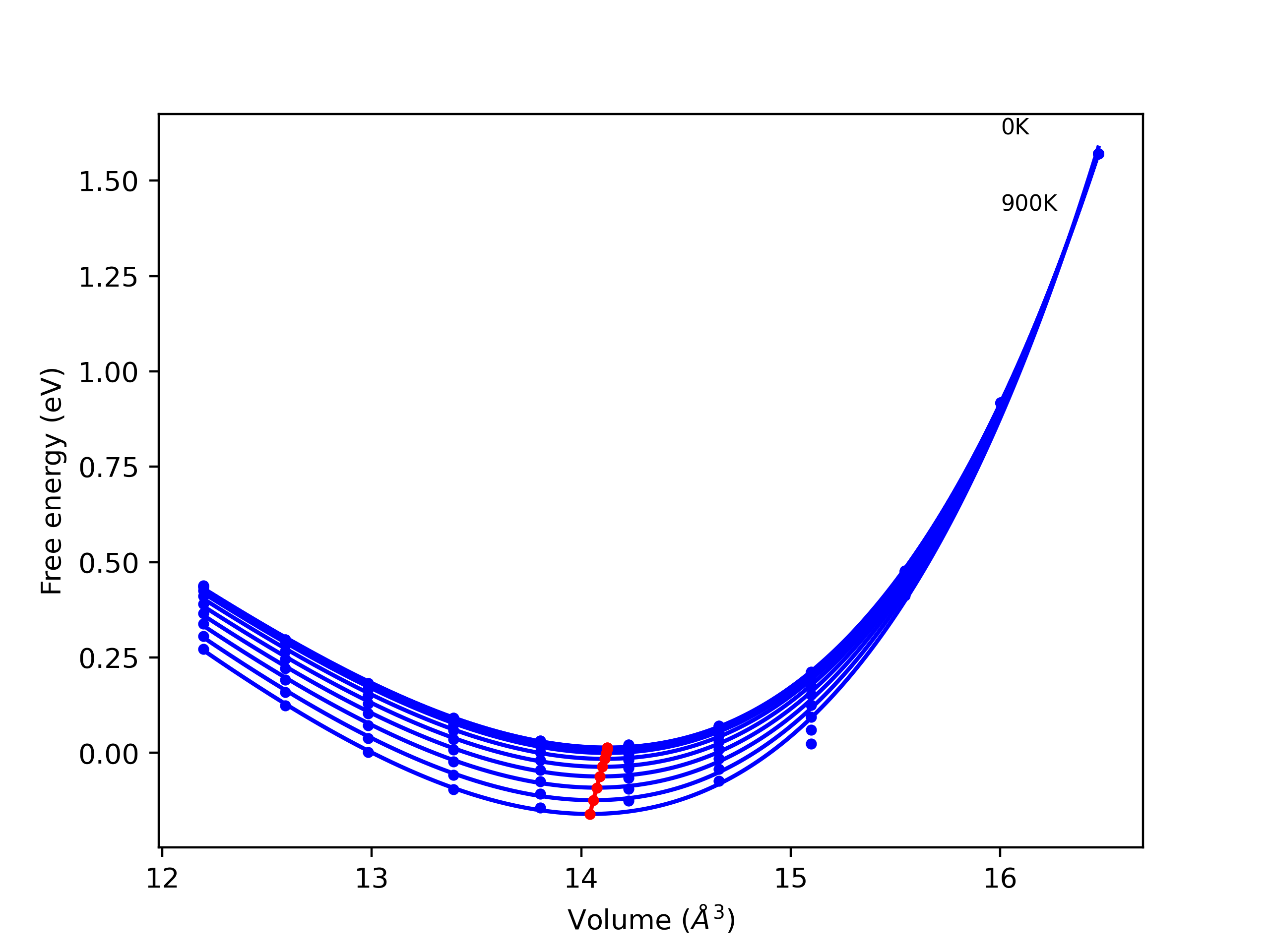

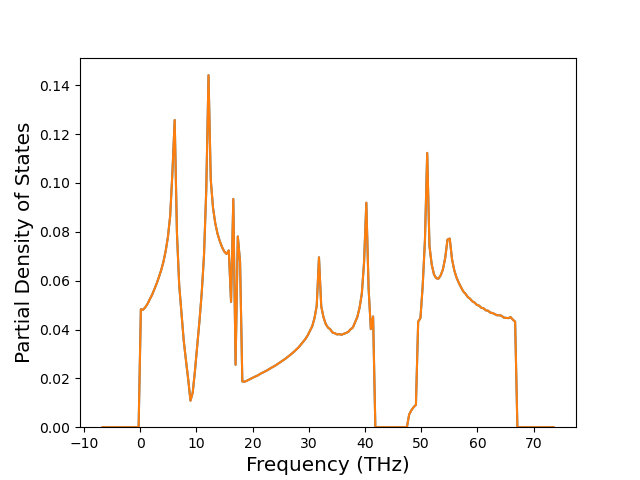

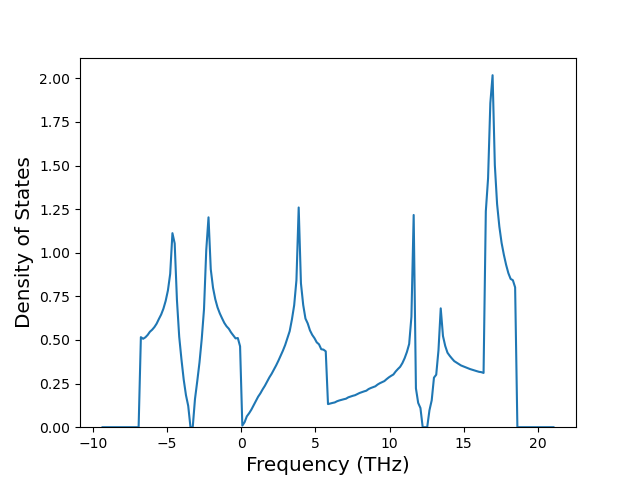

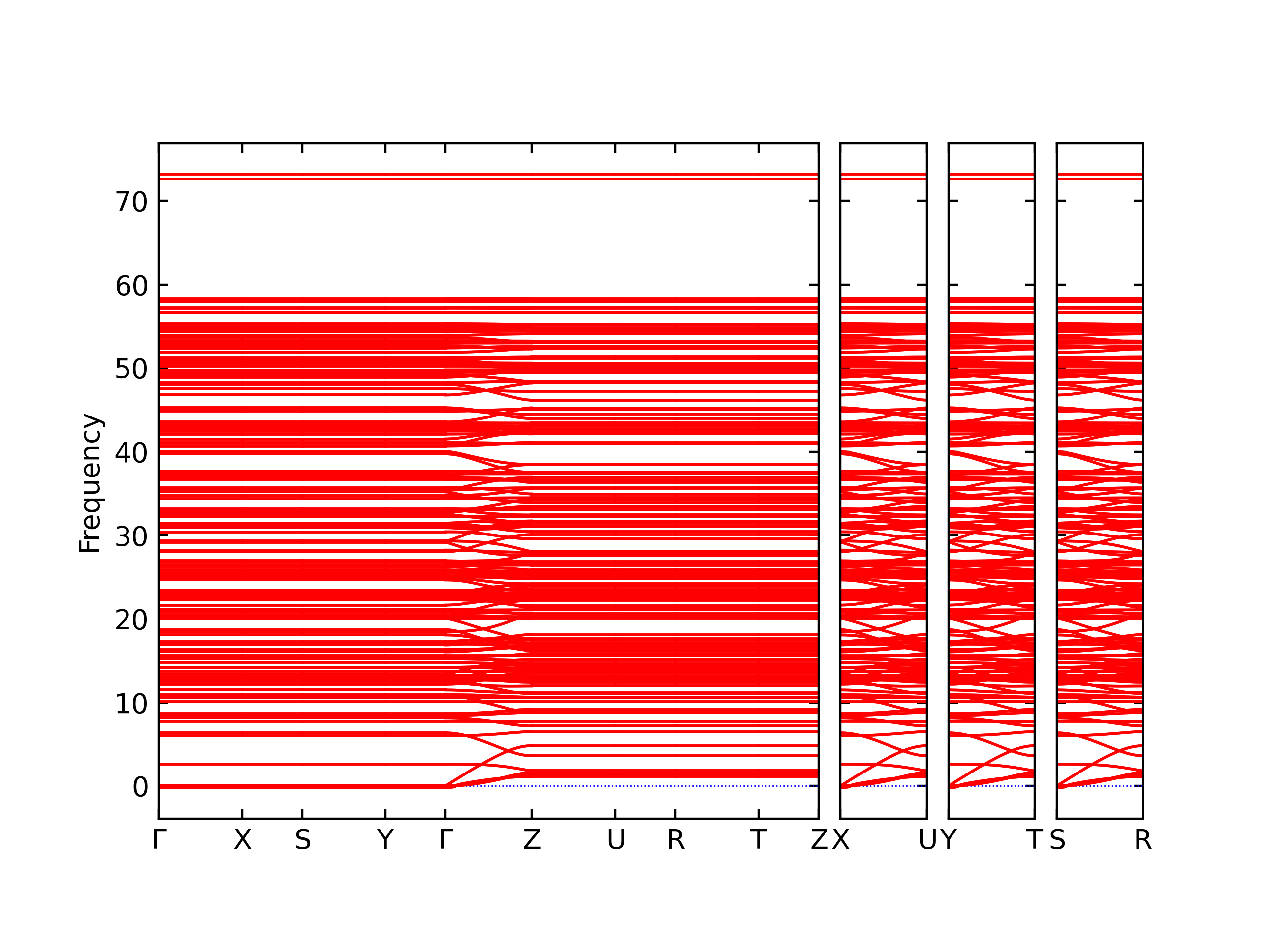

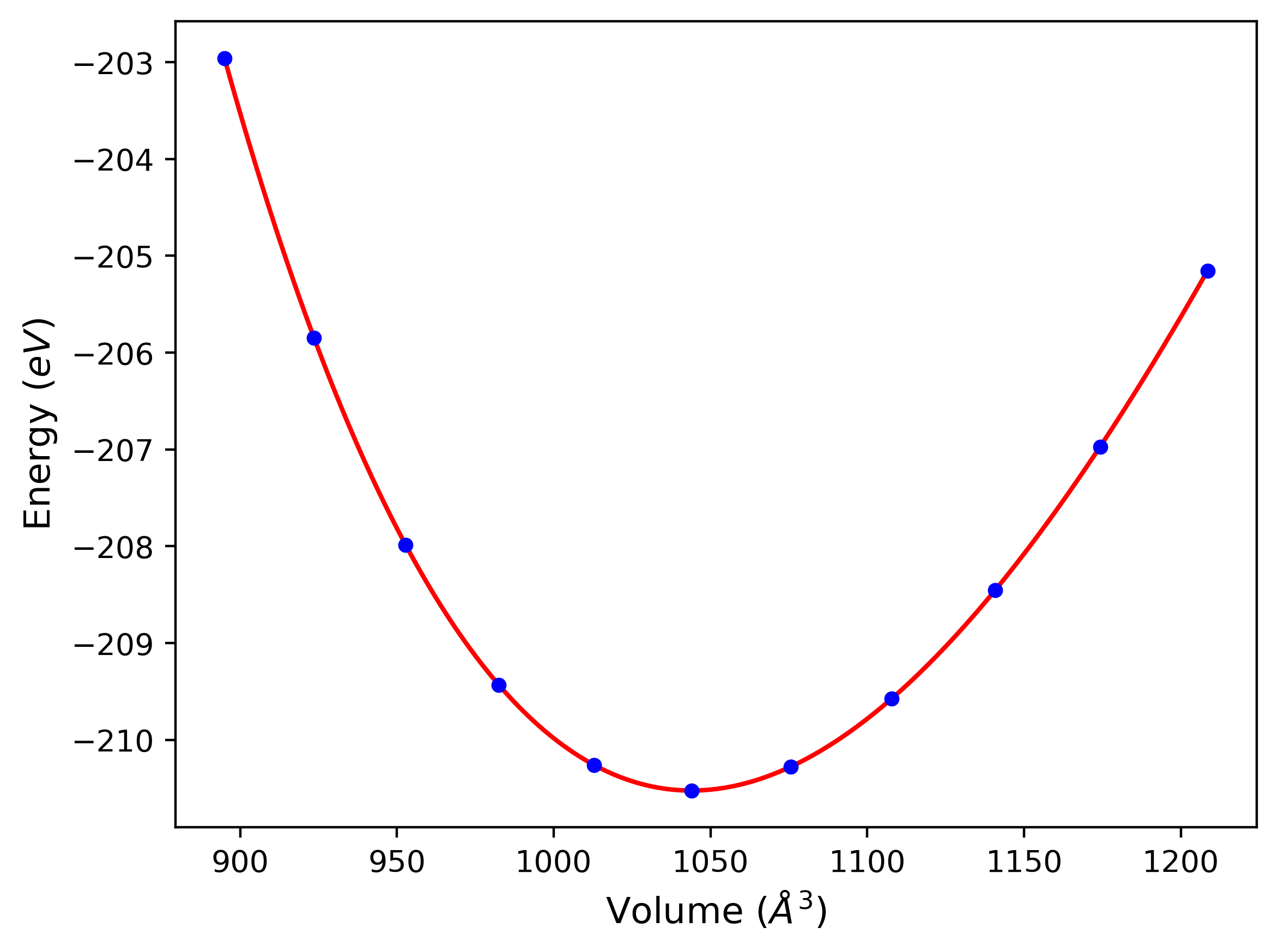

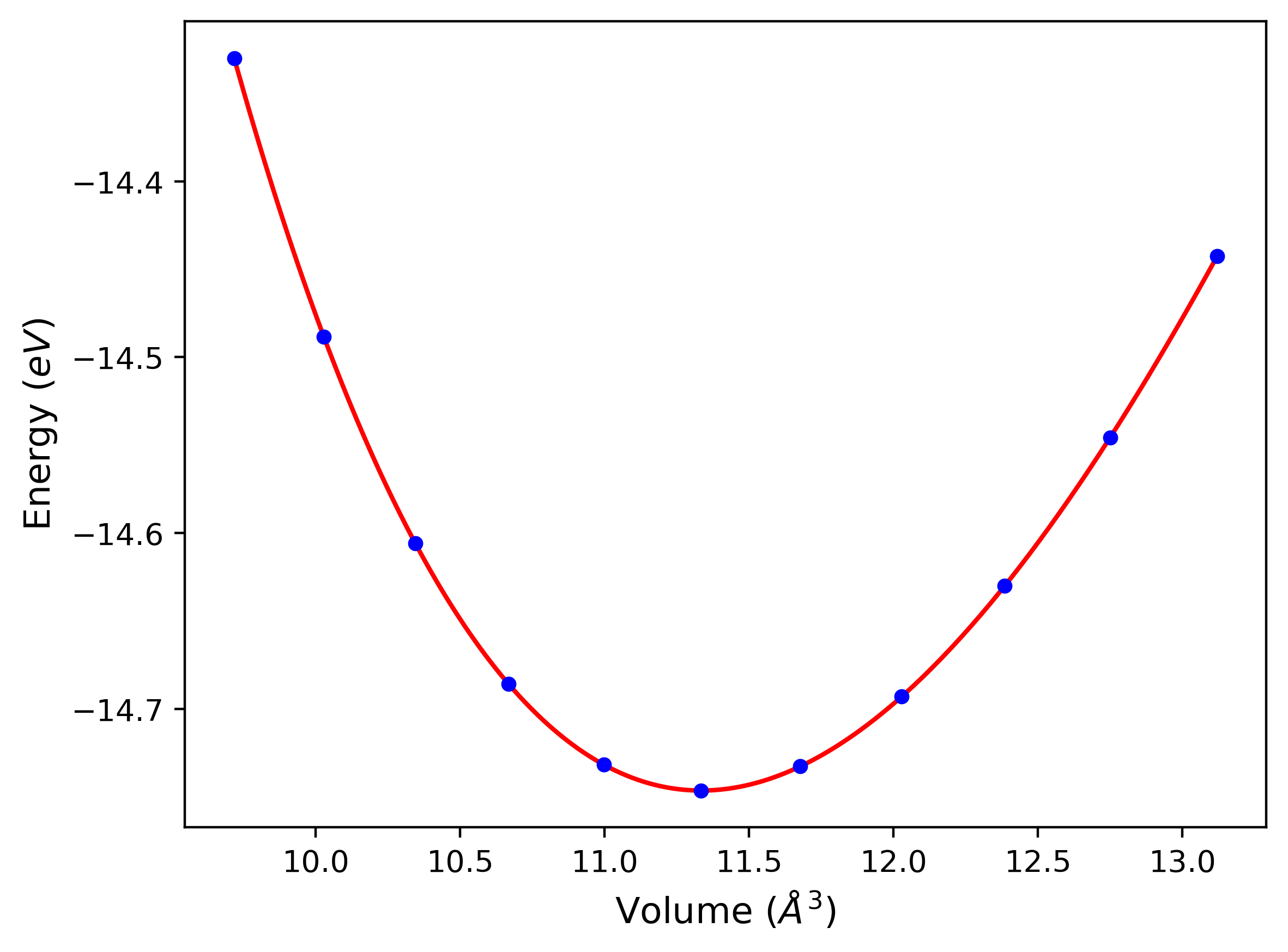

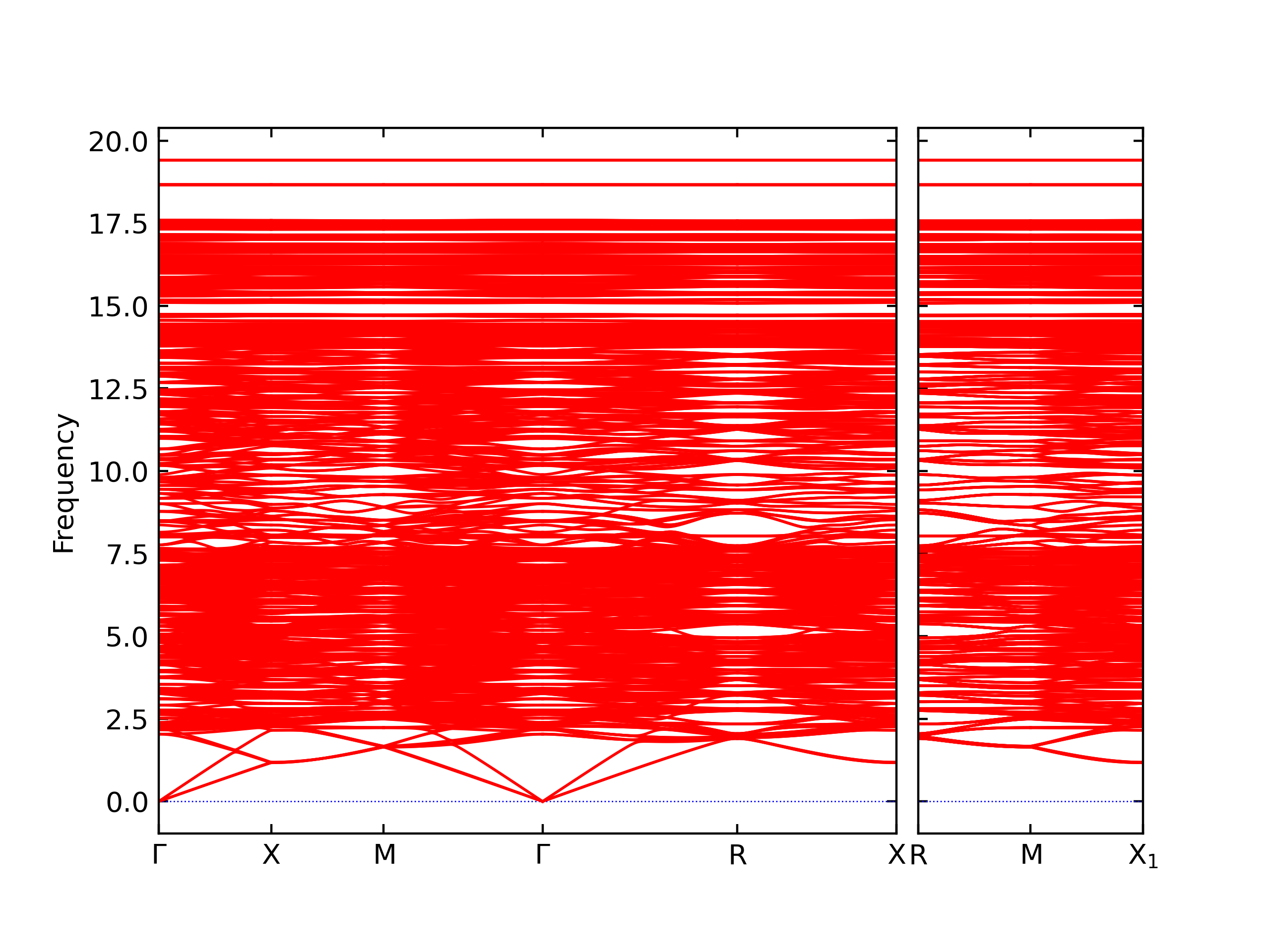

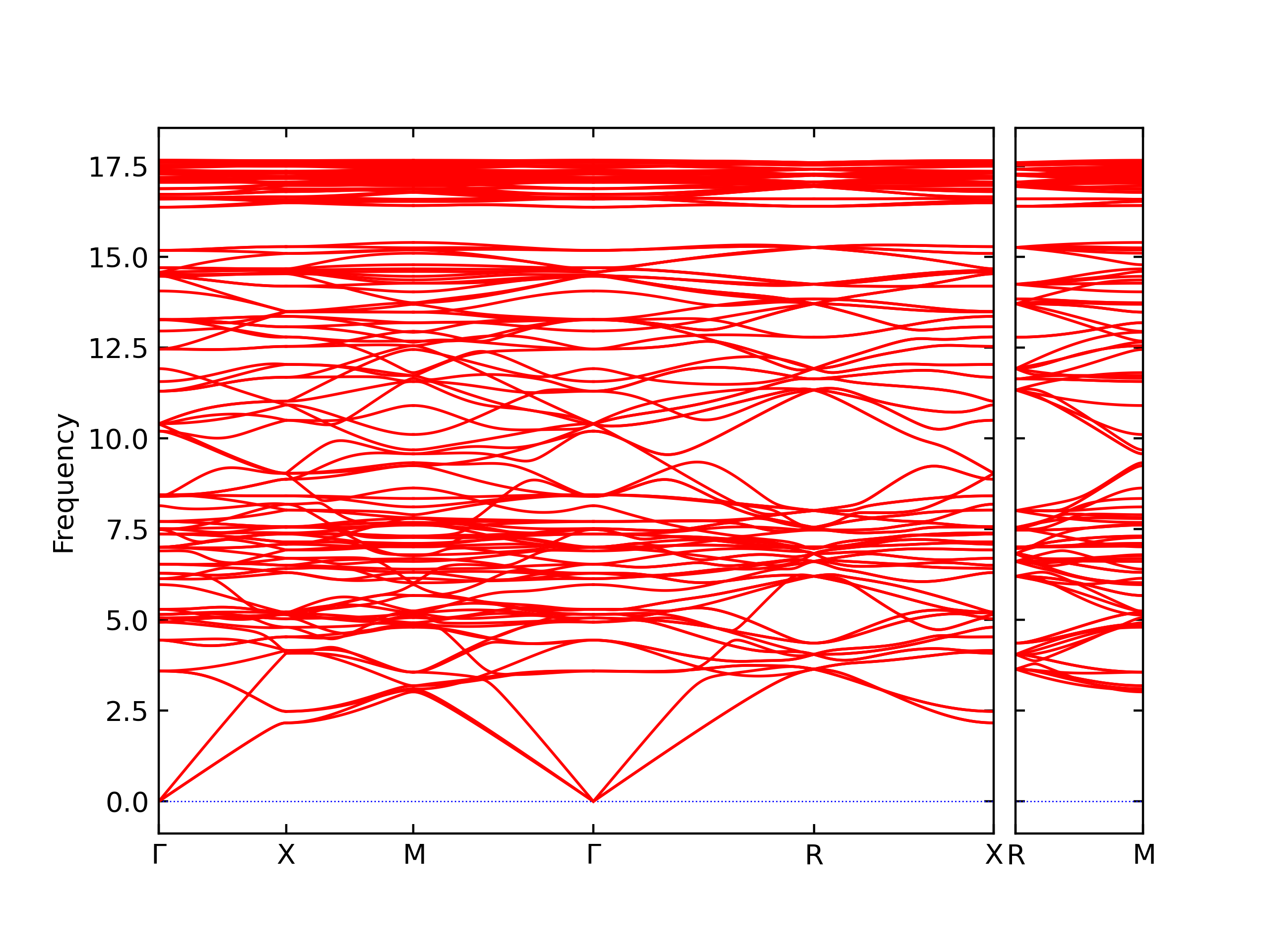

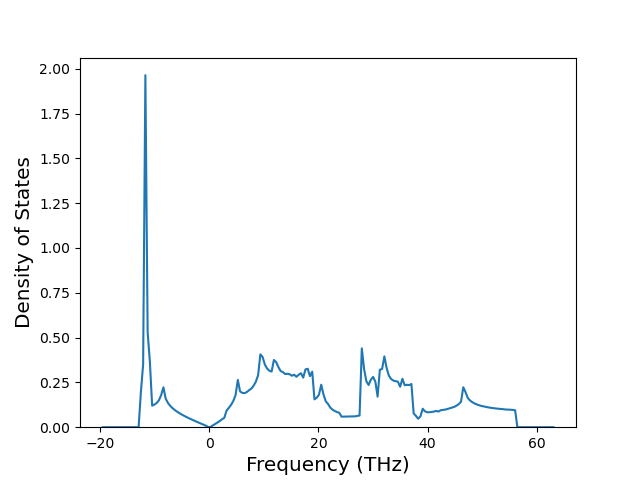

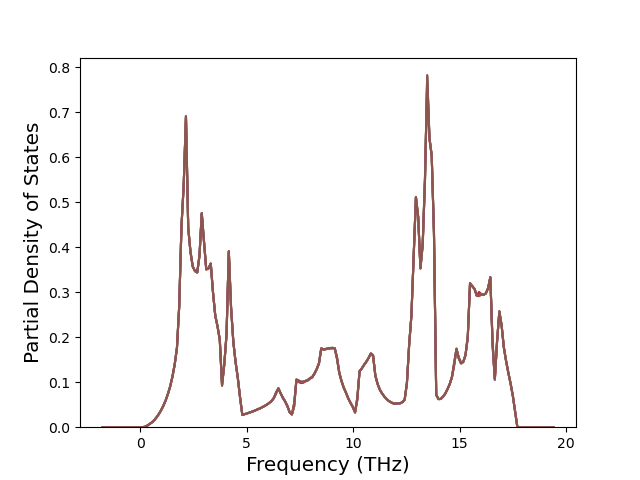

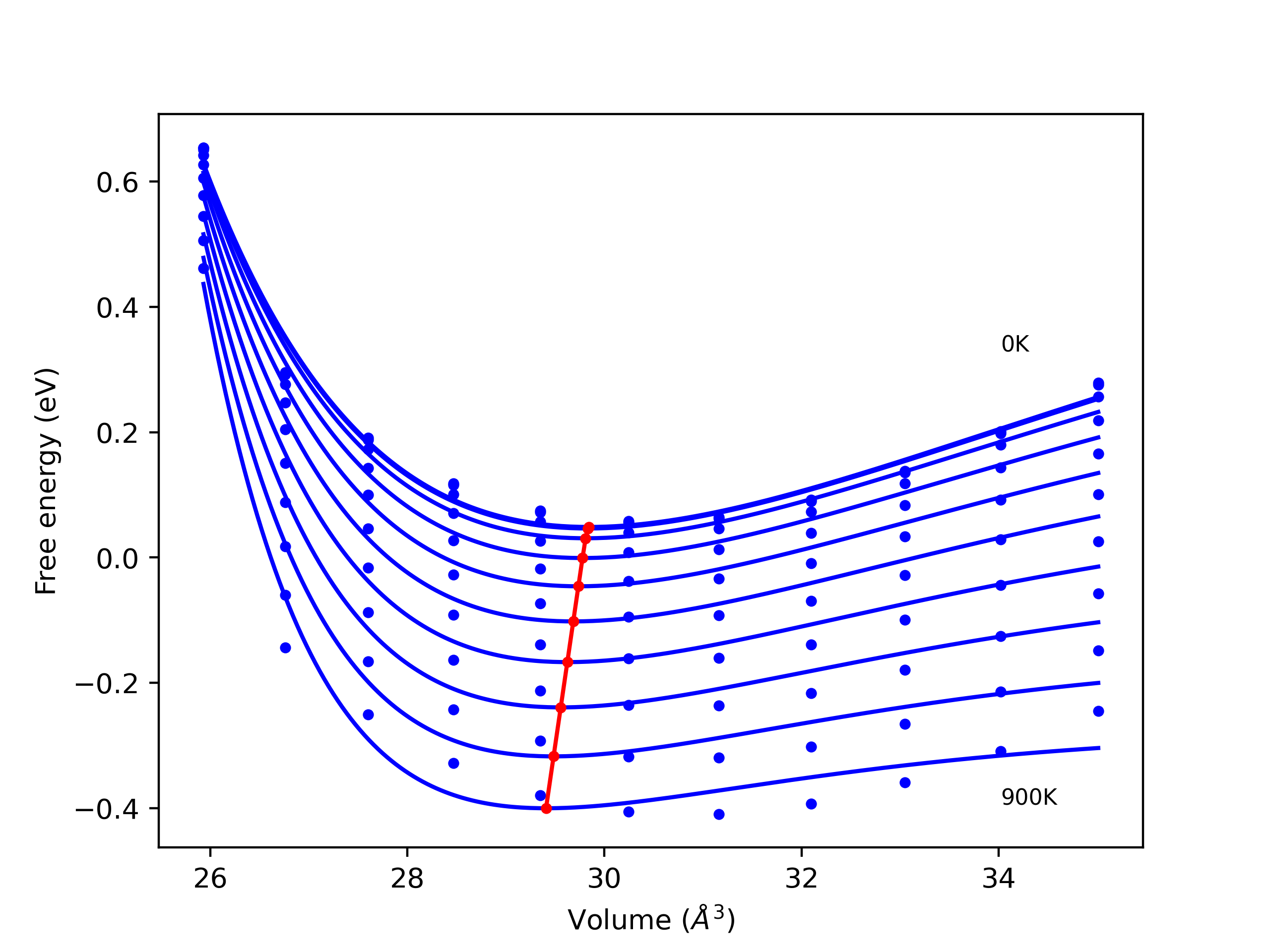

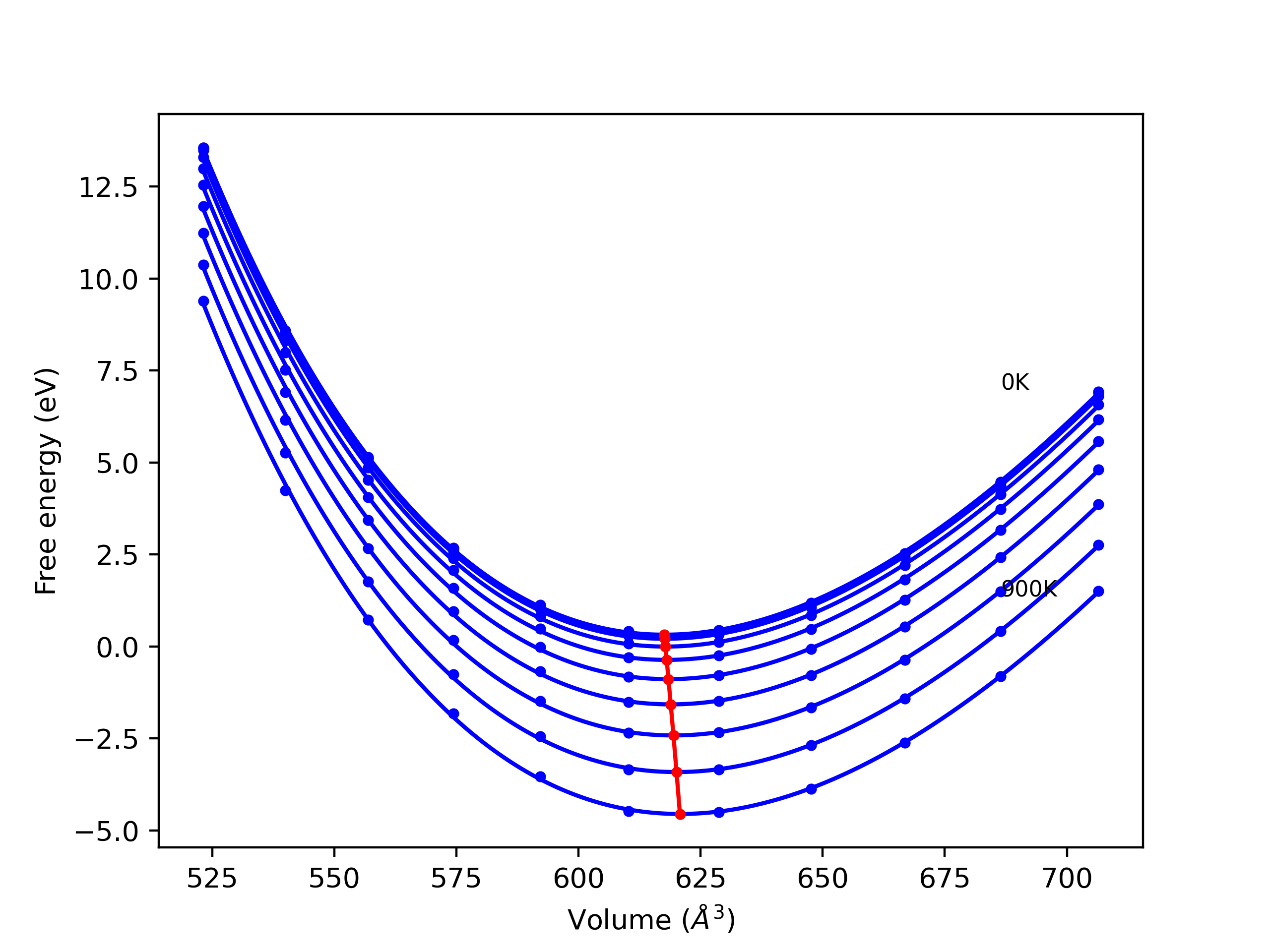

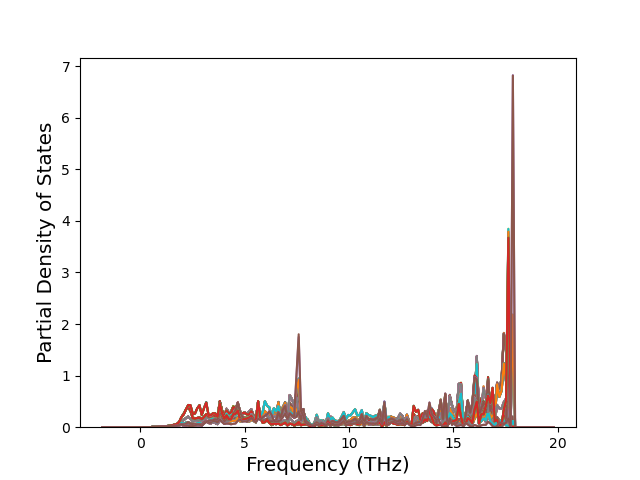

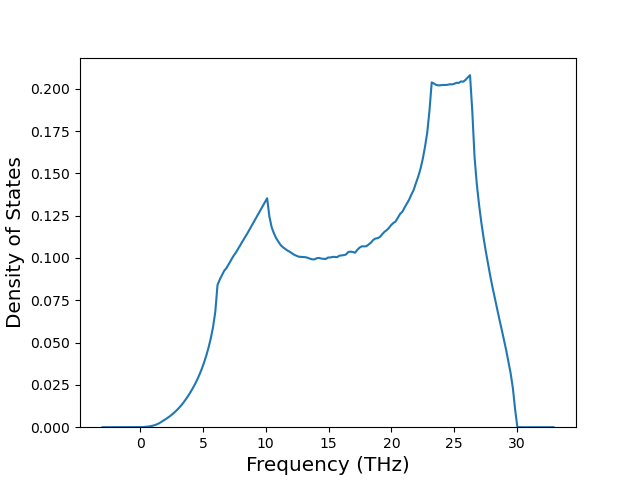

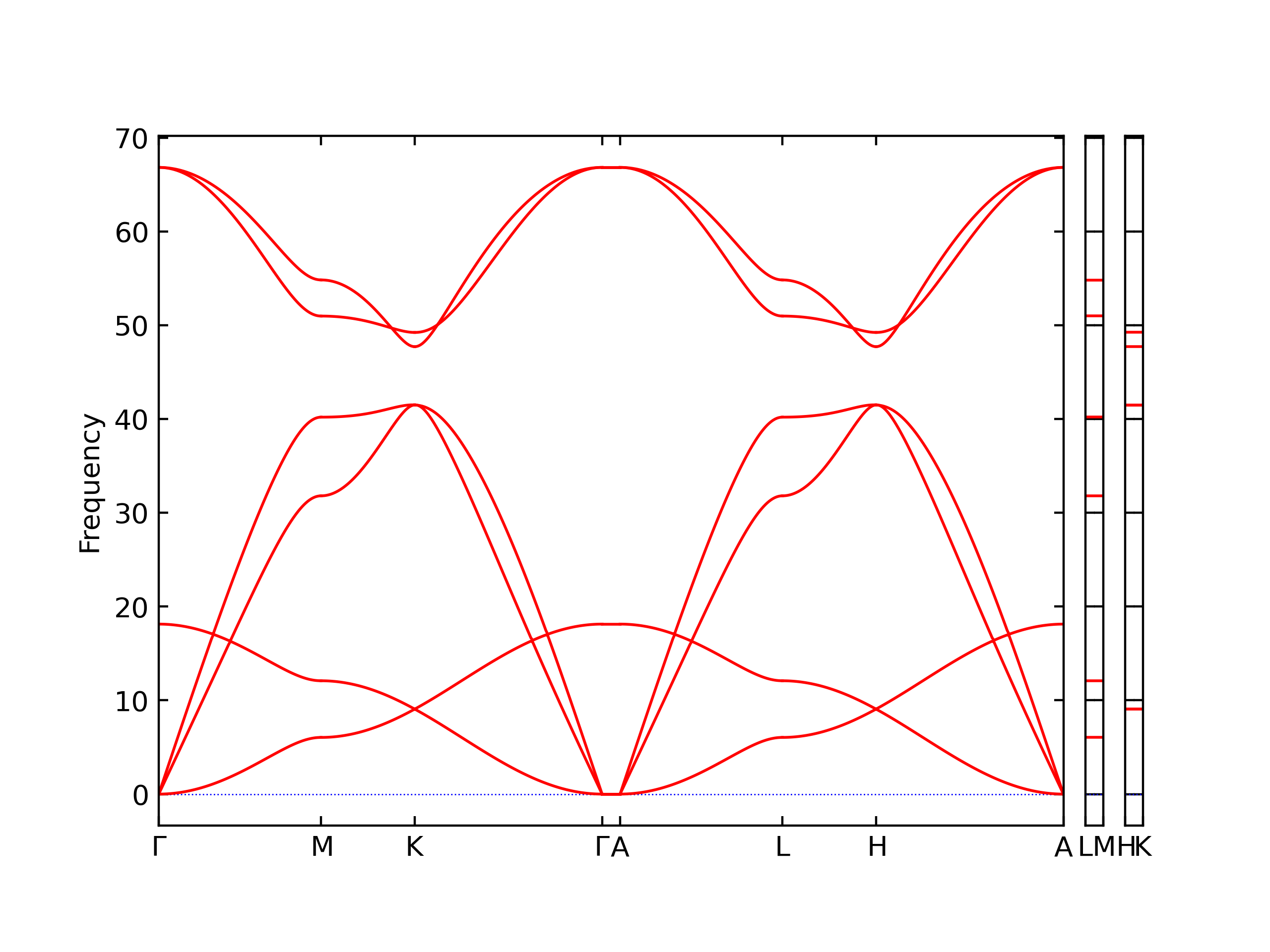

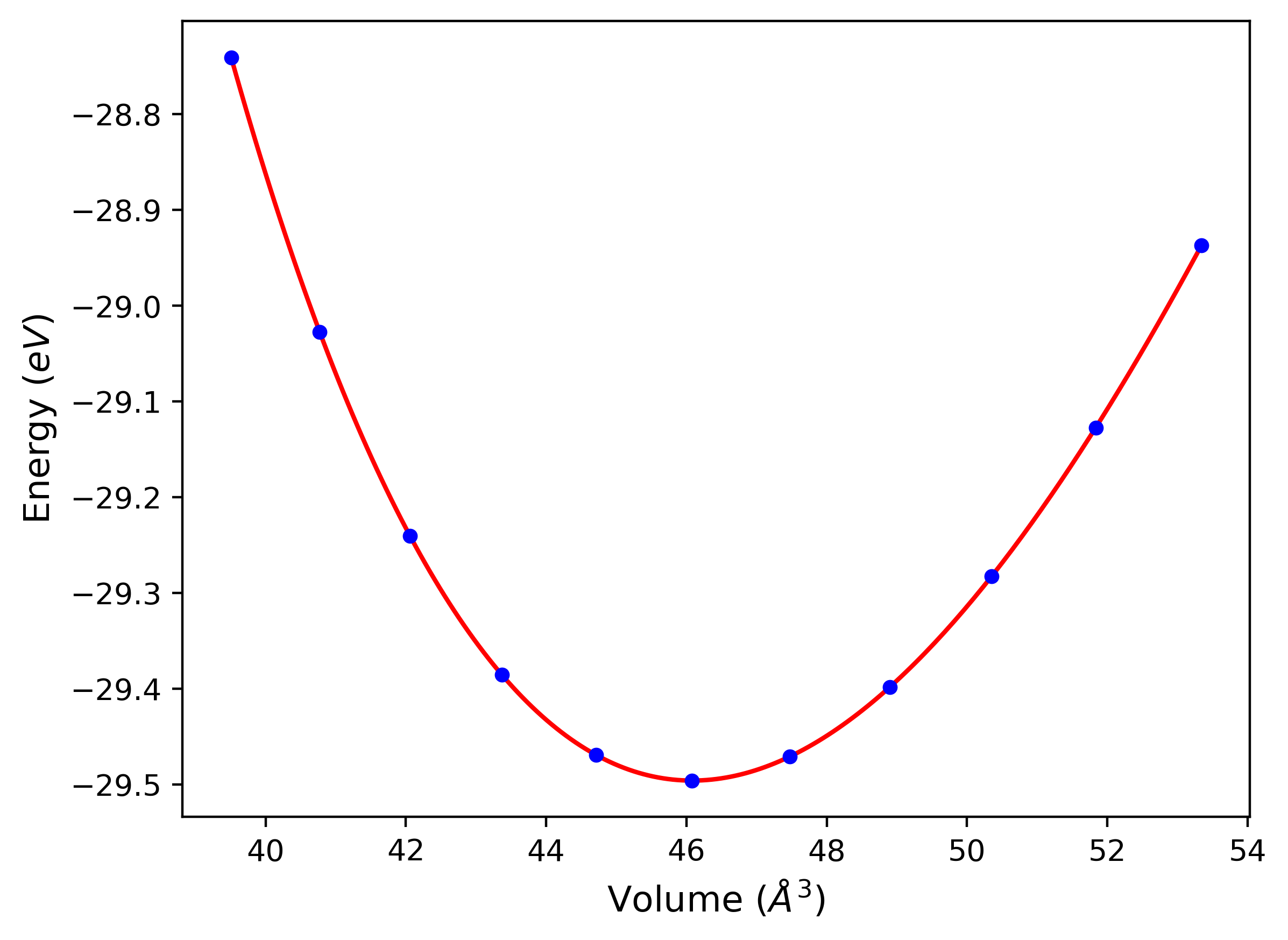

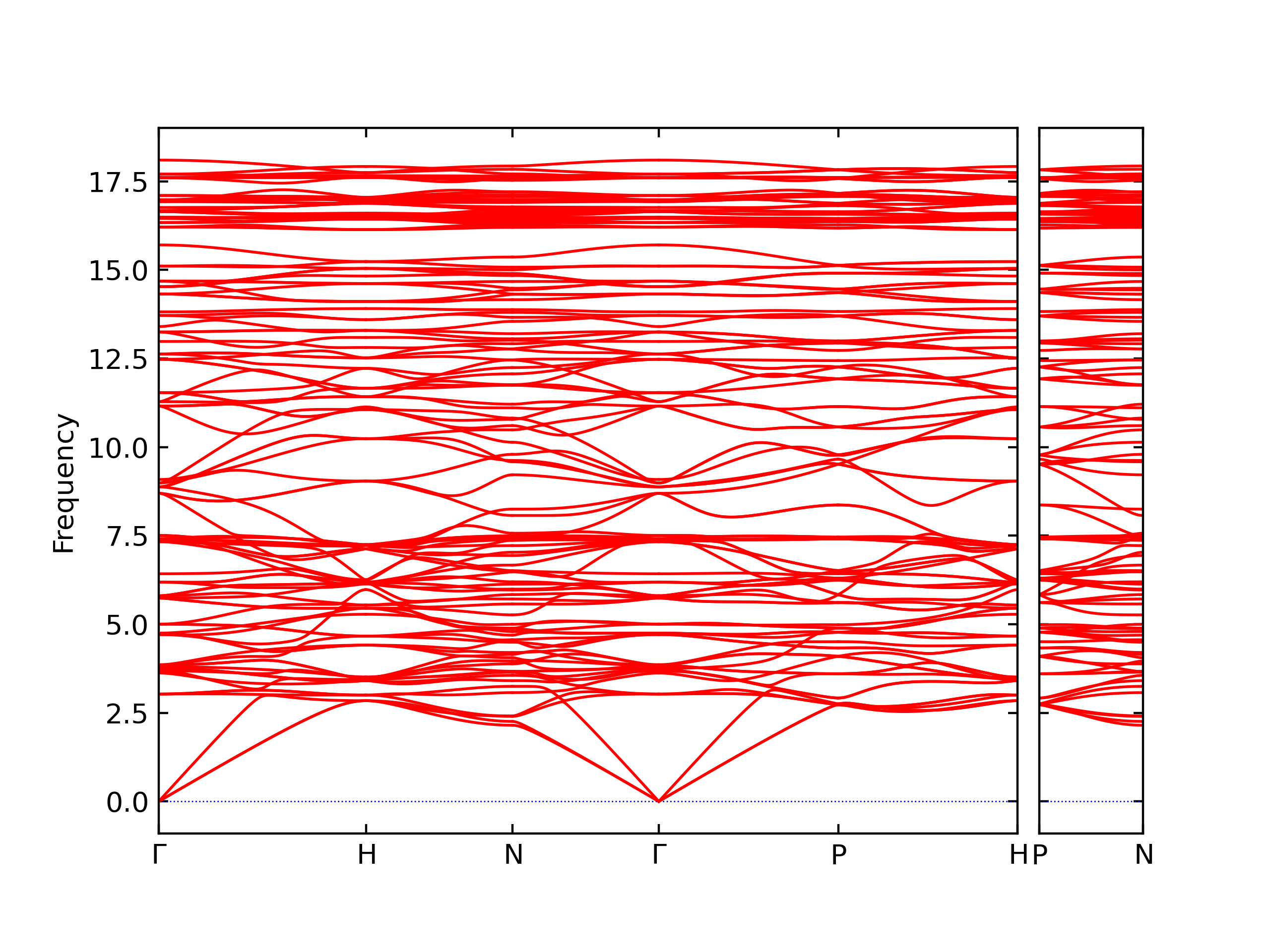

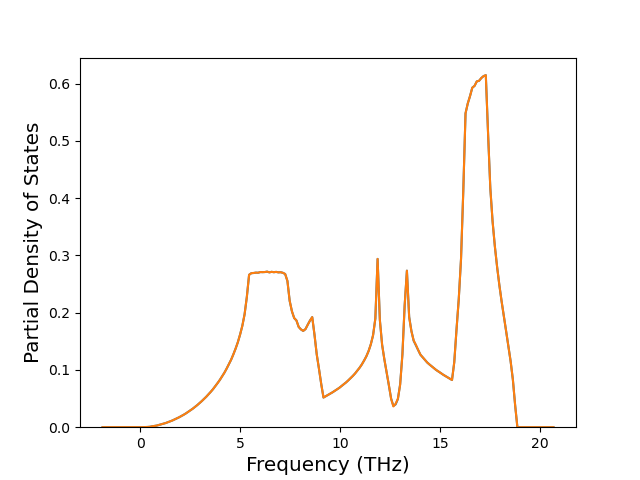

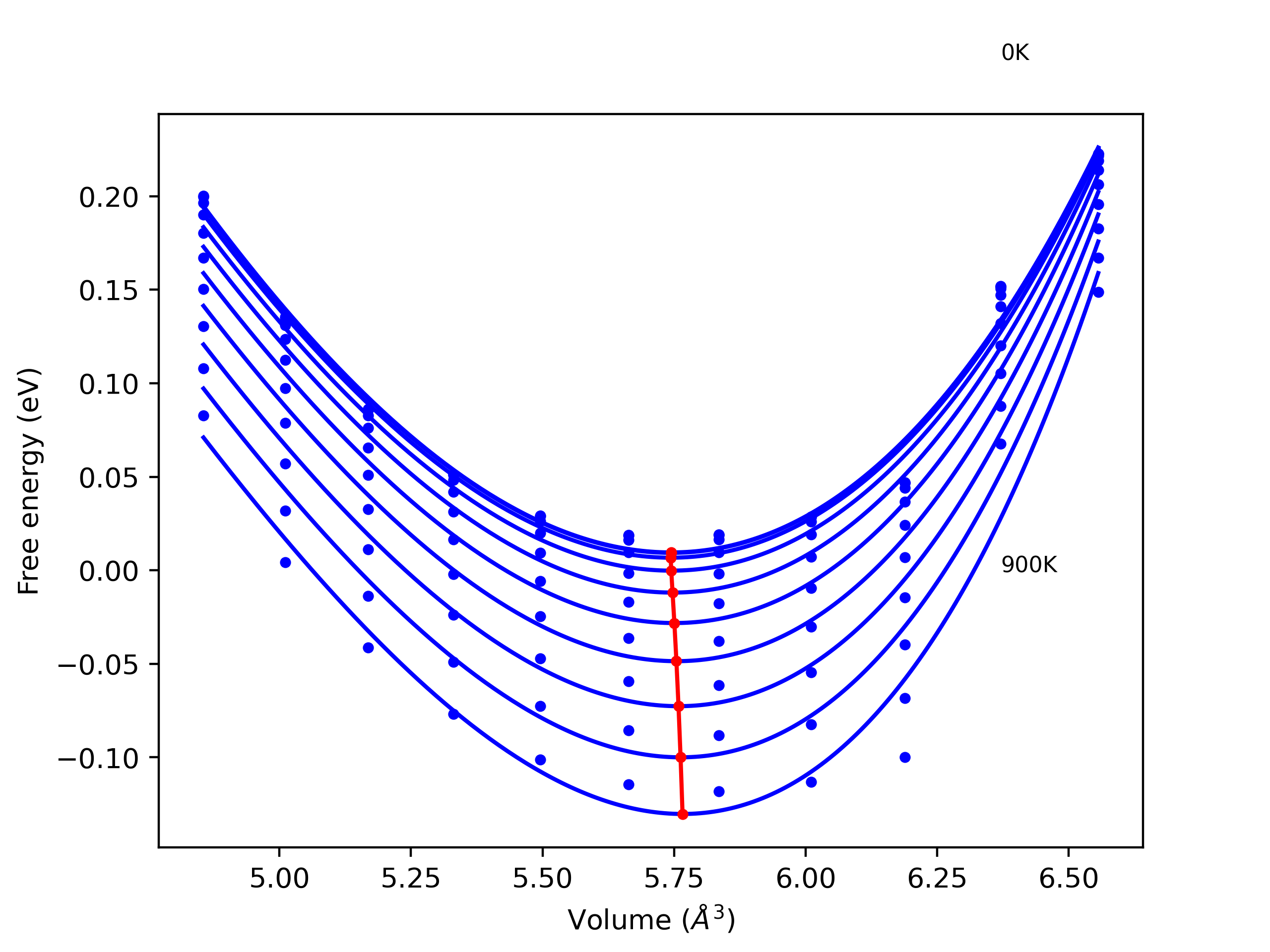

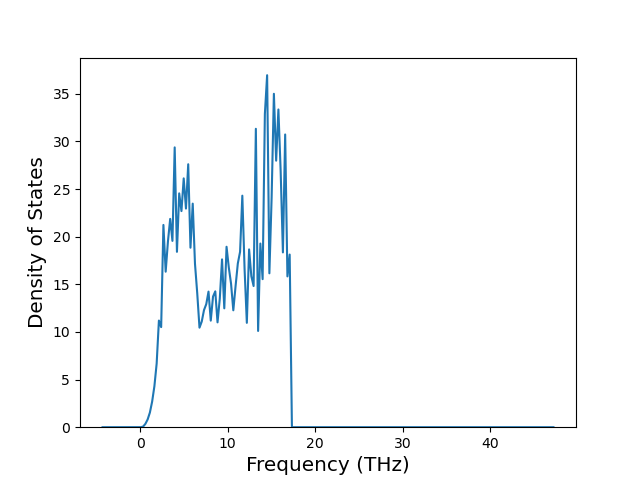

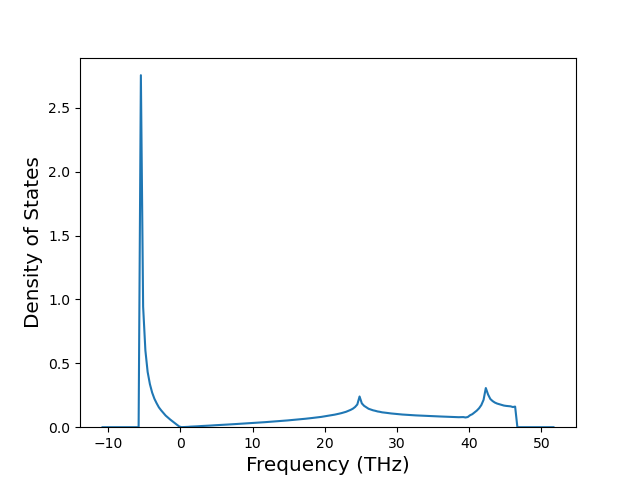

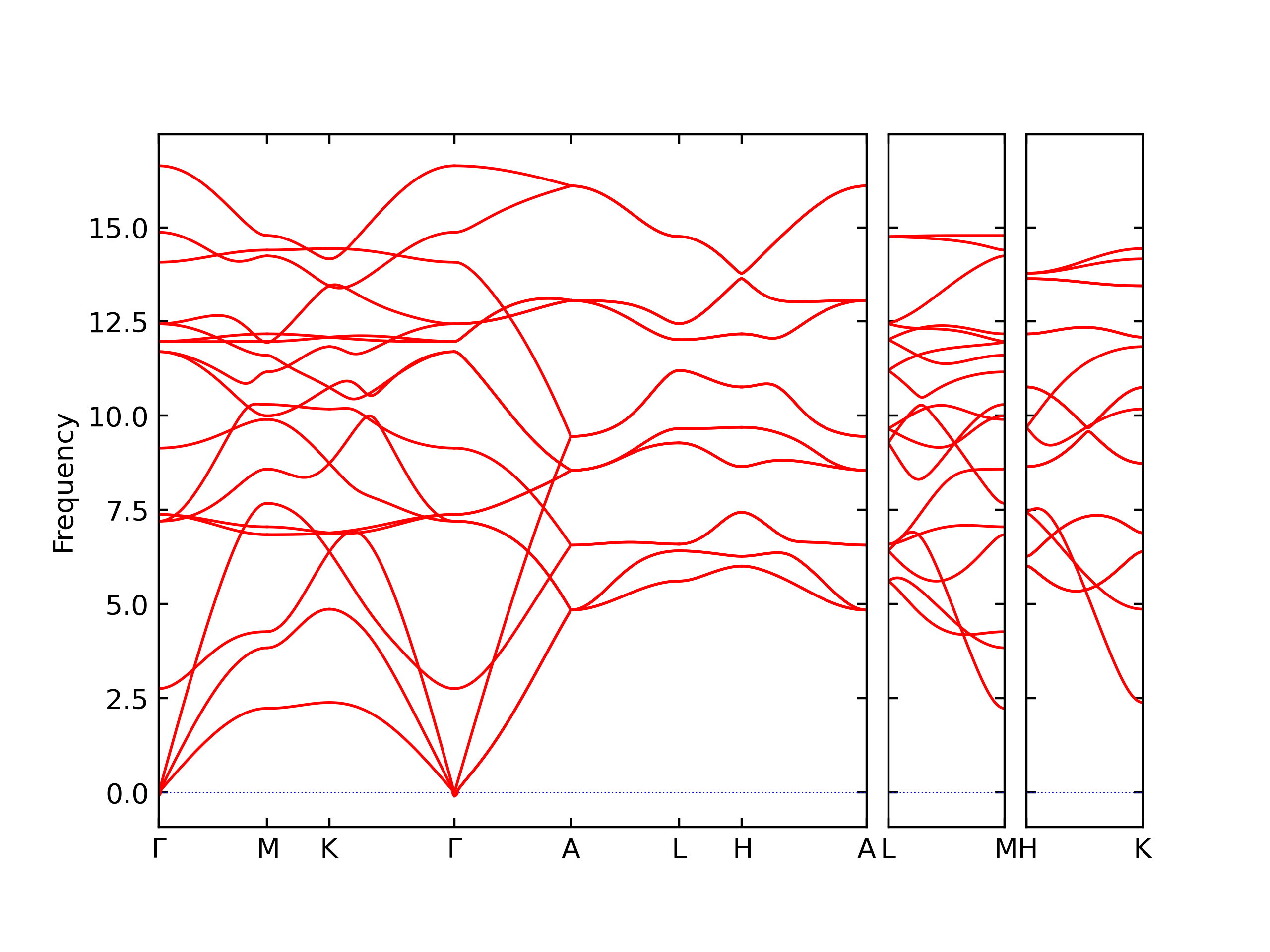

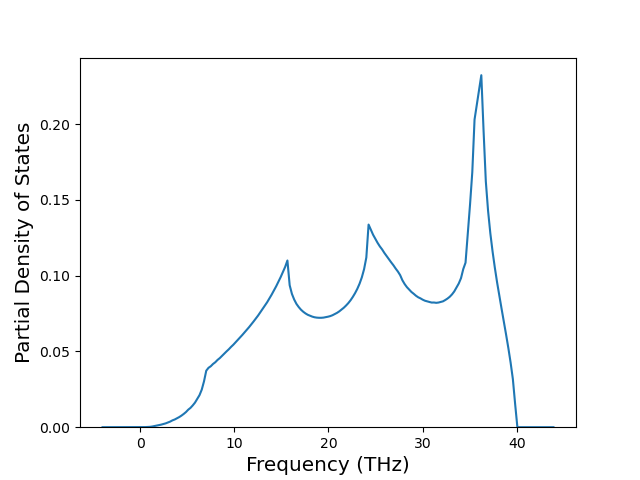

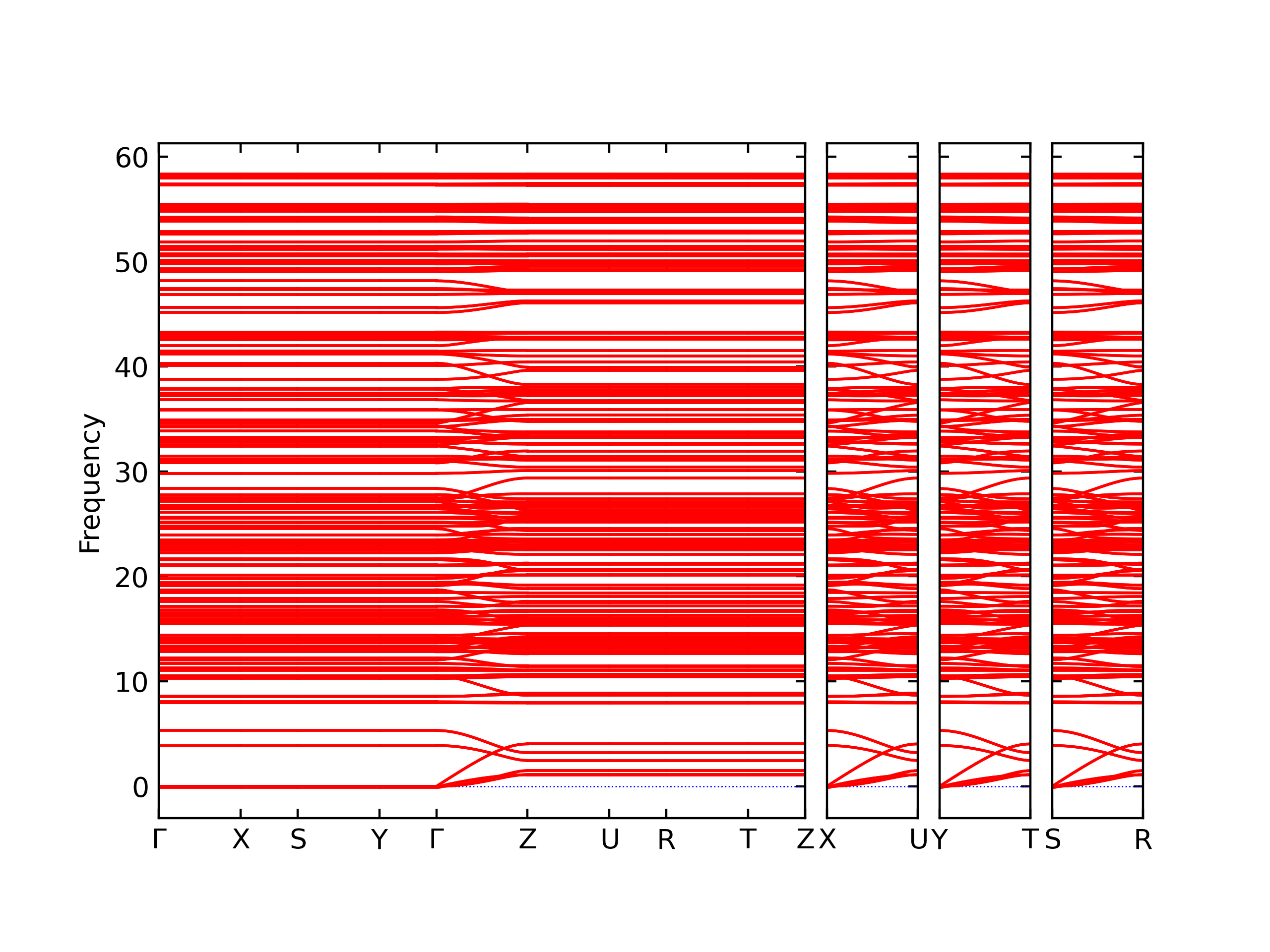

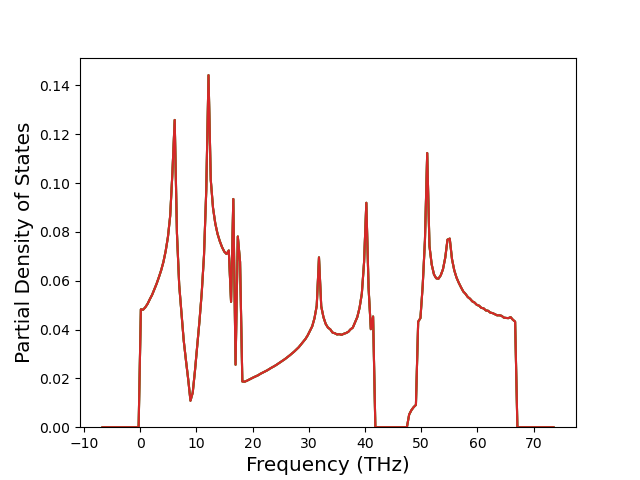

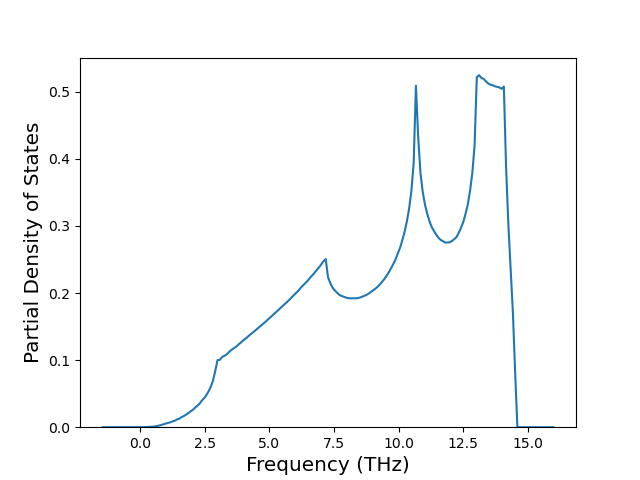

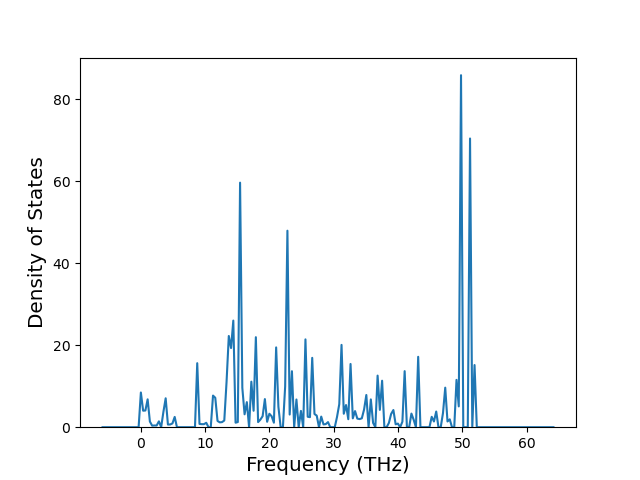

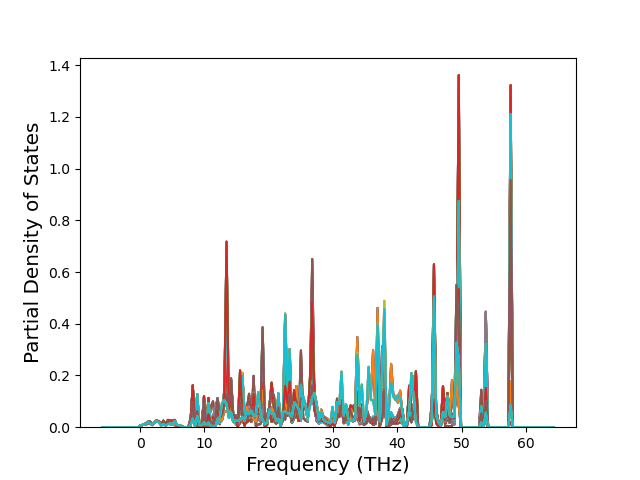

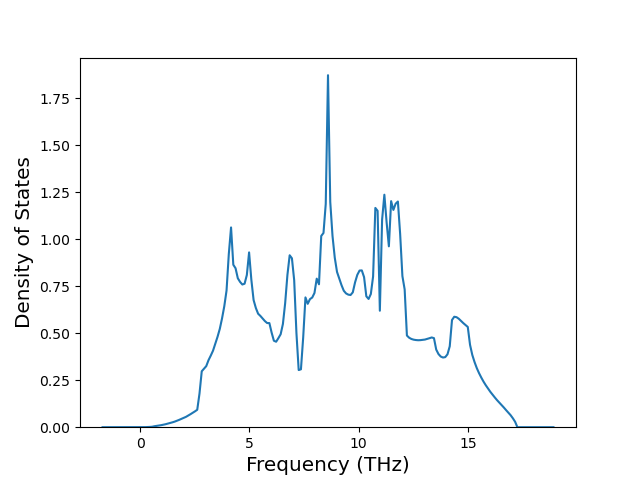

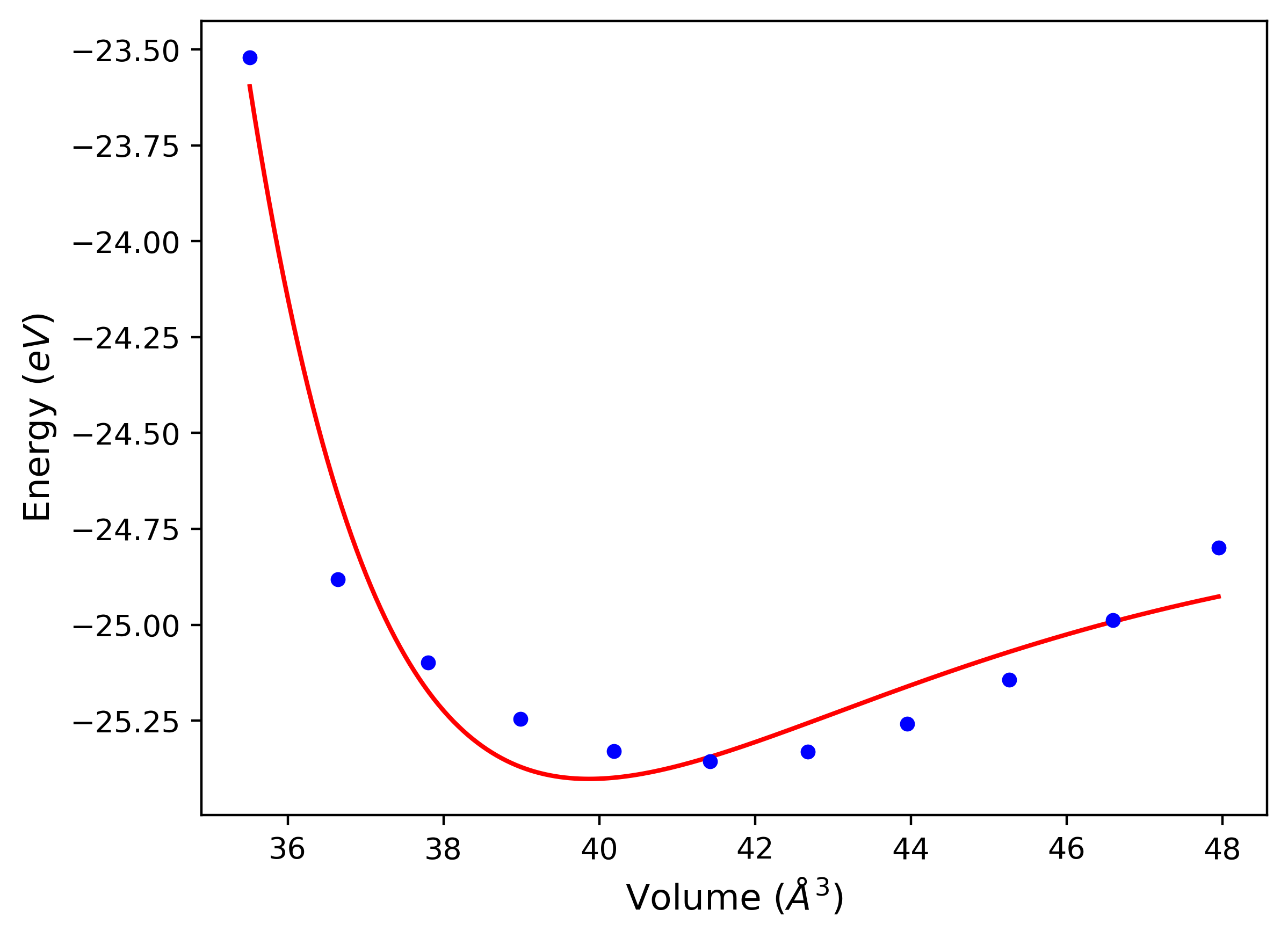

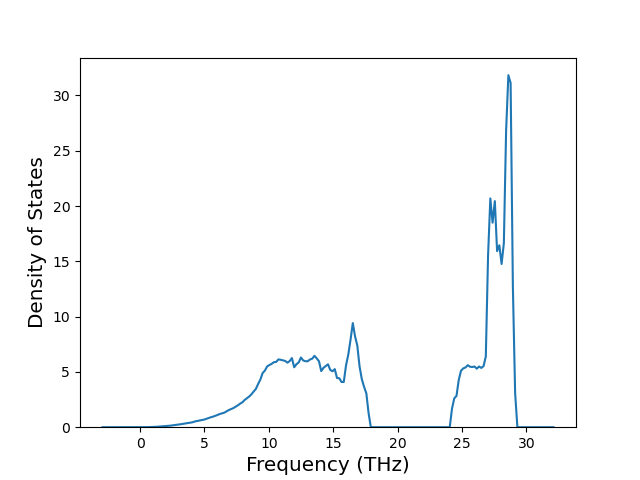

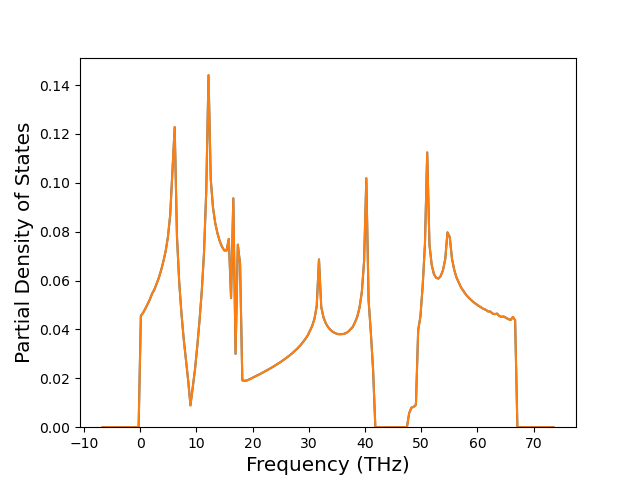

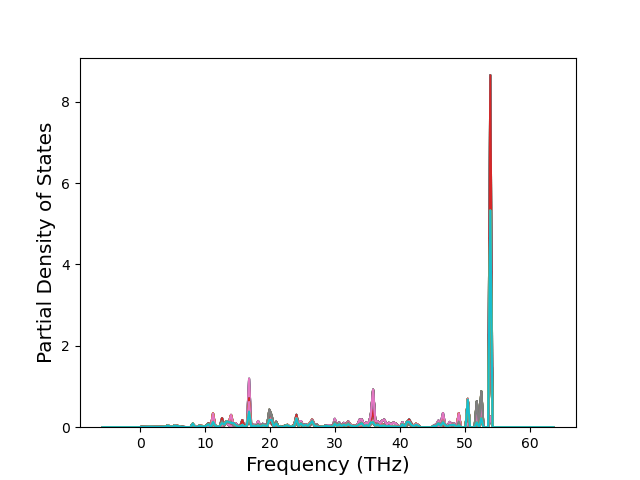

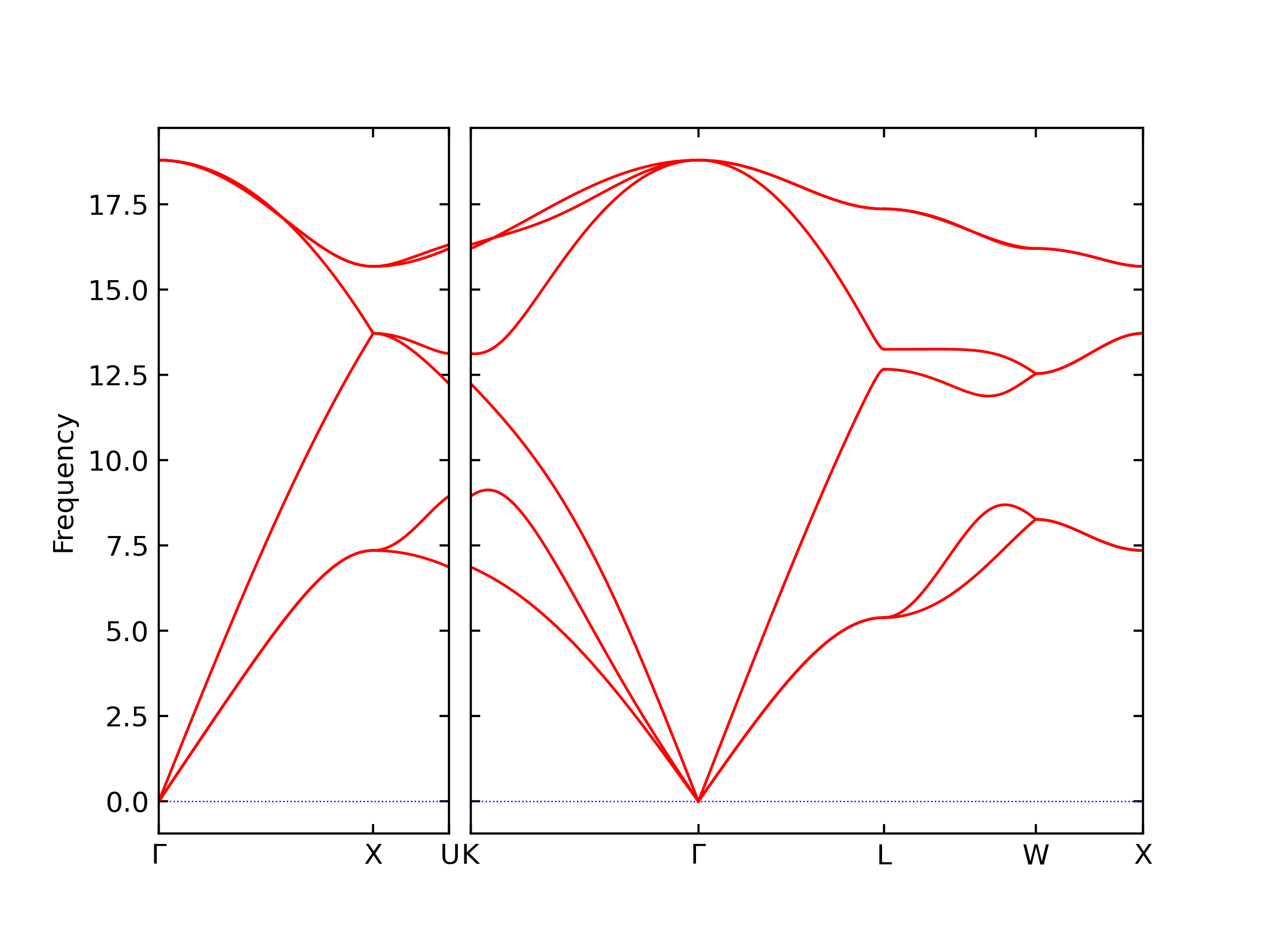

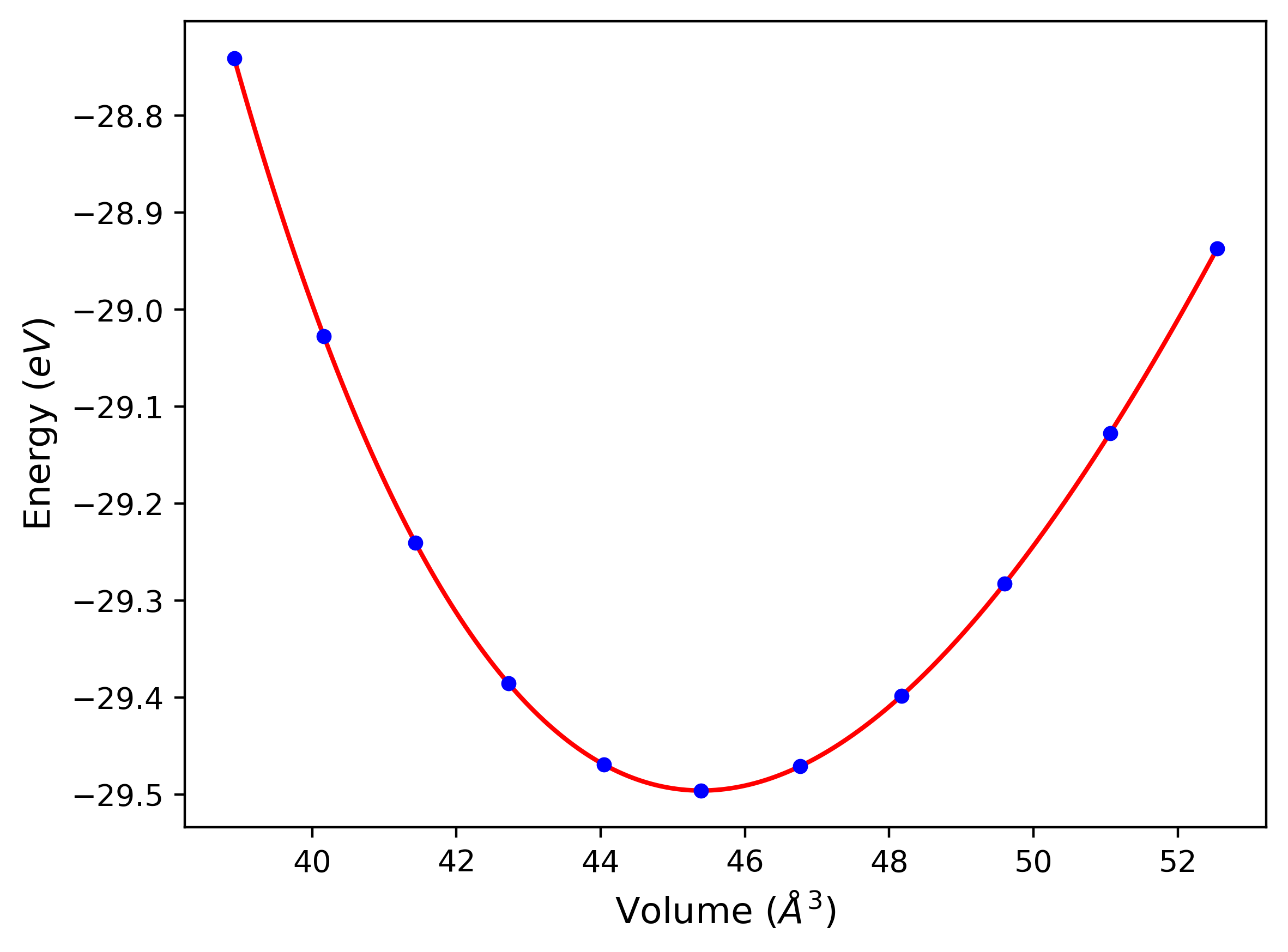

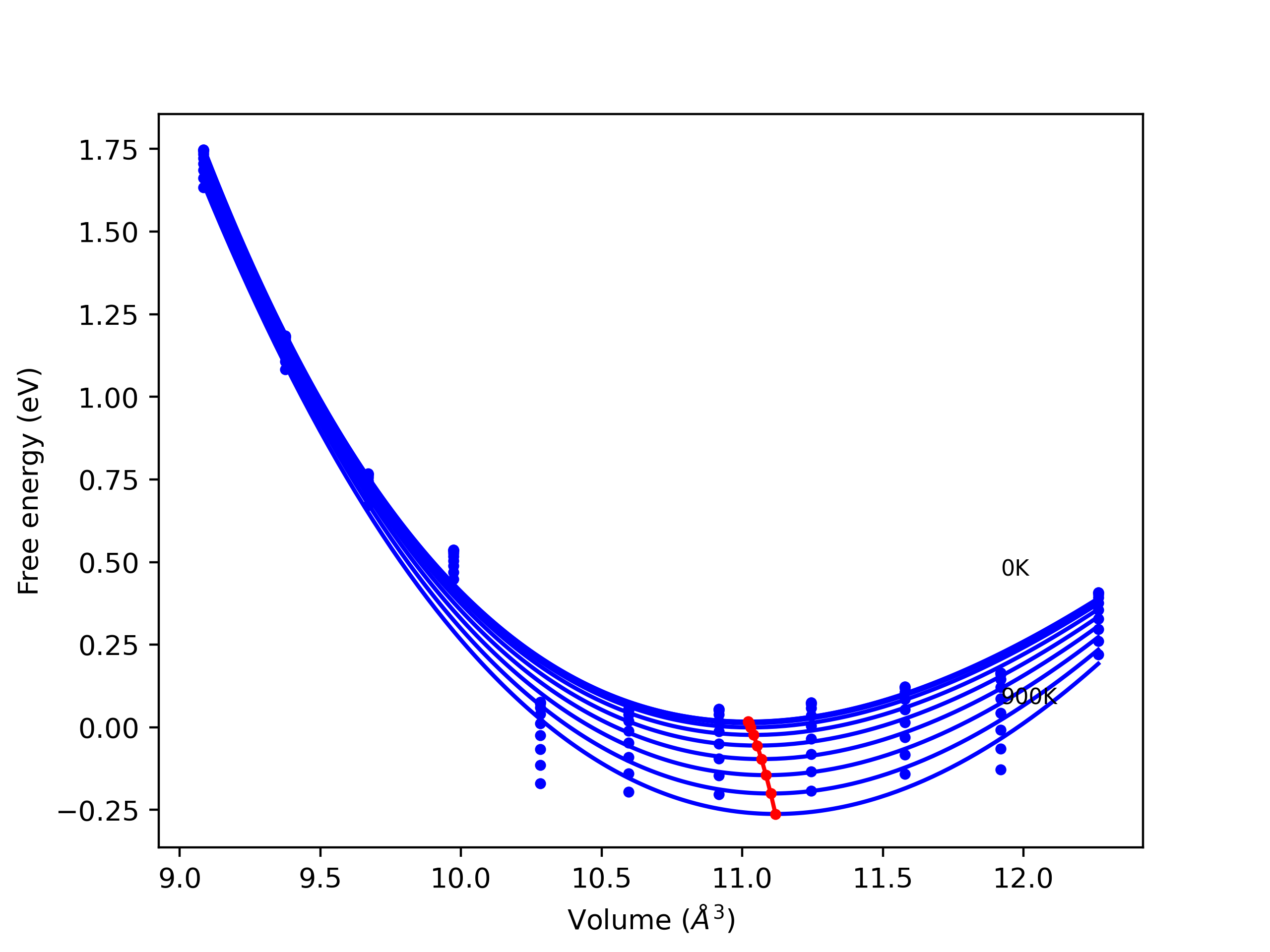

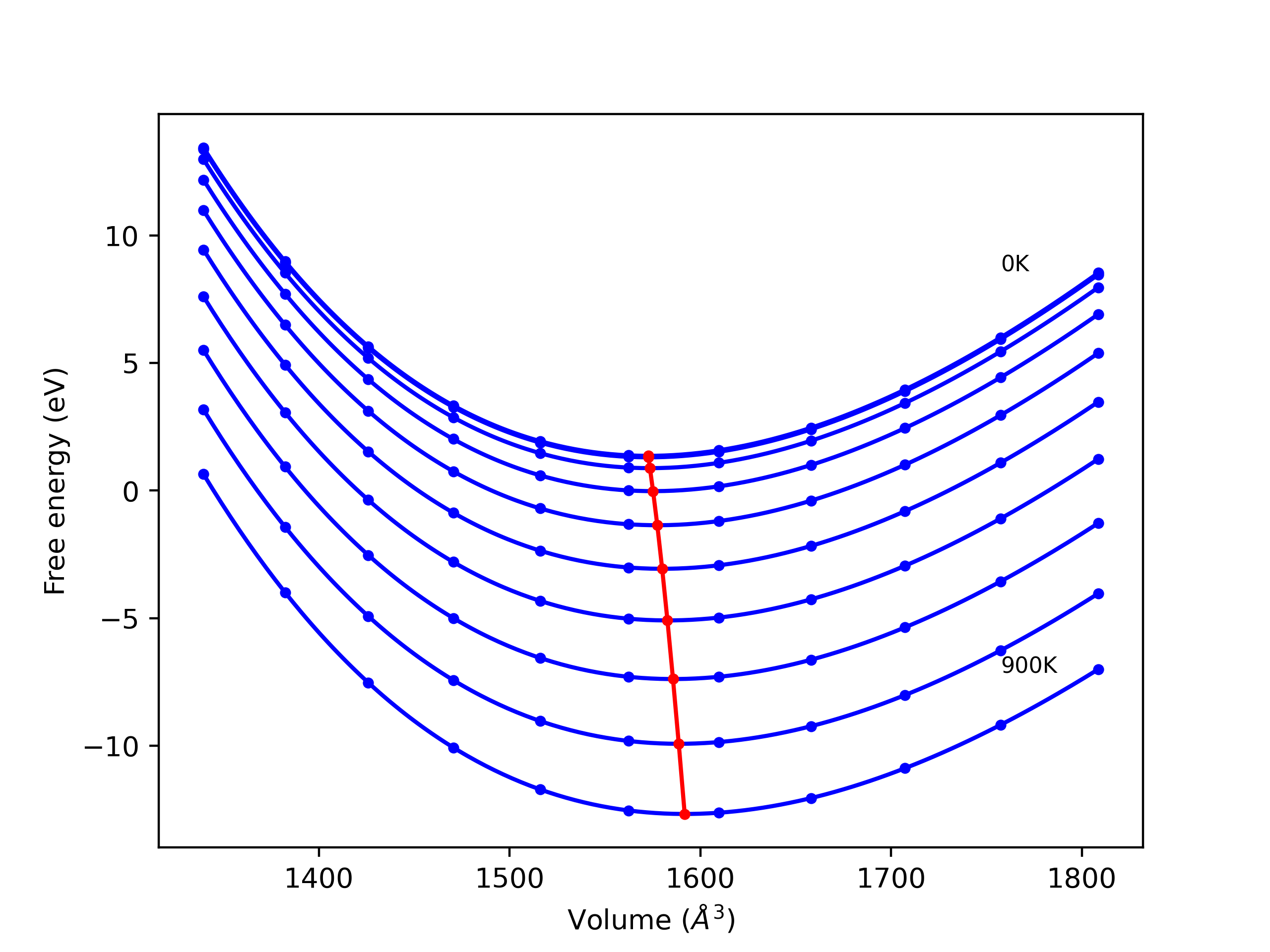

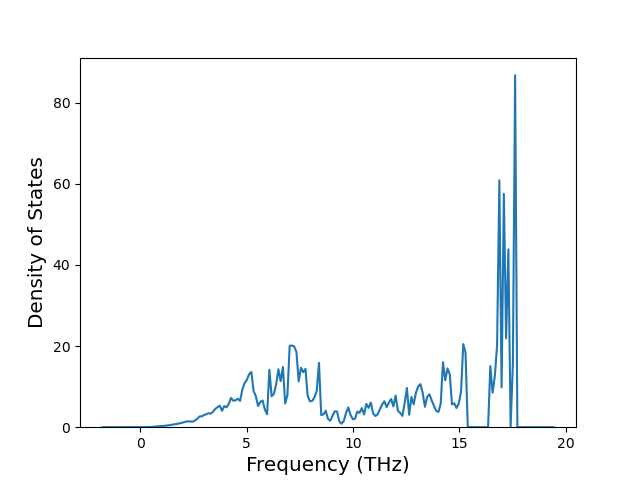

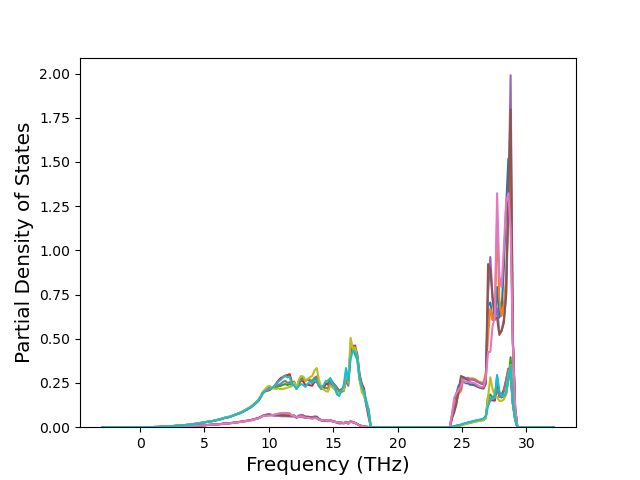

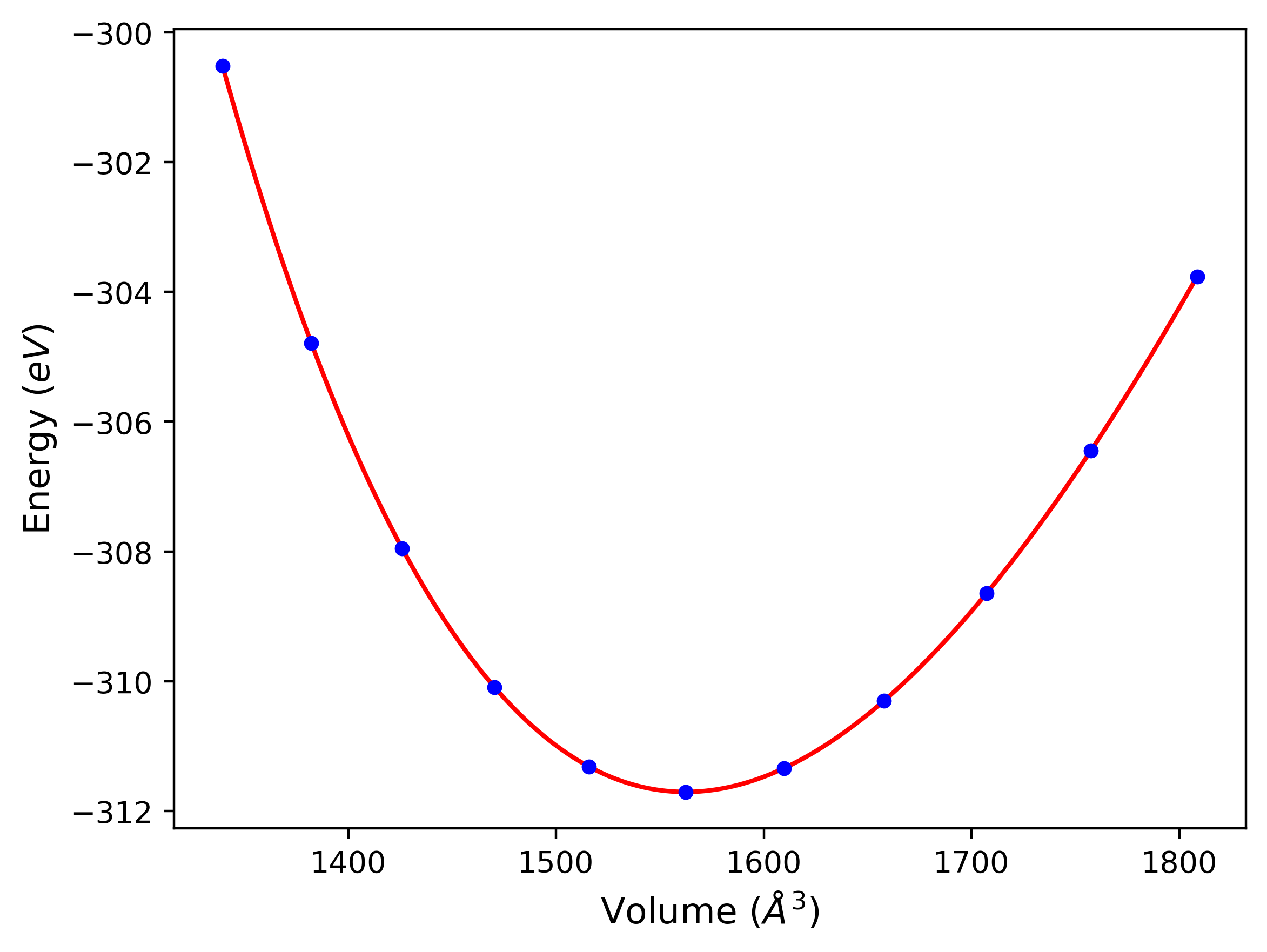

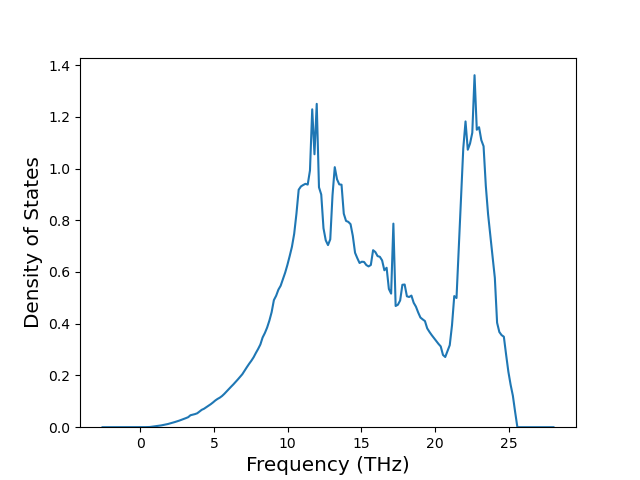

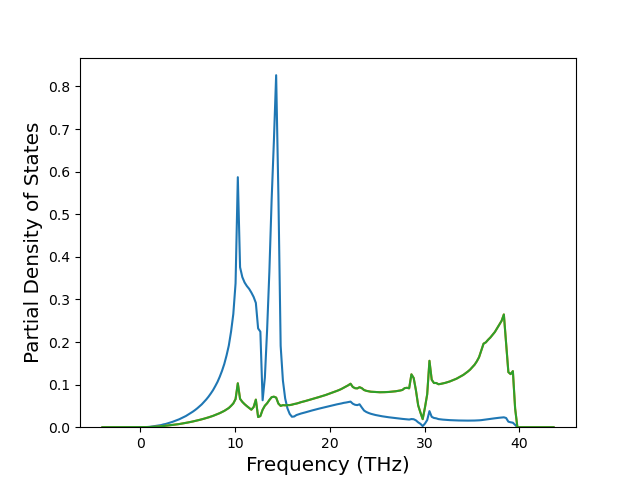

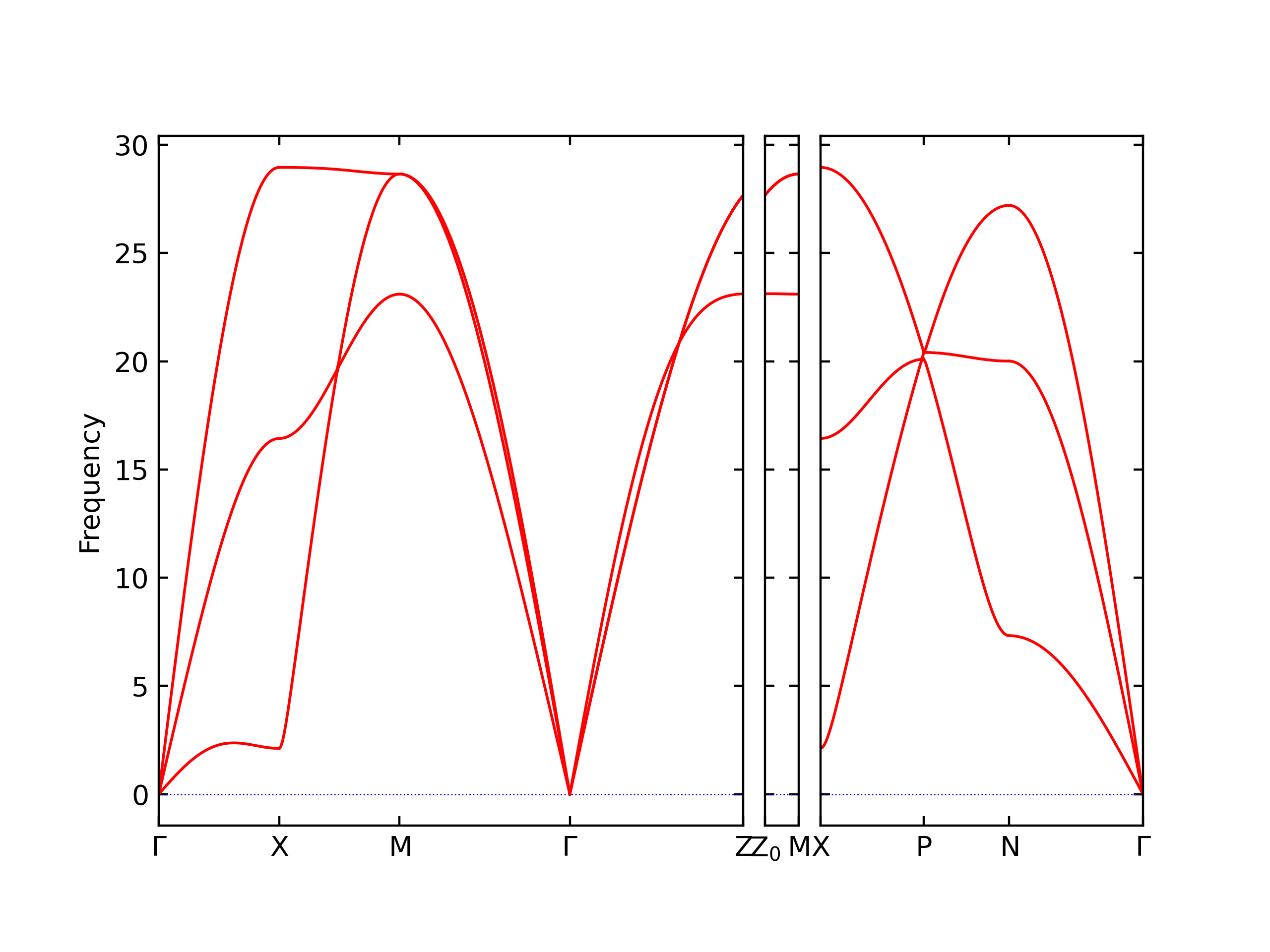

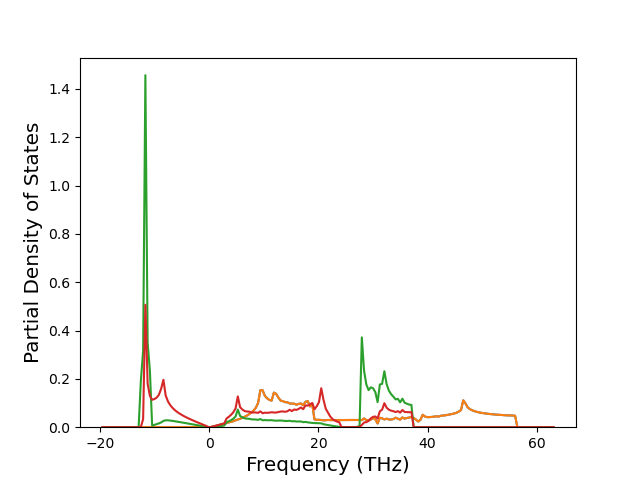

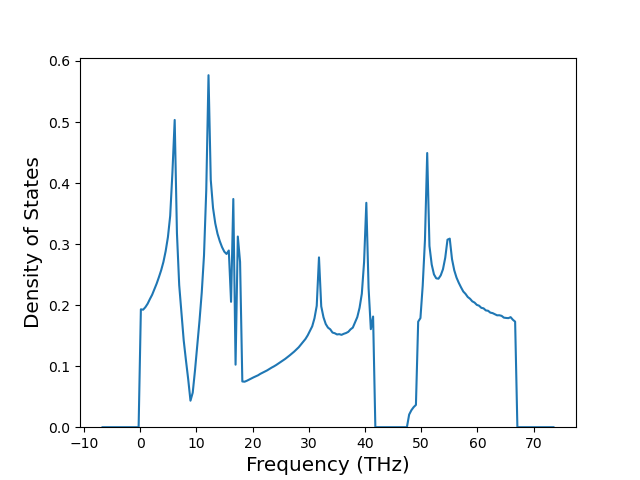

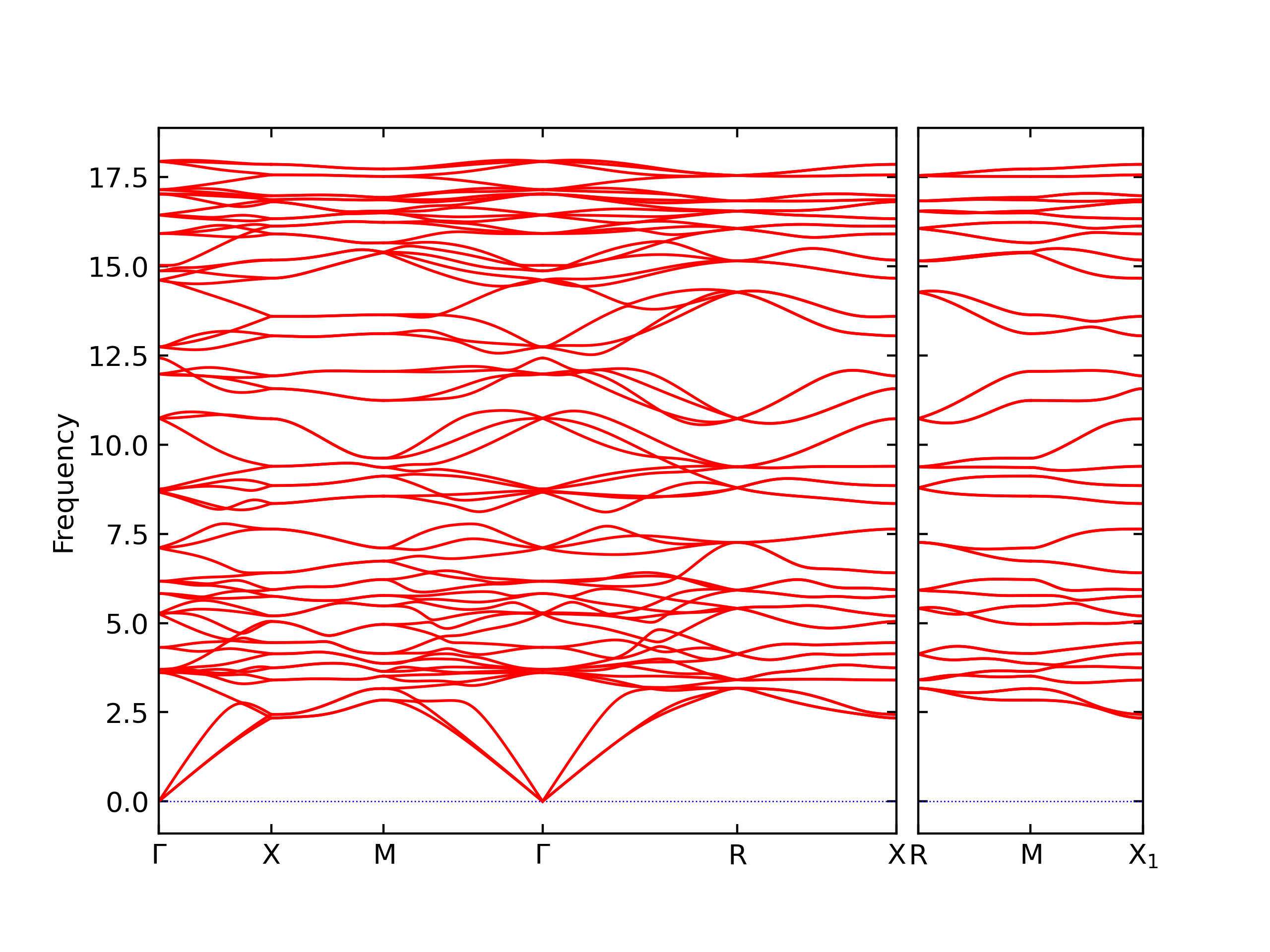

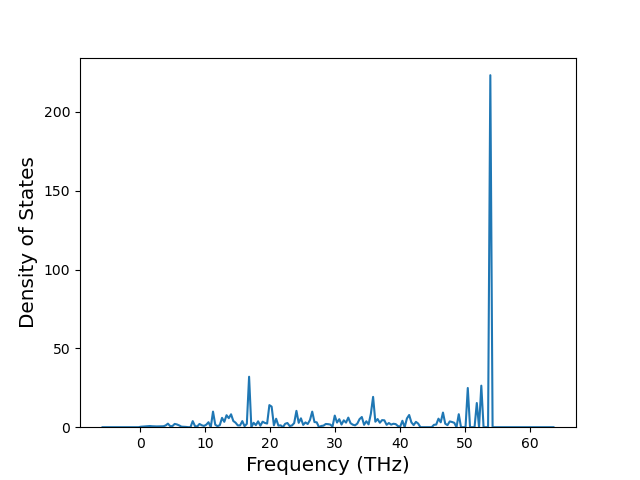

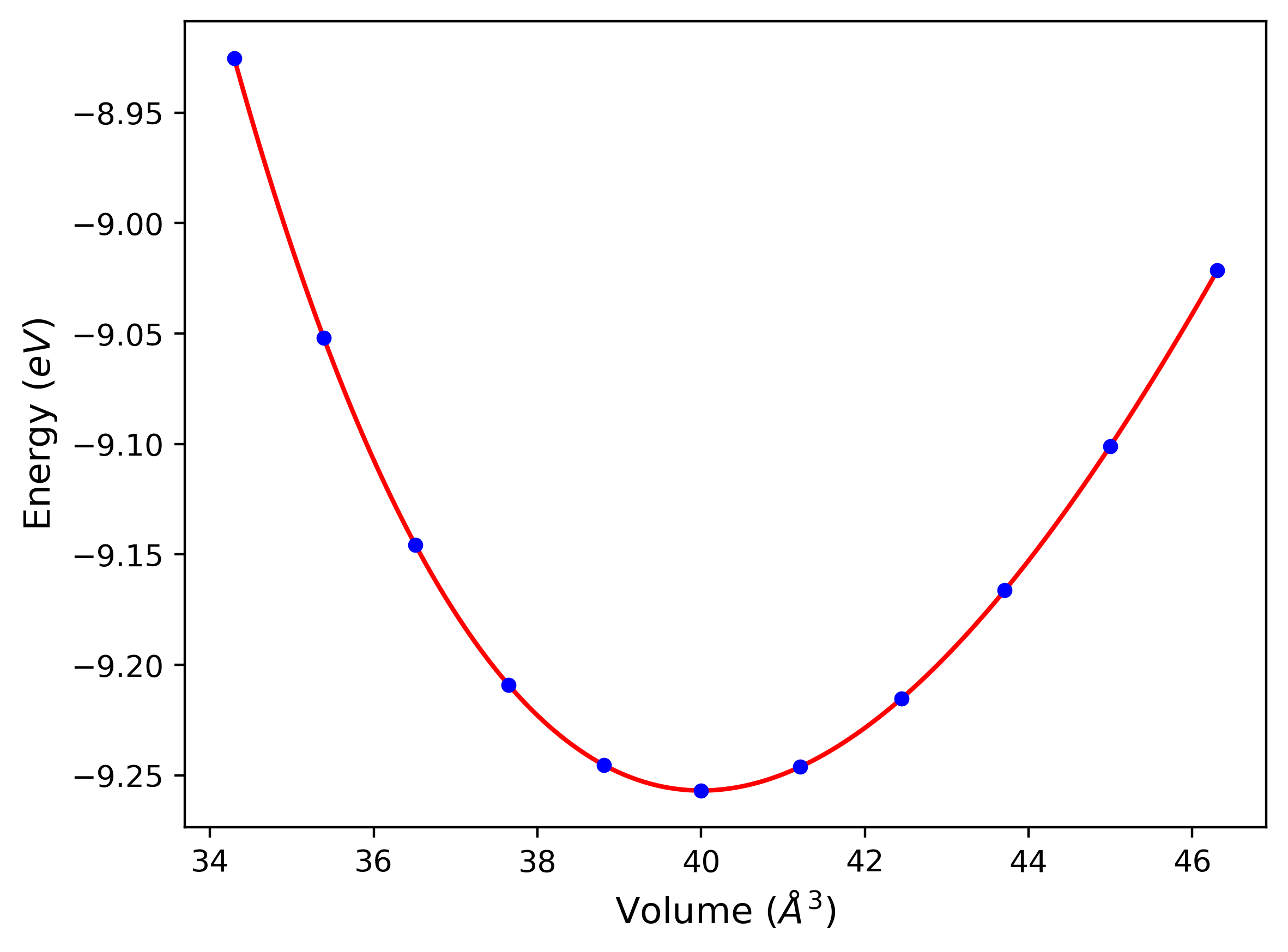

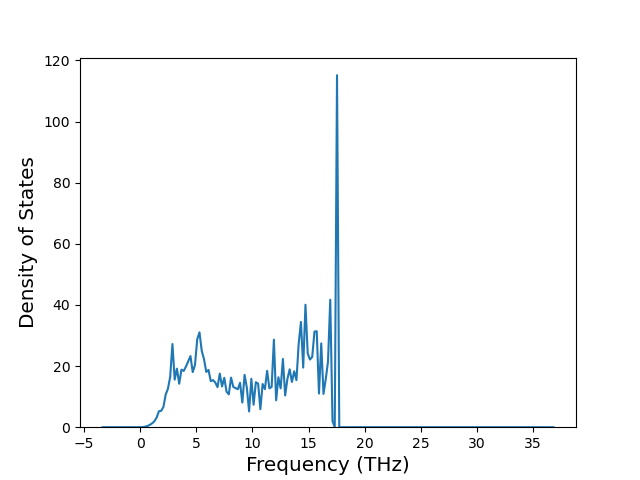

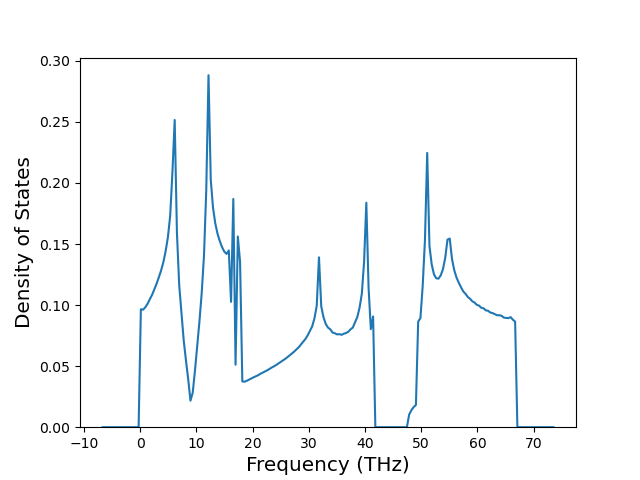

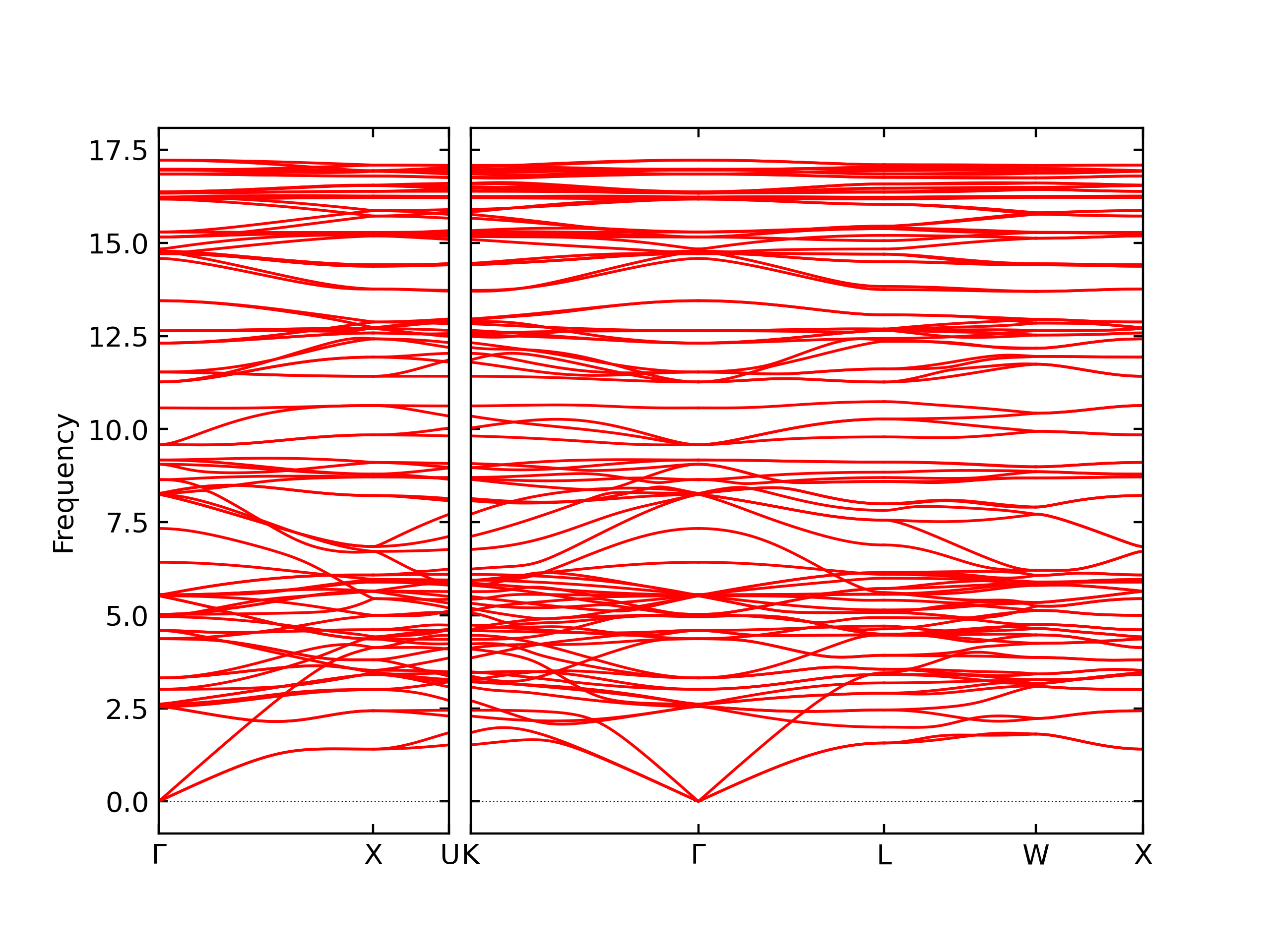

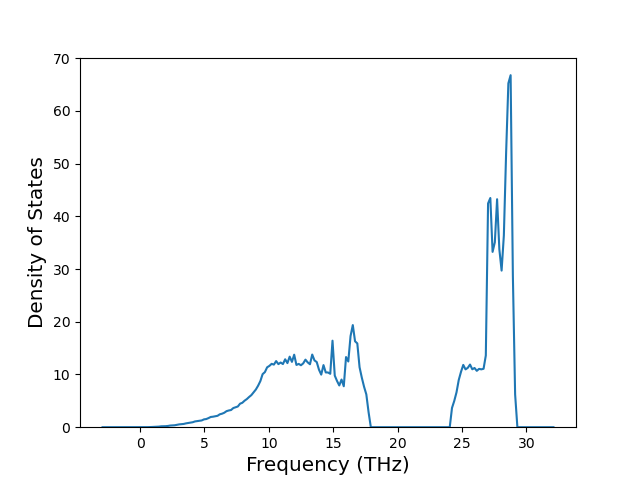

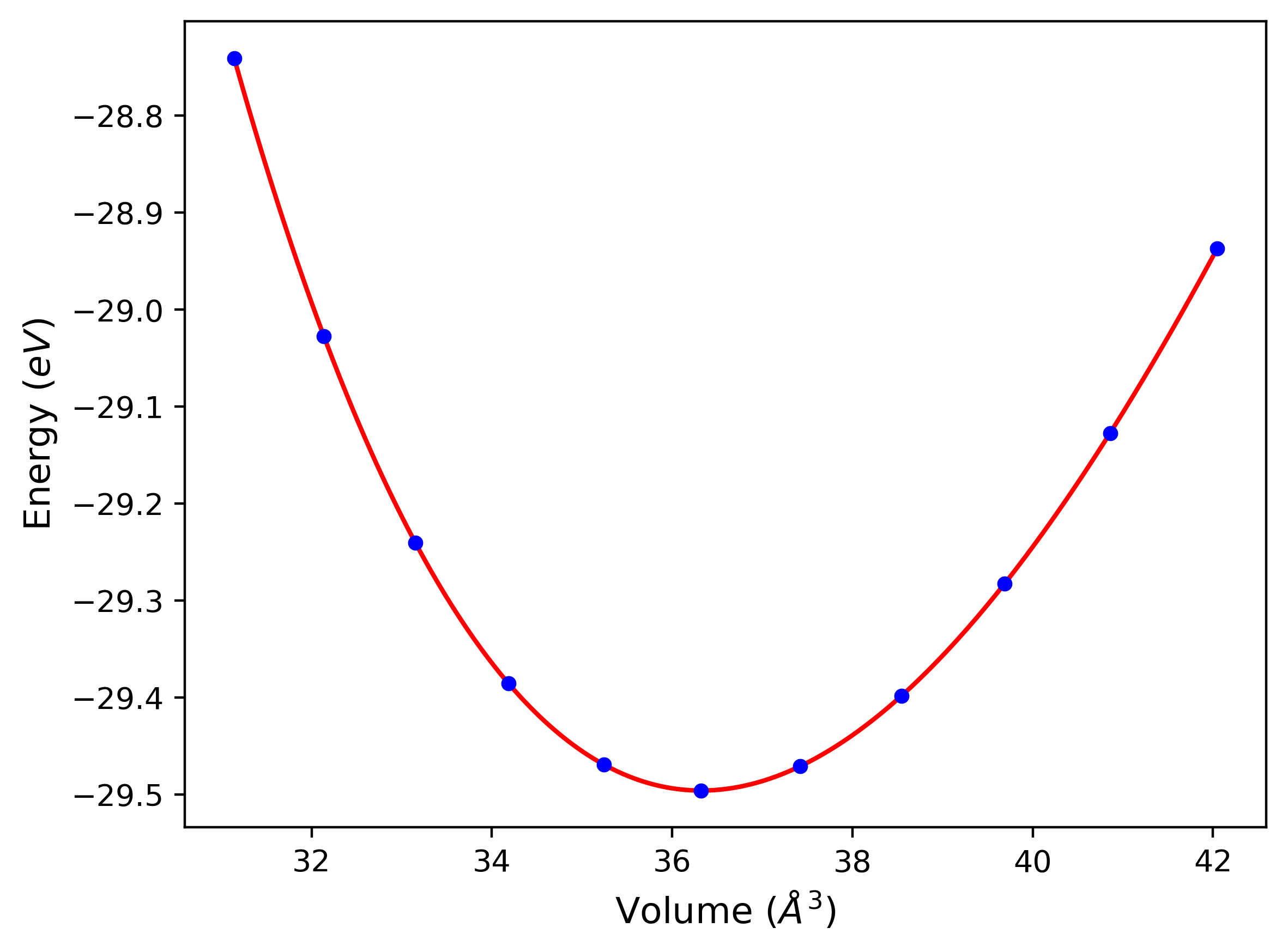

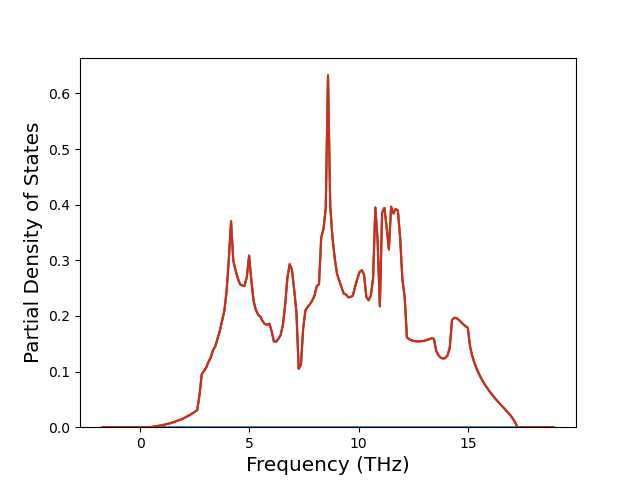

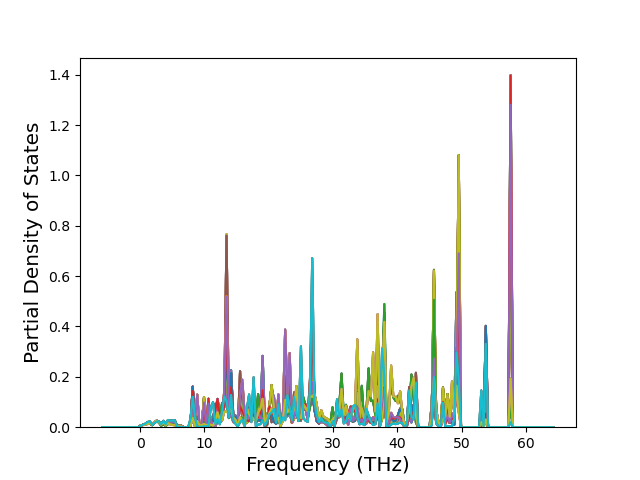

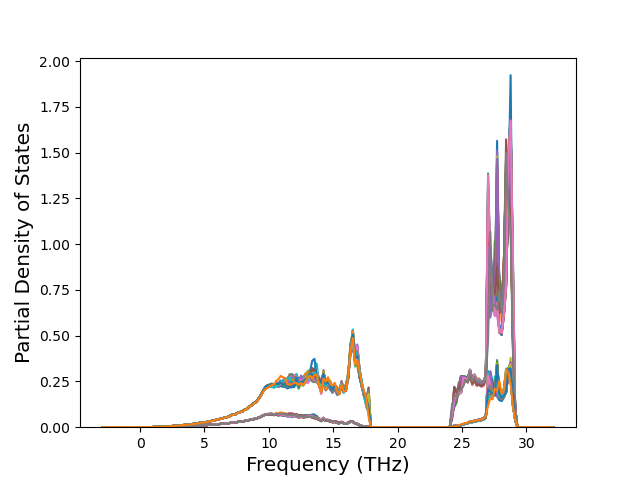

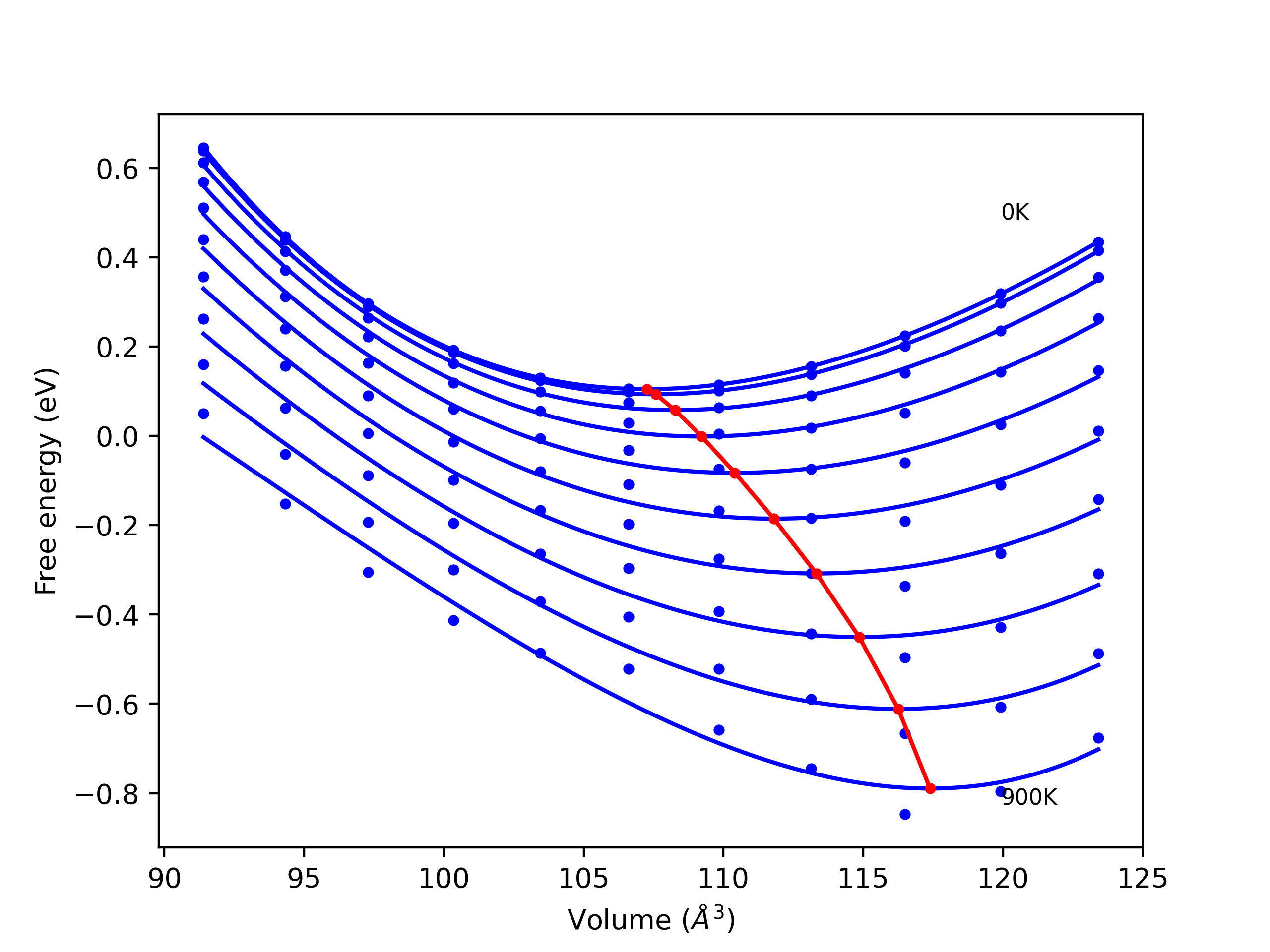

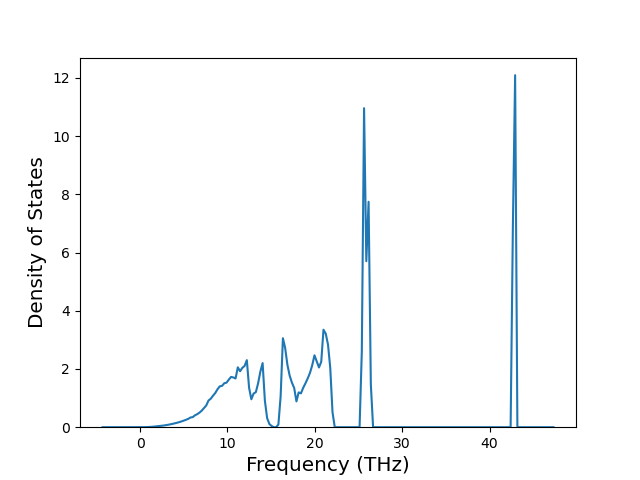

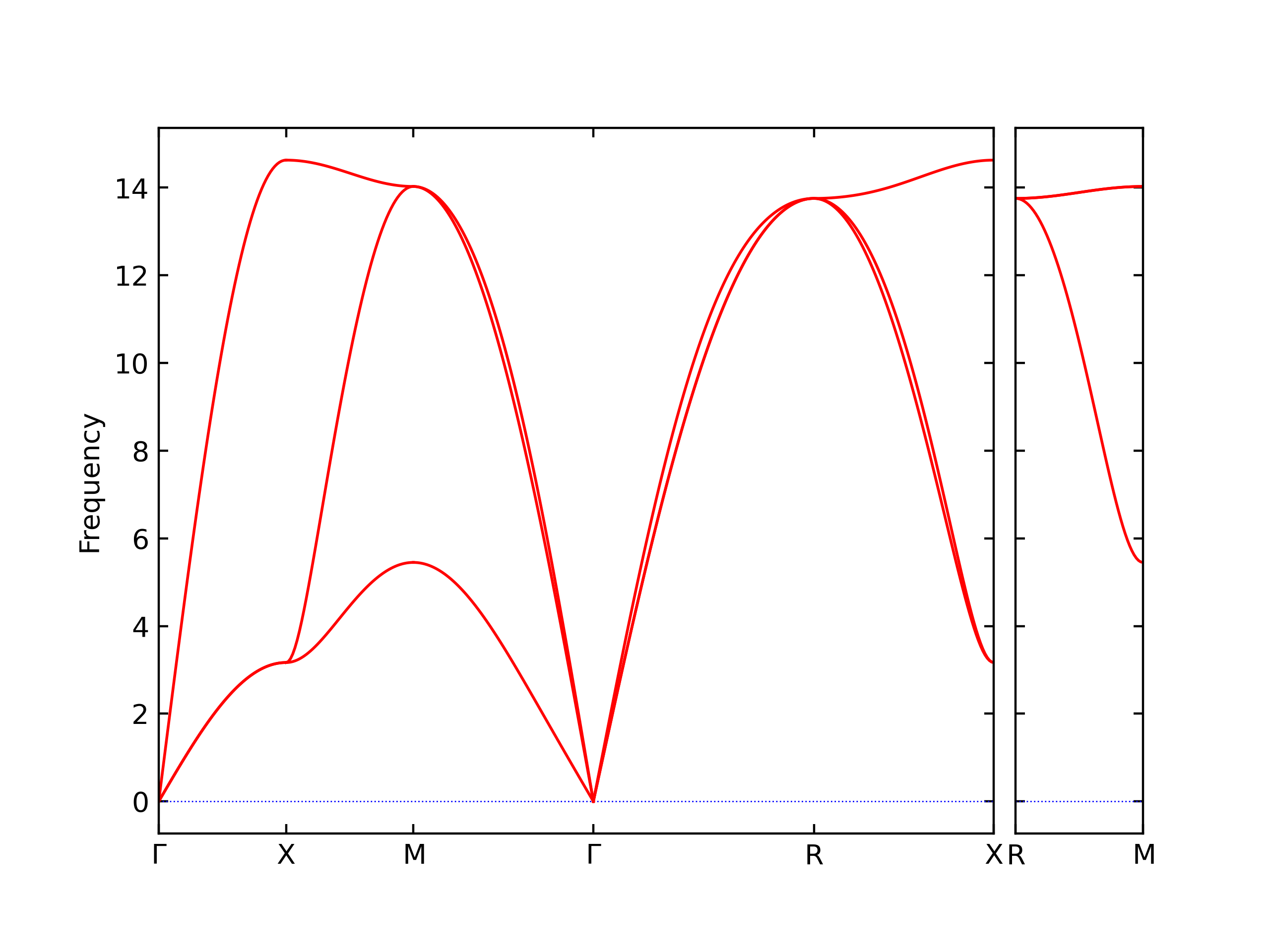

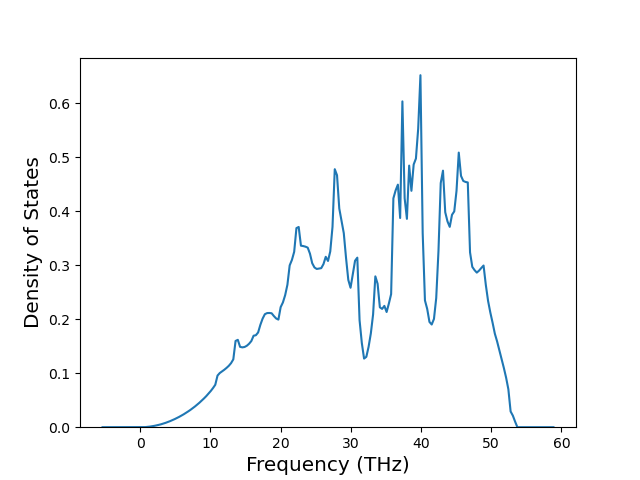

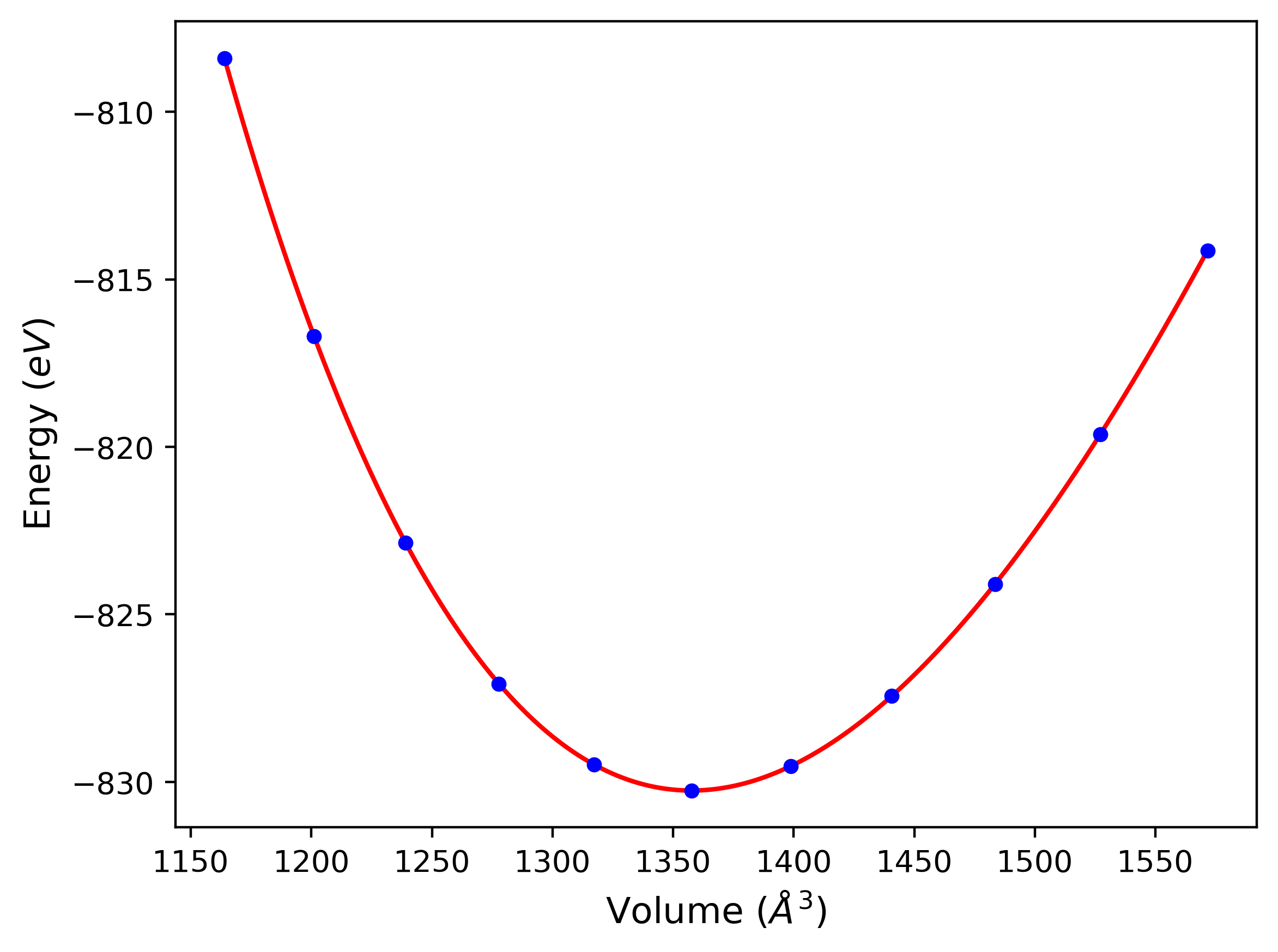

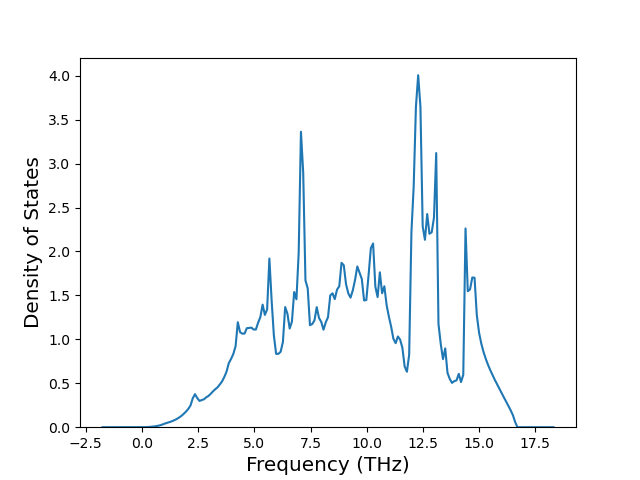

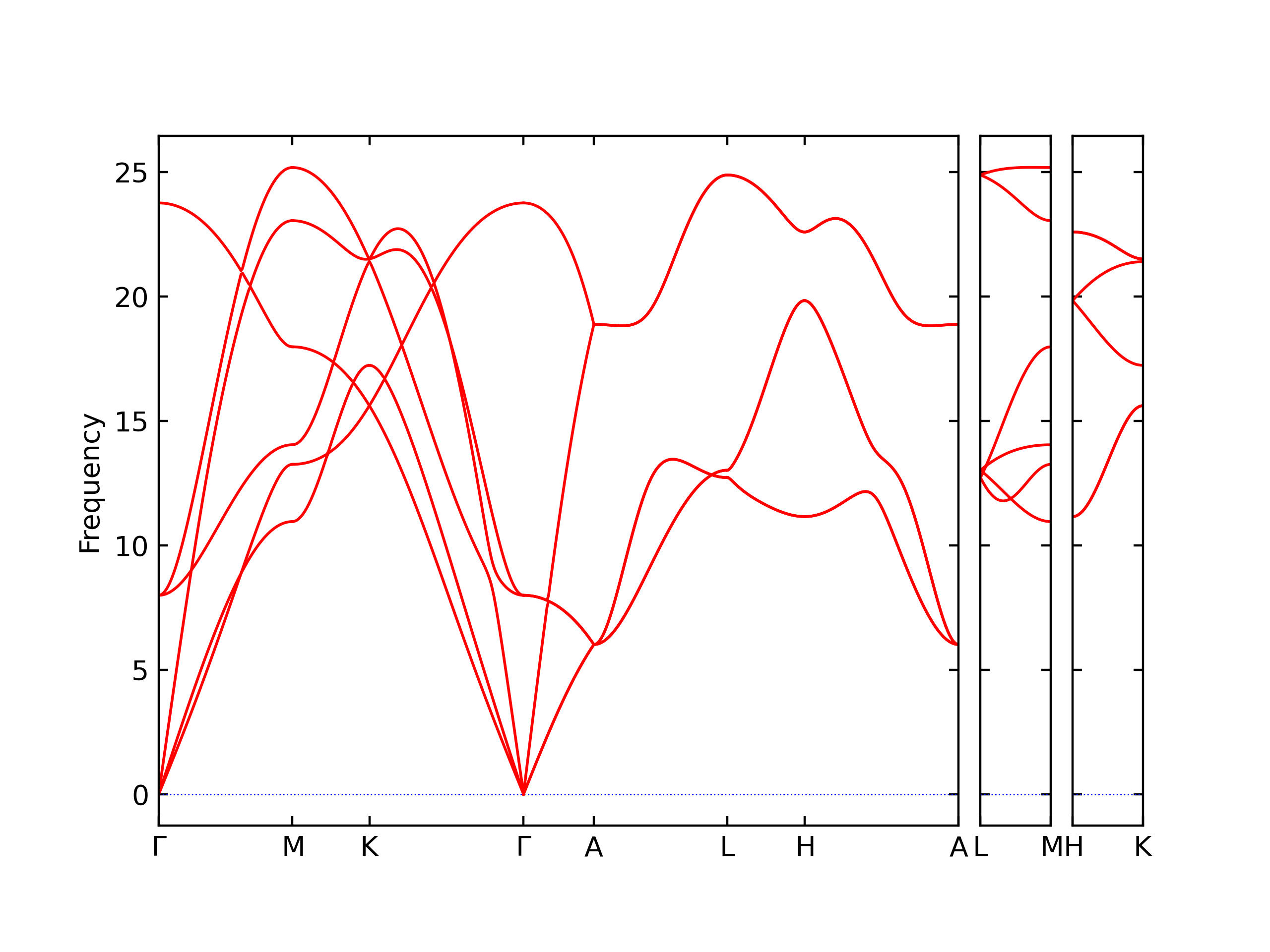

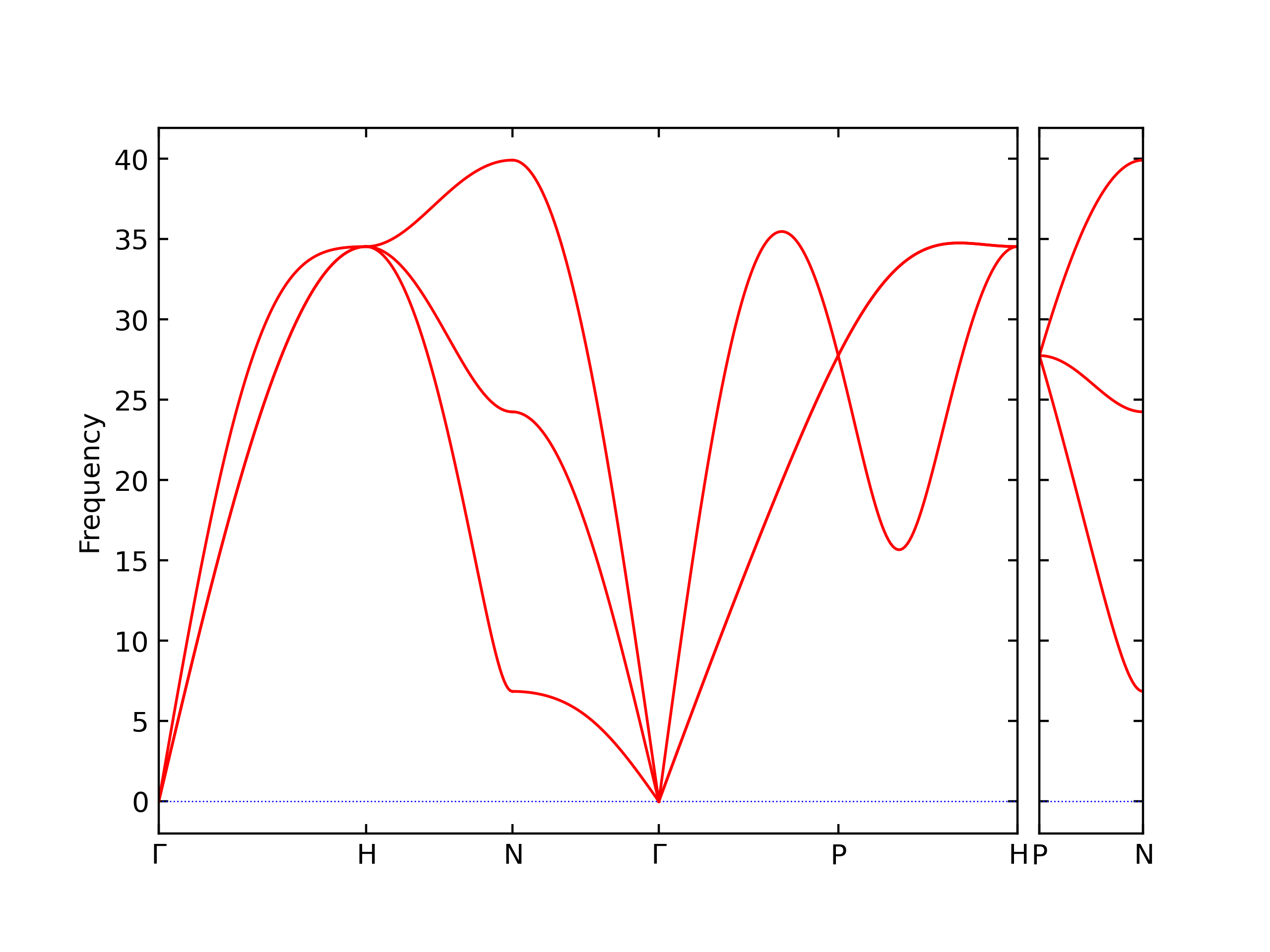

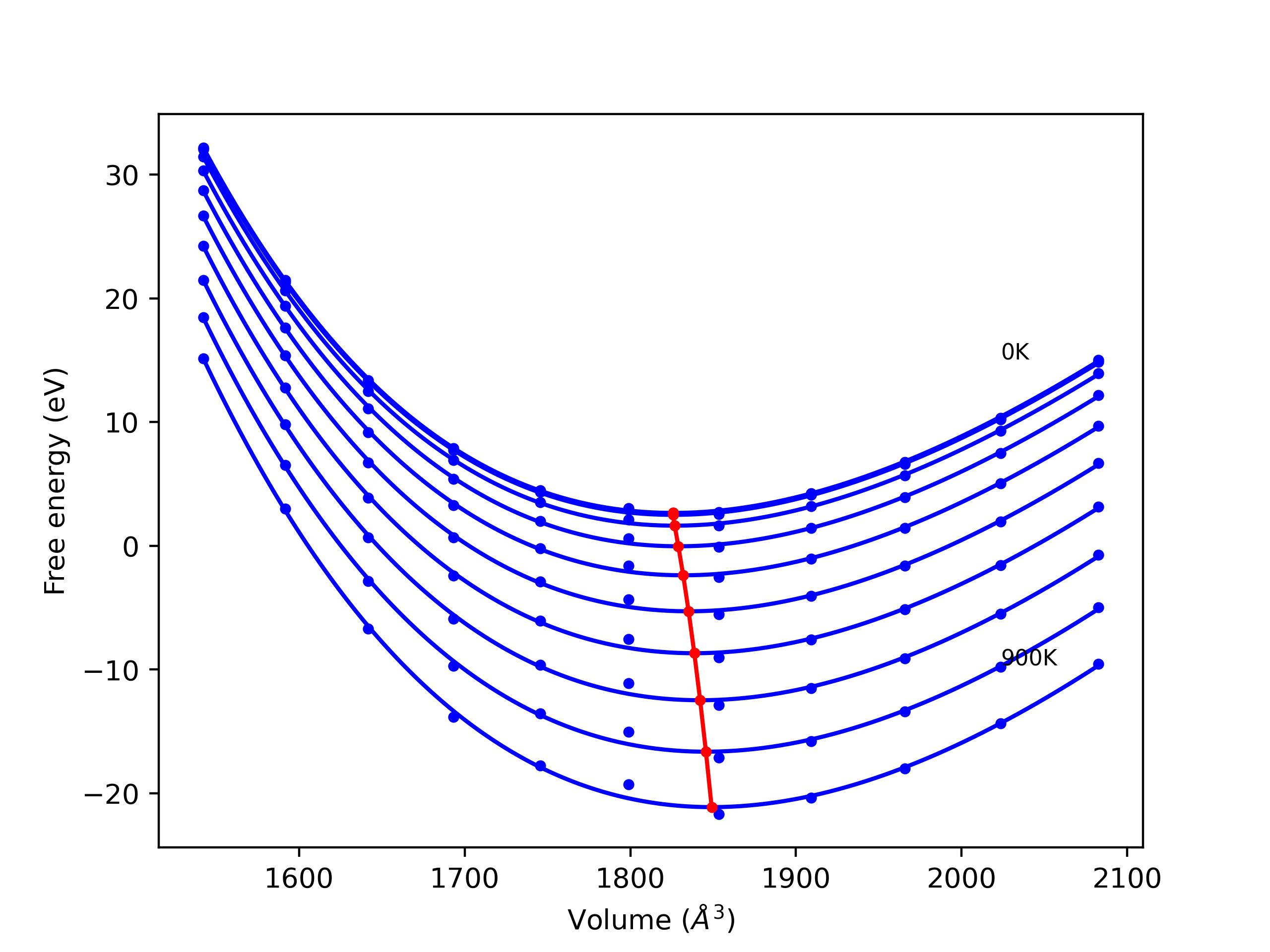

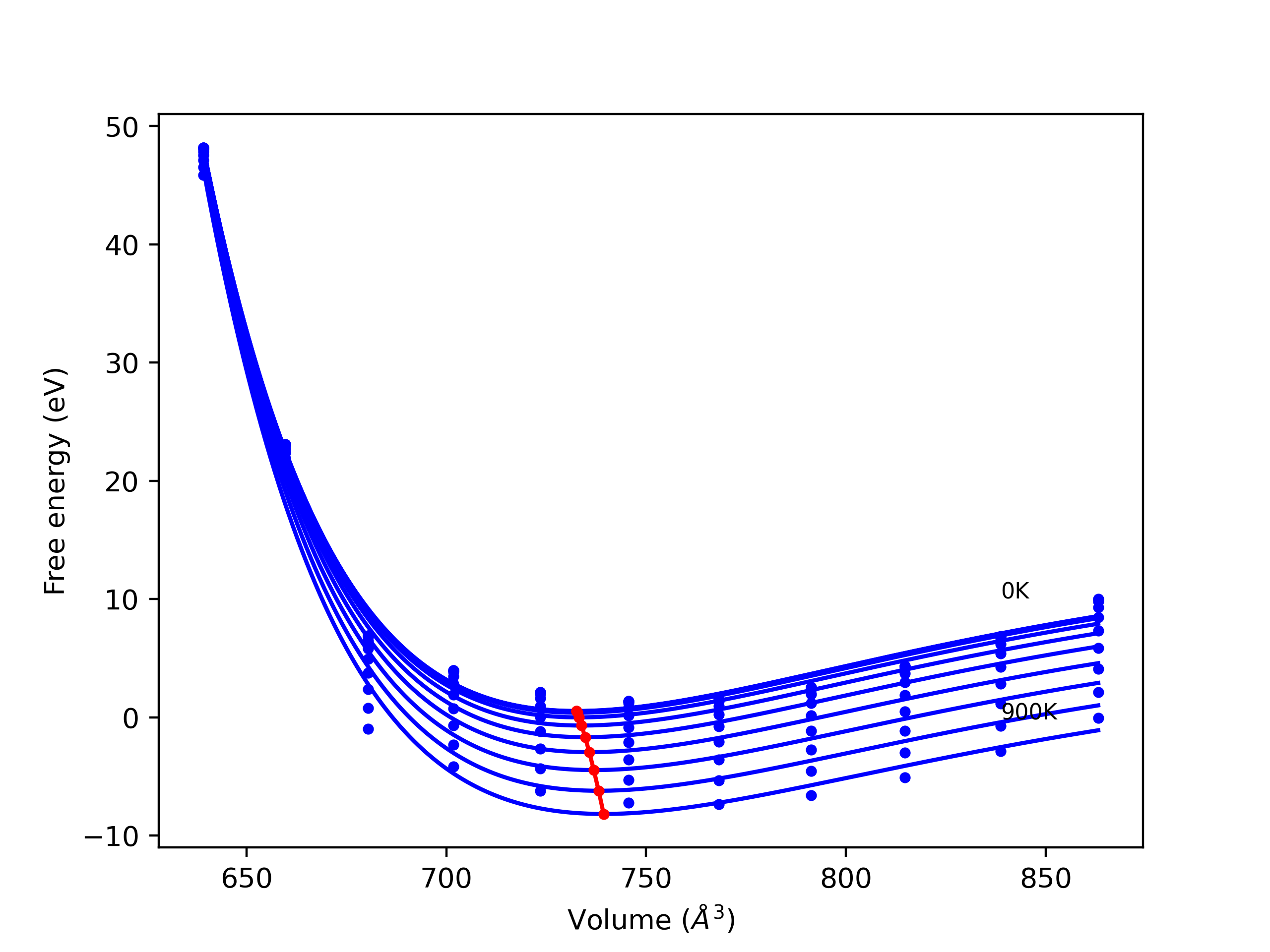

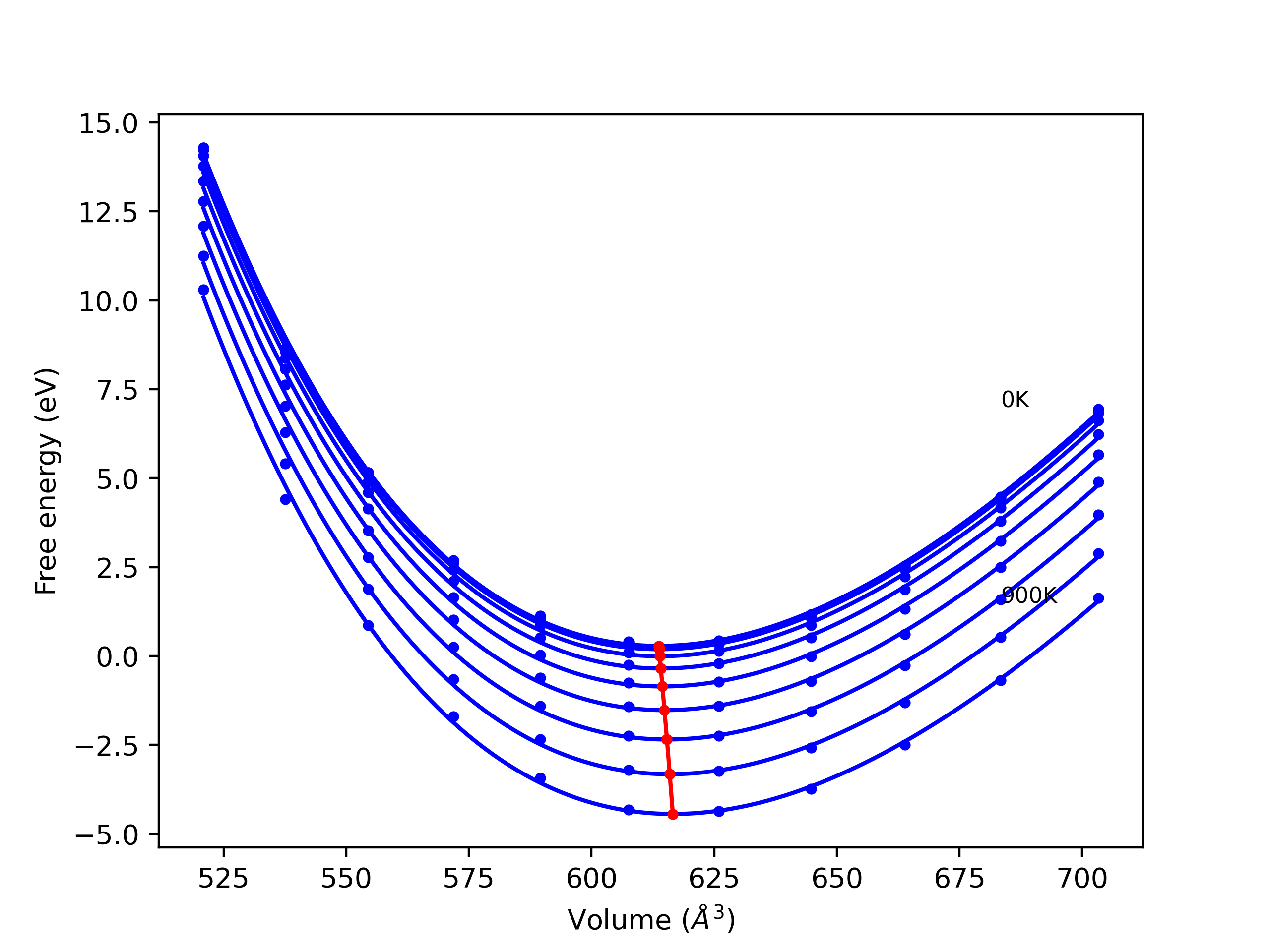

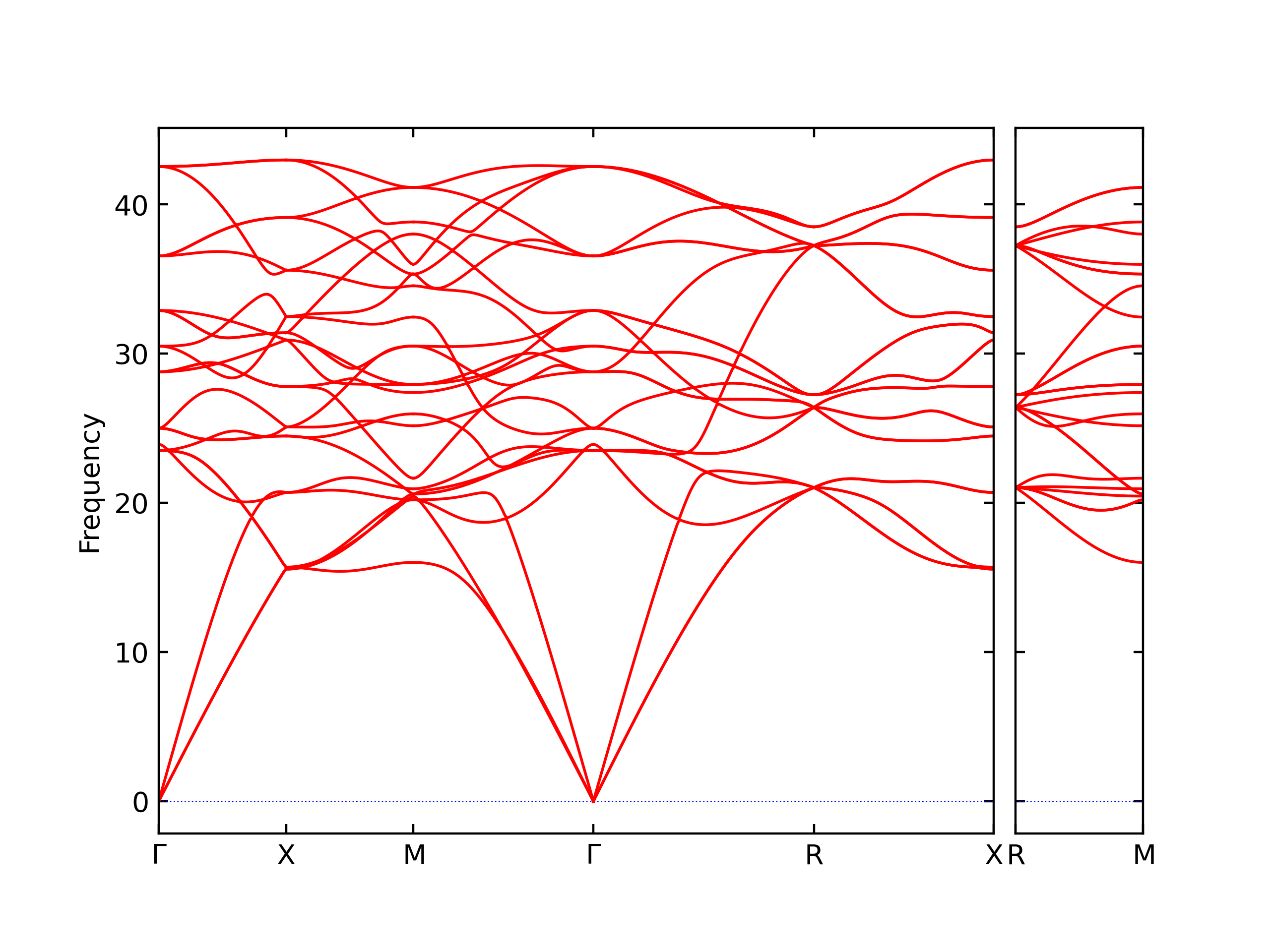

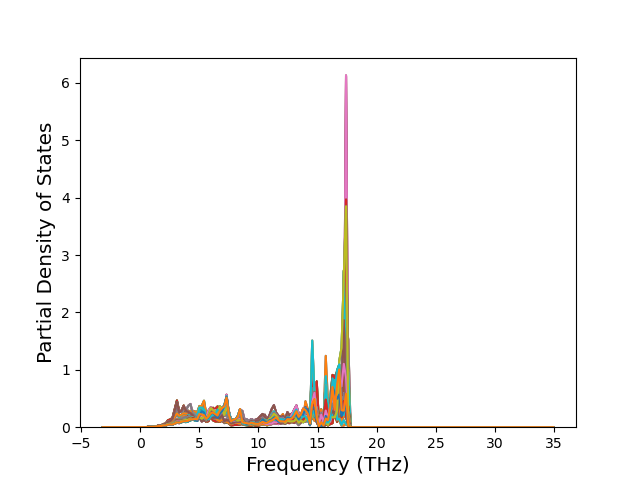

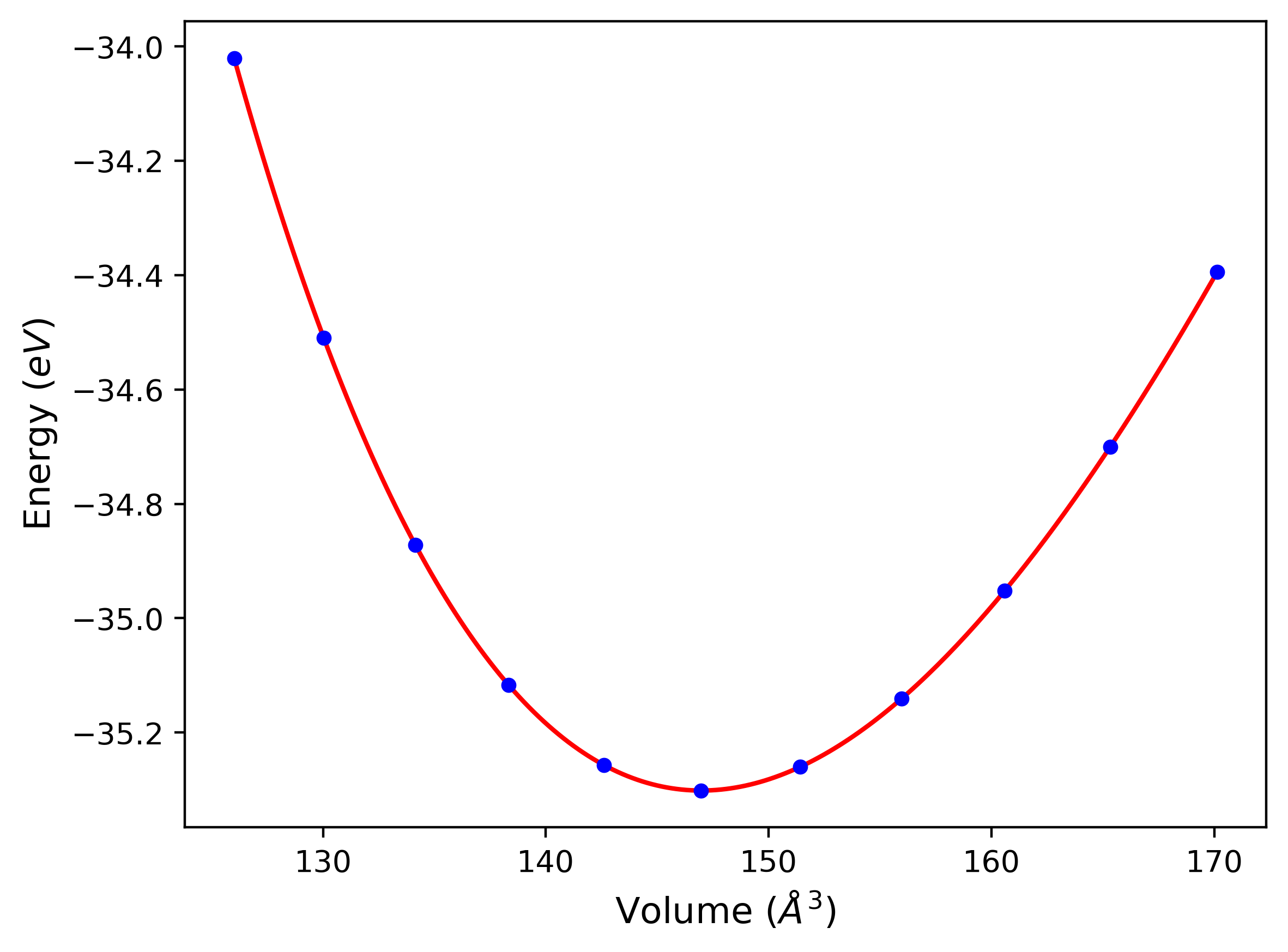

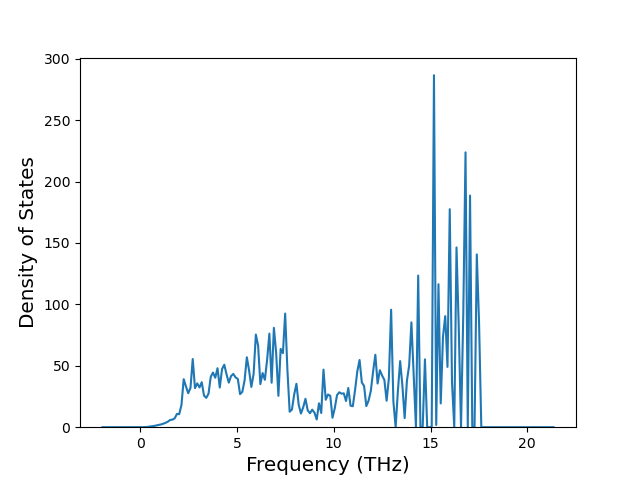

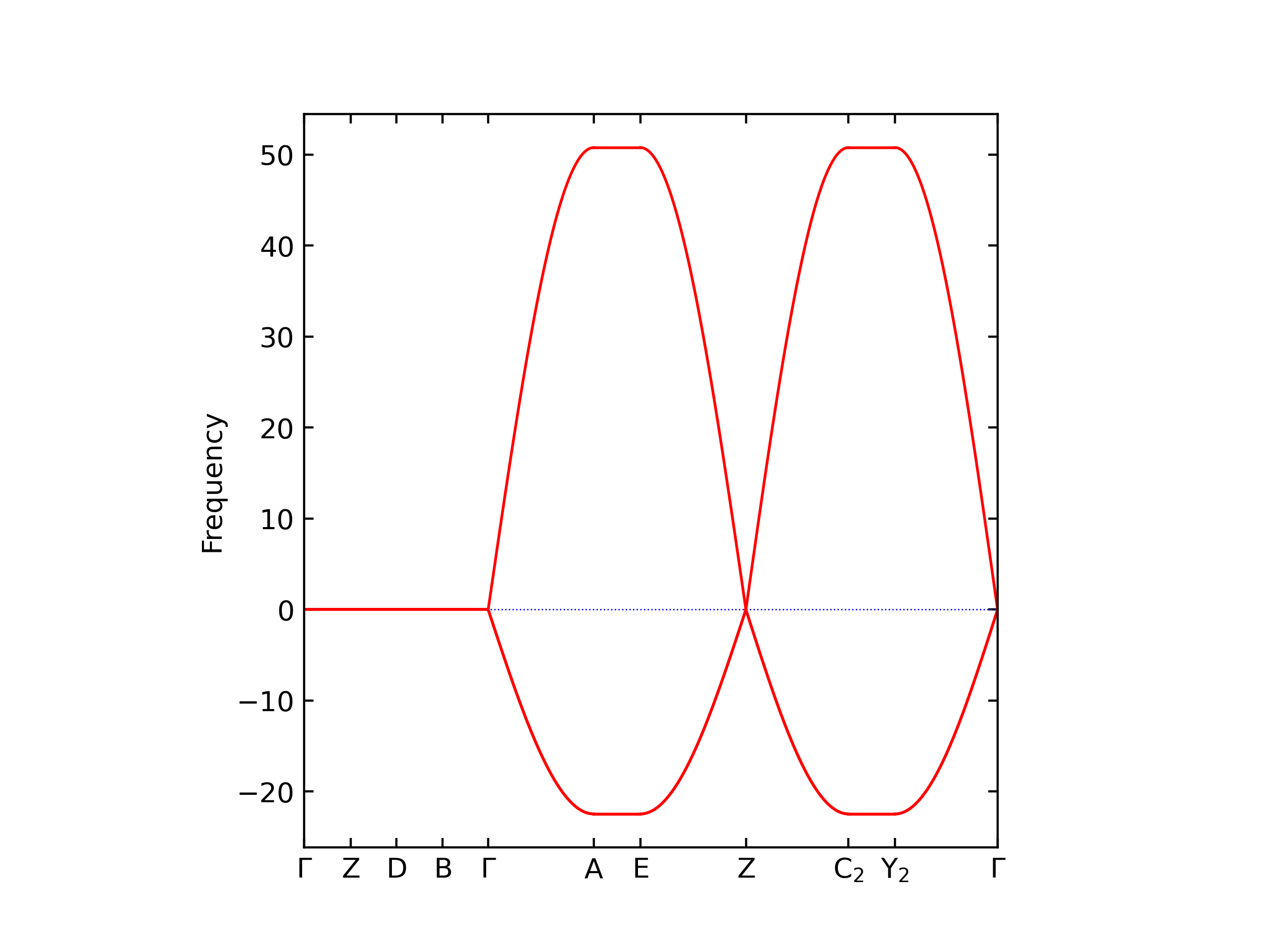

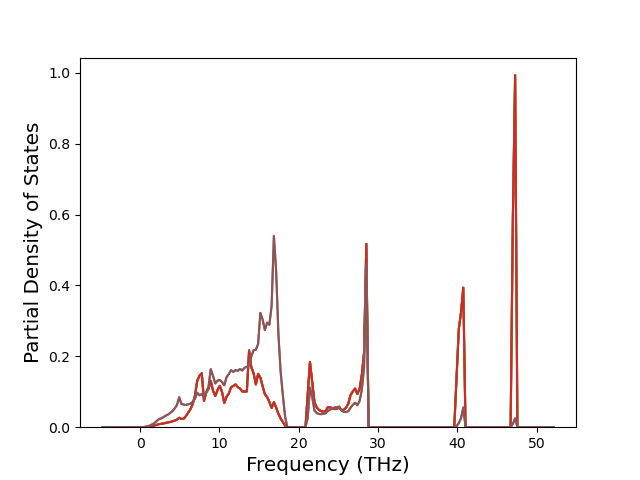

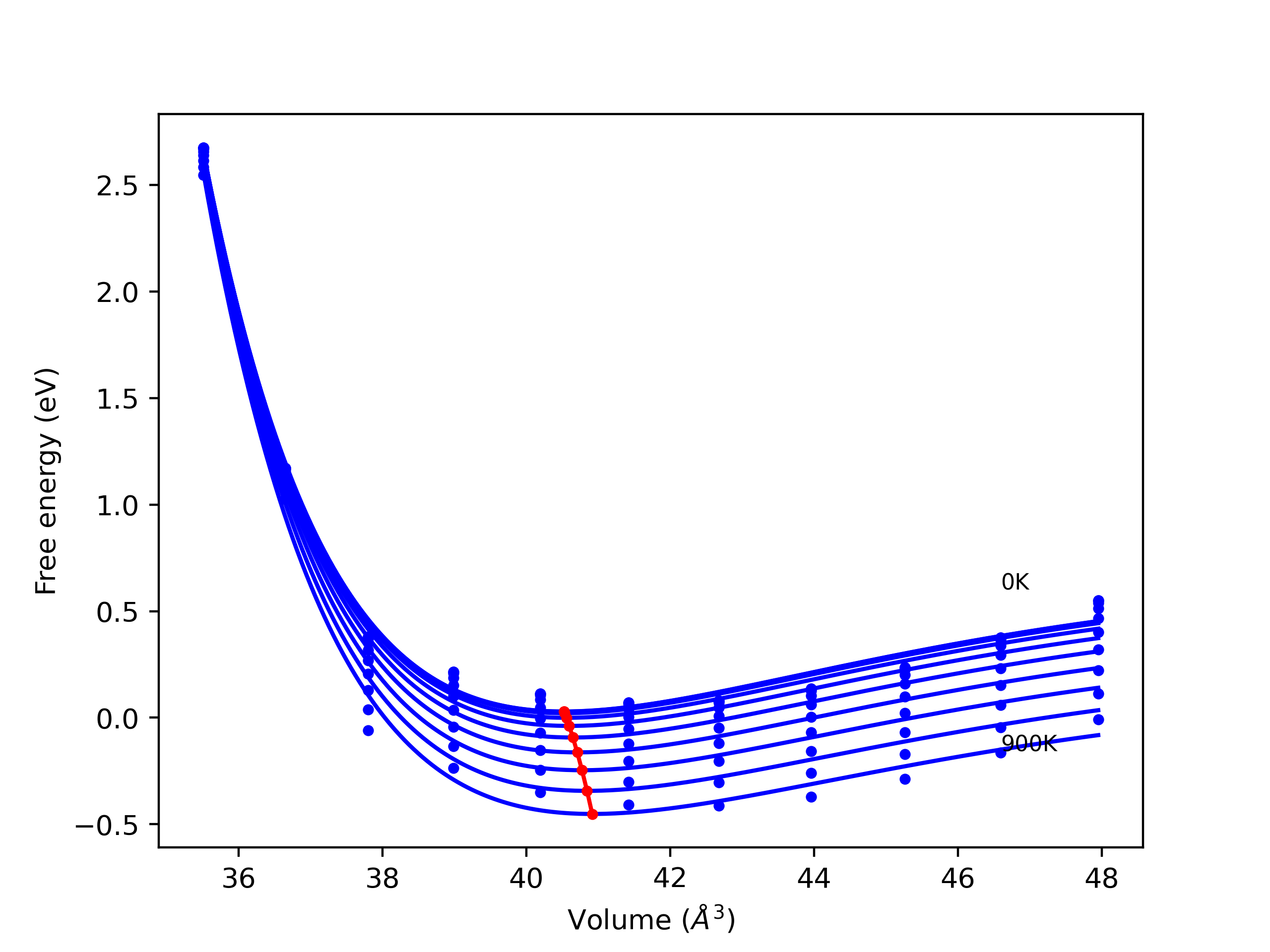

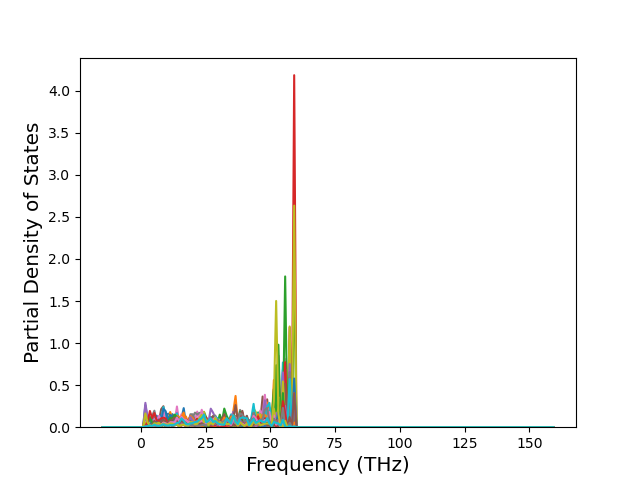

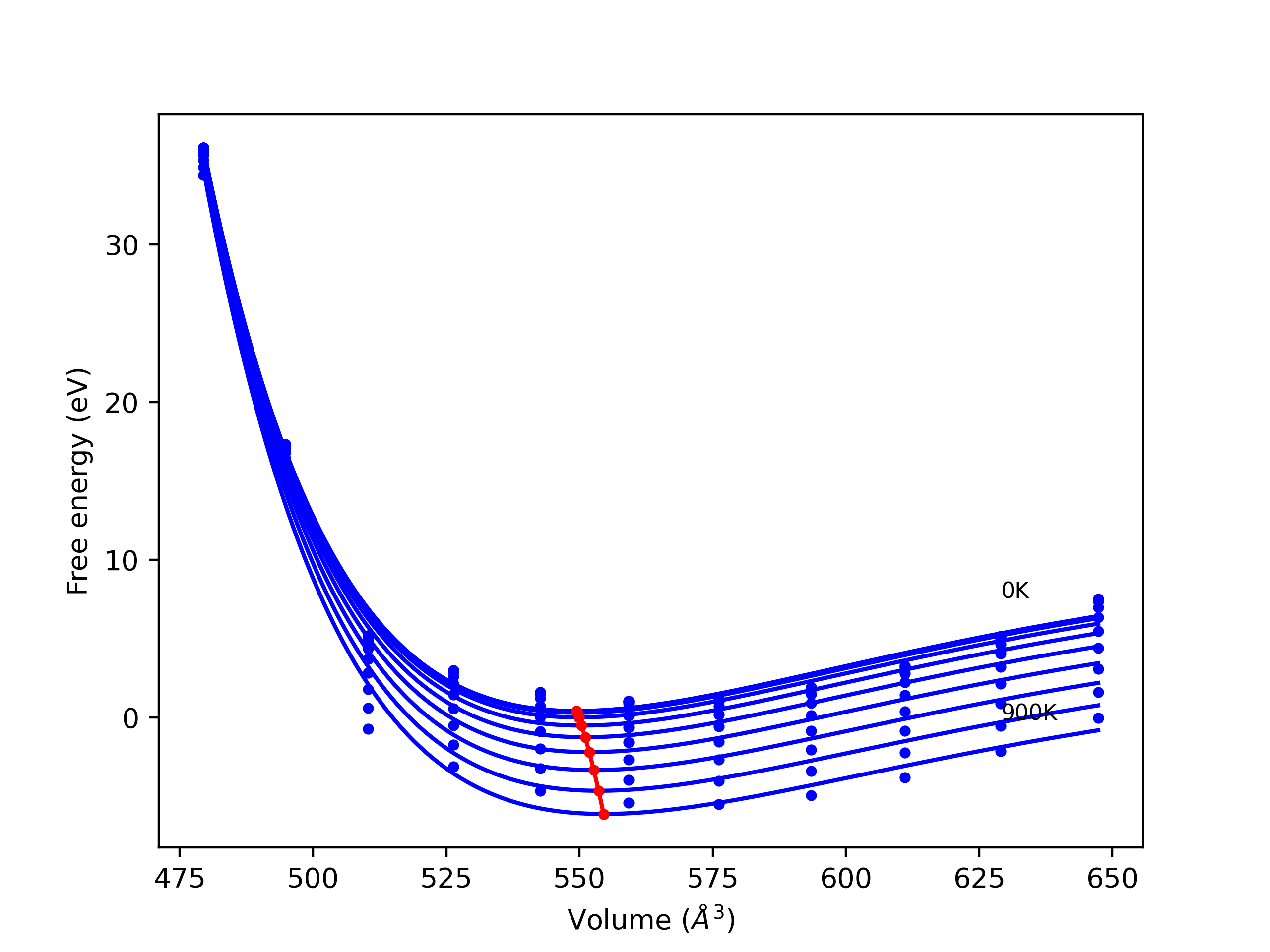

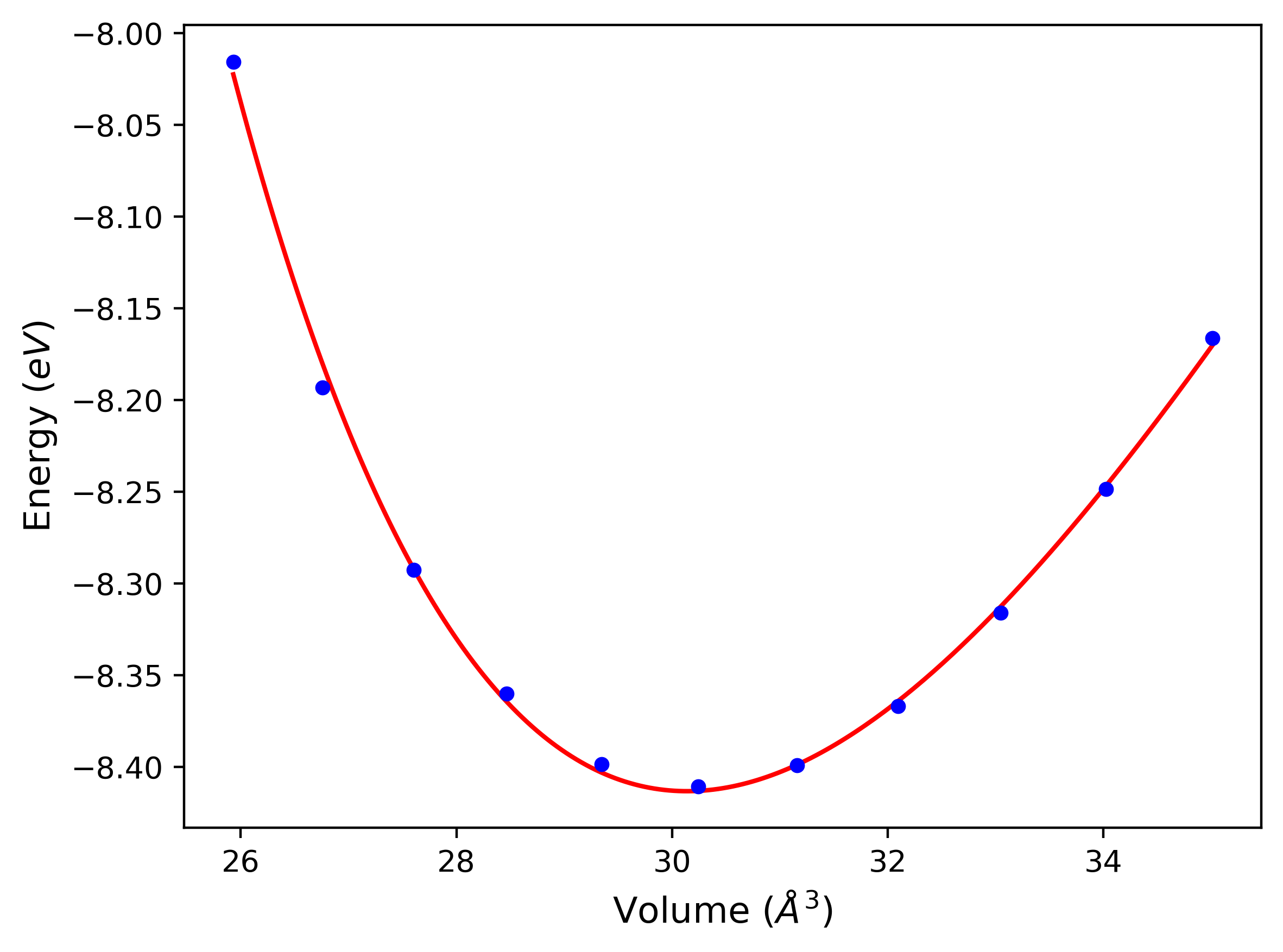

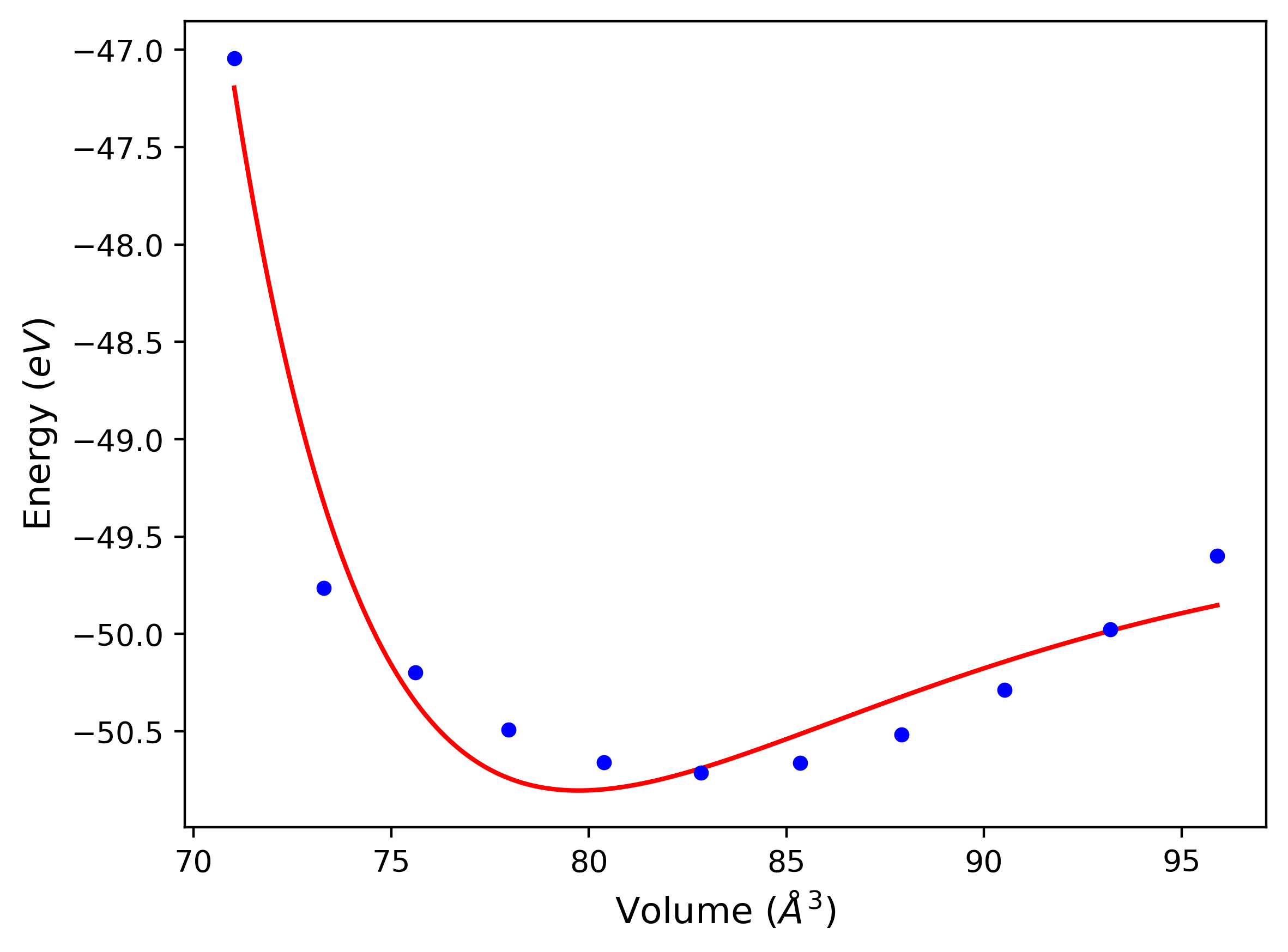

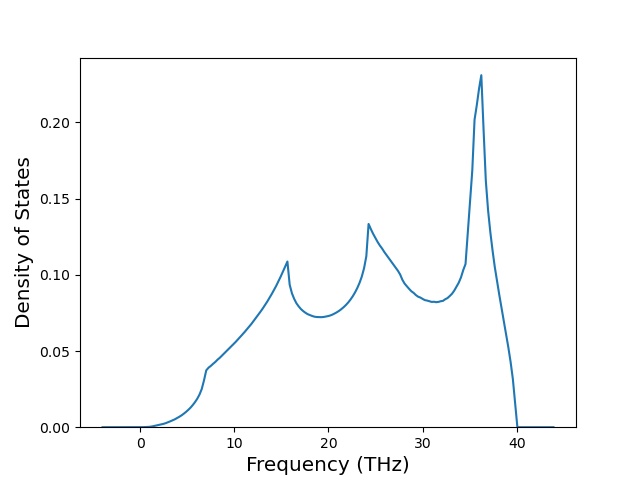

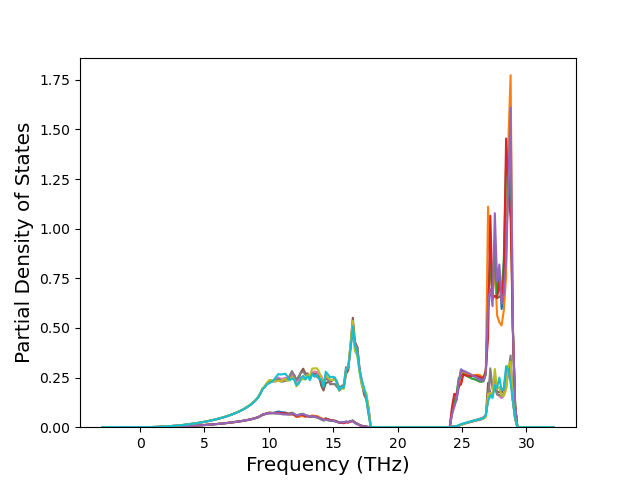

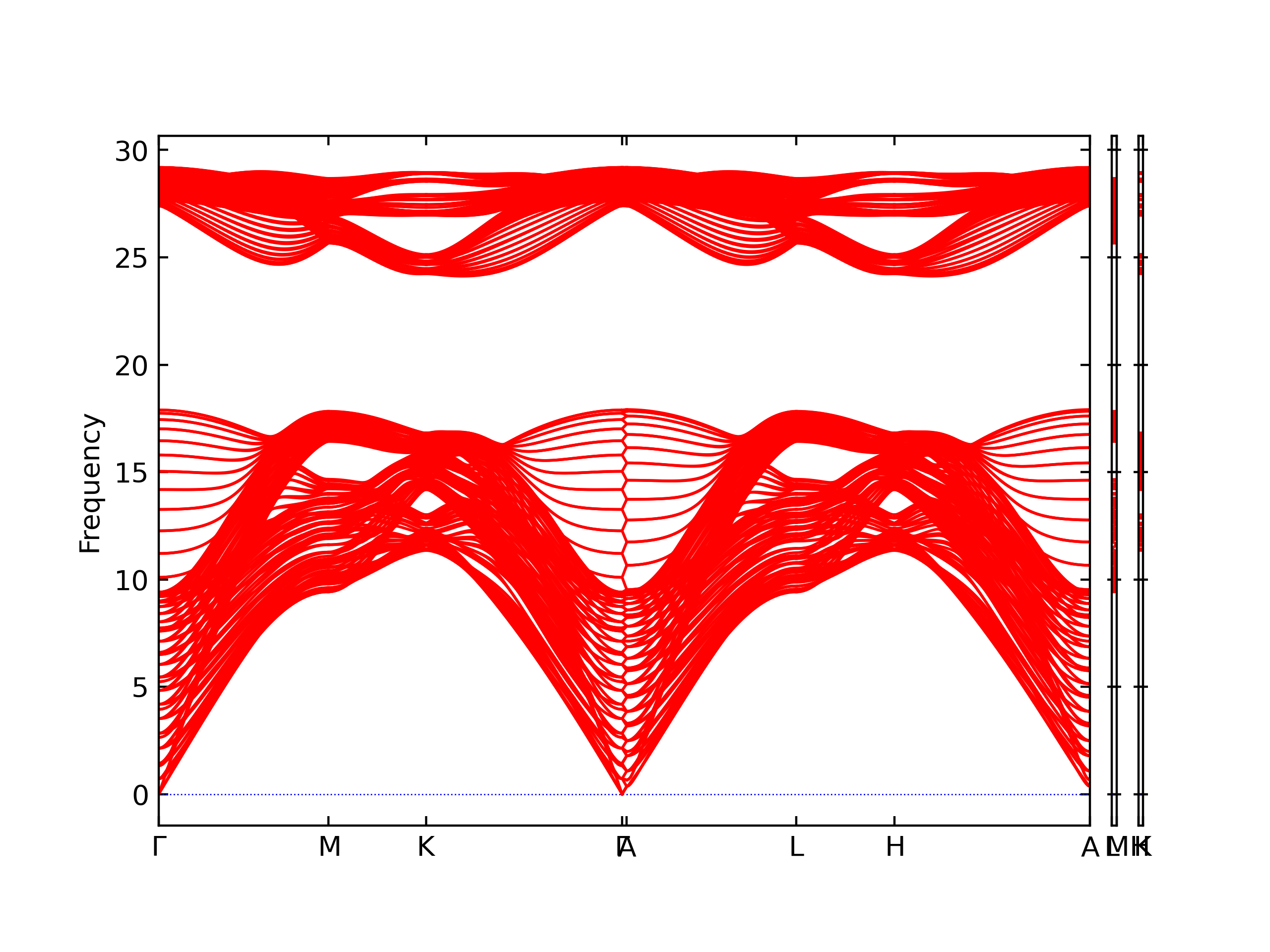

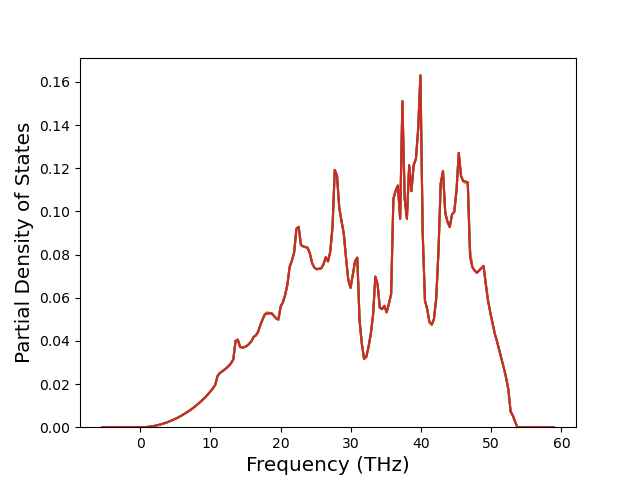

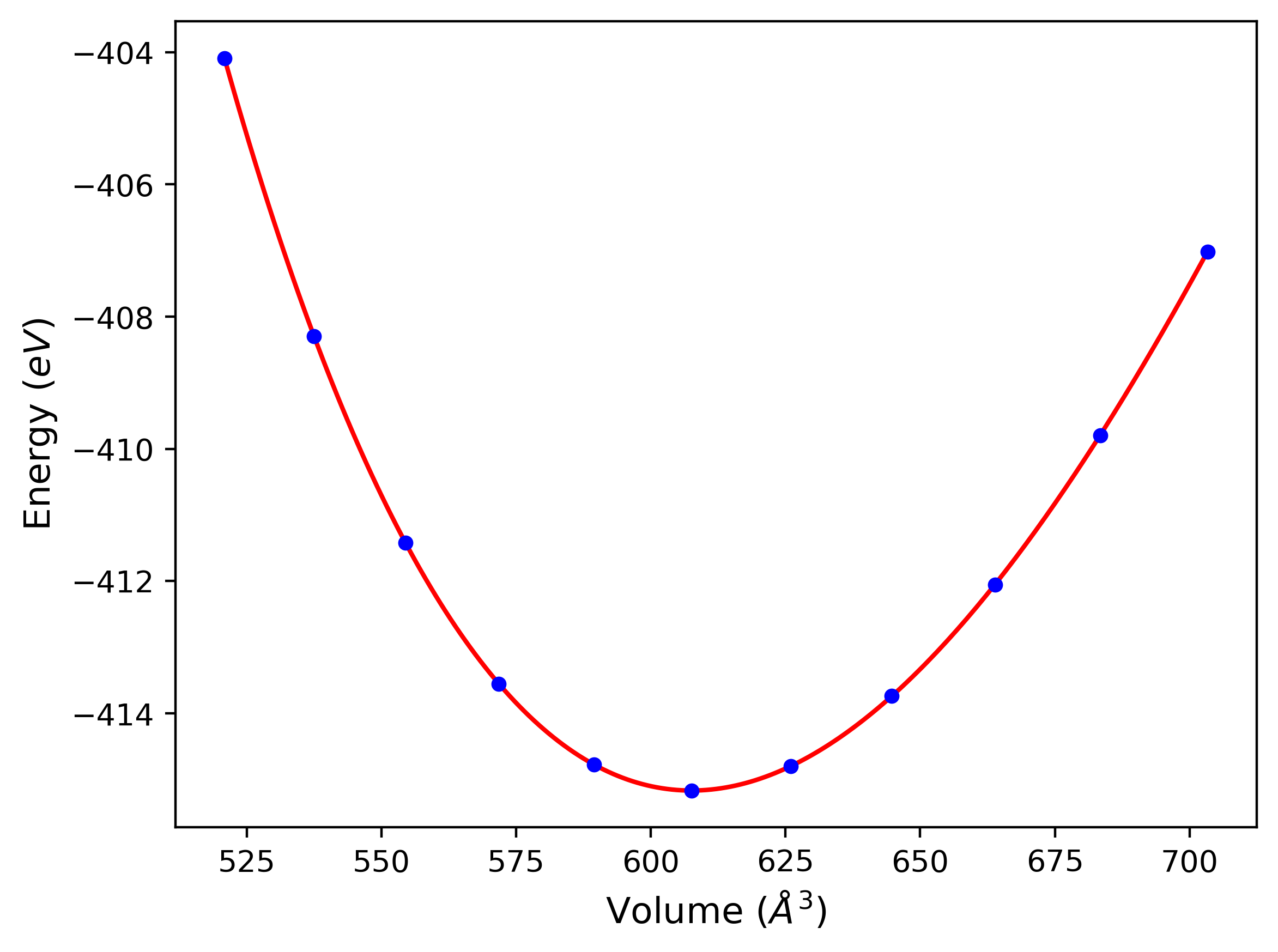

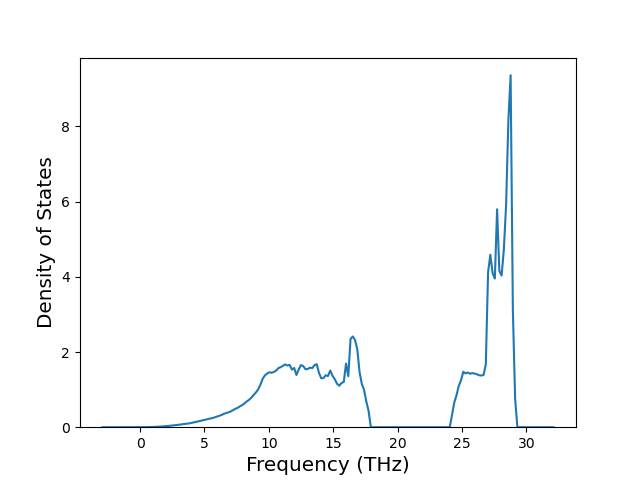

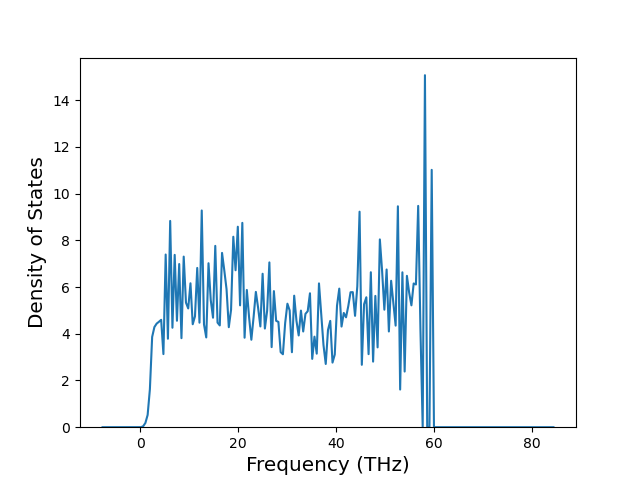

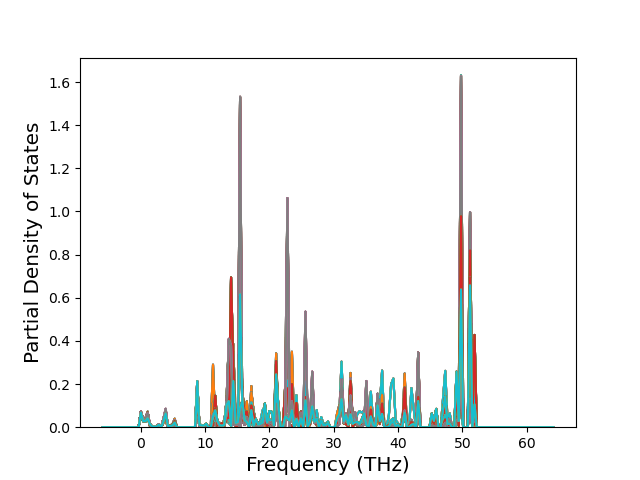

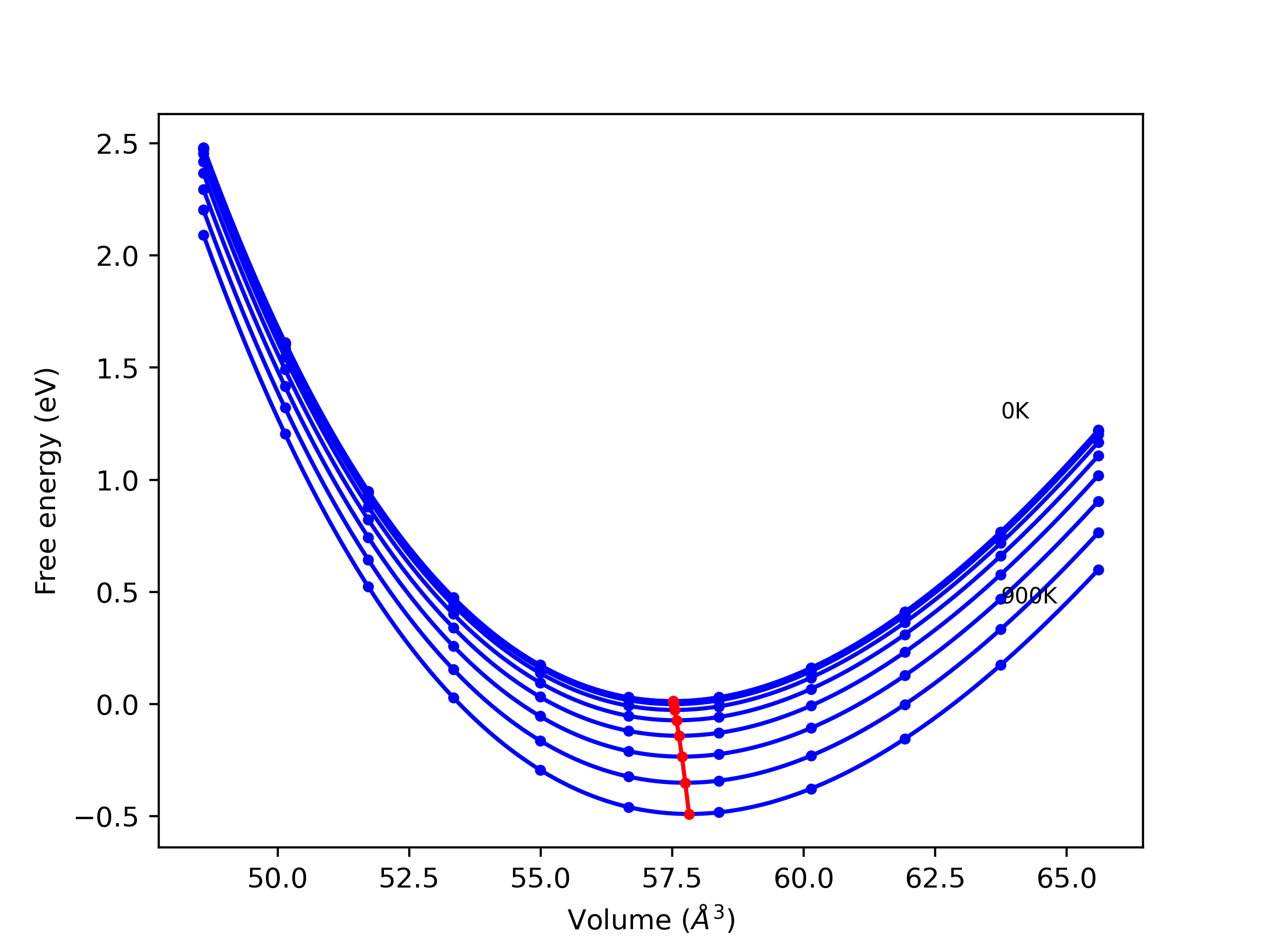

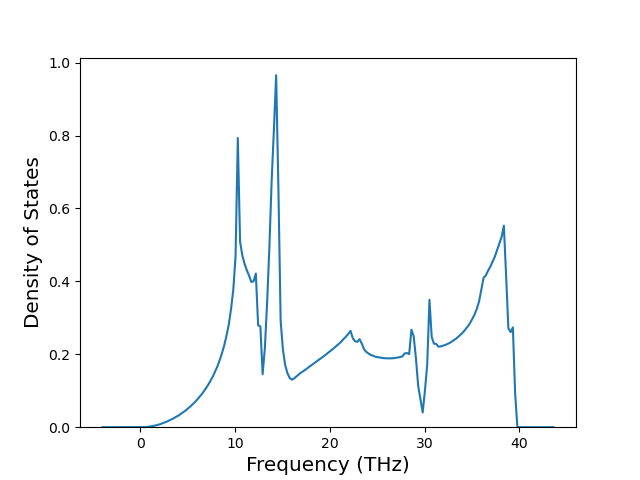

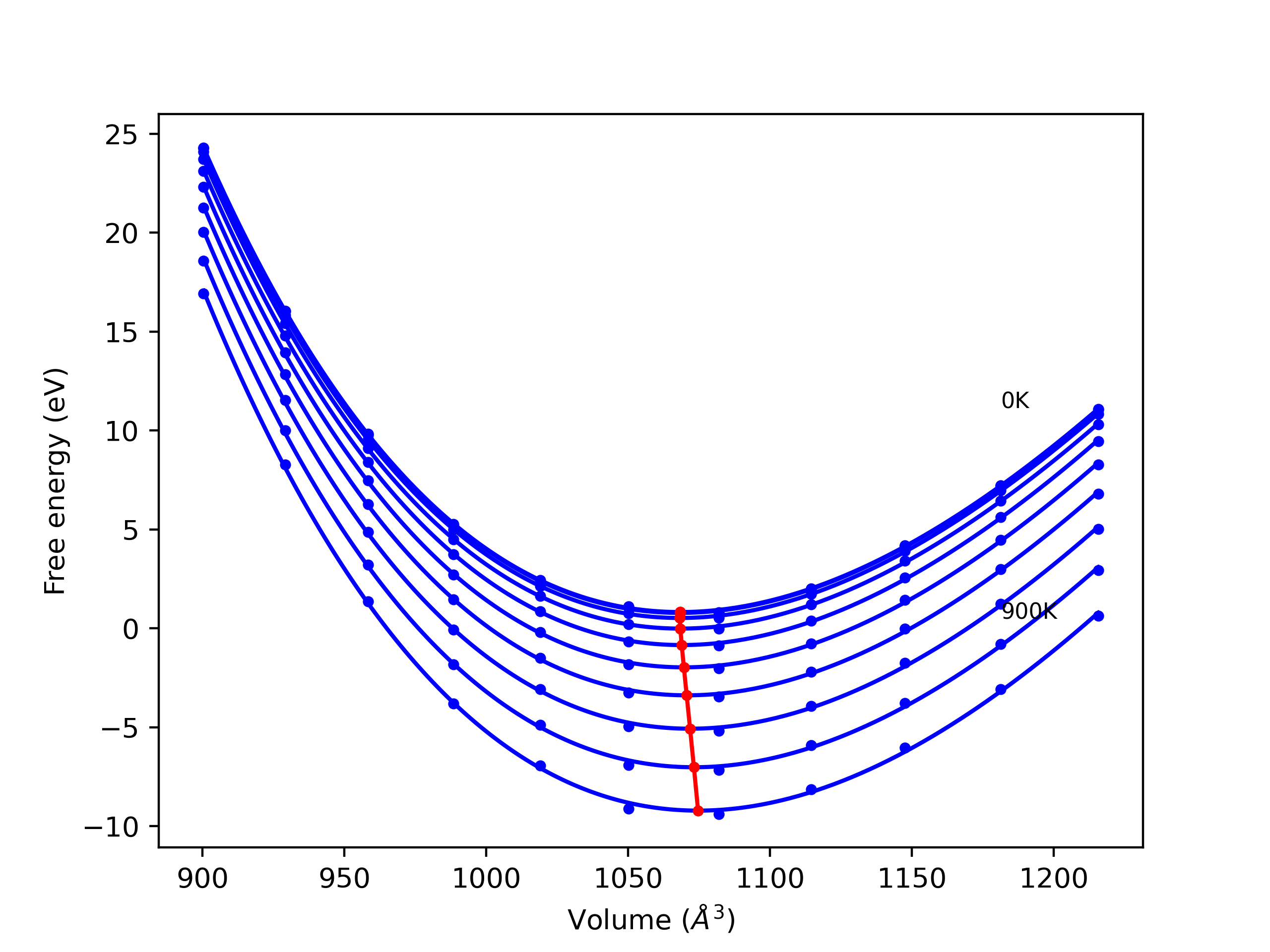

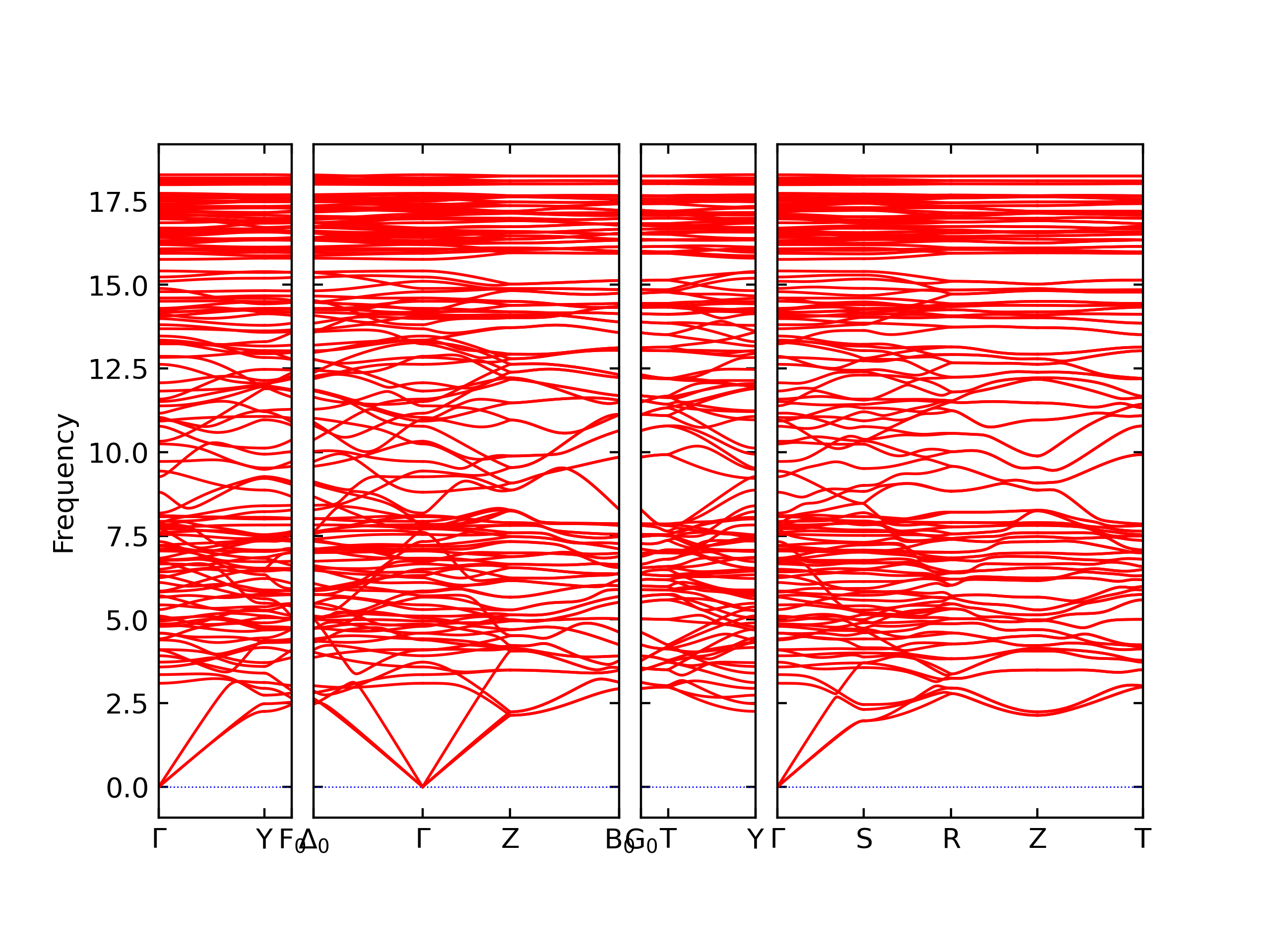

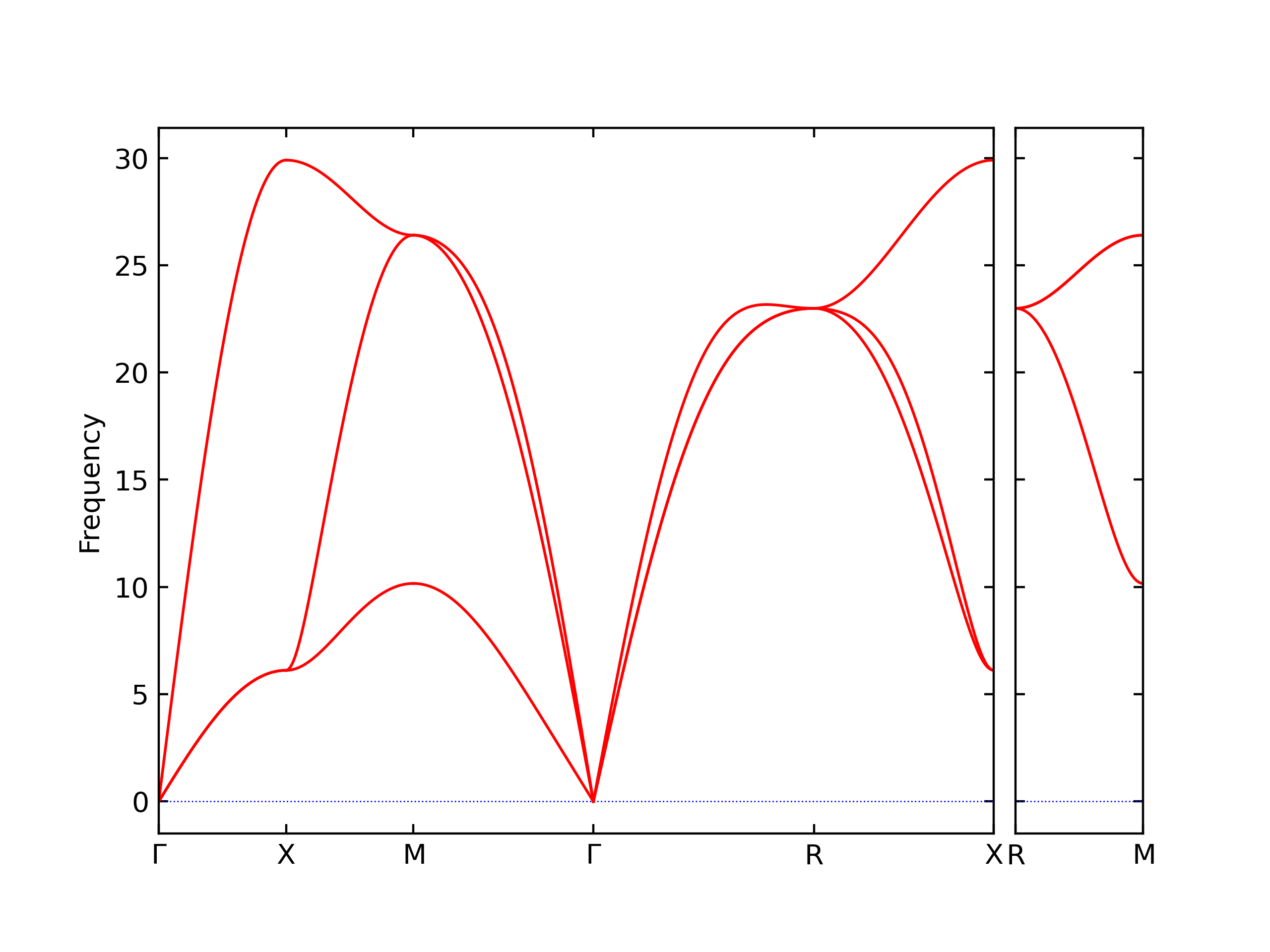

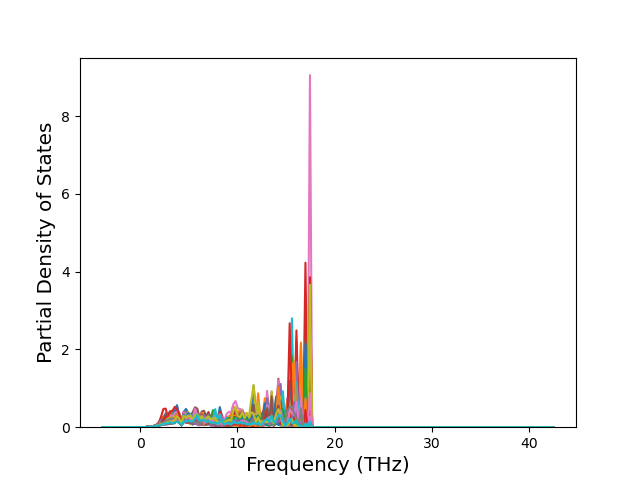

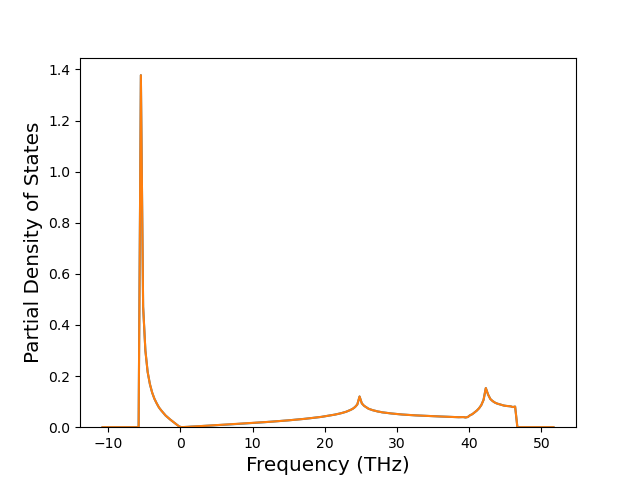

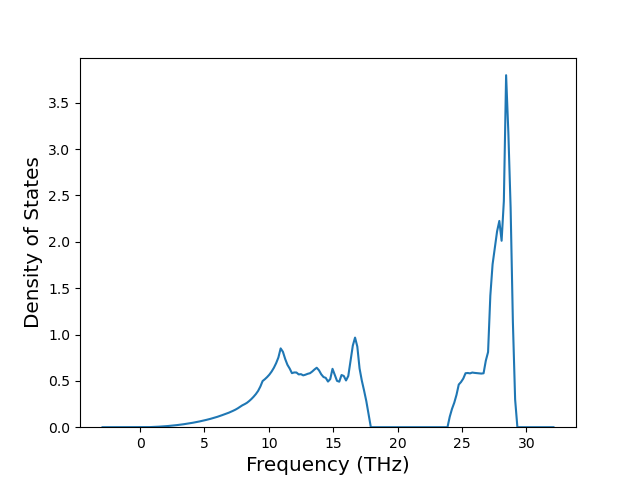

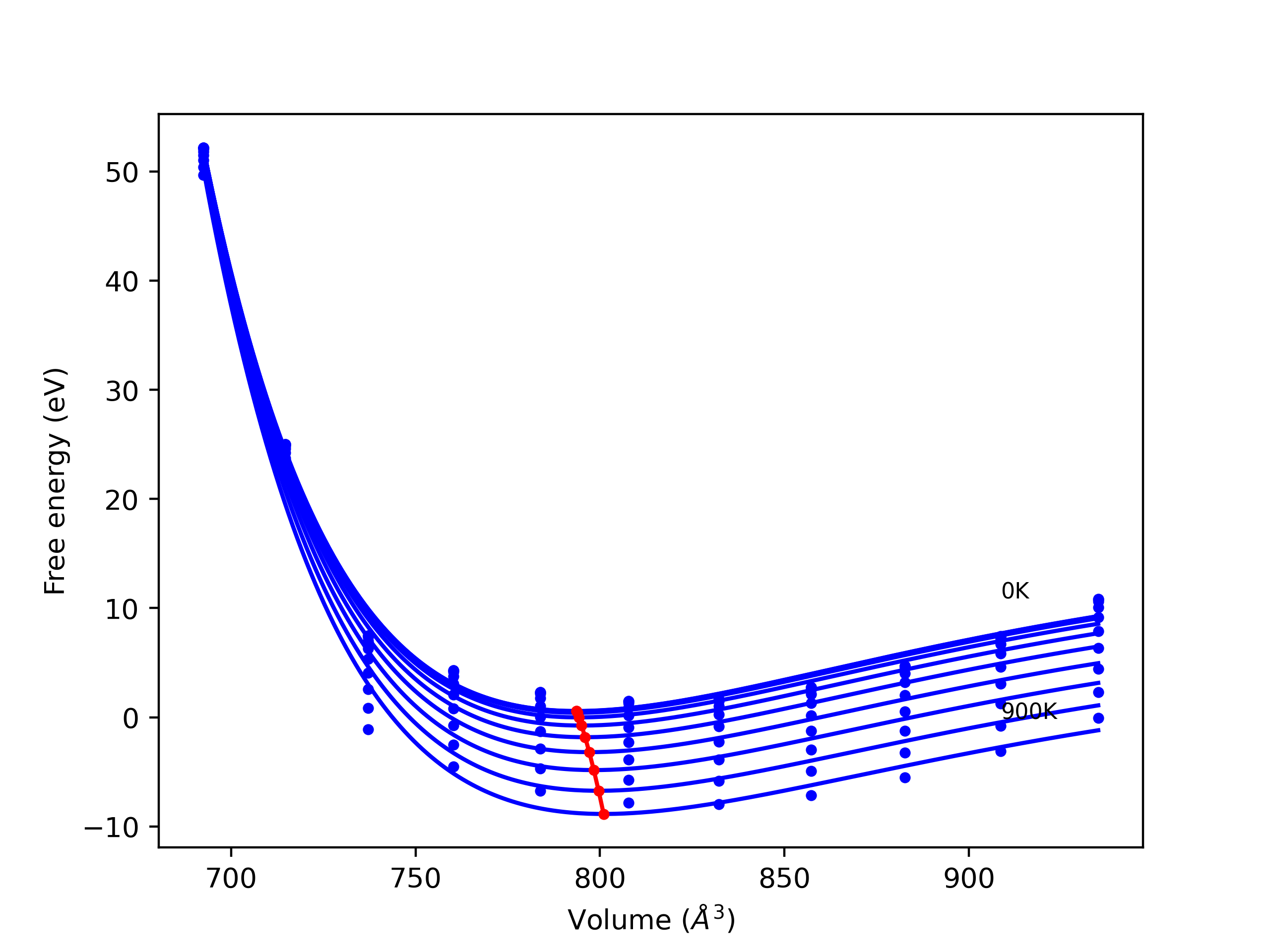

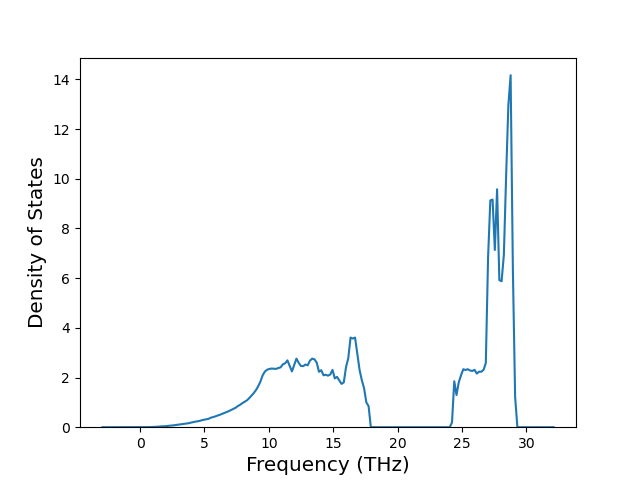

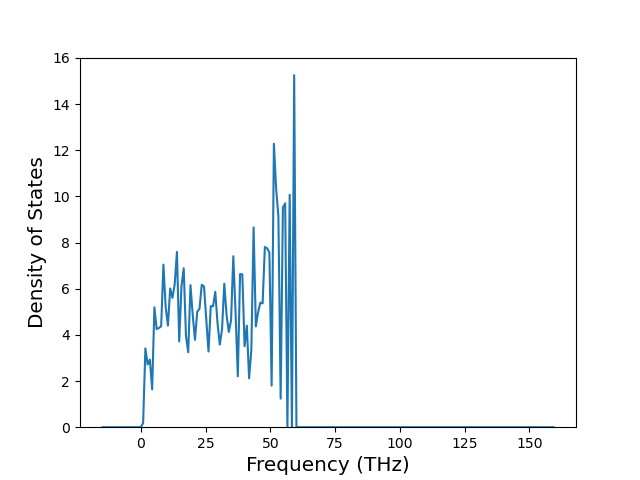

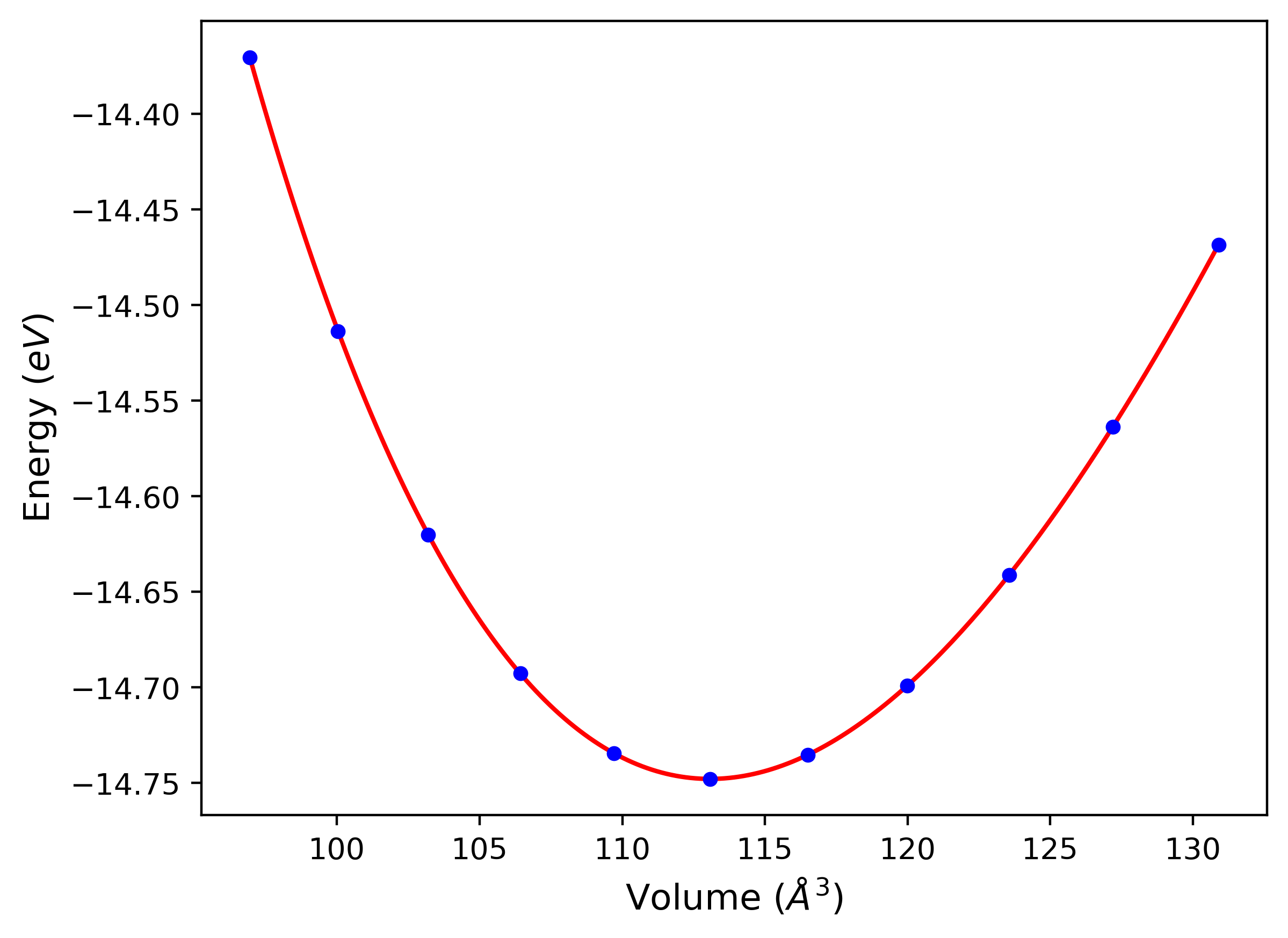

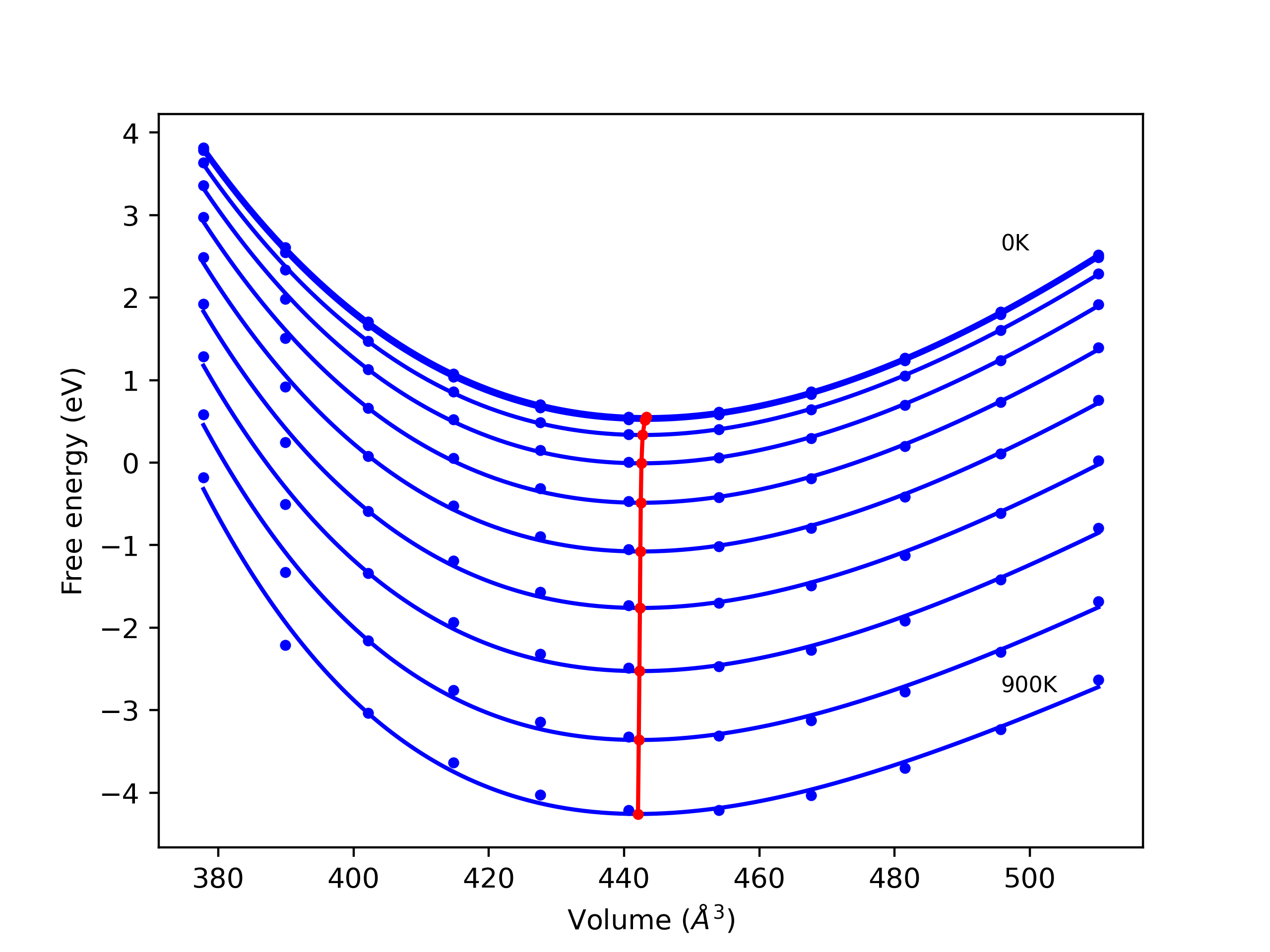

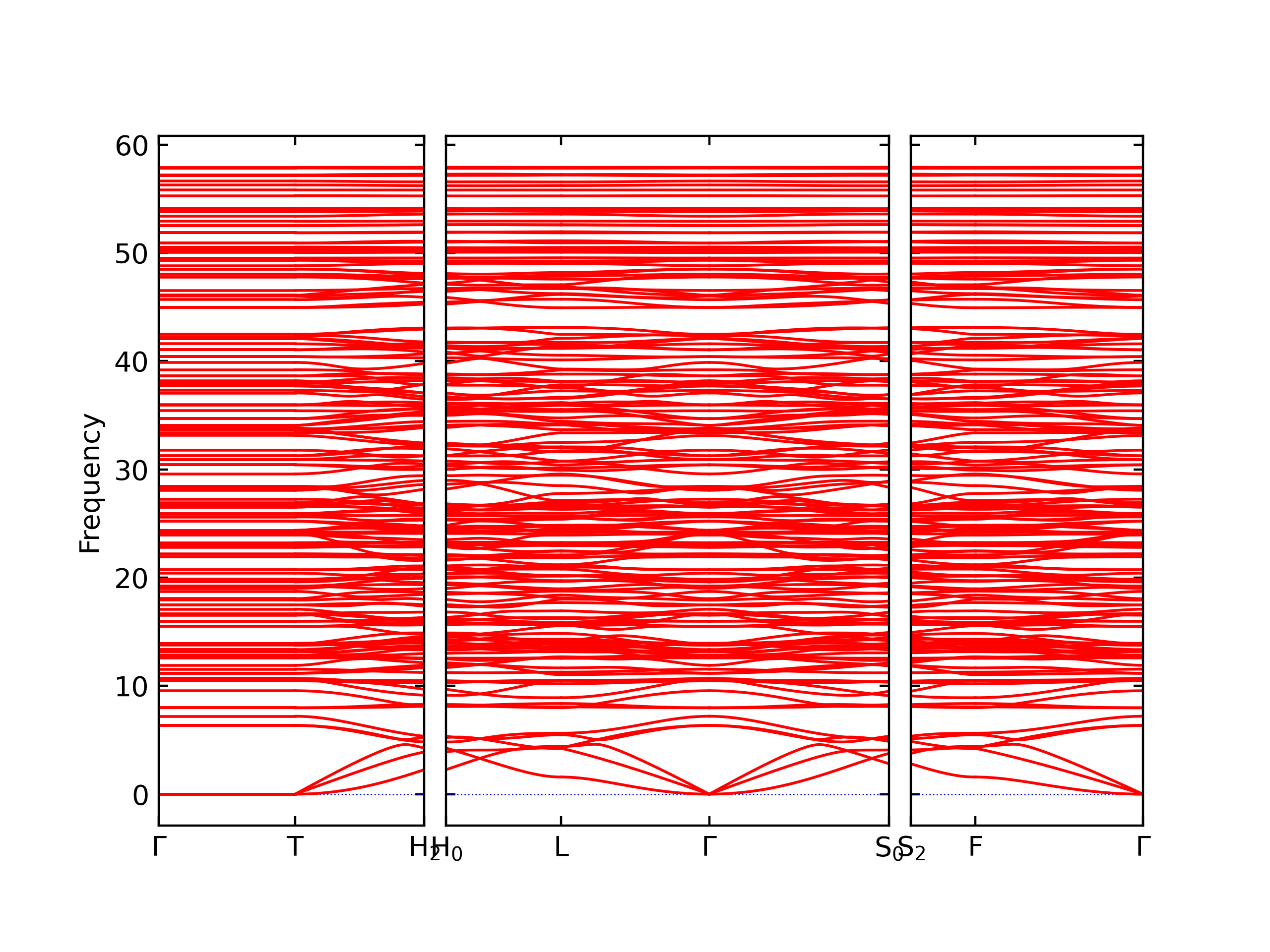

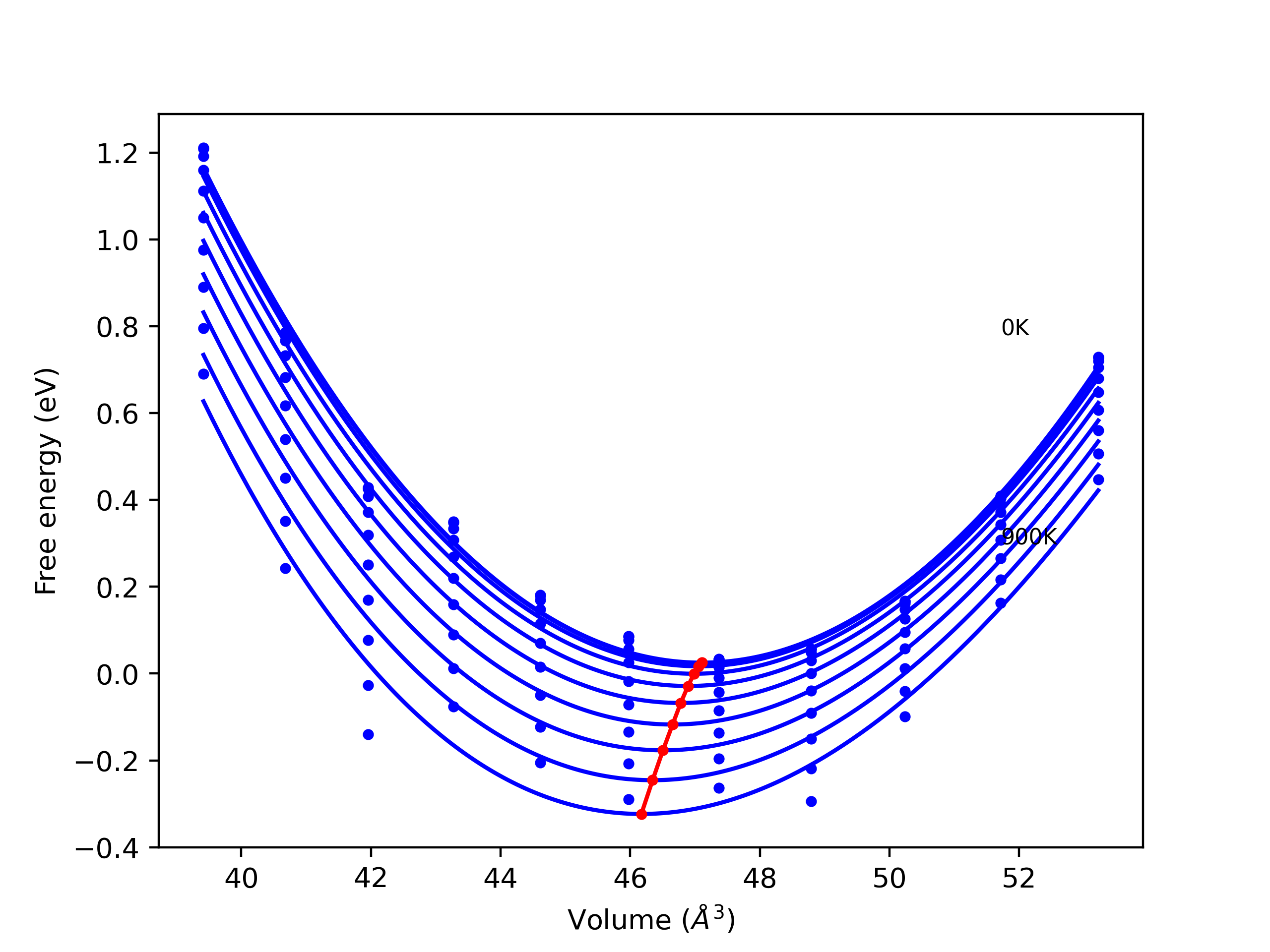

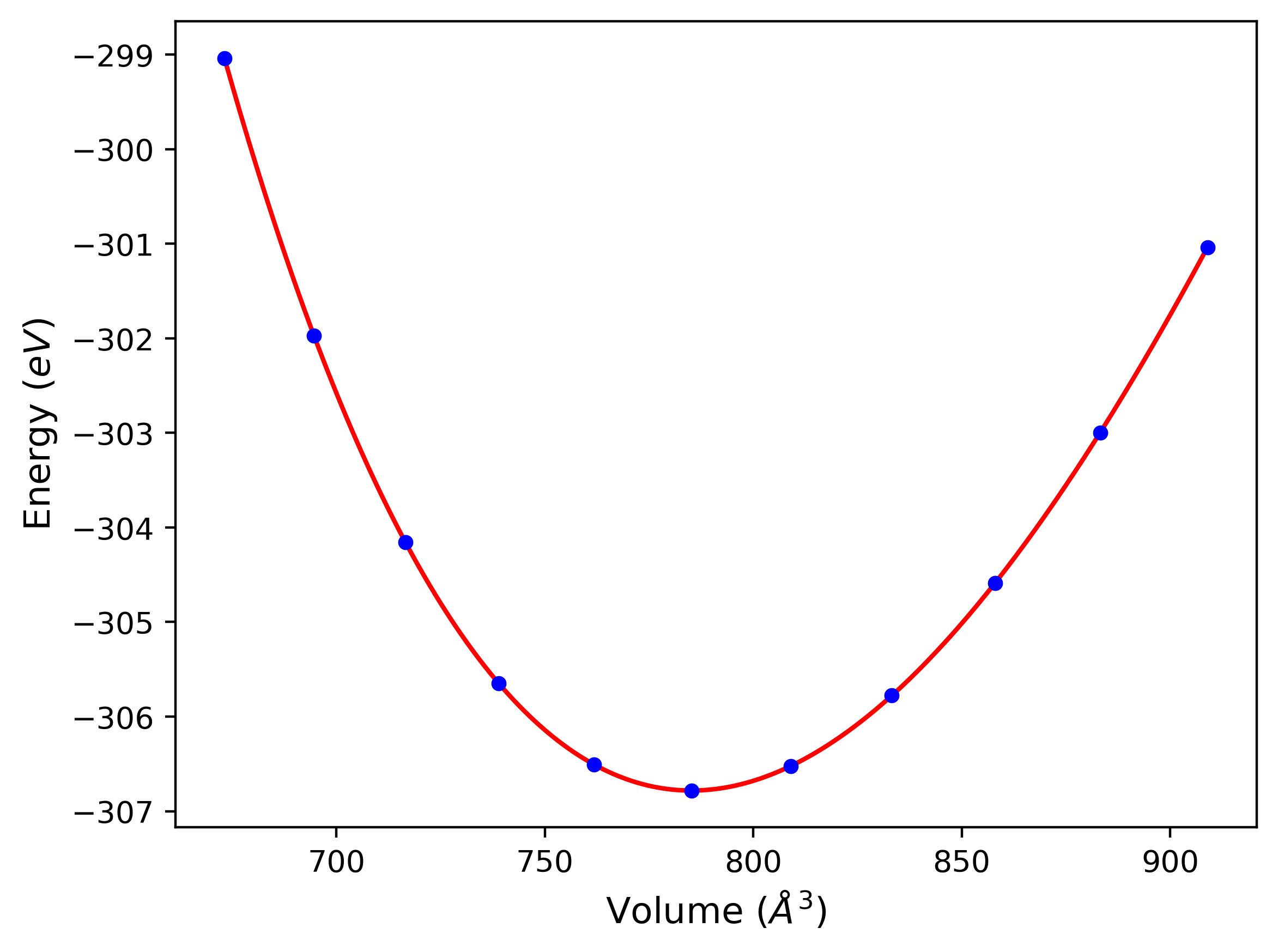

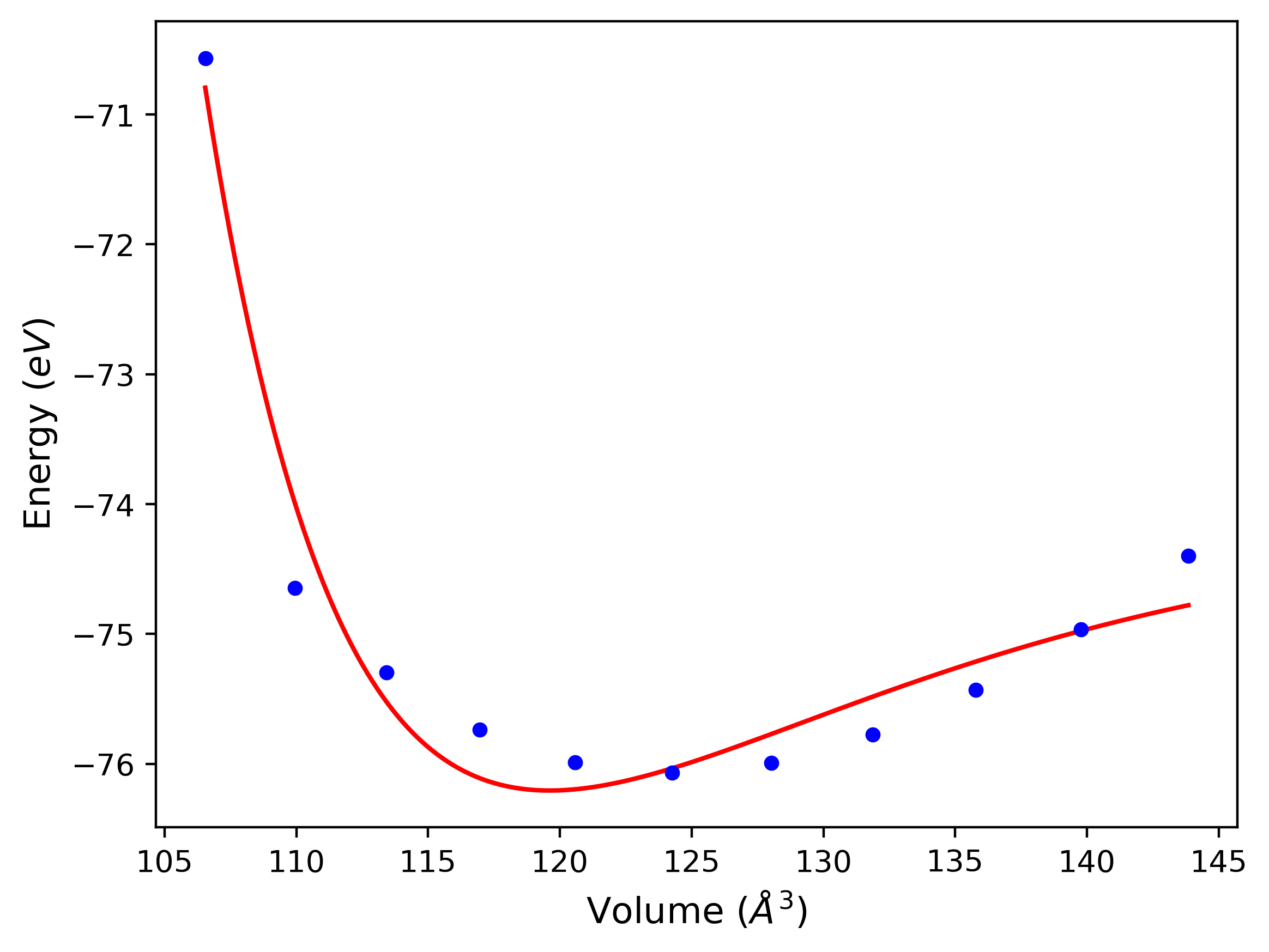

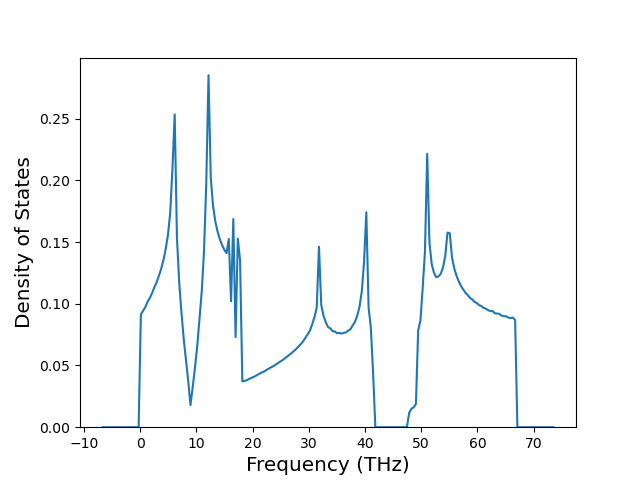

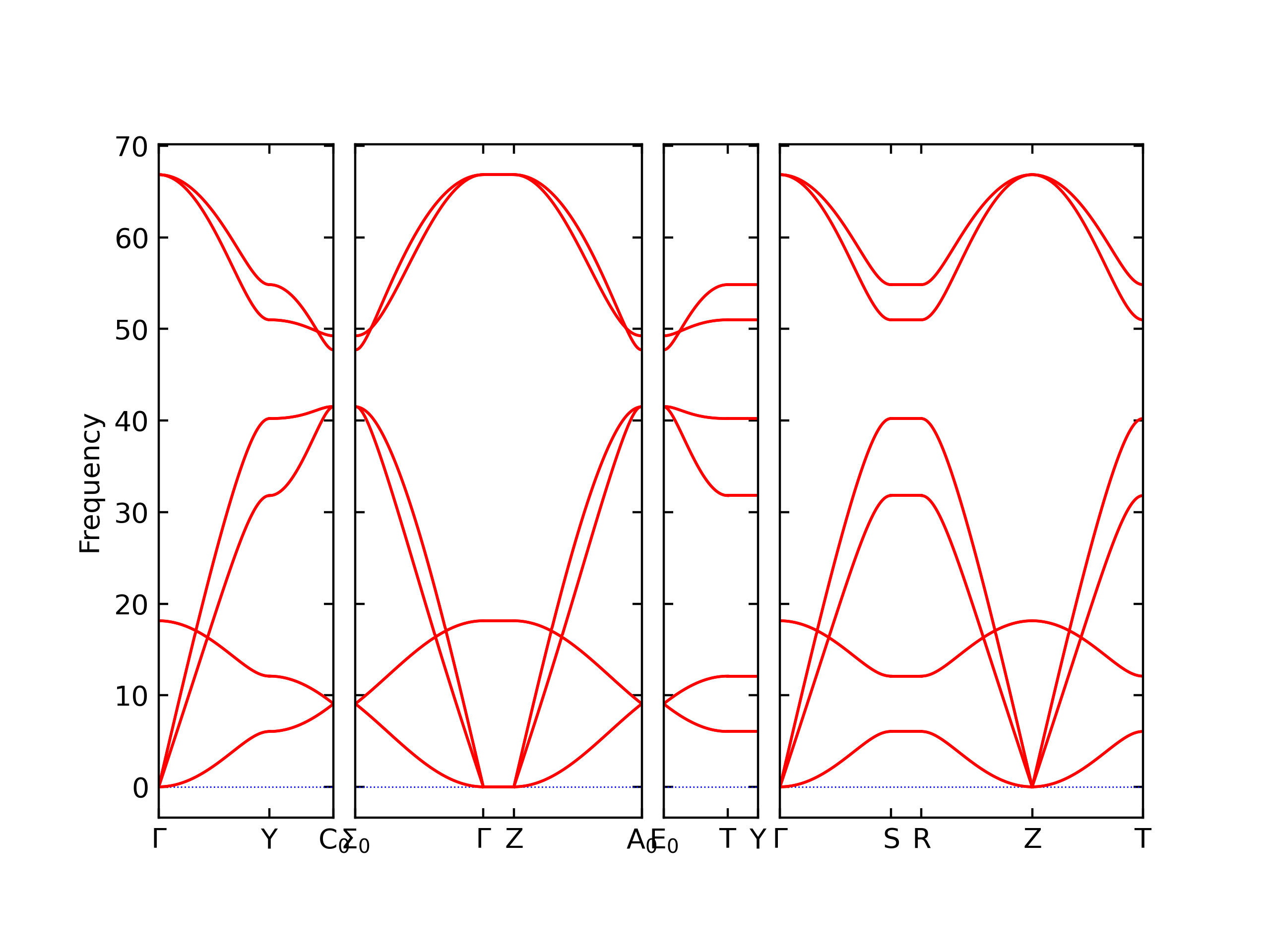

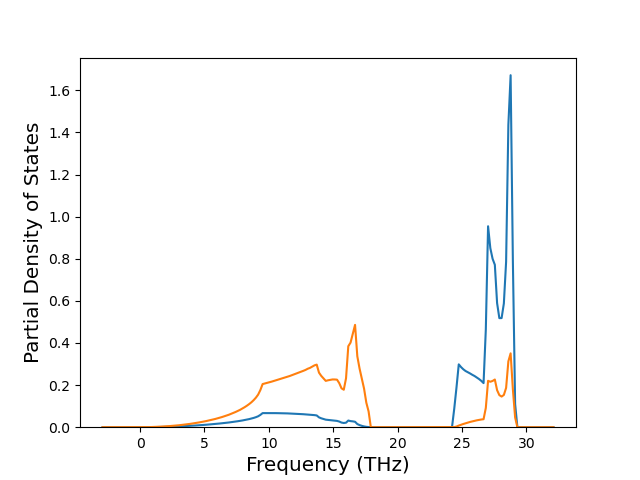

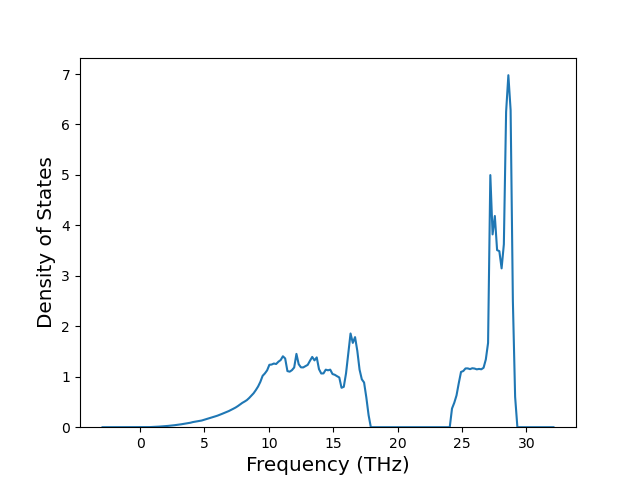

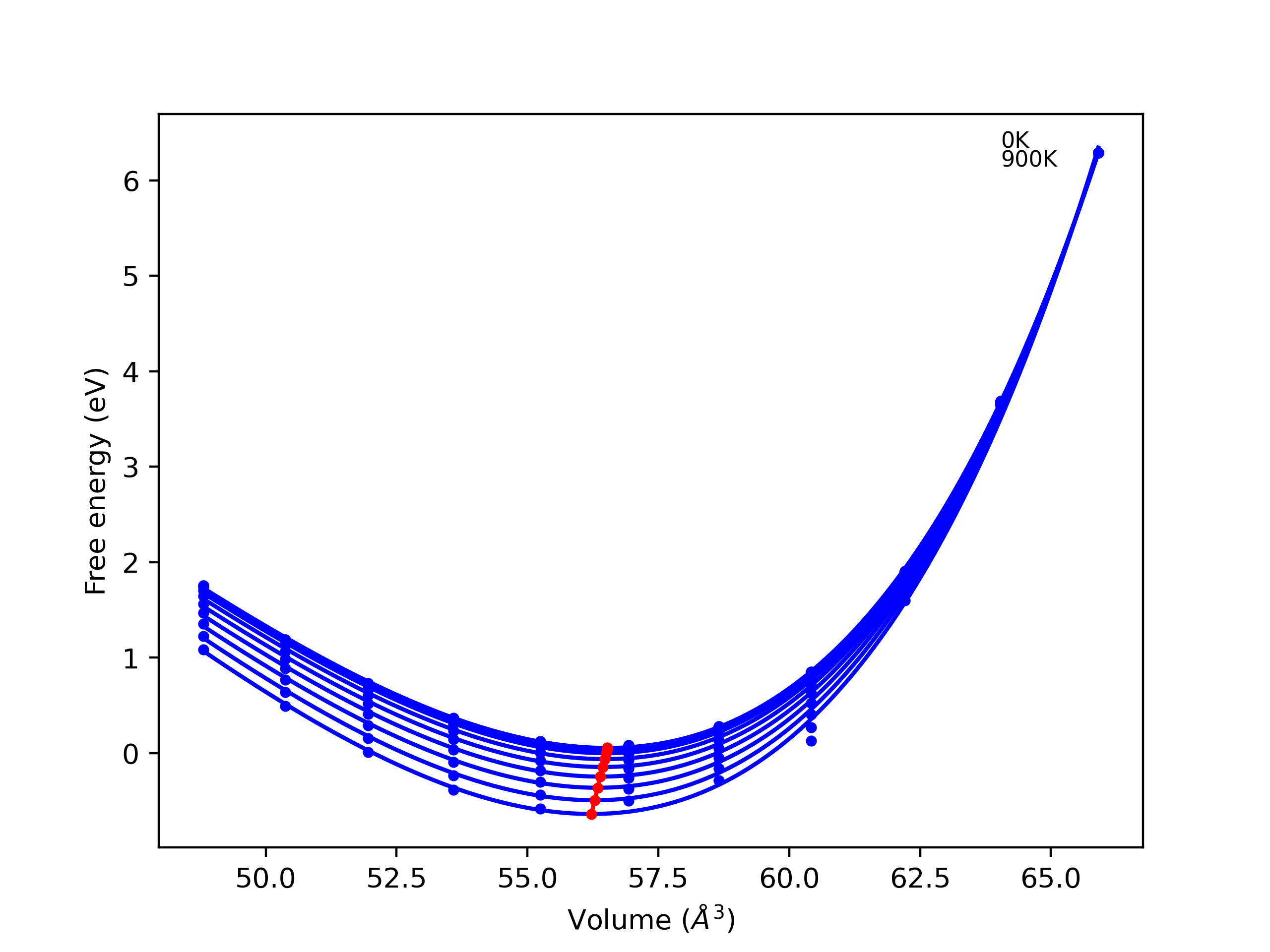

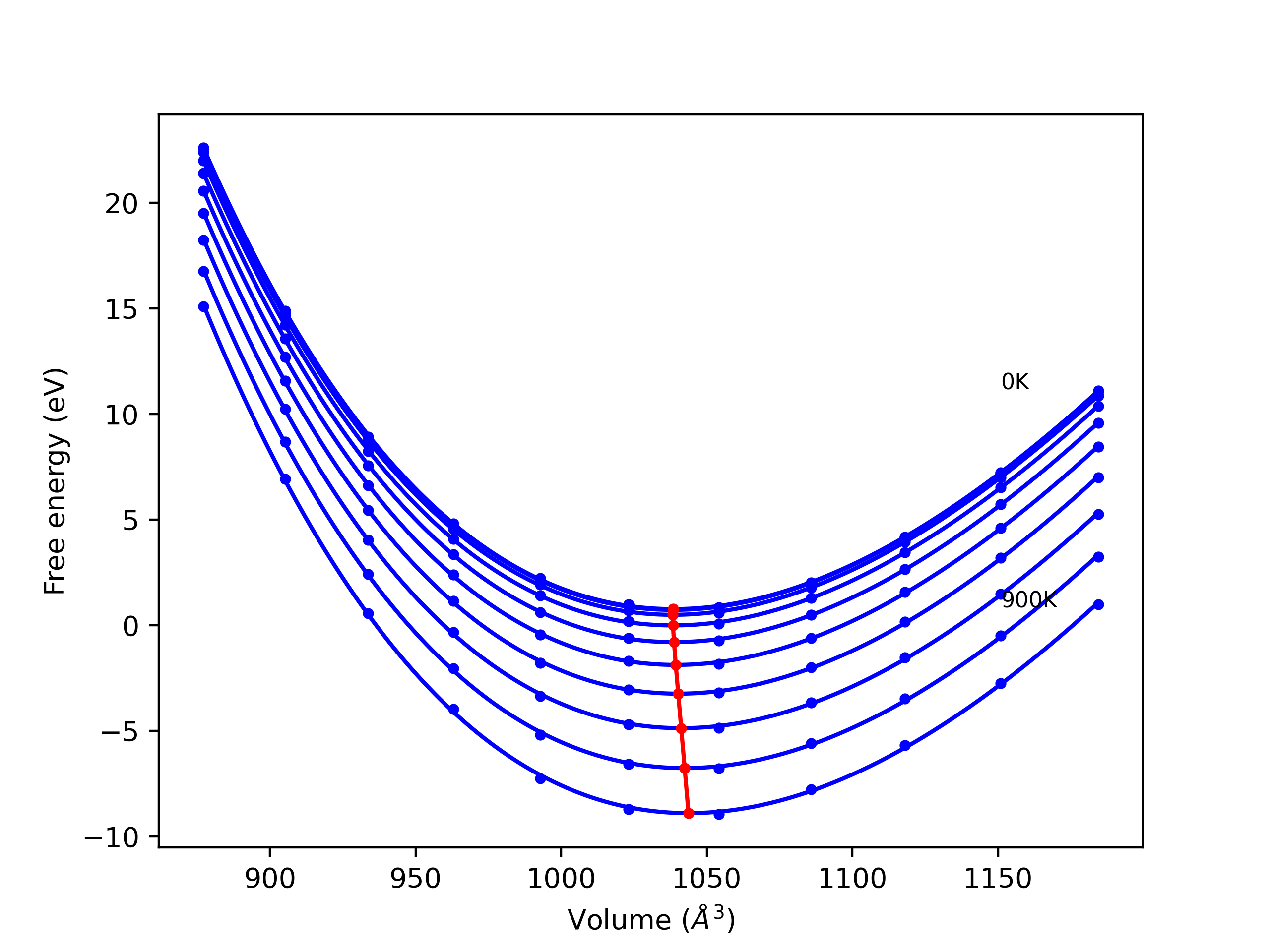

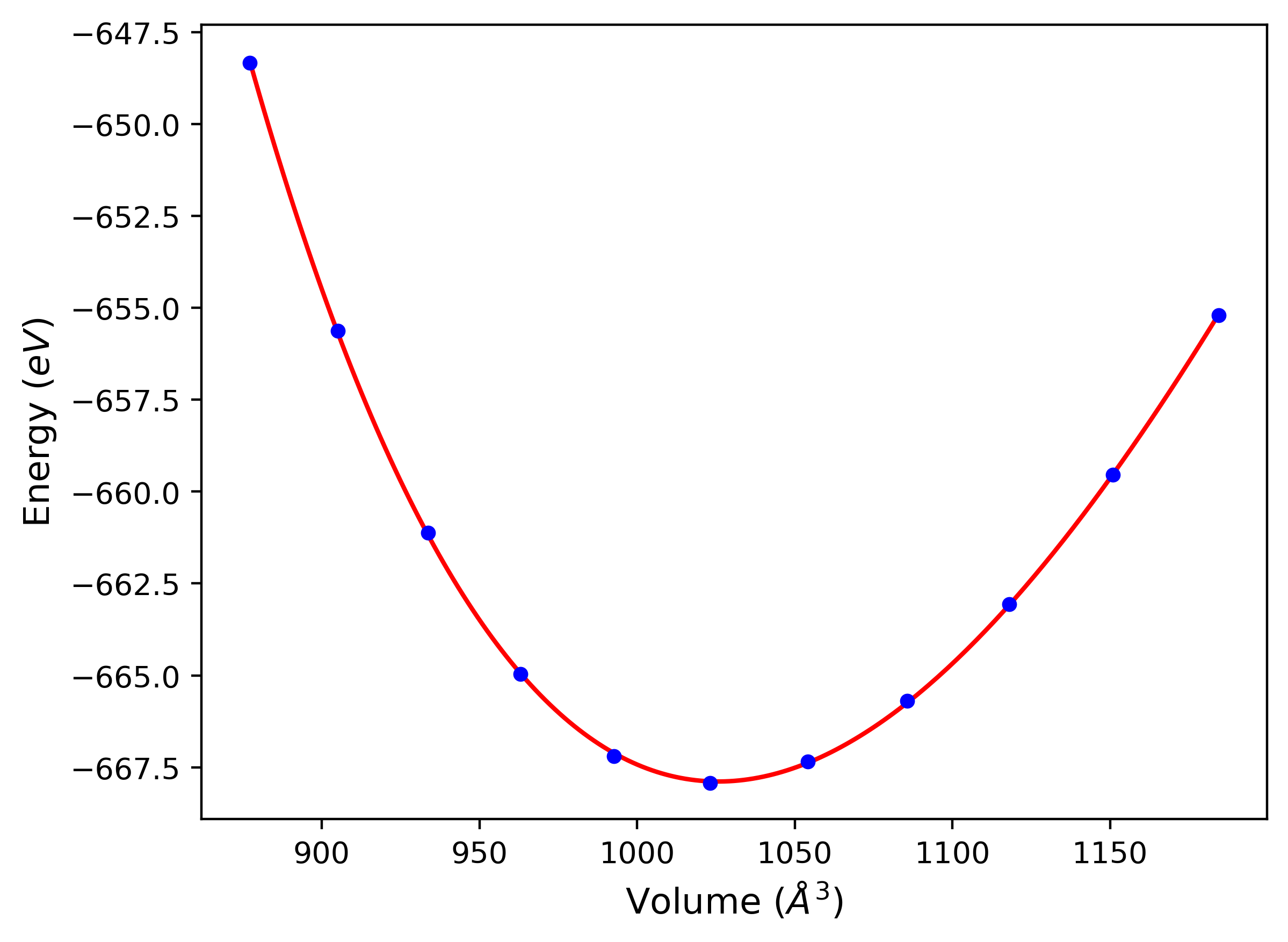

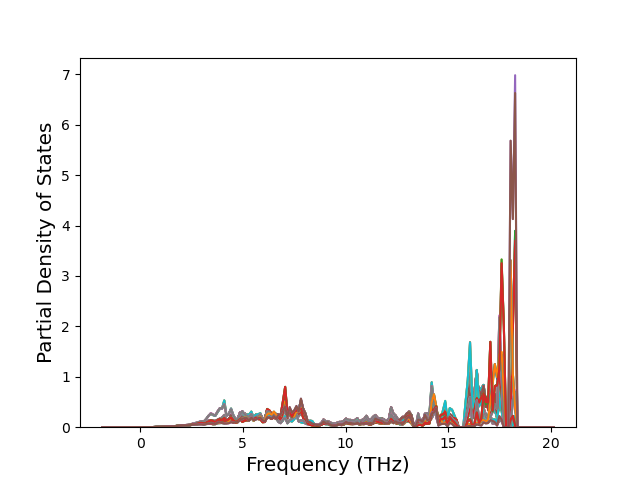

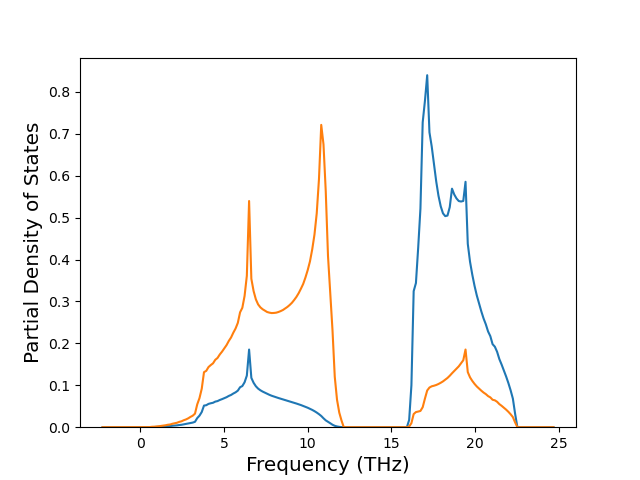

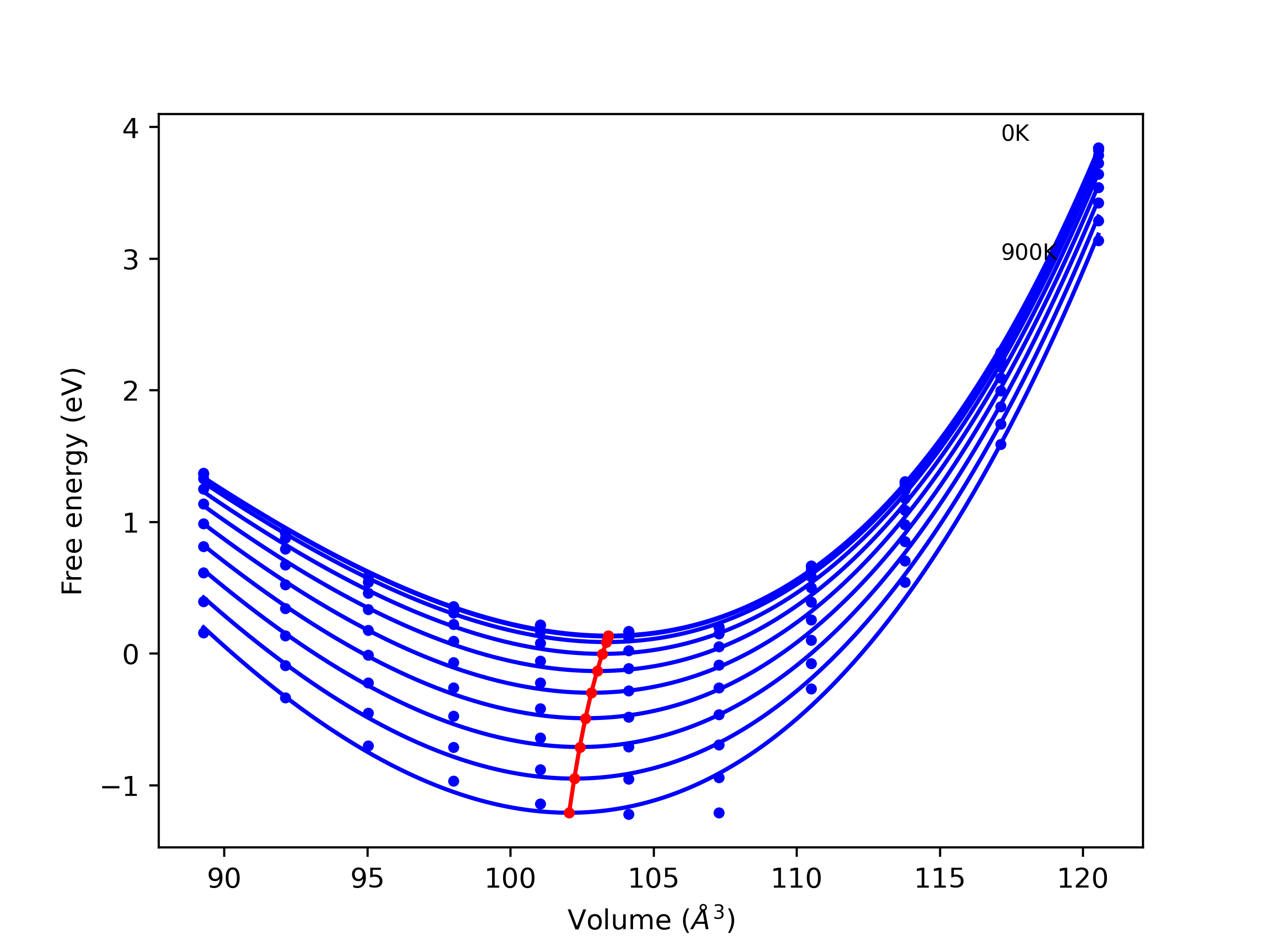

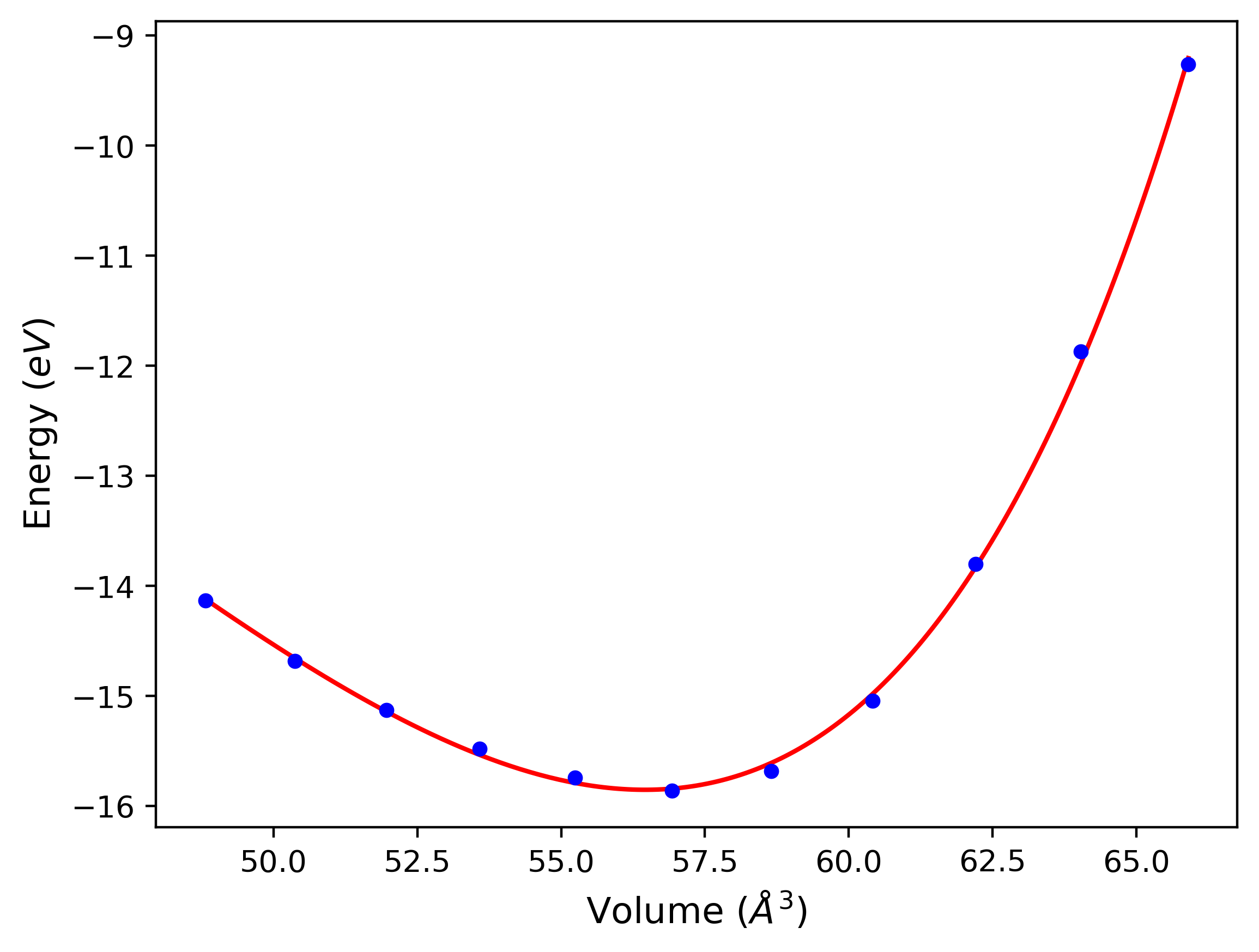

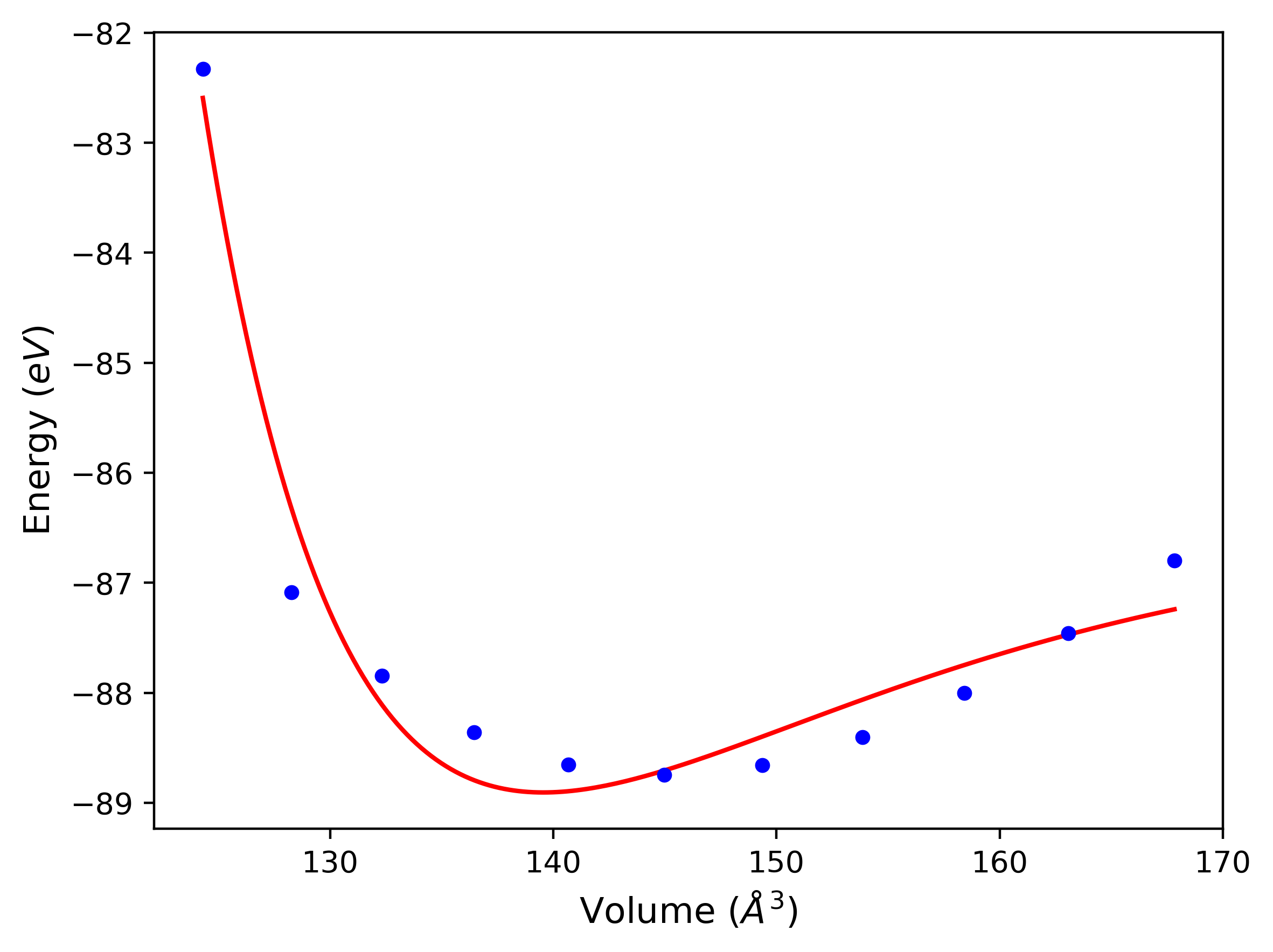

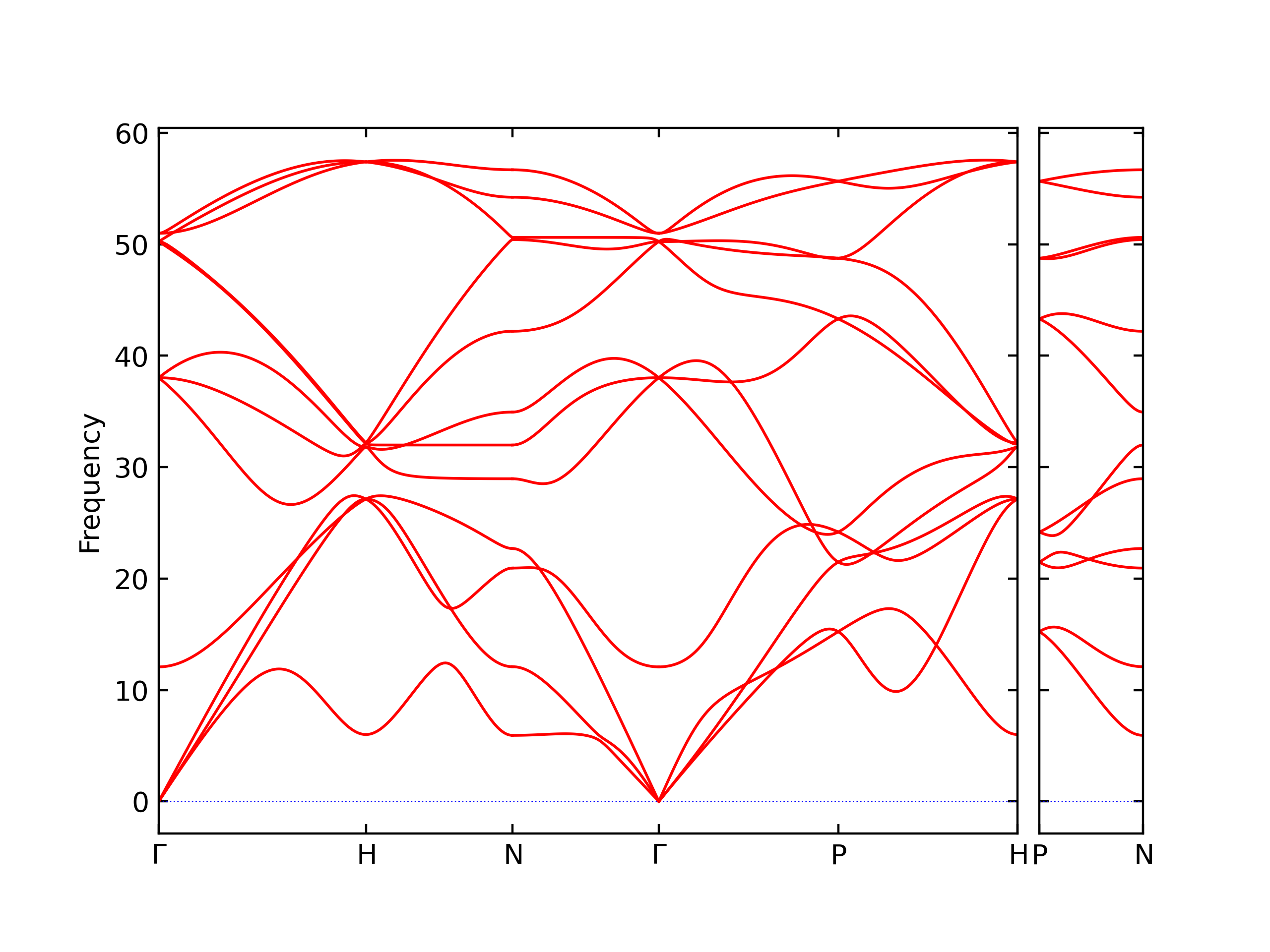

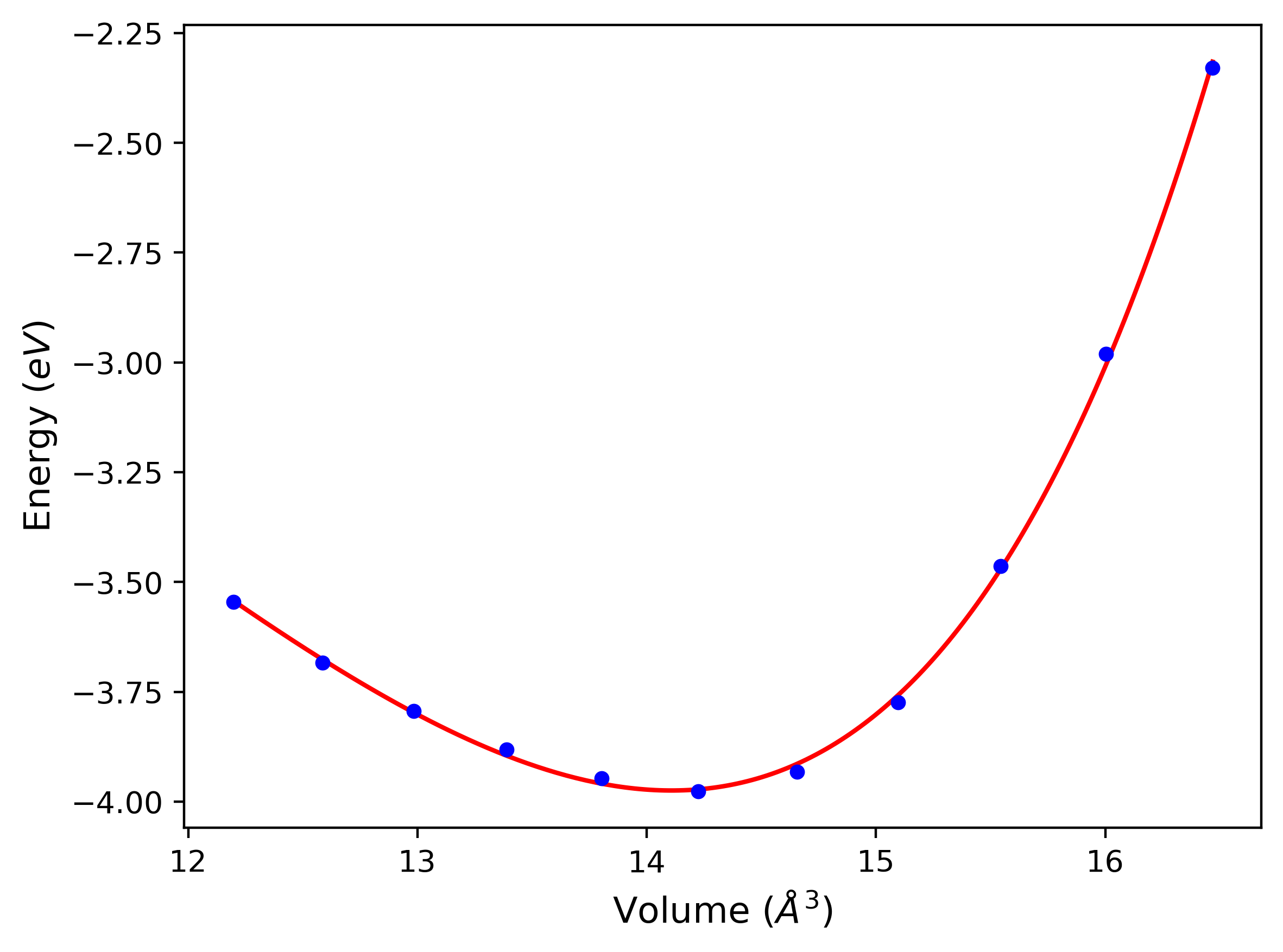

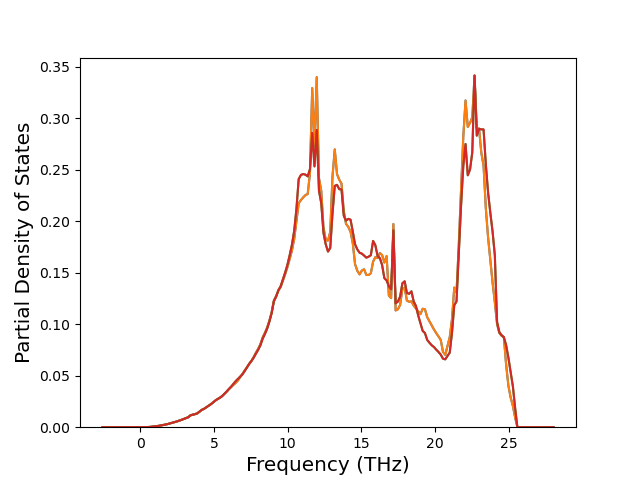

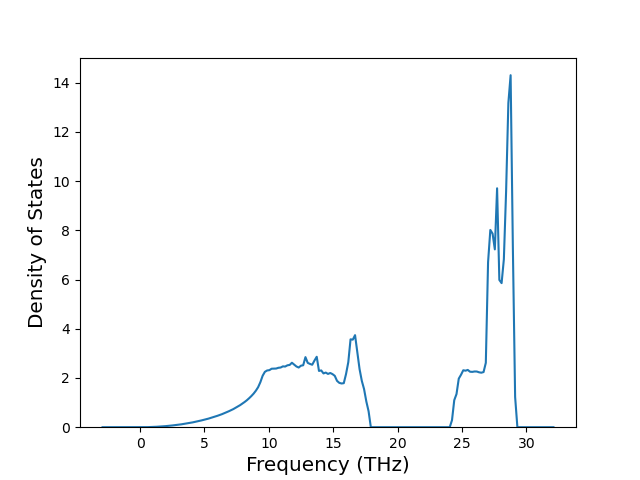

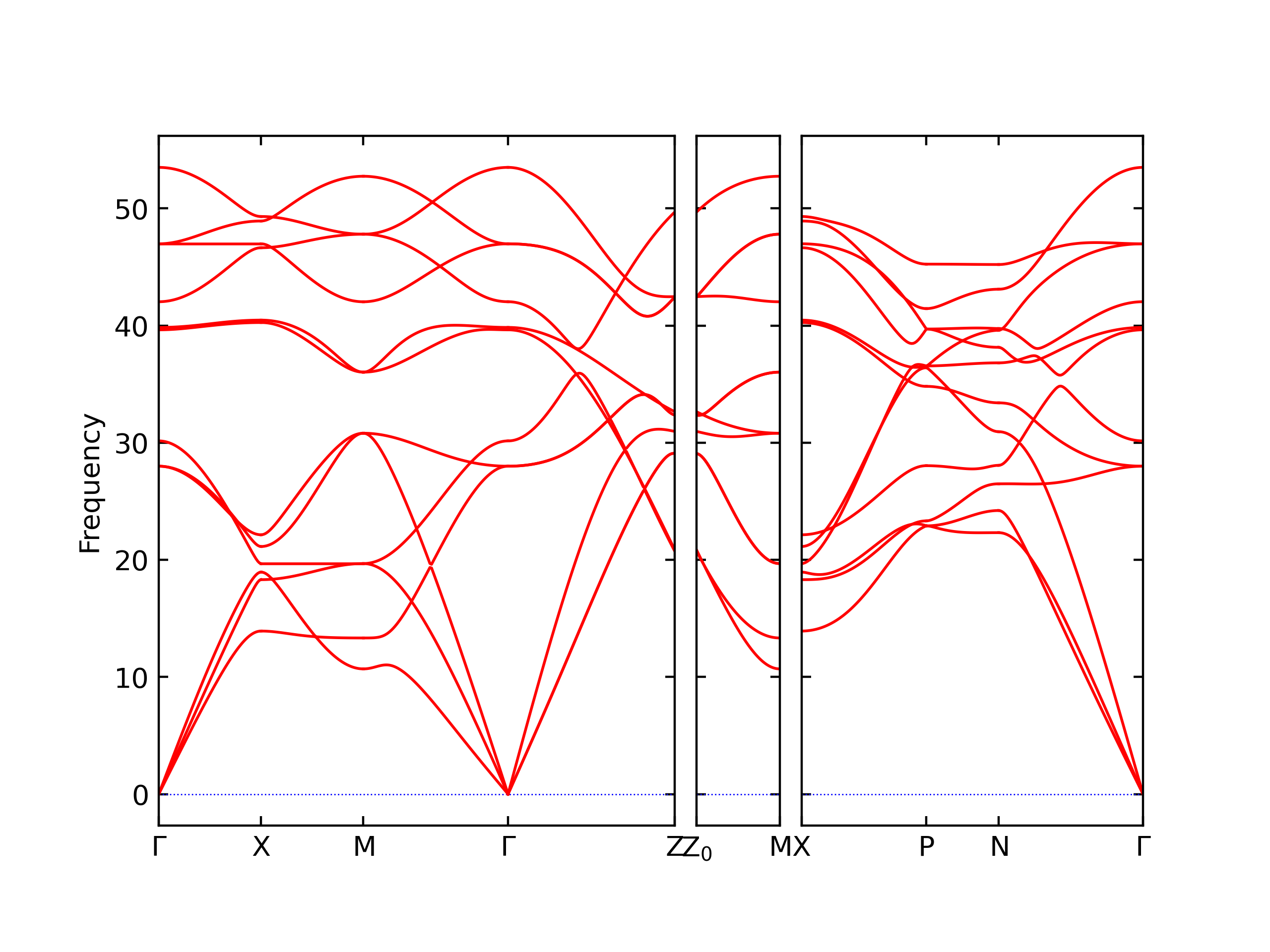

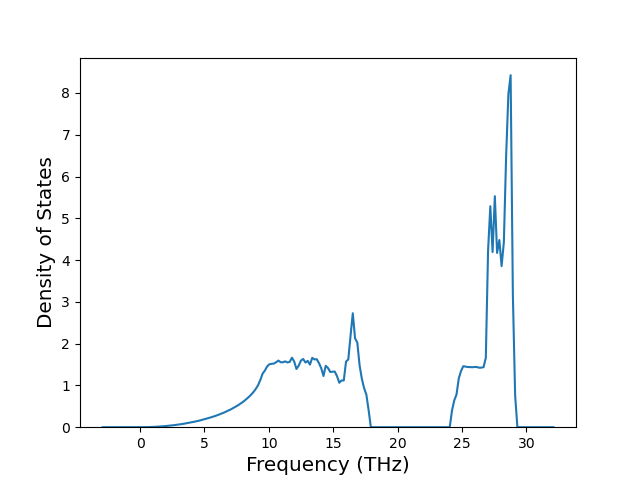

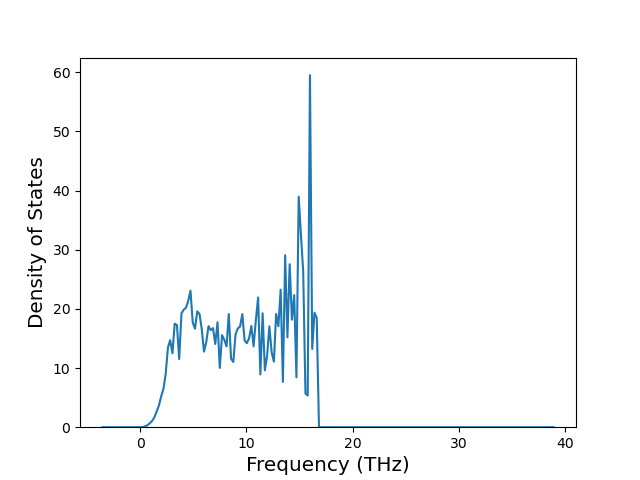

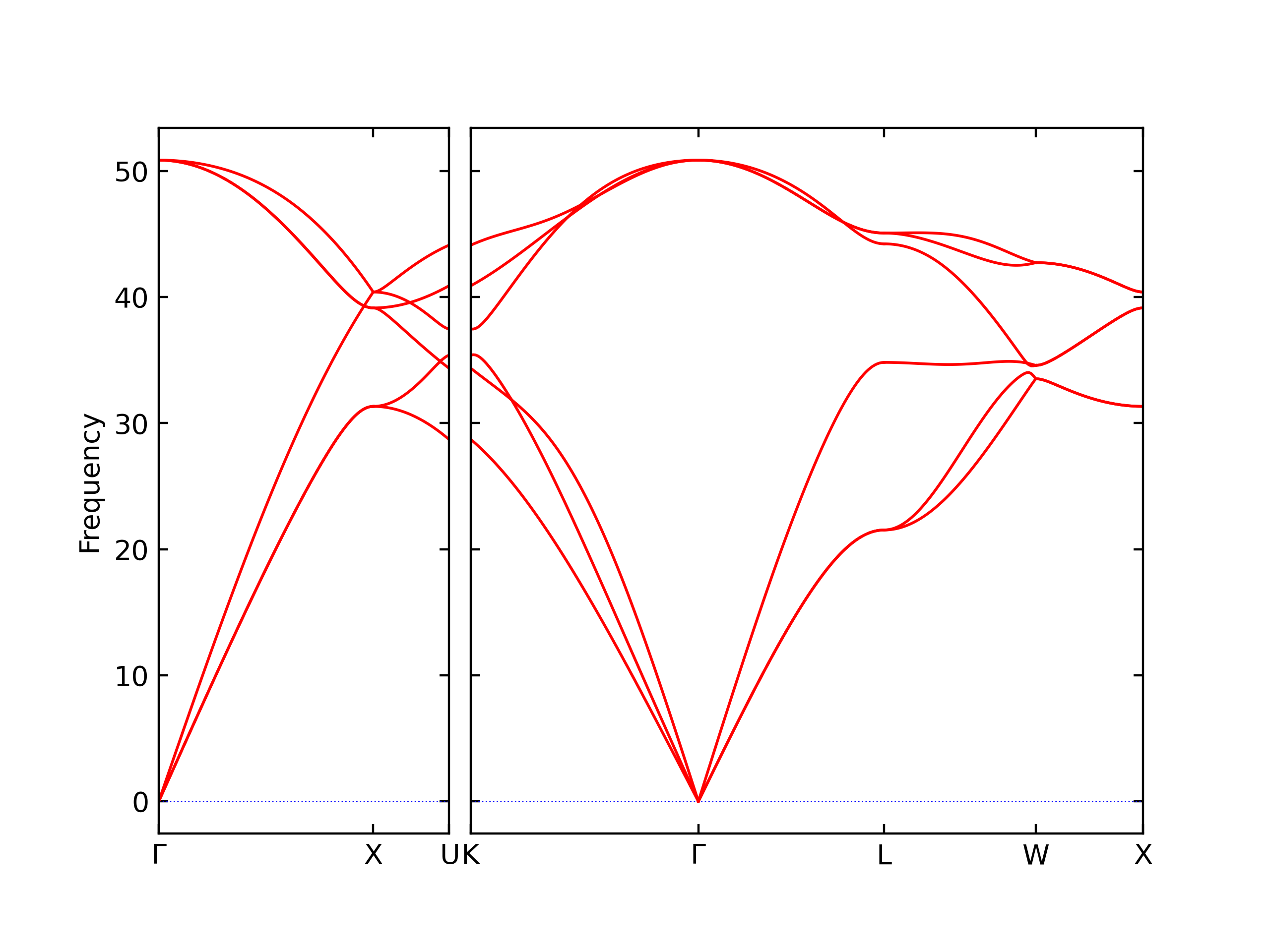

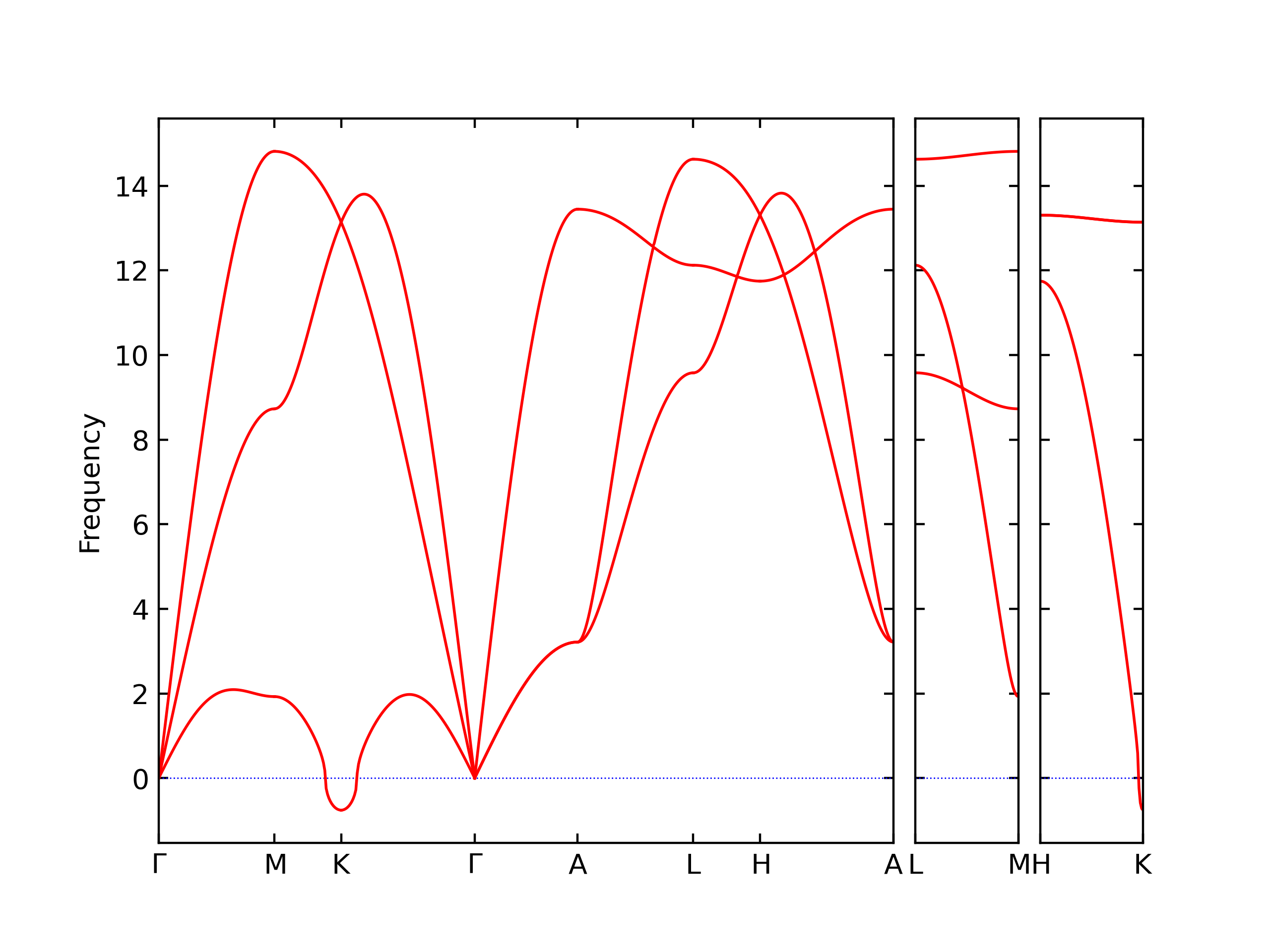

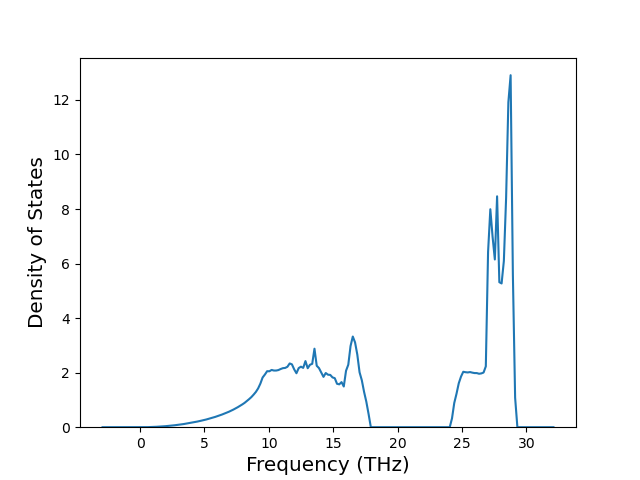

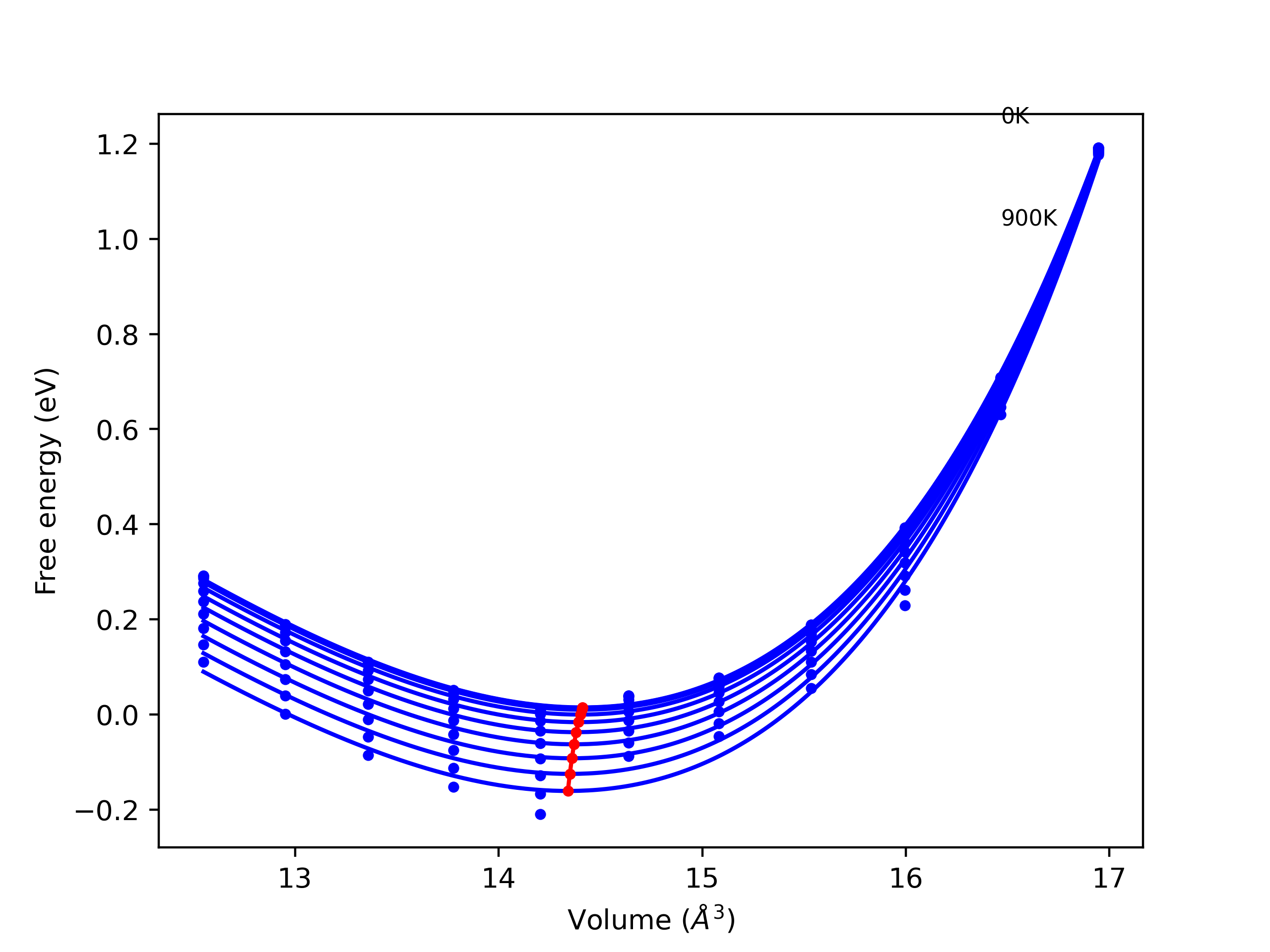

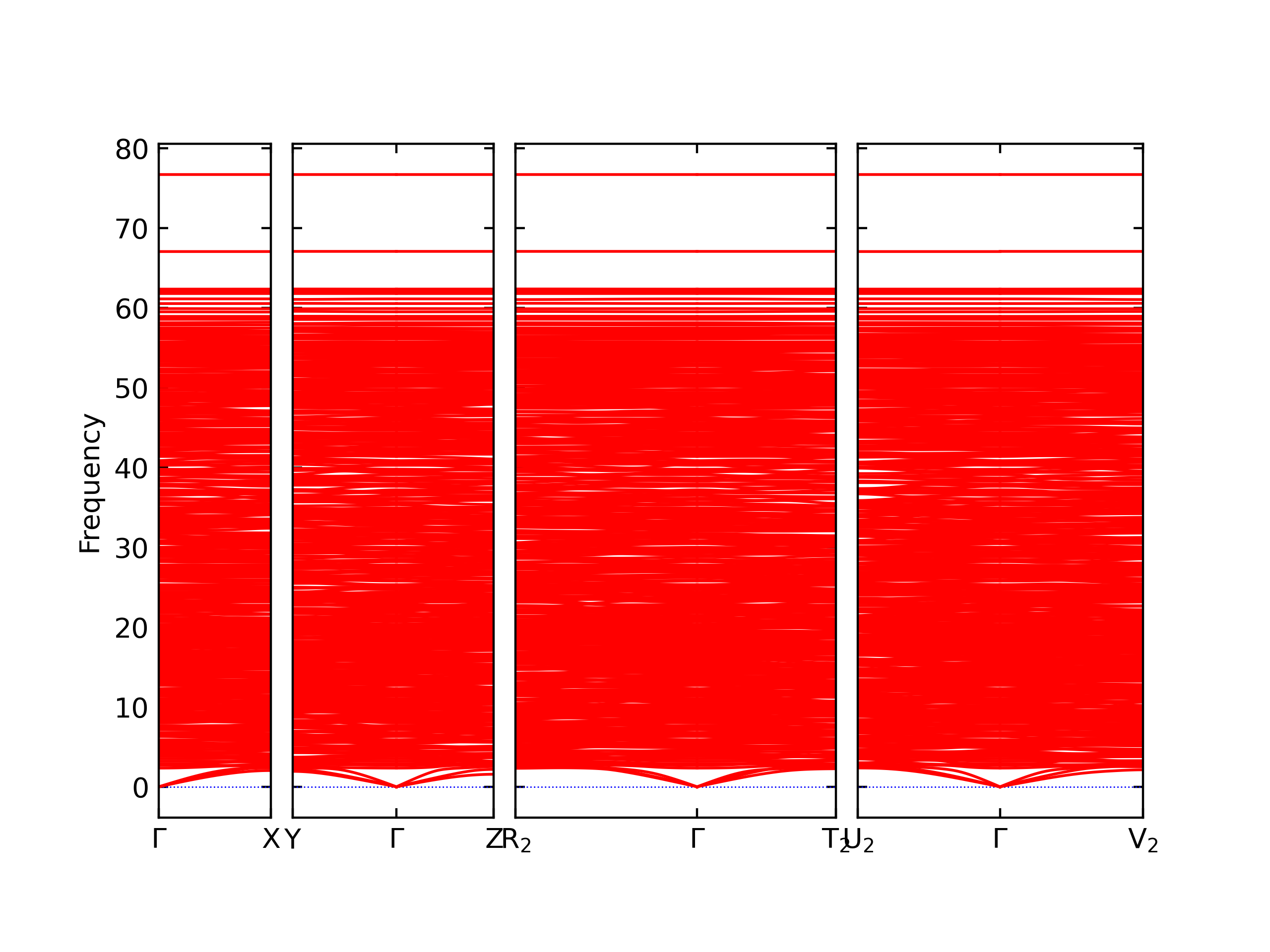

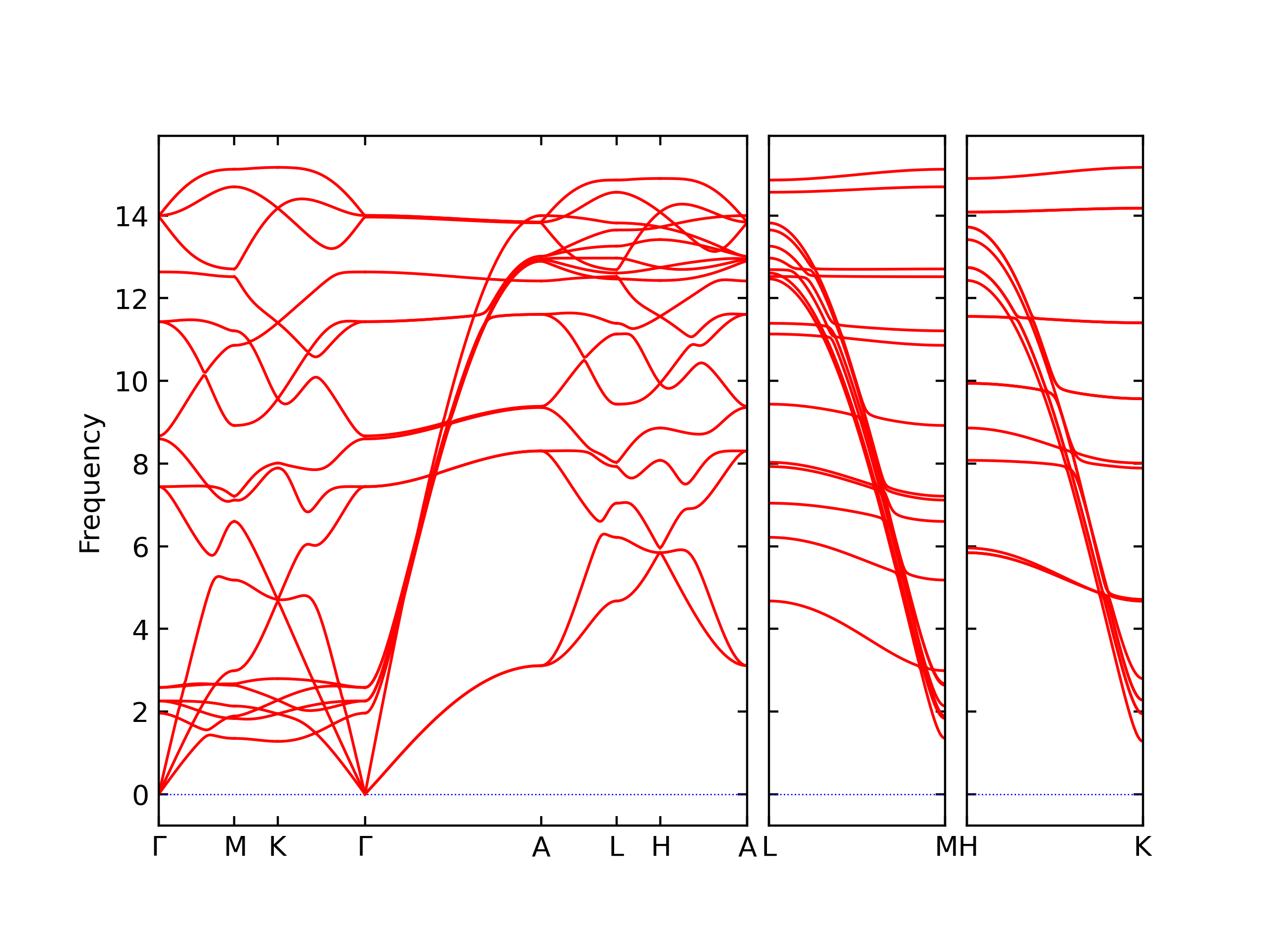

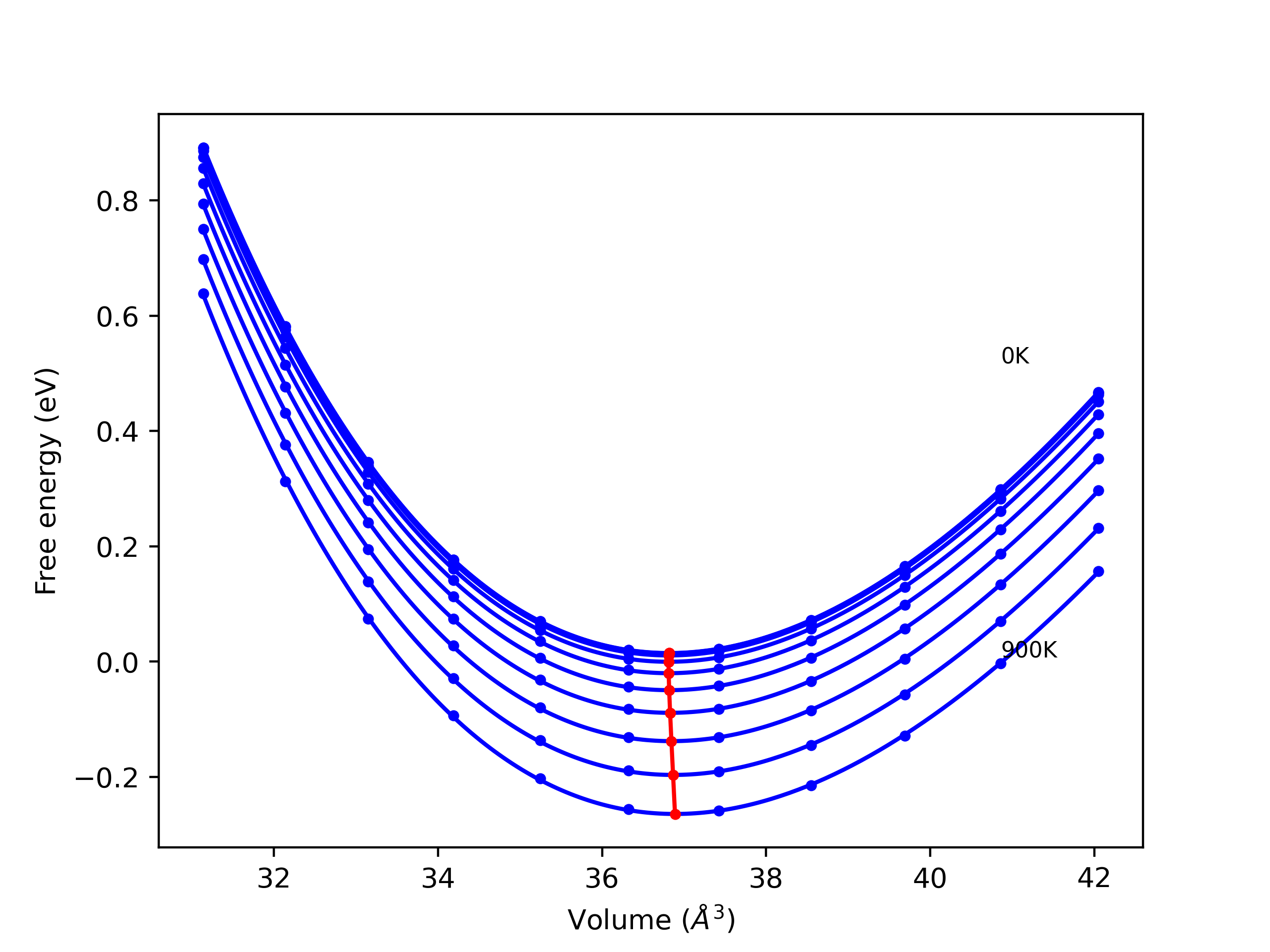

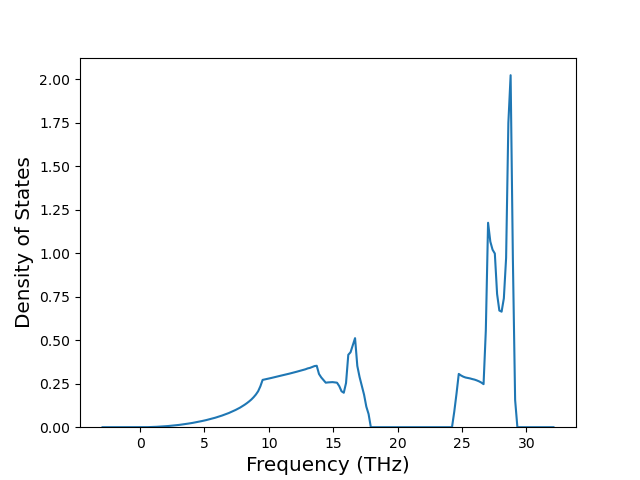

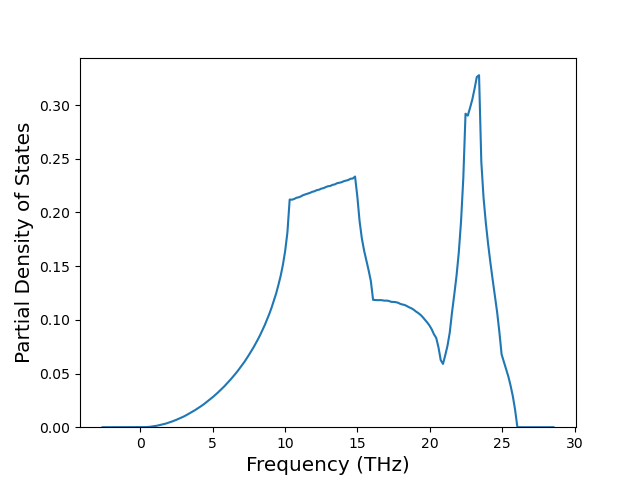

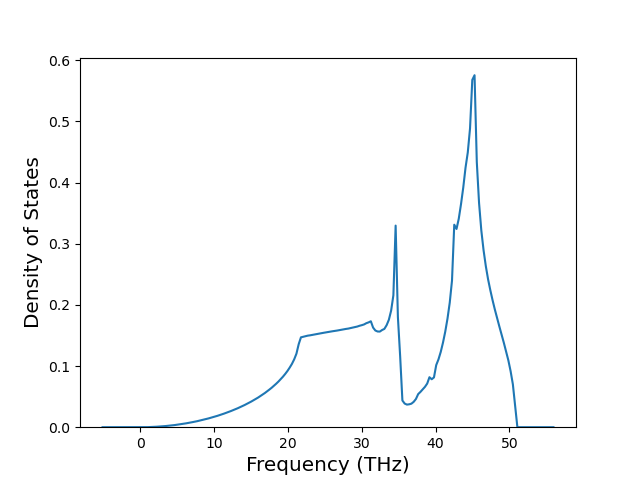

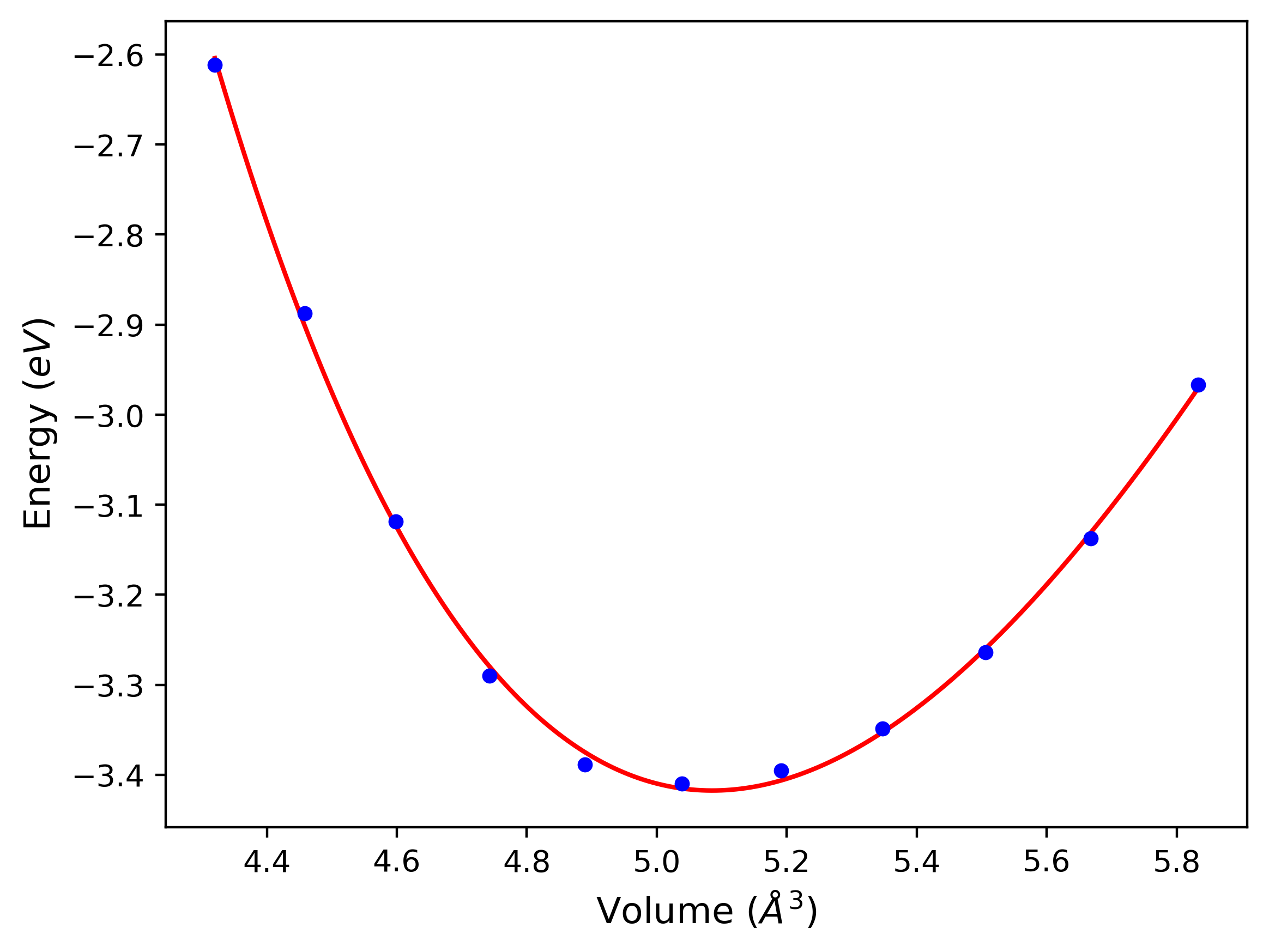

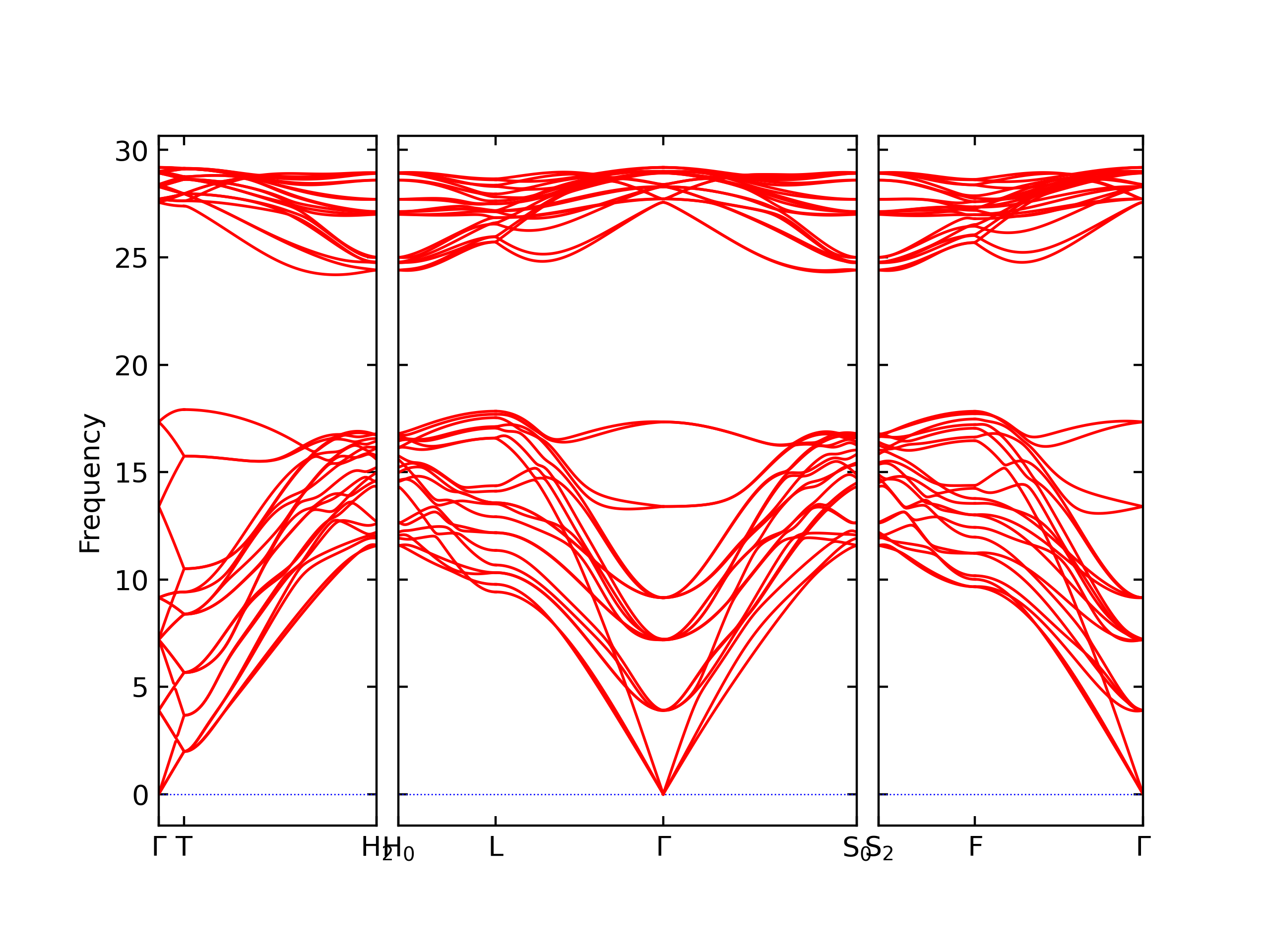

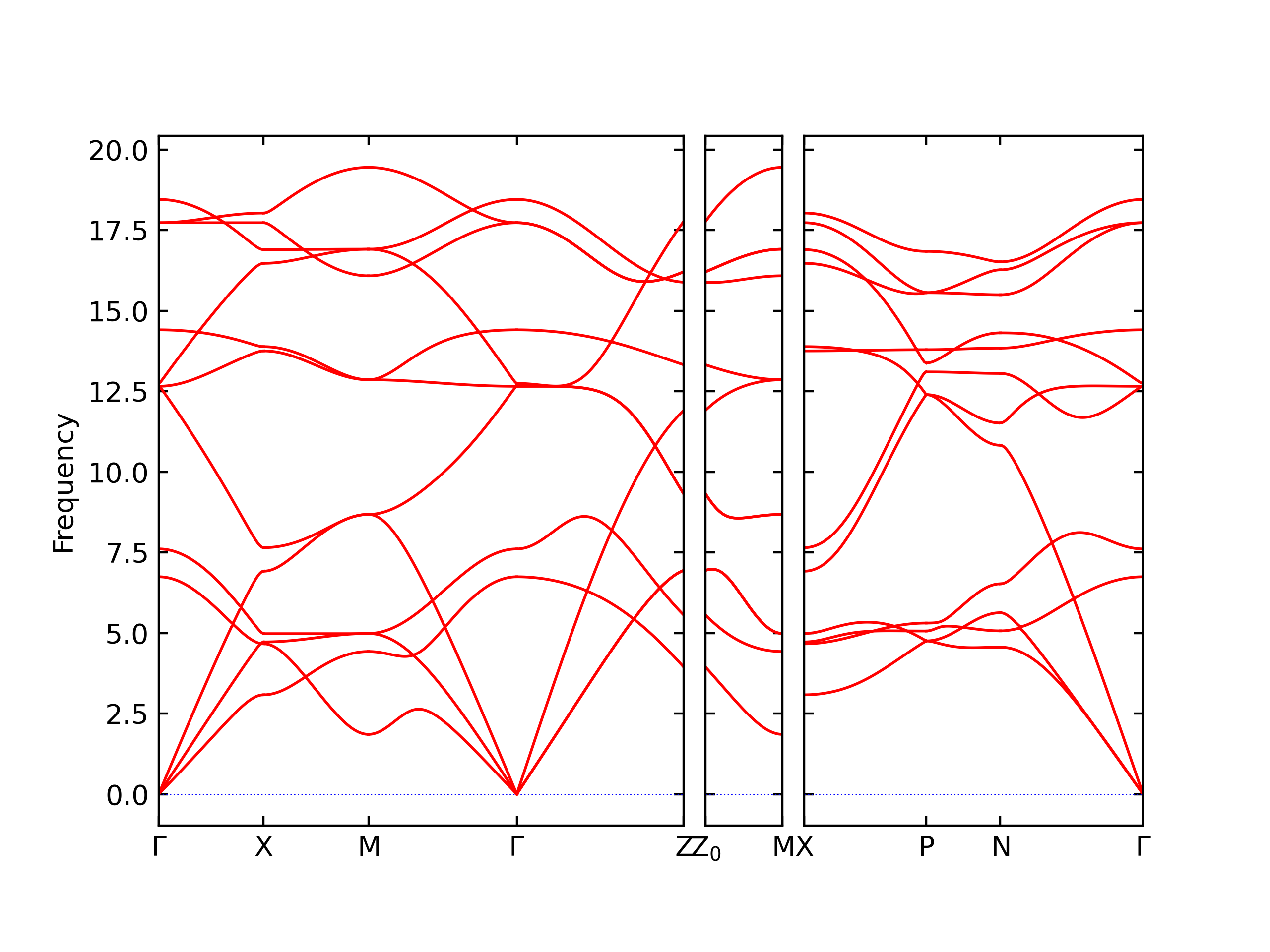

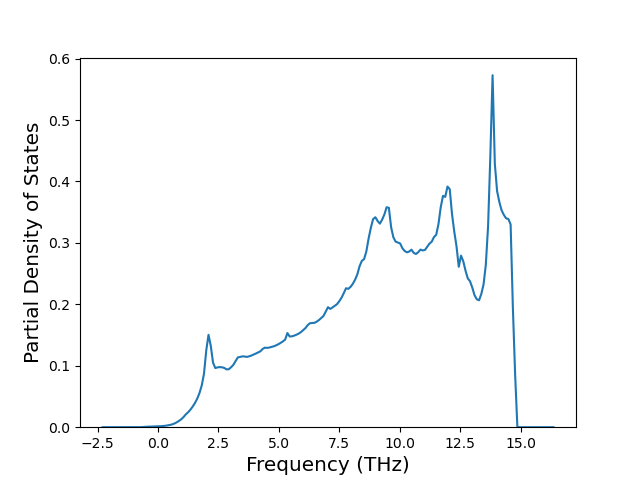

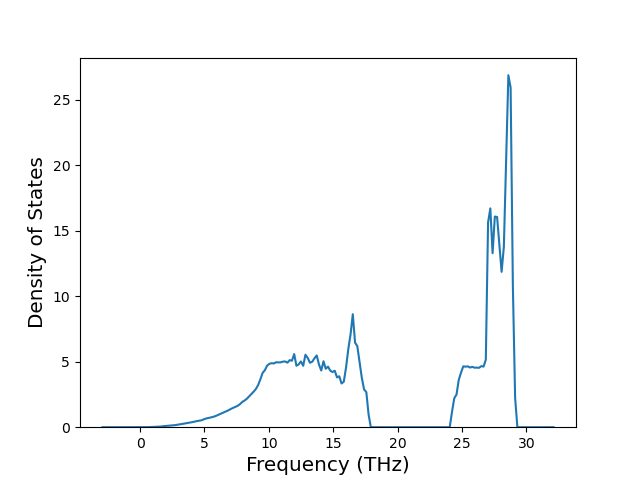

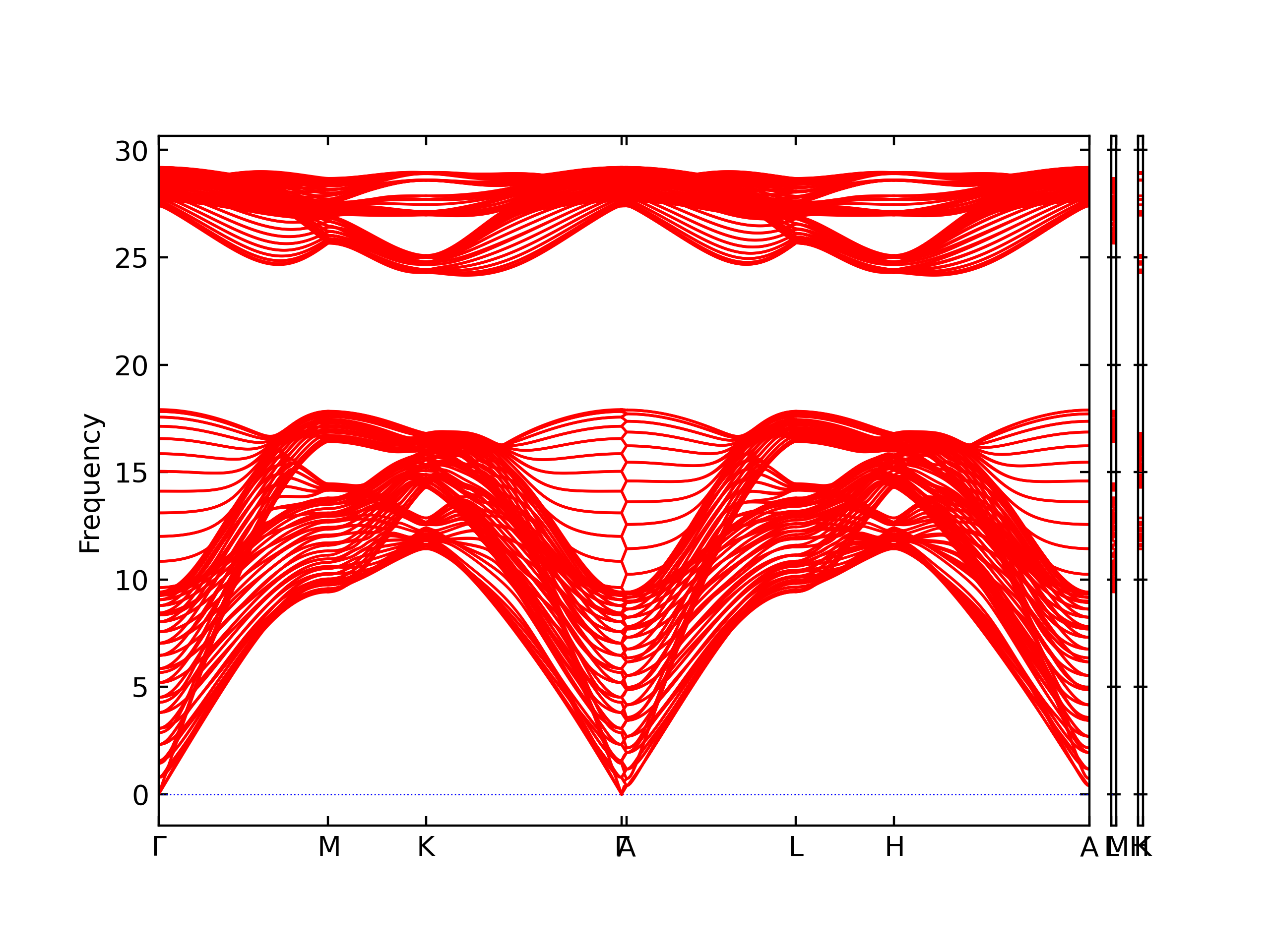

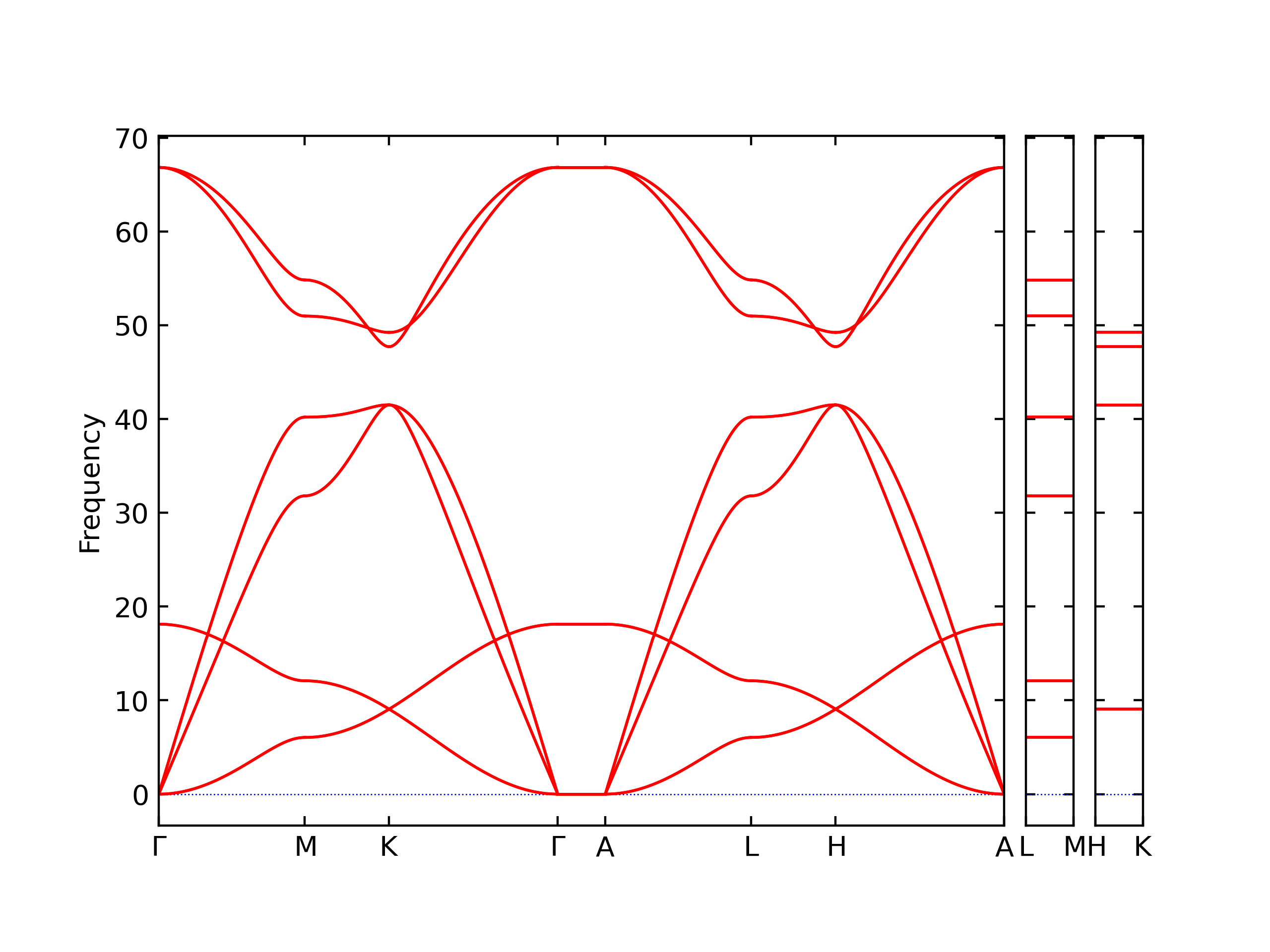

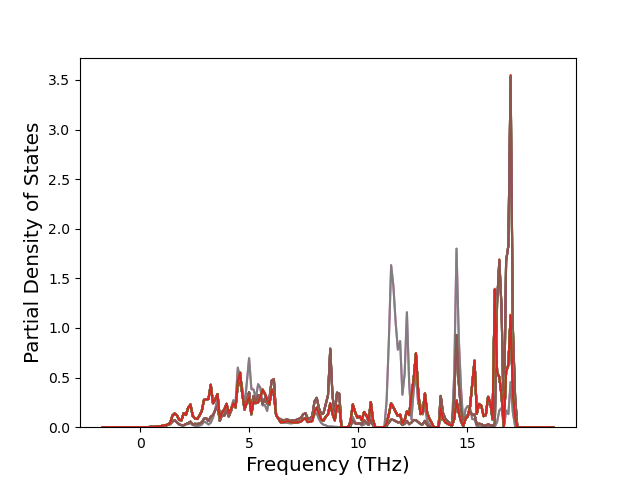

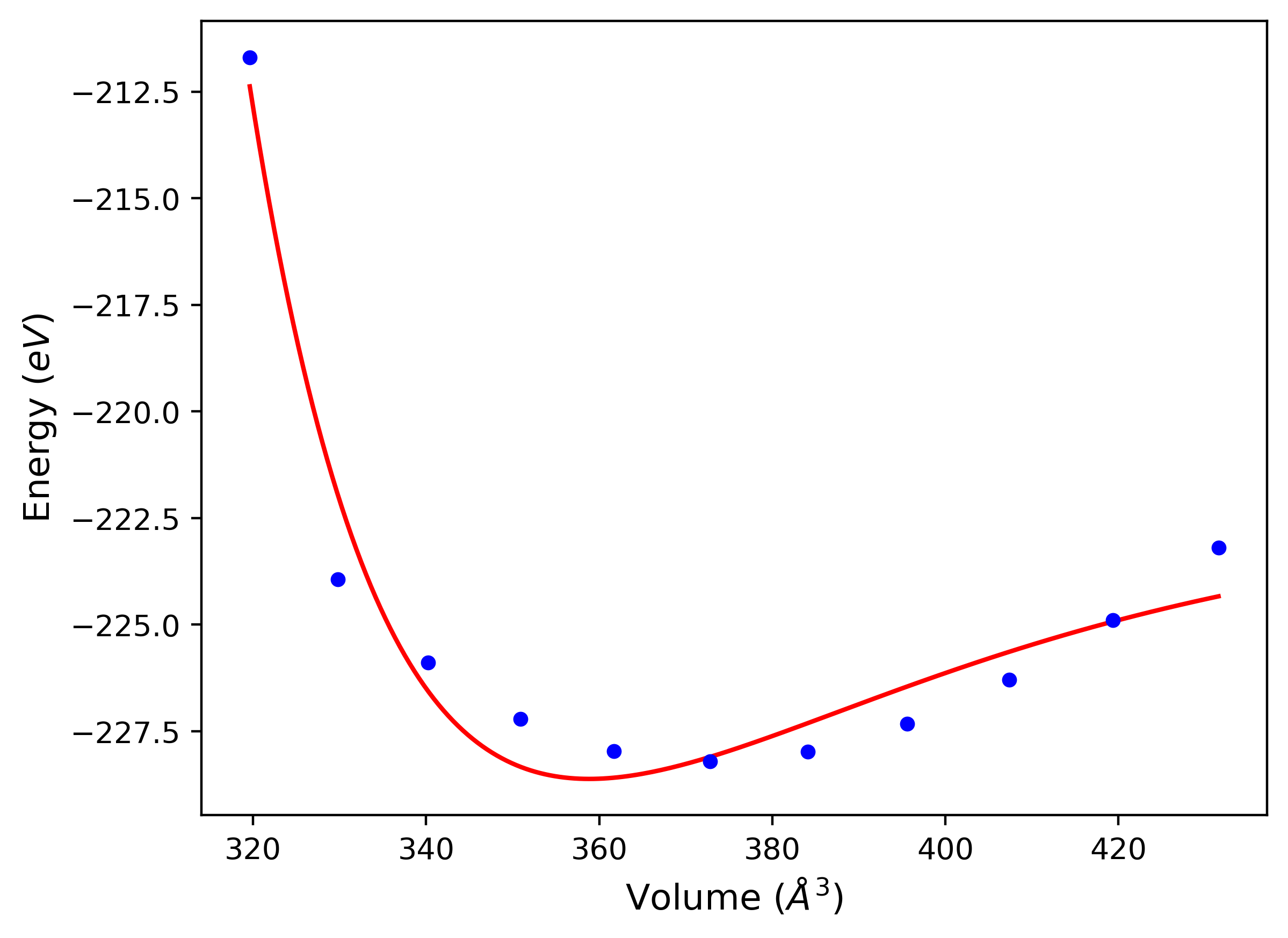

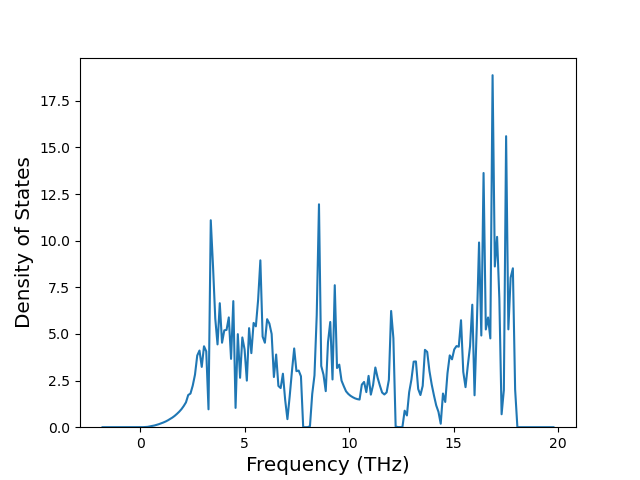

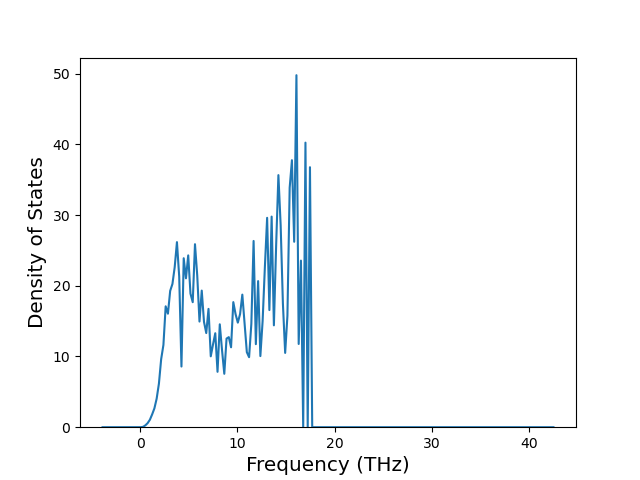

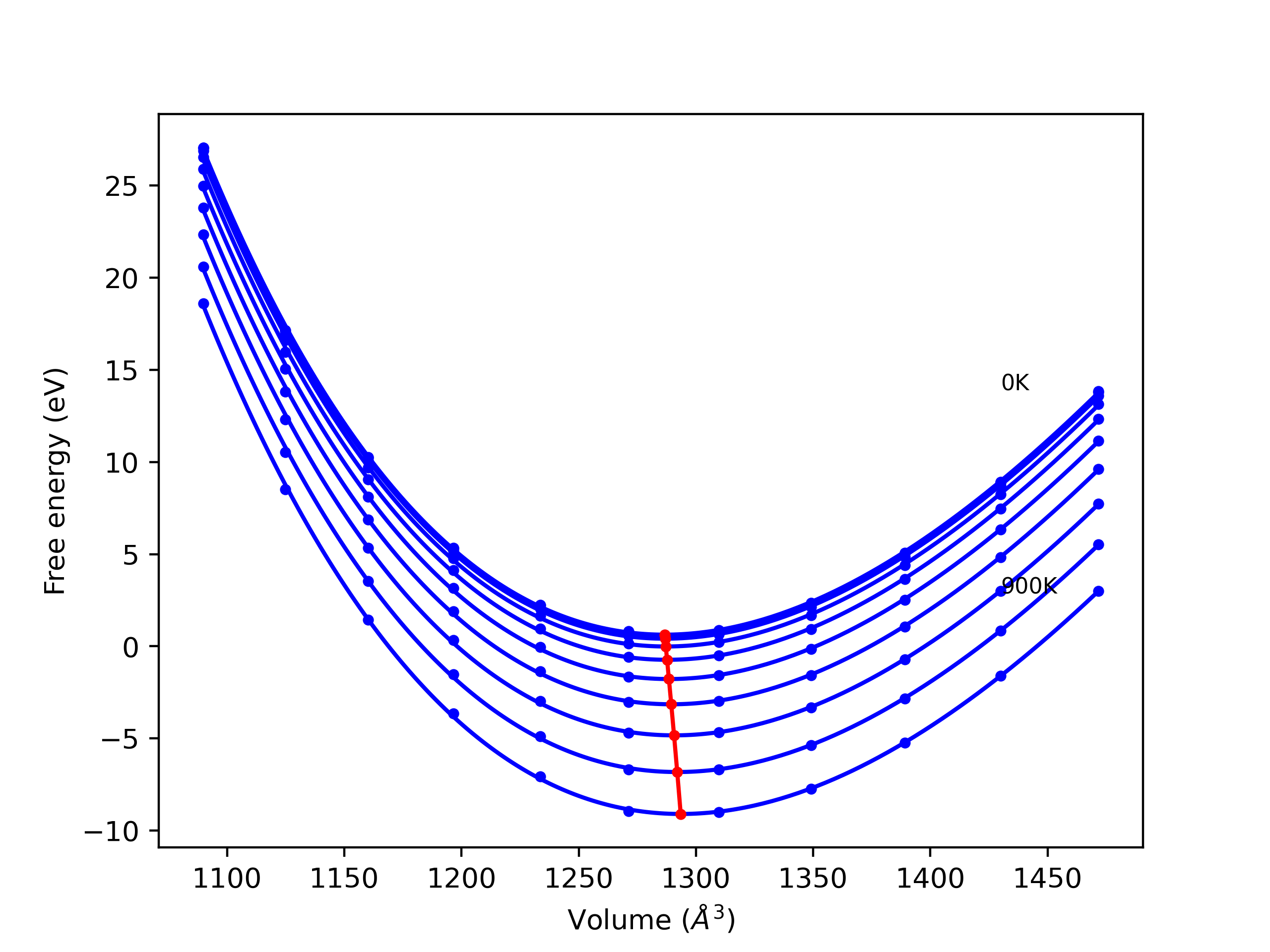

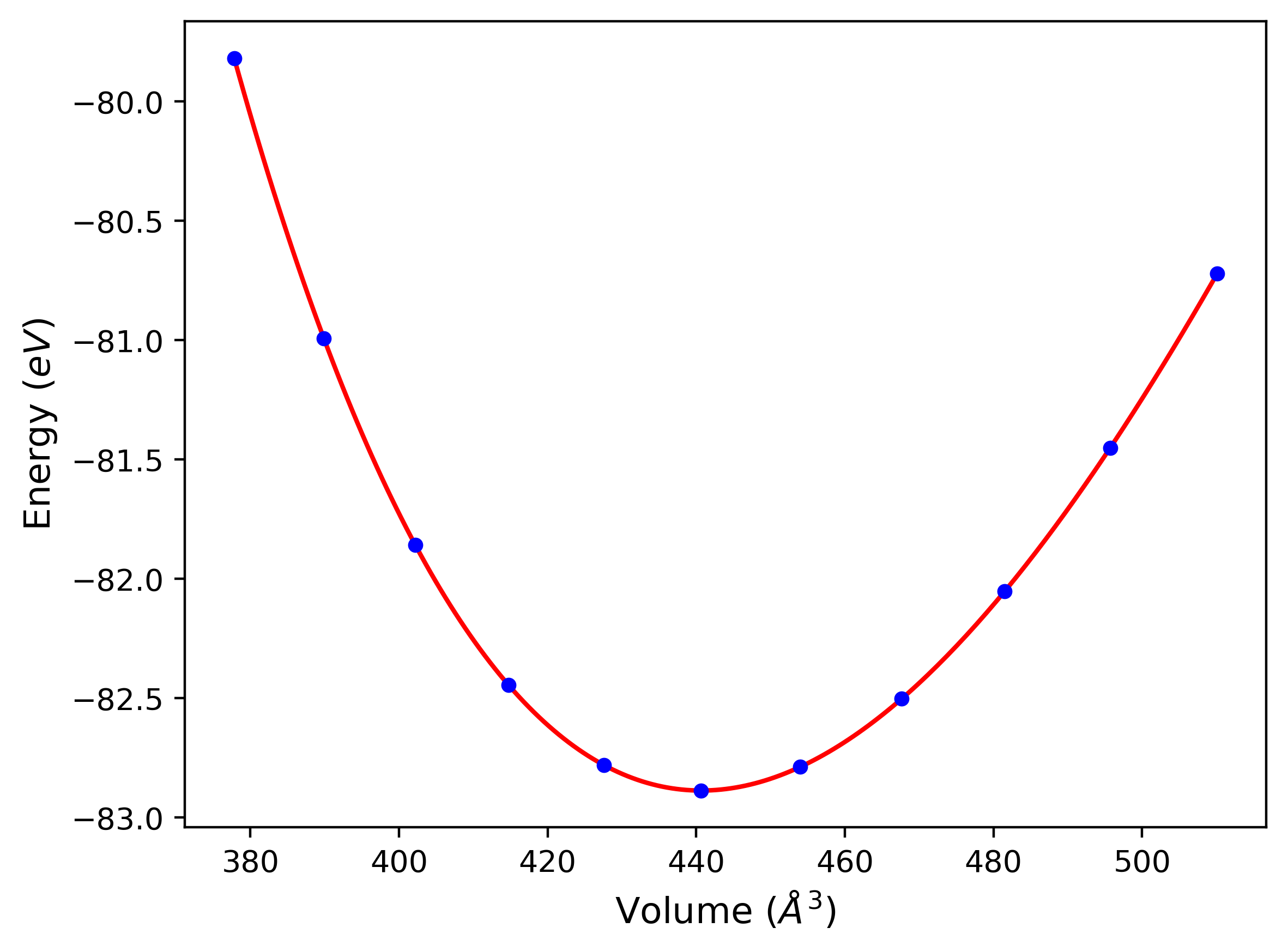

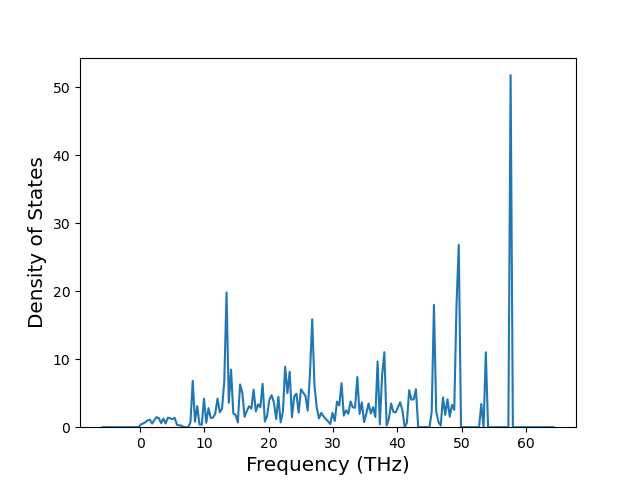

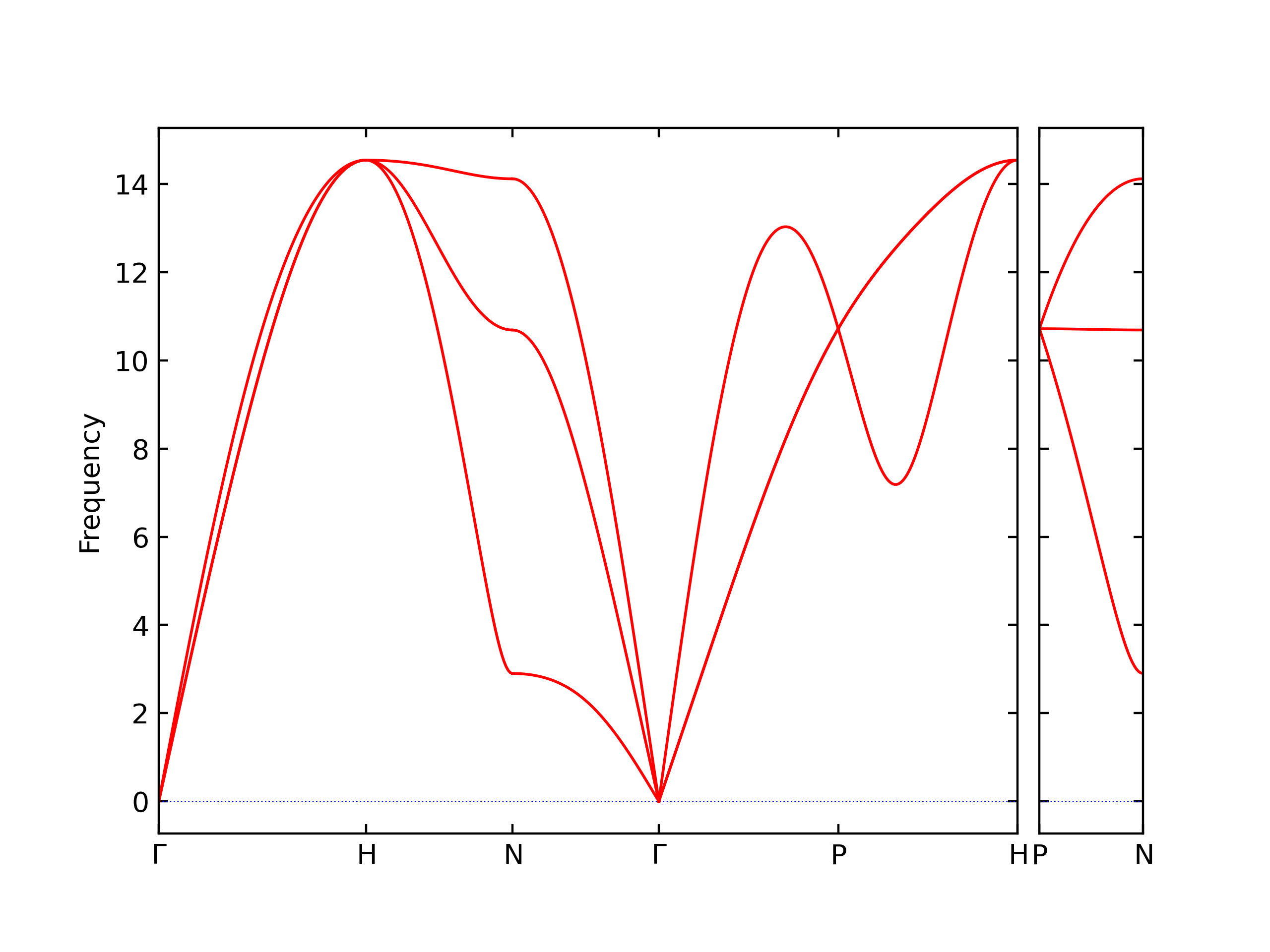

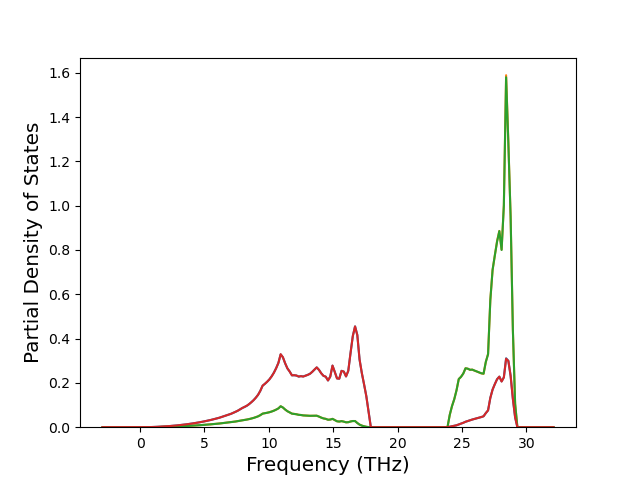

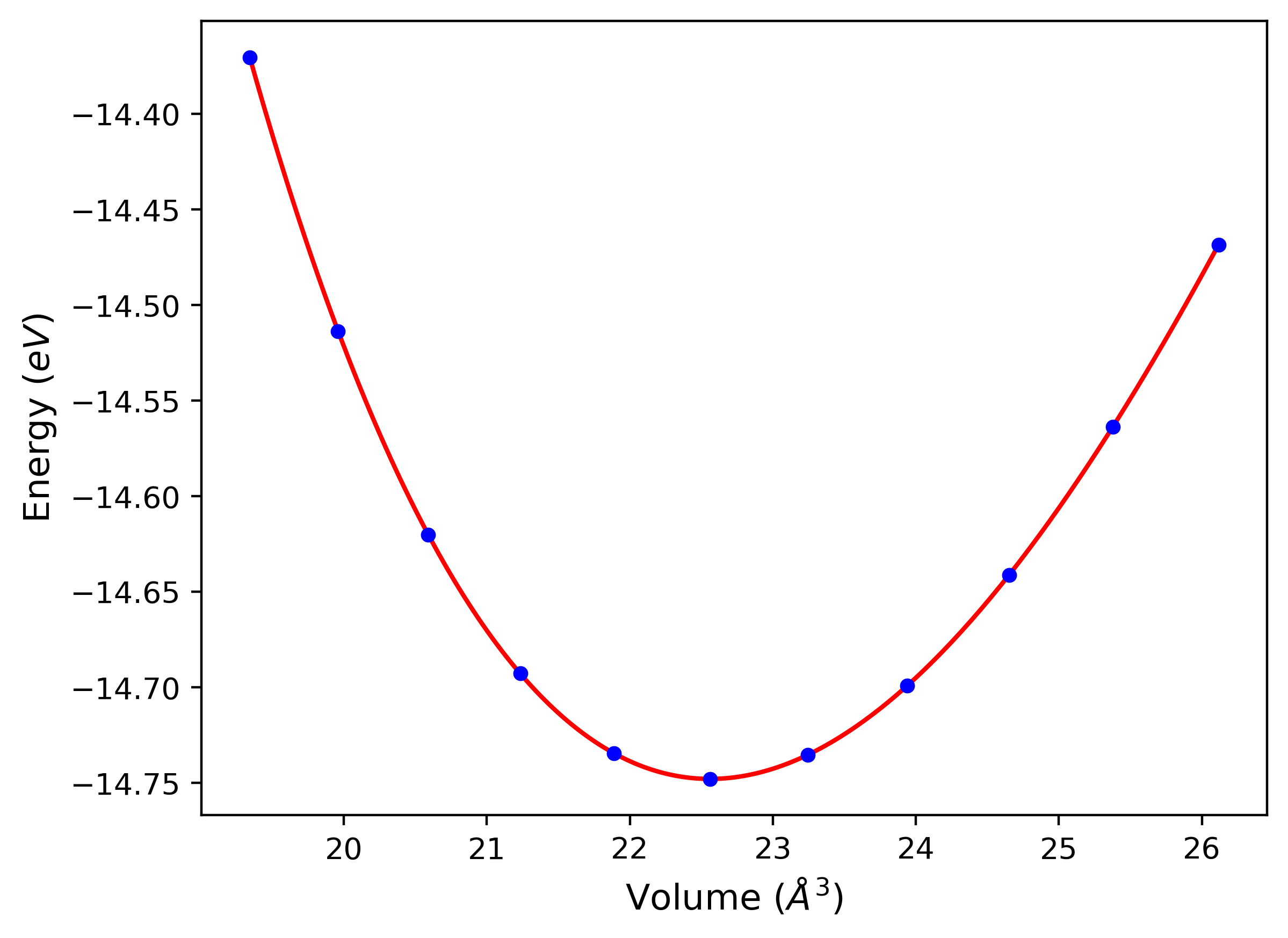

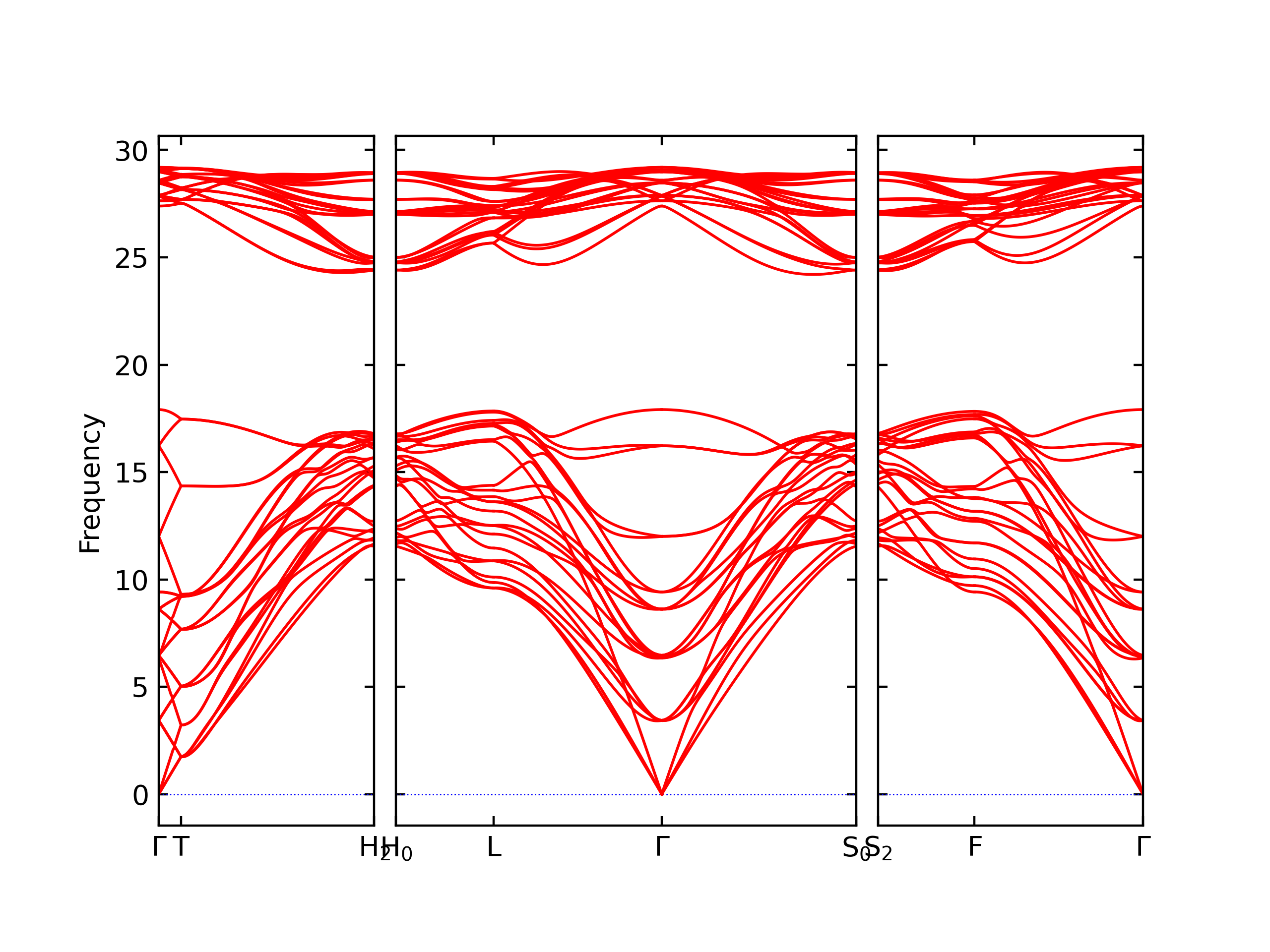

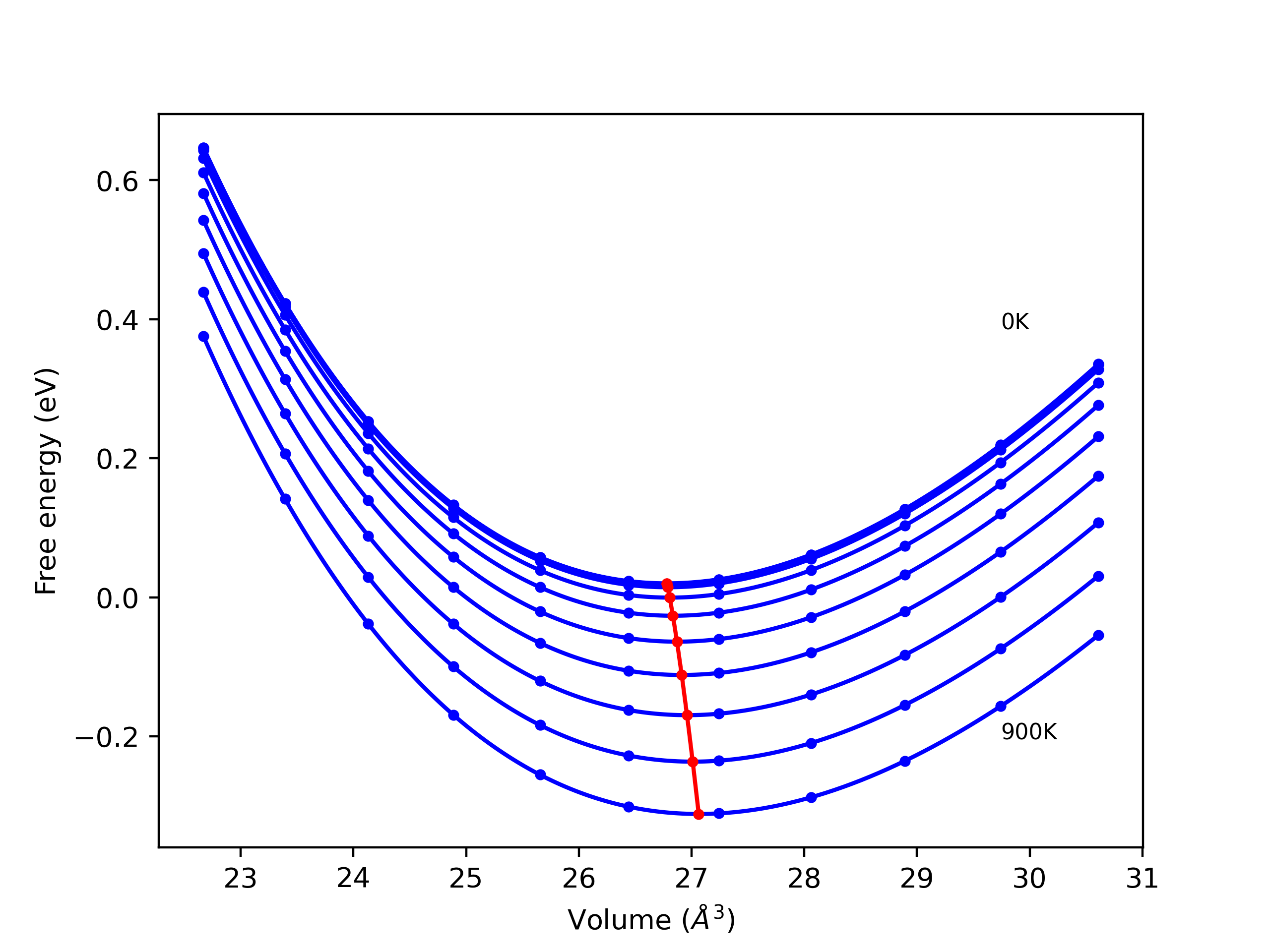

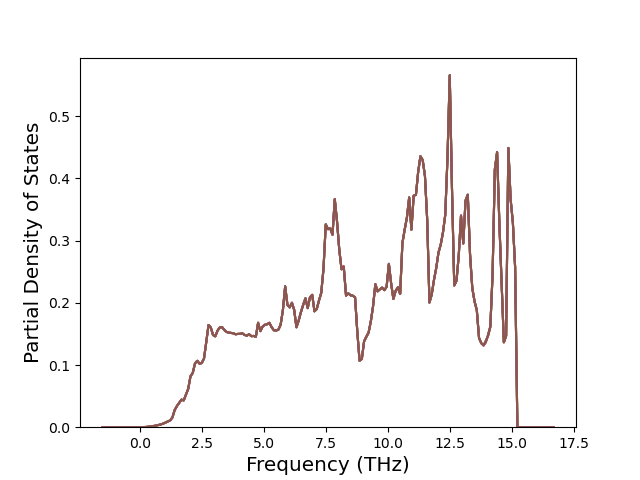

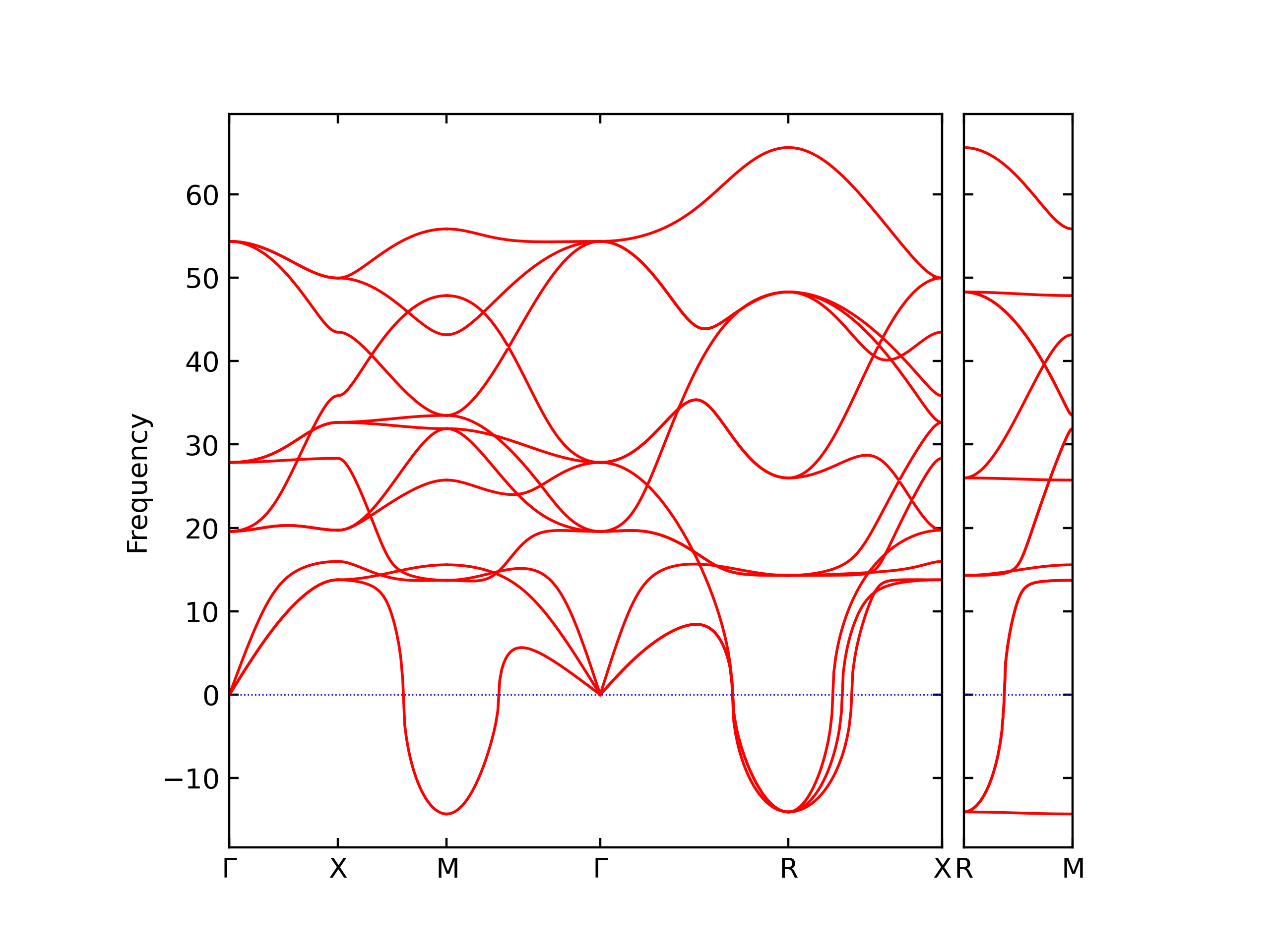

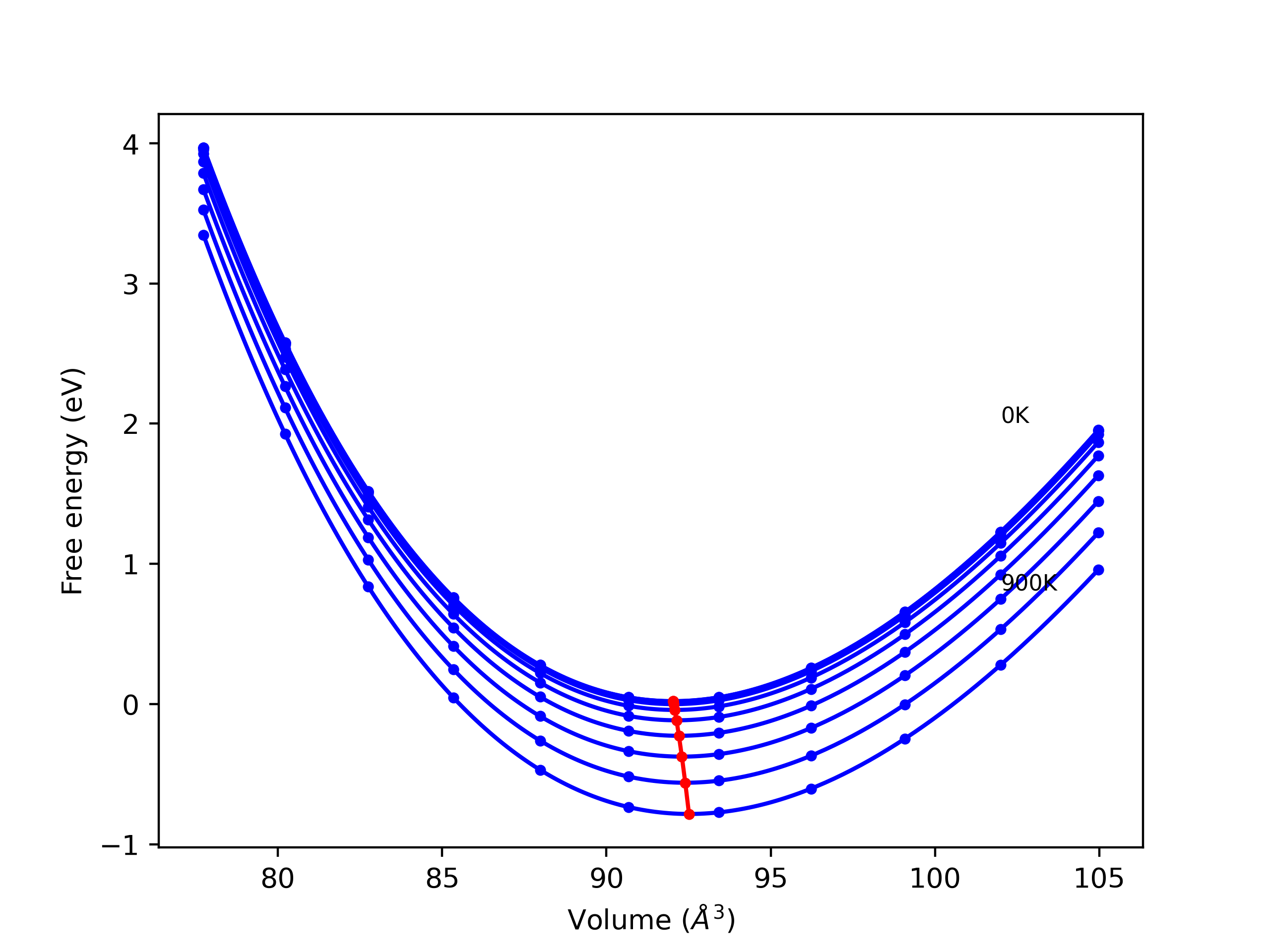

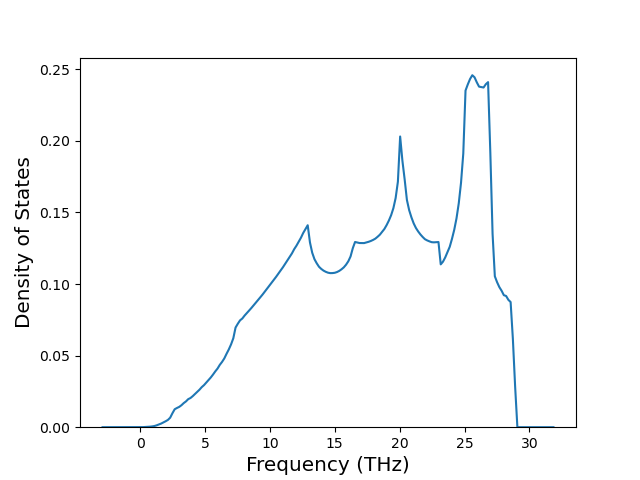

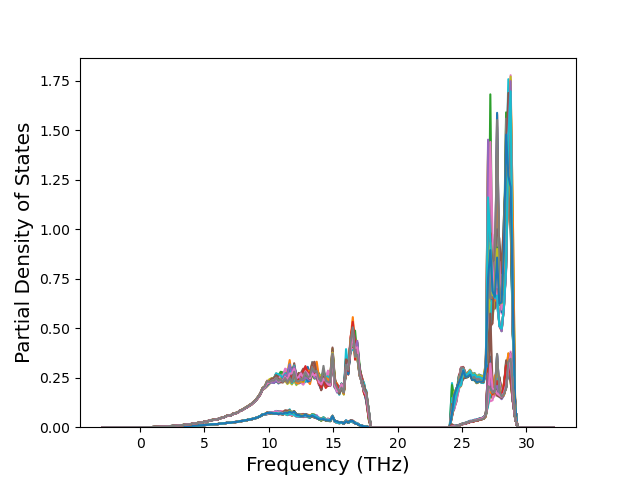

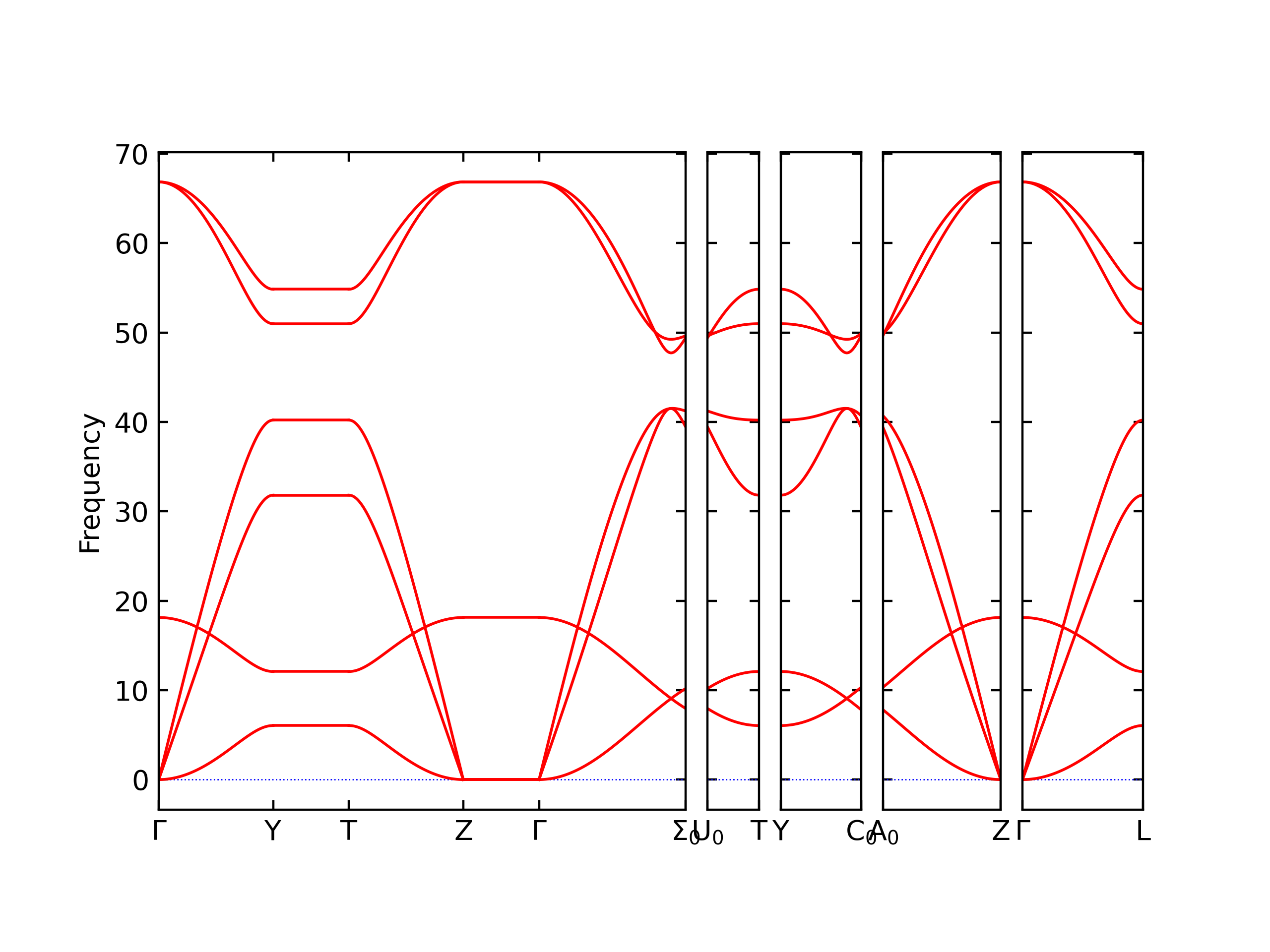

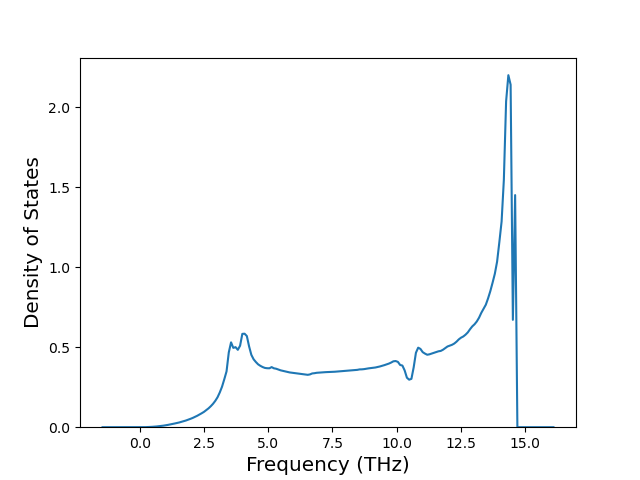

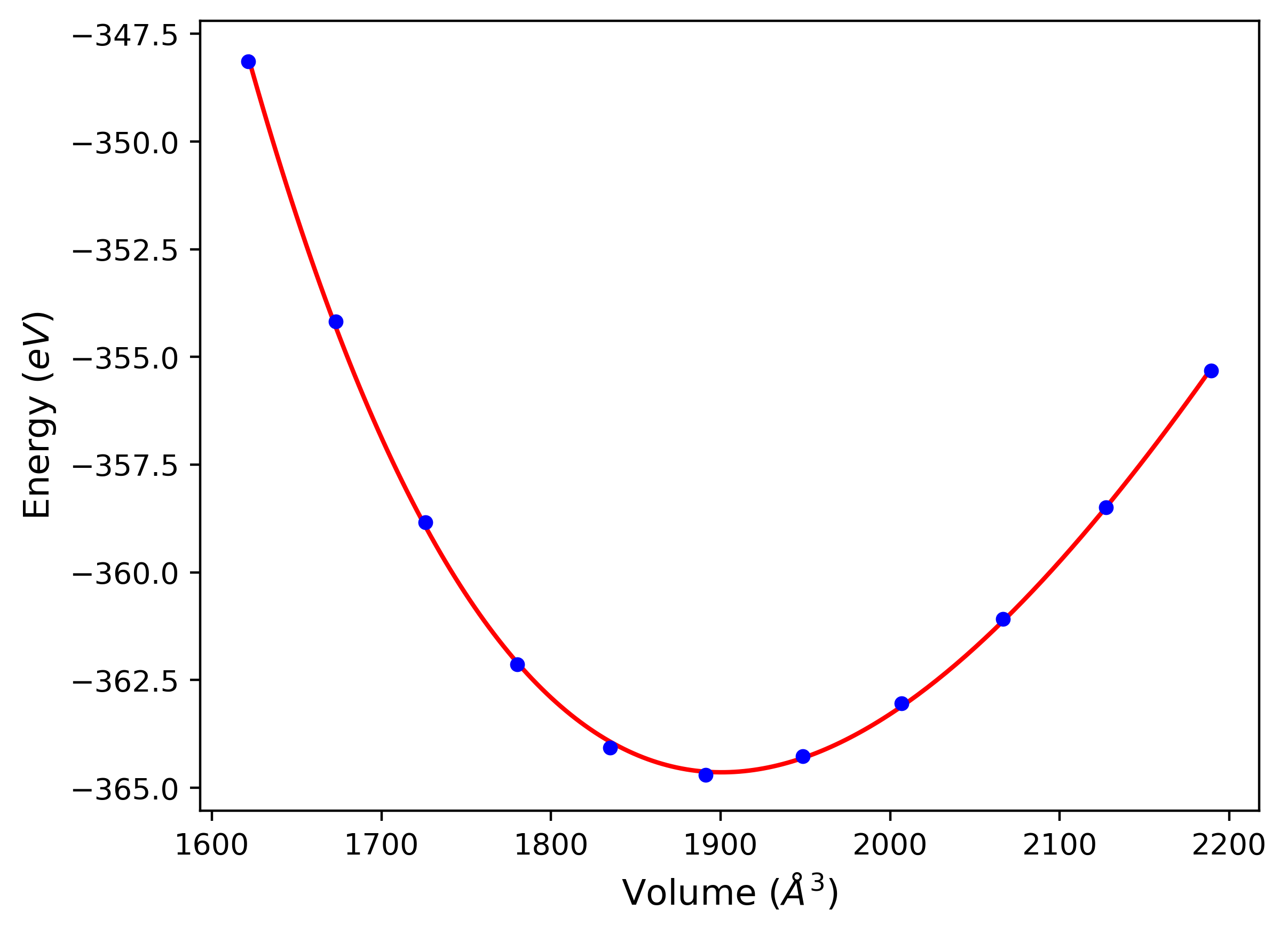

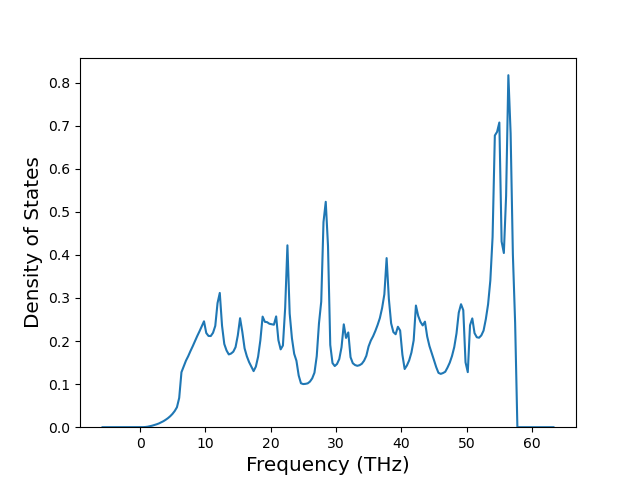

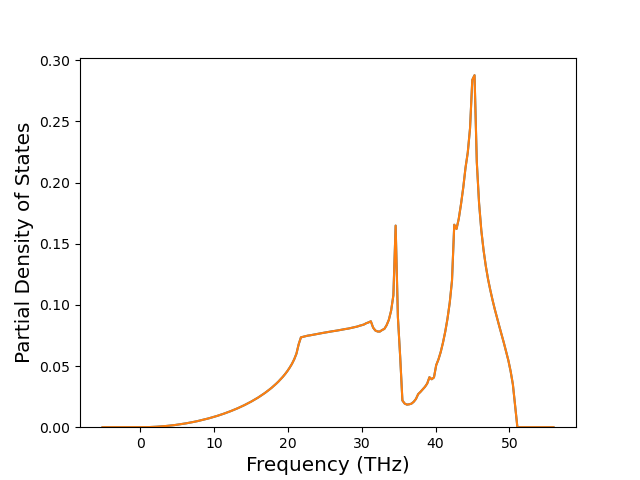

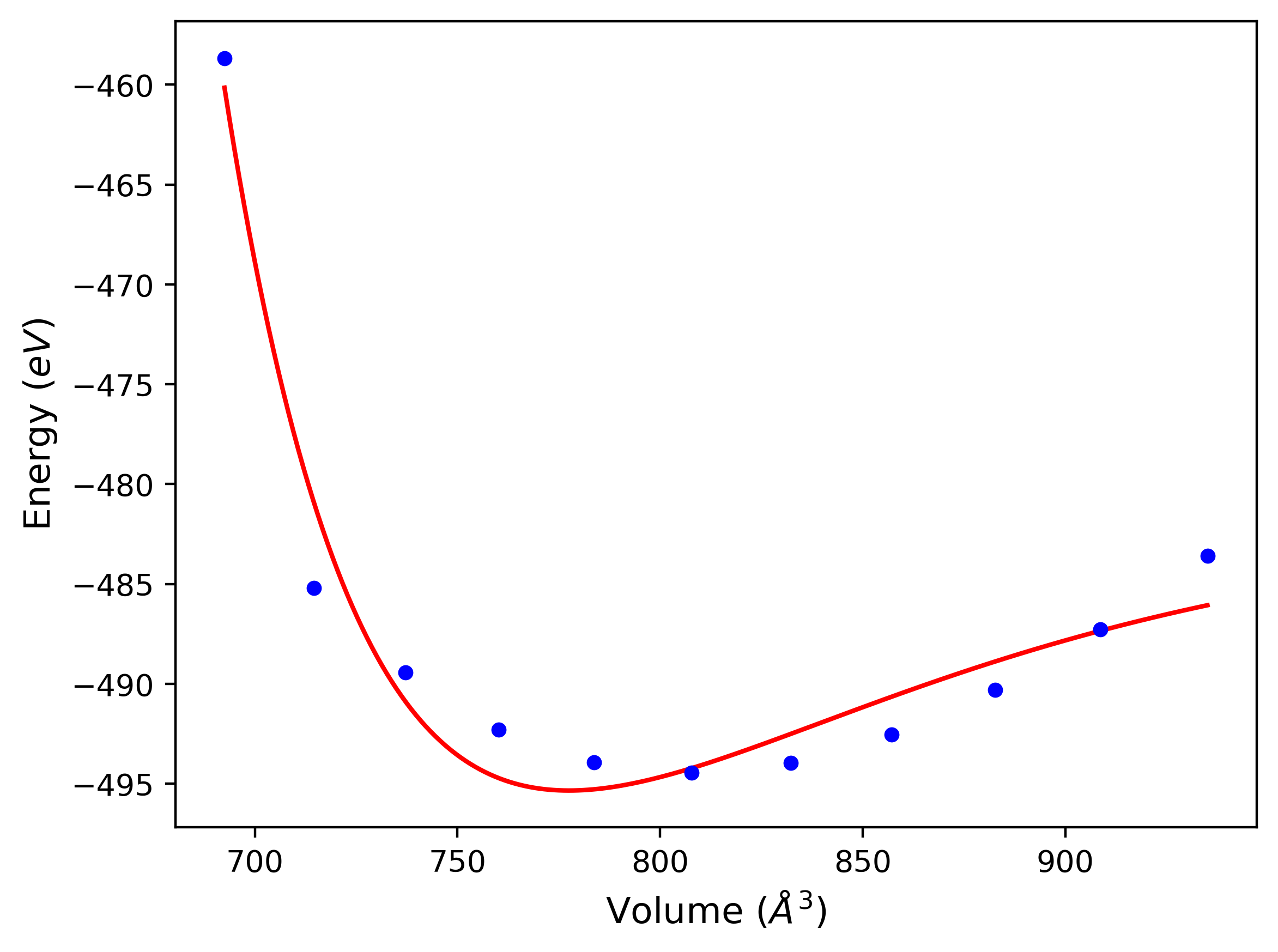

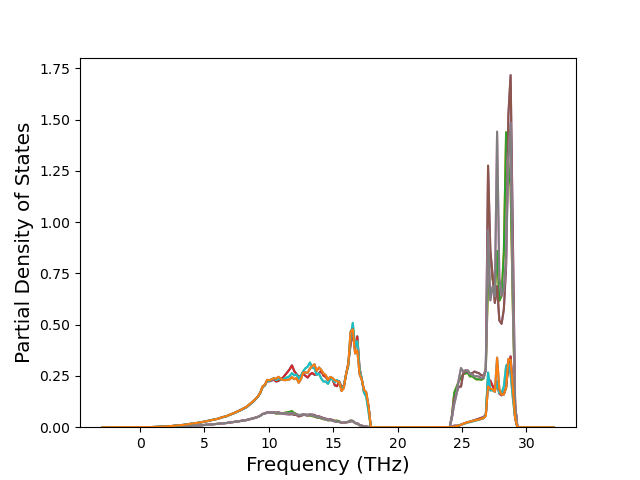

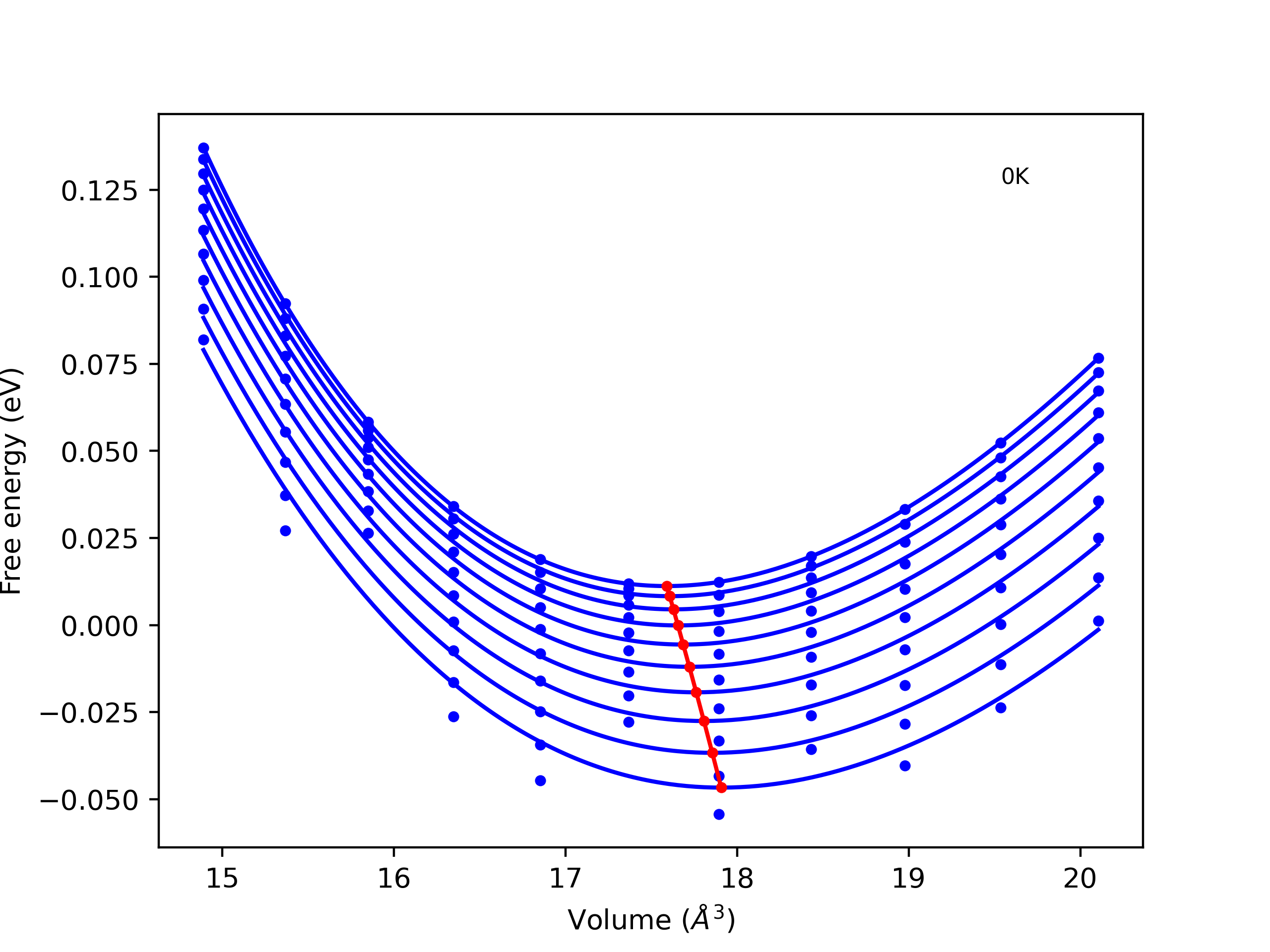

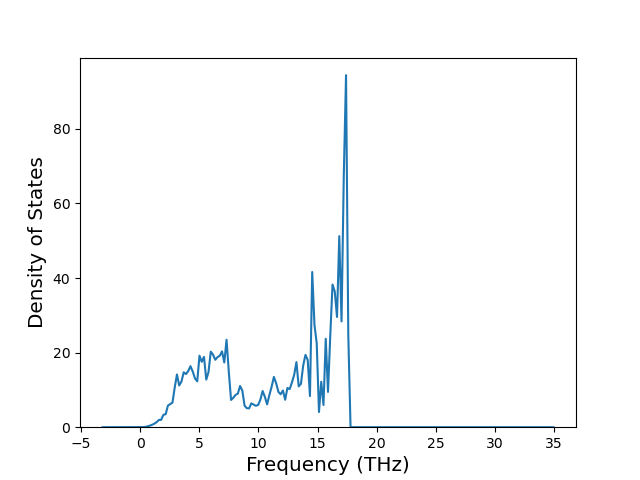

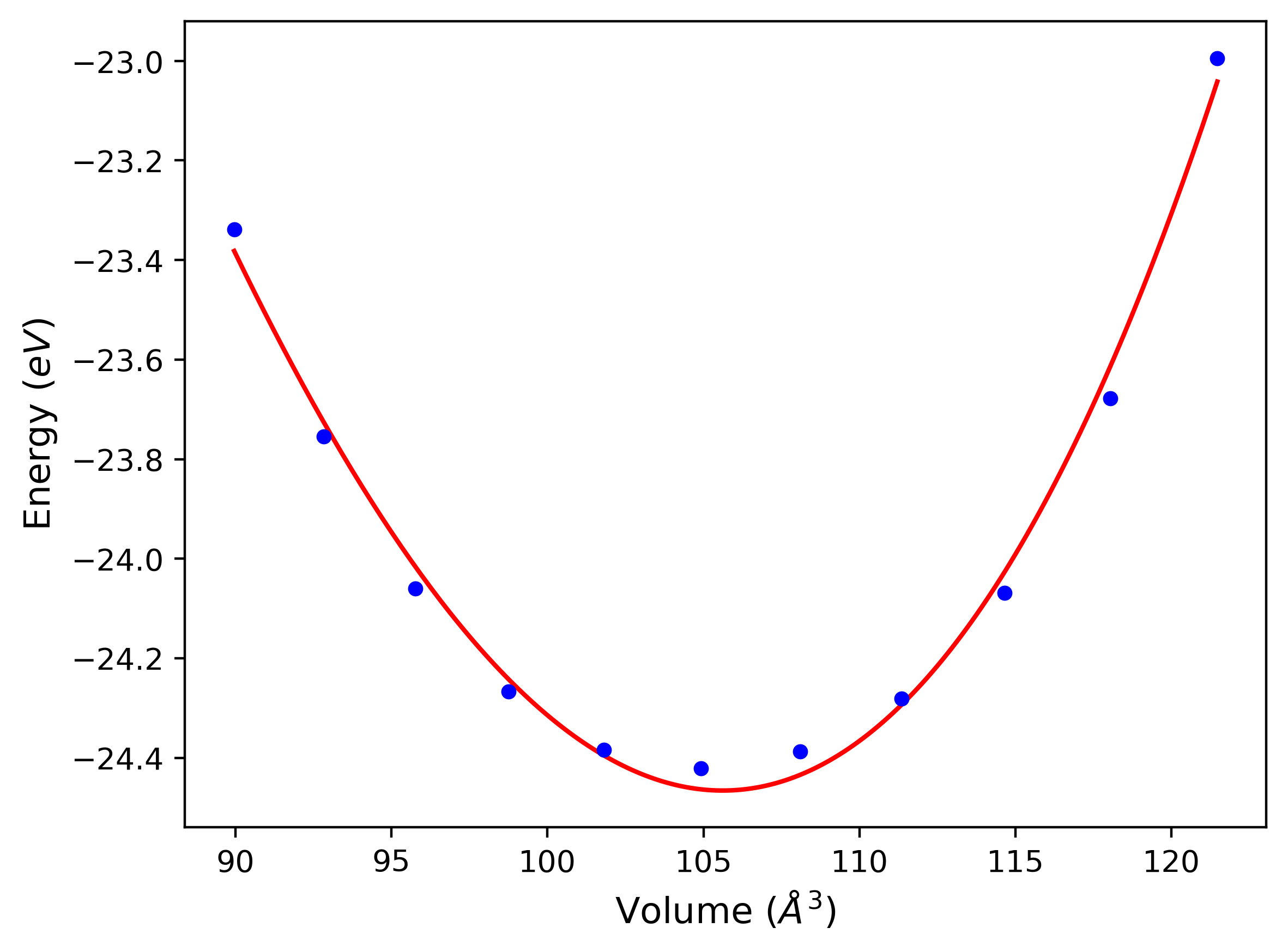

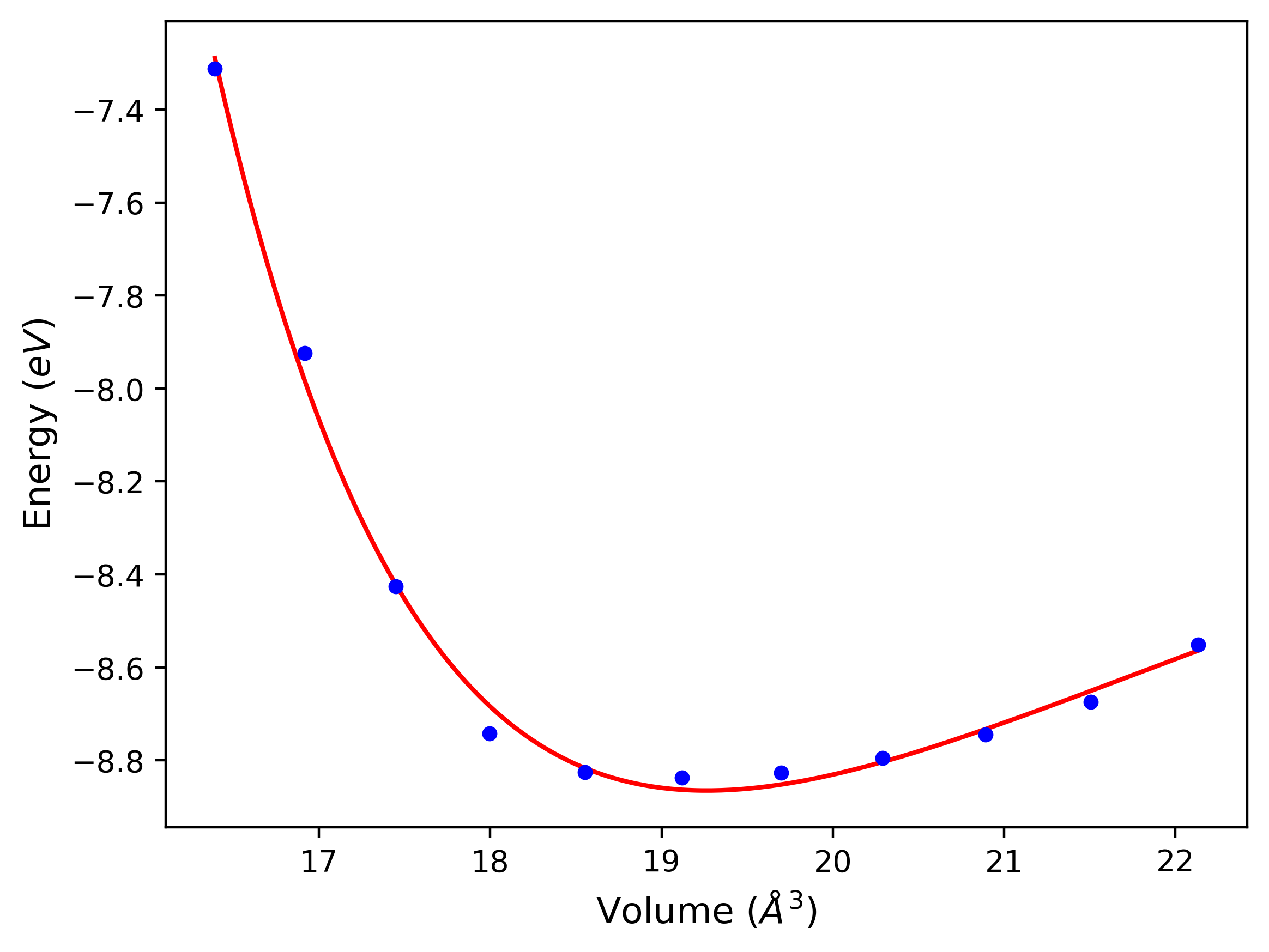

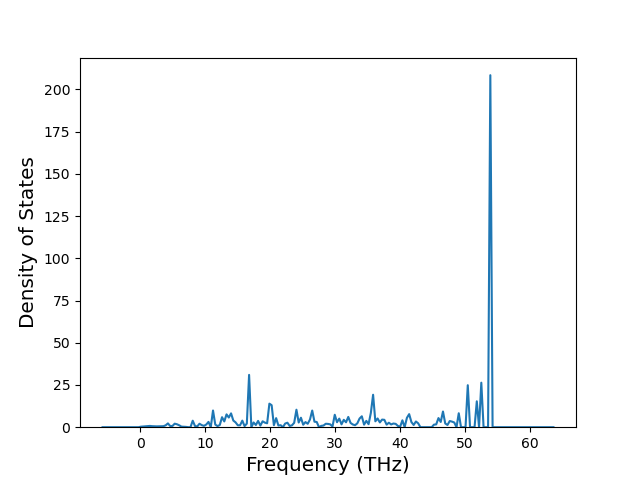

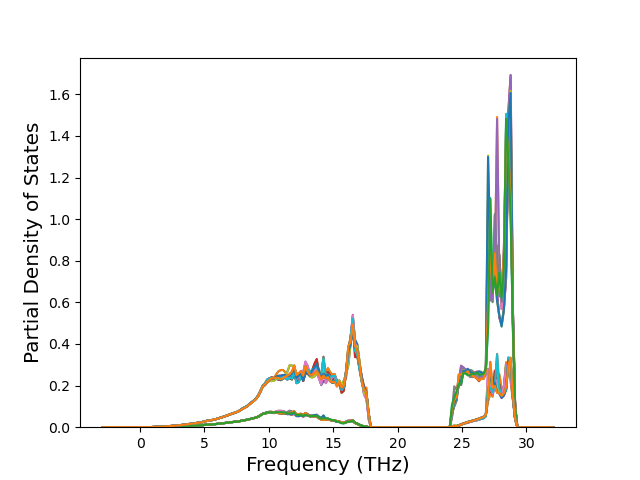

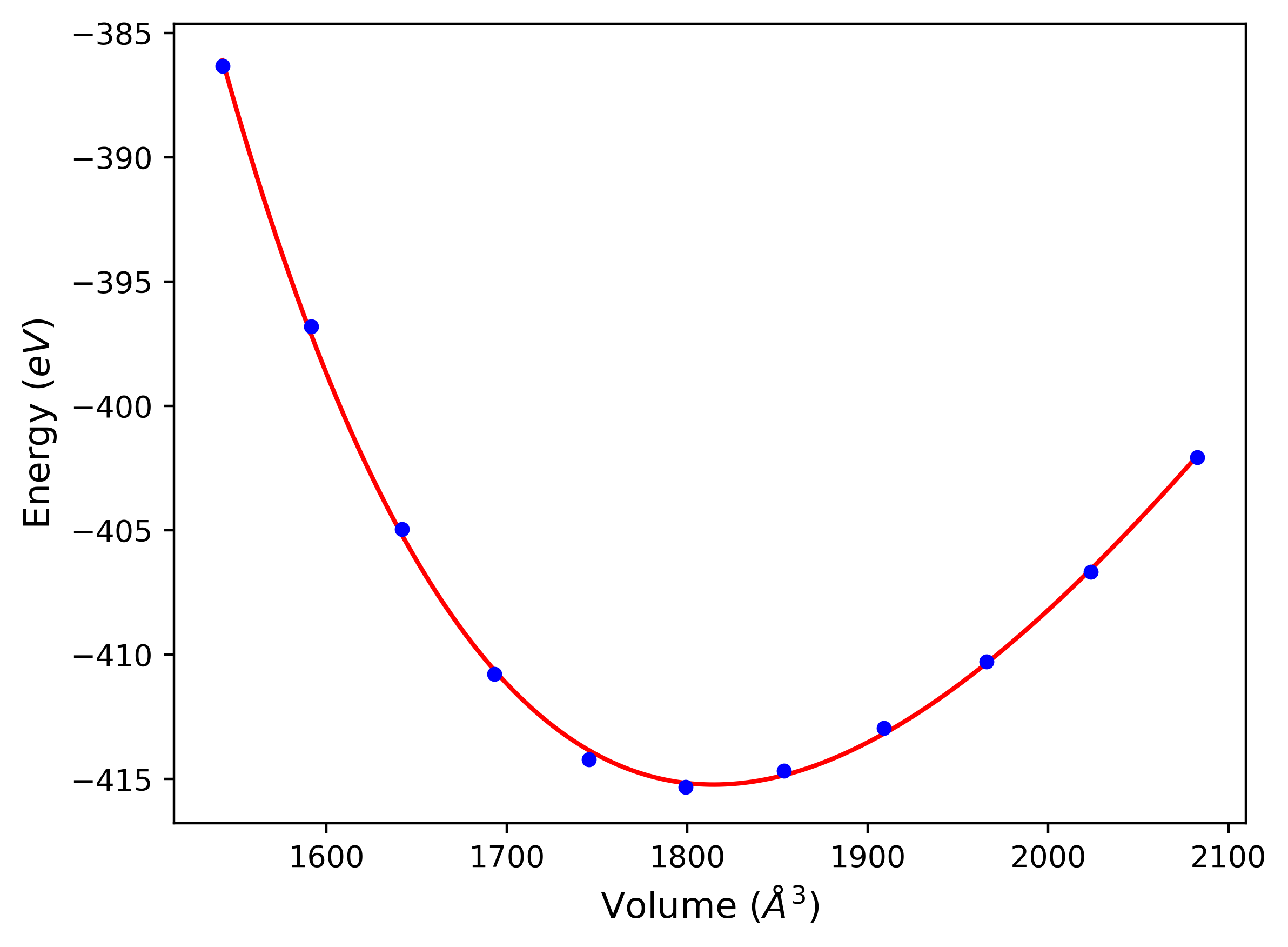

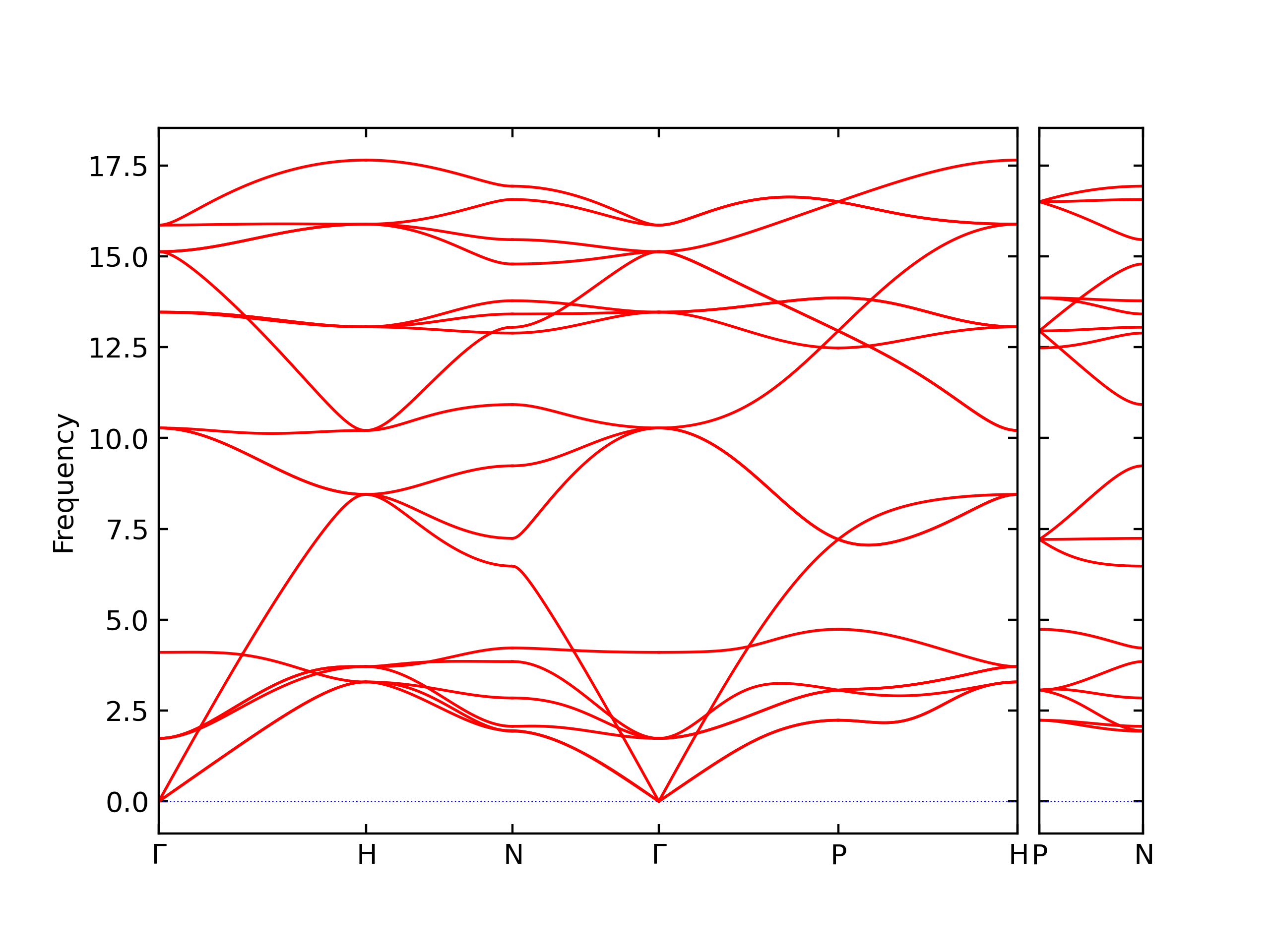

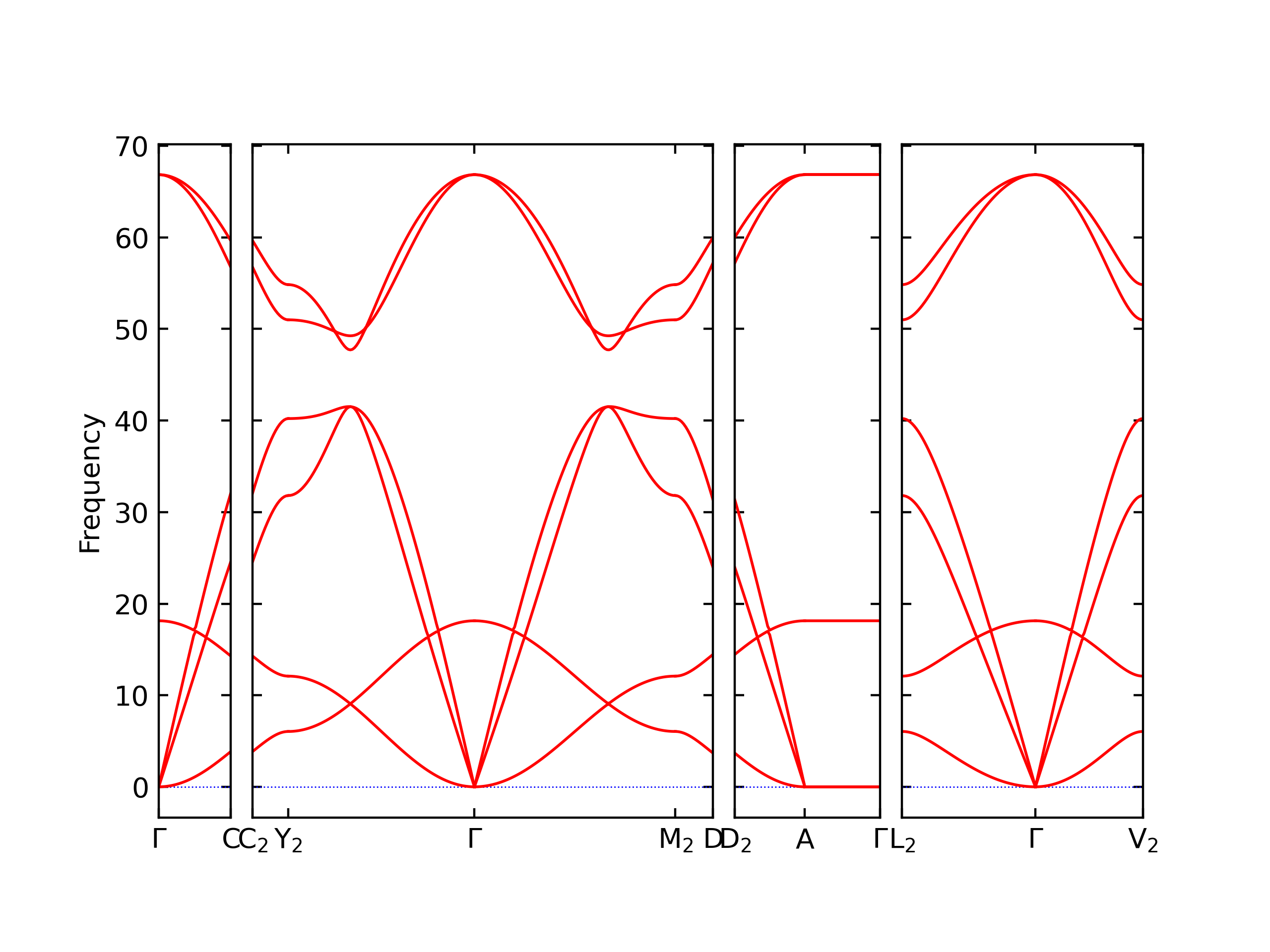

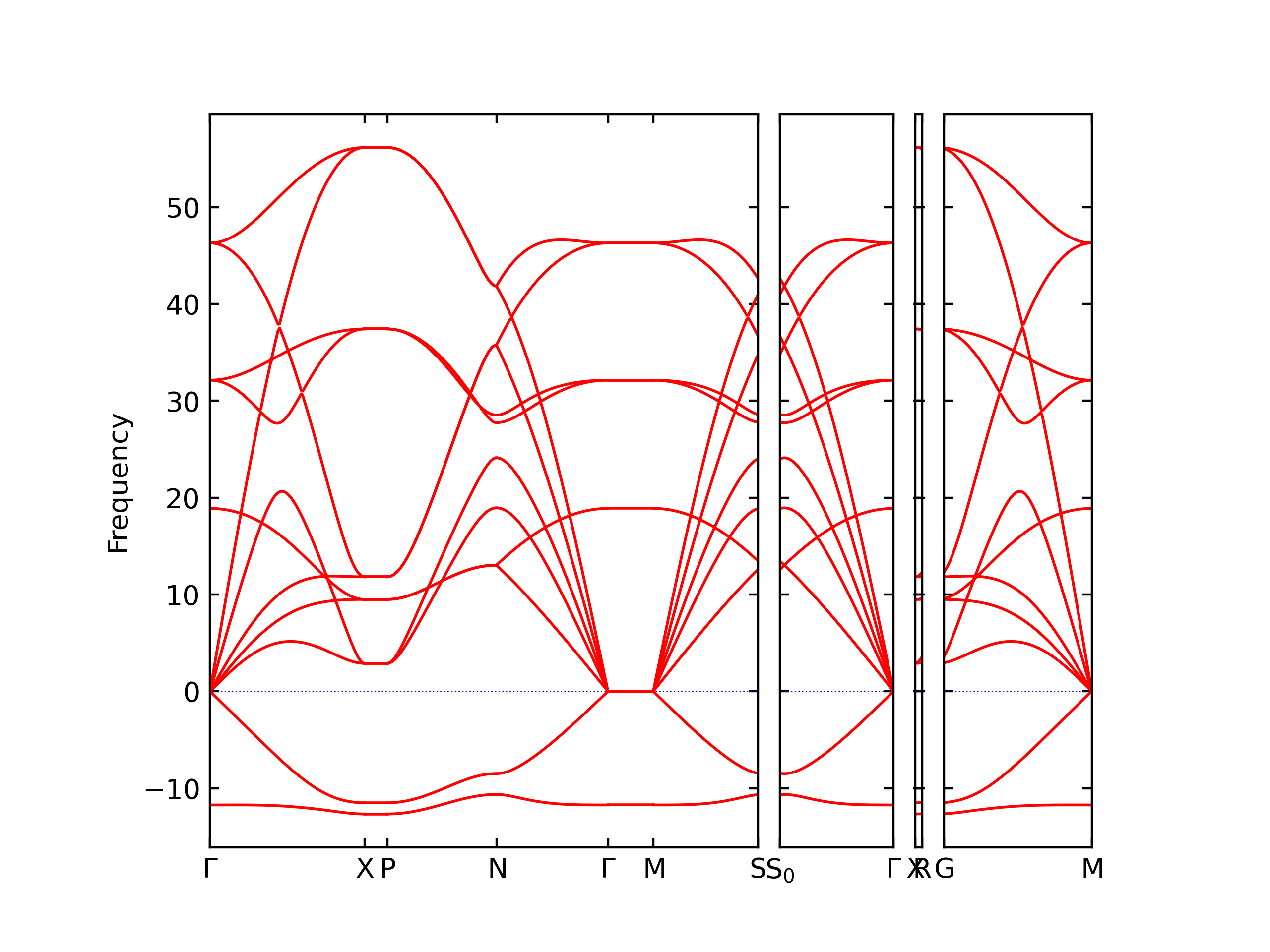

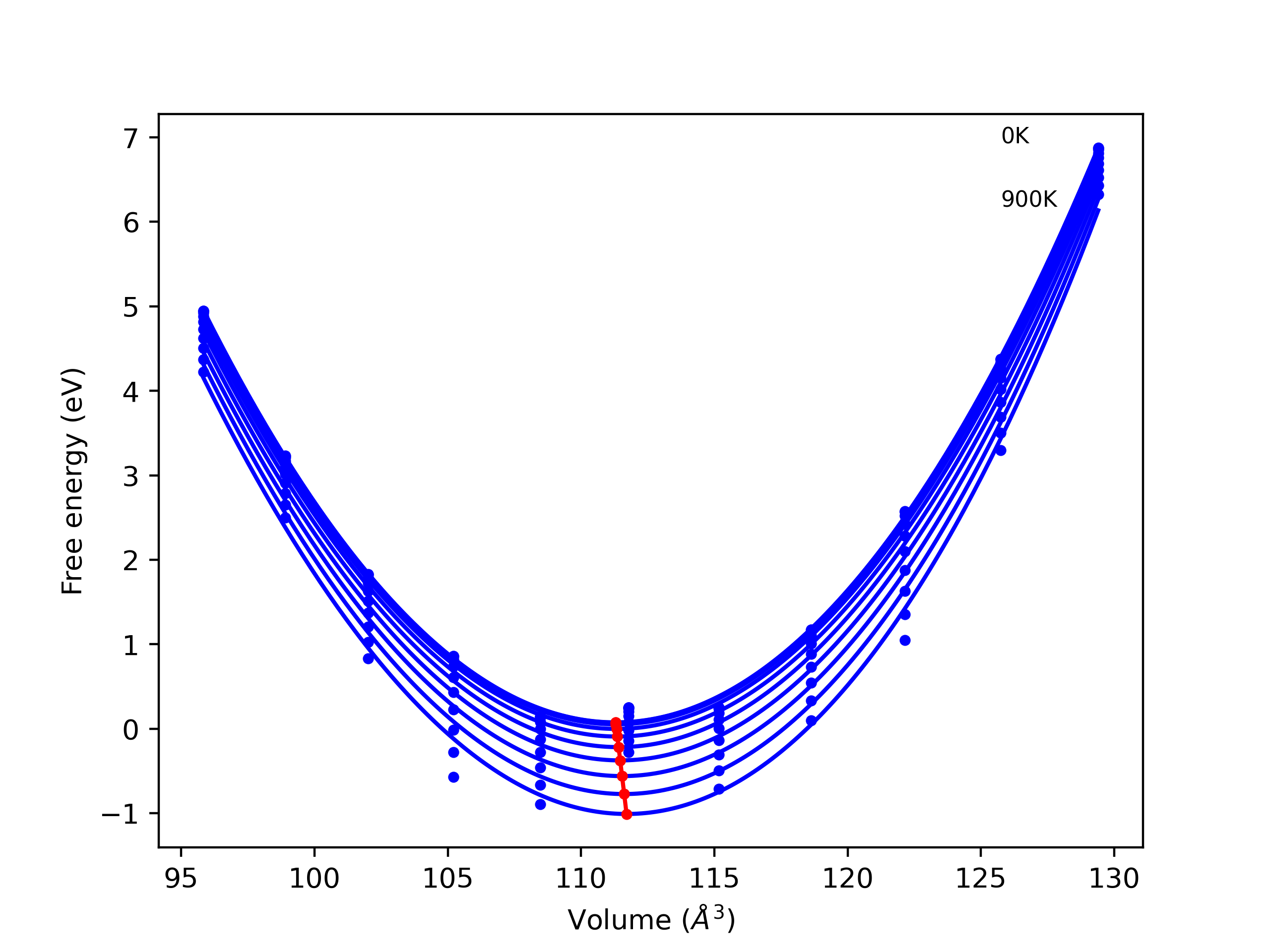

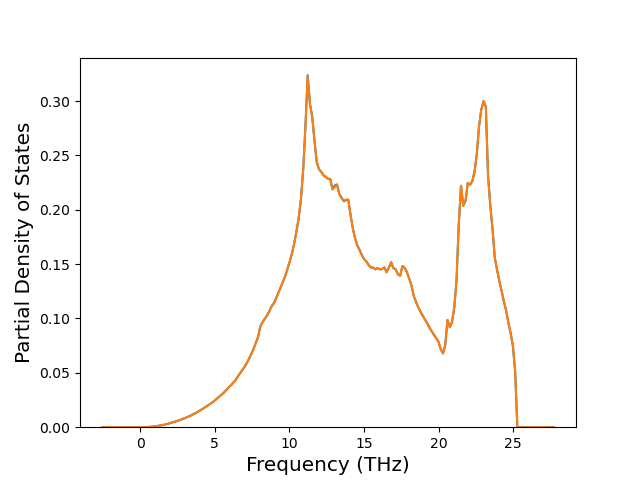

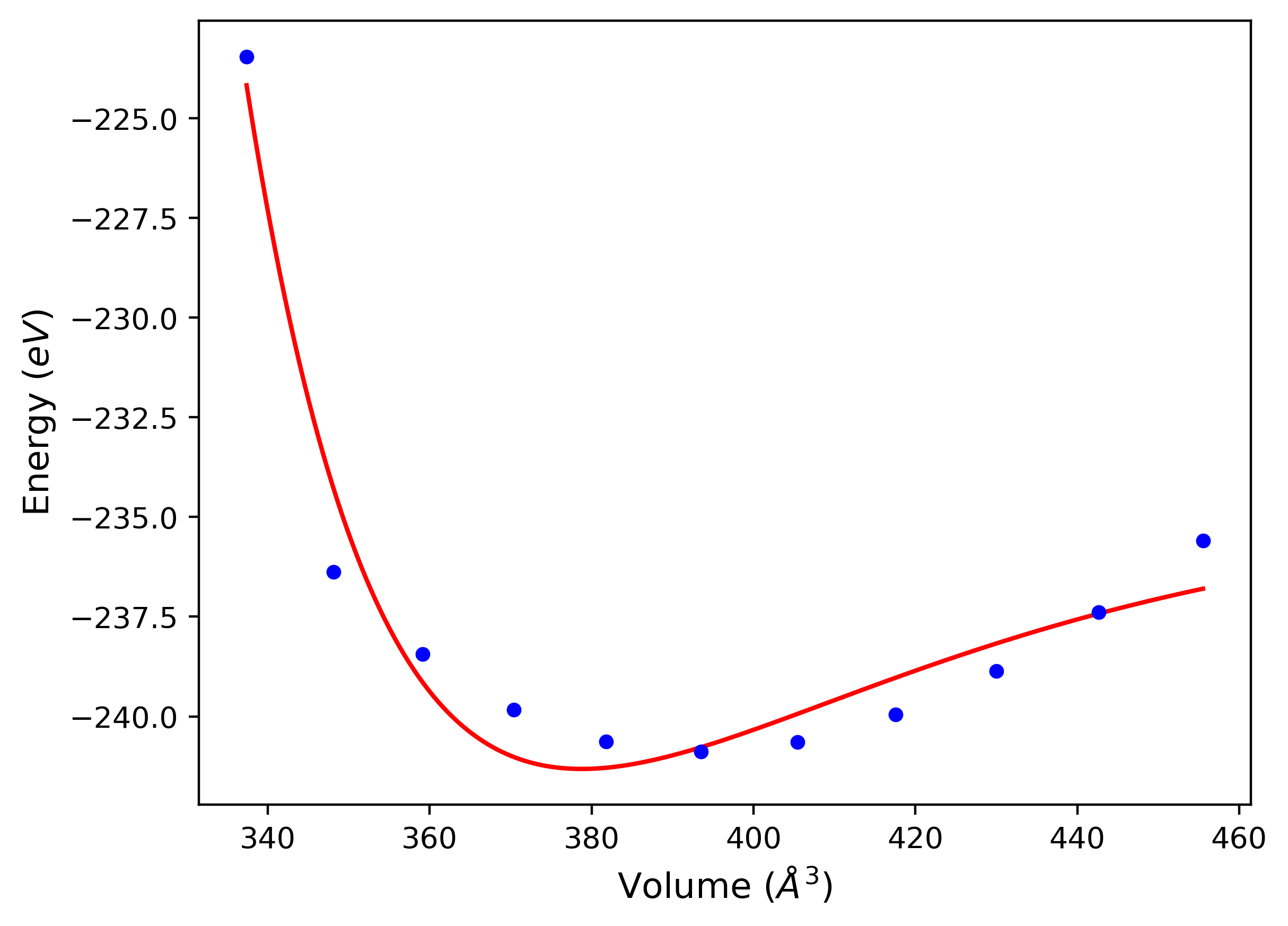

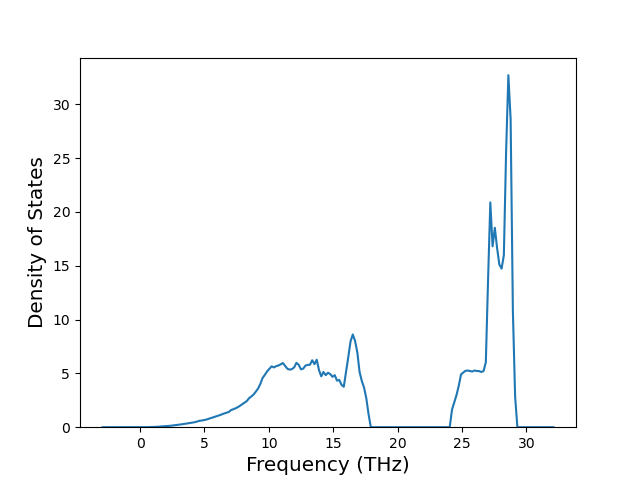

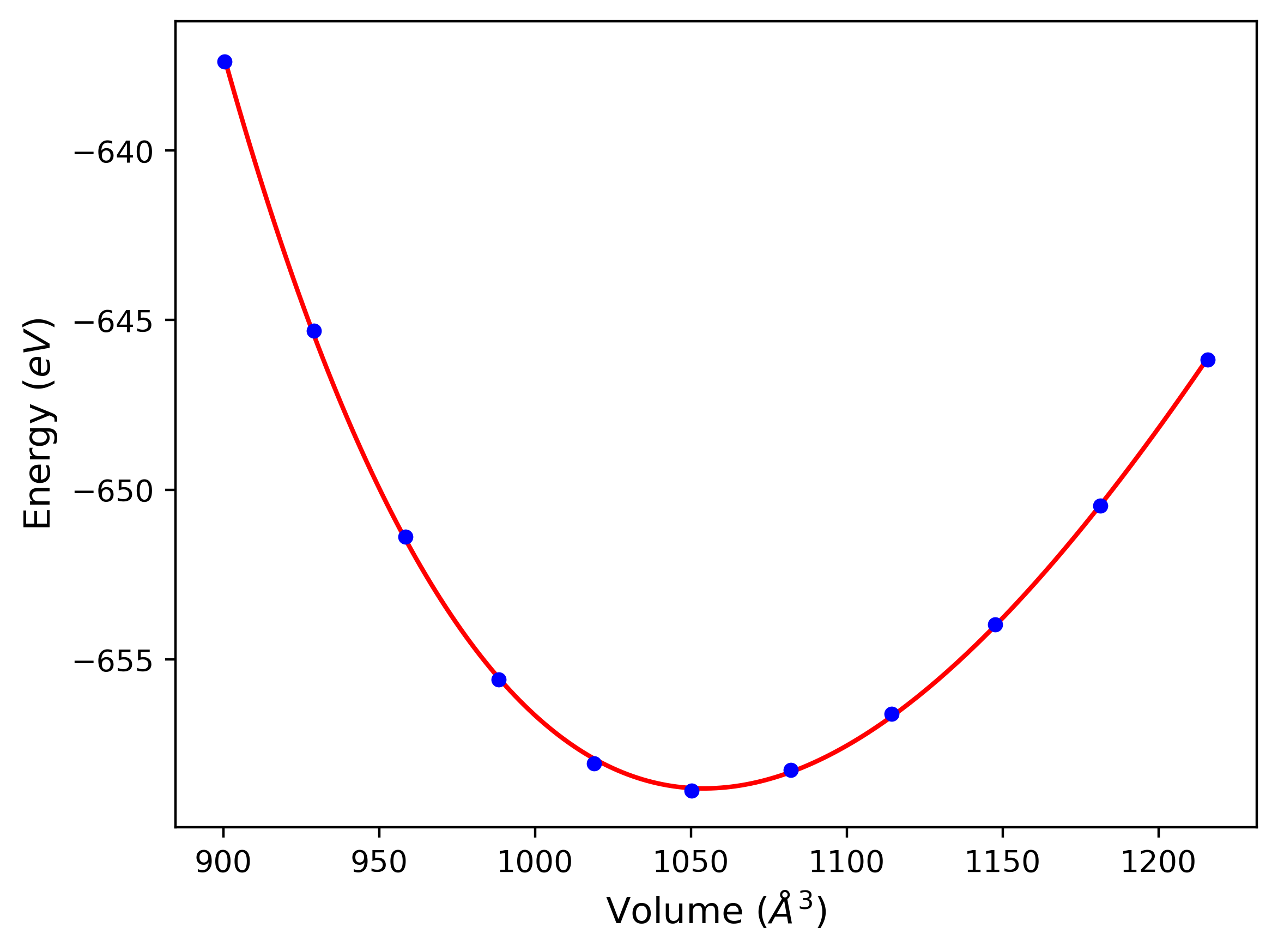

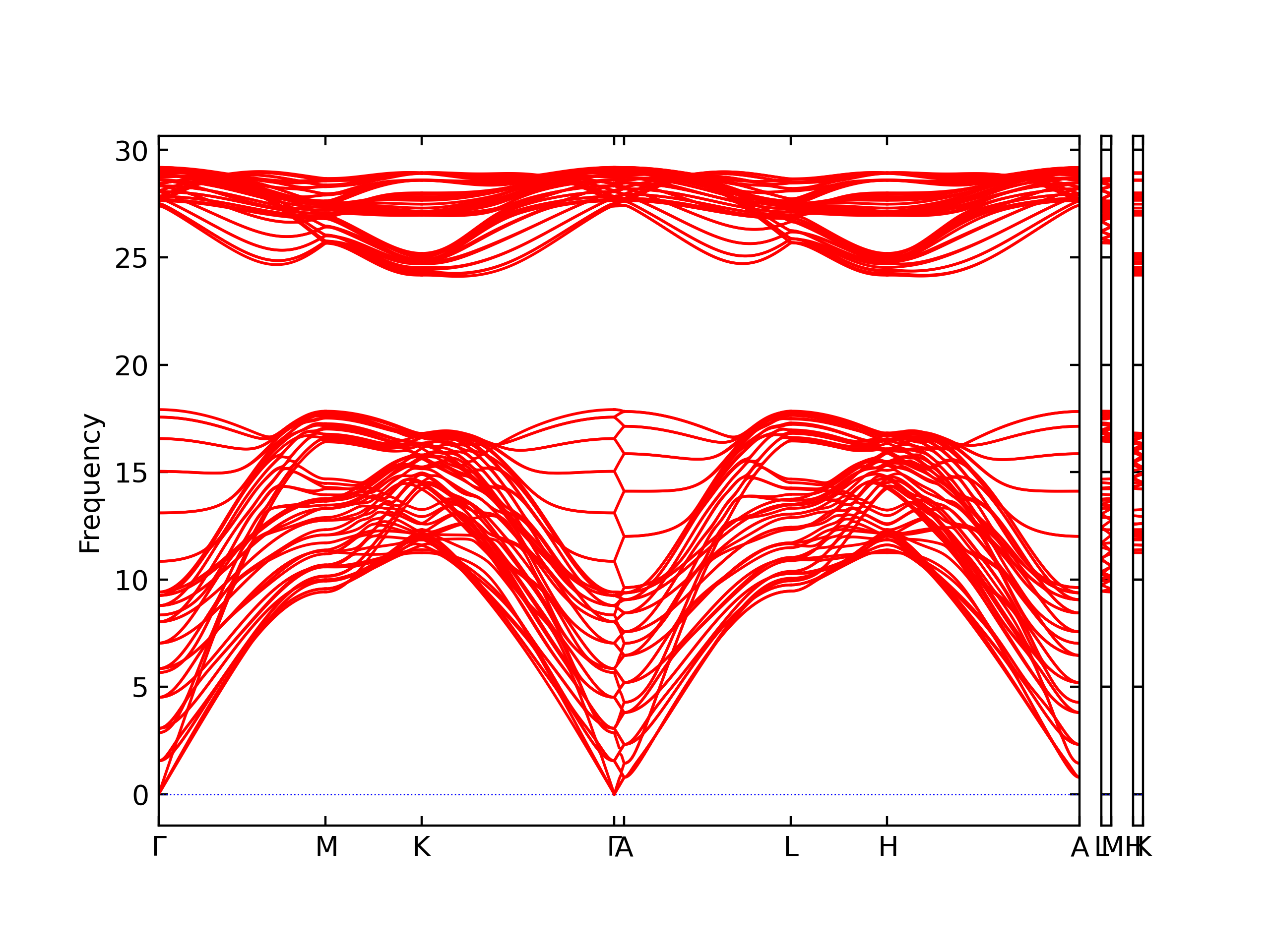

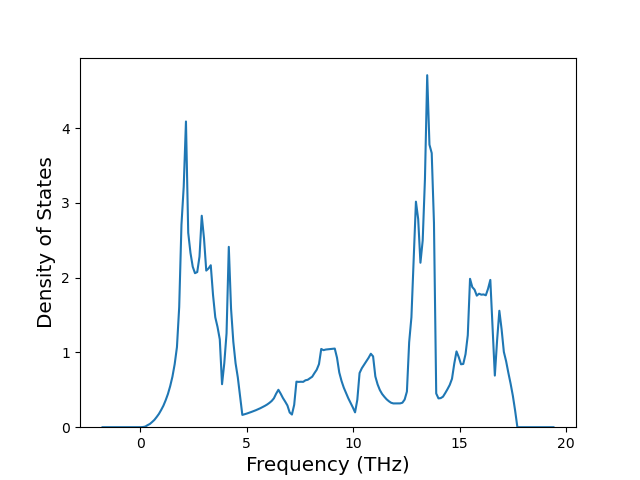

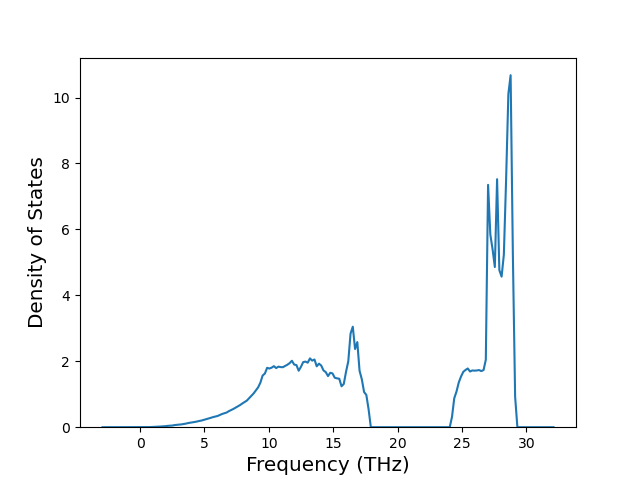

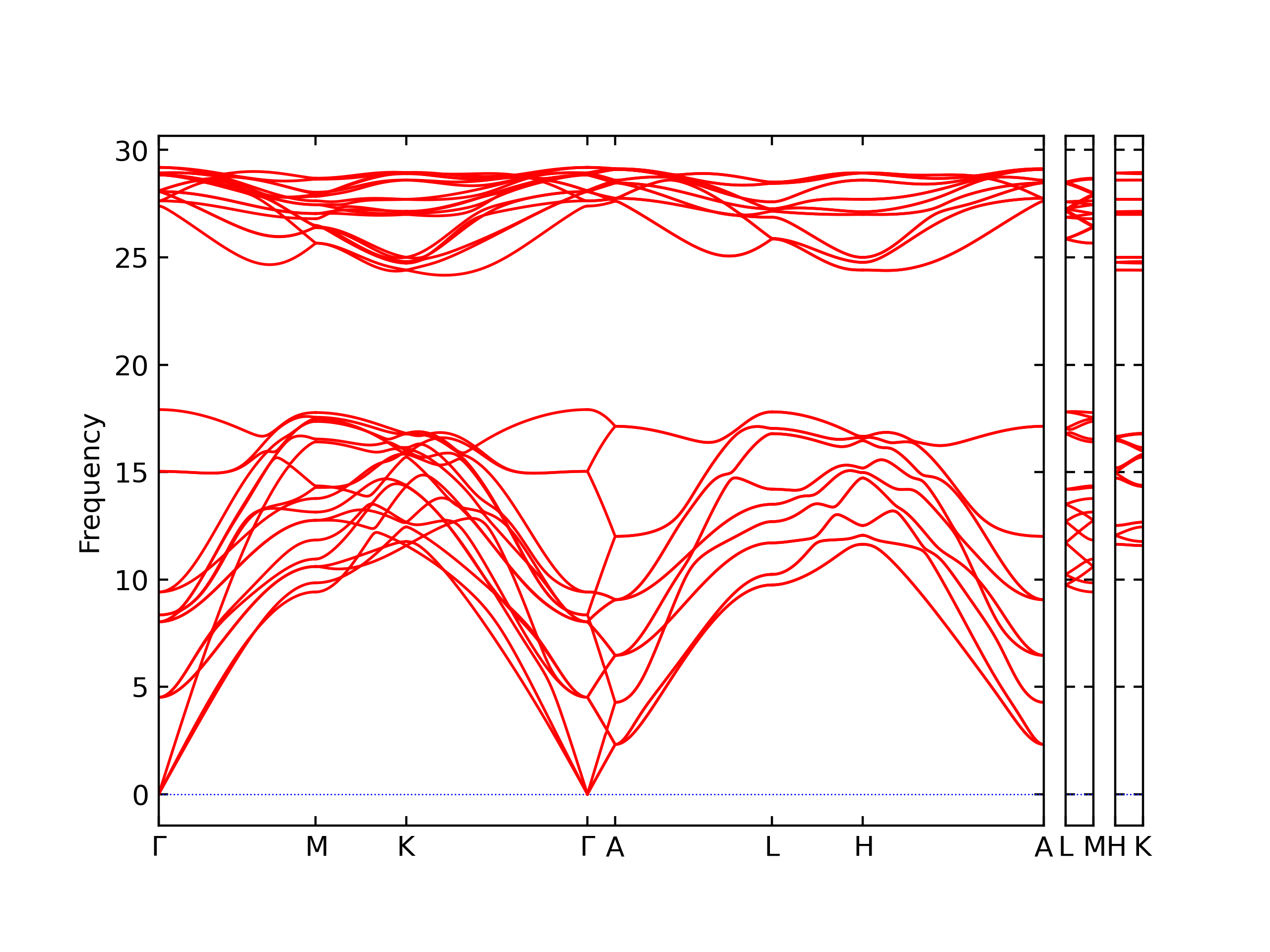

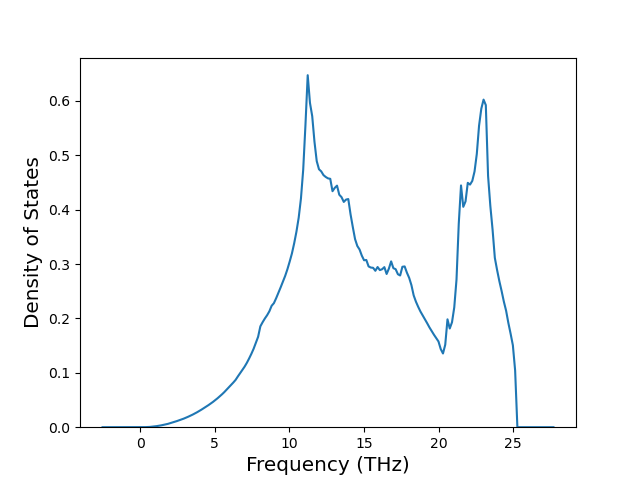

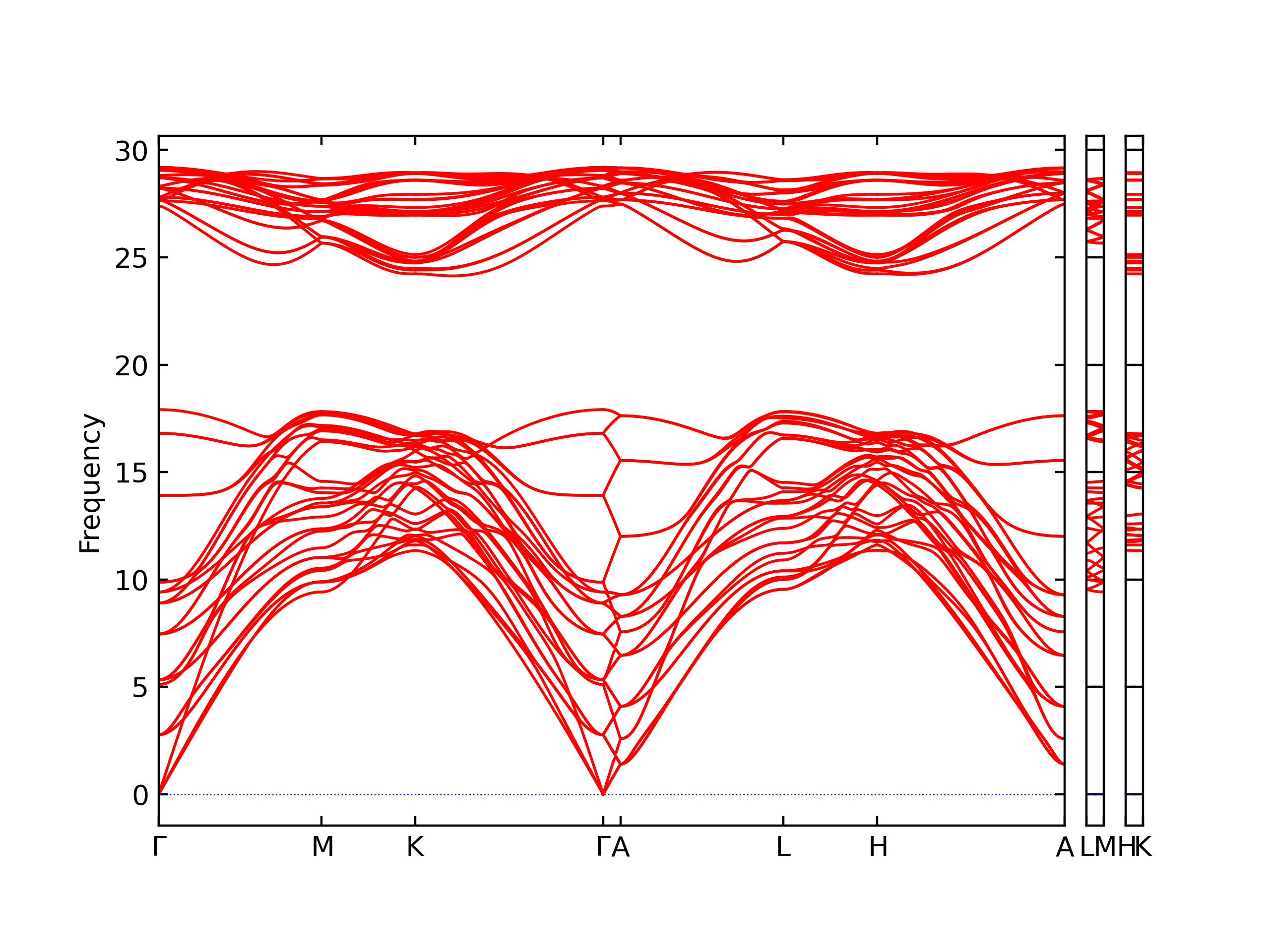

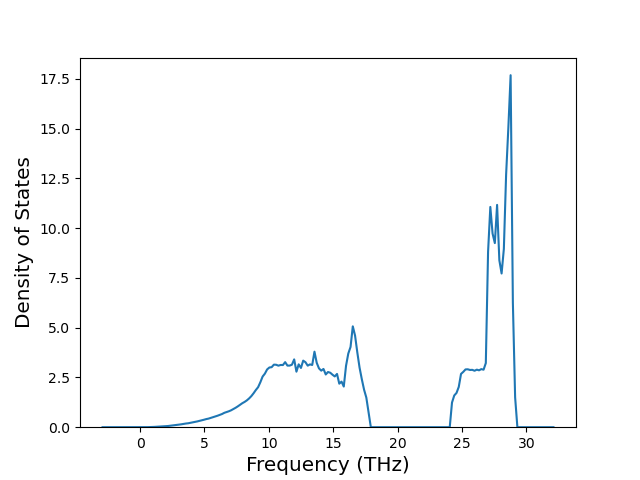

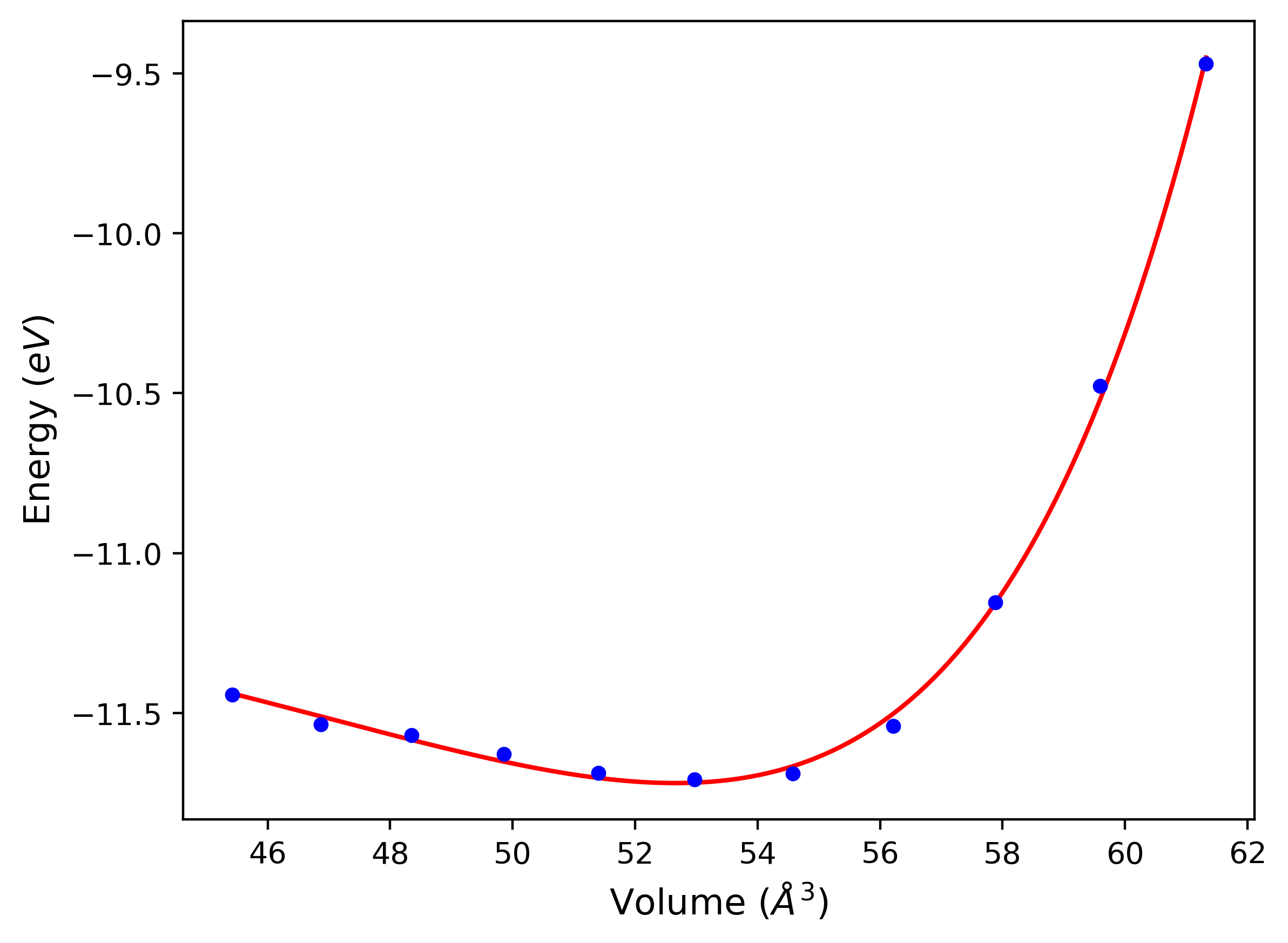

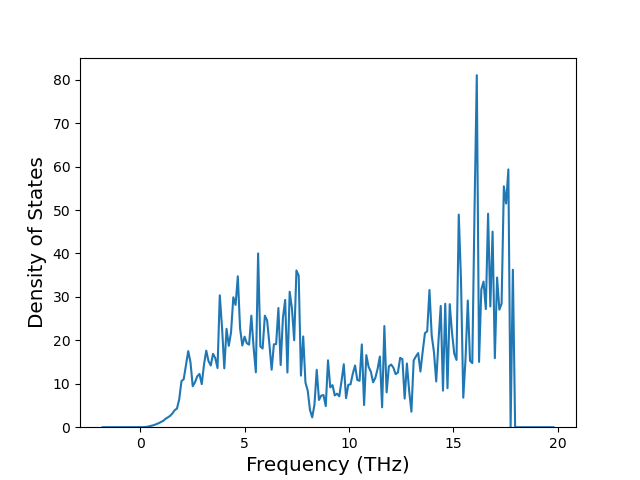

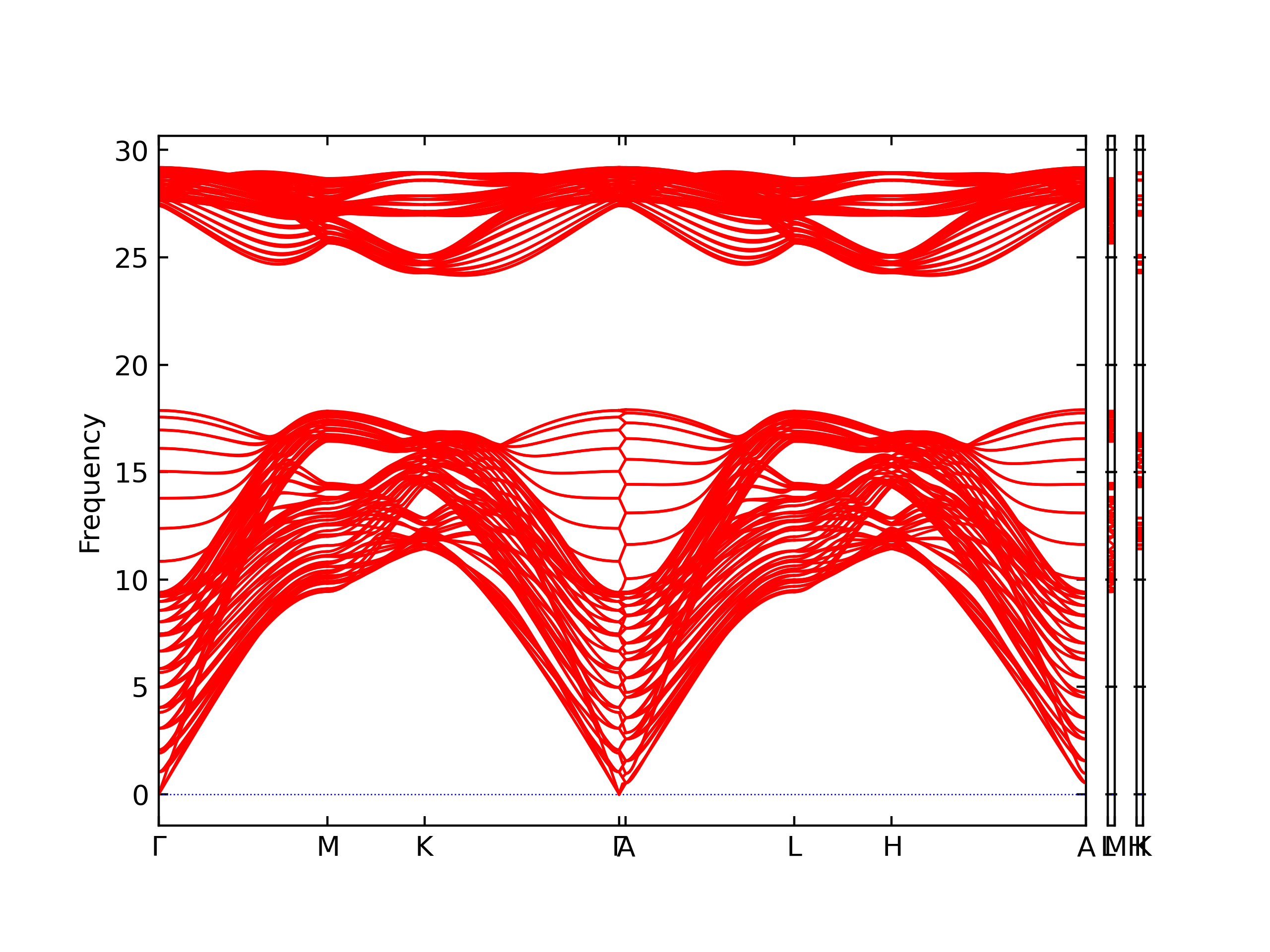

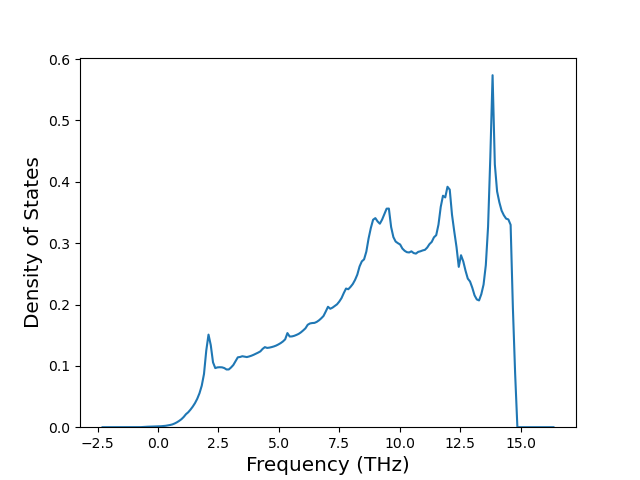

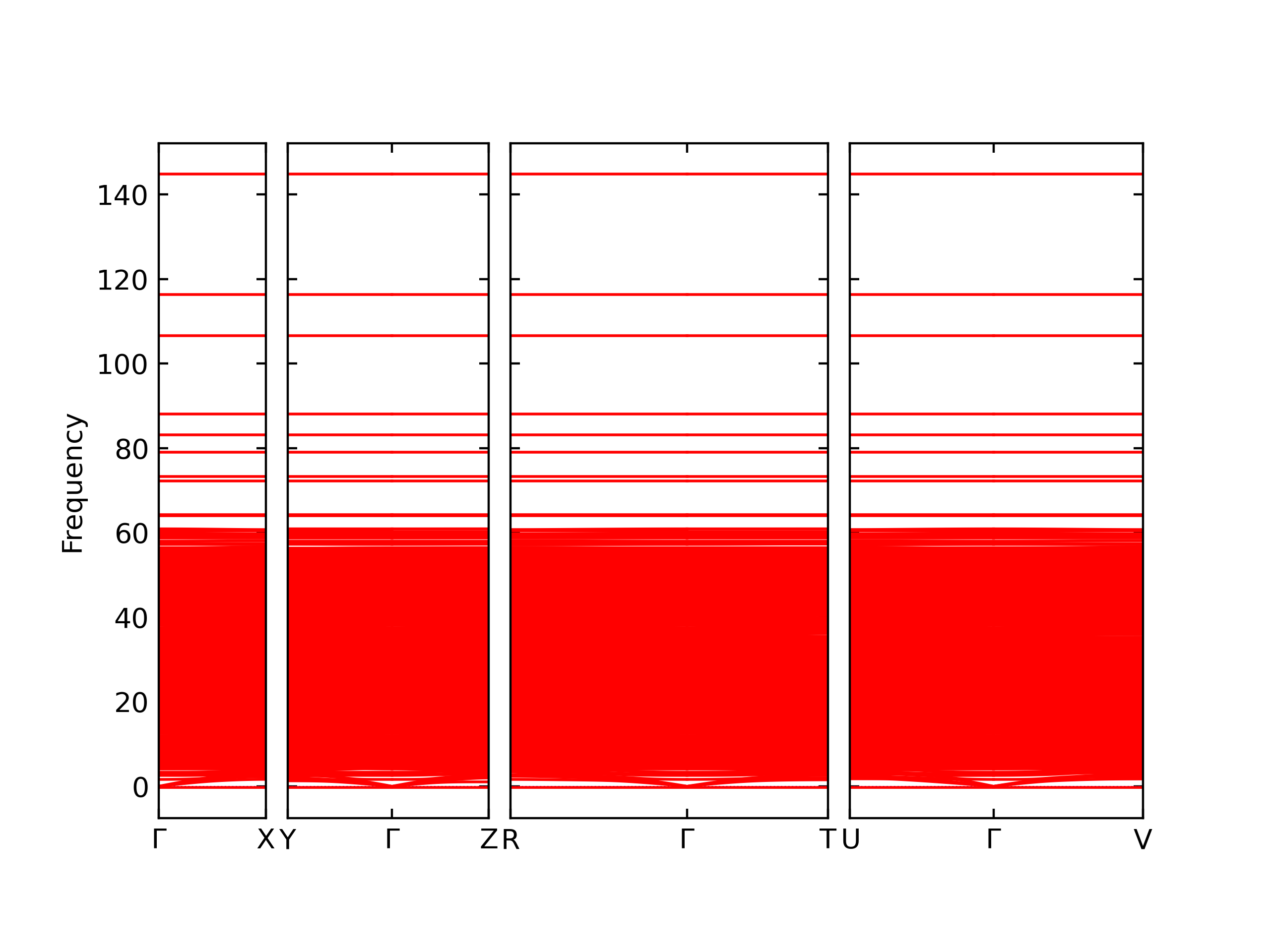

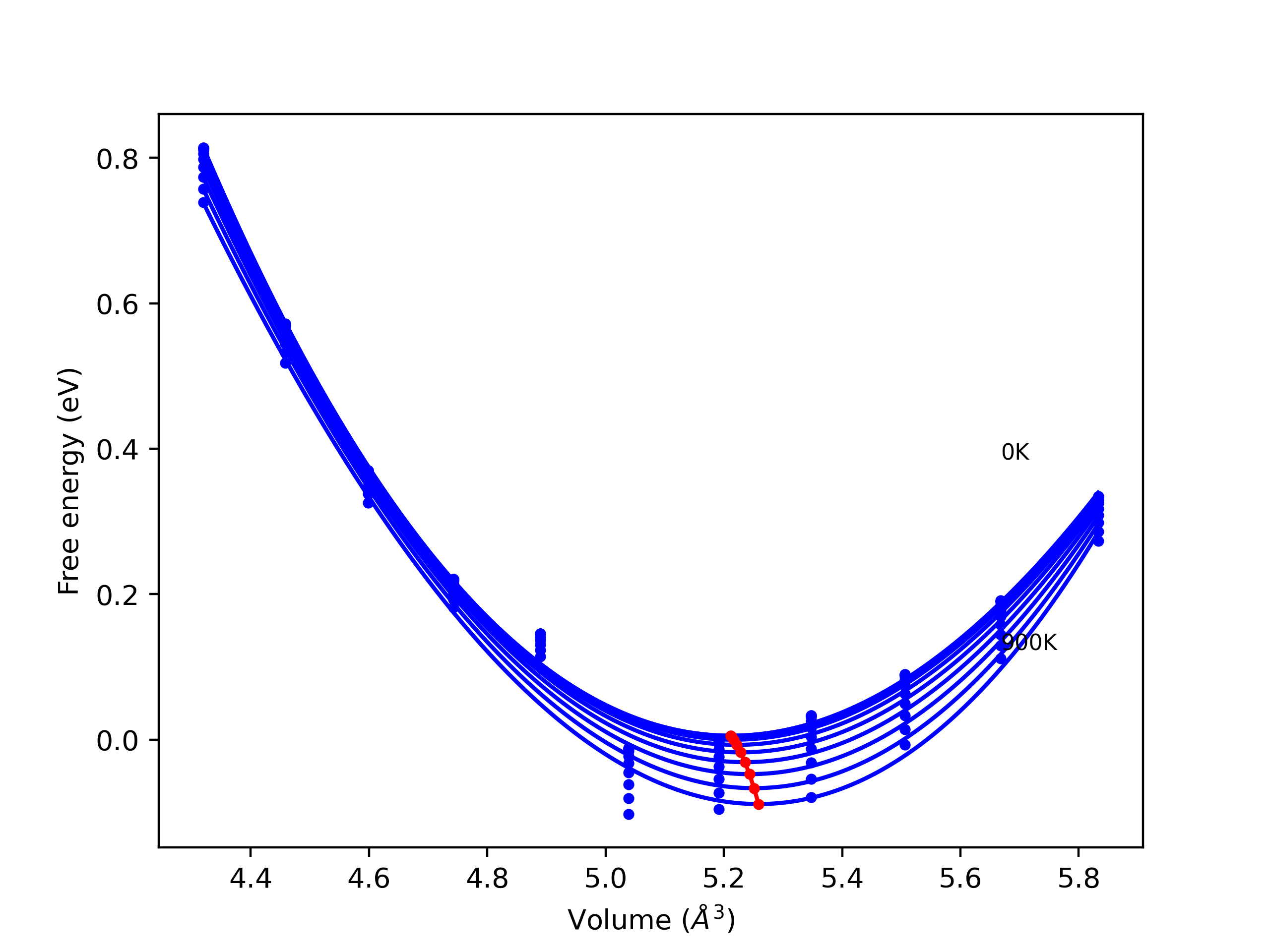

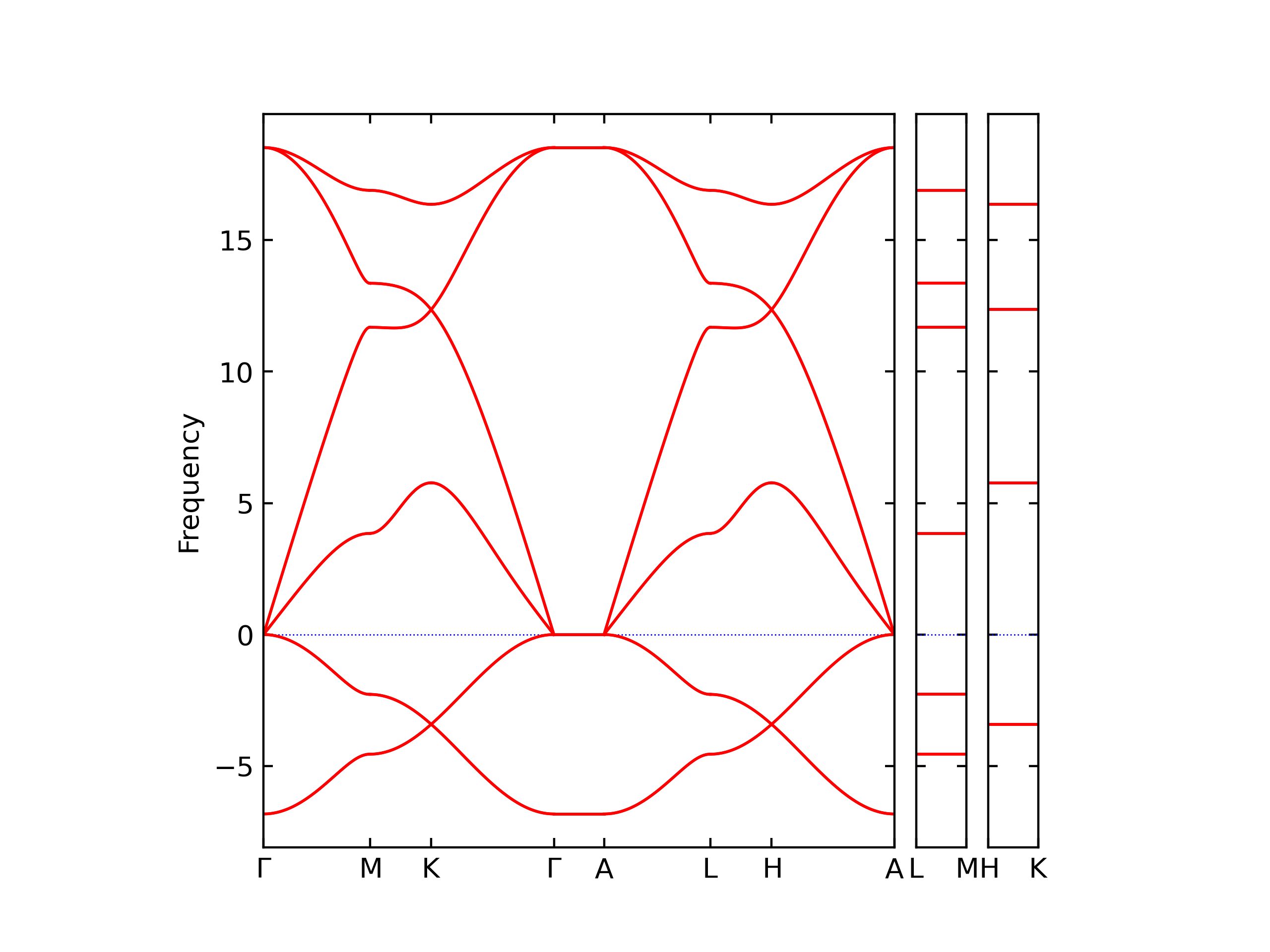

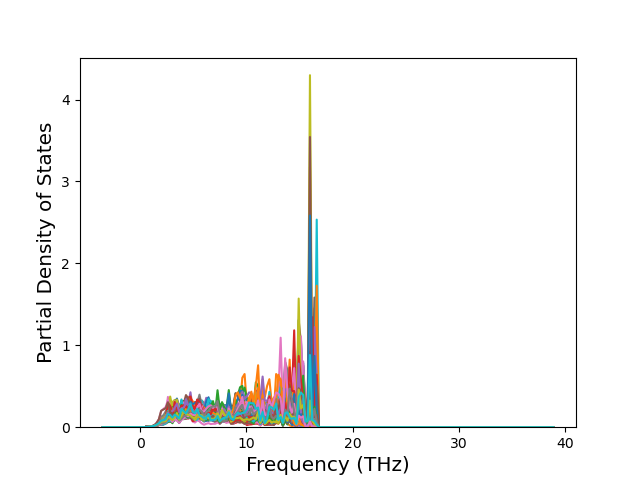

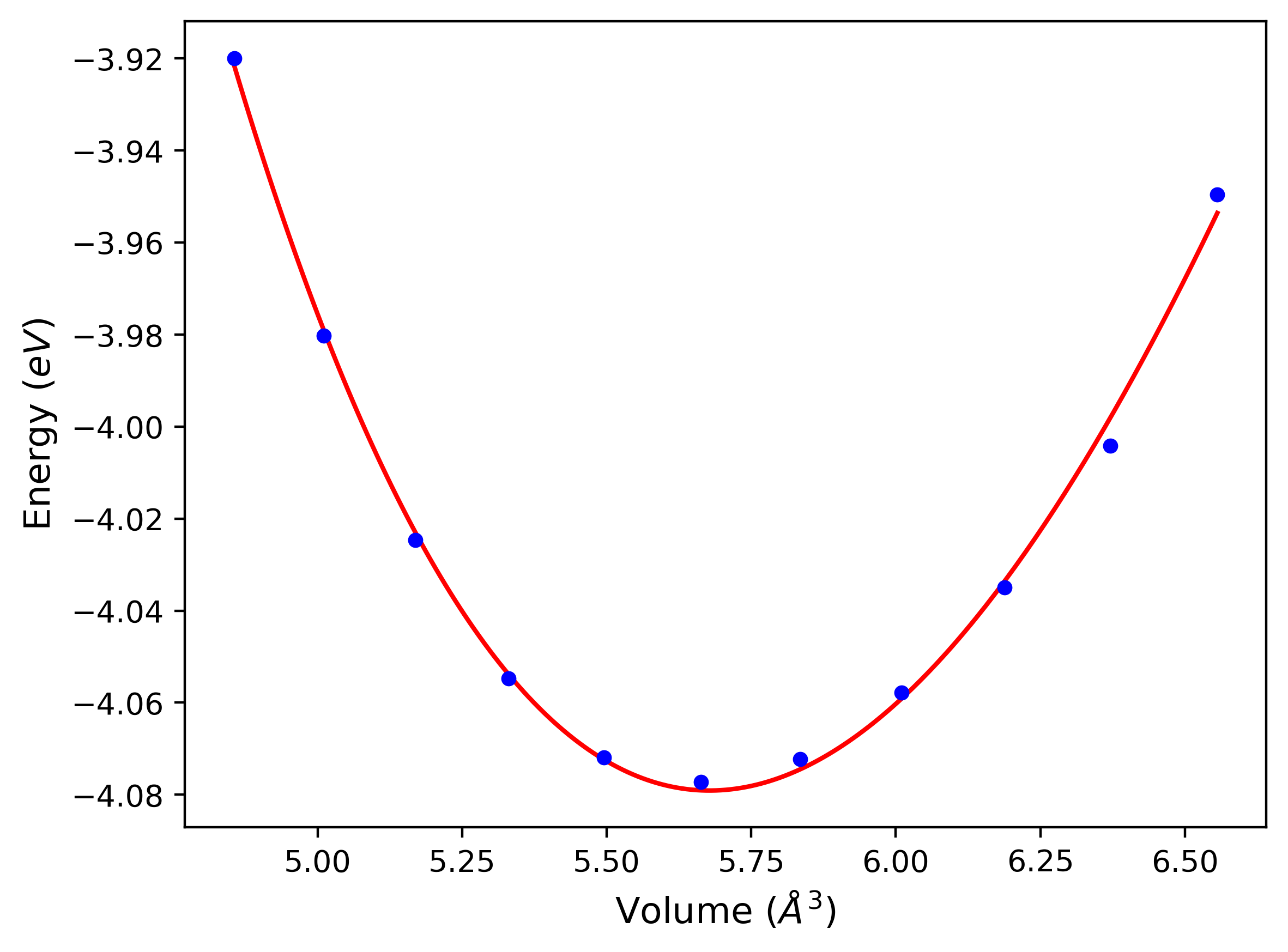

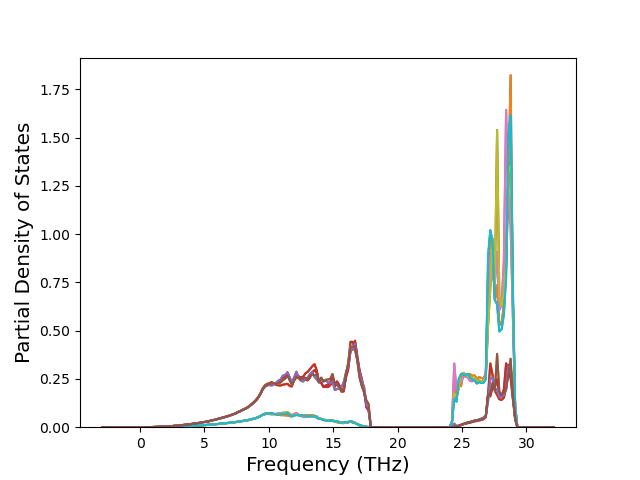

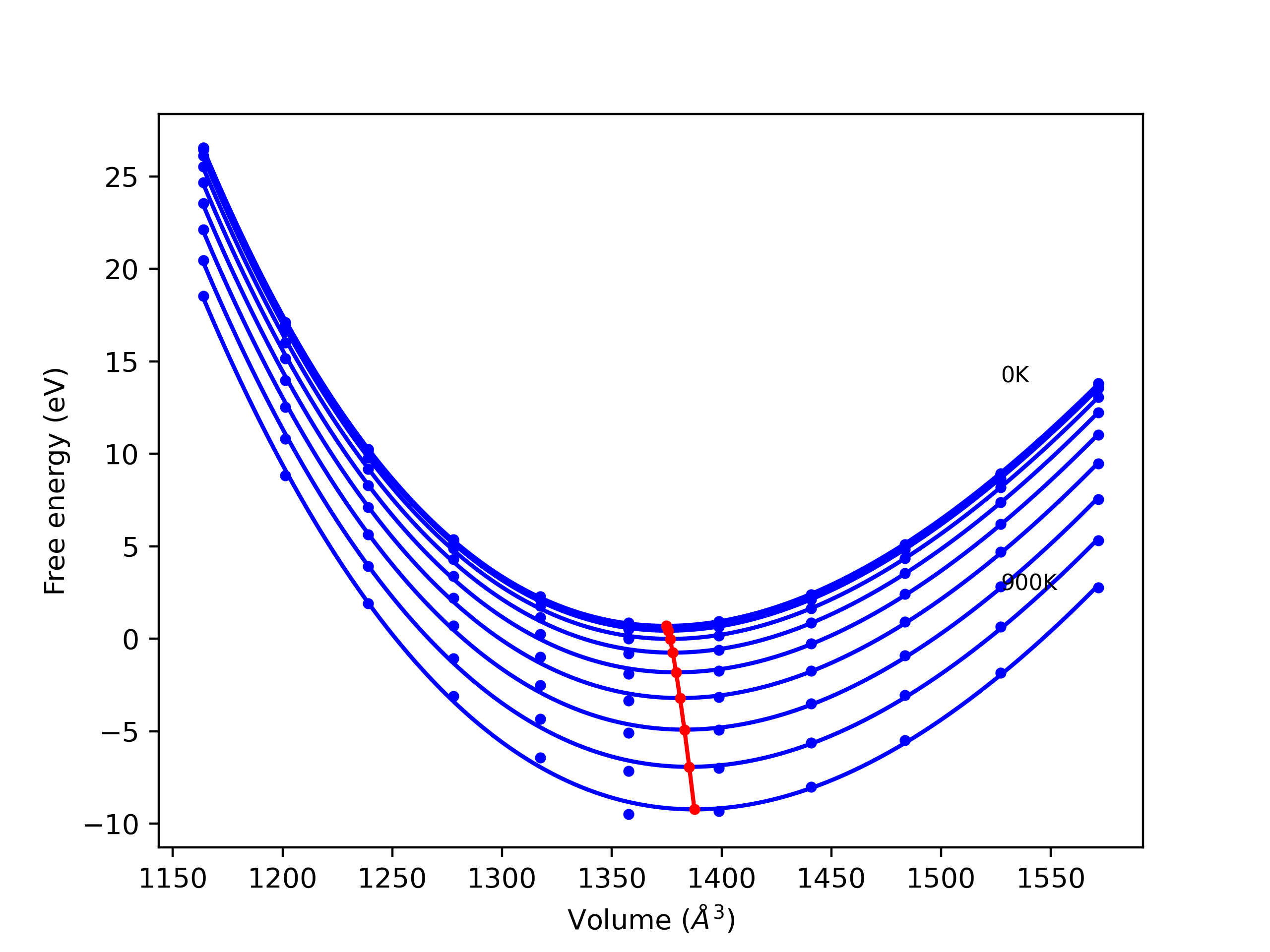

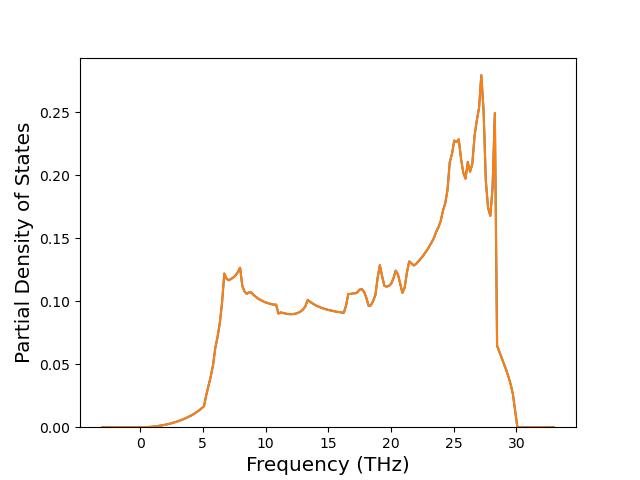

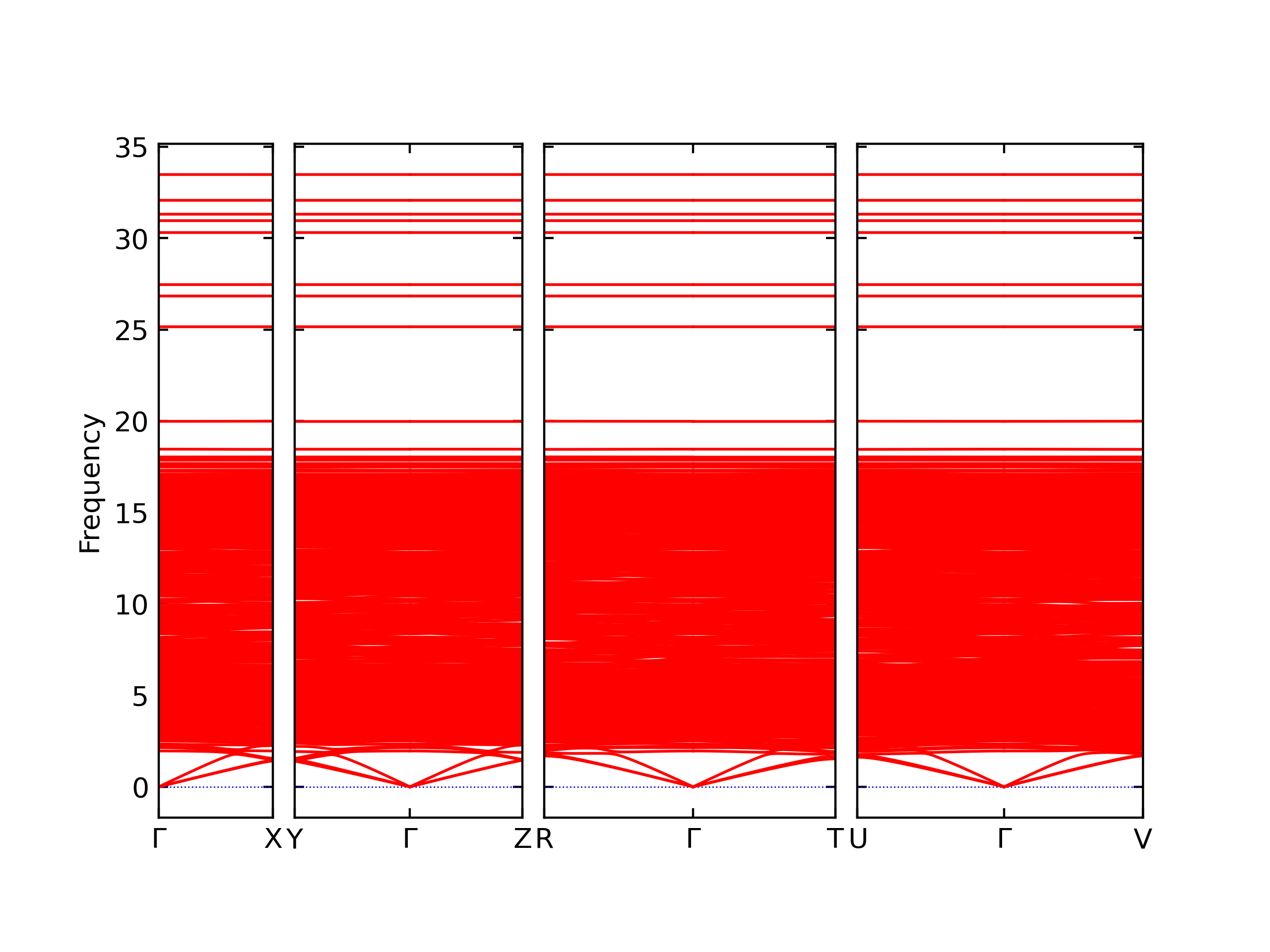

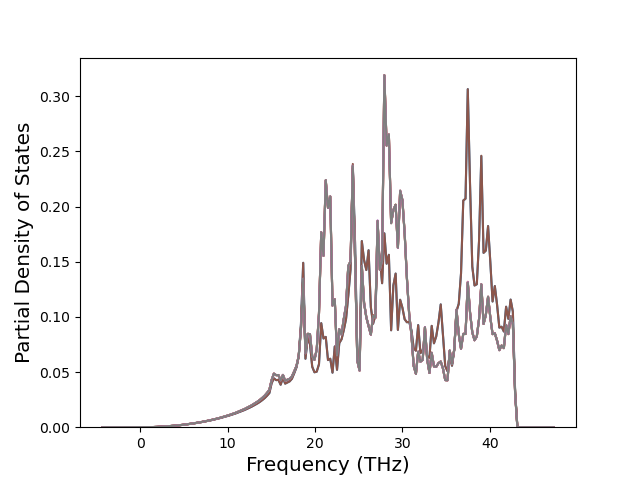

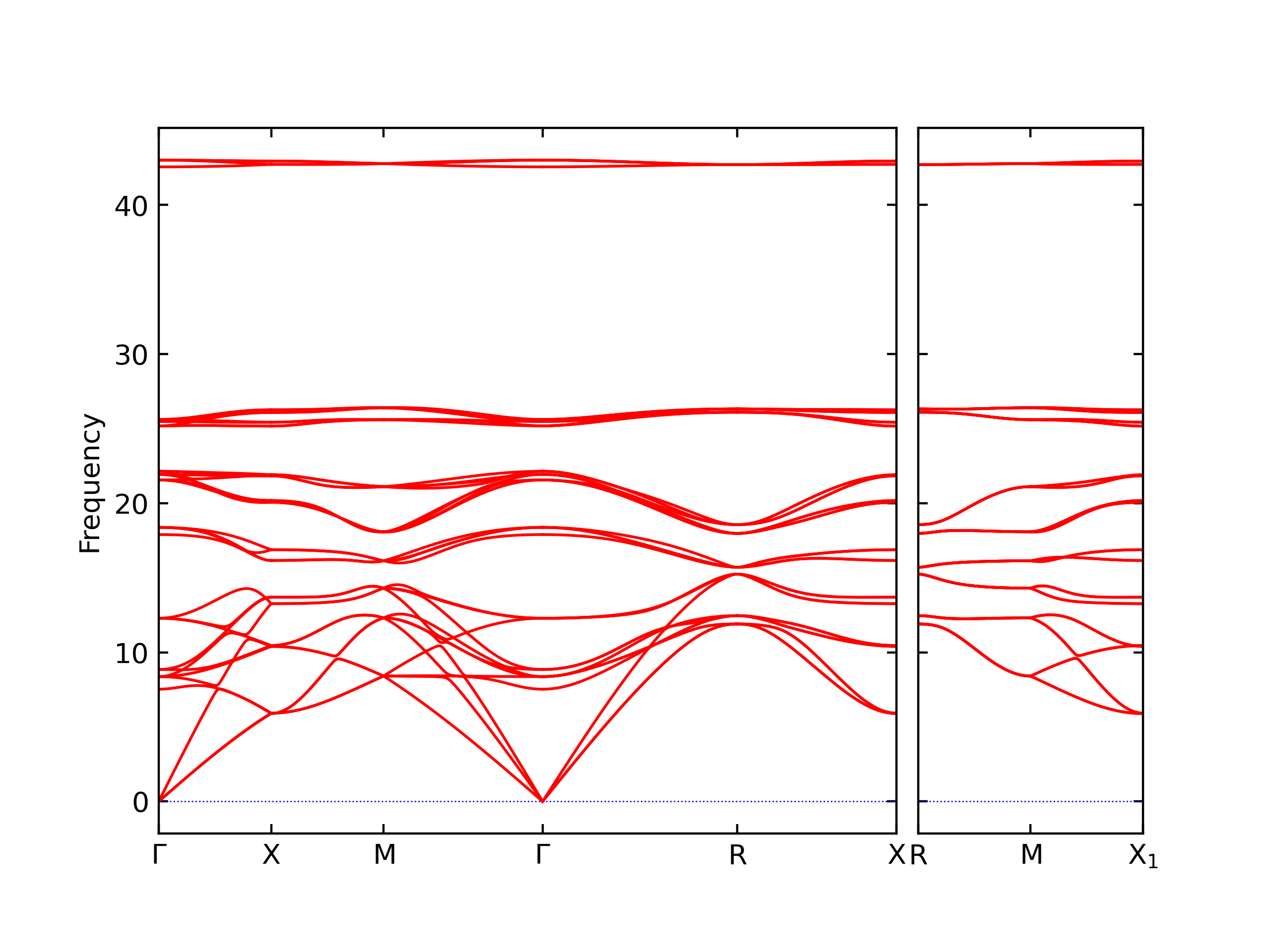

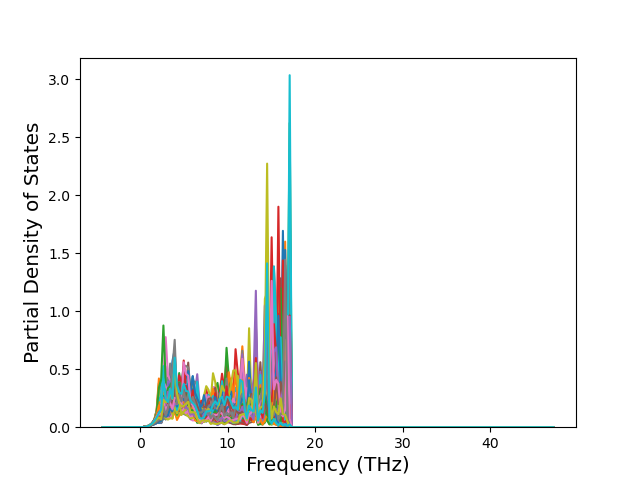

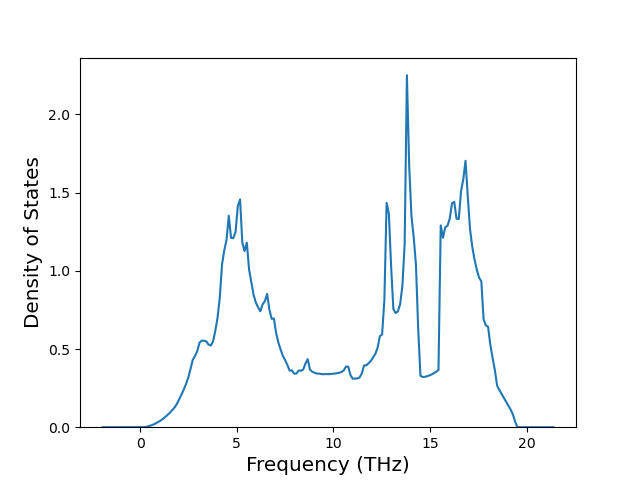

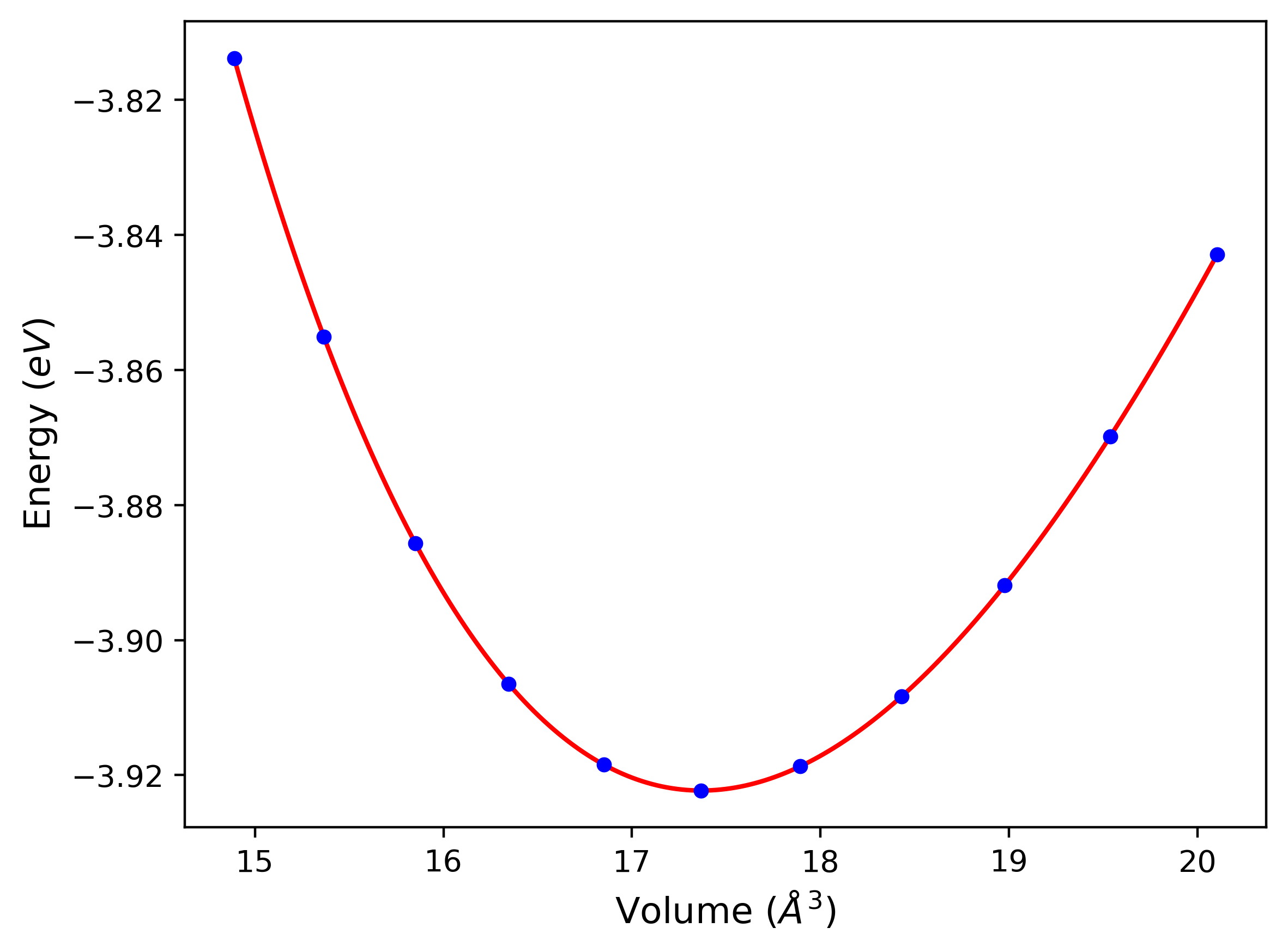

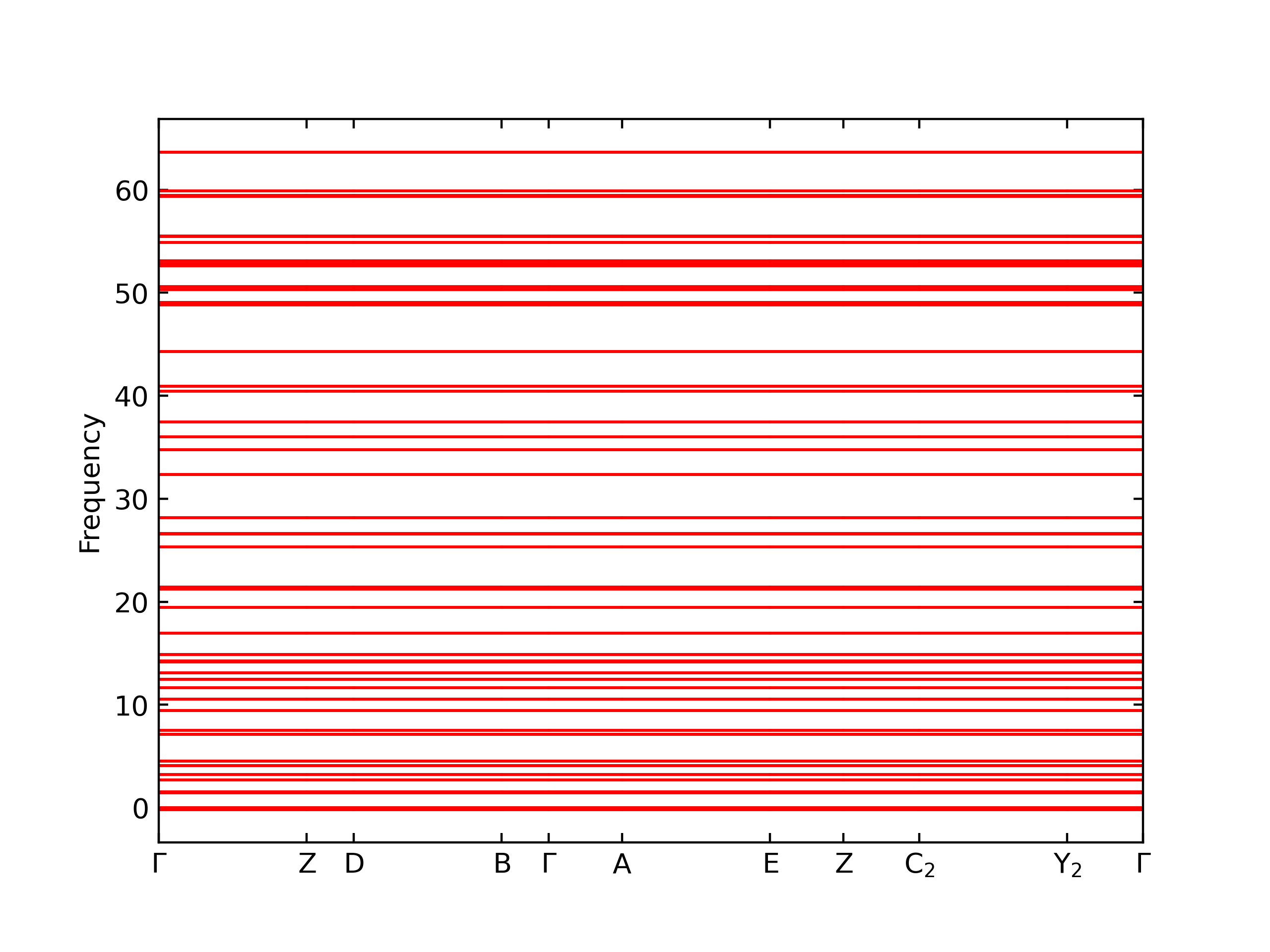

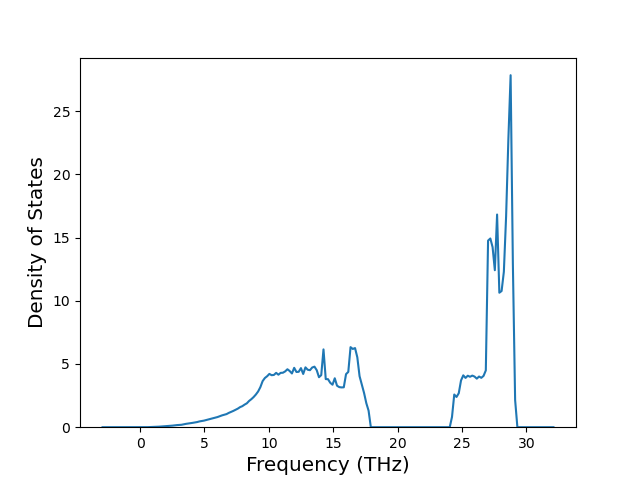

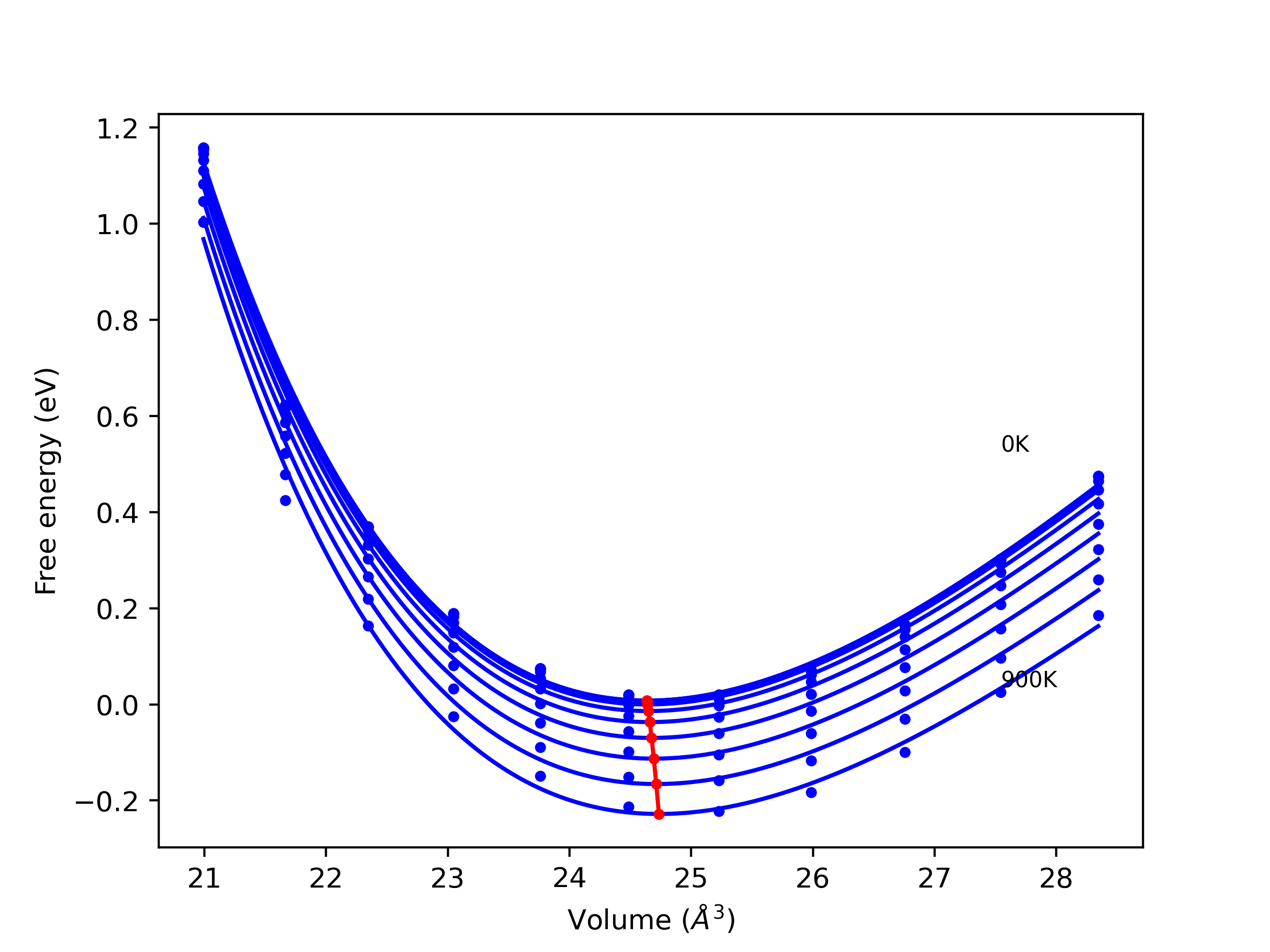

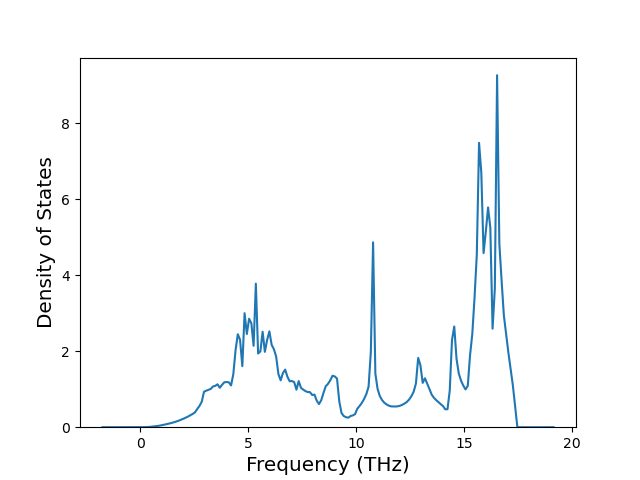

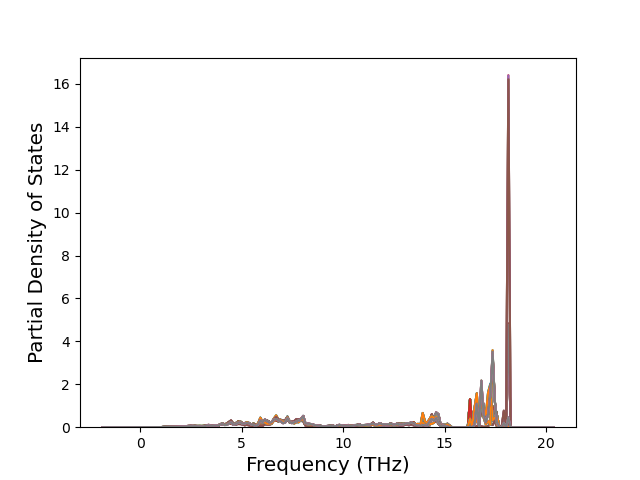

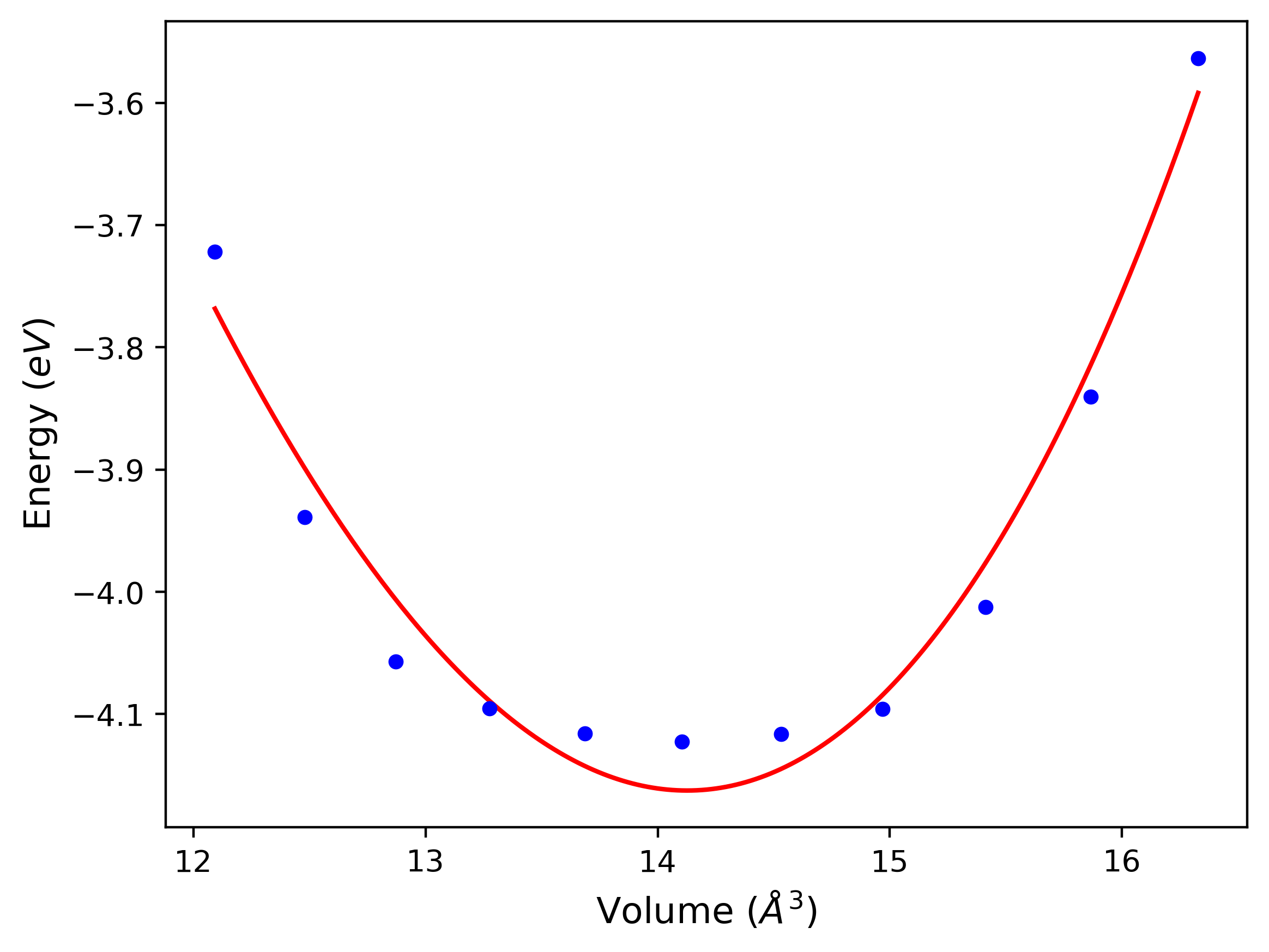

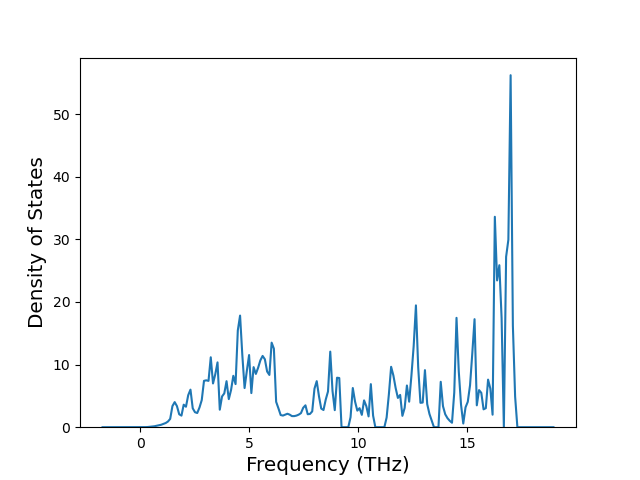

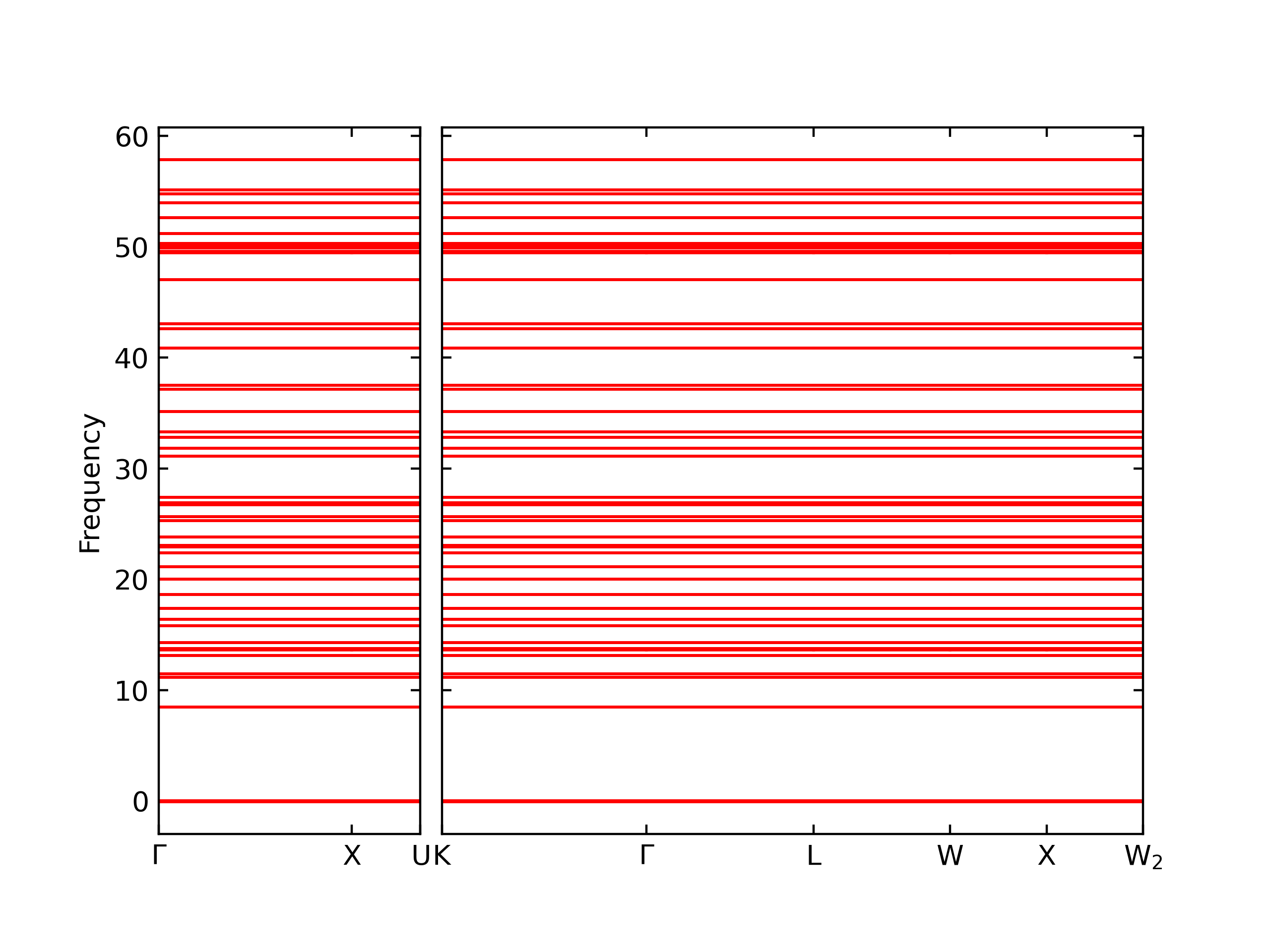

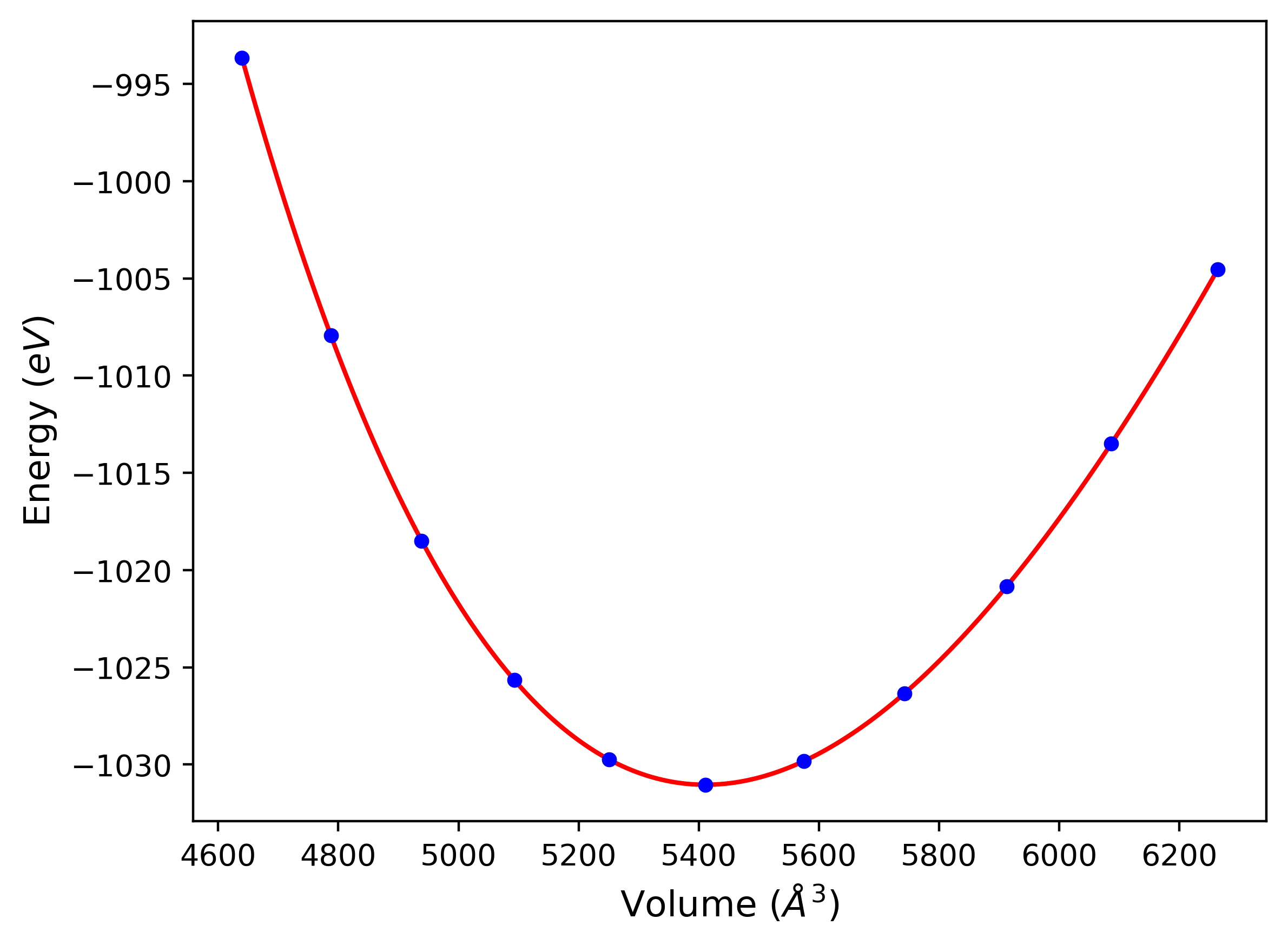

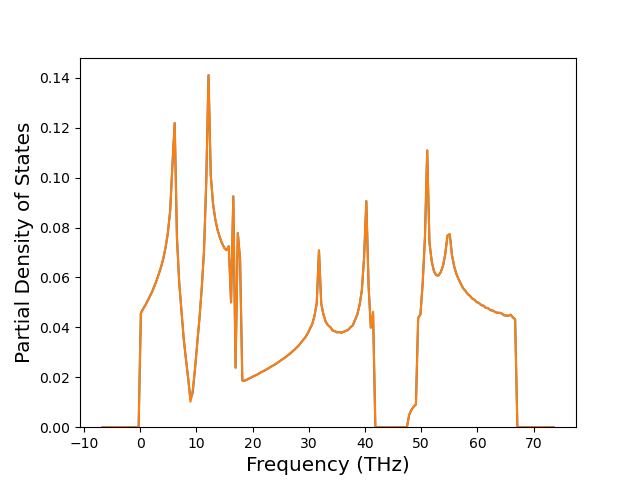

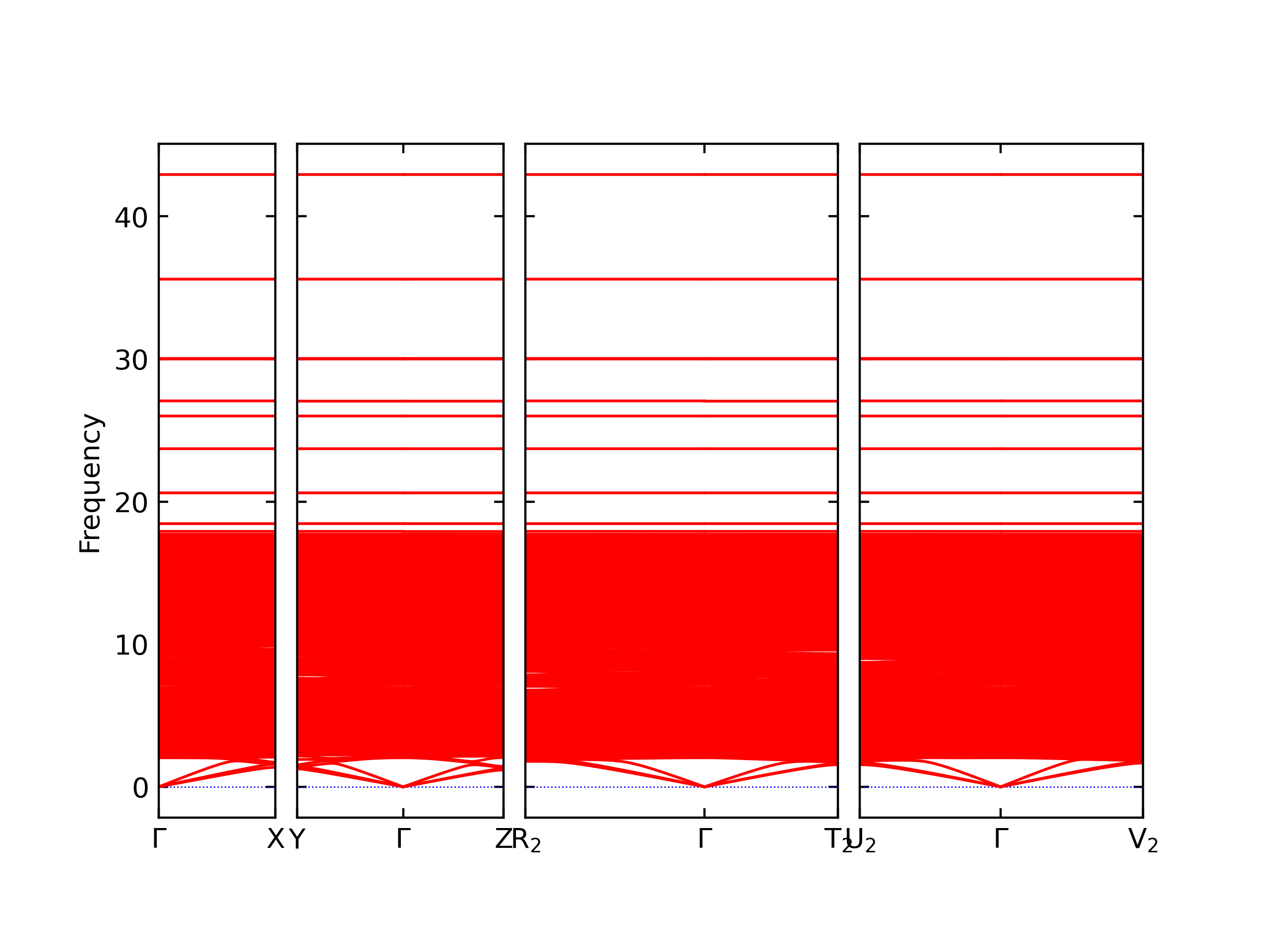

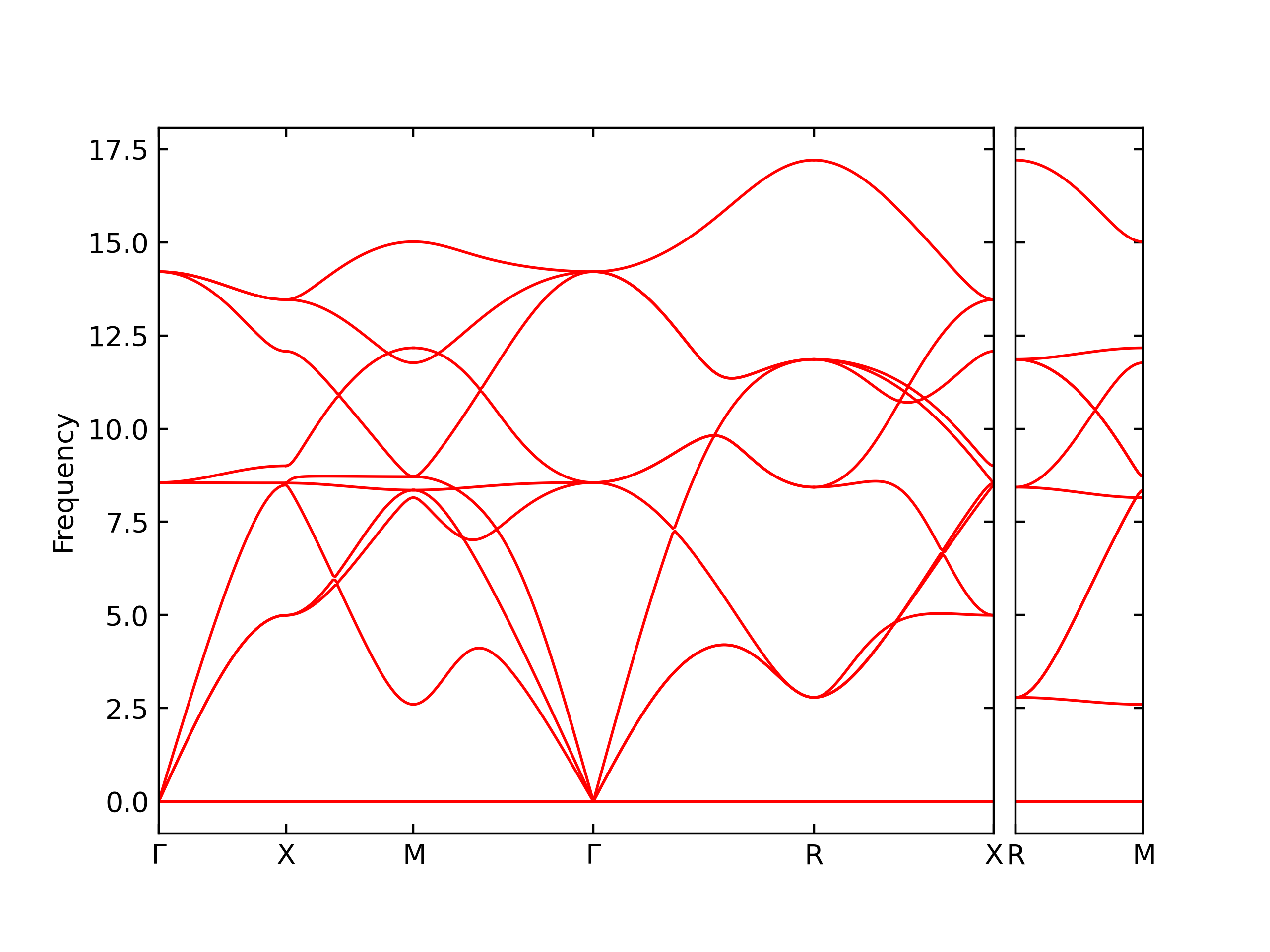

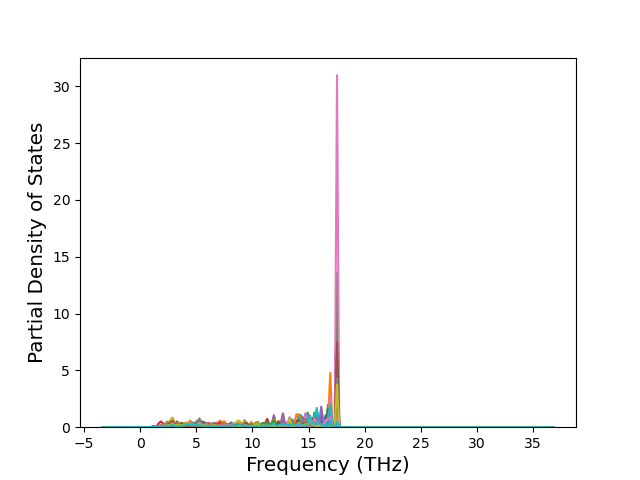

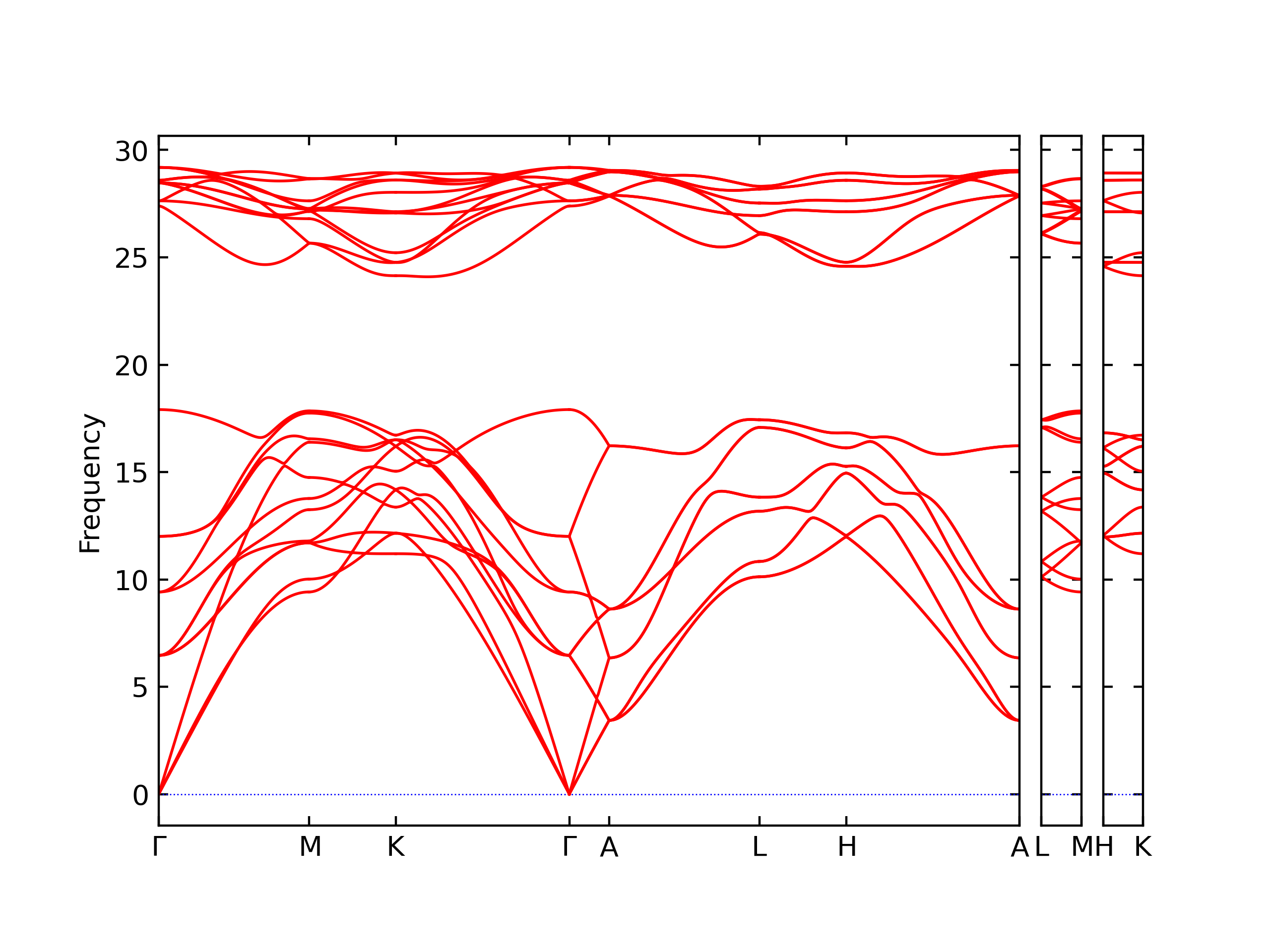

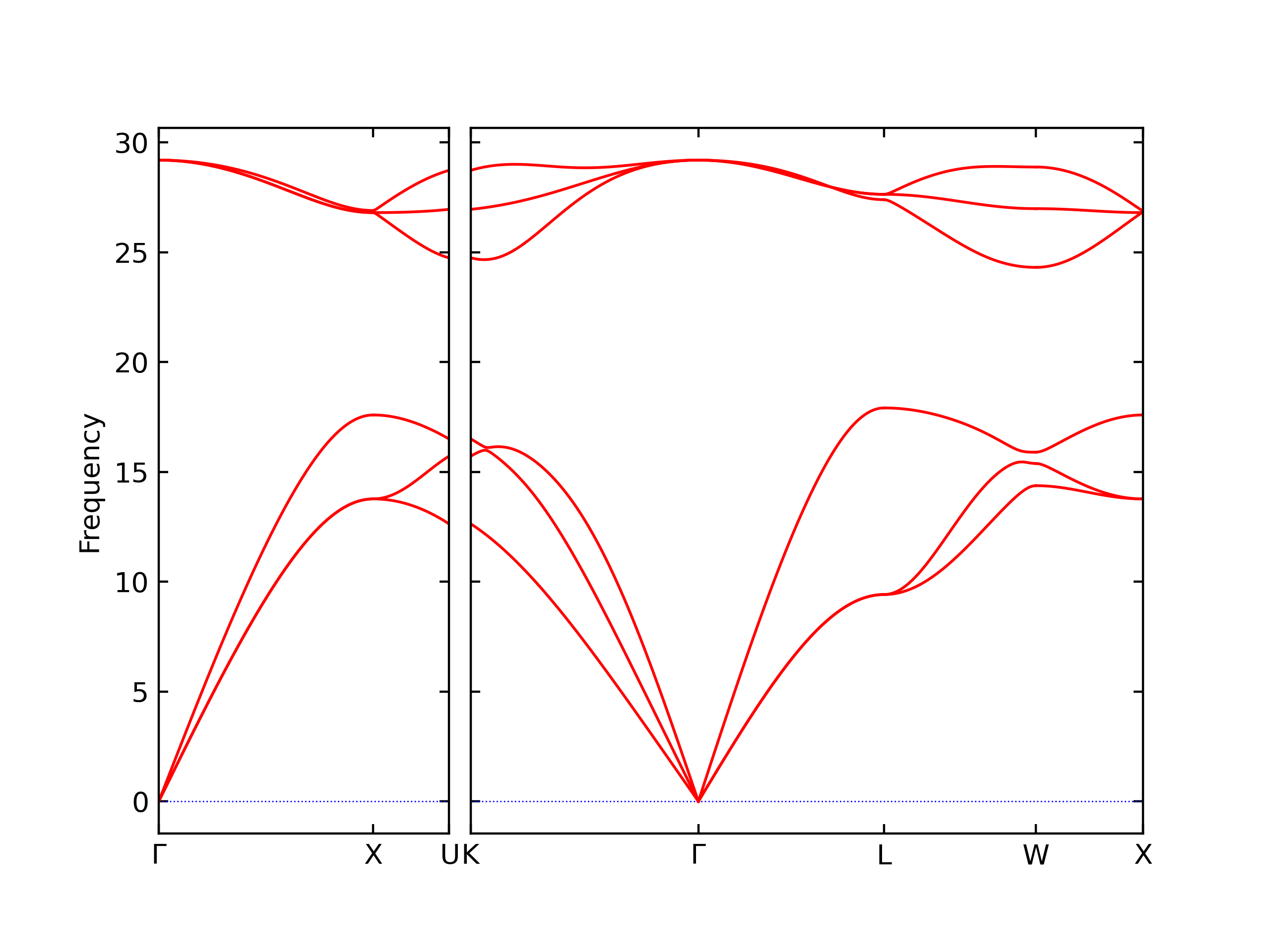

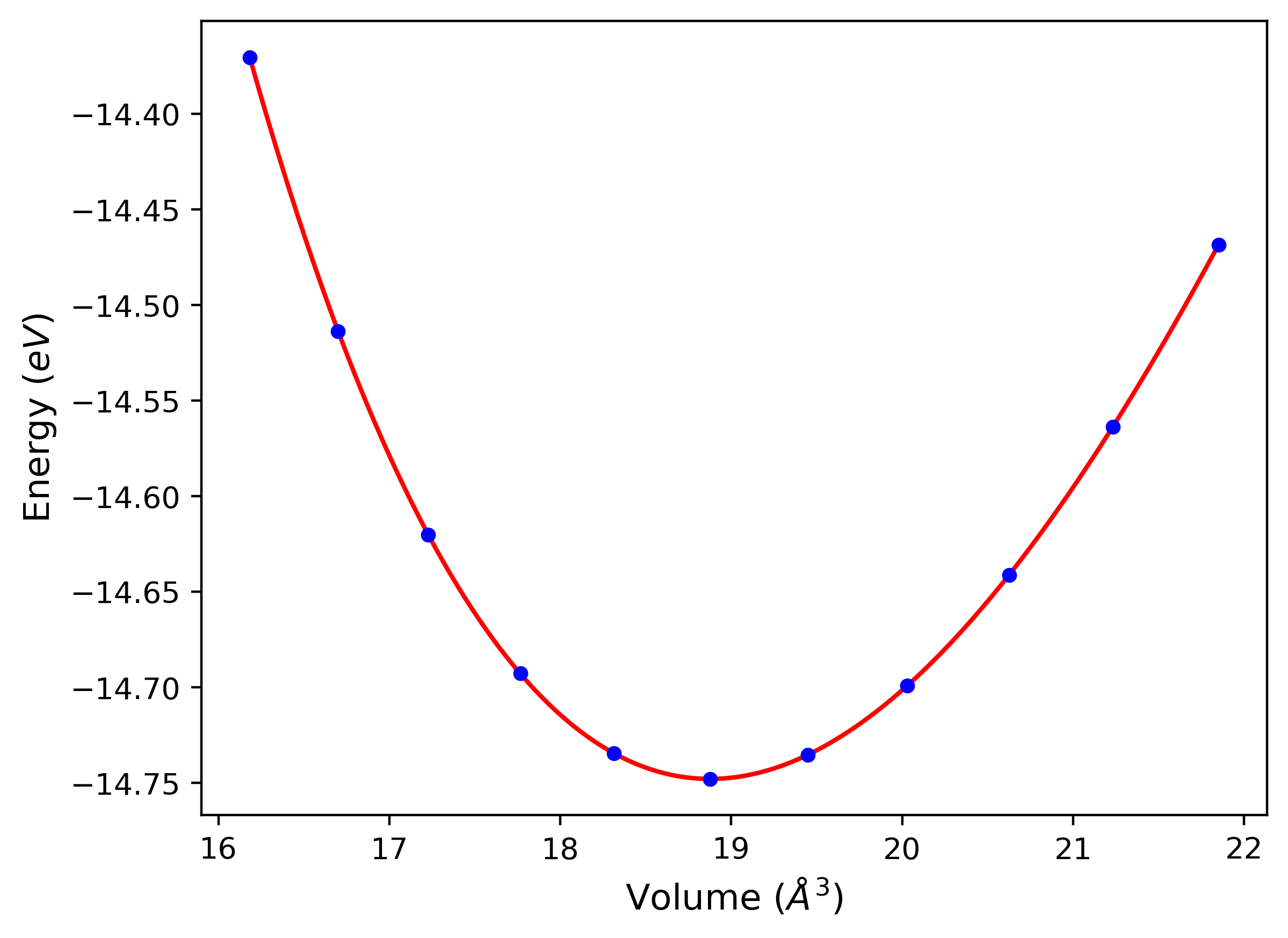

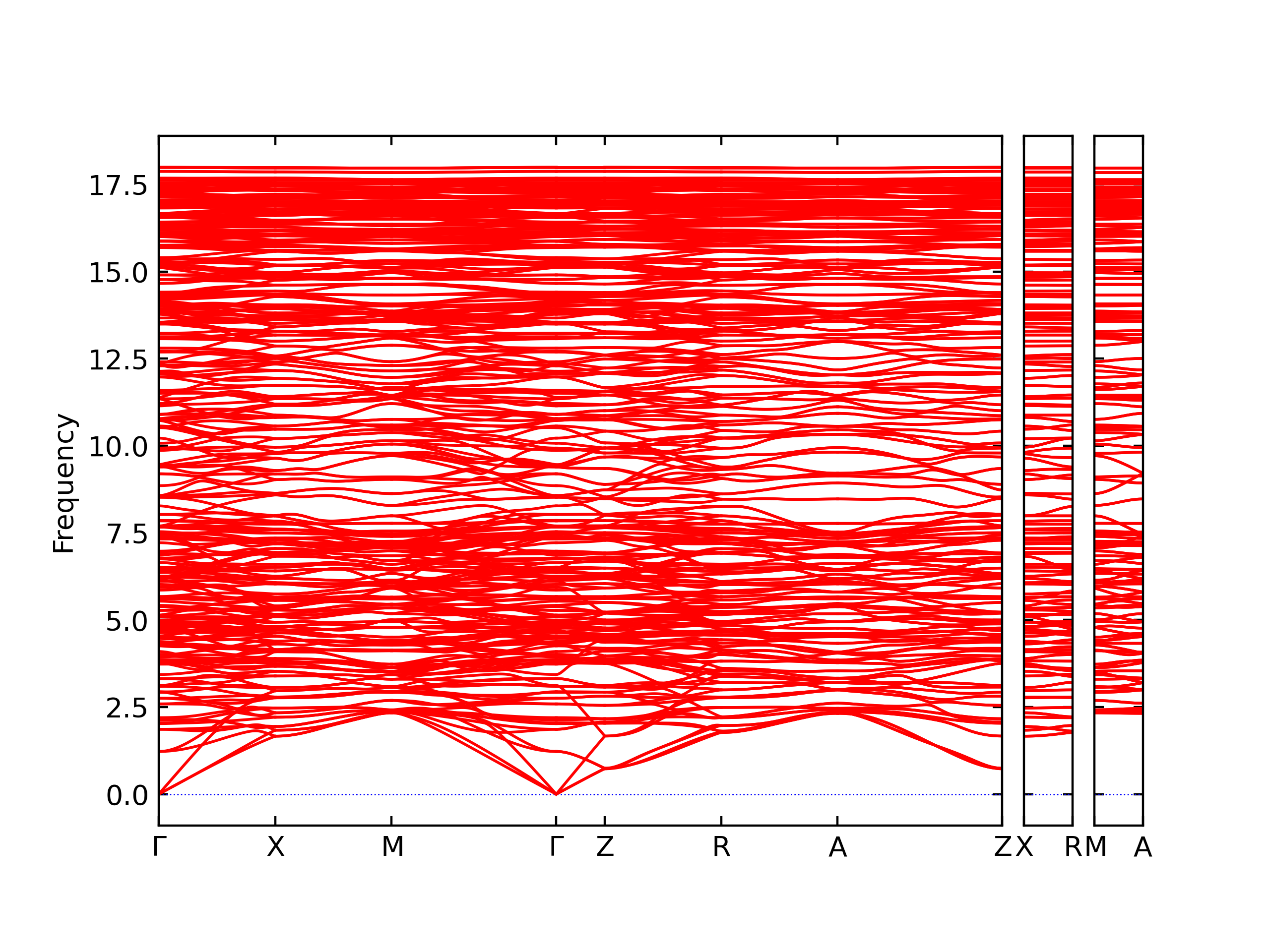

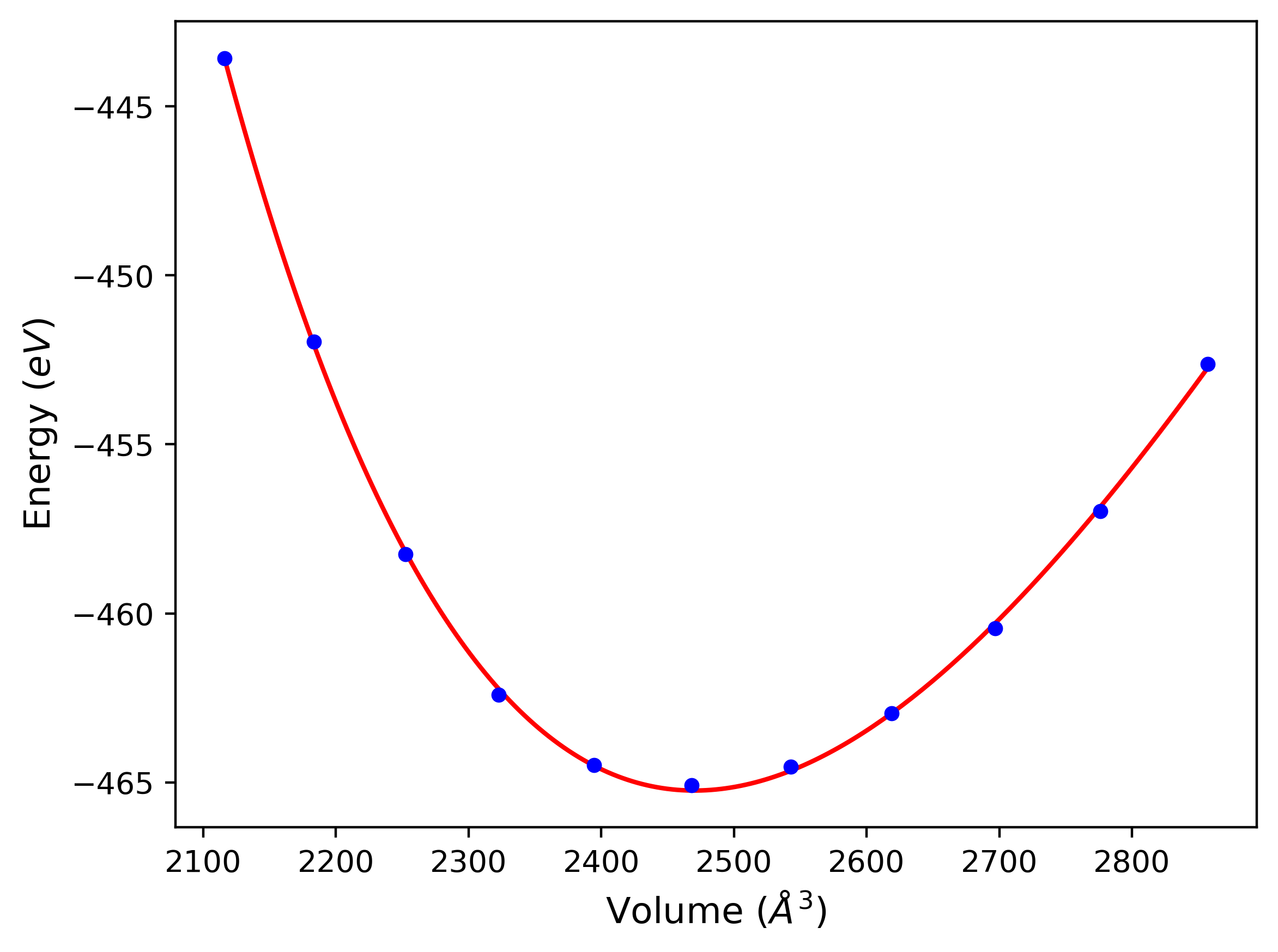

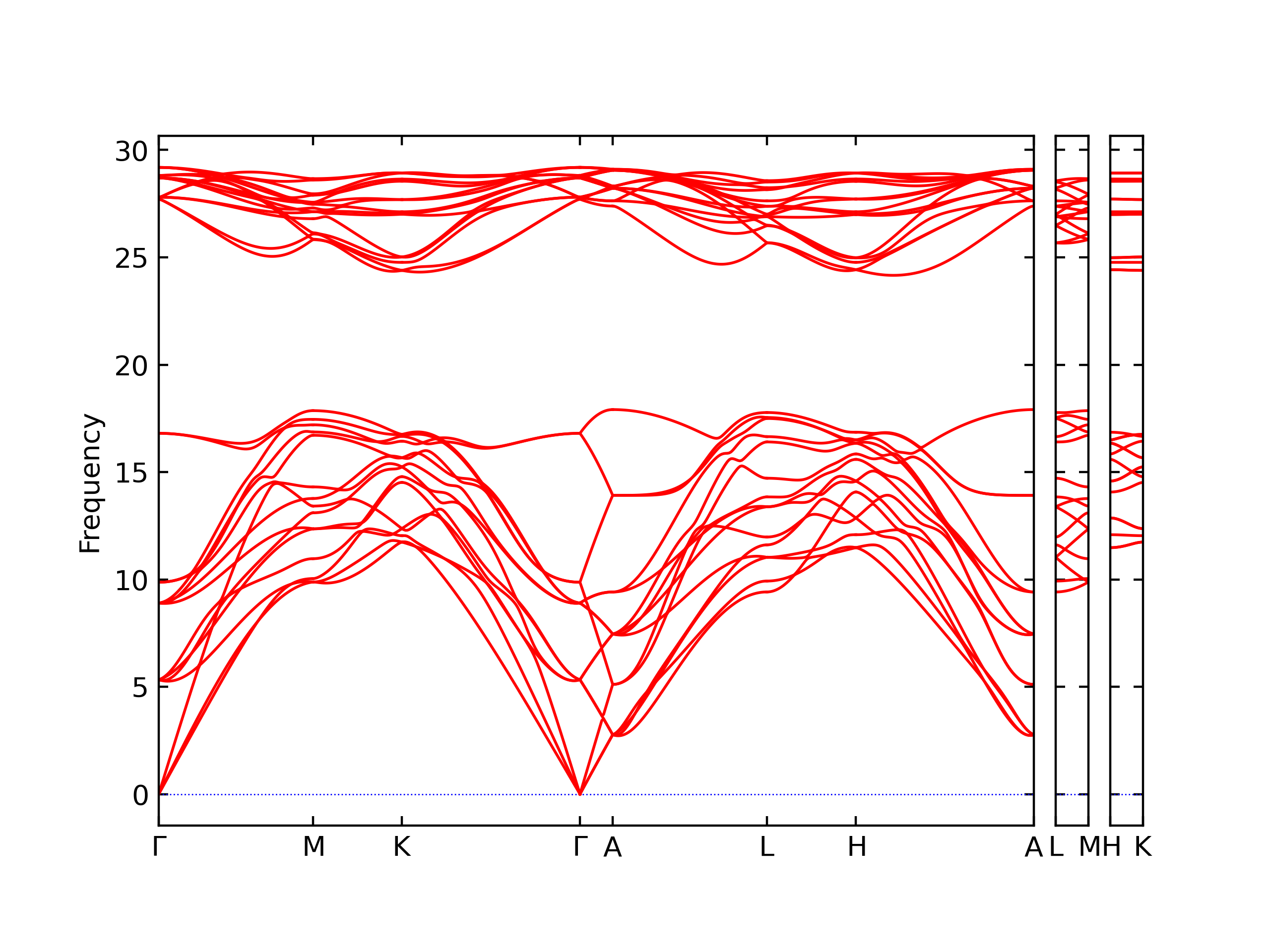

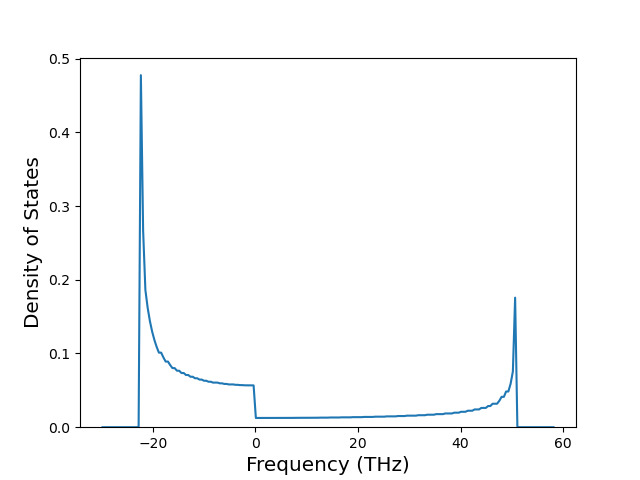

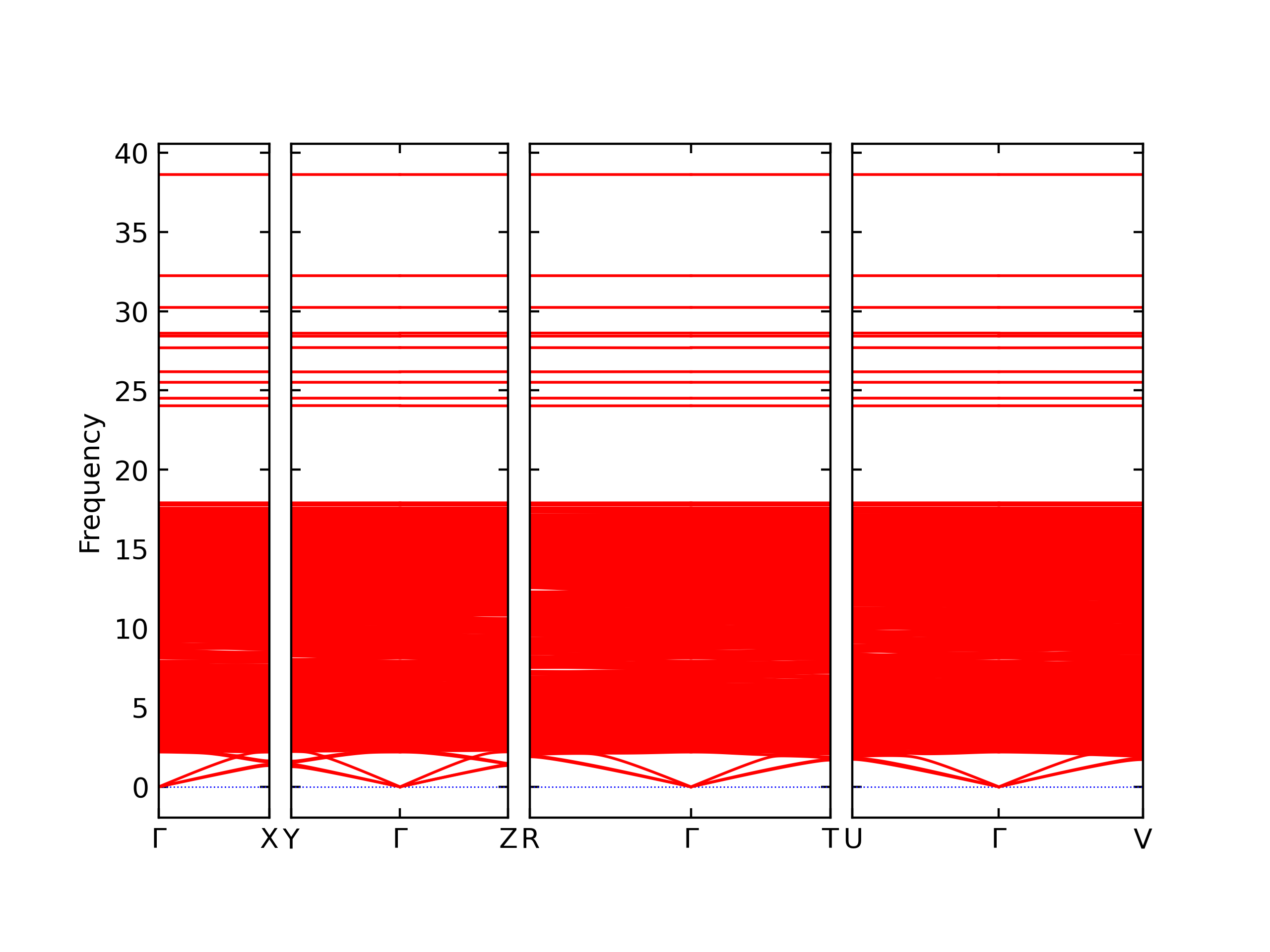

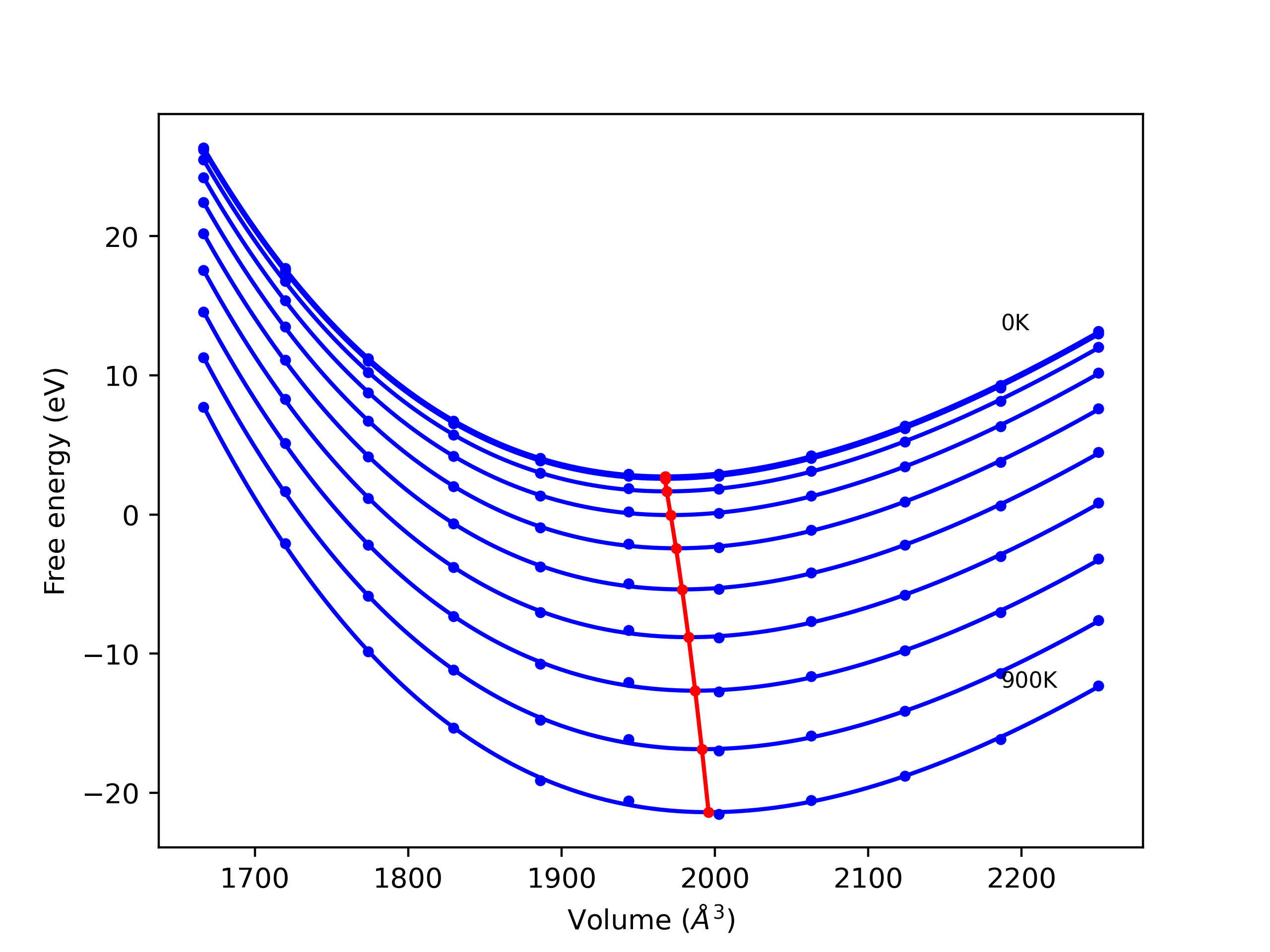

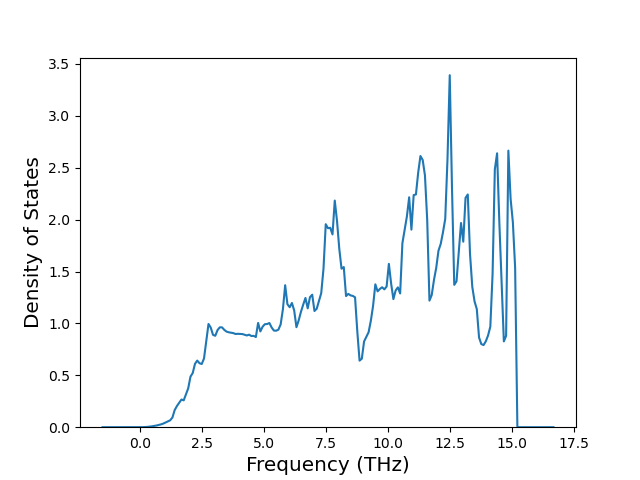

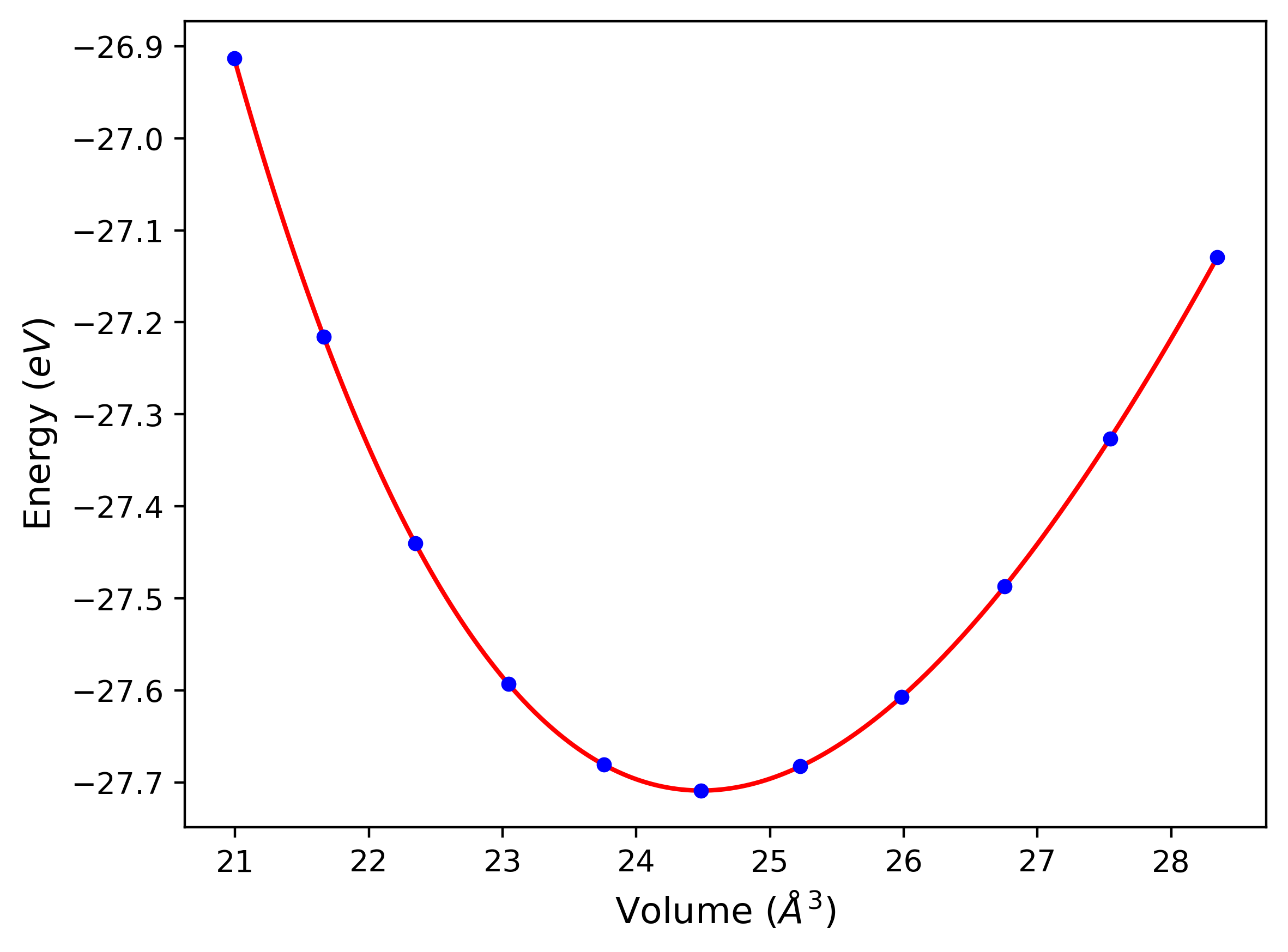

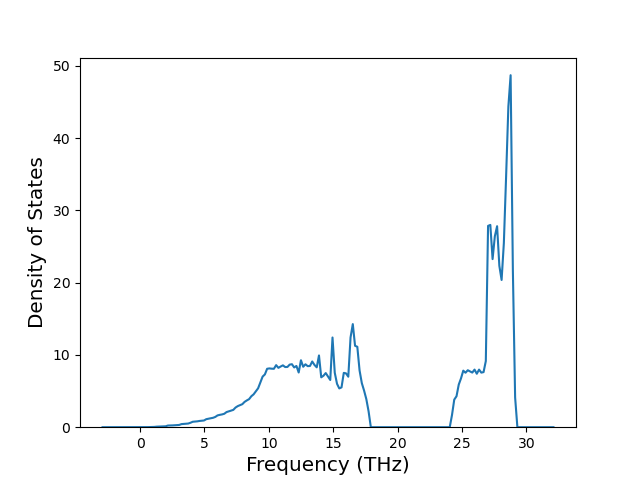

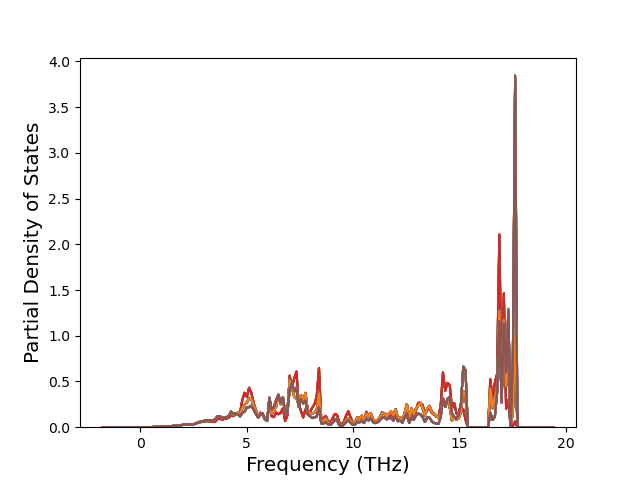

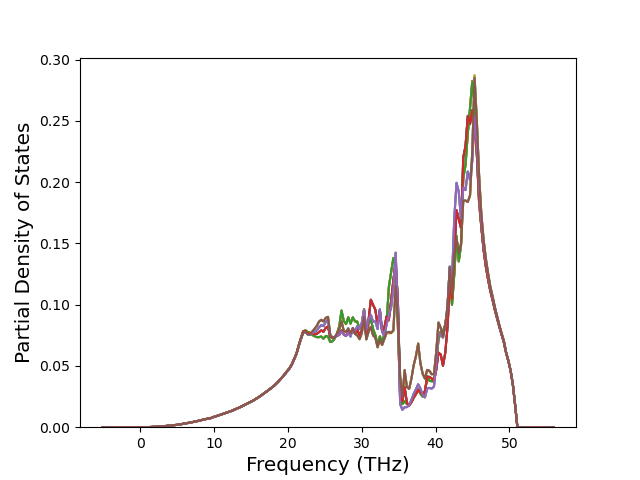

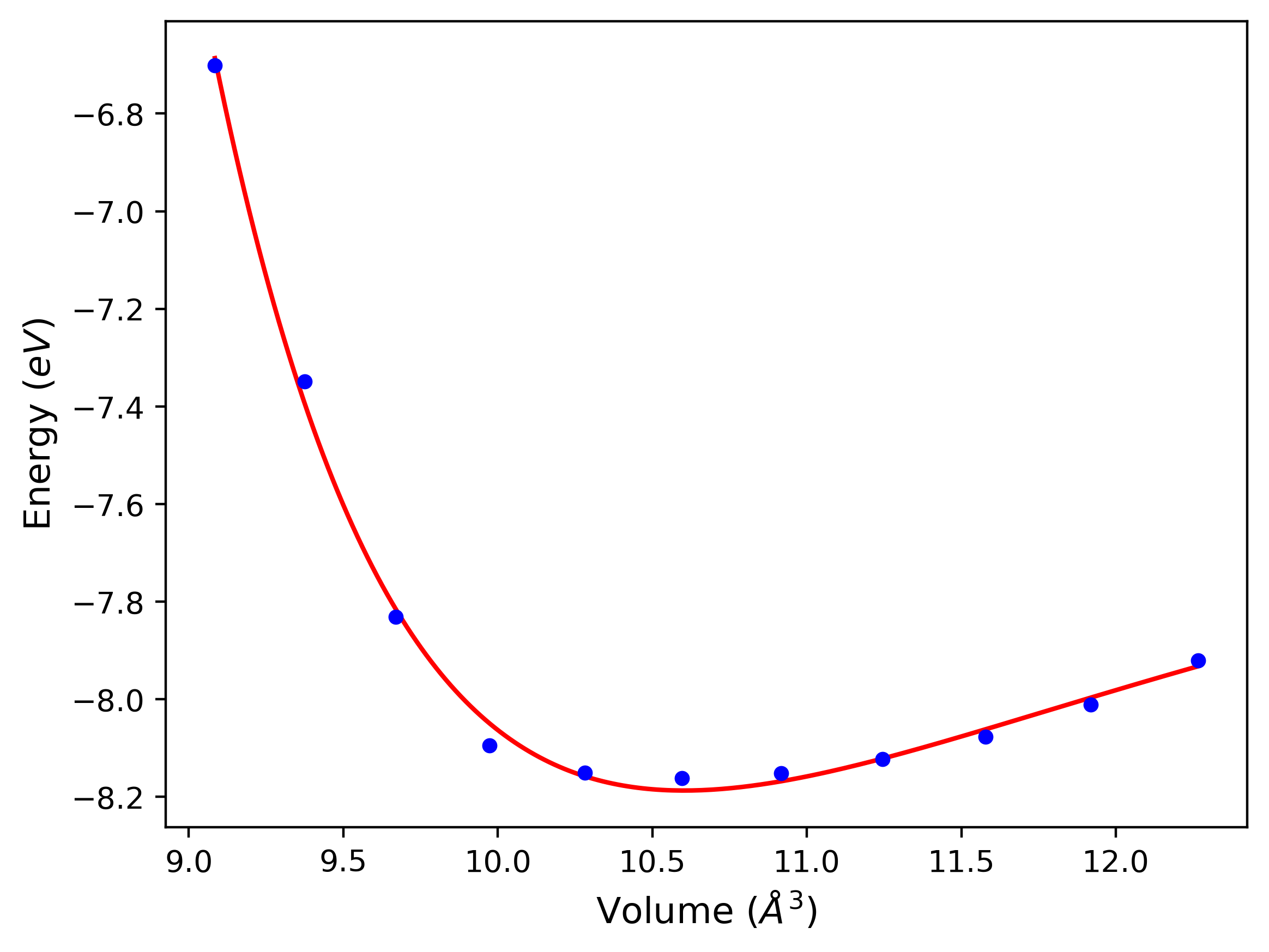

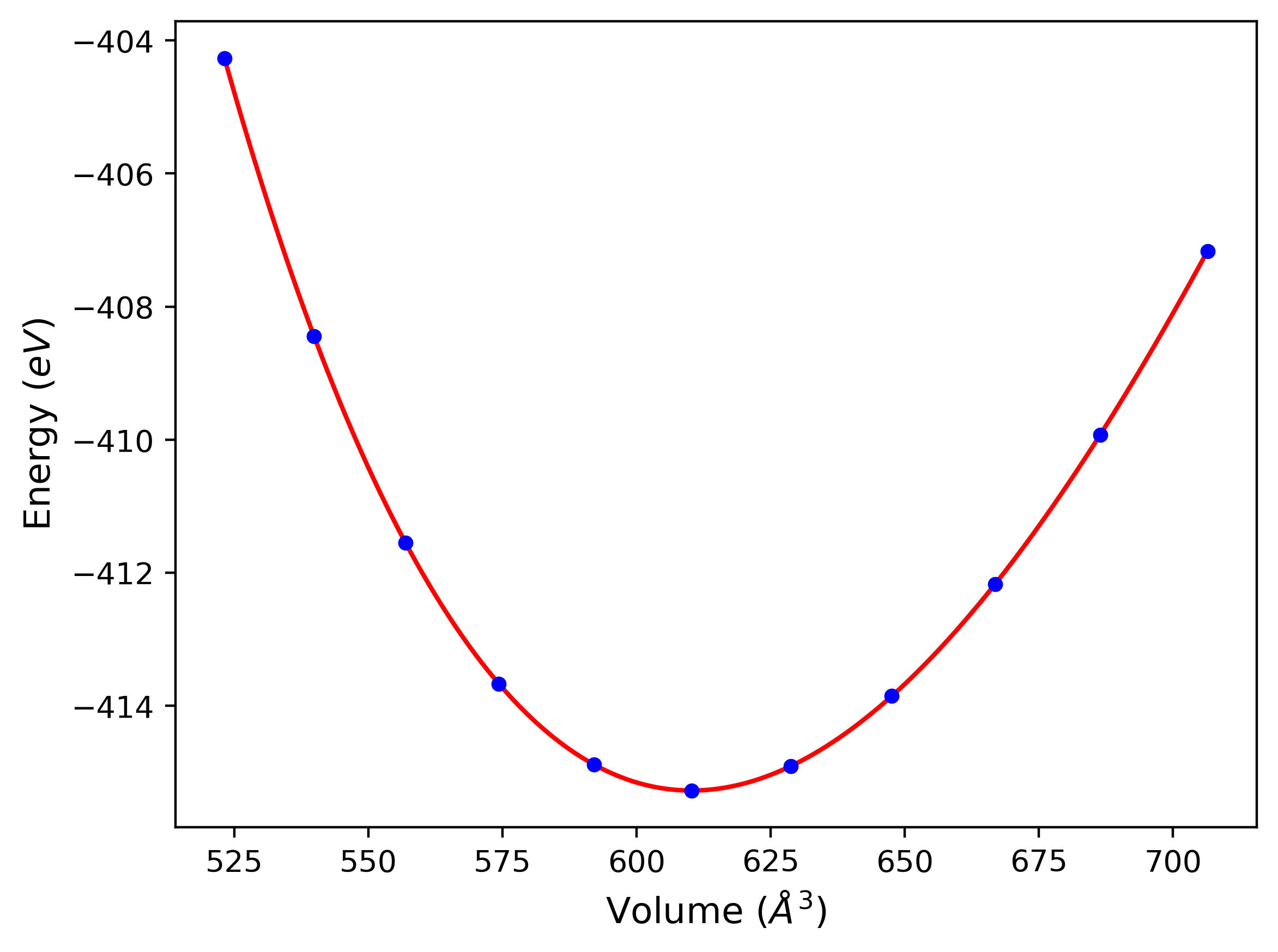

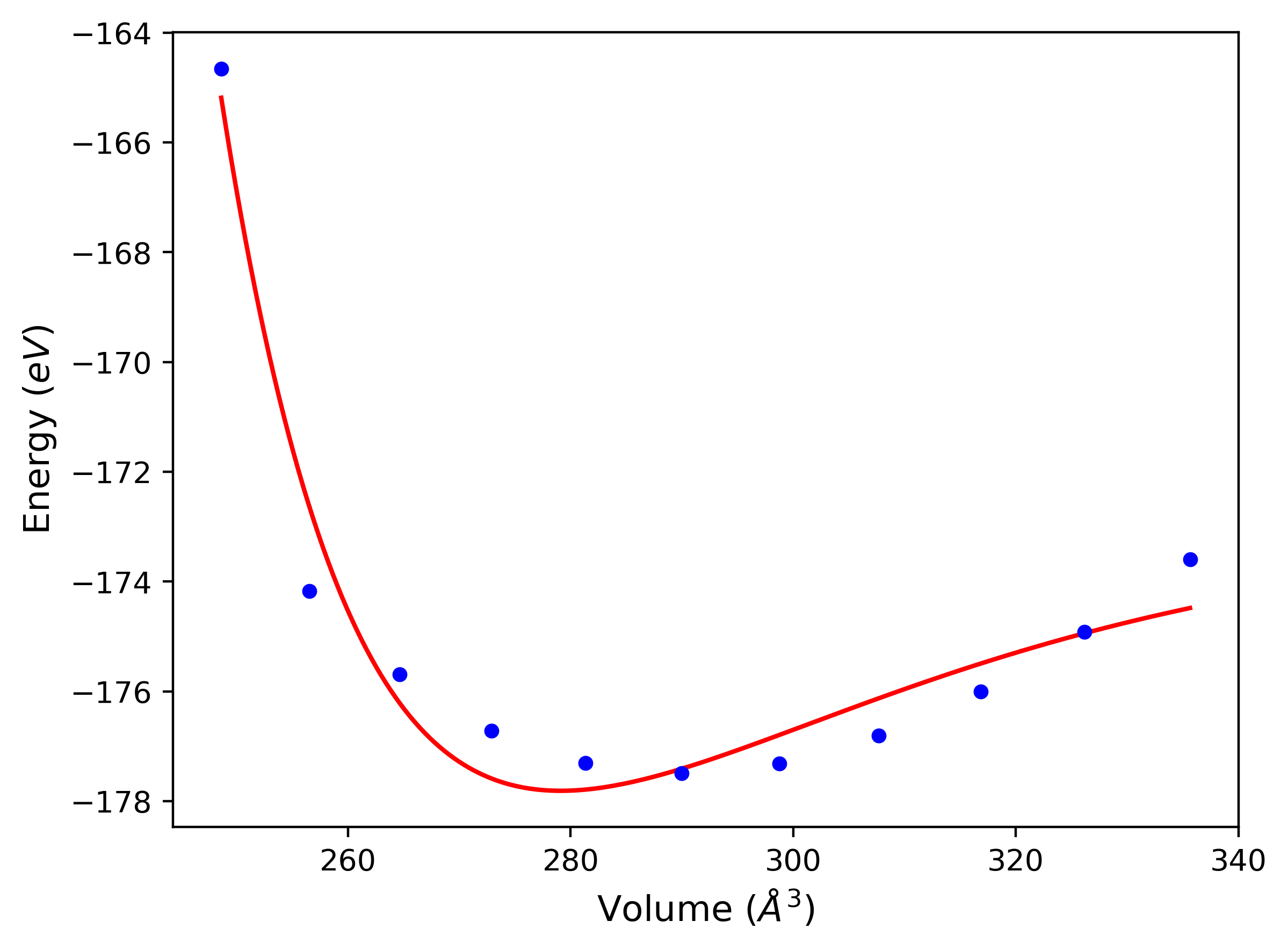

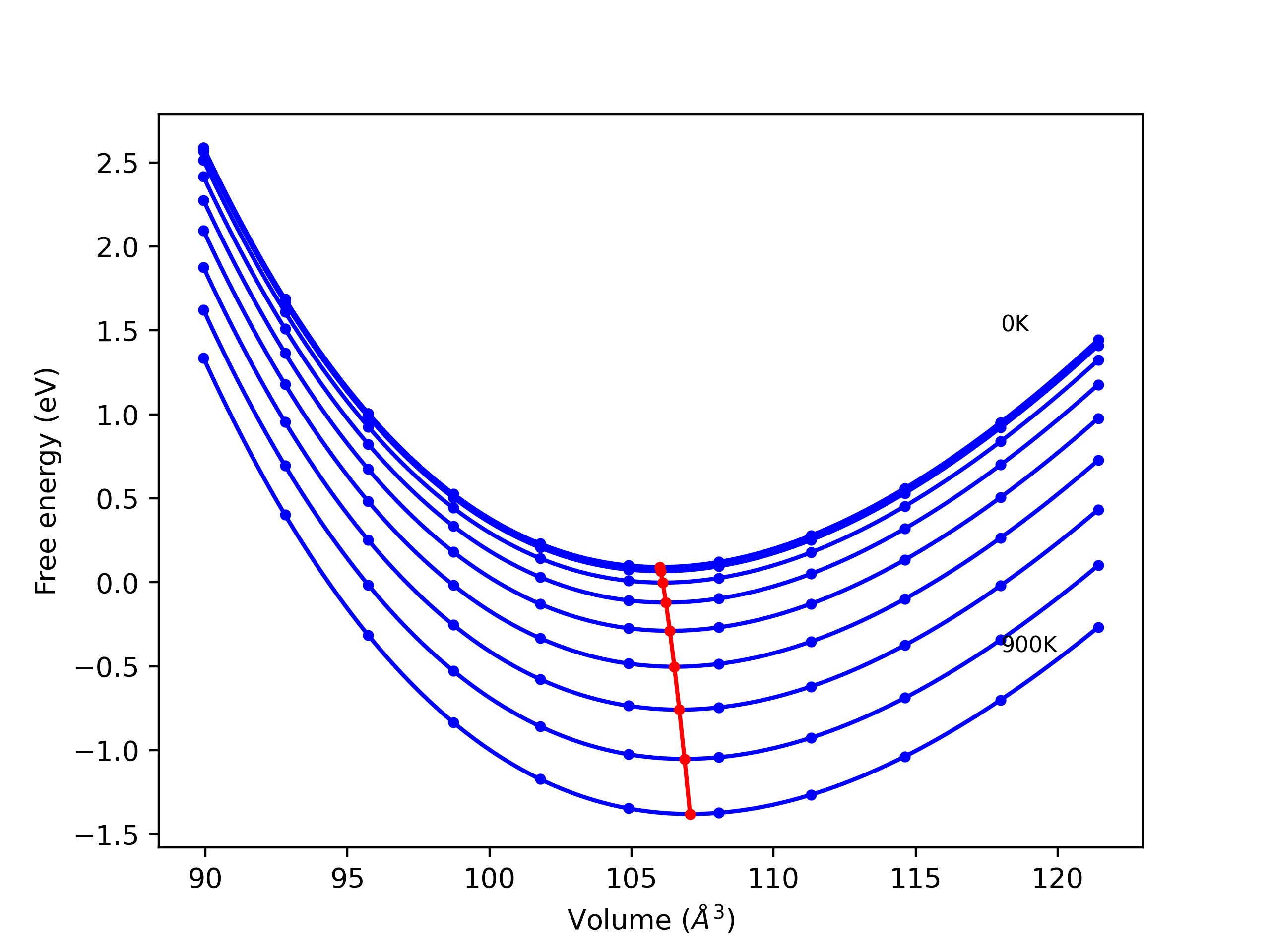

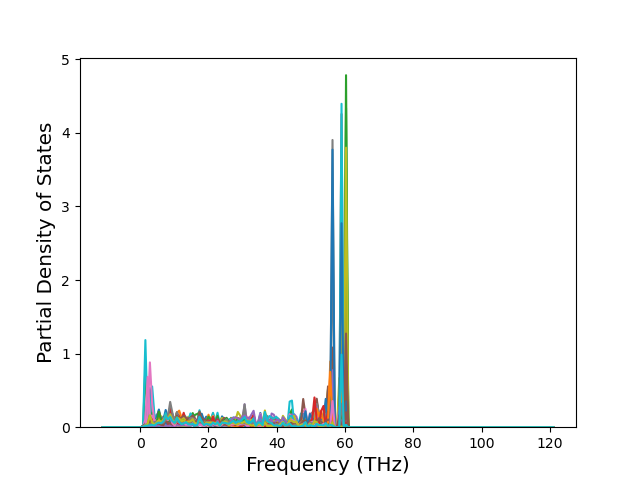

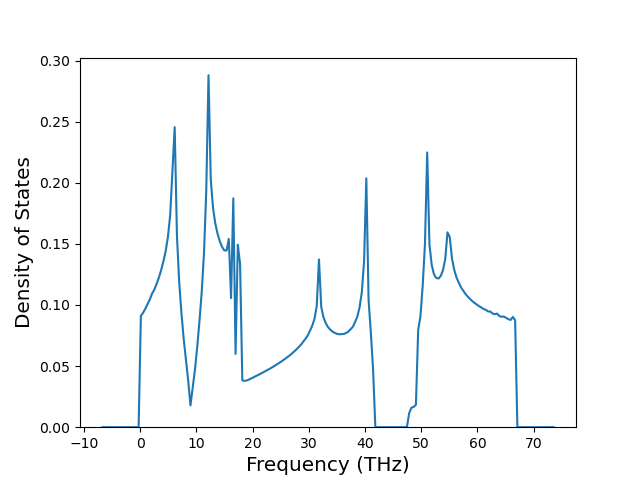

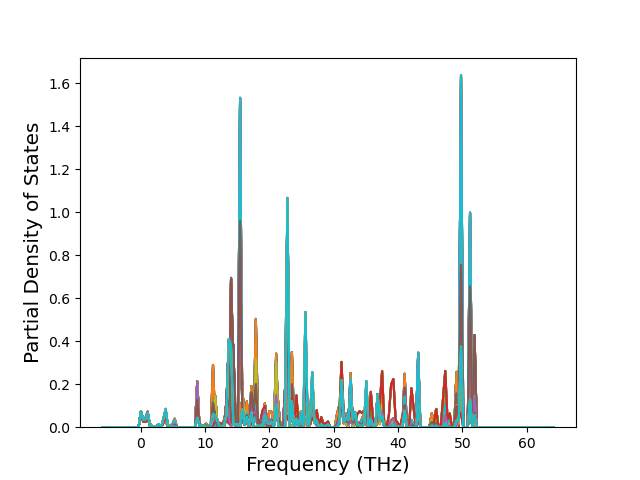

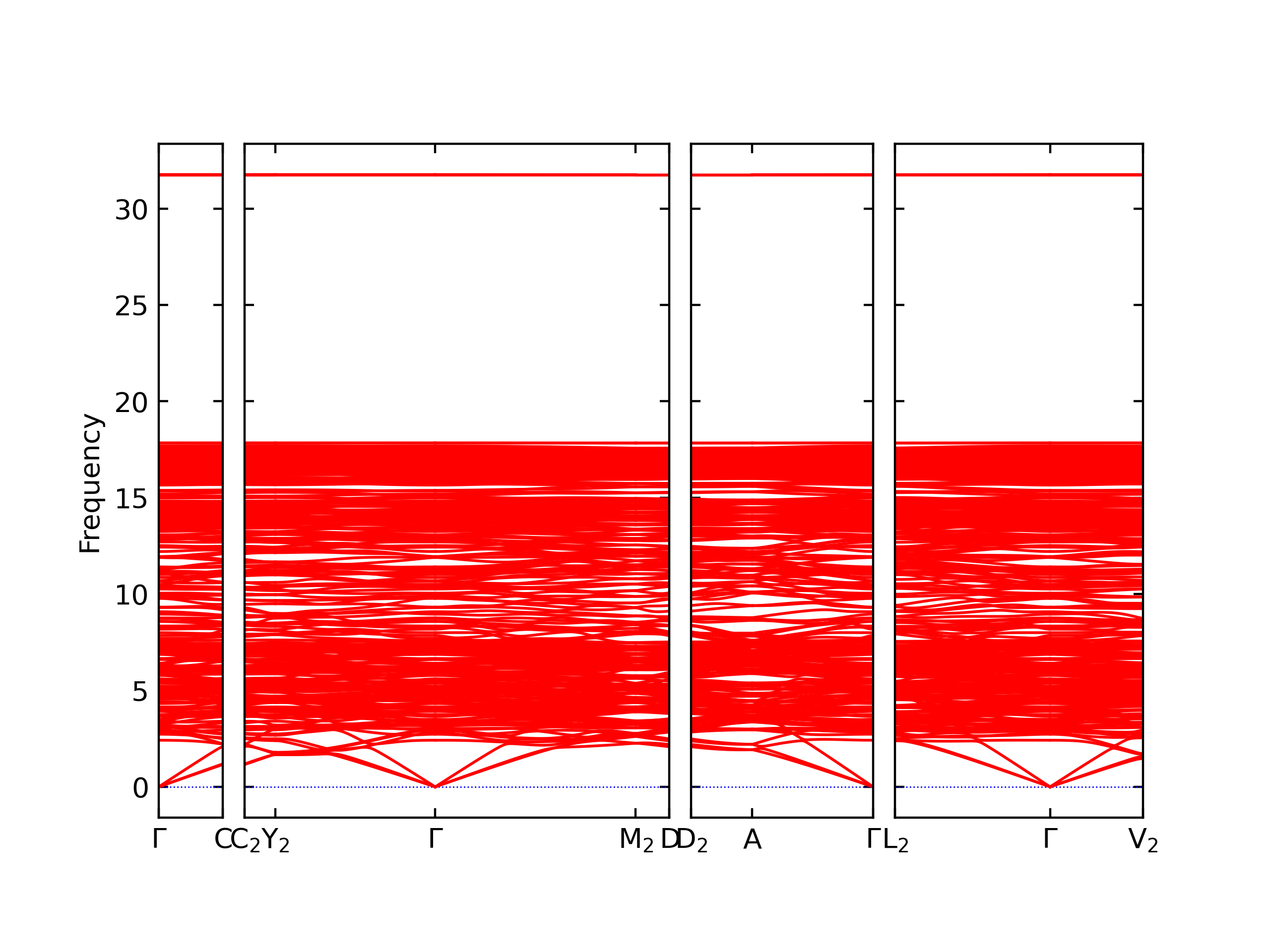

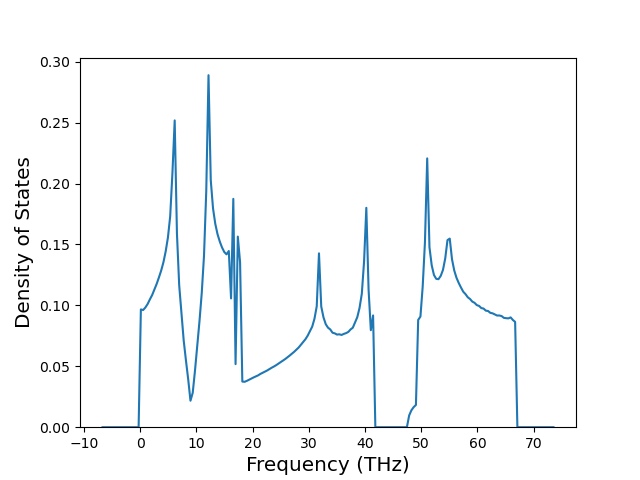

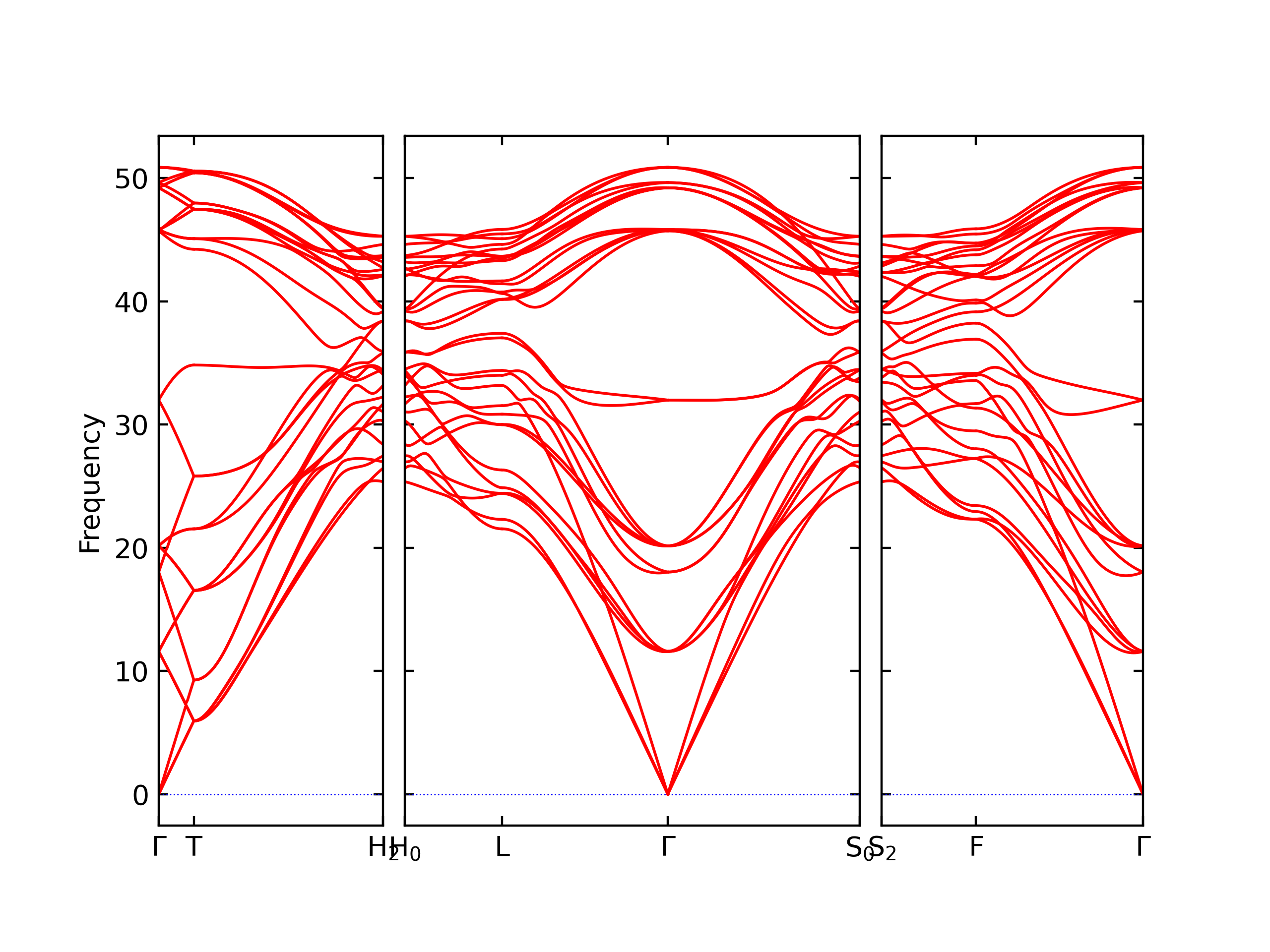

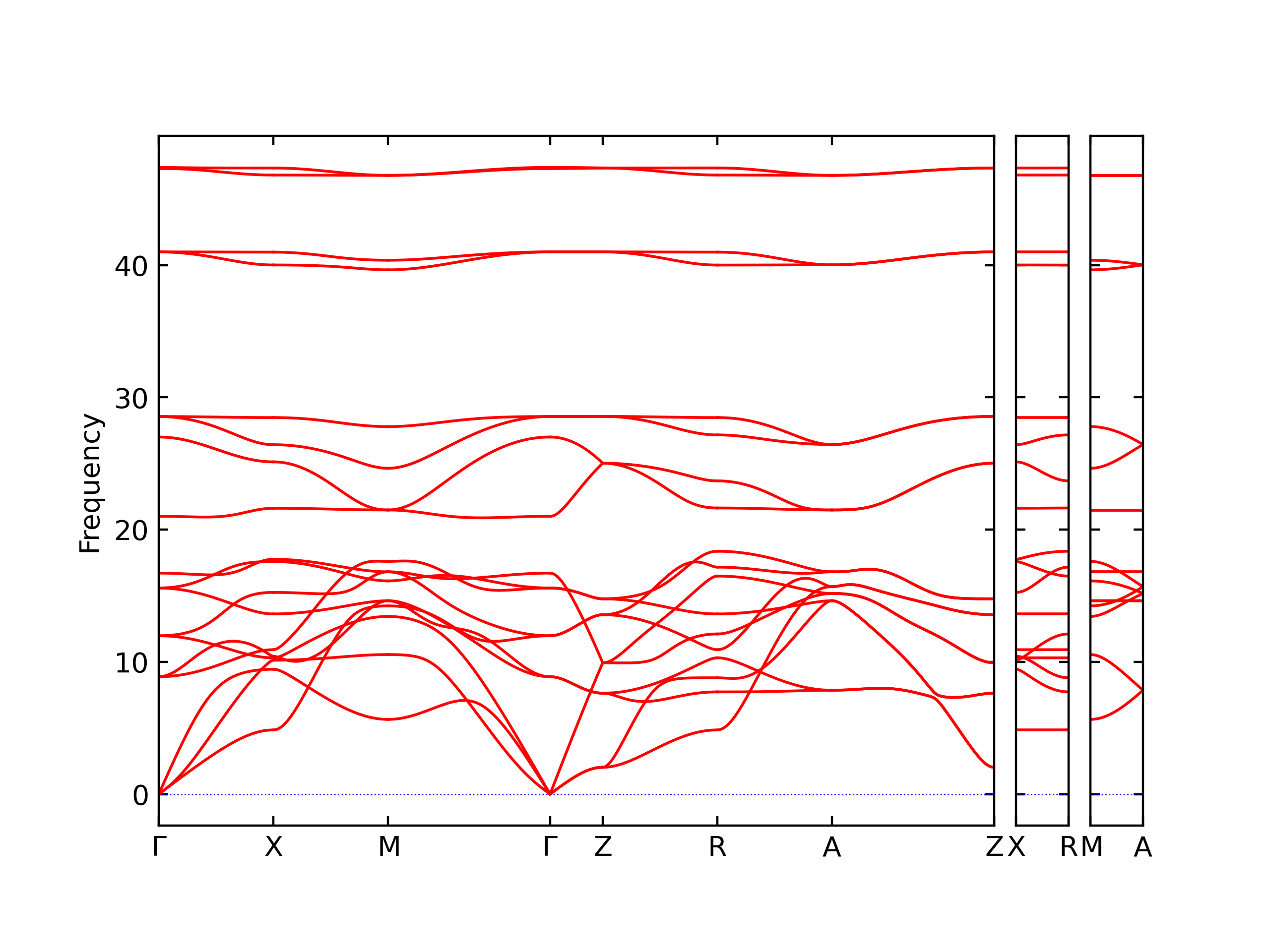

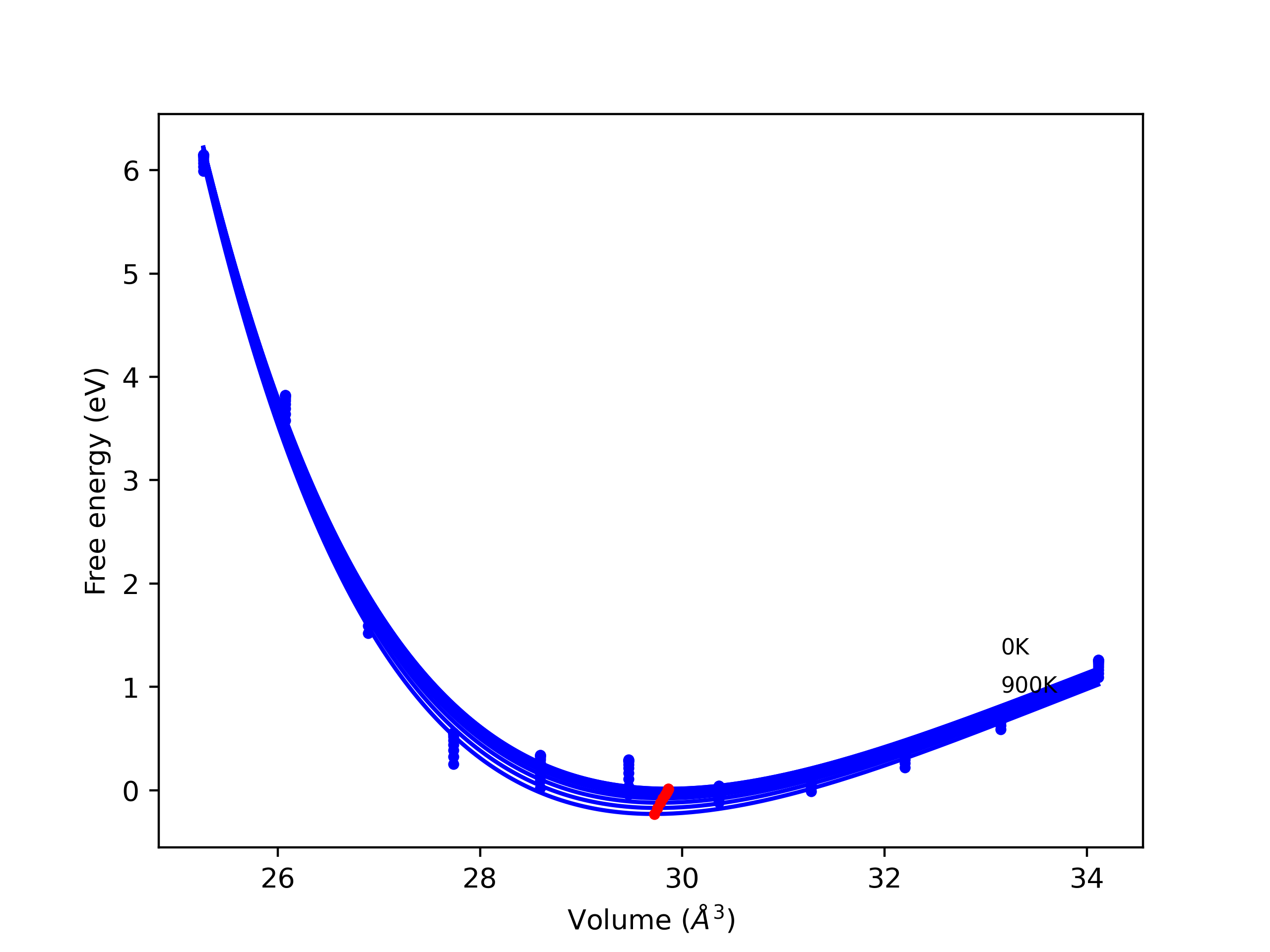

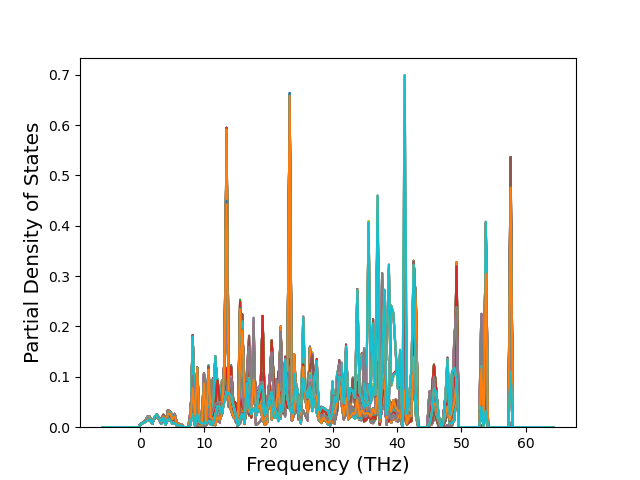

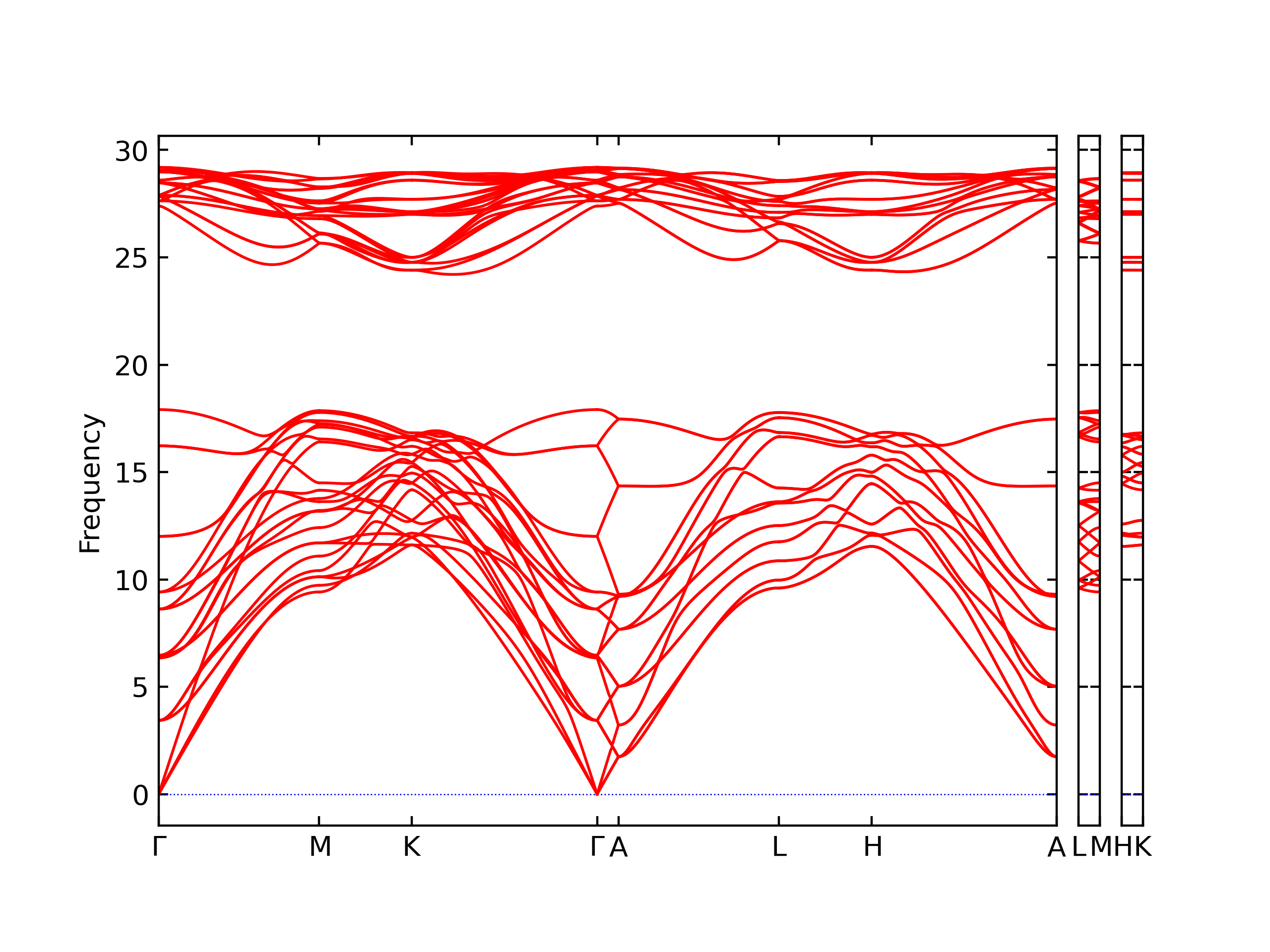

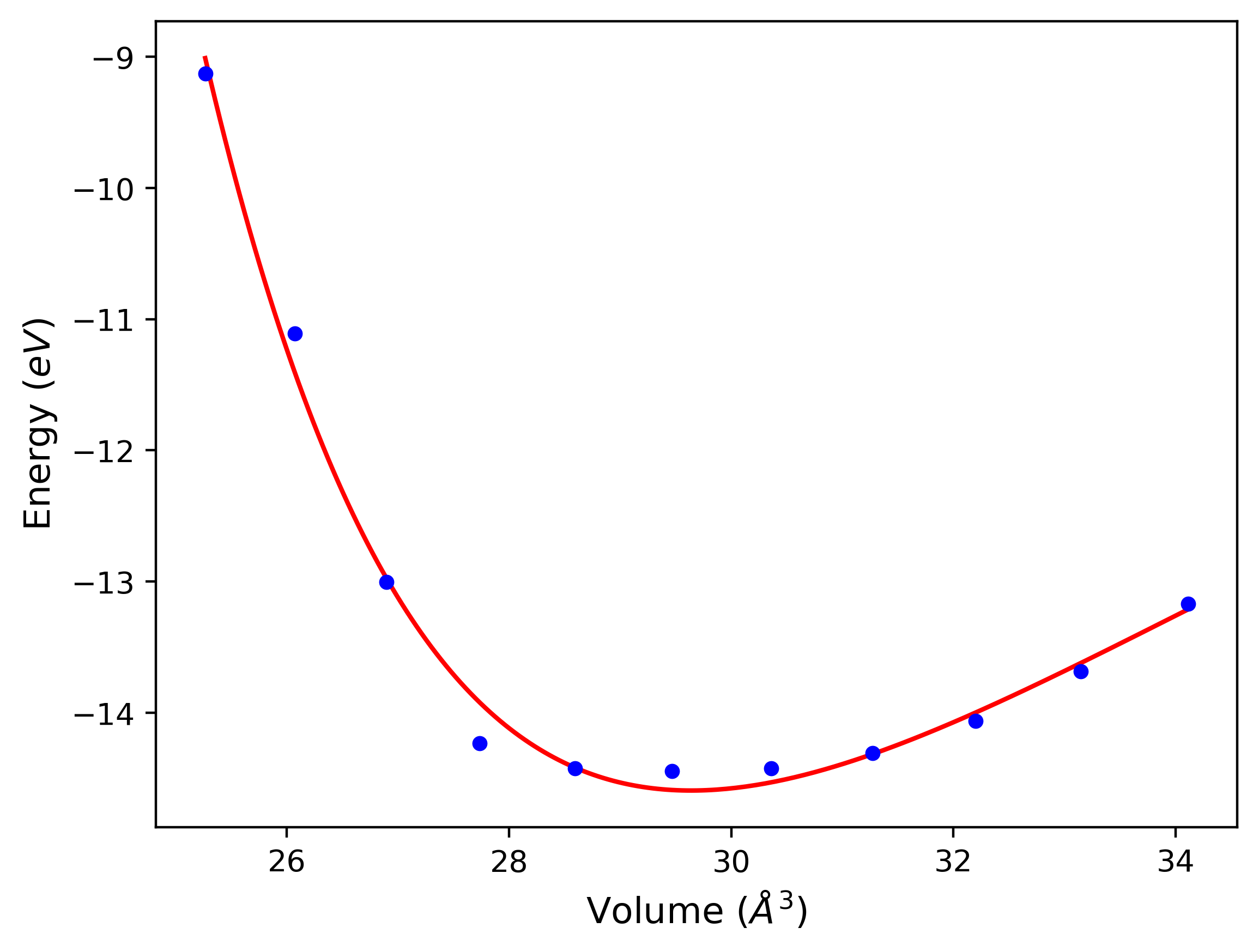

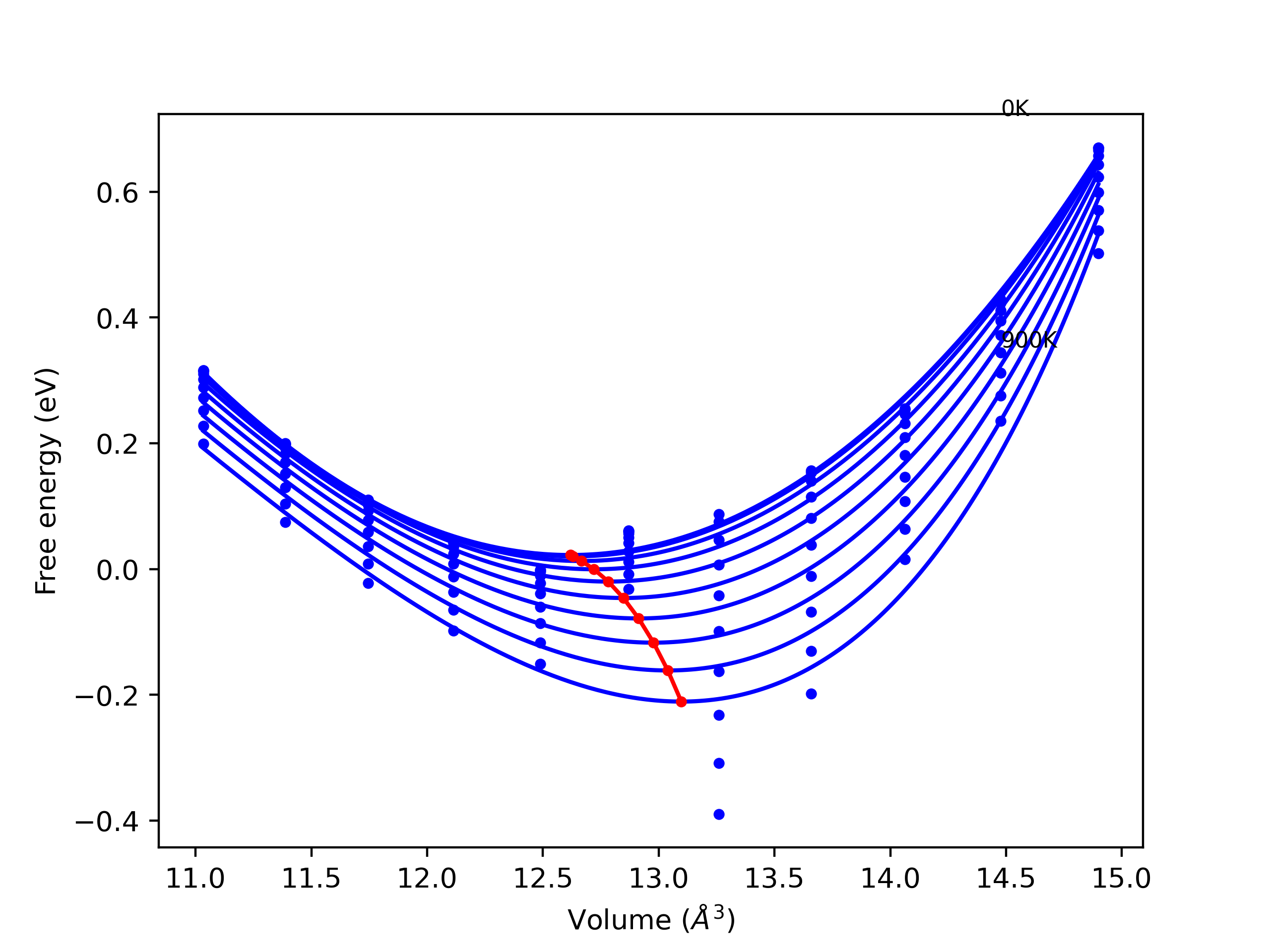

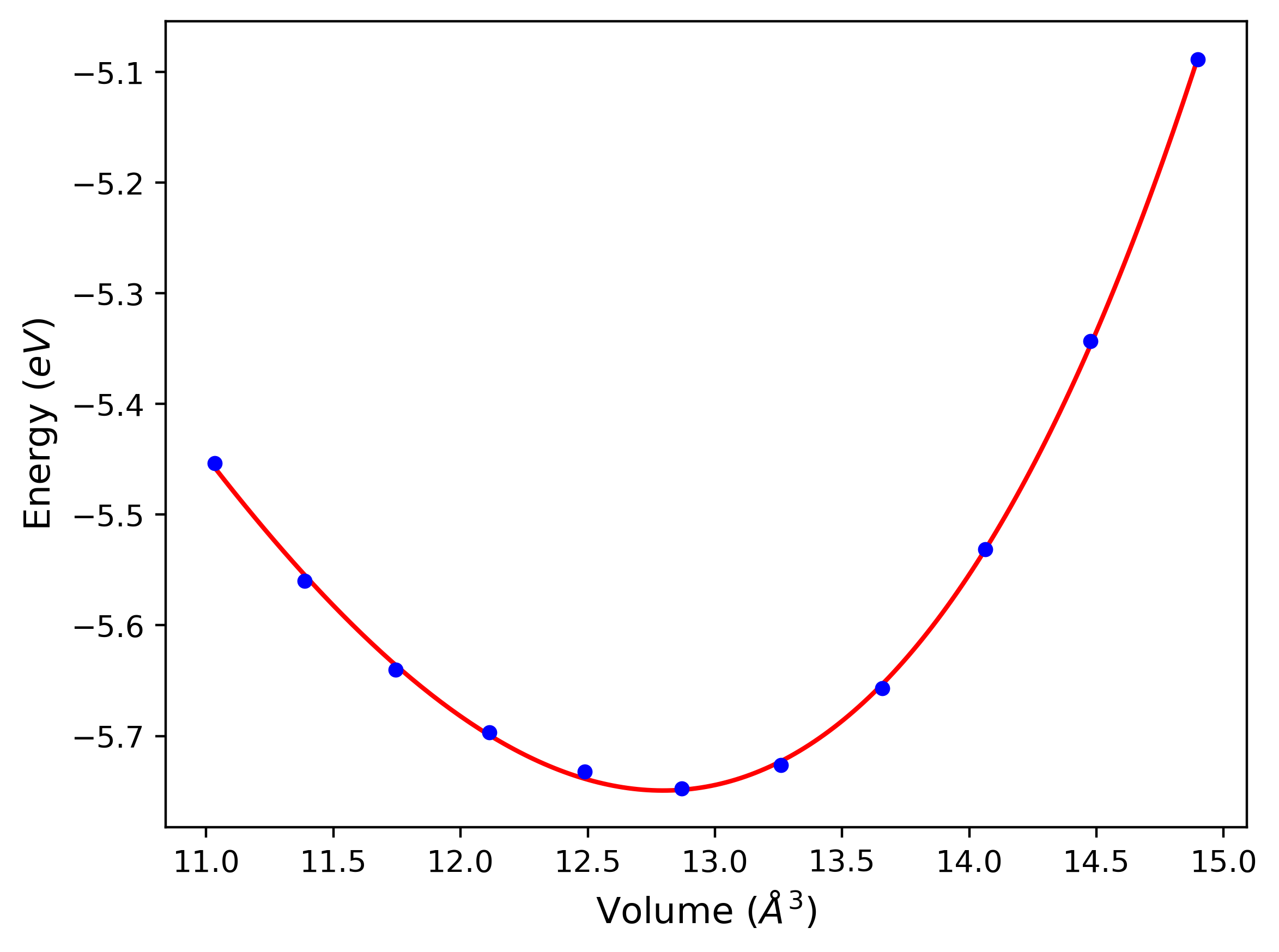

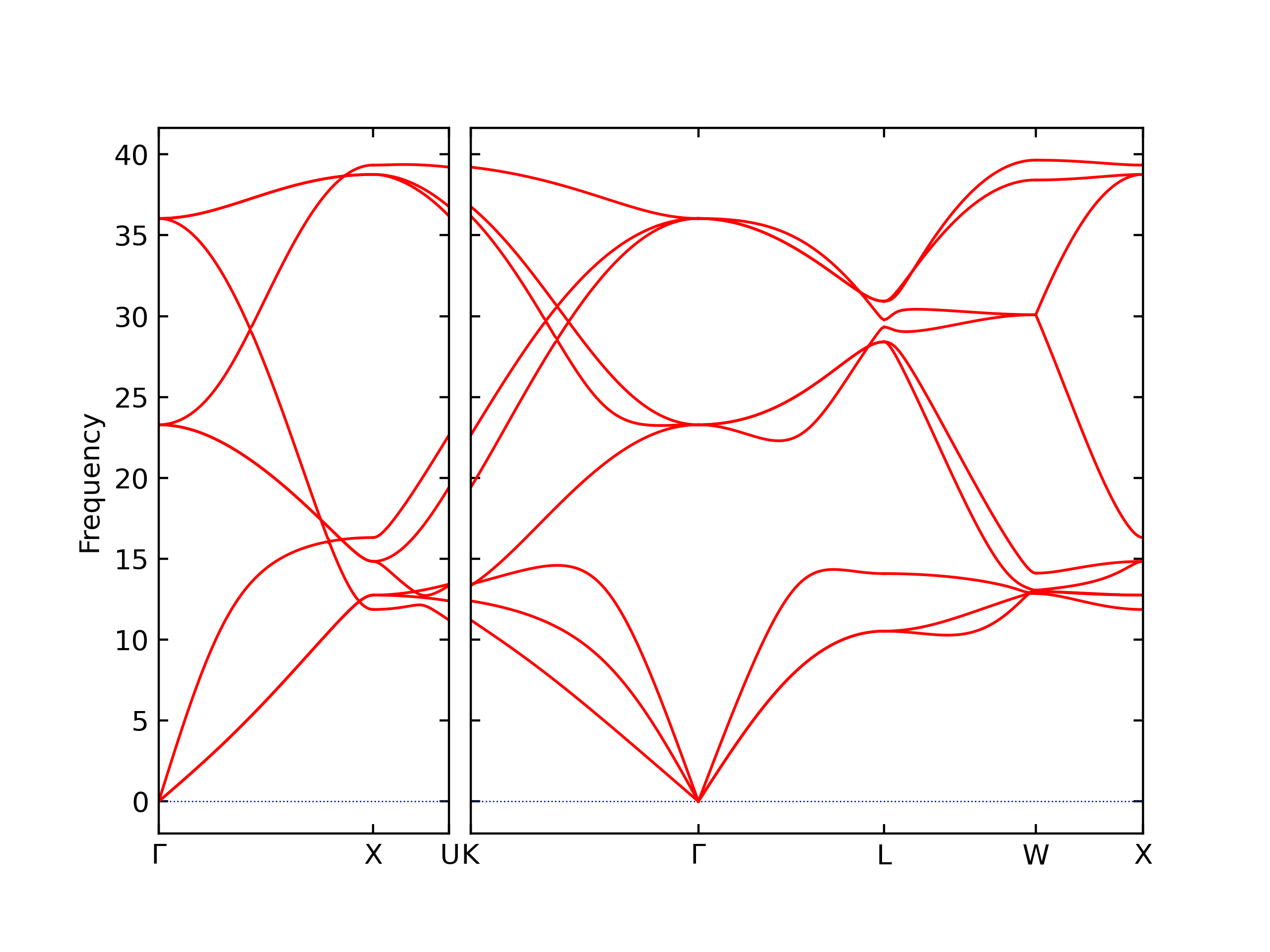

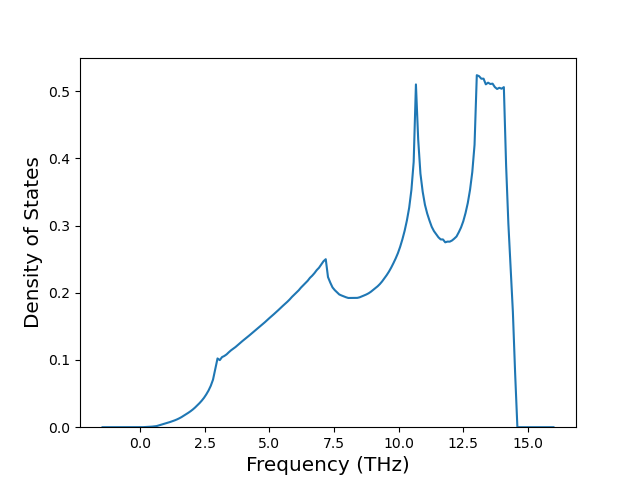

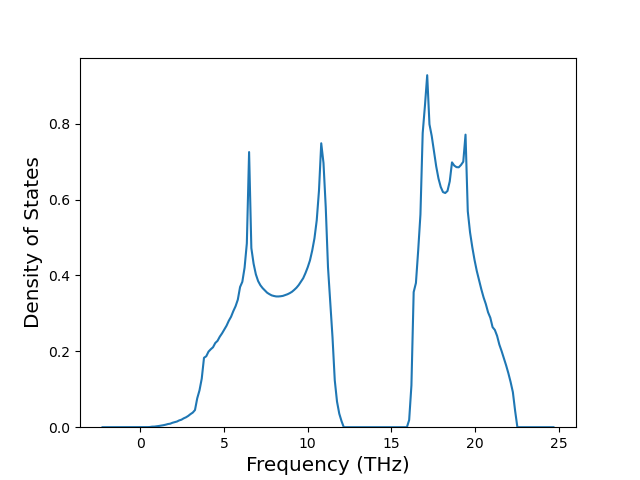

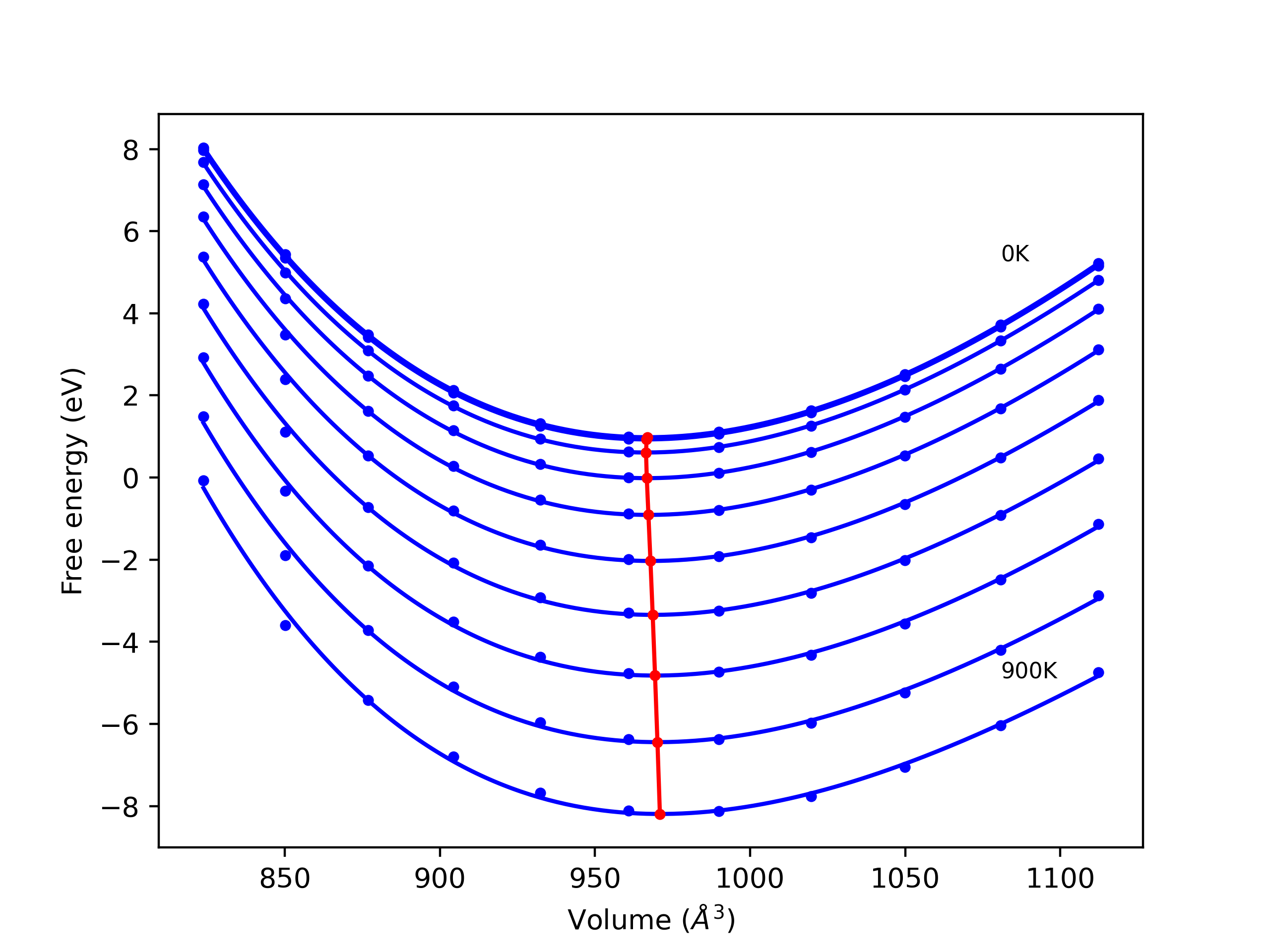

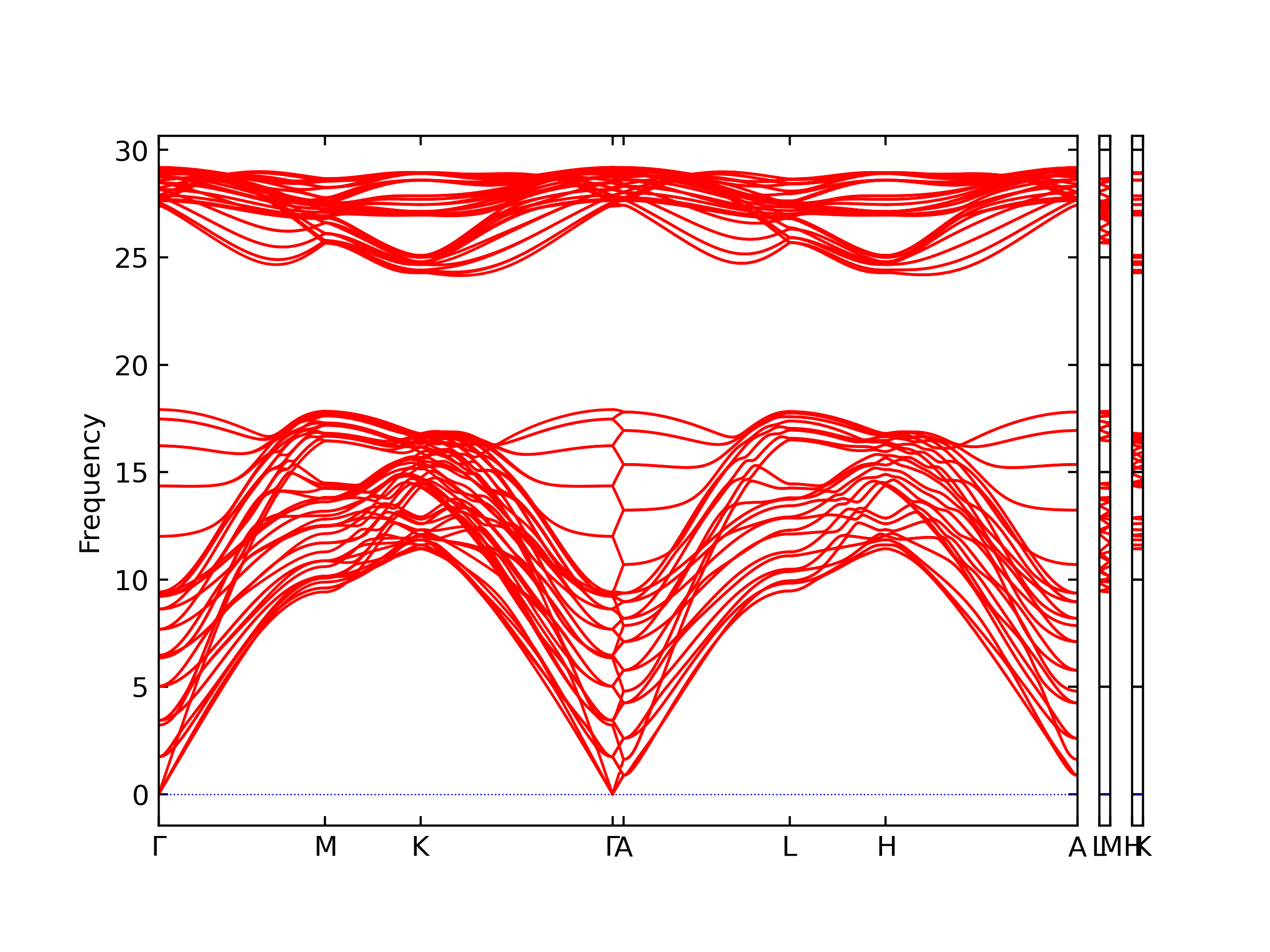

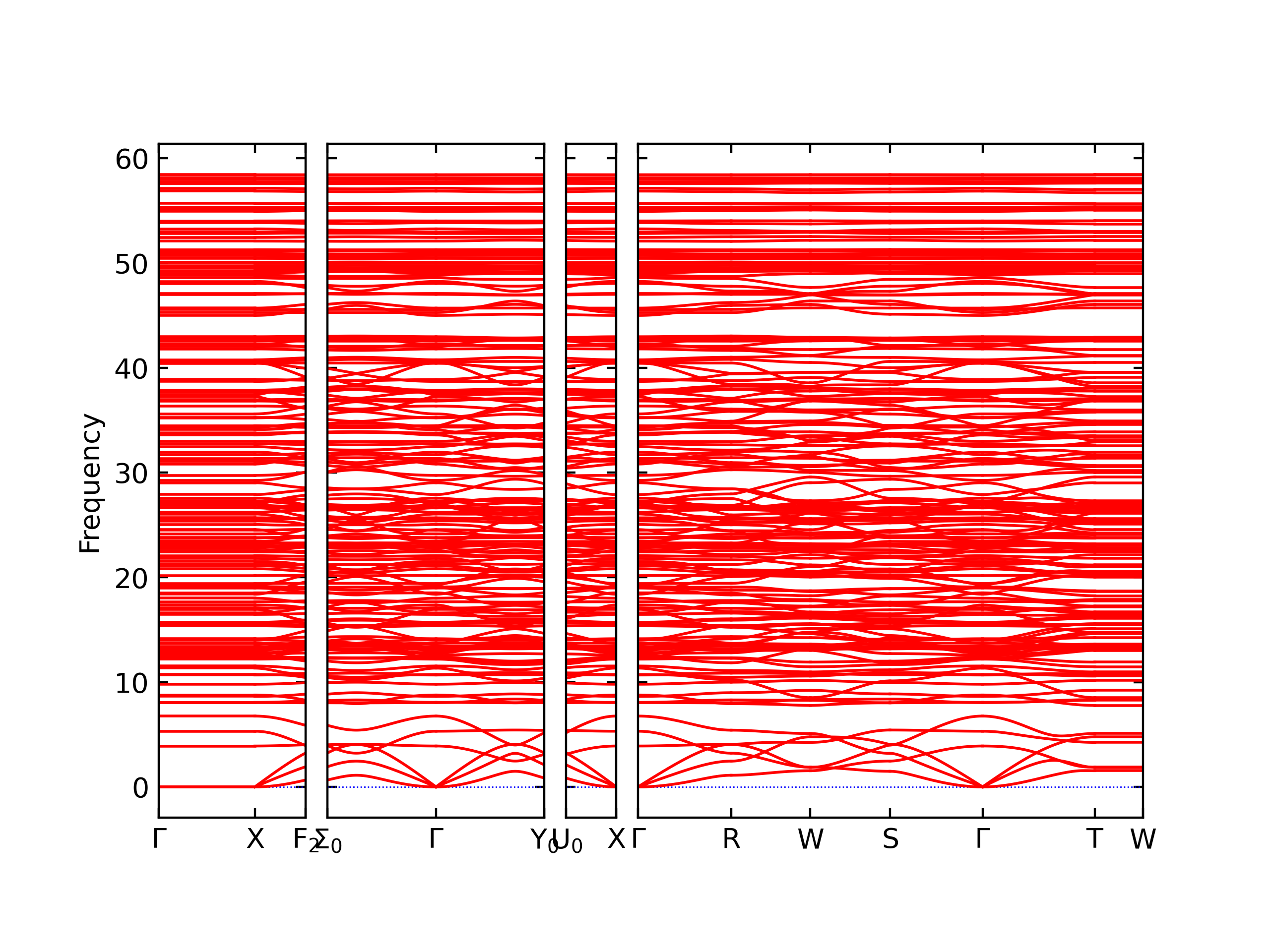

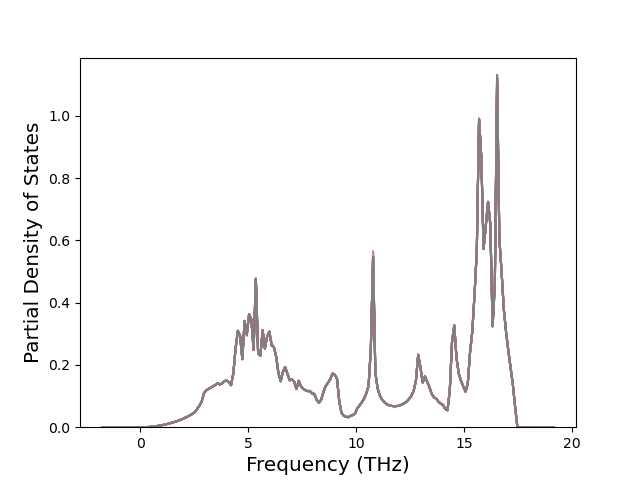

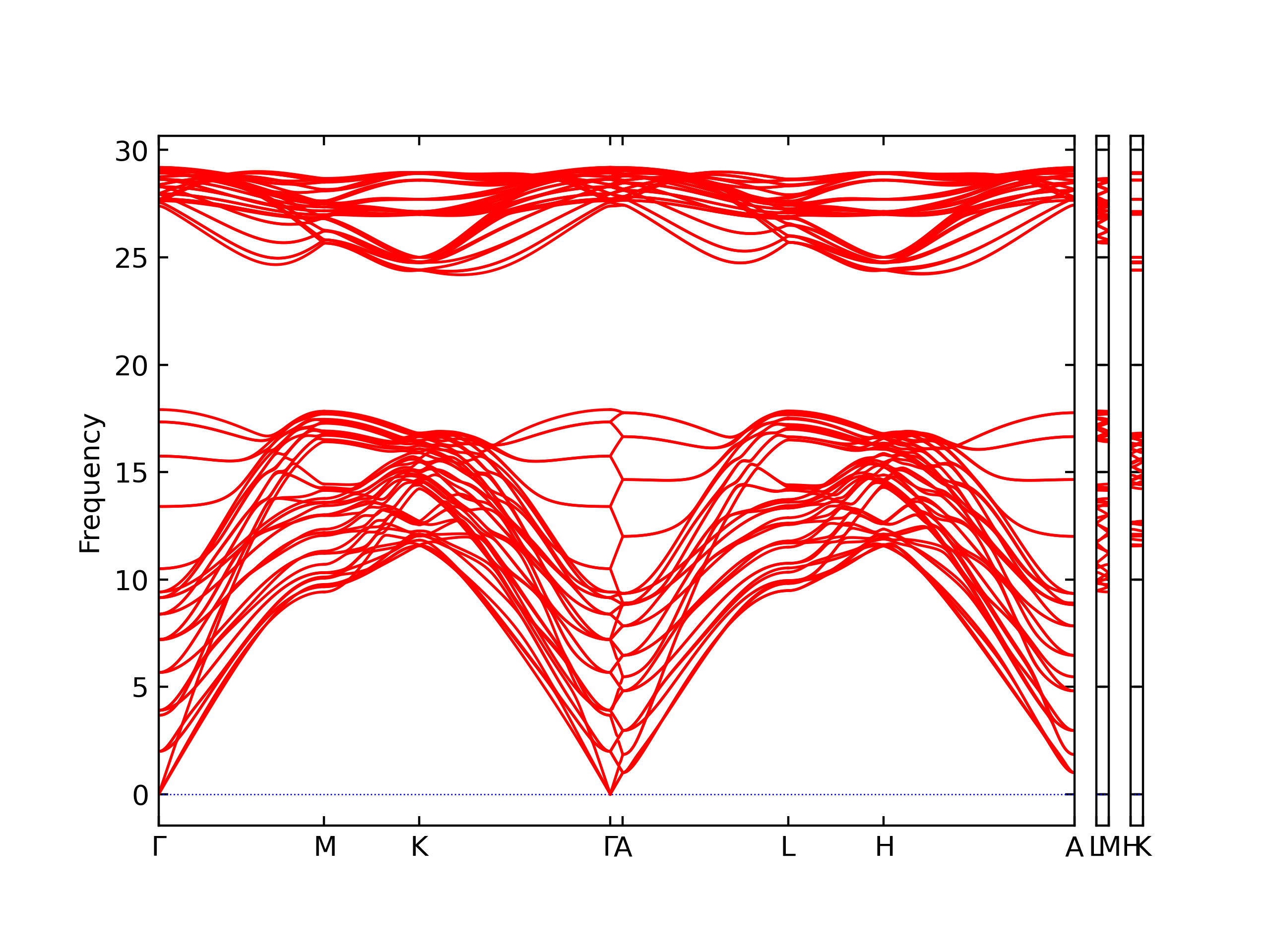

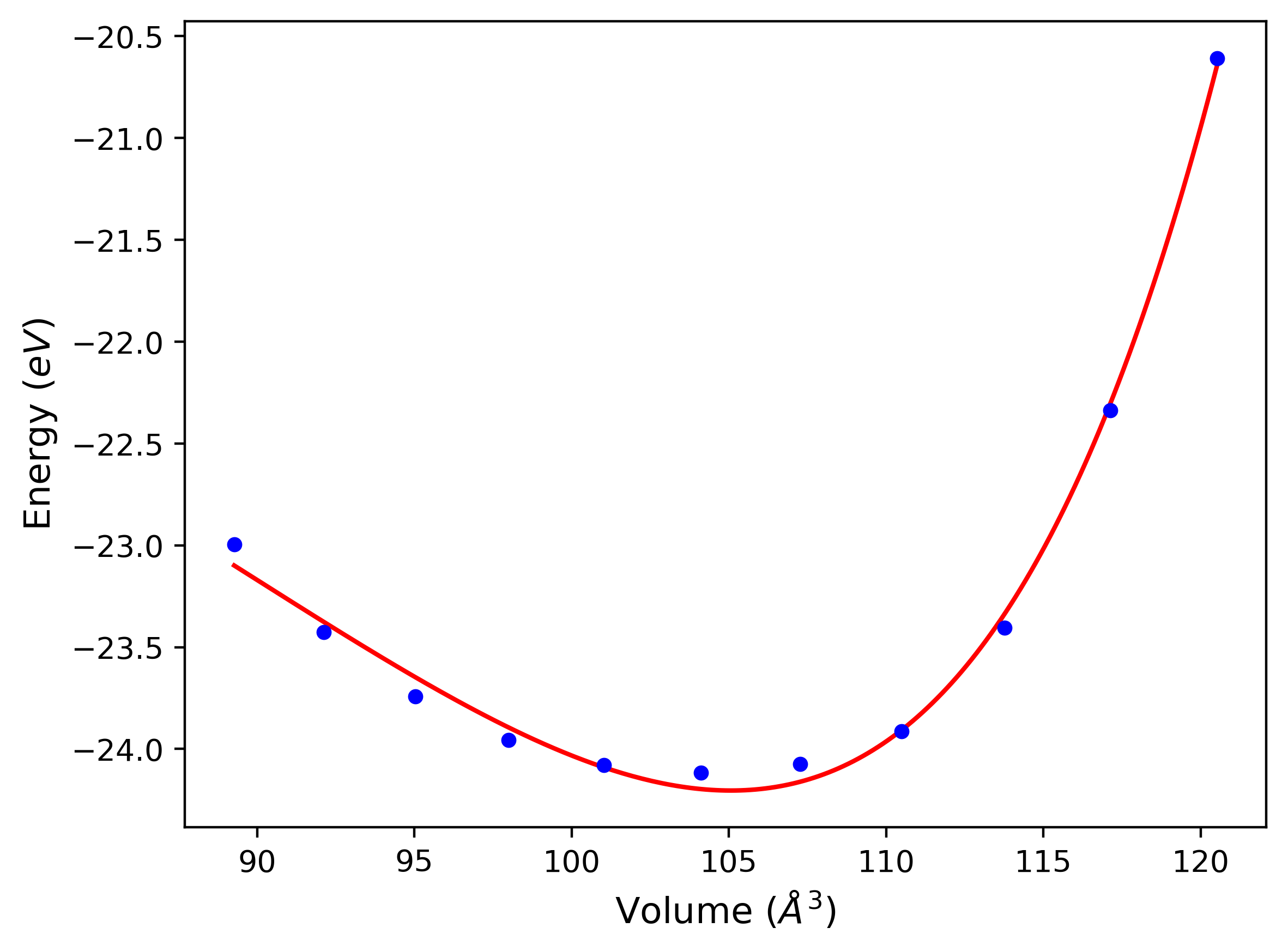

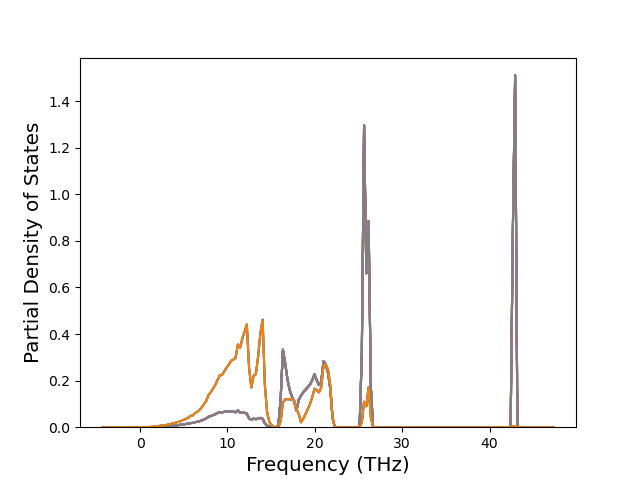

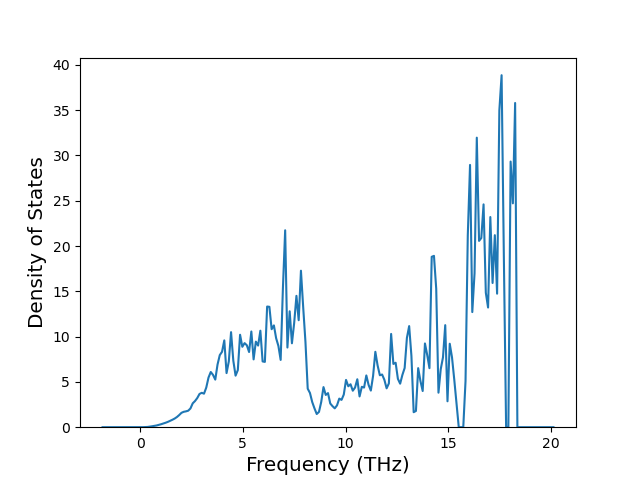

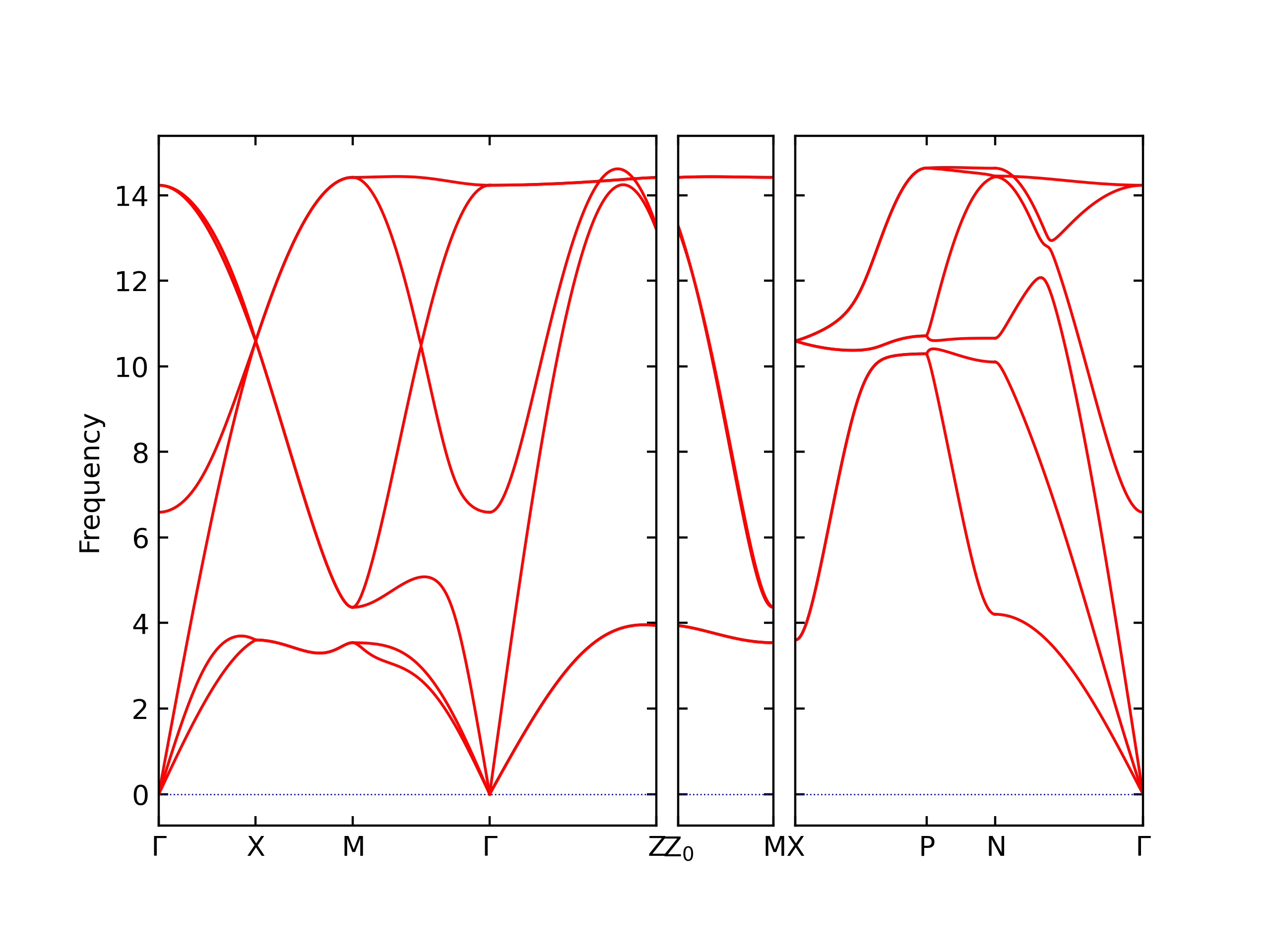

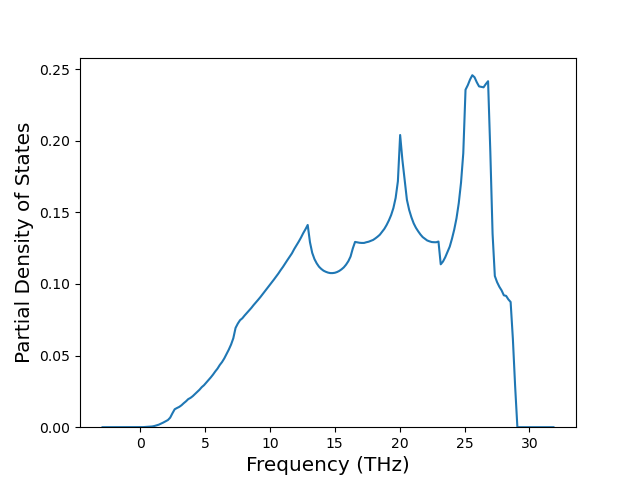

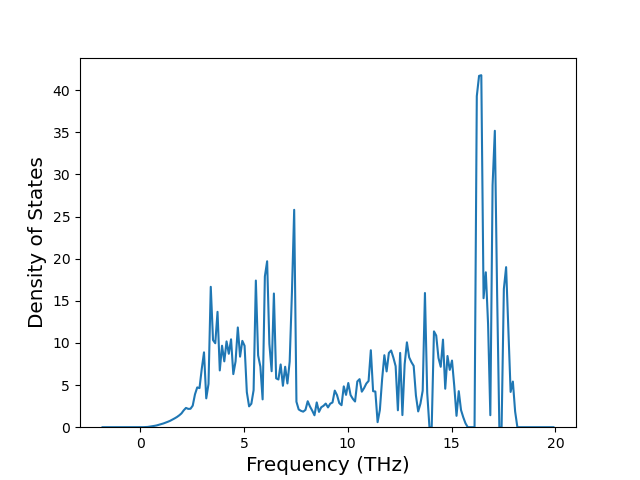

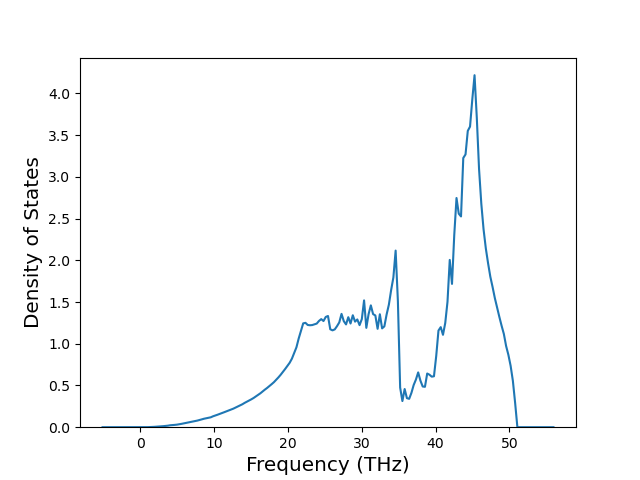

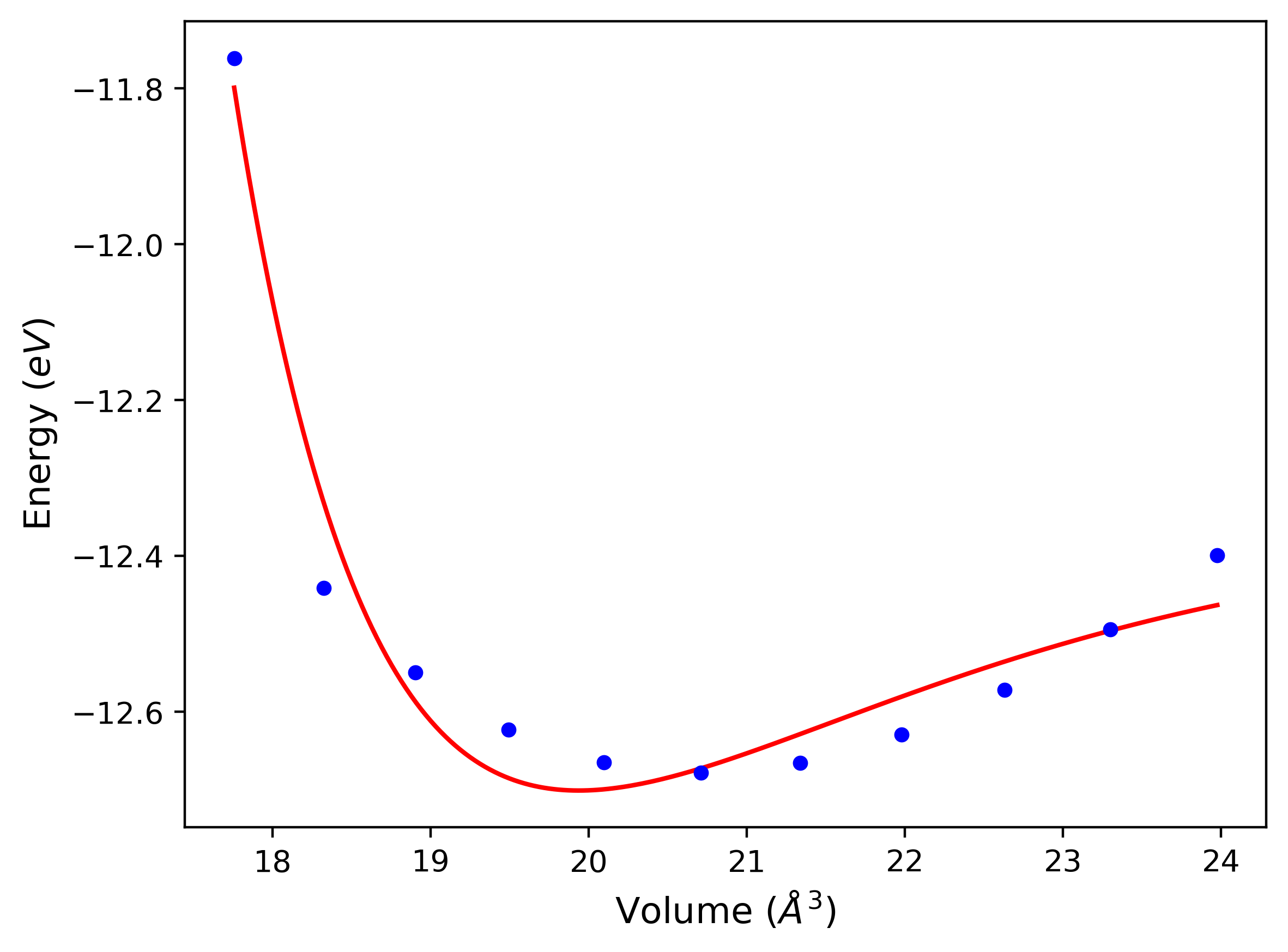

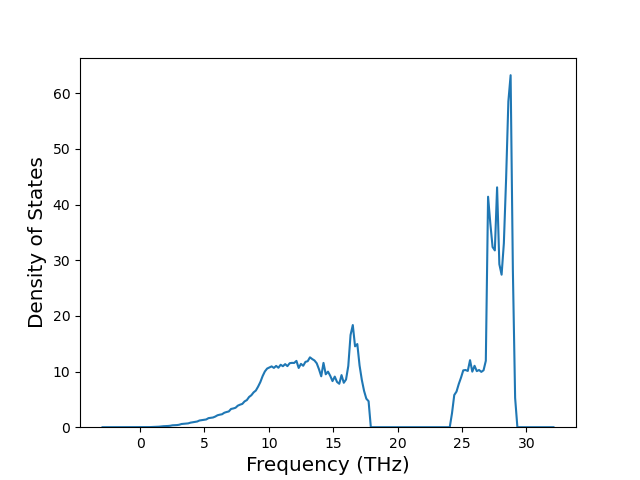

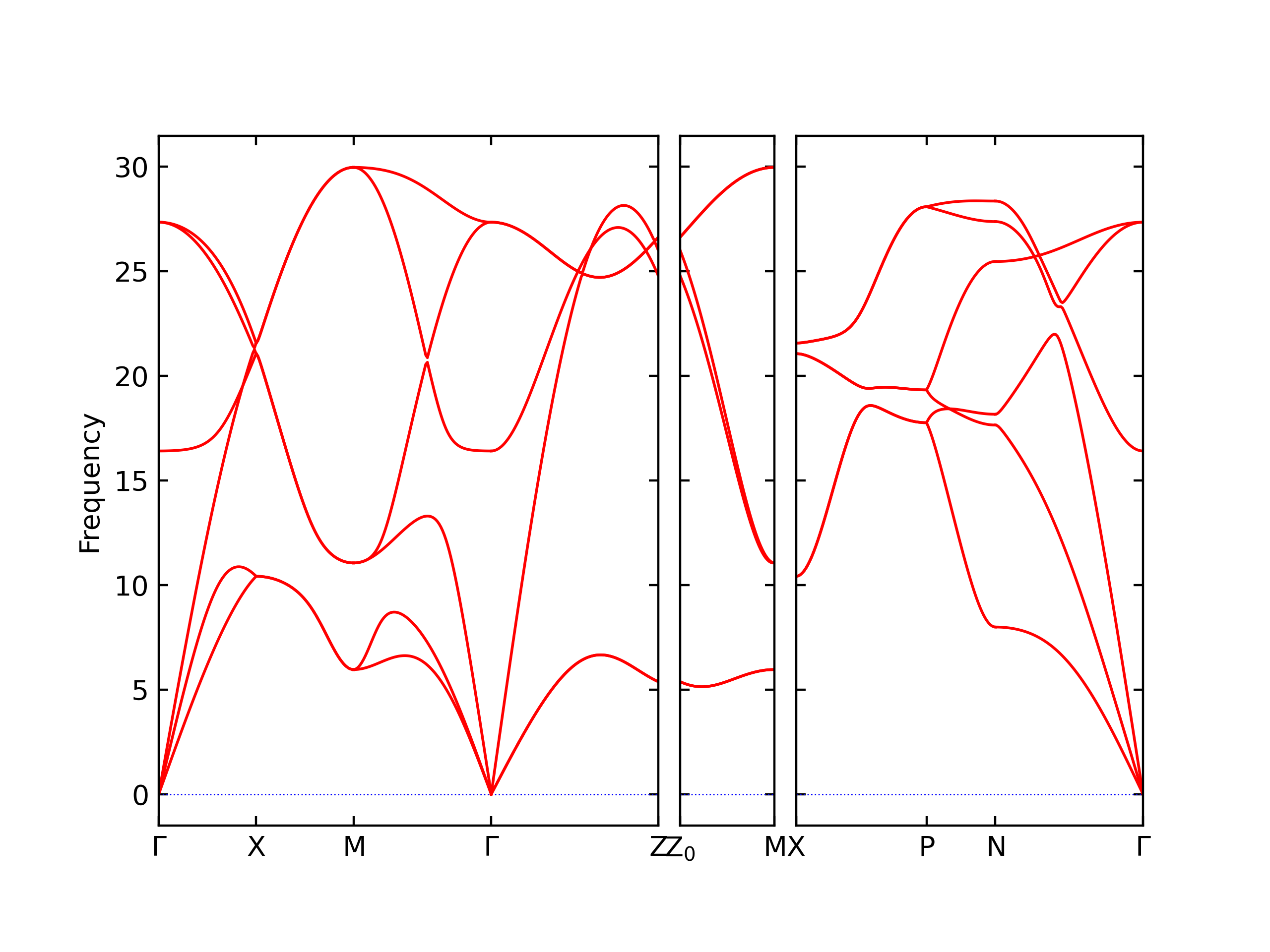

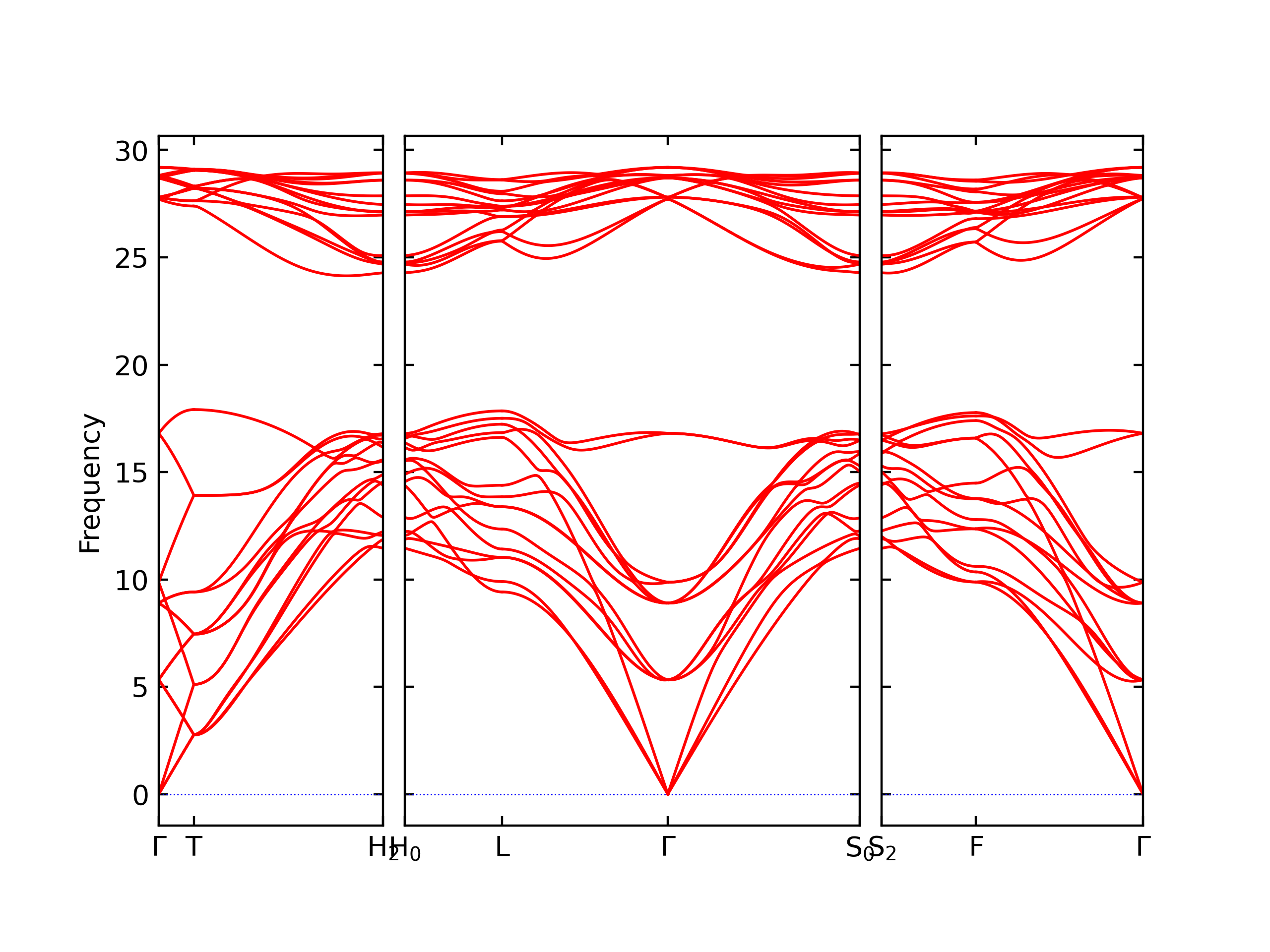

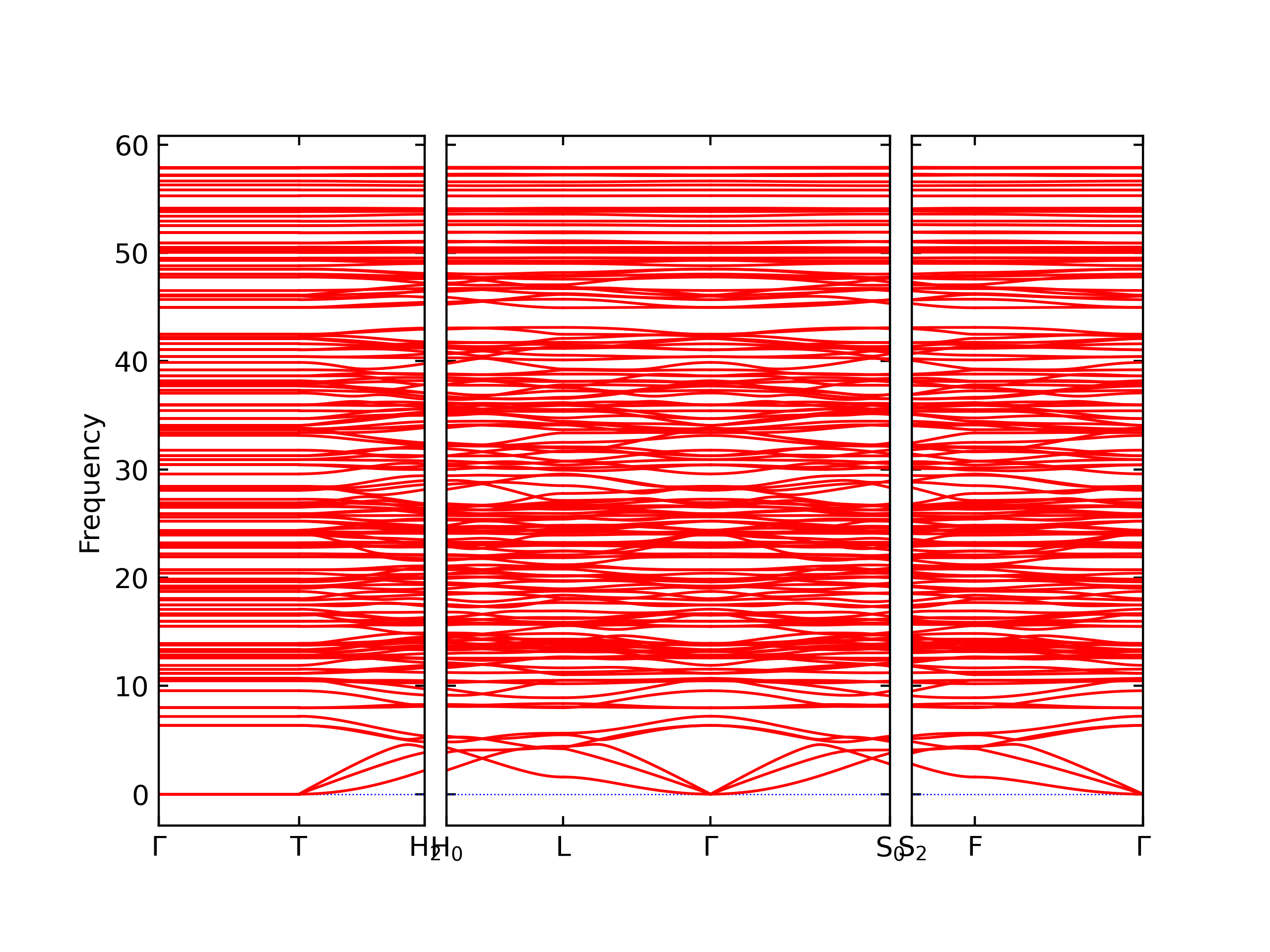

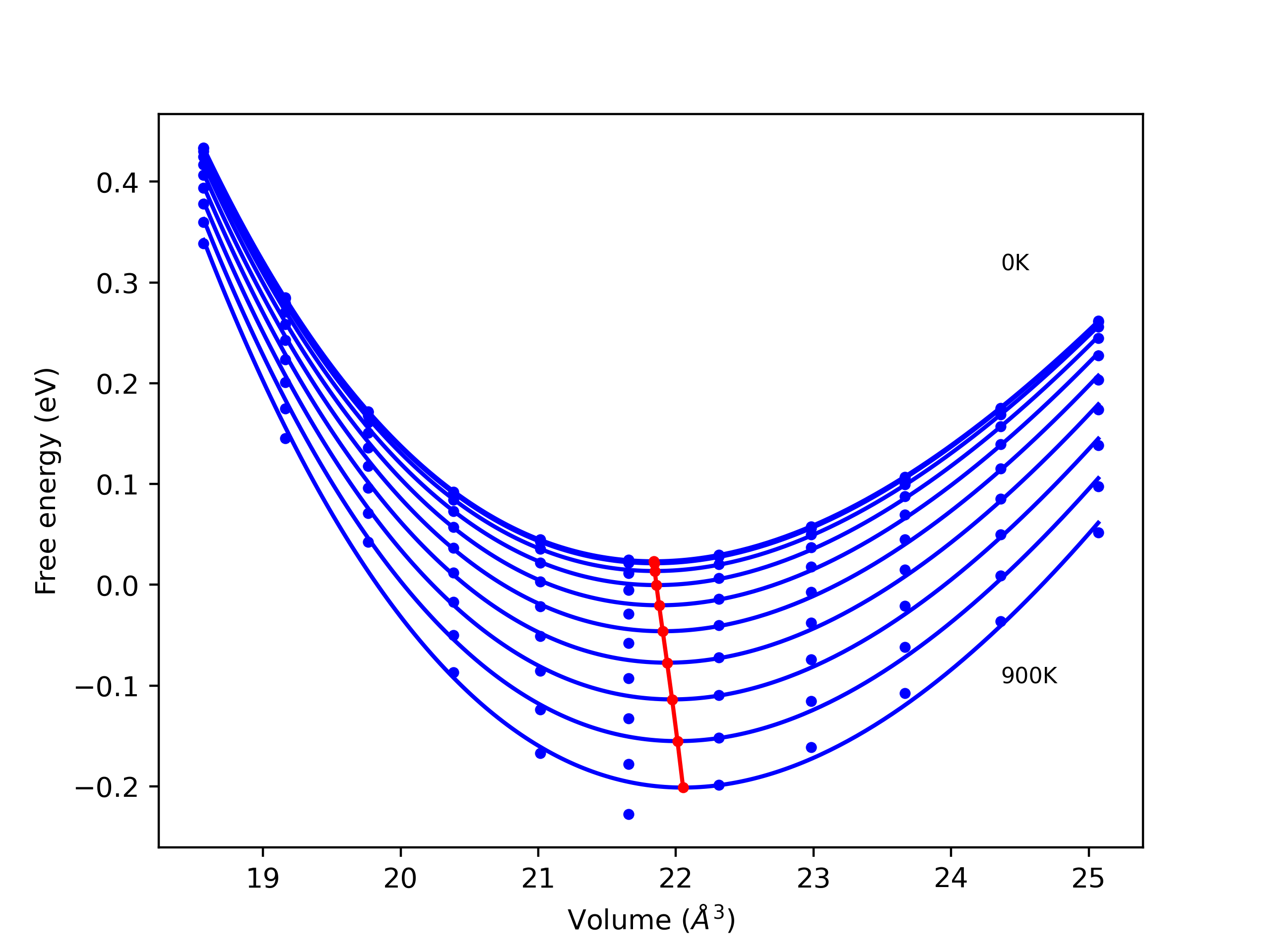

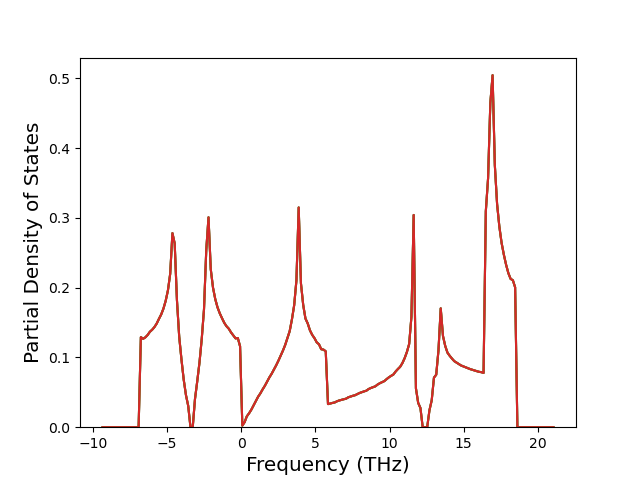

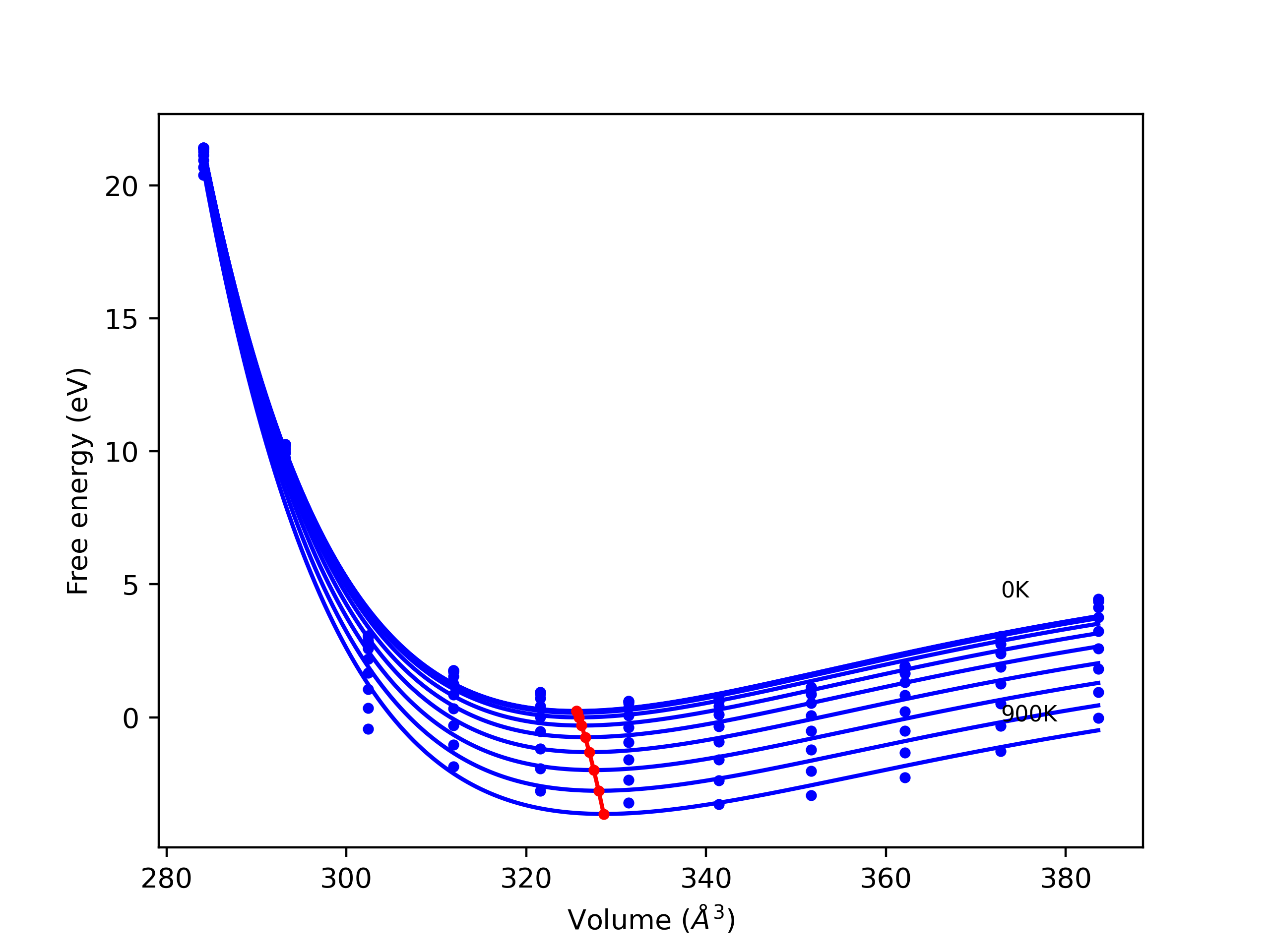

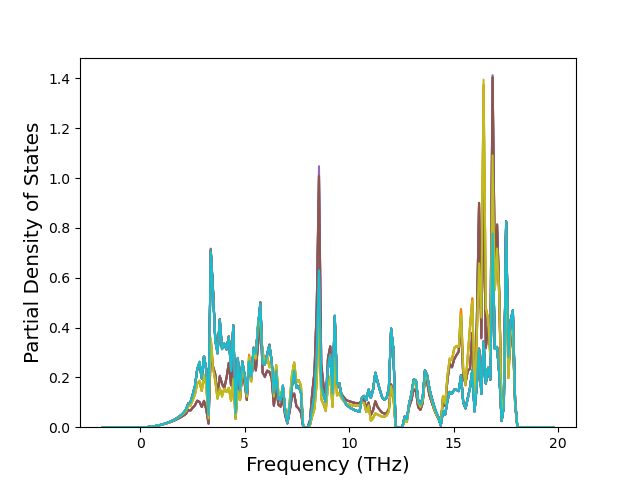

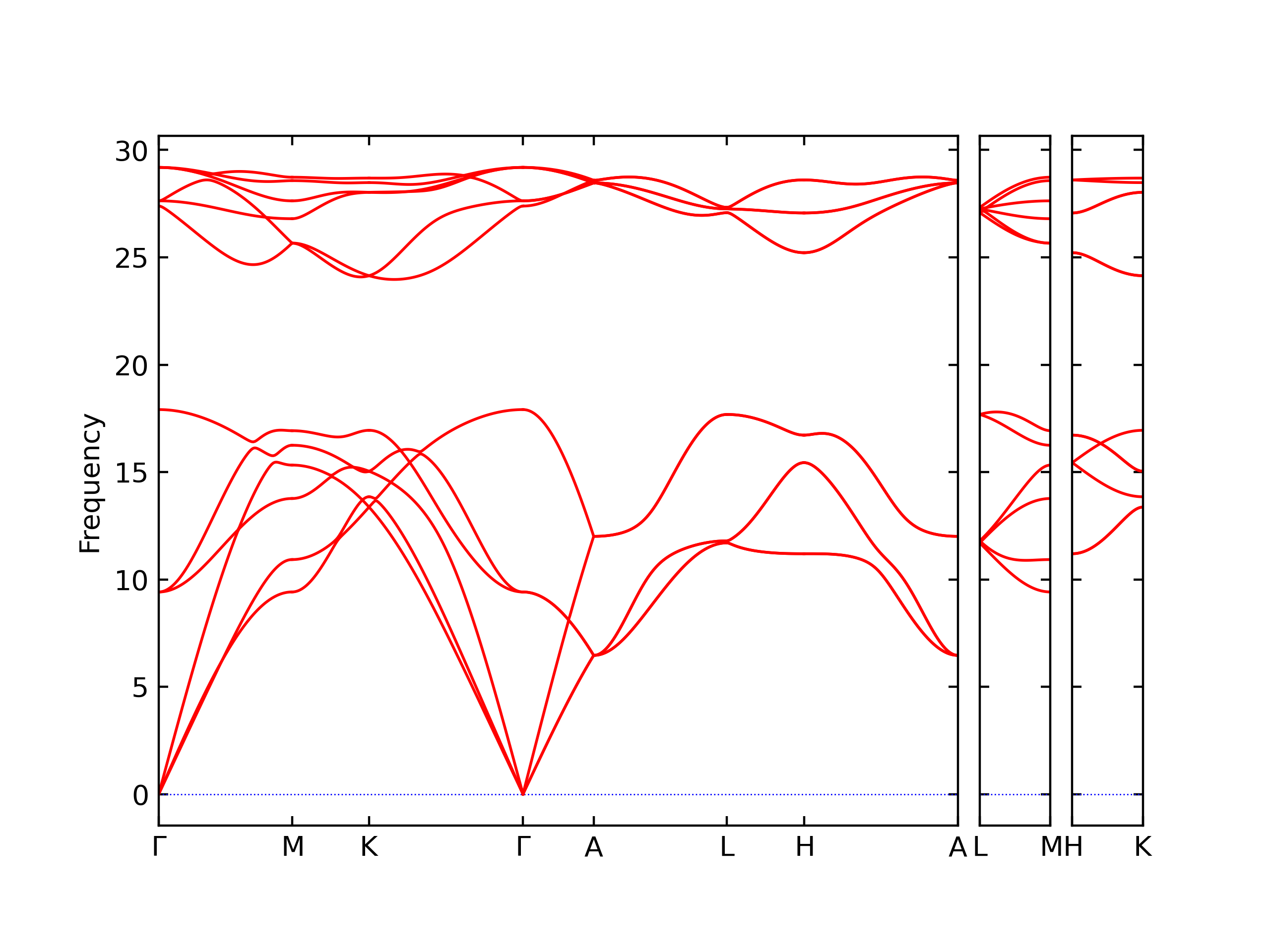

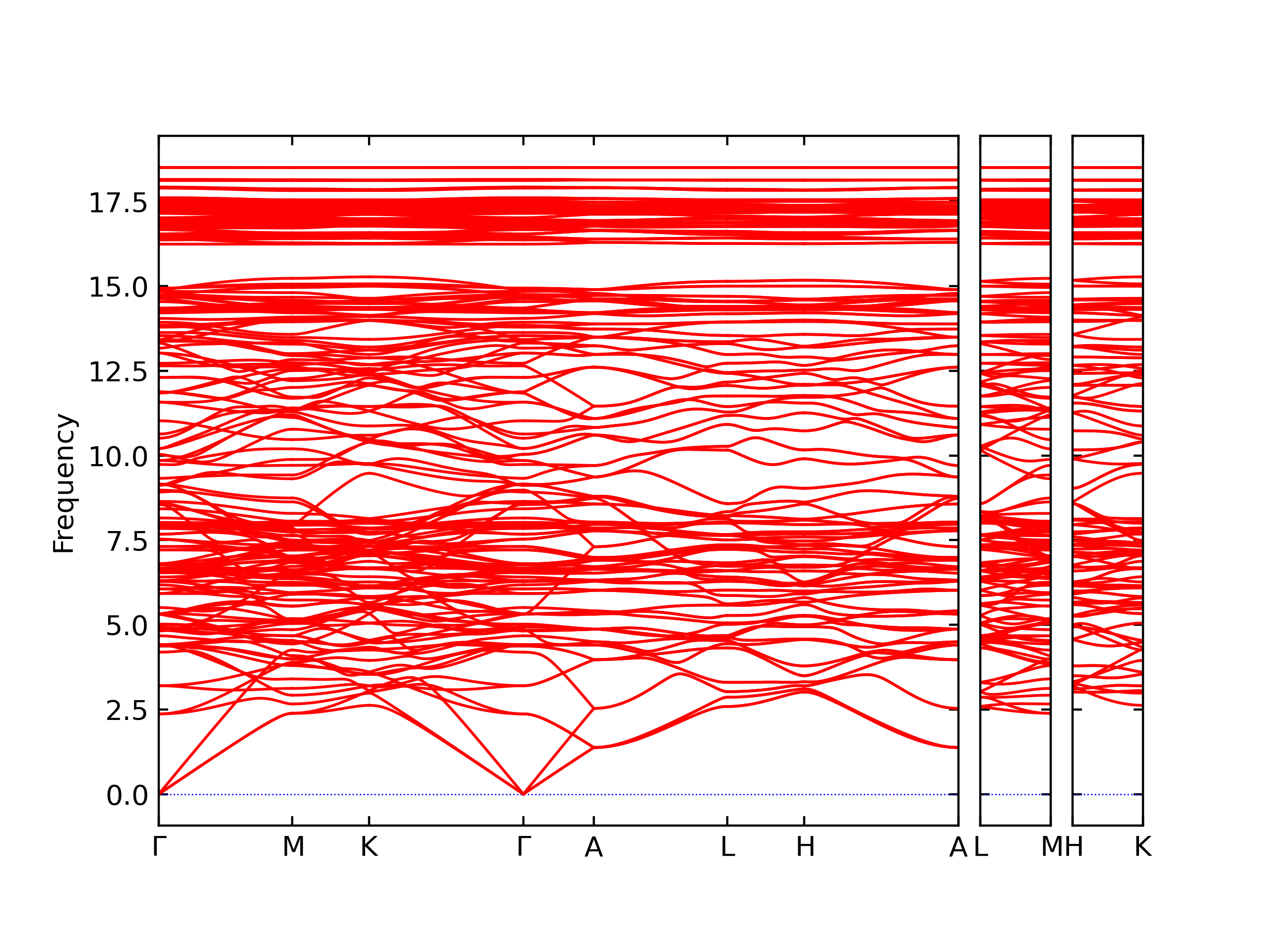

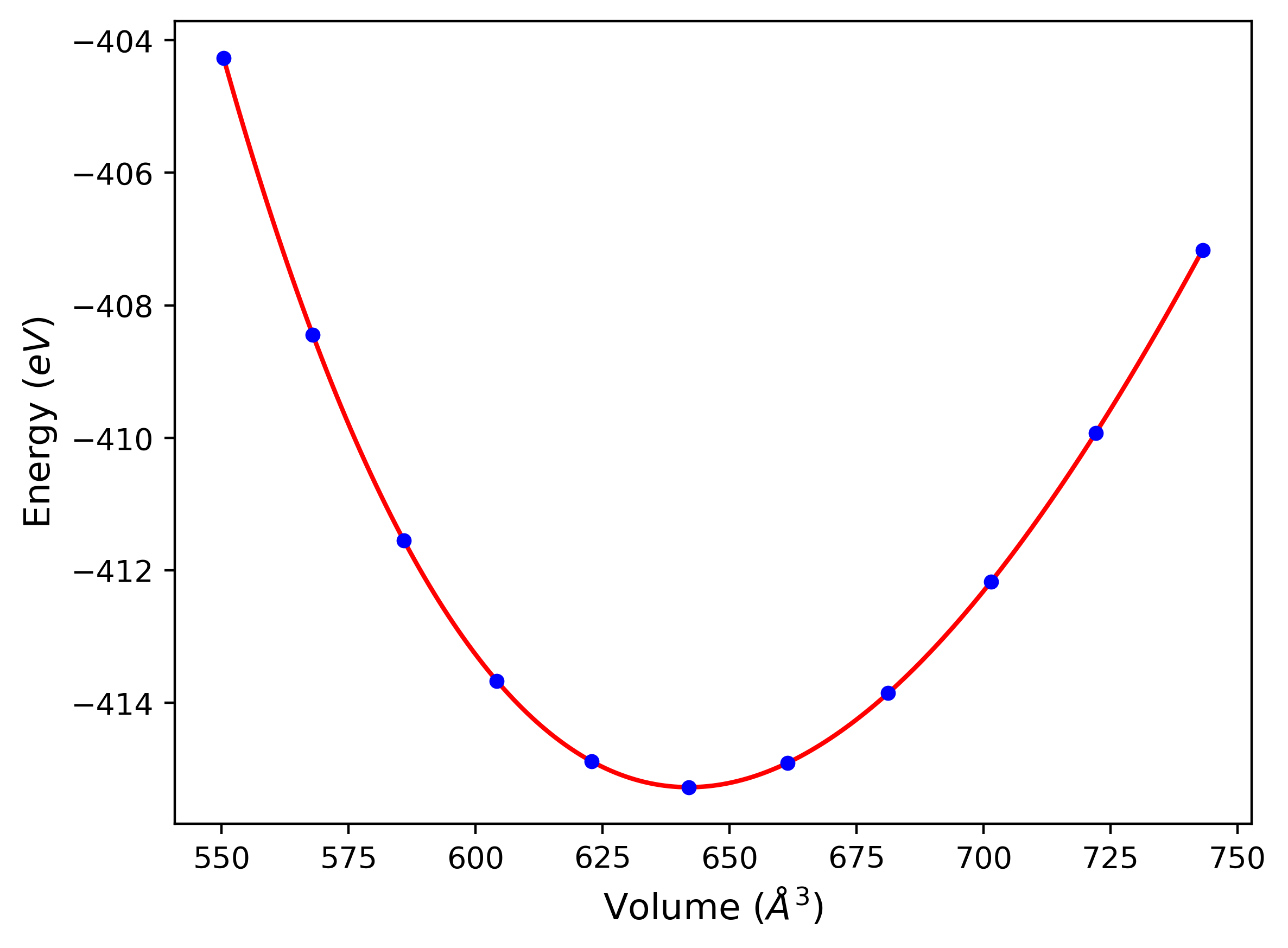

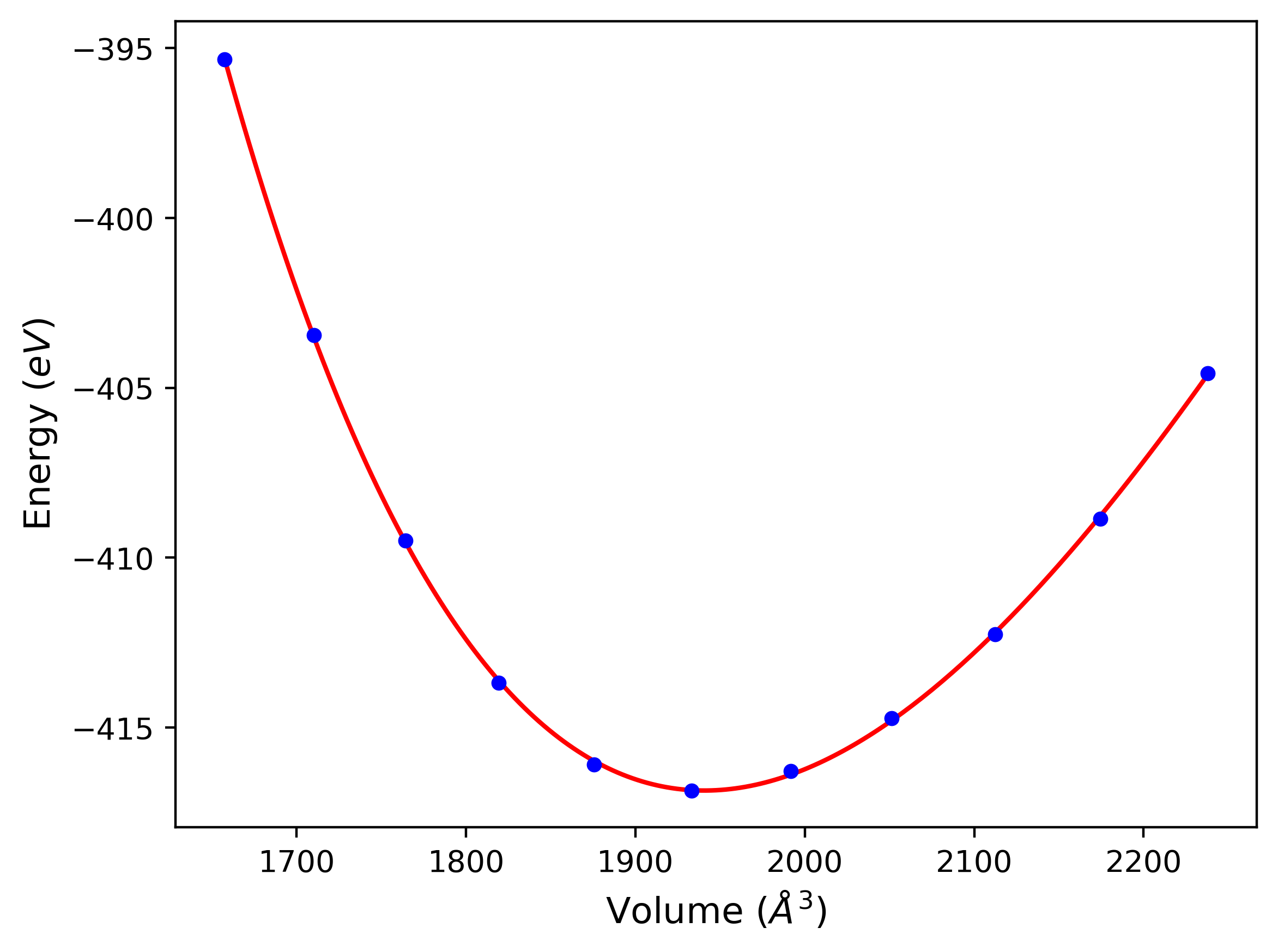

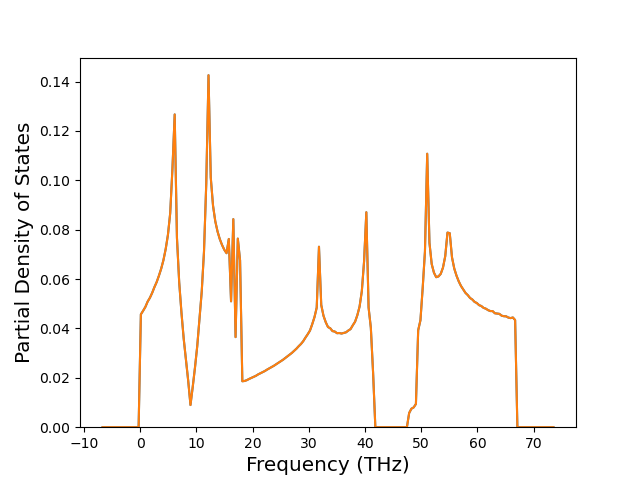

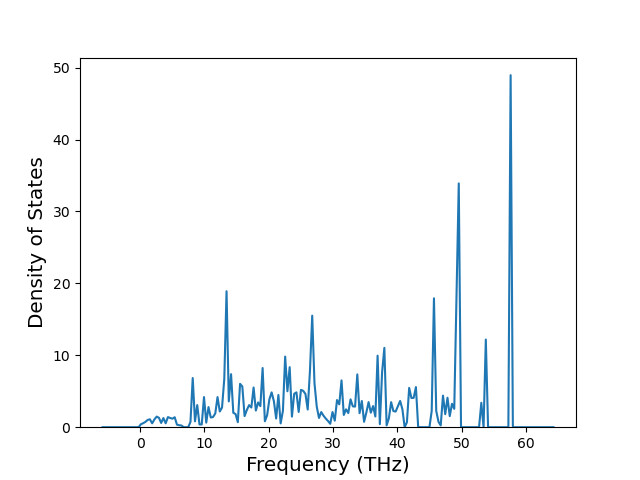

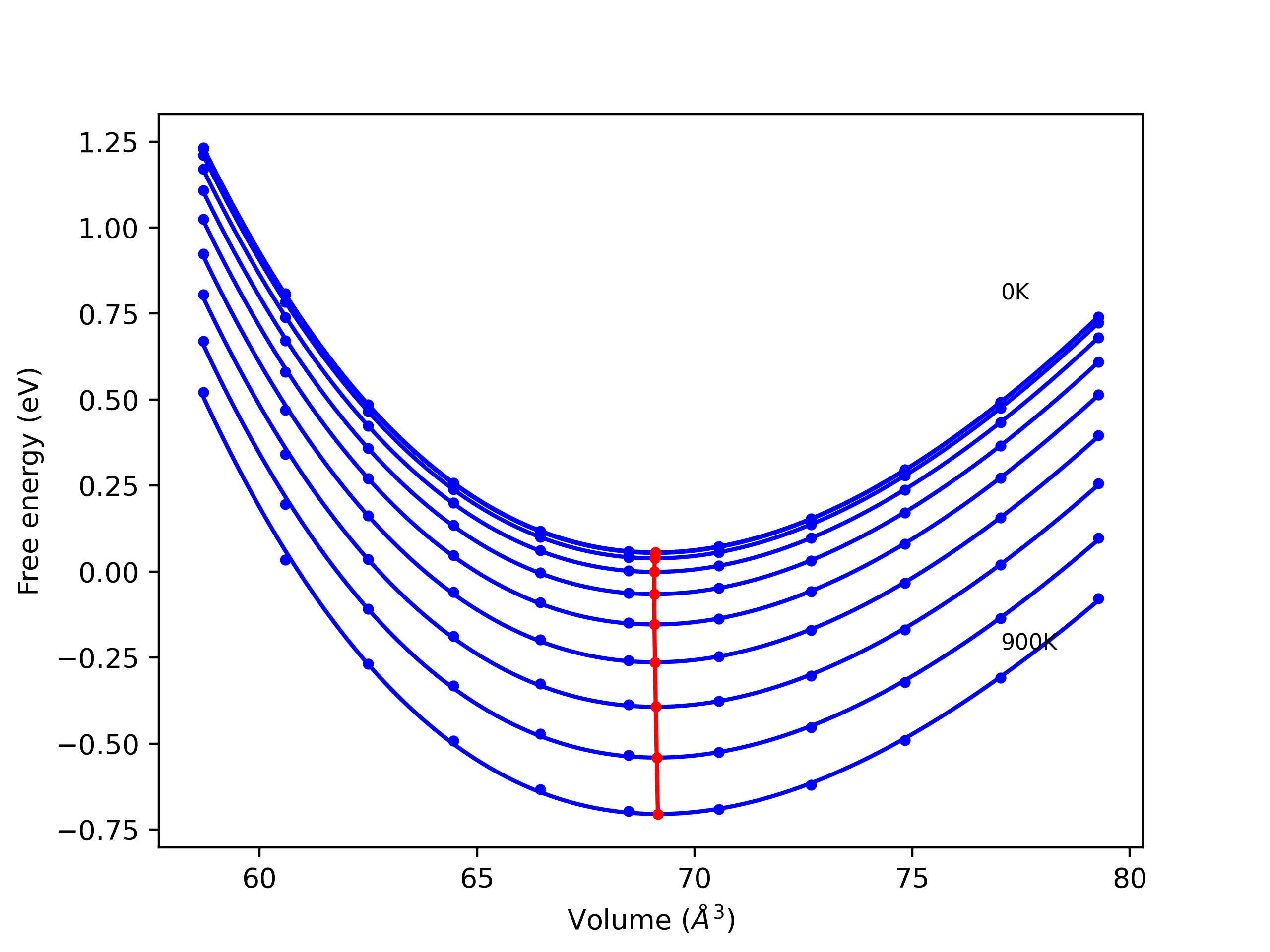

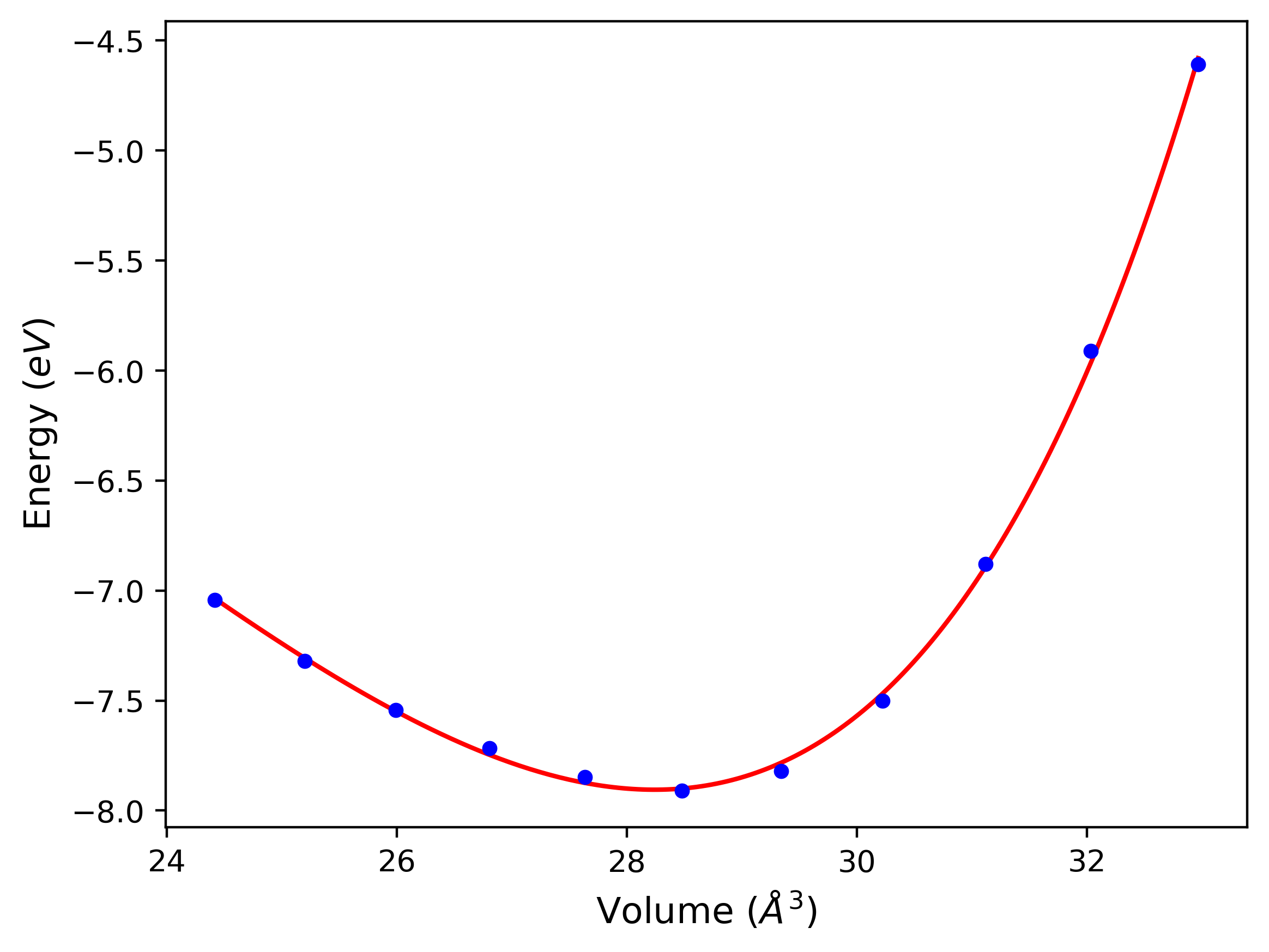

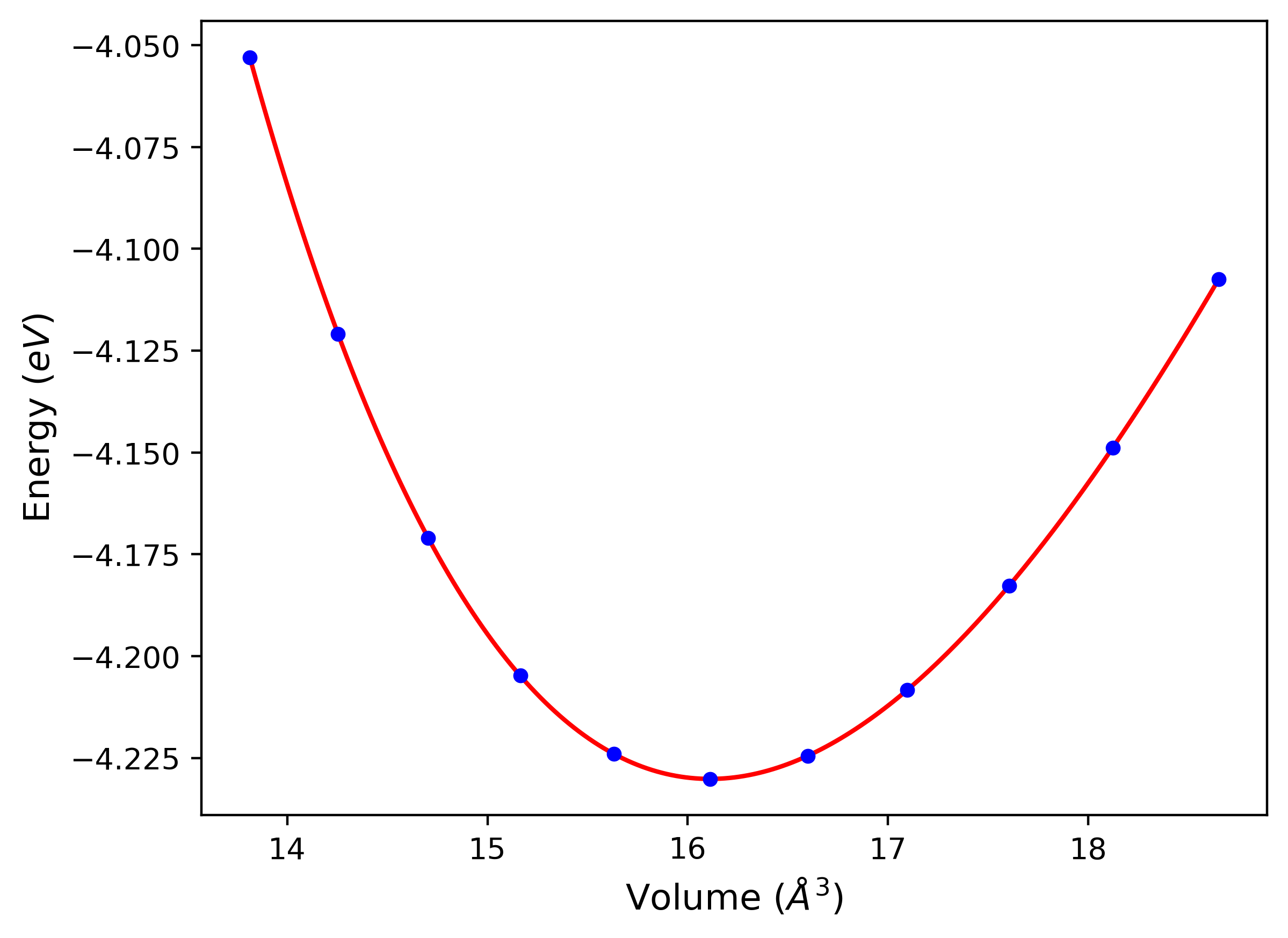

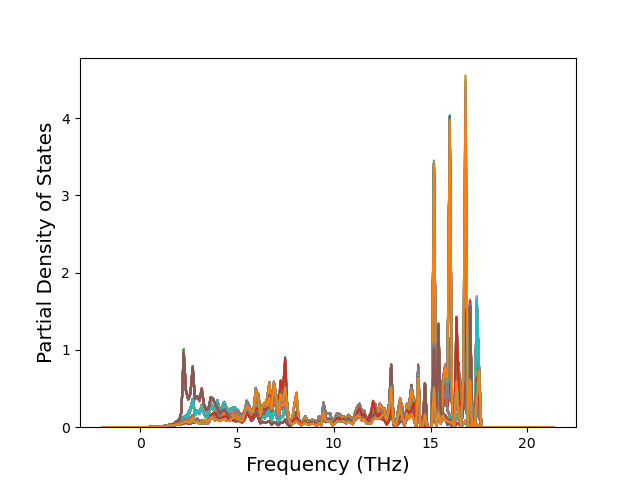

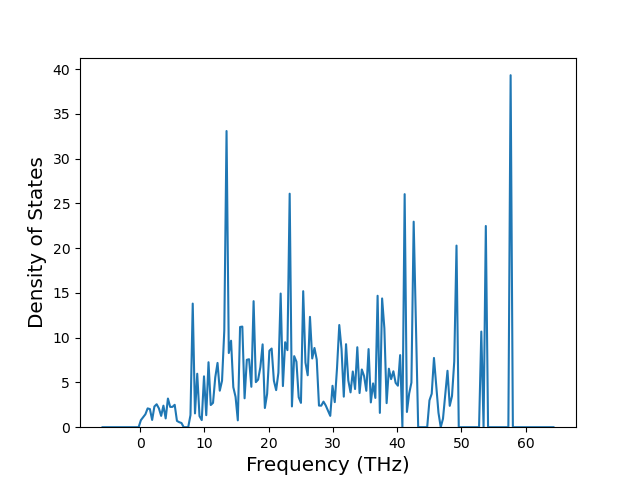

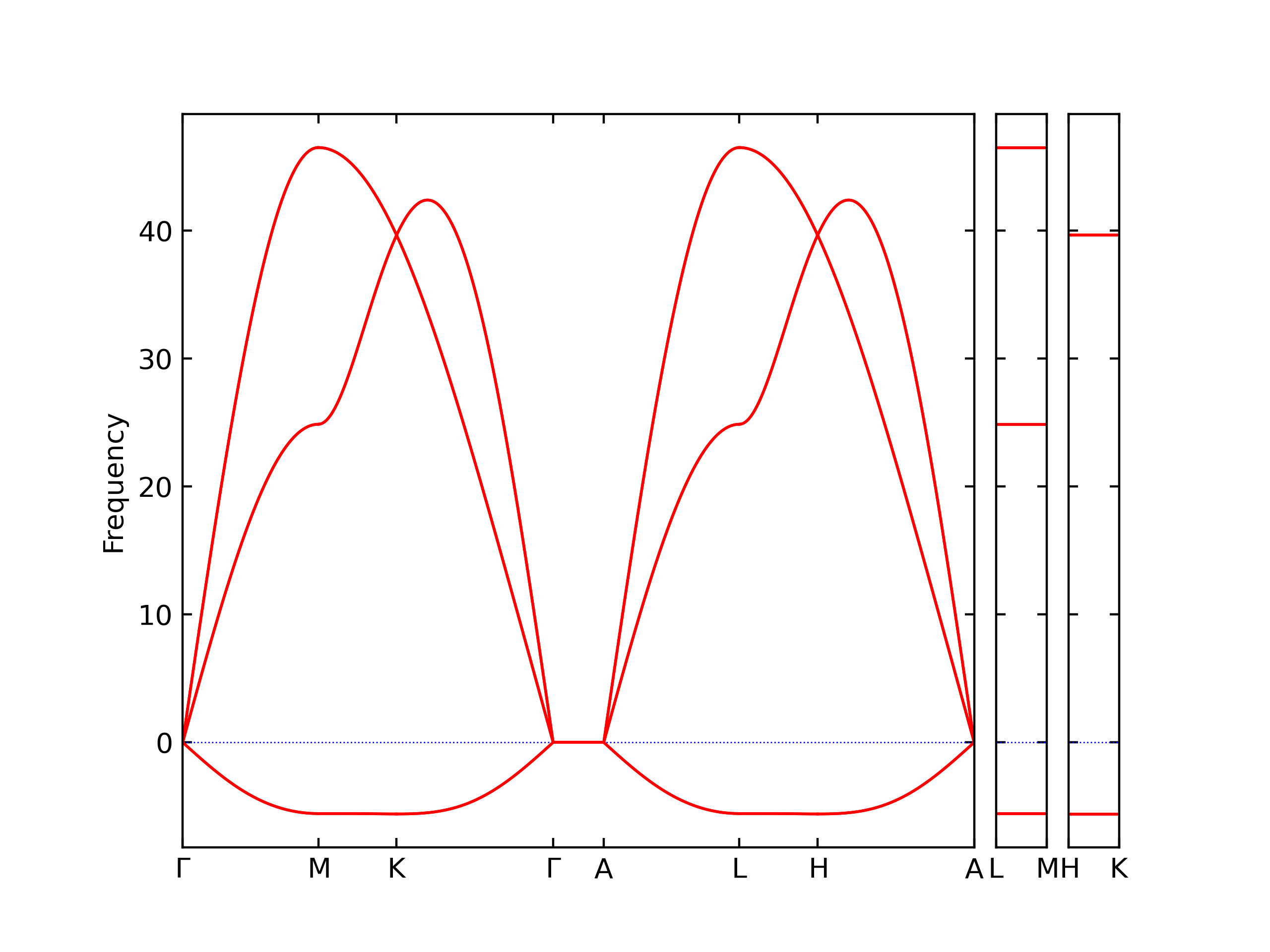

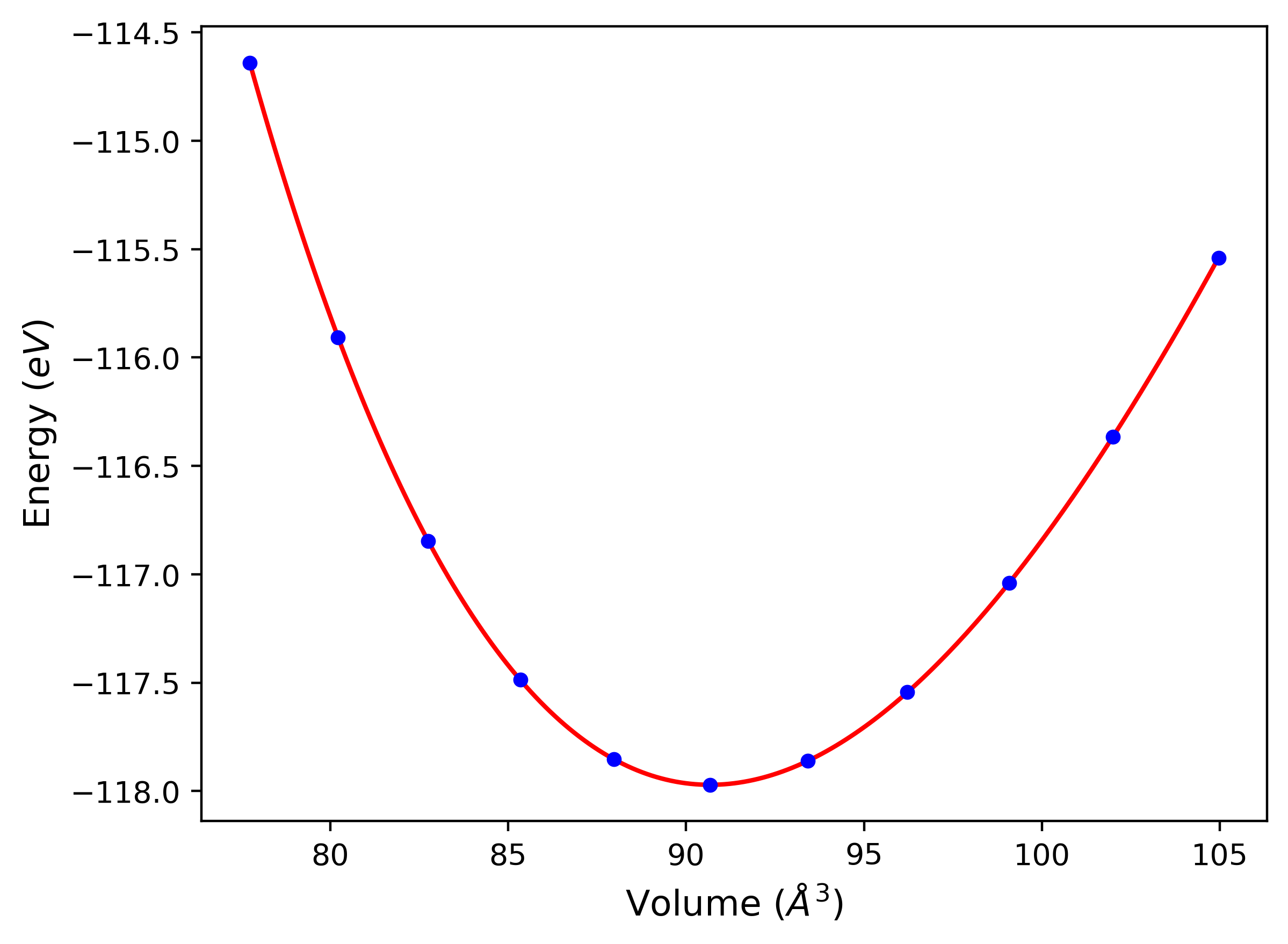

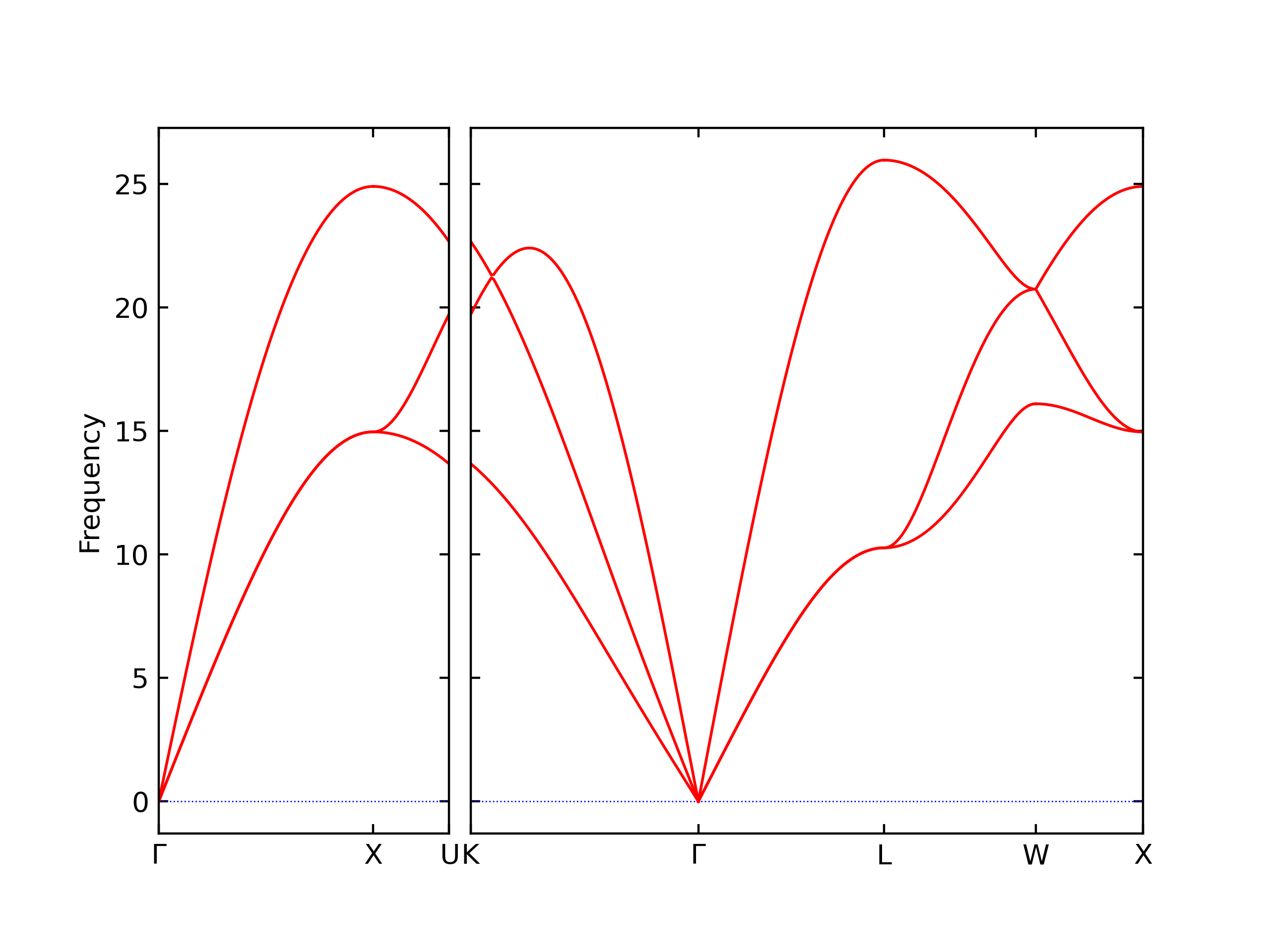

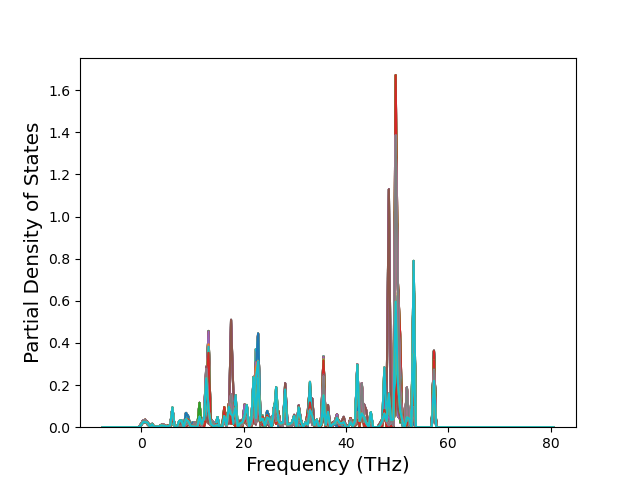

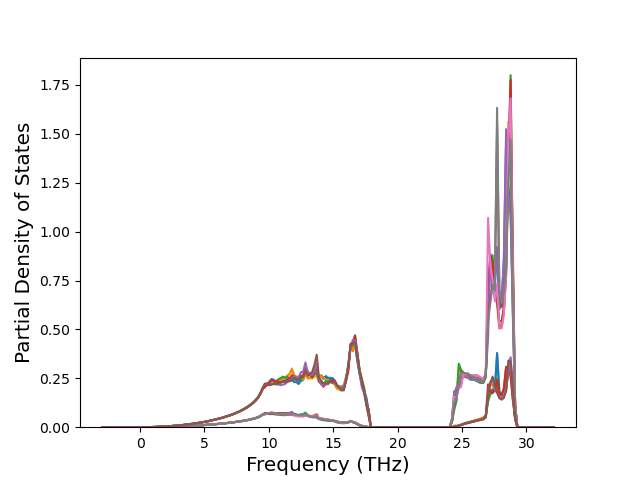

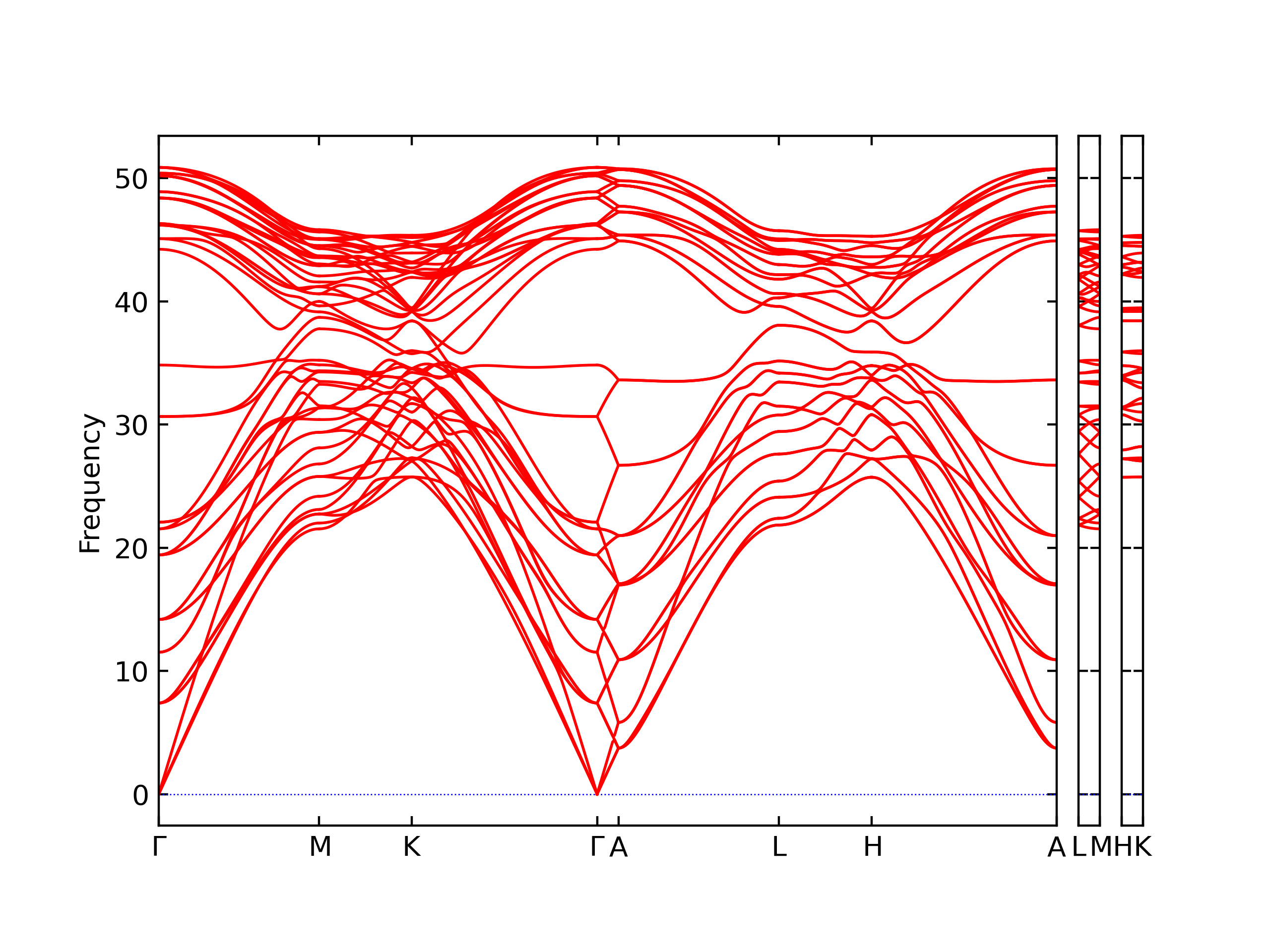

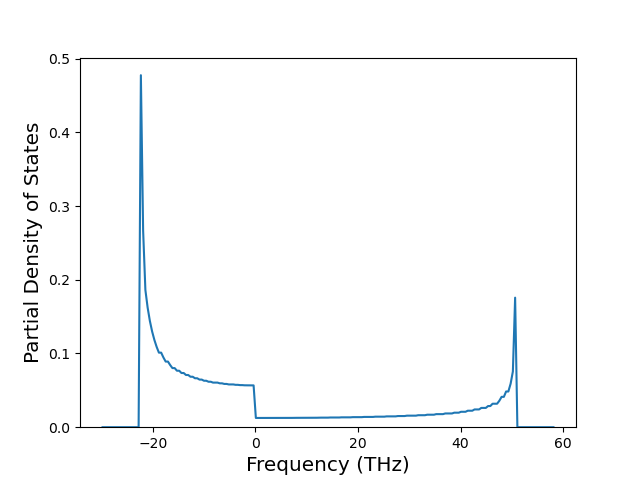

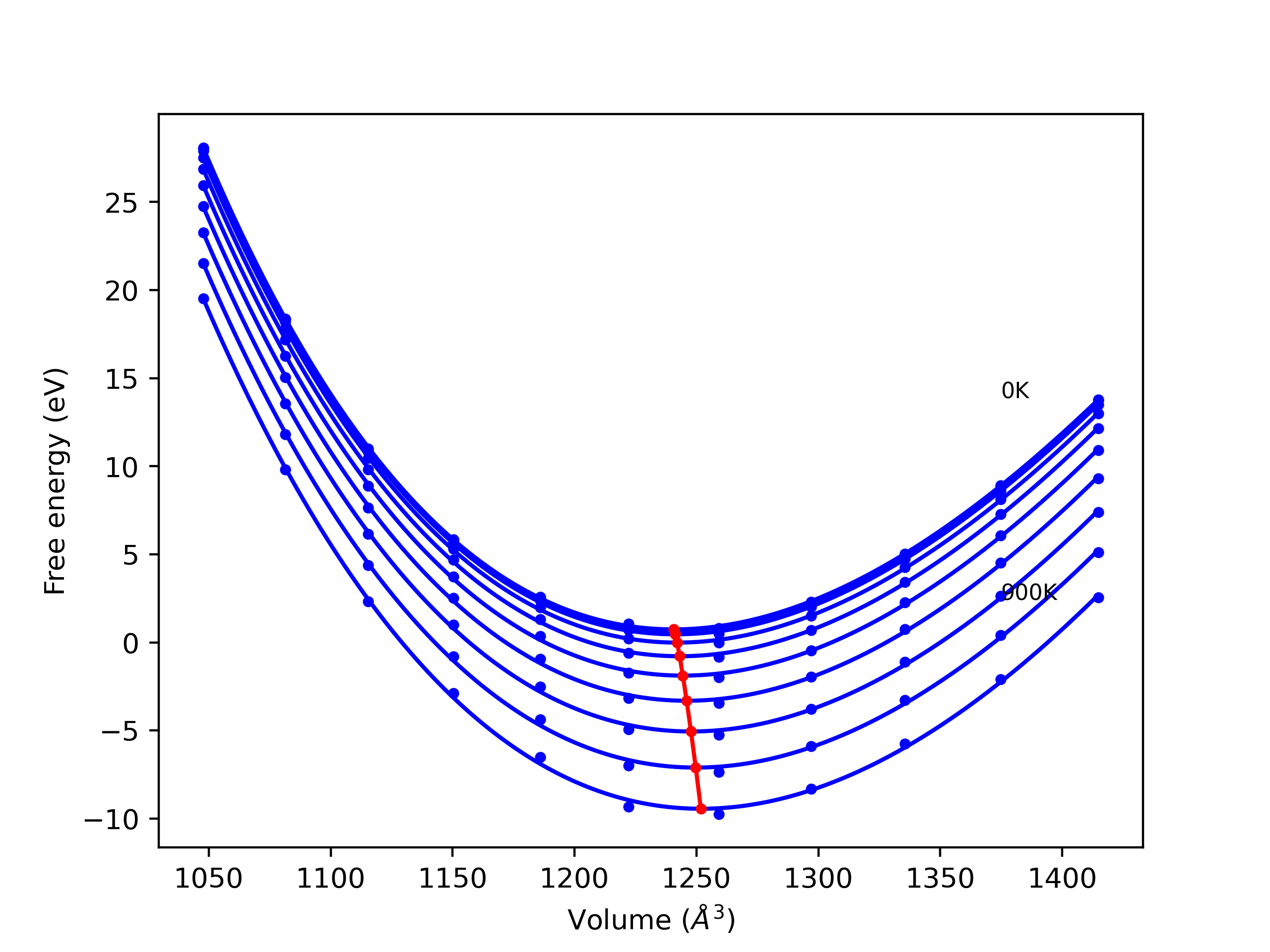

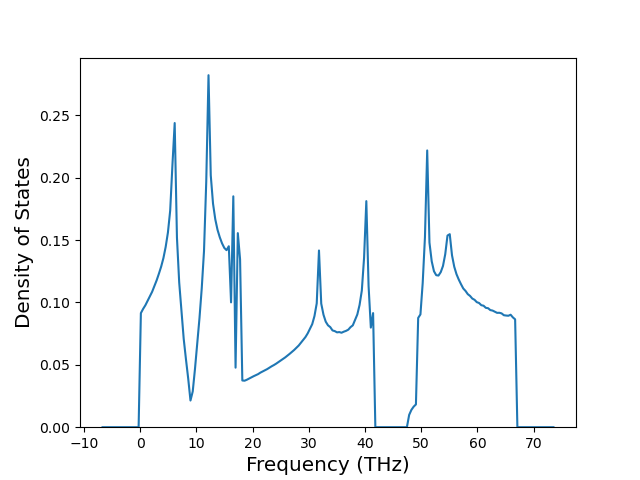

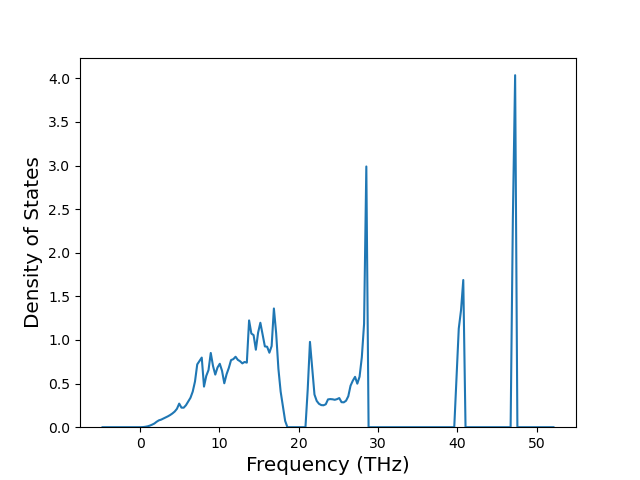

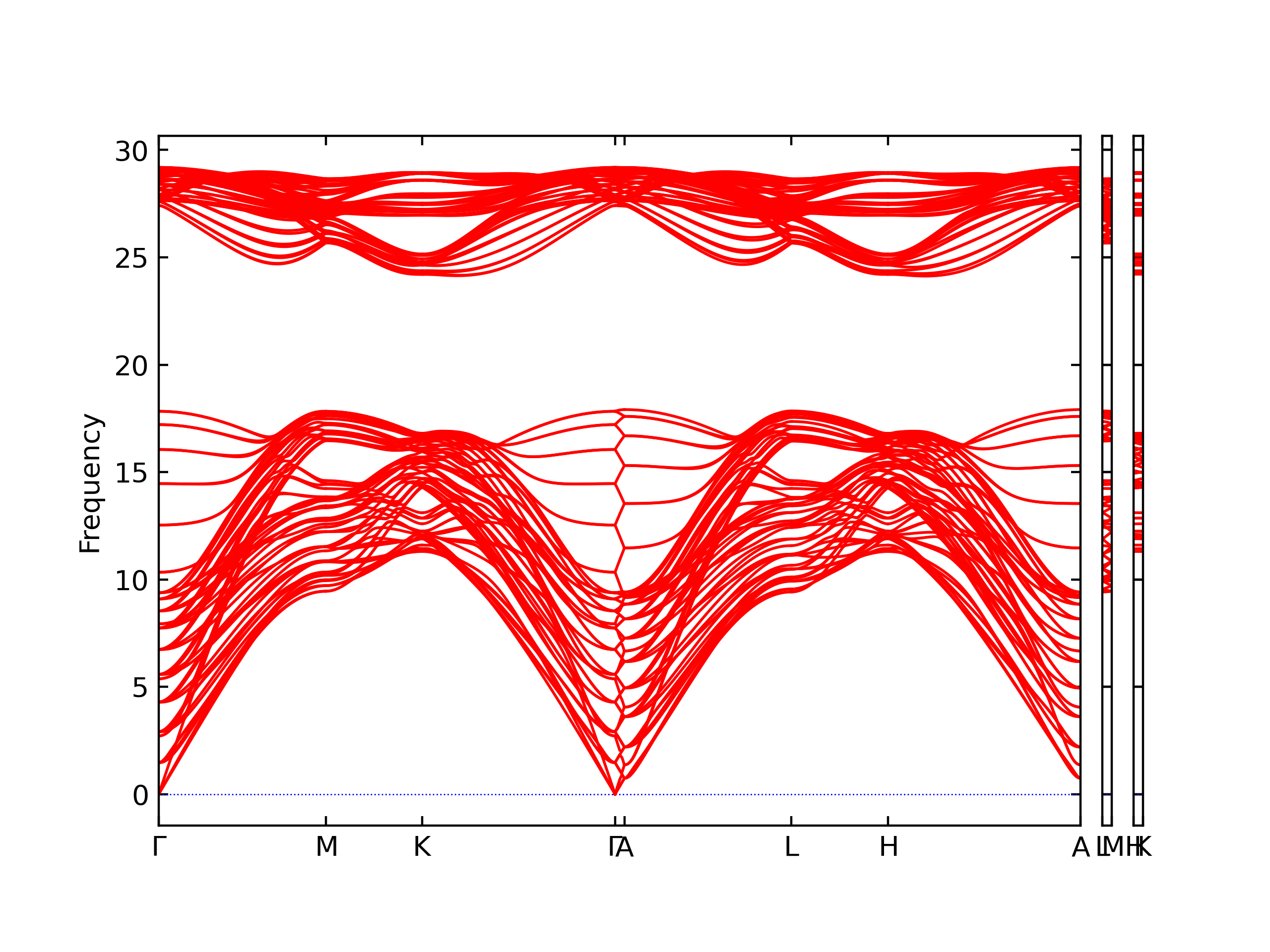

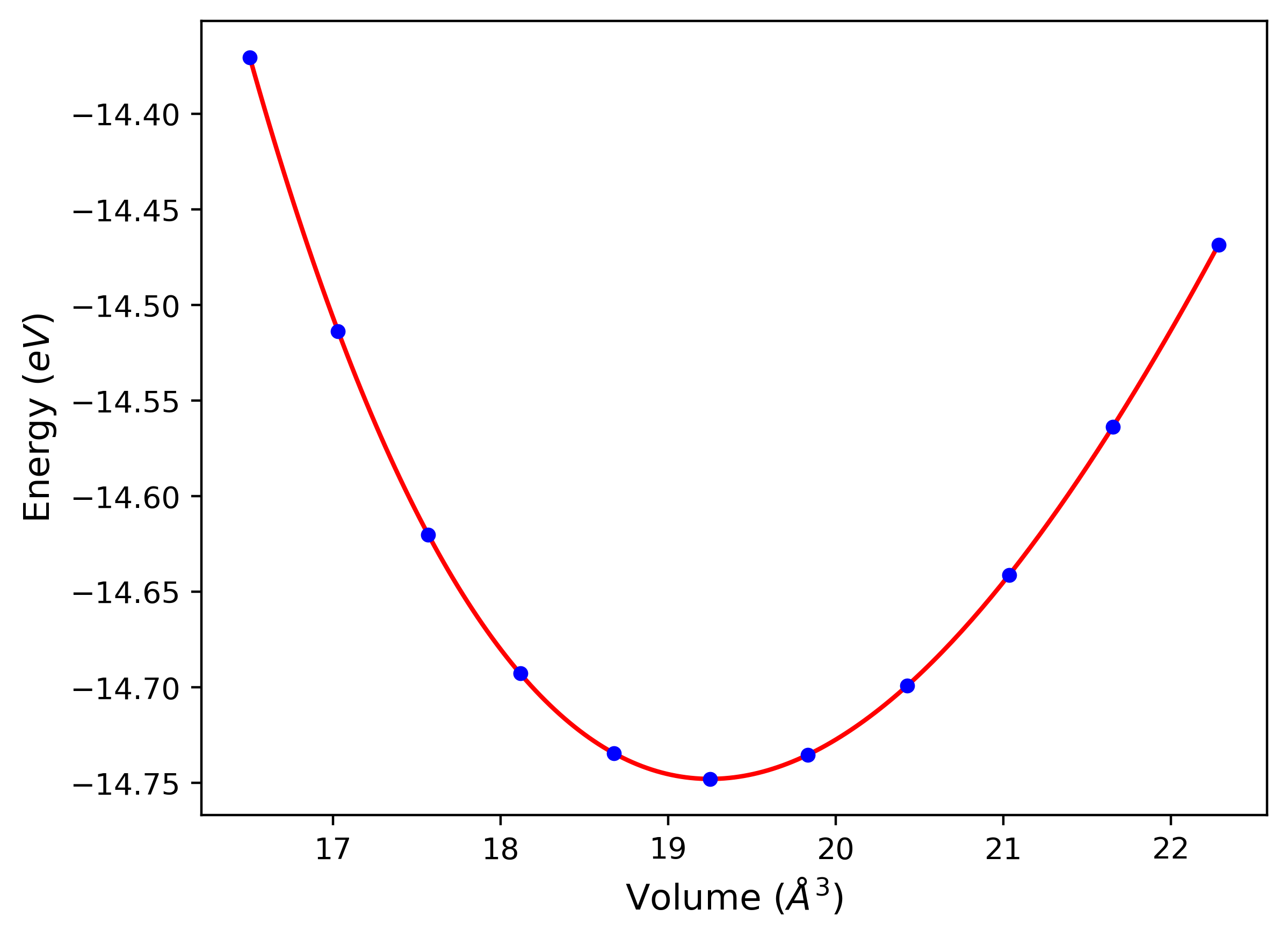

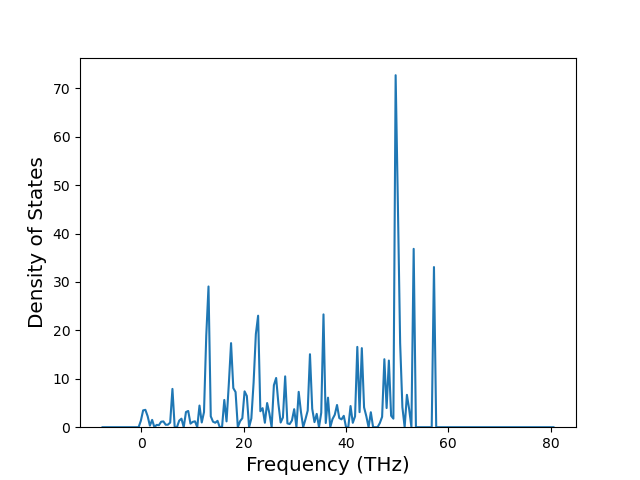

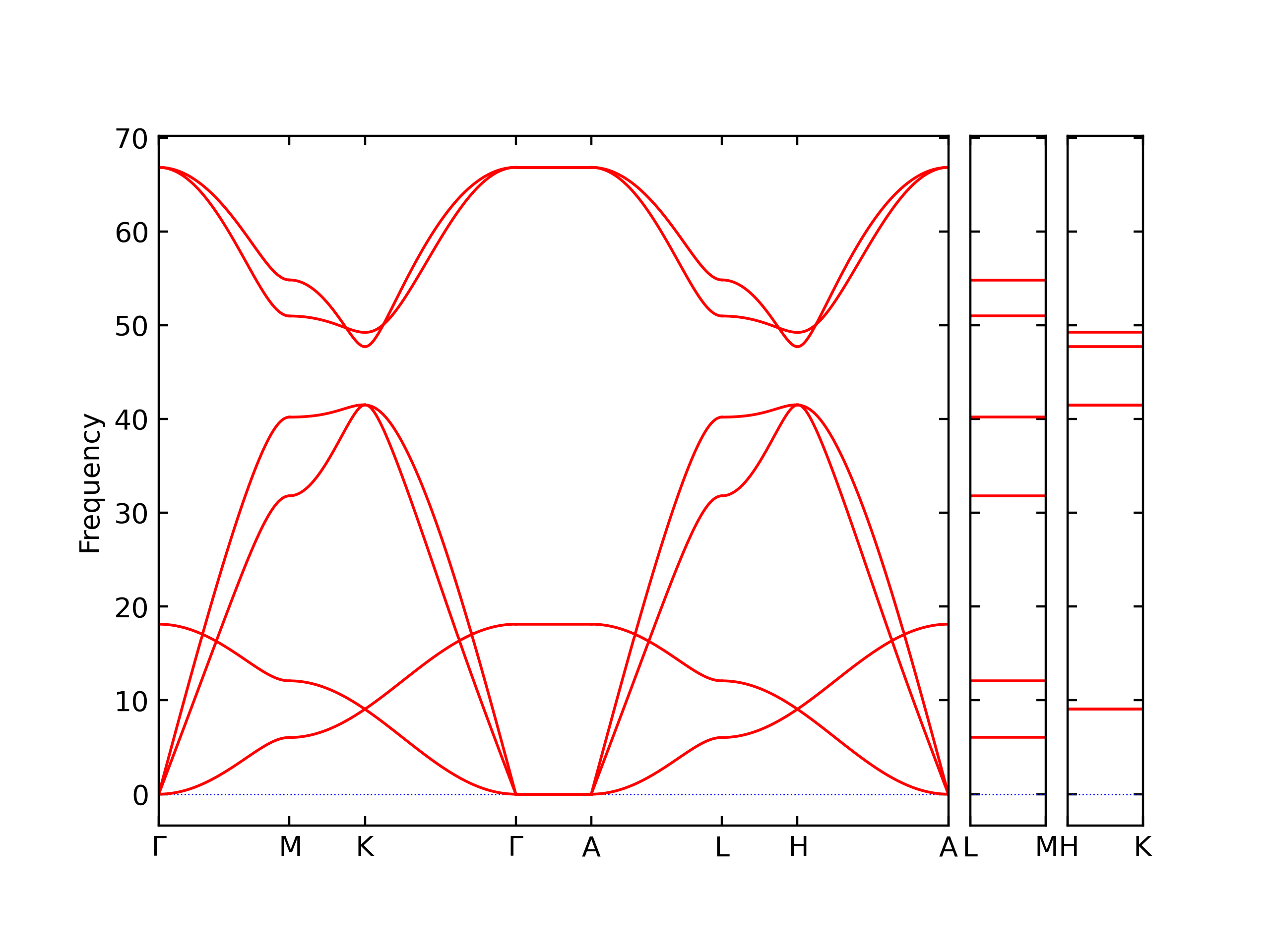

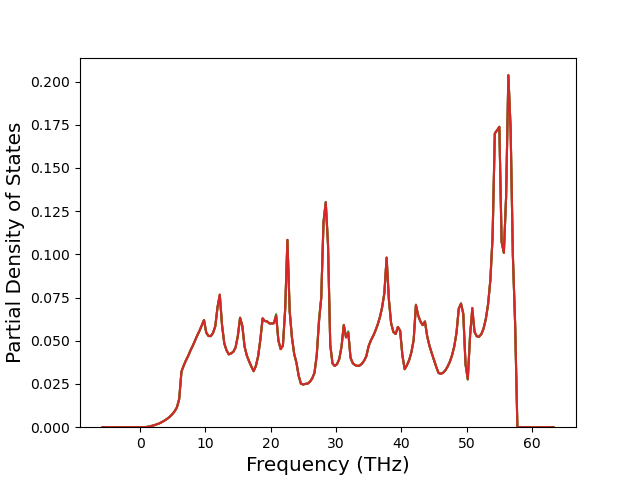

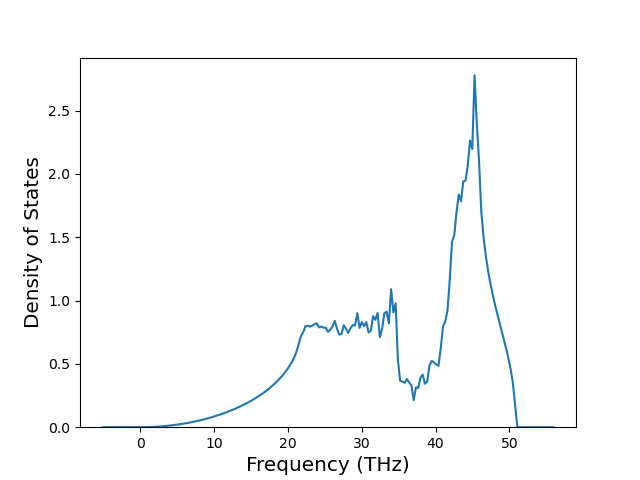

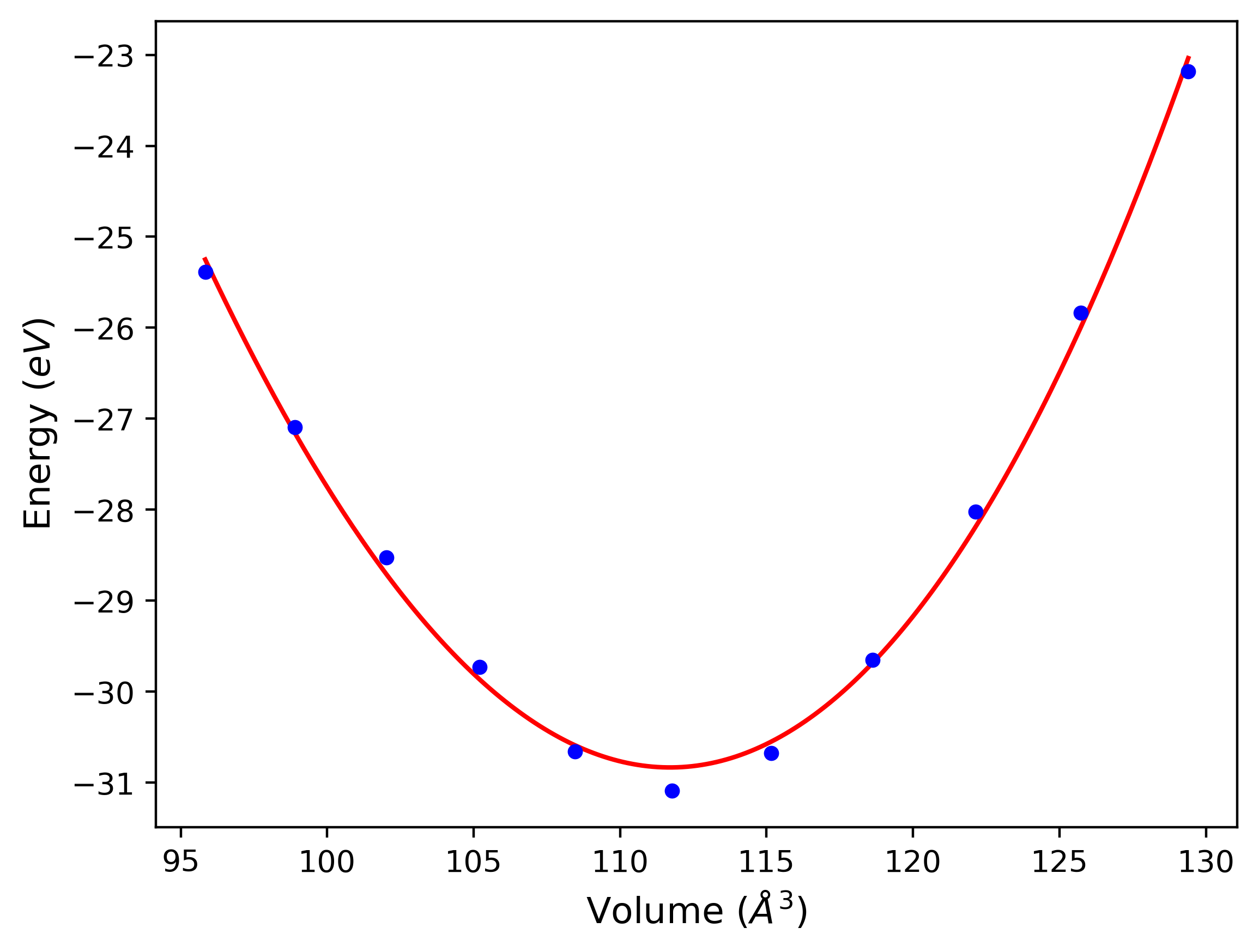

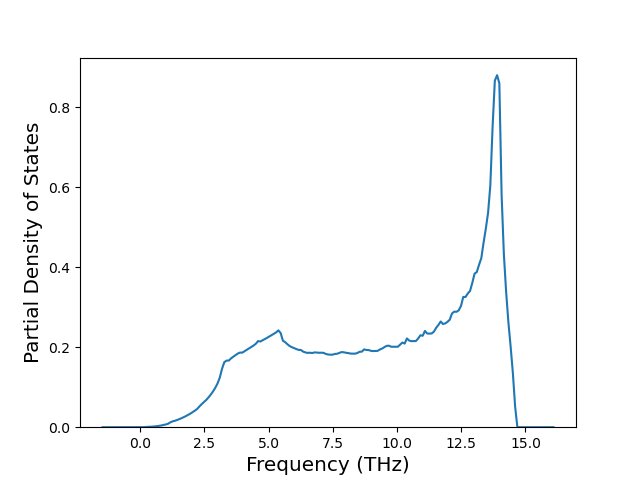

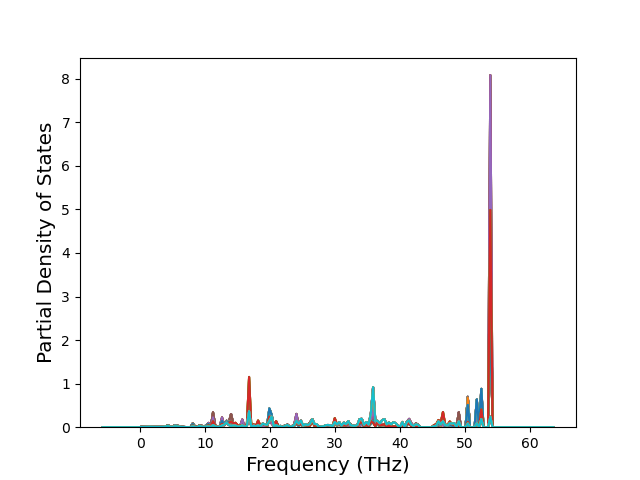

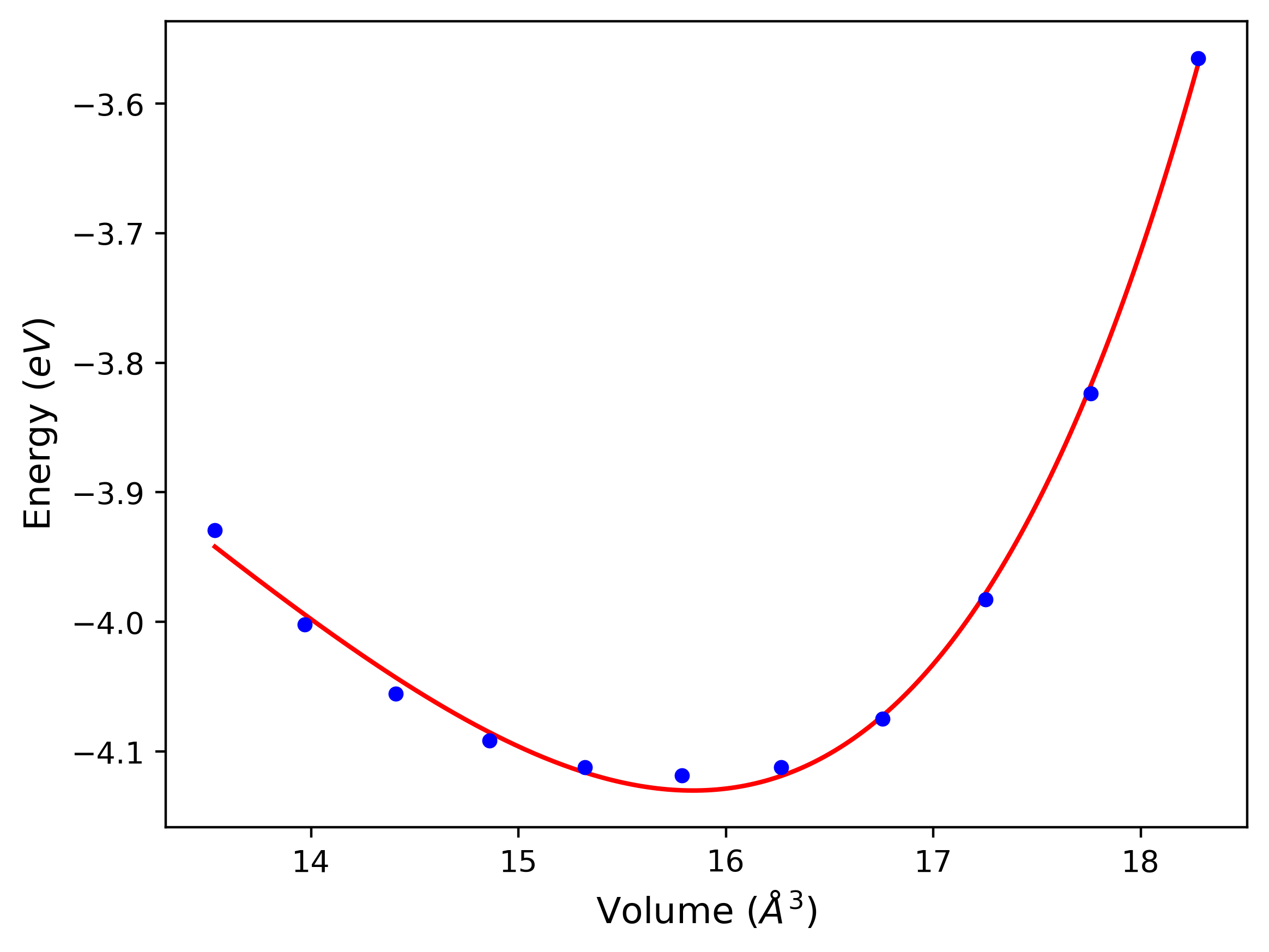

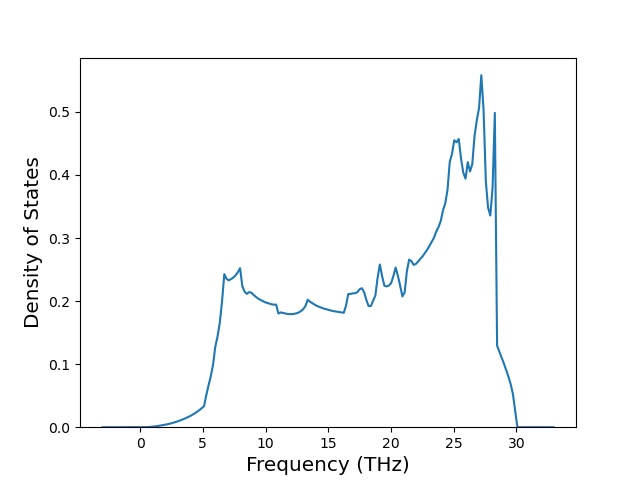

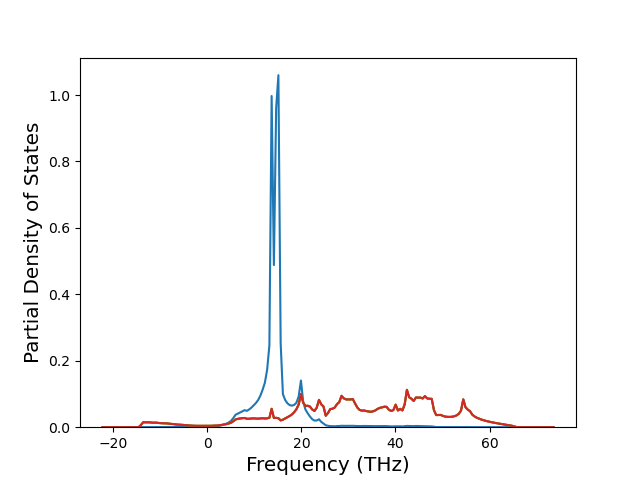

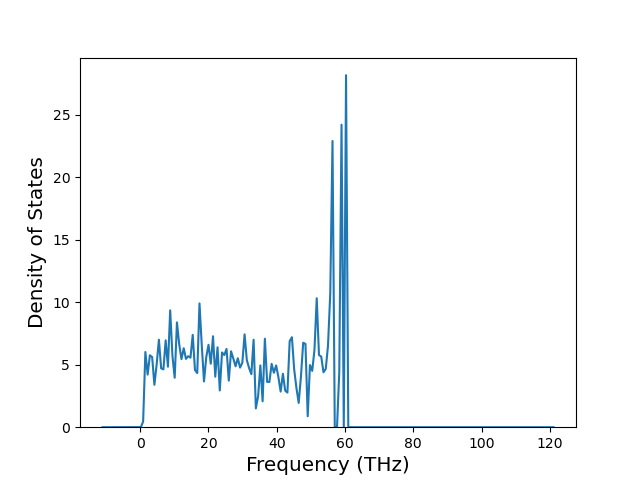

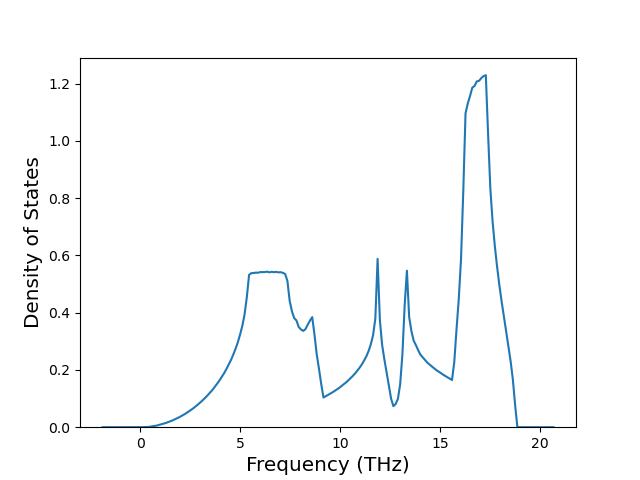

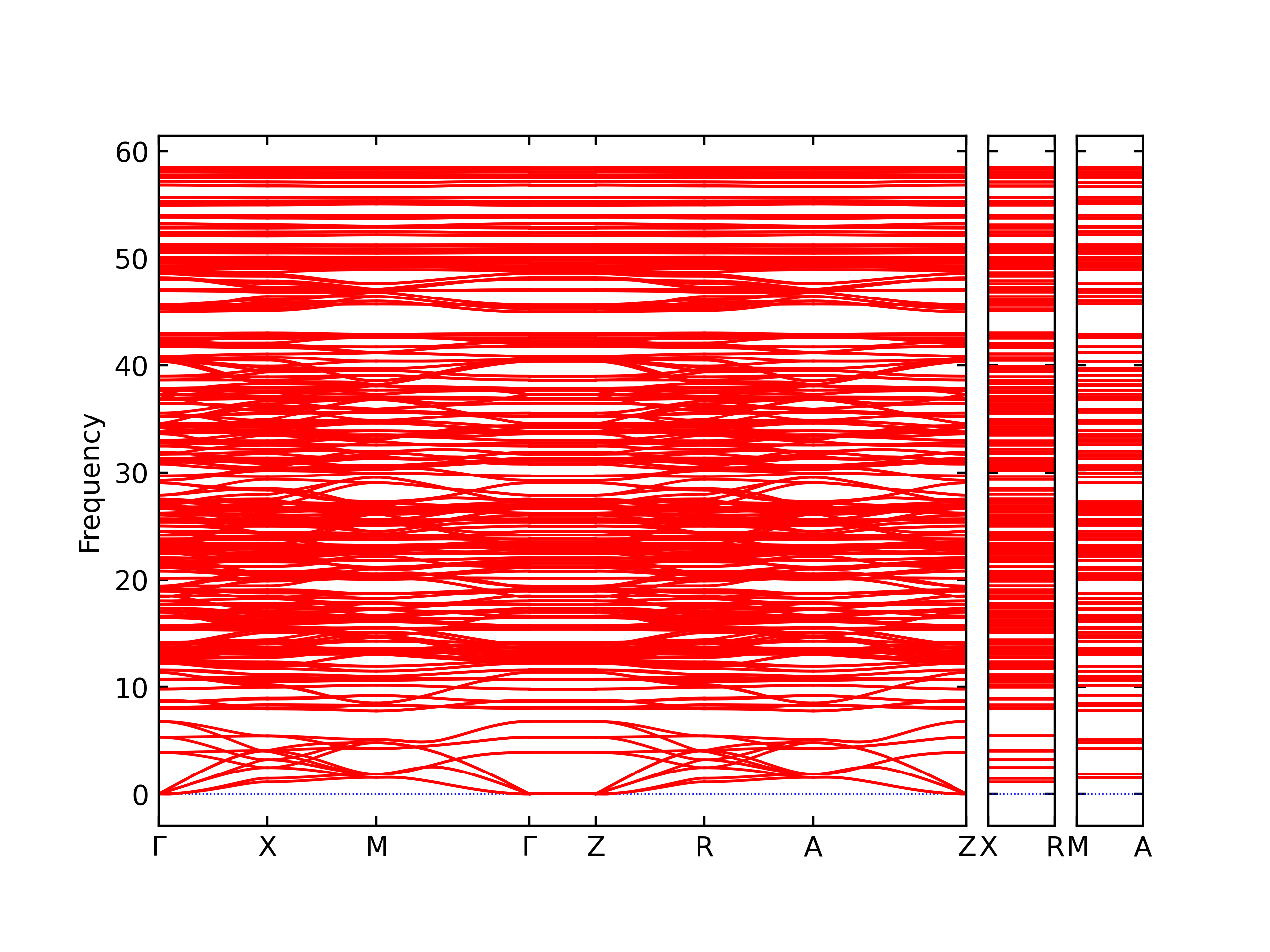

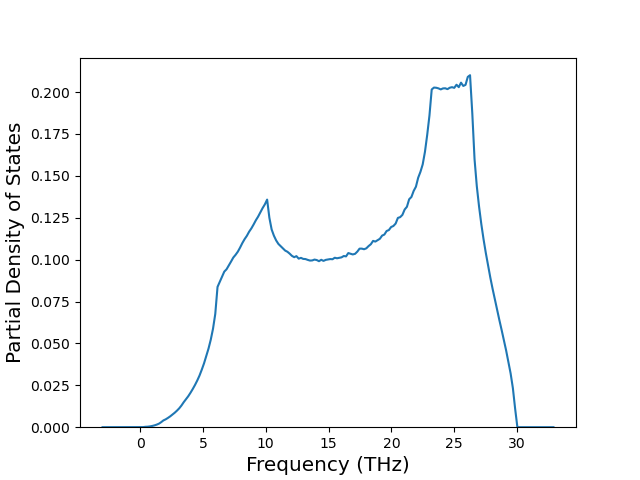

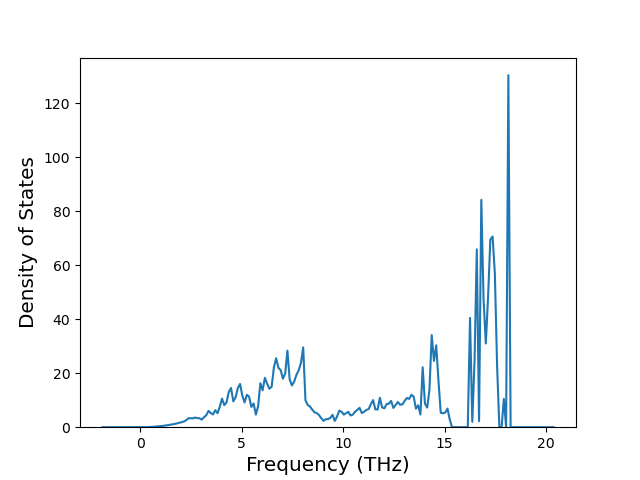

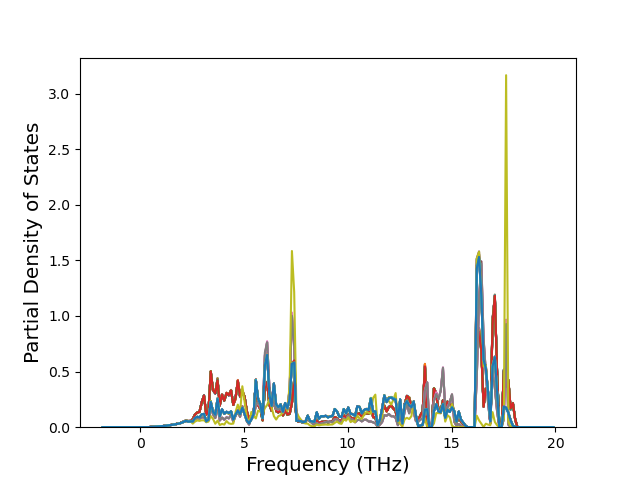

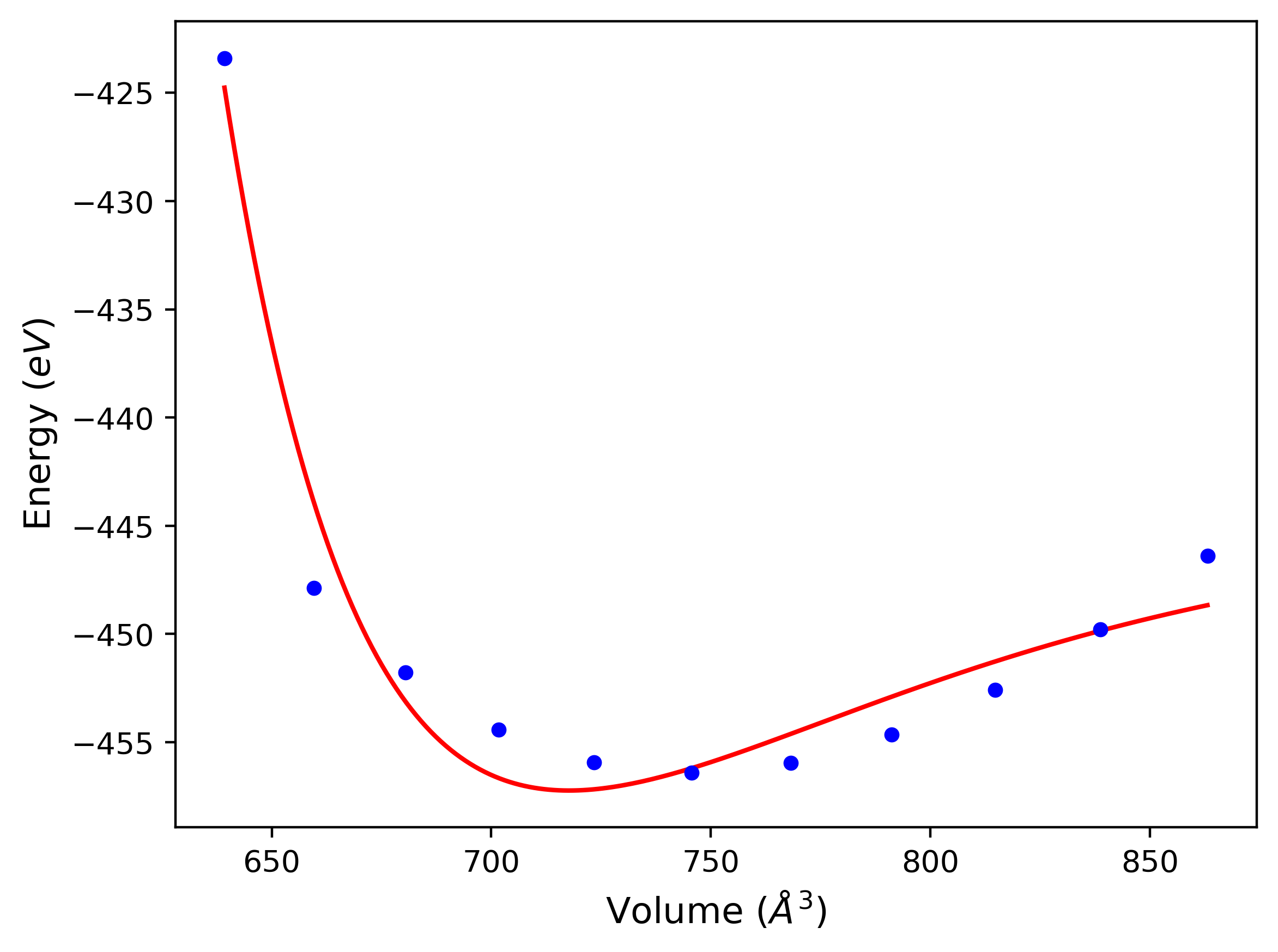

Band Structures, Density of States, and QHA Verification Plots

Composition:
Prototype:
a0:
plot:

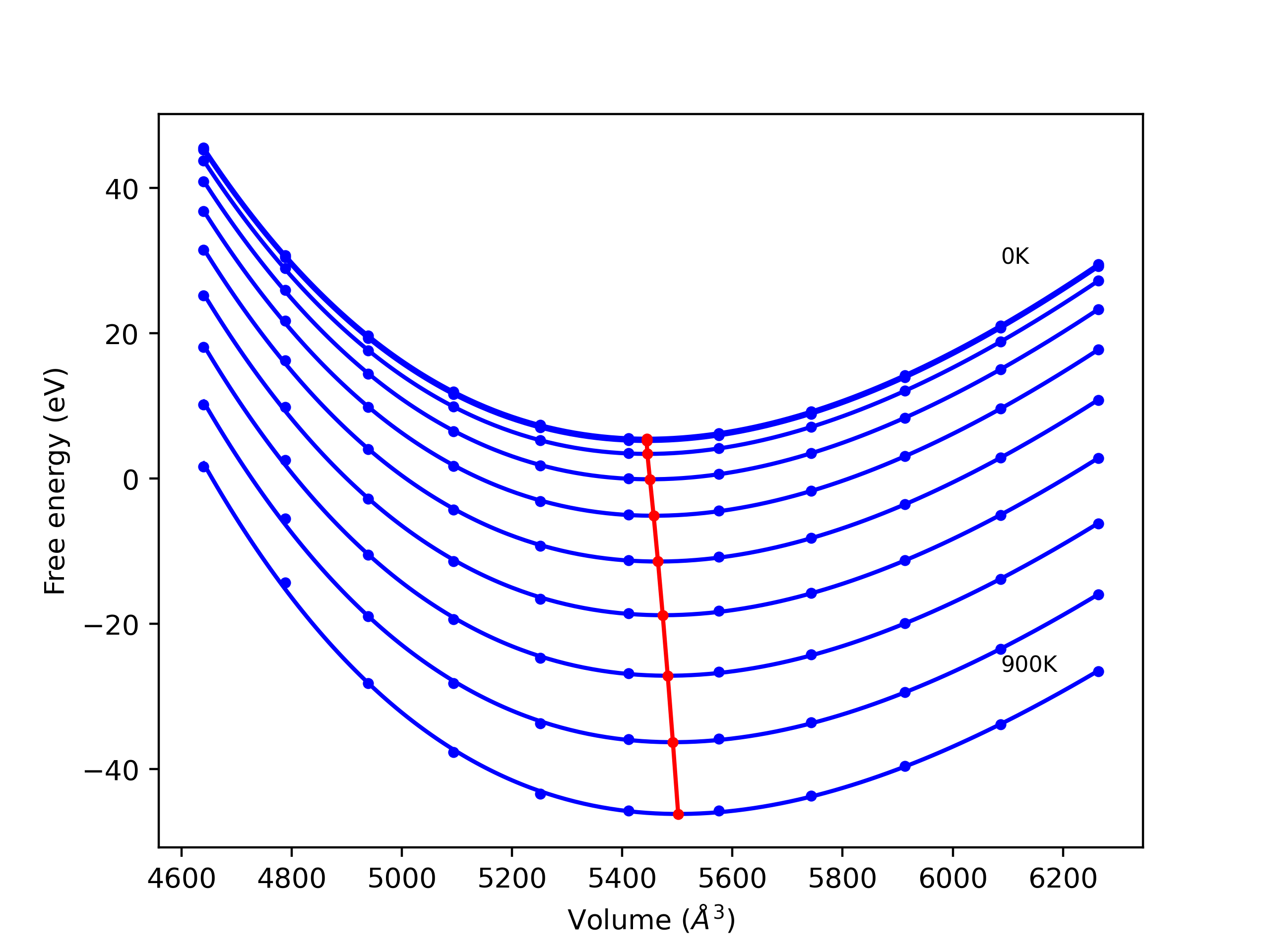

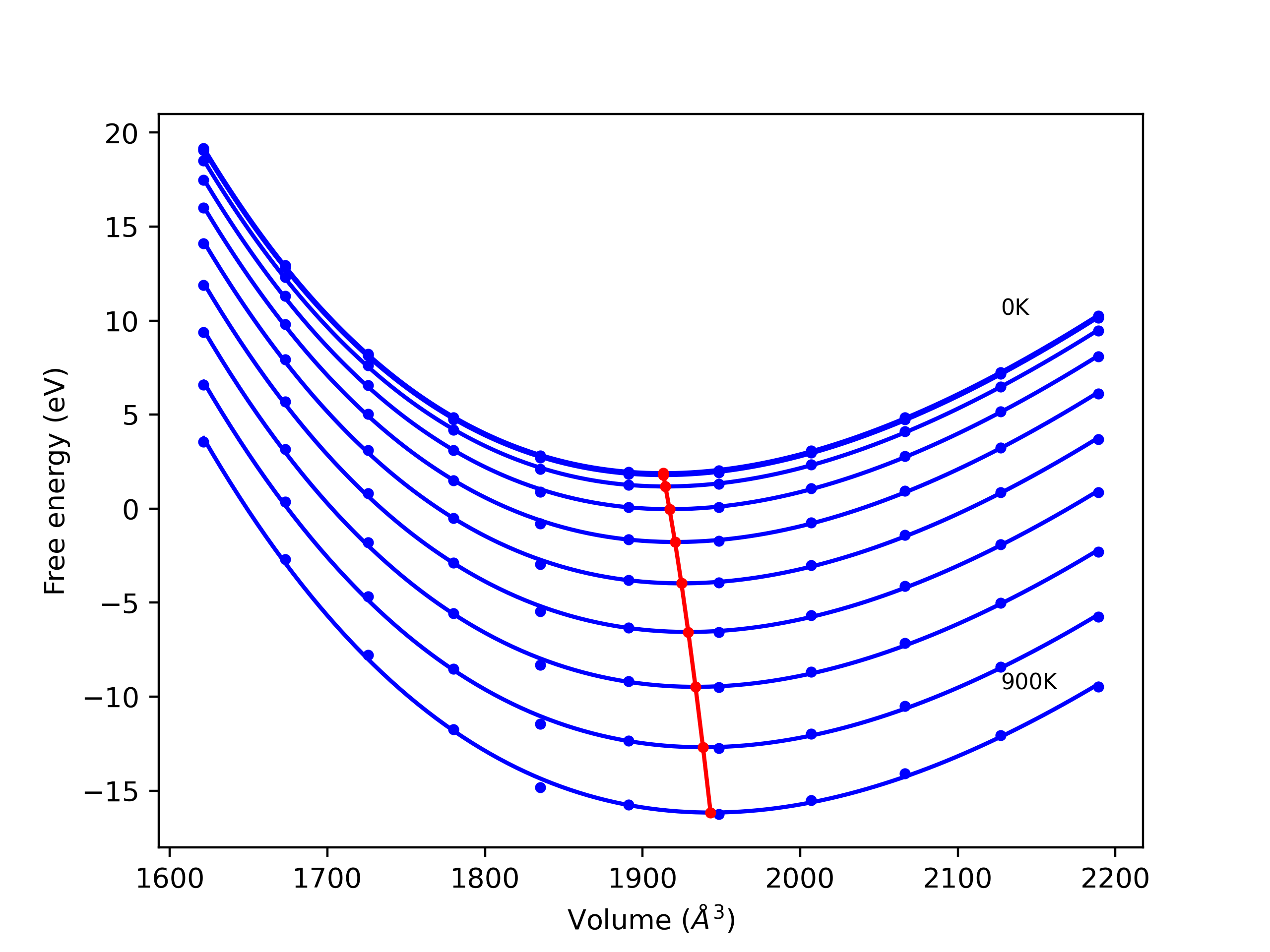

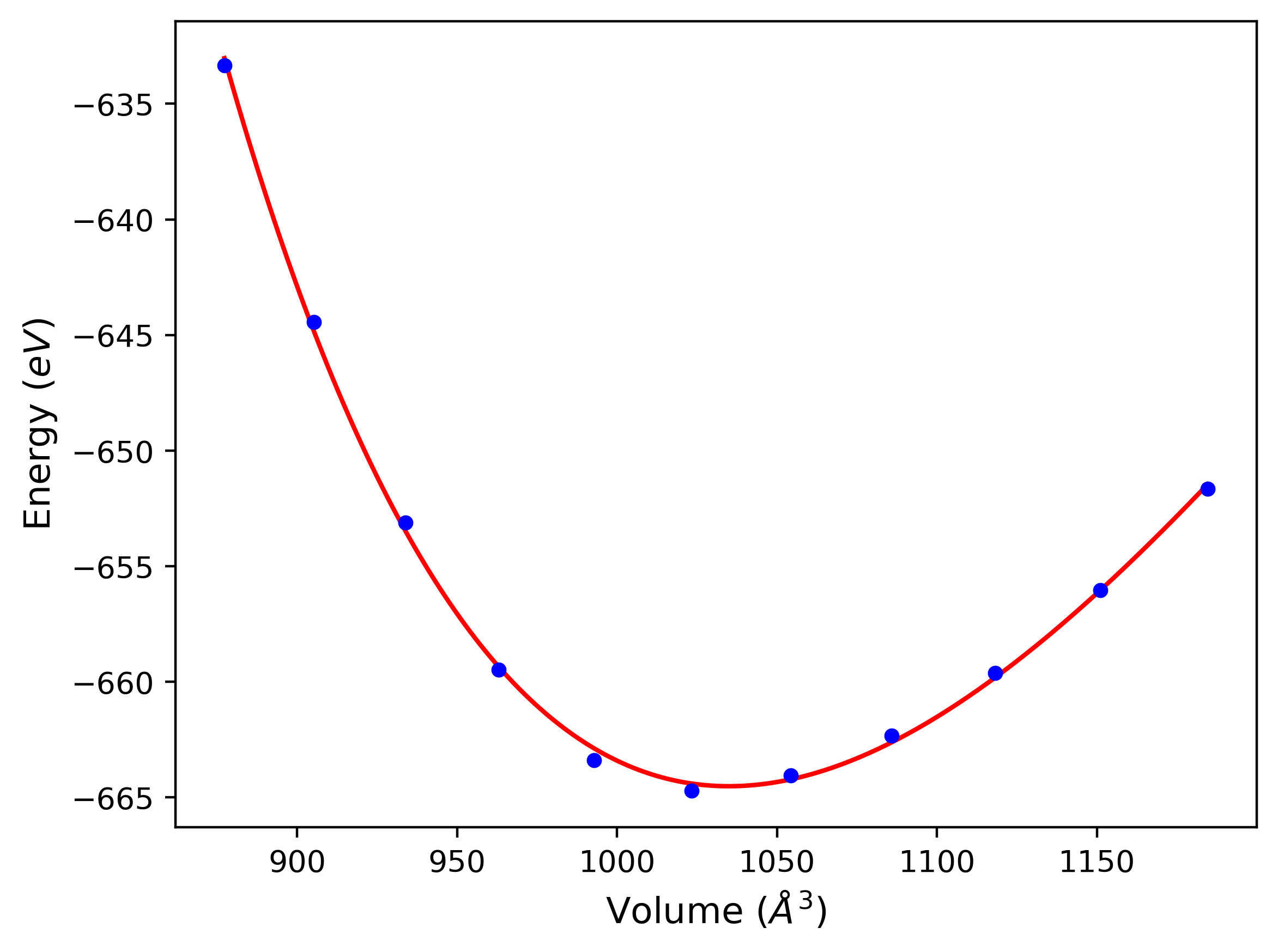

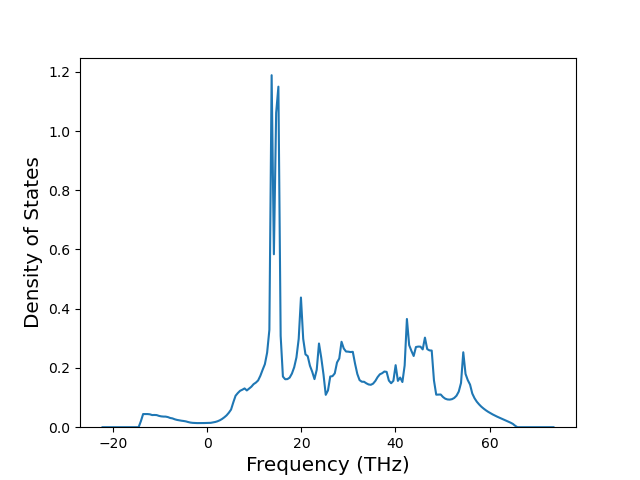

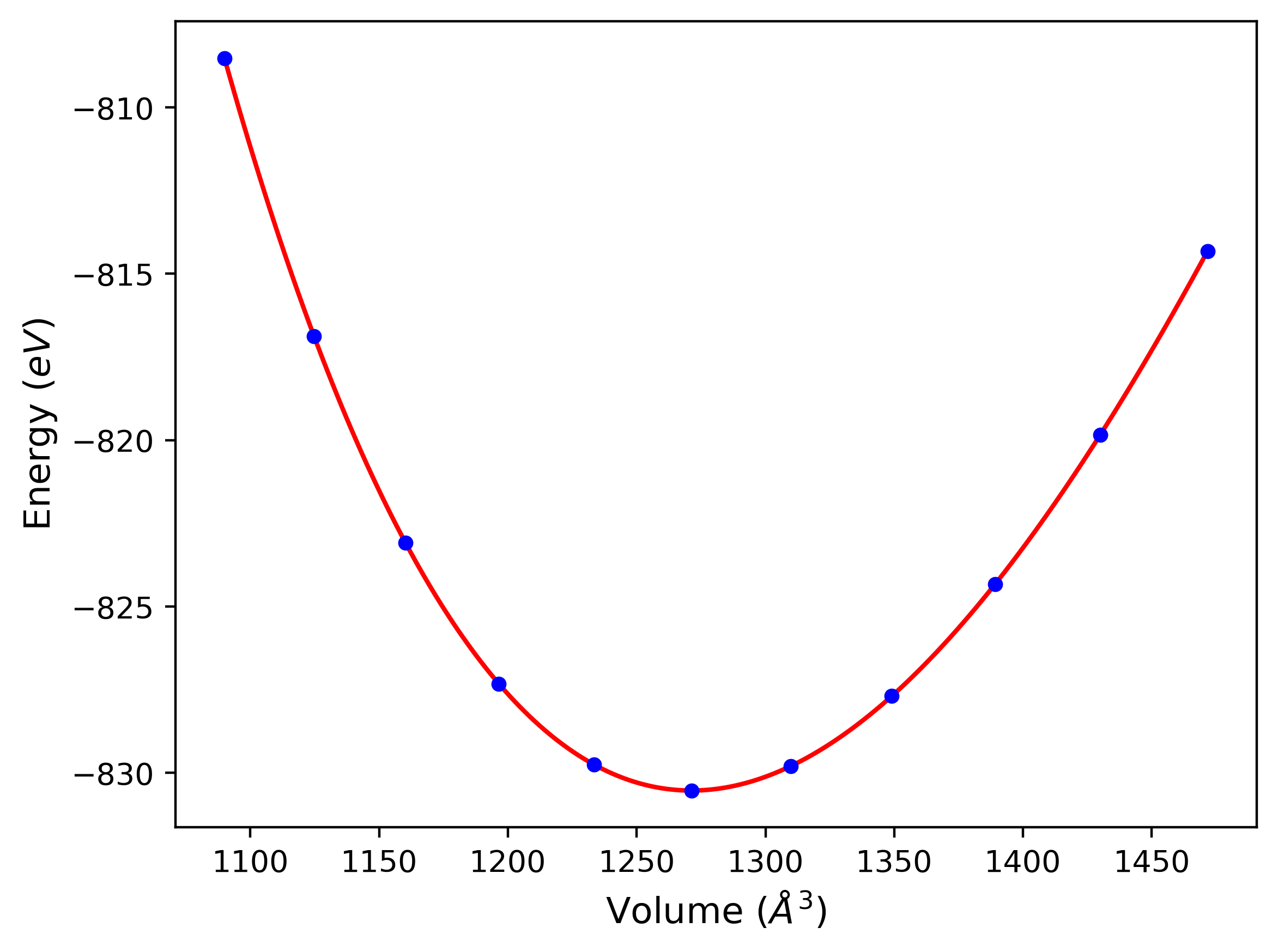

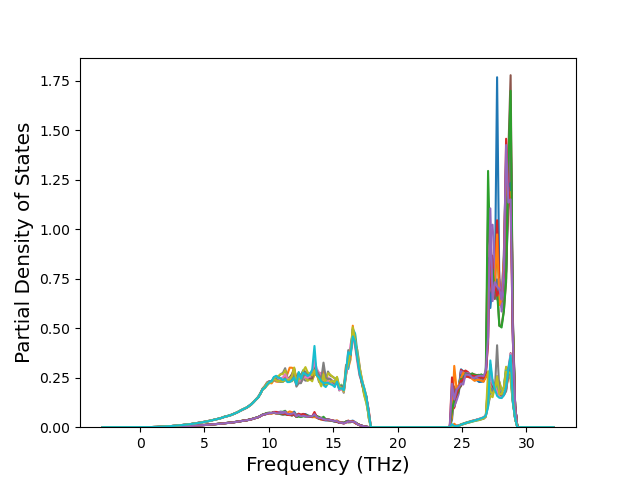

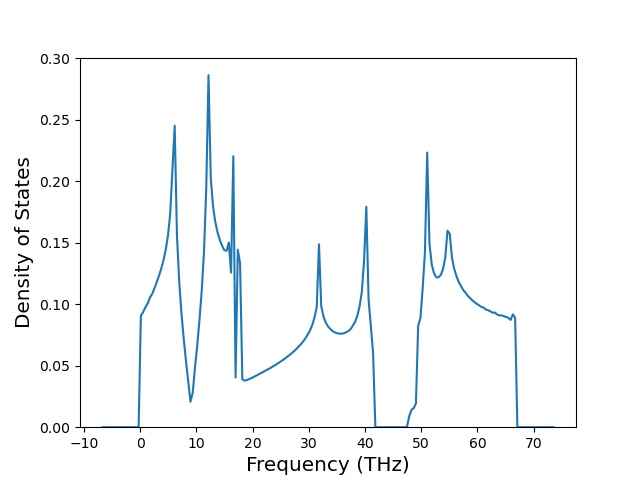

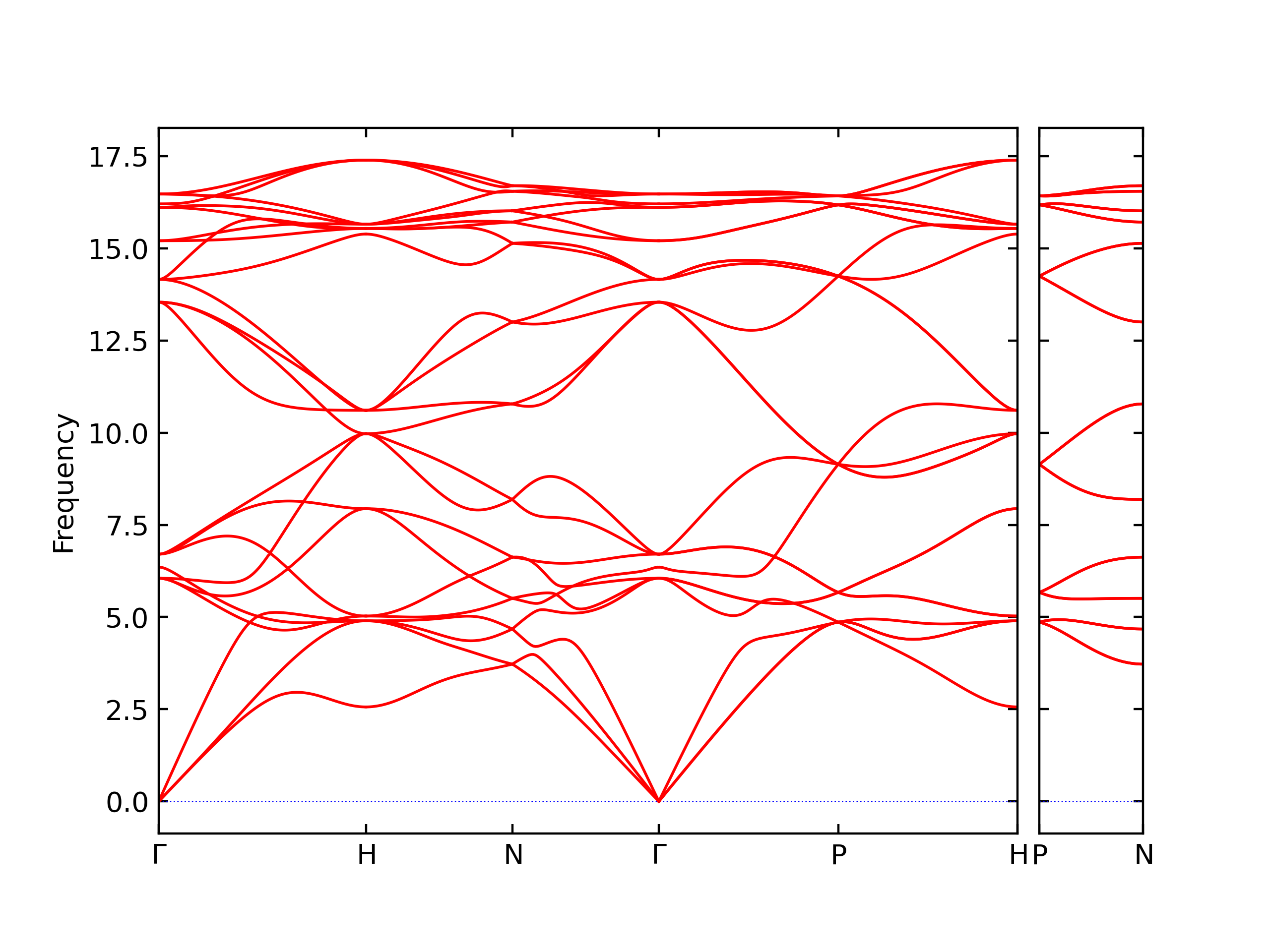

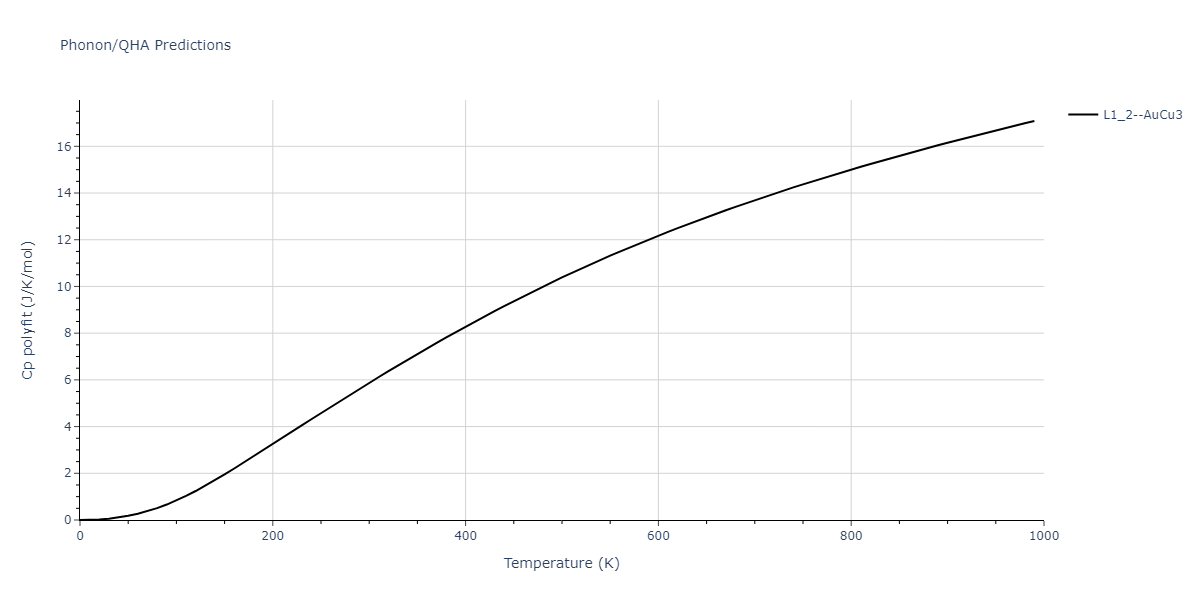

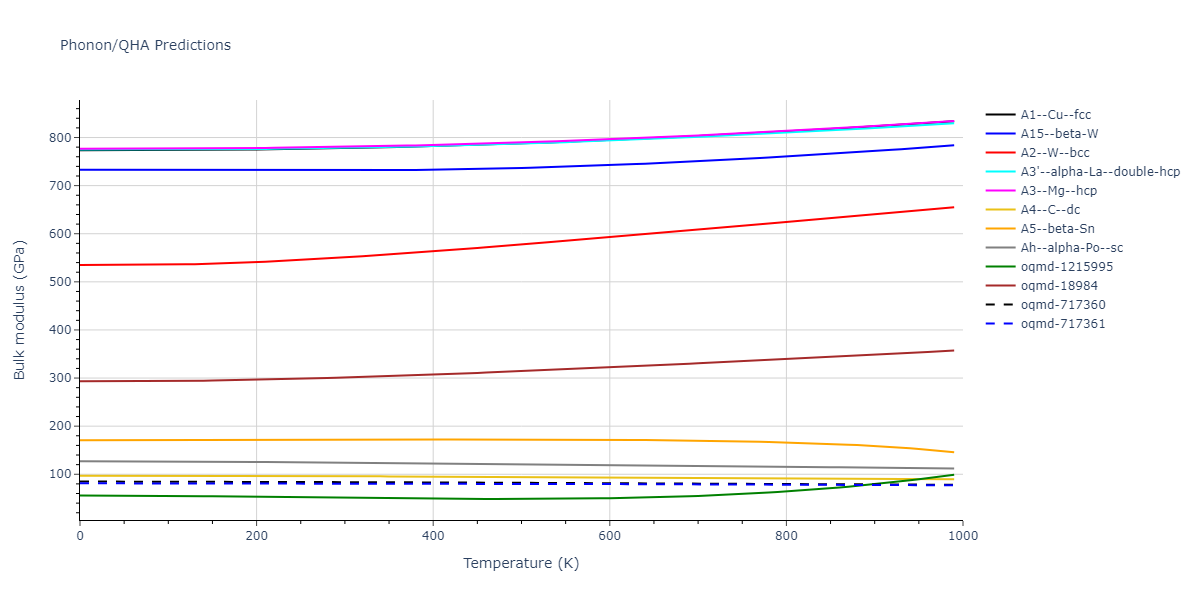

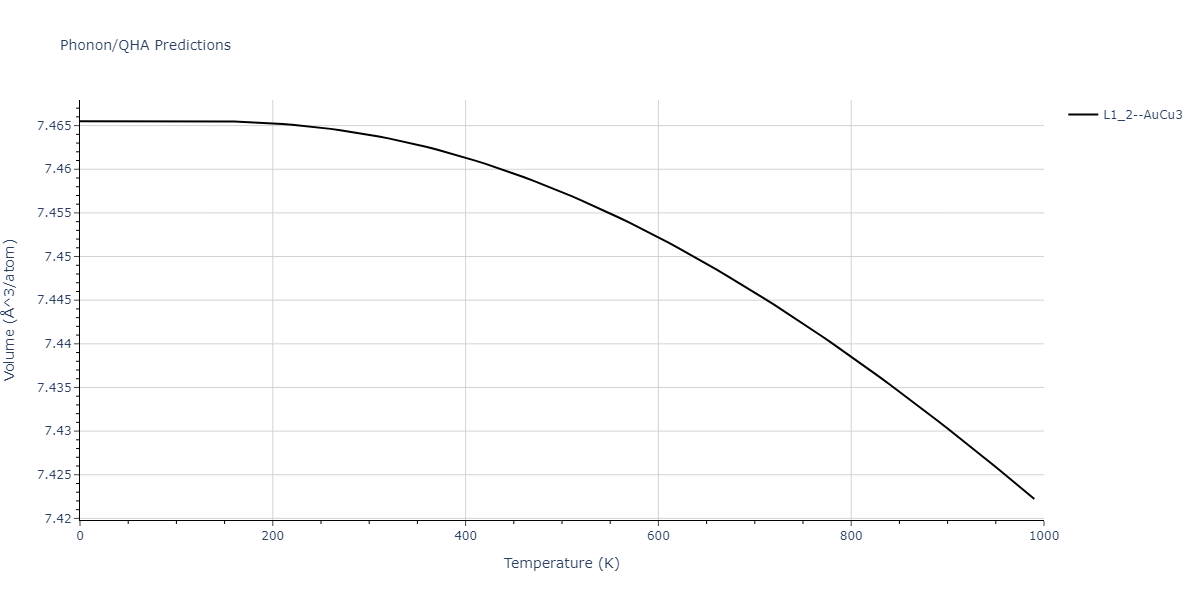

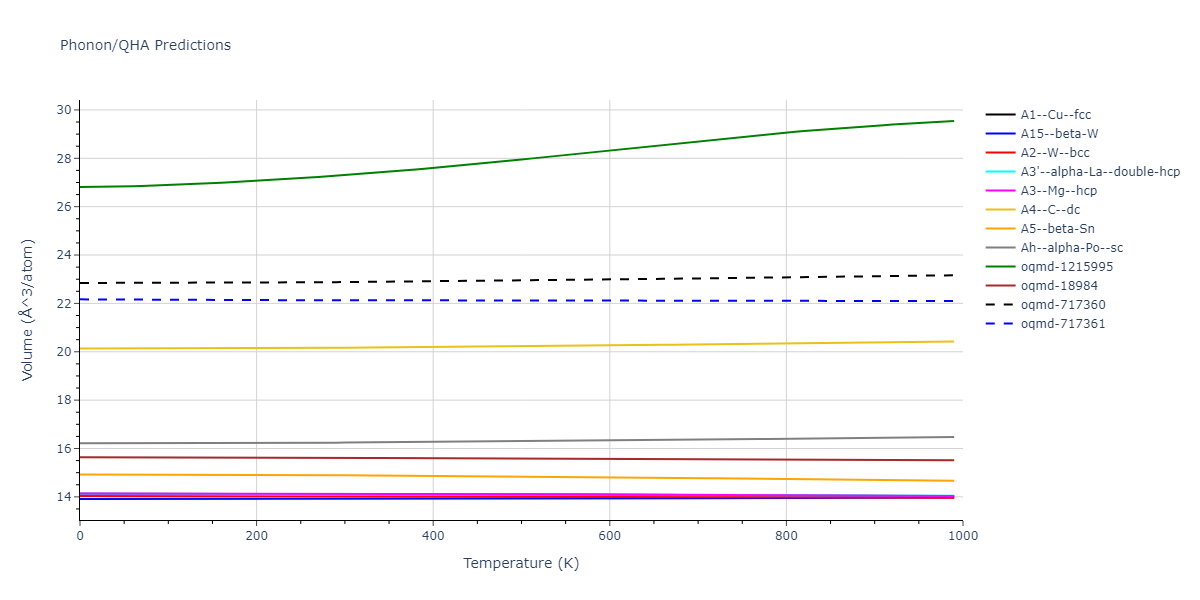

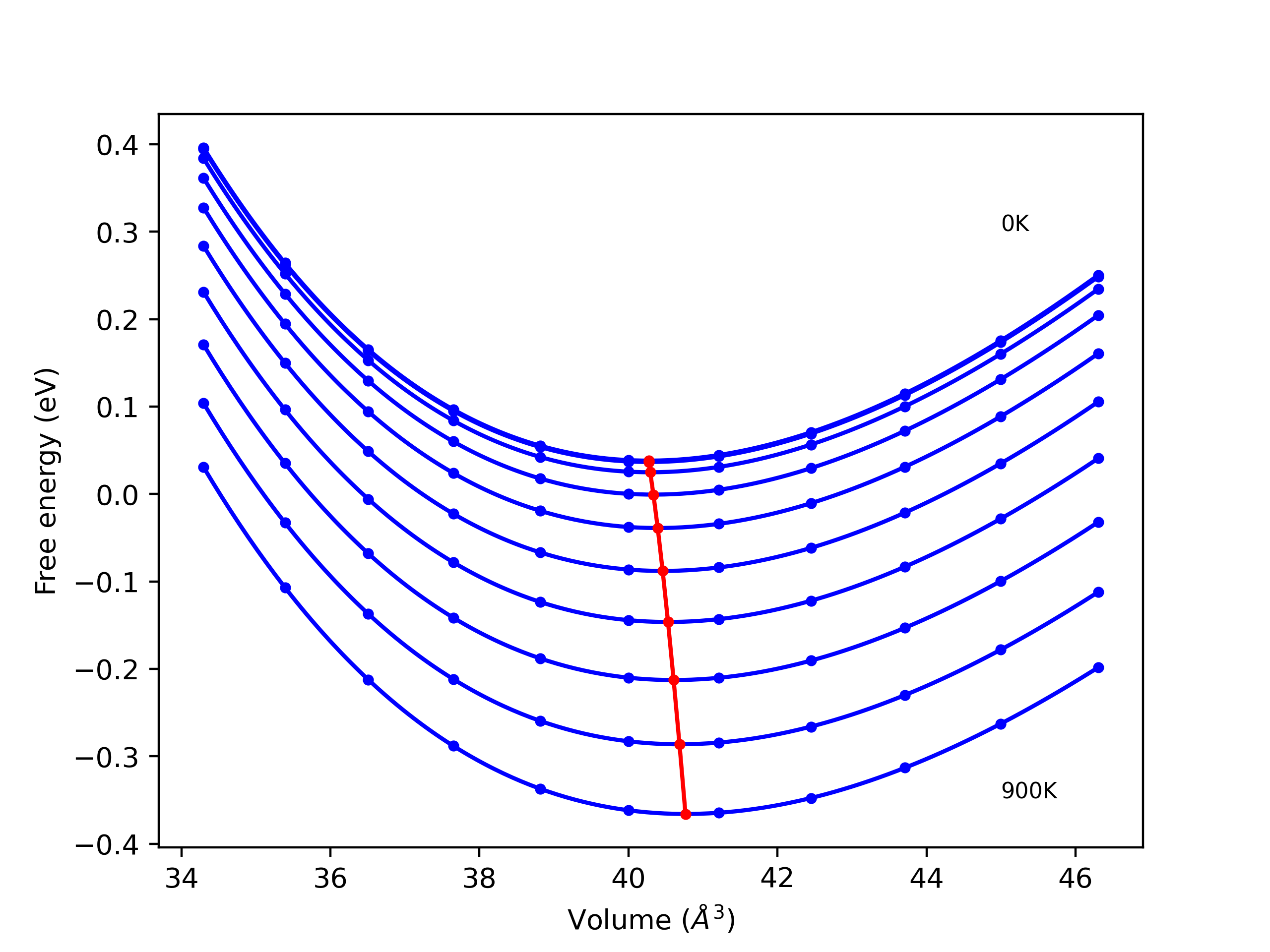

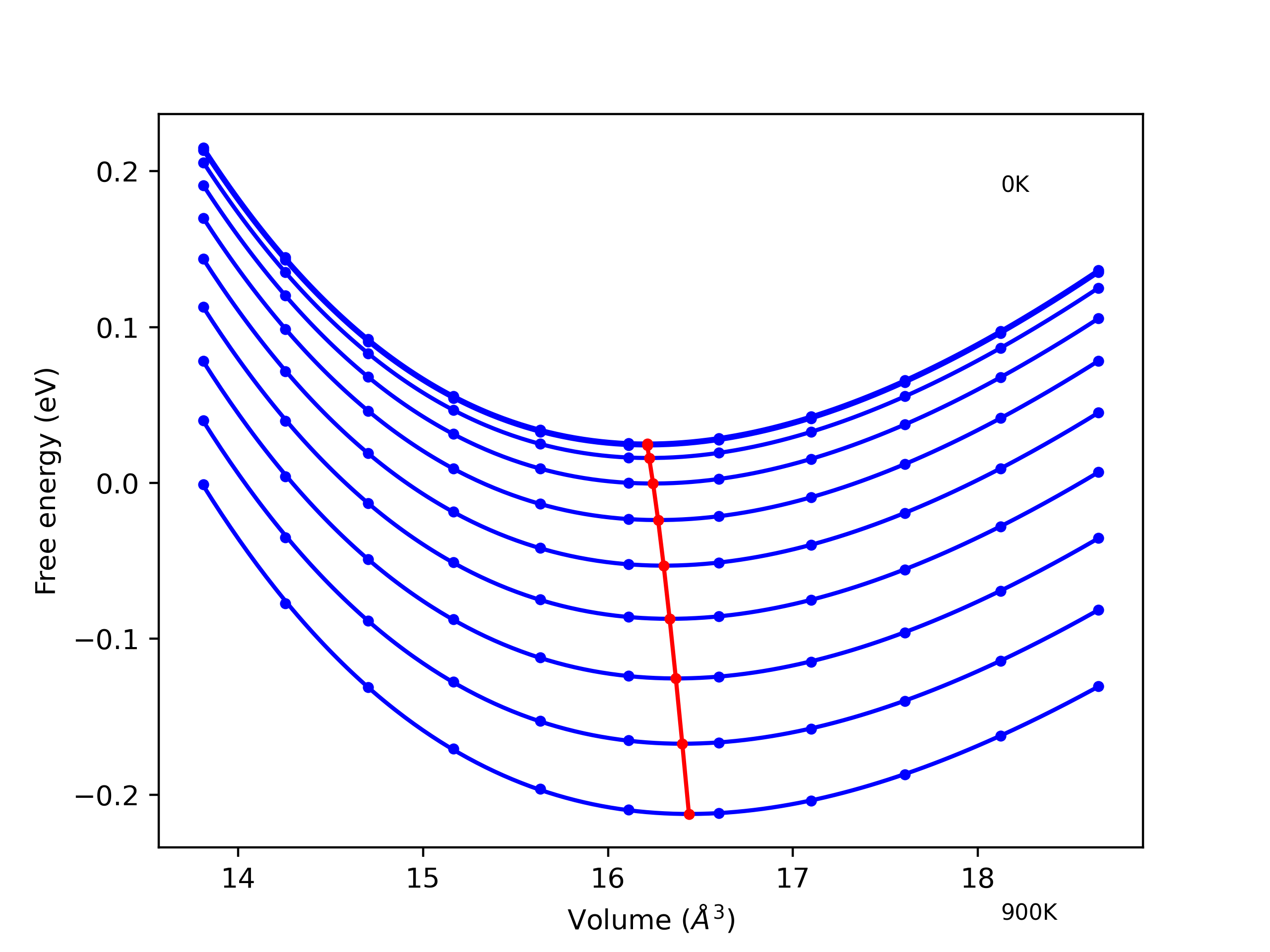

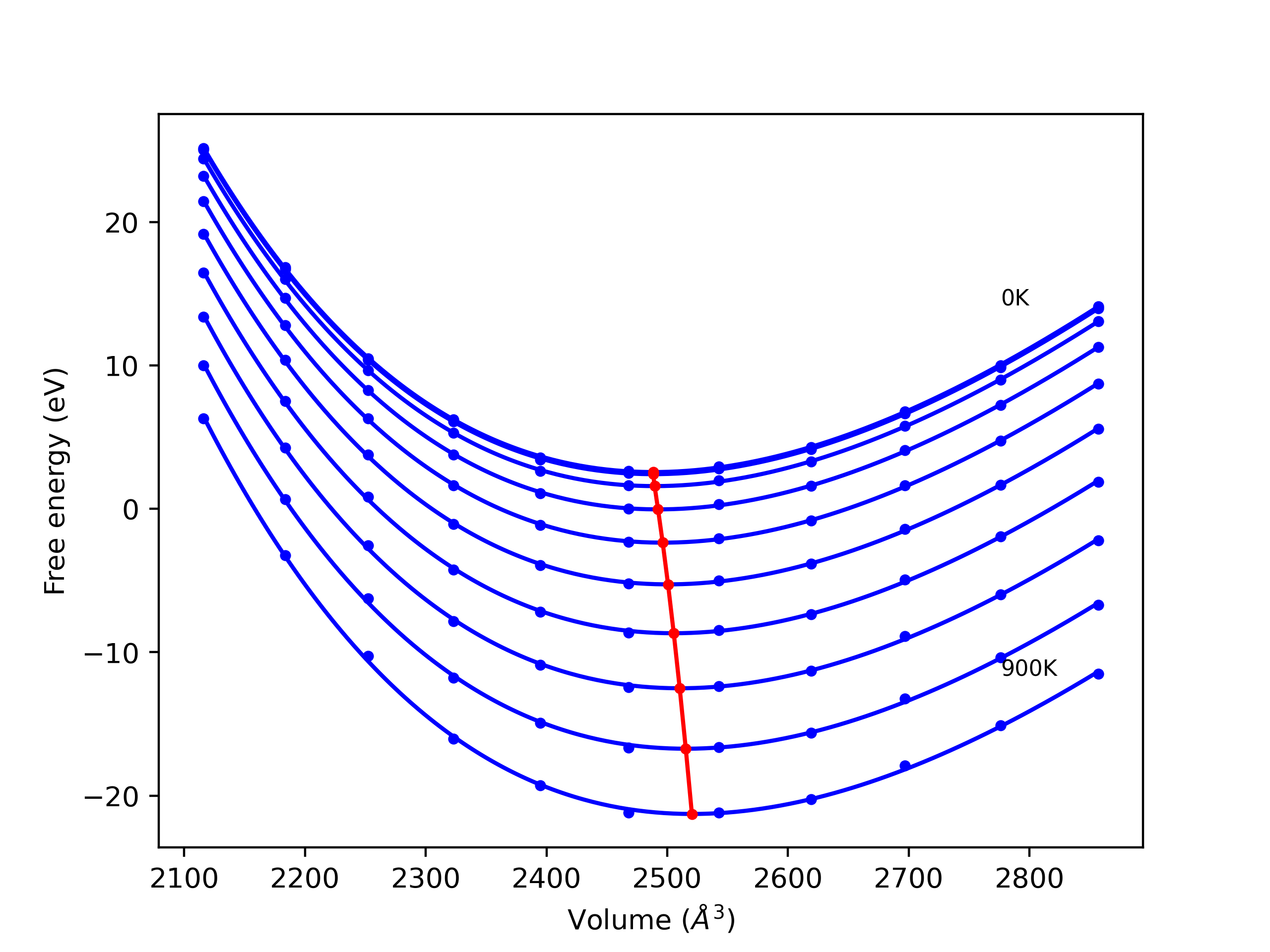

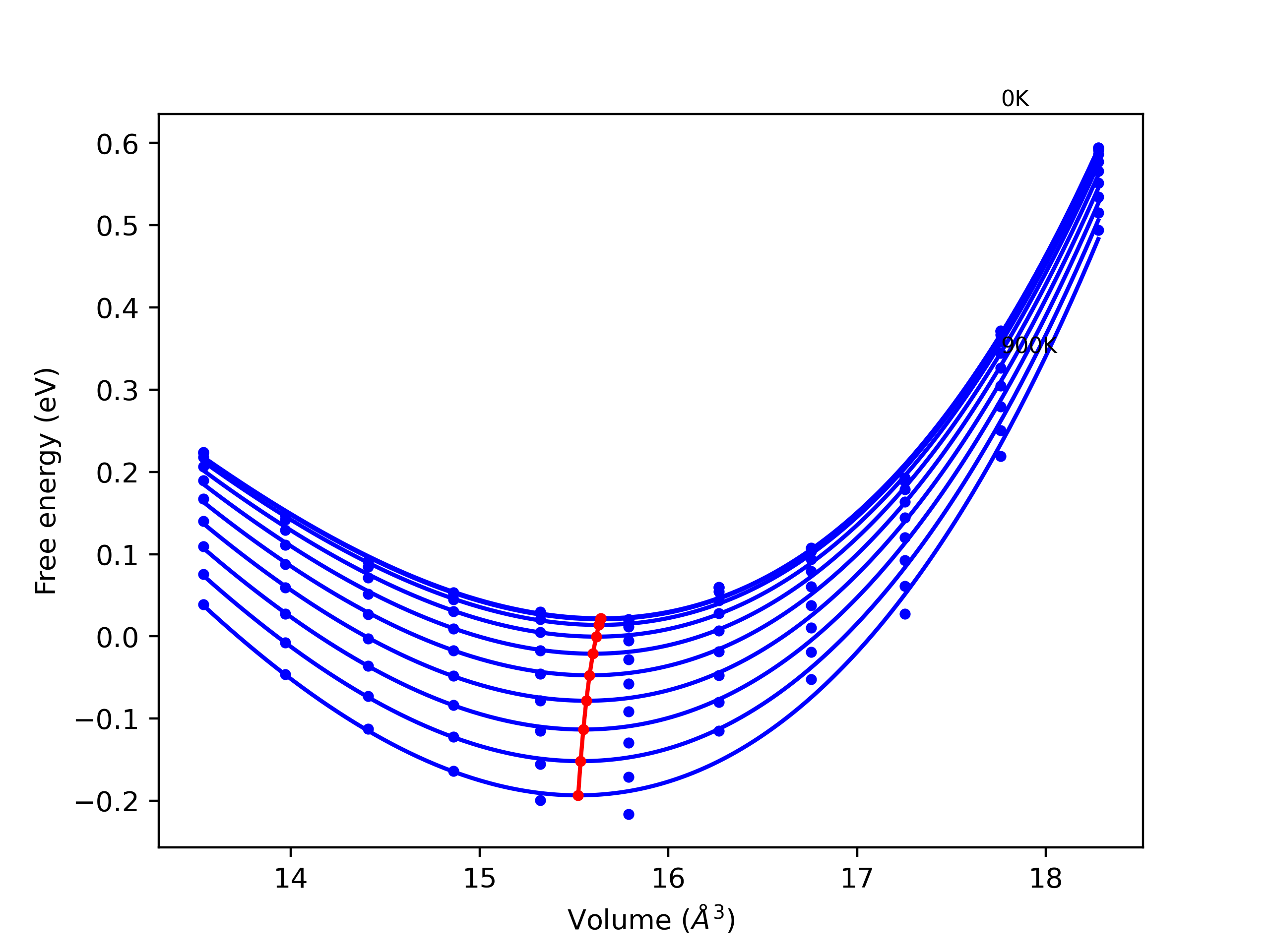

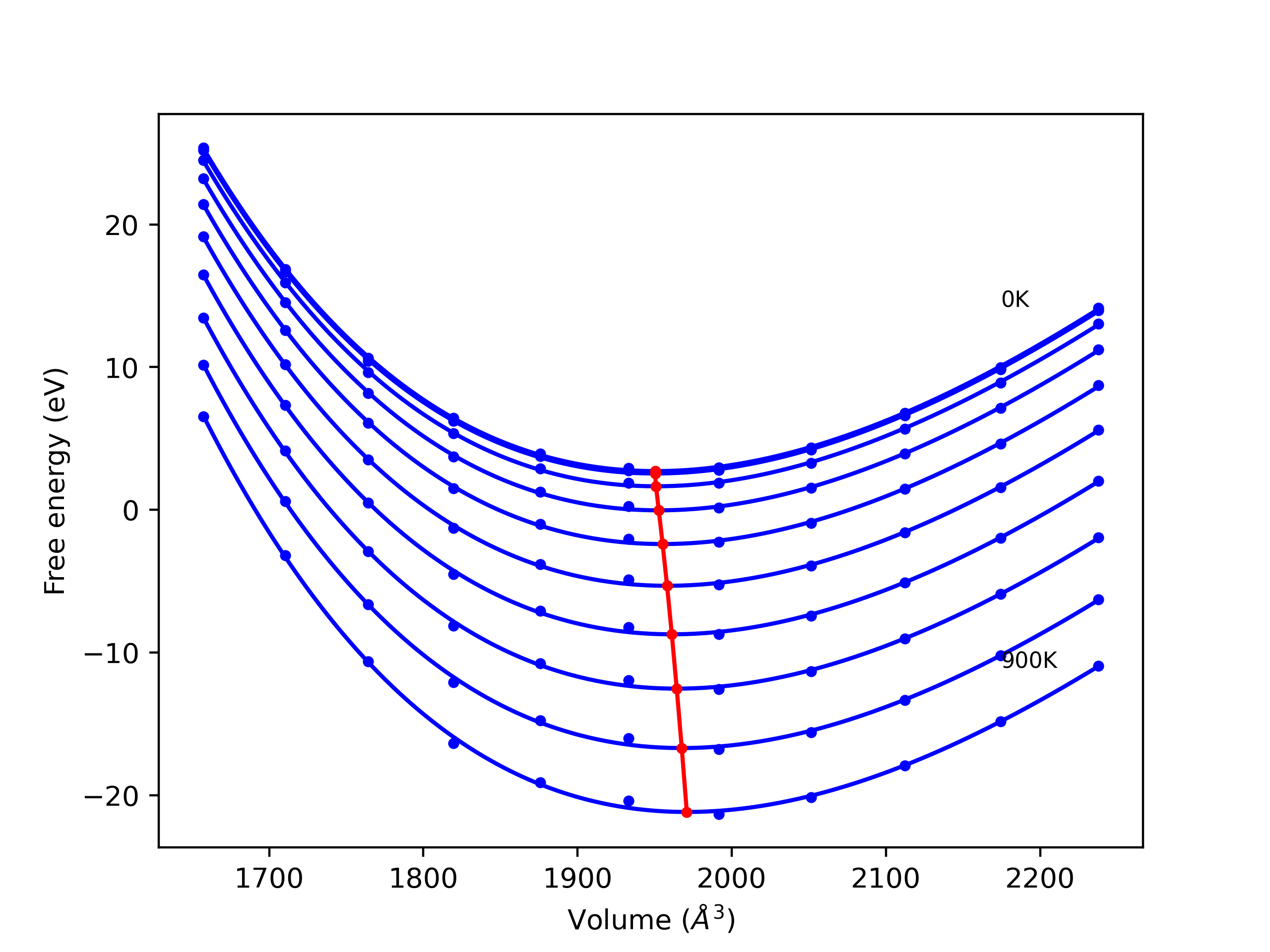

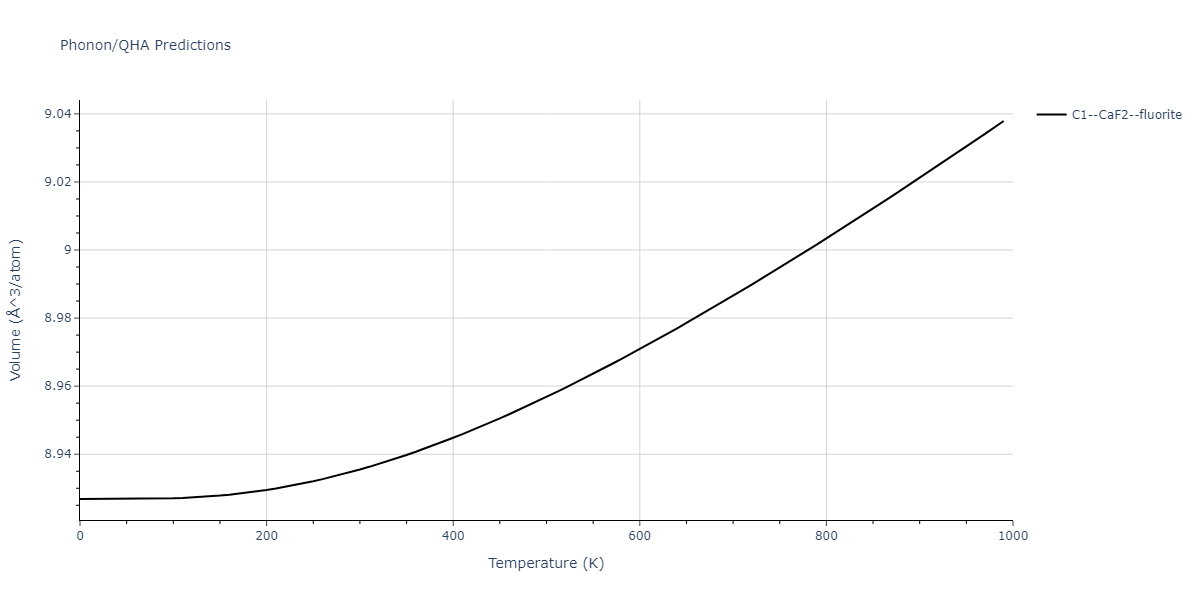

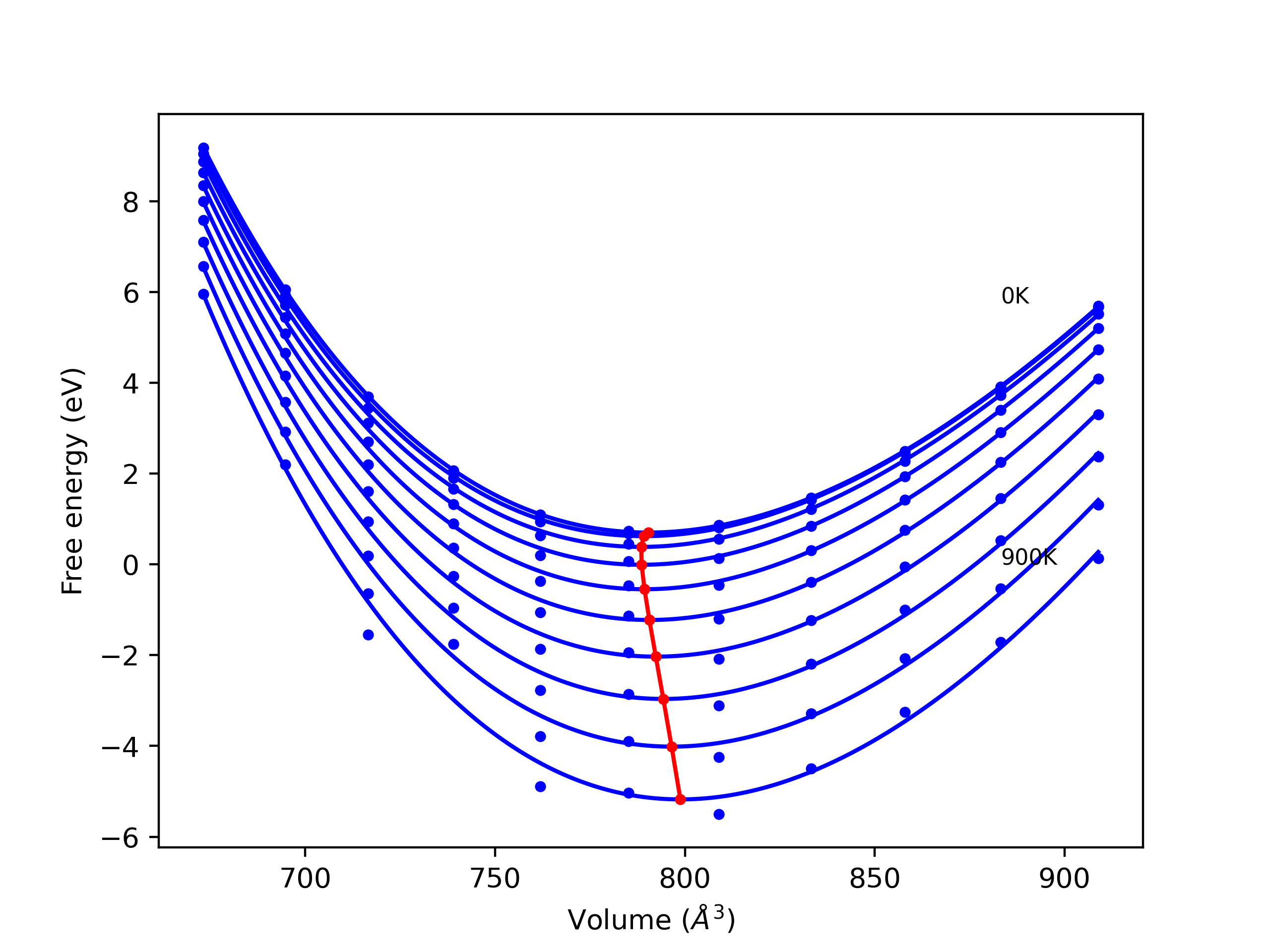

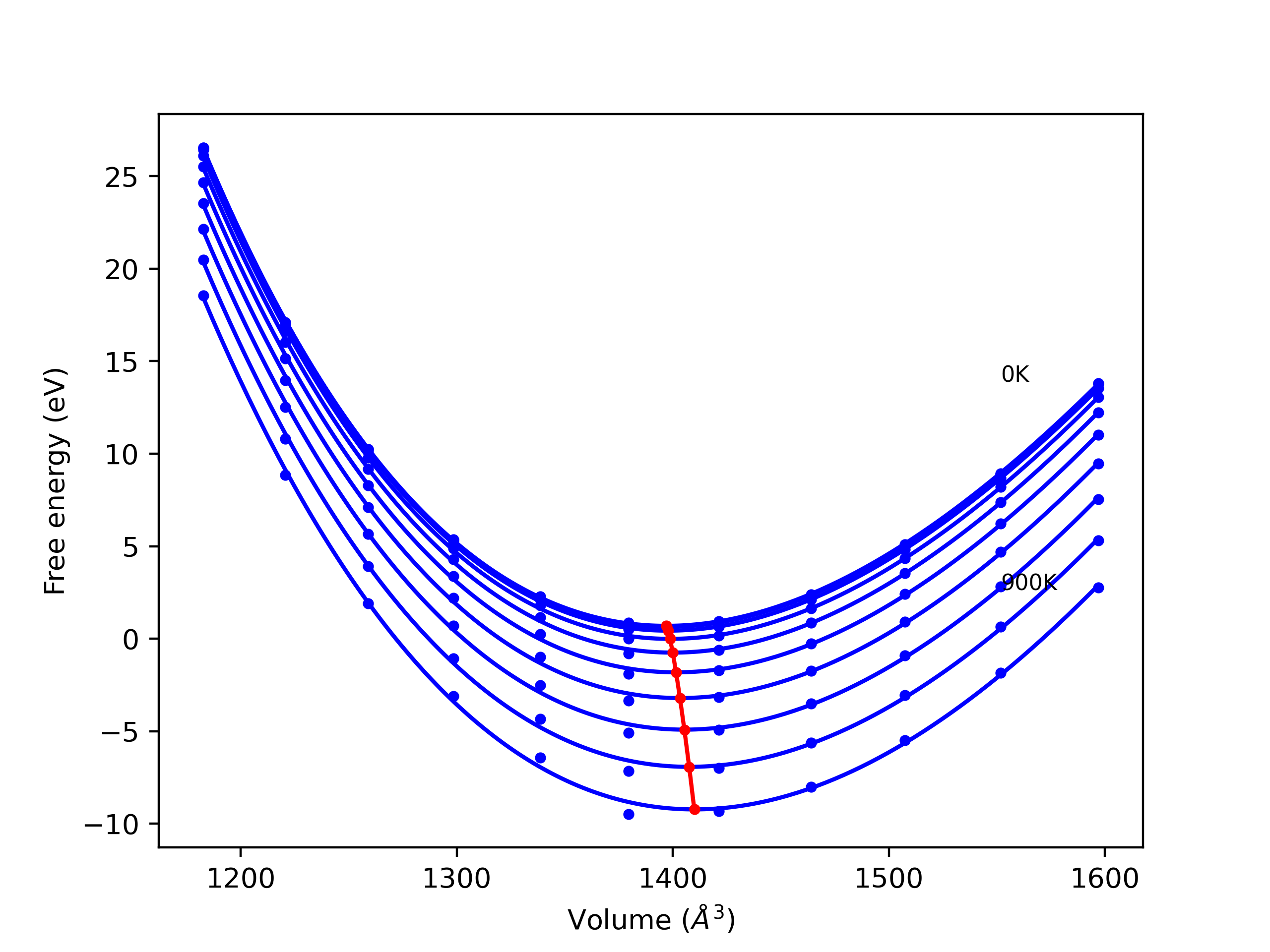

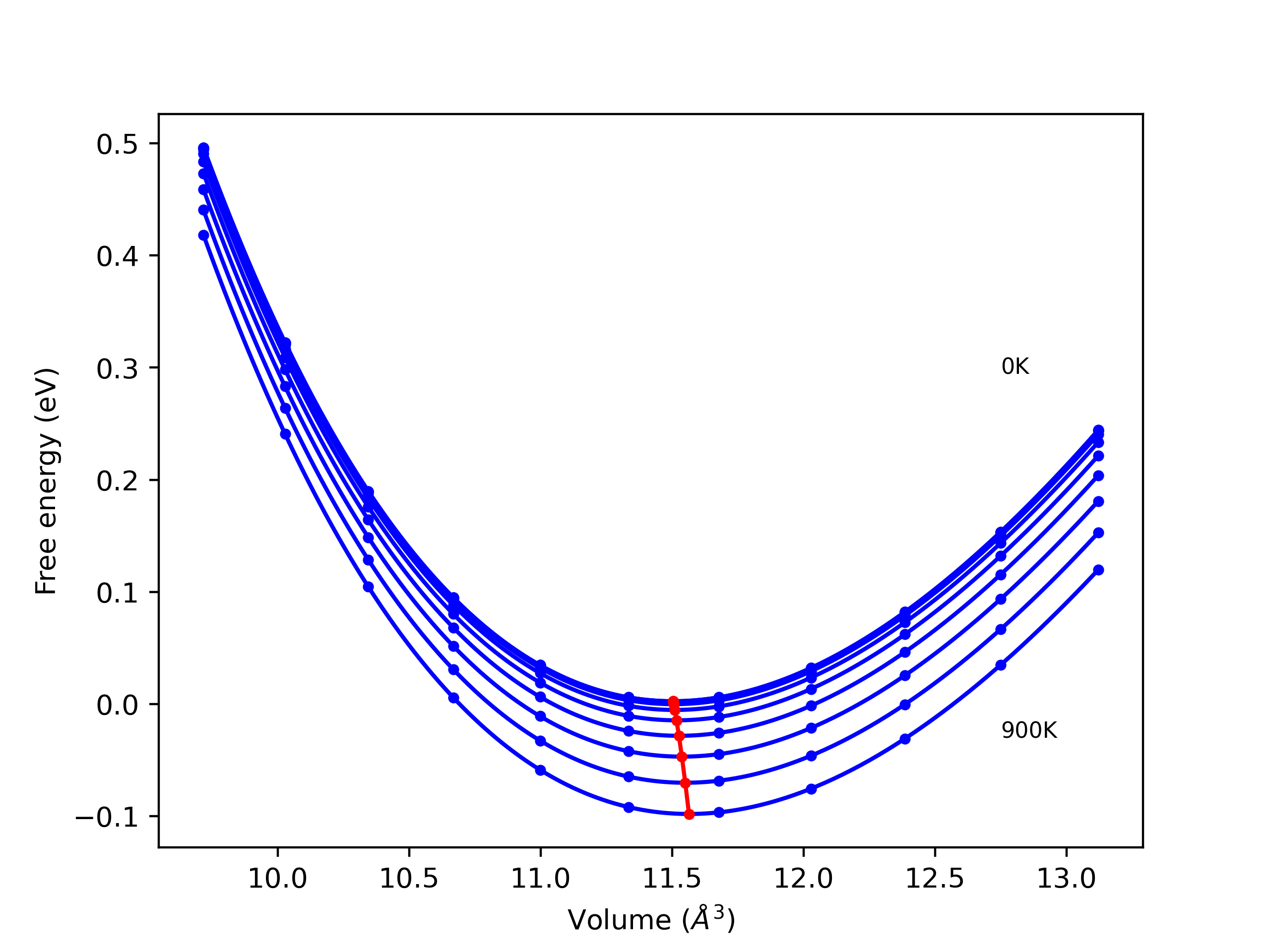

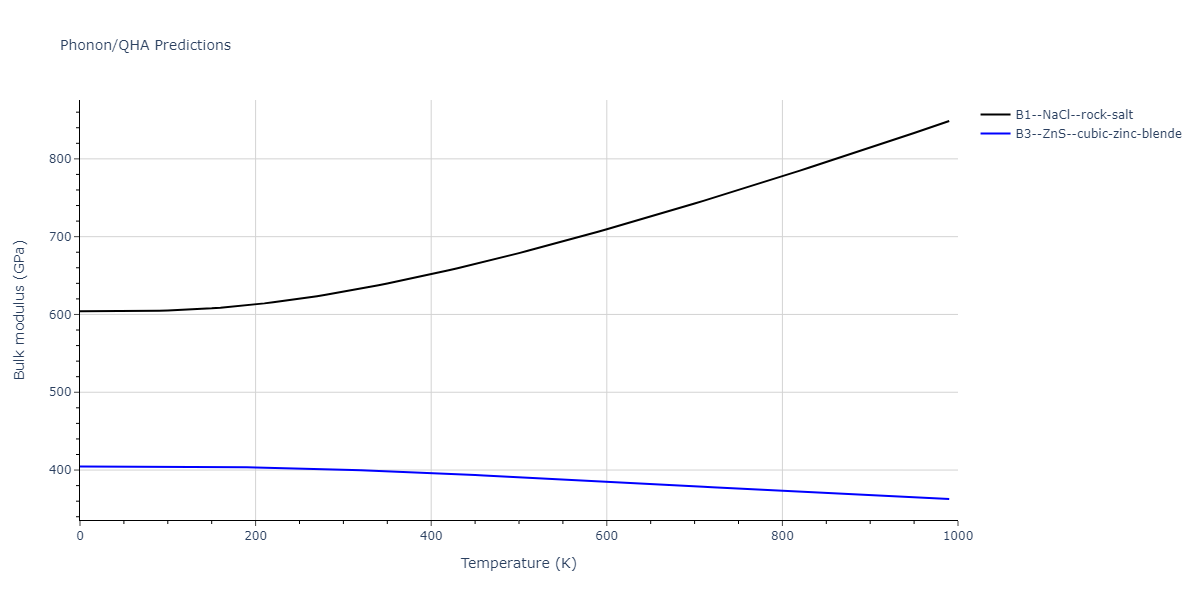

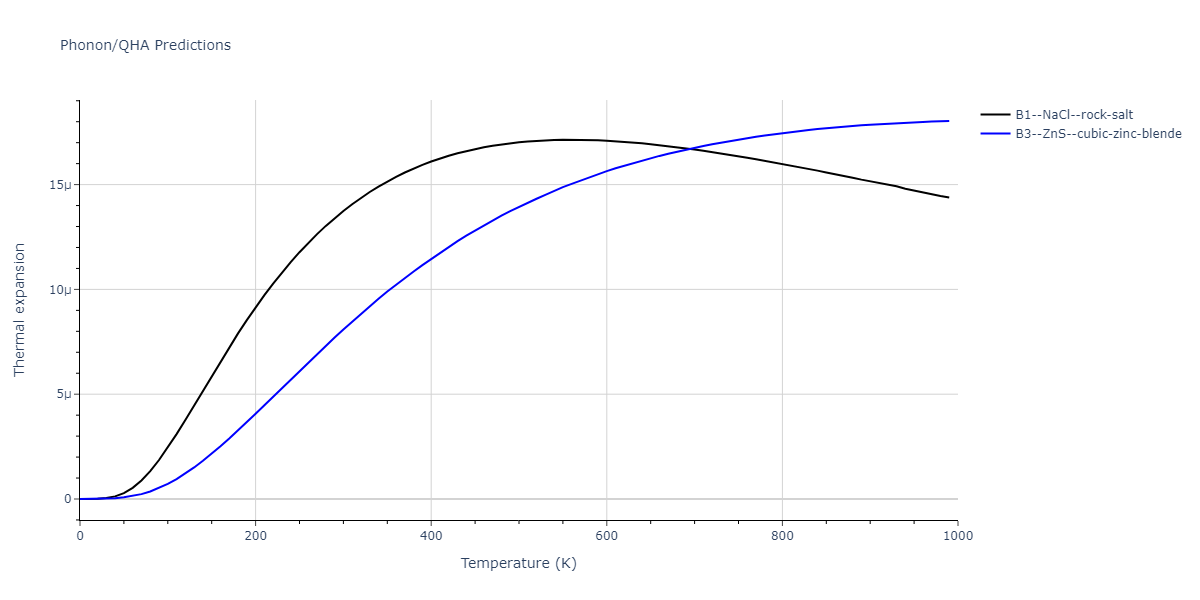

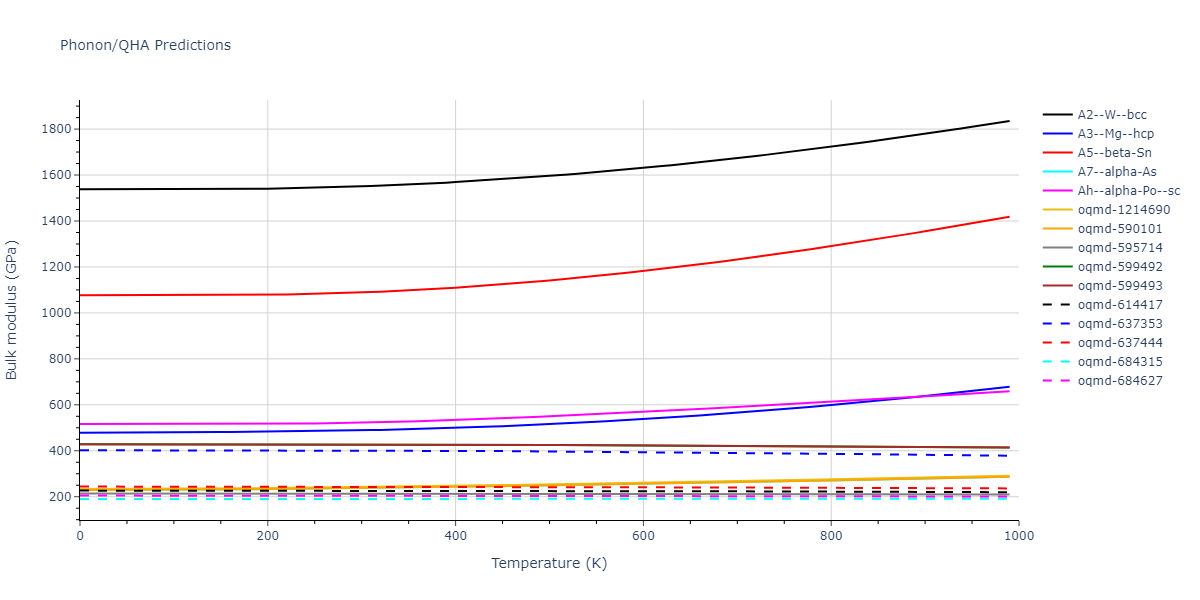

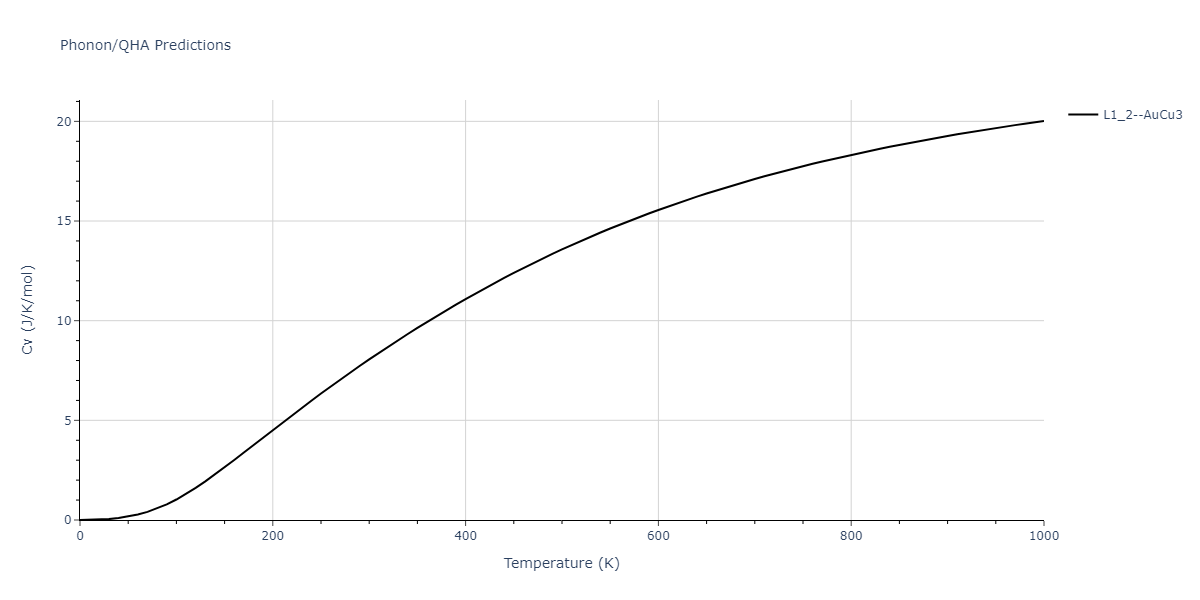

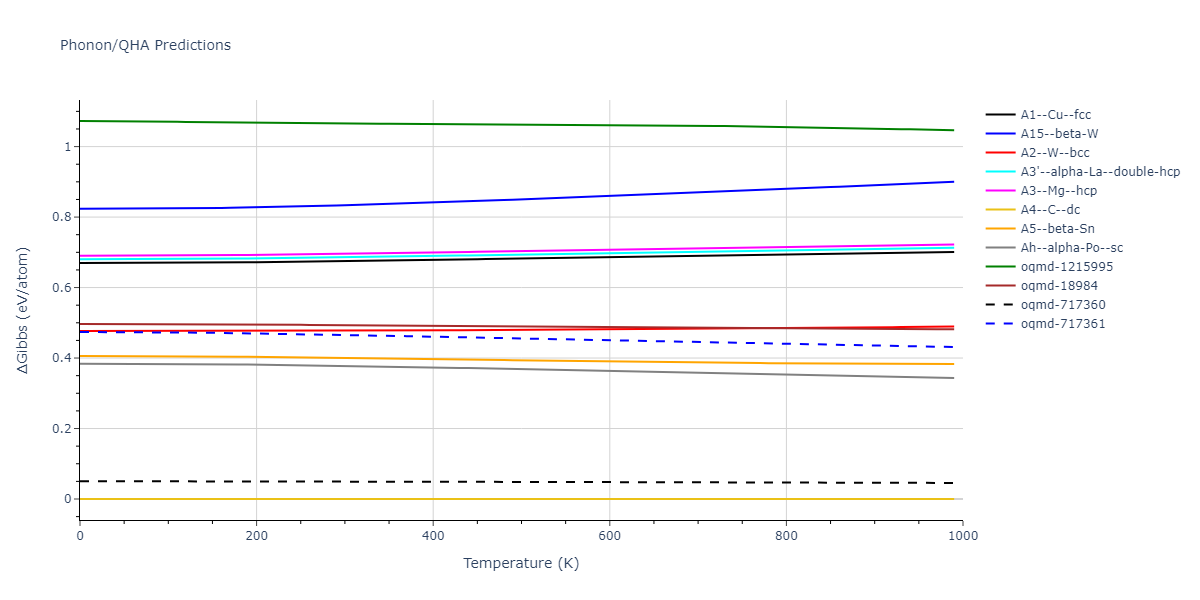

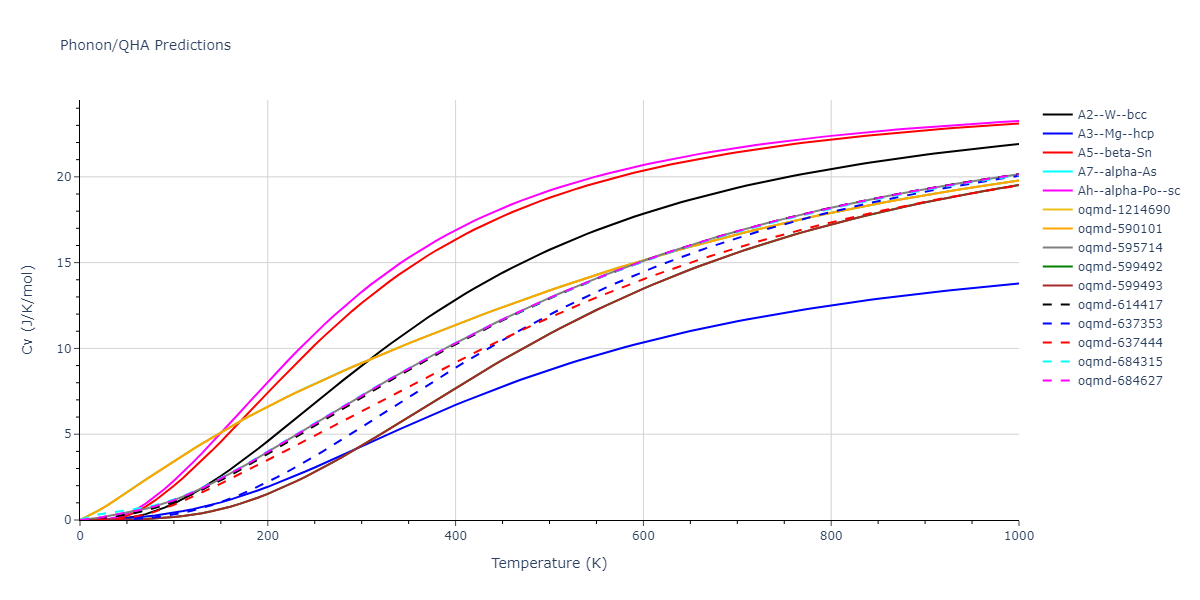

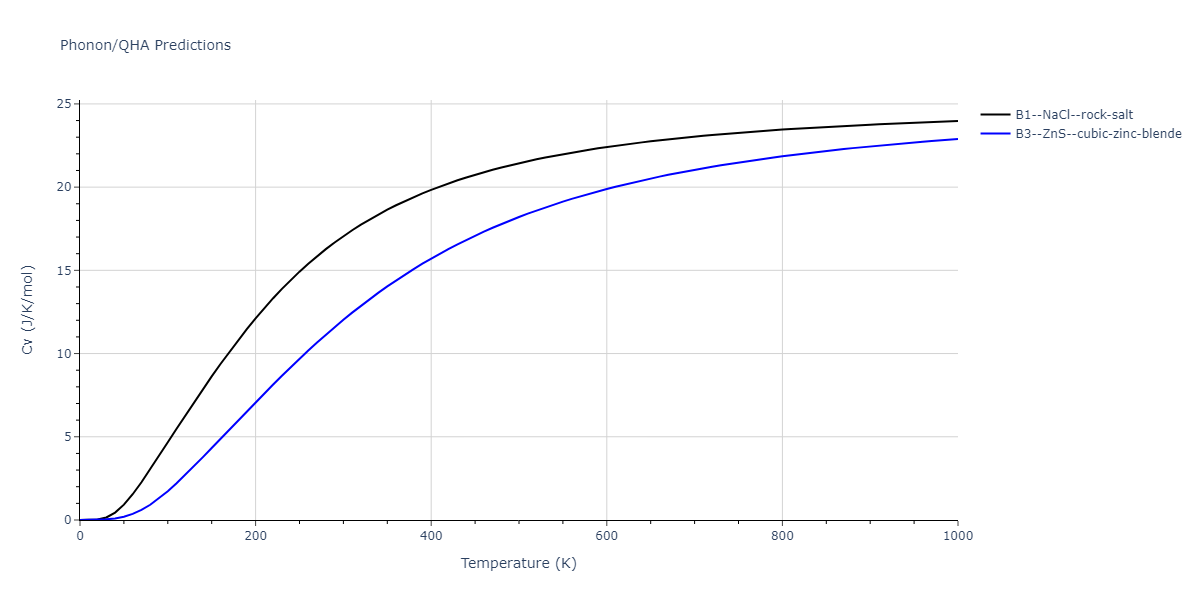

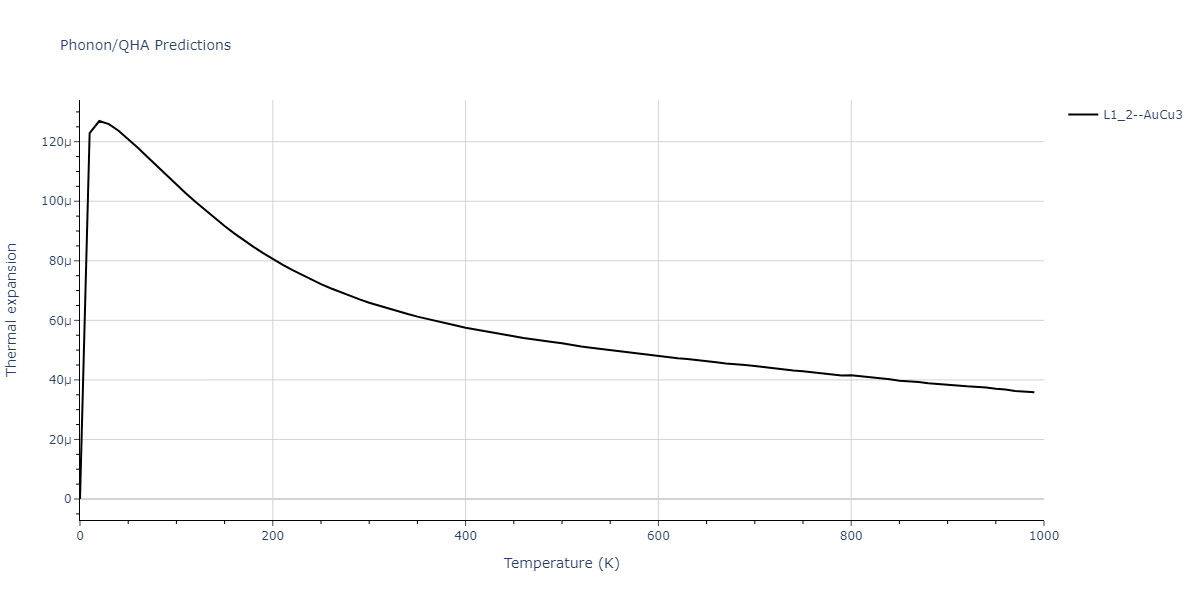

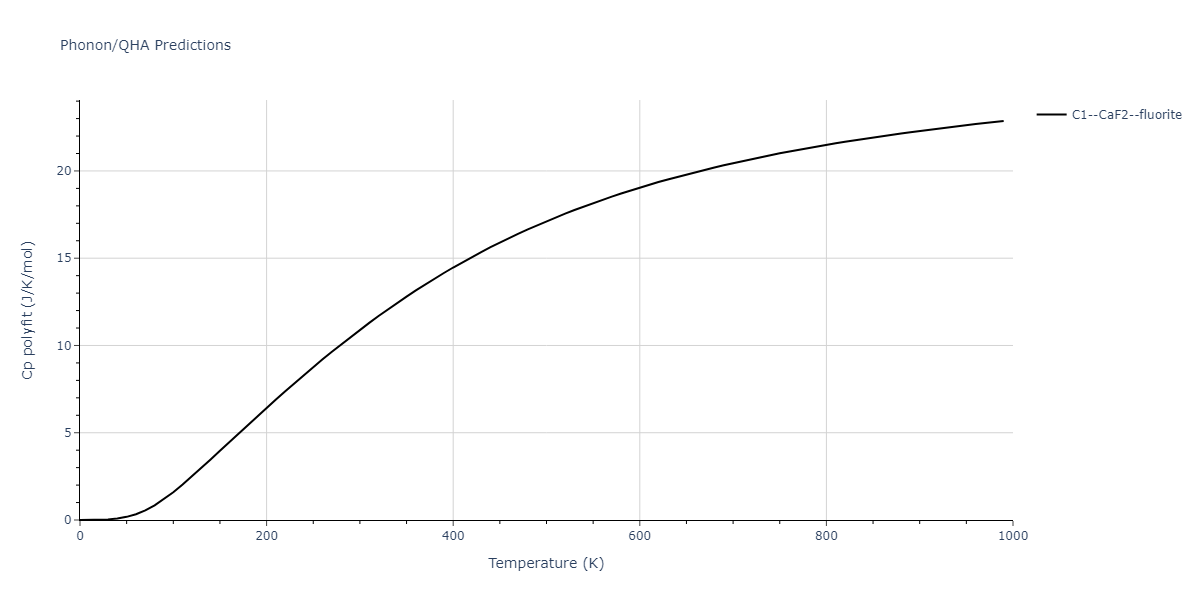

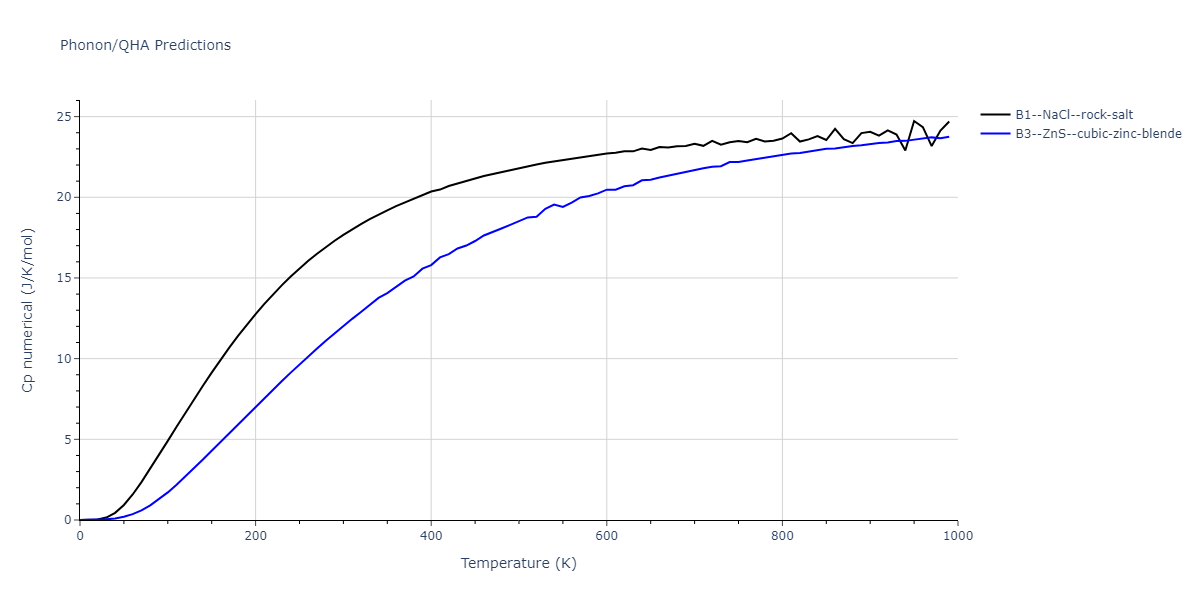

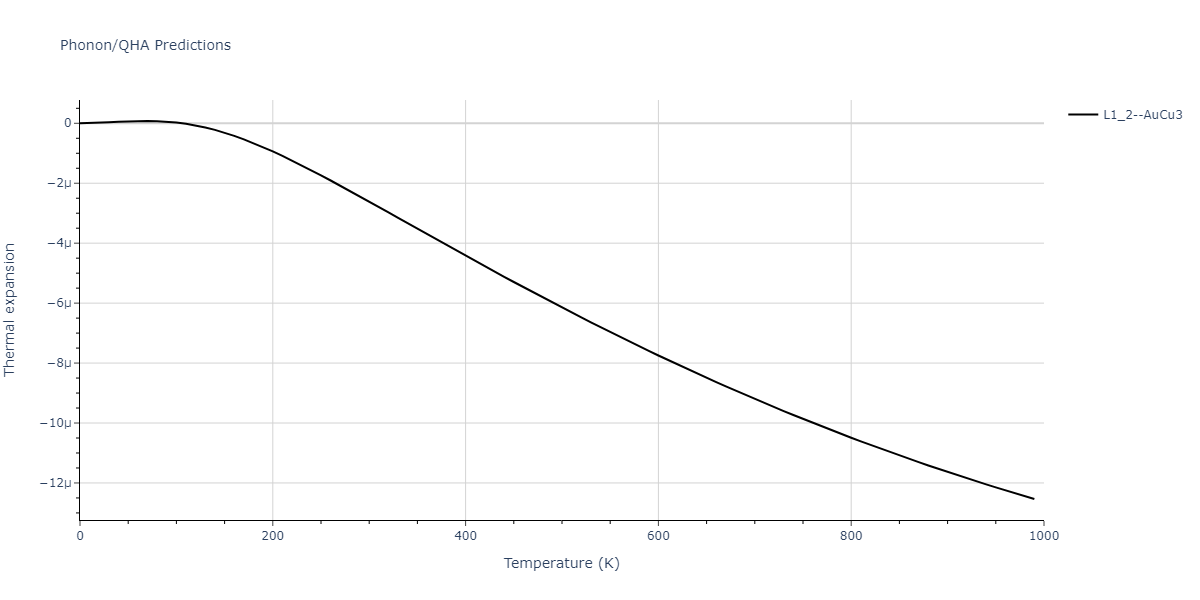

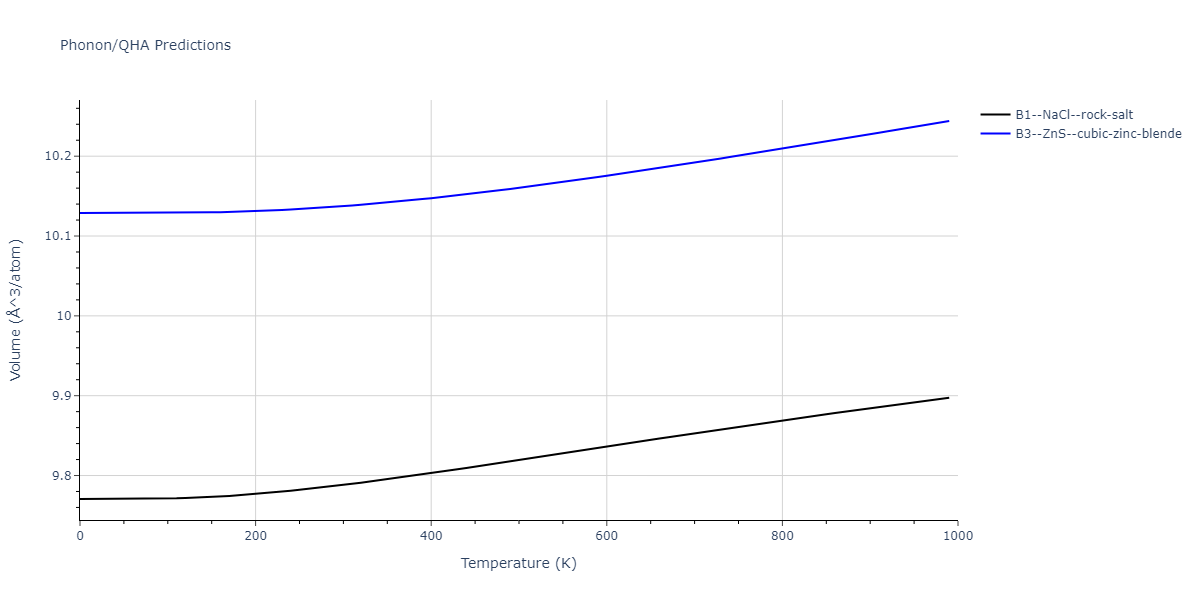

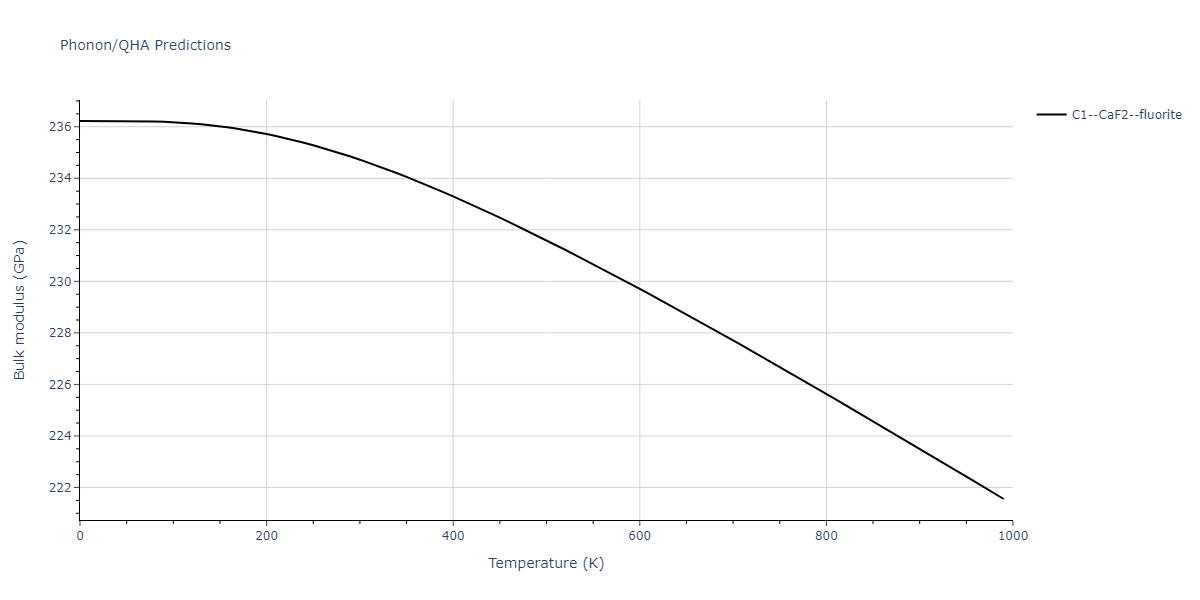

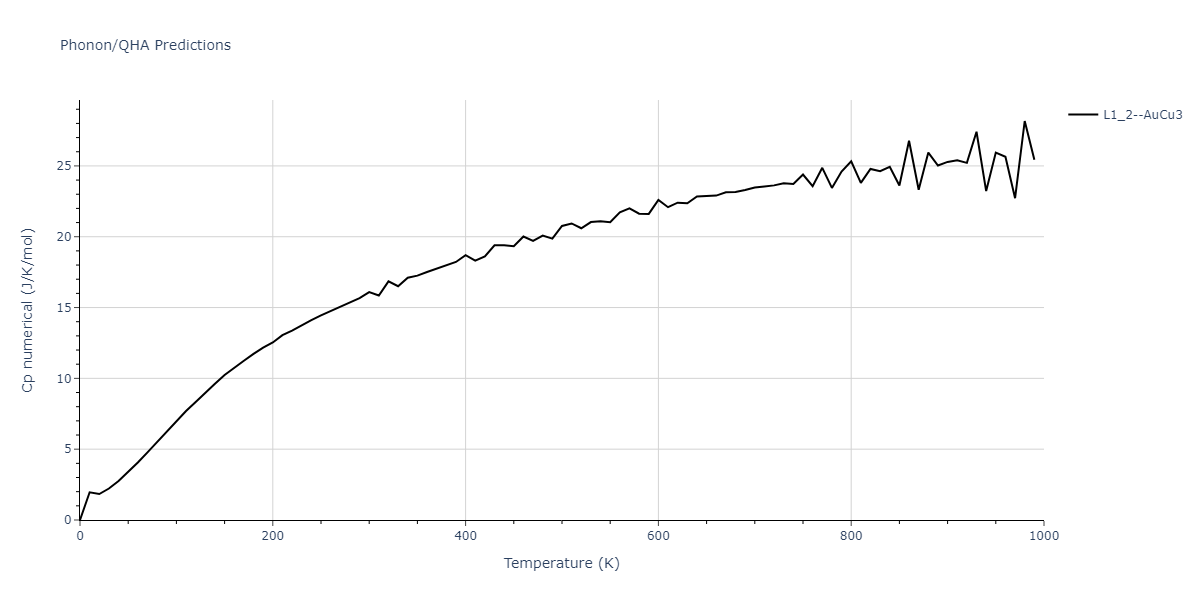

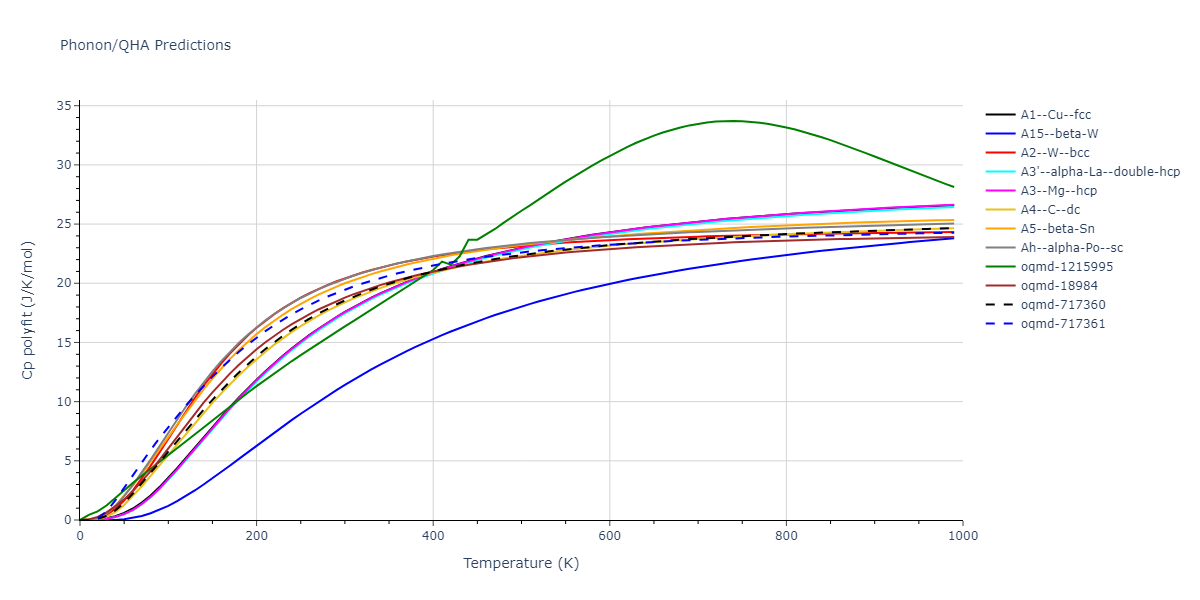

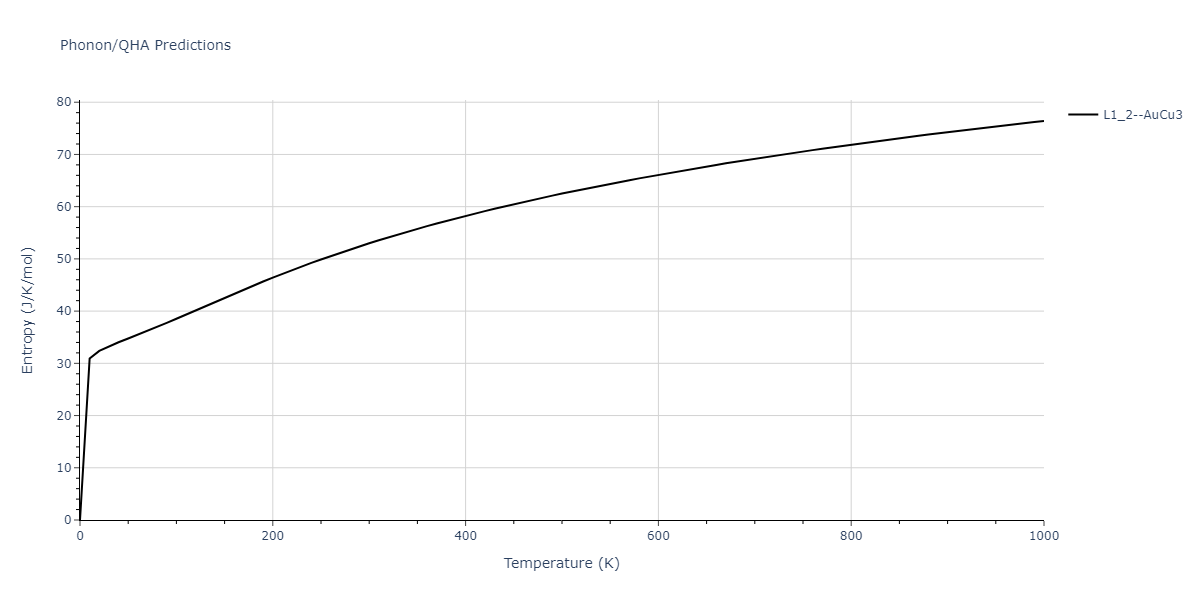

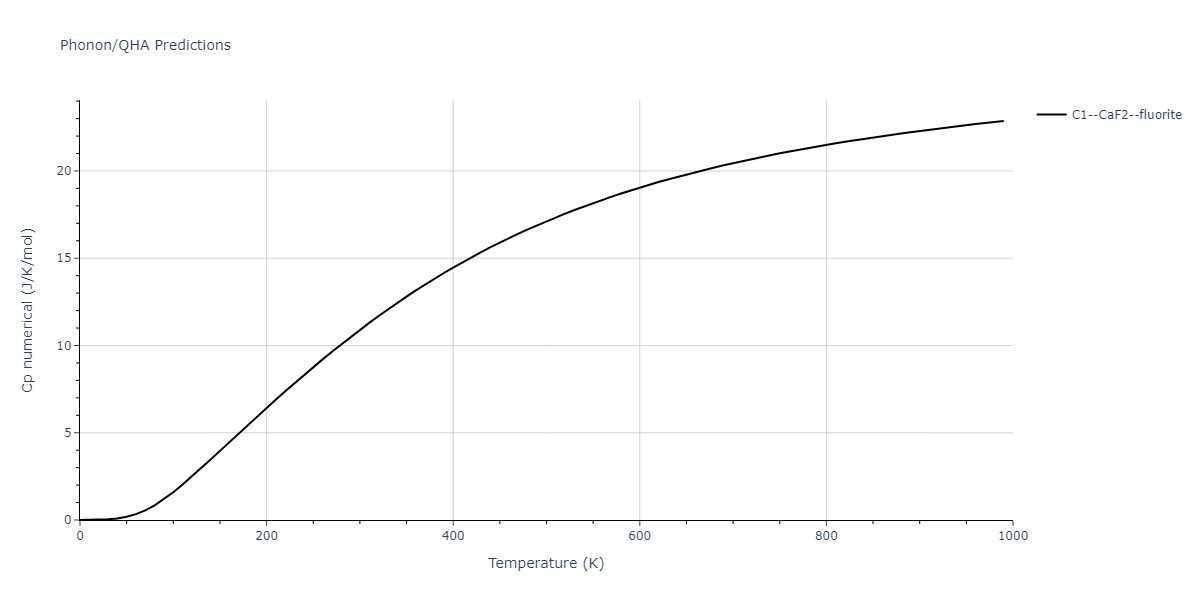

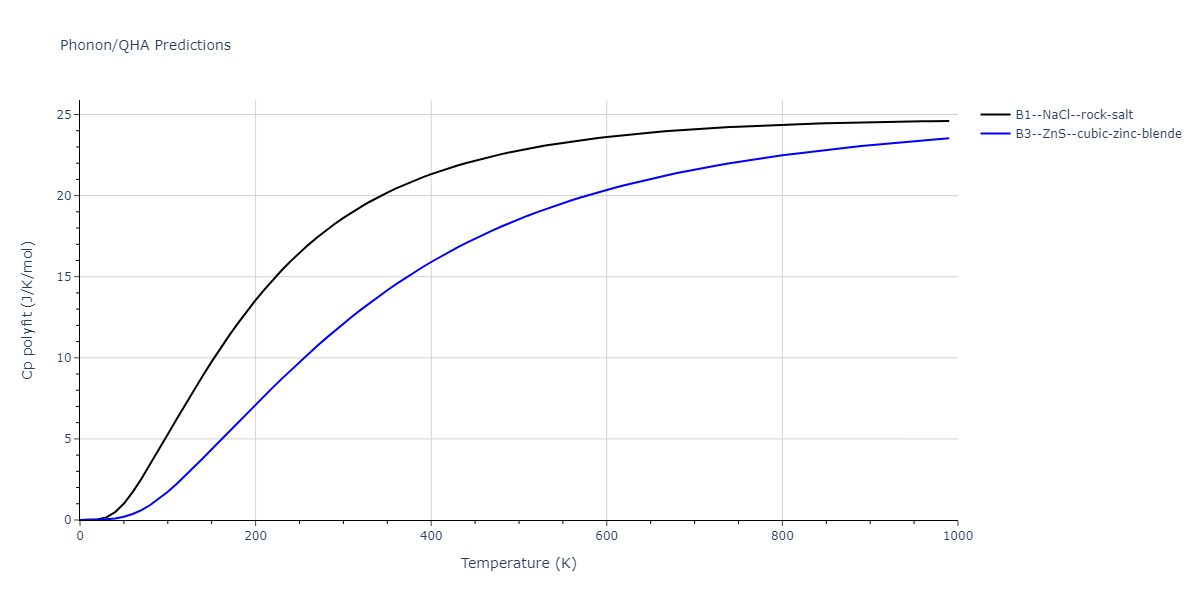

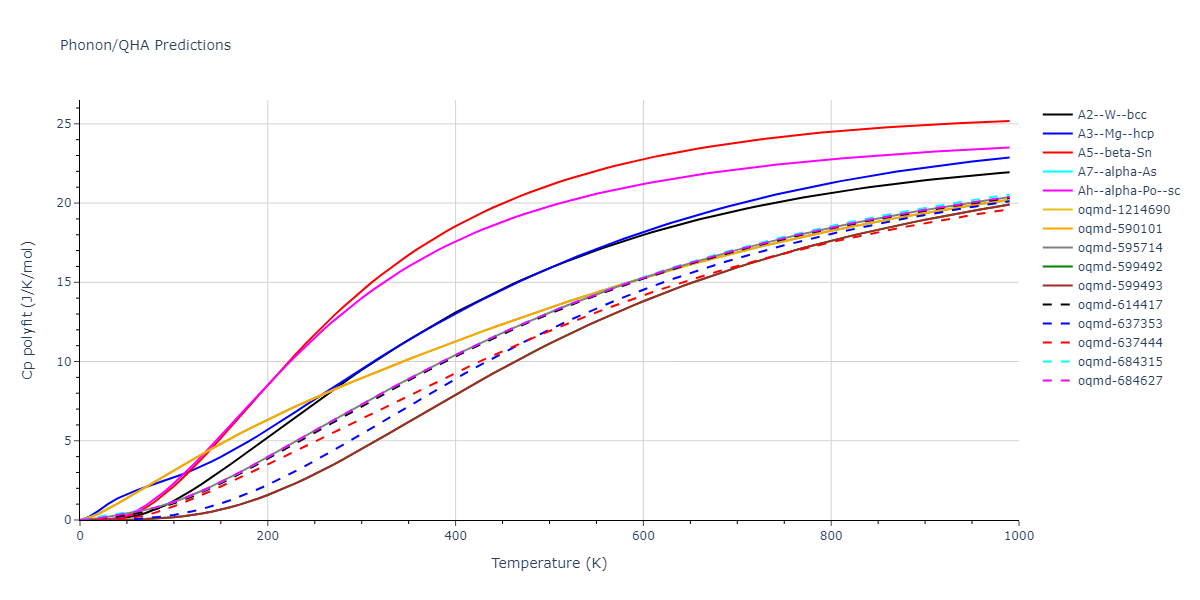

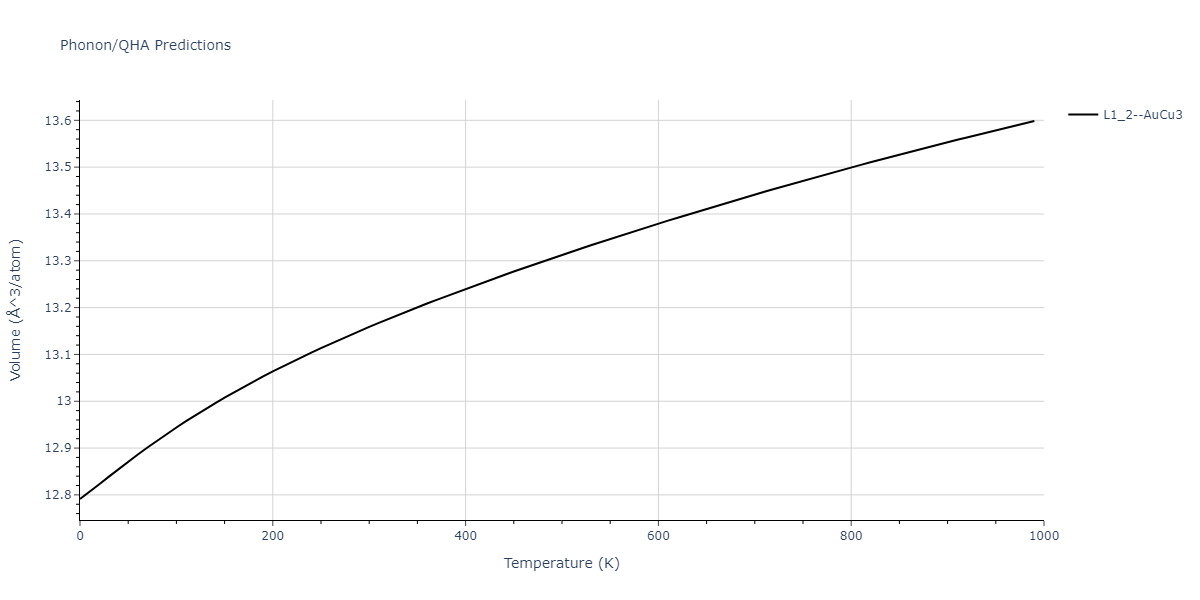

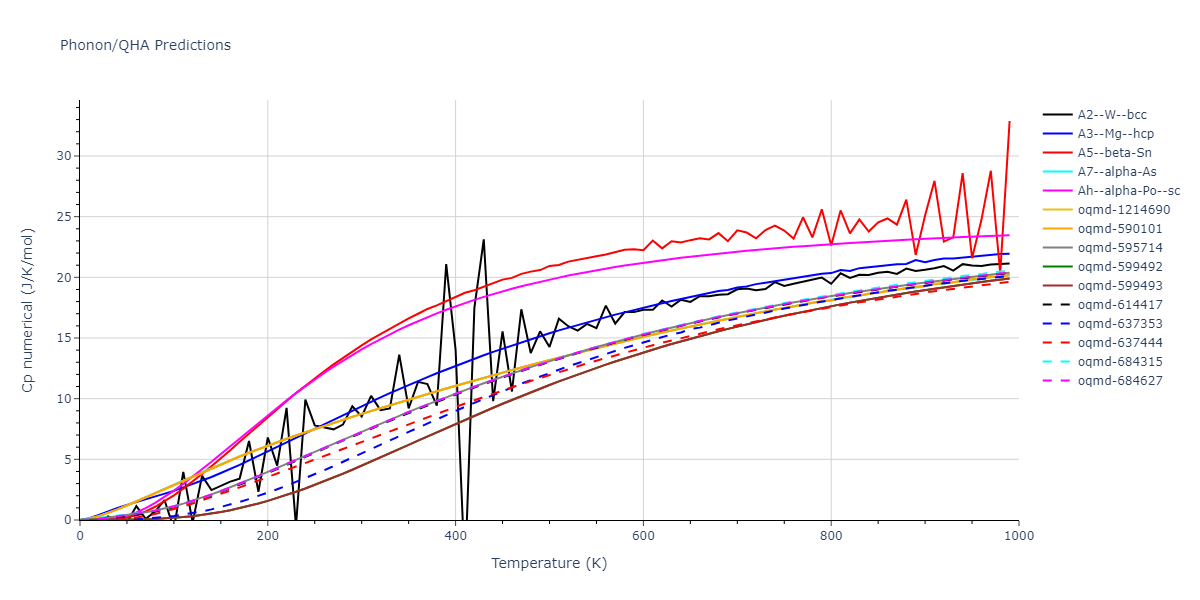

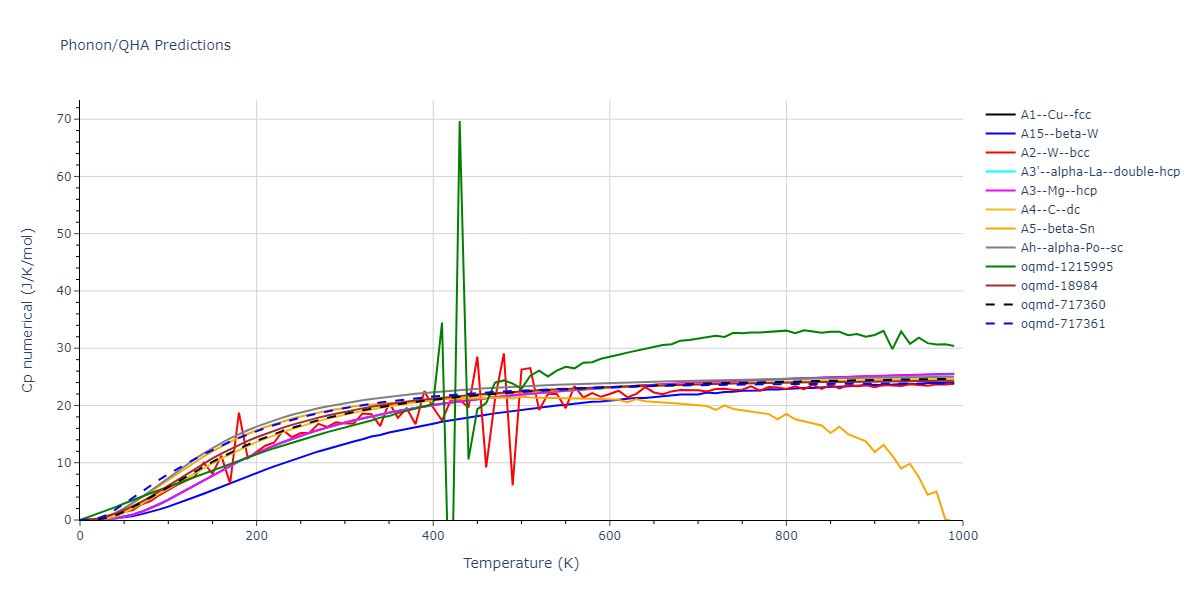

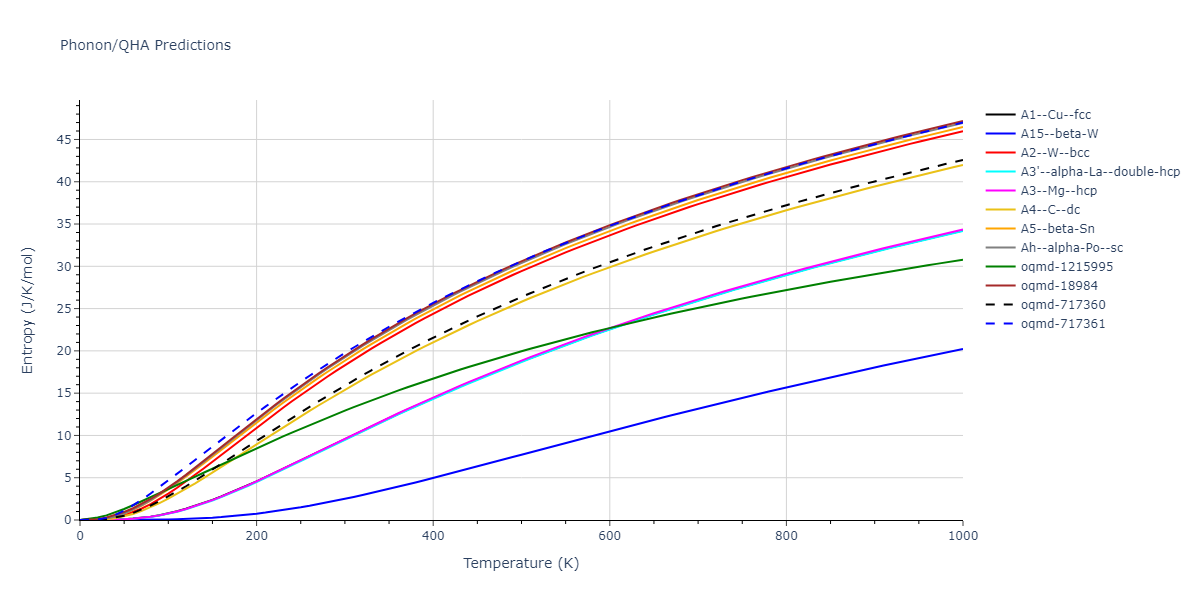

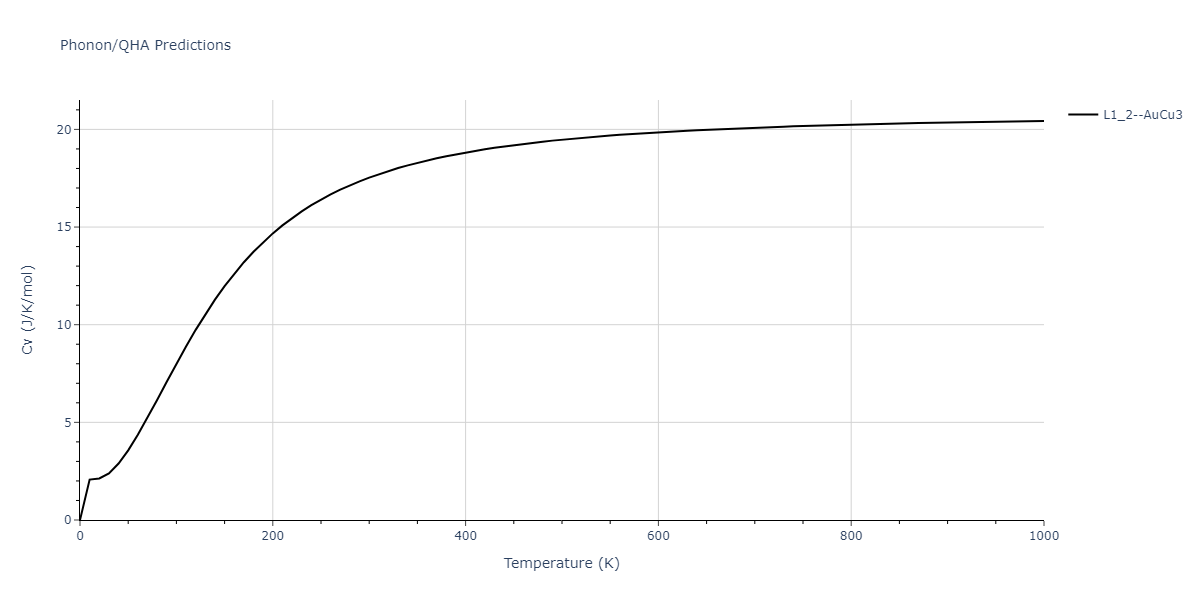

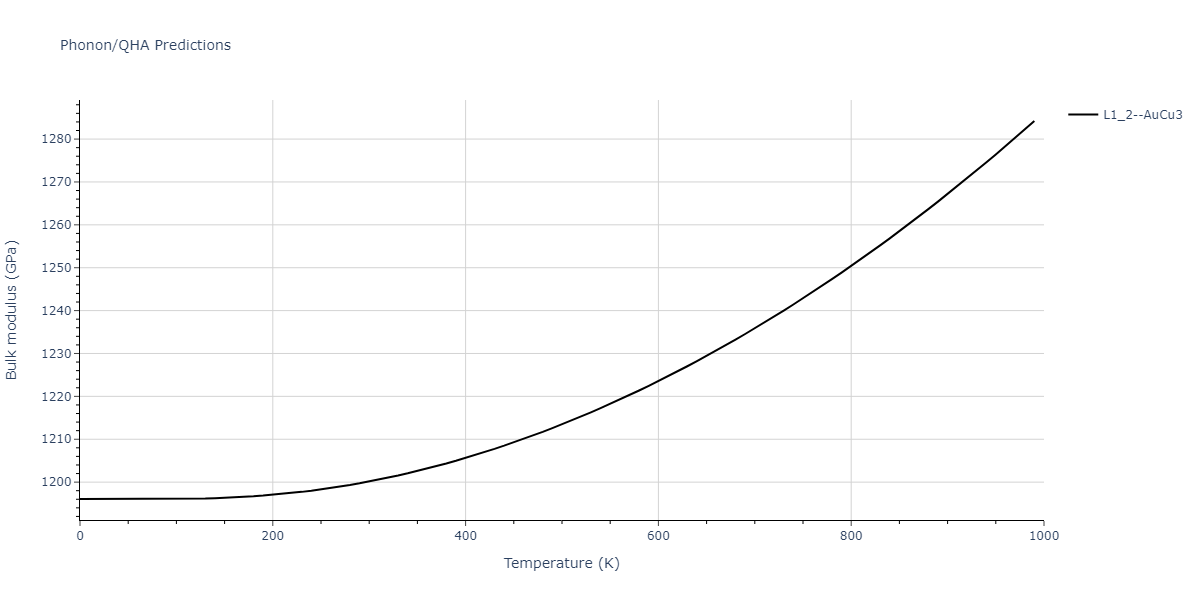

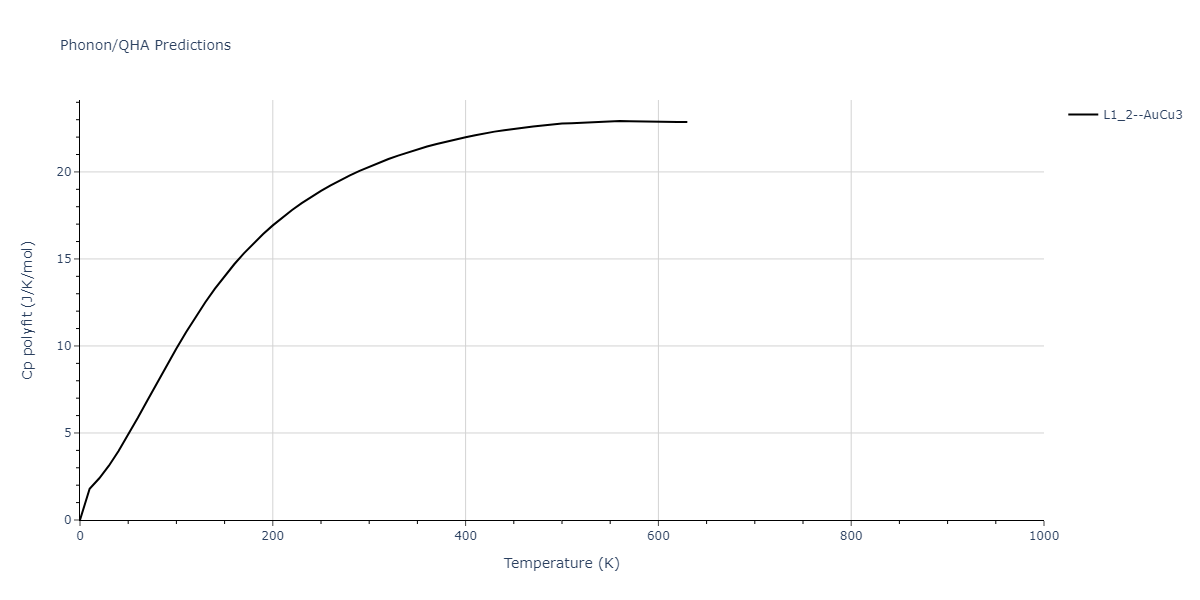

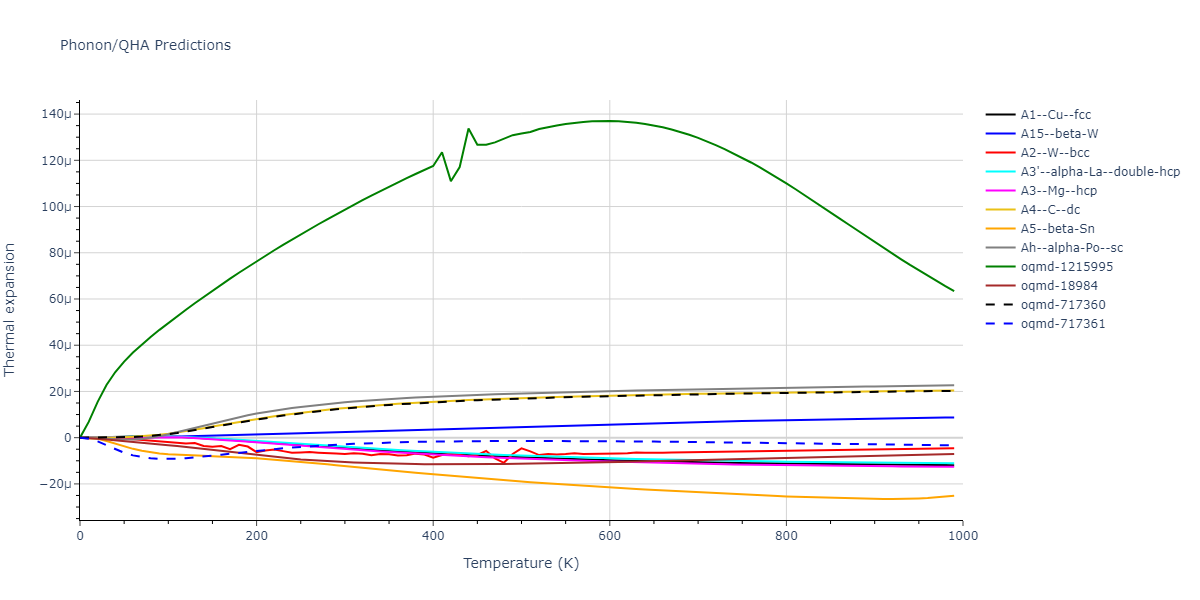

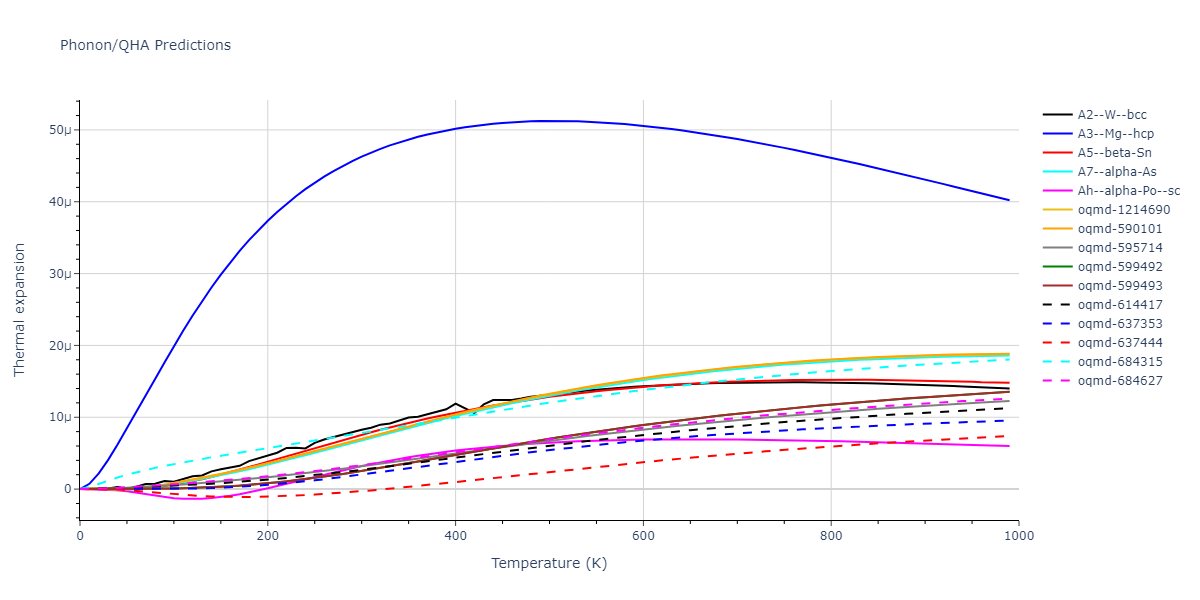

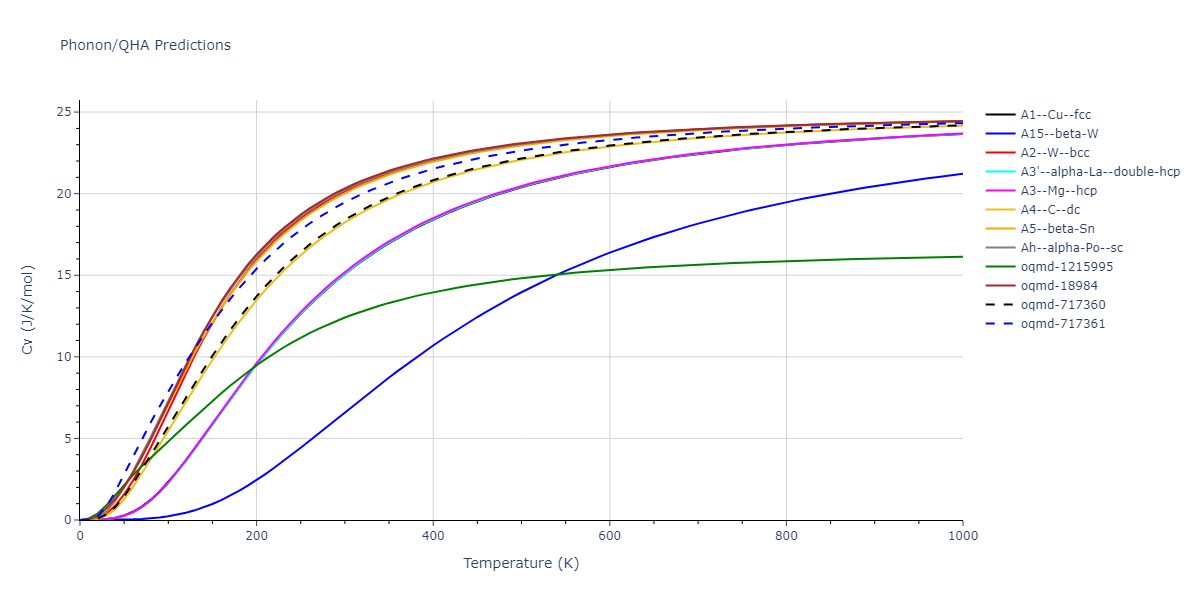

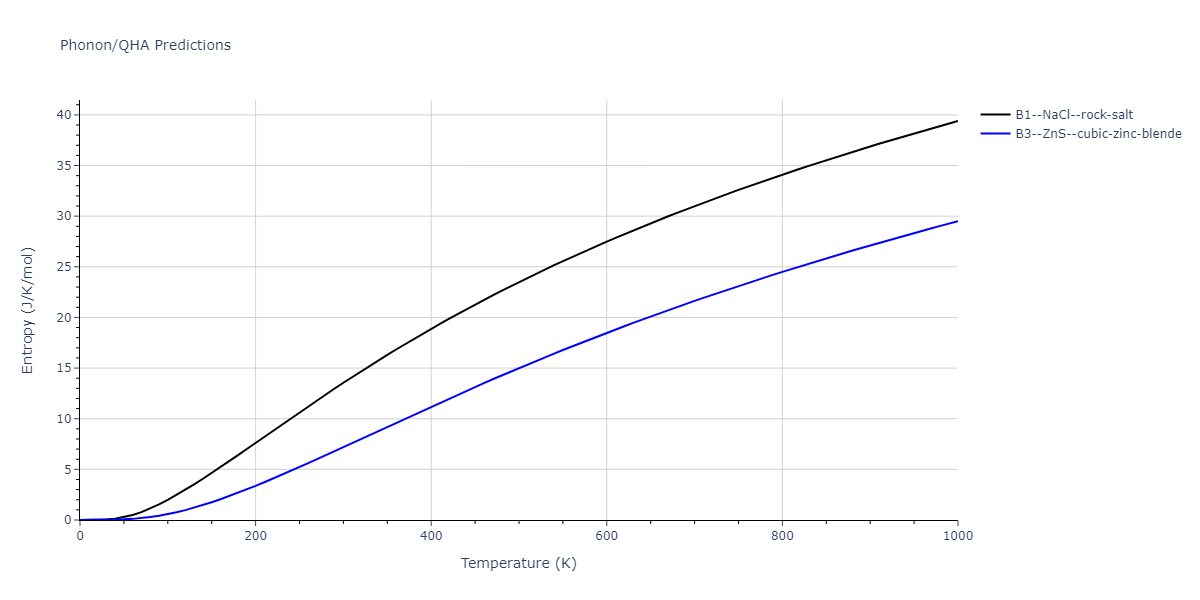

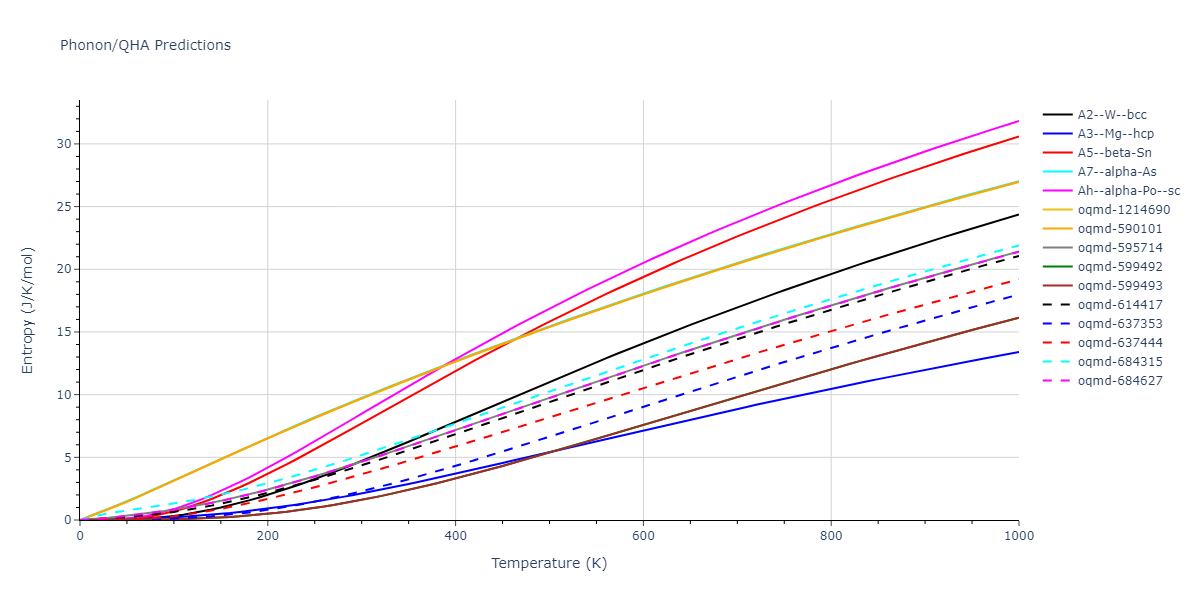

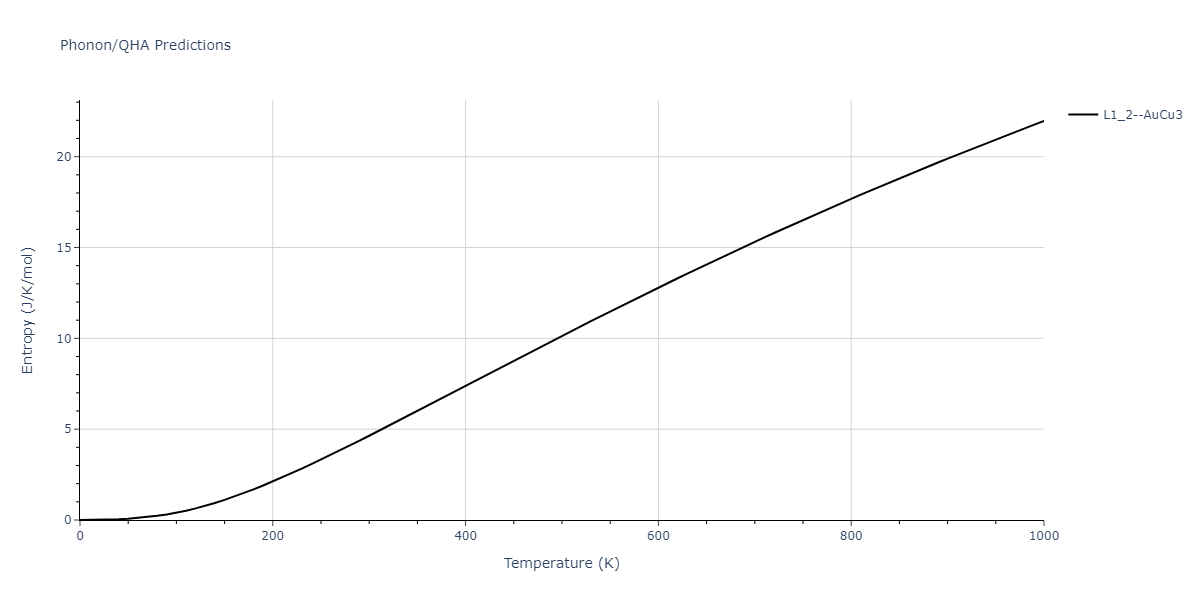

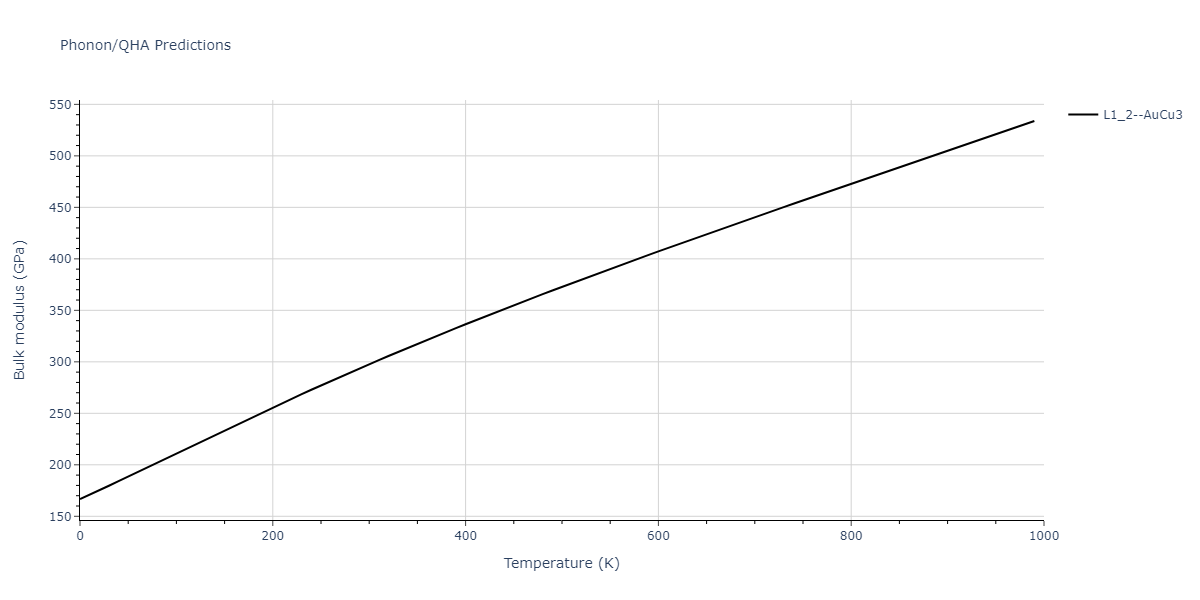

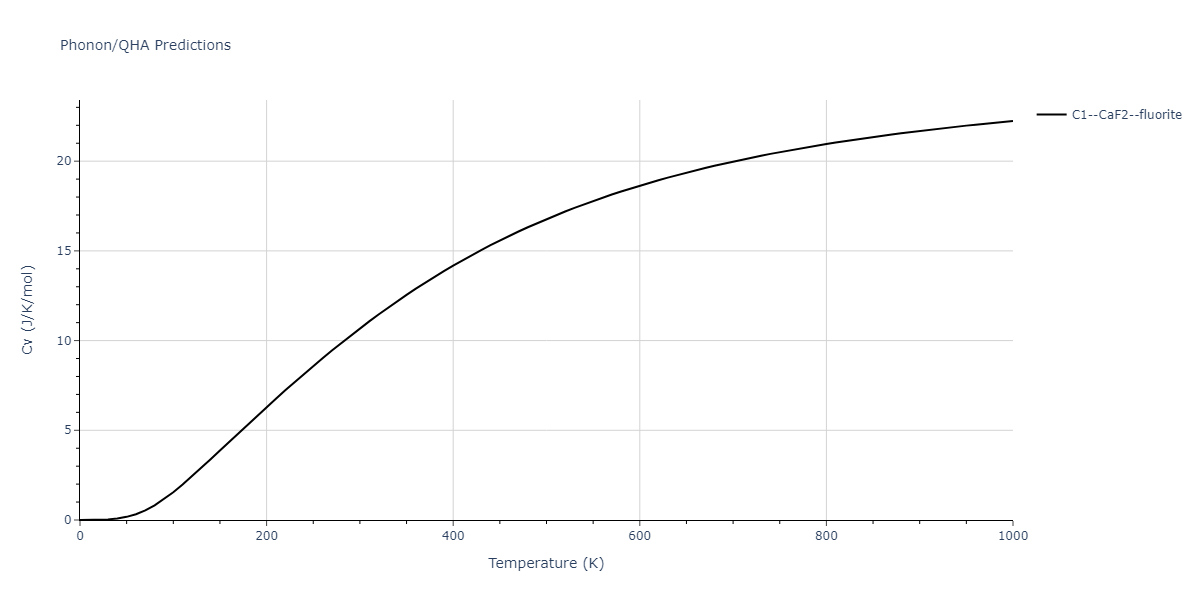

Thermodynamic Predictions

Composition:

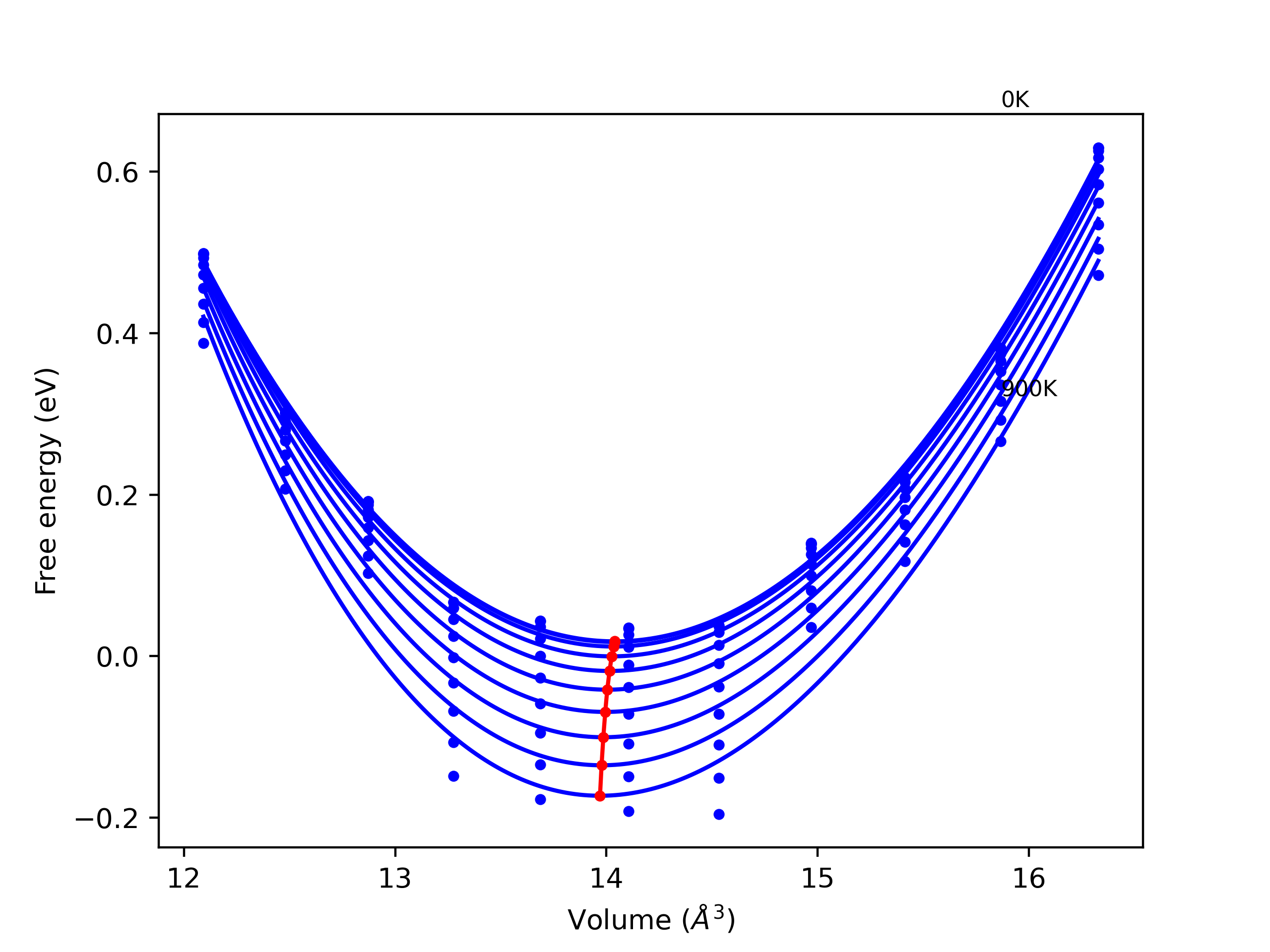

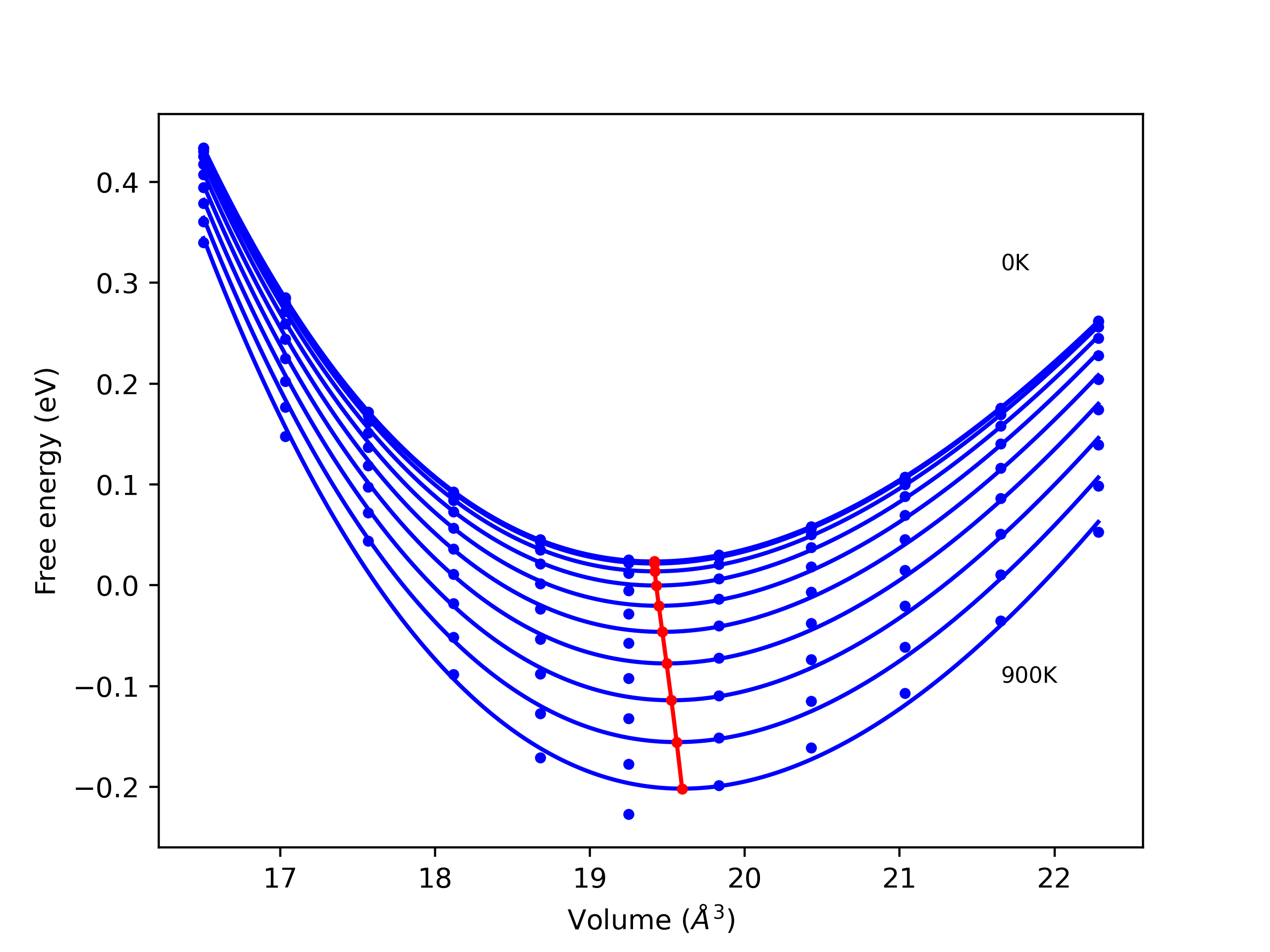

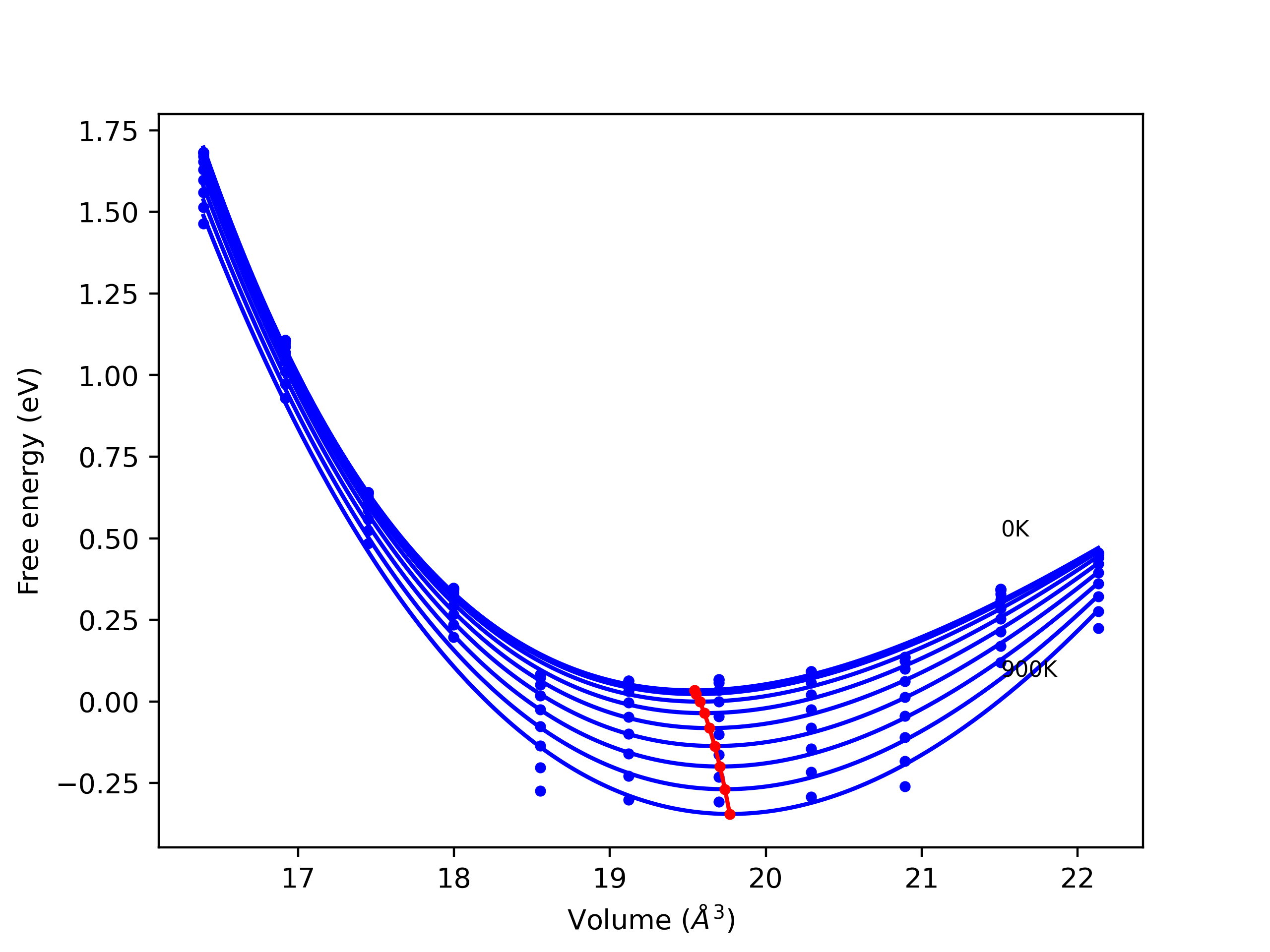

Plot:

Download data

Click on plot to load interactive version

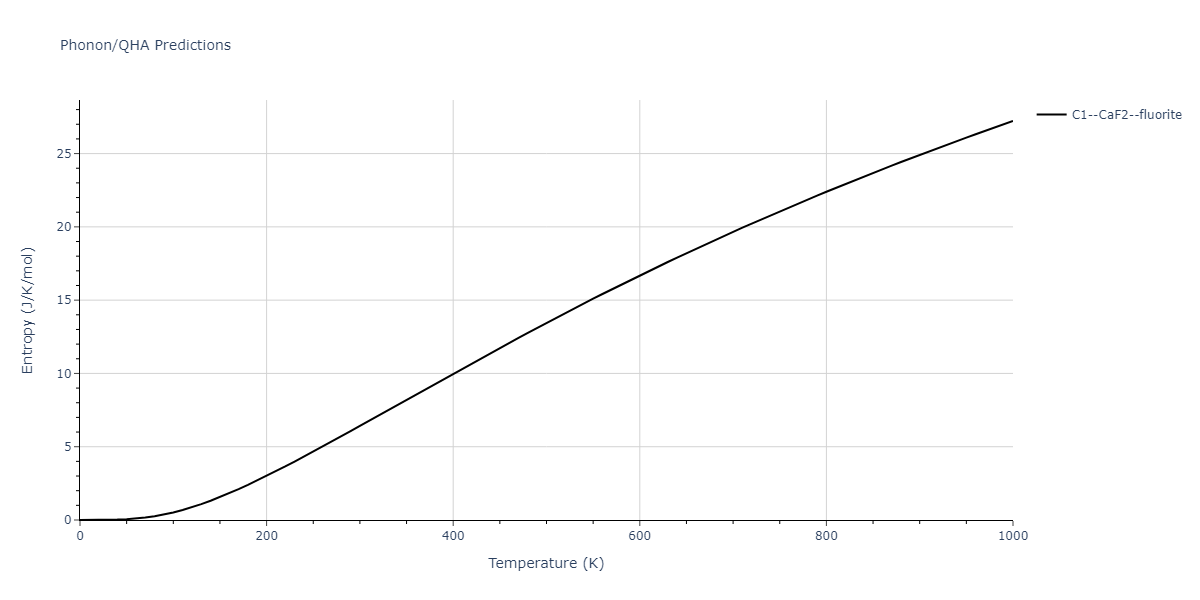

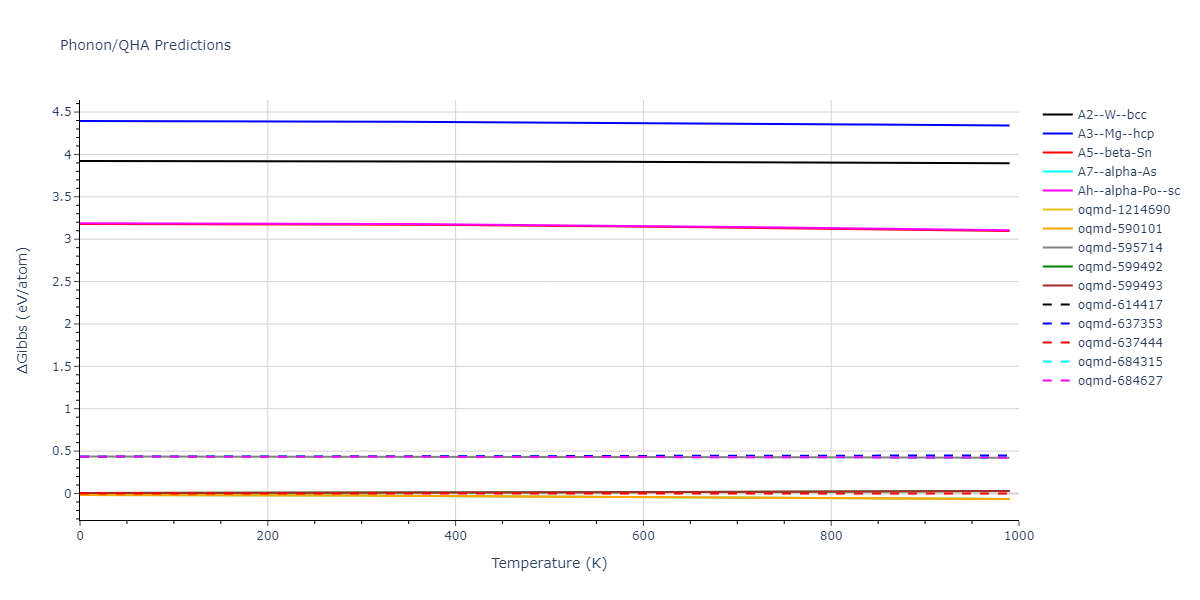

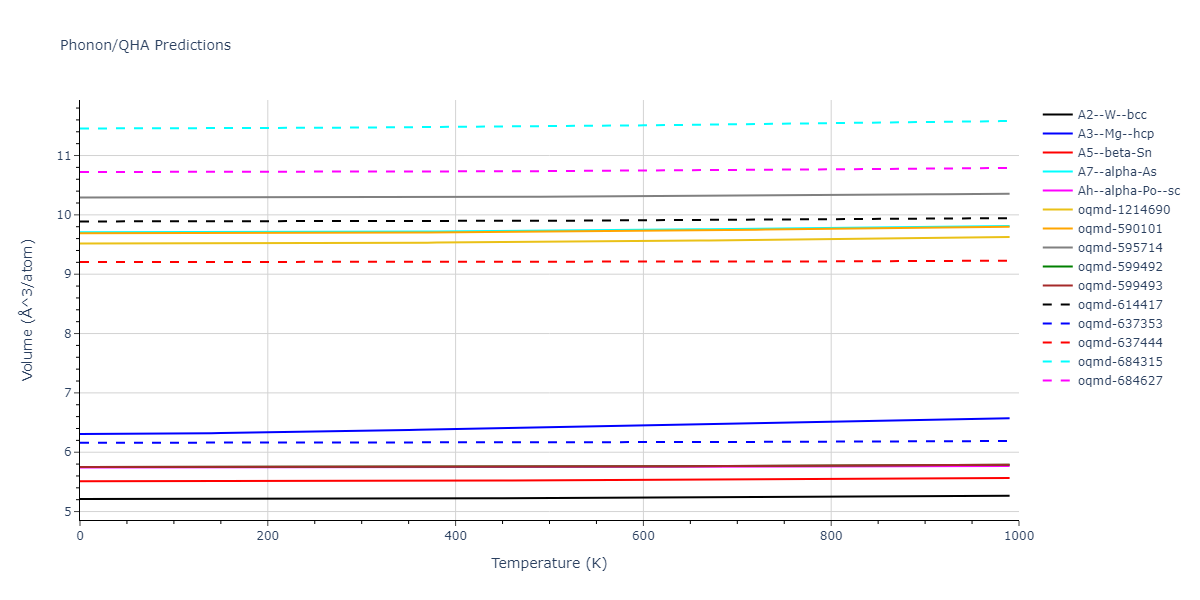

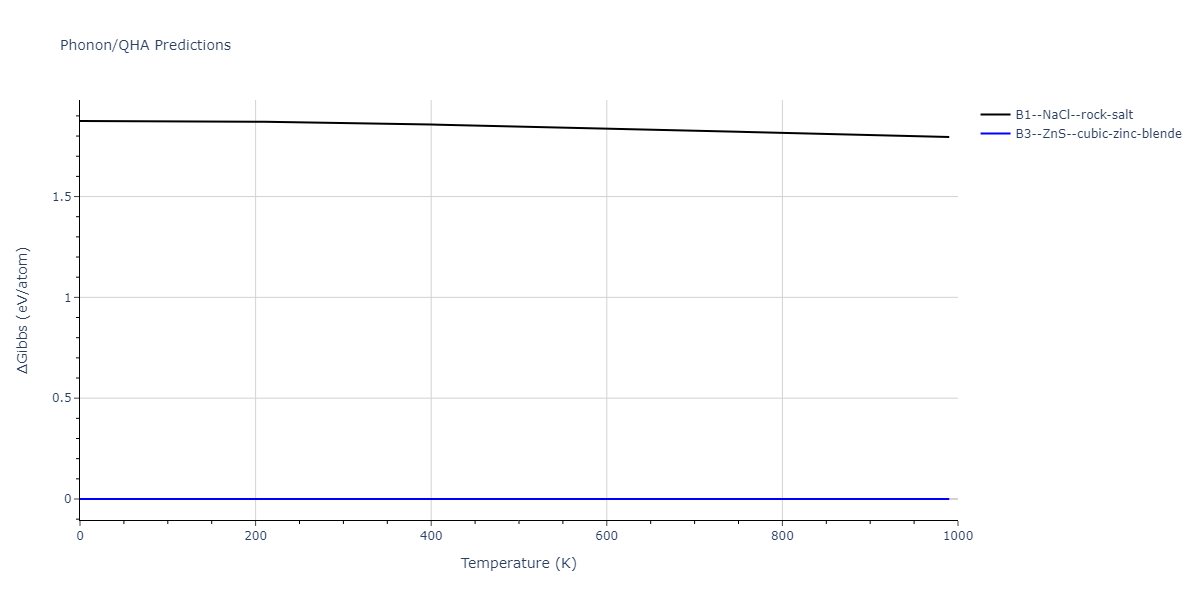

2005--Erhart-P--Si-C-I--LAMMPS--ipr1/phonon.C.G.png
Free Surface Formation Energy Predictions

Static free surface formation energies are displayed for select crystals. The values displayed here are obtained by taking a perfect periodic bulk crystal, slicing along a crystallographic plane, and using force minimization to statically relax the surfaces. The free surface formation energy is computed by comparing the energy of the defect system to the bulk system and dividing by the total surface area created by the cut.

The calculation method used is available as the iprPy surface_energy_static calculation method.

Notes and Disclaimers:

  • These values are meant to be guidelines for comparing potentials, not the absolute values for any potential's properties. Values listed here may change if the calculation methods are updated due to improvements/corrections. Variations in the values may occur for variations in calculation methods, simulation software and implementations of the interatomic potentials.
  • The calculation only performs straight cuts along crystallographic planes and static relaxations. Lower energy configurations may exist that require atomic restructuring of the surfaces.
  • Multiple values may be listed for a given plane followed by a number indicating different unique atomic planar cuts for the same theoretical plane.
  • NIST disclaimer

Version Information:

  • 2019-11-14. Calculations for the alternate #2 plane slices are now different from the #1 plane slices.
  • 2019-08-07. Data added.

Composition:
Prototype:
a0:

Download raw data

Surfaceγfs (mJ/m2)
(221)-251681.14
(321)-240665.49
(210)-184563.94
(211)-184444.48
(100)-73546.27
(320)-64787.82
(310)-6896.05
(110)1002.83

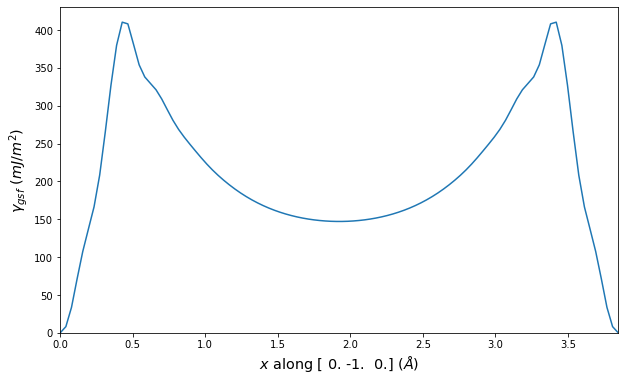

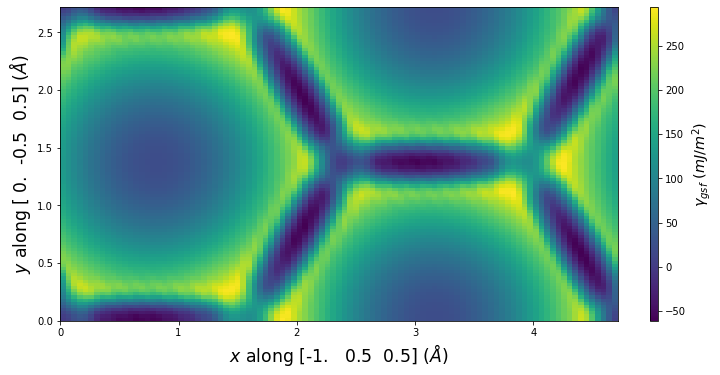

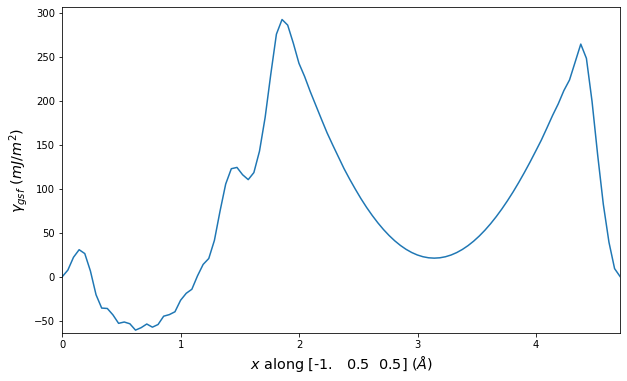

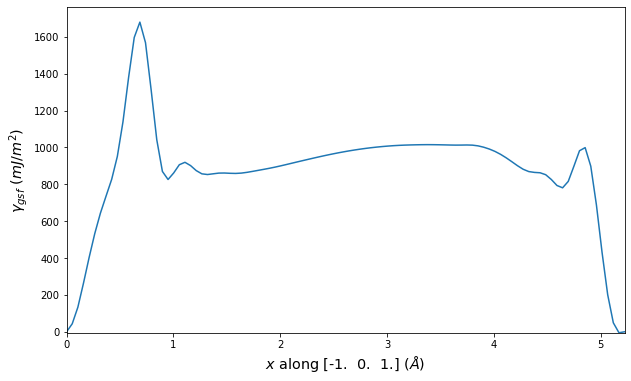

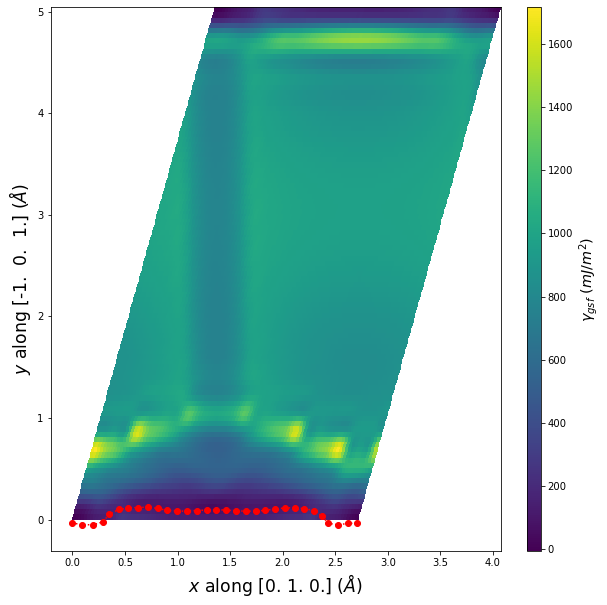

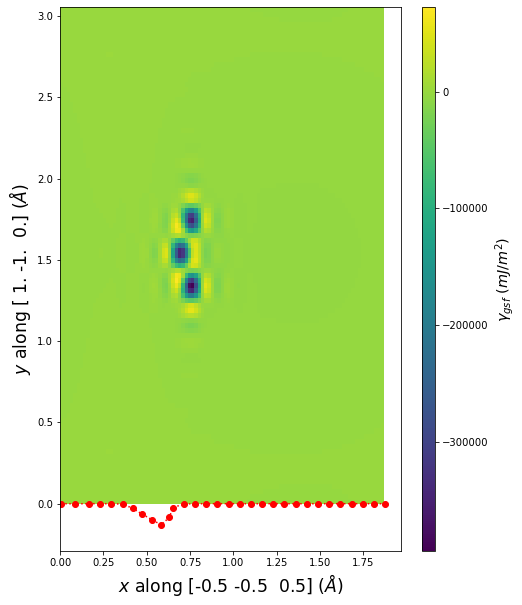

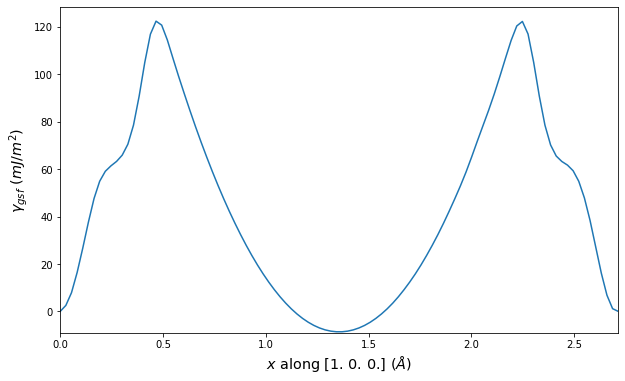

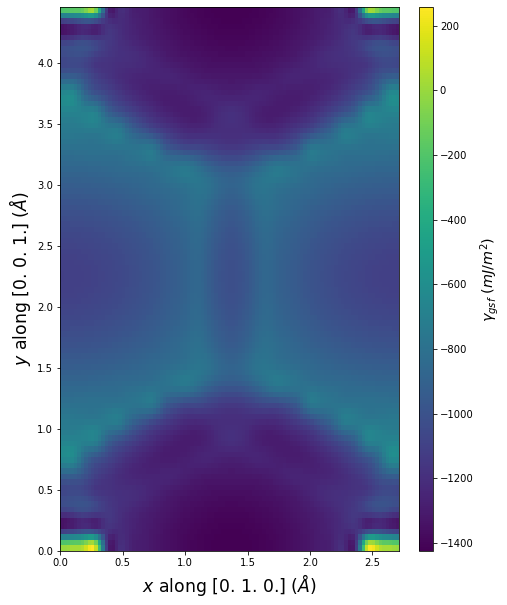

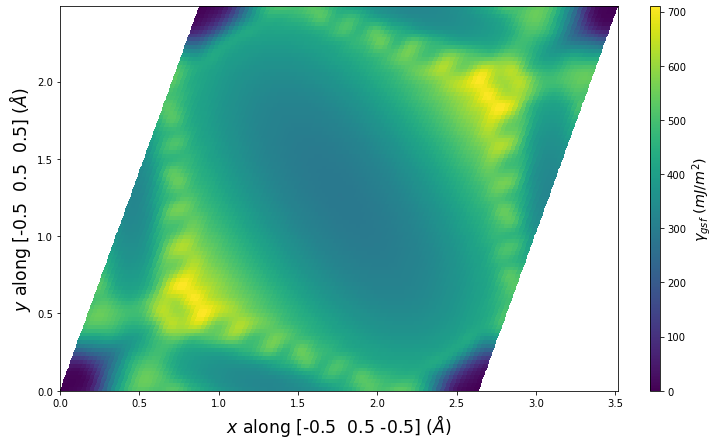

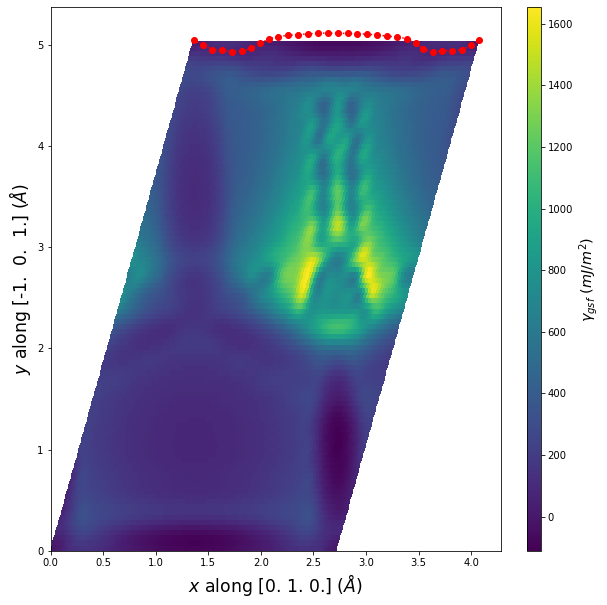

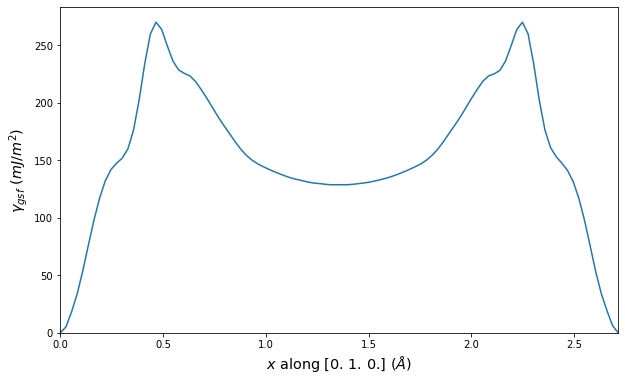

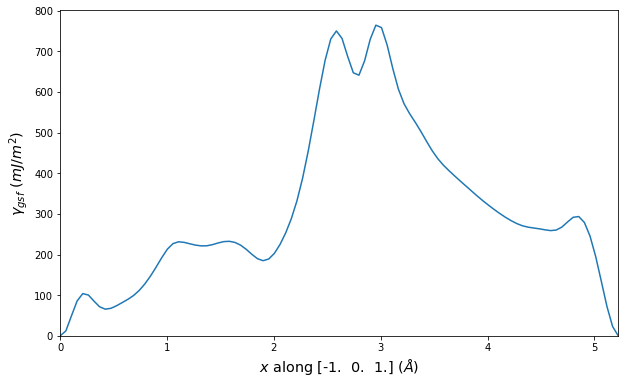

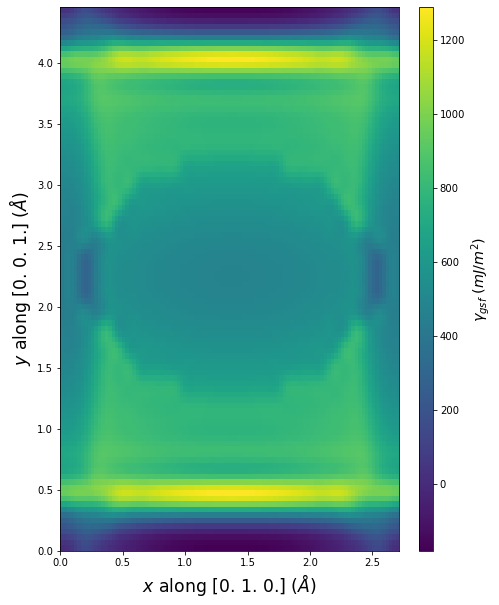

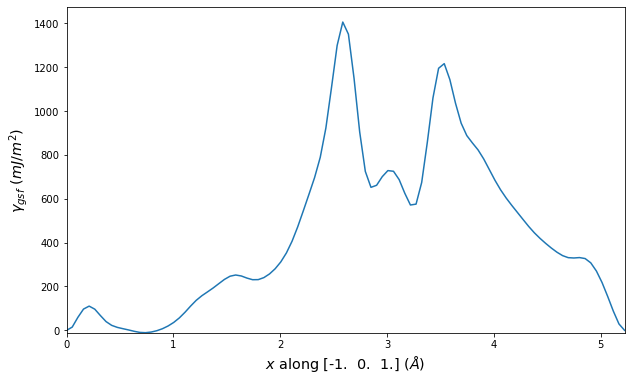

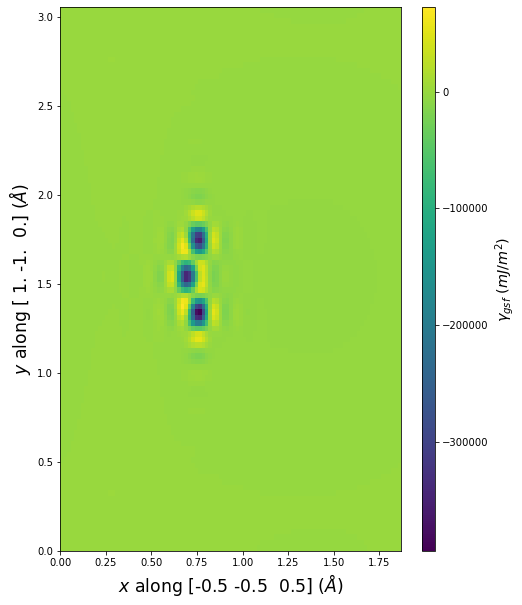

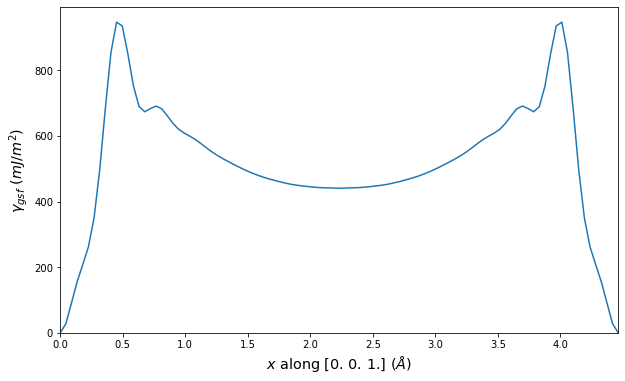

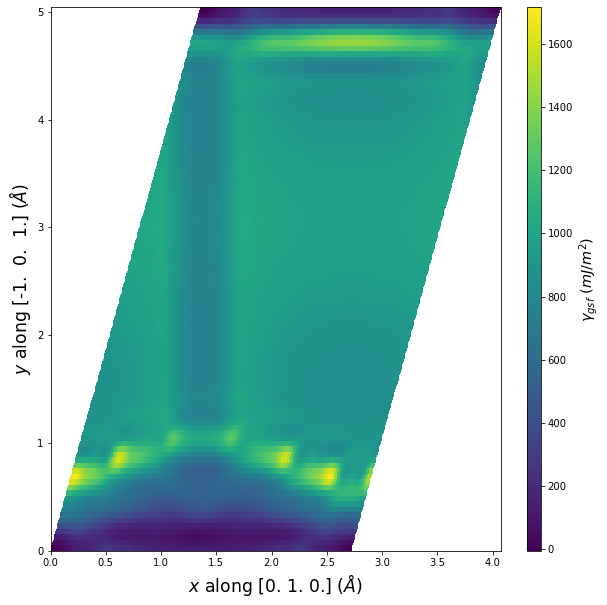

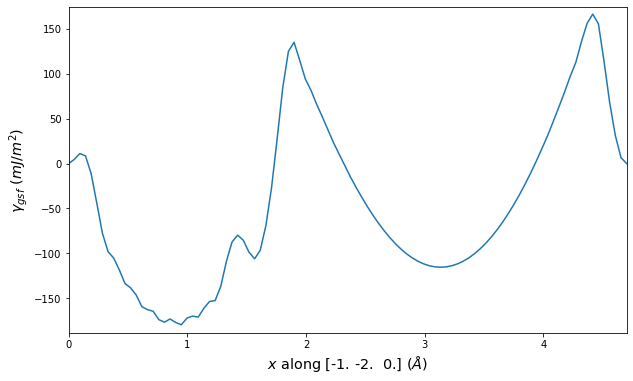

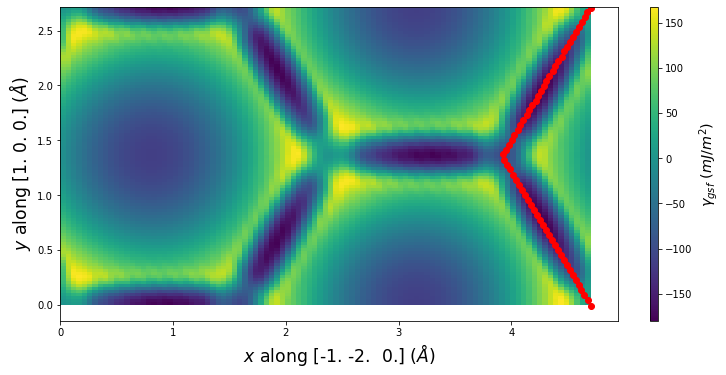

Stacking Fault Energy Predictions

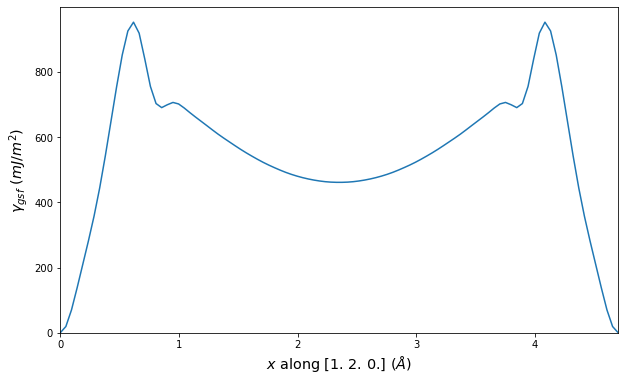

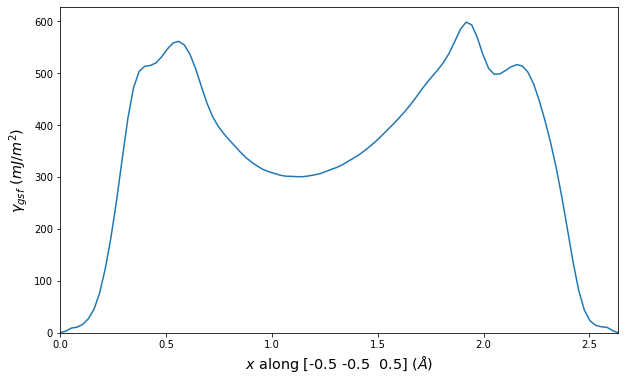

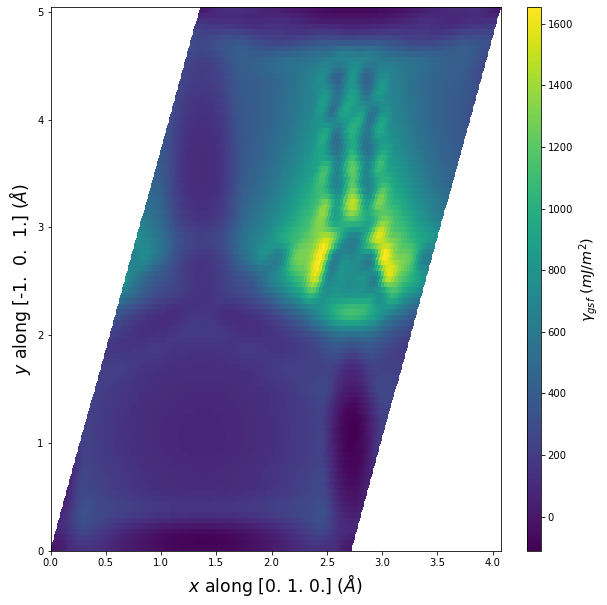

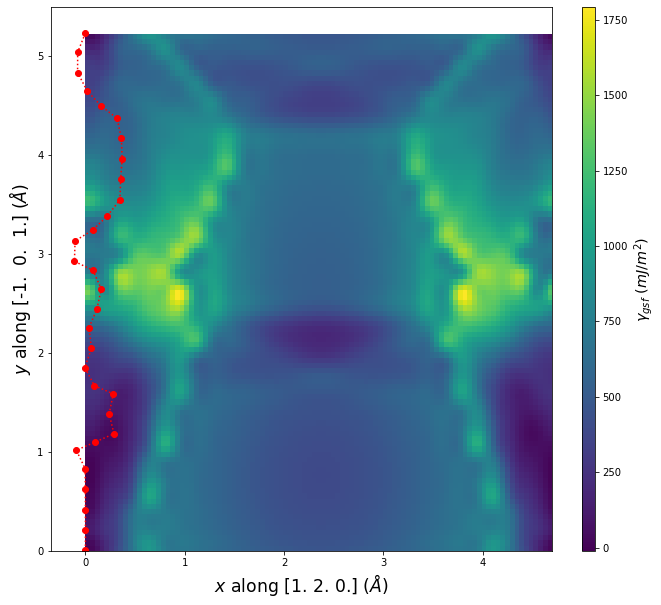

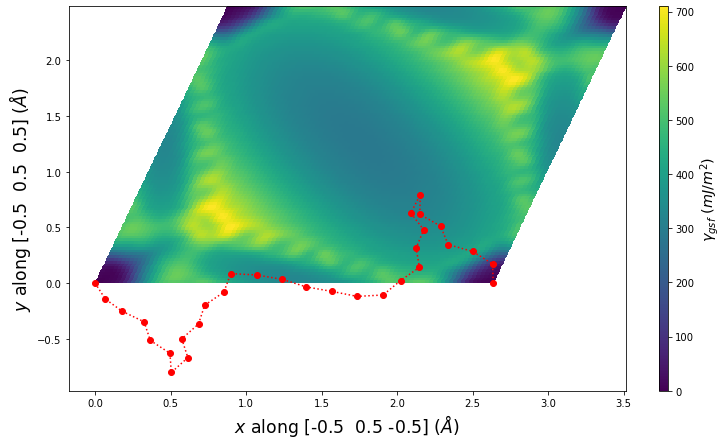

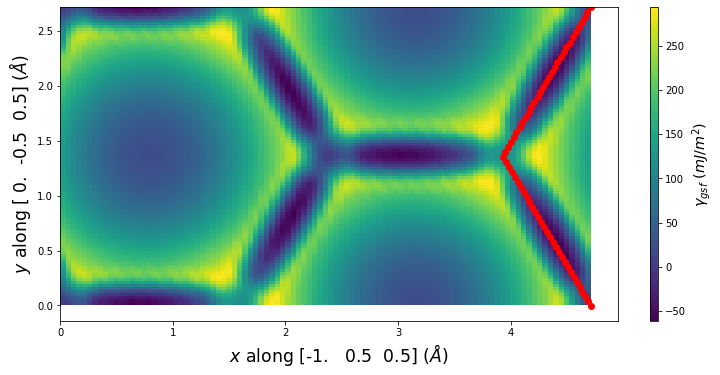

Stacking fault energy plots and maps are displayed for select crystals. The values are computed by

  1. Starting with a bulk crystal system
  2. Creating a free surface along one of the system's periodic boundaries and using force minimization to relax it
  3. The system is sliced in half along a crystallographic plane parallel to the free surface. One half of the system is shifted relative to the other
  4. The atoms in the shifted system are allowed to relax only in the direction normal to the shifting plane
  5. The stacking fault energy for a given shift is computed by comparing the energy of the system before and after applying the shift, and dividing by the area of the fault plane

The calculation method used is available as the iprPy stacking_fault_map_2D calculation method.

Notes and Disclaimers:

  • These values are meant to be guidelines for comparing potentials, not the absolute values for any potential's properties. Values listed here may change if the calculation methods are updated due to improvements/corrections. Variations in the values may occur for variations in calculation methods, simulation software and implementations of the interatomic potentials.
  • Values between the measured points are interpolated and therefore may not perfectly capture minima and maxima.
  • Multiple values may be listed for a given plane followed by a number indicating different unique atomic planar cuts for the same theoretical plane.
  • NIST disclaimer

Version Information:

  • 2022-06-28. Table added for intrinsic and unstable energies, and ideal shear stresses. Plots (and table) now ordered by the associated planes.
  • 2019-11-14. Calculations for the alternate #2 plane slices are now different from the #1 plane slices. The 1D plotting vectors have been changed to avoid duplicates. Minor improvements to how the 2D plots are displayed.
  • 2019-08-07. Plots added.

Composition:
Prototype:
a0:
plane:

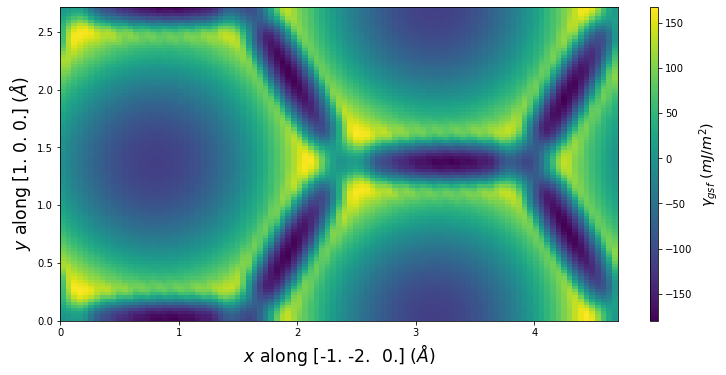

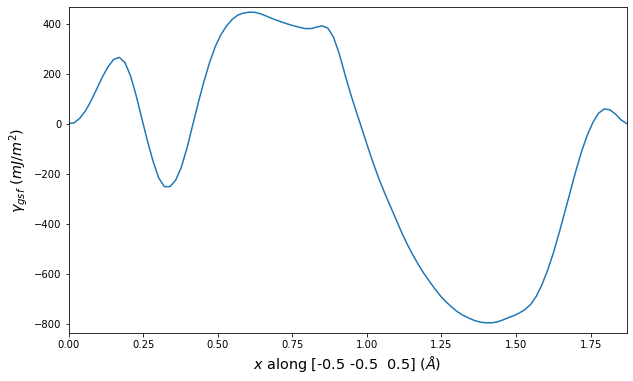

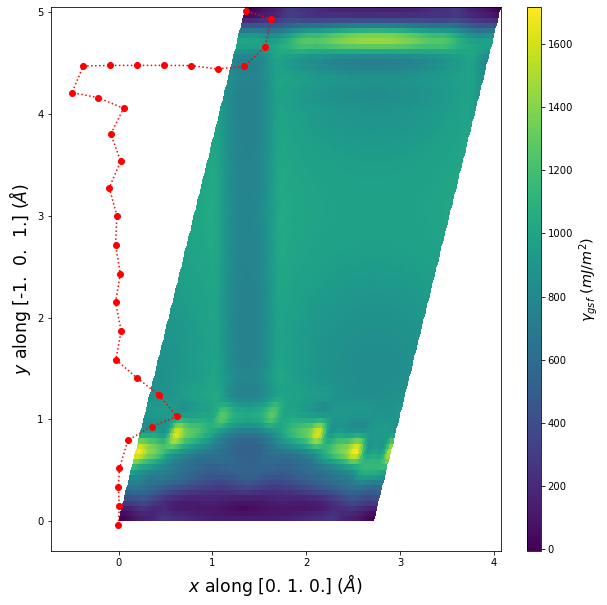

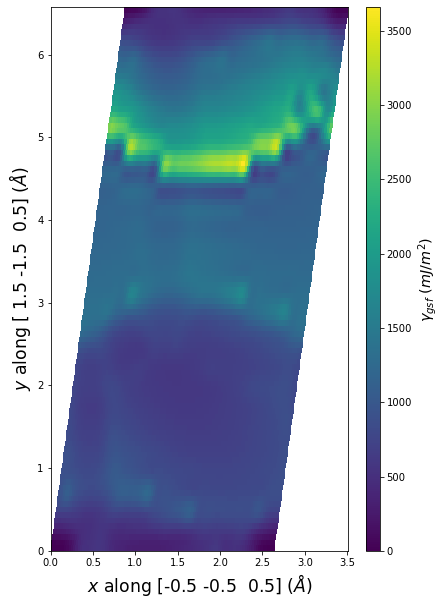

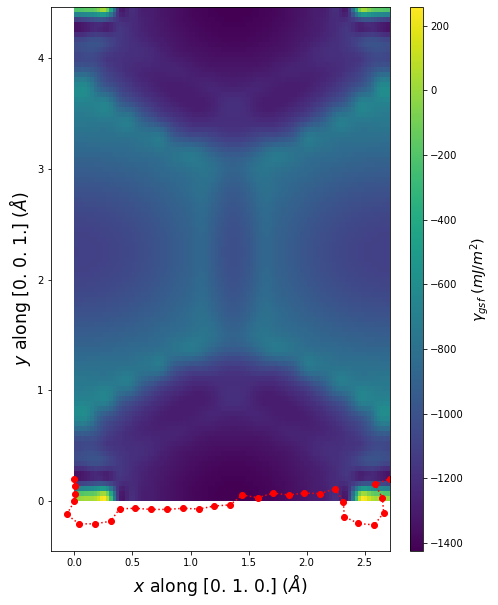

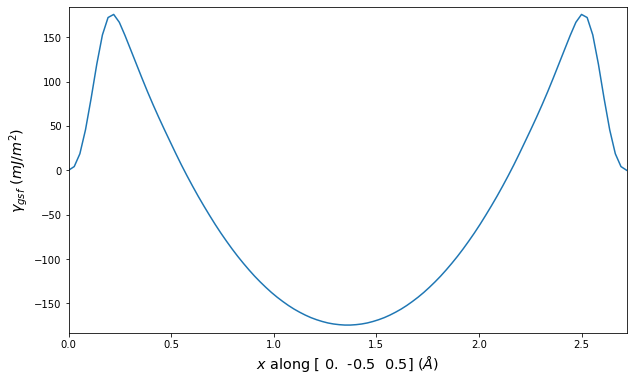

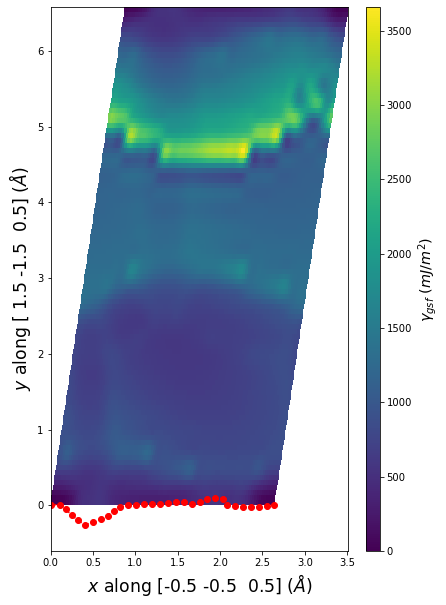

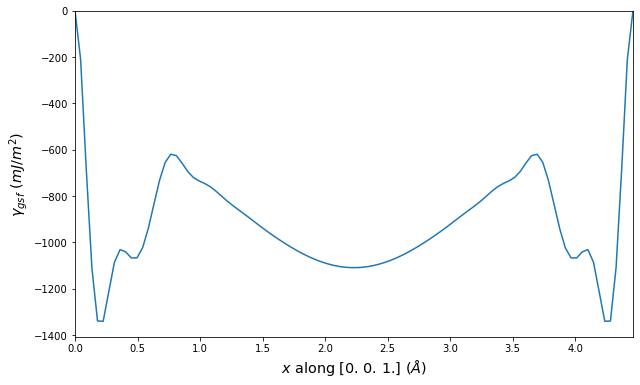

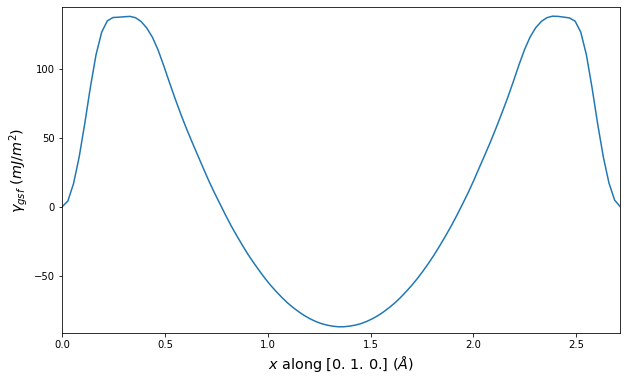

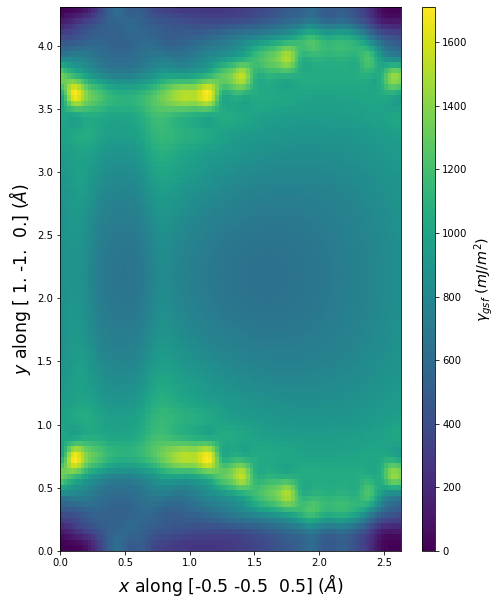

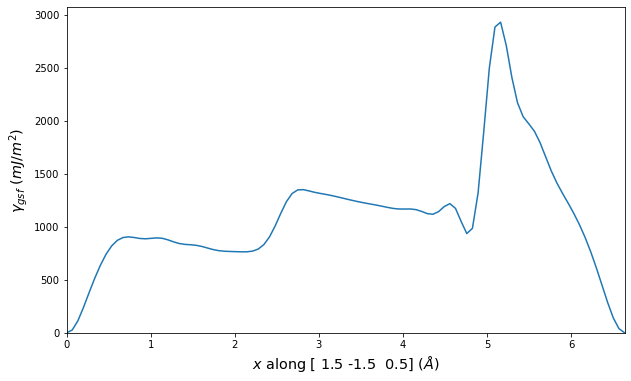

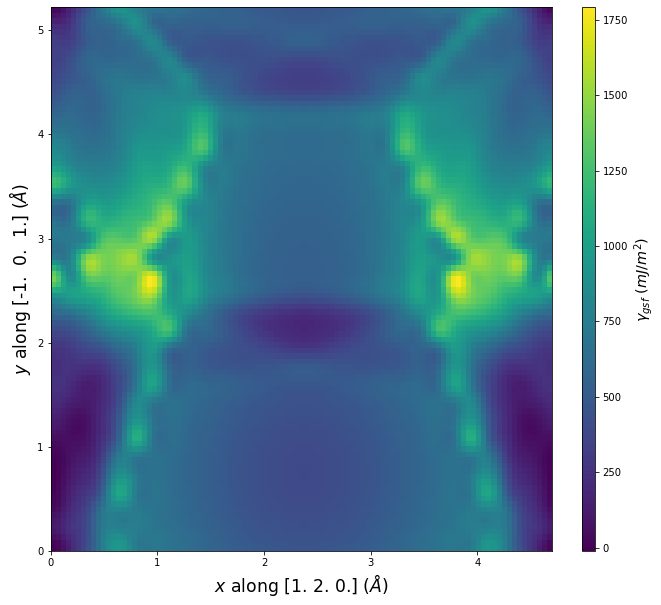

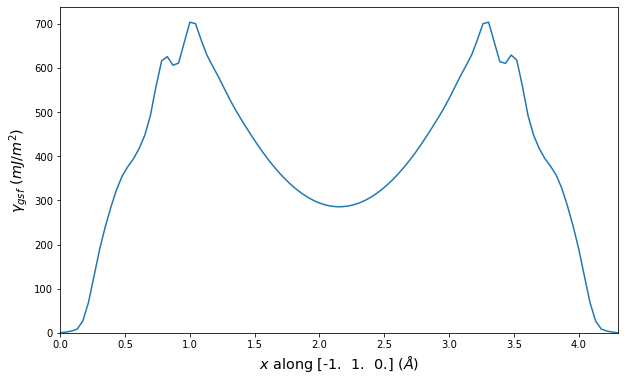

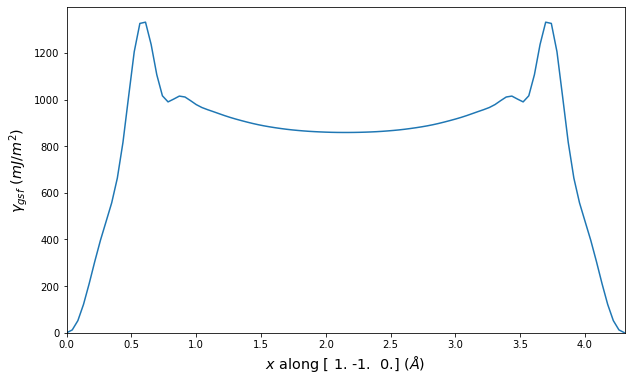

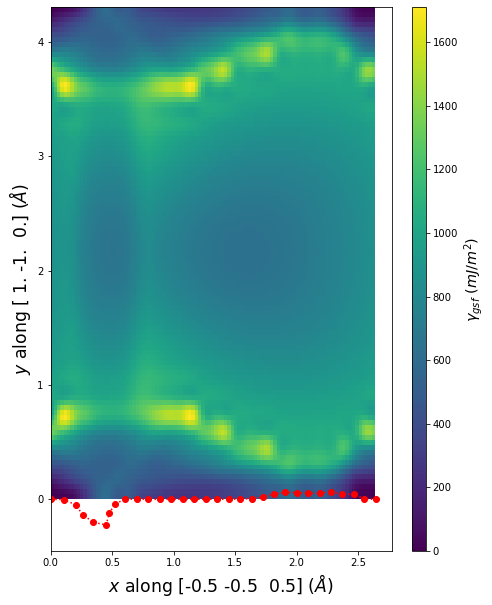

Stacking fault energies in mJ/m2 and ideal shears in GPa
E_usf a/2 [-1 -1 1]433.32
τ_ideal a/2 [-1 -1 1]49.83

Download raw data

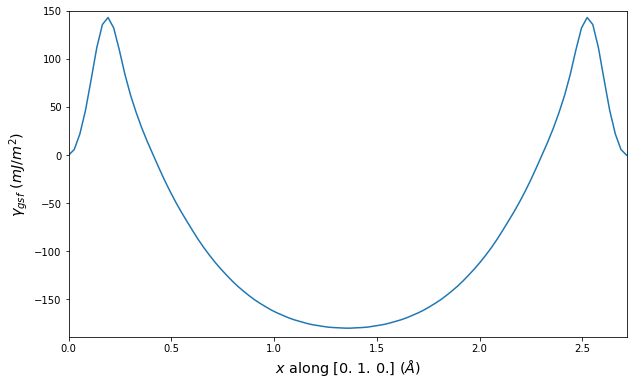

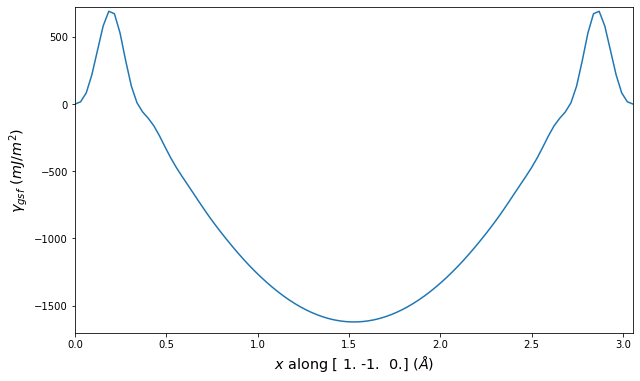

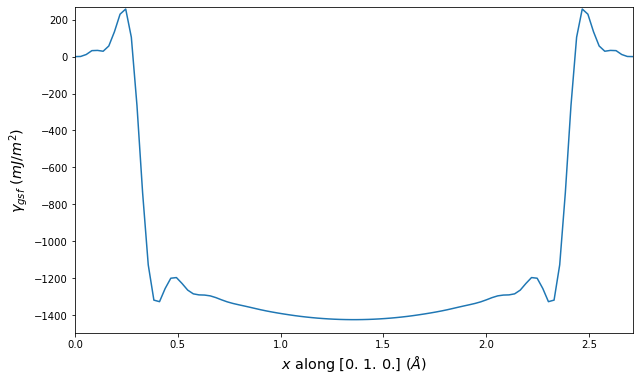

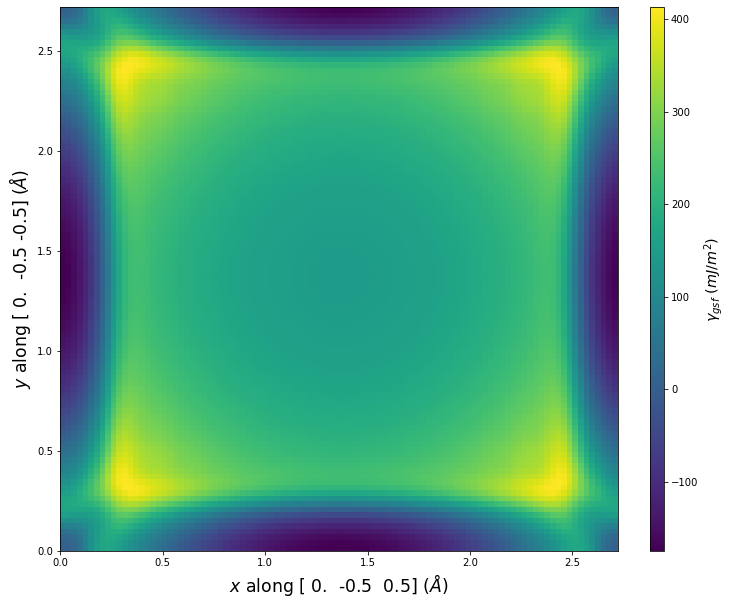

plot:
Point Defect Formation Energy Predictions

Static point defect formation energies, Ef, and elastic dipole tensors, pij, are displayed for select crystals. Relaxed defect configurations are obtained by taking a 12x12x12 supercell of a perfect periodic bulk crystal, inserting the point defect, and using force minimization to statically relax the atomic positions while keeping the system dimensions constant. Ef is computed by comparing the energy of the defect system to the same number of atoms in a perfect bulk crystal. pij is estimated as the difference in the system's global pressure with and without the defect multiplied by the system's volume.

Simple structural comparisons of the unrelaxed and relaxed defect configurations are used to help determine if the defect structure has relaxed to a different configuration. Relaxed structures that are identified as no longer consistent with the ideal defect definition are excluded from the table below. The only exception to this is if the lowest energy interstitial configuration does not coincide with a known ideal defect, its energies and pressure tensor are included under the listing "relaxed interstitial". The full list of calculation results including the transformed structures and the structural comparison values is included in the csv file available from the "Download raw data" link.

The calculation method used is available as the iprPy point_defect_static calculation method.

Notes and Disclaimers:

  • These values are meant to be guidelines for comparing potentials, not the absolute values for any potential's properties. Values listed here may change if the calculation methods are updated due to improvements/corrections. Variations in the values may occur for changes in calculation methods, simulation software and implementations of the interatomic potentials.
  • The computed formation energy and elastic dipole tensor values are sensitive to the size of the system used. The 12x12x12 supercell size was selected as it should provide a decent approximation of the true bulk values.
  • The tests for identifying configuration relaxations are not guaranteed to be comprehensive or suitable for all point defect types. The table only shows the point defects that are consistent with the ideal configurations for that defect type, and the lowest energy interstitial.
  • The "relaxed interstitial" label indicates that the structure is not consistent with any of the known ideal interstitial configurations. No information is provided as to what that relaxed strucutre is, whether it is an unknown structure, a "near"-ideal defect, or a collapse to amorphous.
  • NIST disclaimer

Composition:
Prototype:
a0:

Download raw data

Point DefectEf (eV)p11 (eV)p22 (eV)p33 (eV)p12 (eV)p13 (eV)p23 (eV)
relaxed interstitial-6870.62116601.50315839.56716324.892242.347367.76527.587
vacancy-0.4274.7544.7544.754-0.000-0.000-0.000
2nn divacancy-0.0169.8619.8616.031-0.0000.000-0.000
Dislocation Monopole Structures

Plots of the atomic structure of dislocation cores are shown here. The dislocations were constructed using dislocation monopole configurations in which a straight dislocation is created in the center of the system using anisotropic elasticity and the elastic constants computed above. A cylindrical region centered around the dislocation is allowed to relax while the remaining atoms are held fixed. The relaxation consists of 1 million NVT steps at 10 K followed by an energy/force minimization. The final plots show the atomic configuration near the center of the monopole system, and display differential displacement arrows and Nye tensor color maps that are both taken with respect to the Burgers vector direction.

These plots show a wide range of final structures, some corresponding to expected dislocation structures and others not. While the characterizations are dislocation-type dependent, some general classification guidelines are listed here.

  • Planar dislocations exist on a single slip plane, which results in a grouping of large differential displacement arrows between two atomic rows. All edge dislocations and some screw dislocations may be planar dislocations.
  • Non-planar dislocations are screw dislocations that are positioned at the intersection of more than one slip plane. This results in the differential displacement arrows circling the position of the dislocation core. These core structures often have rotational symmetry due to the intersecting planes.
  • The plotted atomic positions are also useful for characterizing the final configuration. For screw dislocations, the atomic projections should match projections in the bulk crystal if the crystal has not transformed. For edge dislocations, the projections should be the bulk projections with the extra half-plane of atoms directly above the dislocation core.
  • Images in which the atomic positions look correct but no large differential displacement arrows are observed are likely the result of the dislocation gliding out of view during relaxation.
  • Phase transformations are identified by large differential displacement arrows spread out in both plot directions, often across the whole image. Additionally, the atomic position projections will likely not correspond to what is expected.
  • Twins typically appear as a long line of large differential displacement arrows along a single plane. Note that twins can nucleate phase transformations so the distinction between the two is not always clear.

The calculation method used is available as the iprPy dislocation_monopole calculation method.

Links are provided above the images allowing for users to download the final defect configuration and a corresponding defect-free configuration if they wish to further analyze the structures or use them for subsequent simulations.

Notes and Disclaimers:

  • While the general dislocation monopole method is universal to all dislocations, these calculations rely on dislocation-type specific atomic configuration sizes and differential displacement/Nye tensor settings. For the system size, the specific super cell multipliers vary based on the crystal and crystal vector orientations, but the sizes are always selected to minimize the length along the dislocation line and attempt to make the two other box dimensions similar. For the structure analysis tools, both are sensitive to the cutoff distance used to identify neighbors, and both have some method-specific parameters. Where known, the settings used here correspond to the most common ones used in literature.
  • For bcc dislocations, the differential displacement vectors shown here are "wrapped" in that if their magnitudes exceed b/2 then a value of b is added/subtracted to wrap the vector back around. This convention reveals the dislocation's structure and location without showing the slip history.
  • NIST disclaimer

Version Information:

  • 2025-08-07. Plots first added.

Composition:
Type:

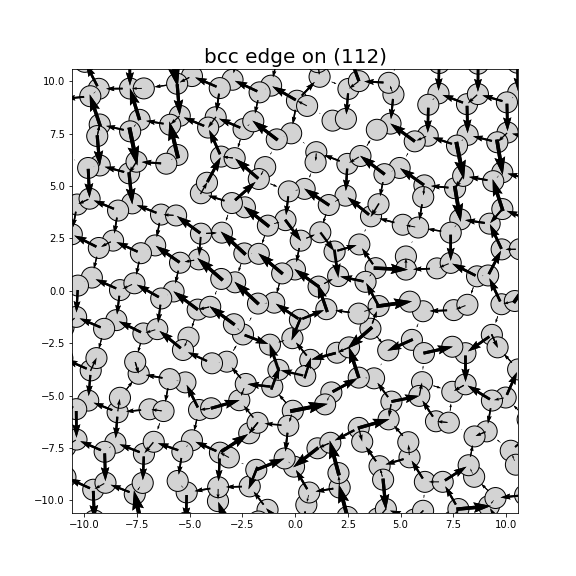

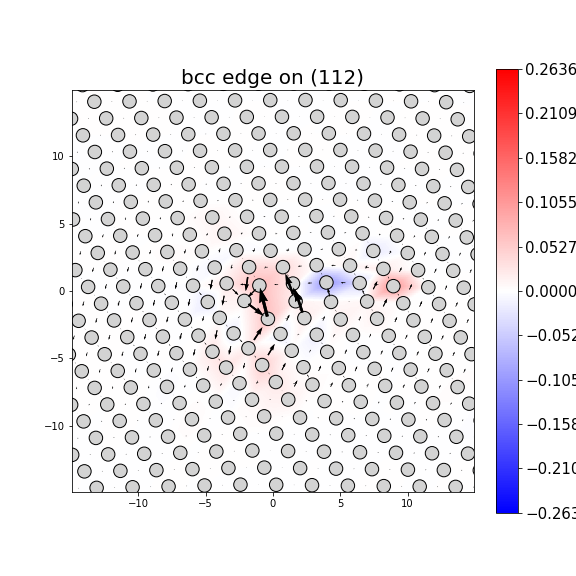

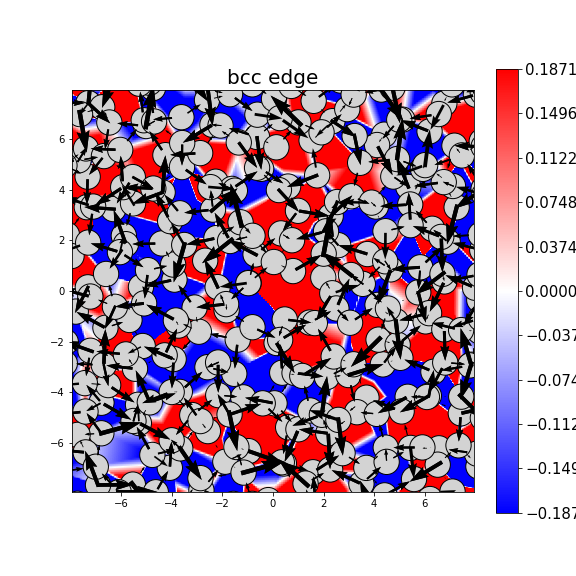

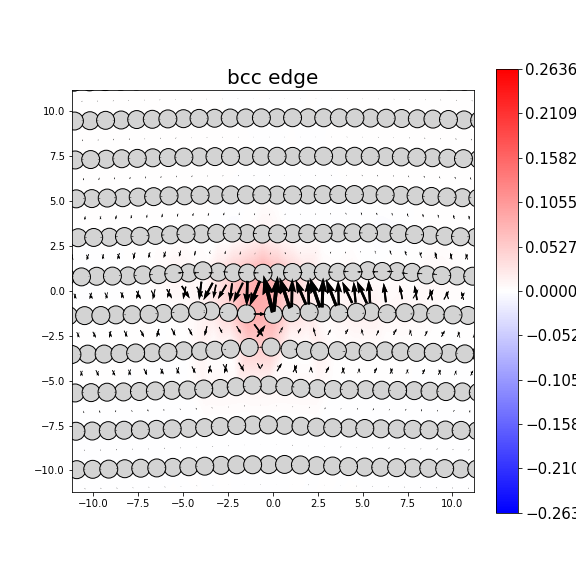

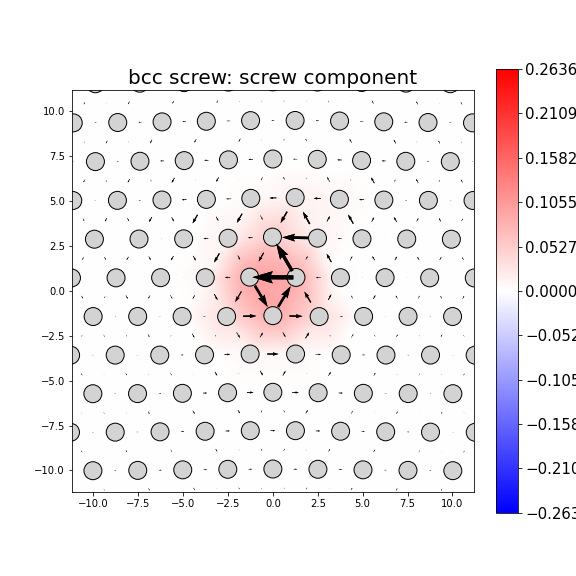

Nye tensor + differential displacement plot

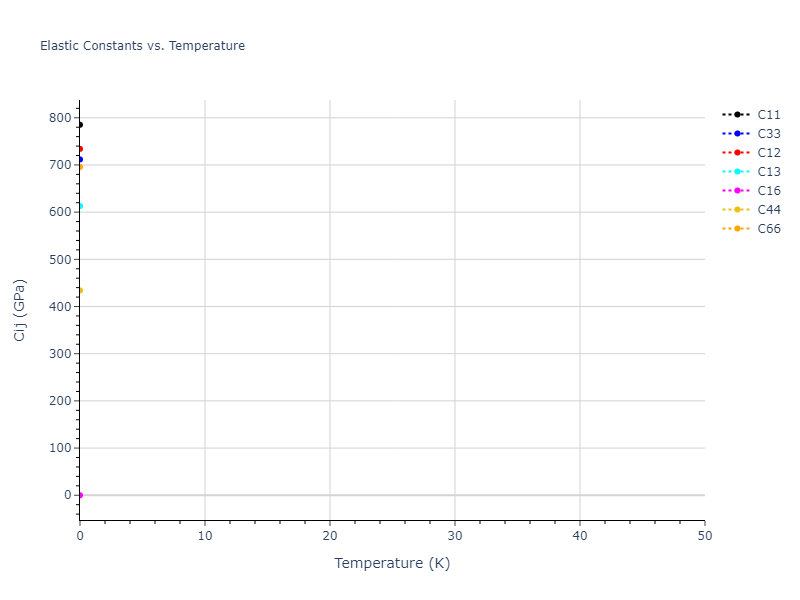

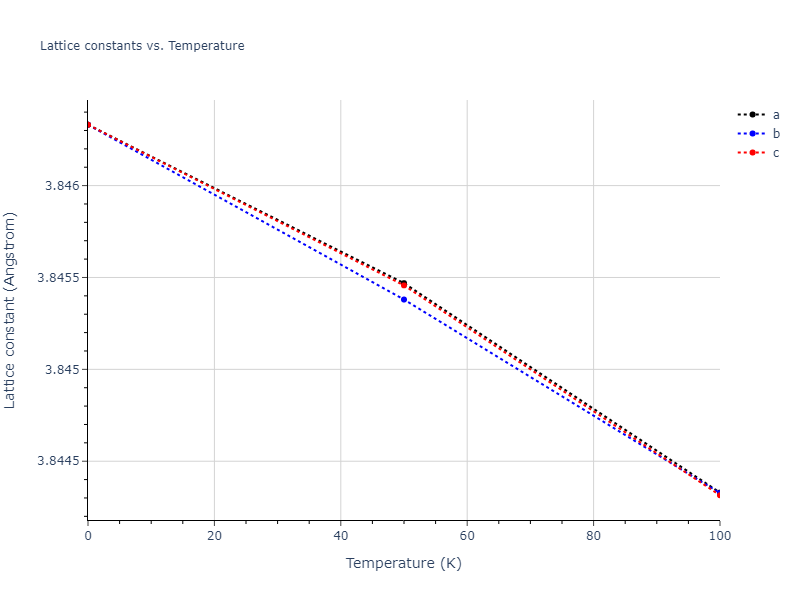

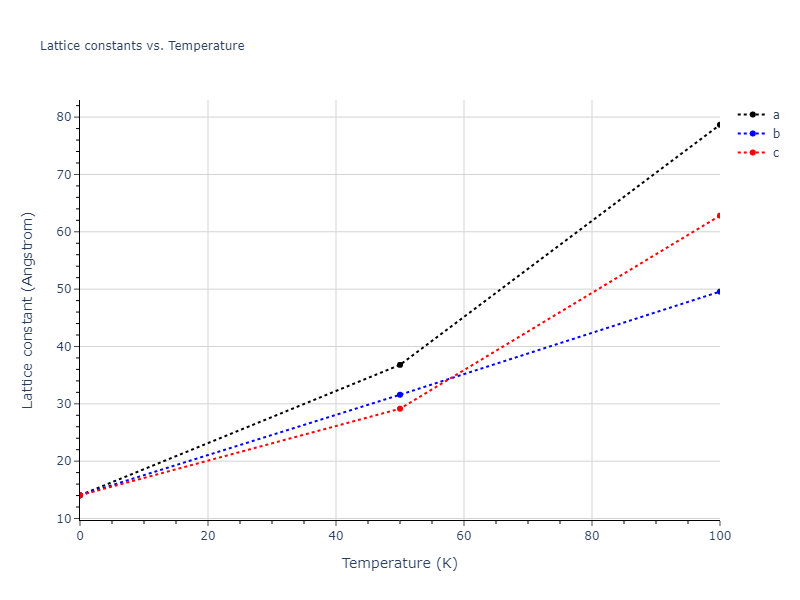

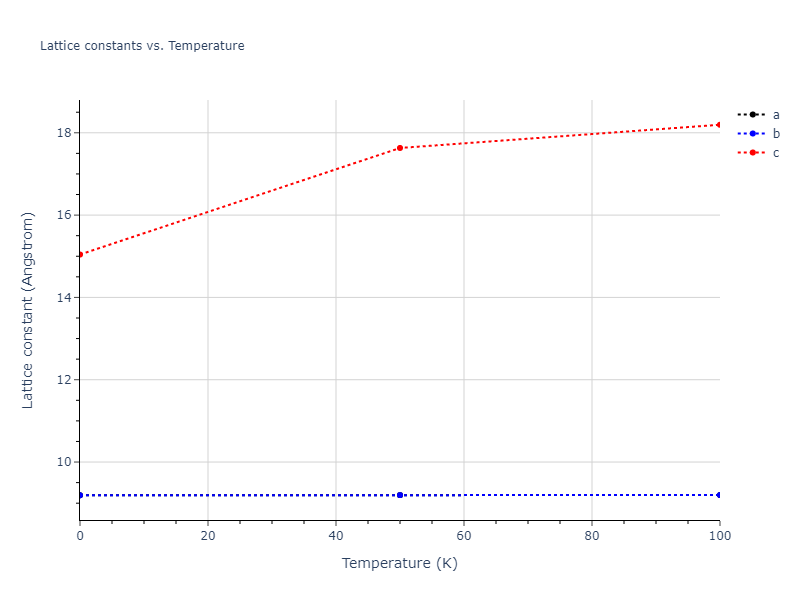

MD Solid Property Predictions

Plots of lattice and elastic constants are shown as a function of temperature. The 0K points were taken from the Crystal Structure Predictions and the Elastic Constants Predictions sections above for the unique crystal structures relaxed with the "dynamic" method. Starting from the 0 K relaxed crystal unit cells, supercell systems are created by replicating all three dimensions by the same multiplier to achieve at least 4000 atoms. The systems are then relaxed at 50 K and zero pressure using 1 million NPT steps. Lattice constants are estimated by averaging the measured box dimensions. Temperatures are iteratively increased by 50 K, with each subsequent relaxation calculation starting from the final atomic configuration at the previous temperature and relaxing for another 1 million steps.

The elastic constants are calculated using the deformation–fluctuation hybrid method. Starting from the final atomic configurations of the dynamic relaxations, the system is allowed to evolve at constant volume with a Langevin thermostat. The Born matrix is computed during this run by evaluating how the atomic forces would vary due to applied linear strain fields. The elastic constants can then be estimated using the averaged Born matrix values and the averaged stresses on the system.

The calculation methods used are available as the iprPy relax_dynamic and elastic_constants_dynamic calculation methods.

Clicking on the image of a plot will open an interactive version of it in a new tab. The underlying data for the plots can be downloaded by clicking on the links above each plot.

Notes and Disclaimers:

  • The maximum temperature shown for a crystal either corresponds to the maximum value that has been computed so far, or the maximum value that the structure is believed to have remained untransformed. The unstable/transformation temperature identification is mostly automated and can miss transitions not associated with large discontinuities in property values with changing temperature.
  • For succinctness, the elastic constants displayed here are averaged according to the 0 K structure's crystal symmetry family. If the structures deviate from the expected symmetry at higher temperatures, the values may not be valid. Raw results are available for verification if requested.
  • NIST disclaimer

Version Information:

  • 2025-08-07. Plots added.

Composition:
Prototype:
a0:

Download data

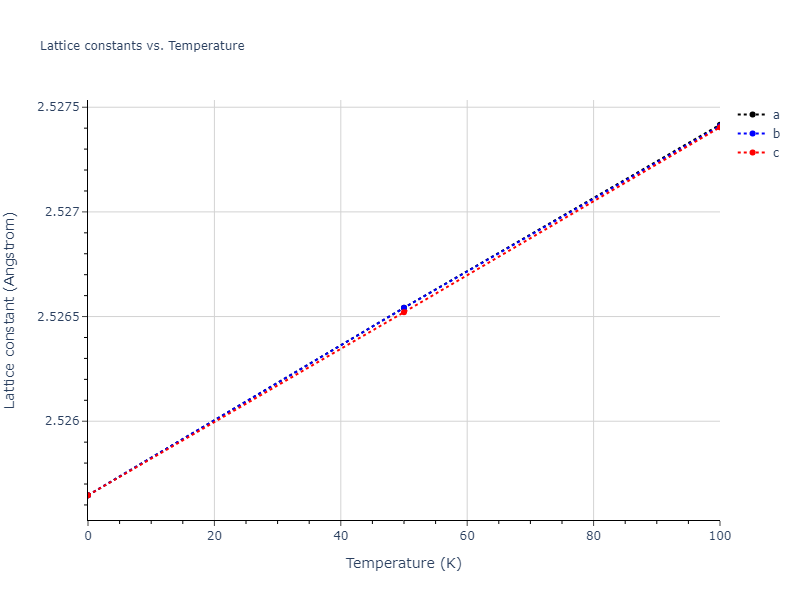

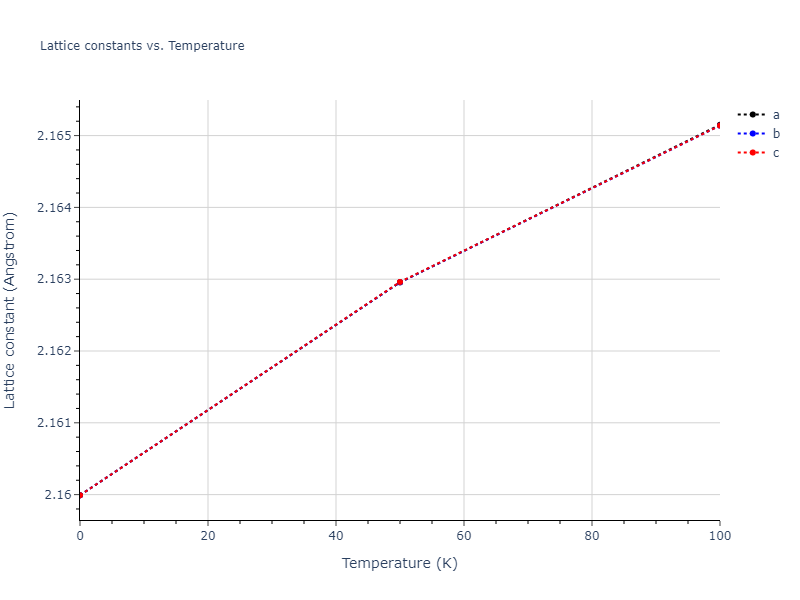

Click on plot to load interactive version

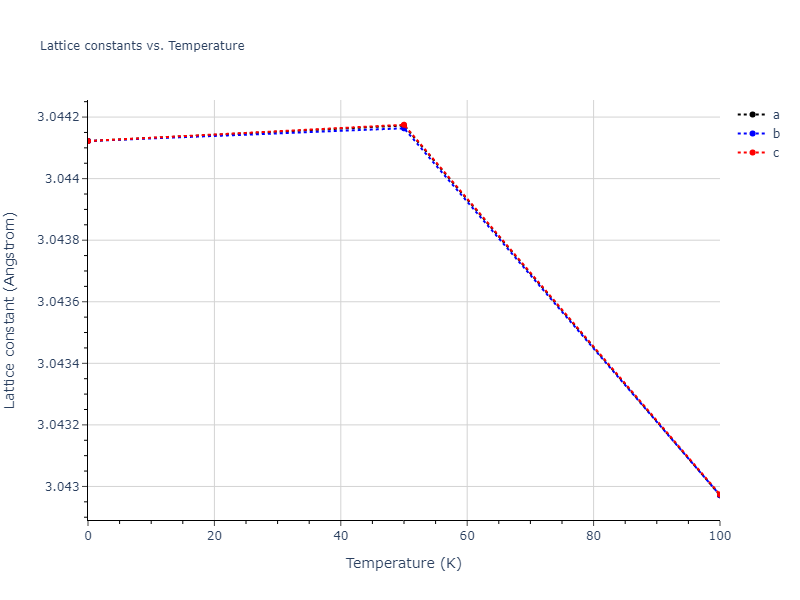

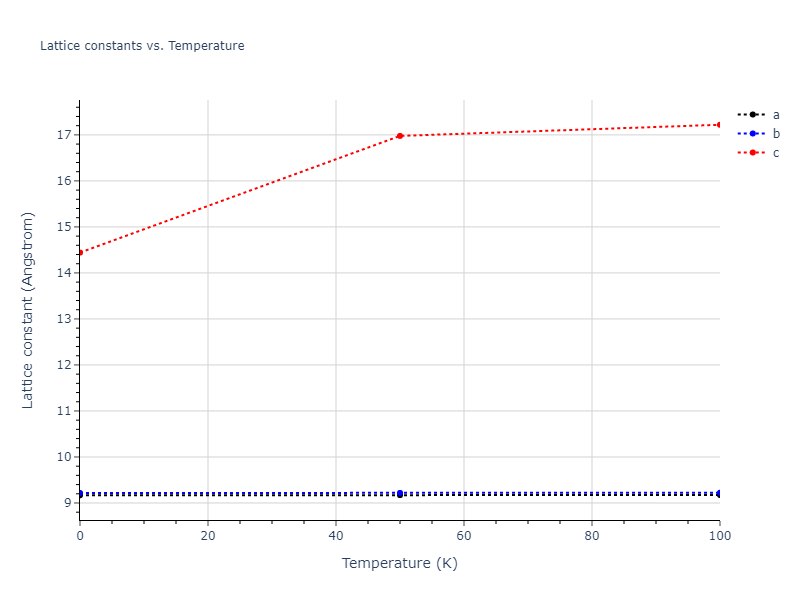

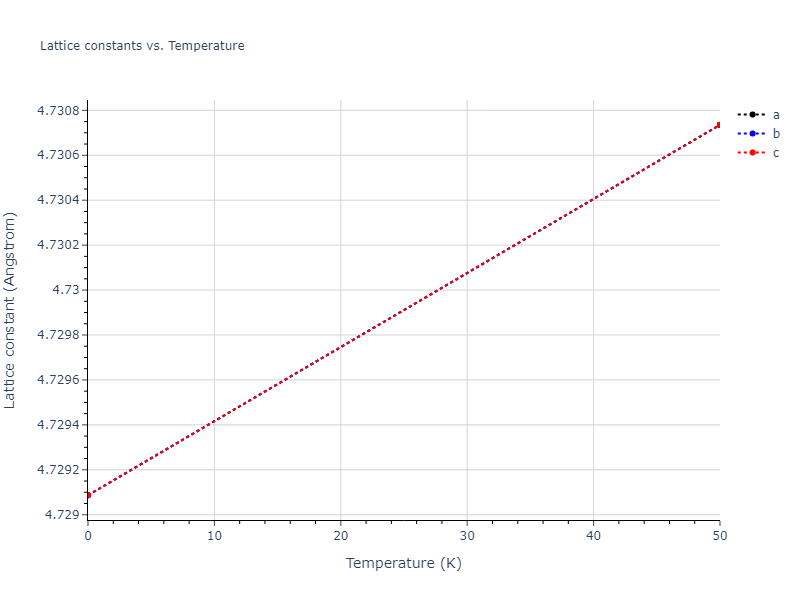

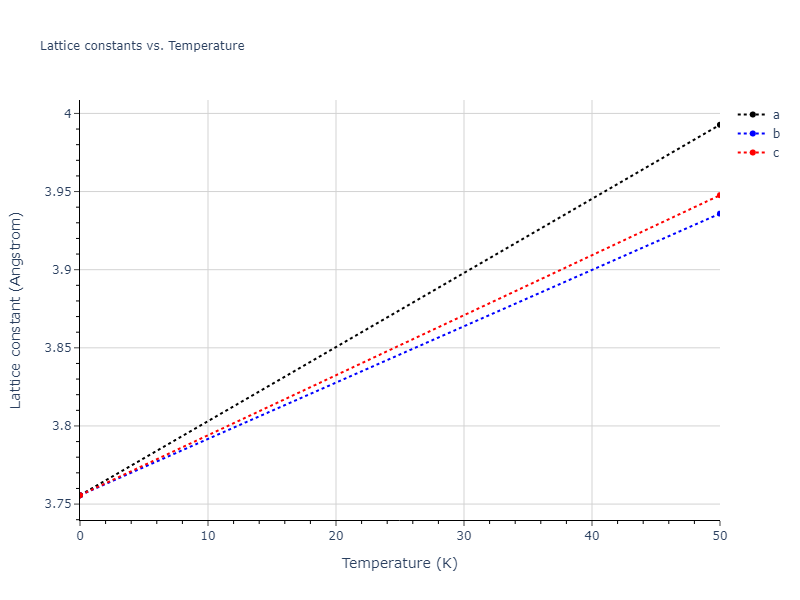

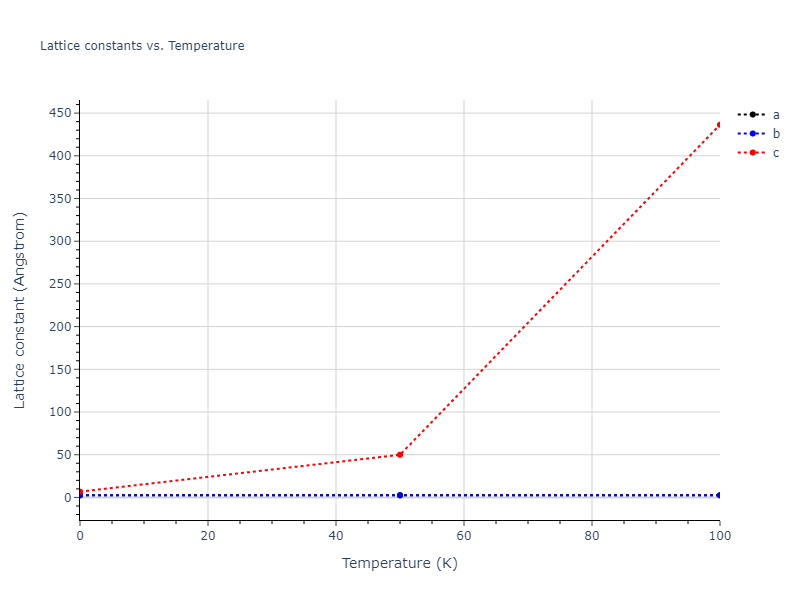

2005--Erhart-P--Si-C-I--LAMMPS--ipr1/mdsolid.C.A1--Cu--fcc.c46ff287.a

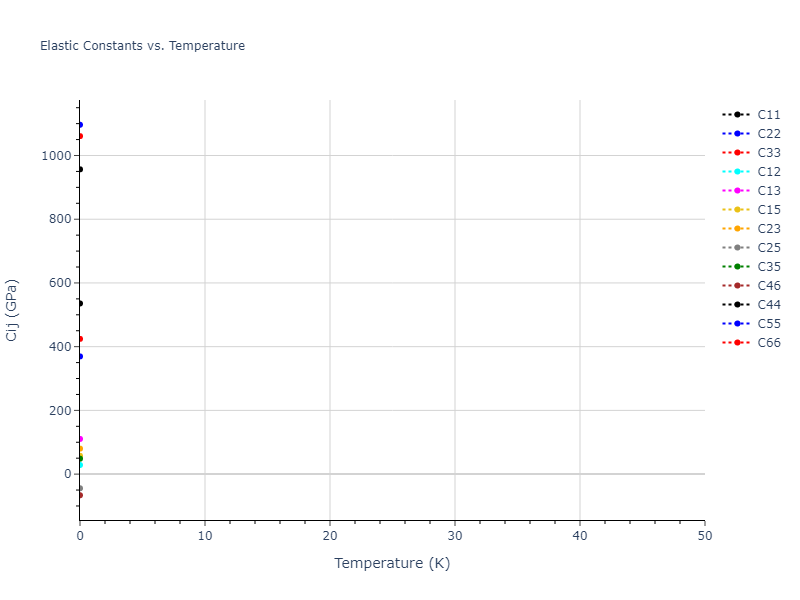

Click on plot to load interactive version

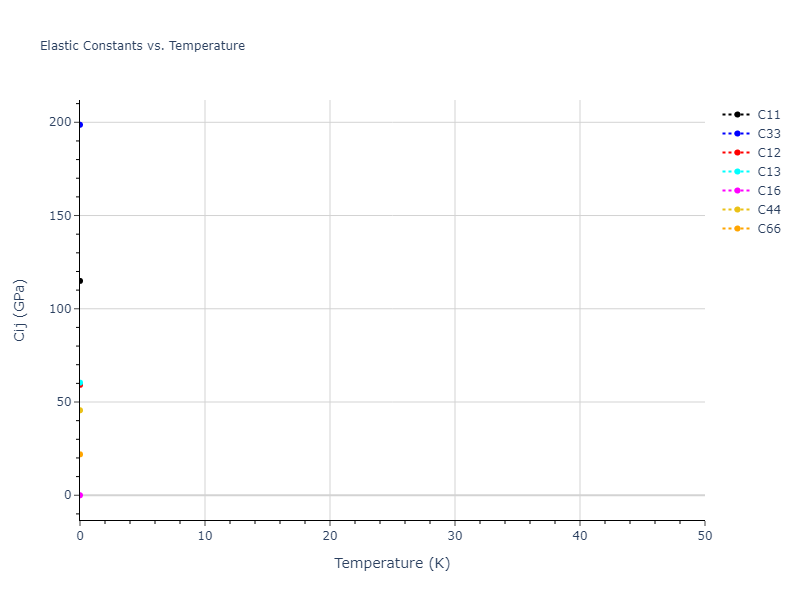

2005--Erhart-P--Si-C-I--LAMMPS--ipr1//mdsolid.C.A1--Cu--fcc.c46ff287.Cij
MD Liquid Property Predictions

Plots of radial distribution functions at different temperatures and the temperature-dependent diffusion and viscosity are shown here for elemental liquids. Melt phases are constructed by starting with a 10x10x10 fcc super cell and relaxing with 50,000 NPT steps at zero pressure and a high melting temperature (3000 K for most potentials and elements). Following the melt, liquid structures are relaxed by running NPT for 10,000 steps over which the temperature is dropped by 50 K, then 50,000 NPT at the target temperature to estimate the equilibrium volume, followed by 20,000 NVT steps at the averaged equilibrium volume and target temperature. Structures from the NVT run are sampled to compute the radial distribution function of the liquid at the corresponding temperature.

The final relaxed configurations at each temperature explored are used as the initial configurations for the diffusion and viscosity calculations. For diffusion, the system is integrated for 100 runs of 2,000 NVT steps during which both the mean squared displacement (MSD) and the velocity auto correlation function (VACF) are computed. From these simulations, three estimates of diffusion are computed: one from the MSD of the full 200,000 step run, one in which the MSD is reset for each short run and then averaged, and one from the VACF computed for each short run and averaged. For viscosity, the Green-Kubo method is used which is evaluated during a 1 million step NVT run.

The calculation methods used are available as the iprPy relax_liquid_redo, diffusion_liquid, and viscosity_green_kubo calculation methods.

Clicking on the image of a plot will open an interactive version of it in a new tab. The underlying data for the plots can be downloaded by clicking on the links above each plot.

Notes and Disclaimers:

  • The current liquid relaxation has some known issues, and therefore may be recalculated with an improved method later. Most notably, the unconstrained NPT relaxation may lead to one of the periodic dimensions becoming quite small which can negatively affect the simulations and property calculations. Additionally, the relaxations likely need to be longer to reduce the error associated with the measured volume and energy values.
  • Values are only displayed down to the last temperature currently calculated, or the last temperature at which the system is believed to remain liquid until the end of all simulations. The transformation temperature is estimated by looking at discontinuities in the measured property values and may incorrectly predict a phase to still be liquid if the discontinuities are small.
  • The three diffusion estimates provide a range of prediction values. For MSD, the longer the run the more likely it is that a small number of atoms will diffuse much farther than the rest, which skews the squared displacement higher.
  • NIST disclaimer

Version Information:

  • 2025-08-07. Plots added. Data should be thought of as preliminary as results may be recalculated later.

Composition:
Download data
Property:

Click on plot to load interactive version

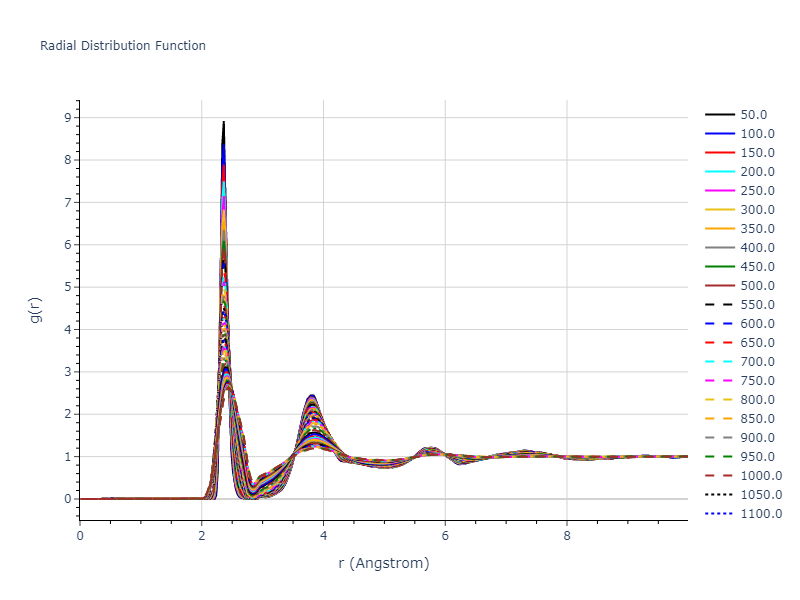

2005--Erhart-P--Si-C-I--LAMMPS--ipr1/mdliquid.Si.rdf

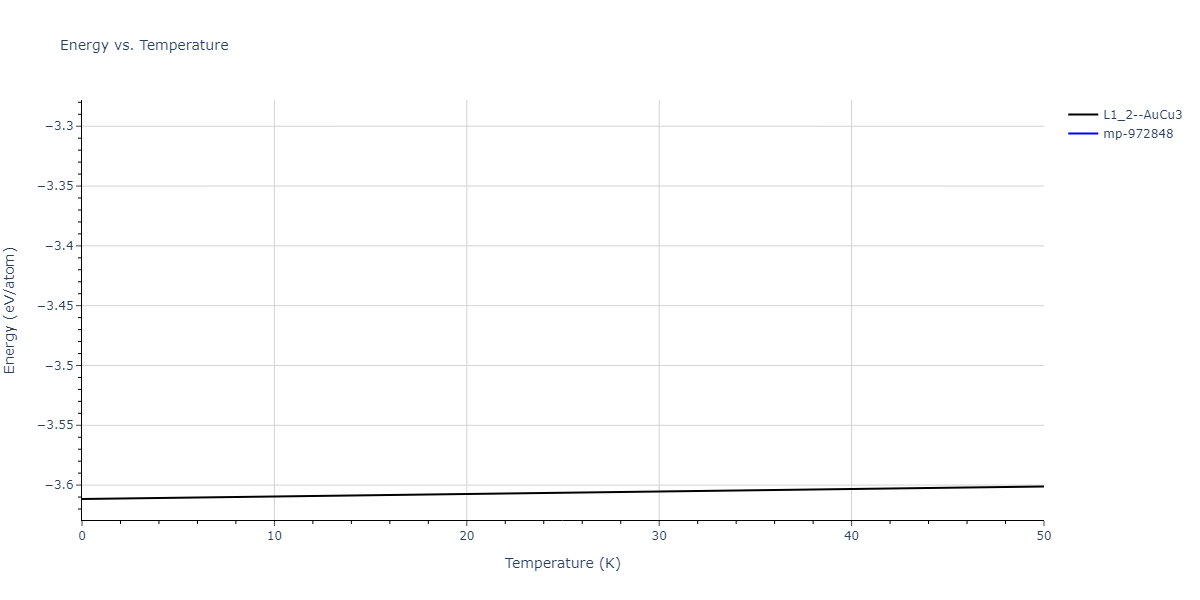

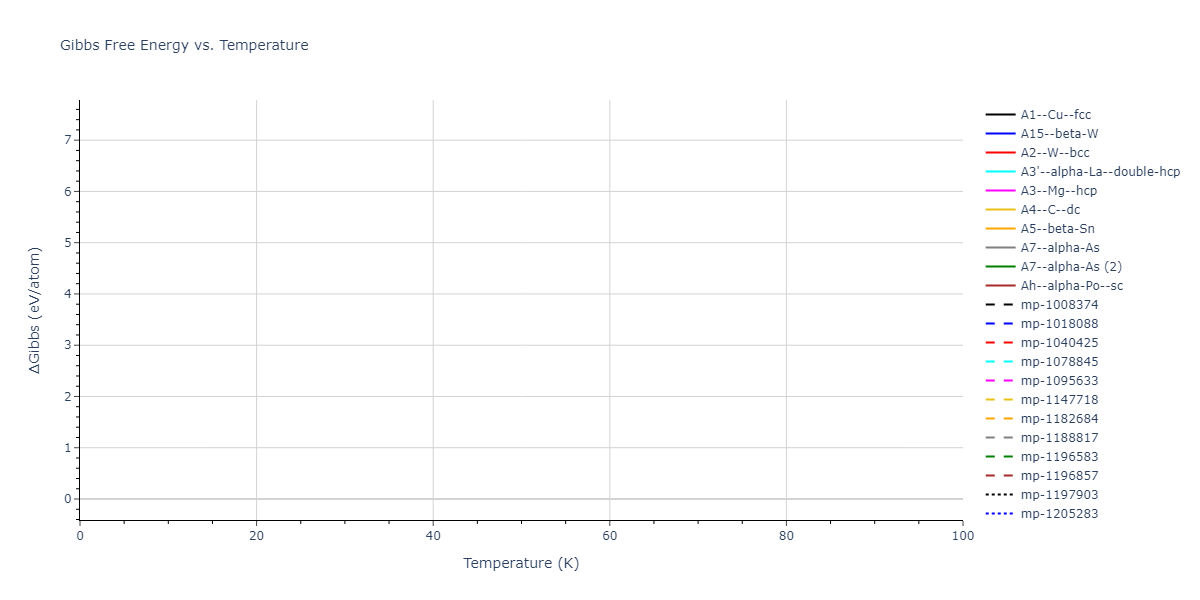

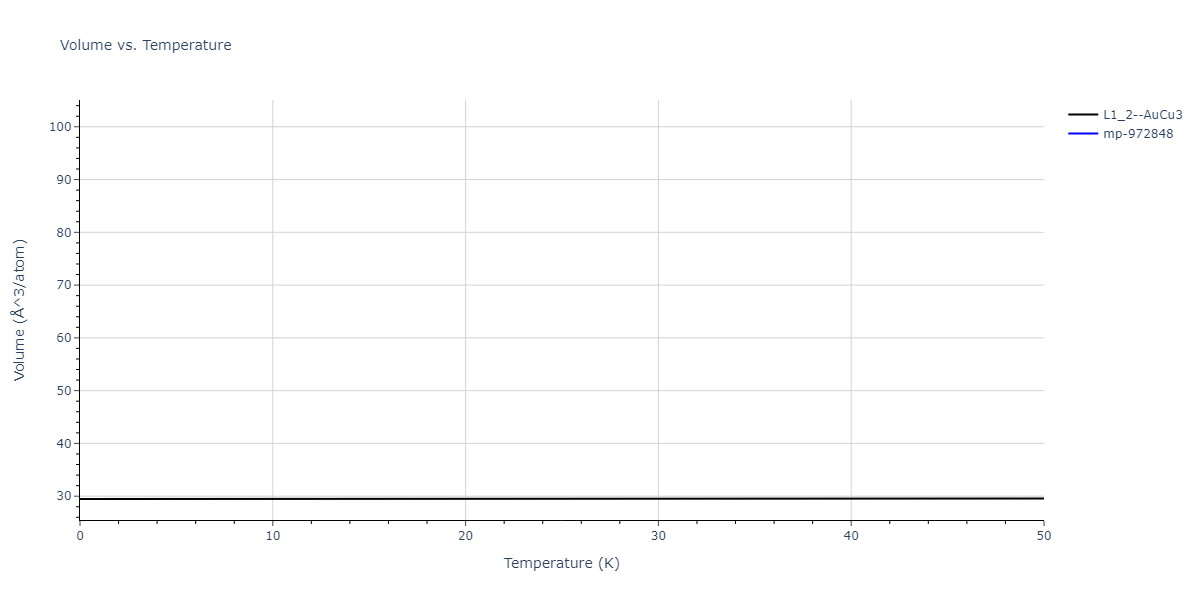

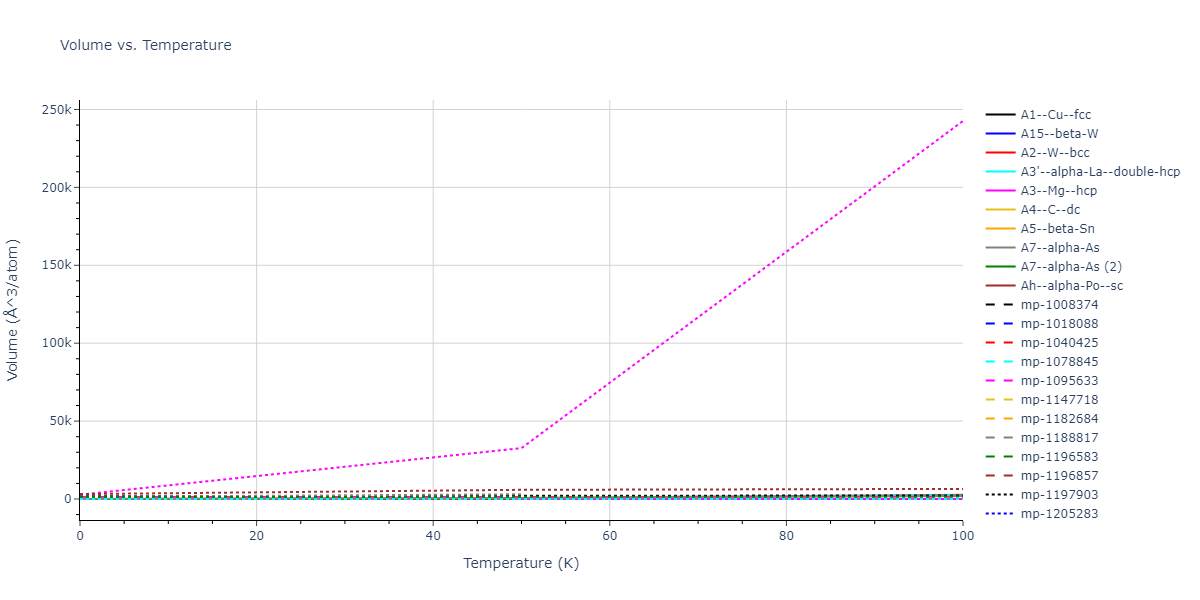

MD Thermodynamic Predictions

Plots of internal energy, Gibbs free energy, entropy, heat capacity and volume are shown here as a function of temperature for various crystal structures and liquid phases. The included crystal structures correspond to those in the Solid Structures vs. Temperature section, and the liquid phases to those in the Liquid Properties section. Internal energy and volume are taken from the associated structure relaxations mentioned in those previous sections. Constant pressure heat capacity is estimated using 3-point numerical derivatives of enthalpy versus temperature. Note that since all simulations done here are at 0 pressure, internal energy and enthalpy are equivalent.

The Gibbs energies of the phases are estimated using thermodynamic integration between the interatomic potential in question and a simpler model with known Gibbs free energy values. For solids, the reference model is an Einstein solid, while for liquids it is the Uhlenbeck-Ford potential. Besides a short run at the start of the solid calculations to estimate Einstein model spring constants, the two calculations proceed similarly. Starting with the final relaxation configurations, the systems are stabilized for 25,000 steps. Then, over the next 50,000 steps the potential is swapped out for the reference potential. The system is then stabilized for another 25,000 steps with the reference model before a reverse swap of 50,000 steps is performed. The simulation ends with one final 25,000 step stabilization period. From the simulation, the irreversible work of transformation is estimated and used to compute the absolute Gibbs free energy of the target phase and potential relative to the reference potential. Entropy is estimated as the difference in enthalpy and Gibbs free energy and divided by temperature.

The calculation methods used are available as the iprPy relax_dynamic, relax_liquid_redo, free_energy, and free_energy_liquid calculation methods.

Clicking on the image of a plot will open an interactive version of it in a new tab. The underlying data for the plots can be downloaded by clicking on the links above each plot.

Notes and Disclaimers:

  • Good free energy estimates require that the initial and final phases before and after the thermodynamic integration remain the same. This is not an issue with the liquid calculations as the Uhlenbeck-Ford model always predicts a liquid, but may be an issue for the solid phase estimates. This is likely to be an issue for non-compact phases which the Einstein model is poor at representing.
  • NIST disclaimer

Version Information:

  • 2025-08-07. Plots added.

Composition:
Property:
Download data

Click on plot to load interactive version

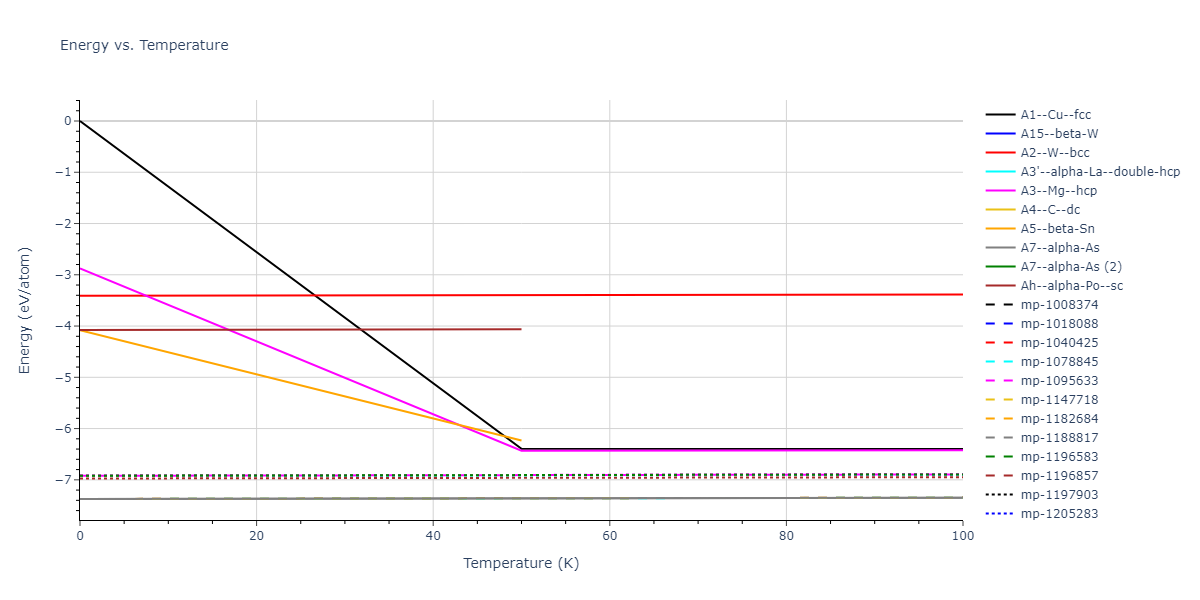

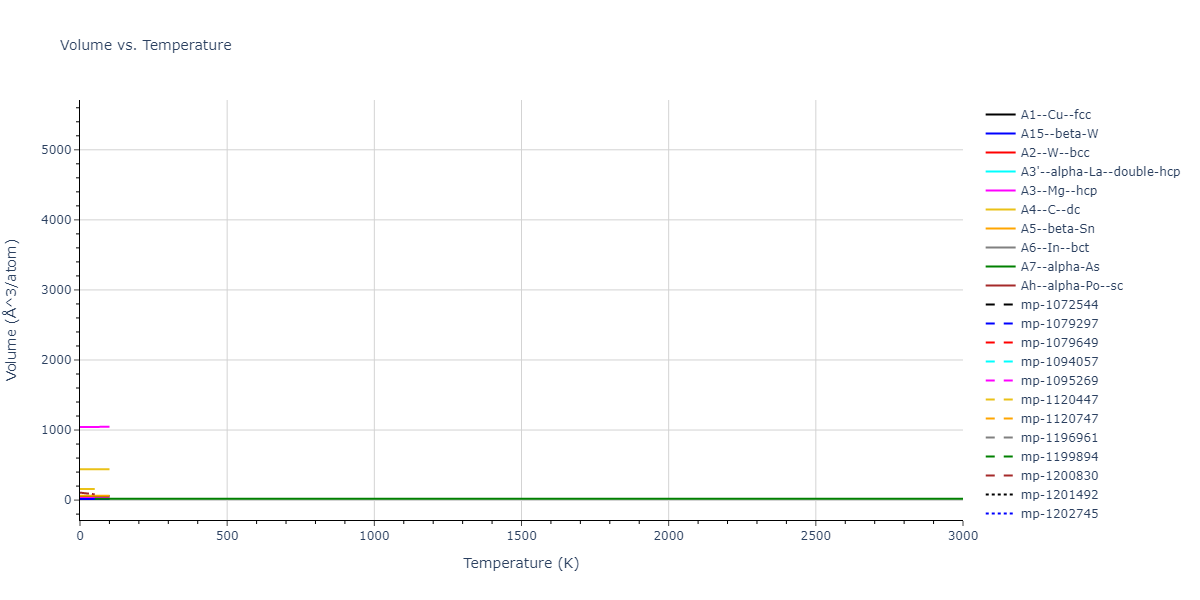

2005--Erhart-P--Si-C-I--LAMMPS--ipr1/mdthermo.C.U
Date Created: October 5, 2010 | Last updated: September 18, 2025
