2005--Erhart-P-Albe-K--Si-C-I

Citation: P. Erhart, and K. Albe (2005), "Analytical potential for atomistic simulations of silicon, carbon, and silicon carbide", Physical Review B, 71(3), 035211. DOI: 10.1103/physrevb.71.035211.
Abstract: We present an analytical bond-order potential for silicon, carbon, and silicon carbide that has been optimized by a systematic fitting scheme. The functional form is adopted from a preceding work [Phys. Rev. B 65, 195124 (2002)] and is built on three independently fitted potentials for Si-Si, C-C, and Si-C interaction. For elemental silicon and carbon, the potential perfectly reproduces elastic properties and agrees very well with first-principles results for high-pressure phases. The formation enthalpies of point defects are reasonably reproduced. In the case of silicon stuctural features of the melt agree nicely with data taken from literature. For silicon carbide the dimer as well as the solid phases B1, B2, and B3 were considered. Again, elastic properties are very well reproduced including internal relaxations under shear. Comparison with first-principles data on point defect formation enthalpies shows fair agreement. The successful validation of the potentials for configurations ranging from the molecular to the bulk regime indicates the transferability of the potential model and makes it a good choice for atomistic simulations that sample a large configuration space.

Notes: This entry uses the paper's Si-I interaction, which was recommended for SiC simulations.

LAMMPS pair_style tersoff (2005--Erhart-P--Si-C-I--LAMMPS--ipr1)
See Computed Properties
Notes: This file was created and verified by Lucas Hale. The parameter values are comparable to those in the SiC_Erhart-Albe.tersoff file in the August 22, 2018 LAMMPS distribution with this file using higher precision for the derived parameters.
File(s):
See Computed Properties
Notes: Listing found at https://openkim.org. This KIM potential is based on the SiC_Erhart-Albe.tersoff file from the LAMMPS potentials directory.
Link(s):

Implementation Information

This page displays computed properties for the Tersoff_LAMMPS_ErhartAlbe_2005_SiC__MO_903987585848_003 implementation of the 2005--Erhart-P-Albe-K--Si-C-I potential. Computed values for other implementations can be seen by clicking on the links below:

Diatom Energy vs. Interatomic Spacing

Plots of the potential energy vs interatomic spacing, r, are shown below for all diatom sets associated with the interatomic potential. This calculation provides insights into the functional form of the potential's two-body interactions. A system consisting of only two atoms is created, and the potential energy is evaluated for the atoms separated by 0.02 Å <= r <= 6.0> Å in intervals of 0.02 Å. Two plots are shown: one for the "standard" interaction distance range, and one for small values of r. The small r plot is useful for determining whether the potential is suitable for radiation studies.

The calculation method used is available as the iprPy diatom_scan calculation method.

Clicking on the image of a plot will open an interactive version of it in a new tab. The underlying data for the plots can be downloaded by clicking on the links above each plot.

Notes and Disclaimers:

  • These values are meant to be guidelines for comparing potentials, not the absolute values for any potential's properties. Values listed here may change if the calculation methods are updated due to improvements/corrections. Variations in the values may occur for variations in calculation methods, simulation software and implementations of the interatomic potentials.
  • As this calculation only involves two atoms, it neglects any multi-body interactions that may be important in molecules, liquids and crystals.
  • NIST disclaimer

Version Information:

  • 2019-11-14. Maximum value range on the shortrange plots are now limited to "expected" levels as details are otherwise lost.
  • 2019-08-07. Plots added.

Download data

Click on plot to load interactive version

Tersoff_LAMMPS_ErhartAlbe_2005_SiC__MO_903987585848_003/diatom

Click on plot to load interactive version

Tersoff_LAMMPS_ErhartAlbe_2005_SiC__MO_903987585848_003/diatom_short

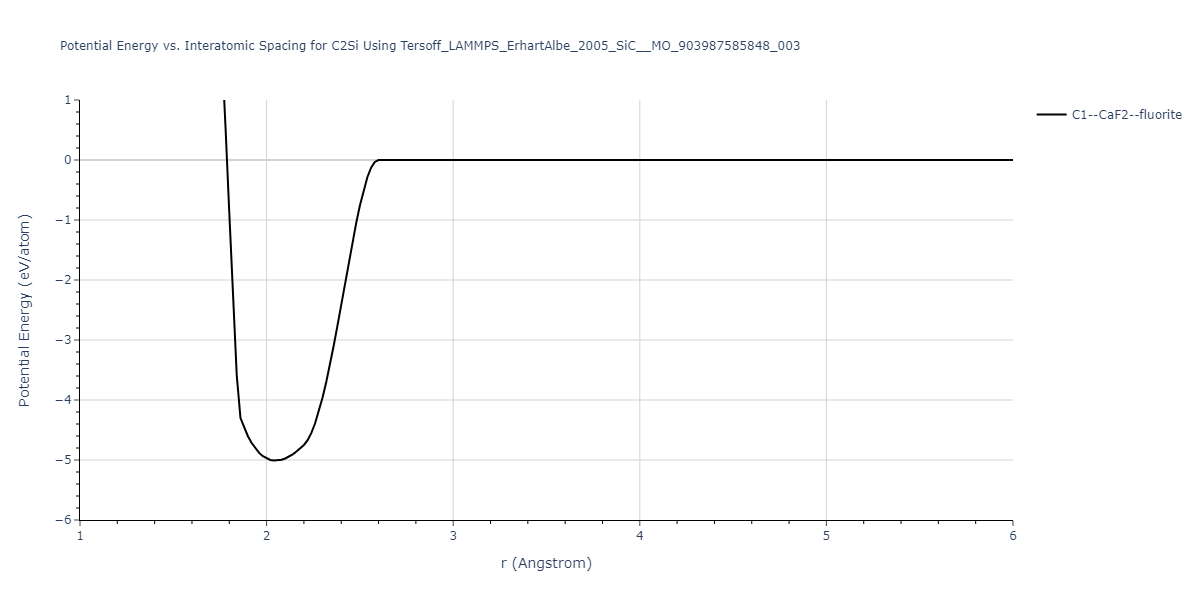

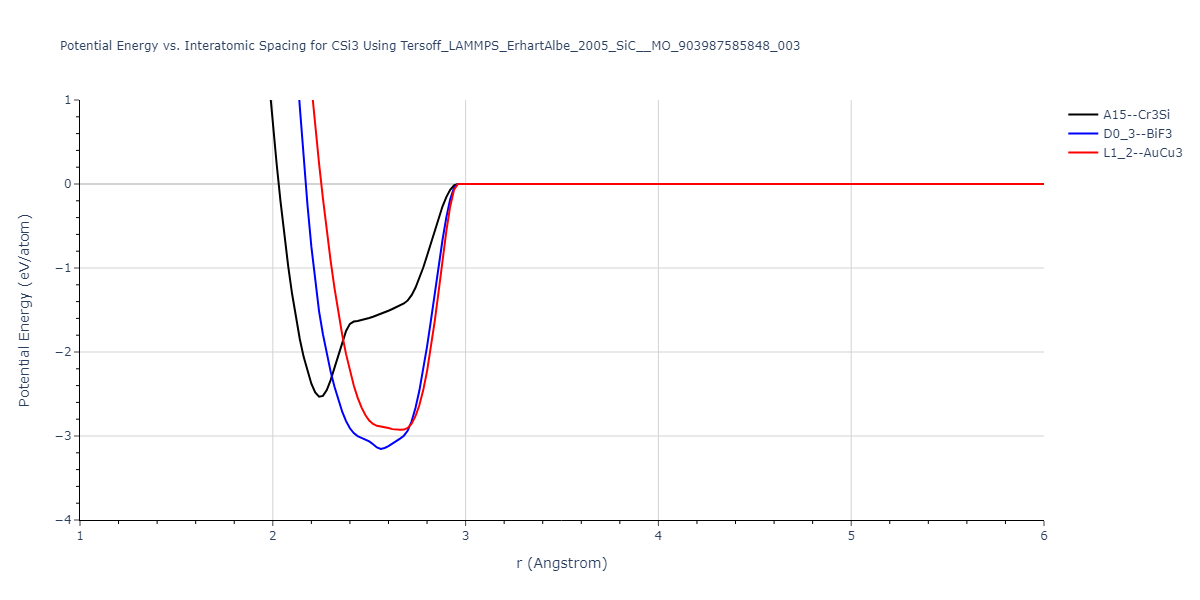

Cohesive Energy vs. Interatomic Spacing

Plots of potential energy vs interatomic spacing, r, are shown below for a number of crystal structures. The structures are generated based on the ideal atomic positions and b/a and c/a lattice parameter ratios for a given crystal prototype. The size of the system is then uniformly scaled, and the energy calculated without relaxing the system. To obtain these plots, values of r are evaluated every 0.02 Å up to 6 Å.

The calculation method used is available as the iprPy E_vs_r_scan calculation method.

Clicking on the image of a plot will open an interactive version of it in a new tab. The underlying data for the plots can be downloaded by clicking on the links above each plot.

Notes and Disclaimers:

  • These values are meant to be guidelines for comparing potentials, not the absolute values for any potential's properties. Values listed here may change if the calculation methods are updated due to improvements/corrections. Variations in the values may occur for variations in calculation methods, simulation software and implementations of the interatomic potentials.
  • The minima identified by this calculation do not guarantee that the associated crystal structures will be stable since no relaxation is performed.
  • NIST disclaimer

Version Information:

  • 2020-12-18. Descriptions, tables and plots updated to reflect that the energy values are the measuredper atom potential energy rather than cohesive energy as some potentials have non-zero isolated atom energies.
  • 2019-02-04. Values regenerated with even r spacings of 0.02 Å, and now include values less than 2 Å when possible. Updated calculation method and parameters enhance compatibility with more potential styles.
  • 2019-04-26. Results for hcp, double hcp, α-As and L10 prototypes regenerated from different unit cell representations. Only α-As results show noticable (>1e-5 eV) difference due to using a different coordinate for Wykoff site c position.
  • 2018-06-13. Values for MEAM potentials corrected. Dynamic versions of the plots moved to separate pages to improve page loading. Cosmetic changes to how data is shown and updates to the documentation.
  • 2017-01-11. Replaced png pictures with interactive Bokeh plots. Data regenerated with 200 values of r instead of 300.
  • 2016-09-28. Plots for binary structures added. Data and plots for elemental structures regenerated. Data values match the values of the previous version. Data table formatting slightly changed to increase precision and ensure spaces between large values. Composition added to plot title and structure names made longer.
  • 2016-04-07. Plots for elemental structures added.

Select a composition:

Download data

Click on plot to load interactive version

Tersoff_LAMMPS_ErhartAlbe_2005_SiC__MO_903987585848_003/EvsR.C

Crystal Structure Predictions

Computed lattice constants and cohesive/potential energies are displayed for a variety of crystal structures. The values displayed here are obtained using the following process.

  1. Initial crystal structure guesses are taken from:
    1. The iprPy E_vs_r_scan calculation results (shown above) by identifying all energy minima along the measured curves for a given crystal prototype + composition.
    2. Structures in the Materials Project and OQMD DFT databases.
  2. All initial guesses are relaxed using three independent methods using a 10x10x10 supercell:
    1. "box": The system's lattice constants are adjusted to zero pressure without internal relaxations using the iprPy relax_box calculation with a strainrange of 1e-6.
    2. "static": The system's lattice and atomic positions are statically relaxed using the iprPy relax_static calculation with a minimization force tolerance of 1e-10 eV/Angstrom.
    3. "dynamic": The system's lattice and atomic positions are dynamically relaxed for 10000 timesteps of 0.01 ps using the iprPy relax_dynamic calculation with an nph integration plus Langevin thermostat. The final configuration is then used as input in running an iprPy relax_static calculation with a minimization force tolerance of 1e-10 eV/Angstrom.
  3. The relaxed structures obtained from #2 are then evaluated using the spglib package to identify an ideal crystal unit cell based on the results.
  4. The space group information of the ideal unit cells is compared to the space group information of the corresponding reference structures to identify which structures transformed upon relaxation. The structures that did not transform to a different structure are listed in the table(s) below. The "method" field indicates the most rigorous relaxation method where the structure did not transform. The space group information is also used to match the DFT reference structures to the used prototype, where possible.
  5. The cohesive energy, Ecoh, is calculated from the measured potential energy per atom, Epot$, by subtracting the isolated energy averaged across all atoms in the unit cell. The isolated atom energies of each species model is obtained either by evaluating a single atom atomic configuration, or by identifying the first energy plateau from the diatom scan calculations for r > 2 Å.

The calculation methods used are implemented into iprPy as the following calculation styles

Notes and Disclaimers:

  • These values are meant to be guidelines for comparing potentials, not the absolute values for any potential's properties. Values listed here may change if the calculation methods are updated due to improvements/corrections. Variations in the values may occur for variations in calculation methods, simulation software and implementations of the interatomic potentials.
  • The presence of any structures in this list does not guarantee that those structures are stable. Also, the lowest energy structure may not be included in this list.
  • Multiple values for the same crystal structure but different lattice constants are possible. This is because multiple energy minima are possible for a given structure and interatomic potential. Having multiple energy minima for a structure does not necessarily make the potential "bad" as unwanted configurations may be unstable or correspond to conditions that may not be relevant to the problem of interest (eg. very high strains).
  • NIST disclaimer

Version Information:

  • 2022-05-27. The "box" method results have all been redone with an updated methodology more suited for non-orthogonal systems.
  • 2020-12-18. Cohesive energies have been corrected by making them relative to the energies of the isolated atoms. The previous cohesive energy values are now listed as the potential energies.
  • 2019-06-07. Structures with positive or near zero cohesive energies removed from the display tables. All values still present in the raw data files.
  • 2019-04-26. Calculations now computed for each implementation. Results for hcp, double hcp, α-As and L10 prototypes regenerated from different unit cell representations.
  • 2018-06-14. Methodology completely changed affecting how the information is displayed. Calculations involving MEAM potentials corrected.
  • 2016-09-28. Values for simple compounds added. All identified energy minima for each structure are listed. The existing elemental data was regenerated. Most values are consistent with before, but some differences have been noted. Specifically, variations are seen with some values for potentials where the elastic constants don't vary smoothly near the equilibrium state. Additionally, the inclusion of some high-energy structures has changed based on new criteria for identifying when structures have relaxed to another structure.
  • 2016-04-07. Values for elemental crystal structures added. Only values for the global energy minimum of each unique structure given.

Select a composition:

Download raw data (including filtered results)

Reference structure matches:
A1--Cu--fcc = oqmd-1214512
A15--beta-W = oqmd-1214957
A2--W--bcc = oqmd-1215135
A3'--alpha-La--double-hcp = oqmd-1215403
A3--Mg--hcp = oqmd-1215313
A4--C--dc = mp-66, oqmd-675640
A5--beta-Sn = oqmd-1215581
A6--In--bct = mp-1181996, oqmd-1215670
A7--alpha-As = mp-169, oqmd-594528
Ah--alpha-Po--sc = mp-998866, oqmd-636457, oqmd-1214601

prototypemethodEcoh (eV/atom)Epot (eV/atom)a0 (Å)b0 (Å)c0 (Å)α (degrees)β (degrees)γ (degrees)
mp-569416dynamic-7.374-7.3742.55522.555257.358590.090.0120.0
oqmd-589493dynamic-7.374-7.3742.55522.555228.957290.090.0120.0
oqmd-1214690dynamic-7.374-7.3742.55524.42576.676890.090.090.0
oqmd-589492dynamic-7.374-7.3742.55522.555253.496190.090.0120.0
A7--alpha-Asdynamic-7.374-7.3742.55522.55527.926990.090.0120.0
oqmd-1214690static-7.374-7.3742.55524.42576.676790.090.090.0
mp-569304dynamic-7.374-7.3742.55522.555235.566990.090.0120.0
oqmd-683820dynamic-7.374-7.3742.55524.42576.820190.090.090.0
oqmd-683819static-7.374-7.3742.55524.42576.651290.090.090.0
oqmd-683820static-7.374-7.3742.55524.42576.758990.090.090.0
A7--alpha-Asdynamic-7.374-7.3742.55522.555210.213190.090.0120.0
mp-606949dynamic-7.374-7.3742.55522.555231.98390.090.0120.0
oqmd-610551static-7.374-7.3742.55522.55523.501390.090.0120.0
mp-632329static-7.374-7.3744.42572.55523.160290.094.090.0
oqmd-637444dynamic-7.374-7.3744.17264.17264.172690.090.090.0
mp-632329dynamic-7.374-7.3744.42572.55523.160690.093.890.0
mp-568363dynamic-7.374-7.3742.55524.42578.149990.090.090.0
mp-568286dynamic-7.374-7.3742.55524.42578.028390.090.090.0
oqmd-590101dynamic-7.374-7.3742.55522.55526.796590.090.0120.0
mp-937760dynamic-7.374-7.3742.55524.42577.9890.090.090.0
oqmd-589493static-7.374-7.3742.55522.555228.953890.090.0120.0
mp-569567dynamic-7.3732-7.37322.52132.521343.23290.090.0120.0
mp-616440dynamic-7.3732-7.37322.52132.521316.469490.090.0120.0
oqmd-599493dynamic-7.3732-7.37322.52132.521330.8890.090.0120.0
oqmd-599490dynamic-7.3732-7.37322.52132.52138.234790.090.0120.0
mp-611448dynamic-7.3732-7.37322.52132.521312.35290.090.0120.0
oqmd-599489dynamic-7.3732-7.37322.52132.52134.117390.090.0120.0
A4--C--dcdynamic-7.3732-7.37323.56573.56573.565790.090.090.0
oqmd-599489box-7.3731-7.37312.5212.5214.118690.090.0120.0
mp-47box-7.3731-7.37312.52092.52094.118790.090.0120.0
mp-616440box-7.3726-7.37262.52142.521416.470490.090.0120.0
oqmd-599492box-7.3725-7.37252.52122.521216.47390.090.0120.0
mp-611448box-7.3723-7.37232.52132.521312.354190.090.0120.0
oqmd-599491box-7.3723-7.37232.52122.521212.35590.090.0120.0
mp-569567box-7.3722-7.37222.52162.521643.230890.090.0120.0
oqmd-599493box-7.3721-7.37212.52132.521330.886690.090.0120.0
mp-569517box-7.3721-7.37212.52132.521330.885590.090.0120.0
mp-611426box-7.372-7.3722.52122.52128.236990.090.0120.0
oqmd-599490box-7.3718-7.37182.52132.52138.236990.090.0120.0
mp-1008374box-7.2104-7.21042.49628.08172.555190.090.090.0
mp-1078845dynamic-7.1049-7.10494.20718.80672.54190.090.090.0
mp-1078845box-7.0936-7.09364.22458.81362.53590.090.090.0
oqmd-637443dynamic-7.0923-7.09235.27035.27035.270390.090.090.0
oqmd-637443box-7.092-7.0925.26975.26975.269790.090.090.0
mp-1188817box-7.0919-7.09195.26945.26945.269490.090.090.0
mp-568410static-7.05-7.054.89755.28564.473490.090.090.0
oqmd-610557box-7.0127-7.01274.87695.30684.518190.090.090.0
oqmd-610556box-7.0119-7.01194.87425.31514.518290.090.090.0
mp-568410box-7.0091-7.00914.86655.33784.518590.090.090.0
mp-683919box-6.9554-6.955410.52218.050118.61890.090.090.0
oqmd-689315box-6.9272-6.927210.466618.079218.643390.090.090.0
mp-1008395dynamic-6.9272-6.92724.38874.38872.542590.090.090.0
mp-1190171dynamic-6.9196-6.91969.09392.55884.170590.090.090.0
mp-667273static-6.917-6.91714.576714.576714.576790.090.090.0
oqmd-677227static-6.917-6.91714.621714.621714.621790.090.090.0
mp-1196583static-6.917-6.91714.851814.851814.851890.090.090.0
mp-1080826dynamic-6.9168-6.91689.19382.55914.170290.097.990.0
mp-1008395box-6.9136-6.91364.39744.39742.536290.090.090.0
mp-1196583box-6.9105-6.910514.854614.854614.854690.090.090.0
oqmd-603085box-6.9105-6.910514.424914.424914.424990.090.090.0
mp-667273box-6.9083-6.908314.580814.580814.580890.090.090.0
oqmd-637352box-6.905-6.9059.19562.5534.172990.097.090.0
mp-1080826box-6.9046-6.90469.19352.5534.173890.097.090.0
mp-568028dynamic-6.9035-6.90358.17914.0889.51890.090.090.0
oqmd-637130box-6.9033-6.90339.10472.55314.172890.090.090.0
mp-1190171box-6.9017-6.90179.1032.55314.173190.090.090.0
oqmd-677227box-6.8968-6.896814.634414.634414.634490.090.090.0
mp-1147718box-6.8941-6.894110.589215.21279.510490.090.090.0
oqmd-595714box-6.8901-6.89019.3729.449915.053590.090.090.0
mp-630227box-6.883-6.8839.44049.467415.794590.090.090.0
mp-624889static-6.8724-6.87244.85735.27965.848490.090.090.0
oqmd-610552static-6.8724-6.87244.85735.27966.668790.090.090.0
mp-624889dynamic-6.8724-6.87244.85735.27965.322190.090.090.0
oqmd-614417box-6.8689-6.86899.4549.45425.013790.090.0120.0
mp-680372box-6.8647-6.86479.4699.46925.766390.090.0120.0
mp-624889box-6.8538-6.85384.88435.29635.825690.090.090.0
oqmd-684627box-6.8499-6.84999.42319.423115.791690.090.090.0
oqmd-610552box-6.7468-6.74684.7975.6416.567390.090.090.0
mp-579909box-6.7379-6.73794.79435.65466.965290.090.090.0
mp-568028box-6.7291-6.72918.691614.56319.872990.090.090.0
mp-1244913dynamic-6.6792-6.67929.44610.156110.787692.494.396.9
mp-1245190dynamic-6.647-6.6479.66319.891210.70789.189.689.9
mp-24dynamic-6.6009-6.60094.42854.42854.428590.090.090.0
mp-1244964dynamic-6.5886-6.58869.620610.052610.899189.785.089.9
mp-24box-6.5849-6.58494.45114.45114.451190.090.090.0
mp-1203645dynamic-6.3913-6.391310.28994.967616.442590.0110.890.0
mp-1205283box-6.312-6.31210.474213.70799.407490.090.090.0
mp-1194362dynamic-5.9687-5.96879.53746.1789.753990.0101.090.0
mp-1196857dynamic-5.8336-5.83369.176618.94845.839490.090.090.0
mp-1182692dynamic-5.806-5.8067.750110.510523.257896.292.1111.3
mp-1197903dynamic-5.8026-5.80267.6259.177623.497198.197.6103.6
mp-1182684dynamic-5.7932-5.793211.450311.509914.490890.090.390.0
mp-570002dynamic-5.7478-5.74785.03535.03535.035390.090.090.0
oqmd-585286box-5.735-5.7355.03845.03845.038490.090.090.0
mp-570002box-5.7343-5.73435.03865.03865.038690.090.090.0
mp-1245190box-5.6957-5.695710.781811.270411.37789.390.087.9
oqmd-684315box-5.5849-5.584910.826115.76079.341890.090.090.0
mp-1244964box-5.4866-5.486610.876611.077211.767690.394.992.8
mp-1244913box-5.1576-5.157611.397811.497711.895390.396.192.5
mp-1095534box-4.7271-4.727110.764610.76462.490290.090.090.0
A7--alpha-Asbox-4.4148-4.41482.86242.86246.272890.090.0120.0
mp-1205417box-4.2097-4.209713.397413.39747.76490.090.090.0
A5--beta-Sndynamic-4.0808-4.08083.42493.42491.806690.090.090.0
Ah--alpha-Po--scdynamic-4.0773-4.07731.78251.78251.782590.090.090.0
A3'--alpha-La--double-hcpdynamic-4.0726-4.07262.48872.48874.289490.090.0120.0
A6--In--bctstatic-3.9997-3.99971.69021.69023.574490.090.090.0
A6--In--bctstatic-3.9997-3.99971.69021.69026.243290.090.090.0
A6--In--bctstatic-3.9997-3.99971.69021.69026.380390.090.090.0
oqmd-1216026static-3.9997-3.99972.39032.39039.165490.093.290.0
mp-1097832static-3.9997-3.99972.39032.39039.879990.090.090.0
mp-1056957static-3.9997-3.99972.39032.39036.39990.090.090.0
mp-1192619box-3.9408-3.940810.156310.156310.156390.090.090.0
mp-1182029static-3.9223-3.92231.52923.33883.430690.097.590.0
mp-1182029dynamic-3.9223-3.92231.52923.33883.44390.098.990.0
oqmd-1214779box-3.9005-3.90059.74049.74049.740490.090.090.0
A2--W--bccdynamic-3.4099-3.40992.162.162.1690.090.090.0
A15--beta-Wdynamic-3.1912-3.19123.46743.46743.467490.090.090.0
A1--Cu--fccstatic-2.8904-2.89042.7392.7392.73990.090.090.0
A3'--alpha-La--double-hcpbox-2.8903-2.89031.93671.93676.326190.090.0120.0
A3--Mg--hcpbox-2.8903-2.89031.93661.93663.163390.090.0120.0
A3--Mg--hcpdynamic-2.8738-2.87381.8571.8574.309290.090.0120.0
A1--Cu--fccdynamic0.00.03.06453.06453.064590.090.090.0
Date Created: October 5, 2010 | Last updated: June 09, 2022
