µMAG Standard Problem #5 Results
See the problem specification.
Disclaimer
µMAG could not succeed without the contributions of
colleagues working outside NIST. Although we value the
contributions made by these colleagues,
NIST does not necessarily endorse the views expressed or the data
presented in the submitted solutions shown below.
Solution directory

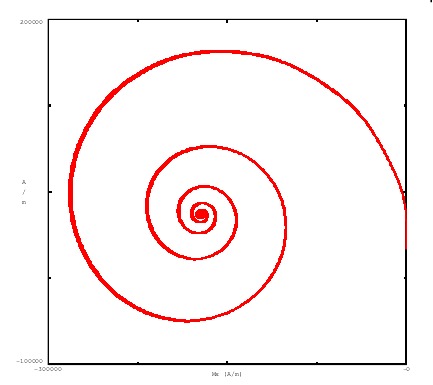

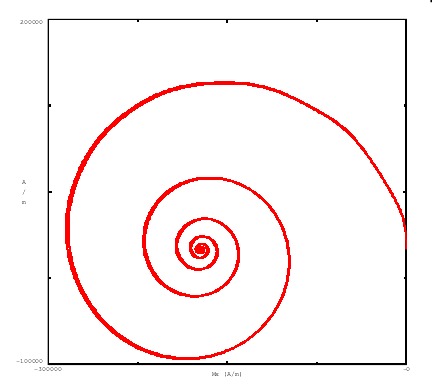

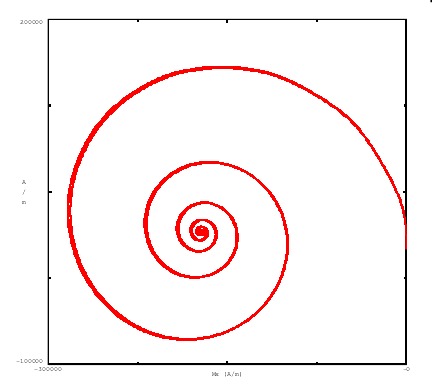

Displayed below are the Mx vs My
spirals for each of the input parameter sets from all contributed solutions.
Note that some variation is expected due to different solvers using different
numbers of significant figures in their values of fundamental constants.
- u = -72.35 m/s; ξ = 0
-
- u = -72.17 m/s; ξ = 0.05
-
- u = -71.64 m/s; ξ = 0.1
-
- u = -57.88 m/s; ξ = 0.5
-
Please send comments
to donald.porter@nist.gov and
join the µMAG discussion e-mail list.
