µMAG Standard Problem #5 Results
See the problem specification.
Disclaimer
µMAG could not succeed without the contributions of
colleagues working outside NIST. Although we value the
contributions made by these colleagues,
NIST does not necessarily endorse the views expressed or the data
presented in the submitted solutions shown below.
Solution directory
D. G. Porter
National Institute of Standards and Technology, Gaithersburg, MD 20899
Contact: Don Porter
Included in the
OOMMF 1.2b0 release
is an example MIF file, stdprob5.mif, with contents that specify
Oxs solver settings to compute µMAG Standard Problem #5 making use
of the Oxs_SpinXferEvolve evolver. Any OOMMF user should be able to
use this input file to compute the solutions submitted here.

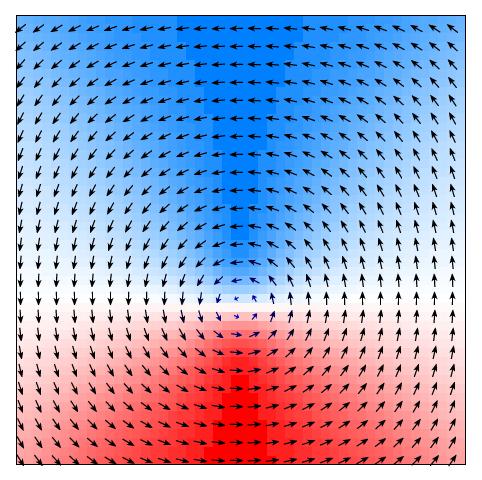

- u = -72.35 m/s; ξ = 0
-

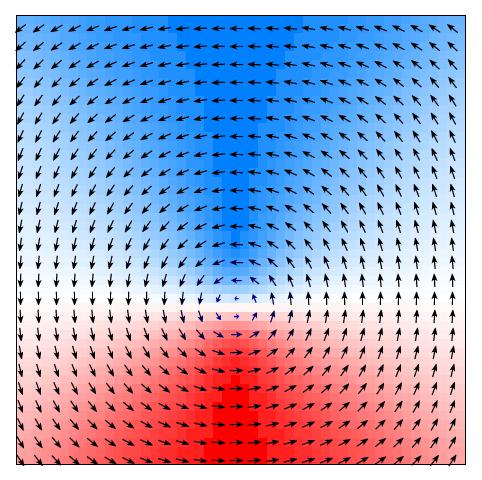

- u = -72.17 m/s; ξ = 0.05
-

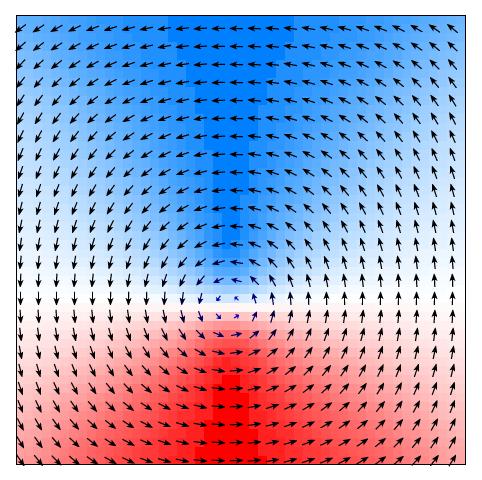

- u = -71.64 m/s; ξ = 0.1
-

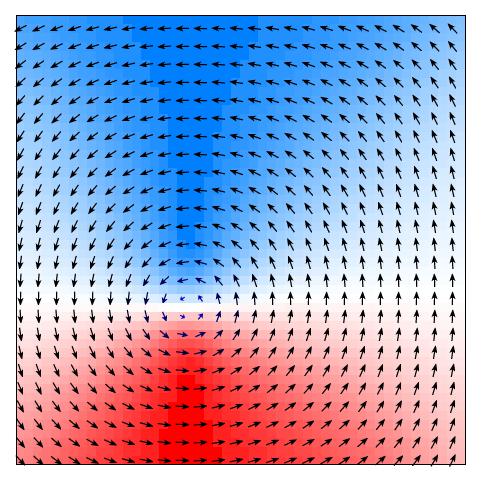

- u = -57.88 m/s; ξ = 0.5
-
Please send comments
to [email protected] and
join the µMAG discussion e-mail list.
