Name
Circle (CircleBrush) — Brush with a circular profile.
Synopsis
CircleBrush(radius)
Details
-
Base class:
BrushStyle -
Parameters:
radius- Radius of the brush in physical units. Type: A real number.
Description
The CircleBrush is used when selecting
pixels with the Brush
selection tool in the Pixel Selection
toolbox. It selects all pixels within a distance
radius of the mouse. The
radius is given in physical
units.

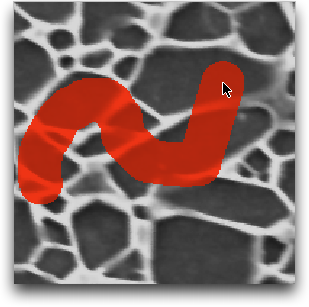

Figure 6.71. Selection with a Circular Brush
A selection made with the circular brush, with
radius=15. The physical size of the
Microstructure is 200×200. Compare with the square brush in
Figure 6.111.
|
|
 |
|
