7.2. External Extensions

This section describes how to create external OOF2 extensions. External extensions are defined outside of the OOF2 source directory hierarchy and are not built or installed when OOF2 is built and installed. Therefore they are a bit more difficult to work with, but they don't require write-access to the OOF2 source code.

This section describes three way of building extensions. There's no fundamental reason that external OOF2 extensions must be built using the procedures and naming conventions described here. Other techniques certainly exist, and users who are proficient with swig and CMake, or can do without them, should feel free to do it their own way. The methods described here should be easy for most users and should suffice in almost all cases, though.

7.2.1. Building a Trivial Extension with Python

If an extension consists only of Python files, you can load them with OOF.File.Load.Script. The extension mechanism described here is not needed. Or you can arrange the files into a subdirectory with an __init__.py file, put the subdirectory into the Python path (see Section 7.4.1) and import the extension with OOF.File.Load.Module.

7.2.2. Building a Single Simple Extension with C++ and Python

Figure 7.2 shows the directory layout for a simple extension, with the source files on the left and the installed executable files on the right. The extension developer must provide all of the source files. This section describes how to construct CMakeLists.txt. The other files are described in Chapter 8.

The top level source directory, extension_source can be located anywhere. The installation directory, however, must be in the Python path. Its name can be anything convenient and does not have to be the name of the extension. The installation directory can contain other code — it does not have to be devoted only to OOF2.

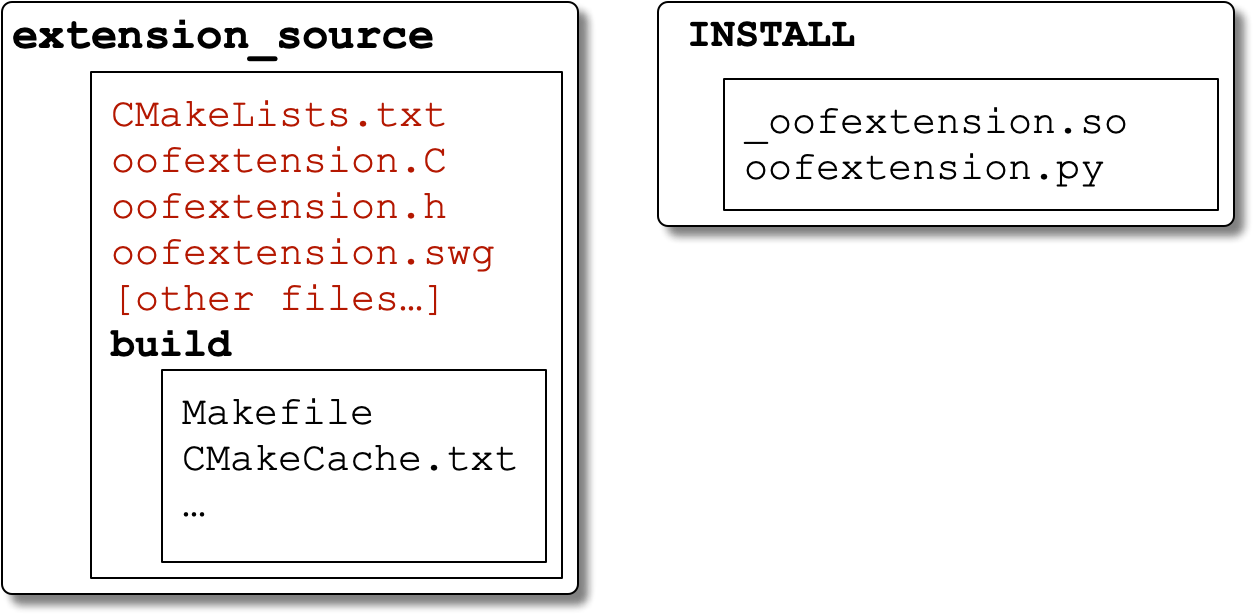

Figure 7.2. Simple Extension Directory Layout

Simple Extension Directory Layout

The directory structure for a simple OOF2 extension, with the source directory on the left and the installation directory on the right. Directory names are in bold type. Files with names in red are created by the developer. “Other files” could include Python scripts that are imported into oofextension.py or additional C++ files that contribute to _oofextension.so. INSTALL is a directory in the Python path.


The CMakeLists.txt file contains instructions for CMake. Copy the text from Example 7.1 into a file named CMakeLists.txt in the source directory. Edit the file as needed. Please note the numbered comments at the end of the Example 7.1. At the very least

  1. Change all instances of PREFIX to the OOF2 installation location, i.e, the value of CMAKE_INSTALL_PREFIX used to build OOF2. For example, if the top OOF2 executable script is /usr/local/bin/oof2, then PREFIX is /usr/local.

  2. Change all instances of oofextension to the name of your extension files. If your files are abcde.h, abcde.C, abcde.swg, etc, then replace oofextension with abcde.

Example 7.1. CMakeLists.txt for a simple extension

cmake_minimum_required(VERSION 3.18) # 1

project(projectname VERSION 0.0.0) # 2

set(OOF2_PYTHON3_VERSION 3.11 CACHE STRING "Use this version of Python") # 3
set(OOF2_SWIG_VERSION 4.1 CACHE STRING "Use this version of swig")

include("PREFIX/share/oof2/tools/oofbuildtools.cmake") # 4

find_library(OOF2COMMON oof2common PREFIX/lib) # 5
find_library(OOF2ENGINE oof2engine PREFIX/lib)
mark_as_advanced(OOF2COMMON OOF2ENGINE) # 6

swig_sources( # 7
  SWIGFILES
  oofextension
  LIBRARIES
  ${OOF2COMMON} ${OOF2ENGINE}
  INCLUDE_DIRECTORIES
  PREFIX/include/oof2 ${Python3_INCLUDE_DIRS}
  SOURCES
  oofextension.C
  SWIGDEST
  ${CMAKE_INSTALL_PREFIX}
)

1

OOF2 uses some features from CMake 3.18. Older versions might be usable for extensions.

2

projectname just needs to be a unique name. It's not used anywhere in this simple example. Likewise, the version number is for your information. OOF2 will not use it.

3

These version numbers should match the versions that were used when OOF2 was built.

4

This line loads settings and functions used when building OOF2.

5

If you need to link to other OOF2 libraries, or any other libraries at all, add new lines for them here, and include the libraries in the LIBRARIES list when you call swig_sources.

6

This line is optional. It prevents OOF2COMMON and OOF2ENGINE from appearing in the ccmake GUI, since you probably don't want to set them there.

7

swig_sources is a function defined in oofbuildtools.cmake. It runs swig to generate the C++ and Python wrapper code, compiles the C++ code, and links and installs the results. See swig_sources for the details.


To compile and install an extension built this way, see the instructions in Section 7.3. To use it within OOF2, see Section 7.4.

7.2.3. Building a Set of Extensions

This section describes how to build a set of extensions that use multiple C++ and swig source files, which are distributed across multiple directories. The files are installed into a package named “oofextensions”, which resides in a directory that is part of the Python path. The file layout is illustrated in Figure 7.3. Each extension has its own subdirectory.

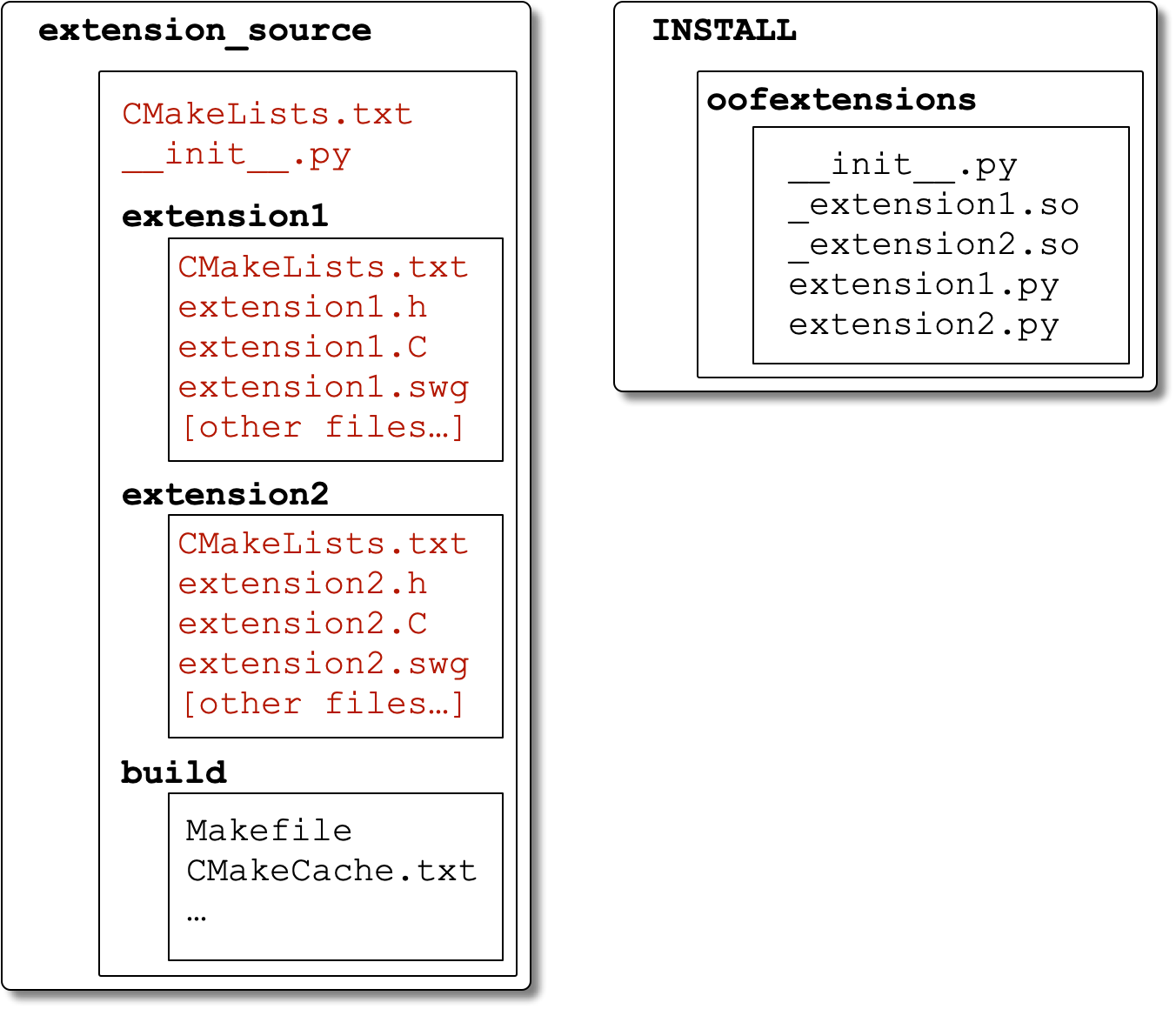

Figure 7.3. Less Simple Extension Directory Layout

Less Simple Extension Directory Layout

The directory structure for a compound OOF2 extension, with the source directory on the left and the installation directory on the right. Directory names are in bold type. Files in red are created by the developer. INSTALL is a directory in the Python path.


This isn't much more complicated than the previous example. The differences are that every source directory and subdirectory needs its own CMakeLists.txt file, and there needs to be an __init__.py file to tell Python that the files contained in the installation directory are part of a package.

7.2.3.1. The top level directory

The top directory in the extensions' hierarchy needs to contain two files, CMakeLists.txt and __init__.py, along with the subdirectories for each extension.

CMakeLists.txt.  The top level CMakeLists.txt file (in the extension_source directory in Figure 7.3) is just like the beginning of the file in Example 7.1. Copy the lines from Example 7.2 to a file called CMakeLists.txt in your source directory and make the indicated changes. Everything in bold type in the example should be changed.

Example 7.2. Top level CMakeLists.txt for a set of extensions

cmake_minimum_required(VERSION 3.18)

project(oofextensions VERSION 0.0.0) # 1

set(OOF2_PYTHON3_VERSION 3.11 CACHE STRING "Use this version of Python") # 2
set(OOF2_SWIG_VERSION 4.1 CACHE STRING "Use this version of swig")

include("PREFIX/share/oof2/tools/oofbuildtools.cmake") # 3

find_library(OOF2COMMON oof2common /Users/langer/lib)
find_library(OOF2ENGINE oof2engine /Users/langer/lib)
mark_as_advanced(OOF2COMMON OOF2ENGINE)

install( # 4
  FILES
  ${PROJECT_SOURCE_DIR}/__init__.py
  DESTINATION ${CMAKE_INSTALL_PREFIX}/${CMAKE_PROJECT_NAME})

add_subdirectory("extension1") # 5
add_subdirectory("extension2")

1

In this example, the project name is used as the name of the installed Python package. See 4. Change oofextensions to the name you want to import in OOF2.

2

These version numbers should match the versions that were used when OOF2 was built.

3

Change PREFIX to the OOF2 installation prefix. If OOF2 is installed as /usr/local/bin/oof2, replace PREFIX with /usr/local.

4

This installs the top level __init__.py in a subdirectory given by the project name, set in 1. If you want to install elsewhere, change or delete /${CMAKE_PROJECT_NAME} here and in the subdirectories' CMakeLists.txt files.

5

All subdirectories containing extensions should be listed here.

__init__.py.  The __init__.py file in the installation directory is copied directly from the source directory. It tells Python to treat the directory as a package and optionally tells it to import the modules for the subdirectories. For example, using the file names from Figure 7.3, if __init__.py contains the single line

            from . import extension1, extension2

then both extensions will be loaded if you type

              import oofextensions

in the OOF2 Console Window. However, if __init__.py is empty, the extensions will each have to be loaded explicitly, e.g, by typing

            import oofextensions.extension1
            import oofextensions.extension2

in the Console Window.

A third possibility is for __init__.py to contain the line

          __all__ = ["extension1", "extension2"]

which will allow both extensions to be loaded with

          from oofextensions import *

7.2.3.2. The subdirectories

Each of the subdirectories in Figure 7.3 must contain its own CMakeLists.txt file, along with the source code files (which will be discussed in Chapter 8). To create the CMakeLists.txt files, copy the text from Example 7.3 to each subdirectory, with the following changes:

  1. Change extension1 to the name of the swig file (without its extension) in the subdirectory.
  2. Change PREFIX to the OOF2 installation prefix, as in CMakeLists.txt in the parent directory.

Example 7.3. CMakeLists.txt in subdirectories

swig_sources(
  SWIGFILES
  extension1 # 1
  LIBRARIES
  ${OOF2COMMON} ${OOF2ENGINE}
  INCLUDE_DIRECTORIES
  PREFIX/include/oof2 ${Python3_INCLUDE_DIRS} # 2
  SOURCES
  extension1.C # 3
  SWIGDEST
  ${CMAKE_INSTALL_PREFIX}/${CMAKE_PROJECT_NAME} # 4
  )

1

This is the name of the swig source file, minus its suffix.

2

Replace PREFIX with the OOF2 installation prefix.

3

All C++ files that need to be compiled must be listed here. Files generated by swig should not be included.

4

This is where the files will be installed. CMAKE_INSTALL_PREFIX is a directory in the Python path and is set when the extension is configured (see Section 7.3). CMAKE_PROJECT_NAME is the name used in the project(...) line in the top level CMakeLists.txt, and is used here only because this example is using the project name as the Python package name.

7.2.3.3. Adding New Shared Libraries

When adding multiple extensions that share code between themselves, the common code should be put into a shared library, and not included in the swig_sources call for the extension modules themselves. To build the shared library, add the following code to the CMakeLists.txt file in one of the extension directories:[53]

Example 7.4.

add_library(libname SHARED) # 1

target_sources(
  libname # 2
  PRIVATE
  extensioncode.C extensioncode.h  # 3
)

install(
  TARGETS
  libname # 4
  DESTINATION ${CMAKE_INSTALL_LIBDIR})

1

Substitute the name of the shared library for libname. Omit the “lib” prefix and any suffixes.

2

The name on this line should be the name from 1.

3

List all of the C++ source files here.

4

Again, replace libname with the name of the library.

In addition, add libname to the LIBRARIES list in the swig_sources calls, for all extensions that use the library:

swig_sources(
  SWIGFILES
  ...
  LIBRARIES
  ${OOF2COMMON} ${OOF2ENGINE} libname
  ...
  )

7.2.4. Building Extensions from Templates

Extensions defining new versions of some OOF2 Properties can be easily created from templates. The templates are installed in PREFIX/share/oof2/templates, where PREFIX is the OOF2 installation prefix (the value of CMAKE_INSTALL_PREFIX used when OOF2 was built). The templates defined for a variety of nonlinear and nonconstant material Properties allow the user to specify the form of the nonlinearity or nonconstancy without worrying about the other technical details of writing an extension.

The steps required to use the templates are:

  1. Build and install OOF2 with the OOF2_DEV_INSTALL option.

  2. Run oof2-extension-setup to create an editable copy of the template files. It lets you choose what type of Property to create and sets simple things like the directory name, module name, and class name. It will create a directory containing a CMakeLists.txt file and a subdirectory containing source files. See oof2-extension-setup for the details.

  3. This is the hard part. Edit the source files created by oof2-extension-setup, in the source subdirectory, adding the code that makes your Property unique. Comments in the source files describe what you need to do. Chapter 8 will help as well.

  4. Run ccmake in the build directory to build and install the extension, as described in Section 7.3.

  5. Run OOF2 and load the extension, as described in Section 7.4.


[53] You can put the code in a new directory if you prefer. Just make sure that CMakeLists.txt in the extension's top directory includes the new directory via a add_subdirectory call.:
