OOF: Finite Element Analysis of Microstructures
Pixel Dashboard
Synopsis
This dashboard provides query mechanisms for pixel states.
The cursor becomes the query cursor
and the
pixel for which information is returned is the one under the
period at the bottom of the .

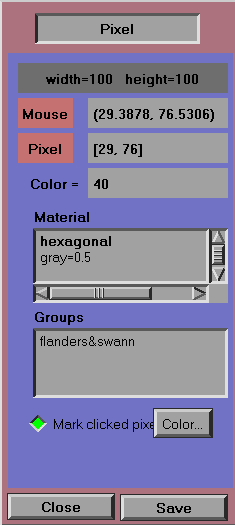

The following items appear in the dashboard. Many of them just provide information without performing any action.
Dashboard Components
- width & height
- Mouse
-
The position of the mouse click. If the Scale Factor in the Coordinates dashboard is greater than 1, the mouse position will be measured with a precision less than one pixel width. Of course, it cannot be measured with a precision less than one screen pixel width.
- Pixel
-
The integer position of the queried pixel in columns and then rows.
- Color
- Material
-
The material properties that have been specified for the selected pixel with the /materials menu. If no properties have been specified, the window will display "default".
- Groups
-
Pixel groups, if any, to which the queried pixel belongs. Pixel groups are assigned with the /pixelgroups menu.
- Mark clicked pixel
-
When highlighted, the queried pixel will be marked the display. Clicking on the Color... button brings up a chameleon for the queried-pixel color.
