| JARVIS-ID:JVASP-75361 | Functional:optB88-vdW | Primitive cell | Primitive cell | Conventional cell | Conventional cell |
| Chemical formula:MnPS3 | Formation energy/atom (eV):-0.331 | a 6.058 Å | α:90.0 ° | a 6.058 Å | α:90.0 ° |
| Space-group :P-31m, 162 | Relaxed energy/atom (eV):-3.7528 | b 6.058 Å | β:90.0 ° | b 6.058 Å | β:90.0 ° |
| Calculation type:1L | SCF bandgap (eV):0.248 | c 23.246 Å | γ:60.0 ° | c 23.246 Å | γ:120.0 ° |
| Crystal system:trigonal | Point group:-3m | Density (gcm-3):0.82 | Volume (Å3):738.84 | nAtoms_prim:10 | nAtoms_conv:10 |

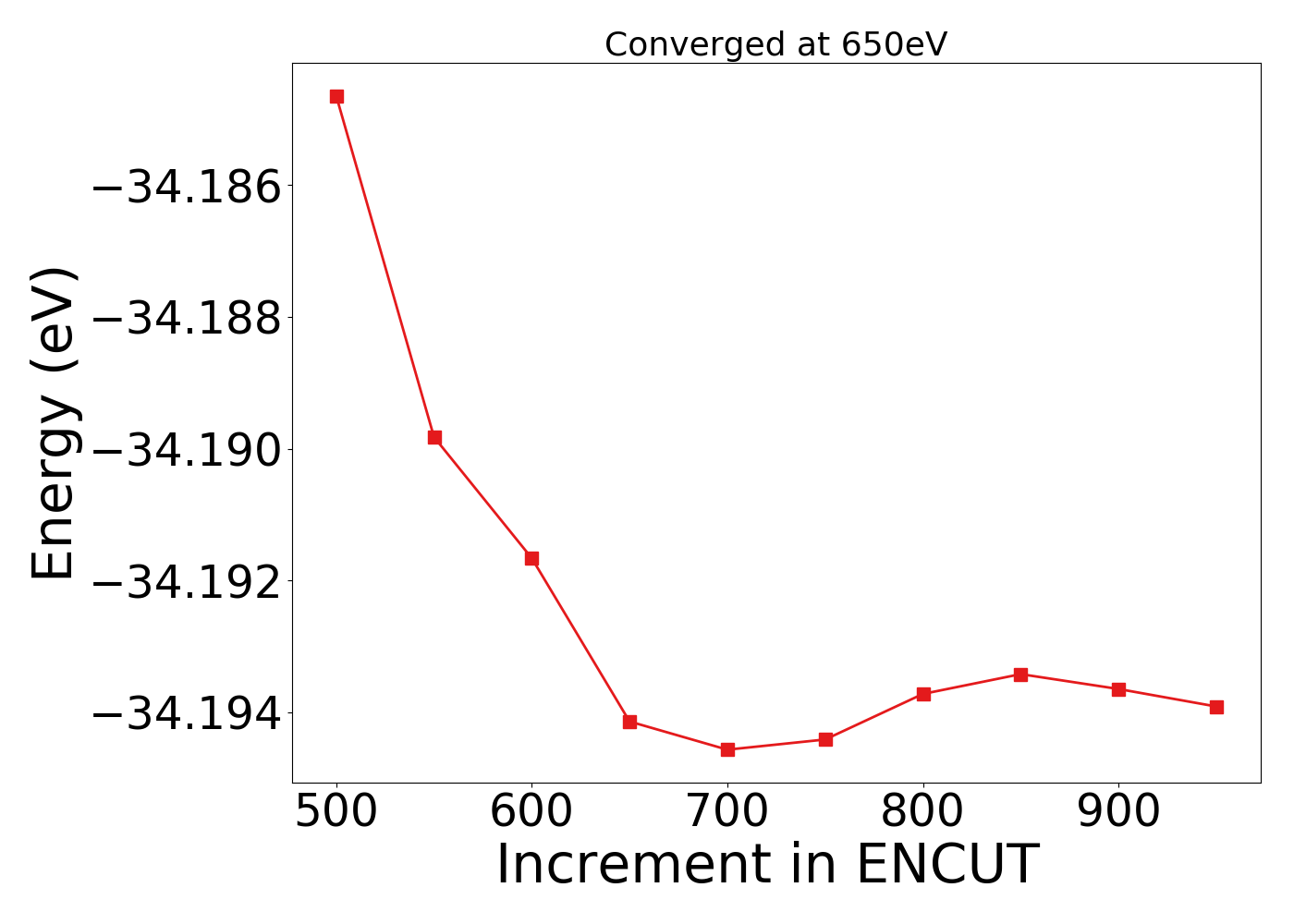

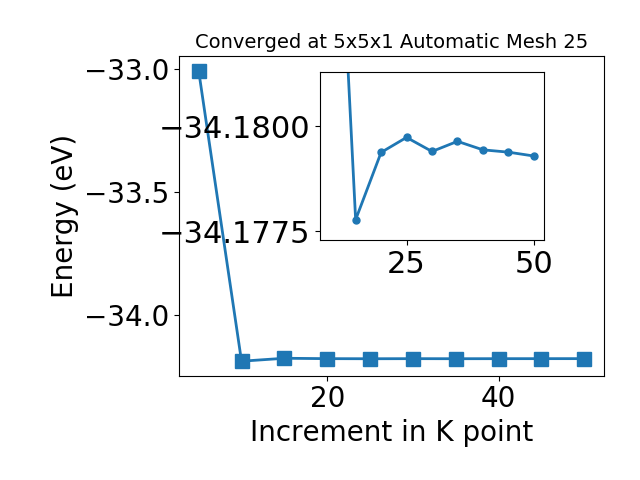

Calculations are done using VASP software [Source-code]. Convergence on KPOINTS [Source-code] and ENCUT [Source-code] is done with respect to total energy of the system within 0.001 eV tolerance. Please note convergence on KPOINTS and ENCUT is generally done for target properties, but here we assume energy-convergence with 0.001 eV should be sufficient for other properties also. The points on the curves are obtained with single-point calculation (number of ionic steps, NSW=1 ). However, for very accurate calculations, NSW>1 might be needed.

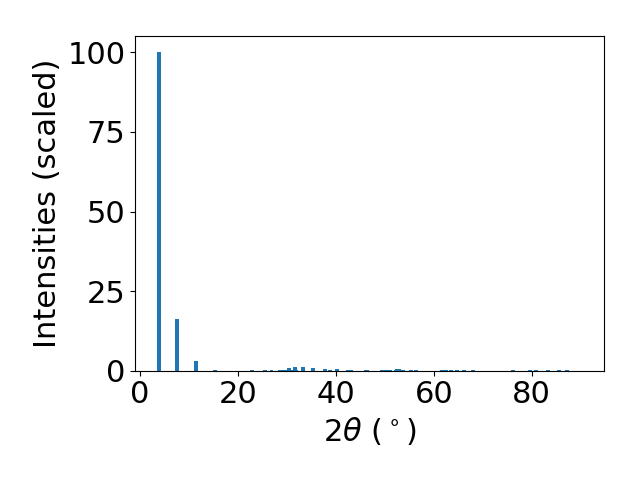

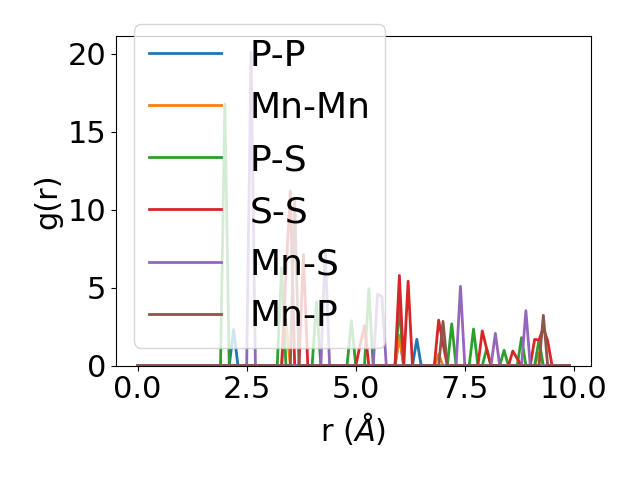

The following shows the X-ray diffraction (XRD)[Source-code] pattern and the Radial distribution function (RDF) plots [Source-code]. XRD peaks should be comparable to experiments for bulk structures. Relative intensities may differ. For mono- and multi-layer structures , we take the z-dimension during DFT calculation for XRD calculations, which may differ from the experimental set-up.

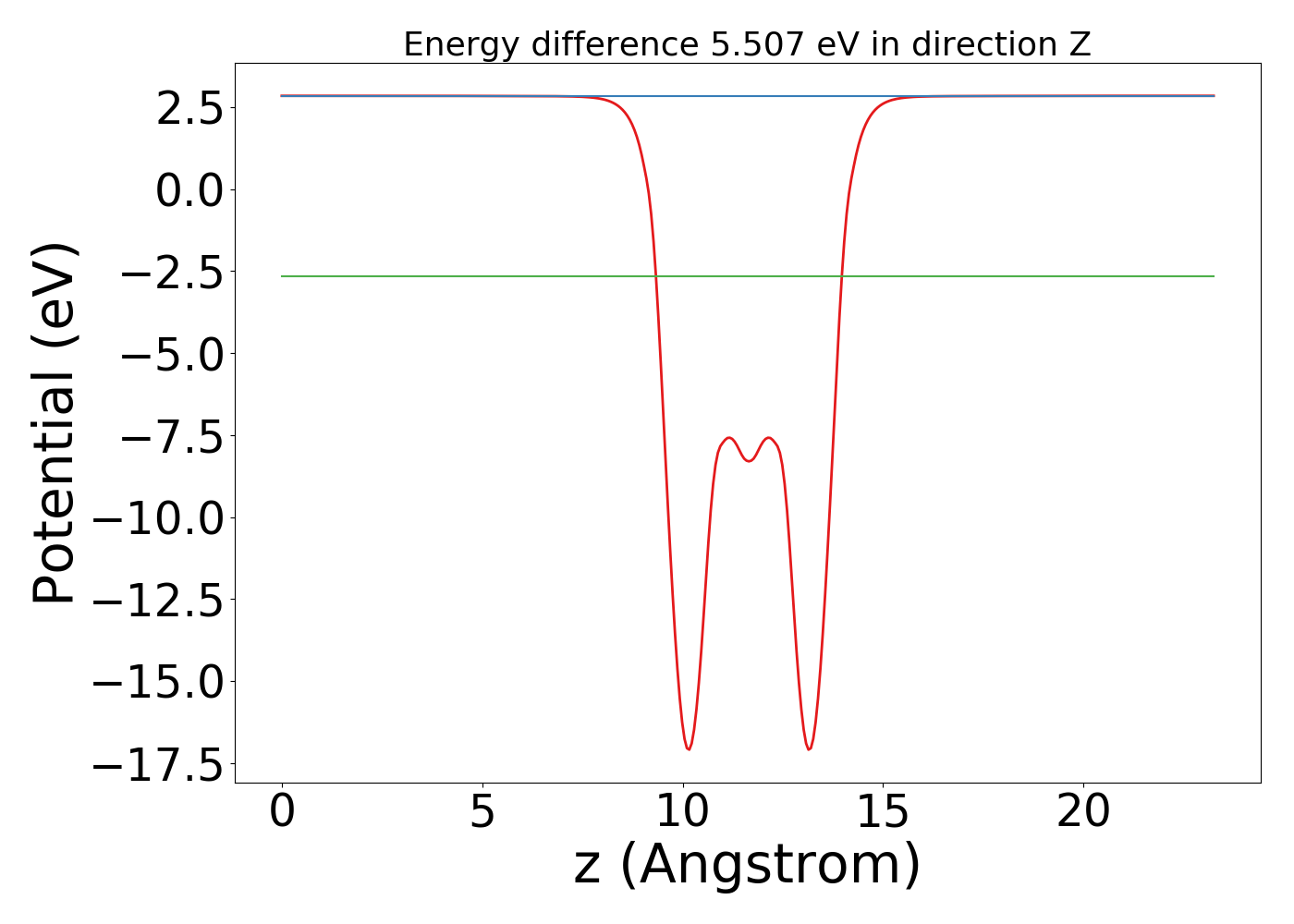

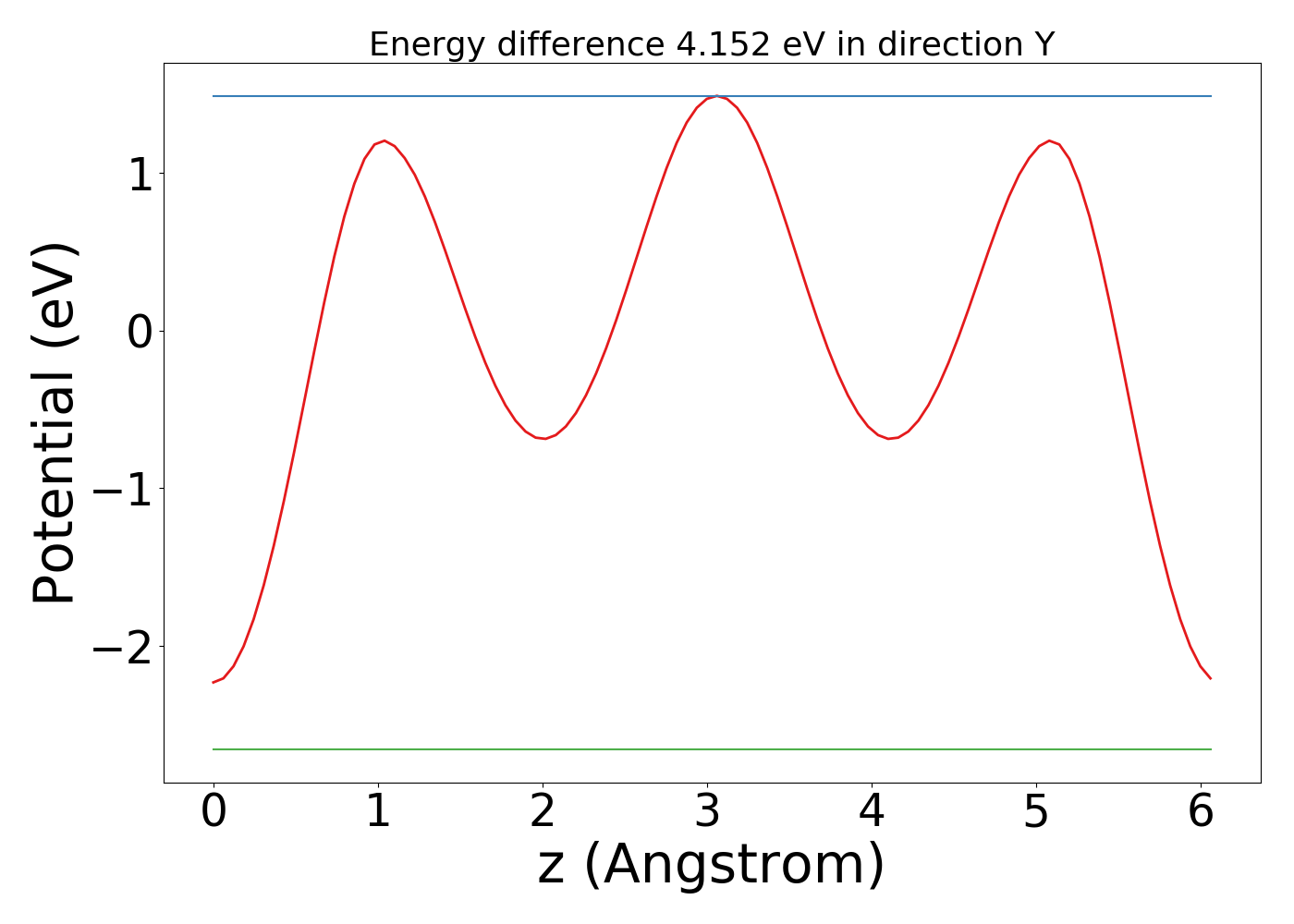

The following plot shows the plane averaged electrostatic potential (ionic+Hartree) along x, y and z-directions. The red line shows the Fermi-energy while the green line shows the maximum value of the electrostatic potential. For slab structures (with vacuum along z-direction), the difference in these two values can be used to calculate work-function of the material.

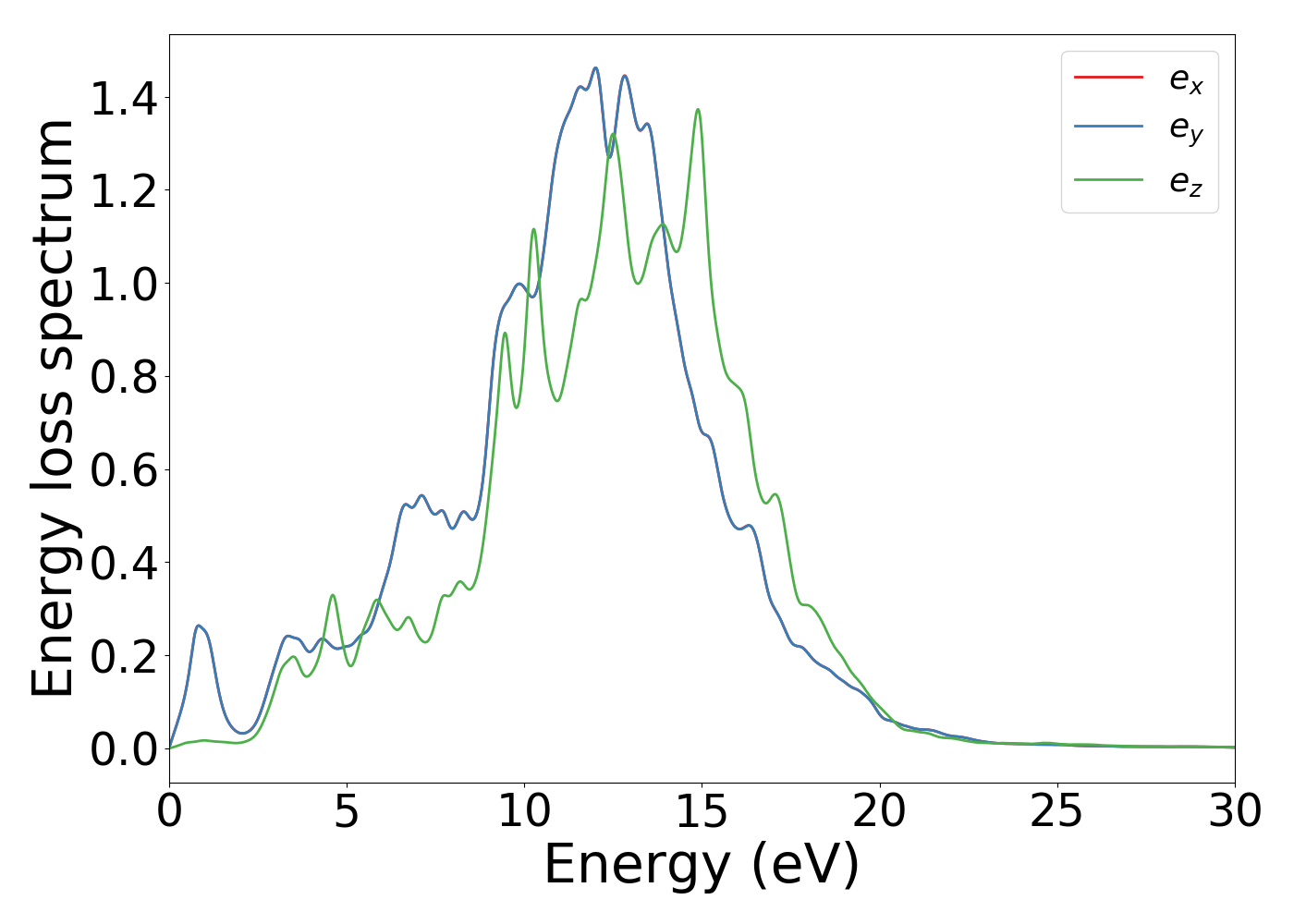

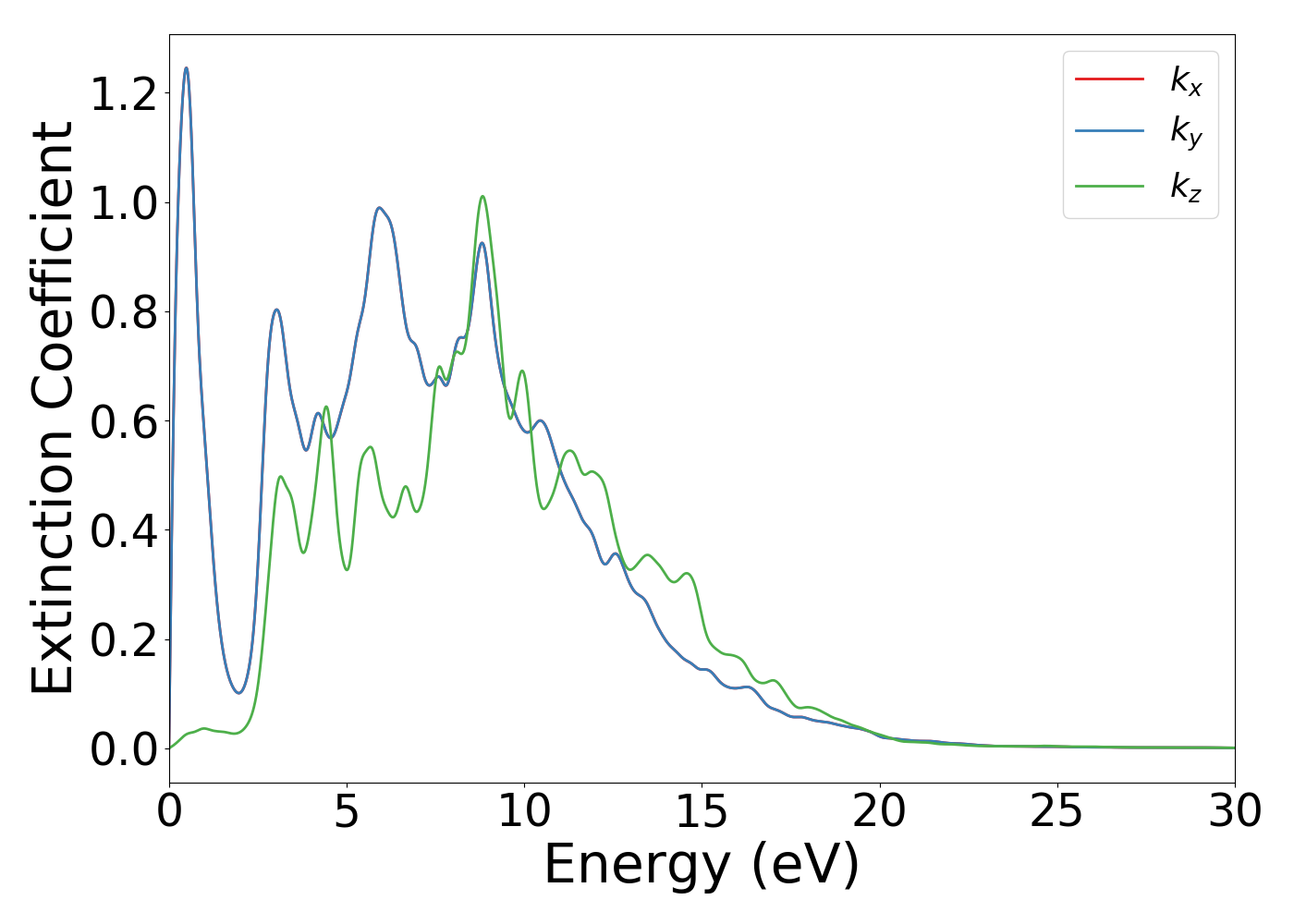

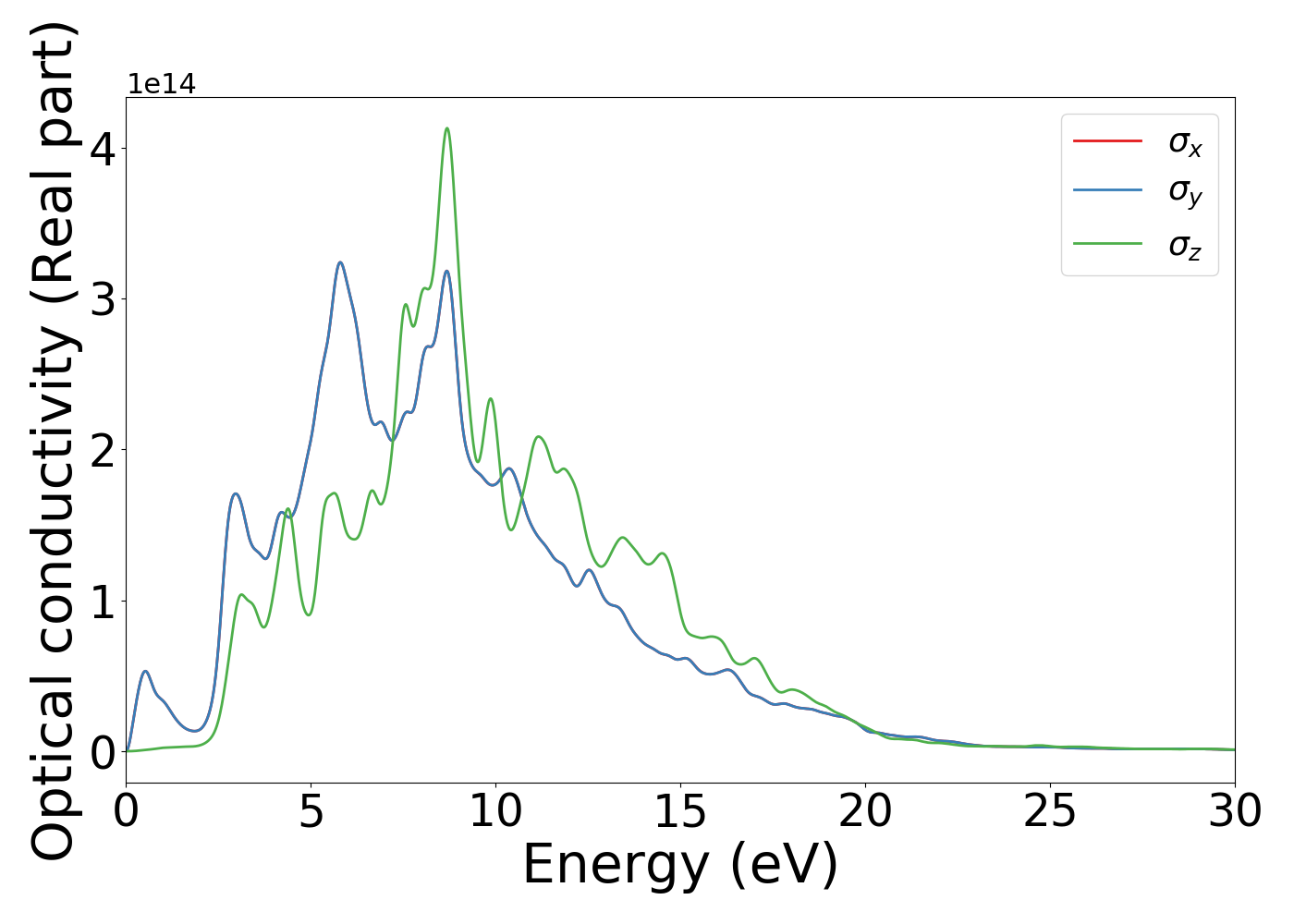

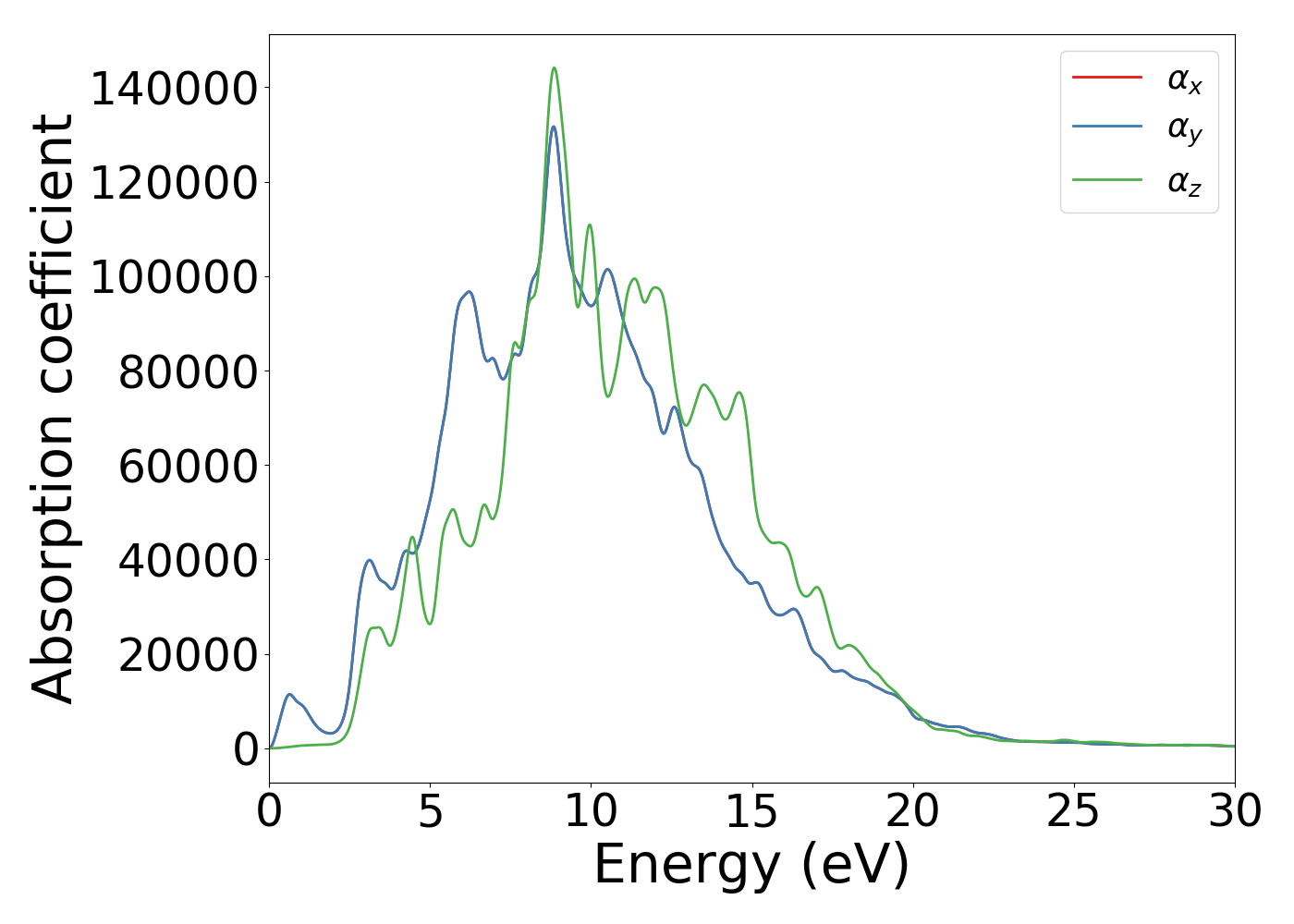

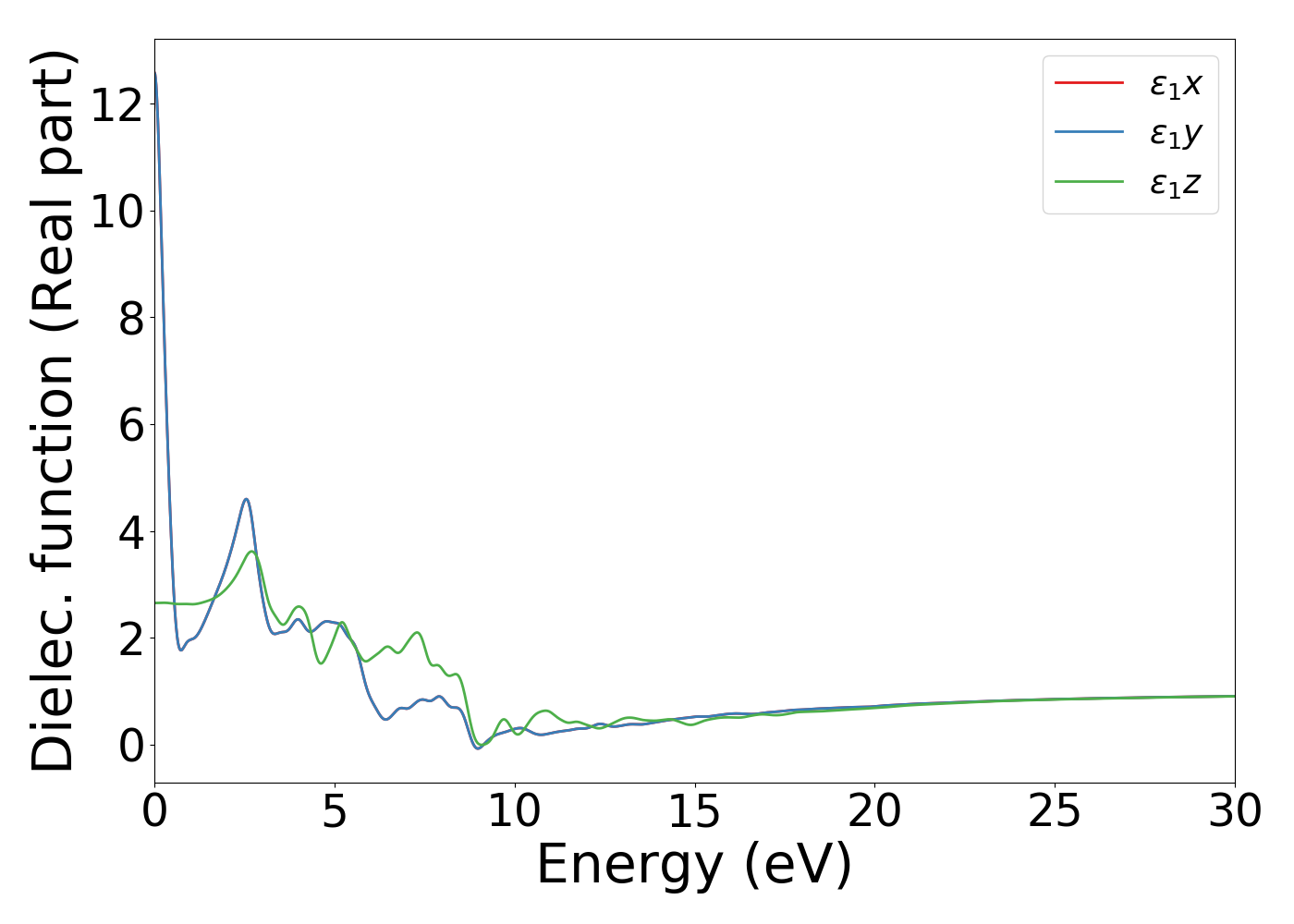

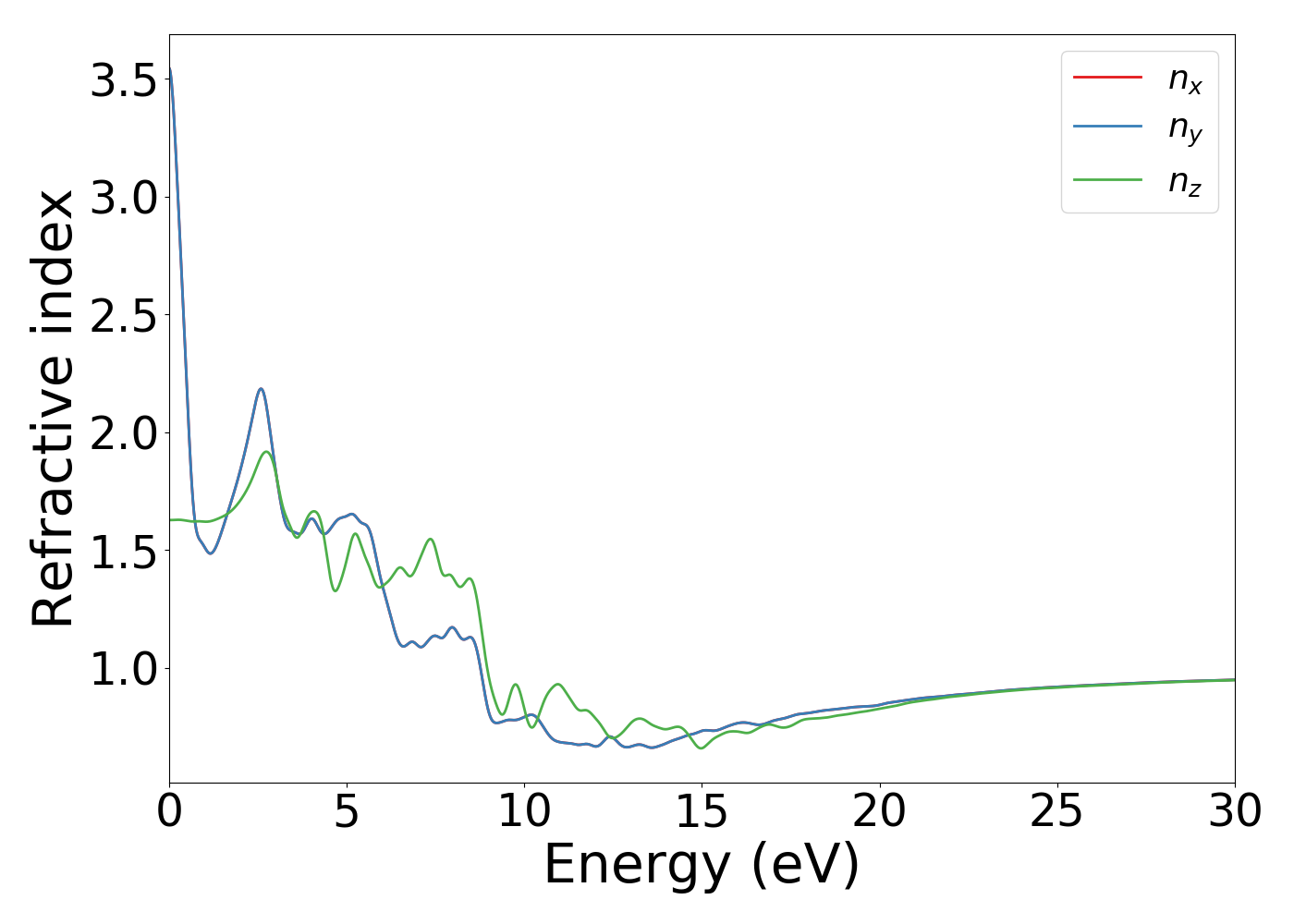

Incident photon energy dependence of optical is shown below [Source-code]. Only interband optical transitions are taken into account.Please note the underestimatation of band-gap problem with DFT will reflect in the spectra as well. For very accurate optical properties GW/BSE calculation would be needed, which is yet to be done because of their very high computational cost. Optical properties for mono-/multi-layer materials were rescaled with the actual thickness to simulation z-box ratio. Absorption coeffiecient is in cm-1 unit. Also, ionic contributions were neglected.
Dense k-mesh based bandgap is : 0.0392 eV
Static real-parts of dielectric function in x,y,z: 12.59,12.58,2.65

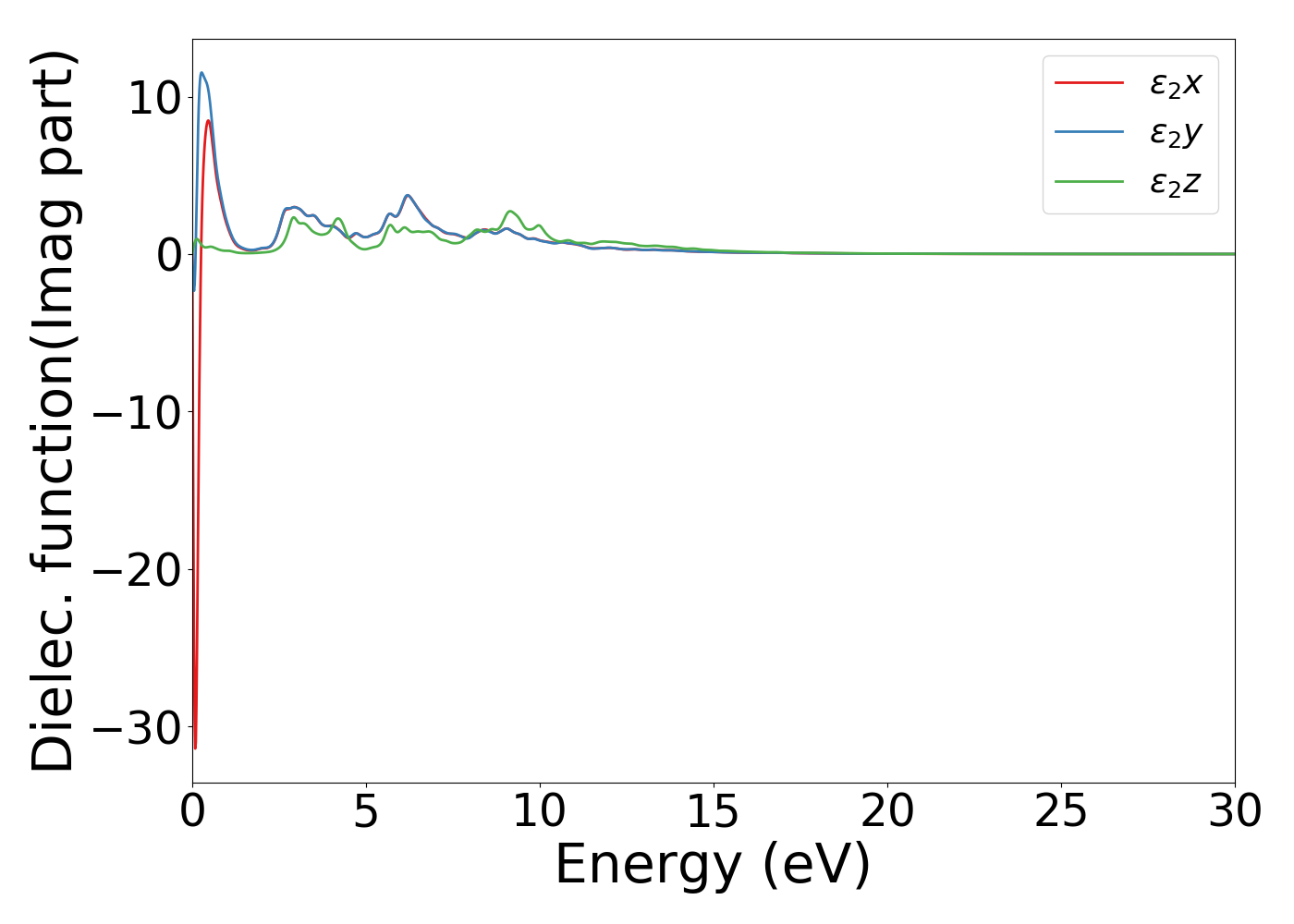

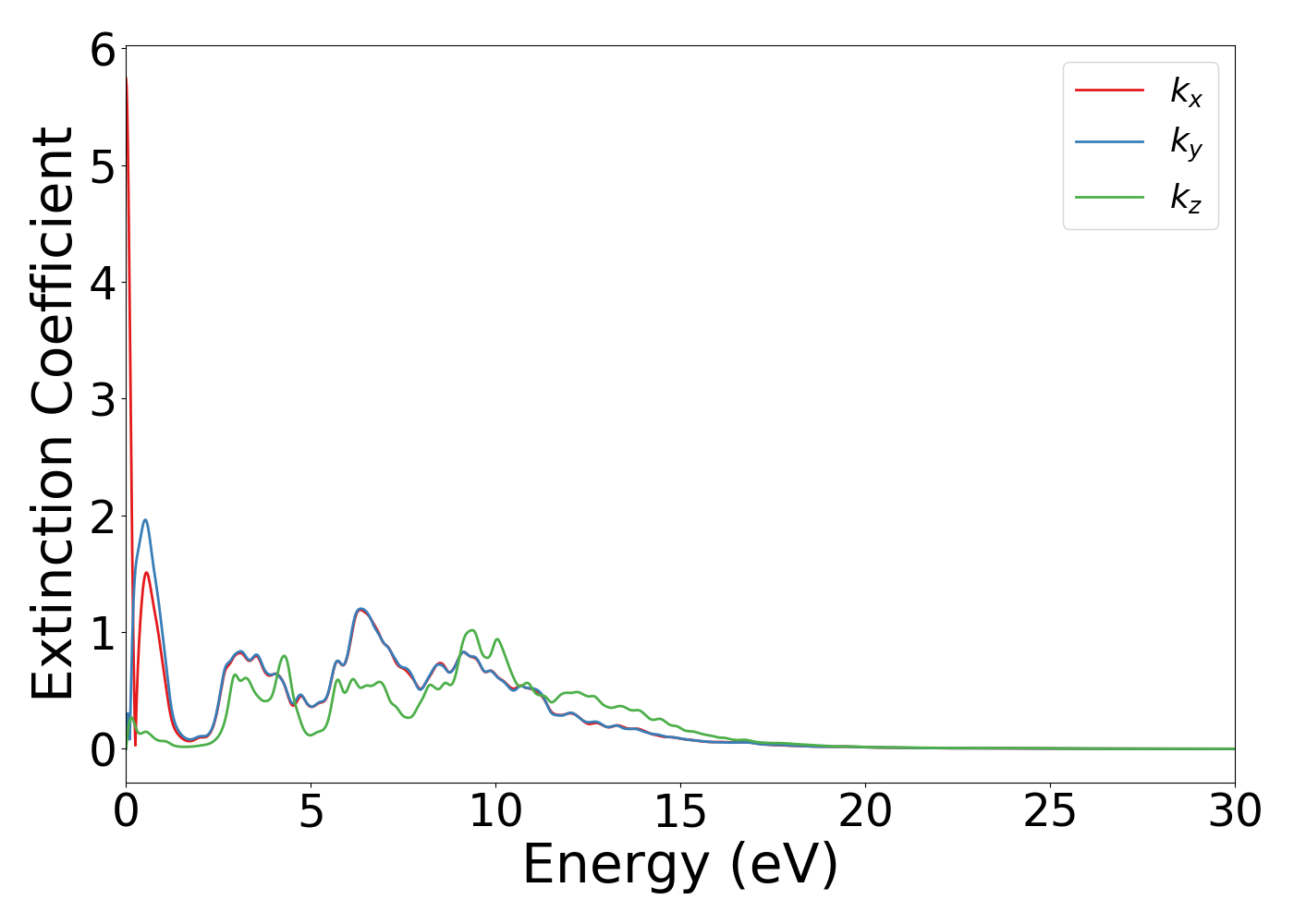

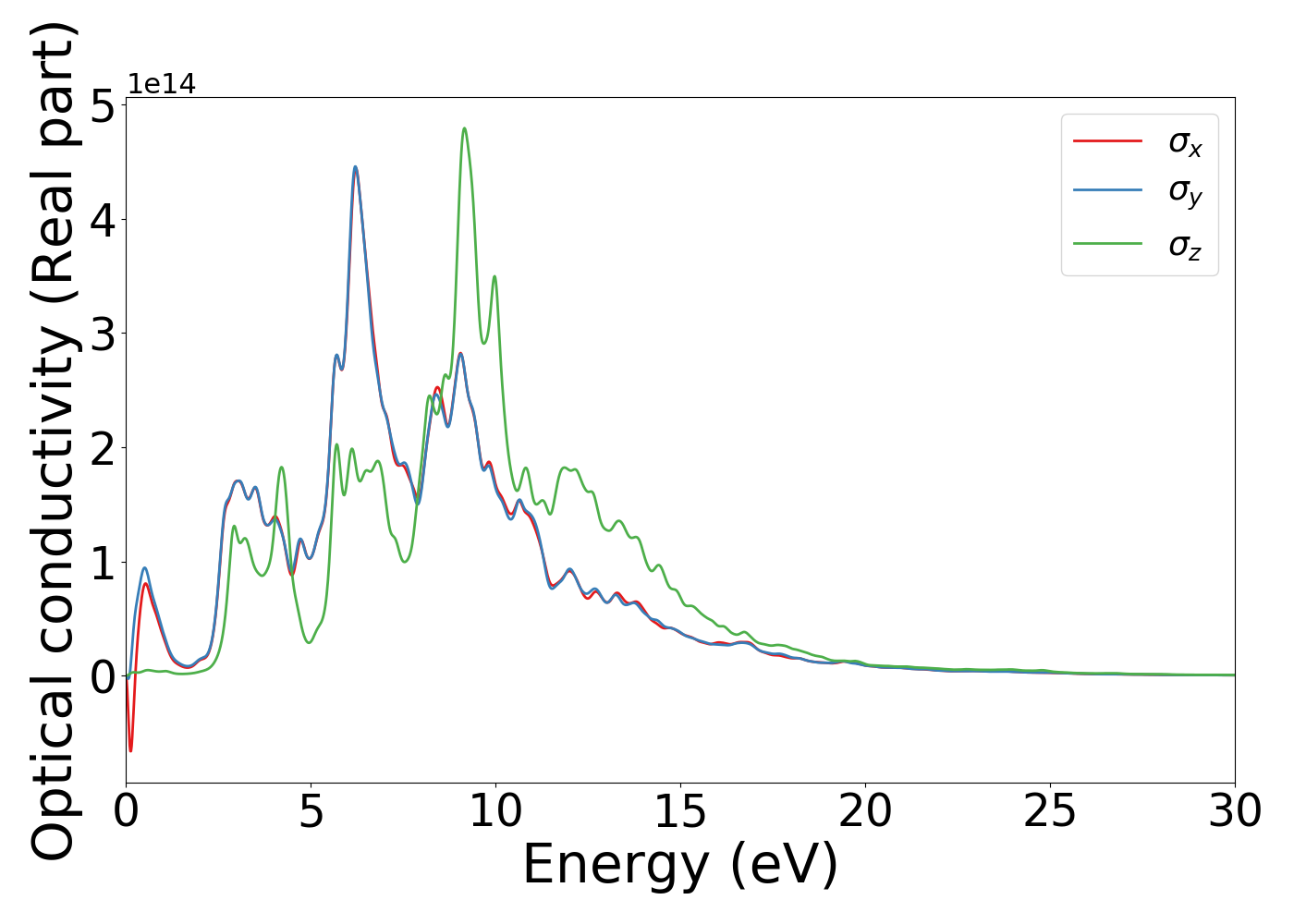

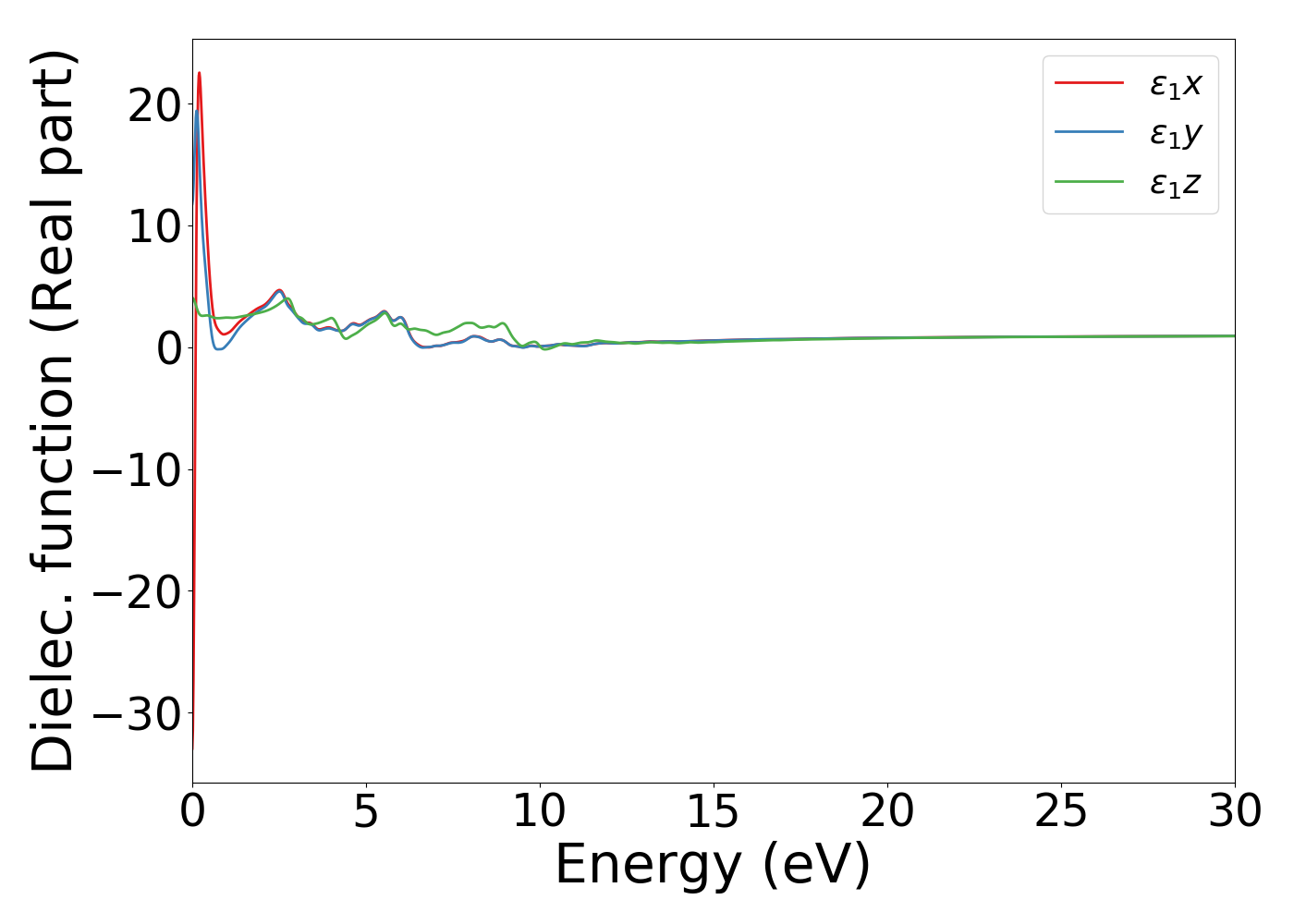

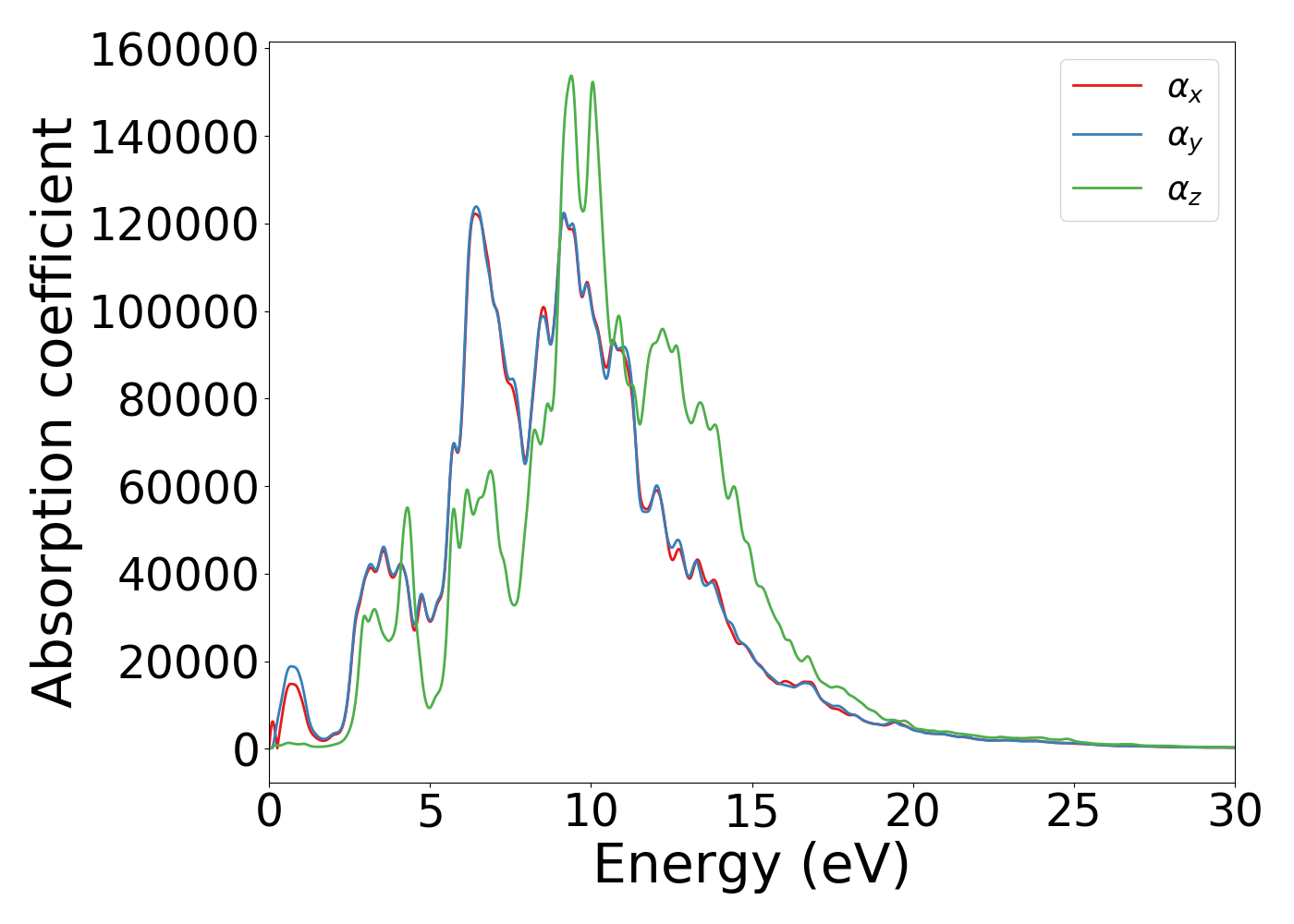

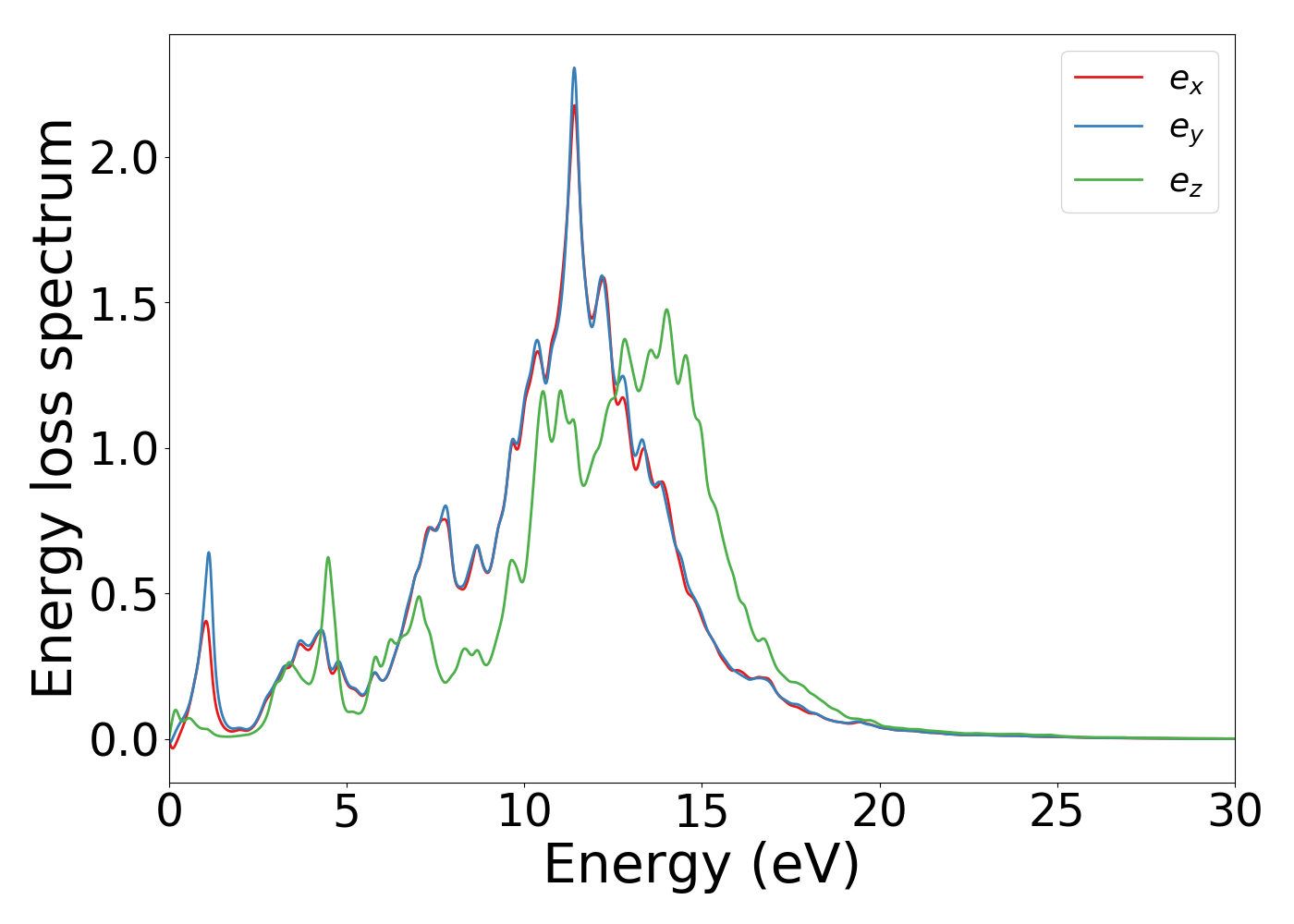

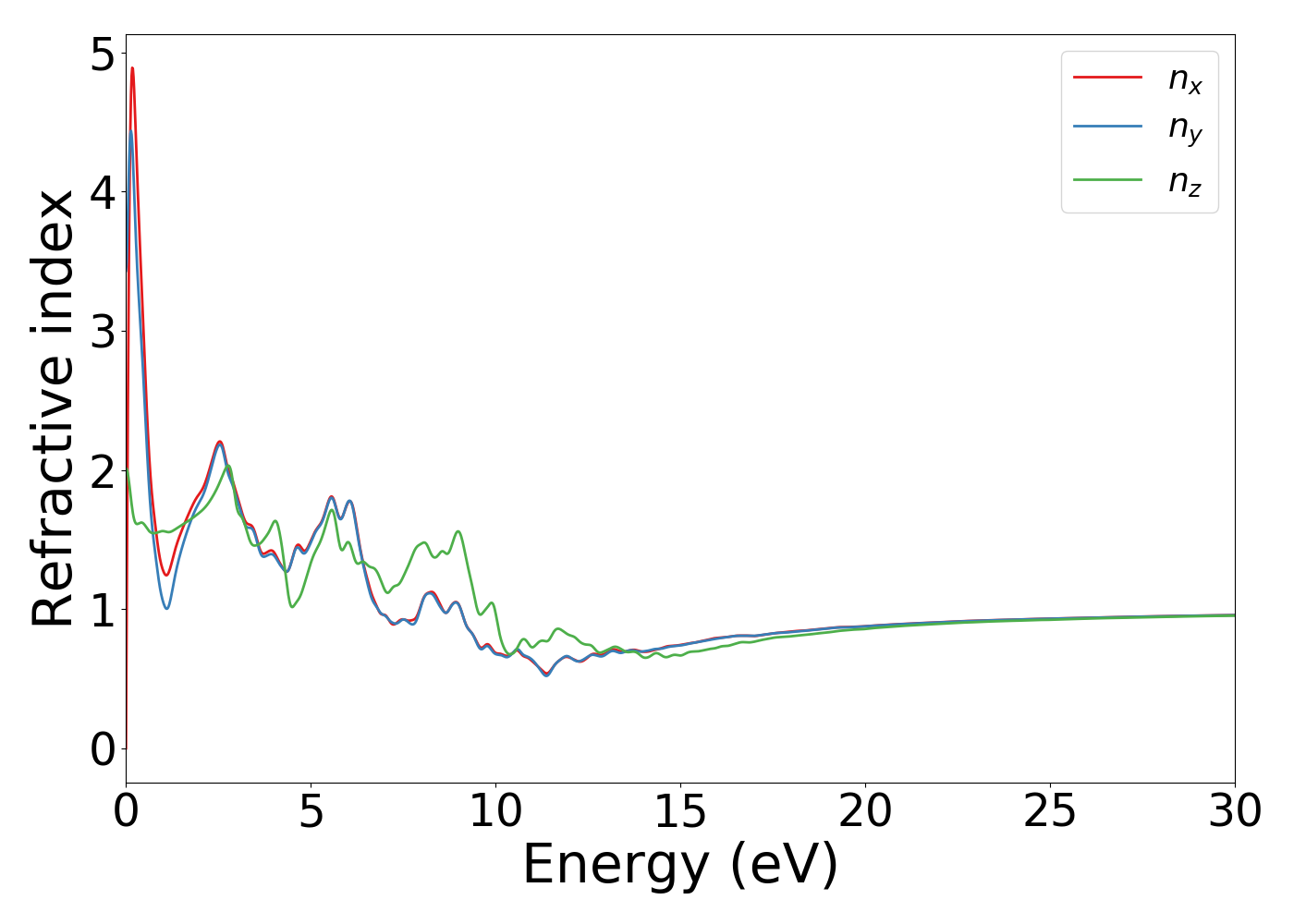

Single point DFT calculation was carried out with meta-gga MBJ potential [Source-code]. This should give reasonable bandgap, and optical properties assuming the calculation was properly converged. Incident photon energy dependence of optical is shown below. Only interband optical transitions are taken into account. Also, ionic contributions were neglected.
MBJ bandgap is : 0.0227 eV
Static real-parts of dielectric function in x,y,z: -32.96,11.77,4.05
The orbital magnetic moment was obtained after SCF run. This is not a DFT+U calculation, hence the data could be used to predict zero or non-zero magnetic moment nature of the material only.
Total magnetic moment: 9.8921 μB
Magnetic moment per atom: 0.98921 μB
| Elements | s | p | d | tot |
| Mn | 0.03 | 0.023 | 4.223 | 4.276 |
| Mn | 0.03 | 0.023 | 4.223 | 4.276 |
| P | 0.002 | 0.024 | 0.0 | 0.026 |
| P | 0.002 | 0.024 | 0.0 | 0.026 |
| S | 0.009 | 0.05 | 0.0 | 0.059 |
| S | 0.01 | 0.058 | 0.0 | 0.069 |
| S | 0.01 | 0.054 | 0.0 | 0.064 |
| S | 0.01 | 0.054 | 0.0 | 0.064 |
| S | 0.009 | 0.05 | 0.0 | 0.059 |
| S | 0.01 | 0.058 | 0.0 | 0.069 |
Links to other databases or papers are provided below
ICSD-ID: 61391
AFLOW link
