µMAG Standard Problem #5 Results

See the problem specification.

Disclaimer

µMAG could not succeed without the contributions of colleagues working outside NIST. Although we value the contributions made by these colleagues, NIST does not necessarily endorse the views expressed or the data presented in the submitted solutions shown below.

Solution directory

Comparisons
D. G. Porter
G. Finocchio, R. Tomasello, and A. Giordano

Comparison of Submitted Solutions

Displayed below are the M_x vs M_y spirals for each of the input parameter sets from all contributed solutions. Note that some variation is expected due to different solvers using different numbers of significant figures in their values of fundamental constants.

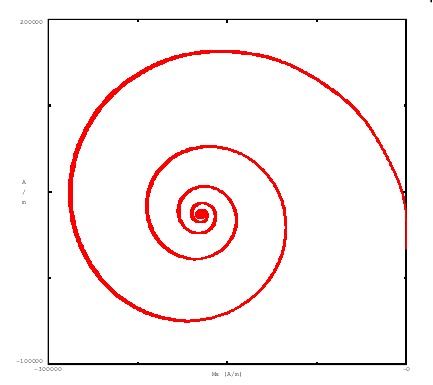

u = -72.35 m/s; ξ = 0

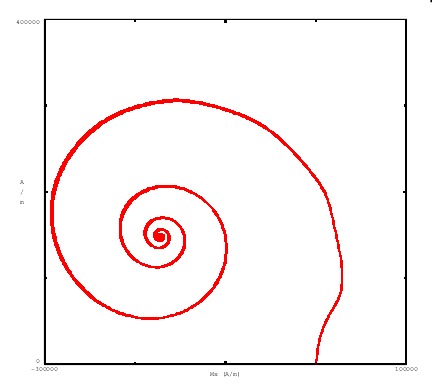

: u = -72.17 m/s; ξ = 0.05

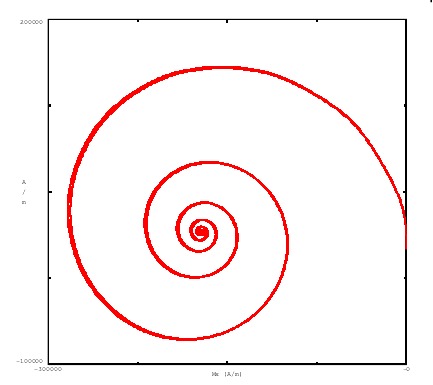

: u = -71.64 m/s; ξ = 0.1

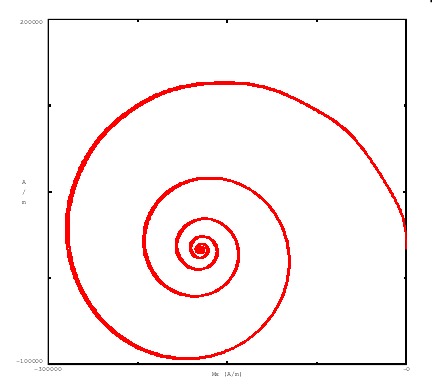

: u = -57.88 m/s; ξ = 0.5

Please send comments to donald.porter@nist.gov and join the µMAG discussion e-mail list.
