| JARVIS-ID:JVASP-30287 | Functional:optB88-vdW | Primitive cell | Primitive cell | Conventional cell | Conventional cell |
| Chemical formula:VF4 | Formation energy/atom (eV):-2.885 | a 4.634 Å | α:90.0 ° | a 4.634 Å | α:90.0 ° |
| Space-group :Pmna, 53 | Relaxed energy/atom (eV):-3.8824 | b 5.566 Å | β:90.0 ° | b 4.886 Å | β:90.0 ° |
| Calculation type:Bulk | SCF bandgap (eV):0.356 | c 4.886 Å | γ:90.001 ° | c 5.566 Å | γ:90.0 ° |
| Crystal system:orthorhombic | Point group:mmm | Density (gcm-3):3.35 | Volume (Å3):126.02 | nAtoms_prim:10 | nAtoms_conv:10 |

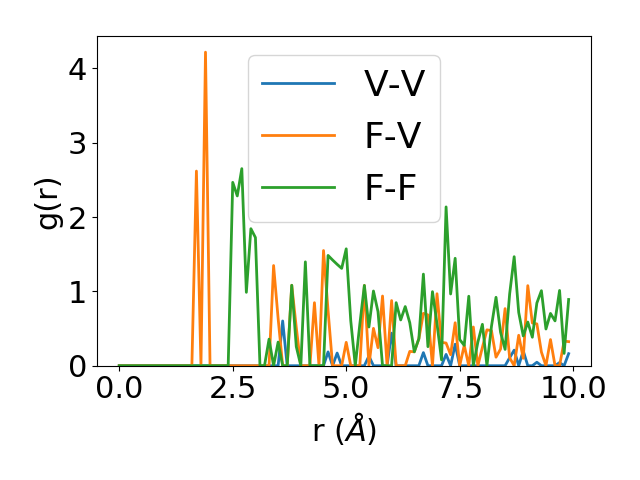

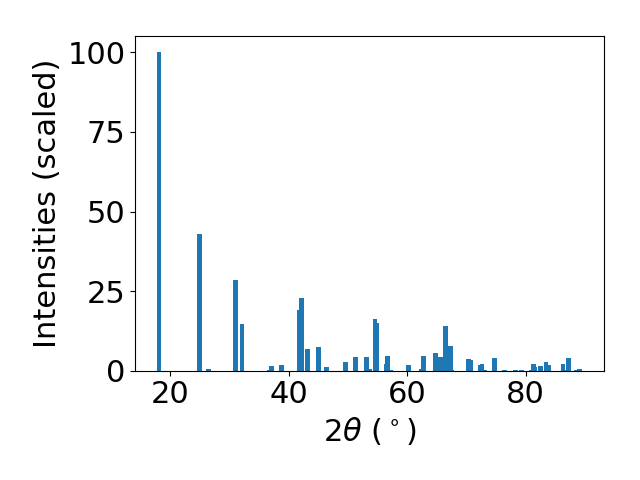

The following shows the X-ray diffraction (XRD)[Source-code] pattern and the Radial distribution function (RDF) plots [Source-code]. XRD peaks should be comparable to experiments for bulk structures. Relative intensities may differ. For mono- and multi-layer structures , we take the z-dimension during DFT calculation for XRD calculations, which may differ from the experimental set-up.

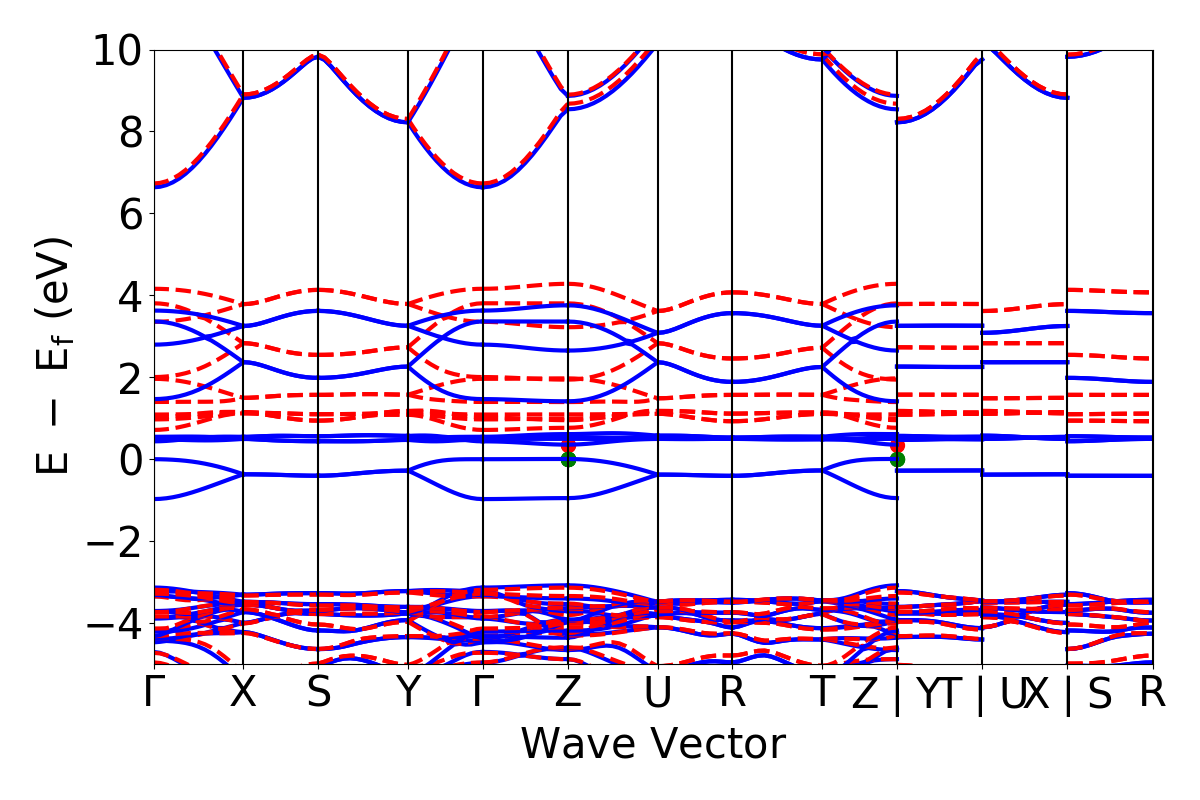

The following shows the electronic density of states and bandstructure [Source-code]. DFT is generally predicted to underestimate bandgap of materials. Accurate band-gaps are obtained with higher level methods (with high computational requirement) such as HSE, GW , which are under progress. If available, MBJ data should be comparable to experiments also. Total DOS, Orbital DOS and Element dos [Source-code] buttons are provided for density of states options. Energy is rescaled to make Fermi-energy zero. In the bandstructure plot [Source-code], spin up is shown with blue lines while spin down are shown with red lines. Non-degenerate spin-up and spin-down states (if applicable) would imply a net orbital magnetic moment in the system. Fermi-occupation tolerance for bandgap calculation is chosen as 0.001.
High-symmetry kpoints based bandgap (eV): 0.35D

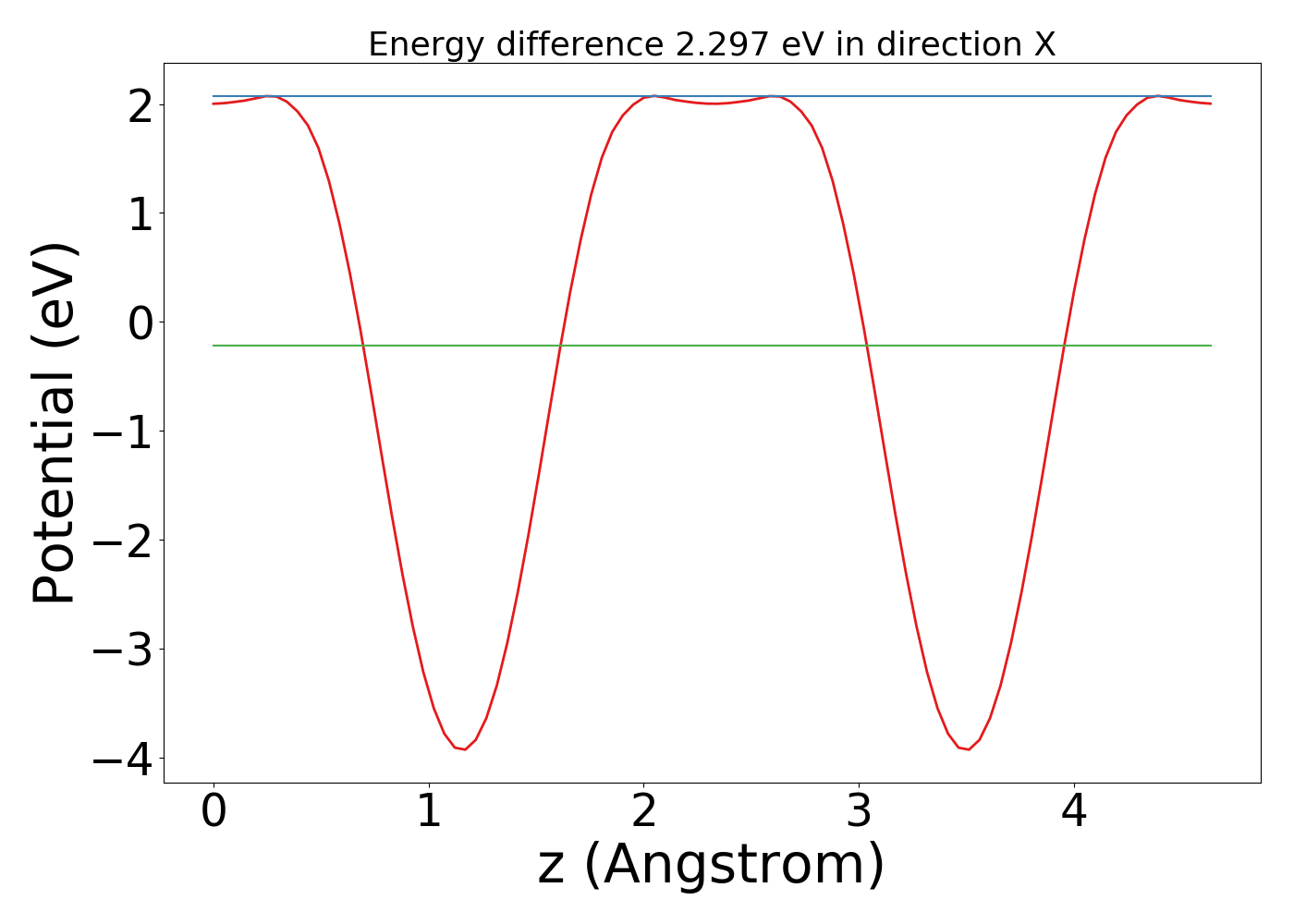

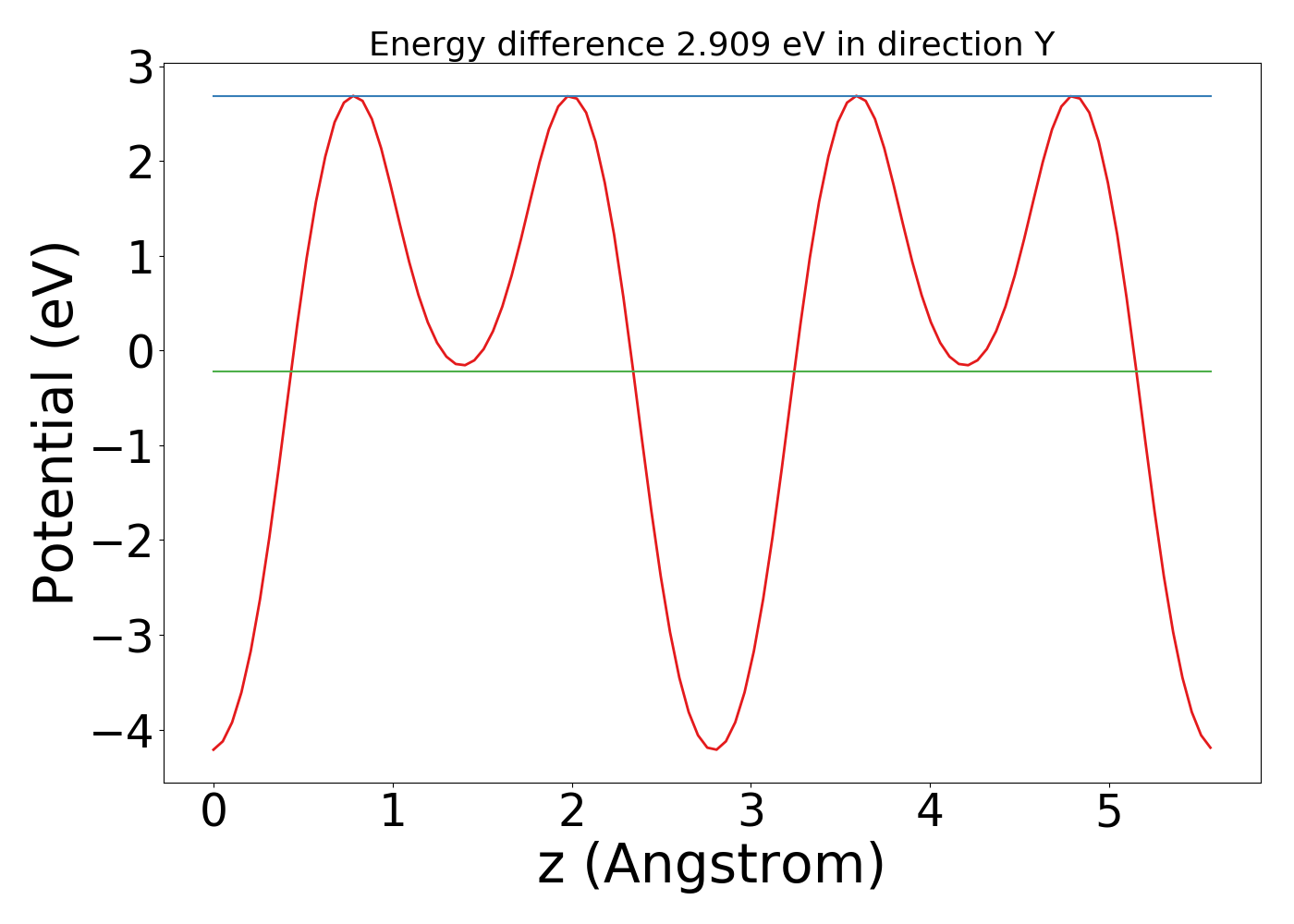

The following plot shows the plane averaged electrostatic potential (ionic+Hartree) along x, y and z-directions. The red line shows the Fermi-energy while the green line shows the maximum value of the electrostatic potential. For slab structures (with vacuum along z-direction), the difference in these two values can be used to calculate work-function of the material.

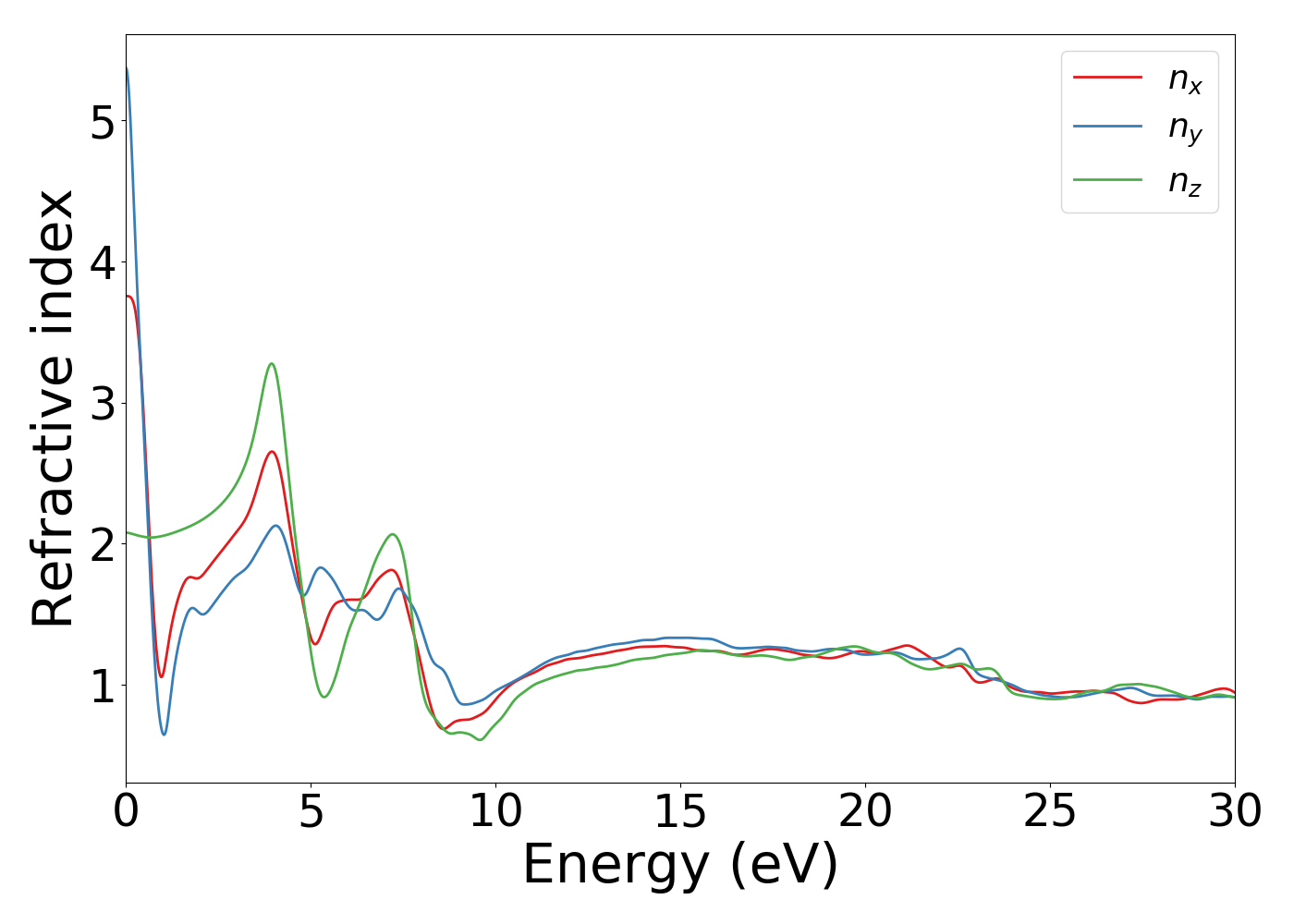

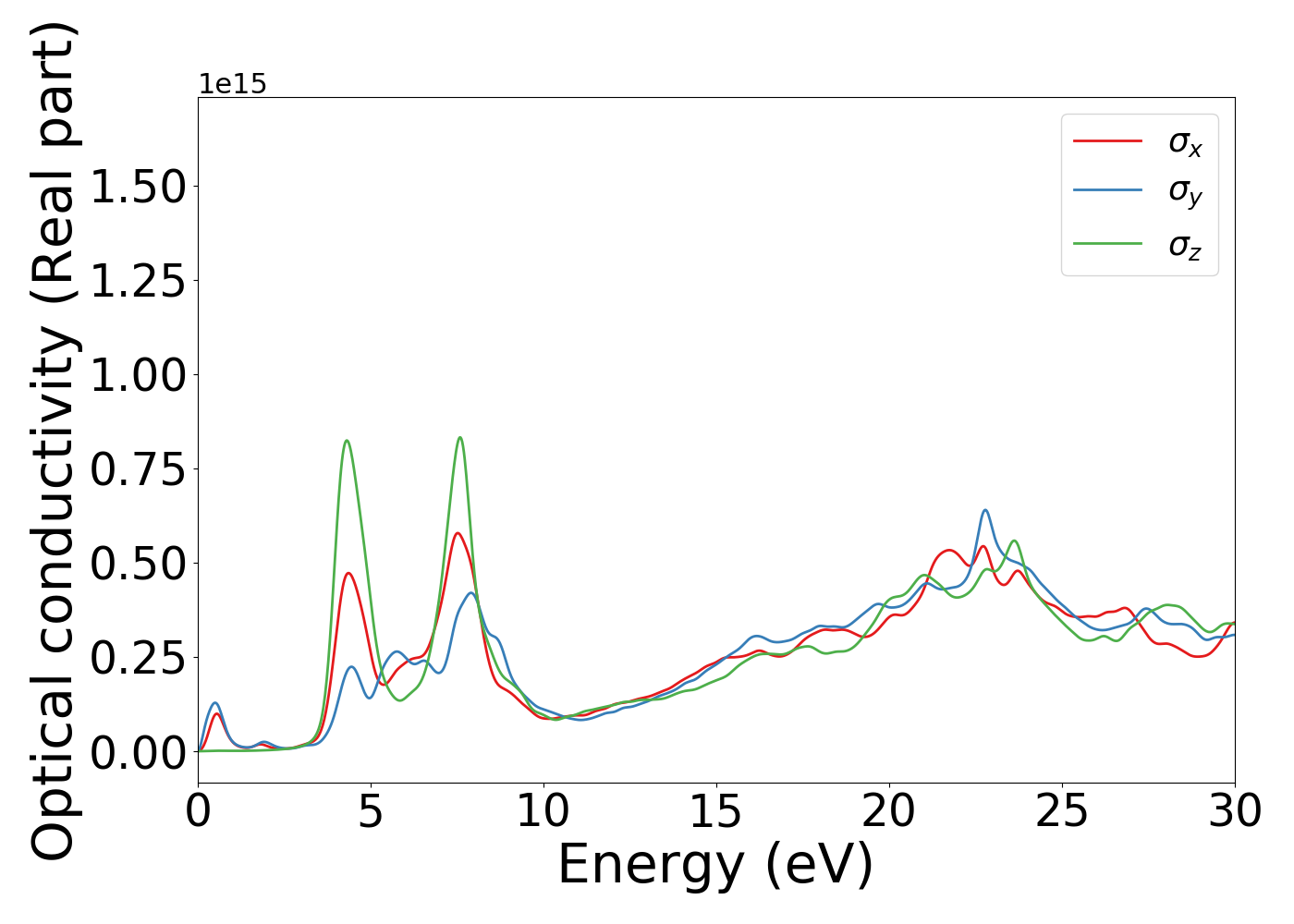

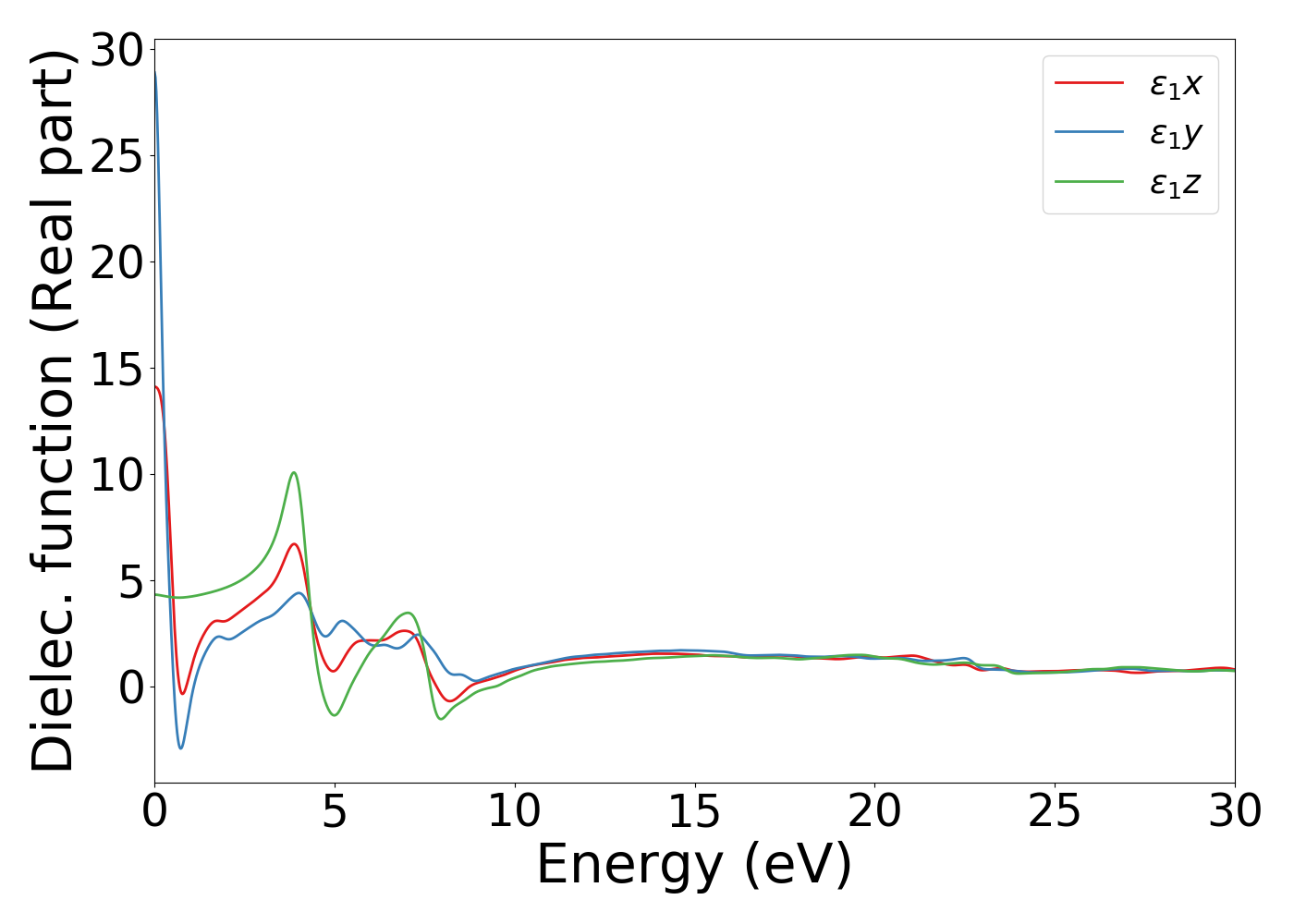

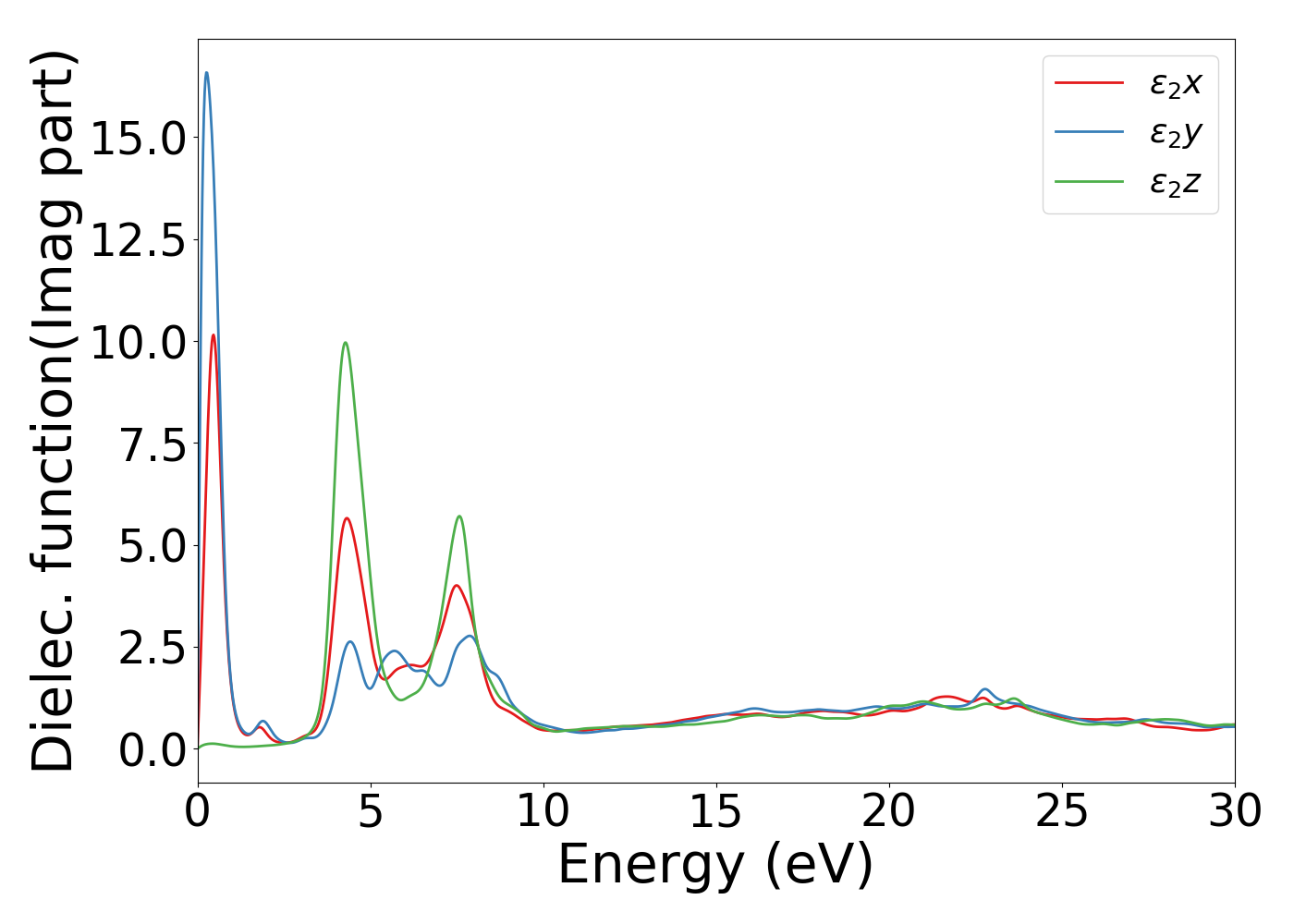

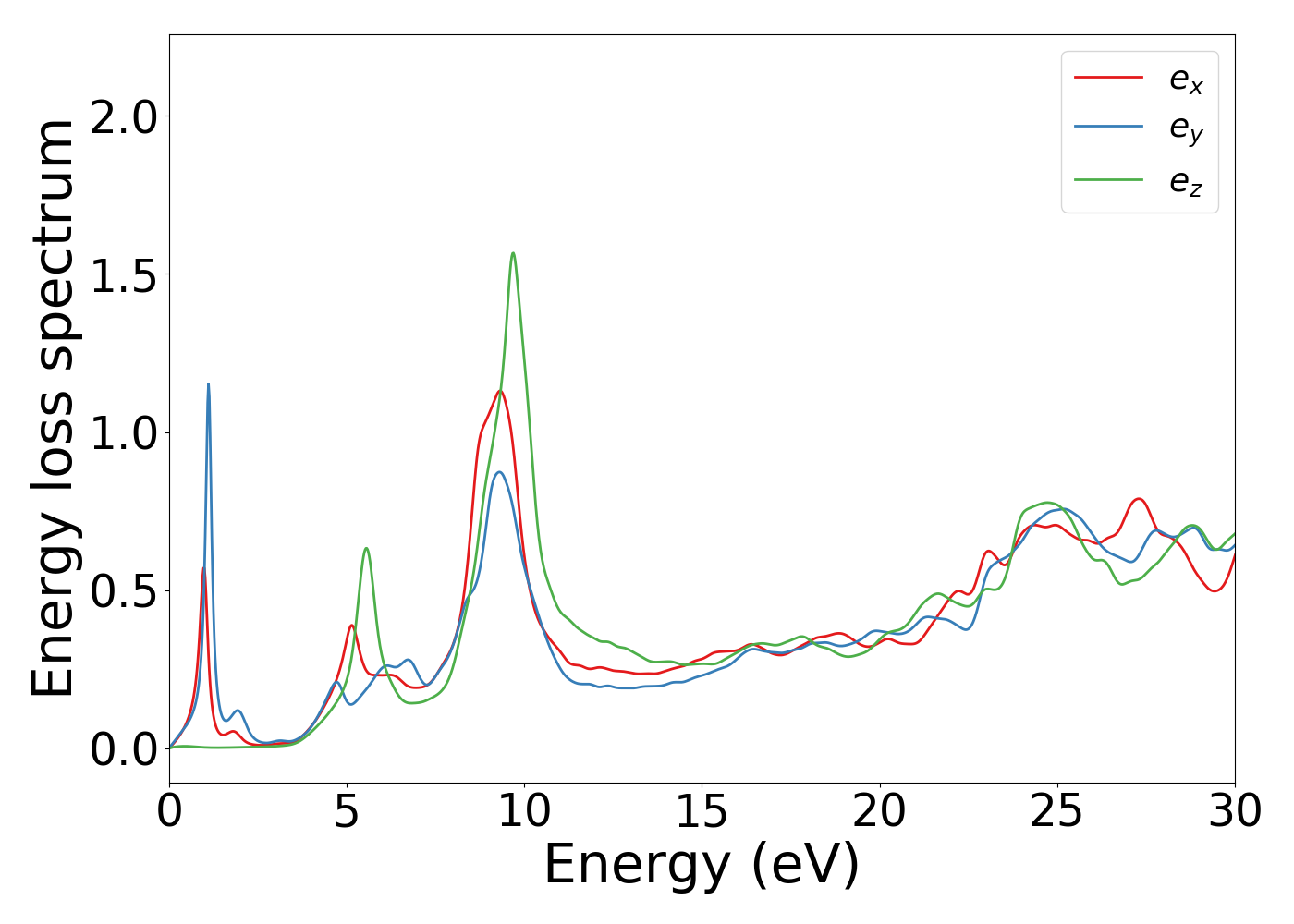

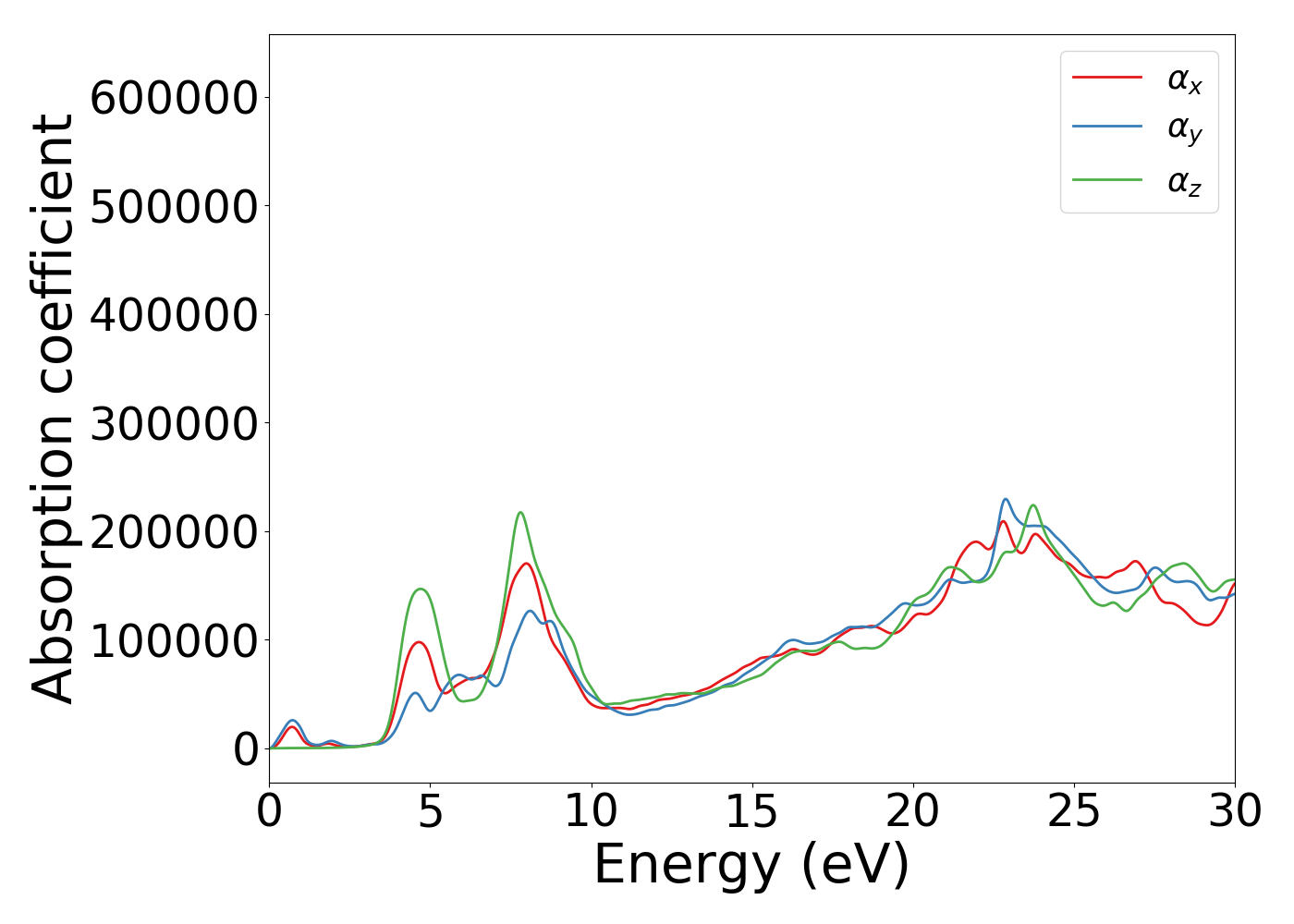

Incident photon energy dependence of optical is shown below [Source-code]. Only interband optical transitions are taken into account.Please note the underestimatation of band-gap problem with DFT will reflect in the spectra as well. For very accurate optical properties GW/BSE calculation would be needed, which is yet to be done because of their very high computational cost. Optical properties for mono-/multi-layer materials were rescaled with the actual thickness to simulation z-box ratio. Absorption coeffiecient is in cm-1 unit. Also, ionic contributions were neglected.
Dense k-mesh based bandgap is : 0.0168 eV
Static real-parts of dielectric function in x,y,z: 14.1,28.88,4.31
The orbital magnetic moment was obtained after SCF run. This is not a DFT+U calculation, hence the data could be used to predict zero or non-zero magnetic moment nature of the material only.
Total magnetic moment: 2.0 μB
Magnetic moment per atom: 0.2 μB
| Elements | s | p | d | tot |
| V | 0.006 | 0.006 | 0.963 | 0.975 |
| V | 0.006 | 0.006 | 0.964 | 0.976 |
| F | -0.0 | -0.031 | 0.0 | -0.031 |
| F | -0.0 | 0.018 | 0.0 | 0.018 |
| F | -0.0 | 0.018 | 0.0 | 0.018 |
| F | -0.0 | -0.031 | 0.0 | -0.031 |
| F | -0.0 | -0.031 | 0.0 | -0.031 |
| F | -0.0 | 0.018 | 0.0 | 0.018 |
| F | -0.0 | 0.018 | 0.0 | 0.018 |
| F | -0.0 | -0.031 | 0.0 | -0.031 |
Links to other databases or papers are provided below
mp-765919
