JVASP-29122_Te2MoWSeS
JARVIS-ID:JVASP-29122 Functional:optB88-vdW Primitive cell Primitive cell Conventional cell Conventional cell
Chemical formula:Te2MoWSeS Formation energy/atom (eV):-0.368 a 3.416 Å α:90.0 ° a 3.416 Å α:90.0 °
Space-group :P3m1, 156 Relaxed energy/atom (eV):-4.484 b 3.416 Å β:90.0 ° b 3.416 Å β:90.0 °
Calculation type:Bulk SCF bandgap (eV):0.151 c 38.343 Å γ:120.0 ° c 38.343 Å γ:120.0 °
Crystal system:trigonal Point group:3m Density (gcm-3):5.54 Volume (3):387.52 nAtoms_prim:12 nAtoms_conv:12
Download input files

Structural analysis [Reference]

The following shows the X-ray diffraction (XRD)[Source-code] pattern and the Radial distribution function (RDF) plots [Source-code]. XRD peaks should be comparable to experiments for bulk structures. Relative intensities may differ. For mono- and multi-layer structures , we take the z-dimension during DFT calculation for XRD calculations, which may differ from the experimental set-up.


Electronic structure [Reference]

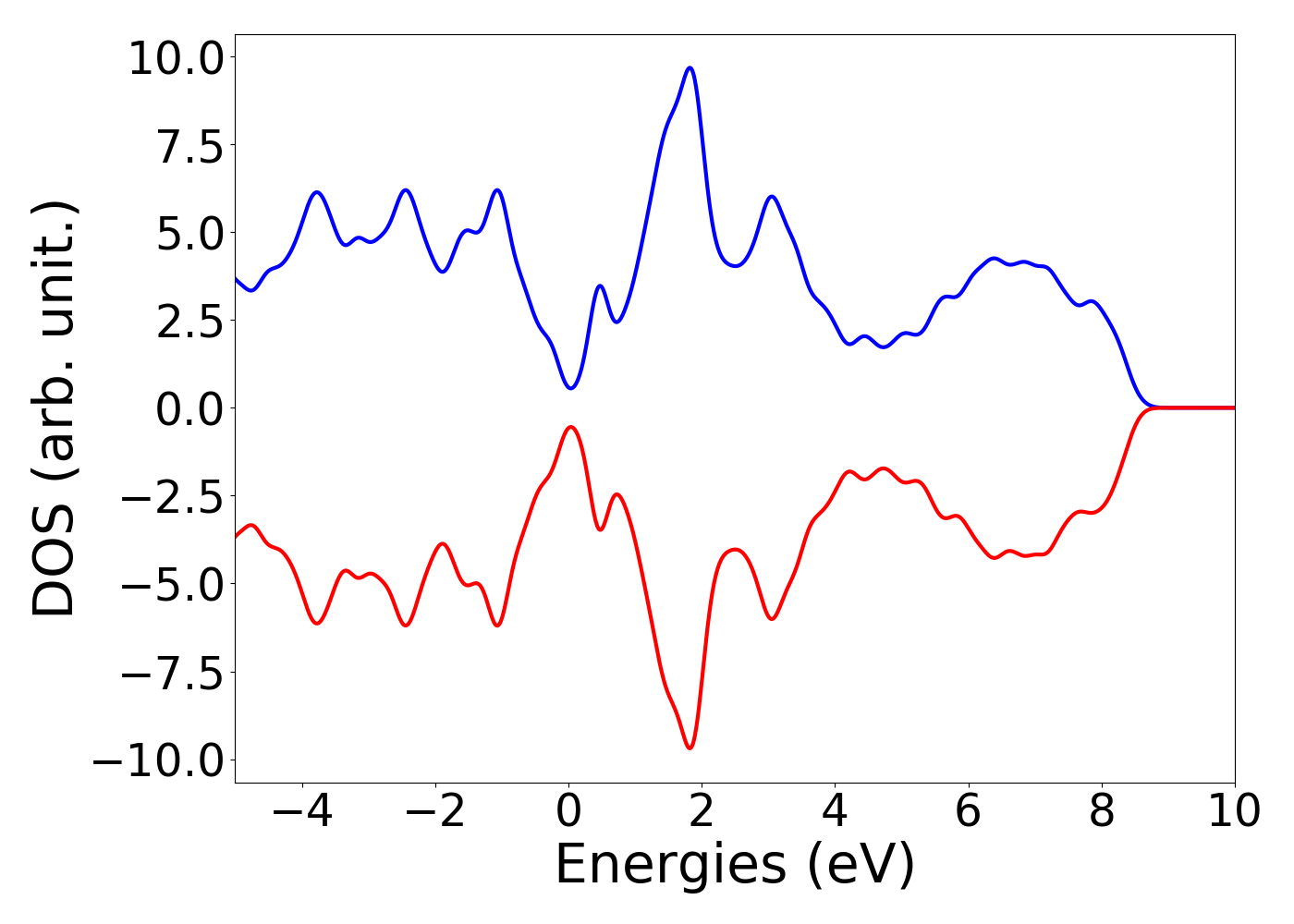

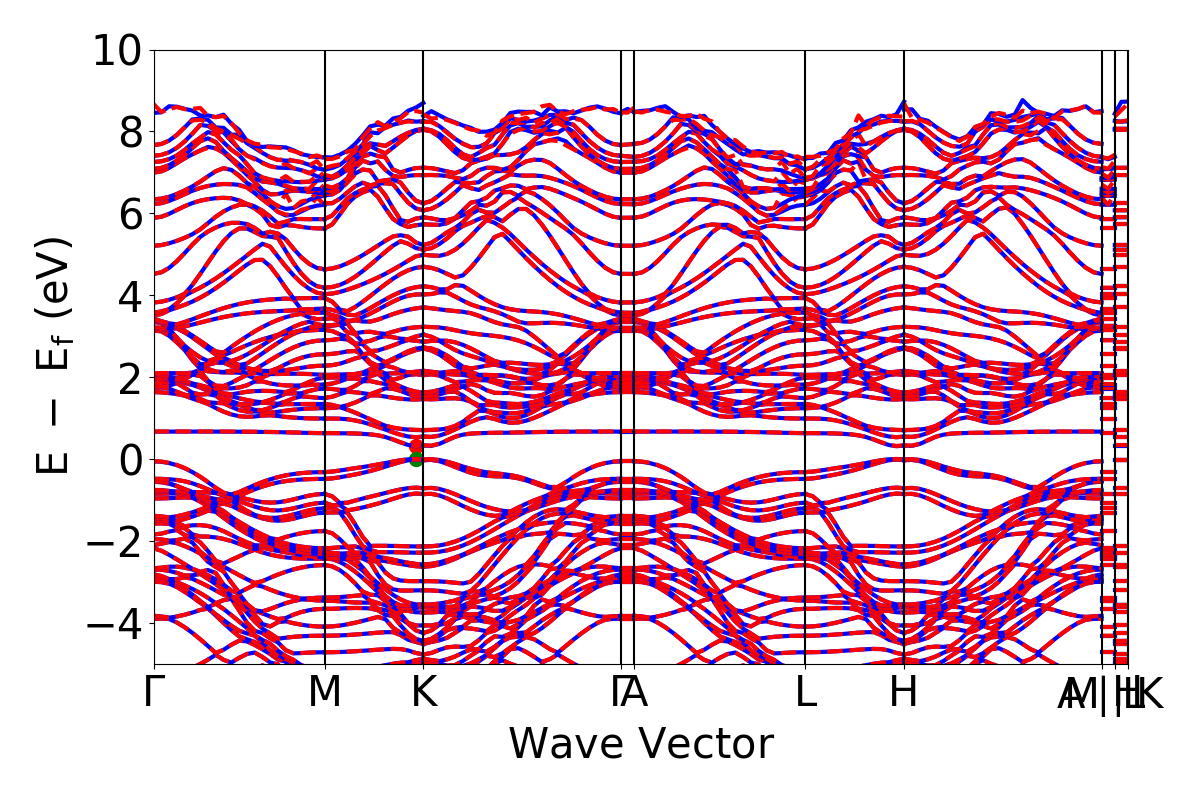

The following shows the electronic density of states and bandstructure [Source-code]. DFT is generally predicted to underestimate bandgap of materials. Accurate band-gaps are obtained with higher level methods (with high computational requirement) such as HSE, GW , which are under progress. If available, MBJ data should be comparable to experiments also. Total DOS, Orbital DOS and Element dos [Source-code] buttons are provided for density of states options. Energy is rescaled to make Fermi-energy zero. In the bandstructure plot [Source-code], spin up is shown with blue lines while spin down are shown with red lines. Non-degenerate spin-up and spin-down states (if applicable) would imply a net orbital magnetic moment in the system. Fermi-occupation tolerance for bandgap calculation is chosen as 0.001.

High-symmetry kpoints based bandgap (eV): 0.311D


Electrostatic potential [Reference]

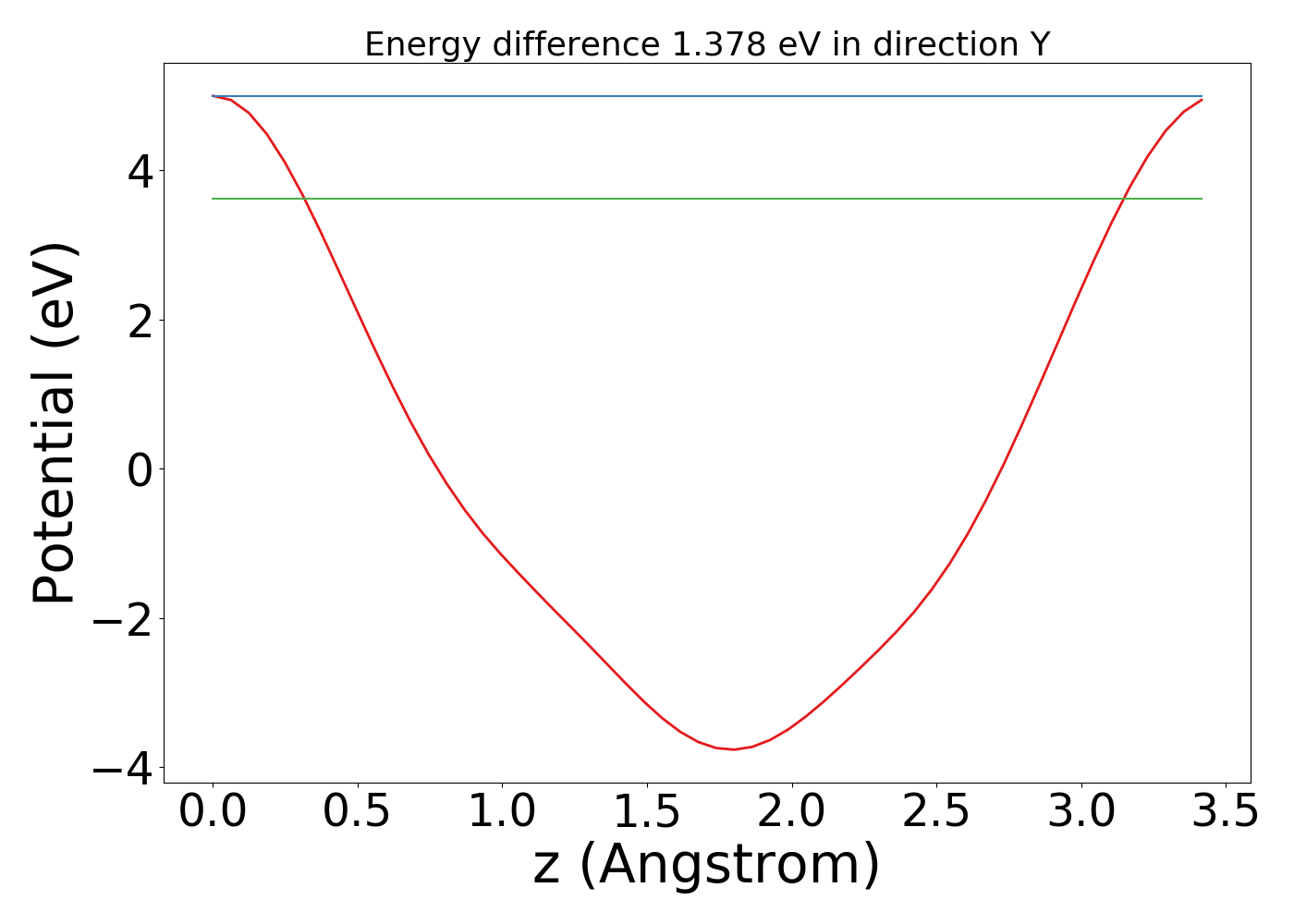

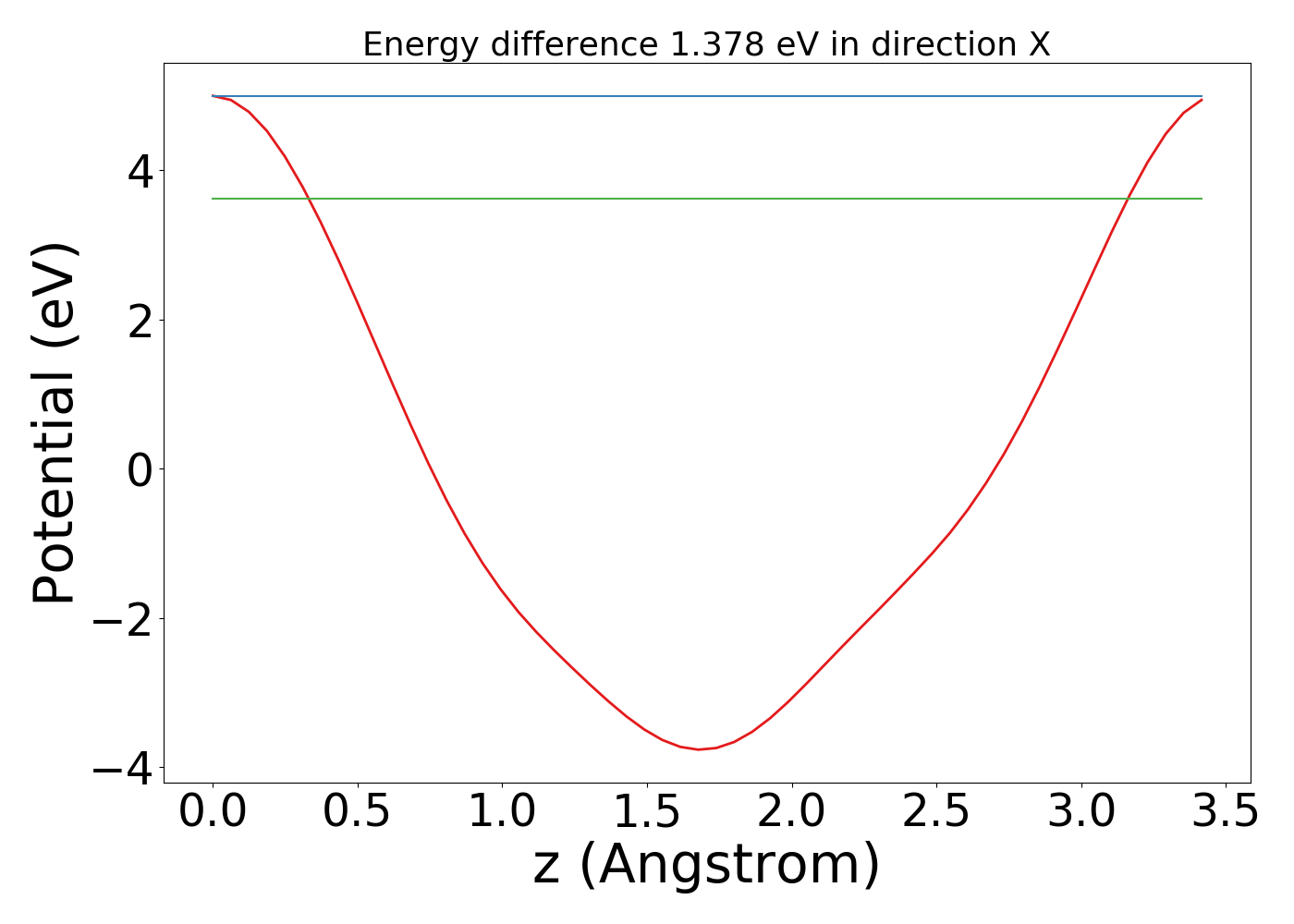

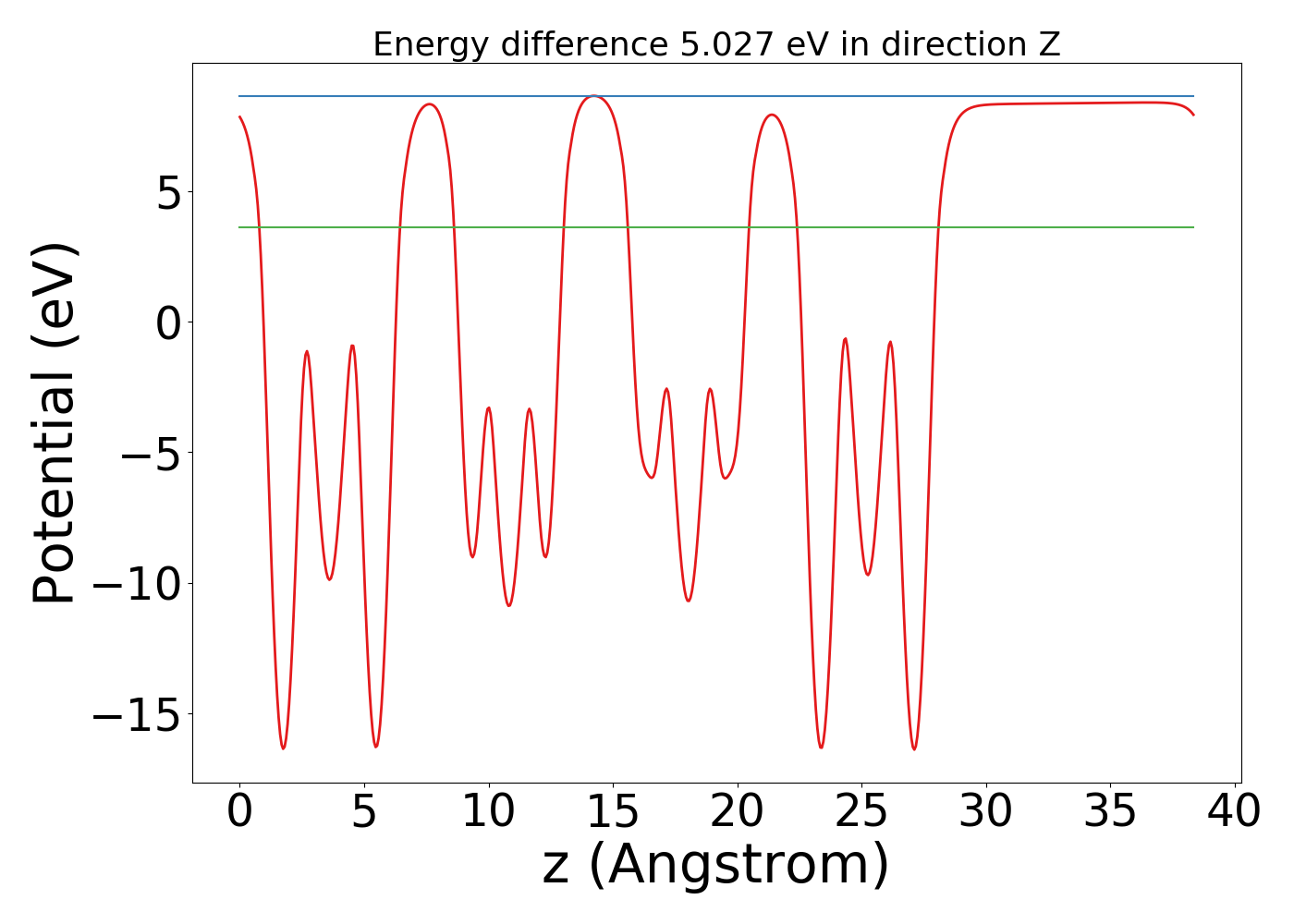

The following plot shows the plane averaged electrostatic potential (ionic+Hartree) along x, y and z-directions. The red line shows the Fermi-energy while the green line shows the maximum value of the electrostatic potential. For slab structures (with vacuum along z-direction), the difference in these two values can be used to calculate work-function of the material.


Optoelectronic properties Semi-local [Reference]

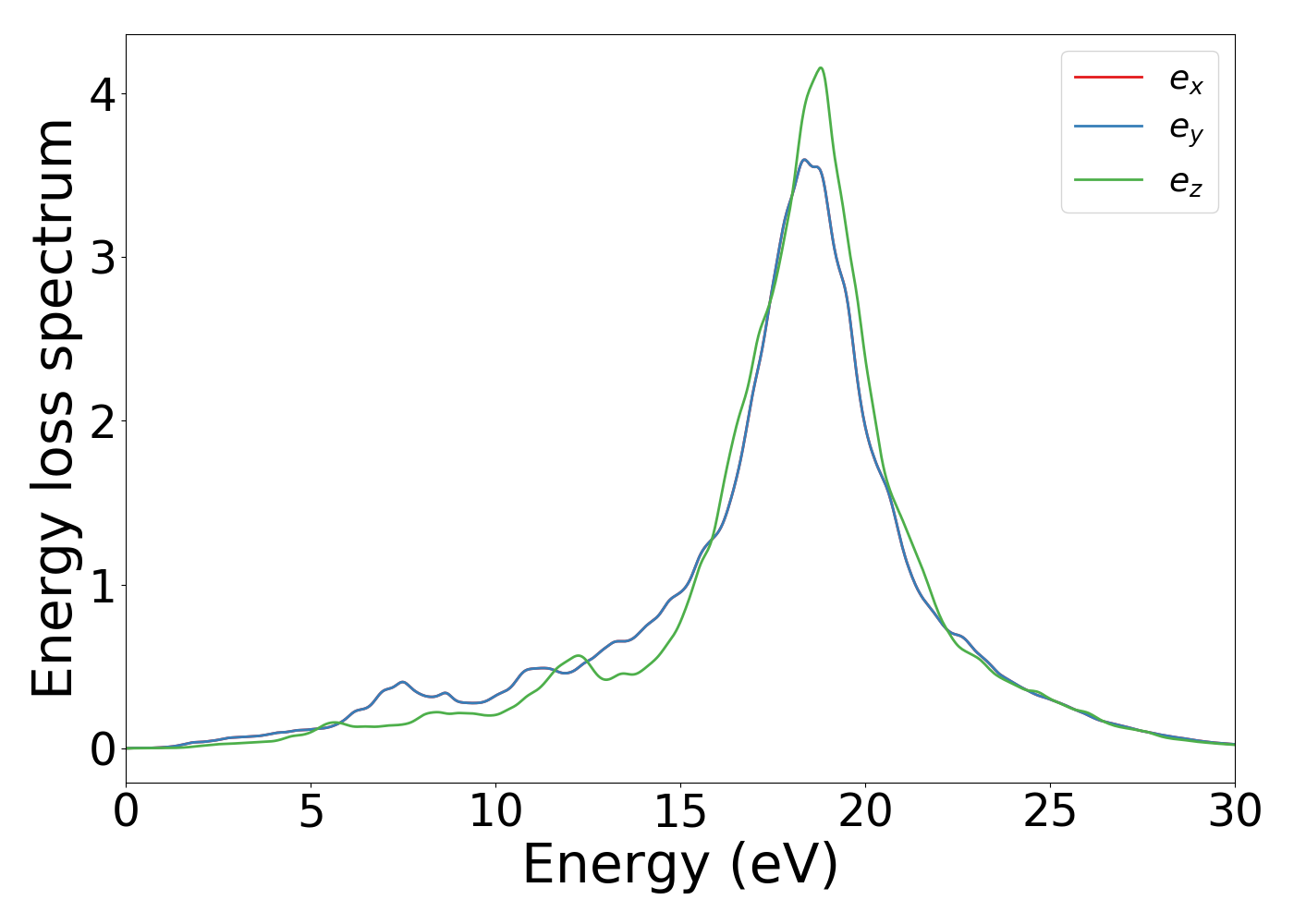

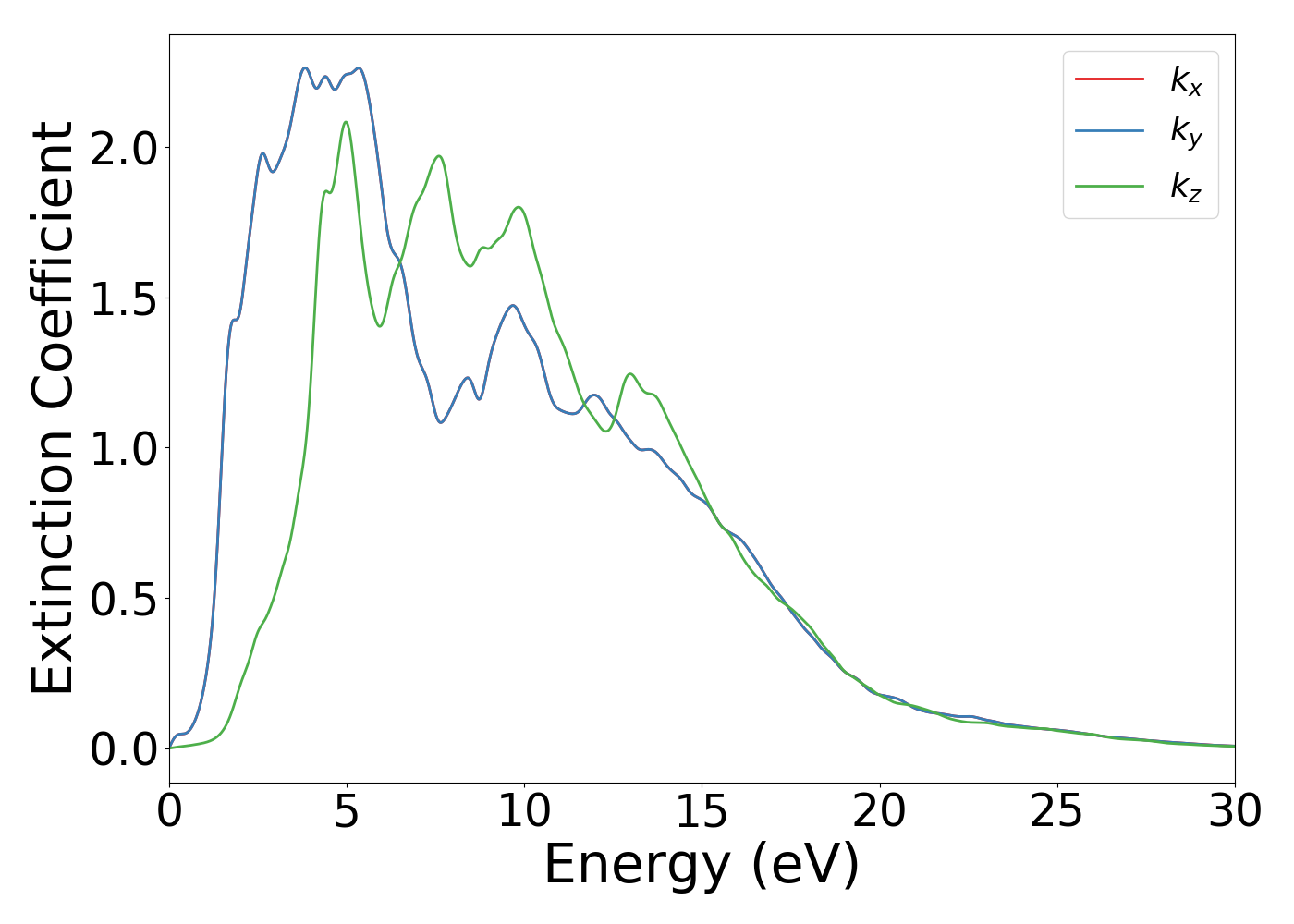

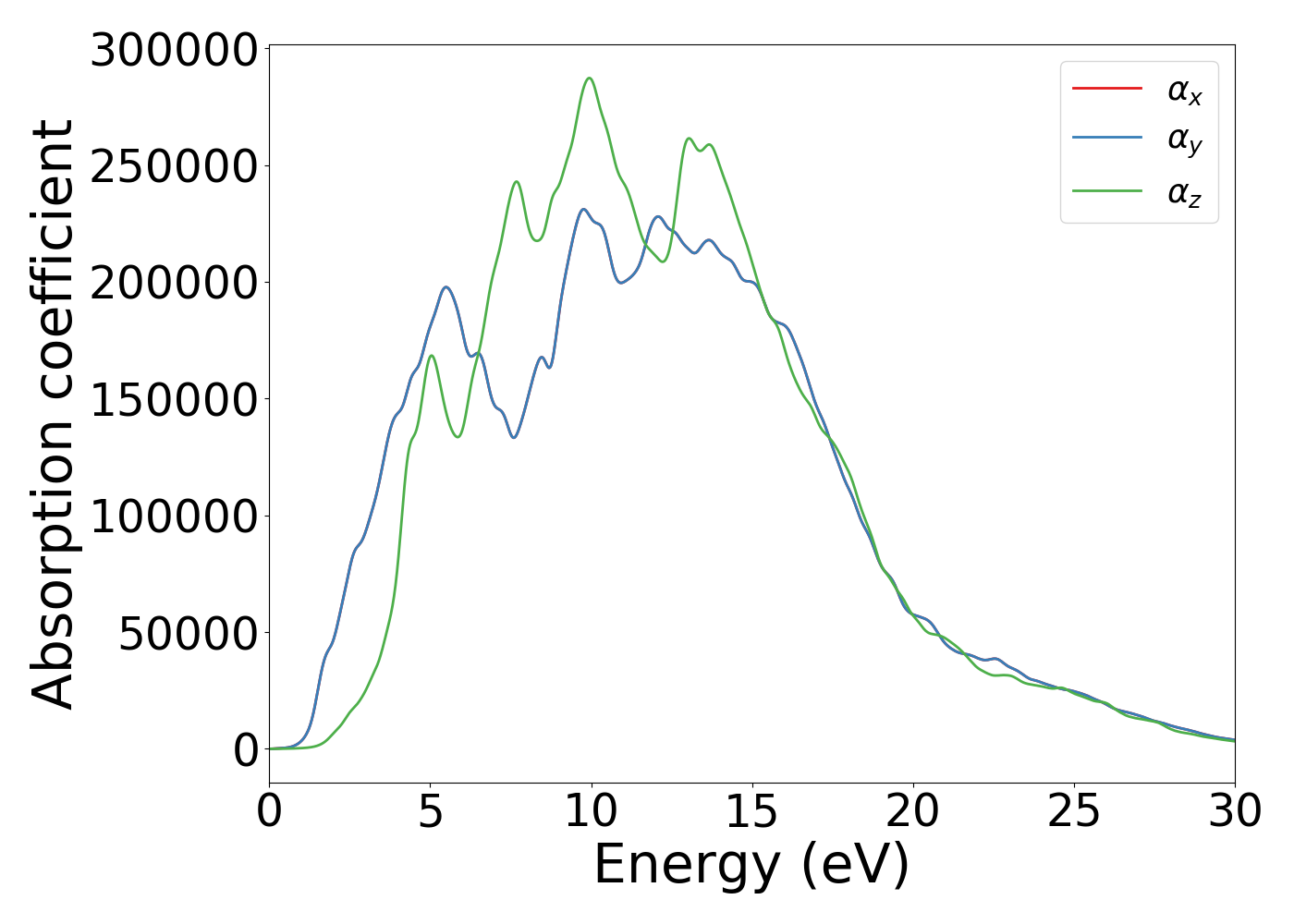

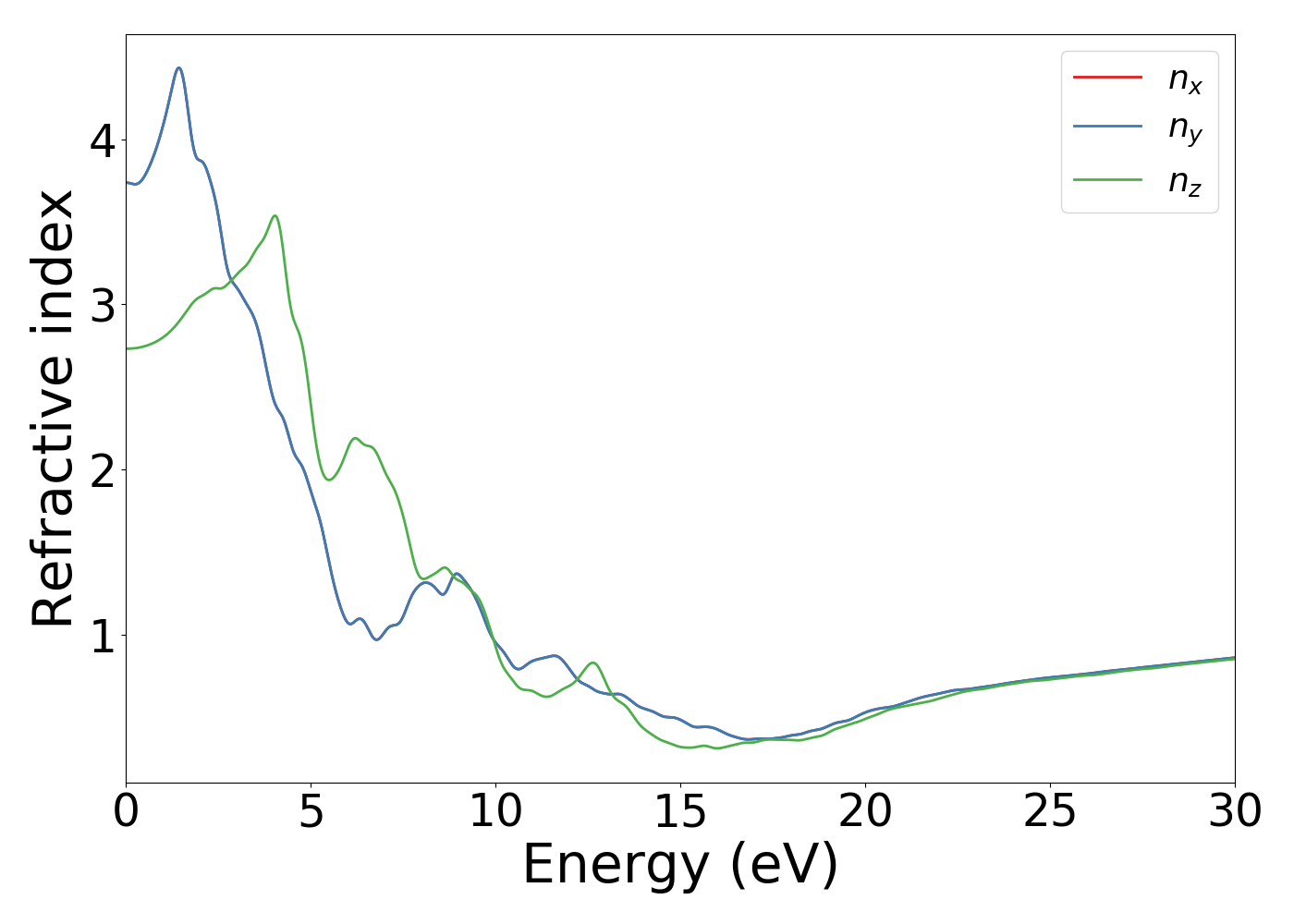

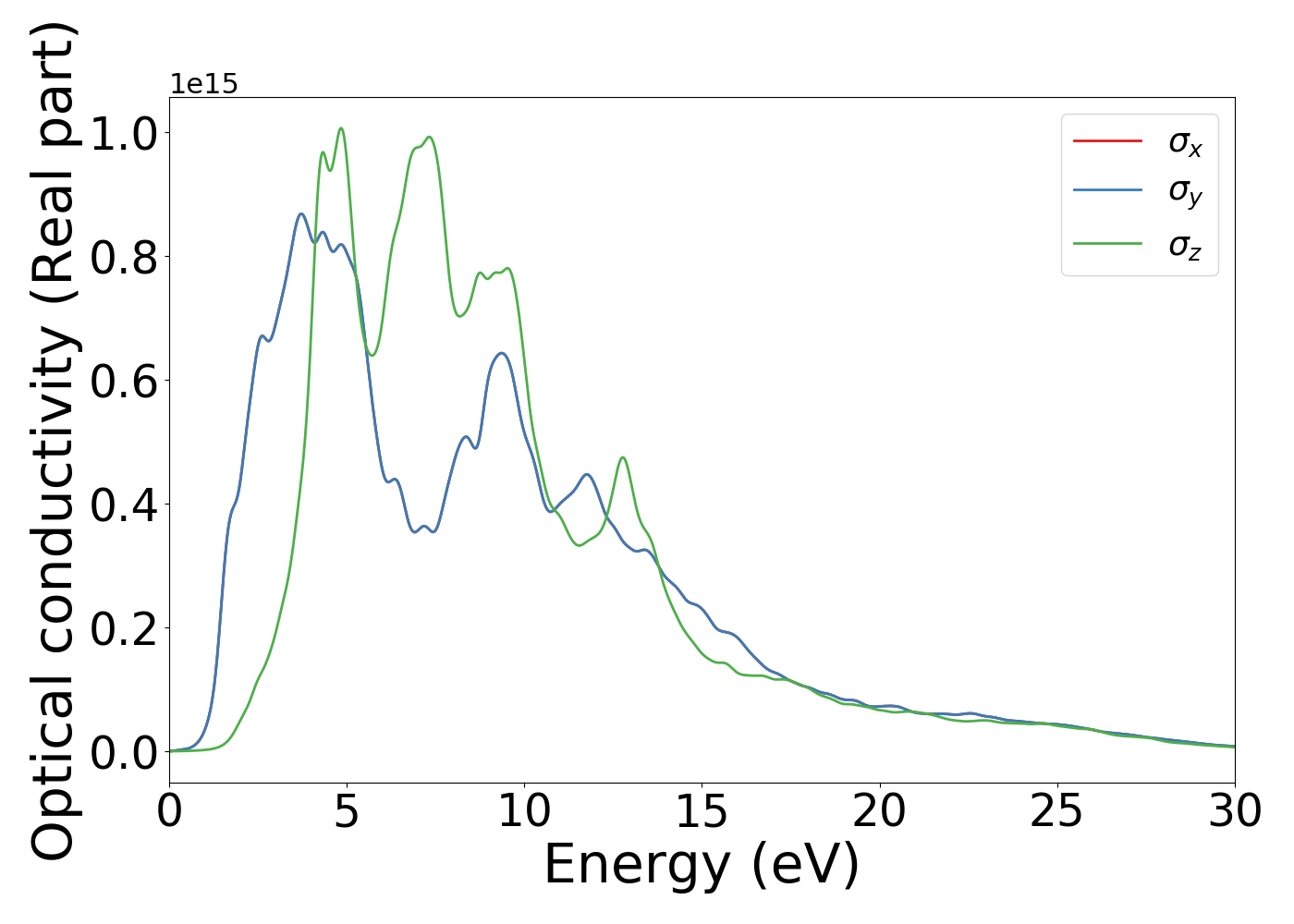

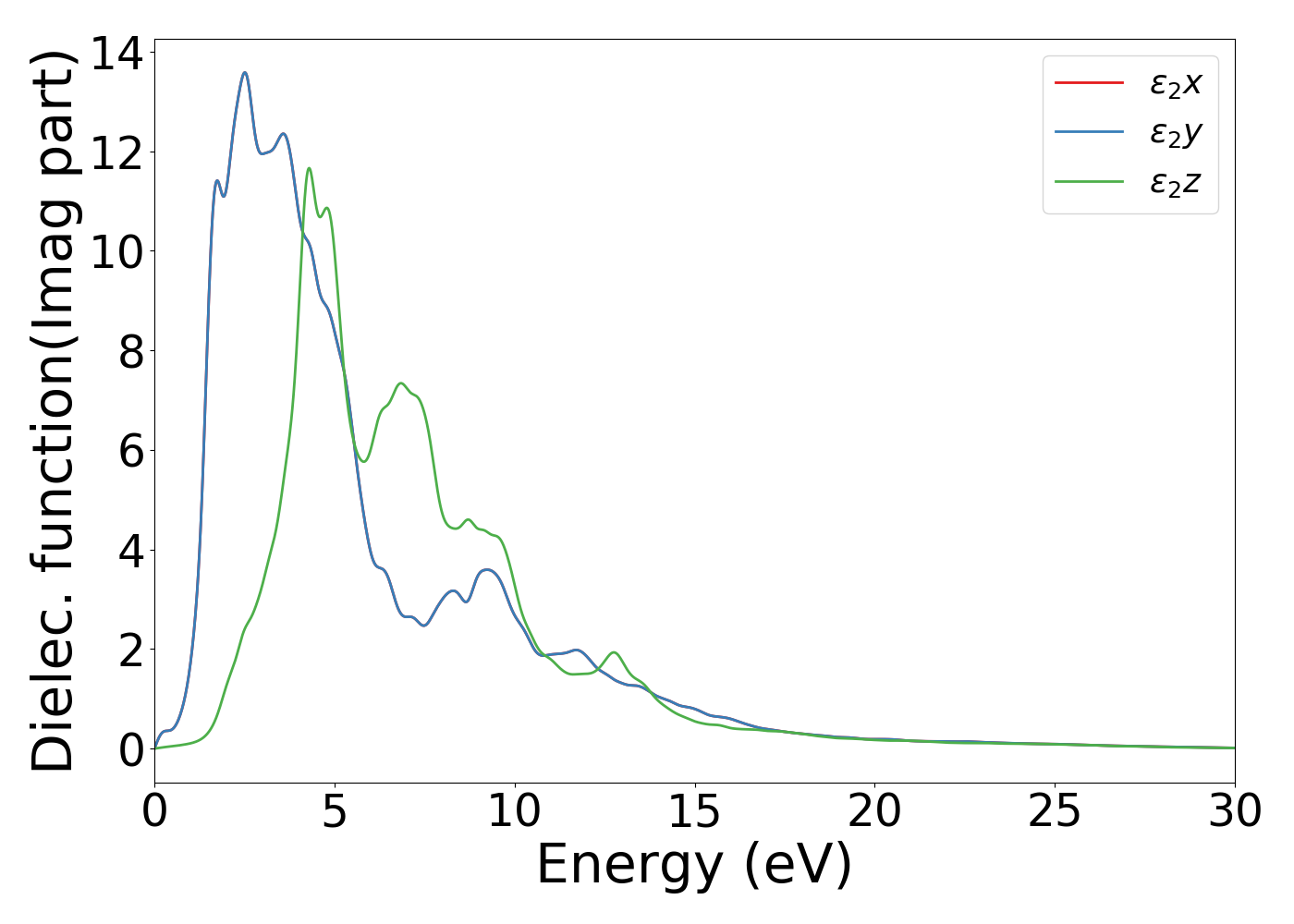

Incident photon energy dependence of optical is shown below [Source-code]. Only interband optical transitions are taken into account.Please note the underestimatation of band-gap problem with DFT will reflect in the spectra as well. For very accurate optical properties GW/BSE calculation would be needed, which is yet to be done because of their very high computational cost. Optical properties for mono-/multi-layer materials were rescaled with the actual thickness to simulation z-box ratio. Absorption coeffiecient is in cm-1 unit. Also, ionic contributions were neglected.

Dense k-mesh based bandgap is : 0.1976 eV

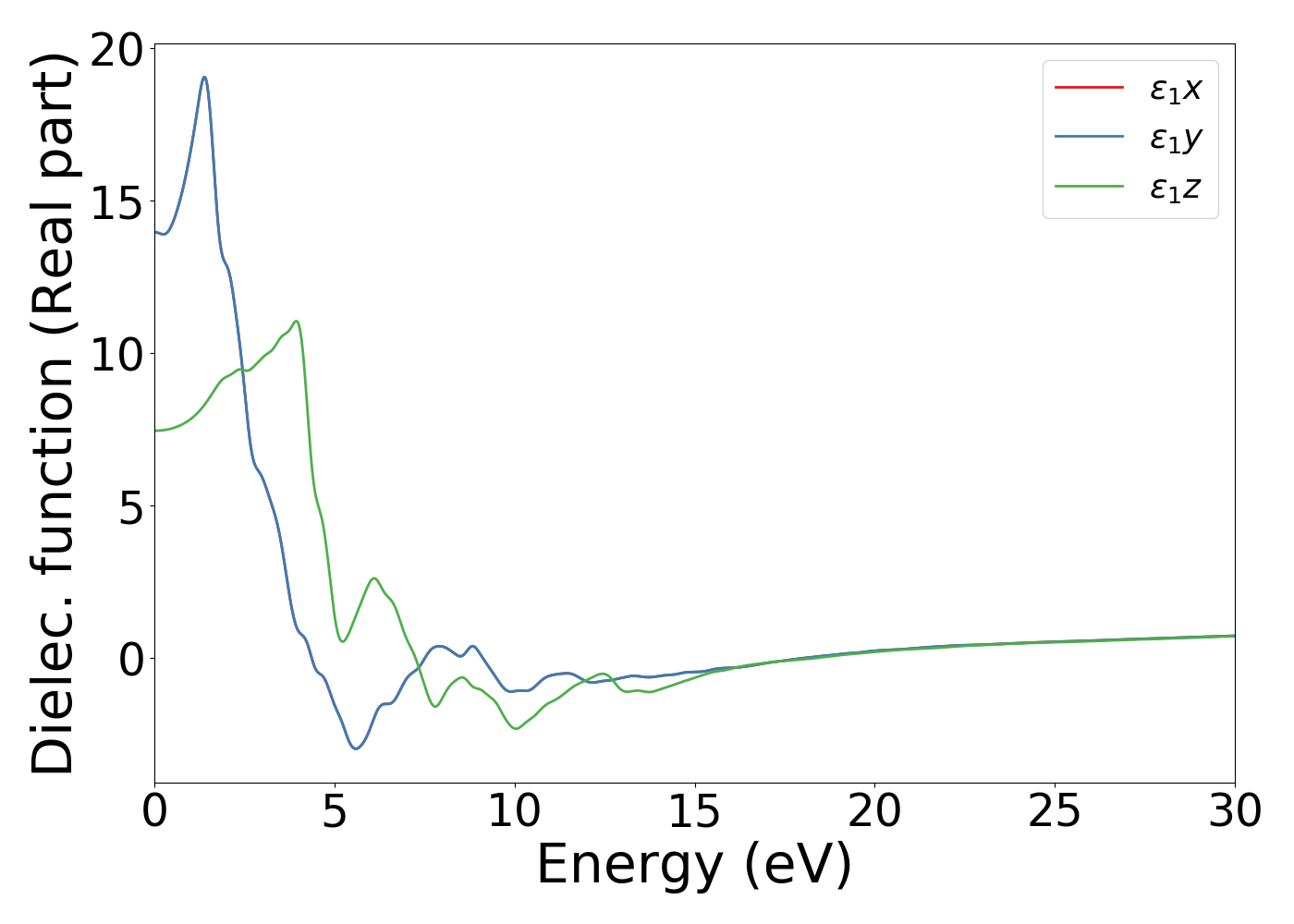

Static real-parts of dielectric function in x,y,z: 13.97,13.97,7.46


Magnetic moment [Reference]

The orbital magnetic moment was obtained after SCF run. This is not a DFT+U calculation, hence the data could be used to predict zero or non-zero magnetic moment nature of the material only.

Total magnetic moment: -0.0028 μB

Magnetic moment per atom: -0.000233333333333 μB

Magnetization
Elementsspdtot
Te-0.00.0-0.00.0
Te-0.00.0-0.00.0
Te0.00.0-0.00.0
Te-0.00.0-0.00.0
Mo-0.00.00.00.0
Mo-0.0-0.0-0.0-0.0
W-0.0190.0-0.001-0.019
W-0.0-0.0-0.0-0.0
Se0.00.0-0.00.0
Se0.00.0-0.00.0
S0.00.00.00.0
S0.00.00.00.0
