JVASP-27971_Co(ClO4)2
JARVIS-ID:JVASP-27971 Functional:optB88-vdW Primitive cell Primitive cell Conventional cell Conventional cell
Chemical formula:Co(ClO4)2 Formation energy/atom (eV):0.082 a 4.772 Å α:90.0 ° a 4.772 Å α:90.0 °
Space-group :P-3, 147 Relaxed energy/atom (eV):-2.6728 b 4.772 Å β:90.0 ° b 4.772 Å β:90.0 °
Calculation type:1L SCF bandgap (eV):0.458 c 26.356 Å γ:120.0 ° c 26.356 Å γ:120.0 °
Crystal system:trigonal Point group:-3 Density (gcm-3):0.82 Volume (3):519.74 nAtoms_prim:11 nAtoms_conv:11
Download input files

Convergence [Reference]

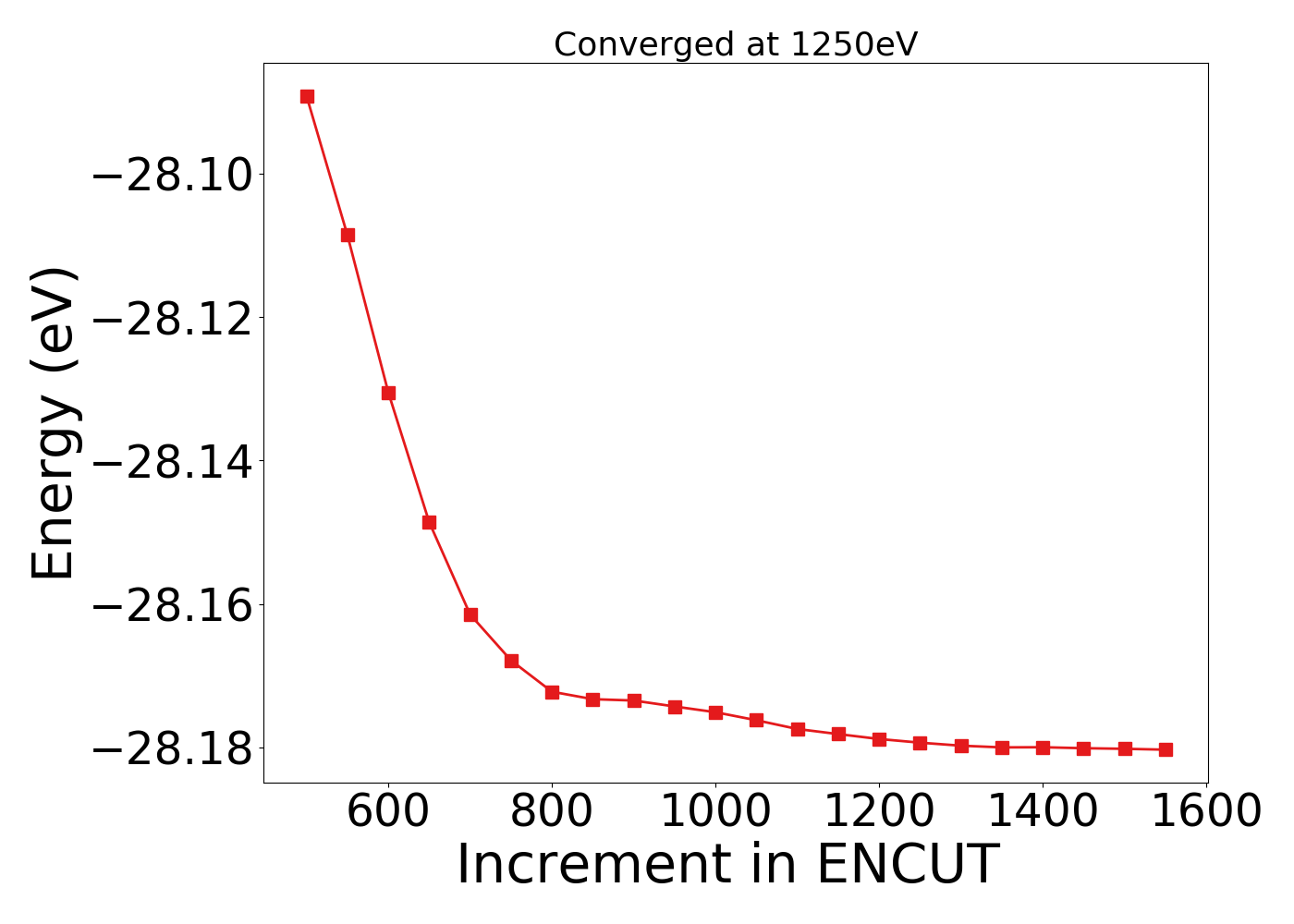

Calculations are done using VASP software [Source-code]. Convergence on KPOINTS [Source-code] and ENCUT [Source-code] is done with respect to total energy of the system within 0.001 eV tolerance. Please note convergence on KPOINTS and ENCUT is generally done for target properties, but here we assume energy-convergence with 0.001 eV should be sufficient for other properties also. The points on the curves are obtained with single-point calculation (number of ionic steps, NSW=1 ). However, for very accurate calculations, NSW>1 might be needed.


Structural analysis [Reference]

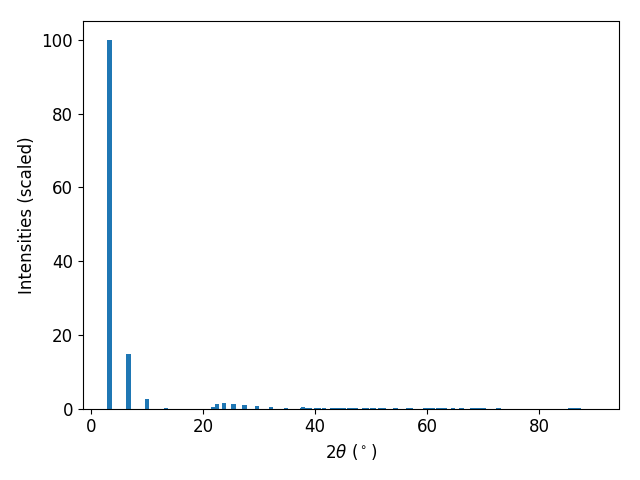

The following shows the X-ray diffraction (XRD)[Source-code] pattern and the Radial distribution function (RDF) plots [Source-code]. XRD peaks should be comparable to experiments for bulk structures. Relative intensities may differ. For mono- and multi-layer structures , we take the z-dimension during DFT calculation for XRD calculations, which may differ from the experimental set-up.


Electrostatic potential [Reference]

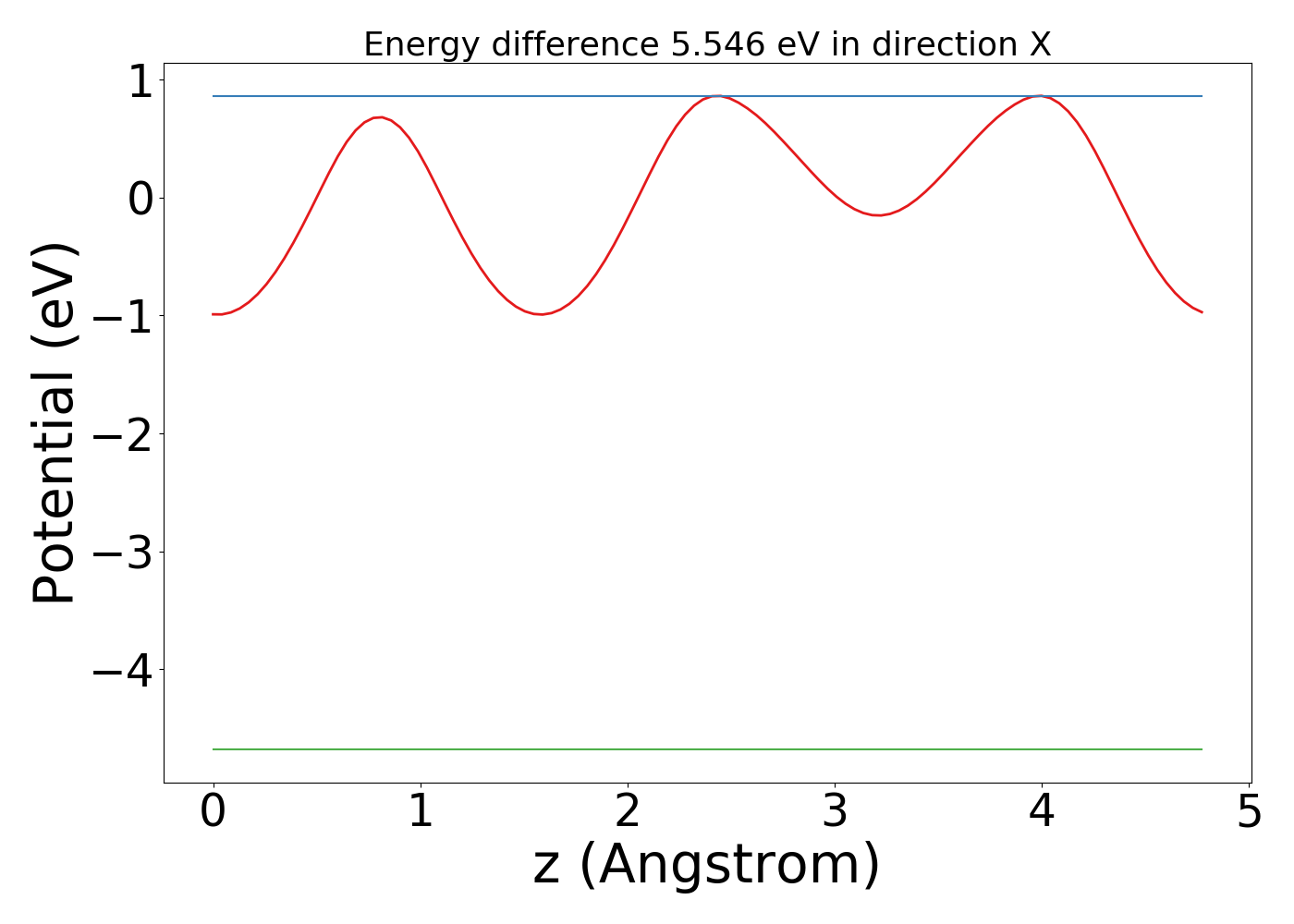

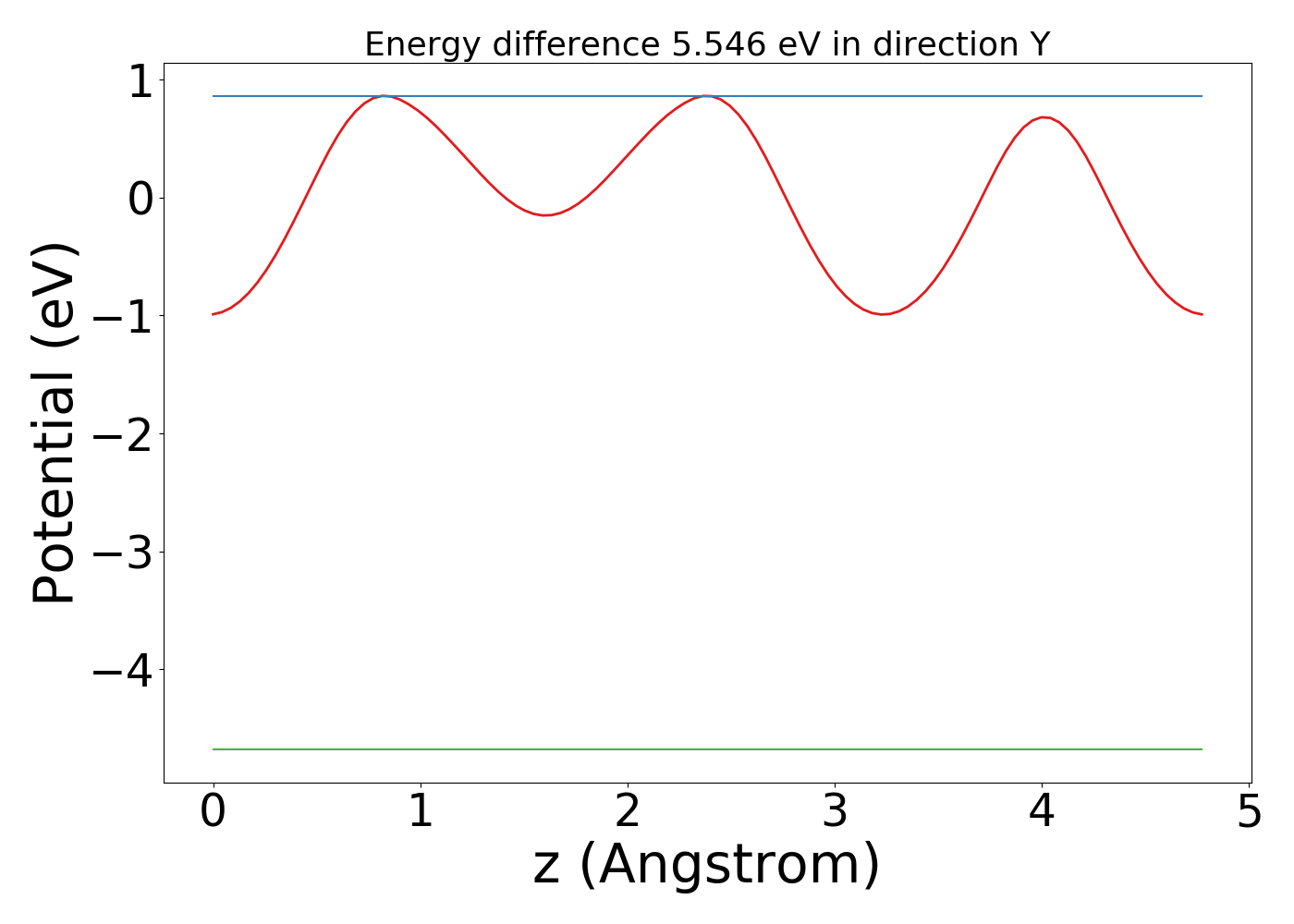

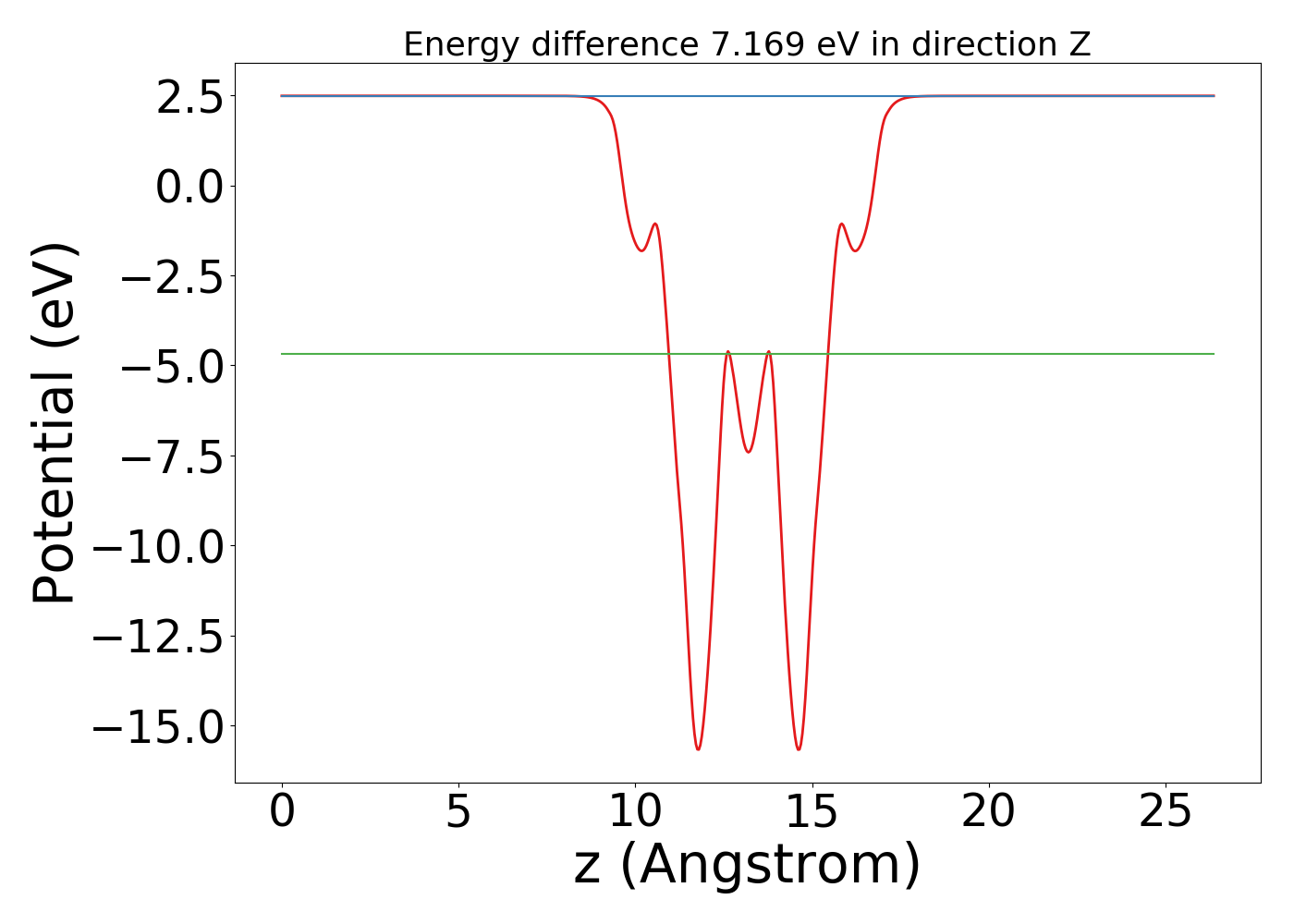

The following plot shows the plane averaged electrostatic potential (ionic+Hartree) along x, y and z-directions. The red line shows the Fermi-energy while the green line shows the maximum value of the electrostatic potential. For slab structures (with vacuum along z-direction), the difference in these two values can be used to calculate work-function of the material.


Exfoliation energy [Reference]

Exfoliation energy (meV/atom) is: 26.43


Spin-orbit coupling based spillage [Reference]

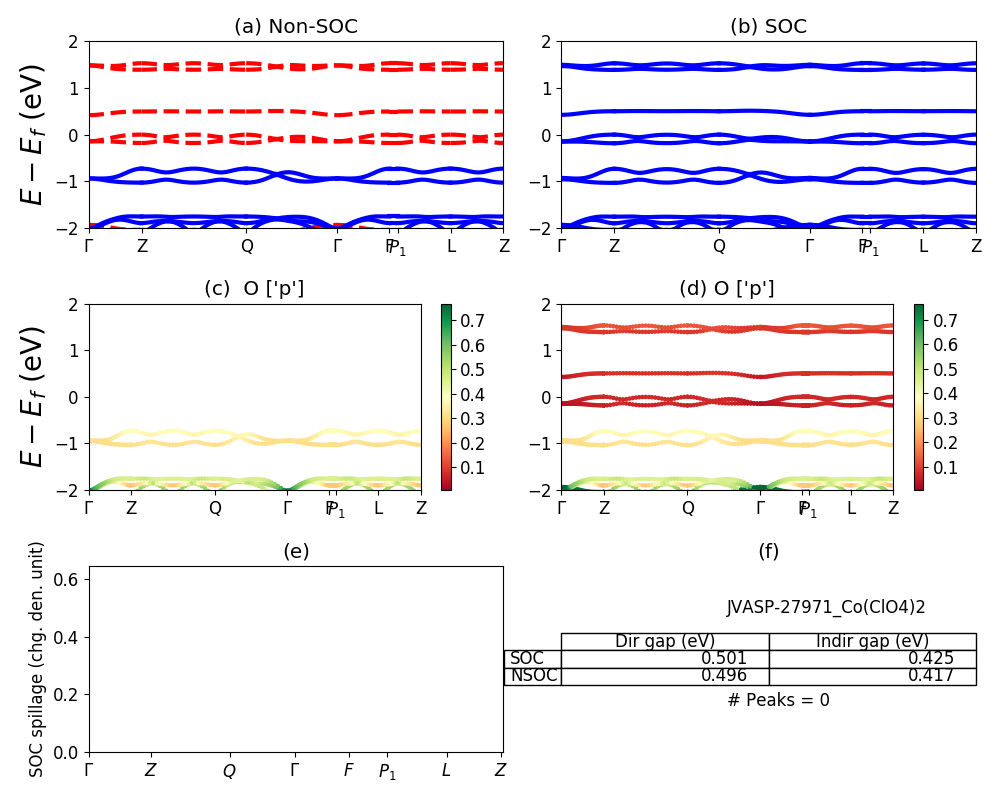

Below we show results from spin-orbit coupling (SOC) based spillage calculations using wavefunctions of spin-orbit and non-spin-orbit bandstructure calculations. a) non-SOC band structure and b) SOC band structure, c) non-SOC projected band structure and d) SOC projected band structure, projecting onto highest energy orbital of most electronegative atom in the system (assuming the orbital forms the valence band-maximum). e) Spillage, as a function of momentum, k. f) Table of bandgaps and spillage information. Generally, spillage values greater than 0.5 and indirect gap close to zero indicate topological materials.

Spin-orbit spillage is: 0.645


Optoelectronic properties Semi-local [Reference]

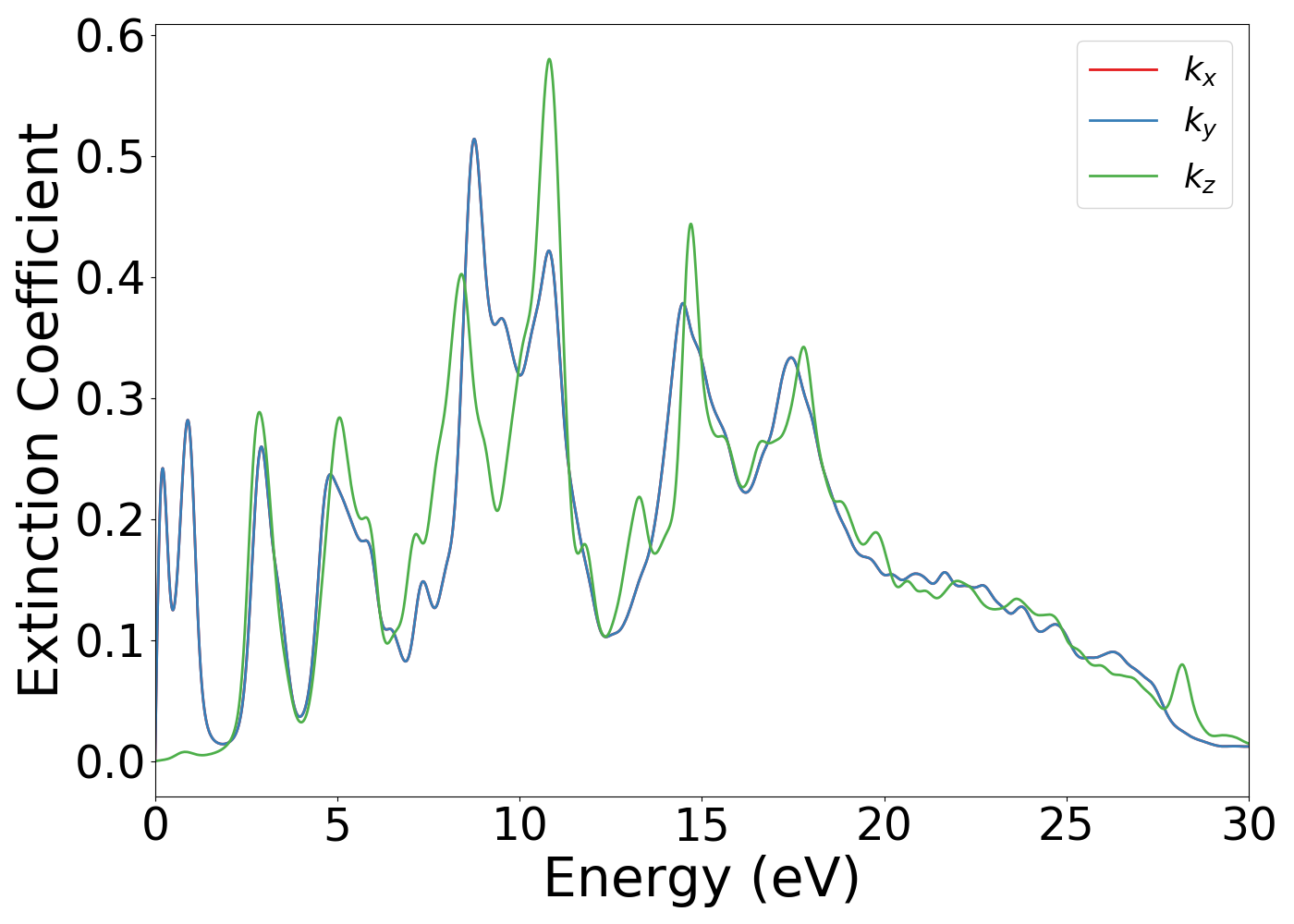

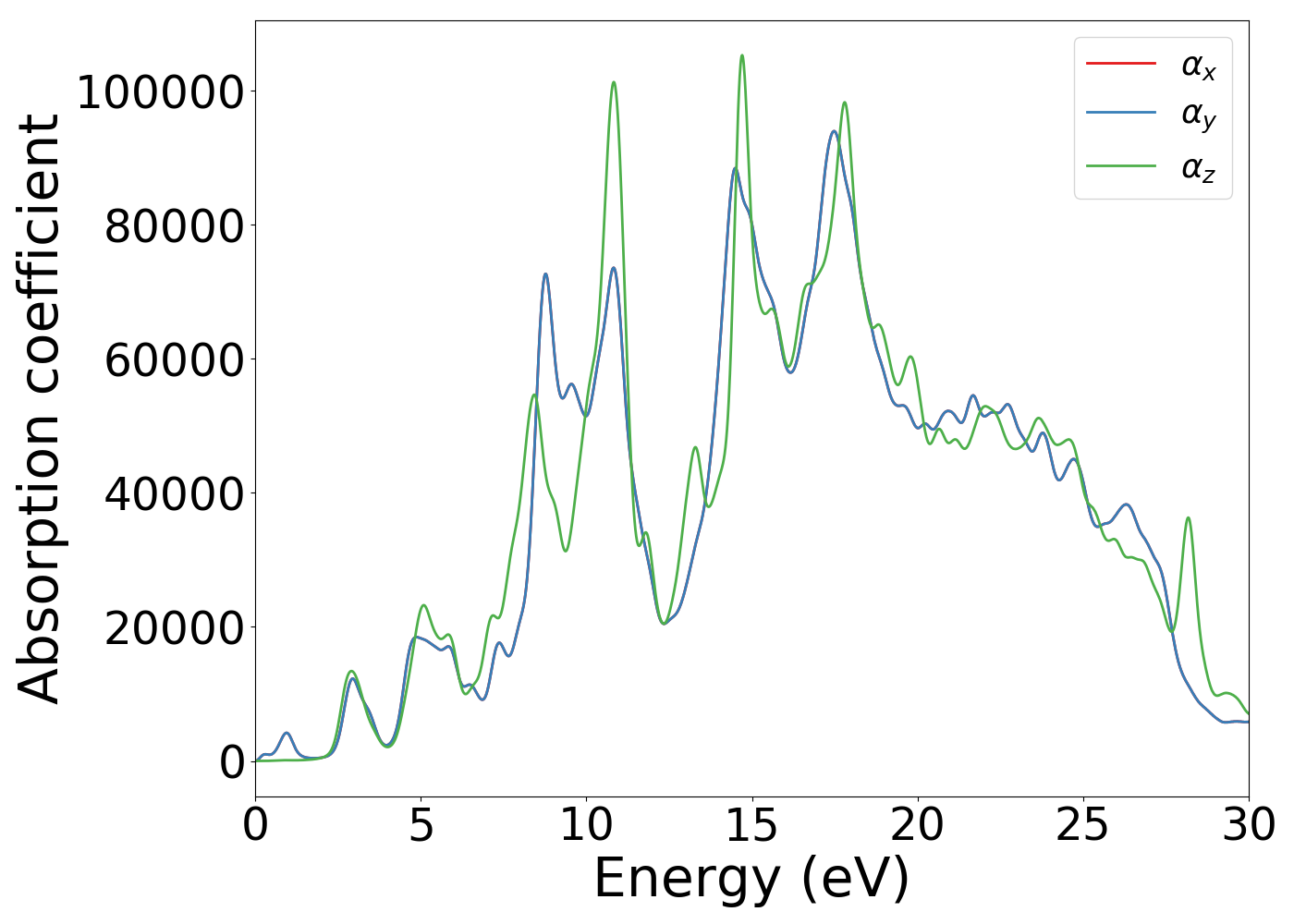

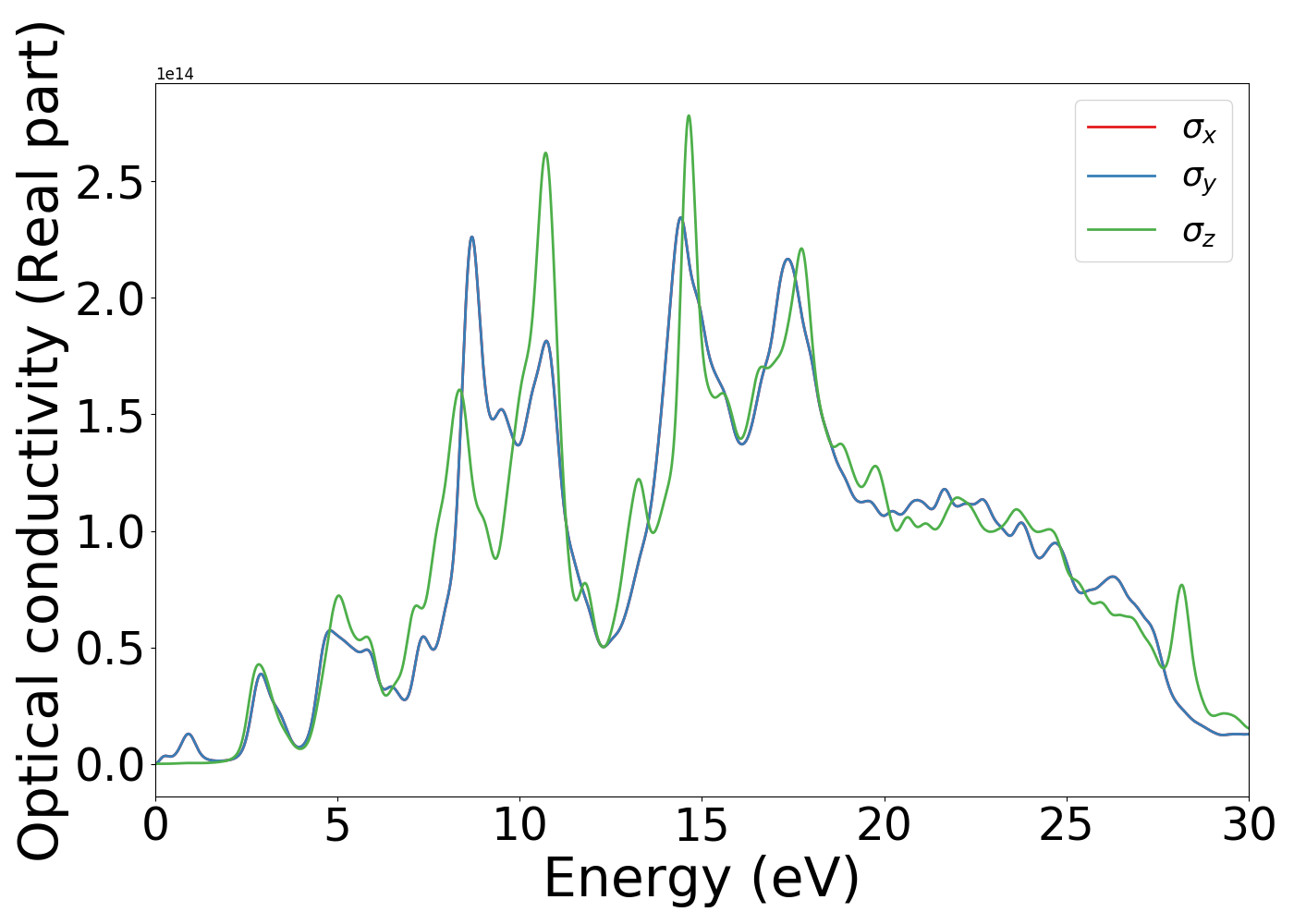

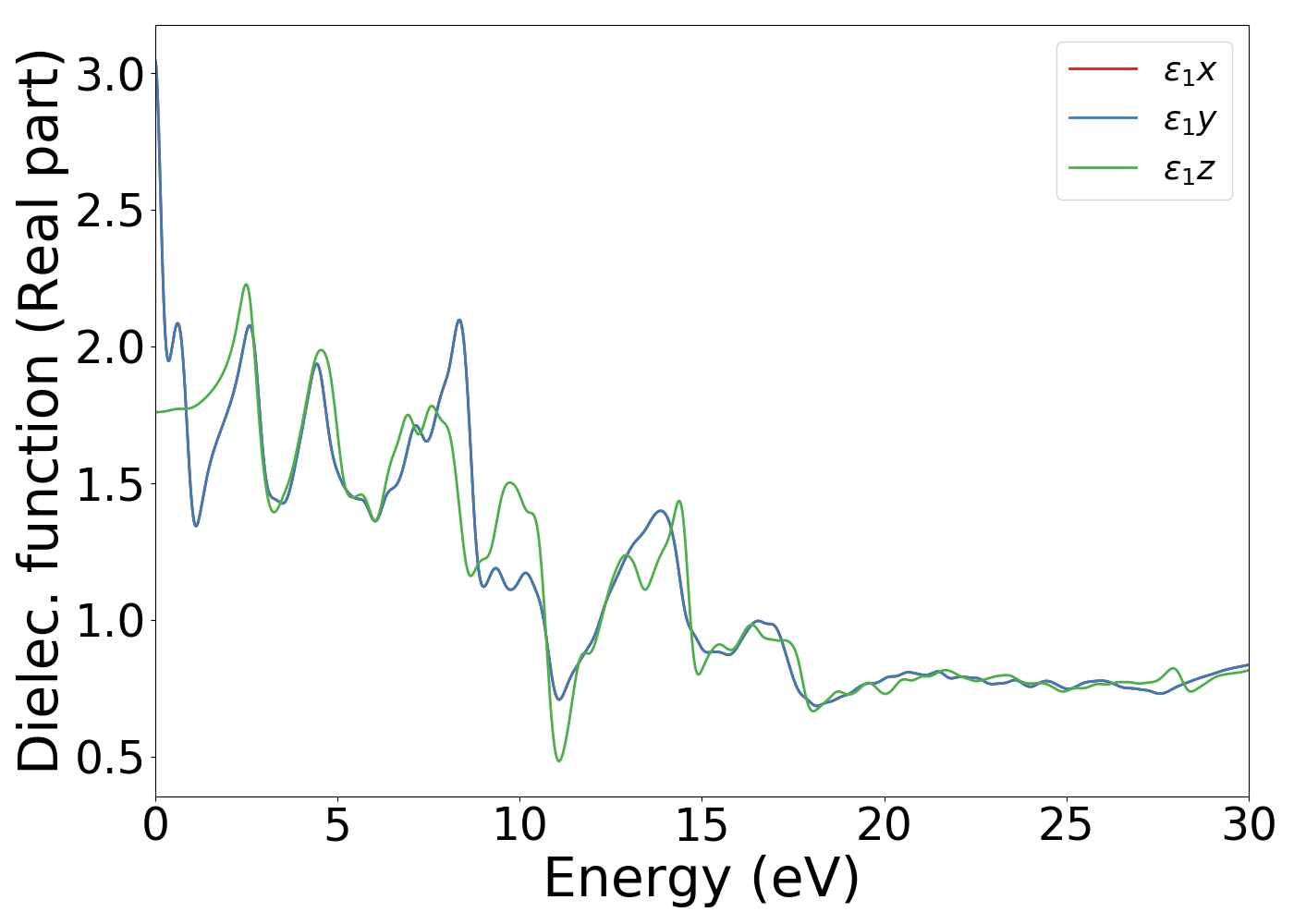

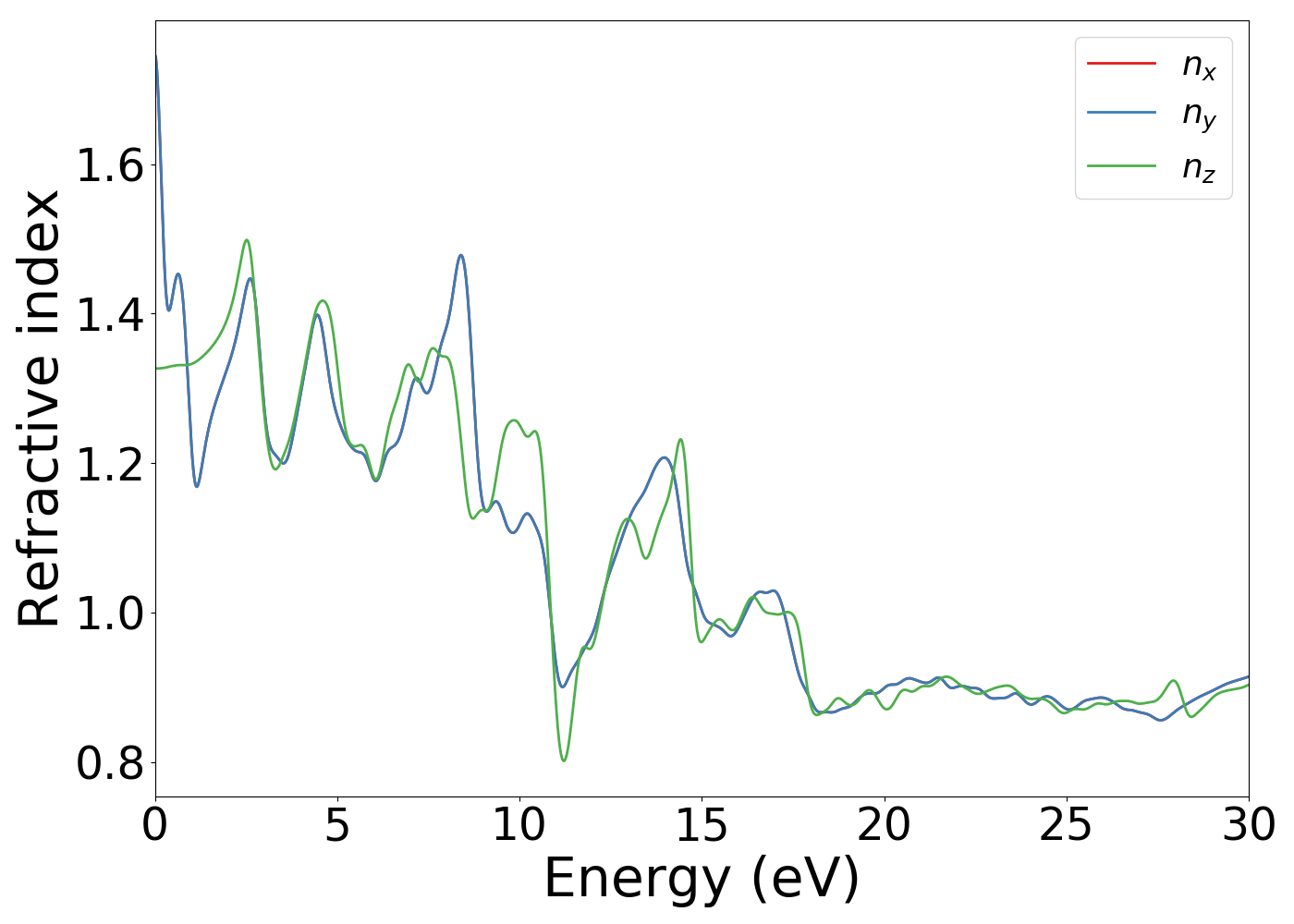

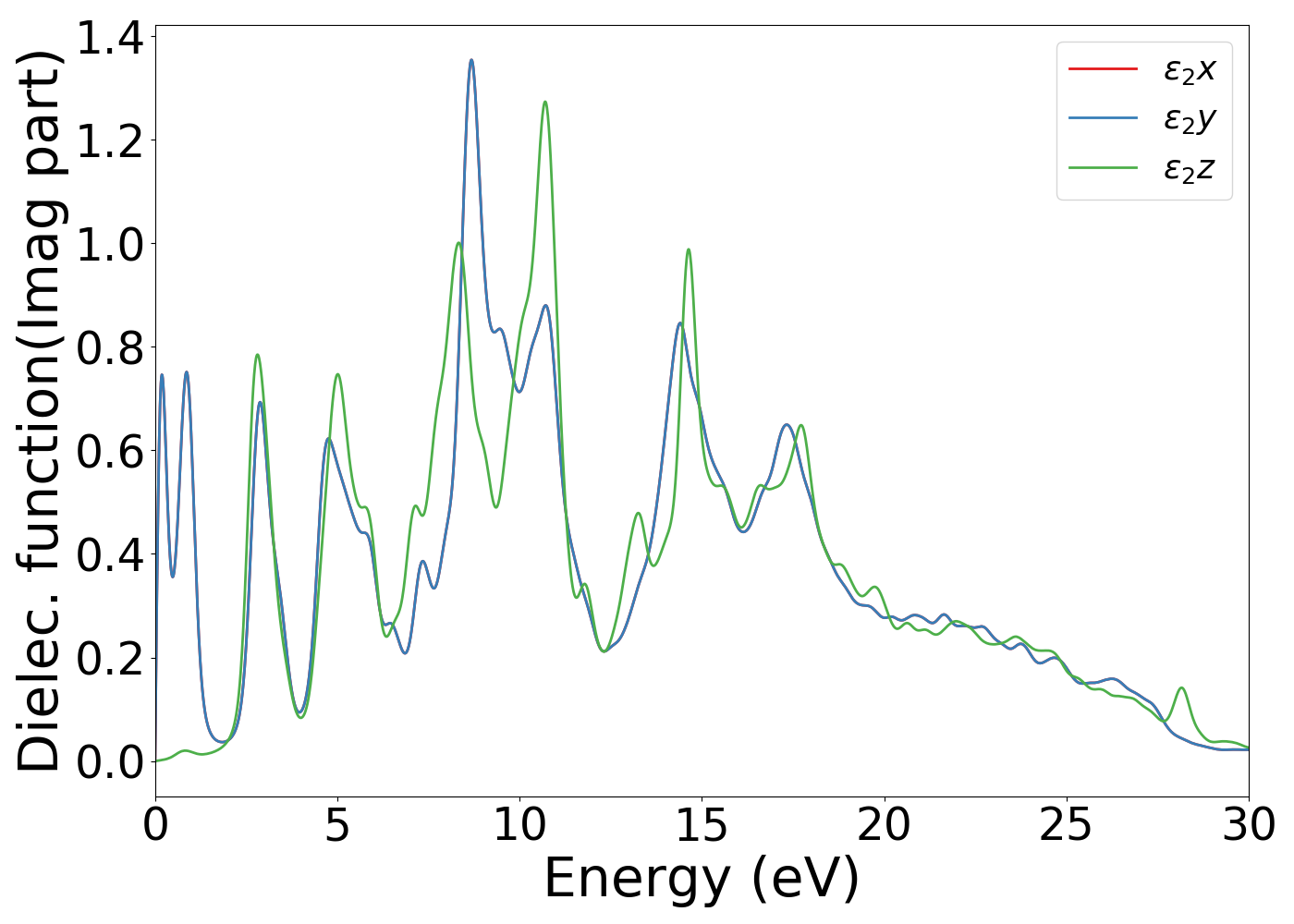

Incident photon energy dependence of optical is shown below [Source-code]. Only interband optical transitions are taken into account.Please note the underestimatation of band-gap problem with DFT will reflect in the spectra as well. For very accurate optical properties GW/BSE calculation would be needed, which is yet to be done because of their very high computational cost. Optical properties for mono-/multi-layer materials were rescaled with the actual thickness to simulation z-box ratio. Absorption coeffiecient is in cm-1 unit. Also, ionic contributions were neglected.

Dense k-mesh based bandgap is : 0.5993 eV

Static real-parts of dielectric function in x,y,z: 3.05,3.05,1.76


Magnetic moment [Reference]

The orbital magnetic moment was obtained after SCF run. This is not a DFT+U calculation, hence the data could be used to predict zero or non-zero magnetic moment nature of the material only.

Total magnetic moment: 3.0 μB

Magnetic moment per atom: 0.272727272727 μB

Magnetization
Elementsspdtot
Co0.0070.0072.5822.597
Cl0.0010.0040.00.005
Cl0.0010.0040.00.005
O0.0060.0380.00.044
O0.0060.0330.00.039
O0.0060.040.00.045
O0.0060.040.00.045
O0.0060.0380.00.044
O0.0060.0330.00.039
O0.00.0250.00.025
O0.00.0250.00.025

See also

Links to other databases or papers are provided below


NA

ICSD-ID: None

mp-31621-1L
