JVASP-10705_HgSeO4
JARVIS-ID:JVASP-10705 Functional:optB88-vdW Primitive cell Primitive cell Conventional cell Conventional cell
Chemical formula:HgSeO4 Formation energy/atom (eV):-0.529 a 4.967 Å α:90.0 ° a 4.967 Å α:90.0 °
Space-group :Pmn2_1, 31 Relaxed energy/atom (eV):-2.5623 b 5.083 Å β:90.0 ° b 5.083 Å β:90.0 °
Calculation type:Bulk SCF bandgap (eV):0.903 c 6.818 Å γ:90.0 ° c 6.818 Å γ:90.0 °
Crystal system:orthorhombic Point group:mm2 Density (gcm-3):6.63 Volume (3):172.14 nAtoms_prim:12 nAtoms_conv:12
Download input files

Convergence [Reference]

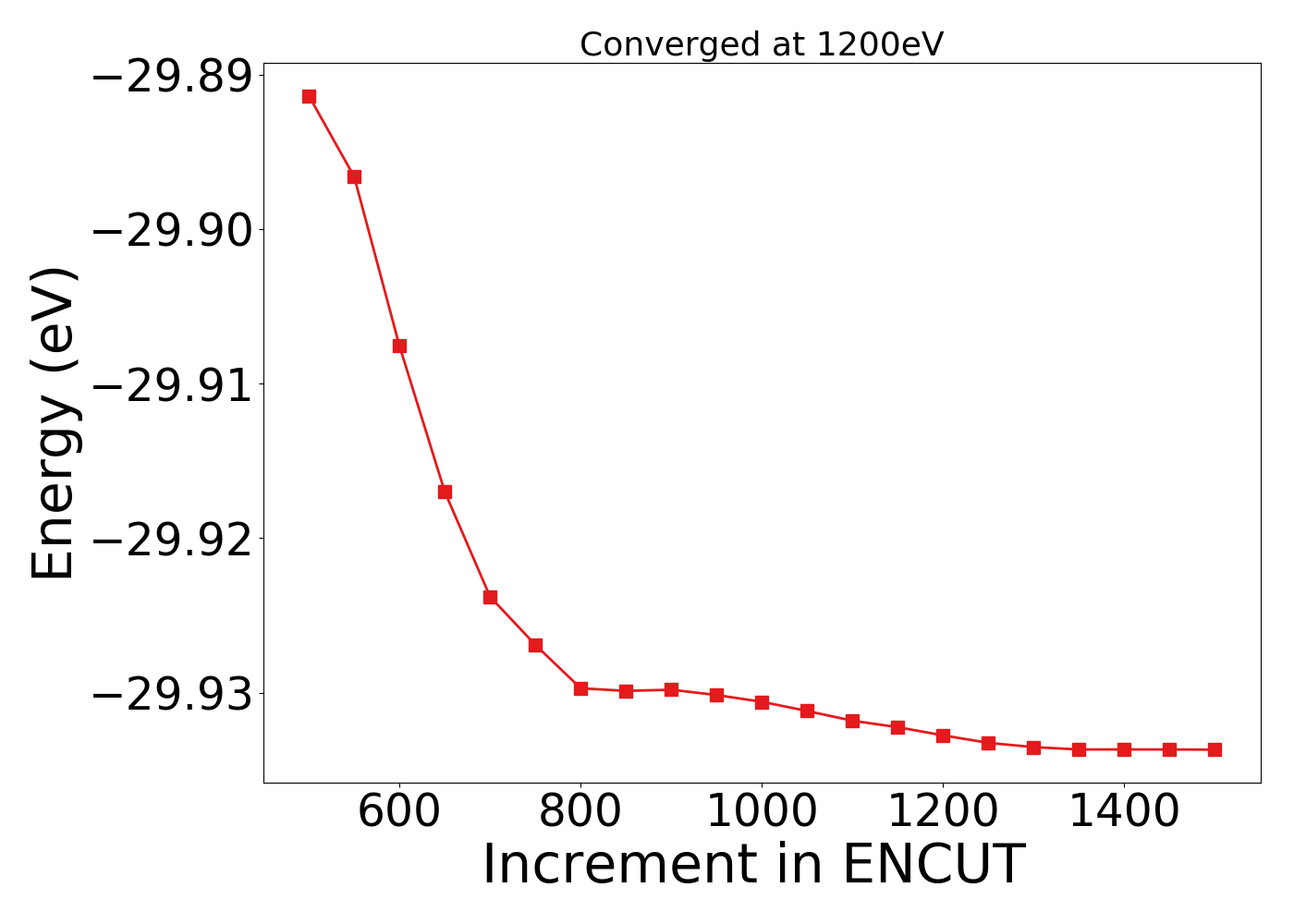

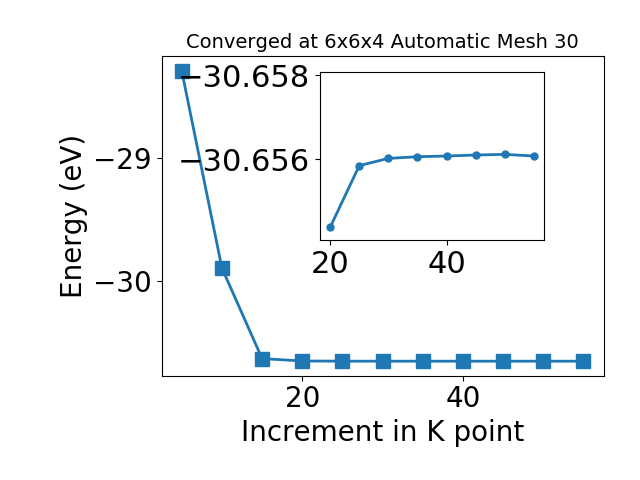

Calculations are done using VASP software [Source-code]. Convergence on KPOINTS [Source-code] and ENCUT [Source-code] is done with respect to total energy of the system within 0.001 eV tolerance. Please note convergence on KPOINTS and ENCUT is generally done for target properties, but here we assume energy-convergence with 0.001 eV should be sufficient for other properties also. The points on the curves are obtained with single-point calculation (number of ionic steps, NSW=1 ). However, for very accurate calculations, NSW>1 might be needed.


Structural analysis [Reference]

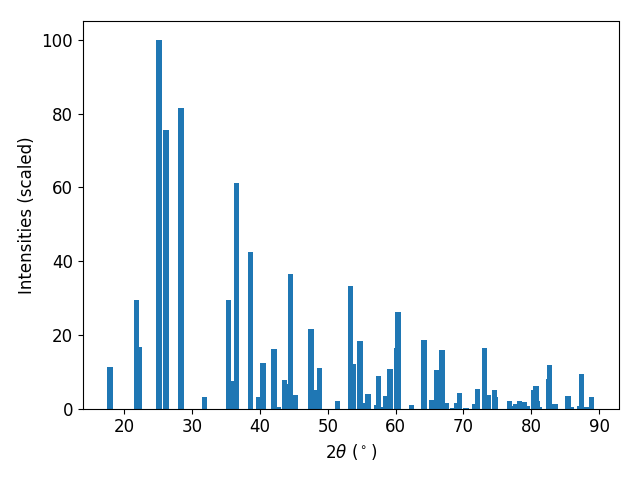

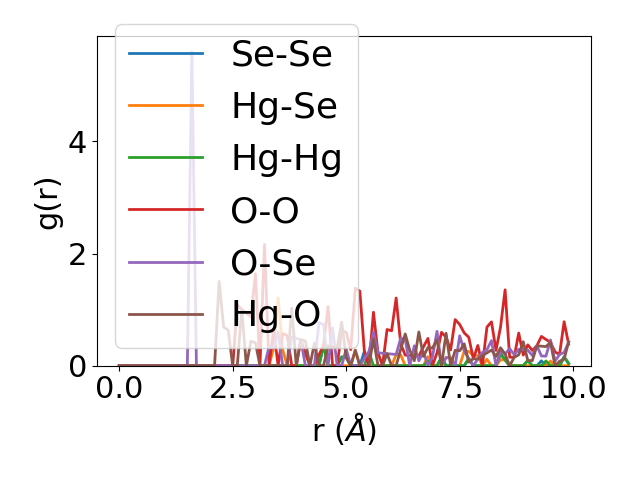

The following shows the X-ray diffraction (XRD)[Source-code] pattern and the Radial distribution function (RDF) plots [Source-code]. XRD peaks should be comparable to experiments for bulk structures. Relative intensities may differ. For mono- and multi-layer structures , we take the z-dimension during DFT calculation for XRD calculations, which may differ from the experimental set-up.


Electronic structure [Reference]

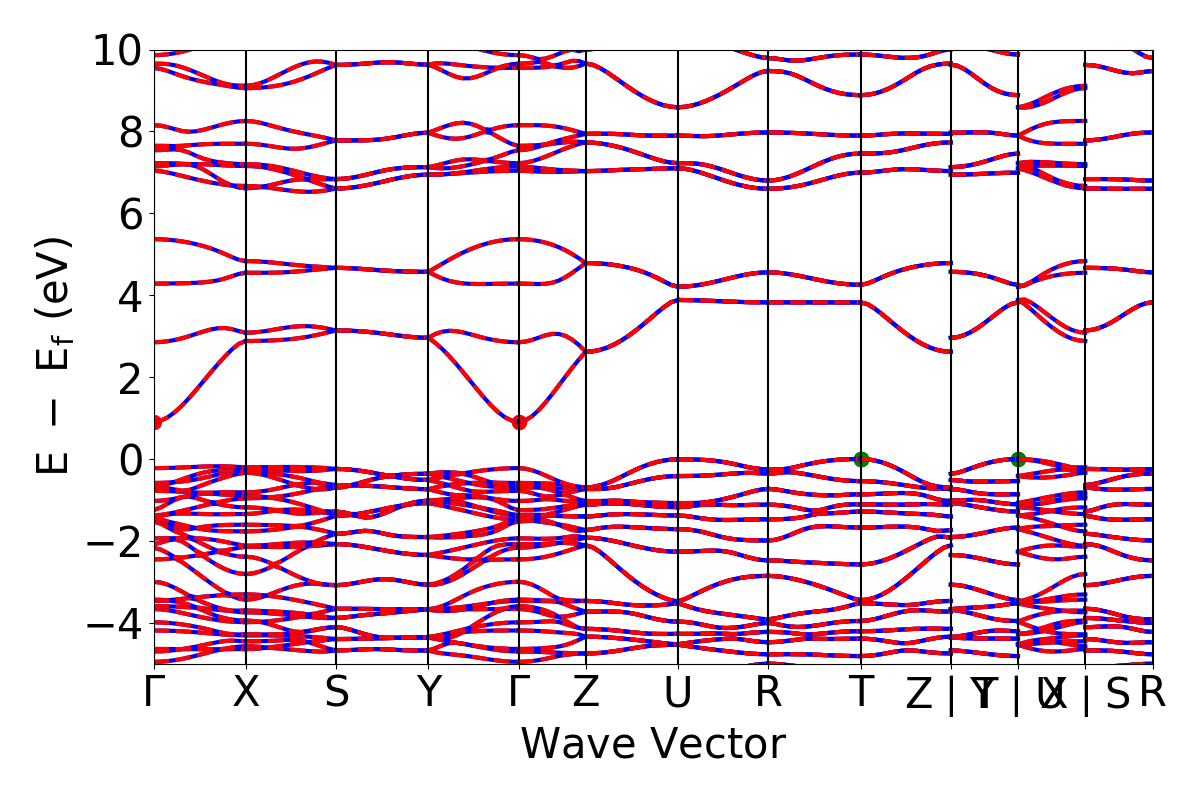

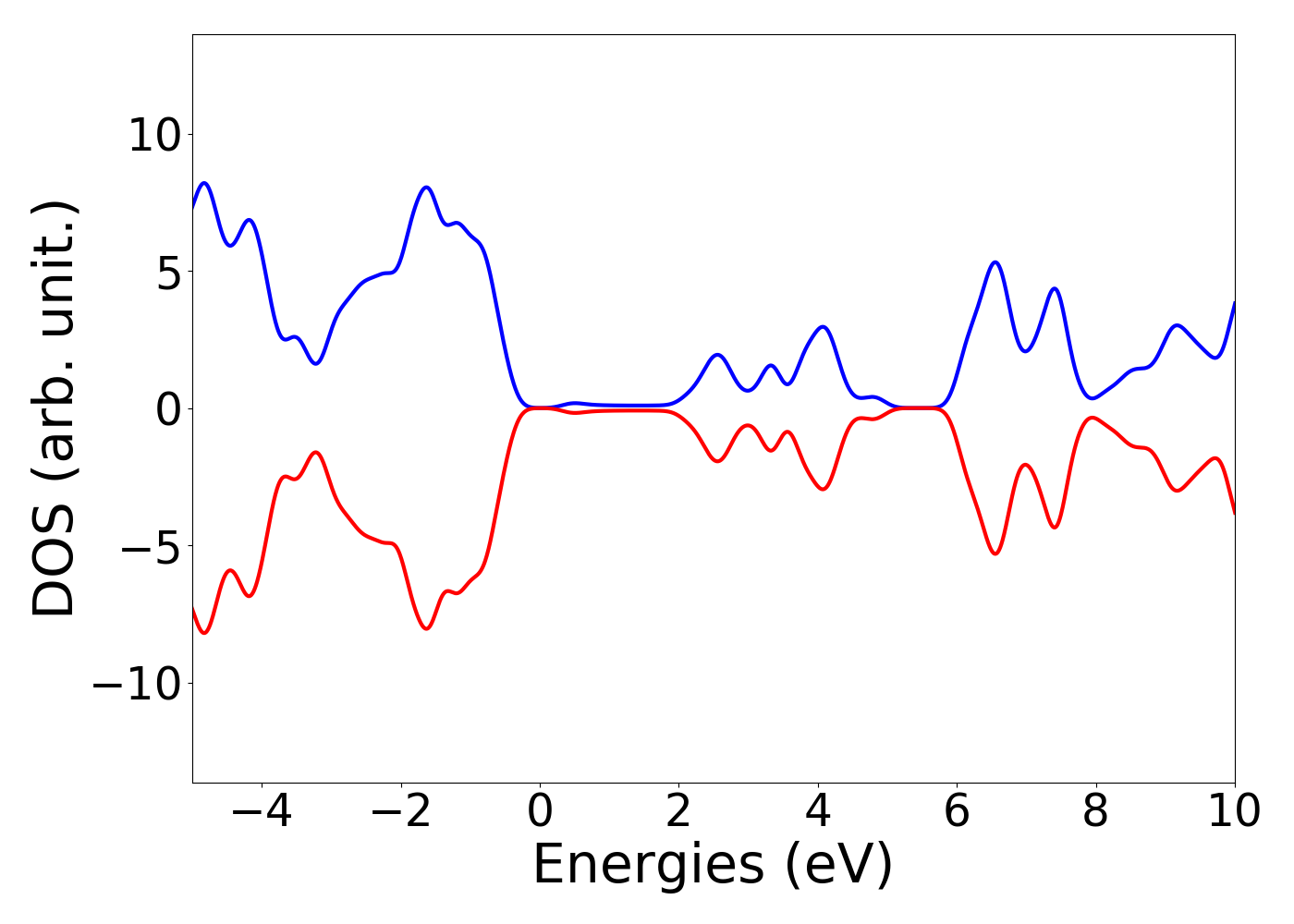

The following shows the electronic density of states and bandstructure [Source-code]. DFT is generally predicted to underestimate bandgap of materials. Accurate band-gaps are obtained with higher level methods (with high computational requirement) such as HSE, GW , which are under progress. If available, MBJ data should be comparable to experiments also. Total DOS, Orbital DOS and Element dos [Source-code] buttons are provided for density of states options. Energy is rescaled to make Fermi-energy zero. In the bandstructure plot [Source-code], spin up is shown with blue lines while spin down are shown with red lines. Non-degenerate spin-up and spin-down states (if applicable) would imply a net orbital magnetic moment in the system. Fermi-occupation tolerance for bandgap calculation is chosen as 0.001.

High-symmetry kpoints based bandgap (eV): 0.908I


Electrostatic potential [Reference]

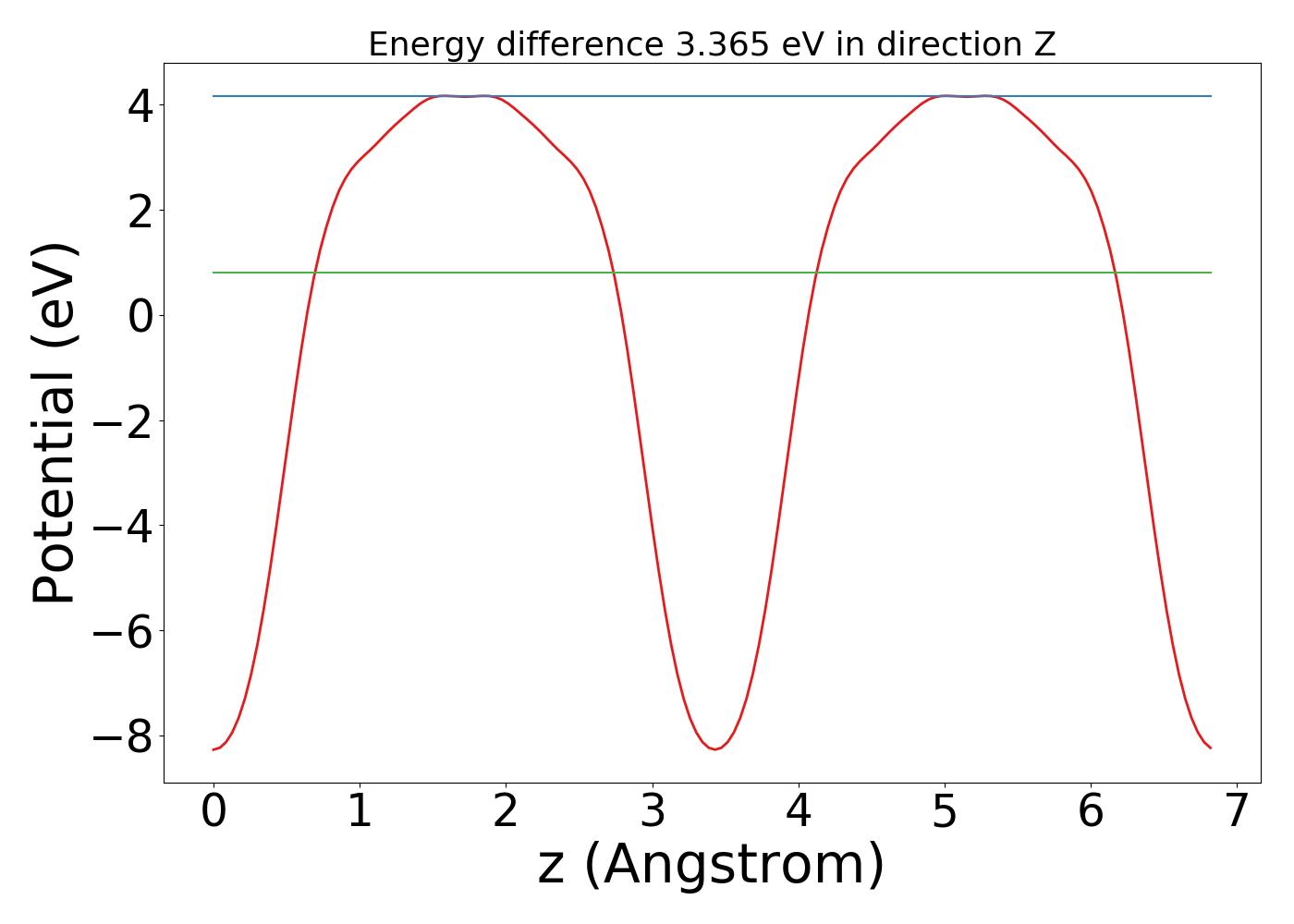

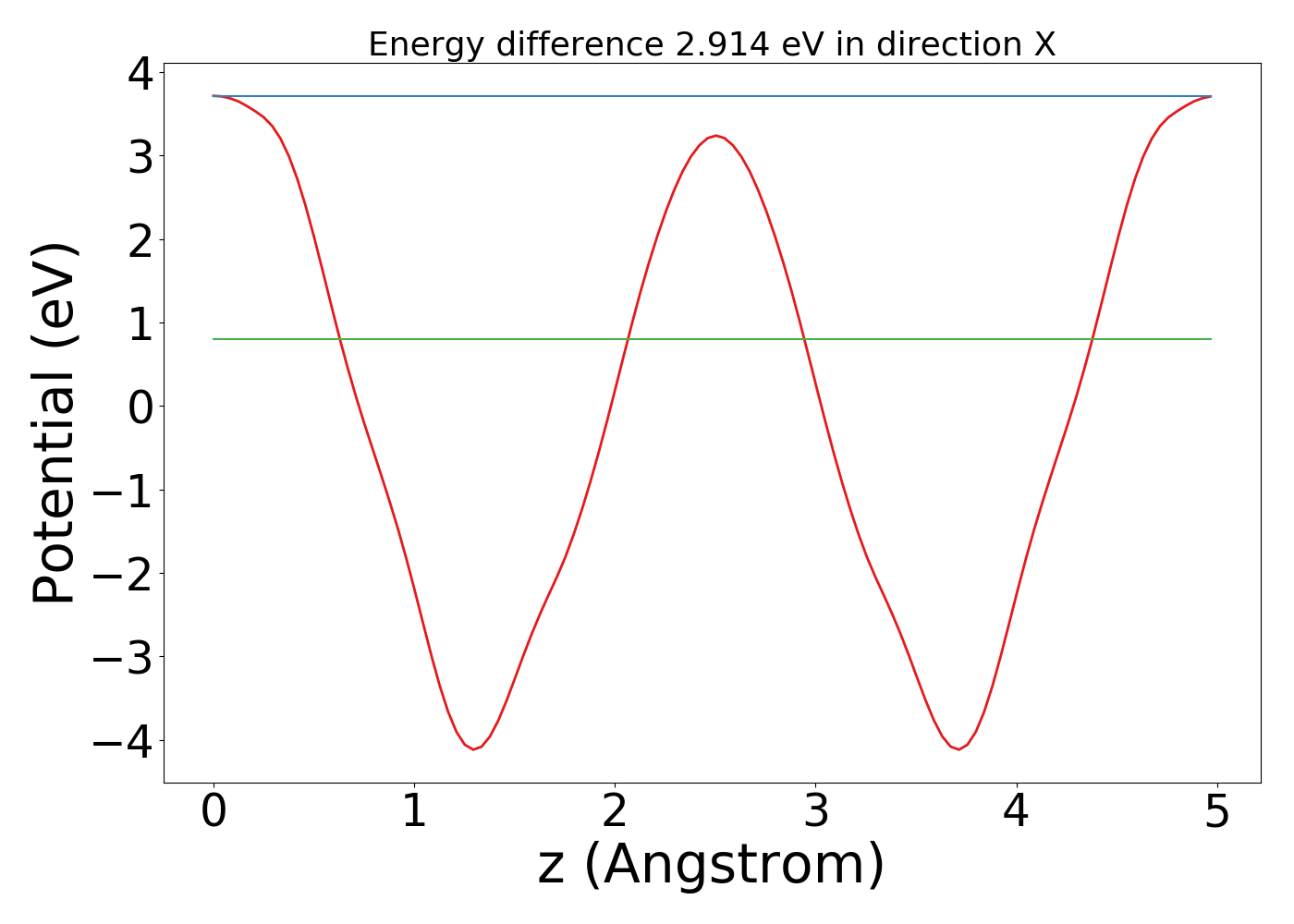

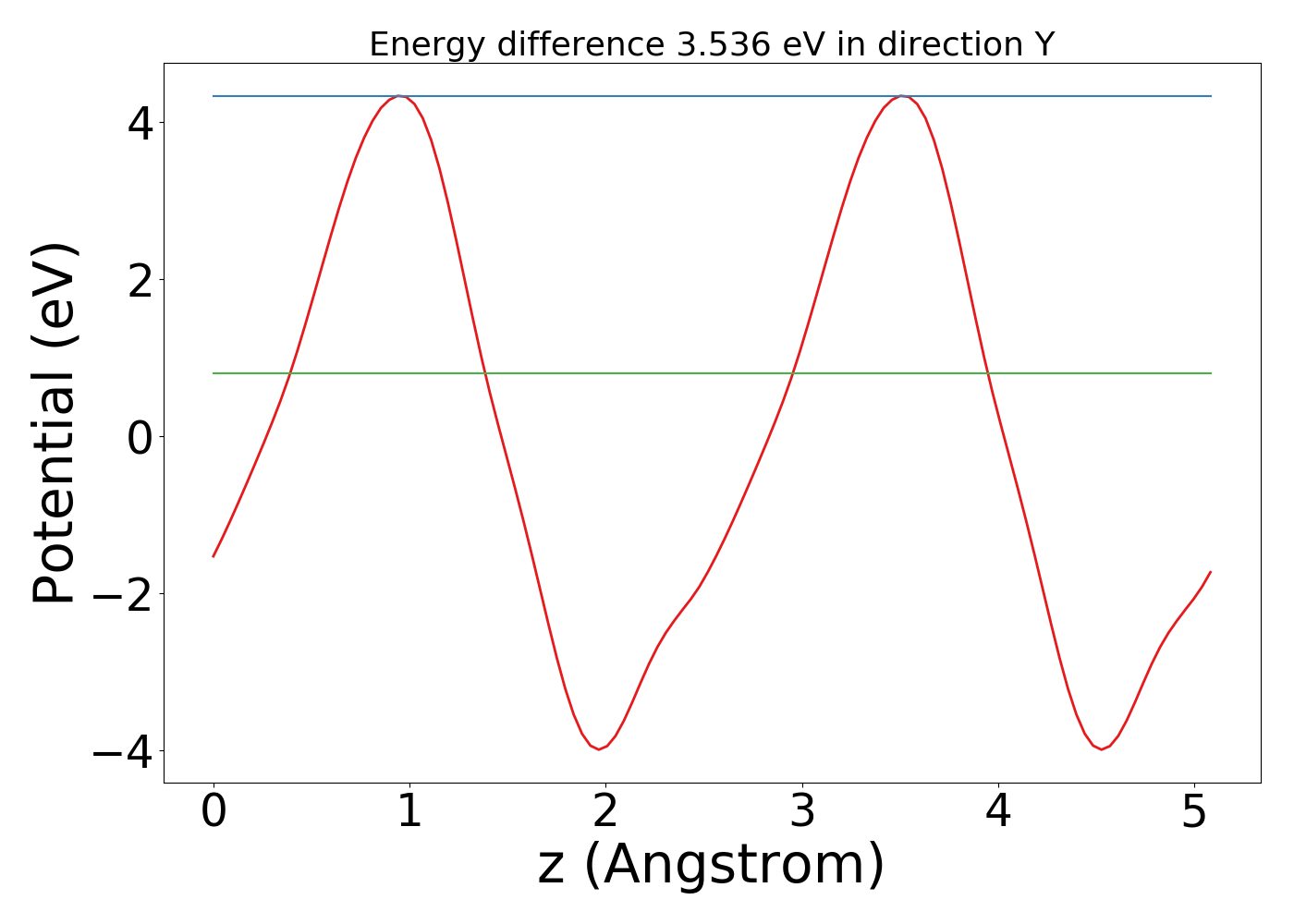

The following plot shows the plane averaged electrostatic potential (ionic+Hartree) along x, y and z-directions. The red line shows the Fermi-energy while the green line shows the maximum value of the electrostatic potential. For slab structures (with vacuum along z-direction), the difference in these two values can be used to calculate work-function of the material.


Spin-orbit coupling based spillage [Reference]

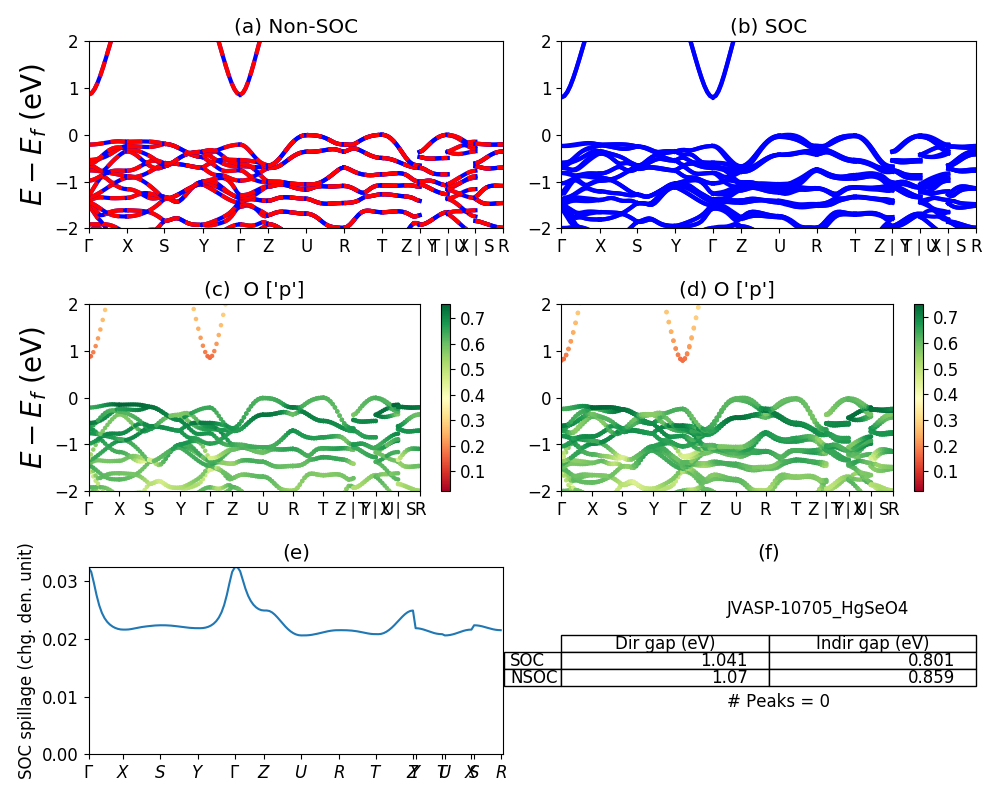

Below we show results from spin-orbit coupling (SOC) based spillage calculations using wavefunctions of spin-orbit and non-spin-orbit bandstructure calculations. a) non-SOC band structure and b) SOC band structure, c) non-SOC projected band structure and d) SOC projected band structure, projecting onto highest energy orbital of most electronegative atom in the system (assuming the orbital forms the valence band-maximum). e) Spillage, as a function of momentum, k. f) Table of bandgaps and spillage information. Generally, spillage values greater than 0.5 and indirect gap close to zero indicate topological materials.

Spin-orbit spillage is: 0.032


Optoelectronic properties Semi-local [Reference]

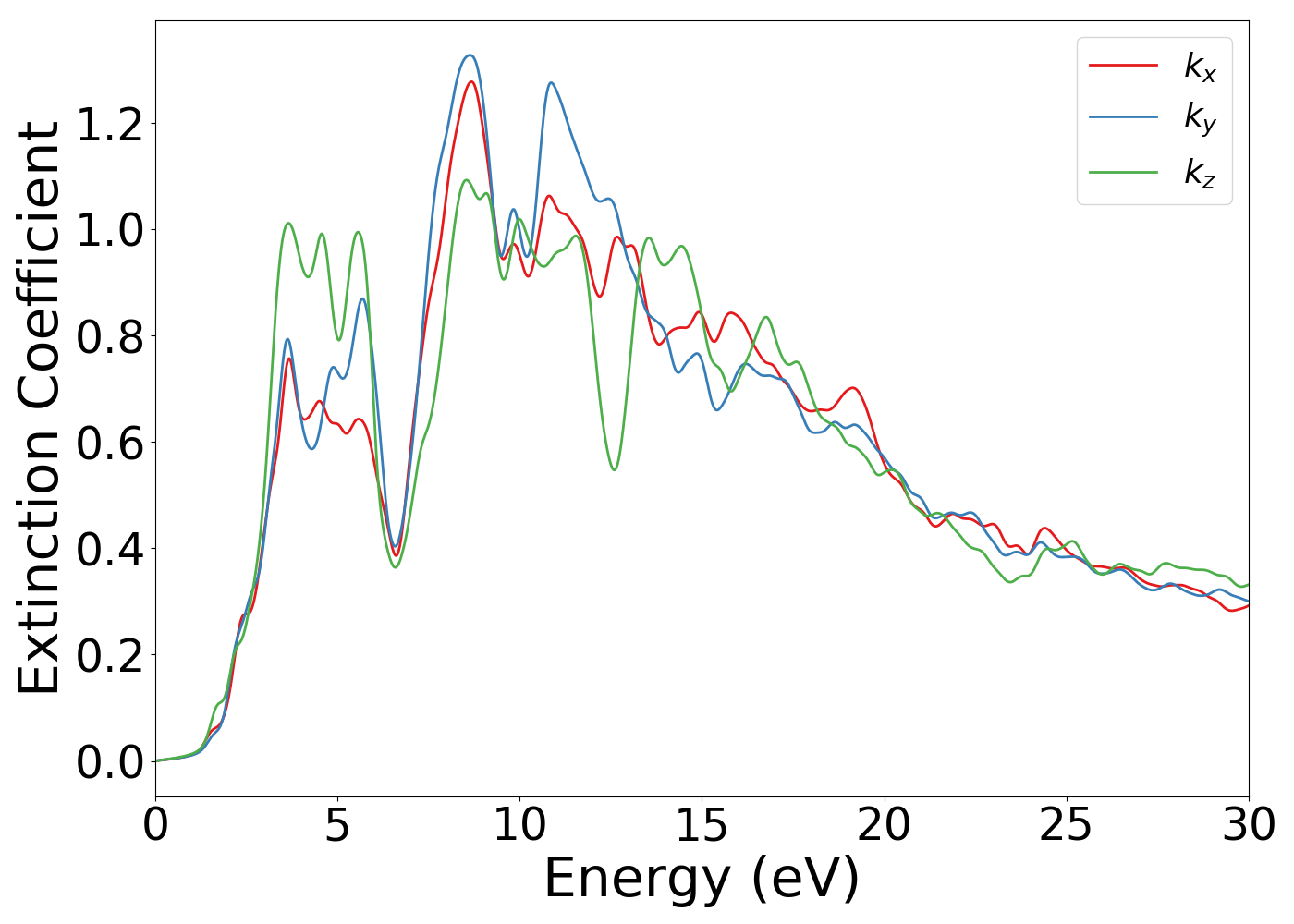

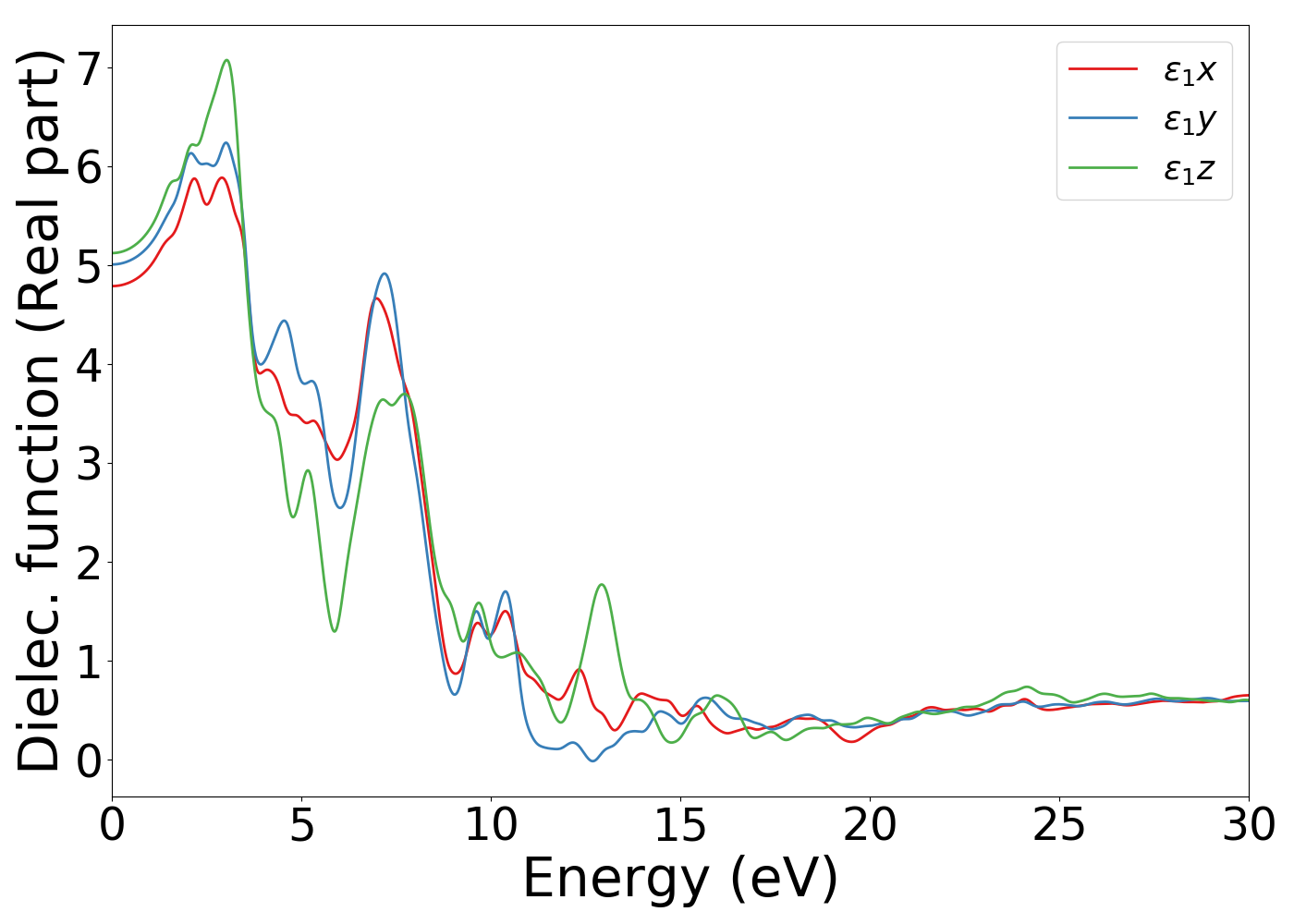

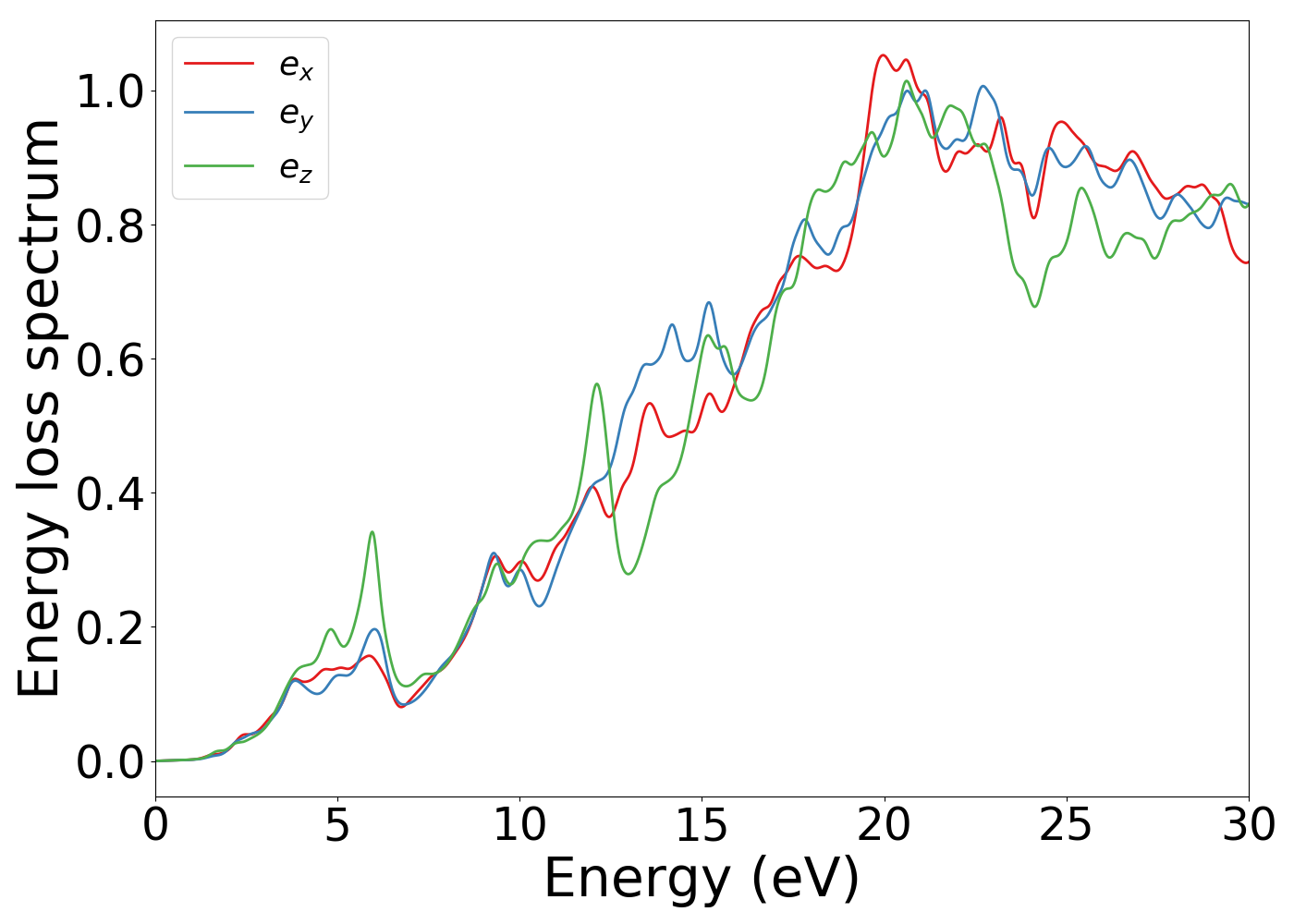

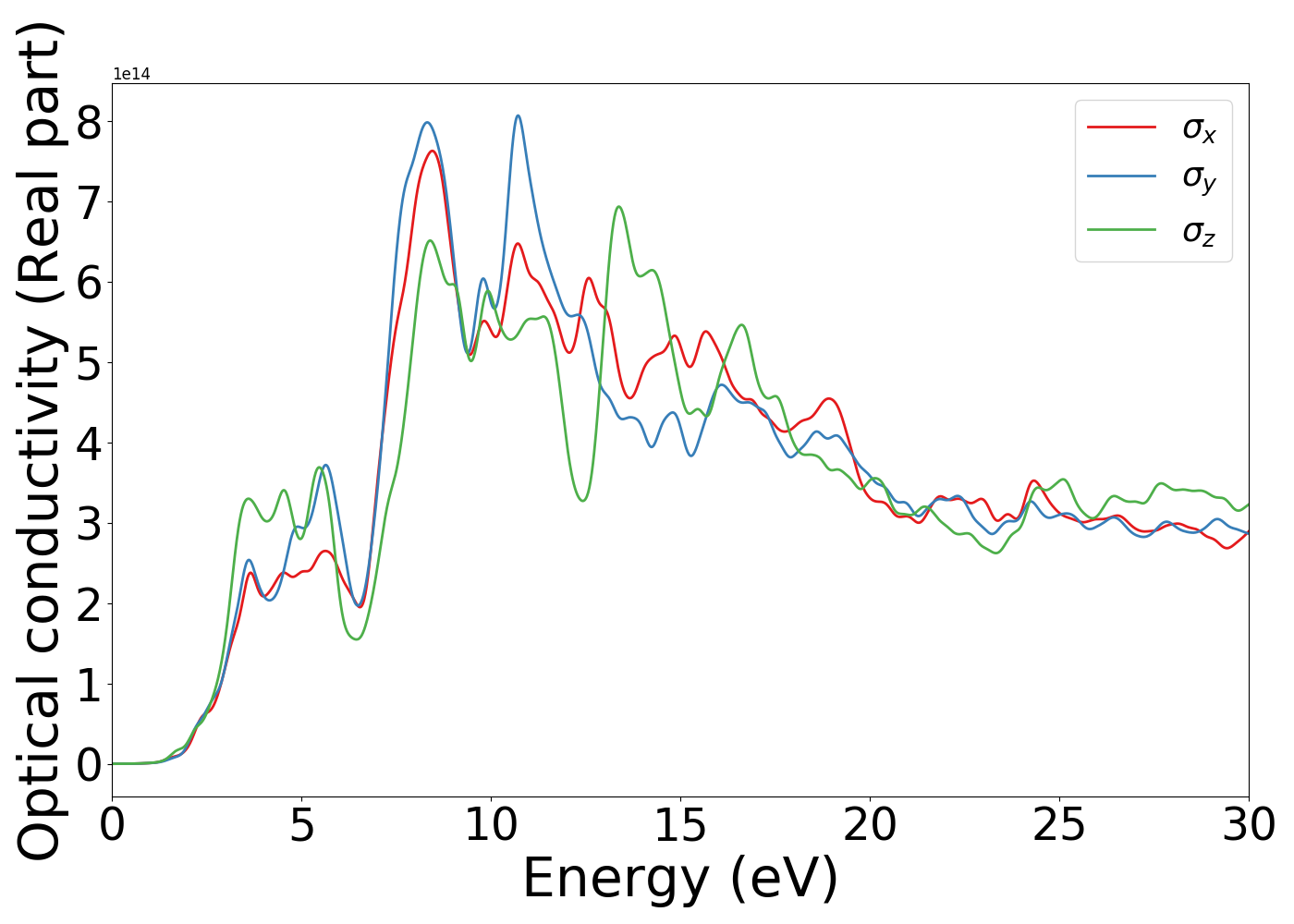

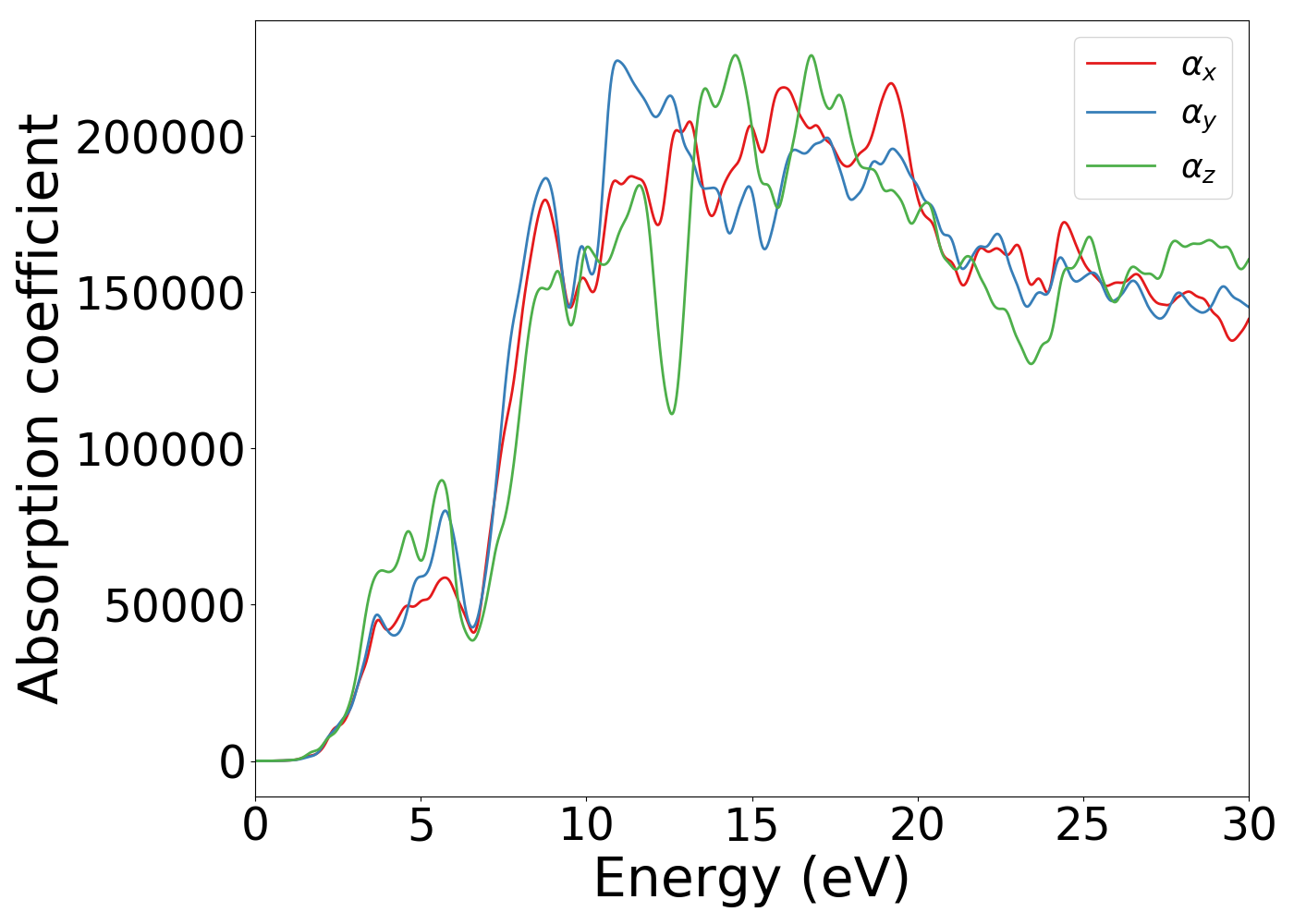

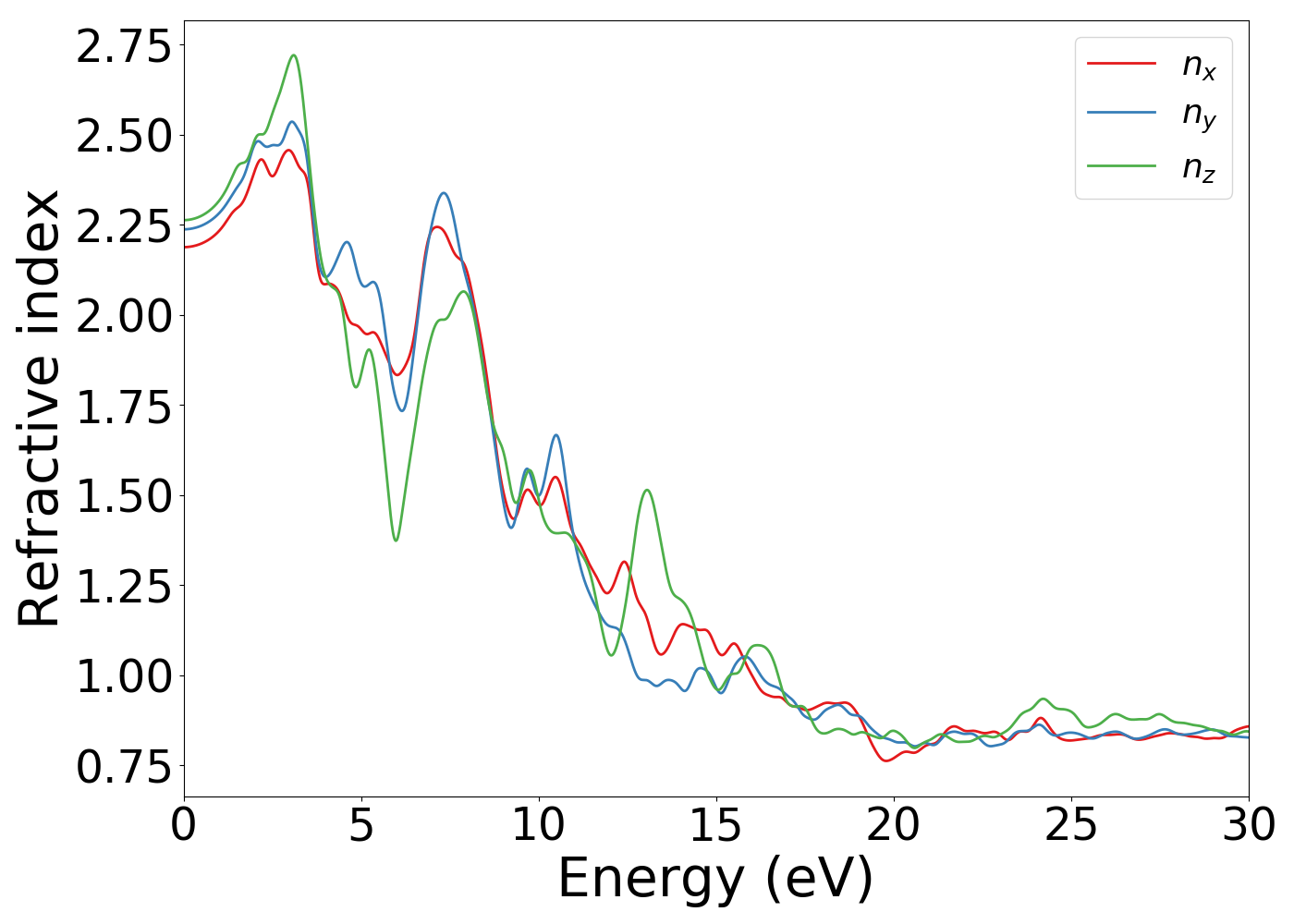

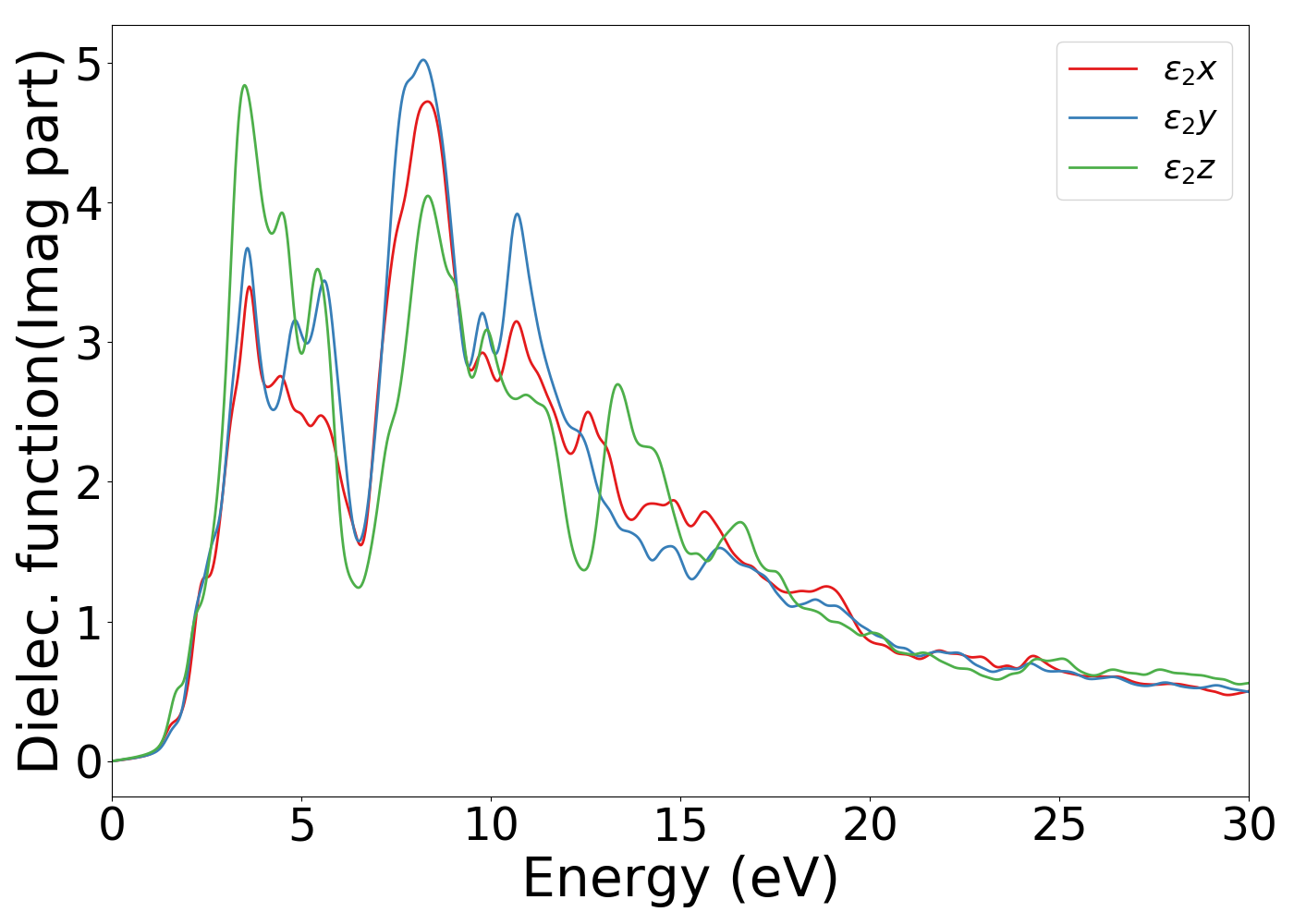

Incident photon energy dependence of optical is shown below [Source-code]. Only interband optical transitions are taken into account.Please note the underestimatation of band-gap problem with DFT will reflect in the spectra as well. For very accurate optical properties GW/BSE calculation would be needed, which is yet to be done because of their very high computational cost. Optical properties for mono-/multi-layer materials were rescaled with the actual thickness to simulation z-box ratio. Absorption coeffiecient is in cm-1 unit. Also, ionic contributions were neglected.

Dense k-mesh based bandgap is : 0.903 eV

Static real-parts of dielectric function in x,y,z: 4.79,5.0,5.12


DFPT: IR-intensity, Piezoelecric and Dielectric tensors [Reference]

Calculations are done using density functional perturbation theory (DFPT) method for non-metallic systems for conventional cell and at Gamma-point in phonon BZ.

Static dielecric-tensor

14.6 0.0 -0.0
0.0 11.46 -0.0
-0.0 -0.0 15.5

Piezoelectric-stress-tensor (C/m2)

0.0 -0.0 0.0 -0.14 0.0 0.0
0.07 0.52 -0.89 0.0 0.0 0.0
0.0 0.0 -0.0 0.0 -0.67 0.0

Finite-difference: elastic tensor and derived phonon properties [Reference]

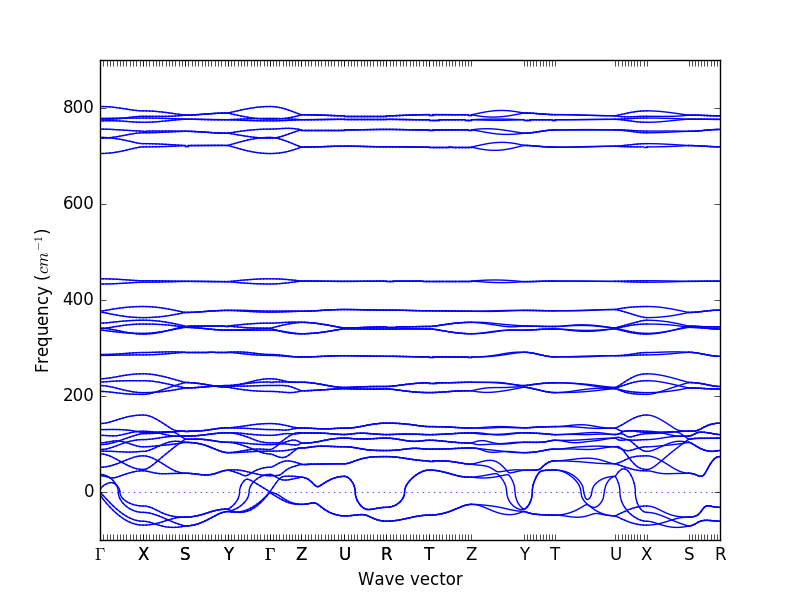

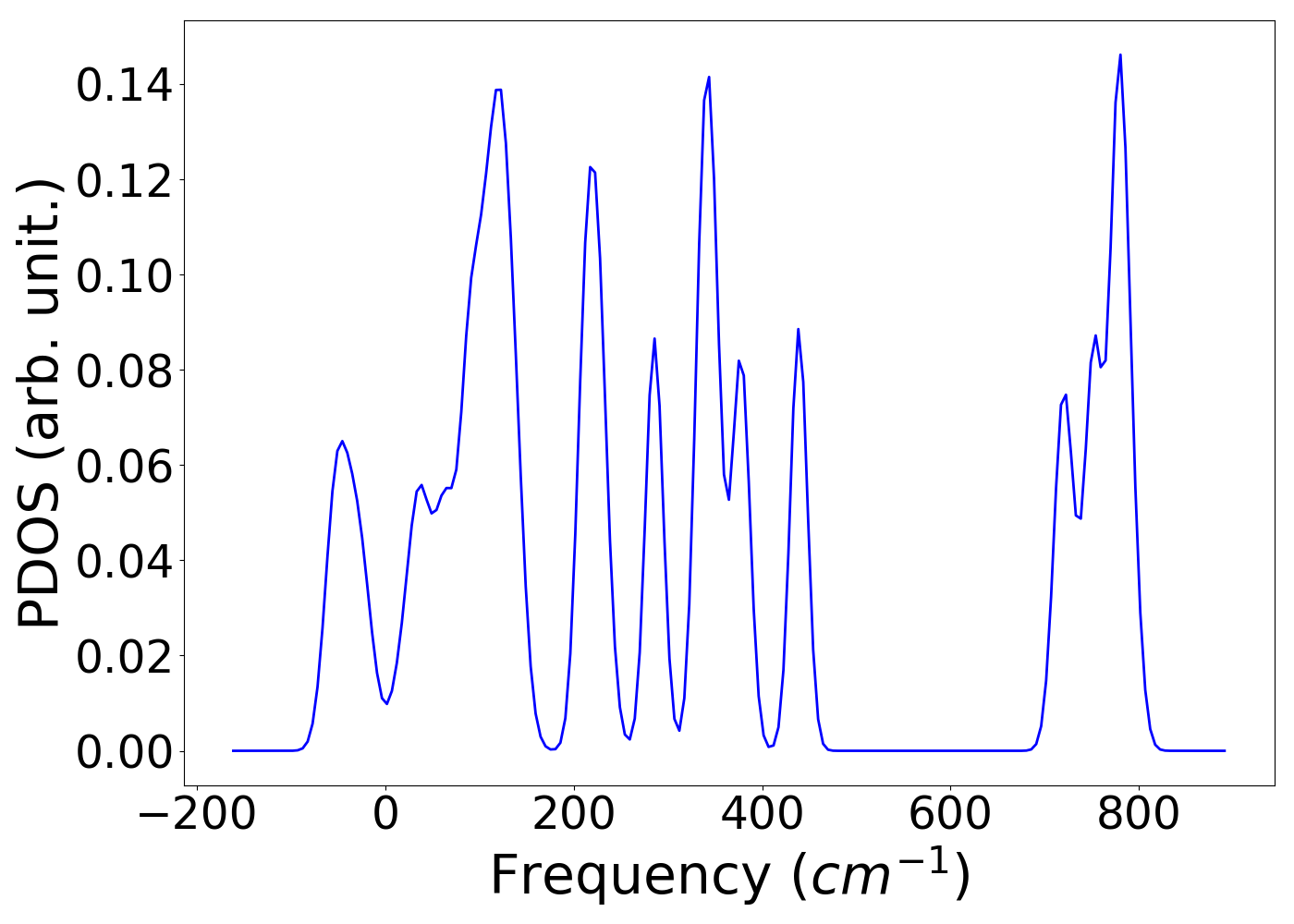

Elastic tensor calculated for the conventional cell of the system with finite-difference method [Source-code]. For bulk structures, elastic constants are given in GPa unit . For layered materials, the elastic constants are rescaled with respect to vacuum padding (see the input files) and the units for elastic coefficients are in N/m . Phonons obtained [Source-code] from this calculation are also shown.

WARNING: Please note we provide finite-size cell phonons only. At least 1.2 nm x1.2 nm x1.2 nm size cell or more is generally needed for obtaining reliable phonon spectrum, but we take conventional cell of the structure only. For systems having primitive-cell phonon representation tables, I denotes infrared activity and R denotes Raman active modes (where applicabale). Selection of particular q-point mesh can give rise to unphysical negative modes in phonon density of states and phonon bandstructre. The minimum thermal conductivity was calculated using elastic tensor information following Clarke and Cahill formalism.

Voigt-bulk modulus (KV): 59.59 GPa, Voigt-shear modulus (GV): 18.73 GPa

Reuss-bulk modulus (KR): 54.45 GPa, Reuss-shear modulus (GR): 15.78 GPa

Poisson's ratio: 0.36, Elastic anisotropy parameter: 1.03

Clarke's lower limit of thermal conductivity (W/(m.K)): 0.54

Cahill's lower limit of thermal conductivity (W/(m.K)): 0.63

Elastic tensor
70.3 35.8 37.7 0.0 0.0 -0.0
35.8 84.4 52.8 0.0 -0.0 -0.0
37.7 52.8 129.0 0.0 -0.0 -0.0
0.0 0.0 0.0 19.1 -0.0 0.0
0.0 -0.0 0.0 0.0 10.7 -0.0
-0.0 -0.0 -0.0 0.0 -0.0 11.4

Phonon mode (cm-1)
-0.04
-0.02
-0.02
33.82
36.69
51.56
79.38
85.17
88.51
98.7
102.43
117.99
130.03
142.61
209.57
221.87
229.27
235.93
284.54
286.48
337.15
340.3
341.44
351.86
374.64
376.84
433.36
444.18
705.13
737.13
738.71
756.04
773.2
776.8
778.28
803.11

Point group

point_group_type: mm2

Visualize Phonons here
Phonon mode (cm-1) Representation
-0.04
-0.0374450091
-0.02
-0.0237476546
-0.02
-0.0179391442
33.82
33.8217123011
36.69
36.6881767153
51.56
51.5603219043
79.38
79.3819817304
85.17
85.168713154
88.51
88.5097075189
98.7
98.6965878753
102.43
102.426885824
117.99
117.988734298
130.03
130.032376406
142.61
142.612742627
209.57
209.567292756
221.87
221.873794663
229.27
229.268193511
235.93
235.930107183
284.54
284.544760663
286.48
286.477334617
337.15
337.154612198
340.3
340.301284264
341.44
341.44134864
351.86
351.857601678
374.64
374.641849159
376.84
376.83789309
433.36
433.361418977
444.18
444.177402764
705.13
705.127699597
737.13
737.125997172
738.71
738.706251518
756.04
756.042156063
773.2
773.201252662
776.8
776.804857584
778.28
778.283786297
803.11
803.108832856

Thermoelectric properties [Reference]

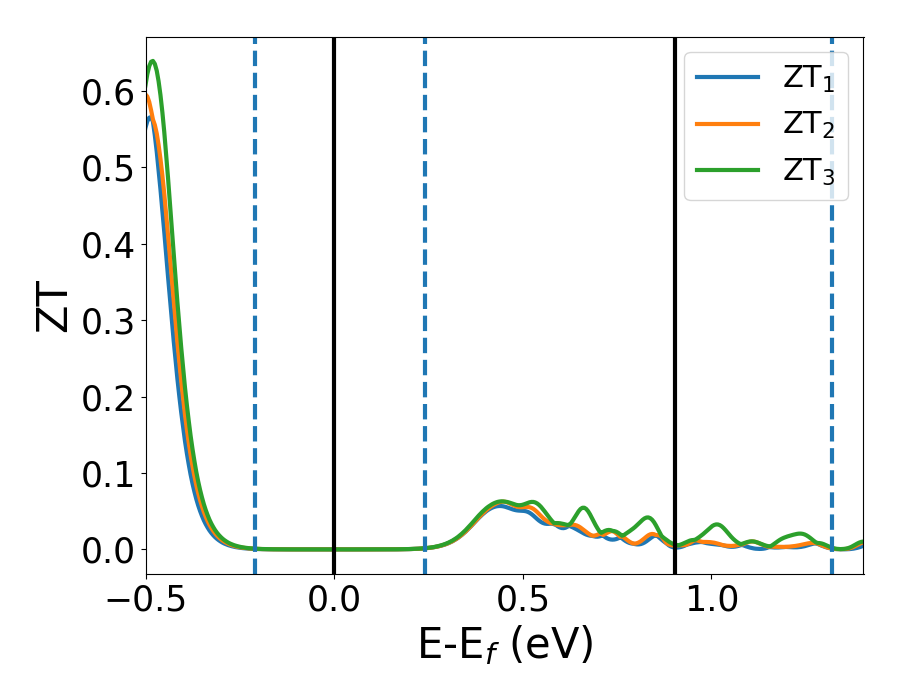

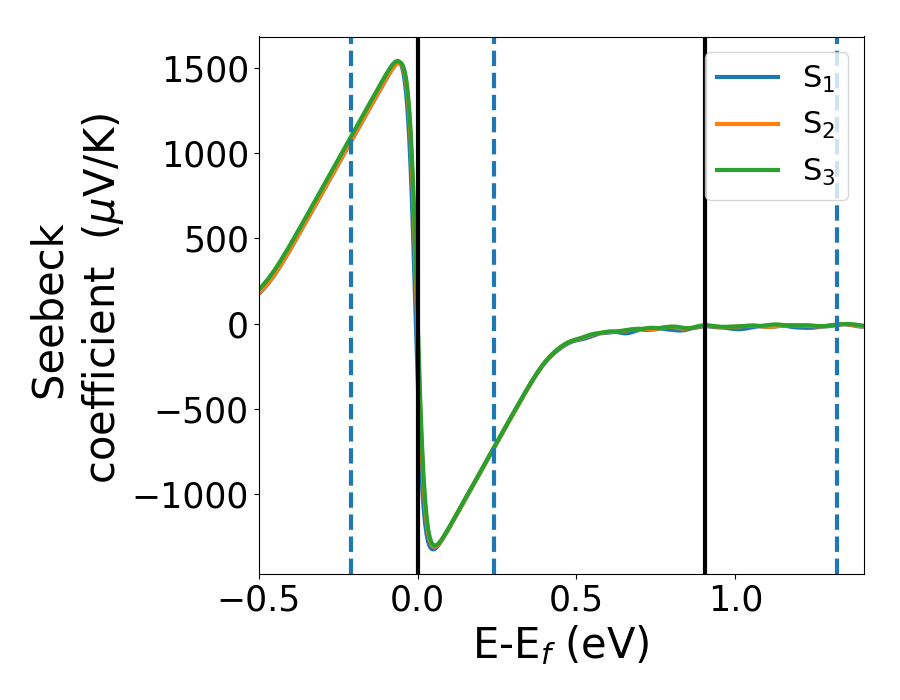

Thermoelectric properties are calculated using BoltzTrap code [Source-code]. Electron and hole mass tensors (useful for semiconductors and insulators mainly)are given at 300 K [Source-code]. Following plots show the Seebeck coefficient and ZT factor (eigenvalues of the tensor shown) at 300 K along three different crystallographic directions. Seebeck coefficient and ZT plots can be compared for three different temperatures available through the buttons given below. Generally very high Kpoints are needed for obtaining thermoelectric properties. We assume the Kpoints obtained from above convergence were sufficient [Source-code].

WARNING: Constant relaxation time approximation (10-14 s) and only electronic contribution to thermal conductivity were utilized for calculating ZT.

Electron mass tensor (me unit)

0.31 0.0 0.0
0.0 0.28 0.0
0.0 0.0 0.31

Hole mass tensor (me unit)

1.28 -0.0 0.0
-0.0 1.05 0.0
0.0 0.0 1.79

n-& p-type Seebeck coeff. (µV/K), power-factor (µW/(mK2)), conductivity (1/(*m)), zT (assuming lattice part of thermal conductivity as 1 W/(mK)) at 600K and 1020 cm-3 doping. For mono/multi-layer materials consider Seebeck-coeff only.)

Property xx yy zz
n-Seebeck -90.39 -81.25 -80.26
n-PowerFactor 483.73 521.53 709.17
n-Conductivity 73269.3 80961.92 86793.46
n-ZT 0.15 0.15 0.2
p-Seebeck 375.14 381.3 388.86
p-PowerFactor 2010.9 2312.76 2632.5
p-Conductivity 13298.44 15907.24 18706.14
p-ZT 1.1 1.22 1.38

Magnetic moment [Reference]

The orbital magnetic moment was obtained after SCF run. This is not a DFT+U calculation, hence the data could be used to predict zero or non-zero magnetic moment nature of the material only.

Total magnetic moment: 0.0 μB

Magnetic moment per atom: 0.0 μB

Magnetization
Elementsspdtot
Hg-0.0-0.00.0-0.0
Hg-0.0-0.00.0-0.0
Se0.00.00.00.0
Se0.00.00.00.0
O0.0-0.00.00.0
O-0.0-0.00.0-0.0
O-0.0-0.00.0-0.0
O0.0-0.00.0-0.0
O-0.0-0.00.0-0.0
O0.0-0.00.00.0
O0.0-0.00.0-0.0
O0.0-0.00.0-0.0

See also

Links to other databases or papers are provided below


mp-10796

ICSD-ID: 412403

AFLOW link

MP link
mp-10796
