Calculation of DTA Curve for Arbitrary Enthalpy vs. T Data
Input
Using Model of W.J. Boettinger and U. R. Kattner
and Notebook by K.-W. Moon
Introduction

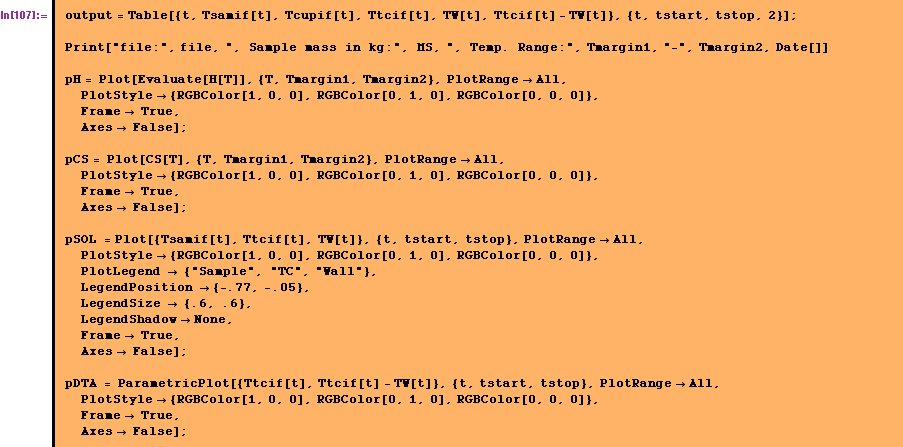

This Mathematica (Version 4.1) notebook file is used to predict Differential
Thermal Analysis Curves for a user-specified sample enthalpy - temperture
relation and for a user-specified set of instrument parameters.
Its primary use is to provide DTA users with information on what to expect
from DTA curves under known conditions so that real DTA data can be more
easily interpreted.

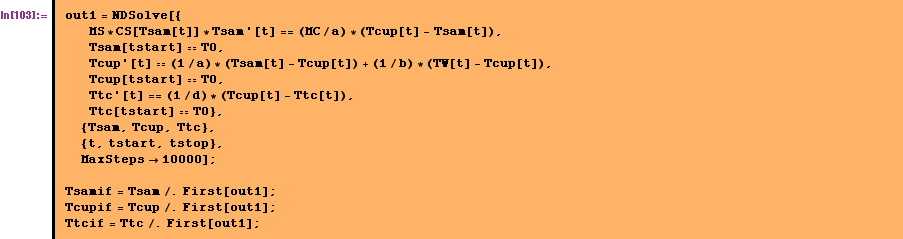

The notebook follows the model developed by W.J. Boettinger and
U. R. Kattner (Metall. Mater. Trans. A, Vol. 33A, No. 6, (2002) pp. 1779)

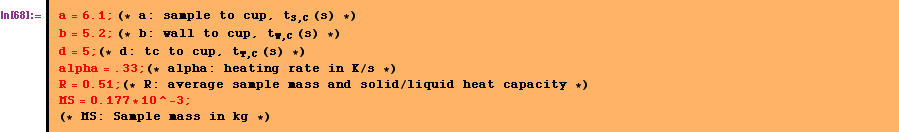

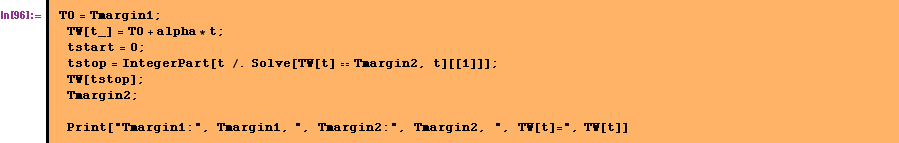

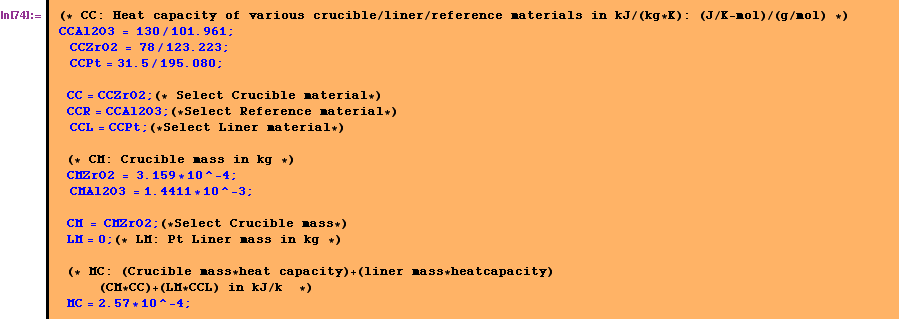

The instrument parameters are time constants, heating rate, crucible thermal
properties and sample mass. The instrument time
constants of this example notebook are determined from experiments on the
melting of pure Ni for a Perkin-Elmer DTA1700. (The user should
determine time constants and crucible thermal properties appropriate to

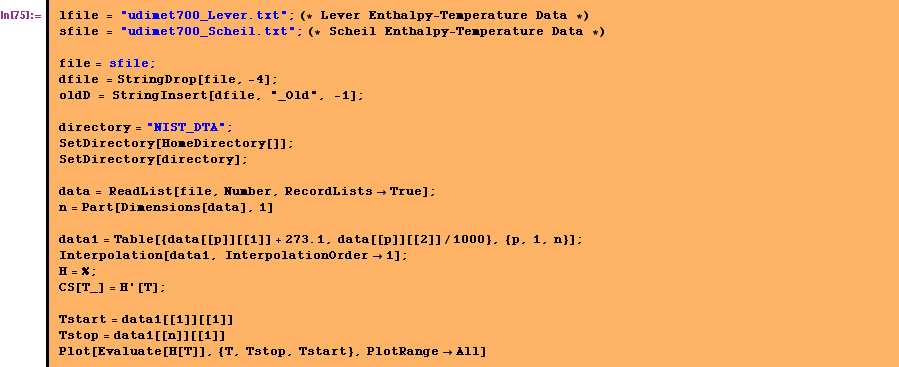

his/her particular instrument.) The enthalpy-temperature data used for this
example are obtained by thermodynamic calculation and stored simply as
two columns (temperature, enthalpy) in a ASCII file that is read by the
notebook script. Two enthalpy files are available for
Scheil and lever solidification of UDIMET 700. The calculations were
carried out with the NIST
solidification programs
and Thermotech's Ni-Data database (http://www.thermotech.co.uk/databases.html).
Disclaimer: Commercial
equipment and materials are identified in orer to adequately specify certain
procedures. In no case does such identification imply recommendation
or endorsement by the National Institute of Standards and Technology, nor
does it imply that the materials or equipment identified are necessarily
the best available for the purpose.
|
