µMAG Standard Problem #4 results
See the problem specification.
Disclaimer
µMAG could not succeed without the contributions
of colleagues working outside NIST. Although we value the
contributions made by these colleagues, NIST does not necessarily
endorse the views expressed or the data presented in the submitted
solutions shown below.
Solution directory
Summary Plots, µMAG Problem #4
For comparison of results from different laboratories, and even
for comparisons between runs, plots of the My
data highlight differences most effectively.

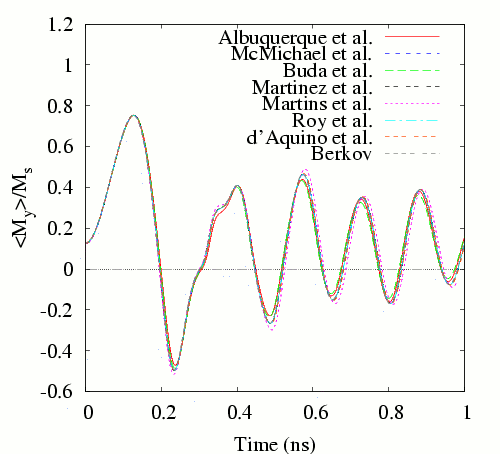

- Field 1, 170° from x-axis.

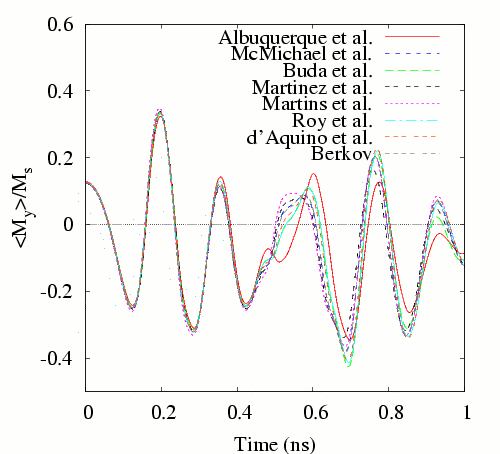

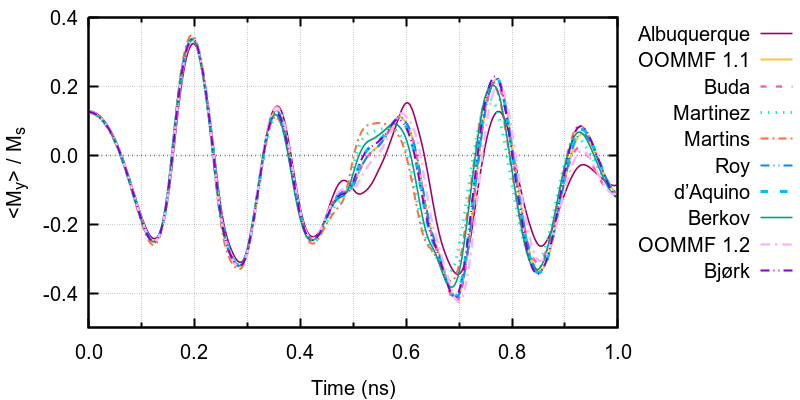

- Field 2, 190° from x-axis.

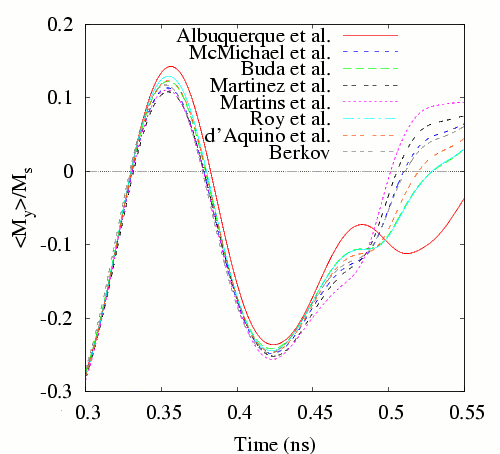

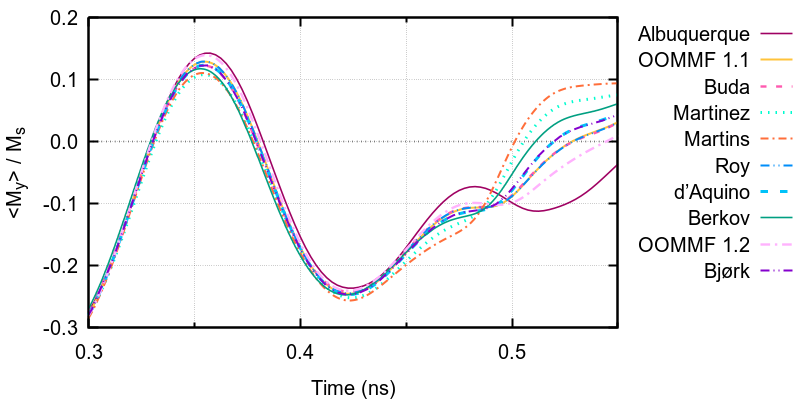

- Field 2, 190° from x-axis, showing detail
in the time range where the solutions begin to diverge.
