Submission #ts96b

Submission Description

Submission code: ts96b
Units (SI or Gaussian): Gaussian
Dimensionality of magnetizations (2D or 3D): 3D
Dimensionality of grid (2D or 3D): 3D
Average cell dimensions (length x width x height, in nm): 66.0, 67.3, 20.0
Total number of cells: 2878 (1000 nodes)
Initial state (uniform/random/canted): Uniform
Number of field states calculated (including +/-50 mT (+/-500 Oe)): 265
Canting angle of applied field from nominal axis (degrees): 1
Demag calculation technique: matrix calculation of potential from divM
Hardware: processor type/speed (MHz): 4 194 MHZ IP25 Processors
          main memory size (MB): 1280 Mbytes
          L1/L2 cache size (KB/KB): 64/1000
Execution time (minutes): 230 (900 min cpu) per loop
Remanent magnetization (m_x,m_y,m_z) (reduced units):
	X:(0.274111,0.088743,-0.000127)
	Y:(0.131727,0.862861, 0.000313)
Coercive field H_c (mT or Oe): X: 75 Oe, Y:53 Oe
Special conditions:
Other comments: Finite Elements

Jump to
Submission description | Hysteresis loops | Vector remanent images | Grayscale remanent pictures | Submission index | Comparison index

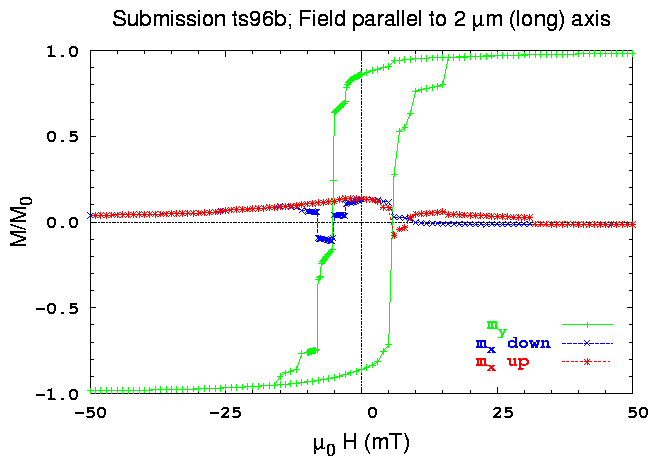

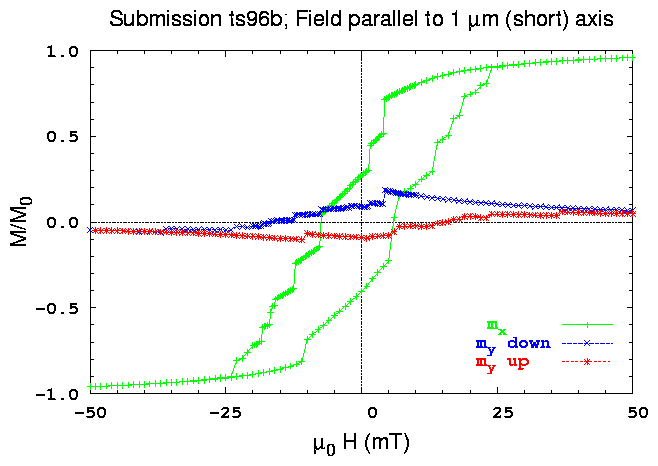

Hysteresis Loops

Jump to
Submission description | Hysteresis loops | Vector remanent images | Grayscale remanent pictures | Submission index | Comparison index

Vector Images at Remanence

Remanent state after saturation along the long axis (rotated ccw 90°):

Remanent state after saturation along the short axis (rotated ccw 90°):

Jump to
Submission description | Hysteresis loops | Vector remanent images | Grayscale remanent pictures | Submission index | Comparison index

Grayscale Pictures at Remanence

Remanent state after saturation along the long (y-) axis:
x-component: . y-component:

Remanent state after saturation along the short (x-) axis:
x-component: . y-component:
