Submission #pb97a

Submission Description

Submission code:  pb97a
Units (SI or Gaussian): SI
Dimensionality of magnetizations (2D or 3D): 2D
Dimensionality of grid (2D or 3D): 2D
Average cell dimensions (length x width x height, in nm): 20x20x20
Total number of cells: 5000
Initial state (uniform/random/other): random
Number of field states calculated (inc. +/-50 mT) for x-loop/y-loop: 100
Canting angle of applied field from nominal axis (degrees): 1
Demag calculation technique: FFT
Solver method : Energy min./Conj. grad.
Solver stopping criteria:  MAX{torque}< 1.0E-4
Hardware: processor type/speed (MHz): four IP27/195
          main memory size (MB): 1024
          L1/L2 cache size (KB/KB): 32/32/4096
Execution time (minutes) x-loop/y-loop: 99/85
Remanent magnetization (m_x,m_y,m_z) (reduced units), x-loop: .60 .53 0.0
                                                      y-loop: .155 .862 0.0
Coercive field H_c (mT or Oe), x-loop/y-loop:  3.4/4.9
Special conditions:
Other comments:

Jump to
Submission description | Hysteresis loops | Vector remanent images | Grayscale remanent pictures | Submission index | Comparison index

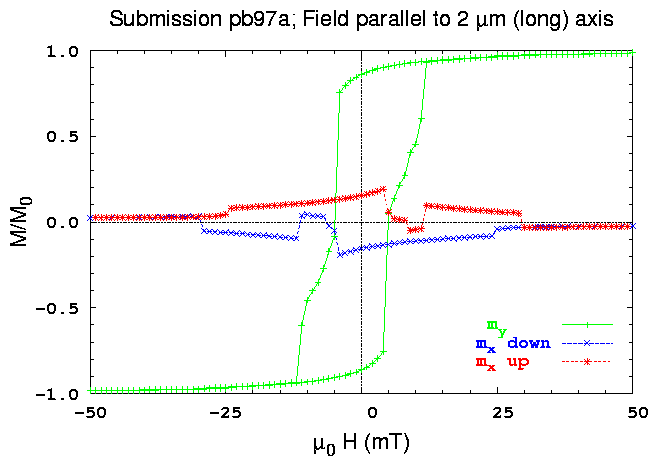

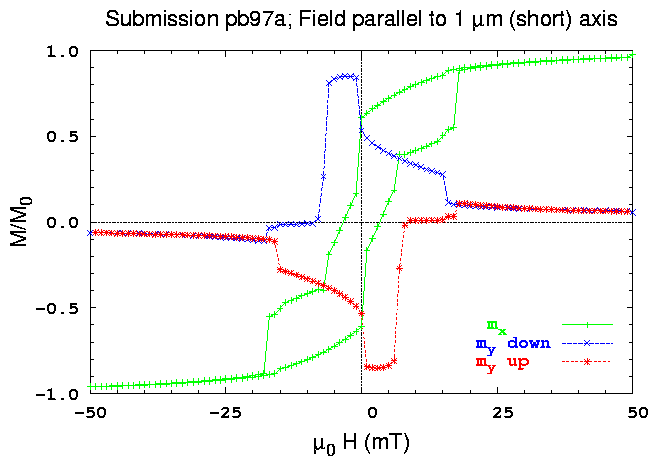

Hysteresis Loops

Jump to
Submission description | Hysteresis loops | Vector remanent images | Grayscale remanent pictures | Submission index | Comparison index

Vector Images at Remanence

Remanent state after saturation along the long axis (rotated ccw 90°):

Remanent state after saturation along the short axis (rotated ccw 90°):

Jump to
Submission description | Hysteresis loops | Vector remanent images | Grayscale remanent pictures | Submission index | Comparison index

Grayscale Pictures at Remanence

Remanent state after saturation along the long (y-) axis:
x-component: . y-component:

Remanent state after saturation along the short (x-) axis:
x-component: . y-component:
