Submission #mo96a

The original (raw) submission is available, or you may jump to
Submission description | Hysteresis loops | Vector remanent images | Grayscale remanent pictures | Submission index | Comparison index

Submission Description

Submission code: mo96a
Units (SI or Gaussian): SI
Dimensionality of magnetizations (2D or 3D): 3D
Dimensionality of grid (2D or 3D): 2D
Average cell dimensions (length x width x height, in nm): 20x20x20
Total number of cells: 5000
Initial state (uniform/random/other): uniform
Number of field states calculated (inc. +/-50 mT) for x-loop/y-loop: 133/133
Canting angle of applied field from nominal axis (degrees): +1
Demag calculation technique: FFT
Hardware: processor type/speed (MHz): 75MHz IP26 (MIPS R8000/R8010)
          main memory size (MB): 128
          L1/L2 cache size (KB/KB): 32/2048
Execution time (minutes) x-loop/y-loop: 1600/1000
Remanent magnetization (m_x,m_y,m_z) (reduced units), x-loop: ( 0.15,0.87,0.00)
                                                      y-loop: (-0.15,0.87,0.00)
Coercive field H_c (mT or Oe), x-loop/y-loop: 2.5/4.9 mT
Special conditions:
Other comments:

Jump to
Submission description | Hysteresis loops | Vector remanent images | Grayscale remanent pictures | Submission index | Comparison index


Hysteresis Loops

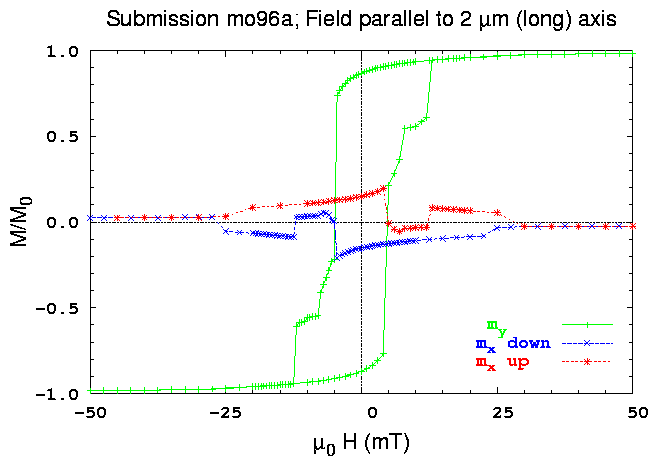

Y-axis hysteresis loop

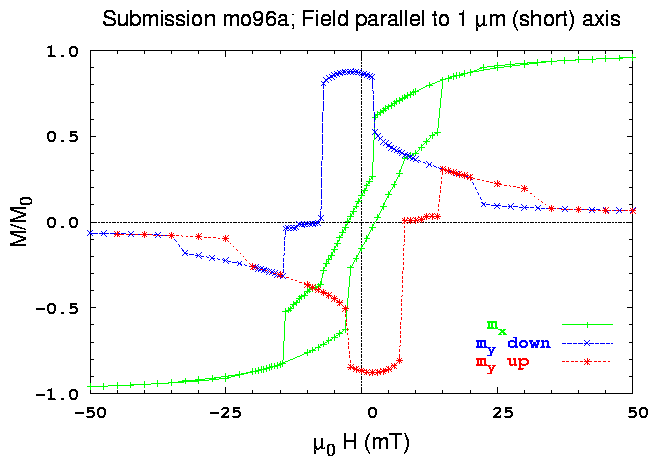

X-axis hysteresis loop

Jump to
Submission description | Hysteresis loops | Vector remanent images | Grayscale remanent pictures | Submission index | Comparison index


Vector Images at Remanence

Remanent state after saturation along the long axis (rotated ccw 90°):
S-state

Remanent state after saturation along the short axis (rotated ccw 90°):
S-state

Jump to
Submission description | Hysteresis loops | Vector remanent images | Grayscale remanent pictures | Submission index | Comparison index


Grayscale Pictures at Remanence

Remanent state after saturation along the long (y-) axis:
x-component: S-state. y-component: S-state

Remanent state after saturation along the short (x-) axis:
x-component: S-state. y-component: S-state
