Hysteresis Loop Comparisons

Jump to
Long (y) axis loops | Short (x) axis loops | Submission index | Comparison index

Field parallel to long (y-) axis

Magnetization component parallel to field:

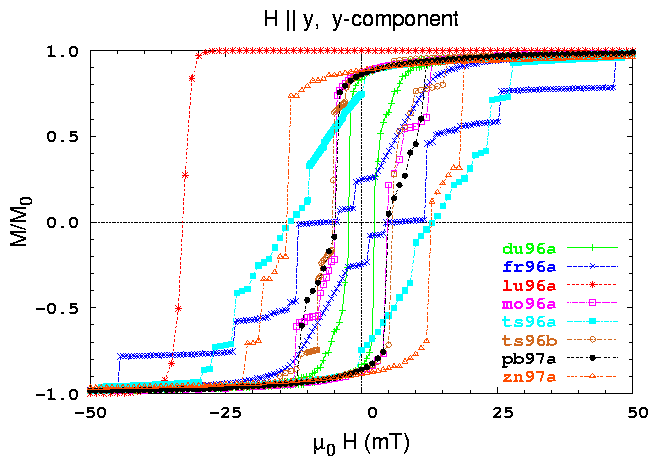

Hysteresis loops, M sub y, H sub y

Magnetization component perpendicular to field:

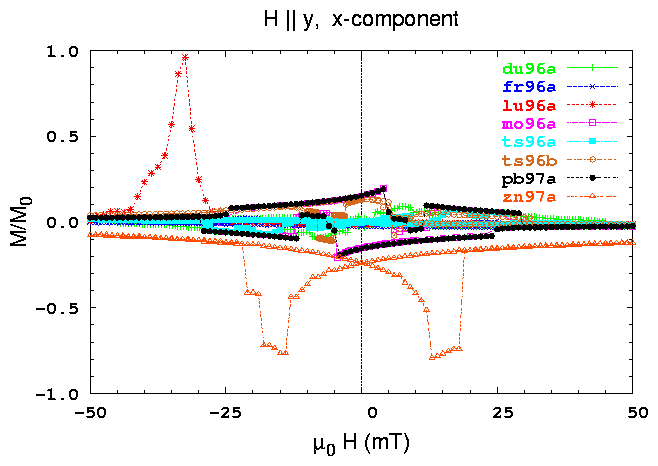

Hysteresis loops, M sub x, H sub y

Jump to
Long (y) axis loops | Short (x) axis loops | Submission index | Comparison index


Field parallel to short (x-) axis

Magnetization component parallel to field:

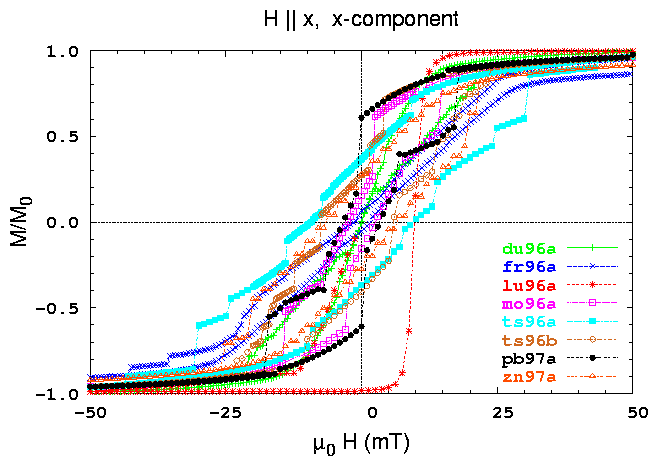

Hysteresis loops, M sub x, H sub x

Magnetization component perpendicular to field:

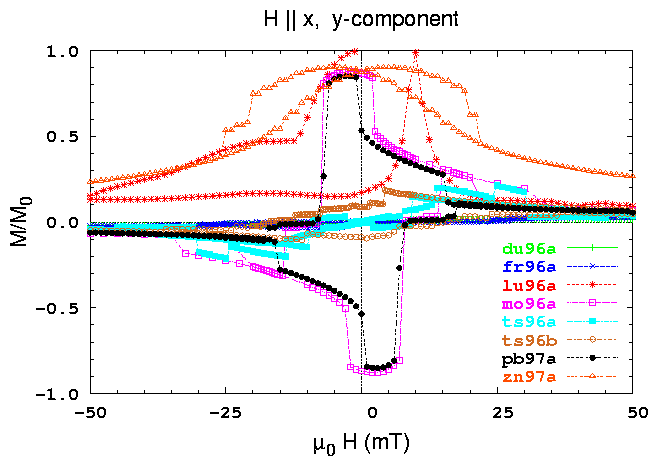

Hysteresis loops, M sub y, H sub x


Jump to
Long (y) axis loops | Short (x) axis loops | Submission index | Comparison index
