Submission Description

Submission code: fr96a
Units (SI or Gaussian): SI
Dimensionality of magnetizations (2D or 3D): 2D
Dimensionality of grid (2D or 3D): 2D
Average cell dimensions (length x width x height, in nm): 50.0 x 50.0 x 20.0
Total number of cells: 800
Initial state (uniform/random/canted): uniform positive saturation magnetization
Number of field states calculated (including +/-50 mT (+/-500 Oe)): 396
Canting angle of applied field from nominal axis (degrees): +1
Demag calculation technique: Direct calculation
Hardware: processor type/speed (MHz): 50MHz SuperSPARC
          main memory size (MB): 48 (per processor)
          L1/L2 cache size (KB/KB): 36KB on-chip cache per processor
Execution time (minutes): x-loop (short):	1036
                          y-loop (long):	1142
Remanent magnetization (m_x,m_y,m_z) (reduced units),
                          x-loop (short): (0.065,0.000012,0)
                          y-loop (long):  (-0.023,0.25,0)
Coercive field H_c (mT or Oe): x-loop (short):  15.1 Oe
                               y-loop (long):	77.5 Oe
Special conditions:
Other comments: square cells
	PostScript files have y-axis horizontal, x-axis vertical.
	x-loop not saturated at -500 Oe

Jump to
Submission description | Hysteresis loops | Vector remanent images | Grayscale remanent pictures | Submission index | Comparison index


Hysteresis Loops

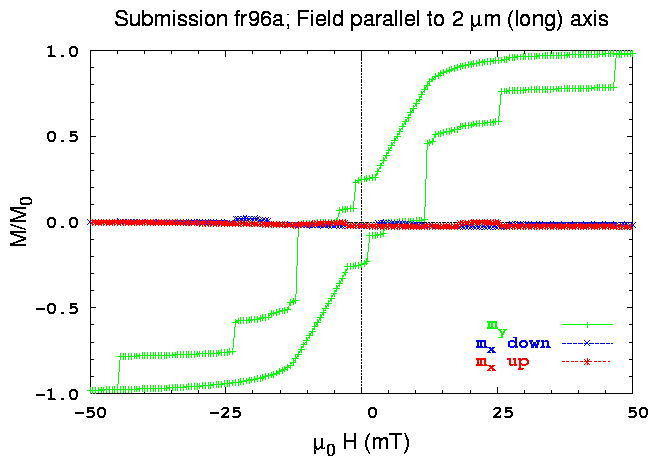

Y-axis hysteresis loop

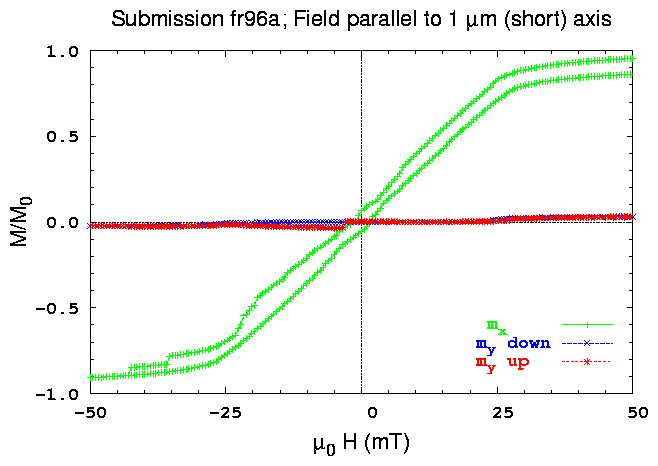

X-axis hysteresis loop
