OOF2: The Manual

Name

MonoclinicRank4TensorCij — A rank 4 tensor with monoclinic symmetry

Synopsis

MonoclinicRank4TensorCij(c11, c12, c13, c15, c22, c23, c25, c33, c35, c44, c46, c55, c66)

Description

A MonoclinicRank4TensorCij is a fourth rank tensor with monoclinic rotational symmetry, expressed in Voigt notation. The arguments c11, c12, etc, are real numbers.

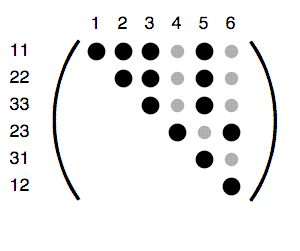

Figure 6.153. Structure of a Monoclinic Fourth Rank Tensor

Monoclinic rank 4 tensor diagram

Structure of a monoclinic rank 4 tensor. For an explanation of the symbols, see Figure 6.57.
