Vector Plot Remanent State Comparisons

Each image below includes links to the raw data used to generate it, in either OVF or SVF file formats. Both formats are understood by the OOMMF project's mmDisp vector display program, which can be set up as a WWW browser helper app. (Thanks to Jason Eicke for putting together the OVF and SVF files.)

Jump to Long axis vector plots | Short axis vector plots | Submission index | Comparison index


Remanent state after saturation along the long (y-) axis (rotated ccw 90°)

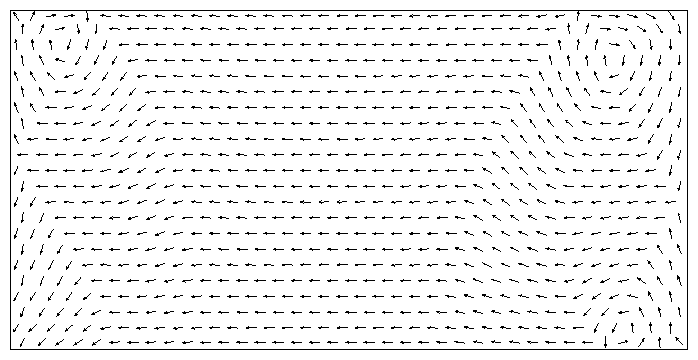

Submission du96a (OVF, SVF):
Multi-domain structure with vortices

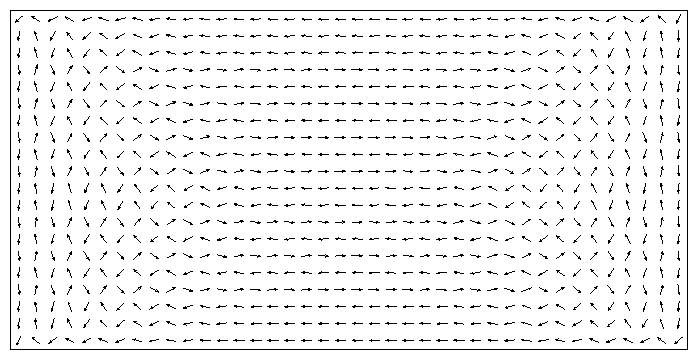

Submission fr96a (OVF, SVF):
Domain pattern with fine structure

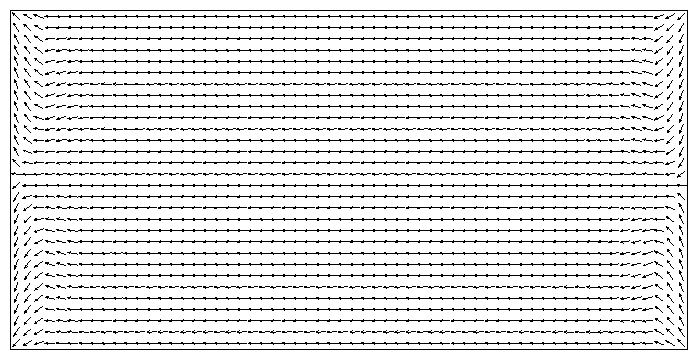

Submission lu96a (OVF, SVF):
Nearly uniform state with symmetric end domains

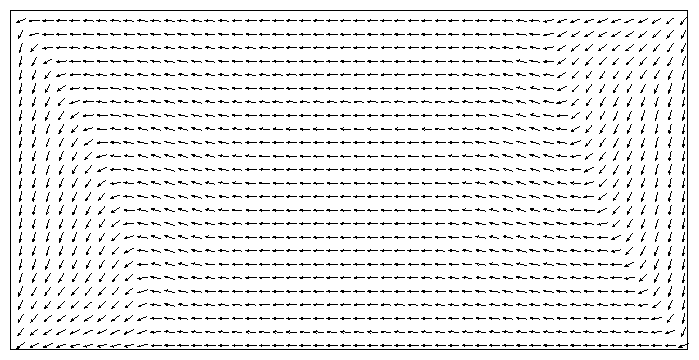

Submission mo96a (OVF, SVF):
S-state

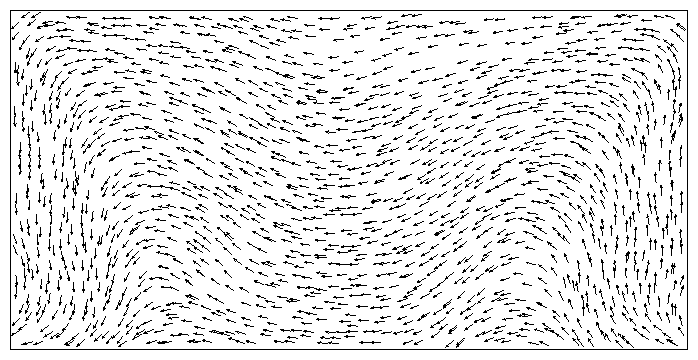

Submission ts96a (OVF, SVF):
C-state

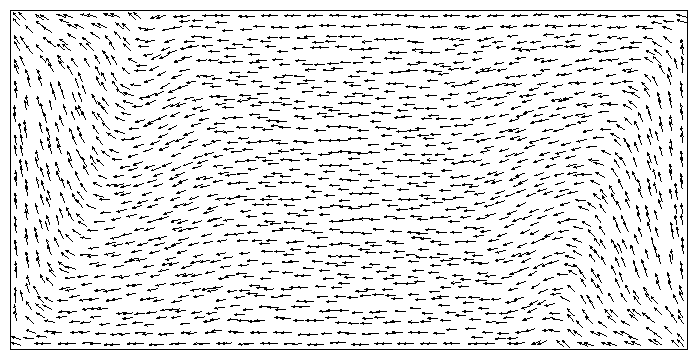

Submission ts96b (OVF, SVF):
S-state

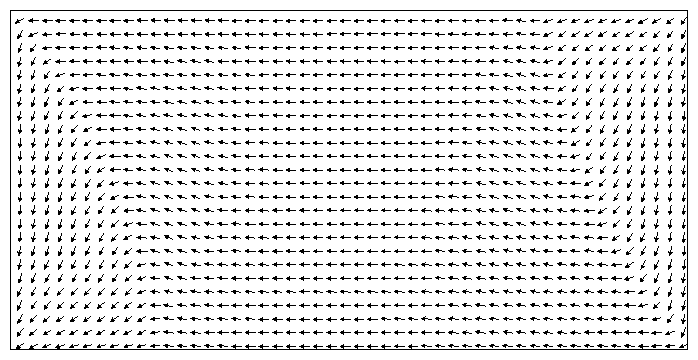

Submission pb97a (OVF, SVF):
S-state

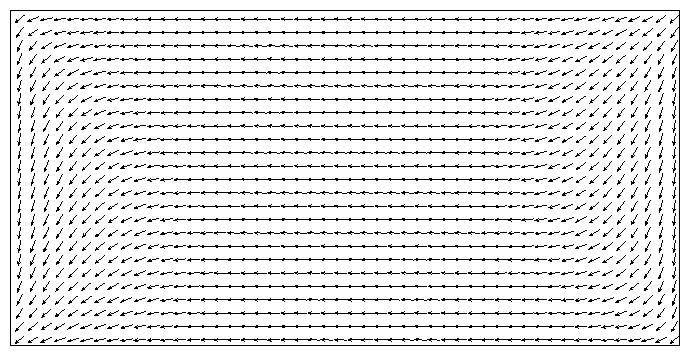

Submission zn97a (OVF, SVF):
S-state

Jump to Long axis vector plots | Short axis vector plots | Submission index | Comparison index


Remanent state after saturation along the short (x-) axis (rotated ccw 90°)

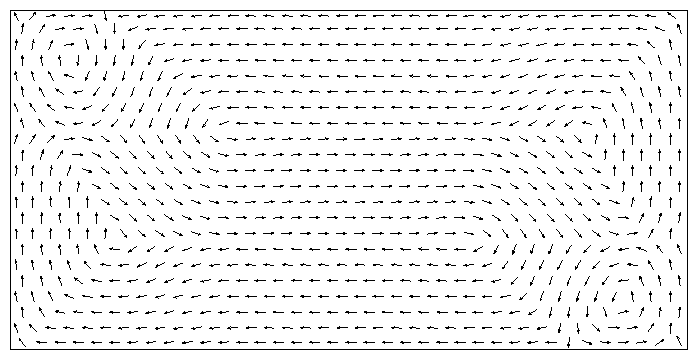

Submission du96a (OVF, SVF):
Multi-domain structure with vortices

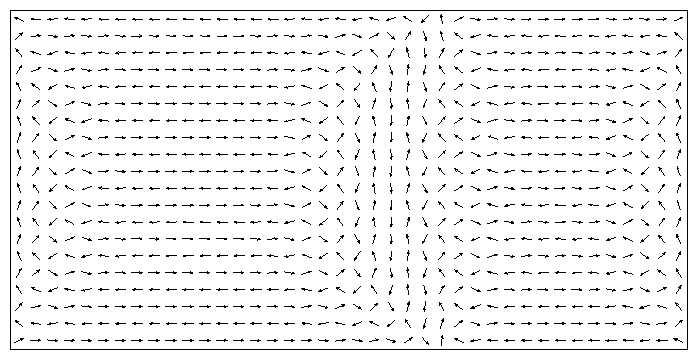

Submission fr96a (OVF, SVF):
Domain pattern with fine structure

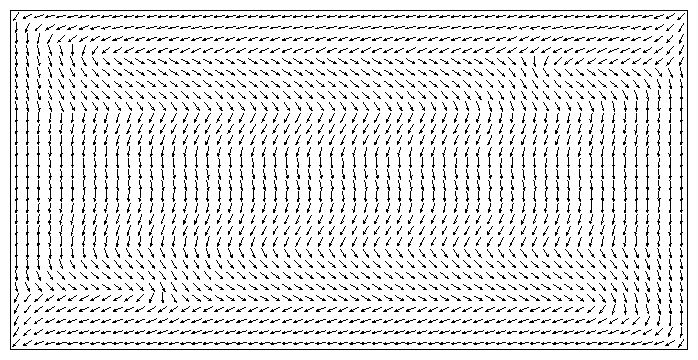

Submission lu96a (OVF, SVF):
Multi-domain structure

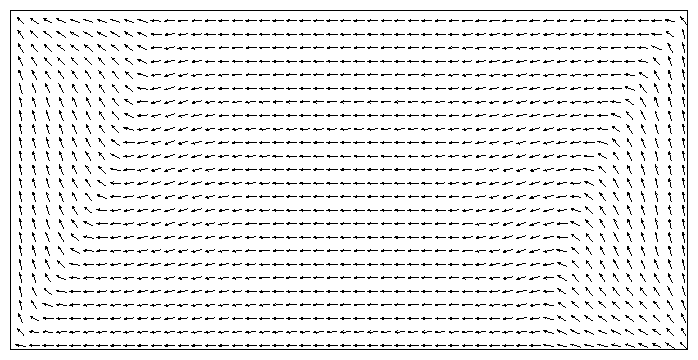

Submission mo96a (OVF, SVF):
S-state

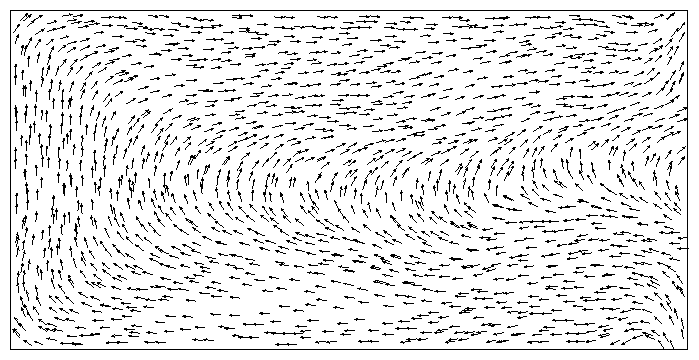

Submission ts96a (OVF, SVF):
Three-domain state

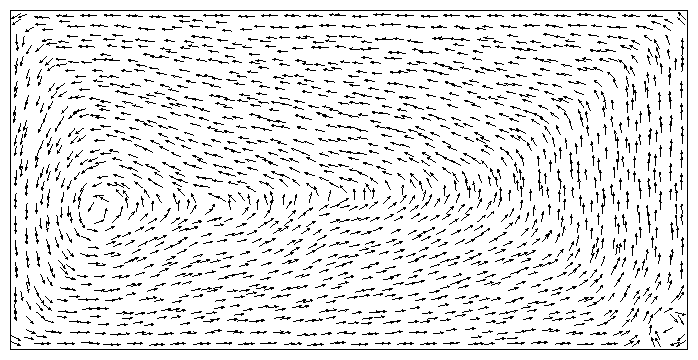

Submission ts96b (OVF, SVF):
Four-domain state

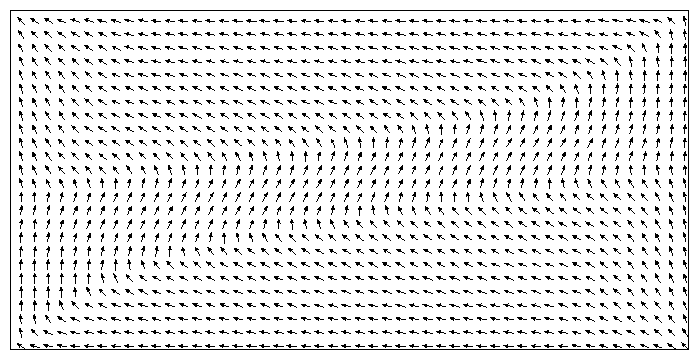

Submission pb97a (OVF, SVF):
Sideways S-sate

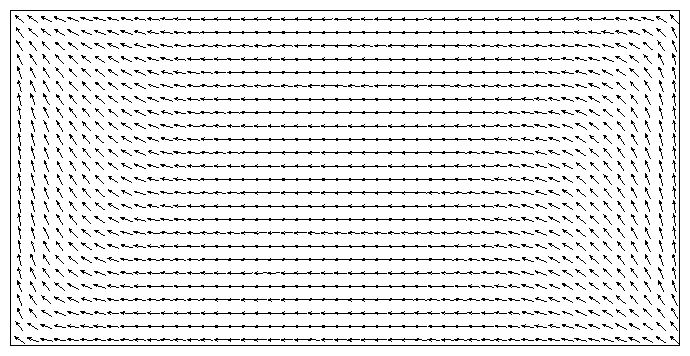

Submission zn97a (OVF, SVF):
S-state


Jump to Long axis vector plots | Short axis vector plots | Submission index | Comparison index
