Submission code: mo96a Units (SI or Gaussian): SI Dimensionality of magnetizations (2D or 3D): 3D Dimensionality of grid (2D or 3D): 2D Average cell dimensions (length x width x height, in nm): 20x20x20 Total number of cells: 5000 Initial state (uniform/random/other): uniform Number of field states calculated (inc. +/-50 mT) for x-loop/y-loop: 133/133 Canting angle of applied field from nominal axis (degrees): +1 Demag calculation technique: FFT Hardware: processor type/speed (MHz): 75MHz IP26 (MIPS R8000/R8010) main memory size (MB): 128 L1/L2 cache size (KB/KB): 32/2048 Execution time (minutes) x-loop/y-loop: 1600/1000 Remanent magnetization (m_x,m_y,m_z) (reduced units), x-loop: ( 0.15,0.87,0.00) y-loop: (-0.15,0.87,0.00) Coercive field H_c (mT or Oe), x-loop/y-loop: 2.5/4.9 mT Special conditions: Other comments:
Jump to
Submission description |

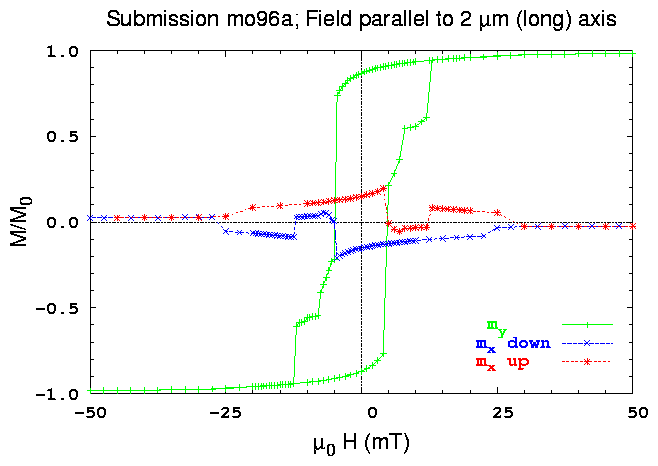

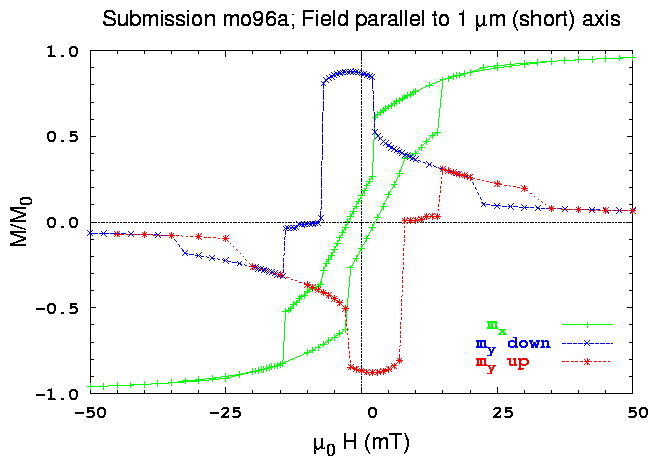

Hysteresis loops |
Vector remanent images |
Grayscale remanent pictures |
Submission index |
Comparison index
Jump to
Submission description |
Hysteresis loops |
Vector remanent images |
Grayscale remanent pictures |
Submission index |
Comparison index

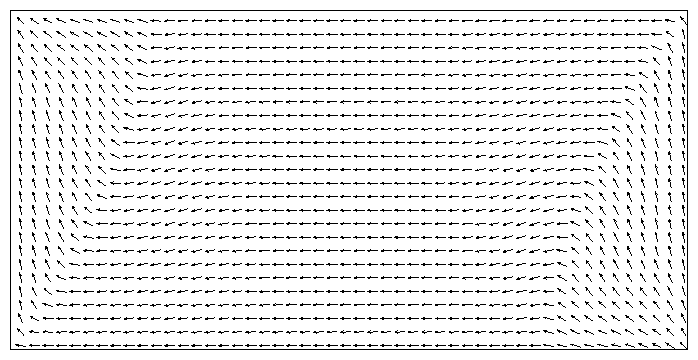

Remanent state after saturation along the long axis (rotated ccw 90°):

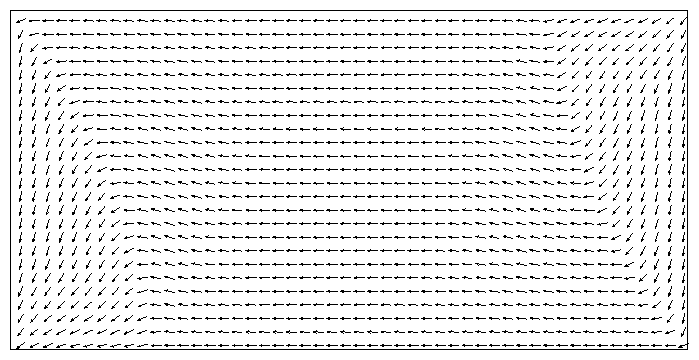

Remanent state after saturation along the short axis (rotated ccw 90°):
Jump to
Submission description |
Hysteresis loops |
Vector remanent images |
Grayscale remanent pictures |
Submission index |
Comparison index
Remanent state after saturation along the long (y-) axis:
x-component: .
y-component:
Remanent state after saturation along the short (x-) axis:
x-component: .
y-component:
